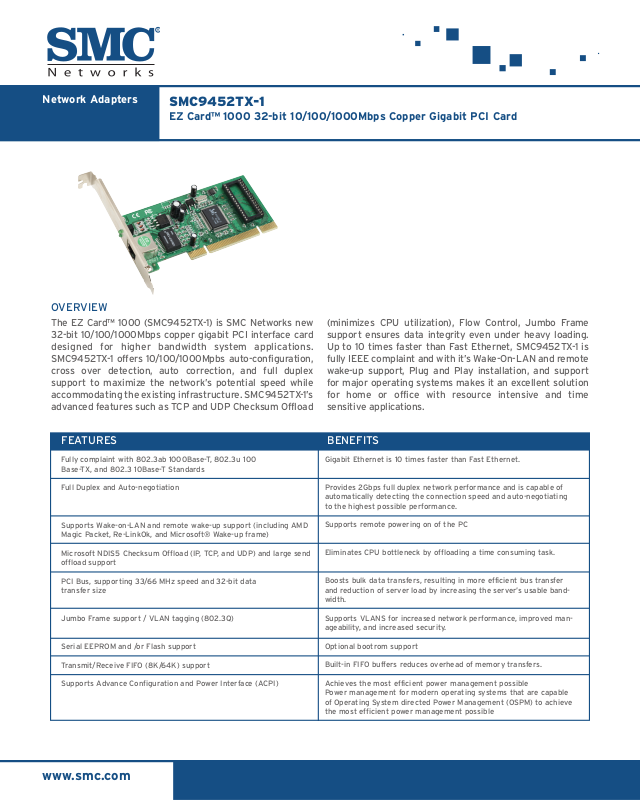

Smc 9452TX-1 DATASHEET
Network Adapters
SMC9452TX-1
EZ Card™ 1000 32-bit 10/100/1000Mbps Copper Gigabit PCI Card
www.smc.com
The EZ Card™ 1000 (SMC9452TX-1) is SMC Networks new
32-bit 10/100/1000Mbps copper gigabit PCI interface card
designed for higher bandwidth system applications.
SMC9452TX-1 offers 10/100/1000Mpbs auto-configuration,
cross over detection, auto correction, and full duplex
support to maximize the network’s potential speed while
accommodating the existing infrastructure. SMC9452TX-1’s
advanced features such as TCP and UDP Checksum Offload
(minimizes CPU utilization), Flow Control, Jumbo Frame
support ensures data integrity even under heavy loading.
Up to 10 times faster than Fast Ethernet, SMC9452TX-1 is
fully IEEE complaint and with it’s Wake-On-LAN and remote
wake-up support, Plug and Play installation, and support
for major operating systems makes it an excellent solution
for home or office with resource intensive and time
sensitive applications.
FEATURES
Fully complaint with 802.3ab 1000Base-T, 802.3u 100
Base-TX, and 802.3 10Base-T Standards
Full Duplex and Auto-negotiation
Supports Wake-on-LAN and remote wake-up support (including AMD
Magic Packet, Re-LinkOk, and Microsoft® Wake-up frame)
Microsoft NDIS5 Checksum Offload (IP, TCP, and UDP) and large send
offload support
PCI Bus, supporting 33/66 MHz speed and 32-bit data
transfer size
Jumbo Frame support / VLAN tagging (802.3Q)
Serial EEPROM and /or Flash support
Transmit/Receive FIFO (8K/64K) support
Supports Advance Configuration and Power Interface (ACPI)
BENEFITS
OVERVIEW
Gigabit Ethernet is 10 times faster than Fast Ethernet.
Provides 2Gbps full duplex network performance and is capable of
automatically detecting the connection speed and auto-negotiating
to the highest possible performance.
Supports remote powering on of the PC
Eliminates CPU bottleneck by offloading a time consuming task.
Boosts bulk data transfers, resulting in more efficient bus transfer
and reduction of server load by increasing the server’s usable bandwidth.
Supports VLANS for increased network performance, improved manageability, and increased security.
Optional bootrom support
Built-in FIFO buffers reduces overhead of memory transfers.
Achieves the most efficient power management possible
Power management for modern operating systems that are capable
of Operating System directed Power Management (OSPM) to achieve
the most efficient power management possible
TECHNICAL SPECIFICATIONS SMC9452TX-1
NETWORK INTERFACES
• 10Base-T, 100Base-TX, and 1000Base-T
BUS INTERFACES
• PCI v2.2, 32-bit, 33/66MHz
OPERATING SYSTEMS
• Windows 98/Me/NT/2000/XP/Vista
• Netware 5.x
• Linux 2.2.x or later
• FreeBSD
STANDARDS
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1Q
• PCI v2.2
• ACPI v1.0/ 2.0
LED INDICATION
• Link/Activity
• 1000Mbps
COMPLIANCES
• FCC Part 15, Class B
• CE Mark Class B
• C-Tick
POWER CONSUMPTION
• 5W (Max)
HUMIDITY
• Non-condensing 10% to 90%
TEMPERATURE
• Operating: 32 to 131 F° / 0 to 55 C°
• Storage: -4 to 149 F° / -20 to 65 C°
WARRANTY
• Limited Lifetime
DIMENSIONS
• 4.72 x 2.37 in (without bracket)
• 120 x 60.3 mm (without bracket)
WEIGHT
• 1.89 oz
• 53.58 g
