Smc 7904WBRA4 User Guide

54Mbps Wireless Router with built-in ADSL Modem

From SMC’s line of award-winning connectivity solutions

March 2009

R.01 f/w 1.0

Information furnished is believed to be accurate and reliable. However, no responsibility is assumed by our company for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of our company. We reserve the right to change specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.

Warranty and

Prodcut Registration

To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

iii

Compliances

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

To assure continued compliance, (example - use only shielded interface cables when

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter..

FCC - Part 68

This equipment complies with Part 68 of the FCC rules. This equipment comes with a label attached to it that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following jacks: RJ-11.

The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area

IMPORTANT NOTE:

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.

Industry Canada Statement

Operation is subject to the following two conditions:

1. This device may not cause interference and

2. This device must accept any interference, including interference that may cause undesired operation of the device

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

This device has been designed to operate with an antenna having maximum gain of 1.5dBi.

Any antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication.

NCC Statement

依據低功率電波幅射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者不得擅自變更頻率、加大功率或變更原設計之特性及功能

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即使用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波幅射性電機設備之干擾。

Countries of Operation & Conditions of Use in the European Community

SMC contact for these products in Europe is:

SMC Networks Spain, S.L. Edificio Conata II, Group CTSG Fructuos Gelabert 6-8 2o2a 08970 Sant Joan Despi, Barcolona,Spain

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The folloing test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

- EN 61000-3-2: 2000+A2:2005

- EN 61000-3-3:1995 + A1:2001+A2:2005

- EN 55024:1998 + A1:2001+A2:2003

- EN 55022:1998 + A1:2000 + A2:2003

EN 301 489-1 V1.6.1 (2004-12)

EN 301 489-17 V1.2.1 (2002-08)

EN 300 386 V1.3.3 (2005-04)

EN 60950-1:2006

EN 300 328 V1.7.1 (2006-10)

EN 50932:2004

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

The official CE certificate of conformity can be downloaded by selecting the relevant model/ part number from www.smc.com -> support -> download"

Declaration of Conformity in Languages of the European Community

[Czech]

[Danish]

Společnost SMC Networks tímto prohlašuje, že toto rádiové zařízení LAN je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Oficiální ES prohlášení o shodě je uvedeno v příslušné části k produktu na webu http://www.smc.com

SMC Networks erklærer herved, at følgende Radio LAN-enhed overholder de væsentlige krav og andre relevante bestemmelser i direktiv 1999/5/EF. Den officielle EU-overensstemmelseserklæring er tilgængelig under det relevante produktafsnit på følgende webadresse:

http://www.smc.com.

[German]

Hiermit erklärt SMC Networks, dass sich dieses Wireless LAN Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Die offizielle EC-Declaration of Conformity finden Sie im Internet unter http://www.smc.com unter der entsprechenden

Produktkategorie.

[Estonian]

[English]

[Spanish]

[Greek]

Käesolevaga kinnitab SMC Networks, et see Radio LAN seade vastab direktiivi 1995/5/EÜ põhinõuetele ja teistele asjakohastele sätetele. Ametliku EÜ vastavusdeklaratsiooni leiate vastavast tootejaotisest aadressil http://www.smc.com.

Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com.

Por medio de la presente SMC Networks declara que el Radio LAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com

Με την παρούσα, η SMC Networks, δηλώνει ότι η συσκευή ασύρµατου τοπικού δικτύου συµµορφώνεται µε τις ουσιώδεις απαιτήσεις και τις λοιπές σχετικές διατάξεις της Οδηγίας 1999/5/EΚ. Η επίσηµη δήλωση συµµόρφωσης EΚ παρέχεται στην αντίστοιχη ενότητα προϊόντων, στην ιστοσελίδα

http://www.smc.com.

[French]

[Italian]

[Latvian]

[Lithuanian]

Par la présente SMC Networks déclare que l'appareil Radio LAN device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. La déclaration de conformité officielle peut être trouvée sur notre site internet http://www.smc.com dans la rubrique Produits.

Con la presente SMC Networks dichiara che questo Radio LAN device è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. La Dichiarazione di conformità CE ufficiale è disponibile nella sezione dedicata al rispettivo prodotto sul sito Web

http://www.smc.com.

Ar šo SMC Networks deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītiem noteikumiem. Oficiālā EK atbilstības deklarācija ir atrodama attiecīgā produkta sadaļā tīmeklī

http://www.smc.com.

Šiuo „SMC Networks“ deklaruoja, kad šis radijo LAN įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Oficialią jo EB atitikties deklaraciją galima rasti atitinkamų gaminių skyriuje šiame tinklalapyje:

http://www.smc.com.

[Dutch]

Hierbij verklaart SMC Networks dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Het

vii

officiële EC- gelijkvormigheidattest kan men vinden op de internetsite http://www.smc.com onder de betrokken productcategorie.

[Maltese]

[Hungarian]

[Polish]

[Portuguese]

B’dan, SMC Networks, tiddikjara li dan it-tagħmir LAN tar-Radju huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħra ta’ Direttiva 1999/5/KE. Id-Dikjarazzjoni ta’ Konformità uffiċjali tal-KE tinsab fit-taqsima korrispondenti fis-sit ta’ l-Internet

http://www.smc.com.

Az SMC Networks kijelenti, hogy a Radio LAN eszköz megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak. A hivatalos EC megfelelőségi nyilatkozat megtalálható a vonatkozó termék ismertetőjénél, a következő címen: http://www.smc.com

Firma SMC Networks niniejszym oświadcza, że urządzenie Radio LAN jest zgodne z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Oficjalna Deklaracja zgodności UE znajduje się w odpowiedniej sekcji produktu w witrynie http://www.smc.com.

A SMC Networks declara que este dispositivo de LAN de Rádio está em conformidade com os requisitos essenciais e com outras provisões relevantes da Directiva 1999/5/CE. A Declaração de Conformidade CE oficial encontra-se na secção correspondente do produto na Web, http://www.smc.com.

[Slovenian]

[Slovak]

[Finnish]

[Swedish]

Družba SMC Network izjavlja, da je naprava Radio LAN skladna z bistvenimi zahtevami in drugimi ustreznimi predpisi direktive 1999/5/ES. Za uradno izjavo o skladnosti ES glejte razdelek za ustrezni izdelek na spletni strani

http://www.smc.com.

Spoločnosť SMC Networks týmto vyhlasuje, že toto zariadenie Radio LAN spĺňa základné požiadavky a ďalšie príslušné ustanovenia smernice 1999/5/ES. Oficiálne prehlásenie ES o zhode je uvedené v sekcii príslušného produktu v lokalite

http://www.smc.com.

SMC Networks vakuuttaa täten, että Radio LAN device

-tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. EY:n virallinen vaatimustenmukaisuusvakuutus on tuotteen kohdalla Web-sivustossa http://www.smc.com.

Härmed intygar SMC Networks att denna Radio LAN-apparat uppfyller de väsentliga egenskapskrav och övriga relevanta bestämmelser i direktiv 1999/5/EG. Den officiella EG-försäkran om överensstämmelse finns under motsvarande produktavsnitt på http://www.smc.com.

[Icelandic]

Hér með lýsir SMC Networks því yfir að þessi Radio LAN búnaður er í samræmi við grunnkröfur og aðrar viðeigandi kröfur, sem gerðar eru í tilskipun 1999/5/EB. Opinberu

viii

EB-samræmisyfirlýsinguna er að finna í viðeigandi hluta um þennan búnað á vefsetrinu http://www.smc.com.

[Norwegian]

SMC Networks erklærer herved at Radio LAN-enheten er i samsvar med de grunnleggende kravene og øvrige relevante krav i direktiv 1999/5/EF. Denne offisielle EU-konformitetserklæringen finnes under korresponderende produktseksjon på Internett: http://www.smc.com.

Countries of Operation & Conditions of Use in EC/ EFTA member states

[English]

This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in all notified EC and EFTA member states. In accordance with article 6.4 of the R&TTE Directive 1999/5/EC the following EC/ EFTA member states have been notified: Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxembourg, Netherlands, Norway, Spain, Sweden, Switzerland, United Kingdom, Portugal, Greece, Ireland, Iceland. Requirements for outdoor operation, like license requirements and allowed channels of operation apply in some countries. Please contact your local regulation authority or SMC Networks for details on current restrictions for outdoor use.

[French]

[Dutch]

Ce produit est un appareil radio LAN transceiver de 2.4 GHz destiné aux PME et à l’utilisation domestique dans tous les pays certifiés conformes aux conditions de l’EU et de l’EFTA. En accord avec l’article 6.4 de la R&TTE directive 1999/5/EC, the membres de la EU et de l’EFTA sont les suivants : Autriche, Belgique, Danemark, finalnde, France, Allemagne, Italie, Luxembourg, Pays-Bas, Norvège, Espagne, Suède, Suisse, Royaume-Uni, Portugal, Grèce, Irelande, Icelande. Des conditions sont appliquées à certains pays pour l’utilisation en extérieur, tels que des licences spécífiques et des canaux d’opération. Veuillez contacter votre autorité locale ou SMC Networks pour plus de détails quant aux restrictions actuelles concernant l’utilisation en extérieur.

Dit toestel is een 2.4 Ghz draadloze Lan transceiver, bestemd voor gebruik binnen huis en kantoor in alle geïnformeerde lidstaten van de EC en de EFTA. In overeenstemming met artikel 6.4 van de R&T TE Directive 1999/5/EC zijn de volgende EC/EFTA lidstaten verwittigd: België, Denemarken, Duitsland, Finland, Frankrijk,Griekenland, Ierland, IJsland, Italië, Luxemburg, Nederland, Noorwegen,Oostenrijk, Portugal, Spanje , Verenigd Koninkrijk, Zweden, Zwitserland. Benodigdheden voor gebruik buiten, zoals gebruiksvergunningen en toegelaten werkkanalen zijn van toepassing in sommige landen. Gelieve uw lokale instantie of SMC Networks te contacteren voor details op huidige beperkingen voor gebruik in buitenlucht.

[Spanish]

[German]

Este aparato es un transmisor inalámbrico de 2.4 GHz, previsto para el uso interior en domicilios y Pymes en todos los Estados de la CE y la EFTA notificados. De acuerdo con el artículo 6.4 de la Directiva R&TTE 1999/5/EC los siguientes estados de la CE y de la EFTA han sido notificados: Austria, Bélgica, Dinamarca, Finlandia, Francia, Alemania, Italia, Luxemburgo, Países Bajos, Noruega, España, Suecia, Suiza, Reino Unido, Portugal, Grecia, Irlanda, Islandia. Los requisitos para su uso exterior, como requerimiento de licencia y canales de operación permitidos se aplican en algunos países. Por favor contacte la autoridad reguladora local o SMC Networks para más detalles en relación con las restricciones actuales para uso exterior.

Dieses Wireless LAN Gerät arbeitet im 2.4 GHz Frequenzband und ist für den Einsatz im Innenbereich in den benachrichtigten EC/ EFTA Mitgliedstaaten geeignet. In Übereinstimmung mit Artikel 6.4 der R&TTE Direktive 1999/5/EC wurden folgende Mitgliedstaaten benachrichtigt: Österreich, Belgien, Dänemark, Finland, Frankreich, Deutschland, Italien, Luxemburg, Niederlande, Norwegen, Spanien, Schweden, Schweiz, Großbritannien, Portugal, Griechenland, Irland, Island. Für den Einsatz im Aussenbereich sind in einigen Ländern Lizenzen erforderlich oder die Anzahl der Kanäle ist eingeschränkt. Bitte kontaktieren Sie Ihre Regulierungsbehörde oder SMC Networks für die aktuellen Einschränkungen beim Einsatz im Aussenbereich.

[Czech]

[Danish]

Toto zařízení je přijímač a vysílač pro bezdrátové sítě LAN v pásmu 2,4 GHz, určený pro použití v interiéru domácností a kanceláří ve všech členských zemích ES a ESVO, kterým byl oznámen záměr uvést zařízení na trh. V souladu s čl. 6 odst. 4 směrnice 1999/5/ES o rádiových zařízeních a telekomunikačních koncových zařízeních byly uvědoměny tyto členské země ES nebo ESVO: Belgie, Dánsko, Finsko, Francie, Irsko, Island, Itálie, Lucembursko, Německo, Nizozemsko, Norsko, Portugalsko, Rakousko, Řecko, Spojené království, Španělsko, Švédsko, Švýcarsko. Na použití ve venkovním prostředí se v některých zemích vztahují určité požadavky, např. požadavky na licenci nebo provoz v povolených kanálech. O omezení venkovního použití se informujte u místních regulátorů nebo u společnosti SMC Networks.

Enheden er en 2,4 GHz trådløs LAN-transceiver, beregnet til indendørs hjemme- og kontorbrug i alle notificerede EU- og EFTA-medlemslande. I henhold til afsnit 6.4 i R&TTE-direktivet 1999/5/EF er følgende EU-/EFTA-medlemslande notificeret: Østrig, Belgien, Danmark, Finland, Frankrig, Tyskland, Grækenland, Island, Irland, Italien, Luxembourg, Holland, Norge, Portugal, Spanien, Sverige, Schweiz og Storbritannien. I visse lande gælder der krav vedrørende udendørs betjening af enheden, f.eks. licenskrav og tilladte betjeningskanaler. Kontakt de lokale lovgivende myndigheder eller SMC Networks for at få oplysninger om aktuelle begrænsninger vedrørende udendørs betjening.

[Estonian]

[Greek]

See seade on 2.4 GHz juhtmeta LAN vastuvõtu-saatejaam, mis on mõeldud kodus ja kontoris kasutamiseks kõikides teavitatud EÜ ja Euroopa Vabakaubanduse Assotsiatsiooni (EFTA) liikmesriikides. Vastavalt R&TTE direktiivi 1999/5/EÜ paragrahvile 6.4 on teavitatud järgmisi EÜ/EFTA liikmesriike: Austriat, Belgiat, Taanit, Soomet, Prantsusmaad, Saksamaad, Itaaliat, Luksemburgi, Hollandit, Norrat, Hispaaniat, Rootsit, Šveitsi, Ühendkuningriiki, Portugali, Kreekat, Iirimaad, Islandi. Mõningates riikides kehtivad väljas kasutamiseks nõuded, näiteks litsentsinõuded ja lubatud töökanalid. Palun teavitage vastavat kohalikku ametkonda või ettevõtet SMC Networks’i, kui soovite täpsemaid andmeid väljas kasutamisel kehtivate piirangute kohta.

Αυτή η συσκευή είναι ένας ασύρµατος ποµποδέκτης τοπικού δικτύου 2,4 GHz, που προορίζεται για οικιακή και επαγγελµατική χρήση σε εσωτερικό χώρο, σε όλα τα κράτη-µέλη της ΕΚ και της ΕΖΕΣ. Σύµφωνα µε το άρθρο 6.4 της Οδηγίας για ραδιοεξοπλισµό και τηλεπικοινωνιακό τερµατικό εξοπλισµό (R&TTE), 1999/5/ΕΚ, έχουν ανακοινωθεί τα ακόλουθα κράτη-µέλη ΕΕ/ΕΖΕΣ: Αυστρία, Βέλγιο, ∆ανία, Φιλανδία, Γαλλία, Γερµανία, Ιταλία, Λουξεµβούργο, Ολλανδία, Νορβηγία, Ισπανία, Σουηδία, Ελβετία, Ηνωµένο Βασίλειο, Πορτογαλία, Ελλάδα, Ιρλανδία, Ισλανδία. Σε ορισµένες χώρες επιβάλλονται απαιτήσεις για χρήση σε εξωτερικό χώρο, όπως απαιτήσεις παραχώρησης άδειας και επιτρεπόµενα κανάλια λειτουργίας. Απευθυνθείτε στην τοπική αρµόδια αρχή ή στην SMC Networks για λεπτοµέρειες σχετικά µε τους τρέχοντες περιορισµούς για χρήση σε εξωτερικό χώρο.

[Italian]

[Latvian]

Il presente device è un ricetrasmettitore LAN wireless da 2,4 GHz, previsto per l'uso in interni a casa e in ufficio in tutti gli Stati membri della CE e dell'EFTA notificati. Conformemente all'articolo 6.4 della Direttiva 1999/5/CE R&TTE, sono stati notificati i seguenti Stati membri della CE/dell'EFTA: Austria, Belgio, Danimarca, Finlandia, Francia, Germania, Grecia, Irlanda, Islanda, Italia, Lussemburgo, Norvegia, Paesi Bassi, Portogallo, Regno Unito, Spagna, Svezia, Svizzera. In alcuni Paesi si applicano i requisiti per il funzionamento in esterni, quali requisiti di licenza e canali consentiti. Contattare l'Autorità normativa locale del proprio Paese o SMC Networks per informazioni dettagliate sulle limitazioni correnti per l'utilizzo in esterni.

Šī ierīce ir 2,4 GHz bezvadu LAN raiduztvērējs, kas paredzēts izmantošanai iekštelpās mājās un birojos visās paziņotajās EK un EBTA (European Free Trade Association - Eiropas brīvās tirdzniecības asociācija) dalībvalstīs. Atbilstoši radioiekārtu un telekomunikāciju gala iekārtu direktīvas 1999/5/EK 6.4. pantam paziņotās EK/EBTA valstis ir : Austrija, Beļģija, Dānija, Somija, Francija, Vācija, Itālija, Luksemburga, Nīderlande, Norvēģija, Spānija, Zviedrija, Šveice, Apvienotā Karaliste, Portugāle, Grieķija, Īrija, Islande. Dažās valstīs ir spēkā ierobežojumi lietošanai ārvidē, piemēram, licences prasības un darbībai atļautie kanāli. Lūdzu, sazinieties ar vietējo regulējošo instanci vai SMC Network, lai saņemtu informāciju

par pašreizējiem ierobežojumiem lietošanai ārvidē.

[Lithuanian]

[Maltese]

Šis įrenginys yra 2,4 GHz belaidis LAN siųstuvas-imtuvas, skirtas naudoti patalpose namie ar biure visose notifikuotose EB ir ELPA šalyse narėse. Pagal RTTE Direktyvos 1999/5/EB 6.4 straipsnį, notifikuotos yra šios EB/ELPA šalys narės: Austrija, Belgija, Danija, Suomija, Prancūzija, Vokietija, Italija, Liuksemburgas, Nyderlandai, Norvegija, Ispanija, Švedija, Šveicarija, Jungtinė Karalystė, Portugalija, Graikija, Airija, Islandija. Kai kuriose šalyse galioja tam tikri reikalavimai norint naudoti įrenginį lauke, pvz., licencijos ir suteikti ryšio kanalai. Jei norite sužinoti, kokie apribojimai galioja norint naudoti įrenginį lauke, kreipkitės į nacionalinę reguliavimo instituciją arba „SMC Networks“.

Dan it-tagħmir huwa LAN transreciever mingħajr fili ta’ 2.4 GHz maħsub biex jintuża fuq ġewwa fi djar u uffiċċini fil-pajjiżi notifikati tal-KE u l-Istati Membri ta’ l-EFTA. B’mod konformi ma’ Artikolu 6.4 tad-Direttiva R&TTE 1999/5/KE l-Istati Membri tal-KE/EFTA li ġejjin ġew notifikati: L-Awstrija, Il-Belġju, Id-Danimarka, Il-Finlandja, Franza, Il-Ġermanja, L-Italja, Il-Lussemburgu, L-Olanda, In-Norveġja, Spanja, L-Iżveżja, L-Iżvizzera, Ir-Renju Unit, Il-Portugal, Il-Greċja, L-Irlanda, L-Islanda. Rekwiżiti għal tħaddim fuq barra, bħal ħtiġijiet ta’ liċenzja u kanali permessi għal tħaddim japplikaw f’ċertu pajjiżi. Jekk jogħġbok ikkuntattja lill-awtorità regolarorja lokali jew SMC Networks għal dettalji dwar restrizzjonijiet attwali dwar l-użu fuq barra.

[Hungarian]

[Polish]

Ez az eszköz egy 2,4 GHz-es vezeték nélküli LAN adó-vevő, amely beltéri és irodai használatra készült, és az összes értesített EC- és EFTA-tagországban használható. Az 1999/5/EC jelű R&TTE előírás 6.4-es cikkének megfelelően a következő EC/ EFTA tagországok kaptak értesítést: Ausztria, Belgium, Dánia, Finnország, Franciaország, Németország, Olaszország, Luxemburg, Hollandia, Norvégia, Spanyolország, Svédország, Svájc, Egyesült Királyság, Portugália, Görögország, Írország és Izland. Egyes országokban külön előírások vonatkoznak a kültéri használatra, például a licencre és az engedélyezett csatornákra. A kültéri használatra vonatkozó aktuális előírásokkal kapcsolatos részletekért forduljon a helyi szabályozó hatósághoz vagy az SMC Networkshöz.

Niniejsze urządzenie to urządzenie do odbierania i przesyłania sygnału (transceiver) w bezprzewodowej sieci LAN o częstotliwości 2,4 GHz, przeznaczone do użytku wewnątrz pomieszczeń, w domach i biurach we wszystkich krajach członkowskich UE i EFTA. Zgodnie z artykułem 6.4 dyrektywy 1999/5/EC dotyczącej norm dla urządzeń radiowych i końcowych urządzeń teletransmisyjnych powiadomione zostały następujące kraje członkowskie: Austria, Belgia, Dania, Finlandia, Francja, Niemcy, Włochy, Luksemburg, Holandia, Hiszpania, Szwecja, Szwajcaria, Wielka Brytania, Portugalia, Grecja, Irlandia, Islandia. W niektórych krajach obowiązują wymagania dotyczące działania na zewnątrz budynków, na przykład wymagania licencyjne i dozwolone kanały pracy.

xii

Szczegółowe informacje na temat obowiązujących ograniczeń użytkowania zewnętrznego można uzyskać, kontaktując się z lokalnym urzędem regulacji lub firmą SMC Networks.

[Portuguese]

[Slovenian]

Este dispositivo é um transreceptor de LAN sem fios de 2,4 GHz, destinado a uma utilização interior em casa e no escritório, em todos os Estados membros notificados da CE e da EFTA. De acordo com o artigo 6.4 da Directiva sobre R&TTE 1999/5/CE, foram notificados os seguintes Estados membros da CE/EFTA: Áustria, Bélgica, Dinamarca, Finlândia, França, Alemanha, Itália, Luxemburgo, Holanda, Noruega, Espanha, Suécia, Suíça, Reino Unido, Portugal, Grécia, Irlanda, Islândia. Os requisitos para uma utilização no exterior, tais como de licença e de canais de funcionamento permitidos aplicam-se a alguns países. Para obter informações sobre as restrições de utilização no exterior, contacte a autoridade local competente ou a SMC Networks.

Ta naprava je oddajno-sprejemna enota za brezžično lokalno omrežje, namenjena uporabi na domu ali v pisarni v vseh priglašenih državah članicah ES in EFTA. Skladno s členom 6.4 Direktive 1999/5/ES o radijski opremi in telekomunikacijski terminalski opremi so bile obveščene naslednje države članice ES/EFTA: Avstrija, Belgija, Danska, Finska, Francija, Nemčija, Italija, Luksemburg, Nizozemska, Norveška, Španija, Švedska, Švica, Velika Britanija, Portugalska, Grčija, Irska, Islandija. V nekaterih državah veljajo zahteve za delovanje na prostem, kot so zahteve za dovoljenje in dovoljeni kanali za delovanje. Če potrebujete natančne informacije o trenutnih omejitvah uporabe na prostem, se obrnite na lokalni regulativni organ ali družbo SMC Networks.

[Slovak]

[Finnish]

Toto zariadenie je prijímač a vysielač pre bezdrôtové siete v pásme 2,4 GHz a je určené na použitie v interiéroch domácností a kancelárií vo všetkých členských štátoch ES a EZVO, ktorým bol oznámený zámer uviesť zariadenie na trh. V súlade s čl. 6 odst. 4 smernice 1999/5/ES o rádiovom zariadení a koncových telekomunikačných zariadeniach boli upovedomené nasledujúce členské štáty ES/EZVO: Belgicko, Dánsko, Francúzsko, Fínsko, Grécko, Holandsko, Island, Írsko, Luxembursko, Nemecko, Nórsko, Portugalsko, Rakúsko, Španielsko, Švajčiarsko, Švédsko, Taliansko, Veľká Británia. V niektorých štátoch sa na prevádzku v exteriéroch vzťahujú určité požiadavky, napríklad požiadavky na licenciu alebo požiadavky na prevádzkové kanály. Podrobné informácie o aktuálnych obmedzeniach pri prevádzke v exteriéroch vám poskytnú miestne regulačné orgány alebo spoločnosť SMC Networks.

Laite on 2,4 GHz:n langaton LAN-vastaanotin, joka on tarkoitettu koti- ja toimistokäyttöön kaikissa EY:n ja EFTAn jäsenmaissa, joihin siitä on ilmoitettu. Radio- ja telepäätelaitedirektiivin 1999/5/EY mukaisesti seuraaville EY-/EFTA-maille on ilmoitettu: Itävalta, Belgia, Tanska, Suomi, Ranska, Saksa, Italia, Luxemburg, Alankomaat, Norja, Espanja, Ruotsi, Sveitsi, Iso-Britannia, Portugali, Kreikka, Irlanti ja Islanti. Joissakin maissa ulkokäyttöä koskevat erilliset

xiii

vaatimukset, kuten erikseen anottava lupa ja sallittujen kanavien rajoittaminen. Ota yhteyttä paikalliseen käyttöä valvovaan viranomaiseen tai SMC Networksiin, jos haluat lisätietoja laitteen ulkokäytön rajoituksista.

[Swedish]

[Icelandic]

Apparaten är en 2,4 GHz trådlös LAN-mottagare för inomhusbruk i hem och på kontor i alla underrättade EG- och EFTA-medlemsstater. Enligt artikel 6.4 i R&TTE-direktivet 1999/5/EG är följande EG-/EFTA-stater underrättade: Österrike, Belgien, Danmark, Finland, Frankrike, Tyskland, Italien, Luxemburg, Nederländerna, Norge, Spanien, Sverige, Schweiz, Storbritannien, Portugal, Grekland, Irland och Island. I vissa länder tillkommer krav för utomhusbruk, t.ex. licenskrav och tillåtna användarkanaler. Kontakta lokala tillsynsmyndigheter eller SMC Networks för information om aktuella bestämmelser för utomhusbruk.

Þessi búnaður er 2,4 GHz þráðlaust LAN sendiviðtæki til notkunar innanhúss á heimili og skrifstofu í öllum tilkynntum aðildarríkjum EB og EFTA. Í samræmi við grein 6.4 í R&TTE tilskipuninni 1999/5/EB hefur eftirfarandi aðildarríkjum EB/EFTA verið tilkynnt þar um: Austurríki, Belgía, Danmörk, Finnland, Frakkland, Þýskaland, Ítalía, Lúxemborg, Holland, Noregur, Spánn, Svíþjóð, Sviss, Bretland, Portúgal, Grikkland, Írland, Ísland. Kröfur fyrir notkun utanhúss, svo sem kröfur um leyfi og heimilaðar rásir eiga við í sumum löndum. Hafið samband við reglugerðaryfirvöld á hverjum stað eða SMC Networks til að fá upplýsingar um gildandi takmarkanir á notkun utanhúss.

[Norwegian]

Denne enheten er en trådløs 2.4 GHz LAN-mottaker som er beregnet for innendørs privat- og kontorbruk i alle underrettede EF- og EFTA-medlemsstater. I overensstemmelse med artikkel

6.4 i R&TTE-direktivet 1999/5/EF, har følgende EF-/ EFTA-medlemsstater blitt underrettet: Østerrike, Belgia, Danmark, Finland, Frankrike, Tyskland, Italia, Luxembourg, Nederland, Norge, Spania, Sverige, Sveits, Storbritannia, Portugal, Hellas, Irland og Island. Krav for utendørsbruk, som lisenskrav og tillatte brukskanaler, gjelder i noen land. Ta kontakt med din lokale regulerende myndighet eller SMC Networks for detaljert informasjon om gjeldende begrensninger for utendørs bruk.

xiv

Safety Compliance

Underwriters Laboratories Compliance Statement

Important! Before making connections, make sure you have the correct cord set. Check it (read the

label on the cable) against the followings:

Operating Voltage Cord Set Specifications

UL Listed/CSA certified Cord Set Minimum 18AWG

120Volts

Type SVT or SJT three conductor cord Maximum length of 15 feet Parallel blade, grounding type attachment plug rated 15A, 125V Cord Set with H05VV-F cord having three conductors with minimum diameter of 0.75mm2

240Volts(Europe only)

IEC-320 receptacle Male plug rated 10A,250V

The unit automatically matches the connected voltage. Therefore, no additional adjustments are necessary when connecting it to any input voltage within the range marked on the power adapter.

Contents

1 Introduction ............................................................................................................................................................. 1

1.1 Packing List ............................................................................................................................................. 1

1.2 Safety Cautions ........................................................................................................................................ 1

1.3 LED and Interface ................................................................................................................................... 1

1.4 System Requirements .............................................................................................................................. 3

1.5 Features ................................................................................................................................................... 3

2 Hardware Installation .............................................................................................................................................. 5

3 About the Web Configuration .................................................................................................................................. 7

3.1 How to Access the Router ....................................................................................................................... 7

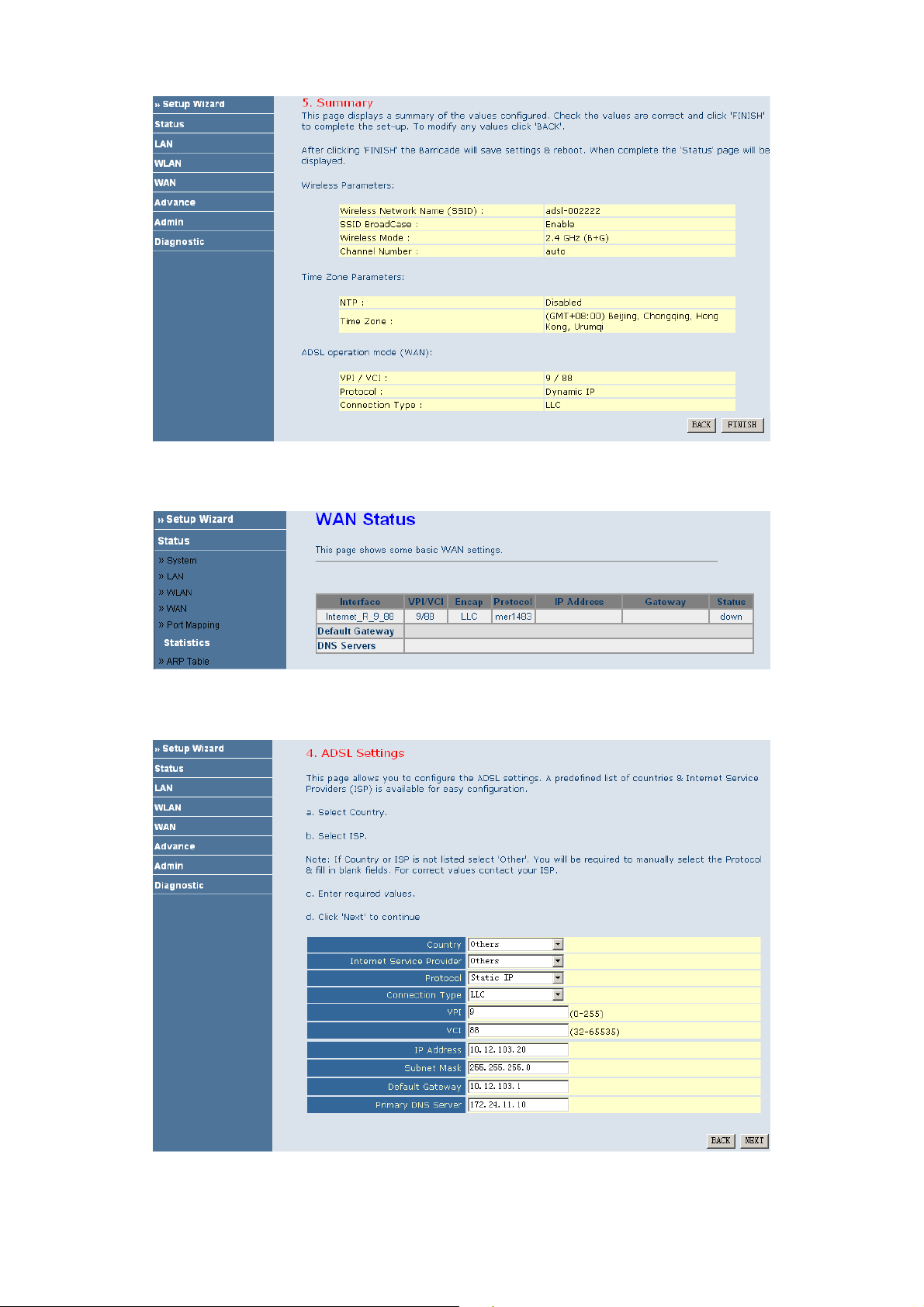

3.2 Setup Wizard ........................................................................................................................................... 7

3.3 Status ..................................................................................................................................................... 17

3.3.1 System ........................................................................................................................................... 17

3.3.2 LAN ............................................................................................................................................... 17

3.3.3 WLAN ........................................................................................................................................... 18

3.3.4 WAN .............................................................................................................................................. 18

3.3.5 Port Mapping ................................................................................................................................. 19

3.3.6 Statistic .......................................................................................................................................... 19

3.3.7 ARP Table ...................................................................................................................................... 20

3.4 LAN ....................................................................................................................................................... 20

3.4.1 LAN Settings ................................................................................................................................. 21

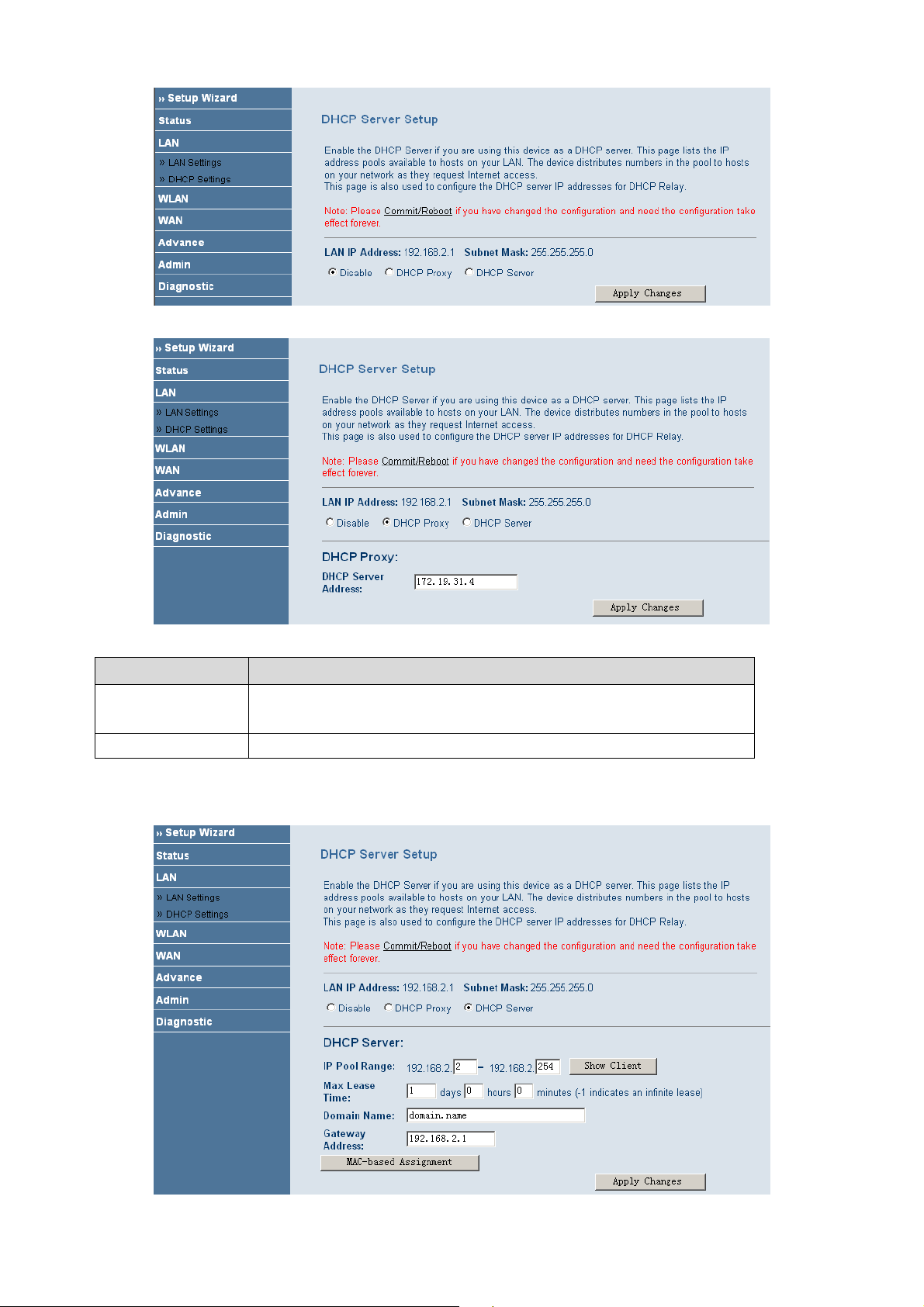

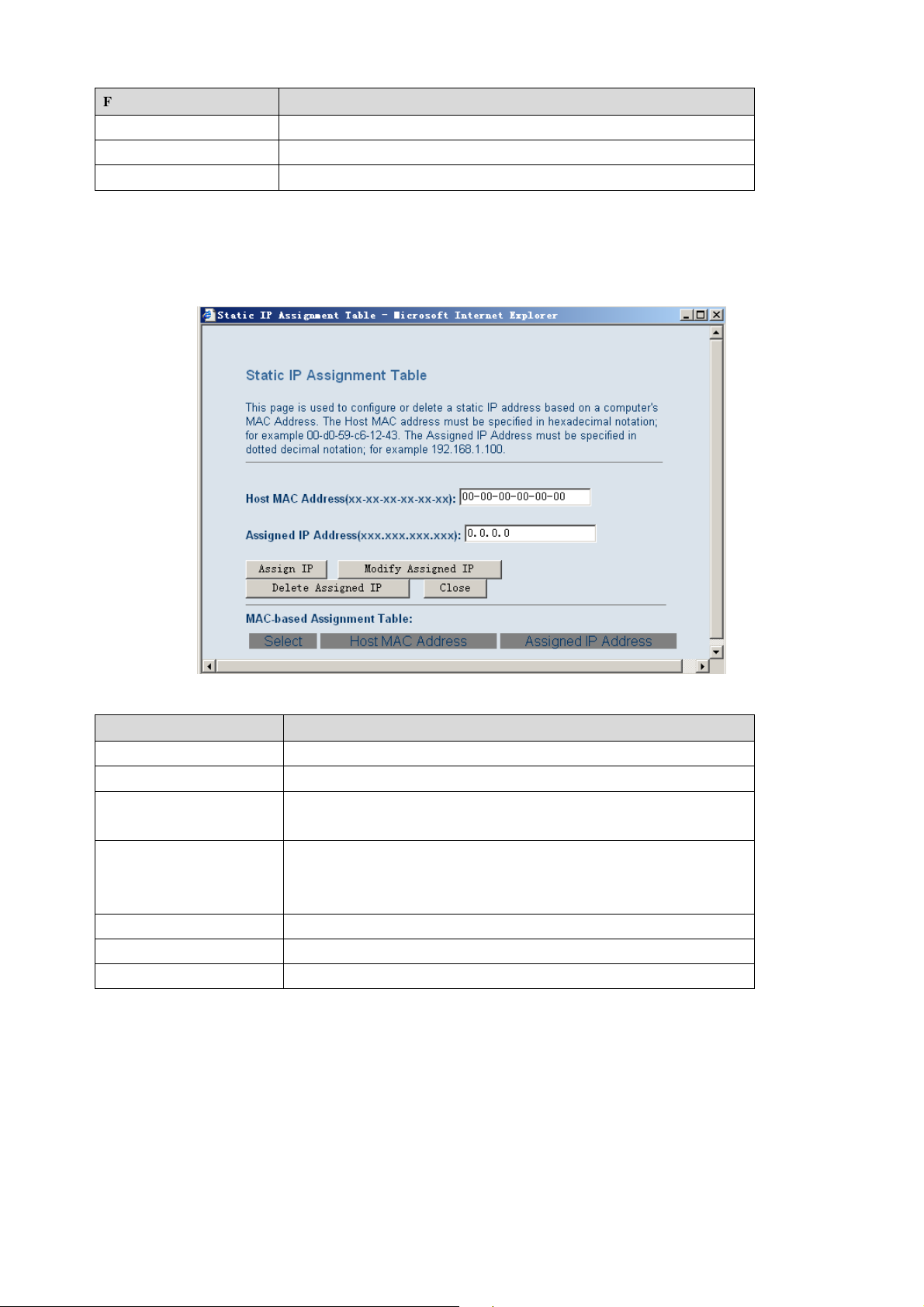

3.4.2 DHCP Settings ............................................................................................................................... 21

3.5 WLAN ................................................................................................................................................... 24

3.5.1 Basic Settings ................................................................................................................................ 25

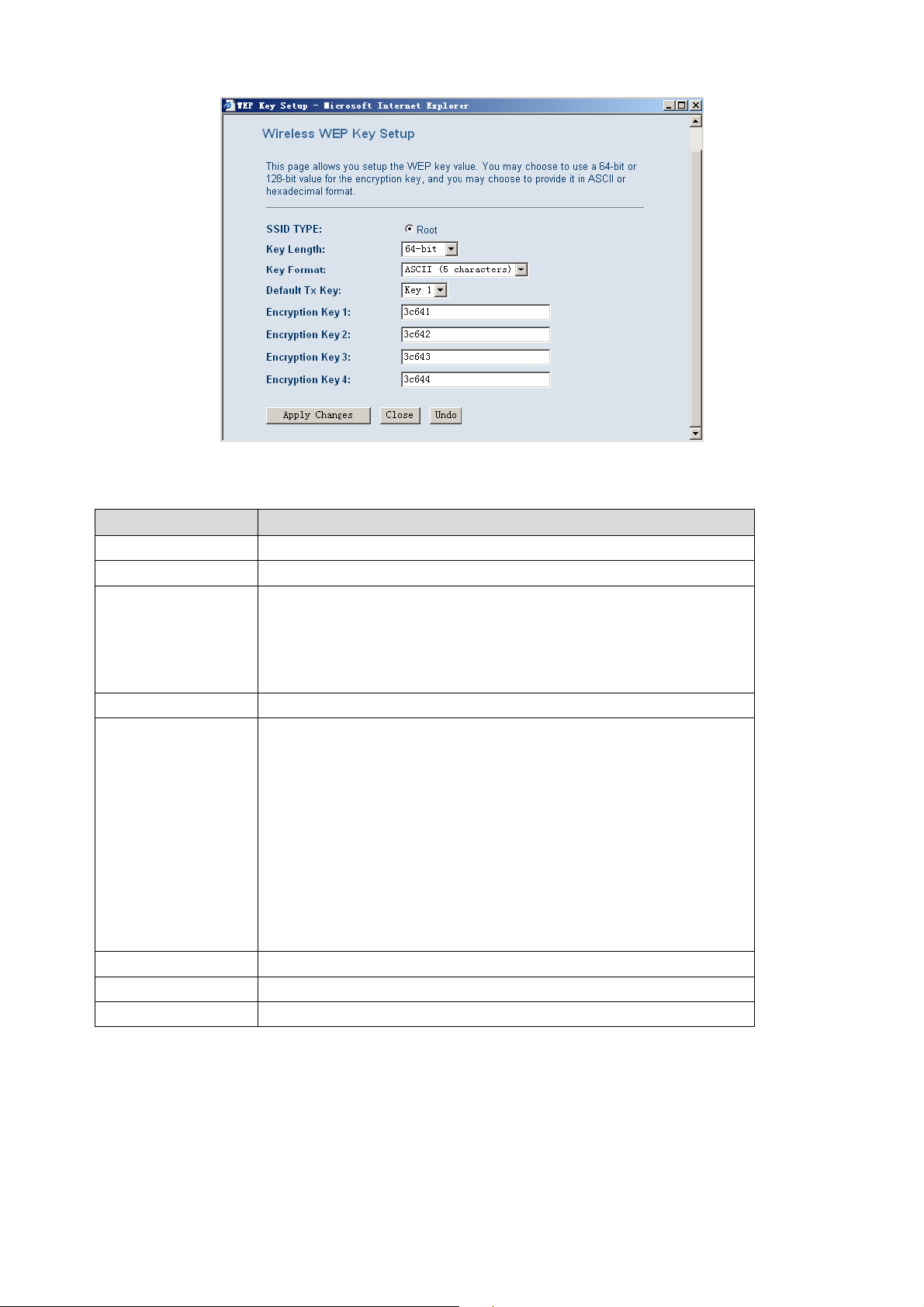

3.5.2 Security .......................................................................................................................................... 26

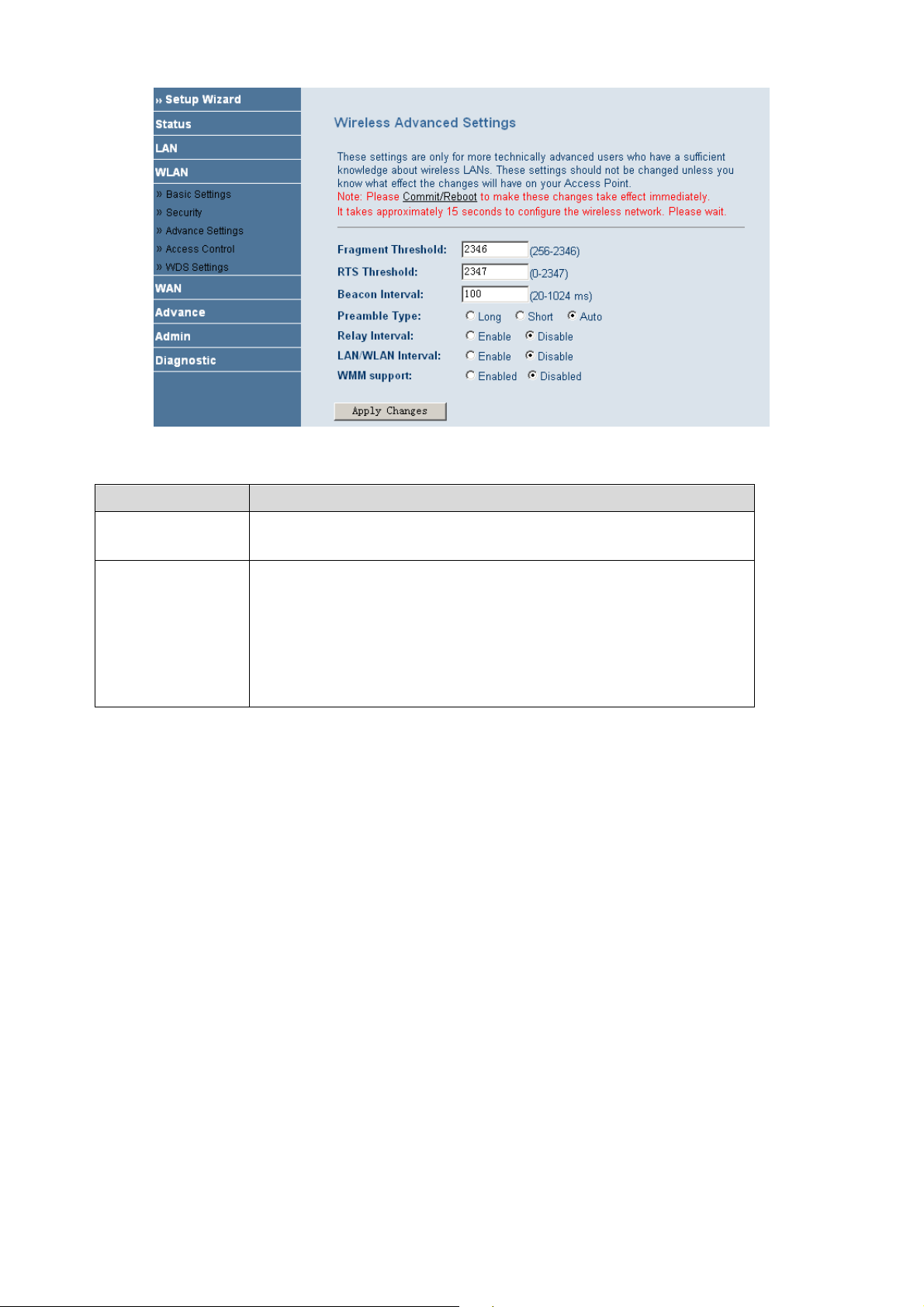

3.5.3 Advance Settings ........................................................................................................................... 28

3.5.4 Access Control............................................................................................................................... 29

3.5.5 WDS Settings ................................................................................................................................ 30

3.6 WAN ...................................................................................................................................................... 31

3.6.1 WAN Interface ............................................................................................................................... 31

3.6.2 ADSL Settings ............................................................................................................................... 34

3.7 Advance ................................................................................................................................................. 35

3.7.1 DNS ............................................................................................................................................... 35

3.7.2 Firewall .......................................................................................................................................... 37

3.7.3 Virtual Server................................................................................................................................. 39

3.7.4 Routing .......................................................................................................................................... 41

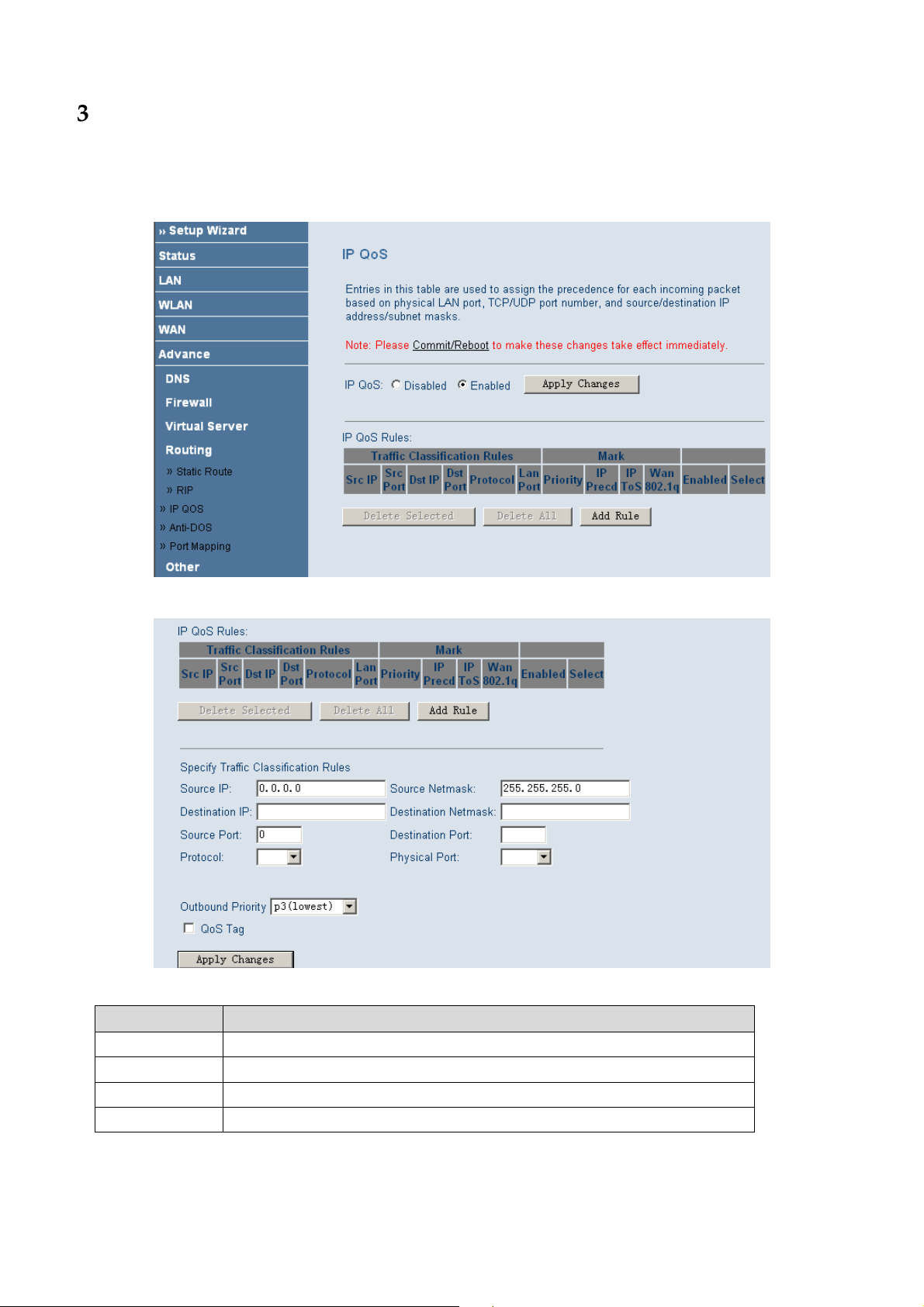

3.7.5 IP QoS ........................................................................................................................................... 43

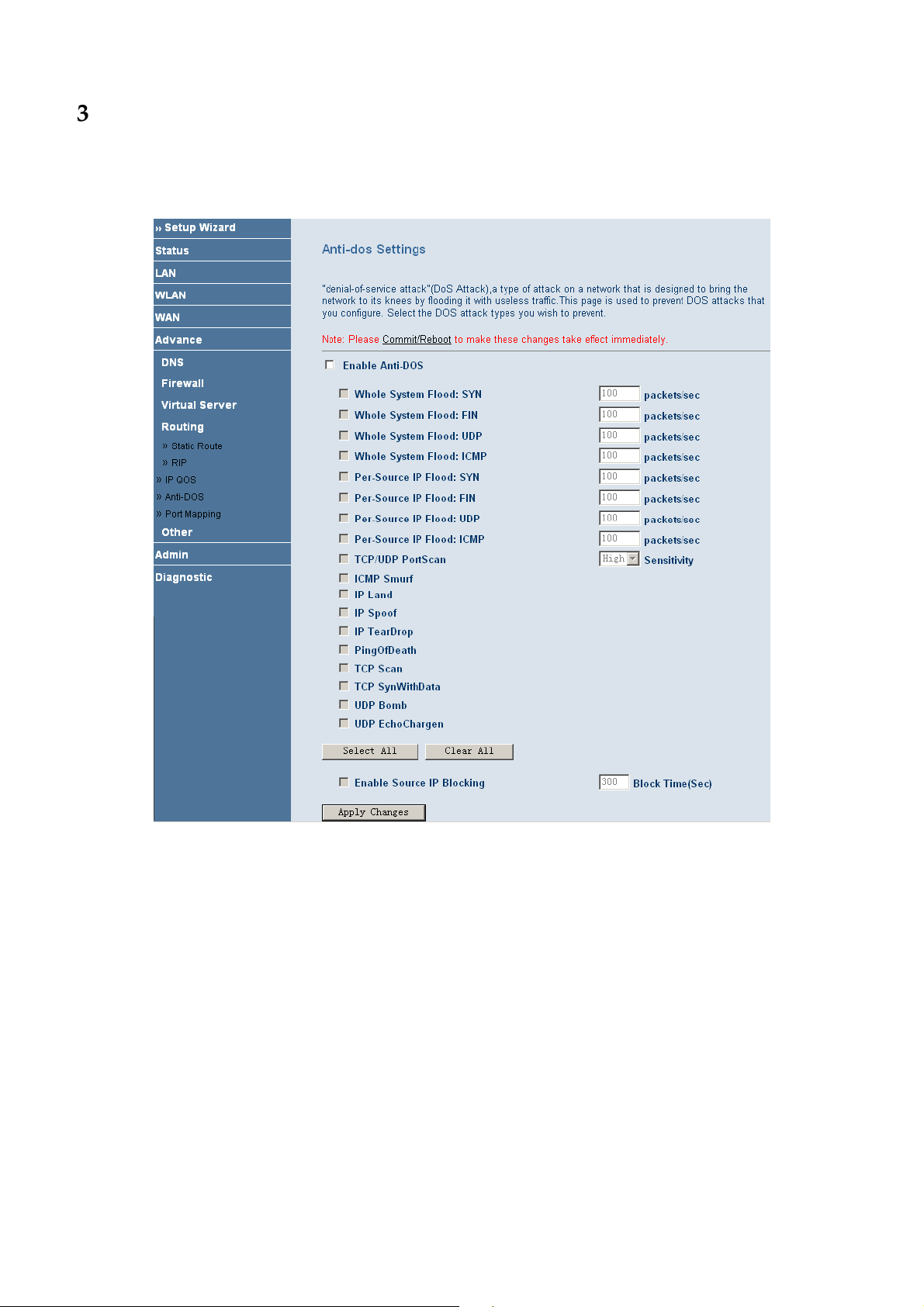

3.7.6 Anti-dos ......................................................................................................................................... 44

3.7.7 Port Mapping ................................................................................................................................. 44

xvi

3.7.8 Other .............................................................................................................................................. 45

3.8 Admin .................................................................................................................................................... 48

3.8.1 Remote Access............................................................................................................................... 48

3.8.2 Commit/Reboot ............................................................................................................................. 48

3.8.3 Password ........................................................................................................................................ 49

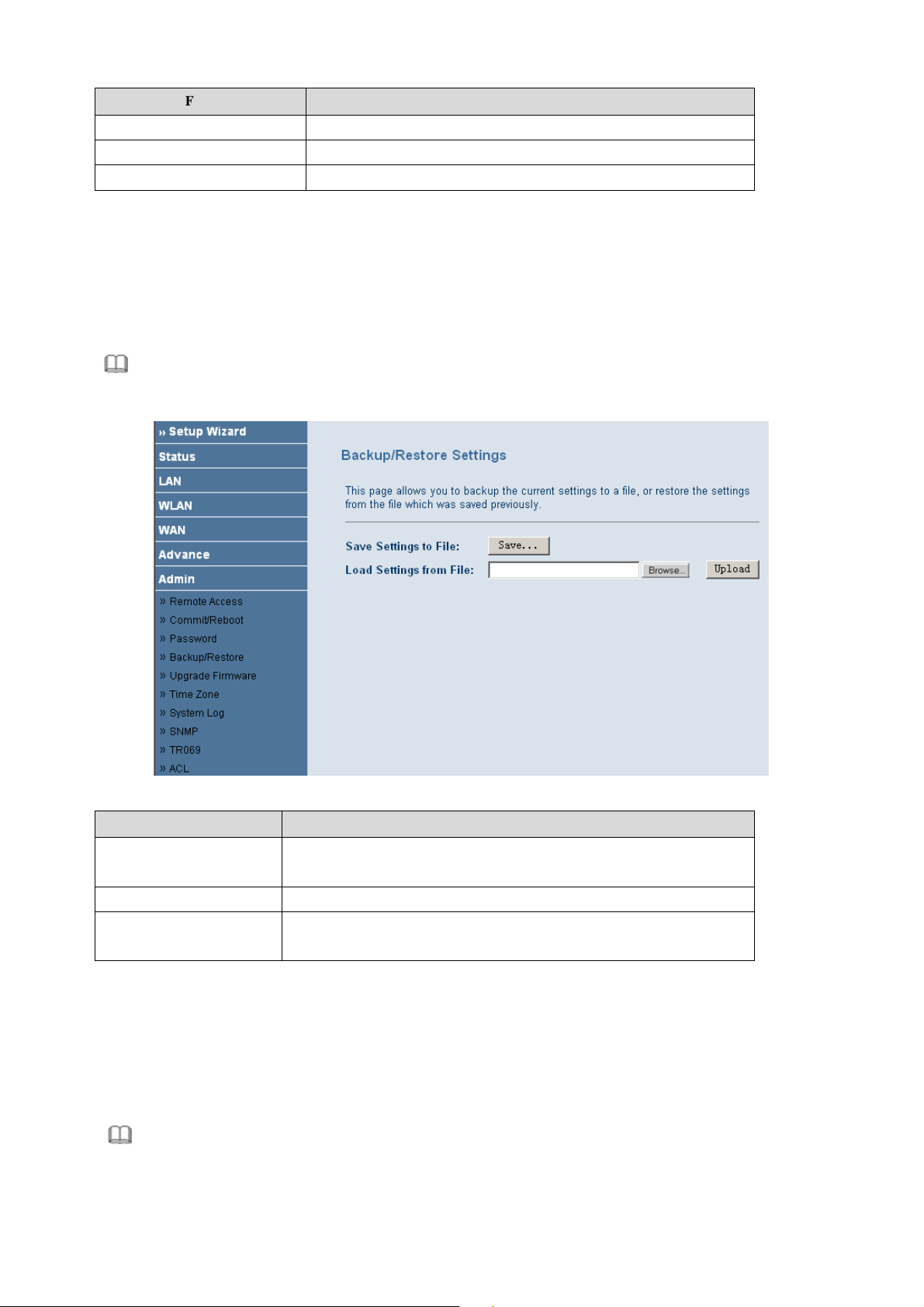

3.8.4 Backup/Restore.............................................................................................................................. 50

3.8.5 Upgrade Fireware .......................................................................................................................... 50

3.8.6 Time Zone...................................................................................................................................... 51

3.8.7 System Log .................................................................................................................................... 52

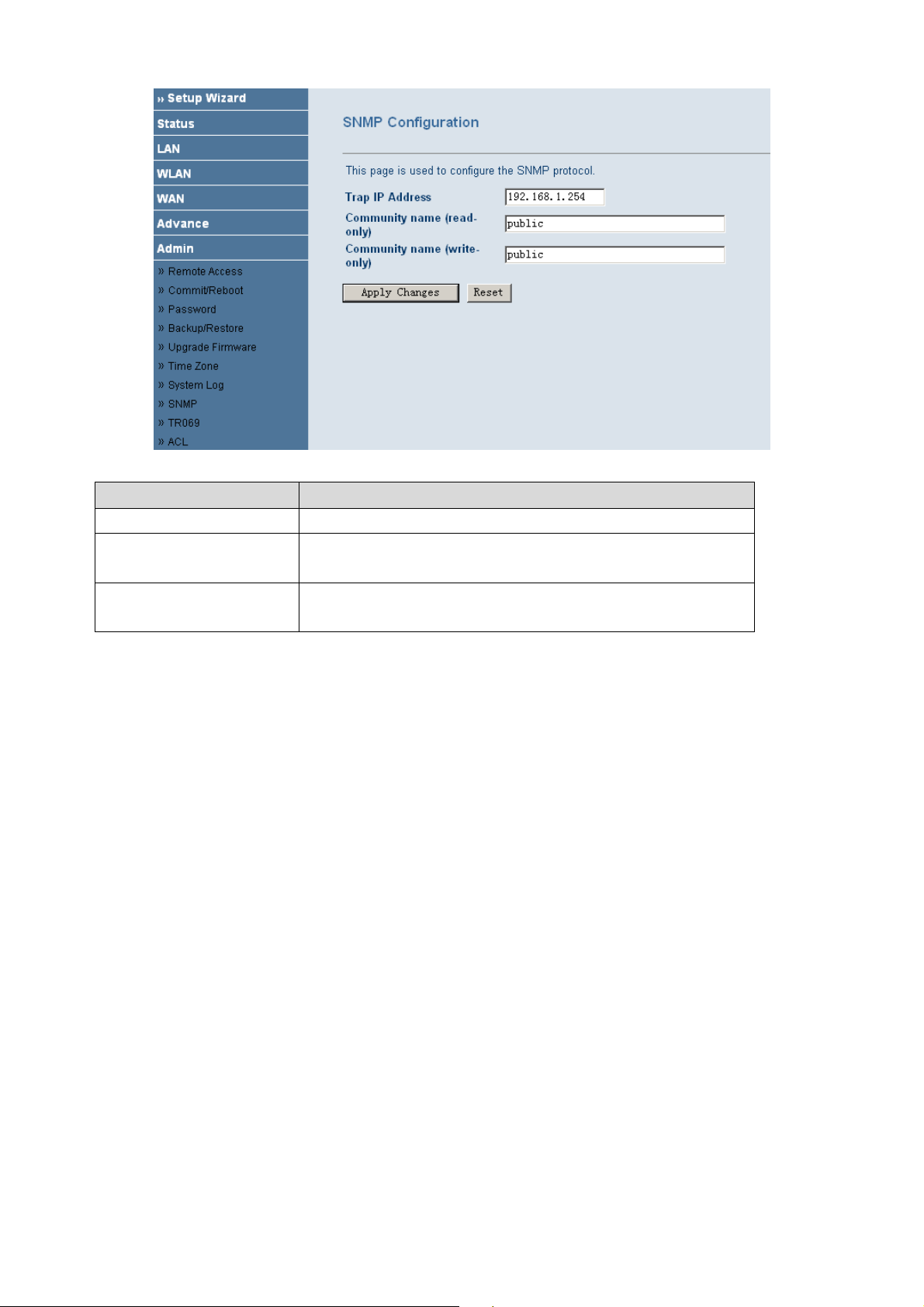

3.8.8 SNMP ............................................................................................................................................ 52

3.8.9 TR069 ............................................................................................................................................ 53

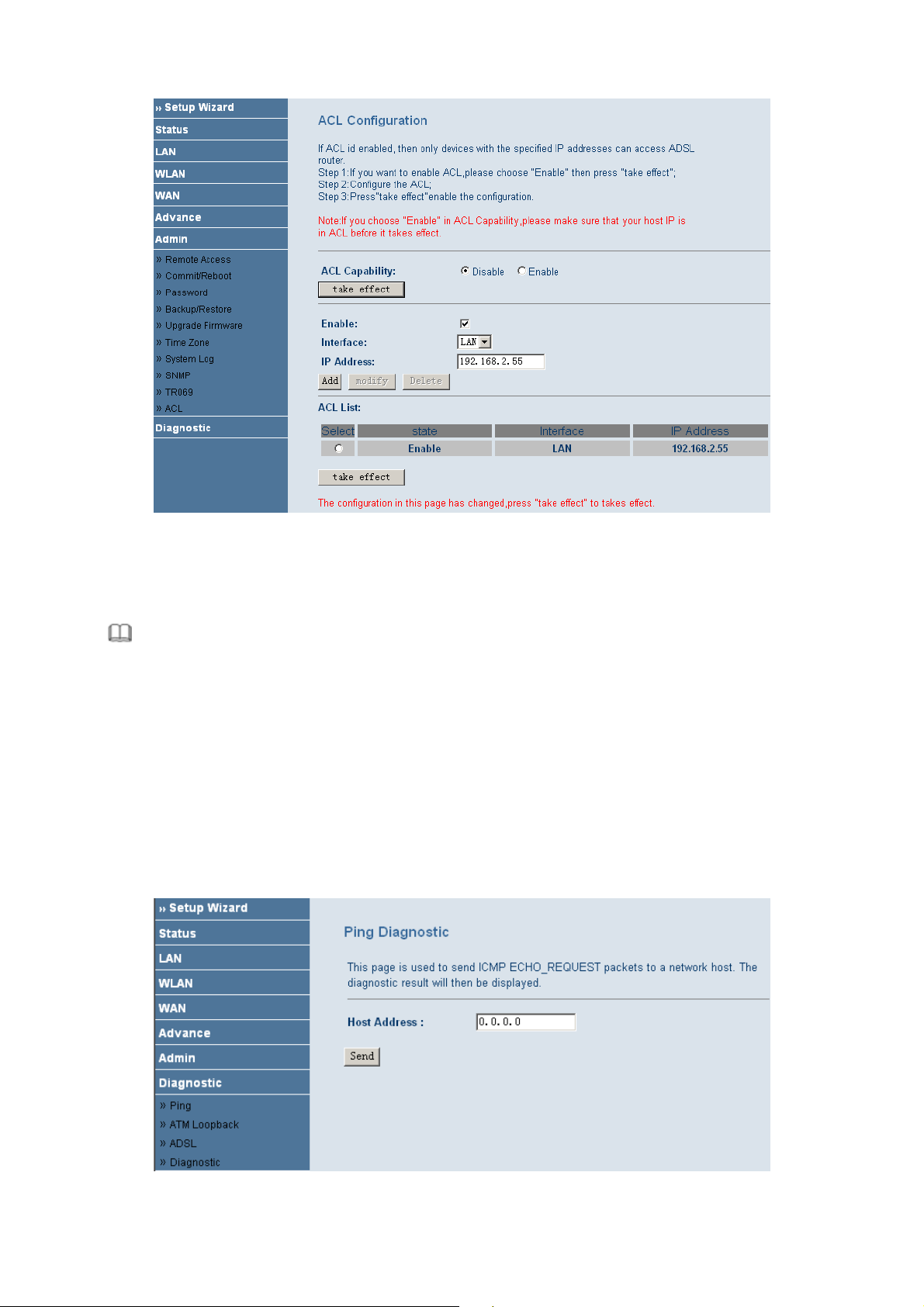

3.8.10 ACL ............................................................................................................................................... 54

3.9 Diagnostic .............................................................................................................................................. 55

3.9.1 Ping ................................................................................................................................................ 55

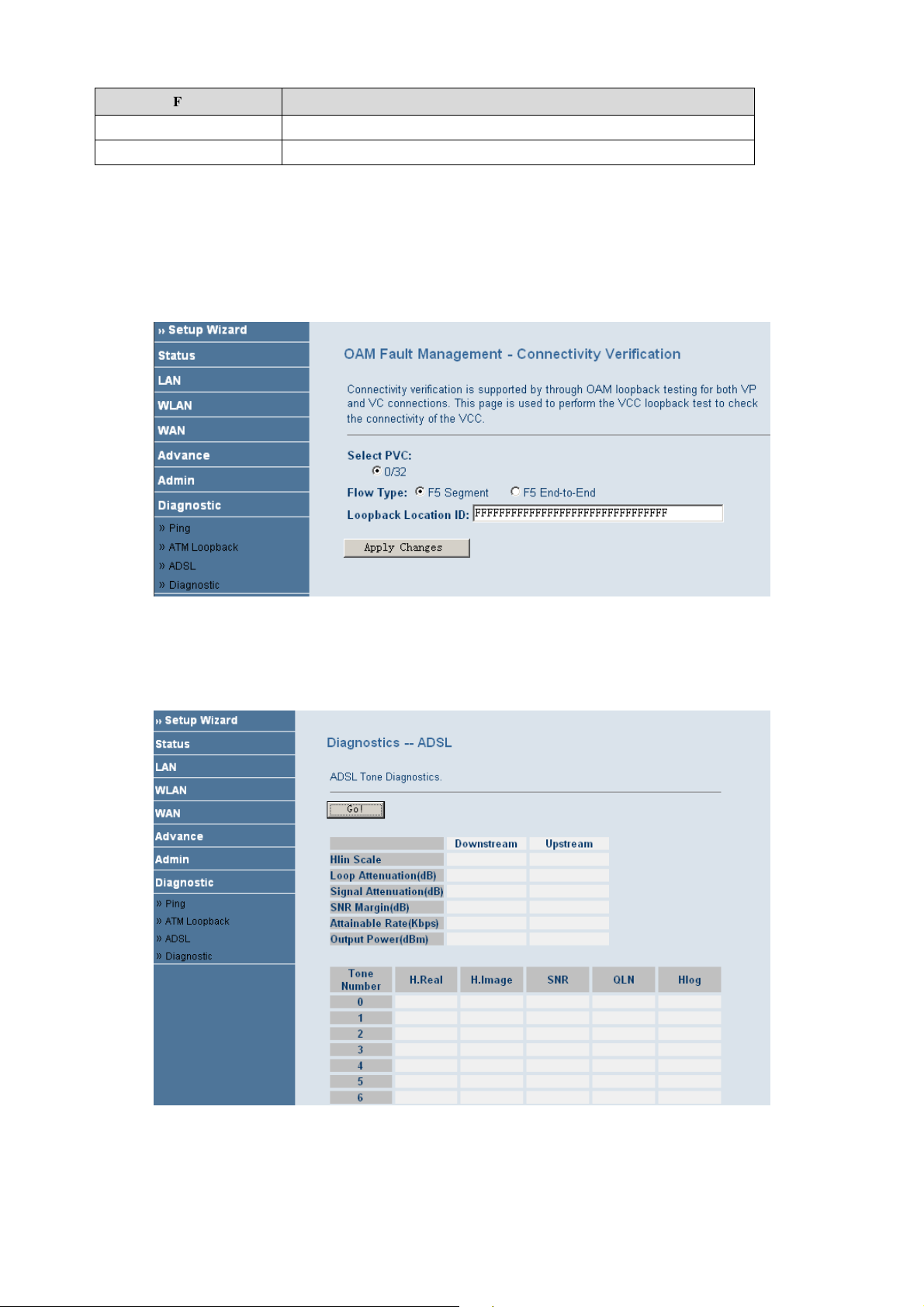

3.9.2 ATM Loopback .............................................................................................................................. 56

3.9.3 ADSL............................................................................................................................................. 56

3.9.4 Diagnostic ...................................................................................................................................... 57

Appendix A Questions & Answers ..................................................................................................................... 58

Appendix B Technical Specifications ................................................................................................................. 60

Appendix C GPL Anouncement ......................................................................................................................... 62

xvii

1 Introduction

The SMC7904WBRA4 supports multiple line modes. It provides four 10/100 base-T Ethernet interfaces at the user end. The device provides high-speed ADSL broadband connection to the Internet or Intranet for high-end users, such as net bars and office users. The device provides high performance access to the Internet, downlink up to 24 Mbps and uplink up to 1 Mbps.

The device supports WLAN access, as WLAN AP or WLAN router, to the Internet. It complies with IEEE 802.11,

802.11b/g specifications, and WEP, WPA and WPA2 security specifications.

1.1 Packing List

 1 x SMC7904WBRA4  1 x external splitter  1 x power adapter  2 x telephone cables (RJ-11)  1 x Ethernet cable (RJ-45)  1 x Quick Installation Guide (QIG)  1 x driver and utility software CD

1.2 Safety Cautions

Follow the following instructions to protect the device from risks and damage caused by fire or electric power:

 Use volume labels to mark the type of power.  Use the power adapter that is packed within the device package.  Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet or damaged lines

and plugs may cause electric shock or fire accident. Check the power cords regularly. If you find any damage, replace it at once.

 Proper space left for heat dissipation is necessary to avoid any damage caused by overheating to the device.

The long and thin holes on the device are designed for heat dissipation to make sure the device works normally. Do not cover these heat radiant holes.

 Do not put this device close to a place where a heat source exits or high temperature occurs. Avoid the device

from direct sunshine.

 Do not put this device close to a place where is over damp or watery. Do not spill any fluid on this device.  Do not connect this device to any PC or electronic product, unless our customer engineer or your broadband

provider instructs you to do this, because any wrong connection may cause any power or fire risk.

 Do not place this device on an unstable surface or support.

1.3 LED and Interface

Front panel

The following table describes the LEDs of the device.

LED Status Color Description

Power

Link

WLAN

LAN4/LAN3/LAN2

/LAN1

Rear panel

Off The device is powered off.

Blinks The firmware is upgrading.

Blinks Data is being transmitted on the Internet.

Off The Internet connection is failed.

Blinks Data is being transmitted through the WLAN interface.

Off The WLAN connection is failed.

Blinks Data is being transmitted through the Ethernet interface.

Off The LAN connection is failed.

Green

Red

Blue

Green

The device is powered on and the initialization is normal.

The device is initializing.

The Internet connection is normal.

The WLAN connection is established.

The LAN connection is normal and active.

The following table describes the interfaces of the device.

Interface Function

Power switch, power on or power off the device.

Reset

Power Power interface, for connecting to the power adapter of 12 V DC, 1 A.

LAN1/LAN2/LAN3

/LAN4

Line

Resets to the factory defaults. To restore factory defaults, keep the device powered on and

push a paper clip into the hole. Press down the button over 5 seconds, then release.

RJ-45 interface, for connecting to the Ethernet interface of the PC or the Ethenet devices with

the cable.

RJ-11 interface, for connecting to the ADSL interface or a splitter through the telephone

cable.

Interface Function

The button of the antenna.

1.4 System Requirements

Recommended system requirements are as follows:

 A 10/100 base-T Ethernet card is installed on your PC  A hub or Switch. (attached to several PCs through one of Ethernet interfaces on the device)  Operating system: Windows 98SE, Windows 2000, Windows ME, Windows XP or Windows Vista  Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or firefox 1.5 or higher

1.5 Features

The device supports the following features:

 Various line modes  External PPPoE dial-up access  Internal PPPoE and PPPoA dial-up access  Leased line mode  Zero installation PPP bridge mode (ZIPB)  1483B, 1483R, and MER access  Multiple PVCs (eight at most) and these PVCs can be isolated from each other  A single PVC with multiple sessions  Multiple PVCs with multiple sessions  Binding of ports with PVCs  802.1Q and 802.1P protocol  DHCP server  NAT and NAPT  Static route  Firmware upgrade: Web, TFTP

note 1

, and FTP

 Reset to factory default  DNS relay  Virtual server  DMZ  IP address mapping  Two-level passwords and user names and six accounts (at most)  Web interface  Telnet CLI  System status display  PPP session PAP and CHAP  IP filter

 IP QoS  Remote access control  Line connection status test  Remote management (telnet and HTTP)  backup and restore of configuration file  Ethernet interface supports crossover detection, auto-correction and polarity correction  UPnP

note 1:

When upgrading firmware by TFTP, you can not access the Web GUI temporarily until the upgrading procedure has been finished and the device is rebooted.

2 Hardware Installation

Step 1 Connect the Line interface of the device and the Modem interface of the splitter through a telephone cable.

Connect the phone to the Phone interface of the splitter through a cable. Connect the incoming line to the Line interface of the splitter.

The splitter has three interfaces:

– Line: Connect to a wall phone jack (RJ-11 jack) – Modem: Connect to the ADSL jack of the device – Phone: Connect to a telephone set.

Step 2 Connect the LAN interface of the device to the network card of the PC through an Ethernet cable

(MDI/MDIX).

I Note:

Use twisted-pair cables to connect with the hub or switch.

Step 3 Plug one end of the power adapter to the wall outlet and connect the other end to the PWR interface of the

device.

Connection 1

Figure 1 displays the application diagram for the connection of the router, PC, splitter and the telephone sets, when no telephone set is placed before the splitter.

Figure 1 Connection Diagram (without connecting telephone sets before the splitter)

Connection 2

Figure 2 displays the application diagram for the connection of the router, PC, splitter and the telephone sets, when a telephone set is placed before the splitter.

Figure 2 (with a telephone set before the splitter)

In the actual application, connection 1 is recommended.

I Note:

When connection 2 is used, the filter must be installed close to the telephone lines. Do not use the splitter instead of the filter.

Installing a telephone directly before the splitter may lead to a failure of connection between the device and the office central, or cannot access into the Internet, or slow the connection speed. If you really need to add a telephone set before the splitter, you have to add a microfilter before connecting to a telephone set. Do not connect several telephones before the splitter. Do not connect several telephones with the microfilter.

3 About the Web Configuration

This chapter describes how to configure the router by using the Web-based configuration utility.

3.1 How to Access the Router

The following is the detailed description of accesing the router for the first time.

Step 1 Open the Internet Explorer (IE) browser and enter http://192.168.2.1. Step 2 In the LOGIN page that is displayed, enter the username and password.

– The username and password of the super user are admin and smcadmin. – The username and password of the common user are user and user.

If you log in as the super user, the page shown in the following figure appears. You can check, configure and modify all the settings.

If you log in as a common user, you can check the status of the router, but can not change the most of the settings.

3.2 Setup Wizard

In the navigation bar, choose Setup Wizard. In the Setup Wizard page, you can configure the VPI/VCI number. The Setup Wizard page guides fast and accurate configuration of the Internet connection and other important

parameters. The following sections describe these various configuration parameters. Whether you configure these parameters or use the default ones, click NEXT to enable your Internet connection.

When subscribing to a broadband service, you should be aware of the method by which you are connected to the Internet. Your physical WAN device can be either PPP, ADSL, or both. The technical information about the properties of your Internet connection is provided by your Internet Service Provider (ISP). For example, your ISP should inform you whether you are connected to the Internet using a static or dynamic IP address, and the protocol that you use to communicate on the Internet.

Click NEXT, the page shown in the following page appears. In this page, you can set the system time manually or get the system time from the time server.

Click NEXT, the page shown in the following page appears. In this page, you can configure the wireless SSID, wireless mode and channel number.

The following table describes the parameters of this page.

Field Description

(Root) SSID

SSID BroadCase

Wireless Mode

Channel Number

After configuring the wireless settings, click NEXT. The page shown in the following figure appears. In this page, you can configure the ADSL settings.

The following table describes the parameters and buttons in this page.

Description

Field

Country Select the country in which you are in.

Internet Service Provider Select your ISP.

Protocol

Connection Type Select the connection type provided by your ISP from the drop-down list box.

Select the protocol. You can choose PPPoE, PPPoA, Dynamic IP, Static IP, Bridge, or 1483 Route.

You can choose LLC or VC-Mux.

VPI

VCI

The virtual path between two points in an ATM network, and its valid value is from 0 to 255.

The virtual channel between two points in an ATM network, ranging from 32 to 65535 (0 to 31 is reserved for local management of ATM traffic).

Before you configure the protocol, you must select the country in which you are in and your ISP.

PPPoE

If the uplink equipment supports the PPPoE protocol, you can set the device to initiate the PPPoE dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

PPPoA

If the uplink equipment supports the PPPoA encapsulation, you can set the device to initiate the PPPoA dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

Dynamic IP

If the uplink equipment supports the Dynamic IP protocol, you can set the device to initiate the dynamic IP dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

Static IP

If the uplink equipment supports the Static IP protocol, you can set the device to initiate the static IP dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

Bridge

If the uplink equipment supports the Bridge protocol, you can set the device to initiate the bridge dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

1483 Route

If the uplink equipment supports the 1483 Route protocol, you can set the device to initiate the 1483 route dialup.

After finishing the settings, click NEXT. The page shown in the following figure appears.

If you ensure the configuration is correct, click FINISH. Then the configuration takes effect. You can check the configuration in the WAN page.

I Note:

After you select the country in which you are in and the correct ISP, the ADSL settings, such as protocol, connection type, VPI, and VCI appears. It is recommended to use the default values.

3.3 Status

In the navigation bar, choose Status. In the Status page that is displayed contains: System, LAN, WLAN, WAN, Port Mapping, Statistic, and ARP Table.

3.3.1

Choose Status > System. The page that is displayed shows the current status and some basic settings of the router, such as software version, DSL mode, upstream speed, downstream speed, and uptime.

System

3.3.2

Choose Status > LAN. The page that is displayed shows some basic LAN settings of the router. In the LAN page, you can view the LAN IP address, DHCP server status, MAC address, and DHCP client table. If you want to configure the LAN network, refer to Chapter 3.4.1 LAN Settings.

LAN

3.3.3

Choose Status > WLAN. The page that is displayed shows some basic wirless LAN settings of the router.

WLAN

3.3.4

Choose Status > WAN. In the WAN page, you can view basic status of WAN, default gateway, DNS server. If you want to configure the WAN network, refer to the chapter3.6.1 WAN Interface.

WAN

3.3.5

Choose Status > Port Mapping. In the Port Mapping page, you can view the mapping relation and the status of port mapping.

Port Mapping

3.3.6

Choose Status > Statistic. The Statistic page that is displayed contains Traffic Statistic and DSL Statistic.

Statistic

3.3.6.1 Traffic Statistic

Choose Traffic Statistic in the left pane. The page shown in the following figure appears. In this page, you can view the statistics of each network port.

3.3.6.2 DSL Statistic

Choose DSL Statistic in the left pane. The page shown in the following figure appears. In this page, you can view the ADSL line statistics, downstream rate, upstream rate, and other information.

3.3.7

Choose Status > ARP Table. In the ARP Table page, you can view the table which shows a list of learned MAC addresses.

ARP Table

3.4 LAN

In the navigation bar, choose LAN. The LAN page that is displayed contains LAN Settings and DHCP Settings. In this page, you can use the LAN configuration to define an IP address for the router and configure the DHCP server.

3.4.1

LAN Settings

Choose LAN > LAN Settings. In the LAN Settings page, you can configure the LAN network. In this page, you can change IP address of the router. The default IP address is 192.168.2.1. This is the private IP address of the router. This is the address under which the router can be reached in the local network. It can be freely assigned from the block of available addresses.

The following table describes the parameters and buttons of this page.

Field Description

Enter the IP of LAN interface. It is recommended to use an address from a

IP Address

Subnet Mask

Secondary IP

Apply Changes Save the settings of this page.

block that is reserved for private use. This address block is 192.168.2.2-

192.168.2.254.

Enter the subnet mask of LAN interface. The range of subnet mask is from

255.255.0.0-255.255.255.254.

Select it to enable the secondary LAN IP. The two LAN IP address must be in the different network.

3.4.2

DHCP Settings

Choose LAN > DHCP Settings. Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obain the TCP/IP configuration from

the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway and DNS server to DHCP clients. This router can also act as a surrogate DHCP server (DHCP proxy) where it relays IP address assignment from an actual real DHCP server to clients. You can enable or disable DHCP server or DHCP proxy.

Select Disable in the DHCP Server Setup page. The page shown in the following figure appears.

Select DHCP Proxy in the DHCP Server Setup page. The page shown in the following figure appears.

The following table describes the parameters of this page.

Field Description

DHCP Proxy

DHCP Server Address Enter the IP address of the actual, remote DHCP server.

Select it, the router acts a surrogate DHCP Server and relays the DHCP requests and reponses between the remote server and the client.

Select DHCP Server in the DHCP Server Setup page. The page shown in the following figure appears.

The following table describes the parameters in this page.

Field Description

If set to DHCP Server, the router can assign IP addresses, IP default gateway and

DHCP Server

IP Pool Range It specifies the first and the last of contiguous IP address of the IP address pool.

Show Client

Max Lease Time

Domain Name

Gateway Address Enter the IP default gateway of the IP address pool.

MAC-based Assignment

DNS Servers to Windows95, Windows NT and other systems that support the DHCP client.

Click it, the Active DHCP Client Table page appears. It shows the assigned IP address of the clients.

The lease time determines the period that the PCs retain the assigned IP addresses before the IP addresses change.

Enter the domain name if you know. If you leave this blank, the domain name obtained by DHCP from the ISP is used. You must enter host name (system name) on each individual PC. The domain name can be assigned from the router through the DHCP server.

Click it, the Static IP Assignment Table page appears. It allows you assign IP addresses on the LAN to specify individual PCs based on their MAC address.

Click Show Client in the DHCP Server Setup page. The page shown in the following figure appears. In this page, you can view the IP address assigned to each DHCP client.

The following table describes the parameters and buttons in this page.

Field

IP Address It displays the IP address relative to the MAC address.

MAC Address

Time Expired (s) It shows the lease time. The lease time determines the period that the PCs retain

Description

It displays the MAC address of the PC. Each Ethernet device has a unique MAC address. The MAC address is assigned at the factory and it consists of six pairs of hexadecimal character, for example, 00-A0-C5-00-02-12.

Field

Refresh Refresh the page.

Close Close the page.

Description

the assigned IP addresses before the IP addresses change.

Click MAC-based Assignment in the DHCP Server Setup page. The page shown in the following figure appears. In this page, you can assign the IP addresses on the LAN to the specific individual PCs based on their MAC address.

The following table describes the parameters and buttons of this page.

Field Description

Host MAC Address Enter the MAC address of a PC on the LAN.

Assigned IP Address It specifies the IP address of the IP address pool.

Assign IP After entering the host MAC address and assigned IP address, click it. A row will

be added in the MAC-base assignment table.

Modify Assigned IP Select a row in the MAC-base assignment table. The MAC address and IP

address appear. After modifying the MAC address and IP address, click it to save the settings.

Delete Assigned IP Select a row in the MAC-base assignment table, then click it, this row is deleted.

Close Close the page.

MAC-based Assignment Table It shows the assigned IP address based on the MAC address.

3.5 WLAN

In the navigation bar, choose WLAN. The WLAN page that is displayed contains Basic Settings, Security, Advance Settings, Access Control, and WDS Settings. This page introduces the wireless LAN and some basic

configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a pear-to-pear network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to wired LAN.

3.5.1

Basic Settings

Choose WLAN > Basic Settings. The page shown in the following figure appears. In this page, you can configure the parameters for wireless LAN clients that may connect to your access point.

The following table describes the parameters and buttons of this page.

Field Description

Disable Wireless LAN Interface

(Root) SSID

Set VSSID

SSID You can enable or disnable SSID.

Country/Area Select the region which you are in.

Channel Number

Apply Changes Save the settings of this page.

By default, the wireless LAN is enabled. Select it to disable the wireless LAN.

The service set identification (SSID) is a unique name to identify the router in the wireless LAN. Wireless stations associating to the router must have the same SSID. Enter a desciptive name.

Click it, the Virtual SSID Setting page appears. In this page, you can enable 4 VSSIDs at most.

A channel is the radio frequency used by 802.11b/g wireless device. Channels available depend on your geographical area. You may have a choice of channels (for your region) and you should use a different channel from an adjacent AP to reduce the interference. Interference and degrading performance occurs when radio signal from diffirent APs overlap. Select a channel from the drop-down list box.

Click Set VSSID, the page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

Vap

SSID The service set identification (SSID) is a unique name to identify the router in

the wireless LAN

Auth Type

Apply Chnages Save the settings of this page.

Undo Refresh this page.

You can choose Open System, Shared Key, or Auto.

 If you select Open System, you can

 If you select Shared Key, you can

 If you select Auto, you can

3.5.2

Security

Choose WLAN > Security. The page shown in the following figure appears. Wireless security is vital to your network. It protects the wireless communication among the wireless stations, access points and the wireless network.

The following table describes the parameters and buttons of this page.

Field Description

SSID Type Select the SSID.

You can choose None, WEP, WPA (TKIP), WPA2 (AES), or WPA2 Mixed. Wired equivalent privacy (WEP) entrypts data frames before transmitting over

Encryption

Set WEP Key

Authentication RADIUS Server

Port

IP Address Enter the IP address of the RADIUS server.

Password

Apply Changes Save the the changes of this page.

the wireless network. Wi-Fi protected access (WPE) is a subset of the IEEE802.11i security specification draft. Key differences between WPA and WEP are user authentication and improved data encryption.

It is available when you set to WEP. Click it, the Wireless Wep Key Setup page appears.

RADIUS is based on a client-server model that supports authentication, authorization and accounting. The access point is client and the server is RADIUS server. RADIUS is a simple package exchange in which your router acts as a message relay between the wireless station and the network RADIUS server.

The default port of the RADIUS server for authentication is 1812. You need not change this value unless your network administrator instructs you to do so with additional information.

Enter a password as the key to be shared between the external authentication server and the access point. The key is not send over the network. This key must be the same on the external authentication server and your router.

Click Set WEP Key, the page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

SSID TYPE Select the SSID.

Key Length Select 64-bit or 128-bit to use data encryption.

 If you choose 64-bit, you can choose ASCII (5 characters) or Hex (10

Key Format

Default Tx Key Select the default encryption key.

Encryption Key 1 to 4

Apply Changes Save the changes of this page.

Close Close this page.

Undo Refresh this page.

characters).

 If you choose 128-bit, you can choose ASCII (13 characters) or Hex (26

characters).

The Encryption keys are used to encrypt the data. Both router and wireless stations must use the same encryption key for data transmission.

 If you choose 64-bit and ASCII (5 characters), enter any 5 ASCII characters.

 If you choose 64-bit and Hex (10 characters), enter any 10 hexadecimal

characters.

 If you choose 128-bit and ASCII (13 characters), enter any 13 ASCII

characters.

 If you choose 128-bit and Hex (26 characters), enter any 26 hexadecimal

characters.

3.5.3

Advance Settings

Choose WLAN > Advance Settings. The page shown in the following figure appears. These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know the effect of the changes on your AP.

The following table describes the parameters of this page.

Field Description

Fragment Threshold

RTS Threshold

This is the maximum data fragment size (between 256 and 2346bytes) that can be sent in the wireless network before the router fragments the packet into smaller data frames.

Request to send (RTS) is designed to prevent collisions due to hidden node. A RTS defines the biggest size data frame you can send before a RTS handshake invoked. The RTS threshold value is between 0 and 2347. If the RTS threshold value is greater than the fragment threshold value, the RTS hankshake do not occur. Because the data frames are fragmented before they reach the RTS size.

3.5.4

Access Control

Choose WLAN > Access Control. The page shown in the following figure appears. In this page, you can configure the wireless access control.

The following table describes the parameters and buttons of this page.

Field Description

You can choose Disable, Allow Listed, or Deny Listed.

Select Access Control Mode

Apply Changes Save the changes of selecting the access control mode.

MAC Addr

Apply Changes Save the changes of MAC Addr.

Reset Refresh the MAC address.

Current Access Control List

Delete Delete the row you select in the current access control list.

Delete All Delete all rows in the current access control list.

Reset Refresh the current access control list.

 Select Allow Listed, only the clients whose MAC address is listed can access the

router.

 Select Deny Listed, the clients whose MAC address is listed are denied to access

the router.

Enter the MAC address of the wireless station that are allowed or denied access to your router in this address field.

The MAC address in this table is allowed or denied to access to the router.

3.5.5

WDS Settings

Choose WLAN > WDS Settings. The page shown in the following figure appears.

The following table describes the fields of this screen.

Label Description Enable WDS Select it to enable the WDS function. Otherwise, you can not

configure the settings of this page.

MAC Addr Enter the MAC address (in XX-XX-XX-XX-XX-XX format) of the

AP. Comment Enter the comment to describe the AP of the MAC address. Apply Change Click it to add the MAC Addr with the Comment to Current WDS

AP List. Reset Click it to refresh the MAC Addr and Comment. Current WDS AP List This table shows all APs of the WDS. Delete Click it to delete the row of the Current WDS AP List. Delete All Click it to delete all rows of the Current WDS AP List.

3.6 WAN

In the navigation bar, choose WAN. The WAN page that is displayed contains WAN Interface and ADSL Settings.

3.6.1

Choose WAN > WAN Interface. The page shown in the following figure appears. In this page, you can configure WAN interface of your router.

WAN Interface

The following table describes the parameters of this page.

Field Description

This table shows the existed PVCs. It shows the Interface name, channel mode,

Current ATM VC Table

VPI

VCI

Encapsulation

Channel Mode

Admin Status Select Disable, this PVC is unusable.

Enable NAPT

Password The correct password that your ISP has provided to you.

Connection Type

Idle Time(min)

WAN IP Settings

VPI/VCI, encapsulation mode, local IP address, remote IP address and other information. The maximum item of this table is eight.

Click it, the IP Interface-Modify page appears. You can modify the PVCs’ parameters.

The virtual path between two points in an ATM network, ranging from 0 to

255.

The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols)

You can choose LLC and VC-Mux.

You can choose 1483 Bridged, 1483 MER, PPPoE, PPPoA, or 1483 Routed.

Select it to enable the NAPT function of the router. If you do not select it and you want to access the Internet normally, you must add a router on the uplink equipment. Otherwise, the access to the Internet fails. Normally, it is required to enable NAPT.

You can choose Continuous, Connect on Demand, or Manual. If select connect on demand, you need to enter the idle timeout time. Within the preset minutes, if the router does not detect the flow of the user continuously, the router automatically disconnects the PPPoE connection.

You can choose Fixed IP or Use DHCP.

Type

 If select Fixed IP, you should enter the local IP address, remote IP address

and subnet mask.

Field Description

 If select Use DHCP, the router is a DHCP client, the WAN IP address is

assigned by the remote DHCP server.

Local IP Address It is the IP address of WAN interface which is provided by your ISP.

Remote IP Address This is the gateway IP address which is provided by your ISP.

Subnet Mask It is the subnet mask of the local IP address.

Unnumbered Select this checkbox to enable IP Unnumbered function.

Default Route

Add

Modify

Delete Select a PVC in the current ATM VC table, then click it to delete this PVC.

Undo Click it to refresh the page.

ATM Settings

After configuring the parameters of this page, click it to add a new PVC into the current ATM VC table.

Select a PVC in the current ATM VC table, then modify the parameters of this PVC. After finishing, click it to apply the change of this PVC.

Click it, the ATM Settngs page appears. You can configure the parameters of the ATM for the router, including Qos type, PCR, CDVT, SCR and MBS.

Click in the 1483 Routed mode. The page shown in the following figure appears. In this page, you can

configure parameters of this 1480 routed PVC.

Click ATM Setting in the WAN Interface page. The page shown in the following figure appears. In this page, you can configure the parameters of the ATM for your ADSL router, including QoS type, PCR, CDVT, SCR and MBS.

The following table describes the parameters and buttons of this page.

Field Description

3.6.2

ADSL Settings

Choose WAN > ADSL Settings. The page shown in the following figure appears. In this pae, you can select the DSL modulation. Mostly, you need to remain this factory default settings. The router supports these modulations: G.lite, G.Dmt, T1.413, ADSL2, ADSL2+, AnnexL, and AnnexM. The router negotiates the modulation modes with the DSLAM.

3.7 Advance

In the navigation bar, choose Advance. The Advance page that is displayed contains DNS, Firewall, Virtual Server, Routing, IP QOS, Anti-DOs, Port Mapping, and Other.

3.7.1

Choose Advance > DNS. The DNS page that is displayed contains DNS Server and DDNS.

3.7.1.1 DNS Server

Choose DNS Server in the left pane. The page shown in the following figure appears. Domain name system (DNS) is an Internet service that translates the domain name into IP address. Because the

domain name is alphabetic, it is easier to remember. The Internet, however, is based on IP addresses. Every time you use a domain name, a DNS service translates the name into the corresponding IP address. For example, the domain name www.example.com might translate to 198.105.232.4. The DNS system has its own network. If one DNS server does not know how to translate a particular domain name, it asks another one, and so on, until the correct IP address is returned.

DNS

The following table describes the parameters and buttons of this page.

Field Description

Obtain DNS Automatically

Set DNS Manually Select it, enter the primary and optional secondary DNS server IP addresses.

Apply Changes Save the settings of this page.

Reset Selected Refresh this page.

Select it, the router accepts the first received DNS assignment from one of the PPPoA, PPPoE or MER enabled PVC(s) during the connection establishment.

3.7.1.2 DDNS

Choose DDNS in the left pane. The page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

3.7.2

Choose Advance > Firewall. The Firewall page that is displayed contains IP/Port Fileter, MAC Filter, and URL Blocking.

Firewall

3.7.2.1 IP/Port Filter

Choose IP/Port Filter in the left pane. The page shown in the following figure appears. Entries in this table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network.

Click Apply Changes to save the settings of this page. Click Add Rule to add a new rule of the IP/Port filter.

The following table describes the parameters and buttons of this page.

Field Description

3.7.2.2 MAC Filter

Choose MAC Filter in the left pane. The page shown in the following figure appears. Entries in this table are used to restrict certain types of data packets from your local network to Internet through the gateway. These filters are helpful in securing or restricting your local network.

Click Apply Changes to save the settings of this page. Click Add Rule to add a new rule of the MAC filter.

The following table describes the parameters and buttons of this page.

Field Description

3.7.2.3 URL Blocking

Choose URL Blocking in the left pane. The page shown in the following figure appears. This page is used to block a fully qualified domain name (FQDN), such as tw.yahoo.comand and filtered keyword. You can add or delete FQDN and filtered keyword.

The following table describes the parameters and buttons of this page.

Field Description

3.7.3

Virtual Server

Choose Advance > Virtual Server. The page shown in the following figure appears. The page that is displayed contains Services and DMZ Settings.

3.7.3.1 Services

Choose Services in the left pane. The page shown in the following figure appears. This page is used to enable the servers in the local network.

Click Add to add a virtual server. The page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

3.7.3.2 DMZ Settings

Choose DMZ Settings in the left pane. The page shown in the following figure appears. A demilitarized zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers.

Step 1 Select Enable DMZ to enable this function. Step 2 Enter an IP address of the DMZ host. Step 3 Click Apply Changes to save the settings of this page.

3.7.4

Routing

Choose Advance > Routing. The page shown in the following figure appears. The page that is displayed contains Static Route and RIP.

3.7.4.1 Static Route

Choose Static Route in the left pane. The page shown in the following figure appears. In this page, you can configure the routing information. You can add or delete IP routes.

The following table describes the parameters and buttons of this page.

Field Description

Click Show Routes. The table shown in the following figure appears. The table shows a list of destination routes commonly accessed by your network.

3.7.4.2 RIP

Choose RIP in the left pane. The page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others who is using the Routing Information Protocol (RIP), enable the RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

The following table describes the parameters and buttons of this page.

Field Description

3.7.5

IP QoS

Choose Advance > IP QOS. The page shown in the following figure appears. Entries in this table are used to assign the precedence for each incoming packet based on physical LAN port, TCP/UDP port number, and source/destination IP address/subnet masks.

Click Add Rule, the page shown in the following figure appears.

The following table describes the parameters and buttons of this page.

Field Description

3.7.6

Choose Advance > Anti-Dos. The page shown in the following figure appears. Denial-of-service attack (DoS Attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. In this page, you can prevent DoS attacks.

Anti-dos

Click Apply Changes to save the settings of this page.

3.7.7

Choose Advance > Port Mapping. The page shown in the following figure appears. In this page, you can bind the WAN interface and the LAN interface to the same group.

The procedure for manipulate a mapping group is as follows:

Step 1 Select Enable to enable this function. Step 2 Select a group from the table. Step 3 Select interfaces from the WAN and LAN interface list and add them to the grouped interface list using the

Step 4 Click Apply Changes to save the changes.

Port Mapping

arrow buttons to manipulate the required mapping of the ports.

3.7.8

Choose Advance > Other. In the Other page that is displayed contains IGMP Proxy, UPNP, Bridge, and IP PassThrough.

Other

3.7.8.1 IGMP Proxy

Choose IGMP Proxy in the left pane. The page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The system acts as a proxy for its hosts after you enable it.

Click Apply Changes to save the settings of this page.

3.7.8.2 UPNP

Choose UPNP in the left pane. The page shown in the following figure appears. This page is used to configure UPnP. The system acts as a daemon after you enable it.

Click Apply Changes to save the settings of this page.

3.7.8.3 Bridge

Choose Bridge in the left pane. The page shown in the following figure appears. This page is used to configure the bridge parameters. In this page, you can change the settings or view some information in the bridge mode and its attached ports.

The following table describes the parameters and buttons of this page.

Field Description

Click Show MACs. The page shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge.

3.7.8.4 IP PassThrough

Choose IP Pass Through in the left pane. The page shown in the following figure appears. IP passthrough is also known as ZIPB or IP extension. In this page, you can enable and configure IP passthrough.

3.8 Admin

In the navigation bar, choose Admin. The Admin page that is displayed contains Remote Access, Commit/Reboot, Password, Backup/Restore, Upgrade Fireware, Time Zone, System Log, SNMP, TR069, ACL, and Logout.

3.8.1

Choose Admin > Remote Access. The page shown in the following figure appears. You can enable or disable the services which are used by the remote host. For example, if TELNET service is enabled and the port is 23, the remote host can access this router by telnet through the port 23.

Remote Access

3.8.2

Choose Admin > Commit/Reboot. The page shown in the following figure appears. In this page, you can set the router reset to the default settings or set the router to commit the current settings.

Commit/Reboot

The following table describes the parameters of this page.

Field Description

reset to default settings Select it to reset the router to the default settings.

commit current settings Select it to save the current settings and reboot the router.

Reboot Reboot the router.

3.8.3

Password

Choose Admin > Password. The page shown in the following figure appears. In this page, you can change the password of the user, including admin and user. By default, the super user name and password are admin and smcadmin. The common user name and password are user and user.

The following table describes the parameters of this page.

Field Description

User Name

Old Password After selecting the user name, enter the corresponding old password of the

You can choose admin or user.

Field Description

user.

New Password Enter the password to which you want to change the old password.

Confirmed Password Enter the new password again.

3.8.4

Backup/Restore

Choose Admin > Backup/Restore. The page shown in the following figure appears. In this page, you can backup the current settings to a file and restore the settings from the file which was saved previously.

Note:

Do not turn off your router or press the Reset button while these procedures are in progress.

The following table describes the parameters and buttons of this page.

Field Description

Save Settings to File

Load Settings from File

Upload

Click it and select the path. Then you can save the configuration file of the

router.

Click Browse to select the configuration file.

Select the configuration file of the router. Click Upload to begin restoring the

router configuration.

3.8.5

Upgrade Fireware

Choose Admin > Upgrade Firmware. The page shown in the following figure appears. In this page, you can upgrade the firmware of the router.

I Note:

Do not turn off your router or press the Reset button while this procedure is in progress.

The following table describes the parameters and buttons of this page.

Field Description

Select File

Upload

Reset Click it to begin selecting the firmware file.

Click Browse to select the firmware file.

Select the firmware file and click Upload to begin upgrading the firmware.

3.8.6

Time Zone

Choose Admin > Time Zone. The page shown in the following figure appears. In this page, you can set the system time manually or get the system time from the time server.

The following table describes the parameters of this page.

Field Description

Refresh Refresh the system shown in the page.

You can choose Time Server or Manual.

Time Mode

Enable SNTP Client Update Select it, you can choose the correct SNTP server which you want.

SNTP Server Choose the SNTP server from the drop-down list box.

Time Zone Select the time zone in which area you are.

 Select Time Server, the router gets the system time from the time server.

 Select Manual, you should configure the system time manually.

3.8.7

System Log

Choose Admin > System Log. The page shown in the following figure appears. In this page, you can enable or disable the system log function. You can also view the system log.

The following table describes the parameters and buttons of this page.

Field Description

System Log You can enable or disable the system log function.

Apply Changes Save the settings of this page.

Refresh Refresh the system log shown in the textfield.

3.8.8

SNMP

Choose Admin > SNMP. The page shown in the following figure appears. In this page, you can set the SNMP parameters.

The following table describes the parameters and buttons of this page.

Field Description

Trap IP Address Enter the IP address of trap IP. The trap information is sent to the host.

Community name (read-only)

Community name (write-only)

The network administrators must use this password to read the information of this router.

The network administrators must use this password to configure the information of the router.

3.8.9

TR069

Choose Admin > TR069. The page shown in the following page appears. In this page, you can configure the TR-069 of the router.

The following table describes the parameters and buttons of this page.

Field Description

3.8.10

ACL

Choose Admin > ACL. The page shown in the following figure appears. In this page, you can configure the IP address in the access control list. If ACL is enabled, only the effective IP adresses in ACL can access the ADSL router.

Step 1 Select Enable and click take effect. Step 2 Configure the ACL. Step 3 Click take effect to take the configuration effect.

I Note:

If you select Enable in ACL Capability, ensure that your host IP address is in ACL list before it takes effect.

3.9 Diagnostic

In the navigation bar, choose Diagnostic. The Diagnostic page that is displayed contains Ping, ATM Loopback, ADSL, and Diagnostic.

3.9.1

Choose Diagnostic > Ping. The page shown in the following figure appears.

Ping

The following table describes the parameters and buttons in this page.

Field Description

Host Address Enter the IP address.

Go ! Click it to begin to Ping the host address.

3.9.2

Choose Diagnostic > ATM Loopback. The page shown in the following figure appears. In this page, you can use VCC loopback function to check the connectivity of the VCC.

3.9.3

ATM Loopback

ADSL

Choose Diagnostic > ADSL. The page shown in the following figure appears. It is used for ADSL tone diagnostics.

Click Go! to begin ADSL tone diagnostics.

3.9.4

Choose Diagnostic. The page shown in the following figure appears. In this page, you can test the DSL connection.

Click Run Diagnostic Test to begin testing.

Diagnostic

Appendix A

Questions & Answers

This section describes common problems you may encounter and possible solutions to them. The Barricade can be easily monitored through panel indicators to identify problems.

1. Question: Why all LED indicators are off?

Answer:

 Check the connection between the power adaptor and the power socket

 Check the power switch is on or not

2. Question: Why LAN LED is not lighting?

Answer:

 Check the connection between the ADSL modem and your computer or Hub/Switch

 Check your PC or Hub/Switch running status and make sure them are working normally.

3. Question: Why ADSL LED is not lighting?

Answer: Check the connection between the ADSL “line” port and the wall jack.

4. Question: Why cannot visit Internet with ADSL LED is on?

Answer: Make sure following information has been input correctly:

VPI/VCI

User/password.

5. Question: Why cannot open the Modem configuring web page?

Answer:

Follow below steps to check the communication between the computer and Modem:

Click start -> run (input ping demands)-> Ping 192.168.2.1 (MODEM IP address).

If cannot reach the modem, please check following configuration:

 The type of the network cable

 The connection between the modem and computer

 You computer’s TCP/IP configuration

6. Question: How to load the default setting after incorrect configuration?

Answer:

Press “reset” button 5s-10s to load the default configuration. The modem’s default IP address:

192.168.2.1/255.255.255.0,

Username/password: admin/smcadmin

Appendix B

Technical Specifications

External Connectors



1 push power switch



1 DC power jack



1 factory reset button



4 LAN 10/100M Auto MDI/MDIX RJ45 ports



1 WAN RJ11 DSL port

Protocol Feature

Bridging/Routing



RFC 1483 Bridge



IEEE 802.1D transparent bridging



Bridge Filtering



RFC 1483 Router



RIP 1 & 2 supported



DHCP (RFC1541) Server, Relay



Network Address Translation (NAT)/ Network Address Port Translation (NAPT)



DNS relay



IGMP v1 and v2

Encapsulation



RFC 1483 router/bridge



PPPoA



PPPoE



MER

ADSL Feature



Support ANSI T1.413 Issue2



Support ITU G.992.1(G.dmt) Annex A



Support ITU G.992.2 (G.lite) Annex A



Support ITU G.992.3 ADSL2(G.dmt.bis) Annexs A, L, M



Support ITU G.992.4 ADSL2(G.lite.bis)



Support ITU G.992.5 ADSL2plus

Ethernet Feature



Fully compliant with IEEE802.3/802.3u auto-negotiation function



Support 10base-T, 100base-TX



Support half duplex, full duplex



Support back pressure flow control for half duplex, IEEE802.3x flow control for full duplex



Support MDI/MDIX auto cross

Management Support



Support WEB/TFTP mode which use as native and long-distance edition upgrade



Support test estate of circuitry connect (Diagnostics)



Support WEB interface setting



Support Telnet CLI command line



Support user setting the reset fuction: hardware resert or WEB interface mode



Support configuration files backup and resume function



Support LAN port IP address amend function



Support System LOG function



Support SNMP V1/V2C native and long-distance control (MIB RFC1213/ADSL line MIB Ⅱ RFC 2662 ATM MIB RFC 2515)



Support SNTP enactment

Security Support



Support firewall function



Support the passwords of two grades of users and can be revised



Support and sign electronically the function (prevent the different kind of editions from upgrading each other)



Support DOS (Denial of service) which detect & protect a number of attacks (such as SYN/FIN/RST Flood, Smurf, WinNuke, Echo Scan, Xmas Tree Scan)



Packet filter based on IP and port



Access control based on MAC



PAP, CHAP authentication

Environment



Operating temperature: 0℃ to 40℃(32ºF to104ºF)



Storage temperature: -20℃ to 70℃(-13ºF to131ºF)



Operating humidity: 10%~85% Non-Condensing



Storage humidity: 5%~95% Non-Condensing



External adapter spec: Input: AC220V, 50Hz. Output:12V DC, 1000 mA(min)



Dissipation: 7W (max)

Appendix C

GPL Anouncement

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under

this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,

REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
