Smc 2402W DATASHEET

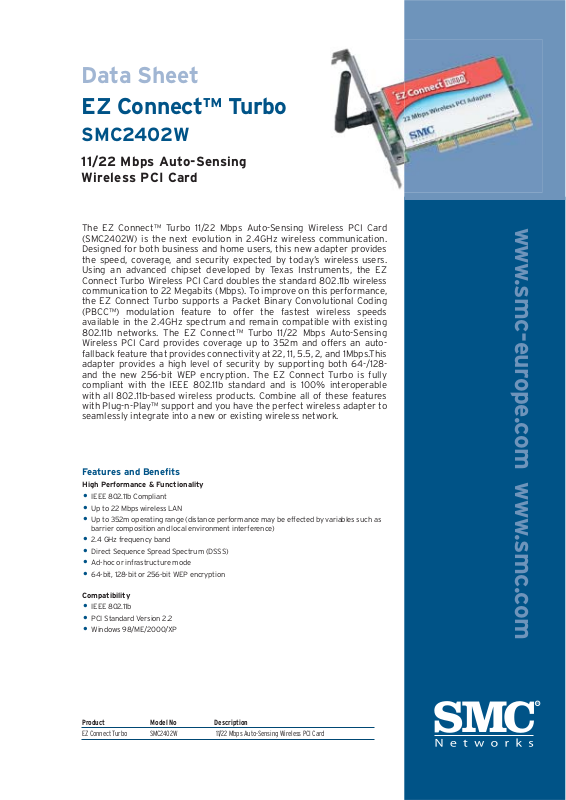

Data Sheet
EZ Connect™ Turbo
SMC2402W
11/22 Mbps Auto-Sensing
Wireless PCI Card
The EZ Connect™ Turbo 11/22 Mbps Auto-Sensing Wireless PCI Card
(SMC2402W) is the next evolution in 2.4GHz wireless communication.
Designed for both business and home users, this new adapter provides
the speed, coverage, and security expected by today’s wireless users.
Using an advanced chipset developed by Texas Instruments, the EZ
Connect Turbo Wireless PCI Card doubles the standard 802.11b wireless
communication to 22 Megabits (Mbps). To improve on this performance,
the EZ Connect Turbo supports a Packet Binary Convolutional Coding
(PBCC™) modulation feature to offer the fastest wireless speeds
available in the 2.4GHz spectrum and remain compatible with existing
802.11b networks. The EZ Connect™ Turbo 11/22 Mbps Auto-Sensing
Wireless PCI Card provides coverage up to 352m and offers an autofallback feature that provides connectivity at 22, 11, 5.5, 2, and 1Mbps.This
adapter provides a high level of security by supporting both 64-/128and the new 256-bit WEP encryption. The EZ Connect Turbo is fully
compliant with the IEEE 802.11b standard and is 100% interoperable
with all 802.11b-based wireless products. Combine all of these features
with Plug-n-Play™ support and you have the perfect wireless adapter to
seamlessly integrate into a new or existing wireless network.
Features and Benefi ts
High Performance & Functionality
• IEEE 802.11b Compliant
• Up to 22 Mbps wireless LAN
• Up to 352m operating range (distance performance may be effected by variables such as
barrier composition and local environment interference)
• 2.4 GHz frequency band
• Direct Sequence Spread Spectrum (DSSS)
• Ad-hoc or infrastructure mode
• 64-bit, 128-bit or 256-bit WEP encryption
www.smc-europe.com www.smc.com
Compatibility
• IEEE 802.11b
• PCI Standard Version 2.2
• Windows 98/ME/2000/XP
Product Model No Description
SMC2402W 11/22 Mbps Auto-Sensing Wireless PCI CardEZ Connect Turbo
Specifications
Data Rate
• Up to 22Mbps with Auto
Fallback to 11/5.5/2/1 Mbps
Operating Range
• Up to 352m
(distance performance may be effected
by variables such as barrier composition
and local environment interference)
Network Configuration
• Ad-Hoc (Peer to Peer)
• Infrastructure
Radio Signal Type
• Direct Sequence Spread Spectrum (DSSS)
Media Access Protocol
• CSMA/CA (Collision Avoidance)
with ACK
Security
• 64-/128-/256-bit Wired
Equivalent Privacy (WEP)
RF Frequency
• 2471MHz – 2497 MHz – Japan Band
• 2400MHz – 2483.5MHz – North
America, Europe and Extended
Japan Band
• 2455MHz – 2475MHz – Spain
• 2446.5MHz – 2483.5MHz – France
Operating Channel
• 11 Channels (US, Canada)
• 13 Channels (Europe)
• 14 Channels (Japan)
RF Output Power
• 16.5-18 dBm
Sensitivity
• -80 dBm @ 22 Mbps
• -84 dBm @ 11Mbps
• -87 dBm @ 5.5 Mbps
• -90 dBm @ 2 Mbps
• -92 dBm @ 1 Mbps
Frequency Stability
• Within + 25 ppm
Data modulation type
• BPSK (1Mbps)
• QPSK (2Mpbs)
• CCK (5.5/11Mbps)
• PBCC (5.5/11/22 Mbps)
Operating Systems
• Windows 98/ME/2000/XP
Antenna Type
• External Dipole Antenna
Antenna Gain
• 2 dBi
Antenna Connector
• SMA Reverse Connector Type
LED
• Power/TX/RX
Power Voltage
• 3.3 or 5 Volt + 5%
Power Consumption
• 650 mA by TX (Max)
• 350mA by RX
Dimension
• 133 x121 x 22.05 (mm)
Weight
• 407g
Interface
• PCI Standard Version 2.2
Compliance
• USA:FCC Part 15 Class B and C
• Europe: ETSI EN 300 328-2 and ETSI EN
301 489-1, -17, EN60950, CE-Mark
• Canada: ISC RSS139
• Japan: Telec RCR STD 33, T66; JETA
• WiFi Compliant
Temperature Range
• Operating: -0 C - +60 C
• Storage: -20 C - +70 C
Humidity
• Operating: 0% to 70%
• Storage: 0% to 95% Noncondensing
Standards
• IEEE 802.11b
• PCI Standard Version 2.2
Warranty
• Limited Lifetime
EZ Connect Turbo
SMC2402W
11/22 Mbps Auto-Sensing
Wireless PCI Card
