Smc 1244TX-1 User Manual
Copyrights
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no
responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or otherwise under any patent or patent
rights of SMC. SMC reserves the right to change specifications at any time without notice.
Copyright © 2005 by
SMC Networks, Inc.
38 Tesla
Irvine, CA 92618
All rights reserved.
Trademarks:
SMC is a registered trademark; and EZ Card, is a trademark of SMC Networks, Inc. Other product and
company names are trademarks or registered trademarks of their respective holders.
1
Contents
Warranty …………………………………………………….………………...... 3
Compliances ……………………………..……………………………………. 5
Hardware Description ................................................................................….. 7
Package Contents ………………………………………………………….… 7
Hardware Installation ……….……………………………………….………. 8
Driver Installation …………………………………………..………………… 9
Windows 9x ………..………….……………………….……………….…… 10
Windows ME ……….……………….……………………………….………. 14
Windows NT ……….………………….…………………………….……….. 16
Windows 2000 ………...…………………….…………………….….……… 17
Windows XP ……………………………………….………..……………….. 19

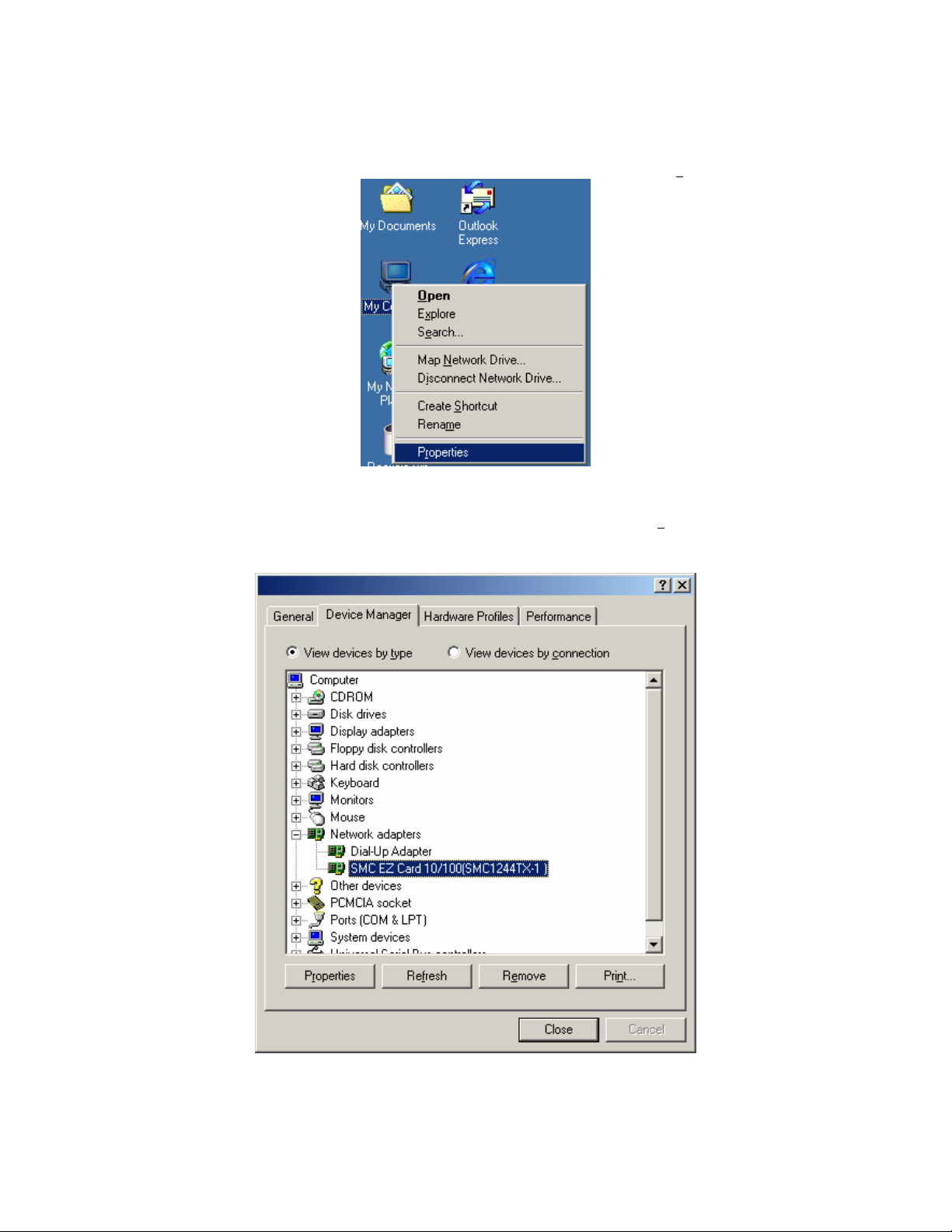

Driver Verification ……………………..……………………………………. 26
Troubleshooting ……………….……………………………………………. 30
Cable Types and Specifications ……………..…………………………… 32
Technical Specifications ..………………………………………………..… 33
Terminology …….……………………………………………………….…… 34
2
Limited Warranty
Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in
workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products
carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC
may, at its own discretion, repair or replace any product not operating as warranted with a similar or
functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace
any product returned under warranty within 30 days of receipt of the product.
The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products
within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the
enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard
limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is
defined as the period of time during which the product is an ‘Active’ SMC product. A product is considered to
be ‘Active’ while it is listed on the current SMC price list. As new technologies emerge, older technologies
become obsolete and SMC will, at its discretion, replace an older product in its product line with one that
incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an
‘Active’ SMC product.
All products that are replaced become the property of SMC. Replacement products may be either new or
reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the
initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware,
configuration information, or memory data of Customer contained in, stored on, or integrated with any products
returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed
accessory or add-on components, such as expansion modules, removed prior to returning the product for
replacement. SMC is not responsible for these items if they are returned with the product.
Customers must contact SMC for a Return Material Authorization number prior to returning any product to
SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material
Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at
customer’s expense. For warranty claims within North America, please call our toll-free customer support
number at (800) 762-4968. Customers are responsible for all shipping charges from their facility to SMC. SMC
is responsible for return shipping charges from SMC to customer.
3
Limited Warranty
WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE,
CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN
QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE
AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR
USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING
AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR
WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS
OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF
ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO
THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN
THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.*
SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under
the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard
one-year warranty from date of purchase.
4
Compliances
FCC - Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
EC Conformance Declaration - Class B
SMC contact for these products in Europe is:
SMC Networks Europe,
Edificio Conata II,
Calle Fructuós Gelabert 6-8, 2o, 4a,
08970 - Sant Joan Despí, Barcelona, Spain.
This information technology equipment complies with the requirements of the Council Directive
89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic
Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the
Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the
following standards were applied:
RFI Emission:
• Limit class B according to EN55022:1998
• Limit class B for harmonic current emission according to EN61000-3-2/1995
• Limitation of voltage fluctuation and flicker in low-voltage supply system according to
EN61000-3-3/1995
Immunity:
• Product family standard according to EN55024:1998
• Electrostatic Discharge according to EN61000-4-2:1995 (Contact Discharge: ±4 kV, Air
Discharge: ±8 kV)
• Radio-frequency electromagnetic field according to EN61000-4-3:1996 (80 - 1000 MHz with
1 kHz AM 80% Modulation: 3 V/m)
• Electrical fast transient/burst according to EN61000-4-4:1995 (AC/DC power supply: ±1 kV,
Data/Signal lines: ±0.5 kV)
5
• Surge immunity test according to EN61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC
Line to Earth: ±2 kV)
• Immunity to conducted disturbances, Induced by radio-frequency fields: EN61000-4-6:1996
(0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m)
• Power frequency magnetic field immunity test according to EN61000-4-8:1993 (1 A/m at
frequency 50 Hz)
• Voltage dips, short interruptions and voltage variations immunity test according to EN61000-
4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000
ms)
LVD
• EN60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997)
Warning: Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Les
raccordeurs ne sont pas utilisé pour le systéme téléphonique!
Industry Canada - Class B
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set
out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of
Communications.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de
Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le
ministère des Communications.
Japan VCCI Class B
Australia AS/NZS 3548 (1995) - Class B
6
Hardware Description
The SMC1244TX-1 10/100 network card is equipped with:
• 1 RJ-45 connector for 10/100 Mbps connections
• 1 LED Indicator – Link/ACT, FD (Full Duplex)
Package Contents
After unpacking the EZ Card 10/100 SMC1244TX-1, check the contents of the box to be sure you have
received the following components:
• 1 SMC1244TX-1 PCI Card
• 1 Driver and Documentation CD
• 1 Quick Install Guide
Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please
retain the carton and original packing materials in case there is a need to return the product.
Please register this product and upgrade the product warranty at SMC's Web site: http://www.smc.com
7
Hardware Installation
Warning:
• Network cards are sensitive to static electricity. To protect the card, avoid touching its
electrical components and always touch the metal chassis of your computer before handling
the card
1. Turn off your computer, unplug the power cord and remove the computer’s cover.
2. Choose a free PCI expansion slot and remove the protective bracket if necessary.
3. Insert the adapter into the slot and make sure it is firmly seated.
4. Secure the adapter bracket into place with the screw.
5. Replace the computer’s cover.
6. Connect the EZ PCI Card 10/100 directly to a 10BASE-T or 100BASE-TX hub or
switch using UTP cable (Category 3, 4 or 5 for 10BASE-T; Category 5 for
100BASE-TX). The maximum allowable length of UTP cable connections is 100
meters (328 ft). When inserting an RJ-45 plug, be sure the tab on the plug clicks into
position to ensure that it is properly seated.
7. Replace the computer’s cover and power it on. The EZ PCI Card 10/100 should be
automatically configured by the host computer’s BIOS. However, if you have an
older computer, you may have to manually configure the computer’s BIOS settings.
See “Troubleshooting”
8. The driver & Documentation that accompanies the EZ Card 10/100 contains all the
network operating system drivers supported by this card. Please read the
“RELEASE.TXT” file on the CD for a list of all drivers. Refer to this guide for
instructions on installing drivers. Any new or updated drivers can be downloaded
from SMC’s Web site (see the back cover of this guide).
9. Connect the EZ PCI Card 10/100 directly to your switch, hub or cable/DSL modem
using UTP cable (Category 3, 4 or 5 for 10BASE-T; Category 5 for 100BASE-TX).
The maximum allowable length of UTP cable connections is 100 meters (328ft).
When inserting an RJ-45 plug, be sure the tab on the plug clicks into position to
ensure that it is properly seated.
8
Driver Installation
Windows 95/98/Me/NT/2000/XP
NOTE: Installation processes will require the use of your original, licensed copy of Windows. Please have your
Windows CD available BEFORE proceeding with the installation.
Setup Processes
The following are Operating System-specific options that may appear during this
installation procedure:
Windows 95/98: If you are using Windows 95 or 98, you must have your original Windows CD on
hand. The system will request it near the end of the installation process.
Windows Me: The installation process is fully Plug-and-Play. You will be asked to reboot when the
process is complete.
Windows NT: This is NOT a Plug-and-Play operating system. As a result, you need to manually
add the adapter to your network properties. (See below for further details)
Windows 2000/XP: Select [Install the software automatically] if prompted and click [Next] to
complete the installation.
9

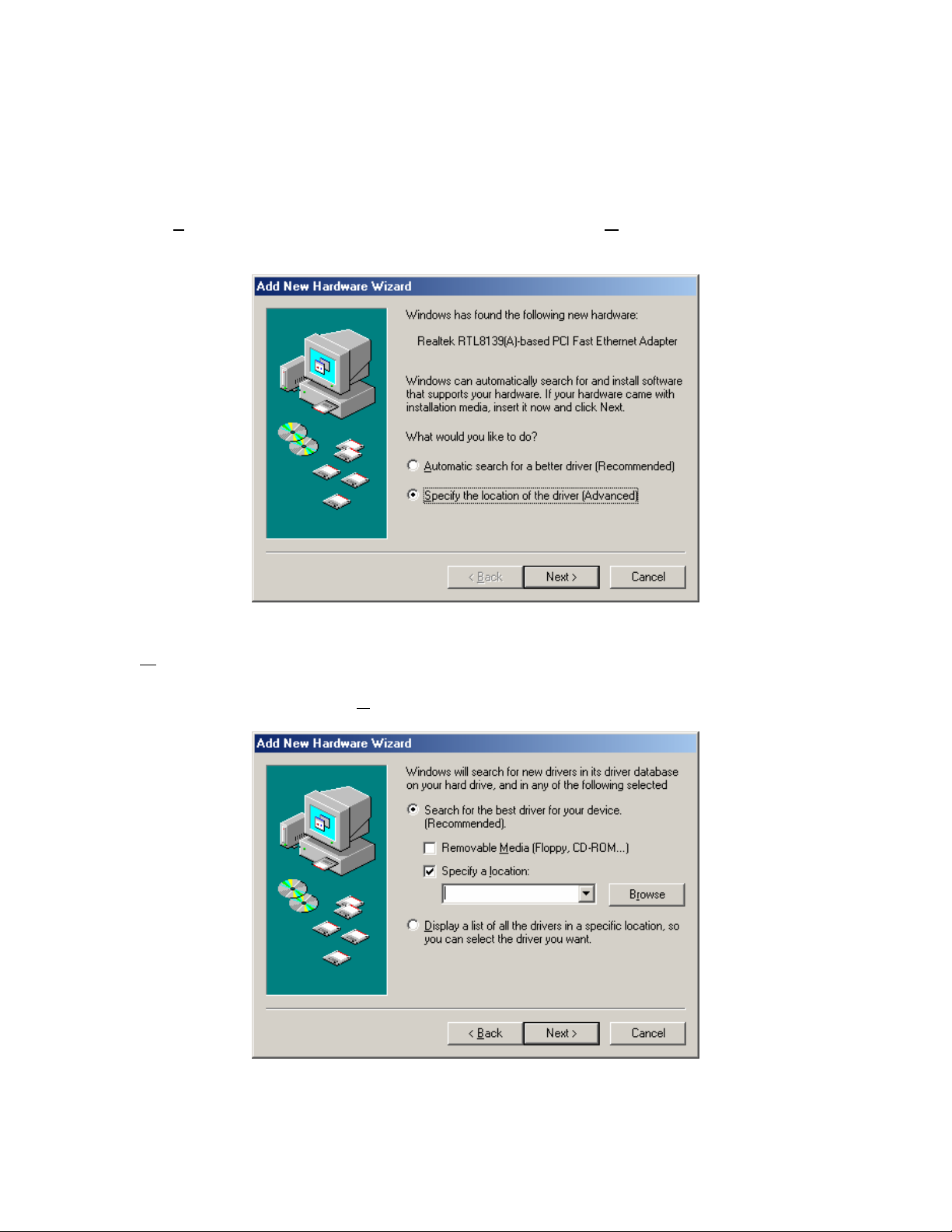

Windows 9x
NOTE: Installation processes will require the use of your original, licensed copy of Windows.
Please have your Windows CD available BEFORE proceeding with the installation.

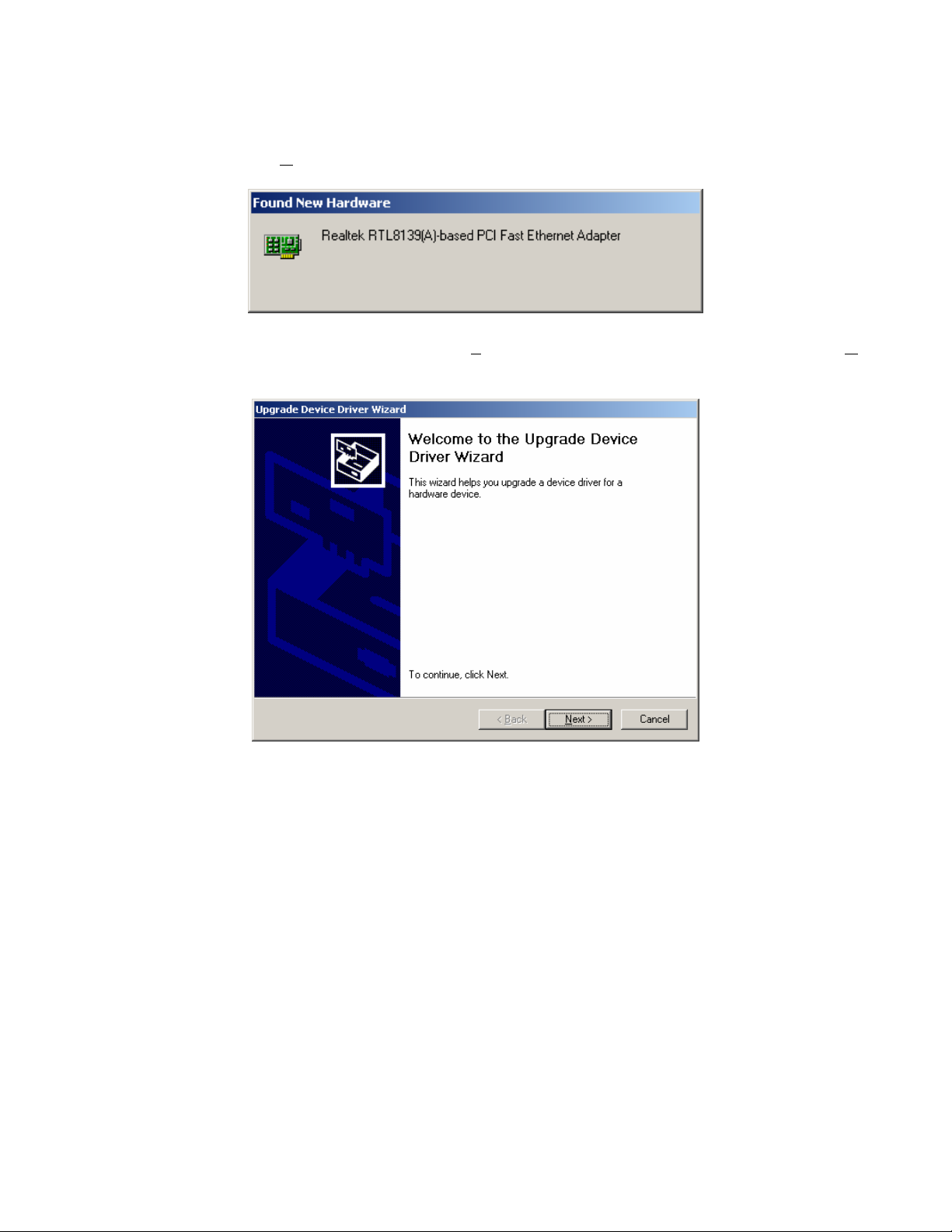

Step 1: After you have inserted the EZ Card 10/100 SMC1244TX-1 PCI Card in your machine, the
Operating System will automatically recognize the adapter and prompt you for the appropriate
drivers. Click the [Next >] button to begin the installation.
Step 2: Insert the Driver CD and select the [Search for the best driver for your device] option and
click [Next >]. In Windows 95, you may be immediately asked to enter the path of the driver
location. Type ?:\SMC1244\WIN95. (Note: The "?" equals the letter of your CD-ROM drive. In
most cases, this is D.)
10
Step 3: Clear all checkboxes except for [Specify a location:]. Then press the [Browse] button and
look for the drivers on your CD-ROM. If using Windows 95, browse to ?:\SMC1244\WIN95 and if
you are using Windows 98, browse to ?:\SMC1244\WIN98. (Note: The "?" equals the letter of your
CD-ROM drive. In most cases, this is D.)

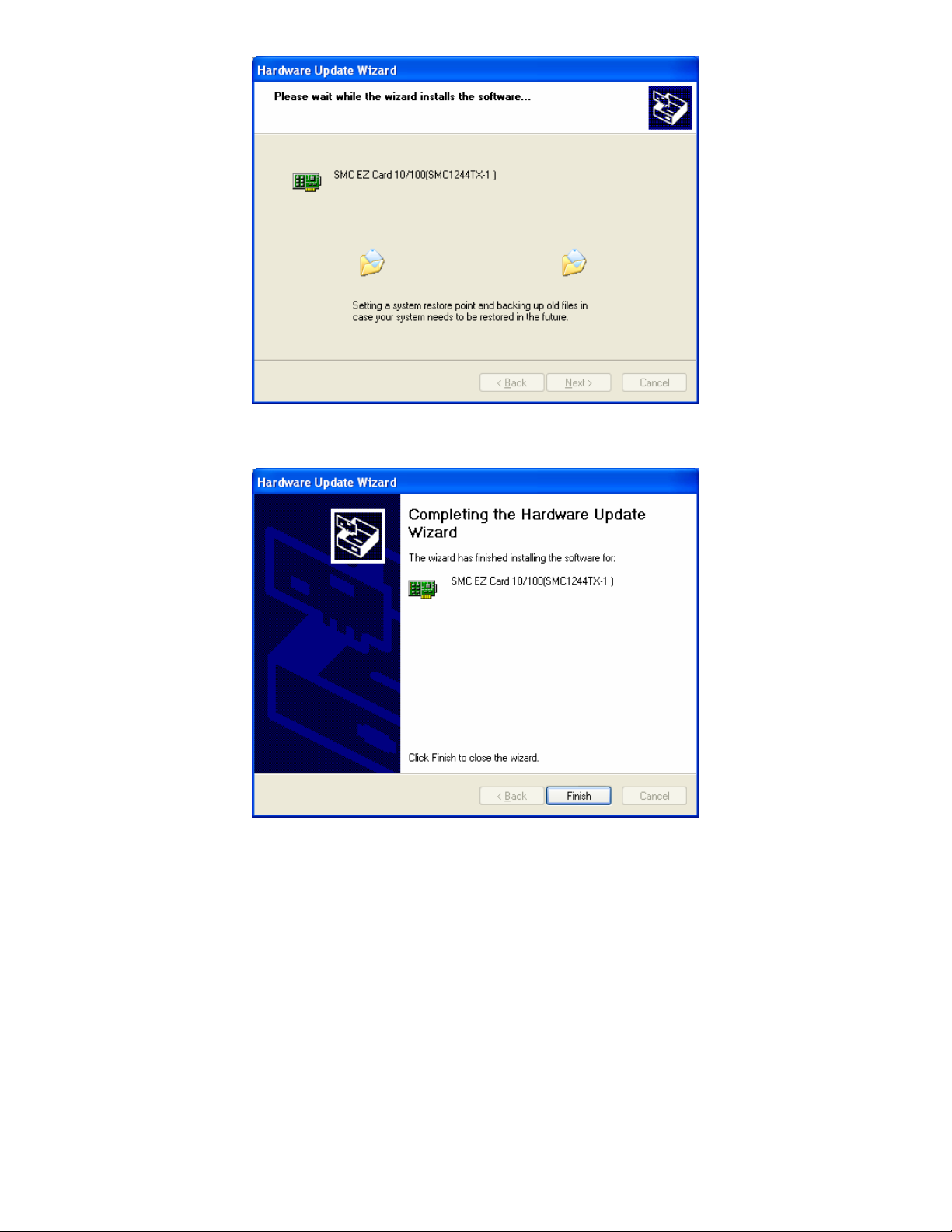

Step 4: The system should find the drivers. Click the [Next >] button to continue the installation.
The wizard will show "SMC EZ Card 10/100 (SMC1244TX-1)".
(Note: If the system could not find the drivers, click the [< Back] button, and select the [Display a
list of all the drivers...] option. Select [Network Adapters] from the list of devices, press [Have Disk]
and once again browse to the location of the drivers)
11
Loading...
