Quick User Guide
SmartWatch® Eco Compact
SmartWatch® Eco
Digital Video Recorders
SmartWatch® Eco/Eco Compact
Page 2
2
Index
Box Contents............................................................................................................................................................................... 3
Front Panel Controls ..............................................................................................................................................................4 - 5
SmartWatch Eco Compact.............................................................................................................................................4
SmartWatch Eco ............................................................................................................................................................5
Remote Control Functions In Live Mode ....................................................................................................................................6
Mouse Functions In Live Mode ...................................................................................................................................................7
On-Screen Graphical Icons In Live Mode...................................................................................................................................8
On-Screen Graphical Icons In Live Mode When Connected Through ‘DVR Remote Desktop’....................................8
DVR Login...................................................................................................................................................................................9
Search Mode........................................................................................................................................................................9 - 11
Event Search................................................................................................................................................................ 10
Time Search.................................................................................................................................................................11
File Search ................................................................................................................................................................... 11
Playback Mode.......................................................................................................................................................................... 12
Remote Control Functions In Playback Mode .............................................................................................................12
Mouse Functions In Playback Mode ............................................................................................................................12
Backup Mode ............................................................................................................................................................................13
PTZ Control...............................................................................................................................................................................14
Remote Control Functions In PTZ Mode .....................................................................................................................14
Mouse Functions in PTZ Mode ....................................................................................................................................14

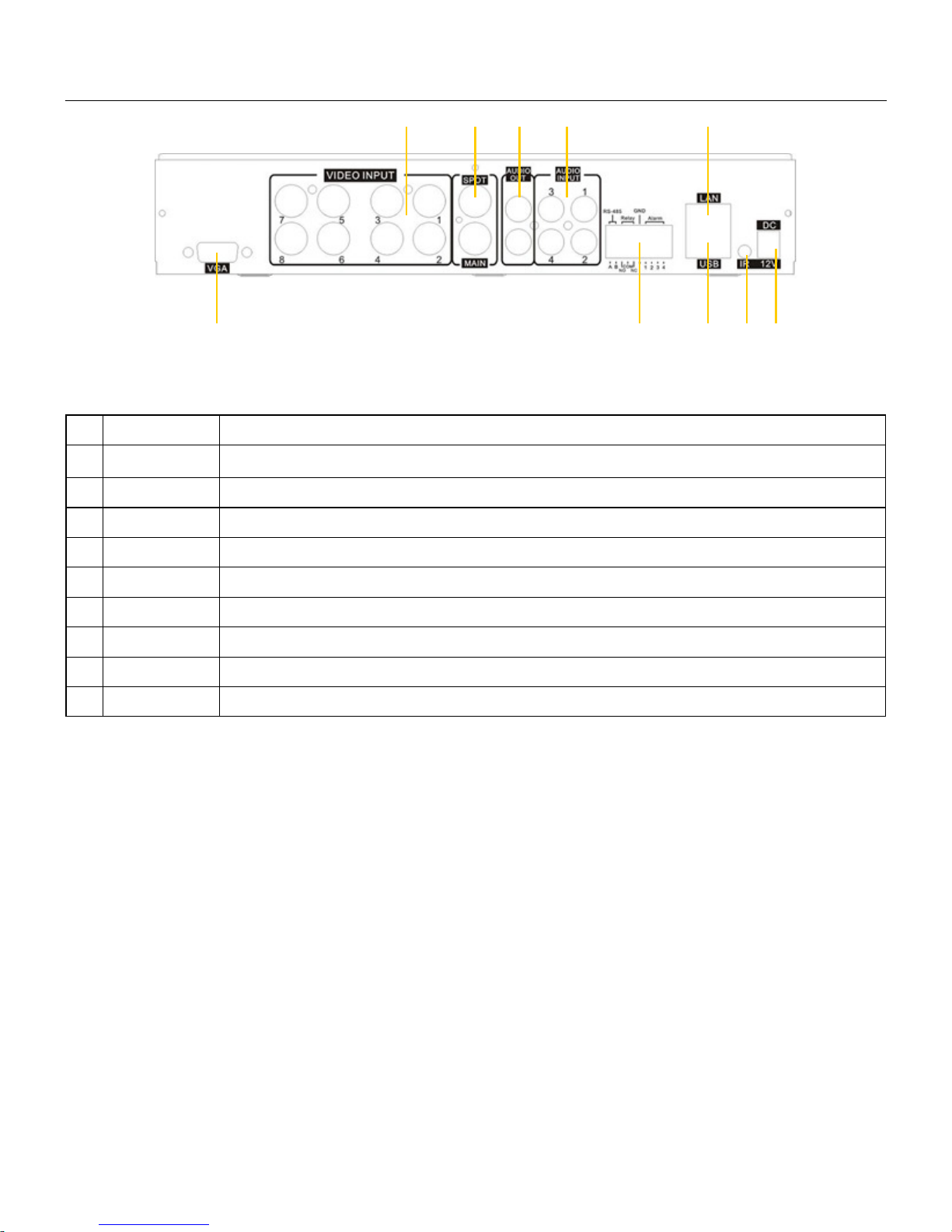

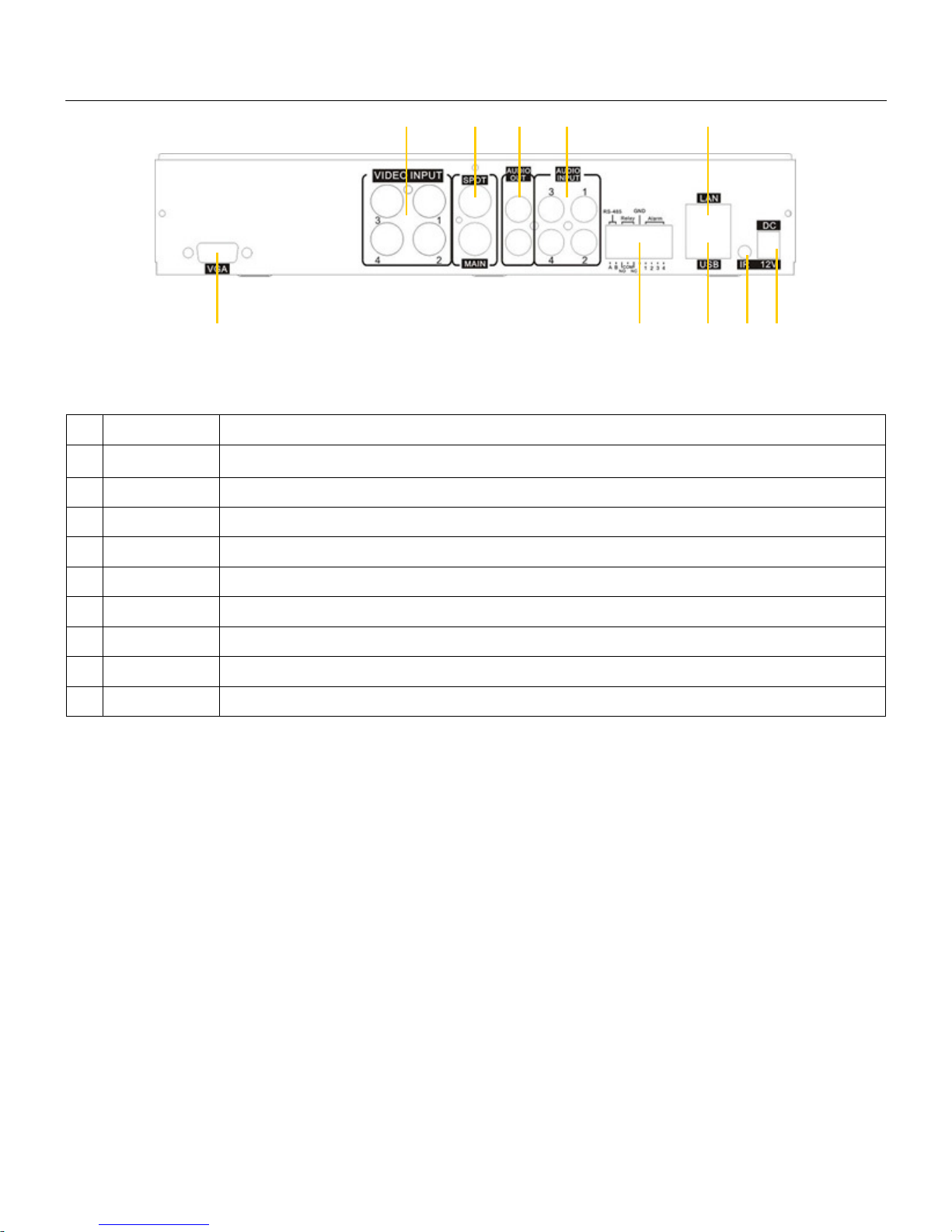

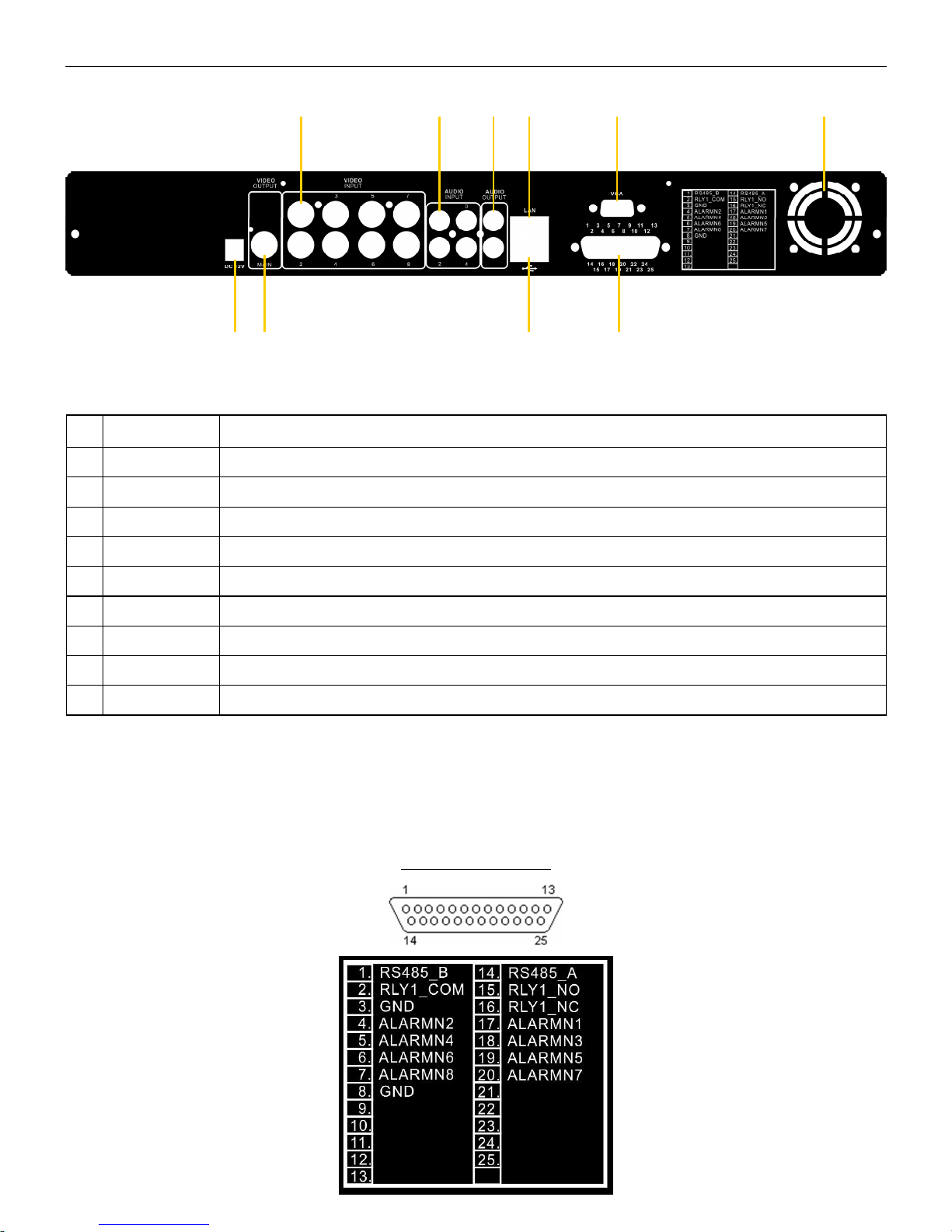

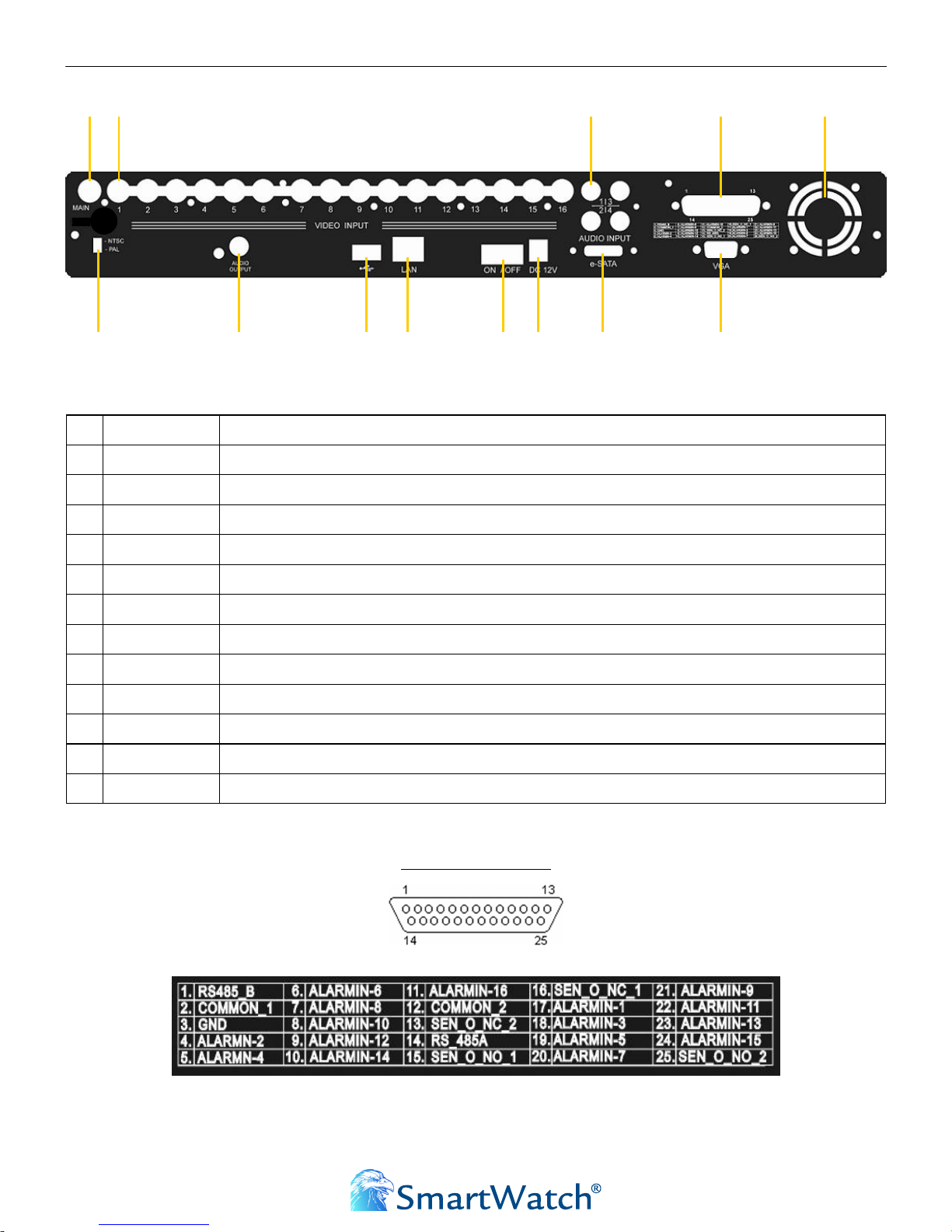

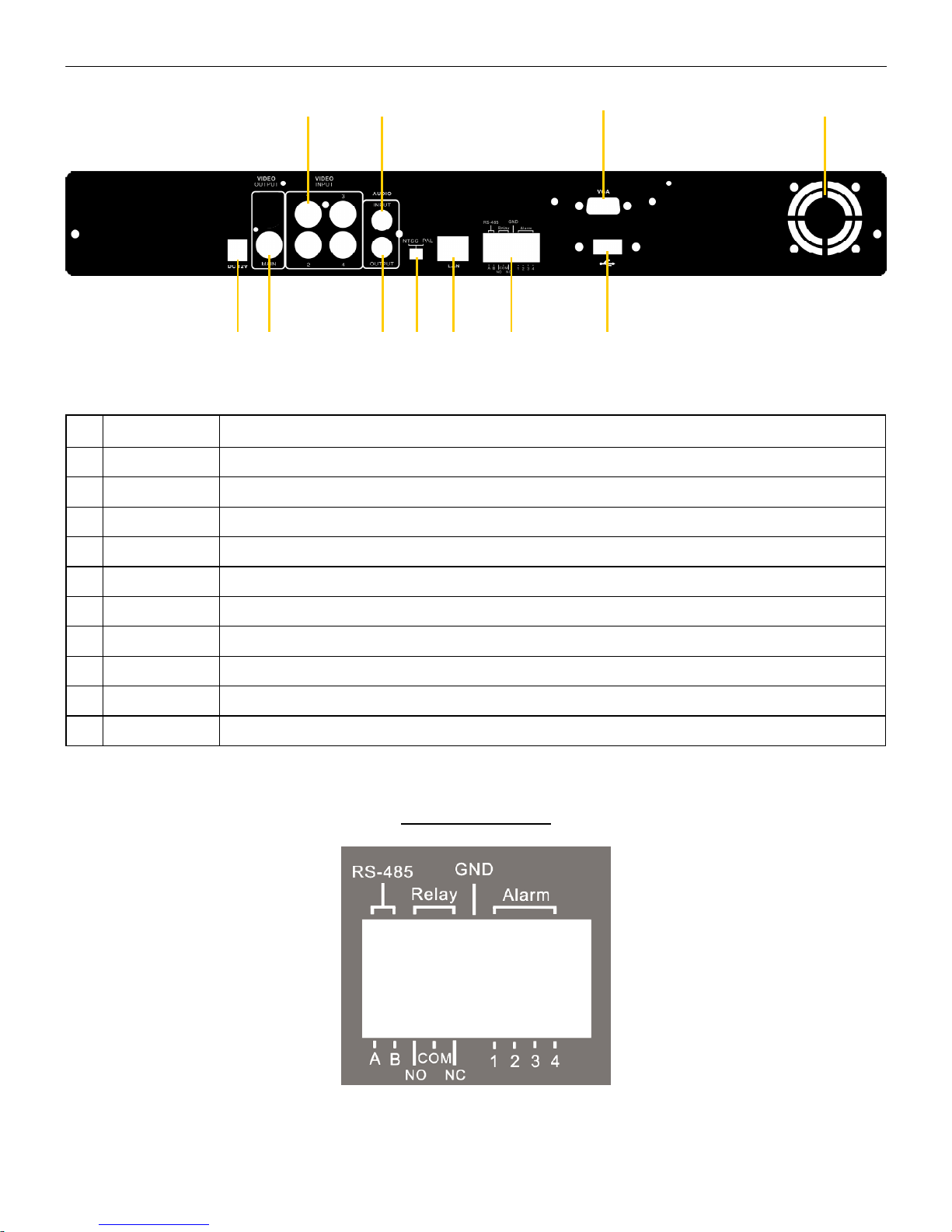

Rear Panel Connections ....................................................................................................................................................15 - 20
SmartWatch Eco Compact (4 Channel)....................................................................................................................... 15
SmartWatch Eco Compact (8 Channel)....................................................................................................................... 16
SmartWatch Eco Compact (16 Channel)..................................................................................................................... 17
SmartWatch Eco (4 Channel) ......................................................................................................................................18
SmartWatch Eco (8 Channel) ......................................................................................................................................19
SmartWatch Eco (16 Channel) ....................................................................................................................................20
Page 3
3

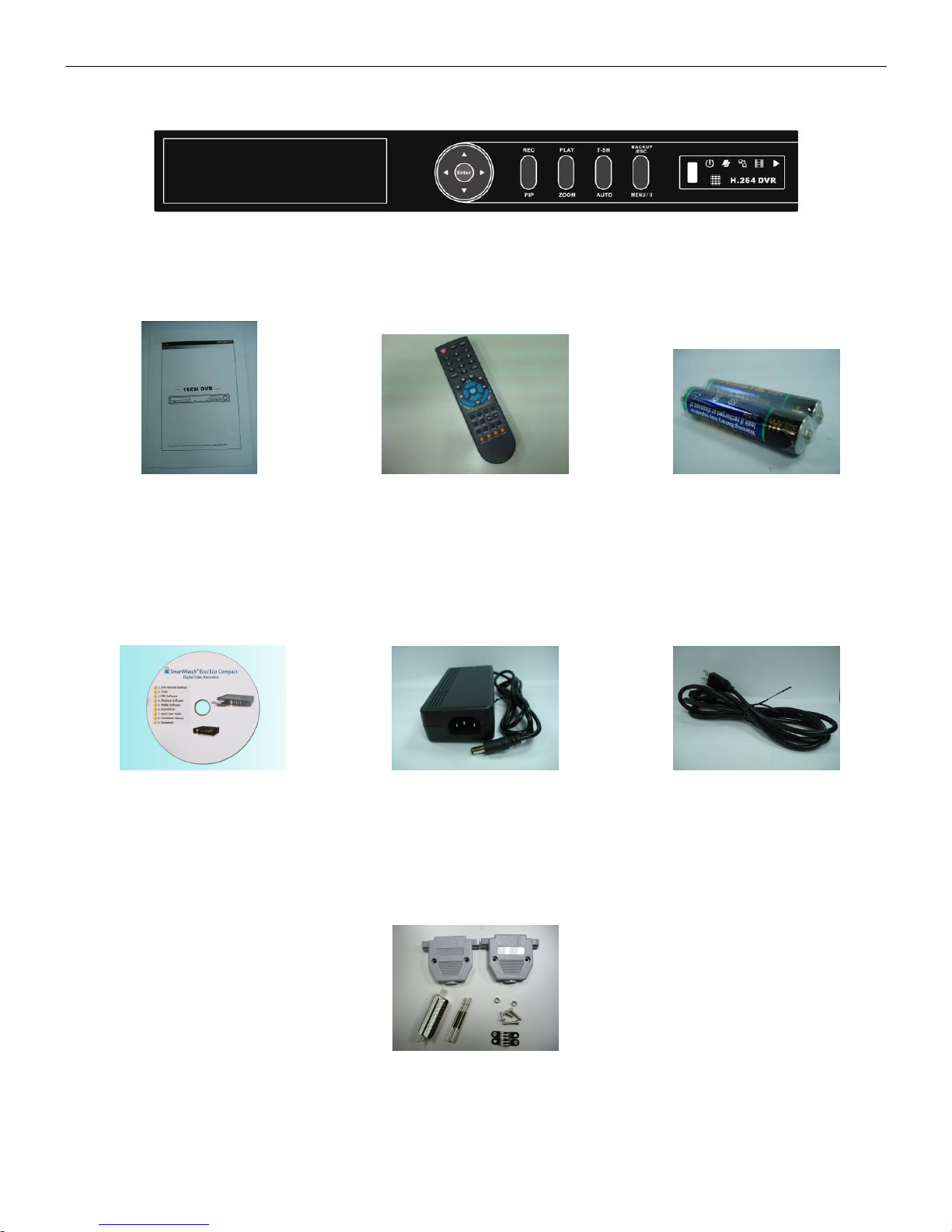

Box Contents
2. Quick User Guide 3. IR Remote Control 4. Batteries x 2
5. CD 6. Power Adaptor 7. Power Cord
8. 25 Way Connector
(8 / 16 channel models only)
1. DVR
Page 4
4

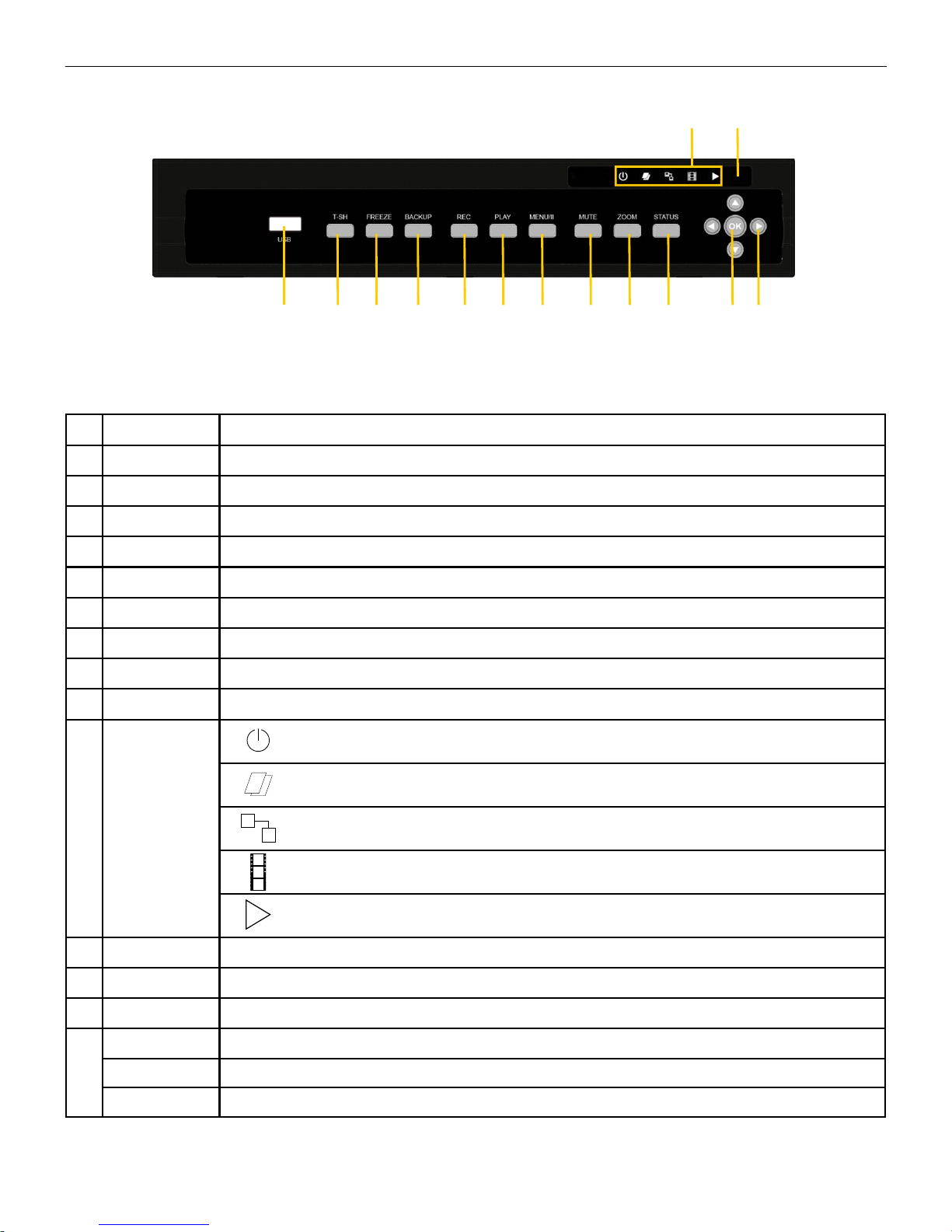

SmartWatch Eco Compact - Front Panel Controls
1
USB Port USB Port
2
T-SH Enter the search menu
3
FREEZE In Live mode, freeze the screen
4
BACKUP In Live mode, press to display the Backup menu
5
REC Start or stop manual recording
6
PLAY Start playback
7
MENU/II In Live mode, press to display the menu. In Playback mode, press to pause playback.
8
MUTE Enable / Disable keytone
9
ZOOM Zoom in on the picture in Live or Playback mode
10
STATUS In Live mode, displays Status menu
11
LED Display : Power status.
: Hard Drive status.
: Connected to the internet (green). Remote user logged in (red).
: DVR is recording.
: DVR is in playback mode.
12
IR Sensor Input sensor for the remote control
13
OK In Setup mode, press to enter sub menu. In Live mode, press to sequence through cameras.
14
▼ In Setup mode, press to move the cursor down. In Playback mode, press to exit playback.
▲ In Setup mode, press to move the cursor up. In Playback mode, press to slow down playback.
► In Setup mode, press to increase value. In Playback mode, press to fast forward.
◄ In Setup mode, press to decrease value. In Playback mode, press to rewind.
1 2 3 4 5 6 7 8 9 10 13 14
11 12
Page 5
5

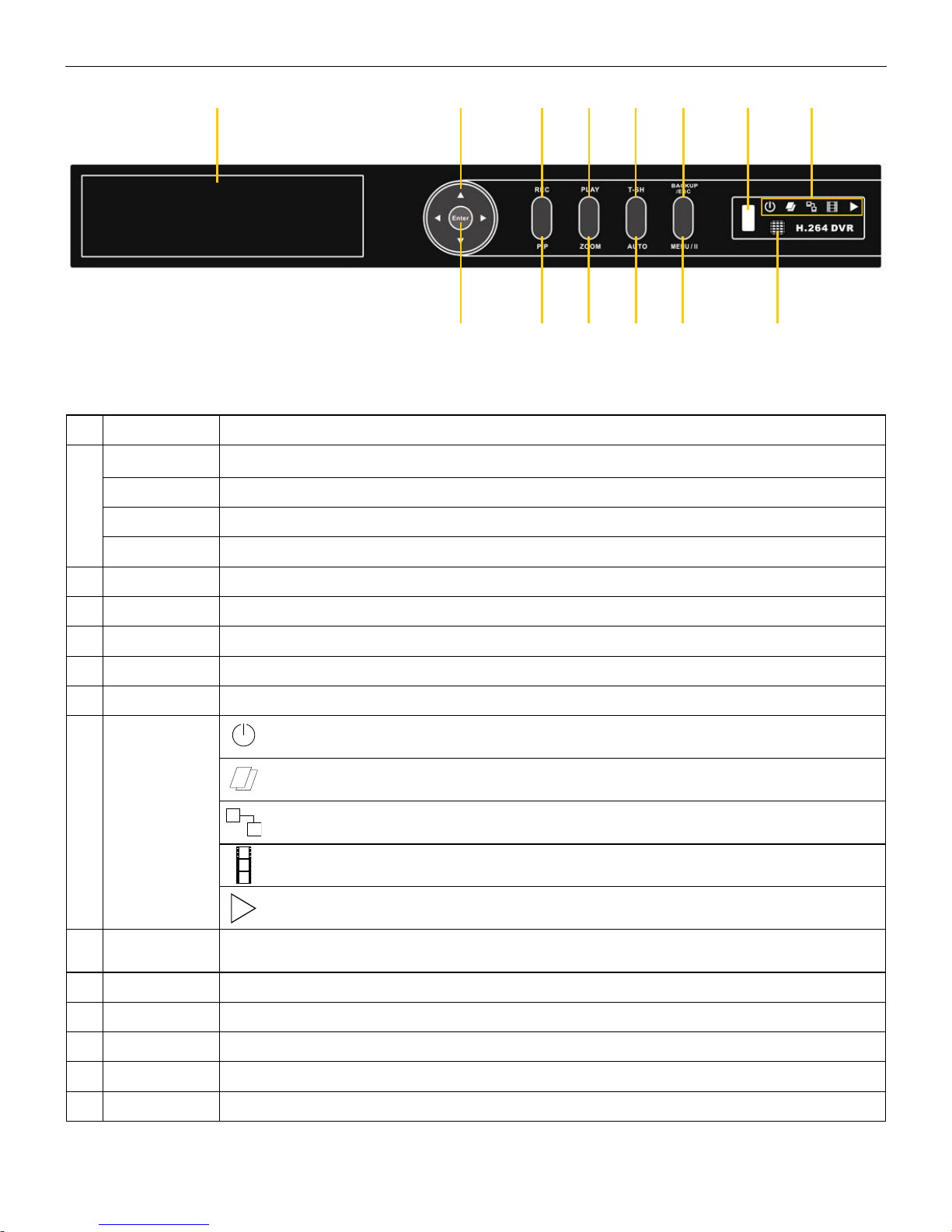

SmartWatch Eco - Front Panel Controls
1
DVD Writer DVD-RW backup device
2
▼ / ■
In Setup mode, press to move cursor down. In Playback mode, press to stop.
▲ / SLOW In Setup mode, press to move cursor up. In Playback mode, press to slow down.
► / ►► In Setup mode, press to move cursor right. In Playback mode, press to fast forward.
◄ / ◄◄ In Setup mode, press to move cursor left. In Playback mode, press to rewind.
3
REC Start or stop recording (depending on schedule setup).
4
PLAY Start playback (from start of current hour).
5
T-SH Enter search menu.
6
BACKUP / ESC In Live mode, press to display the Backup menu. In Setup mode, press to return to previous page.
7
USB Port USB port
8
LED Display : Power status.
: Hard Drive status.
: Connected to the internet (green). Remote user logged in (red).
: DVR is recording.
: DVR is in playback mode.
9
ENTER In Setup mode, press to enter values. In Playback mode, press to switch between full screen quad, 9-
channel & 16-channel displays.
10
PIP In Live mode, press to display picture in picture.
11
ZOOM In Live or Playback modes, press to zoom in digitally on images.
12
AUTO Auto sequence display
13 MENU / II
In Live mode, press to display menu. In Playback mode, press to pause playback.
14
IR Sensor Input sensor for the remote control.
1 2 3 4 5 6 7 8
9 10 11 12 13 14
Page 6
6

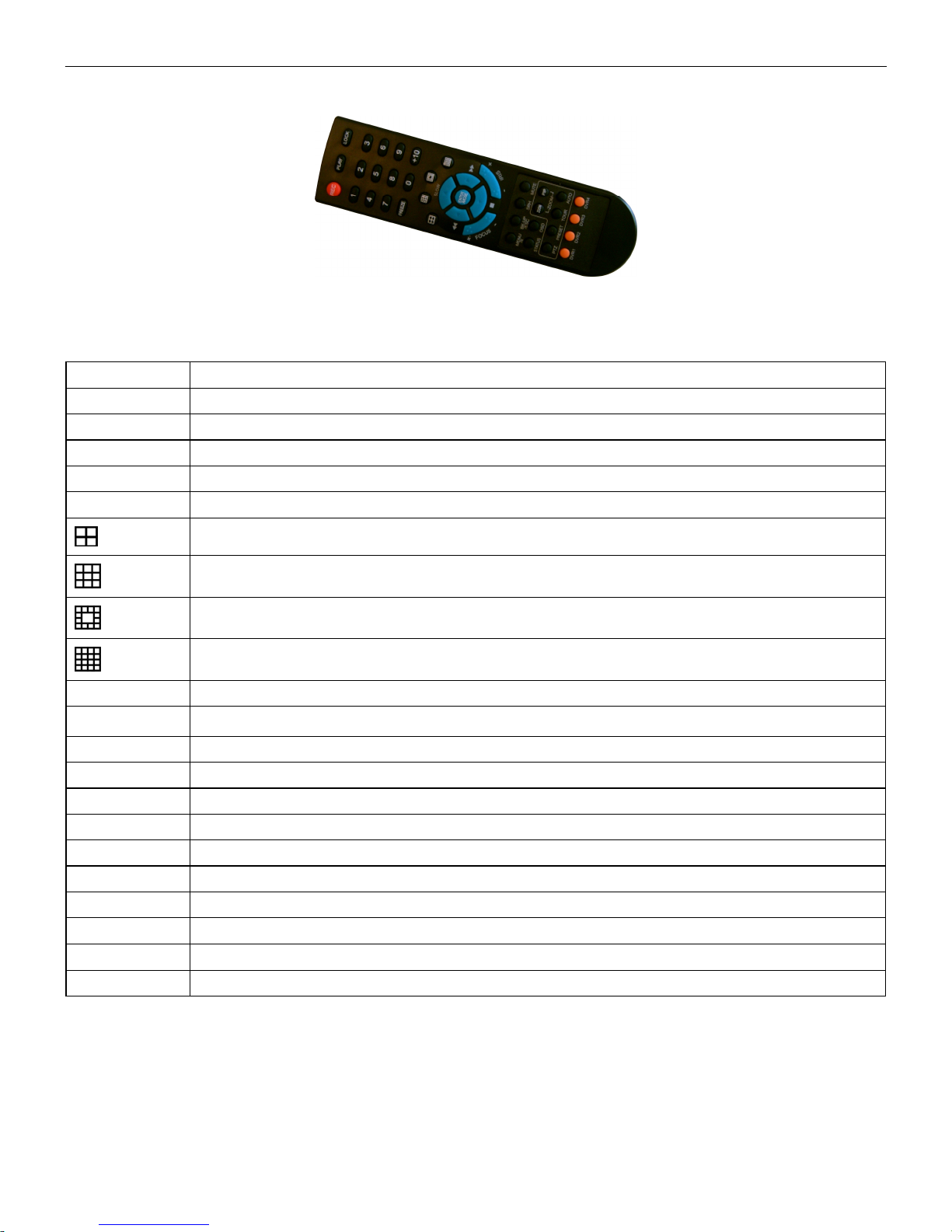

Remote Control Functions In Live Mode
Button Description
REC Start or stop recording (depending on schedule setup).
PLAY Start playback (from start of current hour).
LOCK Lock DVR controls (password required).
1,2,3,4... Select channel.
FREEZE Freeze picture.
Displays quad division.
Displays 9-channel division (N/A on 4-channel DVR).
Displays 13-channel division (N/A on 4-channel or 8-channel DVR).
Displays 16-channel division (N/A on 4-channel or 8-channel DVR).
ENTER/MODE Toggle between cameras and quad mode.
MENU / II
Enter setup menu.
BK-UP/ESC Enter backup menu.
SRH Enter search menu.
MUTE Mute live audio.
STATUS Display DVR status.
OSD Toggle the on-screen display.
ZOOM/ZOOM - Digital zoom.
PIP/ZOOM + Enter ‘picture in picture’ mode.
PTZ Enter PTZ mode (when PTZ cameras are connected).
AUTO Run camera sequence on main monitor.
DVR 1 / 2 / 3 / 4 Selects DVR to control when used on sites with multiple DVRs.
Press DVR1 on the remote control to enable it
Page 7
7

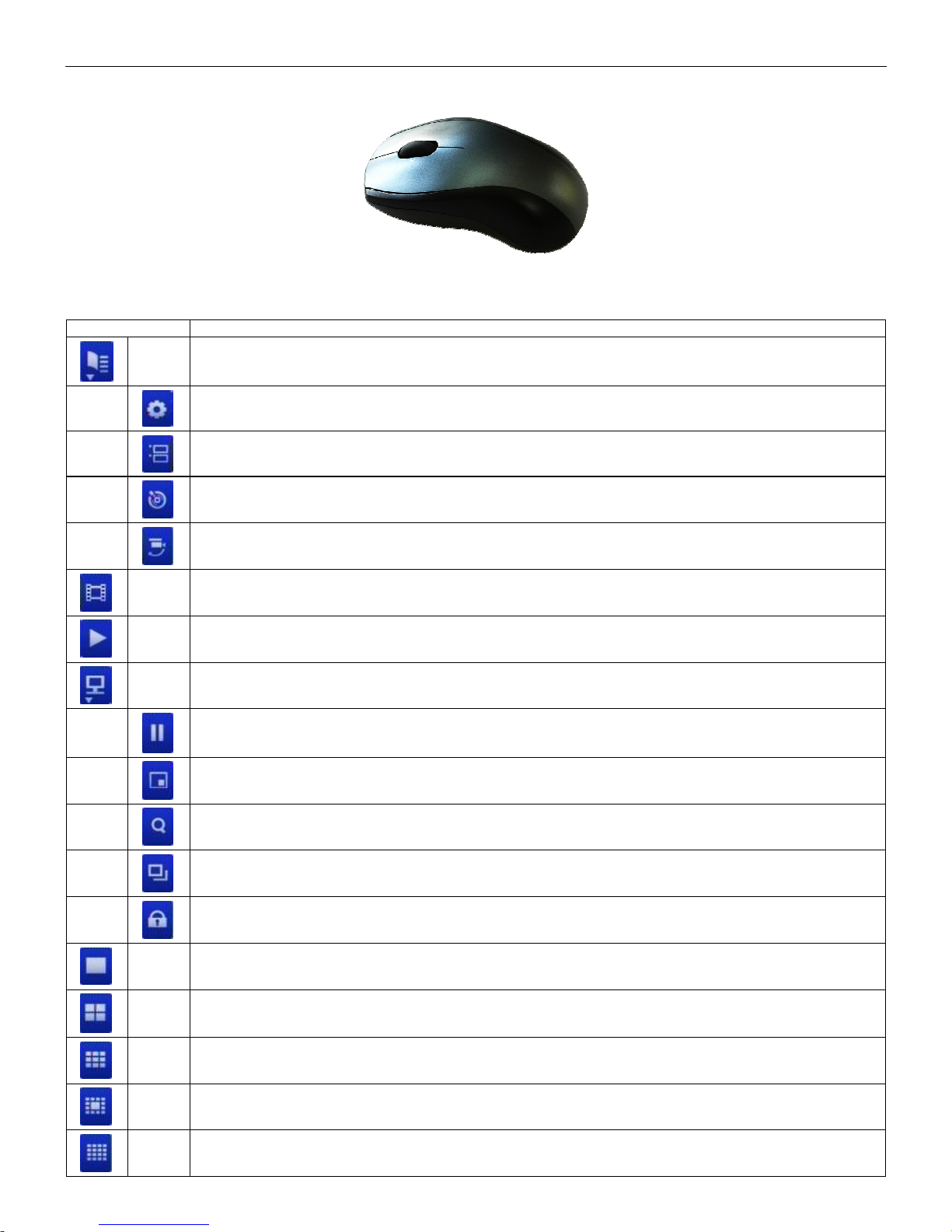

Mouse Functions In Live Mode
Description
Resting the cursor on this icon will bring up the following four menu icons.
Enter setup menu.
Enter search menu.
Enter backup menu.
Enter PTZ mode (when PTZ cameras are connected).
Start or stop recording (depending on schedule setup).
Start playback (from start of current hour).
Resting the cursor on this icon will bring up the following five display icons.
Freeze picture
Enter ‘picture in picture’ mode.
Digital zoom
Run camera sequence on main monitor.
Lock DVR controls (password required).
Full screen display.
Quad display.
9-channel display.
13-channel display.
16-channel display.
Icon
Right-clicking the mouse anywhere on the screen will bring up the following icons
Page 8
8

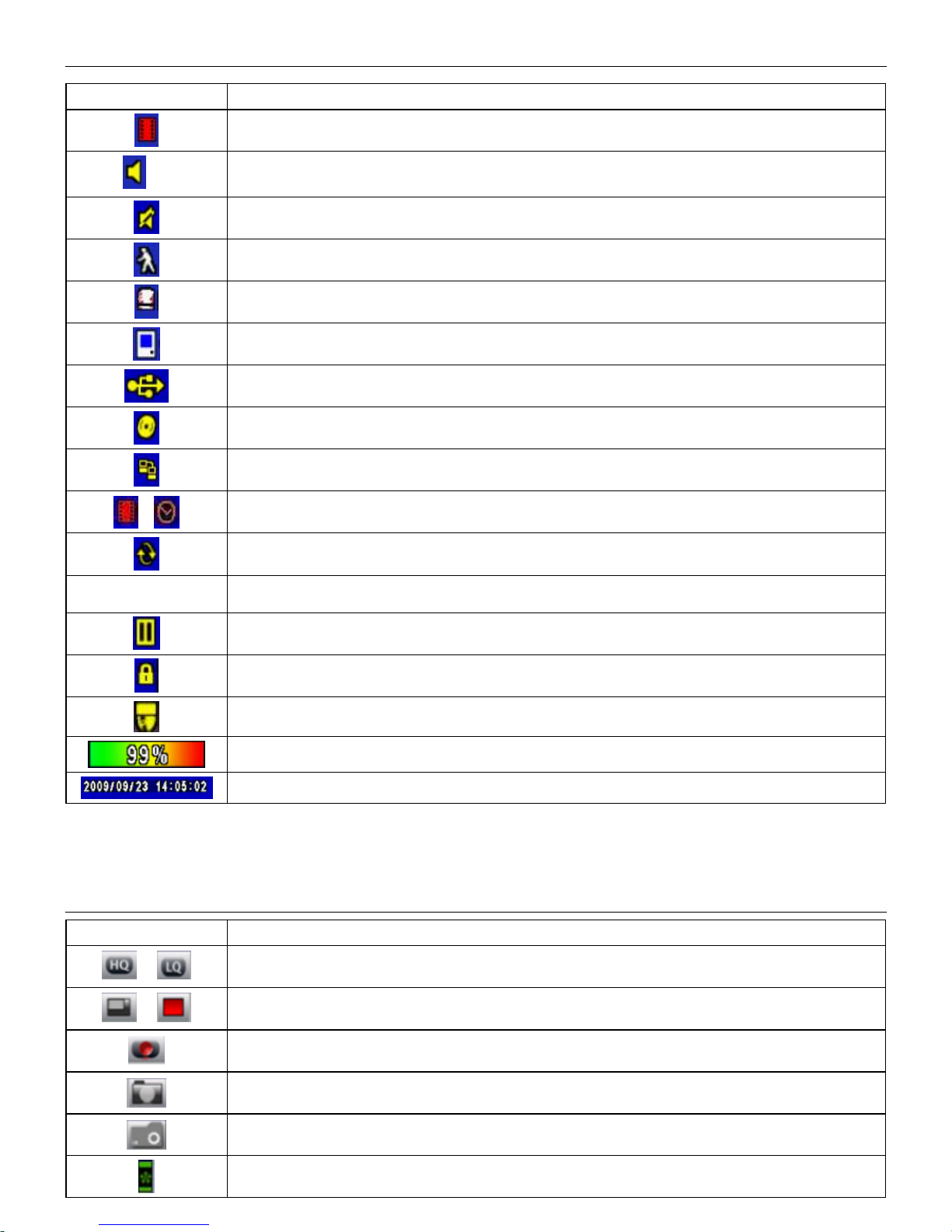

On-Screen Graphical Icons In Live Mode
Icon Description
DVR is recording.
1~4
Live audio is on.
Live audio is off.
Motion is detected.
Sensor is triggered.
Video loss detected.
USB device detected.
DVD burner is detected.
Connected to the LAN cable.
Film: Normal recording.
Clock: Schedule recording.
Auto sequence is on.
2X - 8X
Digital zoom level.
Live screen is paused.
DVR is locked.
PTZ.
HDD status (99% used).
Current time display (can be repositioned)
On-Screen Graphical Icons In Live Mode When
Connected Through ‘DVR Remote Desktop’
Icon Description
/
Transmit at high / low quality.
/
Full screen / half screen display.
Record locally.
Take snap shot.
Set up path for saving recordings and snapshots.
Enable / disable shortcut toolbar.
Page 9
9

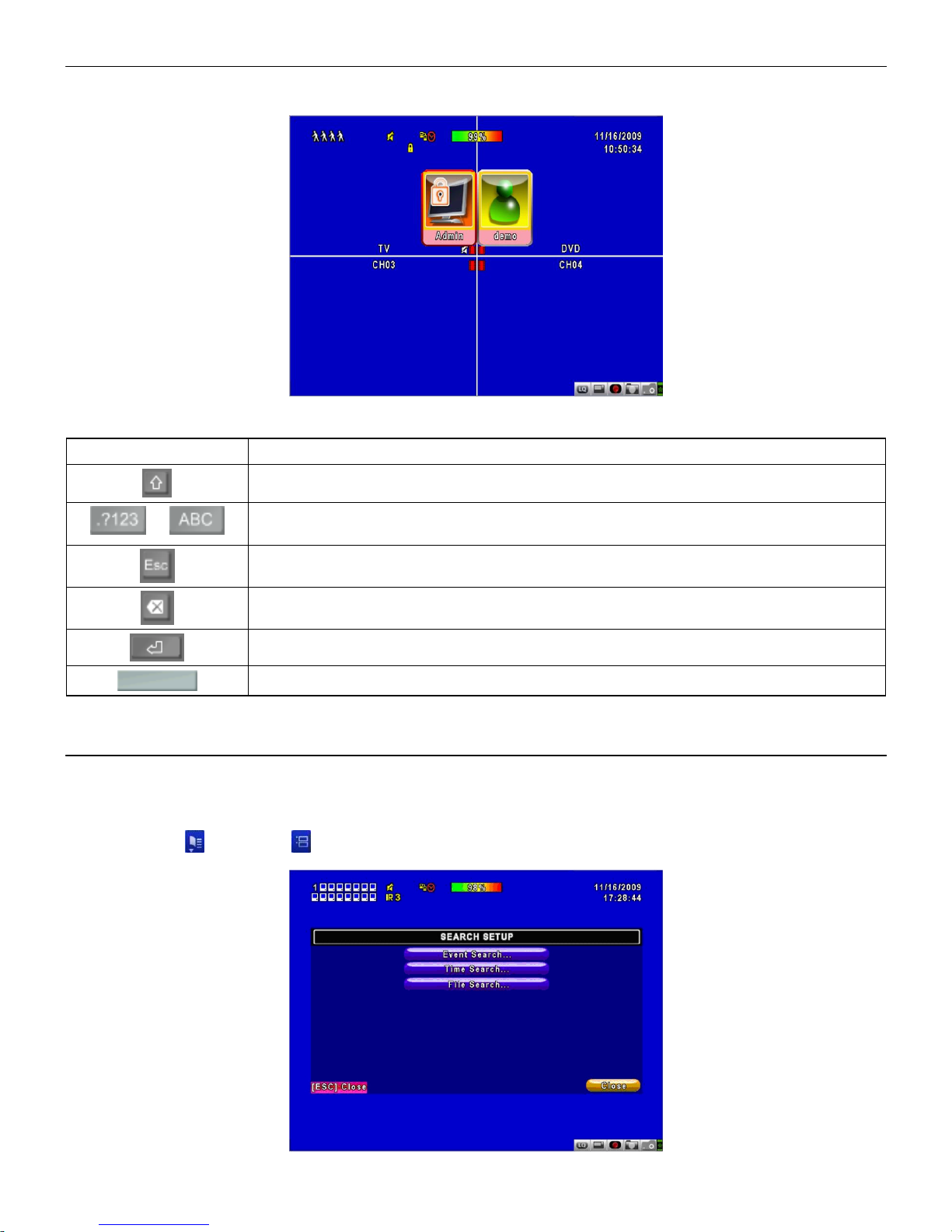

DVR Login
Item Description
Switch between capital and small letters.
/
Switch between numbers and letters.
Press to cancel the setup, and re-choose the login account.
Delete the last character.
Press to enter the password. If the password is correct, the required menu will open.
Space key.
Virtual Keyboard
To enter the DVR menus, a user name and password are required. The default password for the administrator is ‘123456’.
Search Mode
To enter search mode:
• Press T-SH on the front panel
• Press SRH on the remote control
• Click followed by when using the mouse
Select ‘Event Search’ to search by event or ‘Time Search’ to search by time/calendar
Page 10
10
Search Mode

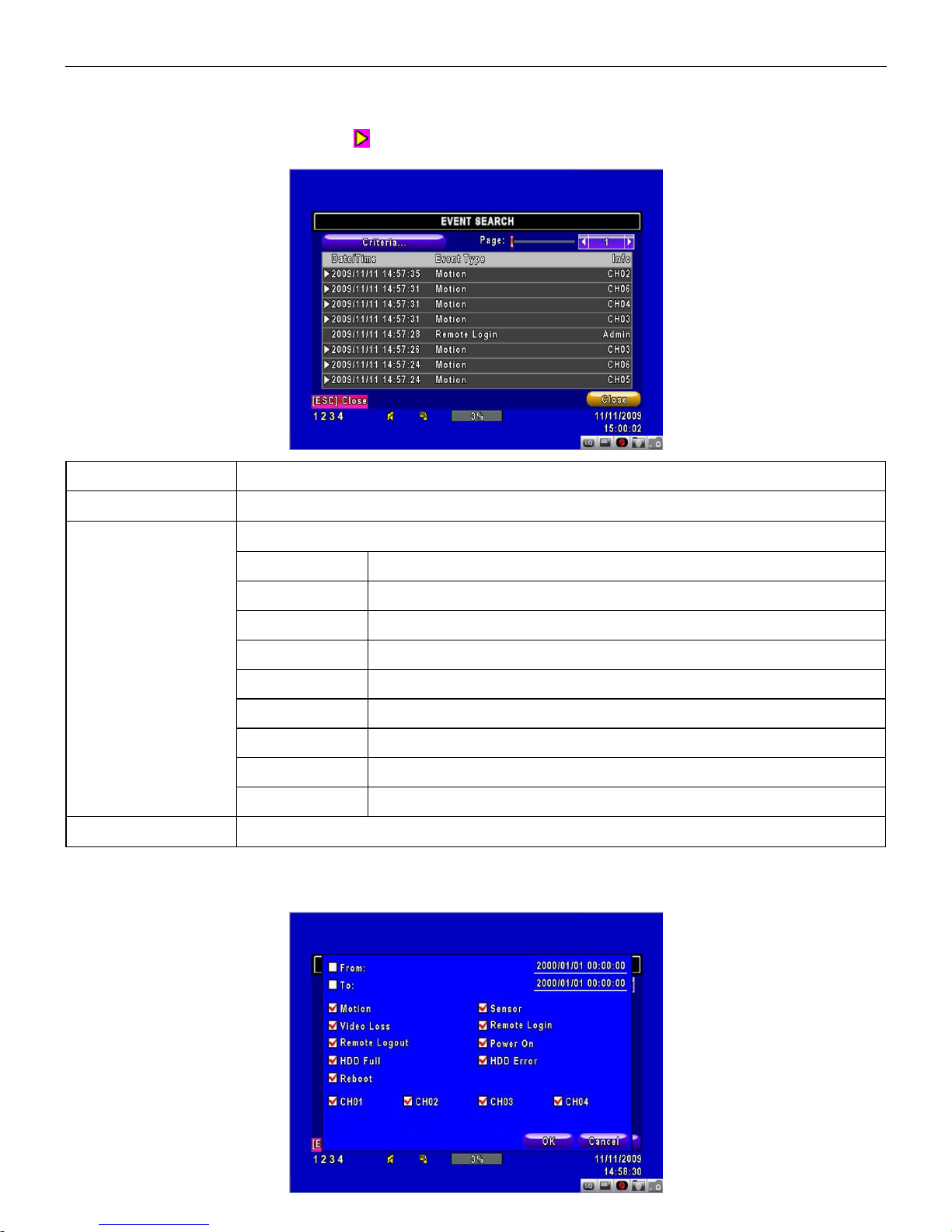

Event Search:
The DVR will automatically log events with event type, time and additional information (e.g. channel, user). If there is
recorded data for an event, a yellow signal ( ) will be displayed on the left side of event information. Press ‘Enter’, or left
click your mouse to playback the recorded data.
Event Search - Criteria:
It is also possible to filter the search results by selecting the criteria icon. The search can be filtered by date, time, event type
and channel.
Item Description
Date/Time Date/time when the event occurred.
Event Type
Event type, defined as follows:
Motion
Motion detected
Sensor
Sensor detected
Video Loss
Video loss
Remote Login
User logged in over the network
Remote Logout
User logged out over the network
Power On
DVR powered on
HDD Full
HDD full
HDD Error
HDD error detected
Reboot
DVR rebooted
Info
The channel on which the event occurred or the user responsible for event.
Page 11
11

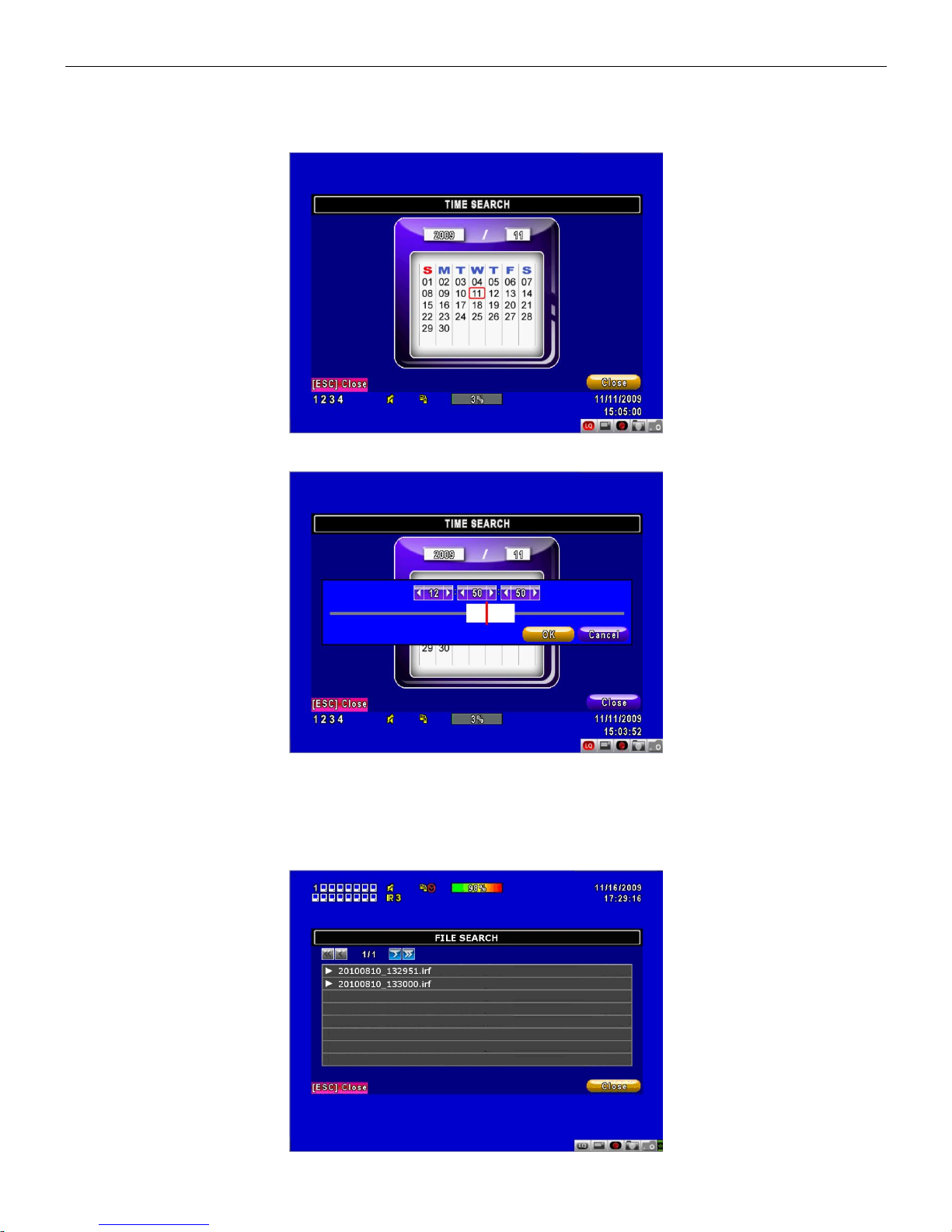

Time Search:
Time search will allow you to search for data from a specific date and time. Press ‘Enter’ or left click on the desired date
(note that dates with recorded data are marked with a red square).
The time bar will now load.
Now enter the required time. Click OK and the recorded data will start playing.
File Search:
When a USB device is connected to the DVR, the file search option can be used to search through any recorded data that
has been backed up to the USB device.
Select the required file to search through the recorded data.
Page 12
12
Playback Mode
Button Description
ENTER/MODE Switch between full screen, quad, 9-channel and 16-channel displays
MENU / II
Pause playback
PLAY Play back at normal speed
▲ / SLOW Slows playback by 1/2, 1/4, 1/8 or 1/16
◄ / ◄◄ Rewind playback at 2X, 4X 8X, 16X, 32X and 64X speeds
► / ►► Fast forward playback at 2X, 4X 8X, 16X, 32X and 64X speeds
▼ / ■
Stop playback

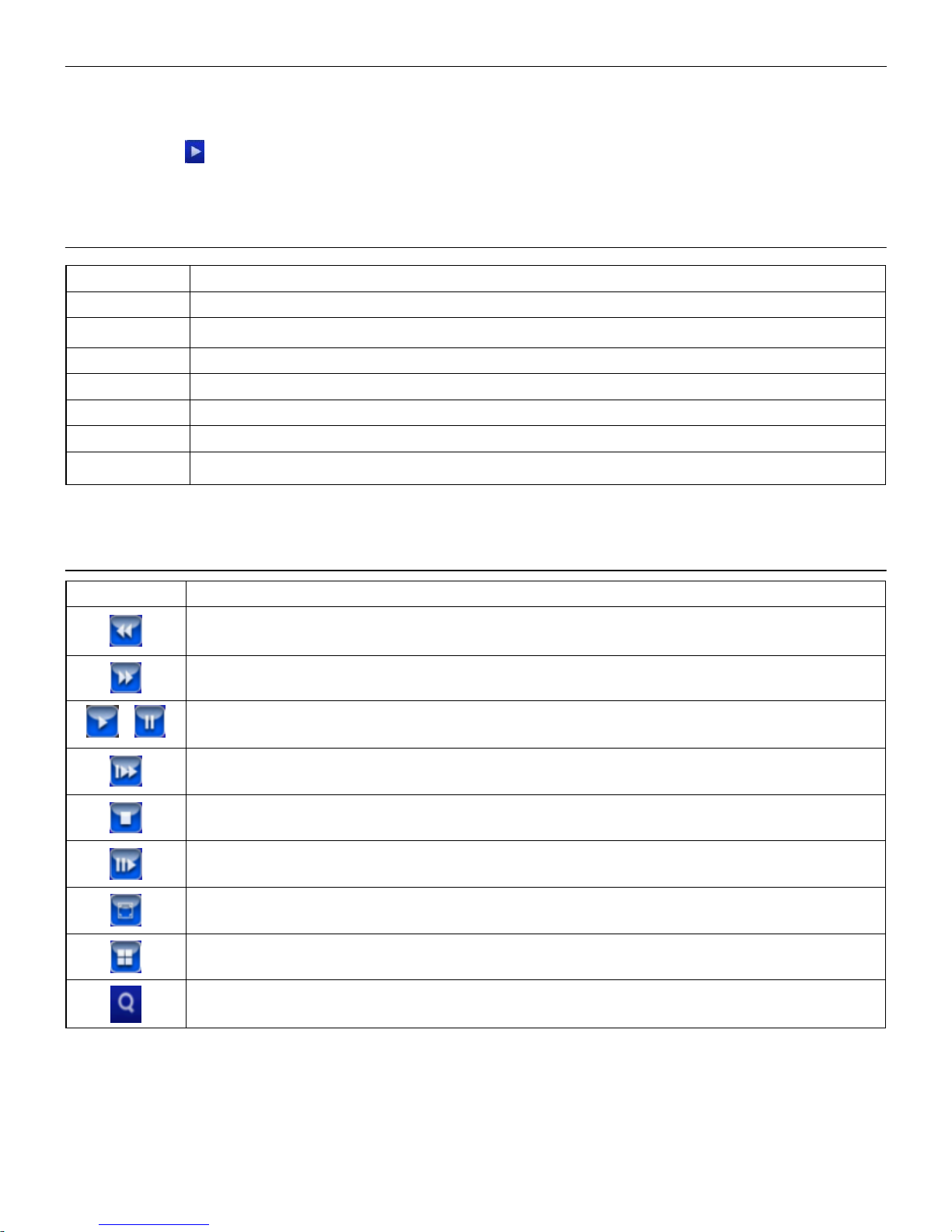

Mouse Functions In Playback Mode
Icon Description
Rewind
Fast forward
/
Play / pause
Slow playback
Stop playback
Playback frame by frame
Full screen display
Quad display
Digital zoom in playback
To display a single camera on the full screen in playback mode, double left click it on the multi-camera display. To revert
back to the multi-camera display, double left click again.
To enter playback mode:
• Press PLAY on the front panel
• Press PLAY on the remote control
• Click when using the mouse
Remote Control Functions In Playback Mode
Page 13
13
Backup Mode

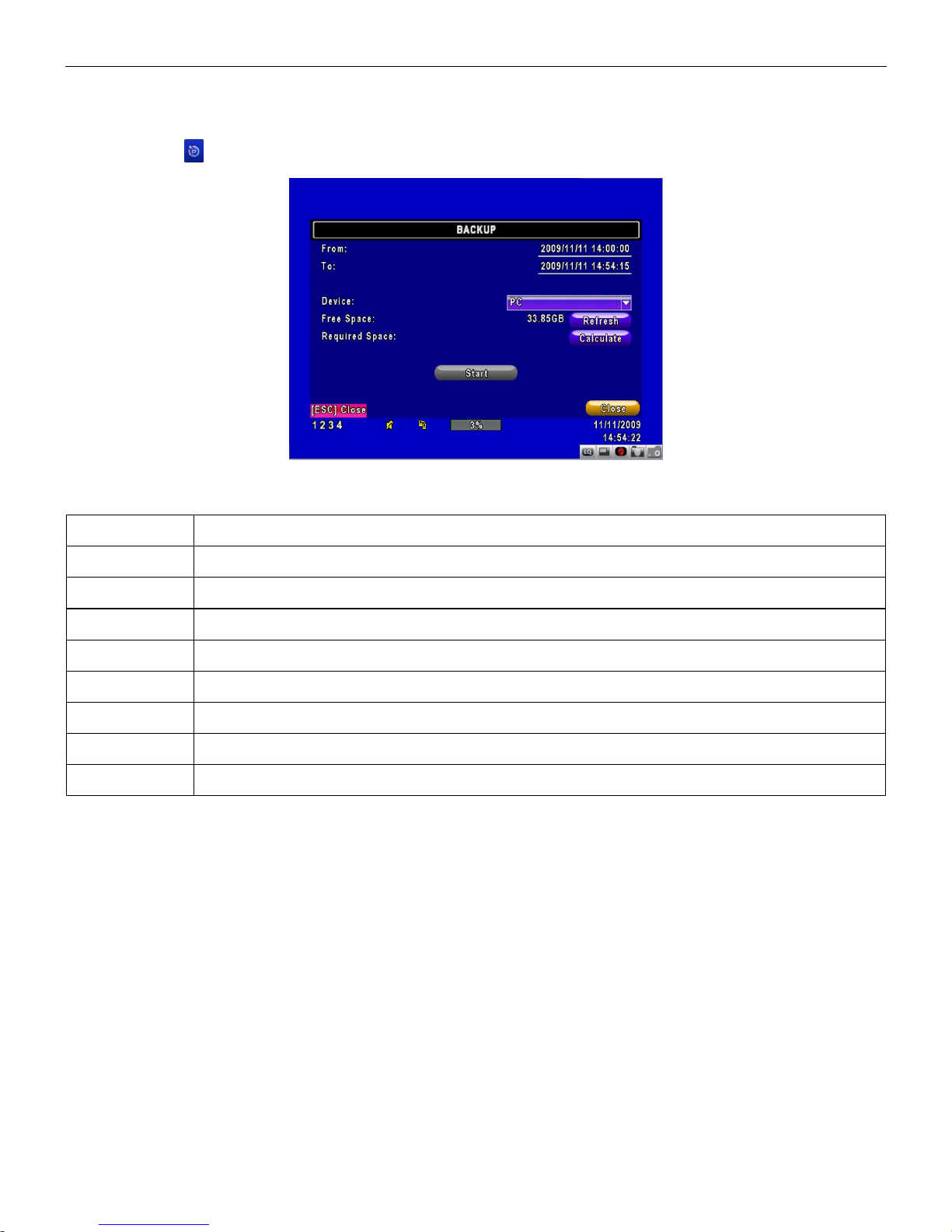

Data can be backed up to a USB storage device or to a CD/DVD (on supported models)
To enter backup mode:
• Press BACKUP / ESC on the front panel
• Press BK-UP / ESC on the remote control
• Click when using the mouse
Item Description
From Enter the required start time.
To Enter the required end time.
Device Select USB, or DVD as the backup device.
Free Space Displays the available space in your backup device.
Refresh Recalculate the available space in your backup device.
Required Space Space required for backup.
Calculate Calculate the size of backup file.
Start Start backup operation.
Note: Be sure to calculate the size of backup file BEFORE beginning the backup. Do not unplug the USB device or
turn off the DVR during the backup process. This will cause errors.
Page 14
14
PTZ Control

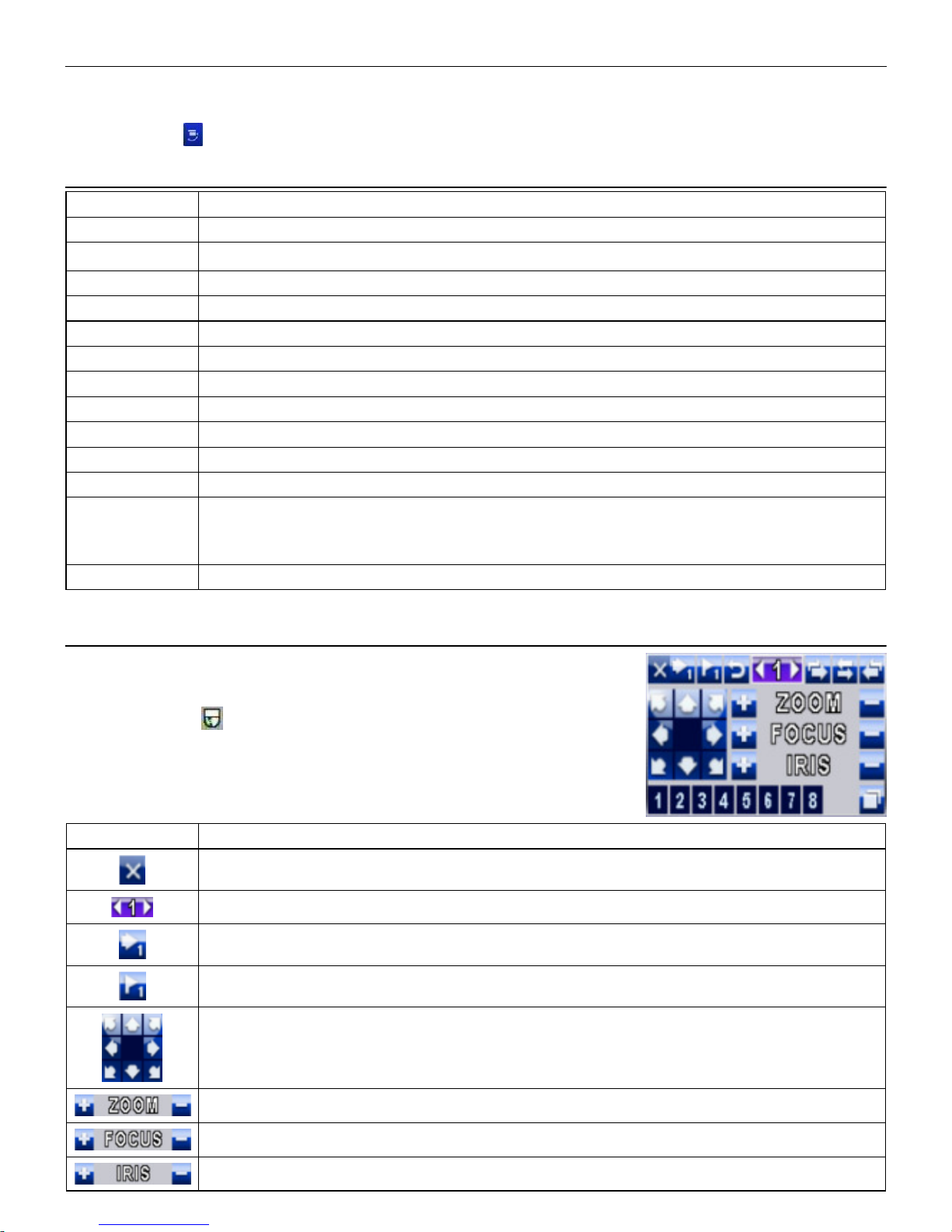

Mouse Functions In PTZ Mode
To enter PTZ mode:
• Press PTZ on the remote control
• Click when using the mouse
When the PTZ icon is displayed in the upper left corner of the screen, the
function icons will be displayed in the lower right corner of the screen. These can be
dragged around the screen using the mouse.
Remote Control Functions In PTZ Mode
Button Description
▲ / SLOW
Move PTZ up.
▼ / ■
Move PTZ down.
◄ / ◄◄
Move PTZ to the left.
► / ►►
Move PTZ to the right.
ZOOM +
PTZ zoom-in.
ZOOM -
PTZ zoom-out.
FOCUS +
PTZ focus-in.
FOCUS -
PTZ focus-out.
IRIS +
PTZ iris-open.
IRIS -
PTZ iris-close.
TOUR
Activate PTZ preset tour (when preset is programmed).
PRESET
To save a preset location, move the camera to the desired scene, press PRESET and a number key.
This will save this scene as the preset number selected e.g. to save a scene as Preset 1, press
‘PRESET’ and ‘1’.
PLAY + NUMBER
To call a preset, press Play and the number of the desired preset.
Icon Description
Exit PTZ Mode and return to Live Mode.
Preset number N (1~64).
Go to preset number N.
Set current PTZ location at preset number N.
Move PTZ in 360°
PTZ zoom in; PTZ zoom out
PTZ focus in; PTZ focus out.
PTZ IRIS open; PTZ IRIS close.
Page 15
15
SmartWatch Eco Compact (4 channel) - Rear Panel
Connections
1
VIDEO in Camera inputs
2
VIDEO out Main/Spot monitor output (BNC)
3
AUDIO out Audio output
4
AUDIO in Audio input
5
LAN Ethernet port
6
VGA Main monitor output (VGA)
7
EXTERNAL I/O External I/O port
8
USB USB port for connecting mouse
9
IR IR extension cable jack
10
DC 12V DC 12V input
6 7 8 9 10
1 2 3 4 5
Page 16
16
SmartWatch Eco Compact (8 channel) - Rear Panel
Connections
1
VIDEO in Camera inputs
2
VIDEO out Main/Spot monitor output (BNC)
3
AUDIO out Audio output
4
AUDIO in Audio input
5
LAN Ethernet port
6
VGA Main monitor output (VGA)
7
EXTERNAL I/O External I/O port
8
USB USB port for connecting mouse
9
IR IR extension cable jack
10
DC 12V DC 12V input
6 7 8 9 10
1 2 3 4 5
Page 17
17

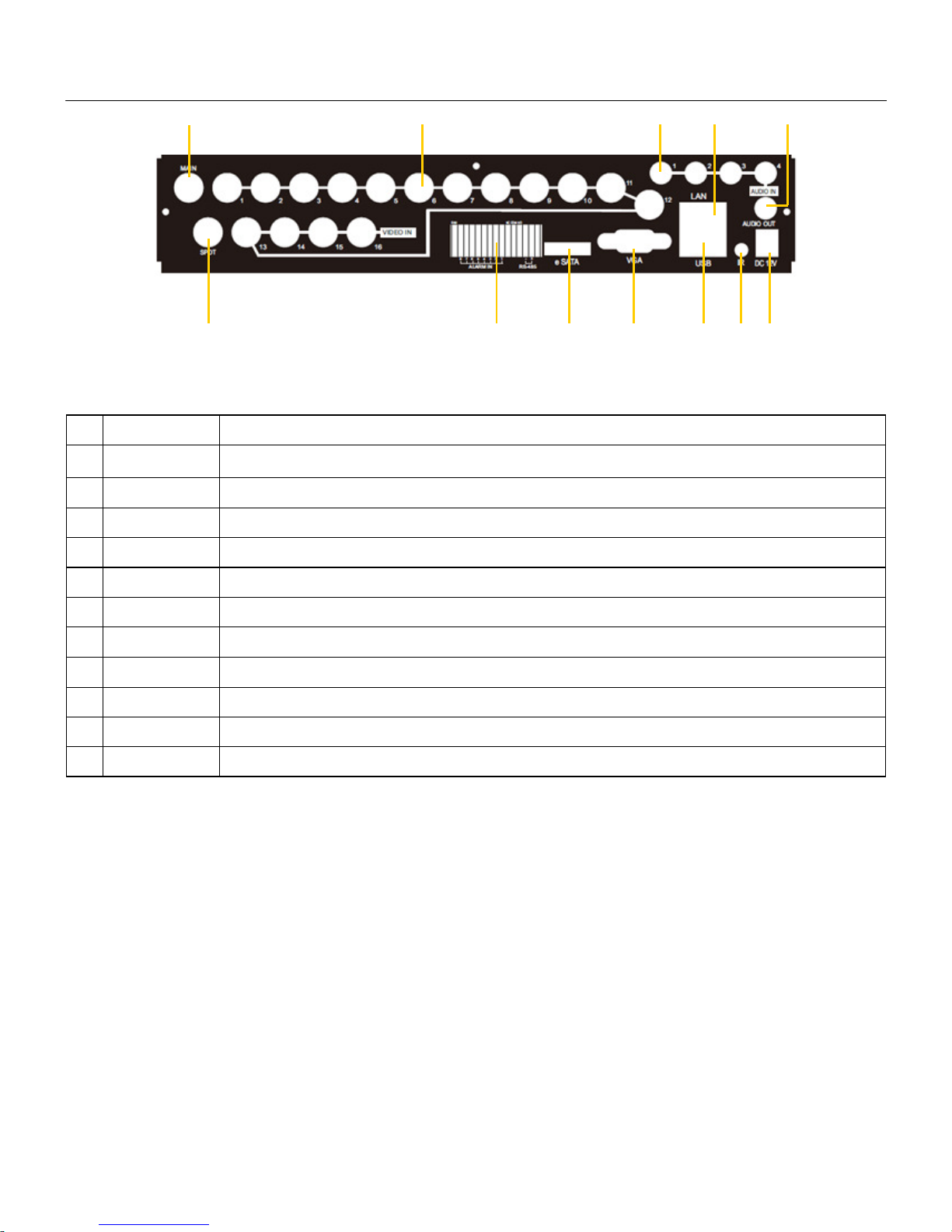

SmartWatch Eco Compact (16 channel) - Rear Panel
Connections
6 7 8 9 10 11 12
1 2 3 4 5
1
MAIN Main monitor output (BNC)
2
VIDEO in Camera inputs
3
AUDIO in Audio input
4
LAN Ethernet port
5
AUDIO out Audio output
6
SPOT Spot monitor output (BNC)
7
EXTERNAL I/O External I/O port
8
eSATA eSATA port
9
VGA Main monitor output (VGA)
10
USB USB port for connecting mouse
11
IR IR extension cable jack
12
DC 12V DC 12V input
Page 18
18
SmartWatch Eco (4 Channel) - Rear Panel Connections
1
VIDEO in Camera inputs
2
AUDIO in Audio input
3
VGA Main monitor output (VGA)
4
Fan Fan
5
DC 12V DC 12V input
6
Video output Main/Spot monitor output (BNC)
7
AUDIO out Audio output
8
NTSC/PAL Switch between NTSC and PAL format (make sure the switch is in the PAL position)
9
LAN Ethernet port
10
External I/O External I/O port (see below for pin layout)
11
USB USB port for mouse connection
5 6 7 8 9 10 11
1 2 3 4
External I/O Pin Layout
SPOT
Page 19
19
SmartWatch Eco (8 Channel) - Rear Panel Connections
1
VIDEO in Camera inputs
2
AUDIO in Audio inputs
3
AUDIO out Audio outputs
4
LAN Ethernet port
5
VGA Main monitor output (VGA)
6
Fan Fan
7
DC 12V DC 12V input
8
Video output Main/Spot monitor output (BNC)
9
USB USB port for mouse connection
10
External I/O External I/O port (see below for pin layout)
7 8 9 10
1 2 3 4 5 6
External I/O Pin Layout
SPOT
Page 20
20
SmartWatch Eco (16 Channel) - Rear Panel Connections
1
Video output Main/Spot monitor output (BNC)
2
VIDEO in Camera inputs
3
AUDIO in Audio inputs
4
External I/O External I/O port (see below for pin layout)
5
Fan Fan
6
NTSC/PAL Switch between NTSC and PAL format (make sure the switch is in the PAL position)
7
AUDIO out Audio output
8
USB USB port for mouse connection
9
LAN Ethernet port
10
ON/OFF Power switch
11
DC 12V DC 12V input
12
e-SATA External SATA hard disks port for external storage
13
VGA Main monitor output (VGA)
6 7 8 9 10 11 12 13
1 2 3 4 5
External I/O Pin Layout
SPOT
Loading...
