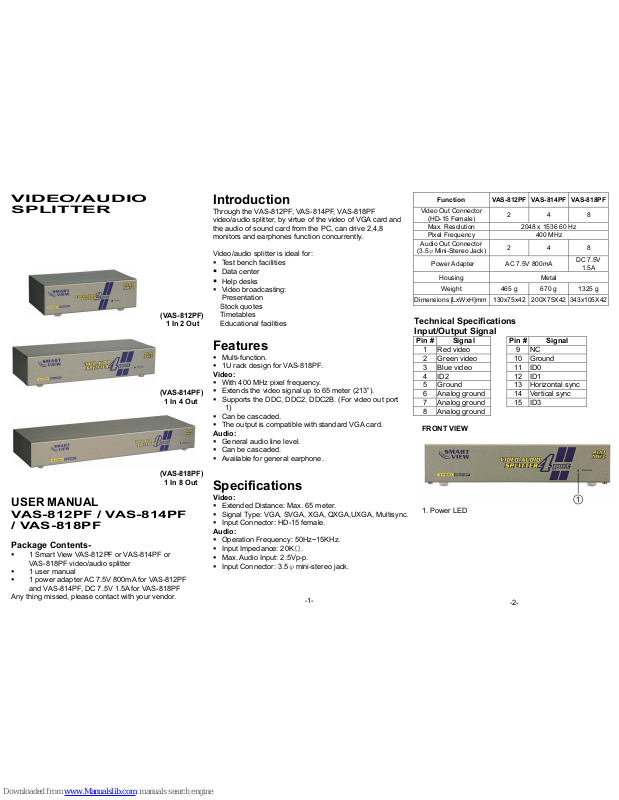

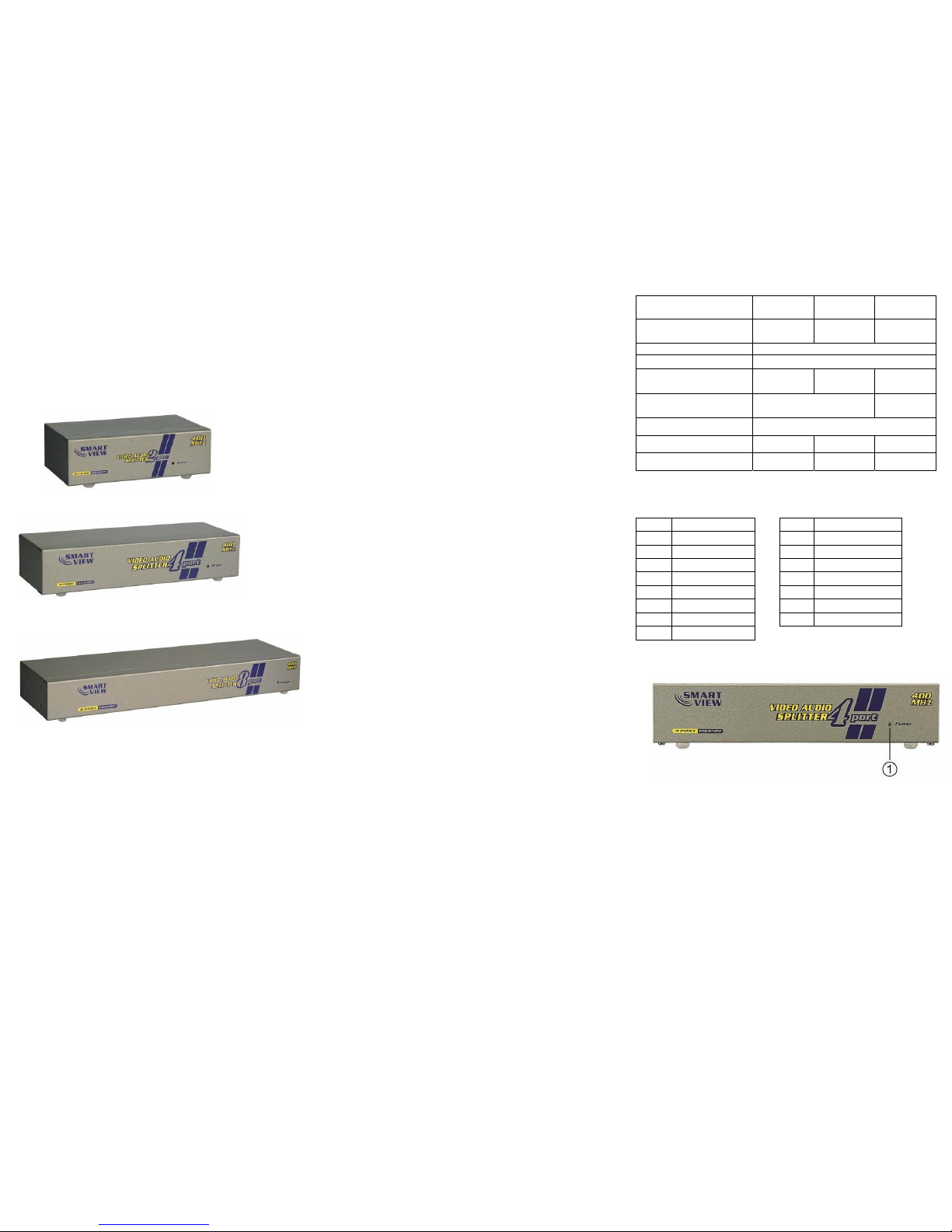

VIDEO/AUDIO
SPLITTER
(VAS-812PF)
1 In 2 Out
(VAS-814PF)
1 In 4 Out
(VAS-818PF)
1 In 8 Out
USER MANUAL
VAS-812PF / VAS-814PF
/ VAS-818PF
Package Contents-
1 Smart View VAS-812PF or VAS-814PF or
VAS-818PF video/audio splitter
1 user manual
1 power adapter AC 7.5V 800mA for VAS-812PF
and VAS-814PF, DC 7.5V 1.5A for VAS-818PF
Any thing missed, please contact with your vendor.
Introduction
Through the VAS-812PF, VAS-814PF, VAS-818PF
video/audio splitter, by virtue of the video of VGA card and
the audio of sound card from the PC, can drive 2,4,8
monitors and earphones function concurrently.
Video/audio splitter is ideal for:
Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities
Features
Multi-function.
1U rack design for VAS-818PF.
Video:
With 400 MHz pixel frequency.
Extends the video signal up to 65 meter (213”).
Supports the DDC, DDC2, DDC2B. (For video out port
1)
Can be cascaded.
The output is compatible with standard VGA card.
Audio:
General audio line level.
Can be cascaded.
Available for general earphone.
Specifications
Video:
Extended Distance: Max. 65 meter.
Signal Type: VGA, SVGA, XGA, QXGA,UXGA, Multisync.
Input Connector: HD-15 female.
Audio:
Operation Frequency: 50Hz~15KHz.
Input Impedance: 20KΩ.
Max. Audio Input: 2.5Vp-p.
Input Connector: 3.5φmini-stereo jack.
-1-
Function VAS-812PF VAS-814PF VAS-818PF
Video Out Connector
(HD-15 Female)
2 4 8
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency 400 MHz
Audio Out Connector
(3.5φMini-Stereo Jack)
2 4 8
Power Adapter AC 7.5V 800mA
DC 7.5V
1.5A
Housing Metal
Weight 465 g 670 g 1325 g
Dimensions [LxWxH]mm 130x75x42 200X75X42 343x105X42
Technical Specifications
Input/Output Signal
Pin # Signal
Pin # Signal
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground
FRONT VIEW
1. Power LED
-2-
Page 2

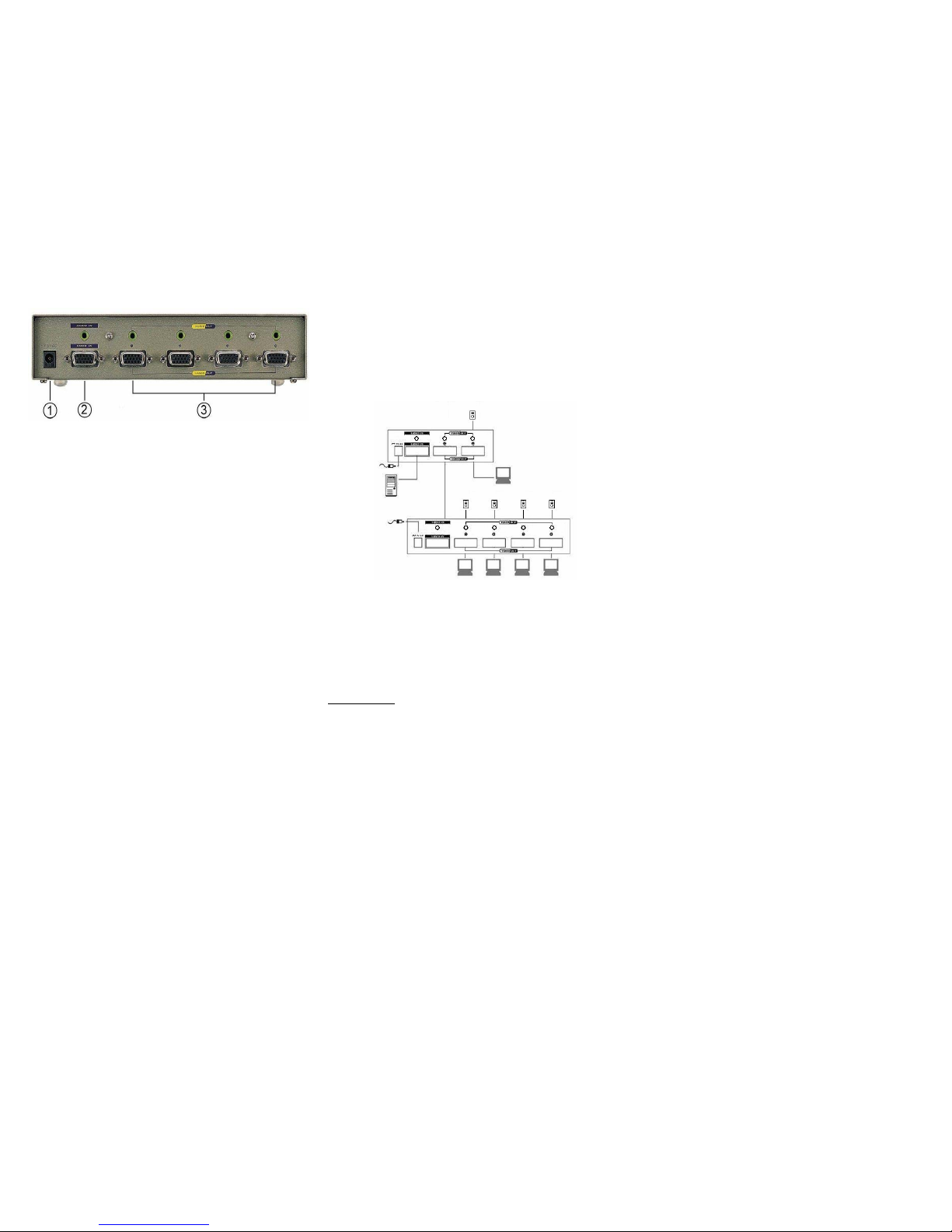

REAR VIEW
1. Input Power Jack
2. “Audio In” Port & “Video In” Port
3. “Audio Out” Port & “Video Out” Port
*There are 2/4/8 out ports for VAS-812PF / VAS-814PF
/ VAS-818PF.
Installation
1. Turn off the PC and monitor.
2. Connect the HD-15 video cable between the “video
output” of PC and “video in” port of the video/audio
splitter.
3. Connect the 3.5φaudio cable between the audio output
device and the “audio in” port of video/audio splitter.
4. Connect the HD-15 video cables between the “video
input” of monitors and “video out” ports of video/audio
splitter.
5. Plug the 3.5φearphones into the “audio out” ports of the
video/audio splitter.
6. Turn on the video/audio splitter and then LED lights up.
7. Turn on the PC, monitors and the related devices.
Note:
If you install the DDC monitor for the splitter, the rest of
monitors must be the same resolution as the DDC
monitor.
Available monitors include the VGA, SVGA, XGA, QXGA,
UXGA, Multisync, and exclude the CGA, EGA, Mono.
Operation for cascade:
1. The function for displaying the identical image on more
monitors as well as hearing the same audio from more
earphones, you request to attach another video/audio
splitter.
2. Connect the HD-15 male/male video cable between the
“video out” port of the former splitter and the “video in”
-3-
port of the latter splitter, meanwhile, connect the 3.5φ
audio cable between the “audio out” port of the former
splitter and the “audio in” port of the latter splitter.
Note:
Cascading too many tiers of splitters might cause the
image or audio quality declined.
P.S.: The example cascades the 2 and 4 ports video/audio
splitters; however, you can cascade the video/audio splitter
with demanded port.
Trademarks:
All the companies, brand names, product names are
referred to this manual, are the trademarks or registered
trademarks belonging to their respective companies.
