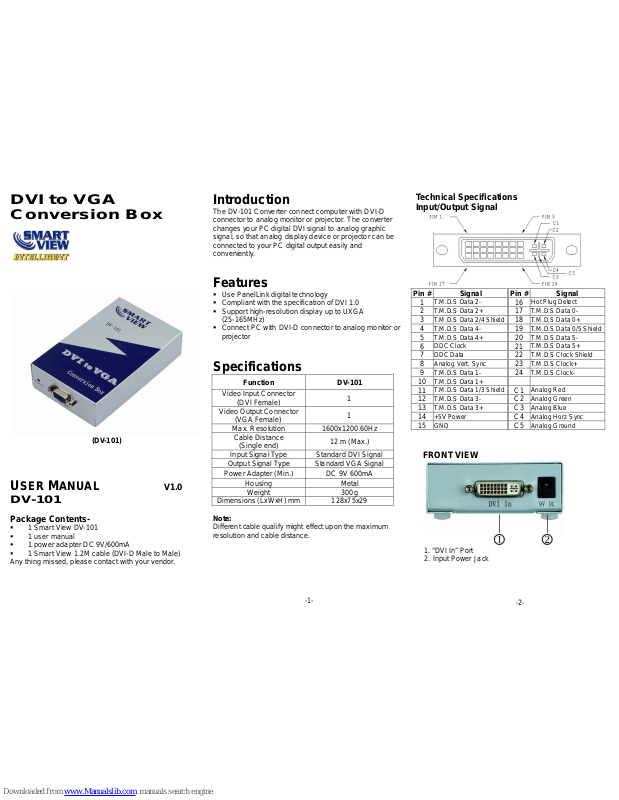

Page 1
DVI to VGA
Conversion Box
(DV-101)
USER MANUAL V1.0
DV-101
Package Contents-
1 Smart View DV-101
1 user manual
1 power adapter DC 9V/600mA
1 Smart View 1.2M cable (DVI-D Male to Male)
Any thing missed, please contact with your vendor.
Introduction
The DV-101 Converter connect computer with DVI-D
connector to analog monitor or projector. The converter
changes your PC digital DVI signal to analog graphic
signal, so that analog display device or projector can be
connected to your PC digital output easily and
conveniently.
Features
Use PanelLink digital technology
Compliant with the specification of DVI 1.0
Support high-resolution display up to UXGA
(25-165MHz)
Connect PC with DVI-D connector to analog monitor or
projector
Specifications
Function DV-101
Video Input Connector
(DVI Female)
1
Video Output Connector
(VGA Female)
1
Max. Resolution 1600x1200 60Hz
Cable Distance
(Single end)
12 m (Max.)
Input Signal Type Standard DVI Signal
Output Signal Type Standard VGA Signal
Power Adapter (Min.) DC 9V 600mA
Housing Metal
Weight 300g
Dimensions (LxWxH) mm 128x75x29
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
-1-
Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1
T.M.D.S Data 2-
16
Hot Plug Detect
2
T.M.D.S Data 2+
17
T.M.D.S Data 0-
3
T.M.D.S Data 2/4 Shield
18
T.M.D.S Data 0+
4
T.M.D.S Data 4-
19
T.M.D.S Data 0/5 Shield
5
T.M.D.S Data 4+
20
T.M.D.S Data 5-
6
DDC Clock
21
T.M.D.S Data 5+
7
DDC Data
22
T.M.D.S Clock Shield
8
Analog Vert. Sync
23
T.M.D.S Clock+
9
T.M.D.S Data 1-
24
T.M.D.S Clock-
10
T.M.D.S Data 1+
11
T.M.D.S Data 1/3 Shield
C1
Analog Red
12
T.M.D.S Data 3-
C2
Analog Green
13
T.M.D.S Data 3+
C3
Analog Blue
14
+5V Power
C4
Analog Horz Sync
15
GND
C5
Analog Ground

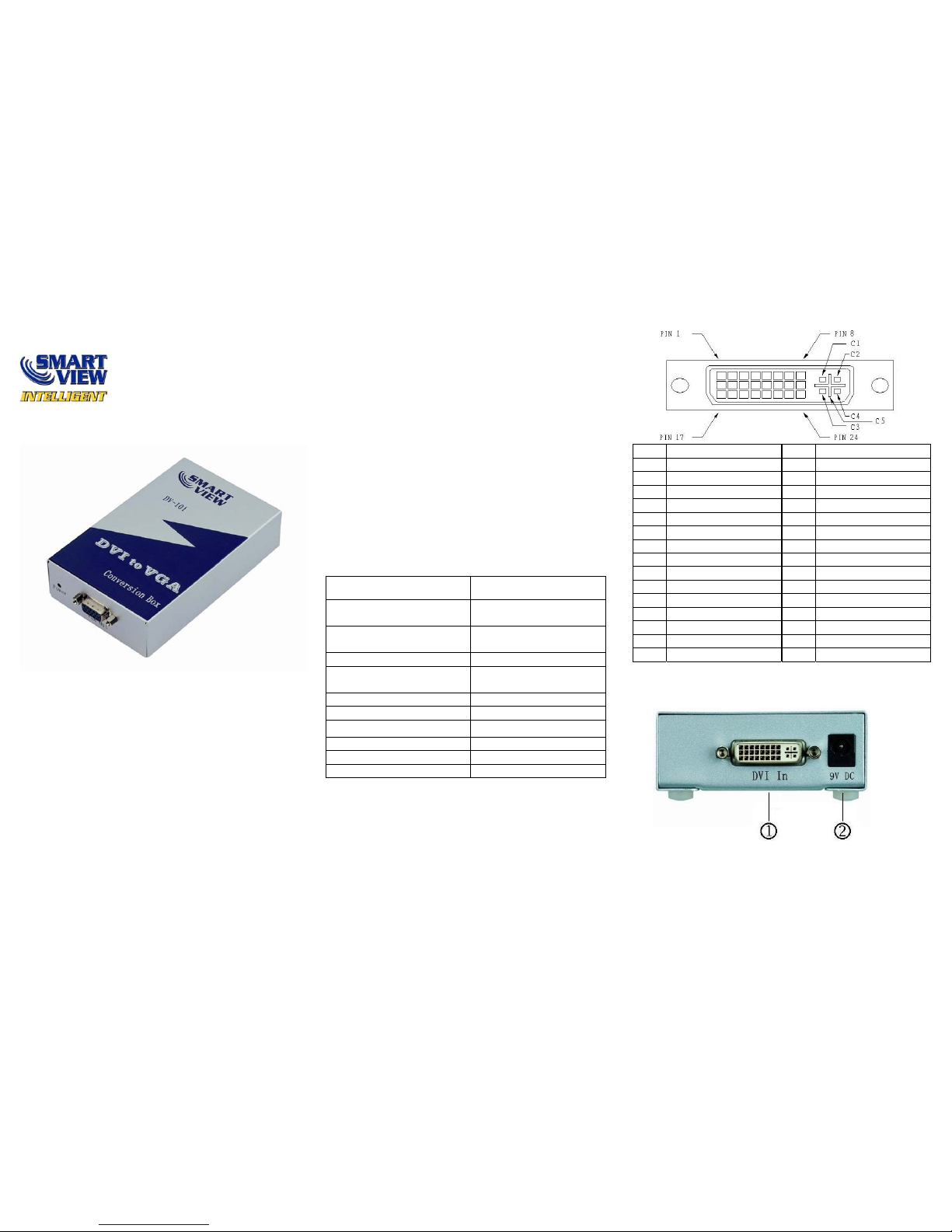

FRONT VIEW
1. “DVI In” Port
2. Input Power Jack
-2-
Page 2
REAR VIEW
1. Power LED
2. “VGA Out” Port
Installation
1. Turn off the PC and monitor.
2. Connect the DVI male extension cable between the PC
and the “DVI In” port of DV-101.
3. Connect the VGA male extension cable between the
monitor and the “VGA Out” port of DV-101.
4. Connect the power cord and turn on the DV-101.
5. Turn on the PC and analog monitor or projector.
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
-3-
