Smart-UPS SURTRK2 User Manual
© 2015 APC by Schneider E lectric. APC, the APC logo, and Smart-UPS are owned by
Schneider Electric Industries S.A.S., or their affiliated companies. All other trademarks are
property of th eir respective owners.

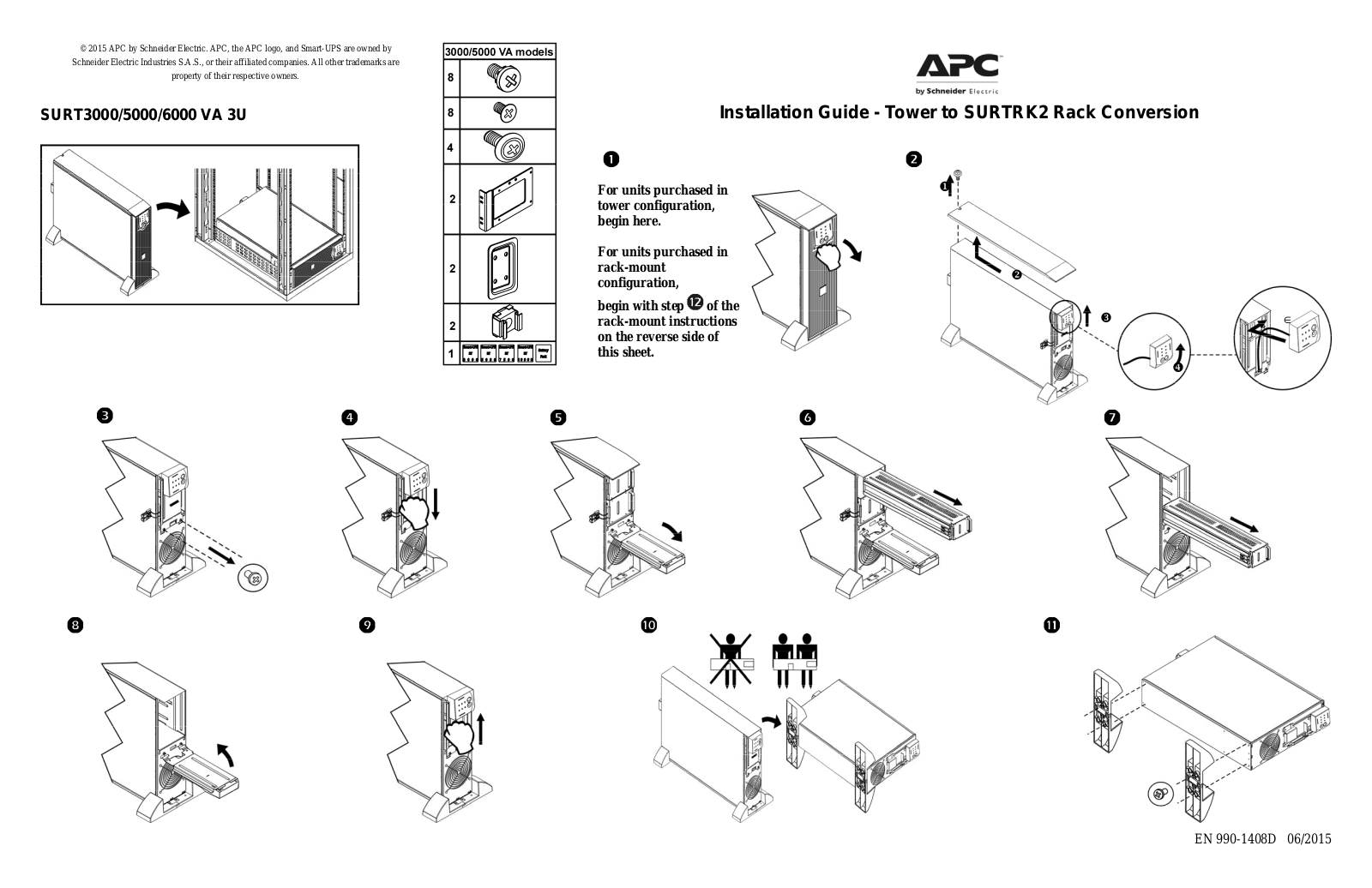

SURT3000/5000/6000 VA 3U
Installation Guide - Tower to SURTRK2 Rack Conversion
For units purchased in
tower configuration,
begin here.
For units purchased in
rack-mount
configuration,
begin with step of the
rack-mount instructions
on the reverse side of
this sheet.
X
Y
Z
∈
[
EN 990-1408D 06/2015

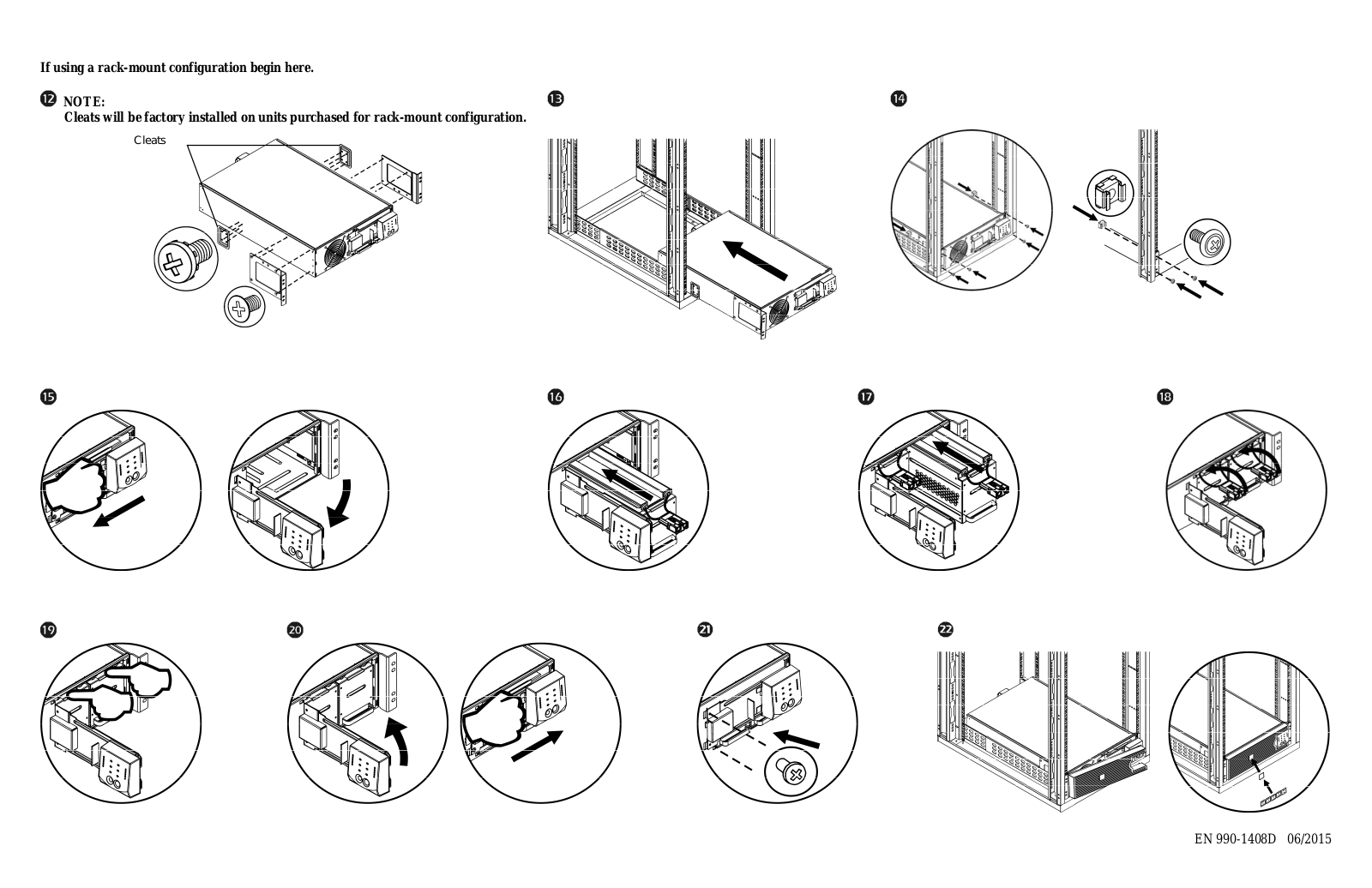

If using a rack-mount configuration begin here.
NOTE:
Cleats will be factory installed on units purchased for rack-mount configuration.
Cleats
EN 990-1408D 06/2015

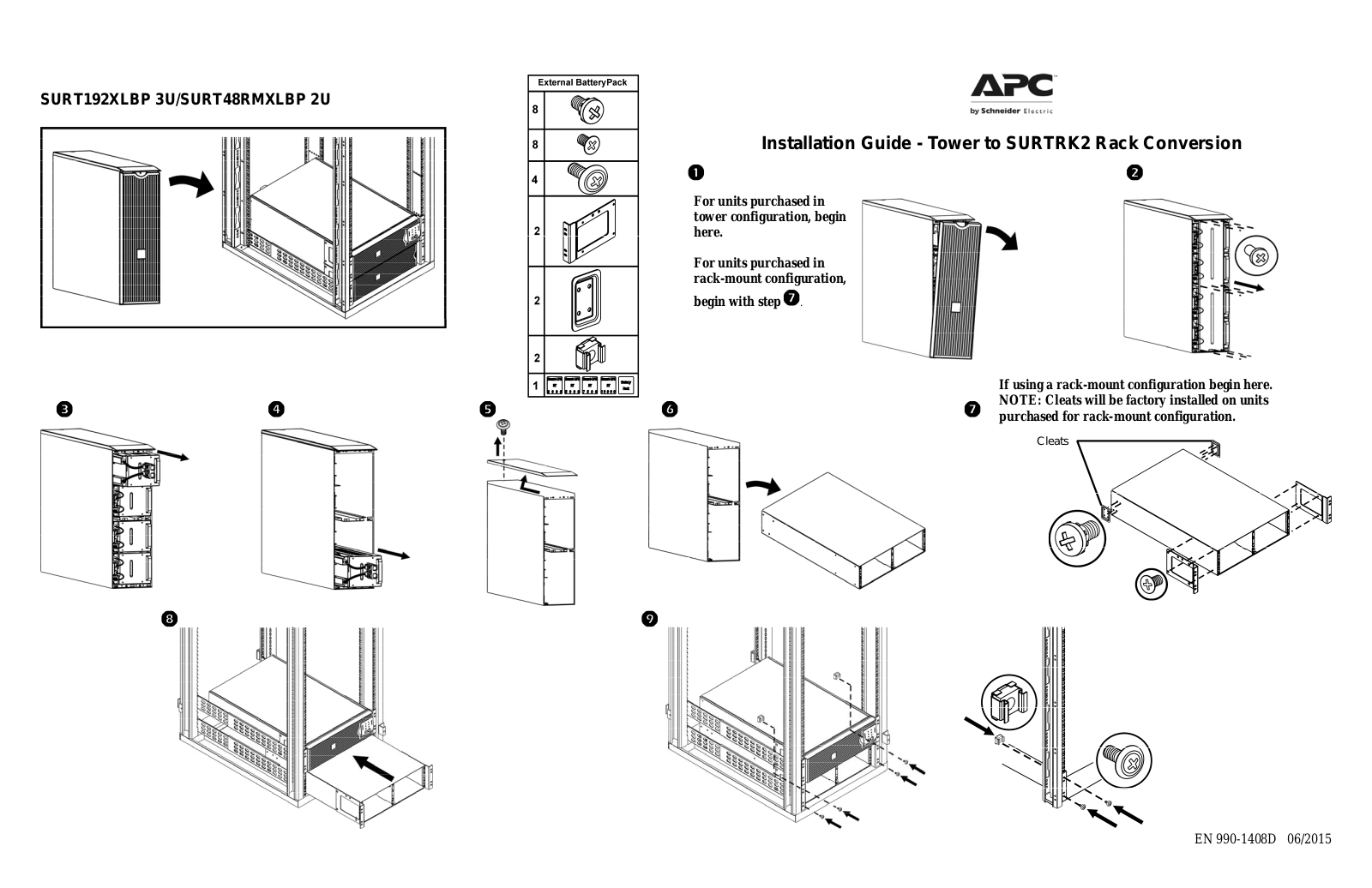

SURT192XLBP 3U/SURT48RMXLBP 2U
Installation Guide - Tower to SURTRK2 Rack Conversion
For units purchased in
tower configuration, begin
here.
For units purchased in
rack-mount configuration,
begin with step .
If using a rack-mount configuration begin here.
NOTE: Cleats will be factory installed on units
purchased for rack-mount configuration.
Cleats
EN 990-1408D 06/2015
