Introduction to Your Camera
This SmartThings Cam can monitor your home and
then alert any suspected motions in real time.
Features
Standalone system: Equipped with CPU and video
•
encoder for operation, which requires only power
and network connections.
HD video: Supports up to 1080p HD video with
•
H.264 encoding.
Trusted Platform Module (TPM): Its dedicated
•
chip safely shields cryptographic keys used for
authentication to ensure safe communication
between network components and encrypted
video data.
Built-in microphone: Used for bi-directional
•
conversation.
2 IR LEDs: Can provide illumination up to 5
•
meters away for better video quality.
High dynamic range (HDR): Balances the
•
illumination for clear image quality.
Motion detection zone: Can be changed by
•
dragging or tapping areas for motion monitoring.
Recording time: Can be specified to let the
•
camera record video upon motion detection.
Introduction to Your Camera
Status LED
Components
Front panel
IR LEDs
Microphones
Component Description
Status LED Off: No power supplied
IR LEDs
Microphones
Lens
Light Sensor
Blue On: Power supplied
Slow blinking of Blue: Booting in
progress
Fast blinking of Blue: Rebooted with
default settings
Component Description
Status LED Green On: Wireless network
connected
Fast blinking of Green: Data
communication in progress
Amber On: Firmware upgrade failed.
Then the camera reboots after 5
seconds
Fast blinking of Amber: Camera
available for softAp or QR scan
Blinking of Blue and Amber: Upgrading
the firmware
Lens Fixed camera lens
IR Sensors Used for illumination
Microphones Used for conversation
Light Sensor Used to detect light
Introduction to Your Camera
Rear panel
Reset Button
Power Plug
Stand
Mounting
Plate
Component Description
Power Plug Connect the power adapter here.
Never use other adapters
Reset Button Press for over 10 seconds to restore
the factory default settings. Then
the system reboots with the default
values.
Stand Used to support the camera on a
table or wall.
Mounting Plate Used to install the camera on a wall
after removing from the stand.
Installing the ProductInstalling the Product
When the product is ready, install it by keeping the
following procedure:
1
2
Check the following items are included in the
package including this user guide.
Determine the location to install the product.
Installing the Product
3

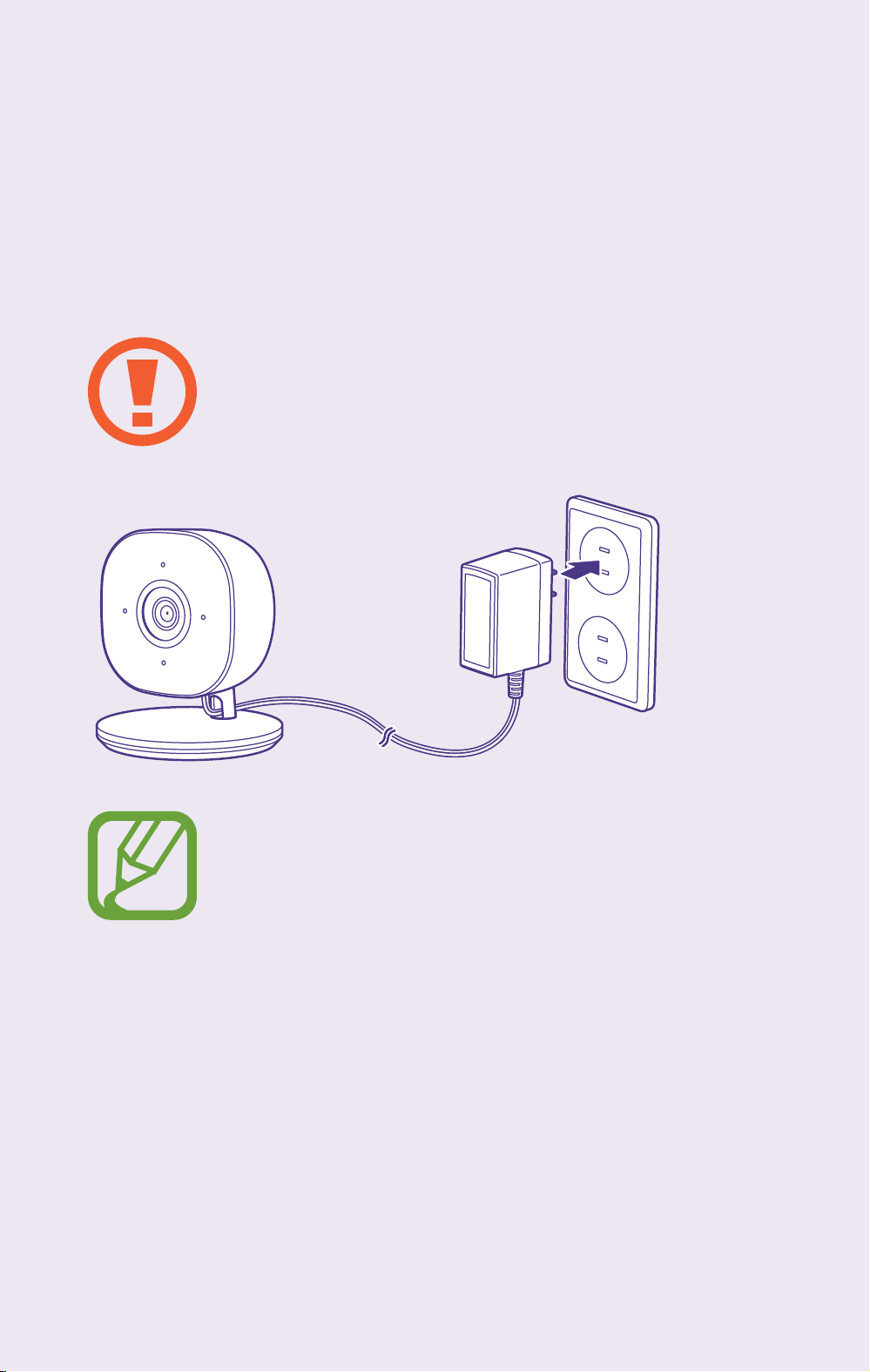

Connect the power plug into the camera and
then plug the power connector into the outlet to
supply power.
Never use power adapters other than the
provided one. It may cause damage to the
system.
The status LED blinks (approx. 1 minute) in
amber during startup. Then the LED color
changes to blue before registration.
After wireless connection is finished, its
color changes to green.
4
Download the SmartThings app for Android or
iOS, create an account, and follow on-screen
instructions to add the device.
5
Use the SmartThings app to scan the QR code
at the bottom of the stand and then follow onscreen instructions to finish setup.
The QR code is located under the mounting
plate. When you cannot find the QR code,
remove the mounting plate.
Launching the App
1
When you launch the app after all things are made,
the main screen appears on your mobile device.
For monitoring, select the desired site on the screen.
Then the following live view screen appears.
2
7
6
3
4
5
No. Description
1 When clicked, the following menus appear:
My Info: Moves to the subscription page.
•
You can subscribe to the premium service
at Samsung.com.
Edit: Can edit the device information.
•
Settings: Moves to the camera plug-in
•
settings page.
Information: Displays the app information.
•
2 Toggles between full live view screen and
normal screen.
3 Displays the live view screen.
4 Enables/disables the microphone.
5 Mutes the video sound.
6 Captures video from the screen.
7 Records the live video.
Launching the App
The differentiated subscription plans are provided
as follows:
Basic Plan Premium Plan
Free of charge $7.99 per month or $79.99 per
year
Can connect up to 2
SmartThings cameras
Can customize the
motion detection zones
Can clip the recording
for up to 10 seconds
No cloud archiving Cloud archiving available
Can connect up to 5
SmartThings cameras
Can customize the motion
detection zones
Can clip the recording for up to
60 seconds
Mounting on the Wall
The camera is usually mounted on the wall for
permanent installation. In this case, follow the steps
below:
1
2
3
Remove the mounting plate from the stand by
sliding it forward from the stand.
Hold the mounting plate at the desired location
and mark the holes for two mounting holes.
Drill two pilot holes on the mounting surface at
the marked location.
Mounting on the Wall
4
5
6
Align two mounting holes on the camera stand
with two pilot holes and then mount the plate
on the wall surface with two provided screws.
Slide the camera stand onto the mounting plate
until it clicks in place.
Insert the power cable into the hole of the stand,
connect the cable to the camera, and plug the
power adapter into the outlet.
7
Adjust the camera for better performance and
fix it firmly.
Specifications
Power Adapter input:
100-240 V AC, 50/60 Hz
Adapter output:
12 V DC, 1 A
Color White
Sensor ½. 7" CMOS sensor
Dimensions
(H x W x D)
Operating
tempera
Storage
temperature
Video Up to 1080p at 30 frames/sec, H.264
Audio Bi-directional full-duplex audio,
3.98” x 1.82” x 1.72”
(101 mm x 46.3 mm x 43.7 mm)
32 °F to 104 °F
(0 °C to 40°C)
-4 °F to 158 °F
(-20 °C to 70 °C)
encoding
G.711 (built-in microphone & 1W
speaker)
Image resolution 1080p (1920 x 1080),
720p (1280 x 720),
VGA (640 x 480)
Specifications
Viewing angle 145° diagonal
(Dewarping FOV is to be updated
later)
Night vision Built-in IR LEDs for night-time
illumination (range within 5 m)
IR LEDs 2
LED type 1 tri-color LED
(power/network/status)
Connectivity Wi-Fi 802.11b/g/n, 2.4 GHz/5 GHz
(WPA & WPA2 encryption supported)
Wireless interface IEEE 802.11ac, 802.11b/g/n
Vision Intelligence People/sound/obstruction detection
at the edge ABR (Adaptive Bit Rate)
Network protocols TCP/IP, HTTPS, DHCP, NTP, RTP, RTCP,
RTSP, DNS
