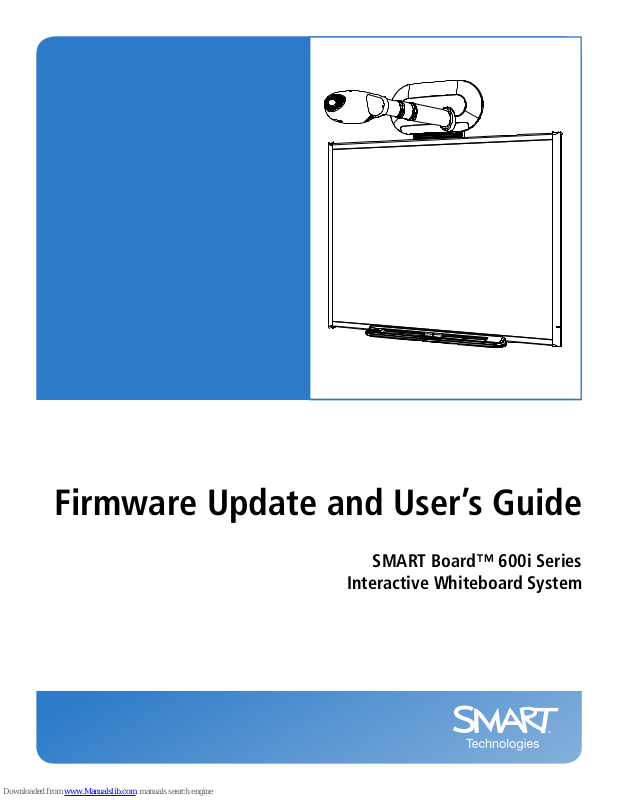

Smart Technologies SMART Board600i Series User Manual

Firmware Update and User’s Guide

SMART Board™ 600i Series

Interactive Whiteboard System

Trademark Notice

SMART Board, Notebook, Bridgit, LinQ, the SMART logo and smarttech are trademarks or registered trademarks of SMART Technologies
ULC in the U.S. and/or other countries. All other third-party product and company names may be the trademarks of their respective
owners.

Copyright Notice

© 2008 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC.
Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

Patent No. US5448263; US6141000; US6326954; US6337681; US6540366; US6741267; US6747636; US7,151,533; US7289113; and
CA2058219. Other patents pending.

06/2008

Using the Firmware

In this Chapter

This chapter explains how to use the features of the firmware with your SMART Board 600i
interactive whiteboard system. The firmware’s features include Whiteboard, Bridgit conferencing
software and the ability to connect to computers and video sources.

• Basic Tools (this page)

• Starting a Firmware Session (page 50)

• Whiteboarding (page 50)

• Collaborating (page 58)

• Connecting to Computers and Video Sources (page 68)

• Using Your SMART Board 600i Interactive Whiteboard System with Computer and Video
Source Inputs (page 71)

• Ending a Firmware Session (page 74)

Basic Tools

Regardless of which features of the firmware you use, you’ll find these tools useful:

• Welcome Center menu

• shortcut menu

• toolbar

• on-screen keyboard

• right-click

• volume adjustment and mute

• online Help

Using the Firmware 45

Welcome Center

The Welcome Center allows you to create or open Whiteboard files, Bridgit software conferences,
and computer and video source sessions, as well as open the Unifi 35 Settings dialog box to
configure the firmware (see page 9) and end the current session (see page 74).

The Welcome Center appears when you start a firmware session. If you’re in a Whiteboard file,
Bridgit software conference, or computer or video source session, open the Welcome Center by
pressing Menu in the toolbar.

Shortcut Menu

The shortcut menu allows you to move between Whiteboard files, Bridgit software conferences,
and computer and video source sessions without opening the Welcome Center.

The LinQ/Bridgit dialog box only

The currently open

session is outlined

in yellow.

NOTE: A session only displays in the shortcut menu if you select its input’s Add a button for this
input in the shortcut menu check box (see page 18 and page 20).

To open the shortcut menu, press to the right of Menu in the toolbar. Press a session’s button to
move to that session, or press outside of the shortcut menu to close it.

displays if there are open
Bridgit software conferences or
LinQ software connections.

46 Using the Firmware

Toolbar

The toolbar appears at the bottom of the display in Whiteboard files, Bridgit software conferences,
and computer and video source sessions. The buttons in the toolbar differ depending on the type
of session.

Whiteboard Toolbar

Computer or Video Source Toolbar

NOTE: The two right-most buttons in the computer or video source toolbar are only available for
computer inputs.

To minimize the toolbar, press Minimize . After minimizing the toolbar, you can move it to
different positions on the display by pressing the appropriate buttons.

Move to the Left-Middle
Position

Move to the Left-Top
Position

Move to the Left-Bottom
Position

Move to the Left-Middle
Position

Move to the Bottom-Left
Position

Move to the Bottom-Middle
Position

Move to the Left-Bottom
Position

Move to the Bottom-Left
Position

Move to the Bottom-Right

Position

Move to the Right-Middle

Position

Move to the Right-Top

Position

Move to the Right-Bottom

Position

Move to the Right-Middle

Position

Move to the Bottom-Right

Position

Move to the Bottom-Middle

Position

Move to the Right-Bottom

Position

Using the Firmware 47

Alternatively, press Show/Hide Menu on the control module (on the left side of the pen tray) to
minimize the toolbar.

Show/Hide Menu

SMART Keyboard

If there’s no keyboard connected to the 600i interactive whiteboard system, you can use SMART
Keyboard to type information.

To open SMART Keyboard

Press Keyboard or the keyboard button on the pen tray.

SMART Keyboard appears.

NOTE: SMART Keyboard uses the QWERTY layout.

Right-Click

If you connect a computer to the 600i interactive whiteboard system (see page 68) and there’s no

mouse connected to the system, you can simulate a right-click by pressing Right-Click or the
right-click button on the pen tray, and then pressing the interactive screen with your finger.

Volume Adjustment and Mute

Adjust and mute the volume by pressing Volume .

Adjust the volume by moving the slider to the right to increase volume, or to the left to decrease

the volume. Mute the volume by pressing Volume .

48 Using the Firmware

Alternatively, adjust and mute the volume using the volume control on the control module (on the
left side of the pen tray):

Volume Control

Adjust the volume by turning the volume control. Mute the volume by pushing down on the volume
control.

NOTE: Volume adjustment and mute aren’t available in Whiteboard or any computer or video
source connection without audio input.

Online Help

The firmware includes online Help.

To view the online Help

Open the Welcome Center, and then press Help.

The Help Topics window appears.

Using the Firmware 49

Starting a Firmware Session

There are two situations in which you need to start a new firmware session.

Situation Procedure

Your 600i interactive whiteboard system is off. Turn on your 600i interactive whiteboard

system as documented in document 87643

Your 600i interactive whiteboard system is on
but the display is blank.

The firmware has timed out and is in sleep
mode. (For information on setting the number of
minutes before the firmware times out, see
page 22.)

When you start a new session, the Welcome Center appears.

Swipe your finger or a pen from the pen tray
across the display of your 600i interactive
whiteboard system.

.

Whiteboarding

Whiteboard allows you to capture notes and drawings in digital ink on your 600i interactive
whiteboard system.

Use Whiteboard for brainstorming, note taking and other activities for which you want to use your
interactive whiteboard system’s digital ink tools without connecting to a computer.

50 Using the Firmware

Getting Started

To use Whiteboard, create or open a Whiteboard file.

To create a Whiteboard file

1. Press Menu.

The Welcome Center appears.

2. Press Whiteboard.

Using the Firmware 51

3. Press Whiteboard.

OR

Press New File.

A new file opens.

You’ve created a new Whiteboard file.

52 Using the Firmware

To open a Whiteboard file

1. Connect the USB storage device that contains the Whiteboard file to the Unifi 35 projector or
the Extended Connection Panel.

2. Press Menu.

The Welcome Center appears.

3. Press Whiteboard.

4. Press Open File.

The Open dialog box appears.

5. In the Look in list, select the USB storage device’s drive letter.

Using the Firmware 53

6. Browse to and select the file.

7. Press Open.

The file opens.

You’ve opened an existing Whiteboard file.

Using Whiteboard

After creating or opening a Whiteboard file, you can:

• draw digital ink

• erase digital ink

• add a page to the file

• delete a page from the file

• minimize and restore the toolbar

To draw digital ink

1. Pick up a pen from the pen tray.

OR

Press Pen .

The pen toolbar appears.

54 Using the Firmware

2. In the pen toolbar, select the appropriate color and thickness options.

3. Draw digital ink.

To erase digital ink

1. Pick up the eraser from the pen tray.

OR

Press Eraser .

2. Erase digital ink.

To add a page to the Whiteboard file

Press Add Page .

A new page appears after the currently selected page.

To delete a page from the Whiteboard file

Open the page you want to delete, and then press Delete Page .

The page deletes.

NOTE: If there’s only one page in the file, pressing Delete Page clears the page rather than
deleting it.

Using the Firmware 55

Saving or E-mailing a Whiteboard File

You can save your Whiteboard file on a USB storage device or e-mail it in one of the following
formats:

• Whiteboard file (.notebook)

• JPEG archive (.zip)

• PDF (.pdf)

After saving a file on a USB storage device, you can open, view and edit it in Whiteboard or on a
computer with Notebook software.

To save a Whiteboard file

1. Connect a USB storage device to the Unifi 35 projector or the Extended Connection Panel.

2. Press Save .

The Save dialog box appears.

3. In the Look in list, select the USB storage device’s drive letter.

4. Browse to the folder where you want to save the file.

NOTE: Create a new folder for the file by pressing New Folder .

5. In the File name box, type a file name.

56 Using the Firmware

6. In the Save as type list, select a file type:

– Whiteboard File (.notebook)

– JPEG Archive (.zip)

– Portable Document Format (.pdf)

NOTE: If you select JPEG Archive (.zip), the firmware saves each page in the Whiteboard file

as a JPEG image file inside an archive file.

7. Press Save.

You’ve saved the Whiteboard file to a USB storage device.

To e-mail a Whiteboard file

1. Press E-mail .

The E-mail dialog box appears.

2. In the Recipient list, select the recipient.

OR

In the E-mail address box, type the recipient’s e-mail address.

Using the Firmware 57

NOTES

– Add a new recipient or edit the list of recipients by pressing the appropriate button in the

upper-right corner of the E-mail dialog box:

Add a New Recipient

Edit the List of Recipients

– If you’re using SMART Keyboard to enter e-mail addresses, press Shift to view the key for

the @ symbol.

3. In the Save as type list, select a file type:

– Whiteboard File (.notebook)

– JPEG Archive (.zip)

– Portable Document Format (.pdf)

NOTE: If you select JPEG Archive (.zip) file, the firmware saves each page in the Whiteboard

file as a JPEG image file inside an archive file.

4. Press Send E-mail.

You’ve e-mailed the Whiteboard file.

Collaborating

Bridgit conferencing software is a client/server application that lets you collaborate with anyone,
anywhere in the world. Using Bridgit conferencing software, you can:

• share your display

• view other participants’ displays

• communicate with others through chat

• use your SMART product to write digital ink notes

58 Using the Firmware

NOTE: You must connect the 600i interactive whiteboard system to a network and configure it as
documented on page 29 to use Bridgit conferencing software.

IMPORTANT

To use the Bridgit conferencing software features in the firmware, you must do one
of the following:

• Purchase and install Bridgit server software.

• Purchase a subscription for the Bridgit conferencing service.

• Install a trial version of Bridgit software for 30 days, and then purchase the
server software or service from SMART Technologies

.

• Be invited to a conference by a person or organization with Bridgit software.

For more information on these options, see the Bridgit page of the SMART

support site.

Getting Started

To get started with Bridgit conferencing software, create or join a conference.

To create a Bridgit software conference

1. Press Menu.

The Welcome Center appears.

2. Press Collaborate.

Using the Firmware 59

3. Press Create Conference.

The Create Conference dialog box appears.

4. In the Conference box, type a name for the conference.

NOTE: You define the default name in this box in the firmware settings (see page 29).

5. In the Password and Confirm boxes, type a password for the conference (if you want to
assign a password to the conference).

IMPORTANT

If you do not assign a password to the conference, any person with Bridgit
conferencing software and access to the server can join the conference.

60 Using the Firmware

6. Press Create.

If the server administrator has assigned a password for creating conferences, the
Password Required dialog box appears. Proceed to step 7.

OR

If the server administrator has not assigned a password for creating conferences, the Bridgit
software conference screen appears. Do not proceed to step 7.

7. In the Creation Password box, type the password for creating conferences, and then press
OK.

The Bridgit software conference screen appears.

You’ve created a Bridgit software conference.

Using the Firmware 61

To join a Bridgit software conference

1. Press Menu.

The Welcome Center appears.

2. Press Collaborate.

3. Press Join Conference.

The Conference Connection dialog box appears.

62 Using the Firmware

4. Select the Bridgit software conference you want to join, and then press Join.

If the Bridgit software conference owner has assigned a password for joining the conference,
the Join Conference dialog box appears. Proceed to step 5.

OR

If the Bridgit software conference owner has not assigned a password for joining the
conference, the Bridgit software conference screen appears. Don’t proceed to step 5.

5. In the Password box, type the password, and then press OK.

The Bridgit software conference screen appears.

You’ve joined an existing Bridgit software conference.

Using Bridgit Conferencing Software

After creating or joining a Bridgit software conference, you can:

• share your display with other participants

• view other participants’ displays

• chat with other participants

Using the Firmware 63

To share your display

1. Press Share This Display or Share .

A blue border appears around your display.

NOTE: If you’re a participant in another person’s Bridgit software conference, the other person
must approve your request before you can share your display.

2. Open a Whiteboard file or a computer or video source session.

For information on Whiteboard files, see page 50.

For information on computer and video source sessions, see page 68 and page 71.

You’ve shared your display with the other participants in the Bridgit software conference. The other
participants can view and contribute to the Whiteboard files and computer and video sessions
you open.

To stop sharing your display

Press Stop Sharing .

The blue border around your display disappears.

You’ve stopped sharing your display with the other participants in the Bridgit software conference.

64 Using the Firmware

To view another participant’s display

Other participants can share their displays. When they do, a red border appears around
the display.

Depending on how the owner or presenter configures the Bridgit software conference settings (see
page 66), you can draw digital ink on the participant’s display or request remote control of the
other participant’s display.

To request remote control of another participant’s display

Press Request Remote Control .

The Request for Remote Control dialog box appears on the other participant’s display, and the
Bridgit dialog box appears on your display.

If the other participant presses Yes in the Request for Remote Control dialog box, you can control
the other participant’s display from your display.

Using the Firmware 65

To relinquish remote control of another participant’s display

Press Relinquish Remote Control .

You’ve relinquished remote control of the other participant’s display.

To chat with other participants

1. Press Participant List .

The Participant List dialog box appears.

2. Press .

3. Type a message.

4. Press Send.

You’ve sent a chat message to all participants in the Bridgit software conference.

NOTE: If another participant sends you a chat message and the Participant List dialog box isn’t
open, a message appears below the Bridgit conferencing software toolbar:

Configuring the Bridgit Software Conference Settings

If you’re the owner or presenter of a Bridgit software conference, you can configure whether other
participants can:

• draw digital ink notes when you’re sharing your display

• share their displays

• chat

• request remote control when you’re sharing your display

66 Using the Firmware

To configure the Bridgit software conference settings

1. Press Options .

The Conference Options dialog box appears.

2. Select the Allow others to draw check box to allow other participants to draw digital ink notes
when you’re sharing your display.

3. Select the Allow others to share their desktop check box to allow other participants to share
their displays.

4. Select the Allow others to use chat check box to allow other participants to chat.

5. Select the Allow others to use remote control check box to allow other participants to
request remote control when you’re sharing your display.

6. Press OK.

Leaving a Bridgit Software Conference

You can leave a Bridgit software conference at any time.

If you’re the owner of the conference, the conference ends when you leave. Bridgit conferencing
software automatically disconnects the other participants in the conference.

If you’re not the owner of the conference, the conference continues until the owner leaves.

To leave a Bridgit software conference

Press Exit Conference .

OR

Using the Firmware 67

Complete the following steps:

1. Press Menu.

The Welcome Center appears.

2. Press Collaborate.

3. Press Exit Conference.

You’ve left the Bridgit software conference.

Connecting to Computers and Video Sources

After connecting the 600i interactive whiteboard system to a computer or video source, you can
view the computer or video source’s input on your SMART product’s interactive screen.

NOTE: You can connect a computer with Notebook software 9.7 SP1 or later to the 600i
interactive whiteboard system and use the digital ink features of the software. The 600i interactive
whiteboard system doesn’t support earlier versions of Notebook software.

68 Using the Firmware

To connect to a local computer

1. Press Menu.

The Welcome Center appears.

2. Press Computer Access.

OR

Press Watch Video.

NOTE: The computer input that appears in the Watch Video tab isn’t connected to the
interactive whiteboard through the USB or RS-232 interface. Therefore, you can view this
input on the interactive whiteboard but you’re unable to interact with it through touch.

Using the Firmware 69

3. Press one of the computer input buttons.

The computer’s input appears.

You’ve connected to a local computer.

To connect to a LinQ software client computer

1. Start LinQ software on the client computer.

NOTE: You can download LinQ software for client computers from the SMART Technologies

website.

2. Press Menu.

The Welcome Center appears.

3. Press Computer Access.

4. Press one of the buttons in the LinQ Connected Clients group box.

The computer’s input appears.

You’ve connected to a LinQ software client computer.

70 Using the Firmware

To connect to a video source

1. Press Menu.

The Welcome Center appears.

2. Press Watch Video.

3. Press one of the video source input buttons.

The video source’s input appears.

You’ve connected to a video source.

Using Your SMART Board 600i Interactive Whiteboard System with
Computer and Video Source Inputs

When viewing computer or video source input, you can draw digital ink notes on the display. If you
want to save your digital ink notes, you can take a screen capture of the display.

To draw digital ink

1. Pick up a pen from the pen tray.

OR

Press Pen .

The pen toolbar appears.

2. In the pen toolbar, select color and thickness options.

3. Draw digital ink.

Using the Firmware 71

To erase digital ink

1. Pick up the eraser from the pen tray.

OR

Press Eraser .

2. Erase digital ink.

To clear the display

Press Clear.

Your digital ink notes clear from the display.

To freeze the display

Press Freeze.

The display freezes.

NOTE: To unfreeze the display, press Resume.

IMPORTANT

Pressing Freeze only freezes the image on the display. It does not pause the
computer or video input.

To take a screen capture

1. Press Capture.

2. Press Menu.

The Welcome Center appears.

72 Using the Firmware

3. Press Whiteboard.

4. Press Whiteboard.

A Whiteboard file opens. The last page in the file contains a screen capture of the display.

Using the Firmware 73

Ending a Firmware Session

When you’ve finished using the firmware, you can end your session. Ending your session:

• closes open Whiteboard files

• closes open Bridgit software conferences

• disconnects LinQ software client computers

To end a firmware session

1. Press Menu, and then press End Session.

The End Session dialog box appears.

2. Press Yes.

The Save Changes? dialog box appears.

3. Press Save to save the changes.

OR

Press E-mail to e-mail the changes.

OR

Press Discard to discard the changes.

The firmware session ends, closing open Whiteboard files and Bridgit software conferences and
disconnecting LinQ software client computers.

74 Using the Firmware

To end a firmware session and turn off the Unifi 35 projector

1. Press Power on the control module (on the left side of the pen tray).

Power

The End Session dialog box appears.

2. Press Yes.

The Save Changes? dialog box appears.

3. Press Save to save the changes.

OR

Press Discard to not save the changes.

The firmware session ends, closing open Whiteboard files and Bridgit software conferences and
disconnecting LinQ software client computers. The projector lamp goes off, the cooling fans
continue running, and the indicator ring blinks red for two minutes. During these two minutes, you
can’t restart the projector.

After two minutes, the second stage of cooling begins: the indicator ring turns white and the fans
run for three minutes. During this stage, you can restart the projector. At the end of the cycle, the
indicator remains white and the fans stop, indicating that the system is in full standby.

Using the Firmware 75

76 Using the Firmware

SMART Technologies

1207 – 11 Avenue SW, Suite 300

Calgary, AB T3C 0M5

CANADA

www.smarttech.com/support

wwww.smarttech.com/contactsupport

Support +1.403.228.5940 or Toll Free 1.866.518.6791
