Smart Technologies 400iv User Manual
SMART Board™ 400iv
Interactive Whiteboard System
Configuration and User’s Guide
Trademark Notice
SMART Board, DViT, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of
SMART Technologies ULC in the U.S. and or/other countries. Texas Instruments, Brilliant Color, DLP and DLP Link are
Trademarks of Texas Instruments. Microsoft, Windows and Internet Explorer are either registered trademarks or trademarks
of Microsoft Corporation in the U.S. and/or other countries. Blu-ray is a trademark of the Blu-ray Disc
Association.
Copyright Notice
©2011 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior
written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not
represent a commitment on the part of SMART.
Patent No.
US5448263; US6141000; US6337681; US6421042; US6540366; US6563491; US6674424; US6747636; US6760009;
US6803906; US6829372; US6954197; US7184030; US7236162; US7289113; US7342574; US7379622; US7532206;
US7619617; US7626577; US7692625; US7751671; CA2058219; CA2386094; EP1297488; EP1739528; JP4033582;
JP4052498; JP4057200; ZL0181236.0; and DE60124549. Other patents pending.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
02/2011
Important information
Before you install and use your SMART Board™ 480iv interactive whiteboard system, read and
understand the safety warnings and precautions in this user’s guide and the included warnings
document. These safety warnings and precautions describe the safe and correct operation of your
interactive whiteboard system and its accessories, helping you to prevent injuries and equipment
damage. Ensure that your interactive whiteboard system is always being used correctly.
In this document, “SMART Board 480iv interactive whiteboard system” refers to your SMART Board
480 interactive whiteboard and its SMART V25 projector, accessories and optional equipment.
The SMART V25 projector included with your system is designed to work only with certain SMART
Board interactive whiteboard models. Contact your authorized SMART reseller
(smarttech.com/wheretobuy) for more information.
Safety warnings, cautions and important information
W W A R N I N G
l Failure to follow the installation instructions shipped with your SMART product could result in
personal injury and damage to the product.
l To reduce the risk of fire or electric shock, do not expose the SMART product to rain or
moisture.
l Two people are required to mount your SMART product because it may be too heavy for one
person to safely maneuver.
When you lift your interactive whiteboard, you and your assistant should stand on either side
of the screen, supporting its weight at the bottom while balancing the top with your other
hands.
l When mounting the projector boom on a framed or hollow wall, attach both the mounting
bracket and the safety tether to a stud to safely support the projector’s weight. If you use only
drywall anchors, the drywall can fail, resulting in product damage and possible personal
injury.
i
I M P O R T A N T I N F OR M A T I O N
l Do not leave cables on the floor where they can be a tripping hazard. If you must run a cable
over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable
management strip of a contrasting color. Handle cables carefully and avoid excessive
bending.
l Do not climb (or allow children to climb) on a wall- or stand-mounted SMART Board
interactive whiteboard.
Do not climb on, hang from or suspend objects from the projector boom.
Climbing on the interactive whiteboard or projector boom could result in personal
injury or product damage.
l For warnings related to the projector’s 3D support, see smarttech.com/support/3Dwarnings.
C C A U T I ON
l Do not operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture can condense on the
lens and crucial internal parts. Allow the system to stabilize to room temperature before
operation to prevent possible damage to the unit.
l Do not place the unit in hot locations, such as near heating equipment. Doing so could cause
a malfunction and shorten the life of the projector.
l Avoid setting up and using the SMART product in an area with excessive levels of dust,
humidity and smoke.
l Do not place your SMART product in direct sunlight or near any appliance that generates a
strong magnetic field.
l If you need to lean the interactive whiteboard against a wall before you mount it, make sure it
remains in an upright position.
Do not rest the interactive whiteboard on its side or on the top of the frame.
l You must connect the USB cable that came with your SMART Board interactive whiteboard
to a computer that has a USB compliant interface and that bears the USB logo. In addition,
the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark
and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid
damage to the SMART Board interactive whiteboard.
ii
I M P O R T A N T I N F OR M A T I O N
l Do not block the projector’s ventilation slots and openings.
l Avoid putting the projector into Standby mode during the lamp ignition phase because this
can lead to premature lamp failure. Keep the projector lamp on for a minimum of 15 minutes
before putting it into Standby mode to preserve the lamp life.
l In a high altitude location over 1800 m (6000'), where the air is thin and cooling efficiency is
reduced, use the projector with the fan mode set to High.
l Cycling power to the projector repeatedly can lock or damage your SMART product. After
you put the product into Standby mode, wait at least 15 minutes for cooling before starting
the product again.
l Do not adjust any settings in the service menu other than those listed in the following
procedures. Changing other settings might damage or affect the operation of your projector
and invalidates your warranty.
l If dust or small items prevent pen tray buttons from being pressed or cause constant button
contact, remove the obstructions carefully.
l
Before you clean the SMART V25 projector, press the Power button twice on the remote
control or projector to put the system into Standby mode, and then allow the lamp to cool for
45 minutes.
l Do not spray cleaners, solvents or compressed air near any part of the projector because
they can damage or stain the unit. Spraying the system could spread a chemical mist on
some of the projector’s components and lamp, resulting in damage and poor image quality.
l Do not allow liquids or commercial solvents of any kind to flow into the projector.
l When transporting your SMART product, repack it with as much of the original packaging as
possible. This packaging was designed with optimal shock and vibration protection.
l If your SMART product requires replacement parts, make sure the service technician uses
replacement parts specified by SMART Technologies or parts with the same characteristics
as the original.
I I MP OR T A N T
l Use the instructions included with your SMART V25 projector to install your interactive
whiteboard and projector. The instructions in your SMART Board interactive whiteboard box
do not include instructions for installing the SMART V25 projector.
l Make sure an electrical socket is near your SMART product and remains easily accessible
during use.
iii
I M P O R T A N T I N F OR M A T I O N
l Using your SMART product near a TV or radio could cause interference to the images or
sound. If this happens, move the TV or radio away from the projector.
l If you have peripheral devices that do not use a 4-pin mini-DIN connector or an RCA
composite video jack, or if your device has an audio connection that does not use RCA
jacks, you may need to purchase third-party adapters.
l Keep your remote control in a safe place because there is no other way to access menu
options.
l Put your SMART product into Standby mode before cleaning it.
l Follow these guidelines to clean the projector:
o
Wipe the exterior of the projector with a lint-free cloth.
o
If necessary, use a soft cloth moistened with a mild detergent to clean the projector
housing.
o
Do not use abrasive cleaners, waxes or solvents.
o
Avoid touching the lens. If it is necessary to clean the lens:
o
Use liquids or commercial solvents (such as glass cleaners) to clean the lens,
but do not spray them directly on the system.
o
Use protective gloves and dip a lint-free cloth (such as Purestat PW2004) in an
anti-static solvent (such as Hyperclean EE-6310).
o
Gently wipe the lens from the center to the edge.
l Disconnect the product from its power source when it’s not used for a long period.
iv
I M P O R T A N T I N F O R M A T I ON
Environmental requirements
Before installing your SMART Board 480iv interactive whiteboard system, review the following
environmental requirements.
Environmental
requirement
Operating temperature
Storage temperature
Humidity
Water and fluid
resistance
Dust
Electrostatic discharge
(ESD)
Cables
Conducted and radiated
emissions
Parameter
l
5°C to 35°C (41°F to 95°F) from 0 m to 1800 m (0' to 6000')
l
5°C to 30°C (41°F to 86°F) from 1800 m to 3000 m (6000' to 9800')
l
-20°C to 50°C (-4°F to 122°F)
l
30% to 80% relative humidity, non-condensing
l
Intended for indoor use only. Doesn’t meet any salt-spray or water
ingress requirements.
l
Don’t pour or spray liquids directly onto your interactive whiteboard,
the SMART V25 projector or any of its sub-components.
l
Intended for use in office and classroom environments. Not for
industrial use where heavy dust and pollutants can cause
malfunctions or impaired operation. Periodic cleaning is required in
areas with heavier dust.
l
Designed for pollution degree 1 (P1) as per EN61558-1, which is
defined as “No pollution or only dry non-conductive pollution”
l
EN61000-4-2 severity level 4 for direct and indirect ESD
l
No malfunction or damage up to 8kV (both polarities) with a 330
ohm, 150 pF probe (air discharge)
l
Unmated connectors meet no malfunction or damage up to 4kV
(both polarities) for direct (contact) discharge
l
All SMART Board 480iv interactive whiteboard system cables
should be shielded to prevent potential accidents and degraded
video and audio quality.
l
EN55022/CISPR 22, Class A
v
Contents
Important information i
Safety warnings, cautions and important information i
Environmental requirements v
About your interactive whiteboard system 1
SMART Board 480iv interactive whiteboard system features 2
Included accessories 4
Optional accessories 4
Installing your interactive whiteboard system 5
Choosing a location 6
Choosing a height 6
Routing the cables 7
Installing SMART software 8
Securing the interactive whiteboard system 8
Using your interactive whiteboard system 9
Using your projector 9
Using your interactive whiteboard 20
Integrating other devices 21
Video format compatibility 21
Connecting peripheral sources and outputs 23
Maintaining your interactive whiteboard system 25
Maintaining your interactive whiteboard 25
Focusing and adjusting the projector image 25
Replacing the projector lamp 26
Troubleshooting your interactive whiteboard system 35
Correcting image alignment issues 36
Diagnosing issues using the interactive whiteboard system indicators and controls 36
Resolving network communication issues 41
Resolving audio issues 41
Resolving video issues 42
Resolving image issues 42
Accessing the service menu 46
Locating serial numbers 47
Transporting your interactive whiteboard system 48
vii
C O N T E N T S
Remotely managing your interactive whiteboard system 49
Web page management 50
Connecting your room control system to the SMART V25 projector 54
Projector programming commands 56
Simple Network Management Protocol (SNMP) 67
Hardware environmental compliance 69
Waste Electrical and Electronic Equipment regulations (WEEE directive) 69
Restriction of Certain Hazardous Substances (RoHS directive) 69
Batteries 69
Packaging 70
China’s Electronic Information Products regulations 70
U.S. Consumer Product Safety Improvement Act 70
Customer support 71
Online information and support 71
Training 71
Technical support 71
Shipping and repair status 71
General inquiries 72
Warranty 72
Registration 72
Index 73
viii
Chapter 1
About your interactive whiteboard system
SMART Board 480iv interactive whiteboard system features 2
SMART Board 480 interactive whiteboard 2
SMART V25 projector 3
Included accessories 4
Pen 4
Remote control 4
Optional accessories 4
Your SMART Board 480iv interactive whiteboard system combines the wall-mounted, short-throw
SMART V25 projector with a SMART Board 480 interactive whiteboard.
This chapter describes the features of your SMART Board 480iv interactive whiteboard system and
provides information about product parts and accessories.
1
C H A P T E R 1
About your interactive whiteboard system
SMART Board 480iv interactive whiteboard system features
Your SMART Board 480iv interactive whiteboard system
consists of the SMART Board 480 interactive whiteboard and the
SMART V25 projector system.
When the SMART V25 projector displays an image from your
computer on the touch-sensitive interactive whiteboard, you can
do everything that you can do at your computer—open and close
applications, scroll through files, meet with others, create new
documents or edit existing ones, visit websites, play video clips
and more—by touching the screen.
When you use SMART software with your SMART Board 480iv
interactive whiteboard system, you can write or draw over the projected computer image in digital ink,
and then save these notes to a .notebook file or directly into any Ink Aware application.
SMART Board 480 interactive whiteboard
Your SMART Board 480 interactive whiteboard is durable and reliable. It features a rugged, hardened
interactive surface, a damage-resistant pen and SMART’s proprietary DViT™ (Digital Vision Touch)
technology.
Other features of your interactive whiteboard include:
l
A pen tray that holds up to two pens
l
A durable hard-coated surface optimized for projection and
easy to clean
2
C H A P T E R 1
About your interactive whiteboard system
SMART V25 projector
The SMART V25 projector system includes a projector for use
with SMART Board 480 interactive whiteboards and a sturdy
support system for many different environments.
The features of the projector system include:
l A wall-mounted projector engine that uses DLP® technology by Texas Instruments™,
providing BrilliantColor™ performance and Gamma 2.2 correction with SMART Presentation,
Bright Room, Dark Room, sRGB and User modes
l PAL, PAL-N, PAL-M, SECAM, NTSC, NTSC 4.43 video system compatibility
l Composite, S-video and VESA RGB with additional interface support for Component YPbPr
and Component YCbCr inputs with appropriate adapters (not included)
l QVGA, VGA, SVGA, XGA, SXGA, SXGA+ and UXGA video format compatibility
l Native 1024 × 768 resolution
l Remote management via a serial RS-232 interface
l An alert broadcast feature that enables administrators to send notification messages
to network-connected SMART V25 projector systems for immediate on-screen display
l A 3D-ready projector using DLP Link™ technology ensures compatibility with the emerging 3D
content ecosystem
l A self-protection timer for a hot re-strike of the projector lamp
l Protected cable routing to prevent tampering and clutter
l A secure mounting and installation system that includes:
o
An optional projector lock loop to prevent removal of the projector from the boom
o
Mounting hardware for solid masonry or framed wall installations. The system also
includes a safety tether.
o
Templates and instructions for positioning the system in a safe manner
3
C H A P T E R 1
About your interactive whiteboard system
Included accessories
The following accessories are included with your SMART Board 480iv interactive whiteboard system.
Pen
There is one pen included with your interactive whiteboard.
Remote control
The remote control enables you to control the system and set up your SMART V25
projector. Use the remote control to access menu options, system information and input
selection options.
Optional accessories
You can add a variety of optional accessories to best meet your specific needs. Purchase these
items from your authorized SMART reseller (smarttech.com/wheretobuy) when you order your
interactive whiteboard system or later.
For more information about accessories, go to smarttech.com/accessories.
4
Chapter 2
Installing your interactive whiteboard system
Choosing a location 6
Choosing a height 6
Routing the cables 7
Installing SMART software 8
Securing the interactive whiteboard system 8
Securing the projector to the boom 8
Consult the included SMART Board 480iv interactive whiteboard system installation document for
instructions on how to install your product and use the mounting template.
I I MP OR T A N T
Use the instructions included with your SMART V25 projector to install your interactive whiteboard
and projector. The instructions in your SMART Board interactive whiteboard box do not include
instructions for installing the SMART V25 projector.
This chapter provides additional considerations and details for installing your interactive whiteboard
system.
5
C H A P T E R 2
Installing your inter active whiteboard system
Choosing a location
Choose a location for your SMART Board 480iv interactive whiteboard system that’s far from bright
light sources, such as windows or strong overhead lighting. Bright light sources can cause distracting
shadows on your interactive whiteboard and can reduce the contrast of the projected image.
Select a wall with a flat, regular surface and sufficient clearance to accommodate your interactive
whiteboard system. Install the projector and your interactive whiteboard on the same flat surface. For
best presentation alignment, mount your interactive whiteboard system in a location central to your
audience’s viewing direction. For mobile or adjustable installation options, contact your authorized
SMART reseller (smarttech.com/wheretobuy).
W W A R N I N G
When mounting the projector boom on a framed or hollow wall, attach both the mounting bracket
and the safety tether to a stud to safely support the projector’s weight. If you use only drywall
anchors, the drywall can fail, resulting in product damage and possible personal injury.
Choosing a height
SMART includes a mounting template with each SMART Board 480iv interactive whiteboard system.
If you lose this template, contact your authorized SMART reseller (smarttech.com/wheretobuy).
Using this template ensures that you:
l Mount the projector at a safe height for head space clearance, while maintaining enough space
for airflow and installation access above the unit.
l Position the projector at the correct height above your interactive whiteboard to align the
projected image with the touch screen.
Dimensions on the template recommend a distance from the floor suitable for adults of average
height. You should consider the general height of your user community when you choose a position
for your interactive whiteboard.
6
C H A P T E R 2
Installing your inter active whiteboard system
Routing the cables
When connecting cables from a SMART V25 projector to your computer, make sure that all cables
pass along the top of the interactive whiteboard wall-mounting bracket and then down the side of the
interactive whiteboard.
N N OTE
Don’t connect the power cable to a power outlet until you connect all the cables to the projector.
7
C H A P T E R 2
Installing your inter active whiteboard system
Installing SMART software
You must install SMARTsoftware on the computer connected to your interactive whiteboard system
to access all of its features.
Download SMARTsoftware from smarttech.com/software. These pages list the minimum hardware
requirements for each software version. If SMART software is already installed on your computer,
take this opportunity to upgrade your software to ensure compatibility.
Securing the interactive whiteboard system
This section explains how to secure the different components of your interactive whiteboard system.
Securing the projector to the boom
To learn how to secure the SMART V25 projector to the boom, see the included SMART Board480iv
and 680iv Interactive Whiteboard Systems Installation Guide (smarttech.com/kb/153153).
8
Chapter 3
Using your interactive whiteboard system
Using your projector 9
Using your remote control 9
Installing the remote control battery 9
Using the remote control buttons 11
Adjusting projector settings 11
Focusing the image 17
Adjusting the image 18

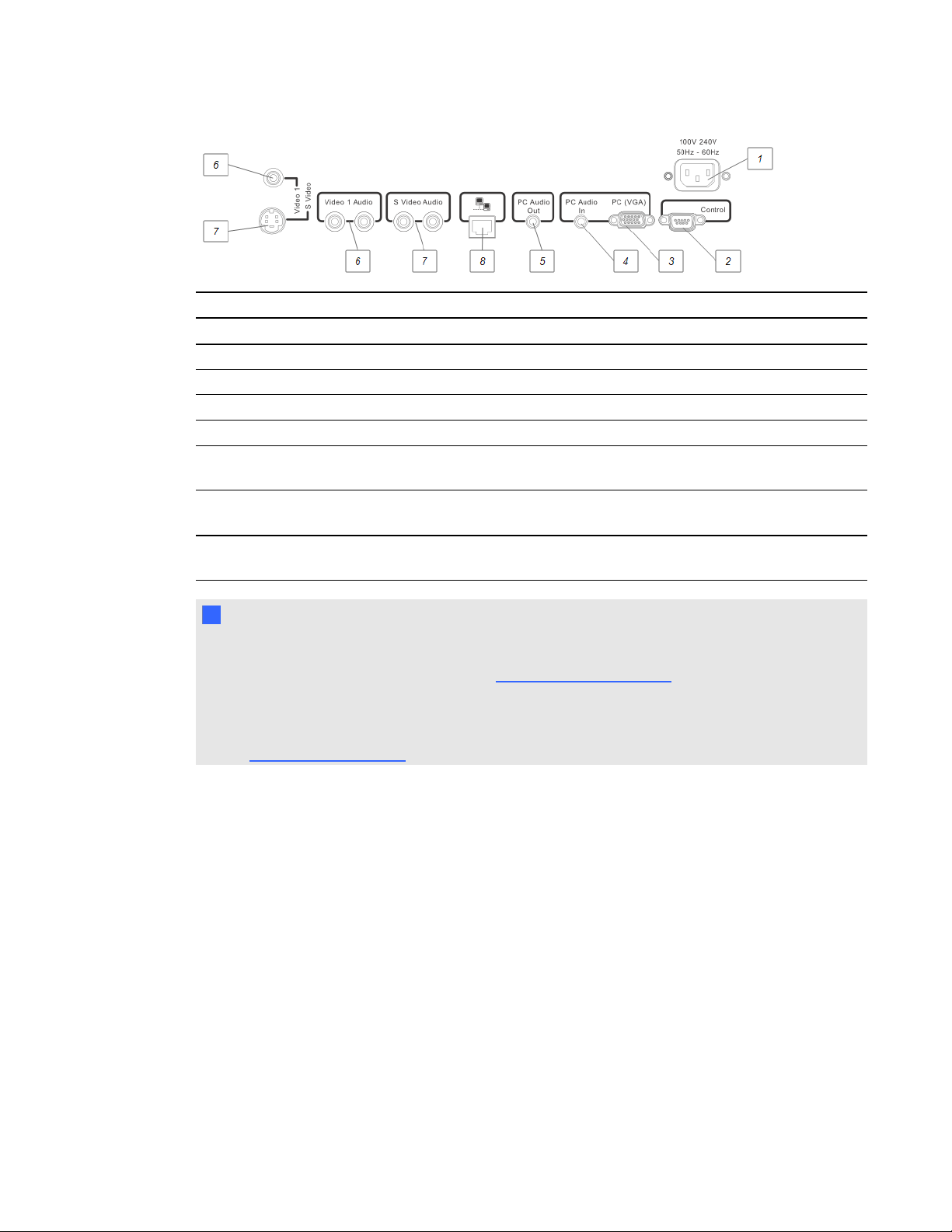

SMART V25 projector connection diagram 18
Using your interactive whiteboard 20
This chapter describes the basic operation of your interactive whiteboard system, and also explains
how to set up your remote control, retrieve system information, access the projector’s image
adjustment options and integrate your interactive whiteboard system with peripheral devices.
Using your projector
This section explains how to use your projector and its included remote control.
Using your remote control
The SMART V25 projector remote control enables you to access on-screen projector menus and
change projector settings.
Installing the remote control battery
Follow this procedure to use the remote control for the first time or to replace the remote control
battery.
9
C H A P T E R 3
Using your interactive whiteboard system
W W A R N I N G
l Reduce the risk associated with a leaking battery in the projector’s remote control by
following these practices:
o
Use only the specified type of coin-cell battery.
o
Orient the battery’s positive (+) and negative (–) terminals according to the markings
on the remote control.
o
Remove the battery when the remote control is unused for an extended period.
o
Do not heat, disassemble, short or recharge the battery, or expose it to fire or high
temperatures.
o
Avoid eye and skin contact with the battery if it has a leak.
l Dispose of the exhausted battery and product components in accordance with applicable
regulations.
g To access or replace the remote control battery
1. Hold down the side release on the leftside of the battery holder and pull the battery holder
completely out of the remote control.
2. If you’re accessing the remote control battery for the first time, remove the plastic sheet inside
the battery holder, and then place the CR2025 coin cell battery in the battery holder.
OR
If you’re replacing the remote control battery, remove the old battery from the battery holder and
replace it with a CR2025 coin cell battery.
I I MP OR T A N T
Align the positive (+) and negative (–) signs on the battery terminals with the correct signs on
the battery holder.
3. Insert the battery holder into the remote control.
10
C H A P T E R 3
Using your interactive whiteboard system
Using the remote control buttons
The projector remote control enables you to access on-screen menus and change projector settings.

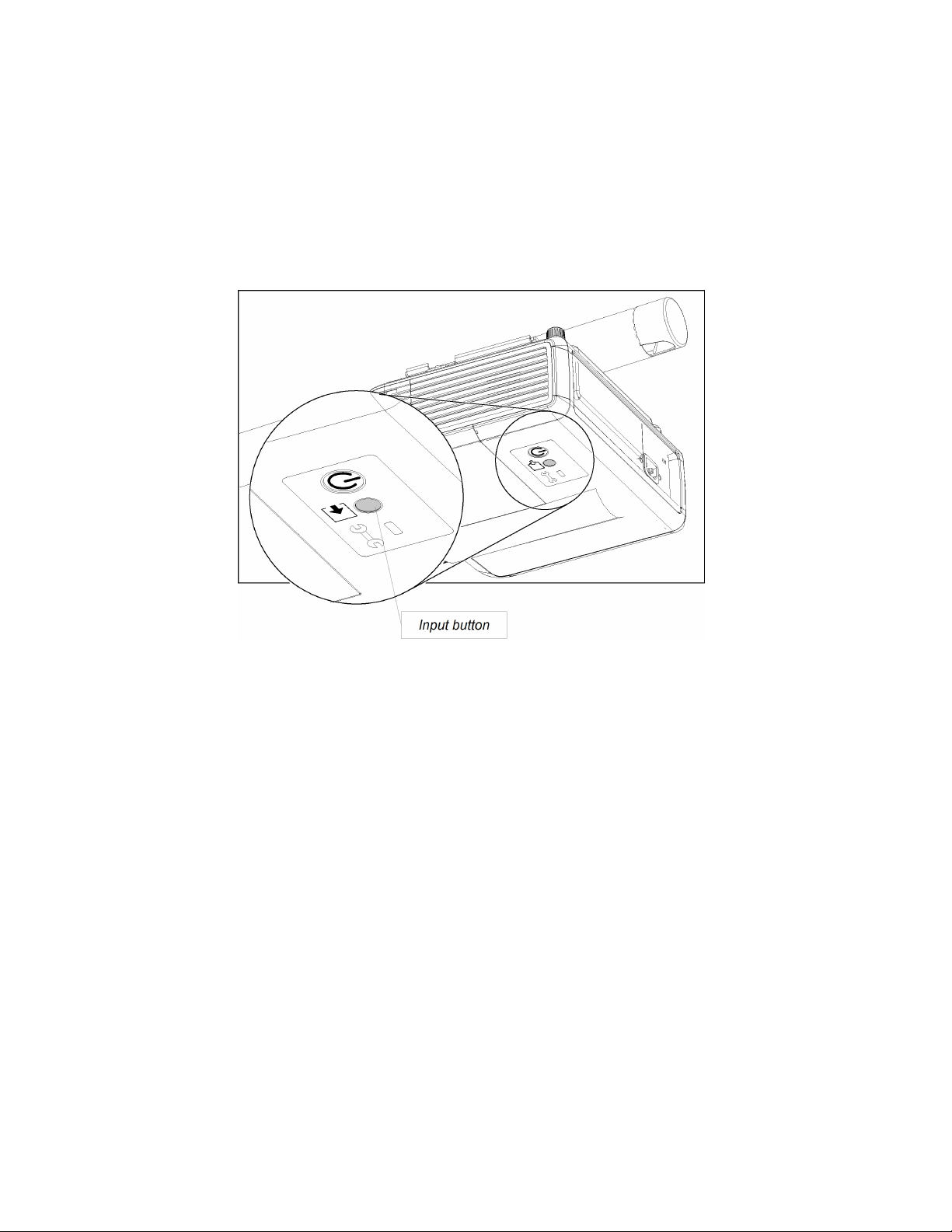

Use the Power button on the remote control to put the projector into Standby mode or turn it on.
You can also use the Input button on the remote control to switch sources on the projector.
Number Function Description
1 Input Select an input source
2 Menu Show the projector menus
3 (Left), (Right),
Change the menu selections and adjustments
(Up) and (Down) arrows
4 Hide Freeze, hide or display the image
l
Press once to freeze the image.
For example, you can display a question on
the screen while you check your e-mail.
l
Press again to hide the image, that is, to
display a black screen.
l
Press again to return to the live image.
5 Mode Select a display mode
6 Mute Control mute settings from your audio output
device (not included)
7
(Power)
Put the projector into Standby mode or turn it on
8 (Enter) Accept the selected mode or option
9 (Volume Up) Increase the volume
10 (Volume Down) Decrease the volume
Adjusting projector settings
The remote control’s Menu button enables you to access the on-screen display to adjust the projector
settings.
11
C H A P T E R 3
Using your interactive whiteboard system
I I MP OR T A N T
Keep your remote control in a safe place because you are unable to access projector menu options
using any other means.
Setting Use Notes
Image Adjustment menu
Display Mode Indicates the projector’s display output
(SMART Presentation, Bright
Room, Dark Room, sRGB and
User).
Brightness Adjusts projector brightness from 0 to
100.
Contrast Adjusts the difference between the
lightest and darkest parts
of the image from 0 to 100.
Frequency Adjusts the display data frequency of
the projected image from -5 to 5 to
match the frequency of your
computer’s graphics card.
Tracking Synchronizes your projector’s display
timing with your computer’s graphics
card from 0 to 63.
H-position Moves the projected image’s horizontal
position left or right from 0 to 100.
V-position Moves the projected image’s vertical
position up or down from -5 to 5.
Saturation Adjusts the projected image’s color
saturation from 0 to 100.
Sharpness Adjusts the projected image’s
sharpness from 0 to 31.
The default is SMART Presentation.
The default is 50.
The default is 50.
The default is 0.
This setting applies to VGA inputs
only.
This setting applies to VGA inputs
only.
Don’t adjust this setting unless you’re
advised to by a certified SMART
Support specialist
(smarttech.com/contactsupport).
You can apply this setting only after
you make all boom adjustments.
This setting applies to VGA inputs
only.
Don’t adjust this setting unless you’re
advised to by a certified SMART
Support specialist
(smarttech.com/contactsupport).
You can apply this setting only after
you make all boom adjustments.
This setting applies to VGA inputs
only.
This setting applies to S-video and
composite video inputs only.
This setting applies to S-video and
composite video inputs only.
12
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Tint Adjusts the image color balance of red
and green from 0 to 100.
White Peaking Adjusts the image color brightness
from 0 to 10 while providing more
vibrant white shades.
This setting applies to S-video and
composite video inputs only.
A value closer to 0 creates a natural
image and a value closer to 10
enhances brightness.
Degamma Adjusts the color performance of the
display from 0 to 3.
Color Adjusts the Red, Green, Blue, Cyan,
Magenta and Yellow colors on the
projector from 0 to 100 to provide
Each color has a default value of 100.
Adjustments to the color settings
register to the User mode.
custom color and luminance output.
Audio menu
Volume Increases and decreases the
The default is 0.
projector’s volume from 0 to 40.
Mute Mutes the projector’s audio output. If you mute the projector’s audio output
and then increase or decrease the
volume, the volume is restored
automatically. You can prevent this
from happening by disabling the
volume control.
Disable Volume
Control
Disables the projector’s volume
control.
Closed Captioning Turns closed captioning on or off.
Closed Captioning
Language
Sets the closed captioning language to
CC1 or CC2.
Typically, CC1 displays American
English subtitles, while CC2 displays
other regional languages, such as
French or Spanish, depending on
television channel or media setup.
Default menu
3D On/Off Turns the 3D feature on or off. The default is off.
3D Format Displays the current 3D format
(Interleaved or Under-over).
Interleaved breaks down the image
frame for each eye, alternately
displaying a line of visual information
from each frame.
Under-over concurrently displays
horizontally stretched image frames for
each eye, one above the other.
3D Invert
Left-Right
Selects the 3D Invert setting (L-R or R-
L).
L-R displays visual data for the left eye
first.
R-L displays visual data for the right
eye first.
13
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Auto Signal Detect Enables or disables signal searching of
input connectors.
Select On to have the projector
continuously switch inputs until it finds
an active video source.
Select Off to maintain signal detection
in one input.
Lamp Reminder Turns the lamp replacement reminder
on or off.
This reminder appears 100 hours
before the recommended lamp
replacement.
Lamp Mode Adjusts lamp brightness to Standard
or Economy.
Standard displays a high-quality,
bright image.
Economy increases the lamp life by
decreasing the brightness of the image.
Auto Power Off
(minutes)
Sets the length of the auto power-off
countdown timer between 1 and 240
minutes.
The default is 120 minutes.
The timer begins to count down when
the projector no longer receives a video
signal. The timer finishes when the
projector enters Standby mode.
Select 0 to turn off the timer.
Zoom Adjusts the zoom to the center of the
image in or out from 0 to 30.
The default is 0.
This setting affects image adjustments
done mechanically to the boom.
Projector ID Displays the projector’s unique ID
number (from 0 to 99) within your
organization’s network.
Aspect Ratio Adjusts the image output to Fill
Screen, Match Input or 16:9.
Fill Screen produces an image that
fills the entire screen with stretching
and scaling.
Match Input matches the projector’s
aspect ratio to the input’s aspect ratio.
As a result, black bands might appear
along the top and bottom edges of the
screen horizontally (letterbox format) or
along the left and right edges of the
screen vertically (pillarbox format).
16:9 changes the output to 16:9 by
letterboxing the image, which is
recommended for use with HDTV and
DVD/Blu-ray™ discs enhanced for
wide-screen television.
See Video format compatibility on page
21 for appearance descriptions in each
mode.
14
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Startup Screen Selects the type of startup screen
(SMART, Capture User Startup
Screen or Preview Startup Screen).
This screen displays when the
projector lamp is starting and an image
isn’t displayed.
SMART displays the default SMART
logo on a blue background.
Capture User Startup Screen closes
the on-screen display menu and
captures the entire projected
interactive whiteboard image. The
captured image is displayed the next
time that the on-screen display opens.
(The capture can take up to one
minute, depending on the complexity of
the background graphic.)
Preview Startup Screen enables you
to preview the default or captured
startup screen.
Set to Default? Resets projector settings to their
default values.
If you select Yes, all projector settings
reset to their defaults, reversing any
menu changes you made. This action
is irreversible.
Don’t adjust this setting unless you
want to reset all of the applied settings,
or unless you’re advised to by a
certified SMART Support specialist
(smarttech.com/contactsupport).
Network menu
Network Activates the network features.
Status Displays the current network status
(Connected, Disconnected or Off).
DHCP Displays the status of the network’s
Dynamic Host Control Protocol
(DHCP) as On or Off.
Password
Reminder
E-mails the network password to the email recipient.
IP Address Displays the projector’s IP address in
values between 0.0.0.0 and
255.255.255.255.
Sub Mask Displays the projector’s subnet work
mask number in values between
0.0.0.0 and 255.255.255.255.
15
On automatically assigns the DHCP
server’s IP address to the projector.
Off enables an administrator to assign
an IP address manually.
See Web page management on page
50 to set up a destination e-mail
address.
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Gateway Displays the projector’s default
network gateway in values between
0.0.0.0 and 255.255.255.255.
DNS Displays the projector’s primary
domain name number in values
between 0.0.0.0 and 255.255.255.255.
MAC Address Displays the projector’s MAC address
in xx-xx-xx-xx-xx-xx format.
Group Name Displays the projector’s workgroup
name as set by an administrator
(maximum 12 characters).
Projector Name Displays the projector’s name as set
by an administrator (maximum 12
characters).
Location Displays the projector’s location as set
by an administrator (maximum 16
characters).
Contact Displays the contact name or number
for projector support as set by an
administrator (maximum 16
characters).
Language menu
Language Selects language preference. Projector menu support is available in
English (default), Brazilian Portuguese,
Czech, Danish, Dutch, Finnish,
French, German, Greek, Iberian
Portuguese, Italian, Korean, Japanese,
Norwegian, Polish, Russian, Simplified
Chinese, Spanish, Swedish and
Traditional Chinese.
Information menu
Lamp Hours Displays the current number of lamp
usage hours from 0 to 4000 hours from
when it was last reset.
Always reset Lamp Hours after you
replace a lamp because lamp service
reminders are based on the current
hours of use. See Resetting the lamp
timer on page 33 for details on the lamp
hour reset procedure.
Input Displays the current input source
(VGA1, Composite, S-Video or
None).
Resolution Displays the projector’s current display
resolution.
Firmware Version Displays the projector’s firmware
version in x.x.x.x format.
16
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
MPU Version Displays the projector
microprocessor’s firmware version in
x.x.x.x format.
Network Version Displays the projector’s network card
firmware version in x.x.x.x format.
Model Number Displays the projector’s model number.
Serial Number Displays the projector’s serial number.
Focusing the image
To focus the projected image, use the focus ring on the projector lens.
g To focus and adjust the image
Rotate the focus ring right or left until the image is in focus.
17
Loading...
