Replacing the Projector in a 2000i
Use these instructions to install a replacement NEC MT860 or NEC MT1060 projector in your Rear
Projection SMART Board 2000i interactive whiteboard.
To remove the original projector
1. Shut down the computer, and then press and hold the Projector Standby button on the
Control Panel until it blinks rapidly. Wait until you hear the projector’s cooling fan stop (6–7
minutes), and then unplug the 2000i from the power outlet.
Projector Standby Button
2. Toggle the projector’s power switch to the off position.
Power Switch

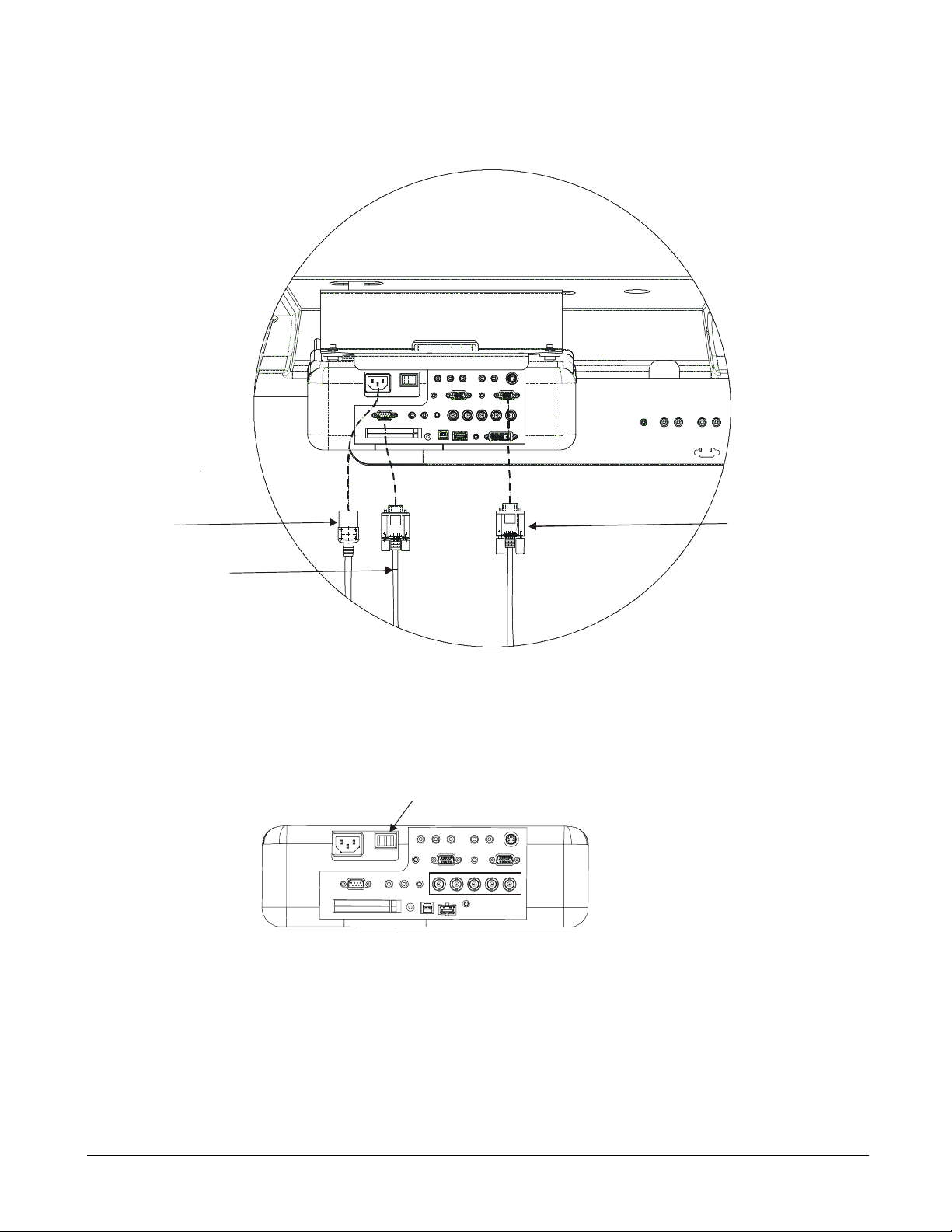

3. Unplug all cables from the projector, including the power cable, and remove the strap that
secures the projector to the projector plate.
4. Remove the view port cover (which is attached with hook-and-loop fasteners) at the rear of
the cabinet: Grasp the view port cover in the middle of each short edge, and pull it away.
Lift from here
Lift from here
