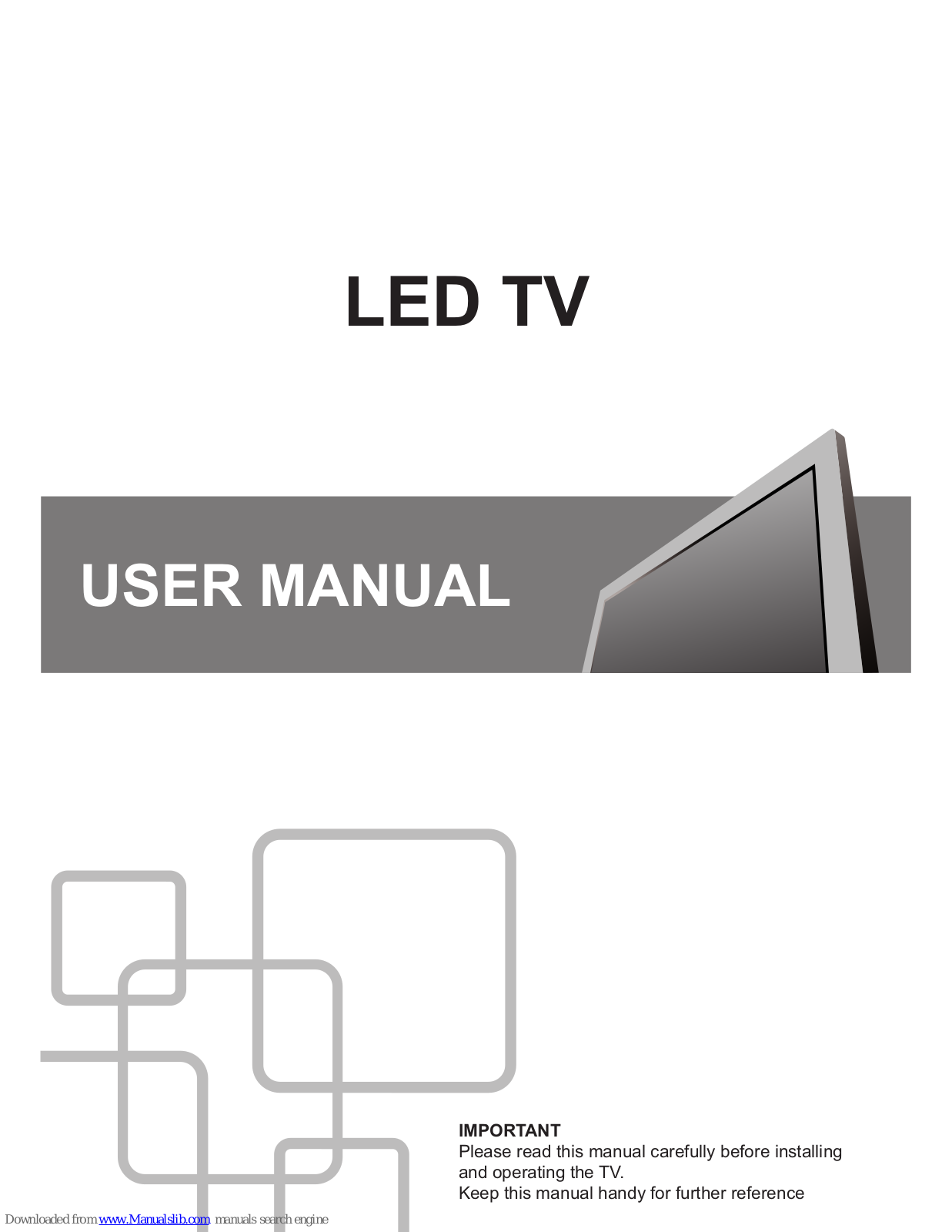

LED TV
IMPORTANT
Please read this manual carefully before installing
and operating the TV.
Keep this manual handy for further reference
USER MANUAL
1

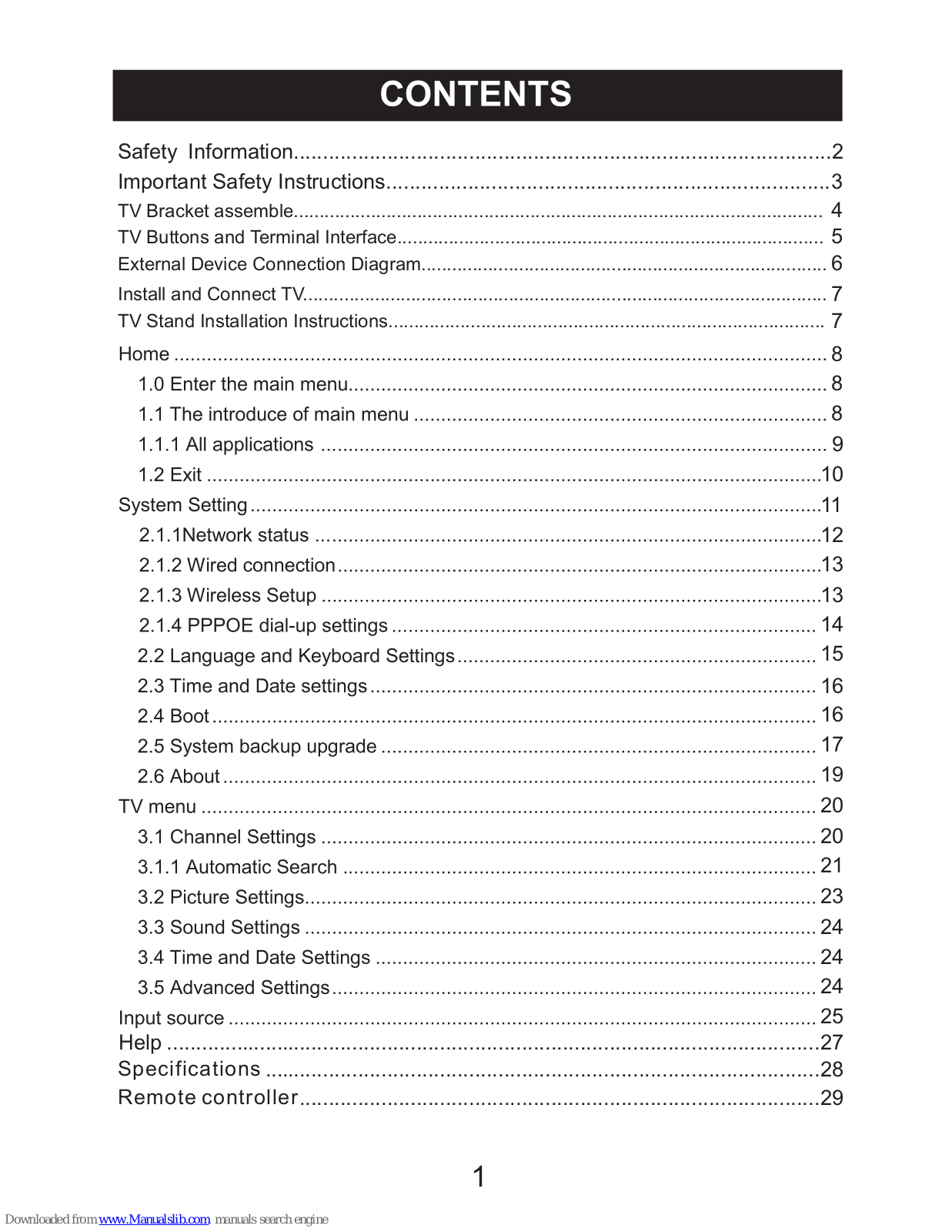

Safety Information........................................................................................... 2
Important Safety Instructions...........................................................................
TV Bracket assemble.......................................................................................................
TV Buttons and Terminal Interface...................................................................................
External Device Connection Diagram...............................................................................
Install and Connect TV......................................................................................................
TV Stand Installation Instructions.....................................................................................
3
4
5
6
7
7
8
8
8
9
10
11
12
13
13
14
15
16
16
17
19
20
20
21
23
24
24
24
25
Help ..........................................................................................
Specifications
......................
27
...............................................................................................
28
Remote controller
.........................................................................................
29
.
.

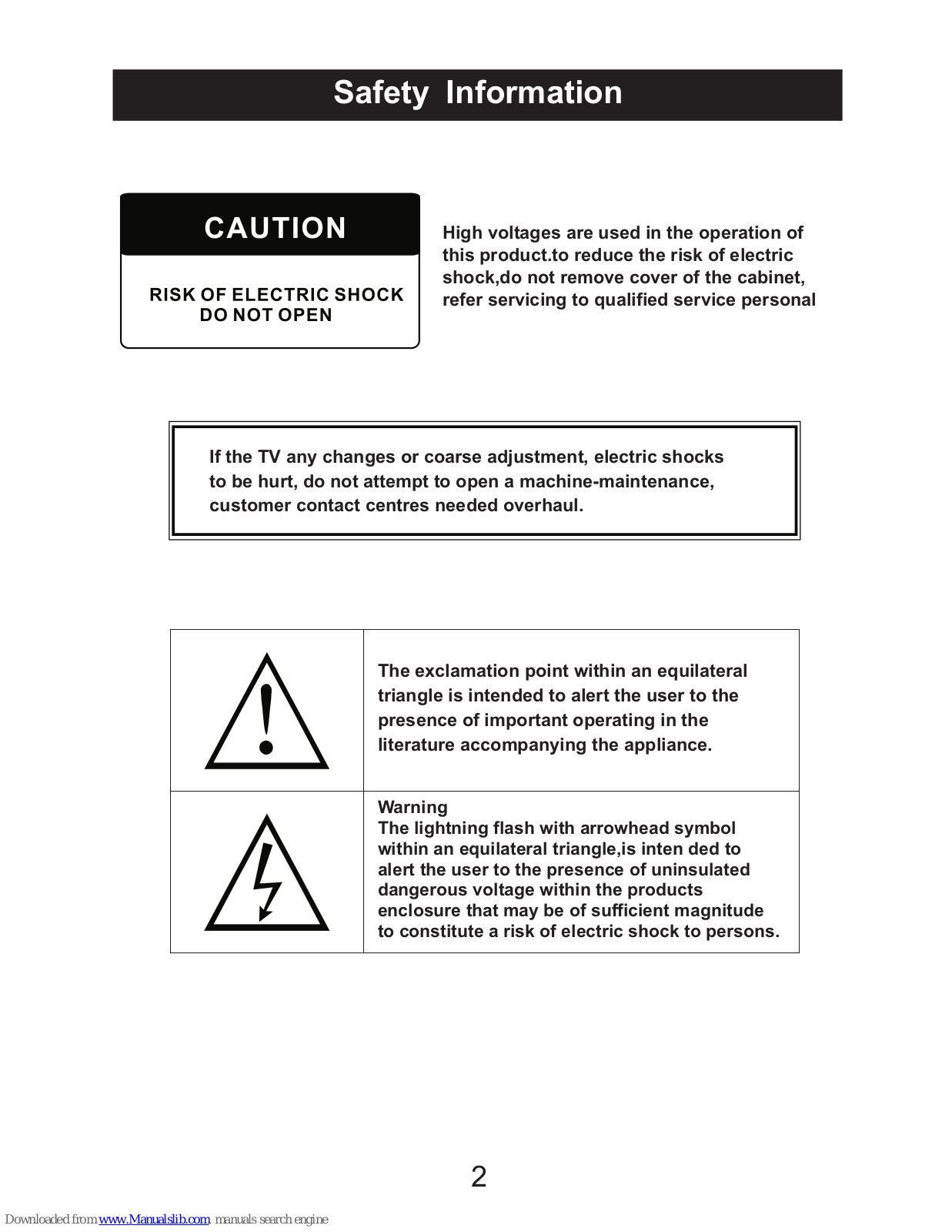

Safety Information
High voltages are used in the operation of
this product.to reduce the risk of electric
shock,do not remove cover of the cabinet,
refer servicing to qualified service personal
If the TV any changes or coarse adjustment, electric shocks
to be hurt, do not attempt to open a machine-maintenance,
customer contact centres needed overhaul.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating in the
literature accompanying the appliance.
Warning
The lightning flash with arrowhead symbol
within an equilateral triangle,is inten ded to
alert the user to the presence of uninsulated
dangerous voltage within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
2

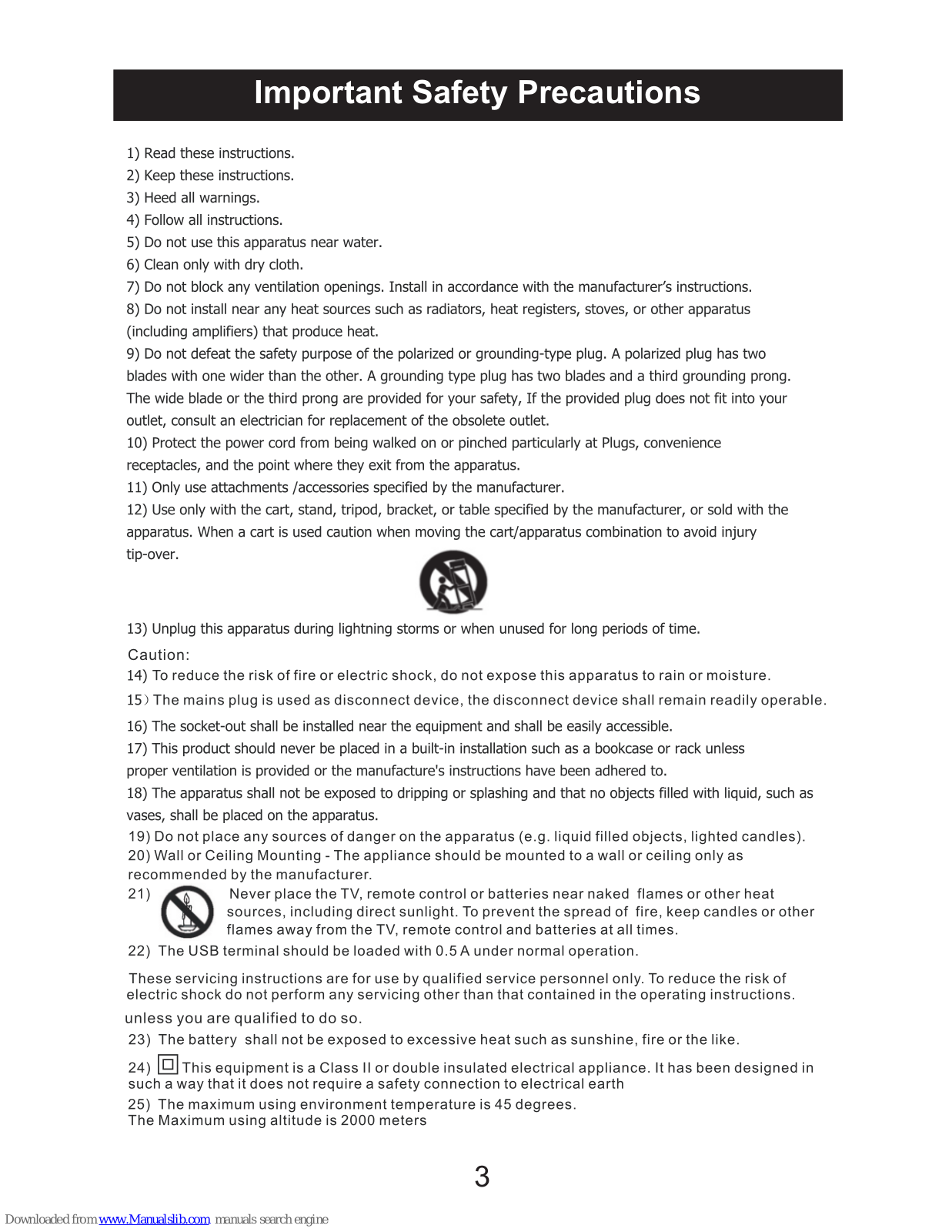

Important Safety Precautions
3

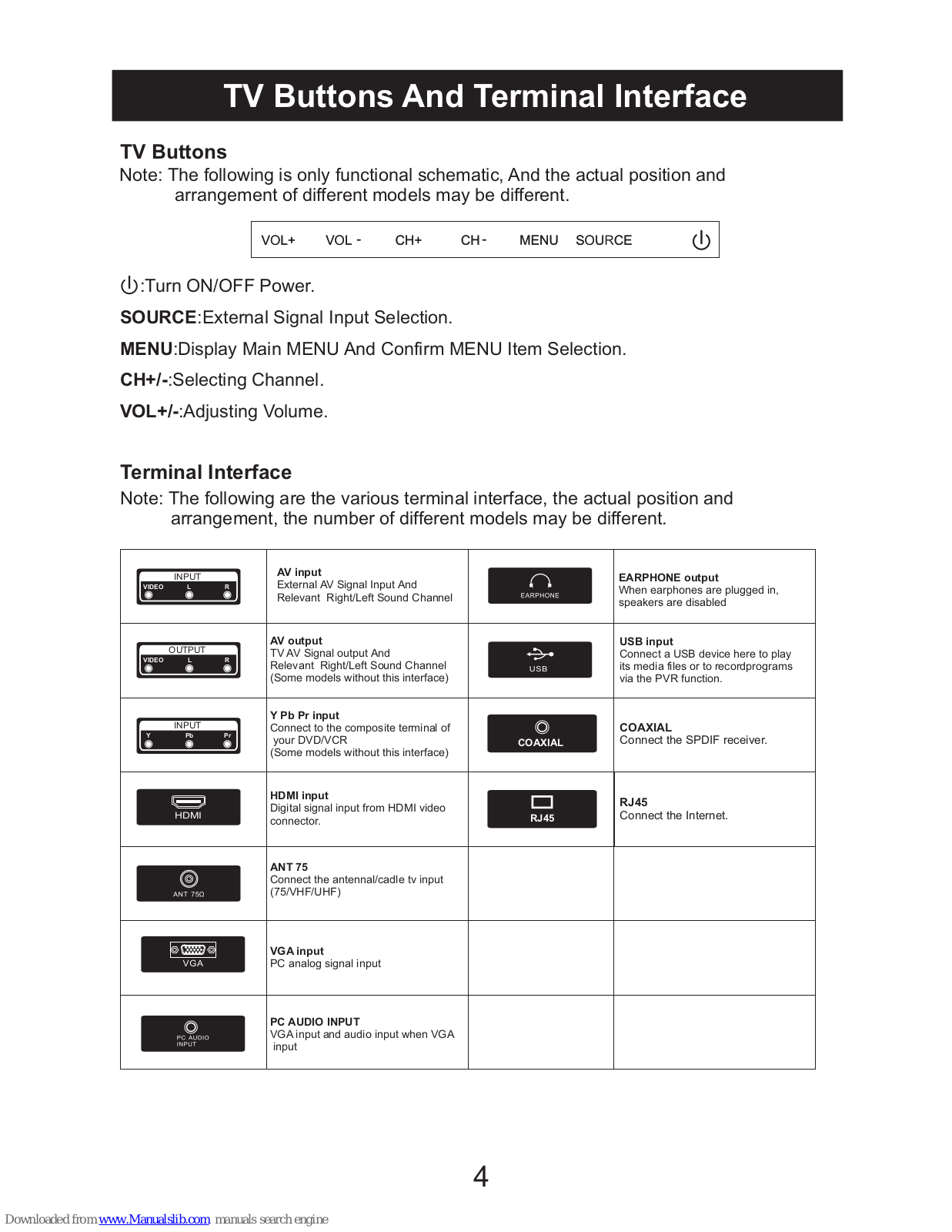

TV Buttons And Terminal Interface
TV Buttons
:Turn ON/OFF Power.
SOURCE:External Signal Input Selection.
MENU:Display Main MENU And Confirm MENU Item Selection.
CH+/-:Selecting Channel.
VOL+/-:Adjusting Volume.
Note: The following is only functional schematic, And the actual position and
arrangement of different models may be different.
Terminal Interface
Note: The following are the various terminal interface, the actual position and
arrangement, the number of different models may be different.
VIDEO RL
INPUT
VIDEO RL
OUTPUT
Y Pb Pr
INPUT
HDMI
AV input
External AV Signal Input And
Relevant Right/Left Sound Channel
AV output
TV AV Signal output And
Relevant Right/Left Sound Channel
(Some models without this interface)
Y Pb Pr input
Connect to the composite terminal of
your DVD/VCR
(Some models without this interface)
HDMI input
Digital signal input from HDMI video
connector.
ANT 75
Connect the antennal/cadle tv input
(75/VHF/UHF)
VGA input
PC analog signal input
PC AUDIO INPUT
VGA input and audio input when VGA
input
EARPHONE output
When earphones are plugged in,
speakers are disabled
USB input
Connect a USB device here to play
its media files or to recordprograms
via the PVR function.
COAXIAL
COAXIAL
Connect the SPDIF receiver.
4
RJ45
RJ45
Connect the Internet.

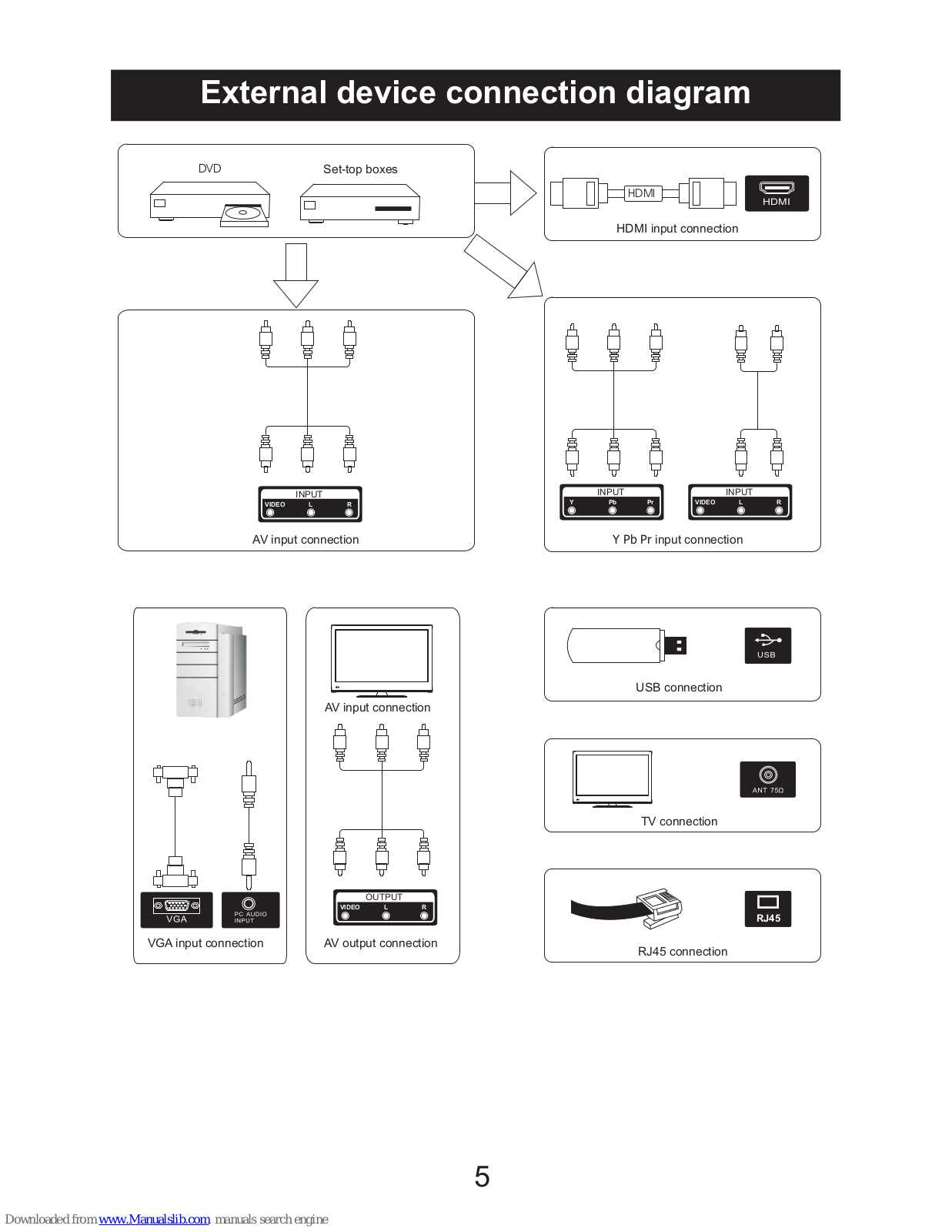

External device connection diagram
DVD
Set-top boxes
HDMI
HDMI
VIDEO RL
OUTPUT
HDMI input connection
VIDEO RL
INPUT
AV input connection
AV output connection
VIDEO RL
INPUT
Y Pb Pr
INPUT
Y Pb Pr input connection
USB connection
RJ45 connection
AV input connection
VGA input connection
5
RJ45
TV connection

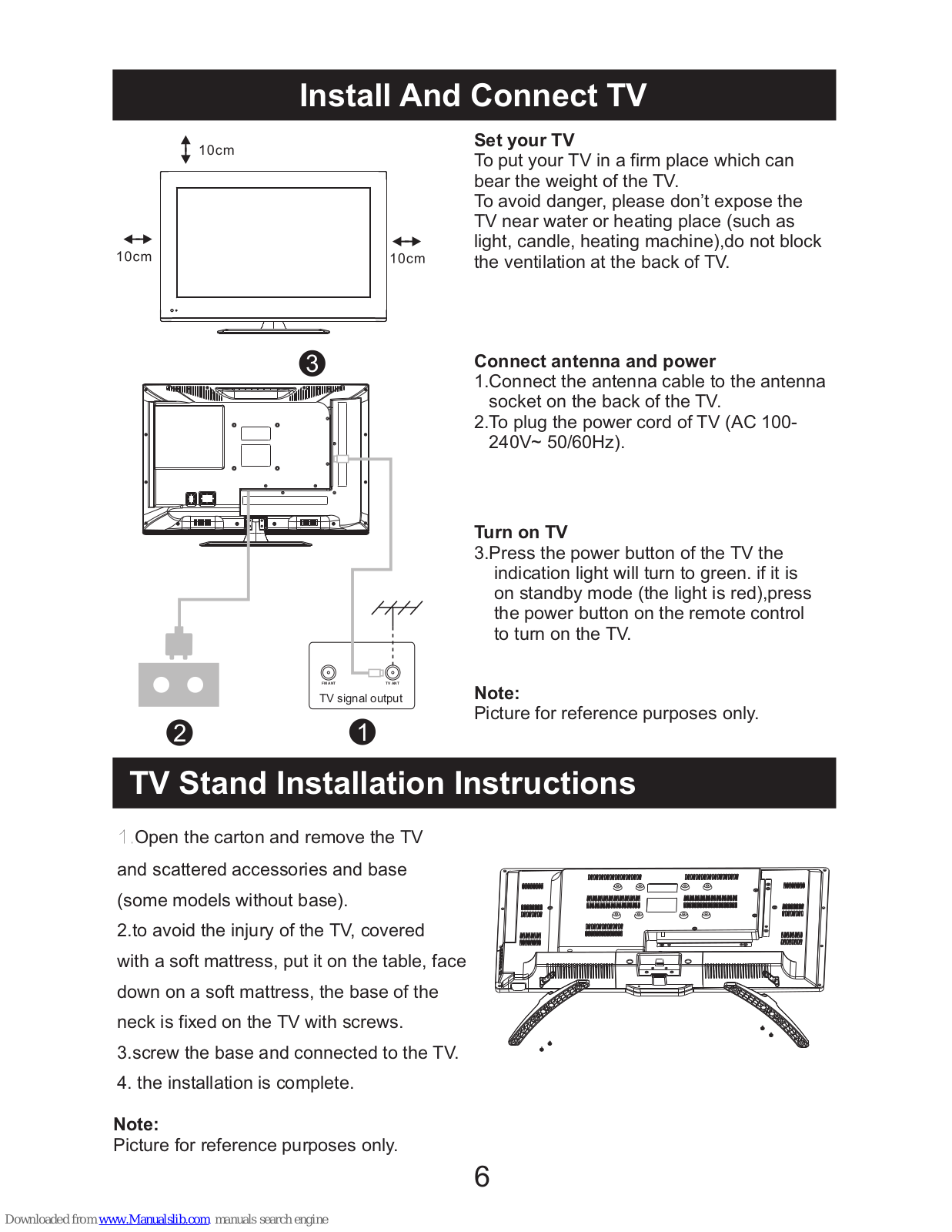

Install And Connect TV
TV Stand Installation Instructions
6
TV ANT
FM ANT
TV signal output
Set your TV
To put your TV in a firm place which can
bear the weight of the TV.
To avoid danger, please don’t expose the
TV near water or heating place (such as
light, candle, heating machine),do not block
the ventilation at the back of TV.
Connect antenna and power
1.Connect the antenna cable to the antenna
socket on the back of the TV.
2.To plug the power cord of TV (AC 100 240V~ 50/60Hz).
1
3
Turn on TV
3.Press the power button of the TV the
indication light will turn to green. if it is
on standby mode (the light is red),press
the power button on the remote control
to turn on the TV.
Note:
Note:
Picture for reference purposes only.
Picture for reference purposes only.
2
1.Open the carton and remove the TV
and scattered accessories and base
(some models without base).
2.to avoid the injury of the TV, covered
with a soft mattress, put it on the table, face
down on a soft mattress, the base of the
neck is fixed on the TV with screws.
3.screw the base and connected to the TV.
4. the installation is complete.

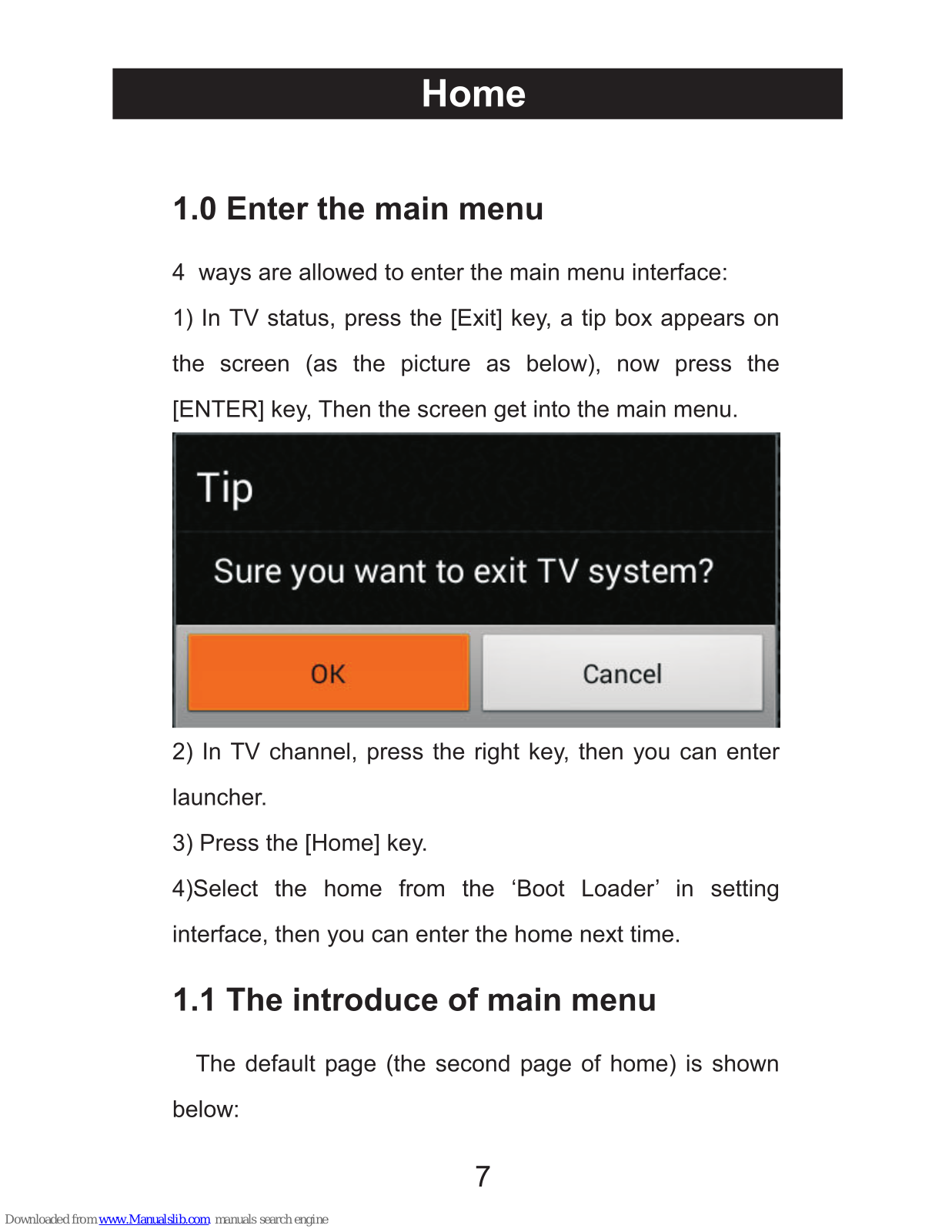

7

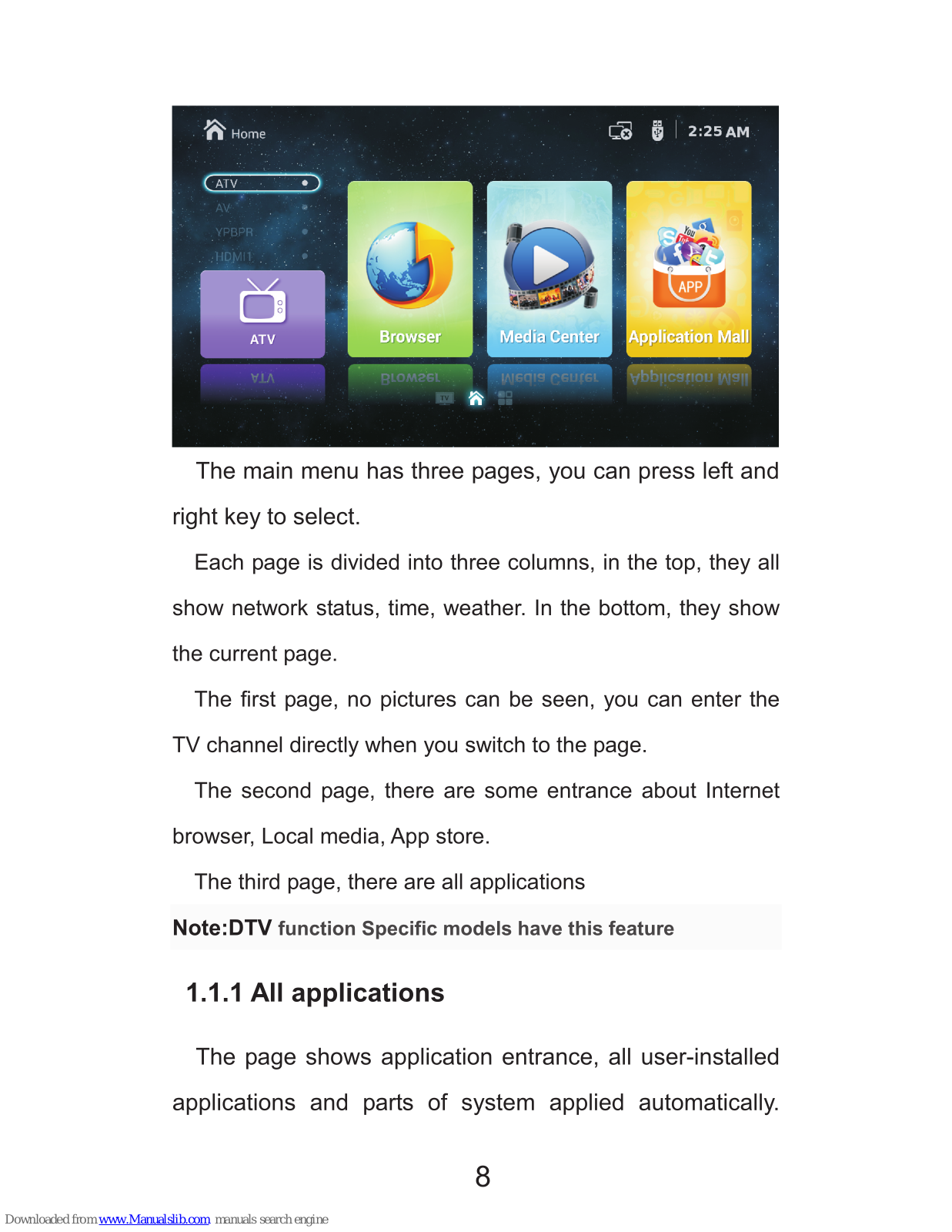

8

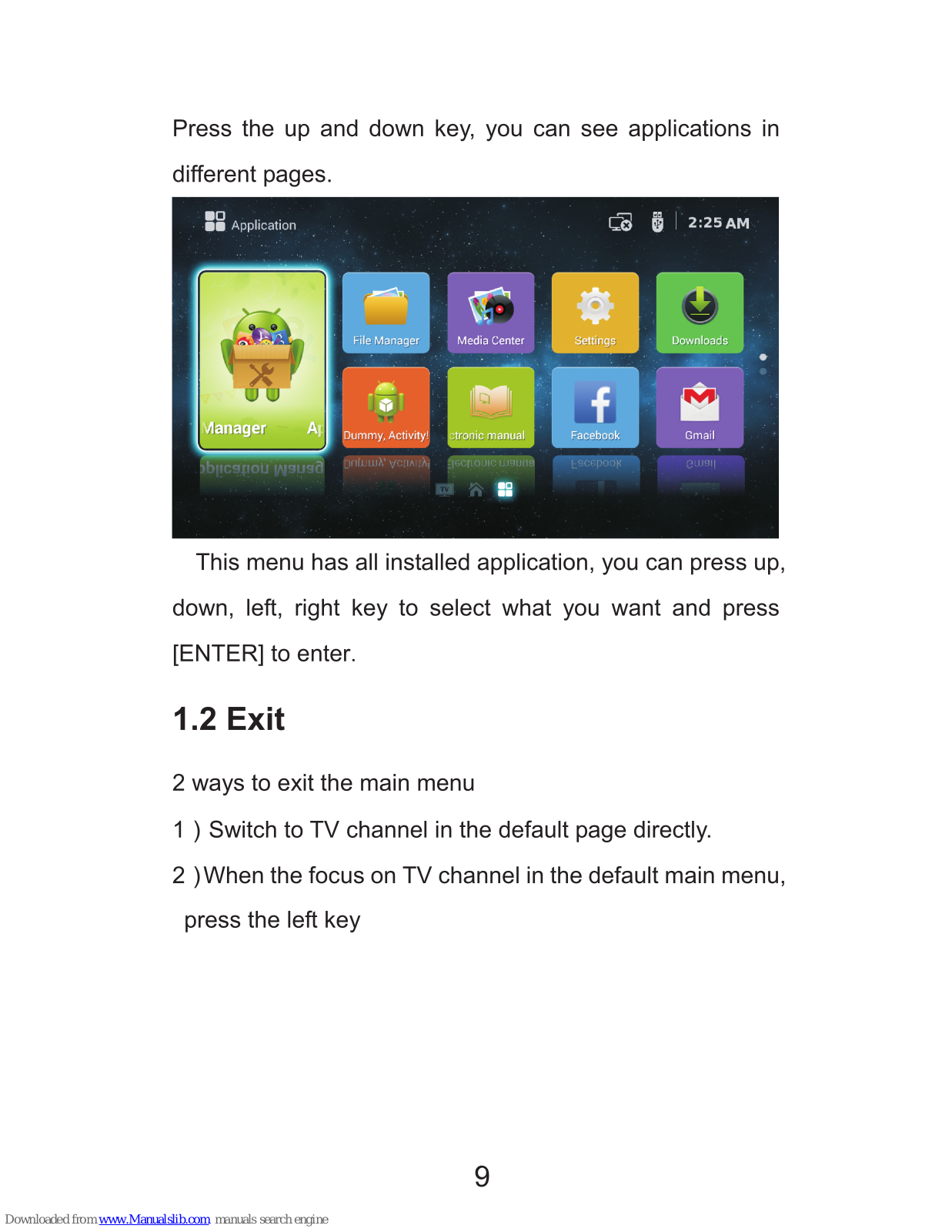

9

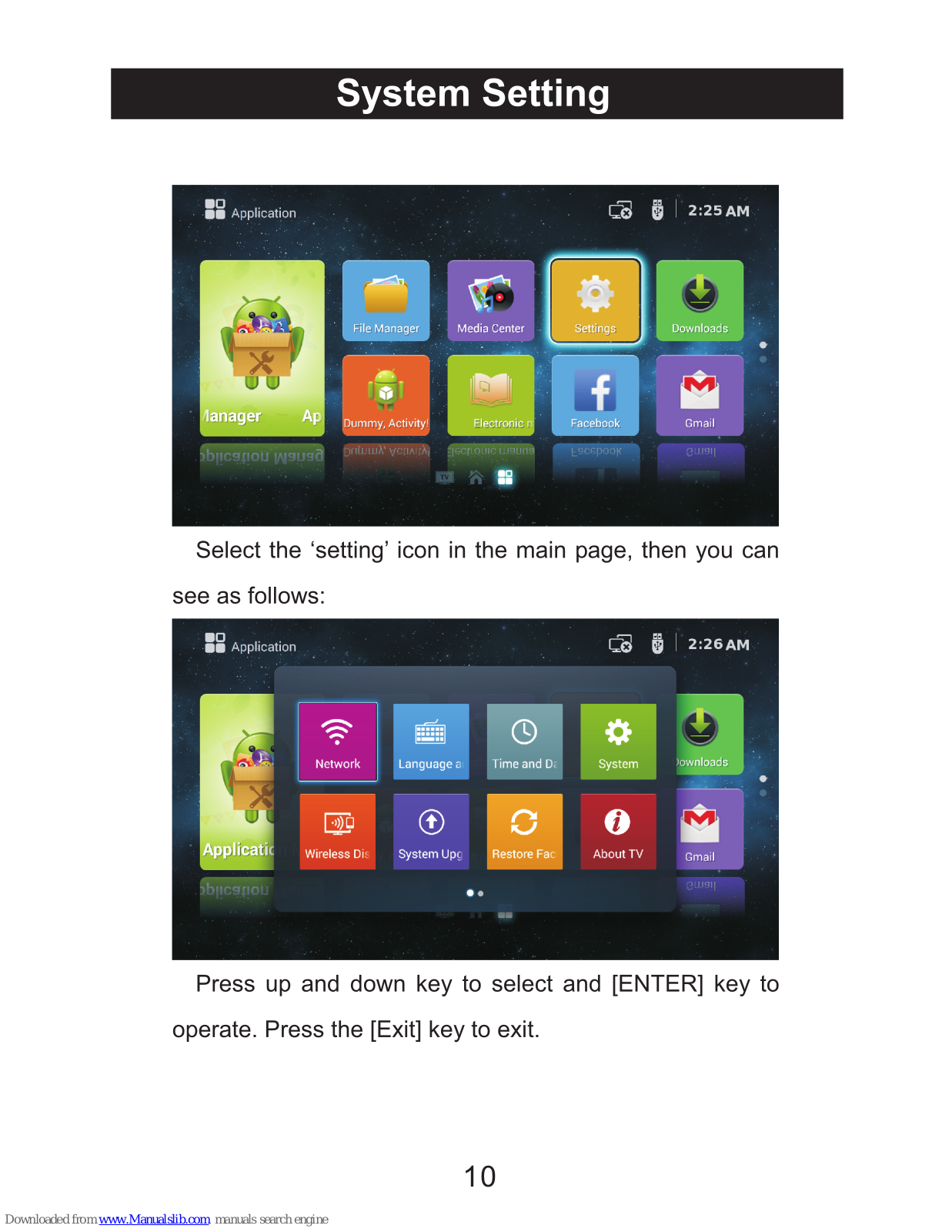

10

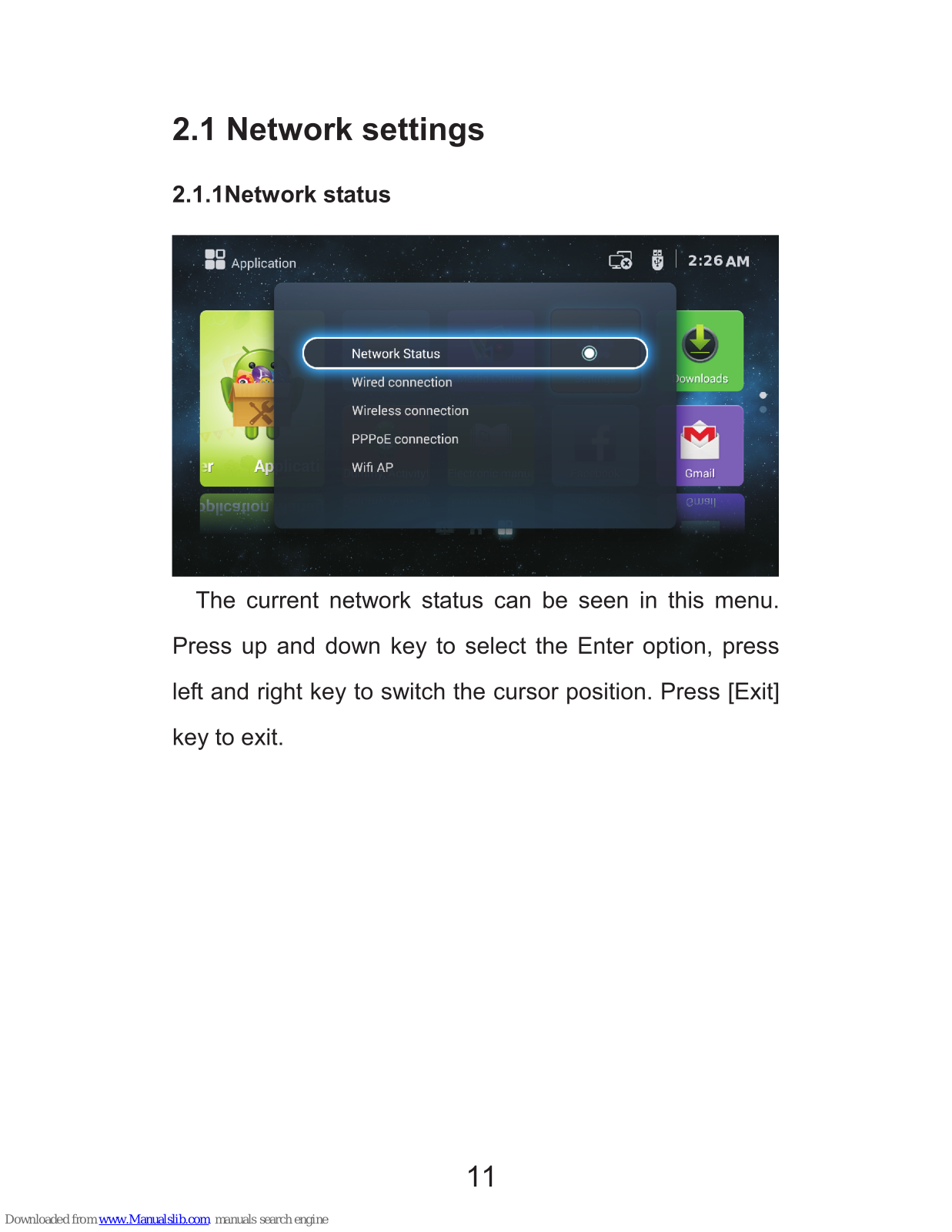

11

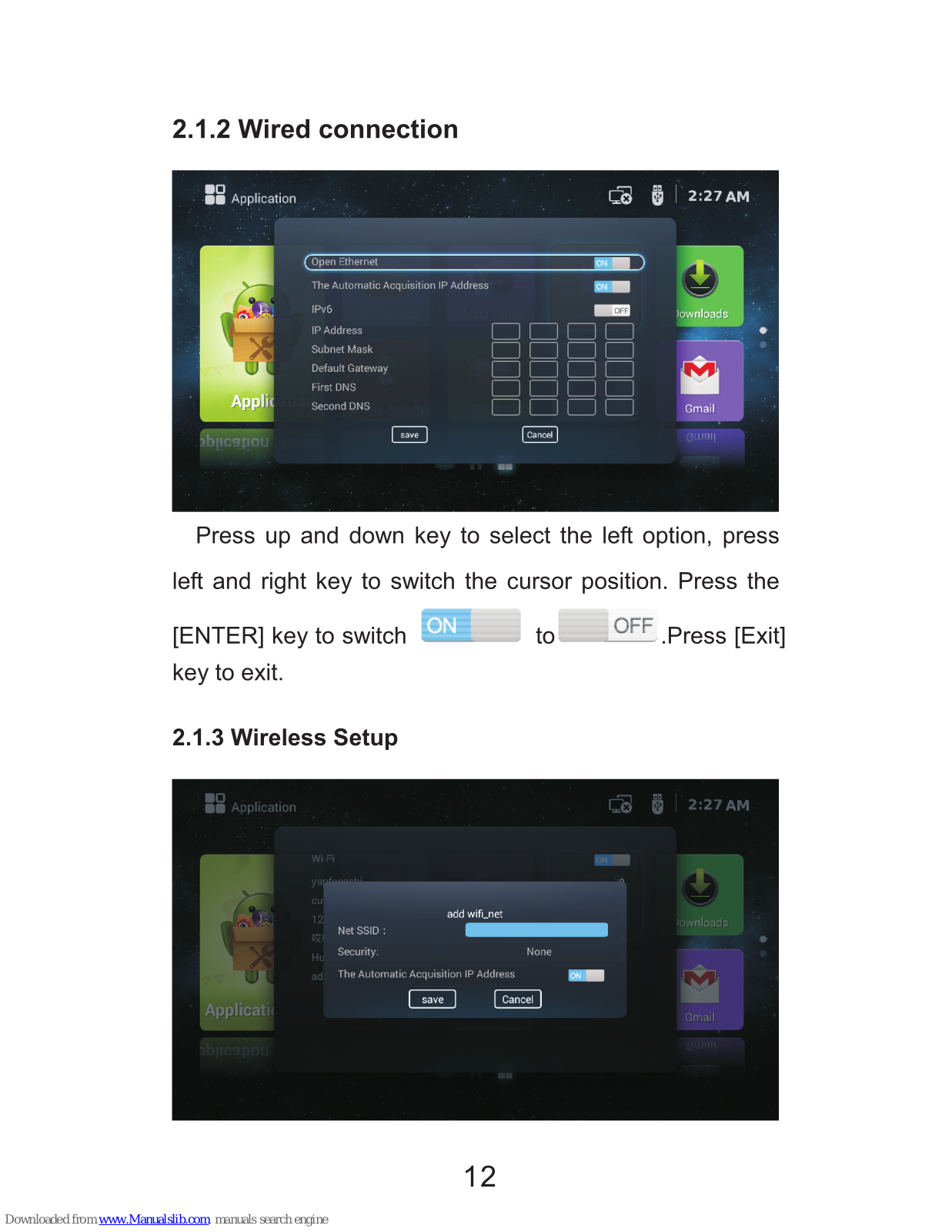

12

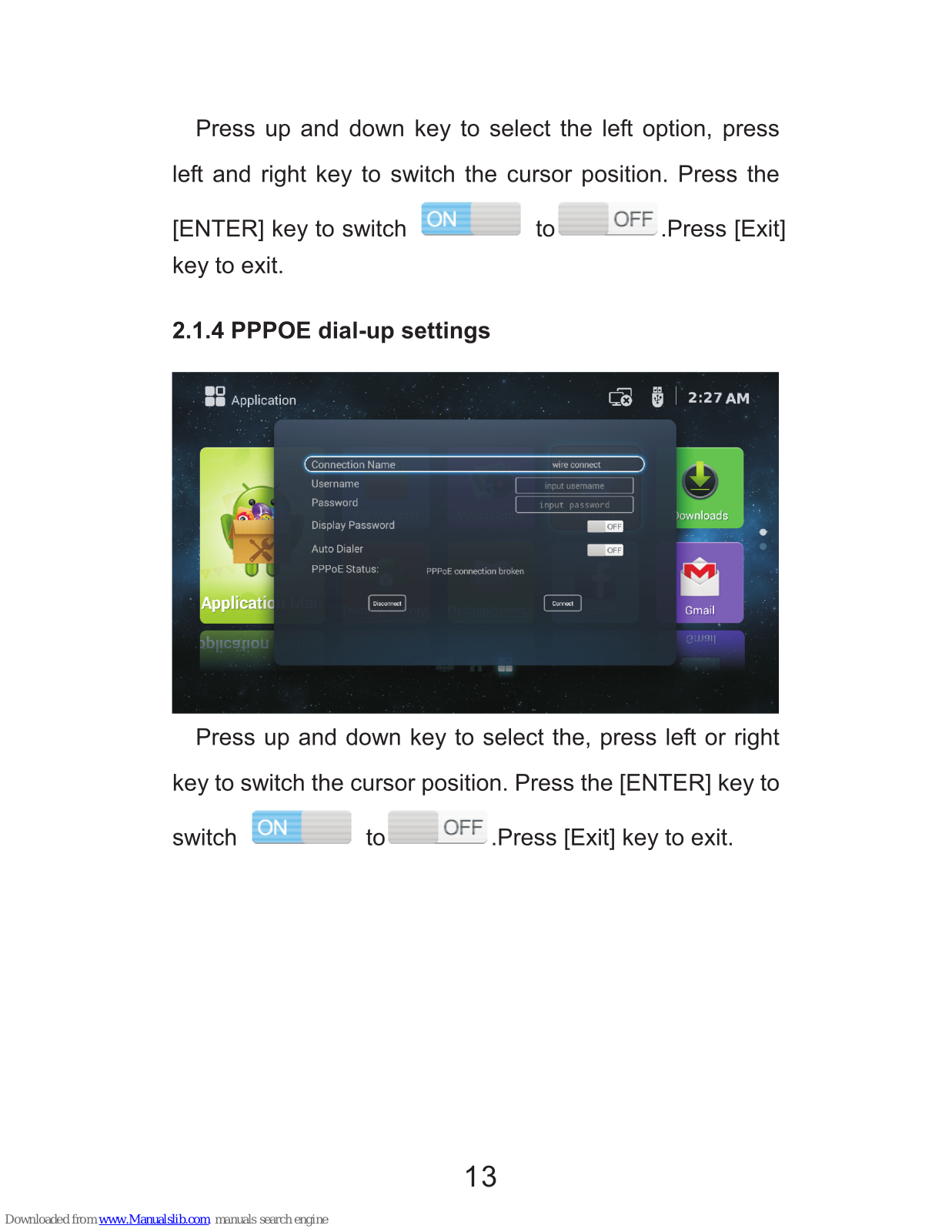

13

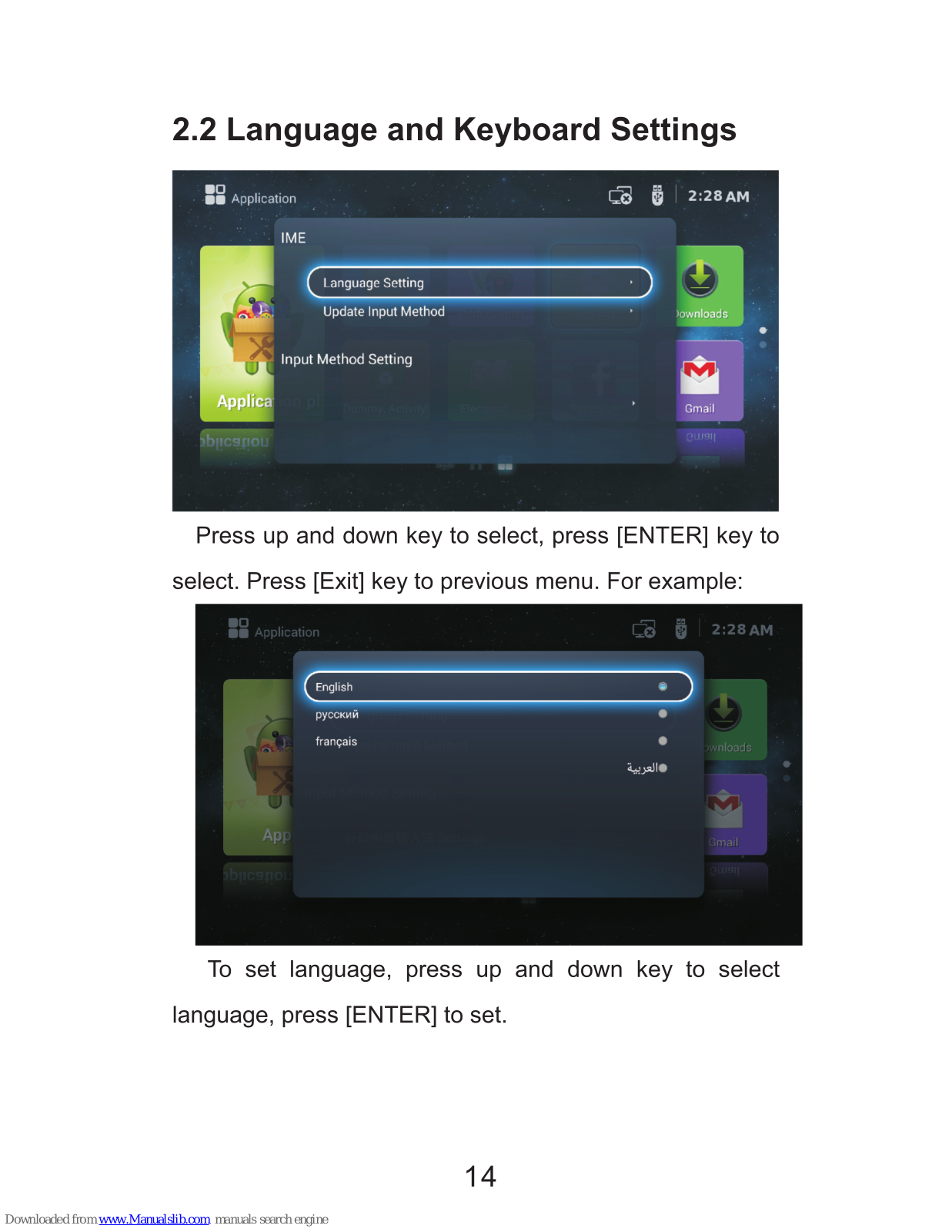

14

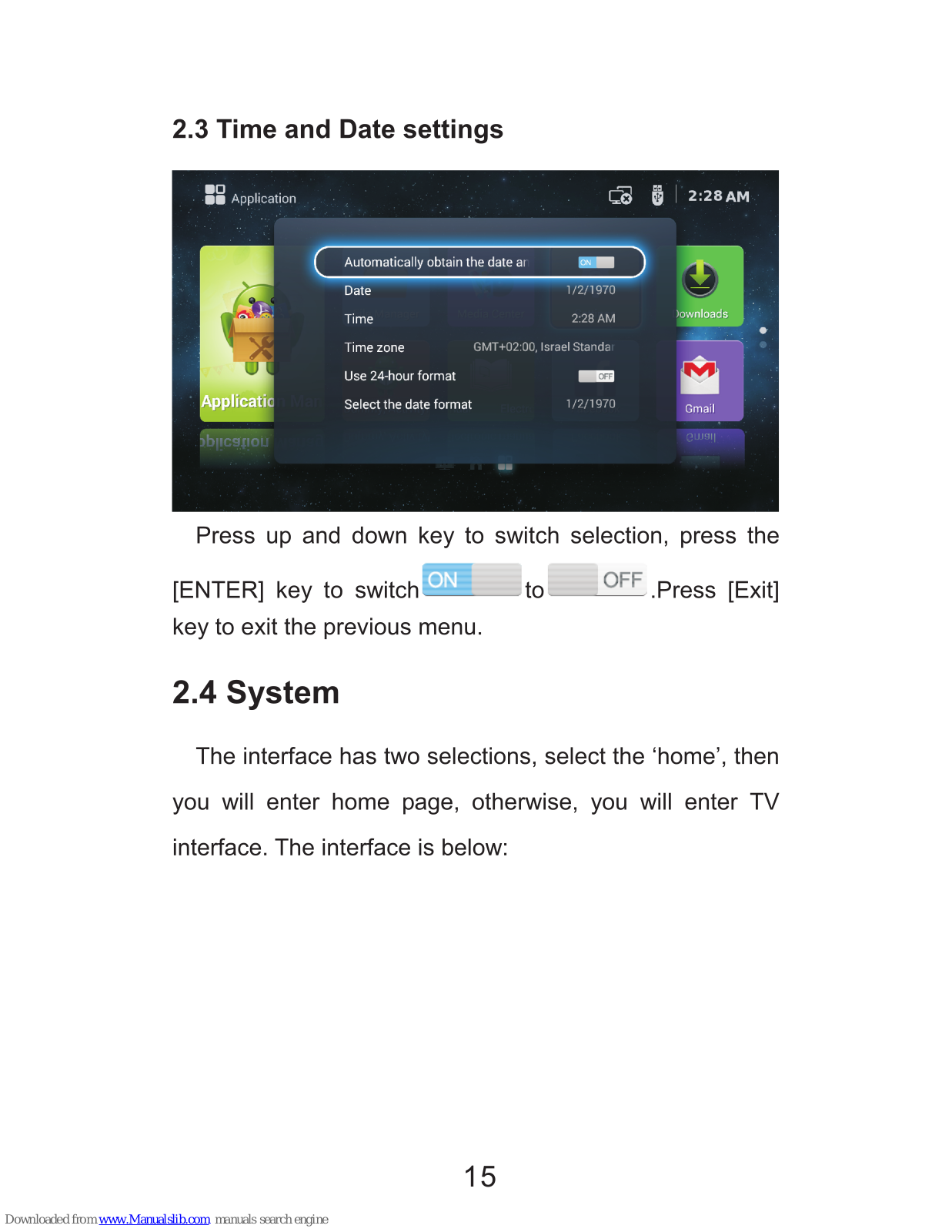

15

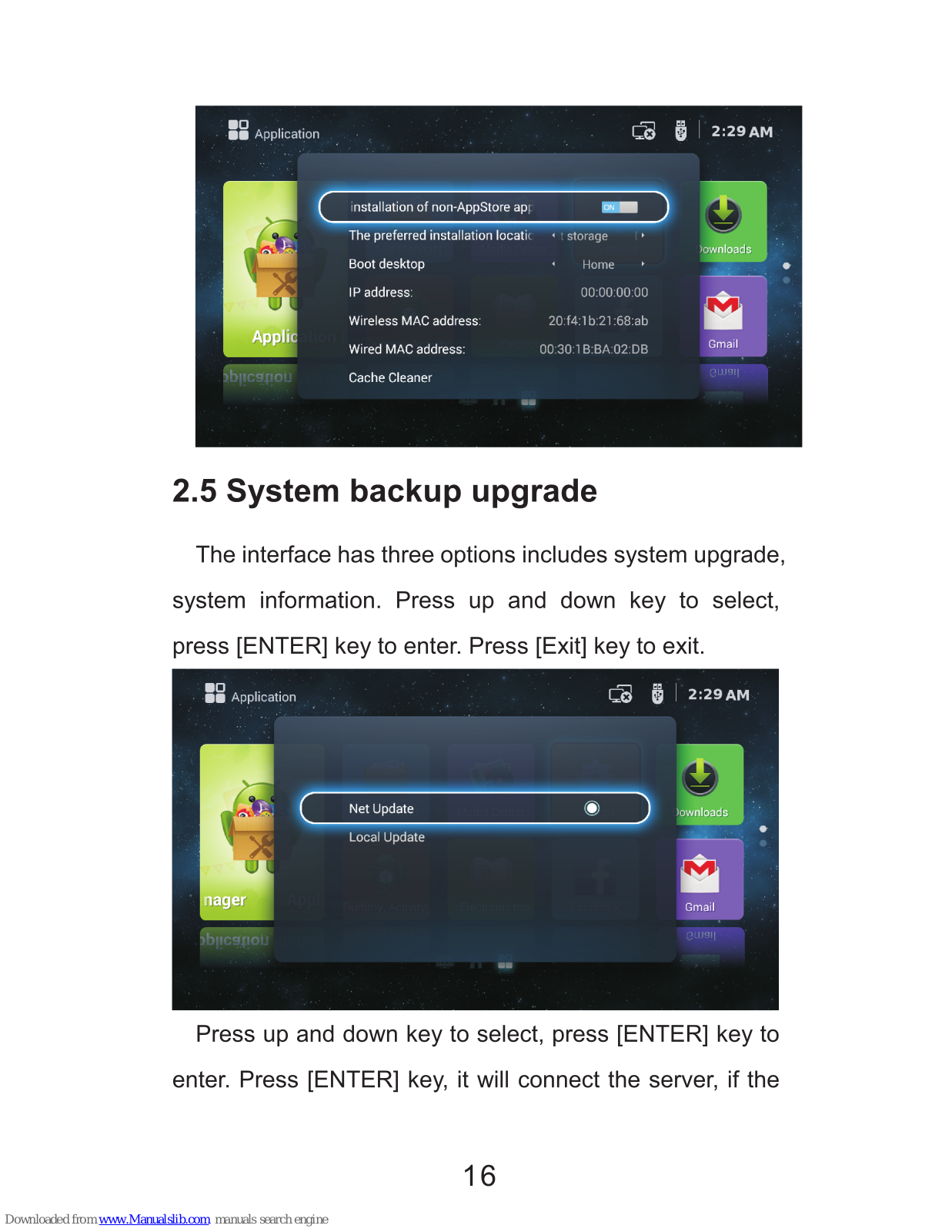

16

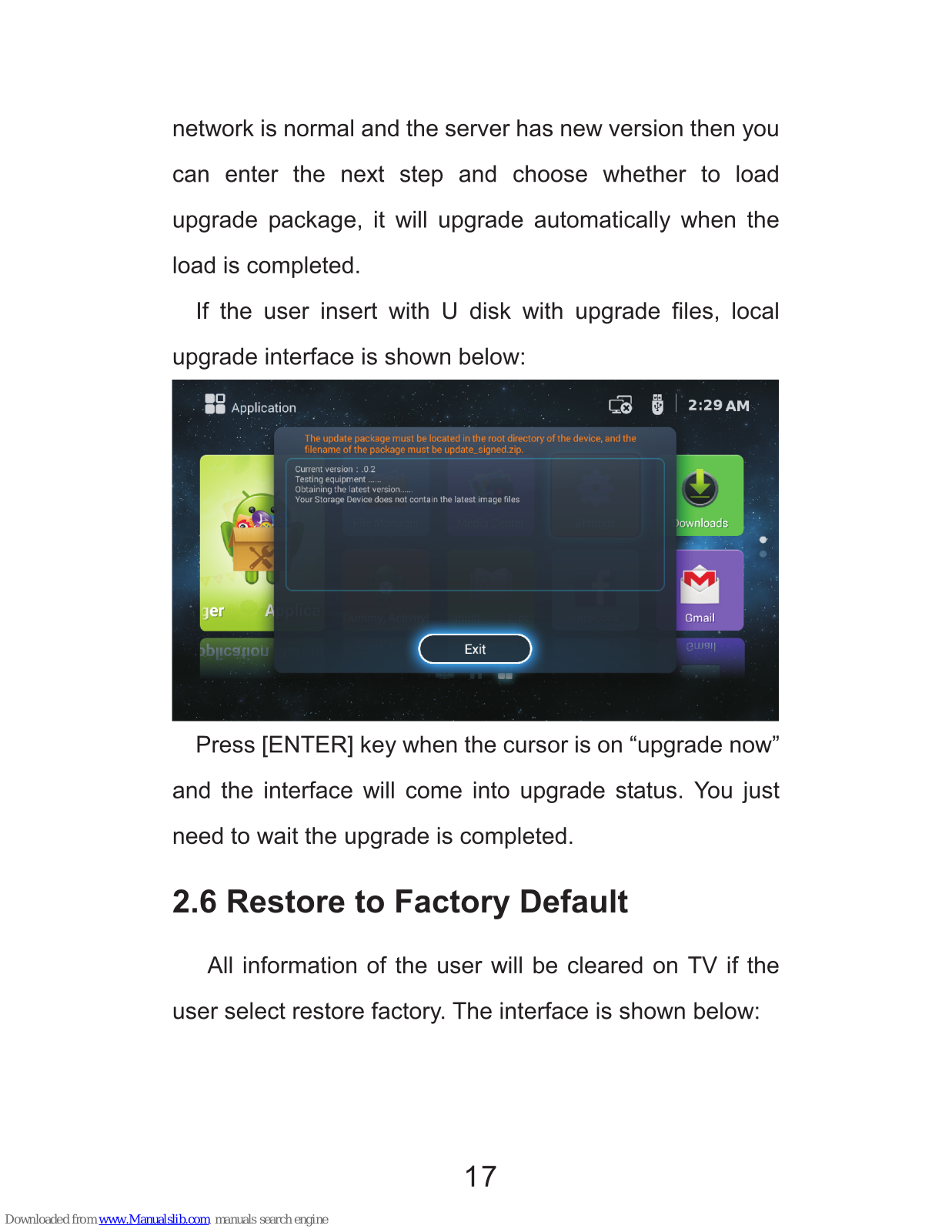

17

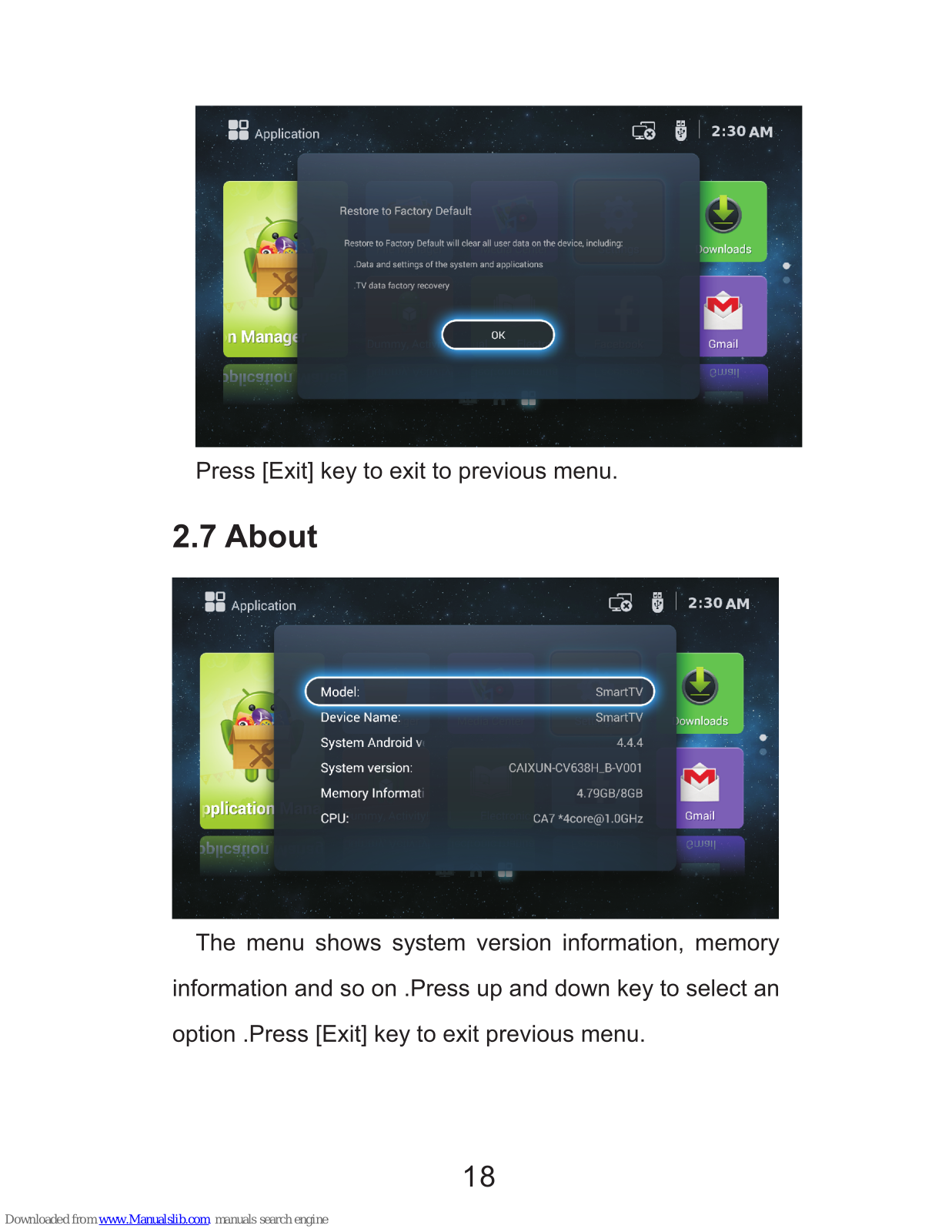

18

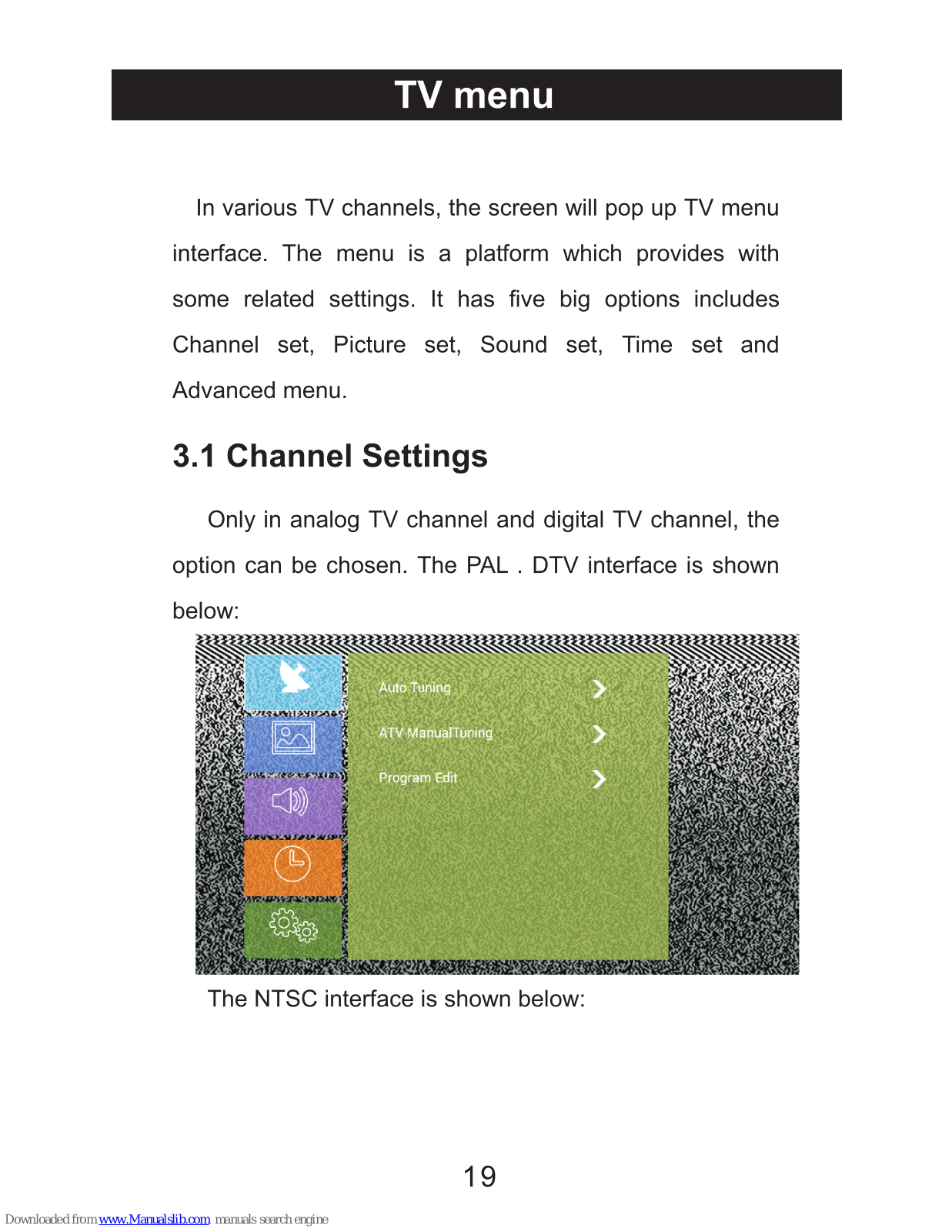

19

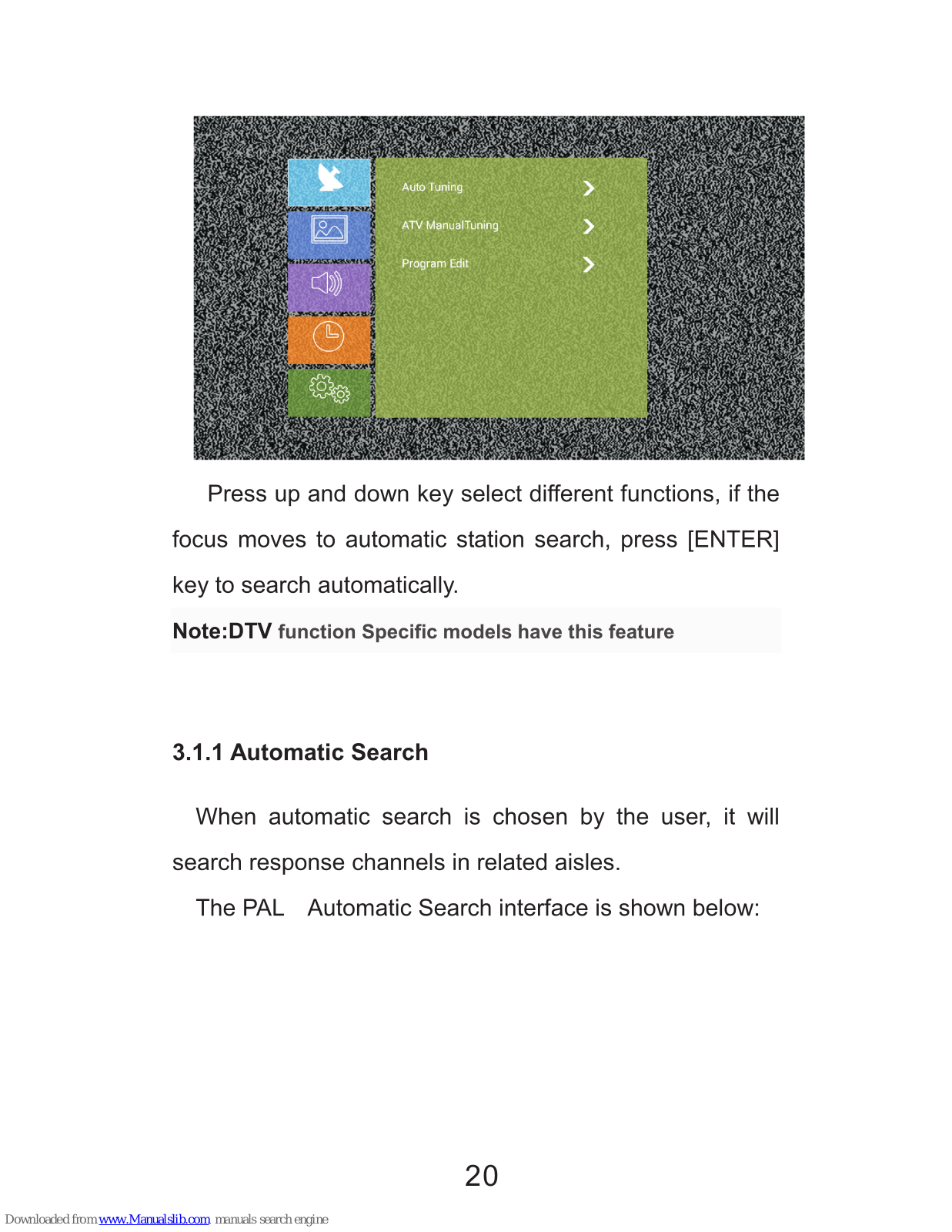

20

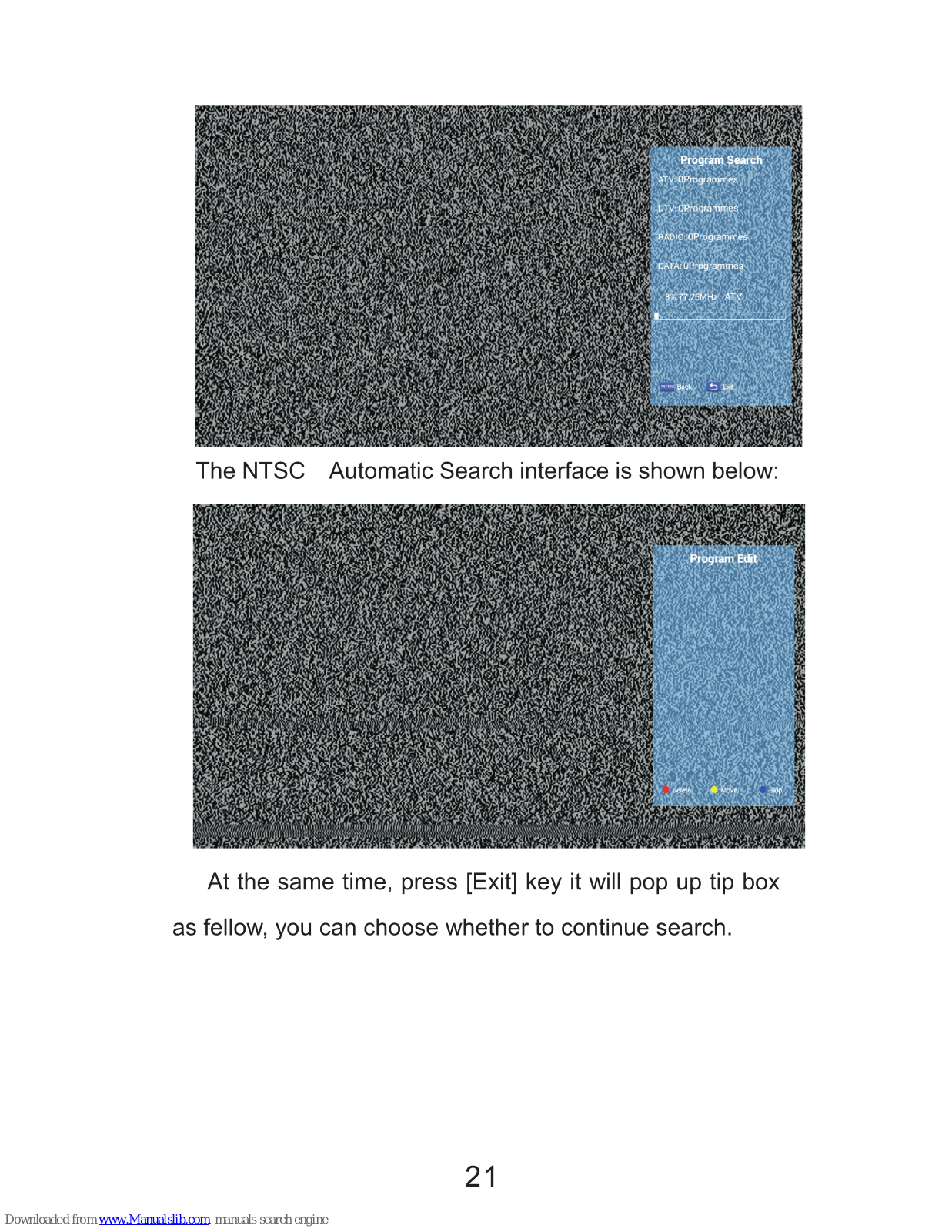

21

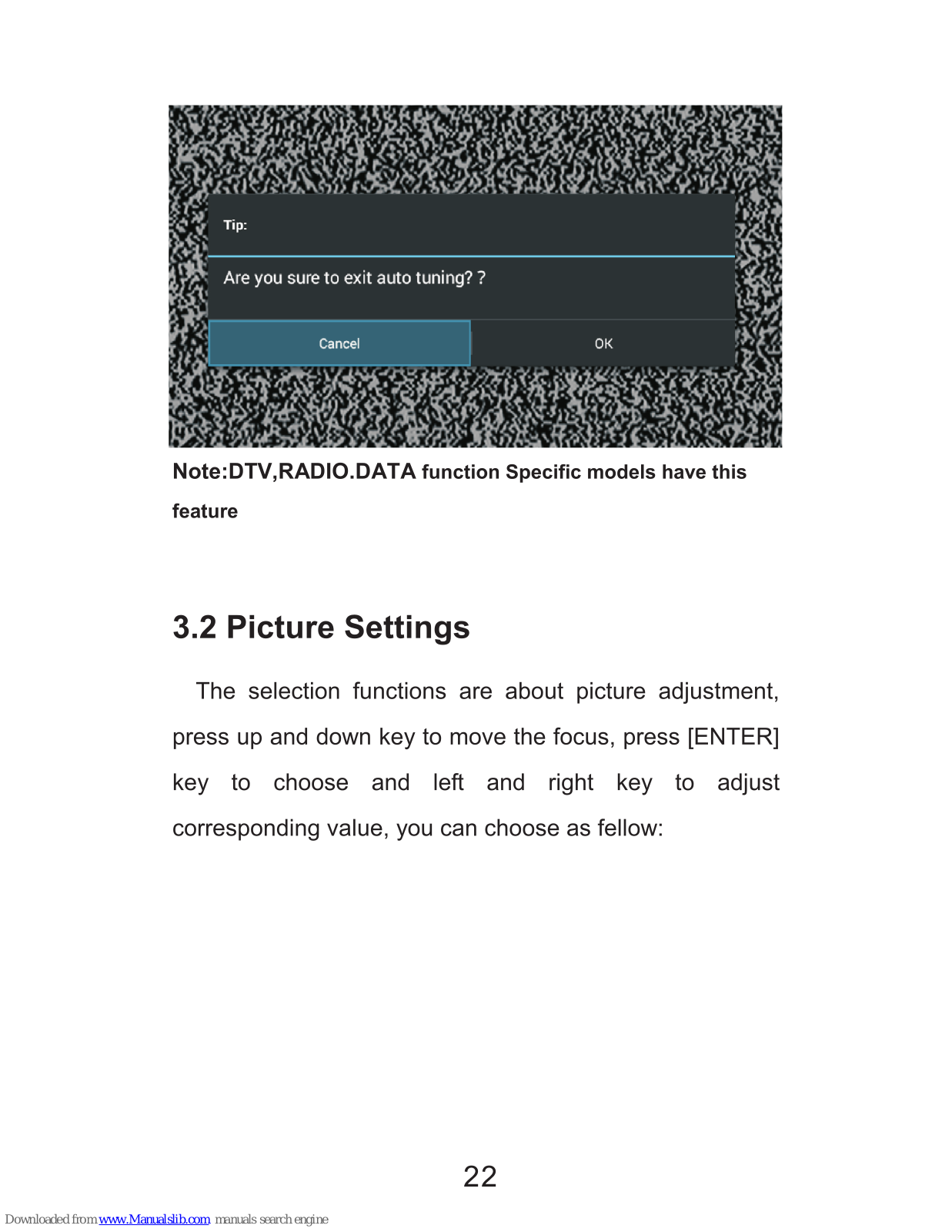

22

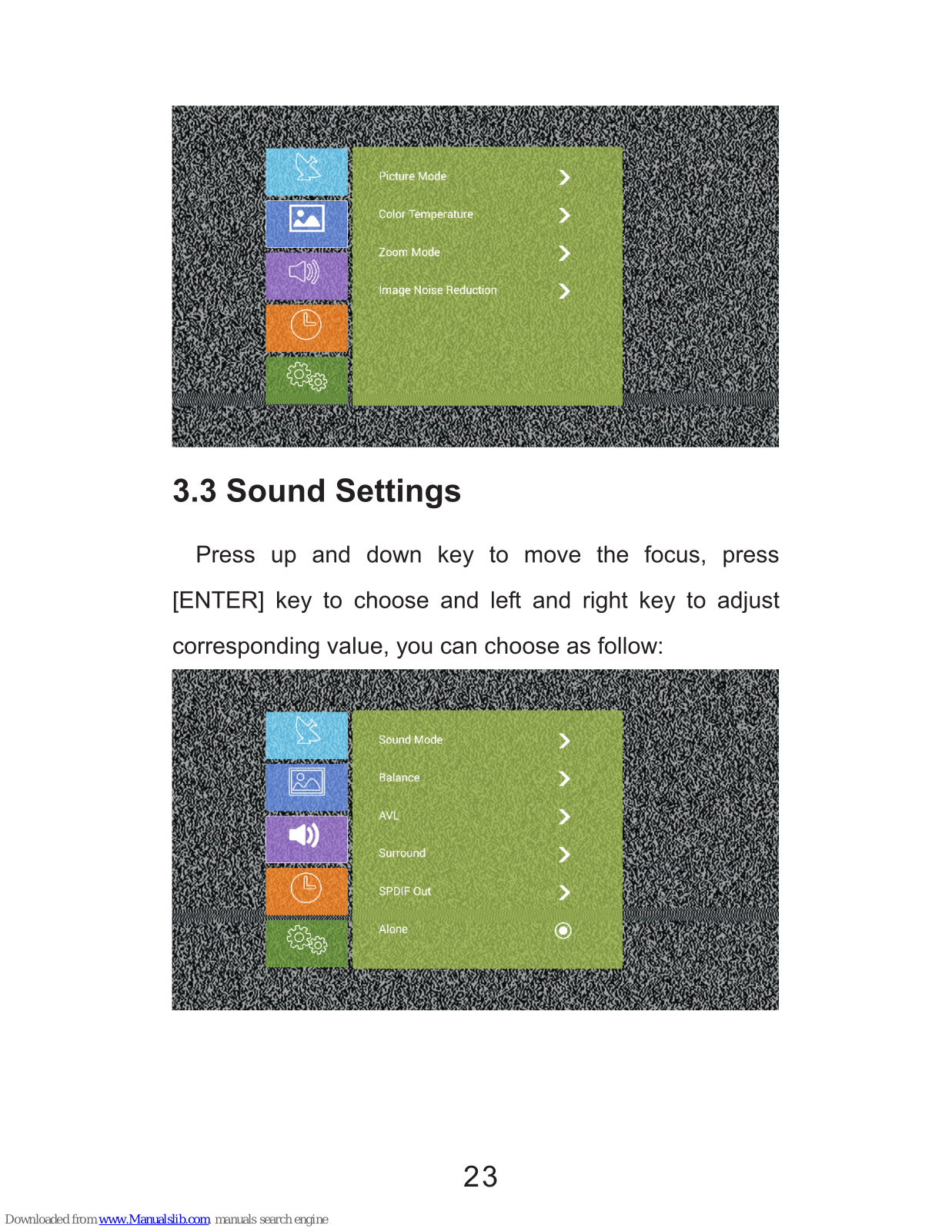

23

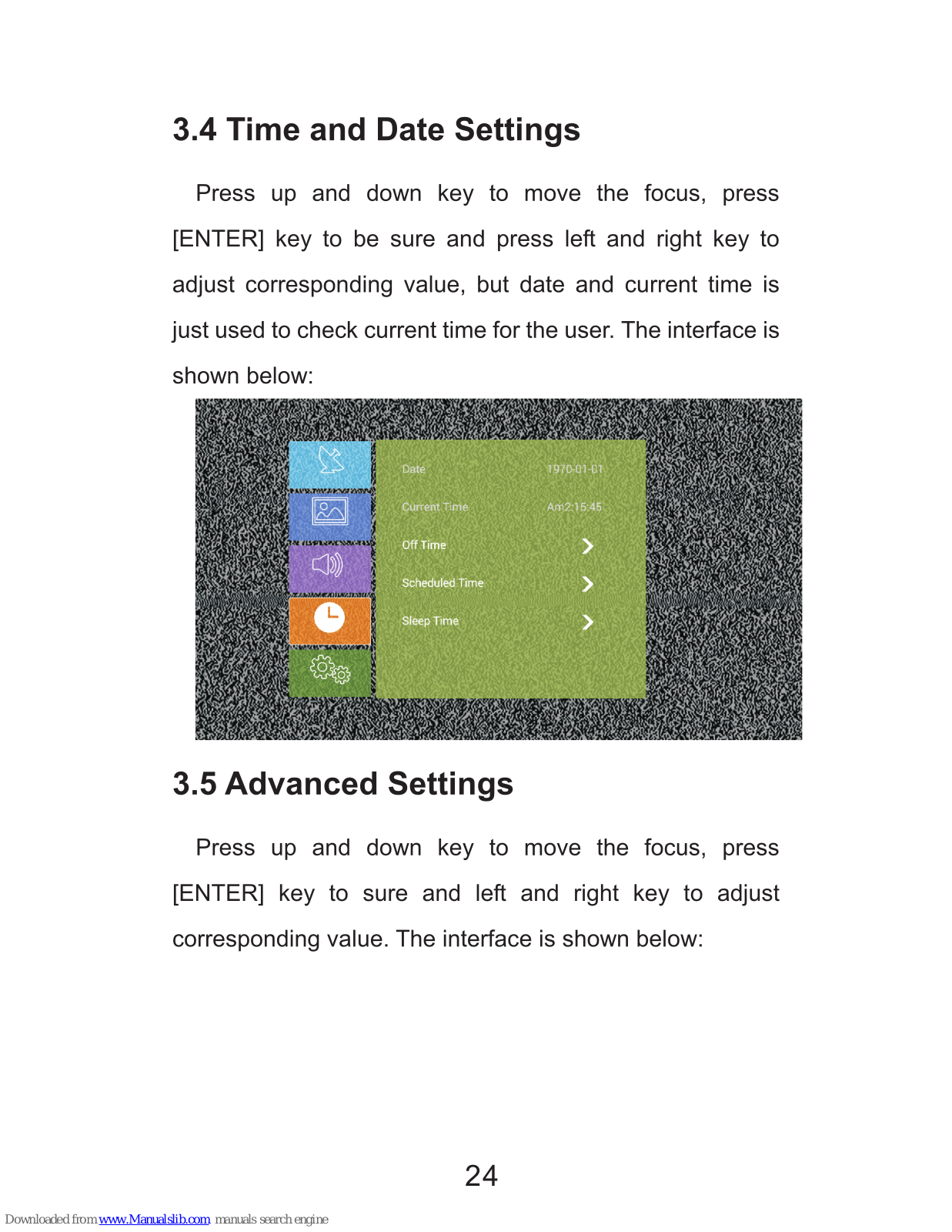

24

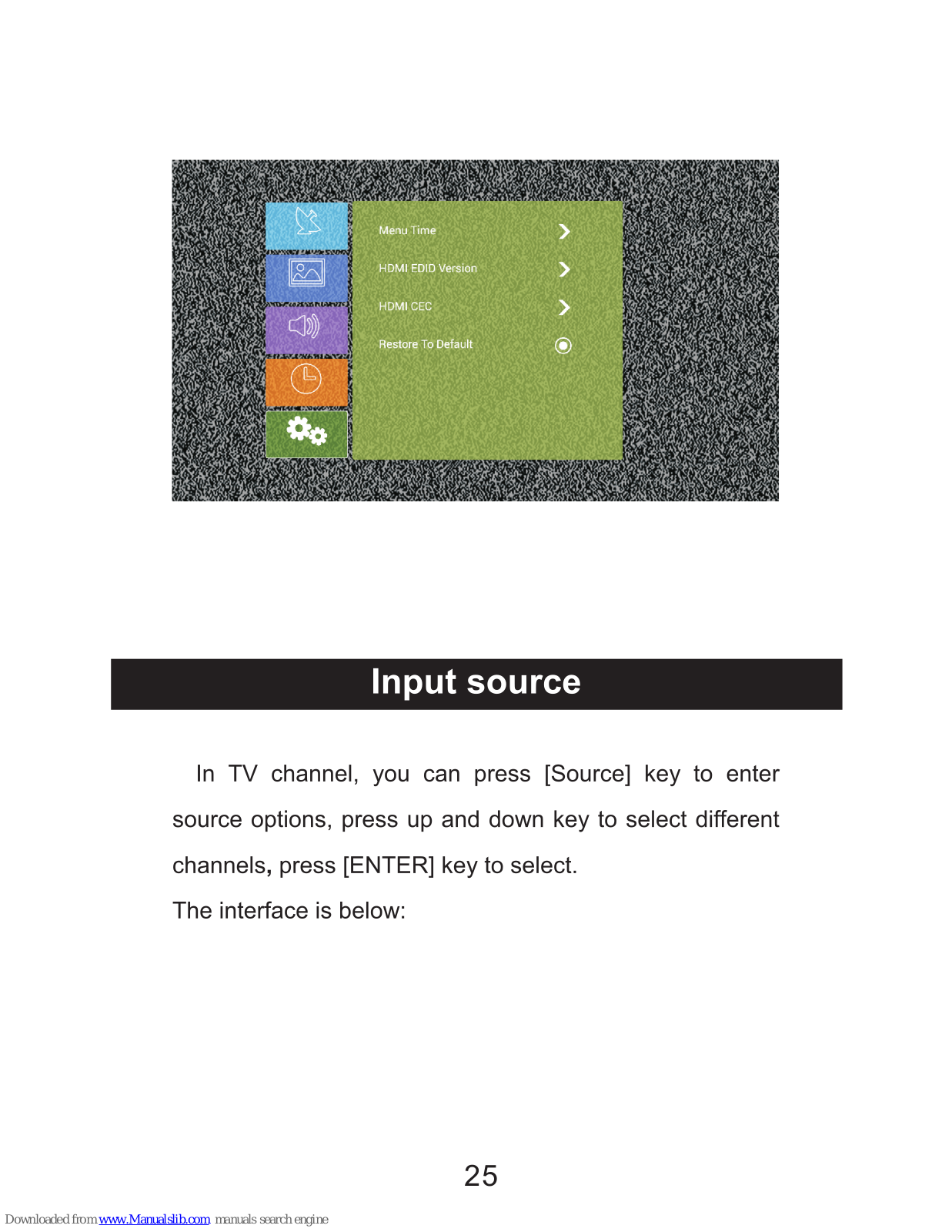

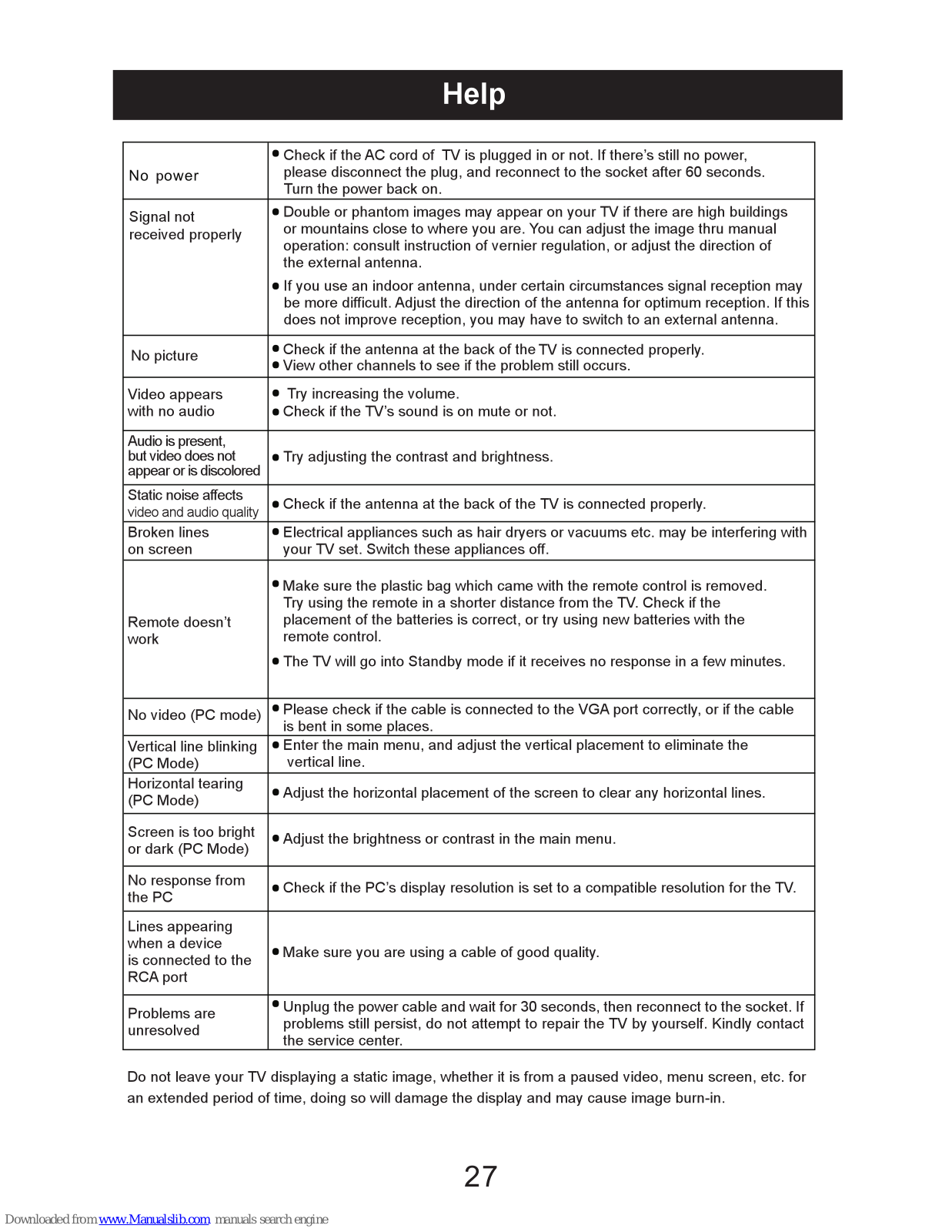

25

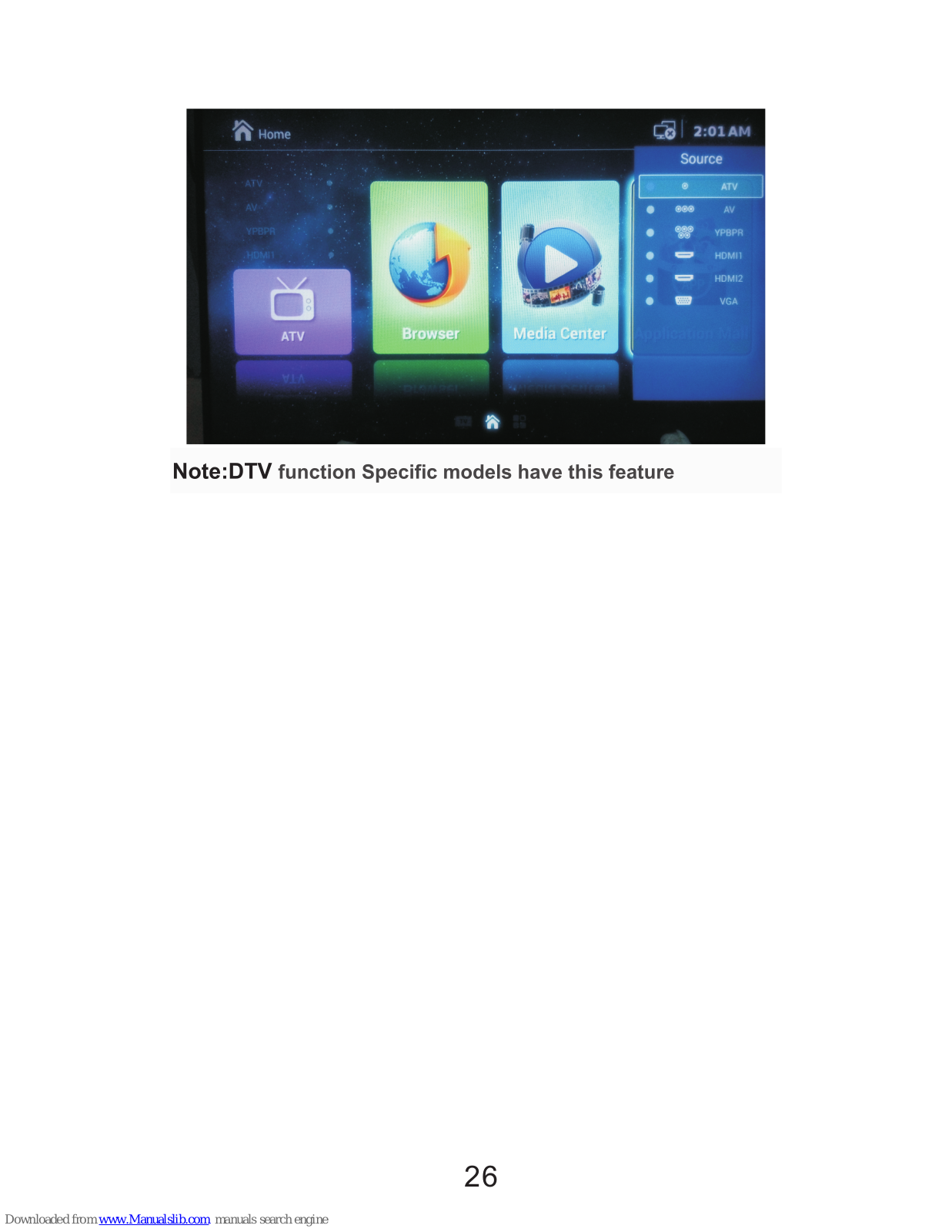

26
27
28

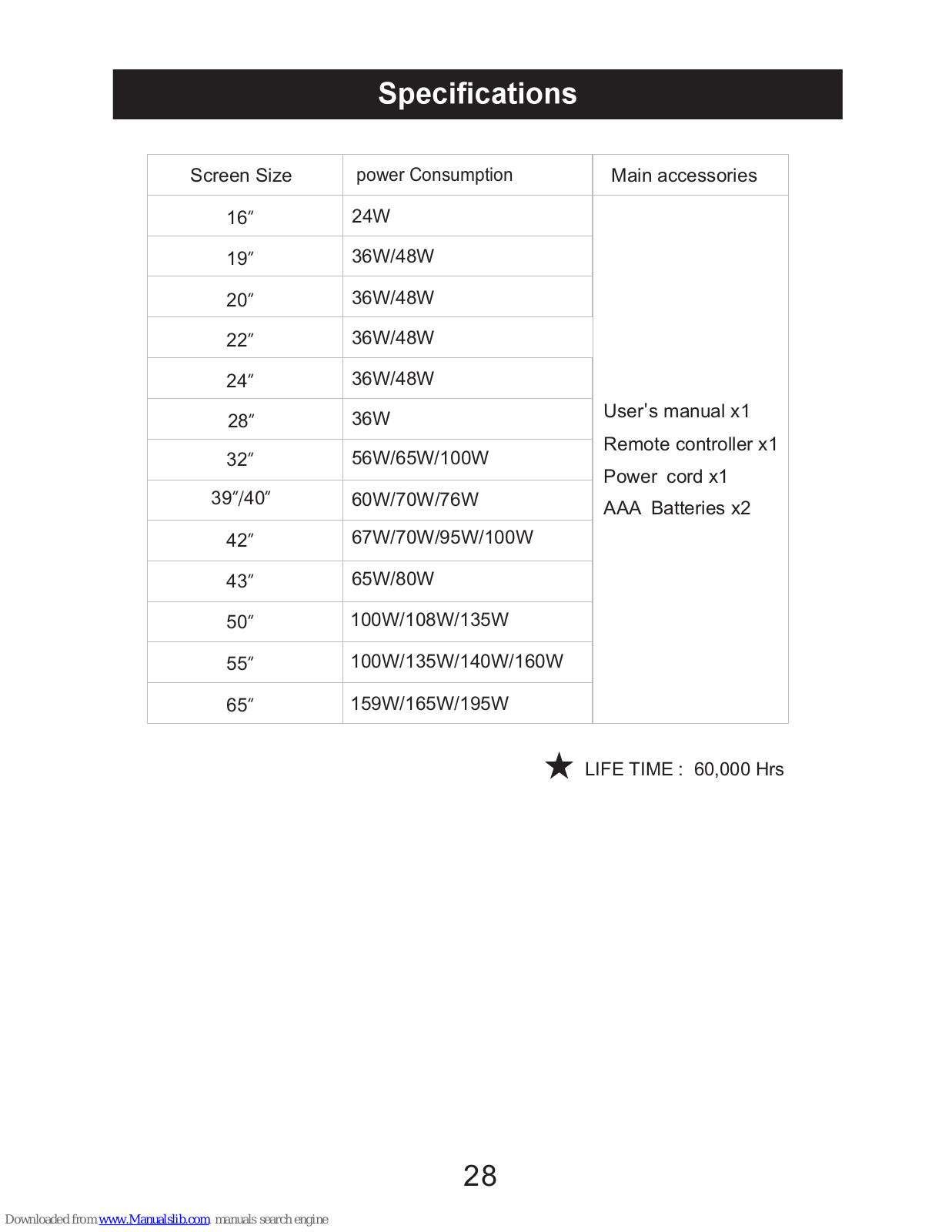

LIFE TIME
39”/40”
power Consumption
24W
36W/48W
36W/48W
36W/48W
36W
56W/65W/100W
60W/70W/76W
67W/70W/95W/100W
65W/80W
100W/108W/135W
100W/135W/140W/160W
159W/165W/195W
36W/48W
Screen Size
16”
19”
20”
22”
24”
32”
42”
43”
50”
55”
65”
Main accessories
User's manual x1
Remote controller x1
Power cord x1
AAA Batteries x2
28”
: 60,000 Hrs

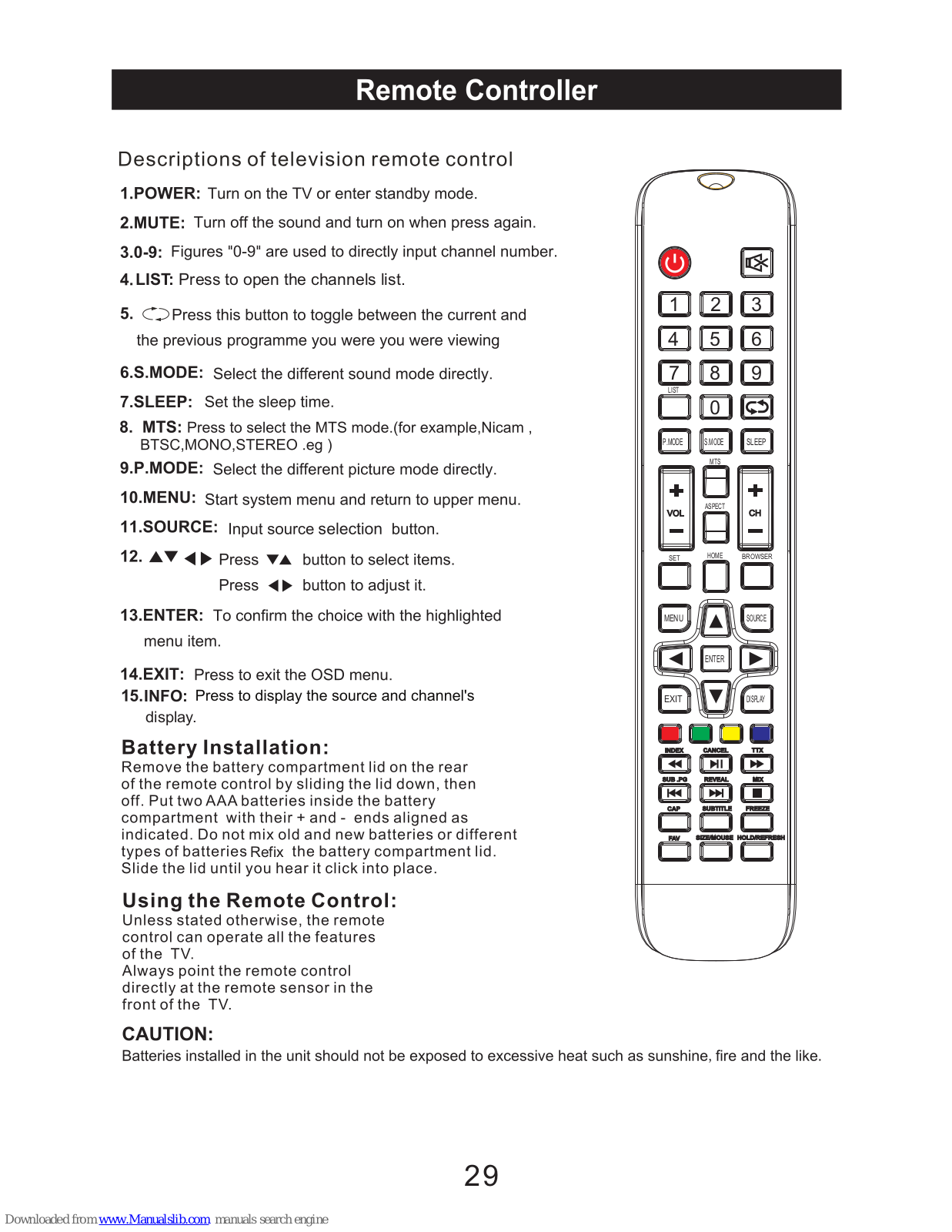

29
Refix
LIST: Press to open the channels list.
INFO:
display.
INDEX
REVEAL
CANCEL
MIX
SUB .PG
TTX
EXIT
DISPLAY
ENTER
MENU
SOURCE
BROWSER
CH
1 2
3
5
6
4
97 8
0
SLEEP
MTS
LIST
ASPECT
HOME
P.MODE
S.MODE
SET
VOL
SUBTITLE
CAP
FREEZE
FAV
SIZE/MOUSE HOLD/REFRESH
30

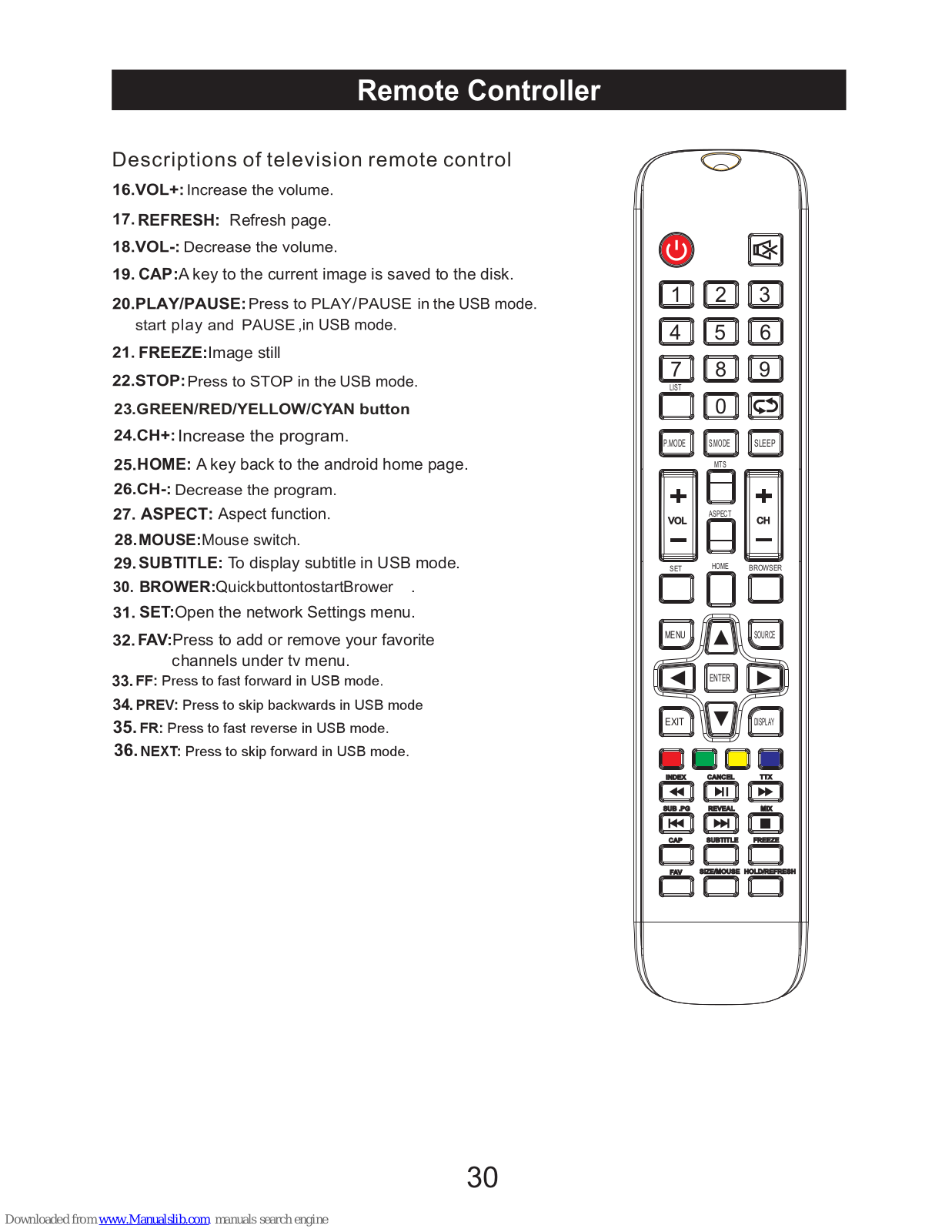

REFRESH:
HOME: A key back to the android home page.
FREEZE:Image still
23.GREEN/RED/YELLOW/CYAN button
Refresh page.
MOUSE:Mouse switch.
SUBTITLE: To display subtitle in USB mode.
BROWER: QuickbuttontostartBrower .
S ET:Open the network Settings menu.
F AV:Press to add or remove your favorite
CAP:A key to the current image is saved to the disk.
c hannels under tv menu.
INDEX
REVEAL
CANCEL
MIX
SUB .PG
TTX
EXIT
DISPLAY
ENTER
MENU
SOURCE
BROWSER
CH
1 2
3
5
6
4
97 8
0
SLEEP
MTS
LIST
ASPECT
HOME
P.MODE
S.MODE
SET
VOL
SUBTITLE
CAP
FREEZE
FAV
SIZE/MOUSE HOLD/REFRESH
Loading...
