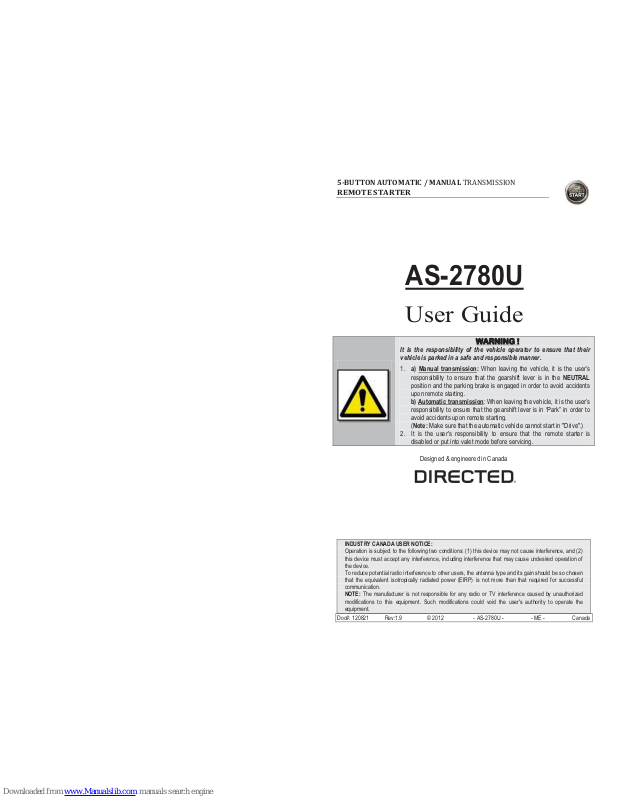

Smart Start AS-2780U, AS-1880FM User Manual

5-BUTTON AUTOMATIC / MANUAL TRANSMISSION
REMOTE STARTER

INDUSTRY CANADA USER NOTICE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the
equipment.

Doc#: 120821 Rev:1.9 © 2012 - AS-2780U - - ME - Canada

AS-2780U

User Guide

WWARNING !!

It is the responsibility of the vehicle operator to ensure that their

vehicle is parked in a safe and responsible manner.

1. a) Manual transmission:

When leaving the vehicle, it is the user’s

responsibility to ensure that the gearshift lever is in the

NEUTRAL

position and the parking brake is engaged in order to avoid accidents

upon remote starting.
b) Automatic transmission: When leaving the vehicle,

it is the user’s

responsibility to ensure that the gearshift lever is in “Park” in order to

avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)

2. It is the user's responsibility to ensure that the remot

e starter is

disabled or put into valet mode before servicing.

Designed & engineered in Canada

P.2 User Guide

Table of Contents

Government regulations .................................................................................................................. 3

Introduction ............................................................................................................................. 3

Using the Remote Control ............................................................................................................... 4

Vehicle Presets ................................................................................................................................. 4

Heater ........................................................................................................................................... 4

Windshield Wipers, Radio & Headlights ....................................................................................... 4

Arming and disarming the Starter Kill ............................................................................................ 4

Remote-Starting Your Vehicle ......................................................................................................... 5

Setting Your Vehicle into Ready Mode ......................................................................................... 5

Remote-starting ............................................................................................................................ 6

Driving Off ..................................................................................................................................... 6

Remote Starter Features .................................................................................................................. 7

Remote Door Locks ...................................................................................................................... 7

Remote Trunk Release ................................................................................................................. 7

Idle Mode ...................................................................................................................................... 7

Valet Mode .................................................................................................................................... 8

Panic Mode ................................................................................................................................... 9

Quick LockoutTM ........................................................................................................................... 9

Cold Weather Mode ...................................................................................................................... 9

Extended Run Time ...................................................................................................................... 9

Disable/Enable LED flashing ...................................................................................................... 10

Constant output .......................................................................................................................... 10

Advanced Features: Installation-programmable Options .......................................................... 10

Ignition-controlled Door Locks .................................................................................................... 10

Secure Lock ................................................................................................................................ 10

Safe Start .................................................................................................................................... 11

Engine Run Time ........................................................................................................................ 11

Turbo Mode ................................................................................................................................ 11

“Home ValetTM” Mode ................................................................................................................. 11

AUX 1 ......................................................................................................................................... 12

Horn Chirp Timing....................................................................................................................... 12

Multi-car Operation ..................................................................................................................... 12

OEM-Style Alarm ........................................................................................................................ 12

Car Finder ................................................................................................................................... 13

Intrusion Codes via horn ............................................................................................................. 13

Troubleshooting Poor Transmitting Range ................................................................................. 14

Parking Light Flash Table .............................................................................................................. 14

User guide P.3

Government regulations

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable p rotection
against harmful interference in a residential installation. This equipment generates and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

x Reorient or relocate the receiving antenna.
x Increase the separation between the equipment and receiver.
x Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

x Consult the dealer or an experienced radio/TV technician for help.

This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is
authorized only on a no-interference, no-protection basis; in other words, this device must not be
used if it is determined that it causes harmful interferences to services authorized by IC. In
addition, the user of this device must accept any radio interface that may be received, even if this
interference could affect the operation of the device.

Warning! Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this device.

Introduction

This is a state-of-the-art remote car starter system. The system is packed with advanced features
such as priority access to the driver’s door (commodity features), the Safe Start children safety
feature and SmartStart™.
SmartStart™ is a groundbreaking technology that enables your remote starter features to be
accessed by your smartphone. Features include keyless entry, trunk release, panic, remote
start/stop toggle and alarm notifications

1

. Note: SmartStart™ must be professionally installed. For
more information, see your nearest authorised Directed Canada dealer.
With many advanced functions, this product will satisfy any one of your expectations from high-end
commodity and security systems, without neglecting any standard feature commonly offered by
entry-level starters.

1

Certain conditions apply. See your authorised Directed Canada dealer.

P.14 User Guide

Troubleshooting Poor Transmitting Range

Many factors may affect the operating range of the transmitter. Some of these are:

x The condition of the battery in the transmitter.
x The operating environment (for example: downtown radio-frequency noise, airports, cellular

phone towers…).

x Metal: any type of metal will affect operating range. This includes the vehicle itself.
x The shape of the vehicle can affect range as well (vans in general have less range).
x The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in

this case, the signal from the remote control). As a result, the direction in which the vehicle is
facing in relation to the remote control can affect the range. Straight on (standing in front of
the vehicle) generally gives you the greatest range; the second best performance is from the
back. Using the remote control from either side of the vehicle will usually give the lowest
range.

x The range will be significantly lower in a crowded parking lot than in open space.
x Always hold the transmitter high, approximately at shoulder height.
x The operating range will be somewhat lower on vehicles equipped with an aftermarket or

factory alarm.

Parking Light Flash Table

Parking lights flashes

Description

1

x Doors locked.
x Trunk released.
x

Start signal received from the remote.

x Runtime has expired

2 slow

x Shutdown by remote

2 fast

x Doors unlocked
x Valet mode is deactivated

3 slow

x Runtime is extended.

3 fast

x Valet mode activated.

4 fast

x Shutdown by brake
x A remote start was attempted while the brake pedal is engaged.

10 fast

x Shutdown by hood
x A remote start was attempted while the hood is open.

ON ÎÎ twice

x Cold weather mode deactivated

ON ÎÎ 3 times

x Cold weather mode activated.

Solid ON

x Engine is running under remote start.

Flash for 30 sec.

x Panic mode is triggered.

Flash for 60 sec.

x Alarm is triggered.

ON ÎÎ twice ÎÎ twice

x A remote start was attempted while the system is in home valet.
