Smart Start AS2272 User Manual
MANUAL / AUTOMATIC TRANSMISSION MULTI-CHANNEL
REMOTE STARTER SYSTEM
INDUSTRY CANADA USER NOTICE:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
Doc#: 110914 Rev: 1.2 © 2011 -AS2272- -FcN- Canada

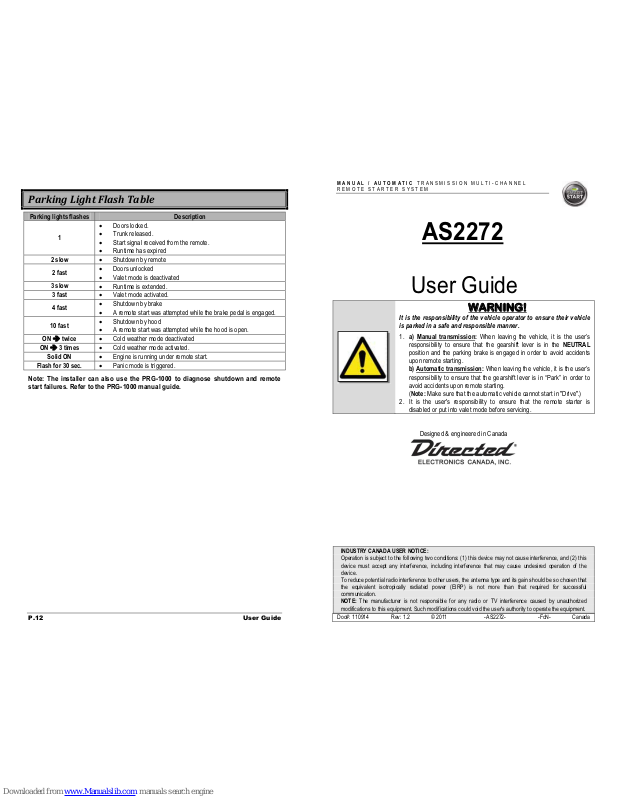

AS2272
User Guide
WARNING!
It is the responsibility of the vehicle operator to ensure their vehicle
is parked in a safe and responsible manner.
1. a) Manual transmission: When leaving the vehicle, it is the user’s
responsibility to ensure that the gearshift lever is in the NEUTRAL
position and the parking brake is engaged in order to avoid accidents
upon remote starting.
b) Automatic transmission
: When leaving the vehicle, it is the user’s
responsibility to ensure that the gearshift lever is in “Park” in order to
avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is
disabled or put into valet mode before servicing.
Designed & engineered in Canada
P.12 User Guide
ParkingLightFlashTable
Parking lights flashes Description
1
x Doors locked.
x Trunk released.
x Start signal received from the remote.
x Runtime has expired
2 slow
x Shutdown by remote
2 fast
x Doors unlocked
x Valet mode is deactivated
3 slow
x Runtime is extended.
3 fast
x Valet mode activated.
4 fast
x Shutdown by brake
x A remote start was attempted while the brake pedal is engaged.
10 fast
x Shutdown by hood
x A remote start was attempted while the hood is open.
ONÎ twice
x Cold weather mode deactivated
ONÎ 3 times
x Cold weather mode activated.
Solid ON
x Engine is running under remote start.
Flash for 30 sec.
x Panic mode is triggered.
Note: The installer can also use the PRG-1000 to diagnose shutdown and remote
start failures. Refer to the PRG-1000 manual guide.
User guide P.11
HornConfirmation
Note: Horn confirmation can be activated only if is programmed as a LOCK or UNLOCK
button.
If configured at installation, the horn will honk every time the doors are locked by pressing .
PoorTransmittingRangeIssues
Many factors may affect the operating range of the transmitter. Some of these are:
x The condition of the battery in the transmitter.
x The operating environment (for example: downtown radio-frequency noise, airports, cellular
phone towers…)
x Metal: any type of metal will affect operating range. This includes the metal in the car.
x The shape of the vehicle can affect range as well; vans in general have an especially poor
range.
x The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in this
case the signal from the remote control). As a result, the direction in which the vehicle is facing
in relation to the remote control can affect the range. Straight on – standing in front of the
vehicle – generally gives you the greatest range; the second best performance is from the back.
Using the remote control from either side of the vehicle will usually give the lowest range.
x The range will be significantly lower in a crowded parking lot than in open space.
x Always hold the transmitter high, approximately at shoulder height.
x The operating range will be somewhat lower on vehicles equipped with an aftermarket or factory
alarm.
x Windows and windshields tinted with lead or metallic tints will decrease the operating range.
P.2 User Guide
Table of Contents
GOVERNMENT REGULATIONS ....................................................................................................... 3
INTRODUCTION WITH SMARTSTART™ .............................................................................. 3
USING THE REMOTE CONTROL ..................................................................................................... 4
VEHICLE PRESETS .......................................................................................................................... 4
Heater ............................................................................................................................................ 4
Windshield Wipers, Radio & Headlights ........................................................................................ 4
REMOTE-STARTING YOUR VEHICLE ............................................................................................. 4
Setting Your Vehicle into Ready Mode .......................................................................................... 4
Remote-starting .............................................................................................................................. 5
Driving Off ...................................................................................................................................... 5
ARMING AND DISARMING THE STARTER KILL (IF INSTALLED) ............................................... 6
REMOTE STARTER FEATURES ...................................................................................................... 7
Remote Door Locks ....................................................................................................................... 7
Remote Trunk Release .................................................................................................................. 7
Idle Mode ....................................................................................................................................... 7
Valet Mode ..................................................................................................................................... 8
Cold Weather Mode ....................................................................................................................... 8
Panic Mode .................................................................................................................................... 9
Quick Lockout
TM
............................................................................................................................ 9
ADVANCED FEATURES: INSTALLATION-PROGRAMMABLE OPTIONS .................................... 9
Ignition-controlled Door Locks ....................................................................................................... 9
Secure Lock ................................................................................................................................. 10
Passive or Active Arming ............................................................................................................. 10
Engine Run Time ......................................................................................................................... 10
Turbo Mode .................................................................................................................................. 10
Horn Confirmation ........................................................................................................................ 11
POOR TRANSMITTING RANGE ISSUES....................................................................................... 11
PARKING LIGHT FLASH TABLE ................................................................................................... 12
