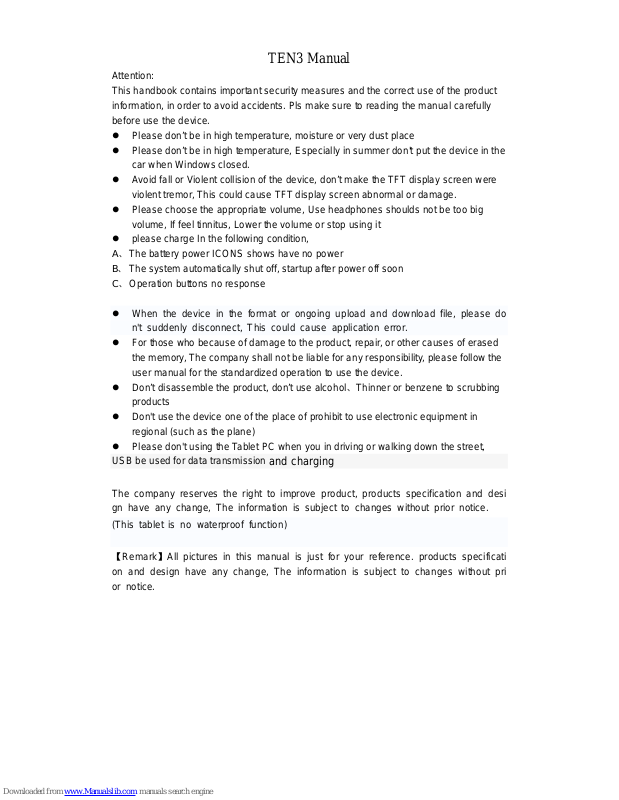

TEN3 Manual
Attention:
This handbook contains important security measures and the correct use of the product
information, in order to avoid accidents. Pls make sure to reading the manual carefully
before use the device.
z Please don’t be in high temperature, moisture or very dust place
z Please don’t be in high temperature, Especially in summer don't put the device in the
car when Windows closed.
z Avoid fall or Violent collision of the device, don’t make the TFT display screen were
violent tremor, This could cause TFT display screen abnormal or damage.
z Please choose the appropriate volume, Use headphones shoulds not be too big
volume, If feel tinnitus, Lower the volume or stop using it
z please charge In the following condition,
A、 The battery power ICONS shows have no power
B、 The system automatically shut off, startup after power off soon
C、 Operation buttons no response
z When the device in the format or ongoing upload and download file, please do
n't suddenly disconnect, This could cause application error.
z For those who because of damage to the product, repair, or other causes of erased
the memory, The company shall not be liable for any responsibility, please follow the
user manual for the standardized operation to use the device.
z Don’t disassemble the product, don’t use alcohol、Thinner or benzene to scrubbing
products
z Don't use the device one of the place of prohibit to use electronic equipment in
regional (such as the plane)
z Please don't using the Tablet PC when you in driving or walking down the street,
USB be used for data transmission
and charging
The company reserves the right to improve product, products specification and desi
gn have any change, The information is subject to changes without prior notice.
(This tablet is no waterproof function)
【Remark】All pictures in this manual is just for your reference. products specificati
on and design have any change, The information is subject to changes without pri
or notice.
TEN3 Manual
1. appearance
2. First use
2.1 Battery management and charge
Before first use, please set the device's battery is fully charged
Just need to connect the USB interface, then you can charge
The first two times charging please keep about 6 hours, after that you just need 4
hours to charge.
【Remark】: This tablet using Built-in type polymer battery, Charge must be to choose
standard adaptor (Input: AC110~240V 50/60Hz Max：180MA.. Output: DC5.0~5.5V/2A),
USB interface can charge, Choose USB interface to charger
During the charging, the battery icon will scroll
When finished charging, battery icon will become green and stop rolling
In order to prolong the service life of the machine, suggest use out battery power before
charge it
【Remark】: 1. If you long time don’t to use this Tablet, ,in order to avoid power
consumption caused damage,pls charge/play the battery once a month.
2 、 After low battery shut down,connect USB,device will remind low
battery,charging,need to wait some time until the battery is enough power to enter into
main menu.
3. Device charging should be in standby status for reach normal charging time.
Because with device and screen consumption,it may cause longer charging time.
TEN3 Manual
2.2 Connection with PC
Use USB cable to connect device to PC,device will pop up the USB connection
window,click Turn on USB storage to connect to PC
Into the load mode, you can copy, delete the file on thedevice and the file on the memory
card.
3. Equipment operation interface
3.1 Main interface describe
After startup will enter the main interface
TEN3 Manual
In the main interface, you can :
Management main interface software ICONS: long press the icons 3 second, after t
he icons will bigger, then you can drag anywhere in the interface.
Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin ico
n, once it become red, Loosen your hand, after that you can delete icon
You touch the screen keep a time, appear the dialog box”Add you Home screen” as
shown below:
TEN3 Manual
3.2 status bar describe
z The status bar above of the screen
The lower left corner is the return key, a key to return to the soft keys, menu
key keyboard
The lower right corner
display the battery, battery charge icons, current time, T-Flash
card, USB connection status and WIFI
WIFI signal icon
.
3.3 Use touch panel
Device equipped with a 7 “ touch screen. Following the main touch screen area is
described, and describes some of the tips for how to use the touch screen.
No matter which interface you are on the screen, can go back to main screen
through pressing the soft key
.
【Attention】The main screen soft key
functions as the machine back key
In different applications, by tapping the back soft key , you can
Return to the previous menu interface
.
In different applications, by tapping the menu key on the upper right corner of touch
screen, the screen will appear the operation setting interface as follows,
【Remark】: The main screen soft key
functions as the machine manu
TEN3 Manual
In the main interface, you can touch the icon to open the APPs
In different browser(file, music, video, pictures), You shift and drag the scroll bar,
so that the file list can up or down to roll.

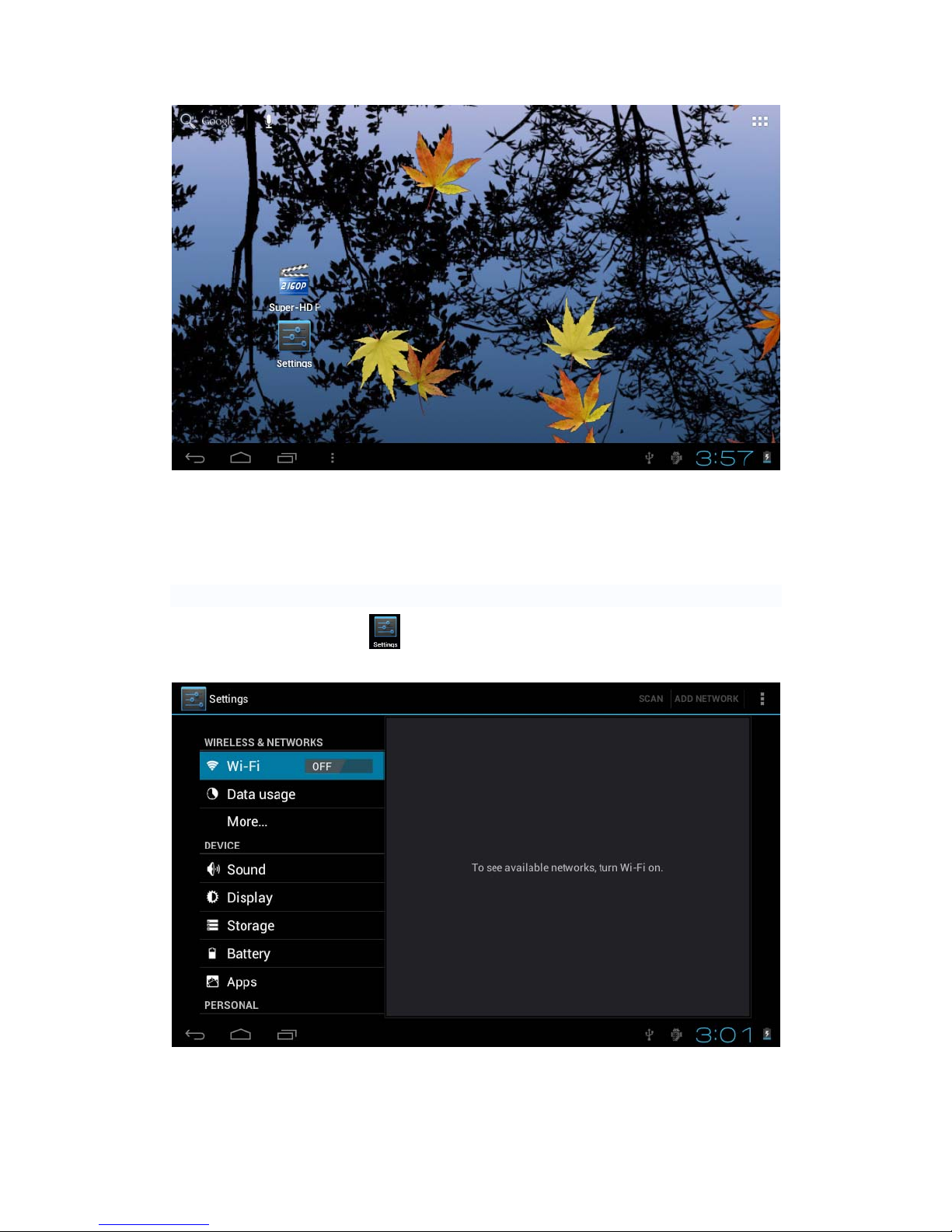

4. Equipment basic set
Setting: Click setting icons , enter setting interface
TEN3 Manual
4.1 Silent mode,Volume,
Touch tone
,Audible selection,Screen lock sounds,
4.2 Display
Display settings you can set brightness, wallpaper, automatically rotate the
screen, font size.
TEN3 Manual
4.3
3G USB Dongle
Your Device can connect to 3G networks. To connect
1.
First turn off the
WiFi
2.Touch settings, touch wireless &more&Mobile netwworks
3.To Data enabled and Data roaming
checked.。
4.
SIM card into the 3G dongle, then use OTG cable to the USB interface of the MID
5.
Such as the lower-right corner of the 3G icon you can use the 3G internet
4.4Bluetooth
Bluetooth is a short distance (typically 10m) wireless communication technology to
support data exchange between Bluetooth devices. The device has Bluetooth, you can
communicate with other Bluetooth headsets and Bluetooth-enabled devices.
TEN3 Manual
1. T ouch settings, touch Bluetooth to on.
2.
The system will automatically scan for available Bluetooth devices.
3.
Select the paired Bluetooth device, enter the pairing PIN code, click Finish and confirm.
TEN3 Manual
4.
Enter the same PIN code in the paired devices, click OK.
5
After a successful connection need to be transmitted in the file manager, select the file,
press and pop-up menu, click share, select the paired device name, click to receive the
matching device, may be relative to send files.
4.5Application
Manage applications
TEN3 Manual
Unknown sources: Click “Unknown Sources”, then click “OK”
Manage application: installed and uninstall Application
【Remark】: when you Firmware Upgrade, please close the USB connect
How to uninstall?
1. enter
“setting”>”Application”>”Manage application” And then there will be
installed the program list
2. Click you want to uninstall icons, will enter the following interface
3. Click Uninstall, then you can delete the application
4.6Privacy
TEN3 Manual
Factory data reset
Storage
Insert
TF card, view of the available storage space
【Remark】: pls touch option”delete SD card”, so that can safety to romeve SD card
TEN3 Manual
4.7. Language & keyboard
Setting: (Language), text input and automatic error correction options;
Select Language: 54 kind of national languages are available
Remark: Android system can support 54 kind of language, now menu interface just
support 14 language,
Android keyboard: Android keyboard setting
Sound on Key-press
Auto-capitalisation
Show suggestions: Display suggested words while typing
Auto-complete: Specebar and punctuation automatically insert highlighted word
4.8. Date & time setting
Set date, set time, Select time zone and select date format
TEN3 Manual
4.9 USB Mode Select
Choose USB work pattern: OTG/HOST/SLAVE……..
5.0 About device
6.Apps Install and manage
6.1
Application
This Tablet can support Android APP in market by third party, most Apps can inst all in the
network, can copy to
NAND FLASH or SD card.
Click
Application
icon, will appear Install, manage, Exit options.
Install: Click install, enter Apk install interface
TEN3 Manual
Separately for Internal Memory disk and SD Card disk.
Selec the APK you would like to install,click it to install,go back to main menu,will display
the installed app you just selected.
Remark: some 3
rd
APP must install properly by memory card,downloaded 3rd app may not
install properly on device.
Manage: click manage, enter third party interface
Click install icon, will enter Action interface
7.0Problem solution
Device can’t to open
1. Check the battery power
2. Connect adaptor first, then check again
3.After charging then can’t to open, pls contacy with the
contact
After startup the screen or the opening picture has been appear , the the device appear
shutdown
1. Power is not enough, please charge
Headset can't hear the voice
1. Pls check the volume whether set to 0
2. Check the music file damaged. Try playing other music, if the file have dam
aged may lead to serious noise or hop sounds.
Can copy file or paly music and so on
1. Pls check between computer and device is correct connection
2. check the memory storage space is already full
3. check the USB cable is good or not
4. USB connection is disconnected
TEN3 Manual
FCC ST ATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cau se h armful inter feren ce.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expre ssly approv ed by the p ar ty respon sible for co mplia n ce
could void the user's authority to operate the equipment.
NOTE: This equipment has been te ste d and found to co mply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radia te rad io fre quen cy ene rgy and, if n o t in st a lle d
and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the fo llowing mea sures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
¡¡ • Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF expo sure re quire ment. The device can
be used in portable exposure condition without restriction.
