Smart Power Systems QPF User Manual

OTHER POWER PROTECTION PRODUCTS

TRANSFORMER BASED FILTER SERIES (TBF™) POWER FILTERS

Considered to be one of the most significant developments in the power protection industry.
TBF™ Filters contain innovative technology that combines Surge Suppression and Noise
Isolation which filters the noise on the ground to less than 0.5 Volts (US Patent # 6229682).
Exclusive "POVP" Prolonged Over Voltage Protector (US Patent # 6560086) disconnects
the output power if voltage exceeds 155 volts. Exclusive Smart Technology (US Patent
#5721661) protects microprocessor based equipment against reverse polarity or no ground.
The patented TBF™ filters prevent 90% of the power problems experienced by your POS
system, computer, copier and facsimile machine.

LINE CONDITIONERS

Reduces the need for a dedicated line where voltage on ground is present. This transformer
isolation technology is an option to expensive rewiring where poor wiring conditions exist on
older or renovated buildings.

AUTOMATIC VOLTAGE REGULATOR - AVR SERIES
Regulates the voltage to protect equipment against voltage sags and brownouts. Electronic
systems are designed to operate based on a clean and constant supply of AC voltage.
Smart Power Systems' AVR line provides boost & buck capability to eliminate under or over
voltage fluctuations.

UNINTERRUPTIBLE POWER SUPPLIES - UPS SERIES
Smart Power Systems' Uninterruptible Power Supplies (UPS) integrated TBF™ Technology
provide on-line power conditioning.

WARRANTY

Limited Lifetime Warranty

All QPF are guaranteed free of defects in material or workmanship for the life to the original
purchaser --or, they will be repaired or replaced free of charge. See our website for more details -
www.smartpowersystems.com

$25,000 Connected Equipment Warranty

If the Smart Power Systems equipment fails and this failure allows a surge to pass through and
damage the connected equipment, Smart Power Systems will pay for the repair or replacement of
the connected equipment of the original purchaser . See our website for more details ­www.smartpowersystems.com

IMPORTANT

If for any reason you need to return the QPF unit to the manufacturer, you should obtain
an RMA (Return Material Authorization) number before returning the unit. To request an
RMA number please call 1-800-772-7633 or visit the website at
www.smartpowersystems.com/rma.htm

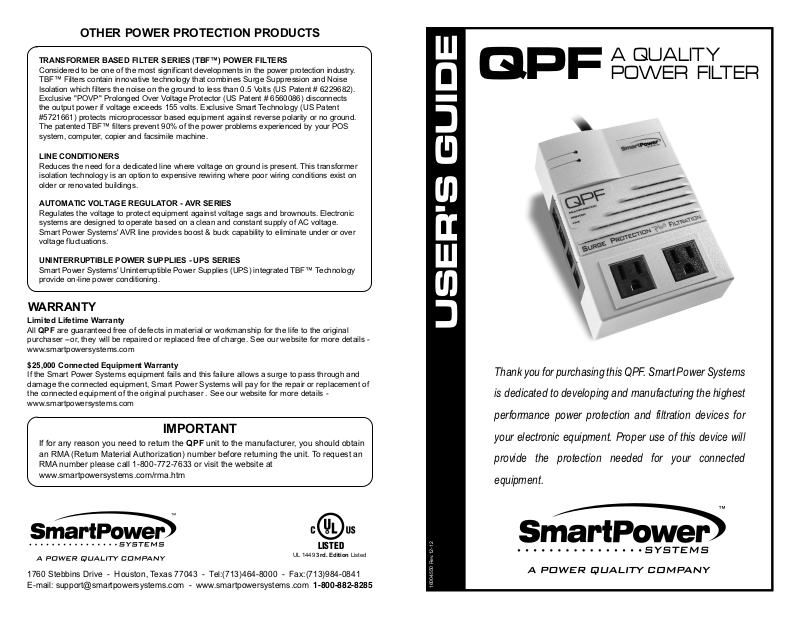

QPF

USER'S GUIDE

USER'S GUIDE

Thank you for purchasing this QPF. Smart Power Systems

is dedicated to developing and manufacturing the highest

performance power protection and filtration devices for

your electronic equipment. Proper use of this device will

provide the protection needed for your connected

equipment.

A QUALITY
POWER FILTER

LISTED

UL 1449 3rd. Edition Listed

1760 Stebbins Drive - Houston, Texas 77043 - Tel:[phone] - Fax:[phone]
E-mail: [e-mail] - www.smartpowersystems.com 1-800-882-8285

16004550 Rev.12-12

Use this user's guide for the following products:

MODEL / PART NUMBER DESCRIPTION

QPF15-1121TN

QPF15-1131TN

QPF20-1211TN

QPF20-1231TN

120V/15A, two outlets , Phone Protection (RJ11) +Network Protection (RJ45)

120V/15A, three outlets, Phone Protection (RJ11) +Network Protection (RJ45)

120V/20A, one pigtail outlet, Phone Protection (RJ11) +Network Protection (RJ45)

120V/20A, three outlets (1)20A and (2)15A, Phone Protection (RJ11)
+ Network Protection (RJ45)

CAUTION

• Use indoors only

• Avoid dropping the unit.

• Only plug the QPF into a three pronged grounded outlet.
This unit is not to be used with any type of ground “lift” or pin eliminator.

• Do not open the QPF unit, there are no serviceable parts
inside. Opening the unit will void your warranty.

CAUTION

This device features an internal protection that will disconnect the surge protective component
at the end of its useful life but will maintain power to the load now unprotected. If this situation
is undesirable for the application, follow the manufacturer's instructions for replacing the device.

CAUTION

Do not install this device if there is not at least 10 meters (30 feet) or more of wire between the
electrical outlet and the electrical service panel.

CAUTION

Risk of Electric Shock. Do not plug into another relocatable power tap.

FEATURES

Modem & Data Protection (model dependent)

Protection is extended to your phone and network lines with the addition of RJ11 and RJ45 jacks
on the QPF unit, creating ideal protection for Fax/Internet/Network users. Power surges can pass
to the connected equipment through phone lines and network cables.

If you have any questions call us at our Tech Support line toll free
1-800-772-7633 or email us at [e-mail]

Installation of TBF™

1.Turn off and un-plug equipment to be protected from wall outlet.

2. Plug the equipment into the QPF .

3. Plug the QPF unit into grounded wall outlet.

4. Your equipment is now fully protected. Place the QPF where monitoring lights can be observed.

unit

Installation for Protection for Telephone Line and Network Cable

TELEPHONE

1. Unplug the equipment's telephone cable from the wall jack and plug into the RJ11 "DEVICE"
on the QPF.

2. Plug the provided telephone cable to the RJ11 jack "LINE" on the QPF.

3. Plug the other end of the telephone cable into the RJ11 wall jack.

CAUTION: - Never install telephone wiring during a lightning storm.

- Disconnect telephone line at the network interface before installing the secondary
protector.

- Intended for indoor use only.

Telephone Line Protection clamping voltage 250-350 vdc.

NETWORK

1. Unplug the equipment's network cable from the wall RJ45 network jack and plug into the RJ45
"DEVICE" on the QPF.

2. Plug the provided CAT5 cable to the RJ45 jack "LINE" on the QPF.

3. Plug the other end of the CAT5 cable into the wall RJ45 network jack. Your equipment is now
fully protected. Place the QPF where monitoring lights can be observed.

Power Cord

Connected

Equipment with

Tel./Modem Jack

Phone

Wall Jack

Connected

Equipment with

Network Jack

Network Jack/ HUB

Network Cord

Phone Cord

Phone Cord

Use the Standard CAT 5 Network Patch cord when using the Network protection RJ45 circuit.

Power Cord

Network Cord

LINE

DEVICE

LINE

DEVICE

POS Guardian

Power Cord

GREEN LIGHT -

The RED light indicates improper ground

RED LIGHT -

connection or reversed power wires which
needs to be corrected.

IMPORTANT: If the RED Light comes on, contact your electrician to
inspect and correct the outlet wiring in order to receive the maximum
protection for your connected equipment.

The green light confirms properly the
connected equipment is fully protected.
