OTHER POWER PROTECTION PRODUCTS
TRANSFORMER BASED FILTER (TBF™) SERIES
Considered to be one of the most significant developments in the power protection industry.
TBF™ Filters contain innovative technology that combines Surge Suppression and Noise
Isolation which filters the noise on the ground to less than 0.5 Volts (US Patent # 6229682).
Exclusive "POVP" Prolonged Over Voltage Protector (US Patent # 6560086) disconnects the
output power if voltage exceeds 155 volts. Exclusive Smart Technology (US Patent
#5721661) protects microprocessor based equipment against reverse polarity or no ground.
The patented TBF™ filters prevent 90% of the power problems experienced by your POS
system, computer, copier and facsimile machine.
MEGA CONDITIONERS
The most advanced electronic power conditioner on the market for half the price and a
quarter of the weight of an isolation transformer. The Mega Conditioner offers ultra power
filtration and conditioning of normal and common mode noise which accounts for 90% of
power-related problems experienced by copiers, mailing systems, large format printers and
other office equipment.
UNINTERRUPTIBLE POWER SUPPLIES - UPS SERIES
Smart Power Systems' Uninterruptible Power Supplies (UPS) integrated TBF™ Technology
provide on-line power conditioning.
WARRANTY
All AVR Plus units are guaranteed free of defects in material or workmanship for 2 years. See our
website for more details - www.smartpowersystems.com
$25,000 Connected Equipment Warranty
If the AVR Plus unit fails during the warranty period and this failure allows a surge to pass through
and damage the connected equipment, Smart Power Systems will pay for the repair or replacement
of the connected equipment of the original purchaser. See our website for more details
- www.smartpowersystems.com

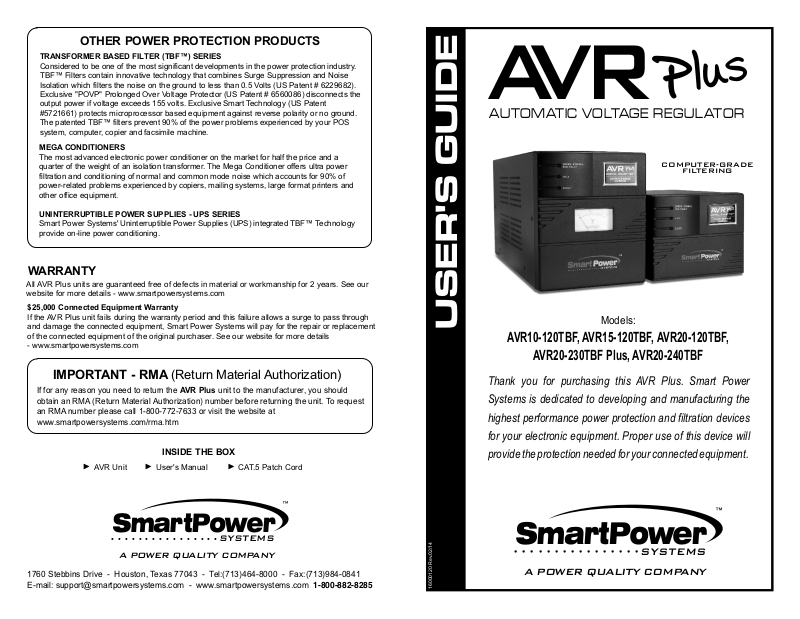

AVR
AU T O M ATIC VO LTAGE RE G U L ATOR
USER'S GUIDE
USER'S GUIDE
AVR10-120TBF, AVR15-120TBF, AVR20-120TBF,
AVR20-230TBF Plus, AVR20-240TBF
Models:
COMPUTER-GRADE
FILTERING
IMPORTANT - RMA (Return Material Authorization)
If for any reason you need to return the AVR Plus unit to the manufacturer, you should
obtain an RMA (Return Material Authorization) number before returning the unit. To request
an RMA number please call 1-800-772-7633 or visit the website at
www.smartpowersystems.com/rma.htm
INSIDE THE BOX
AVR Unit
Smart
• • • • • • • • • • • • • • • •
A POWER QUALITY COMPANY
1760 Stebbins Drive - Houston, Texas 77043 - Tel:(713)464-8000 - Fax:(713)984-0841
E-mail: support@smartpowersystems.com - www.smartpowersystems.com 1-800-882-8285
User's Manual CAT.5 Patch Cord
Power
SYSTEMS
Thank you for purchasing this AVR Plus. Smart Power
Systems is dedicated to developing and manufacturing the
highest performance power protection and filtration devices
for your electronic equipment. Proper use of this device will
provide the protection needed for your connected equipment.
Smart
• • • • • • • • • • • • • • • •
A POWER QUALITY COMPANY
16000120 Rev.02/14
Power
SYSTEMS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
SAVE THESE INSTRUCTIONS: This manual contains important instructions that should
be followed during installation and maintenance of the AVR. • Install this unit in a controlled
environment.
CAUTION
Risk of electric shock, do not remove cover. For service call Smart Power Systems at 800-772-7633.
• Avoid exposing the AVR Plus to direct sunlight, stoves or any other heat source.
• To prevent overheating, make sure that the ventilation openings of the unit are not covered.
• Keep unit away from moisture and dust.
FEATURES
• Common Mode noise filtering: < 0.5 Volts
• Normal Mode noise filtering: <10 Volts
• Voltage regulation
• Over and under voltage protection
• Site wiring fault indicator
• Ground loop current protection
This can be used with copiers, office equipment, computers and telecommunication systems.AVR
DAMAGED UNIT ON ARRIVAL
Inspect unit for any damage on arrival . If damage is found, please contact the shipping company to file
AVR
insurance claim.
SYSTEM DESCRIPTION
FRONT
1
BUCK
2
BOOST
10 Amp
models
15 & 20 Amp
models
3
1. Green LED: Normal
Red LED: Fault
2. Buck
3. Boost
1
2
3
4
FRONT REAR
1. Green LED: Normal
Red LED: Fault
2. Buck
3. Boost
4. Volt Meter Output
Protect Your Wide Format Printer
REAR
5
4. Network protection
5. Output Receptacle (available with 4)
6. Circuit Breaker
7. Input Cord
OUT
OUTPUT
IN
CIRCUIT
BREAKER
2
1. Network Protector (RJ45)
2. Output Receptacles
3. Circuit Breaker
4. Input Power Cord
INPUT
4
6
7
1
3
4
INSTALLATION & OPERATION
1. Check in specifications if the AVR unit has the same voltage rating as required.
2. Connect input power cable to wall outlet with correct voltage rating.
3."Power On" LED will turn on. AVR unit is running normal.
4. Connect power cable of the equipment that needs to be protected to AVR's output outlets.
SPECIFICATIONS
MODEL
Capacity (Amps)
Input Voltage Range (VAC) / 50/60Hz
Output Voltage Regulation (VAC)
Over Voltage Protection -
Spike Transient Let Through Voltage
(Common Mode) (N-G)
Spike Transient Let Through Voltage
(Normal Mode) (L-N)
Input Plug
Receptacles
Dimensions Inches (mm) DxWxH
Net Weight (Lbs./Kgs.)
Shipping Weight (Lbs./Kgs.)
Operating Environment
WARRANTY
Specifications subjects to change without notice.
Disconnects the output
when exceeds: (VAC)
7.9 x 5.4 x 4.5 (200 x 137 x 115)
AVR10-120TBF
10
120 21%±
120±8.5%
Two 5-15R
10 / 4.5
10.75 / 4.9
5-15P
AVR15-120TBF
15
140-145
<0.5V
Two 5-15R
14.7 / 6.7
16.2 / 7.4
Temperature: 0-40°C - 0-90% (non condensing)Humidity:
AVR20-120TBF
20
99-128
120±6.5%
<10V
5-20P
Two 5-20R
16.5 / 7.5
18 / 8.2
2 Years
AVR20-230TBF Plus
230±3.9%
13 x 5.5 x 6.6 (330 x 140 x 168)
198 252-
248-252
<5% of input surge voltage
6-20P
Two 6-20R
18.5 / 8.5
20 / 9.1
20
240 18%-12%+
AVR20-240TBF
240±4%
260-265
18 / 8.2
19.5 / 8.9
Network
RJ45 Jack/HUB
Wall Outlet
Notice for AVR20-230TBF Plus models
ATTENTION
AVR20-230TBF Plus model can be plugged
into a 208V or 240V outlet. It automatically
detects and converts the power voltage
from 208V or 240V to 230V and also
regulates it
