SHOCK WAVE THERAPEUTIC APPARATUS
MODEL NO.: SWAVE-200
Legal Headquarters:
5F,E2,Future city,No.999 High-Tech Avenue,432006,Wuhan
Production Base:
C3-6/C8-2 Building, Optics Valley Union Technology City, HuangRong district, 436032 Ezhou
Tel: +86 027 8818 9920 | Email: [email protected]
www.lotuxs.com
OPRATION MANUAL
Before operating this unit, please read this manual completely.
Page 2
· Safety instructions and precautions
· Attention and Warning
· Electrical and mechanical safety
03
· Product introduction
· Product description
· Performance parameters
· Working and storage environment
· Space requirements
· Instructions
· Power up
· Enter password
· Choose treatment mode
· Starting treatment
· Ending treatment
· Maintenance and troubleshooting
· Clean the equipment
04
06
09
· Simple fault handling
· Guidelines for Clinical Application
· Contraindications
· Adverse event
Appendix 1:Equipment list
10
11
Page 3
Safety instructions and precautions.
· Before starting the equipment, please check the position of the heat sink hole on the back panel
This chapter introduces the safety precautions in detail.
· Attention and Warning
Here are the warnings and cautions in the instructions.
Warning:
· In order to protect the personal safety of the user and the healer, please follow the instructions.
· The equipment contains sophisticated electronic components that may cause serious damage if
dropped, hit or collided.When not in use,it should be properly maintained.We are not responsible for
any damage to the equipment caused by falling, misuse, misuse or negligence.
· Do not immerse the device in any liquid or it will cause damage.
· Except our technical personnel, others are not allowed to overhaul the internal parts of the machine,
including internal adjustment of power supply, cooling system, handle, etc,pay attention to the dan-
gerous high pressure in the unit.
Attention:
· Do not treat areas of the head, chest, abdominal cavity, major nerves and vessels (such as the spine)
that may cause adverse reactions.
· If previously treated areas have unrecovered redness, pain, swelling, bruising, or other side effects,
do not redo the treatment in the near future.
Electrical and mechanical safety
Operators should pay attention to electrical and mechanical safety when using. Please follow the
following instructions when using:
· Before starting the device, please check whether the power cord, foot switch and handle on the back
panel of the host machine are well connected to the port and the power plug is well connected.The
power is in the ac100-240 range and the power switch is located at "O".
of the host machine without object shielding to ensure good ventilation.
· The foot switch is used by the customer's foot. If the customer has any discomfort during the
treatment, the foot switch and handle can be pressed down to stop working.
· Unplug the unit from the wall outlet after use, before cleaning and maintenance.
· Keep all panels and cover plates closed, and do not remove any of the equipment by any person
other than our designated technician parts.
· Disconnect the power when the machine is moving, put the handle in a safe position, handle it
lightly, and the display screen cannot be stressed.
Product introduction
This chapter is a general description of the shock wave therapeutic apparatus
Product description:
The shock wave therapy apparatus uses the electromagnetic wave effect to produce a mechanical
shock wave that can penetrate into human tissues, focusing on the diseased part of the body and
passing through.The over focused shock wave acts on the painful part of the body to stimulate heal-
ing, tissue regeneration, and repair, thus achieving therapeutic goals.
Intended use:
Shock wave therapy apparatus are used by professional operators, such as doctors, nurses and
trained clinicians.Although the operation of the device is not Minimum age is required, but operators
should comply with laws and regulations restricting the use of equipment.Before use, the operator
should complete the equipment The training program.The operation of the equipment is indepen-
dent of previous experience.The device can be used for mild reading impaired vision, corrected
vision, and light vision Degree of hearing impairment or hearing correction is used by operators,
however, operators need to be able to use both arms and hands to operate the system.
Indications
Shock wave therapy apparatus is suitable for non-invasive treatment of bone tissue diseases
(delayed fracture healing and nonunion, early adult femoral head failure Death), and soft tissue
chronic injury diseases (periarthritis of shoulder, vertebra disease, Achilles tendinitis, plantar fasci-
itis, tennis elbow, low back pain, etc.
Foot switch
PORT 1
USB 1 USB 2
Vents
Power cord
PORT2
AC 100-240
-
O
Switch
Handle
SWAVE-200 Operating instructions 03 SWAVE-200 Operating instructions 04
Page 4

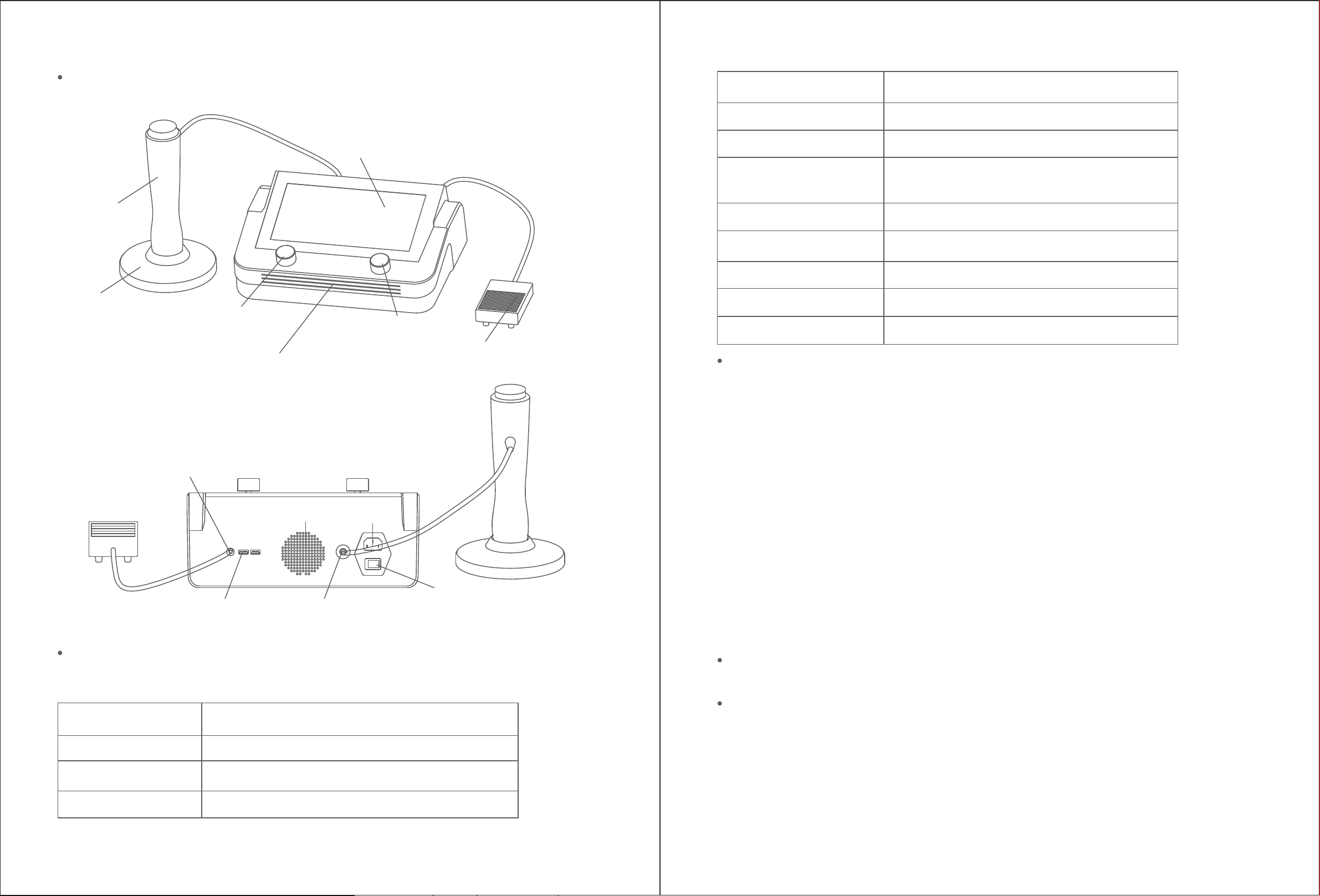

Product Structure:
Switching mode Foot switch
Energy 60-210mJ
Handle
Handle base
Frequency adjusting
knob
Equipment indicator light
Foot switch
Display screen
Energy adjustmen
knob
Pedal/Foot
Frequency 1-16Hz
Continuous/every 4 cycles/every 8 cycles/
Working Mode
every 12 cycles
Handle cooling mode Air cooling
Power source 100~240VAC 50/60Hz
Input power 350W
Size 320(W)mmX133(H)mmX244(L)mm
Weight 3KG
Working and storage environment:
A．Operating environment temp.: 5℃~30℃;Storage environment temp.:5℃~50℃
B．Relative humidity:30%~80%
C．Air pressure:86KPa～106KPa
D．Power supply voltage:AC100-240V 50/60Hz
Note: Exceeding the normal temperature range will shorten the service life of the device.

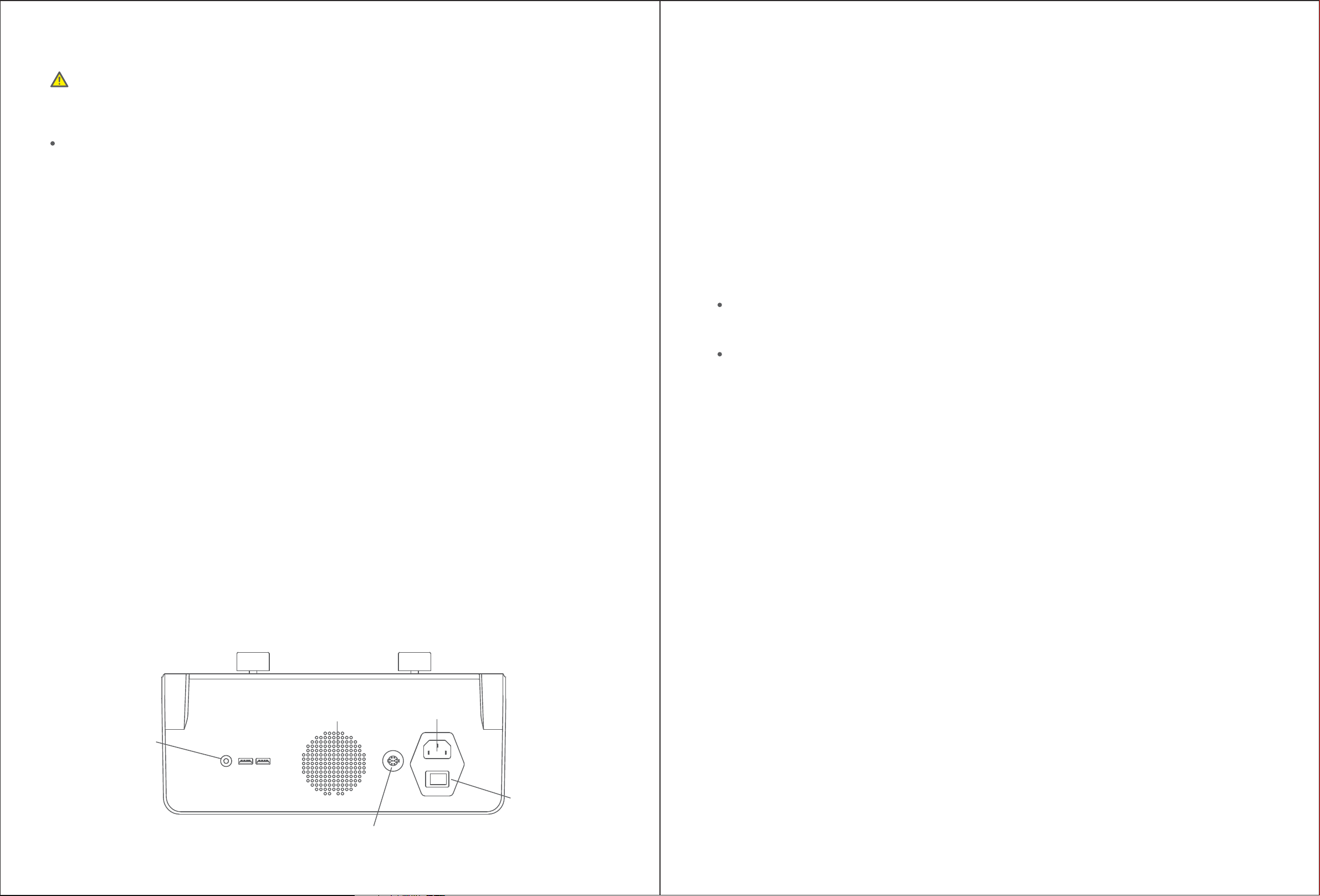

VentsPower cord
AC 100-240
Handle
PORT2
O
-
Power switch
PORT 1
USB 1 USB 2
USB1 program upgrade port
Performance parameters:
Table of performance parameters of shock wave therapeutic apparatus
Item Parameter
Product name Shock wave therapy apparatus
Product Model SWAVE-200
Shock wave mode Electromagnetic type
Space requirements:
The SwAVe-200 measures 25 cm long, 32 cm wide and 14 cm high.The machine should be away from
the hot air inlet and protected with other objects.Hold a distance of more than 60cm, ensuring that
enough air space is left to maintain a comfortable room temperature and heat dissipation require-
ments.
Instructions
This chapter is the operation procedure of shock wave therapeutic apparatus.
Power up
Step 1:Insert the power cord in Figure 3.1 into the AC100-240VC power input port on the rear panel
of the host.
Step 2:insert the foot switch connector in figure 3.2 to the PORT1 foot switch connector on the rear
panel of the main engine, and press the red dot in figure 3.4 up, insert figure 3.3 Handle connector
into PORT2 handle connector port in the same way.
SWAVE-200 Operating instructions 05 SWAVE-200 Operating instructions 06
Page 5
* Note: 1. When the Password is entered incorrectly, a "Password error" error will appear on the inter-
face. Click "Confirm" to return to re-input ; When the Password is re-entered, "Password used" will
appear on the screen and click "Confirm" to return to re-input; 2. A password can only be used for
one treatment, impacting 1500 times. If the machine is turned off and restarted, a new password
needs to be entered to enable to use.
Lock

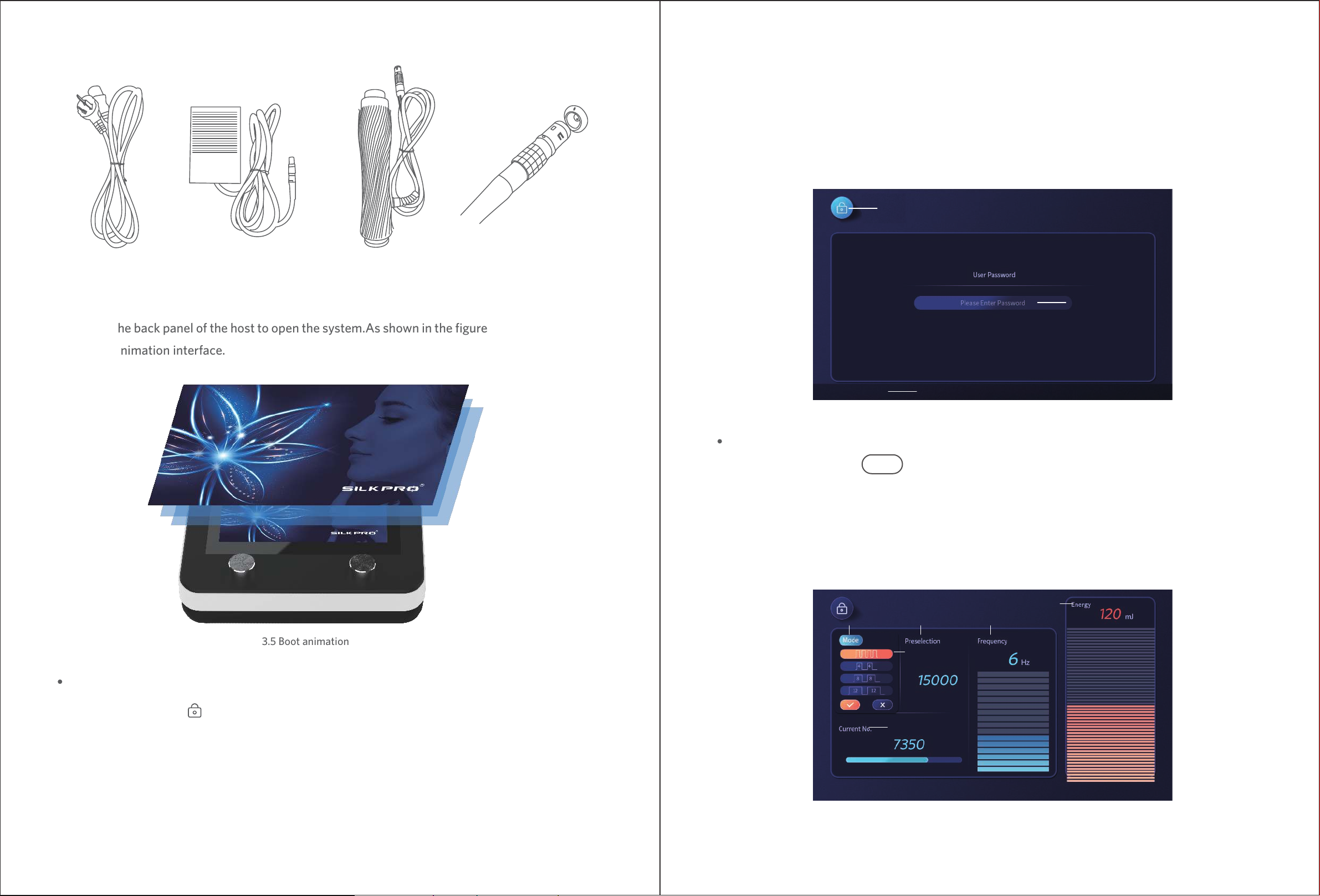

3.1 Power Cord Figure 3.2 Pedal switch
3.3 Handle Figure 3.4 Port connection diagram
Step 3: Insert the power plug in Figure 3.1 into ac100-240V wall power, and then press the power
switch on the back panel of the host to open the system.As shown in the figure, the device enters the
power-on animation interface.
Enter password
SN:SWA1XXXXXXXX
SN number
3.6 Password input interface
Choose treatment mode
Click the treatment mode selection icon in the upper left corner of the main interface, and
Mode
a pop-up window will appear on the interface, showing four modes according to the
patient.Choose the right model for your requirements.After selecting the mode, rotate the
frequency and energy adjustment knob of the front panel of the host to set the frequency and
energy.The amount.Knob clockwise rotation increases, counterclockwise rotation decreases, the
front panel has a "-" "+" symbol indication.
Energy
Mode Preselection
3.5 Boot animation
Four models
Frequency
Enter password
Click the device lock icon in the upper left corner of the interface to enter the password input
interface.Click the "User Password" secret in Figure 3.6 Code input box, enter The Times recharge
Current No.
password provided by our company, and click OK.The interface appears when the password is
entered correctly prompt for Recharge "Recharge Successful", click "Confirm" and return to the
main interface.
3.7 Main interface
SWAVE-200 Operating instructions 07 SWAVE-200 Operating instructions 08
Page 6
Setting of treatment parameters
It is divided into four modes: continuous, every 4 cycles, every 8 cycles and every 12 cycles.(For
example, every 4 cycles means that the foot pedal switch does not move, and the treatment head
stops after launching shock wave for 4 times. Release the foot switch and launch again.
The adjustable range of frequency and energy in each mode is as follows:
When frequency is set at 1 ~ 8Hz, the energy can be set at 60 ~ 210MJ;
When frequency setting is 9 ~ 15 Hz, the energy can be set to 60 ~ 190- (frequency-9) x10 MJ;
When the frequency is set at 16Hz, the energy can be set at 60 ~ 130 MJ.
*Note: when the handle is running and the treatment head is firing the shock wave, the parameters
Clean the equipment
Clean the outer surface of the machine at least once a week with a soft wet cotton ball. A neutral
cleaner can be used, but be careful not to leave liquids.Do not use acid or alkaline cleaner when it
penetrates into the equipment.
After each use, wipe the surface of the treatment head with a soft tissue to keep it clean and free
of oil, and then use 70% ~ 75% of the medicine alcohol disinfection treatment.
Simple fault handling
cannot be adjusted. It is necessary to release the foot switch to suspend the firing adjust parame-
ters.
Starting treatment
Remove the handle from the base of the handle, press the end of the treatment head on the pain
point, step on the foot switch, and the treatment head starts to emit shock wave.The handle begins
to move slowly in circles, covering all areas of pain, gradually increasing in strength and straightening
as far as the patient can handle it until the patient can feel the pain.
Note: In clinical practice, the physician sets the parameters according to the actual situation of the
patient. Shock wave therapy is different for each patient.The frequency of treatment depends on how
sensitive the patient is to pain, and the pain point depends on the patient's description.
Ending treatment
When the patient feels unbearable pain, the parameters can be turned down, or the treatment can
be stopped at the doctor's recommendation and the operator can relax turn on foot switch.As shown
phenomenon probable cause
The power cord is not
No display
When you click an icon on
the display screen, the
system doesn't respond
The system cannot enter
the main interface
properly connected
The power switch is not
pressed
The fuse blew
/
/
measures
Check whether the power cord and
plug are properly connected
Press the power switch on the back
panel of the main engine to "I"
Turn on the fuse box above the
power switch and replace the fuse
Please contact our maintenance
department
Please contact our maintenance
department
in FIG. 3.7 on the main interface, when the current number of rounds reaches the pre-selected value
of 15000, the first treatment is finished and the handle stops run, need to enter recharge password
again.
Guidelines for Clinical Application
Contraindications:
As with any other treatment, it is the physician's responsibility to determine whether swAVe-200 is
Maintenance and troubleshooting
an appropriate treatment option for his or her clients.The use of shock wave therapy equipment is
This chapter is about the daily maintenance of the shock wave therapeutic apparatus performed
by the operator.The operator can only perform the dimensions listed in this chapter.Maintenance
measures, any other maintenance work can only be operated by our authorized technicians.
SWAVE-200 Operating instructions 09 SWAVE-200 Operating instructions 10
contraindicated for:
Page 7
Cancer patients
· Diabetics
· Pregnancy or lactation
· Thrombotic patients(Or patients with thrombotic tendency)
· Patients with anticoagulant dysfunction(or patients with anticoagulants)
· The site through which the head, chest, abdominal cavity, great nerves, and great vessels pass
(spine)
Adverse event:
Transient side effects may occur during treatment, including:
· Turn red · Dull pain
· Swelling · Bruises
* Note: At the end of treatment, the client may experience the side effects listed above.These
symptoms should go away gradually, the dull pain usually goes away within two weeks,but some
customers may stay longer.
Appendix 1:Equipment list
Item Material name Quantity
1
2
3
4
5
6
host machine
handle
handle base
power cord
foot switch
treatment head accessories
1
4
1
1
1
6
SWAVE-200 Operating instructions 11
Loading...
