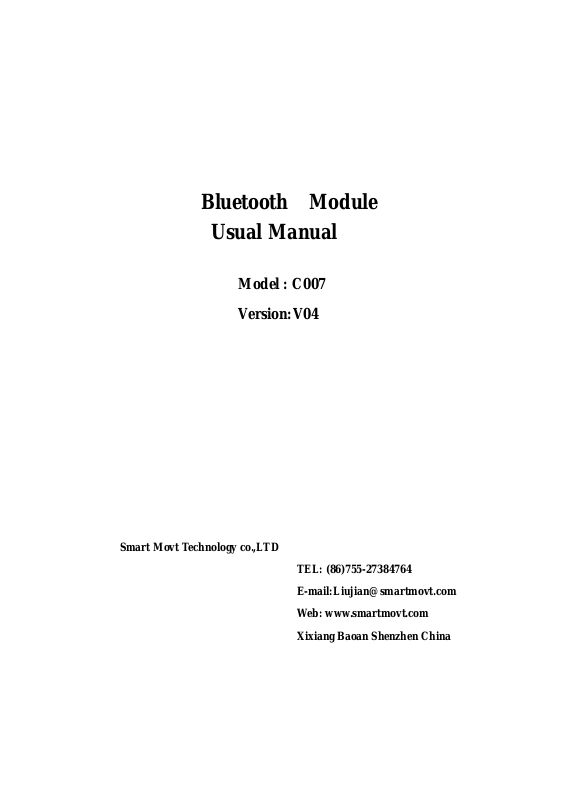

Bluetooth Module
Usual Manual
Model : C007
Version:V04
Smart Movt Technology co.,LTD
TEL: (86)755-27384764
E-mail:Liujian@smartmovt.com
Web: www.smartmovt.com
Xixiang Baoan Shenzhen China
1. Introduction
The module coo7 is high performance and low power. The module
provide a complete Bluetooth system base on DA14580 chipset. this
module completely compliance to Bluetooth V4.2 for low energy smart
watch.
2. Application
The module was only applied to smart movt and smart watch ,which
connect smart watch to APP on mobile phone .
3. The host Shielding design
The shielding design fully enfold the RF circuitry - that includes
shielding the top, all sides, and the bottom. The bottom is a shielding
ground plane, and expressly designed as an effective shield made of
materials such as sheet metal, metal mesh, or a metallic ink coated
material. Any holes in the shield are significantly smaller than the
wavelength of the radiation that is being blocked, to effectively
approximate an unbroken conducting surface.
Module name
C007
Bluetooth standard
Bluetooth 4.2
Chipset
DA14580
Dimension
Φ37.8mm x 0.6mm
Operating Conditions
Operating voltage
2.7V~3.3V
Operating temperature
0℃~50℃
Storage temperature
-20℃~70℃
Electrical specification
Frequency
2402~2480MHz
Receiving sensitivity
0.2%
Receiving distance
25m
4. General specification
(OEM) Integrator has to assure compliance of the entire end-product incl. the integrated RF Module.
For 15 B (§15.107 and if applicable §15.107) compliance, the host manufacturer is required to
show compliance with 15 while the module is installed and operating.
Furthermore the module should be transmitting and the evaluation should confirm that the module's
intentional emissions (15C) are compliant (fundamental / out-of-band). Finally the integrator has
to apply the appropriate equipment authorization (e.g. Verification) for the new host device per
definition in §15.101.
Integrator is reminded to assure that these installation instructions
will not be made available to the end-user of the final host device.
The final host device, into which this RF Module isintegrated" hasto be labelled
with an auxilliary lable stating the FCC IDofthe RF Module,
such as "Contains FCC ID: 2ANC7-C007
"This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1)this devicemay not cause harmful interference, and
(2)this devicemust accept any interference received, including
interference thatmay cause undesired operation."
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This transmitter/module must not be collocated or operating in conjunction with any other antenna or transmitter.
