SmartLabs 2441ZT Users Manual

On-Line Owner’s Manual Containing

Cautionary FCC & IC Statements

March 1, 2012

Portable Wireless Zone Thermostats

Models: 2441ZT and 2441ZTH

FCC ID: SBP2441ZT

IC: 5202A-2441ZT

The owner’s manual below may be accessed freely via the Internet

with any web browser and supports the PDF format.

http://www.smarthome.com/2441ZTH.html

Complies with Section 5 of FCC document 784748 D01 Labeling Part 15 18 Guidelines v07
cautionary statements in the user manual may be provided over the Internet.

where

®

TempLinc™ INSTEON

Zone Thermostat

Owners Manual (#2441ZTH)

TempLinc Zone Thermostat Sample

The gray buttons shown above are under the door

of the TempLinc Zone Thermostat

Page 4 of 25 Rev: 3/1/2012 3:06 PM

Quick-Start Guide 1
About TempLinc Wireless Zone Thermostat 1
Preparation 1
Test Operation 1
Adding a Wireless TempLinc Zone Thermostat 2
Control Settings 2
Factory Reset 2
Owner’s Manual & Tech Support 3

About TempLinc Zone Thermostat 7
TempLinc Zone Thermostat– Features & Benefits 7

What’s in the box? 7

TempLinc Zone Thermostat Button Overview 8
TempLinc Zone Thermostat Operation and Programming 9

Thermostat Mode Button Operation 9
TempLinc Zone Thermostat Energy Button Operation 10
TempLinc Zone Thermostat Set Button Operation 11
TempLinc Zone Thermostat Time / Sensor Button Operations 11
TempLinc Zone Thermostat Program Button Operation 12
TempLinc Zone Thermostat Fan and Hold Button Operations 13
TempLinc Zone Thermostat Master Button Operation 14

Optional Waterproof Temperature Sensor Model # 2433A3 14
Installation 15

Tools Needed 15
Preparation 15
Test Operation 15

Adding a Wireless TempLinc Zone Thermostat 16
INSTEON Programming 16

Add TempLinc Zone Thermostat to a Scene as a Controller 16
Removing TempLinc Zone Thermostat as a Controller 18

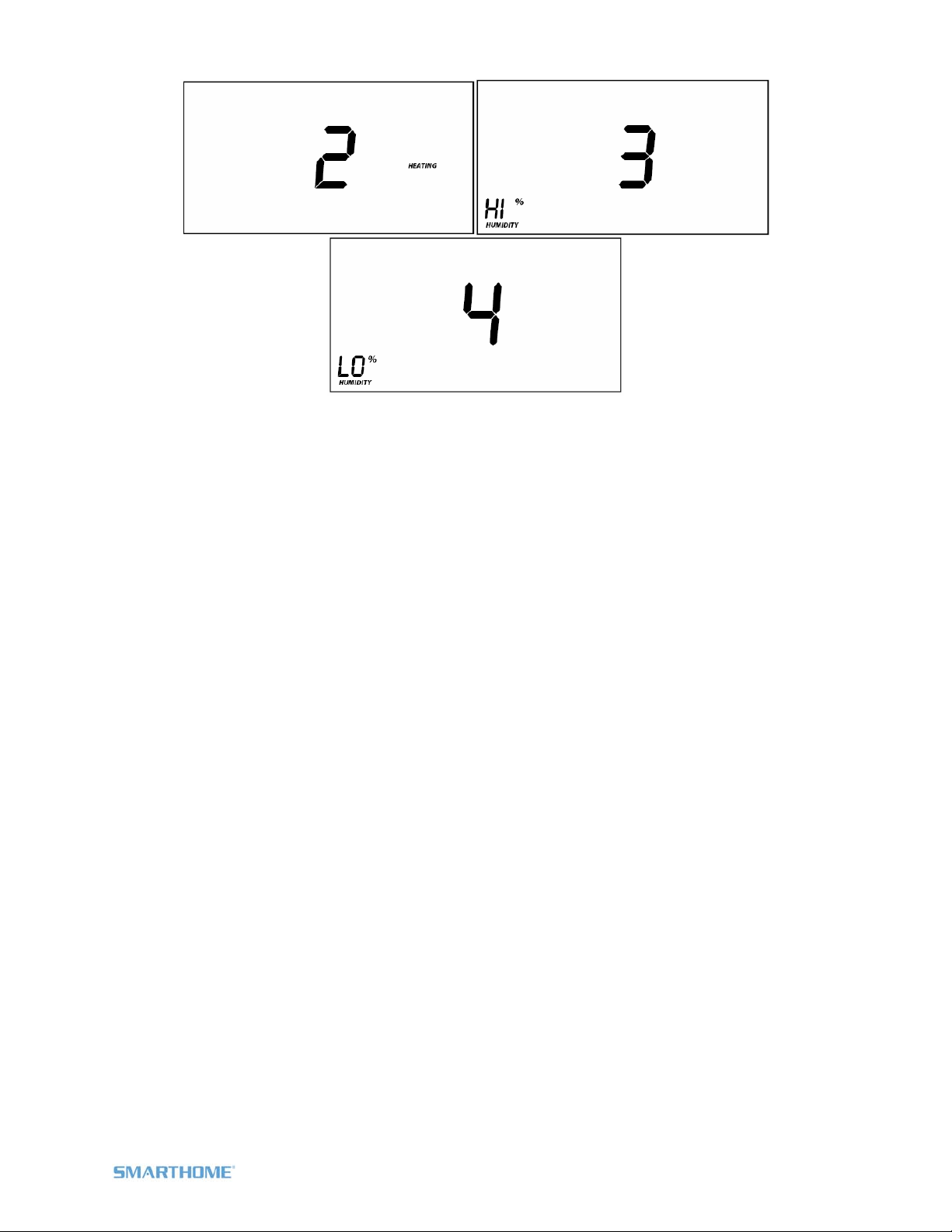

User Setup Mode Overview 20
User Setup Mode 20
Temperature Calibration Mode 23
Humidity Calibration Mode 23

Advanced 2 Stage Heating or Cooling Systems 24
Factory Reset to Default 24
Certification and Warranty 25

FCC & Industry Canada Compliance Statement 25
Limited Warranty 25

Limitations 25

Page 5 of 25 Rev: 3/1/2012 3:06 PM

Page 6 of 25 Rev: 3/1/2012 3:06 PM

About TempLinc Zone Thermostat

TempLinc is a wireless, battery operated, 1-day programmable, INSTEON-compatible thermostat.
TempLinc Zone Thermostat includes a humidity sensor and the ability to communicate via RF to other
INSTEON devices and Thermostats.

TempLinc Zone Thermostat does not connect directly to the HVAC (Heating Ventilating and Air
Conditioning) system. If you want to control the HVAC system you need to install TempLinc Thermostat
and connect it directly to the HVAC system.

TempLinc Zone Thermostat may also be used as a stand alone INSTEON Controller capable of
controlling other INSTEON Responders giving notification based on temperature status, and could turn on
stand alone heaters and fans.

Expand the system by creating extra temperature zones in your home. Simply add wireless TempLinc
Zone Thermostats as accessories to your main TempLinc Thermostat Controller

TempLinc Zone Thermostat– Features & Benefits

- Installs in minutes as a table-top or wall mounted remote thermostat

- Can be added to Scenes as a Controller of INSTEON devices

- Saves energy and money on bills by remotely controlling and automating your thermostat

- Communicates wirelessly over radio frequency (RF)

- Can automatically control remote INSTEON devices when TempLinc Thermostat reaches a
specified temperature or humidity level or switches to A/C or Heat

- Reports changes in thermostat modes, temperature, humidity, setpoints and fan to compatible
automation controllers or software

- Stores setup state in memory so settings aren’t lost during battery changes or power outages

- Two-year warranty

- Controllable via the web using Smartlinc

- Battery Features:

o Goes into battery-saving standby mode 1 minute after last button press
o Wakes up every minute to get current local temp info which will remain displayed in standby
o The TempLinc includes low battery warning and a beeper
o If the temperature changes, it will do a broadcast as required to other connected devices

- When connected to always on power supply:

o Remains awake always rather than going to standby
o Participates in the INSTEON network as a message hopper
o Good for hard to reach locations such as attic or basement where battery changes may be

difficult

What’s in the box?

- TempLinc Zone Thermostat

- Quick-Start Guide

- Table-top stand (removable for wall mounting)

Page 7 of 25 Rev: 3/1/2012 3:06 PM

TempLinc Zone Thermostat Button Overview

TempLinc Zone Thermostat Sample

1

2

The gray buttons

shown here are

under the door

of the TempLinc

Zone

4 5 6 7 8 9 3

1) Up/Down adjusts the temperature setpoint based on the mode you are currently in

2) Mode allows the user to select the current operational mode of the HVAC system. It cycles
between Off, Heat, Cool, Auto, and Programmed Auto.

3) Energy button is designed as a quick access option that saves energy (and money). When
pressed, it will setback the setpoint by a specified value. The default value is 4 degrees from the
current setting. To change the default offset value to be a value other than 4 degrees, you must
use software, such as HouseLinc.

4) Hold over-rides a pre-programmed mode

5) Fan cycles between Auto and Always On – no indication given for “Auto Fan”

6) Master makes this device the master temperature controller. Pressing “Master” does not alter any
scene or screen settings. It just defines this TempLinc Zone Thermostat as the master
temperature controller.

7) Time / Sensor button allows you to set the date and time. It cycles between hour, minute, and
time format.

8) Program button allows you to setup the various pre-programmed user modes

9) Set button is for INSTEON Add to and Remove from Scenes with a TempLinc Thermostat and
other INSTEON devices. It functions like Set does for other INSTEON devices.

Page 8 of 25 Rev: 3/1/2012 3:06 PM

TempLinc Zone Thermostat Operation and Programming

Thermostat Mode Button Operation

Off Mode:

 No setpoints are shown
 Up / Down do not do anything

Cool Mode:

 Only Cool setpoint is shown
 Up / Down changes the Cool setpoint

Heat Mode:

 Only Heat setpoint is shown
 Up / Down changes the Heat setpoint

Auto Mode:

 Both cool and heat setpoints are shown
 Up / Down move both together with a

set gap

Programmed Auto Mode:

 The program mode is active in this mode

(Return annotation)

 It is not in the other 4 modes (Off, Heat,

Cool and Auto)

 Both Cool and Heat setpoints are shown
 Up / Down move both together with a set

gap

 When the thermostat moves to the next

time period, the setpoints will be adjusted
accordingly

Note: To adjust gap between the setpoints in auto mode, press mode to select Heat and set the
temperature you desire. Then press mode to select Cool and set the temperature you desire.
Press Mode button to return to Auto and the settings will reflect your changes.

Note: If you set the Heat and Cool to the same temperature, Heat will automatically be moved down 2
degrees which is the minimum allowable gap.
