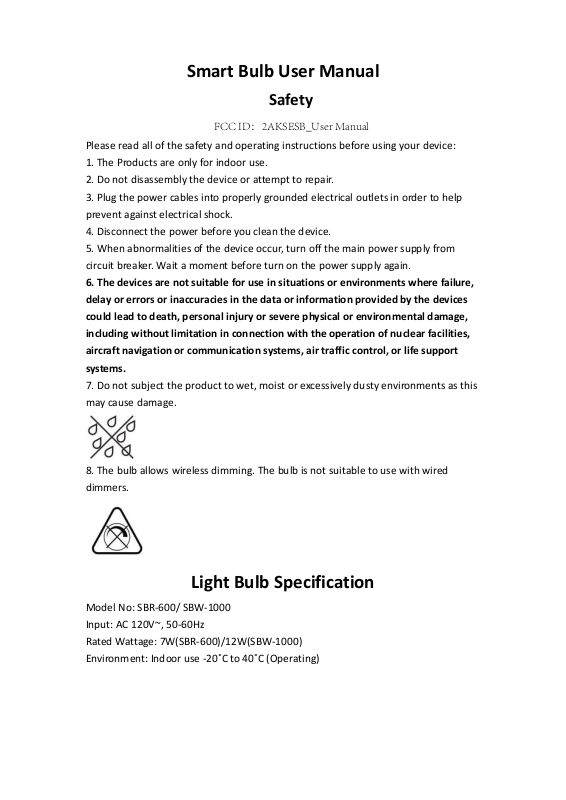

Smart Bulb User Manual
Safety
FCC ID：2AKSESB
Please read all of the safety and operating instructions before using your device:
1. The Products are only for indoor use.
2. Do not disassembly the device or attempt to repair.
3. Plug the power cables into properly grounded electrical outlets in order to help
prevent against electrical shock.
4. Disconnect the power before you clean the device.
5. When abnormalities of the device occur, turn off the main power supply from
circuit breaker. Wait a moment before turn on the power supply again.
6. The devices are not suitable for use in situations or environments where failure,
delay or errors or inaccuracies in the data or information provided by the devices
could lead to death, personal injury or severe physical or environmental damage,
including without limitation in connection with the operation of nuclear facilities,
aircraft navigation or communication systems, air traffic control, or life support
systems.
7. Do not subject the product to wet, moist or excessively dusty environments as this
_User Manual
may cause damage.
8. The bulb allows wireless dimming. The bulb is not suitable to use with wired
dimmers.
Light Bulb Specification
Model No: SBR-600/ SBW-1000
Input: AC 120V~, 50-60Hz
Rated Wattage: 7W(SBR-600)/12W(SBW-1000)
Environment: Indoor use -20˚C to 40˚C (Operating)
Installation and Setup of SmartiBlue Devices
To install SmartiBlue app
Step 1:
Download the SmartiBlue app from App Store® or Google Play™.
Once SmartiBlue app is installed, launch the app. Make sure your mobile device are
connected with Wi-Fi and Bluetooth.
Step 2:
Log into your Smart iBlue account, or sign up a new account by following the
instruction in the app.
Step 4:
After you have logged in your account, tag ‘+’ icon in the home page of your Smart
iBlue app
Instruction For Smart Bulb
Step 1: Install the Light Bulb and turn on the main power switch.
Step 2: The light bulb will blink steadily, waiting to be associated with your mobile
device. In ‘My Device’ page, tap -‘Search Device’ to search the device
Step 3: The light bulb will blink rapidly when associating. The light becomes solid
when the device associated successfully. The notice would be popped out to indicate
that the association process is finished.
Here is the control panel. You have successfully set
up your SmartiBlue Light Bulb now.
: Change the Color
: Switch to White Light Mode
: Turn on/off the light
: Refresh
: Proceed to the schedule setting
: Show the brightness and color of the light
Disconnection of Smart Bulb
1. Power cycle the bulb 6 times, enter the disassociate mode.
2. The light bulb will blink steadily, waiting to be associated with your mobile device.
It means you successfully disassociate the smart bulb.
Note
This device complies with part 15 of the FCC Rules. Operation is subject to the
ollowing two conditions:
f
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—
Reorient or relocate the receiving antenna.
—
Increase the separation between the equipment and receiver.
—
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. such modifications could void the
user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20
cm between the radiator and your body, and fully supported by the operating and installation
configurations of the transmitter and its antenna(s).
