Smarthome WP8901 User Manual

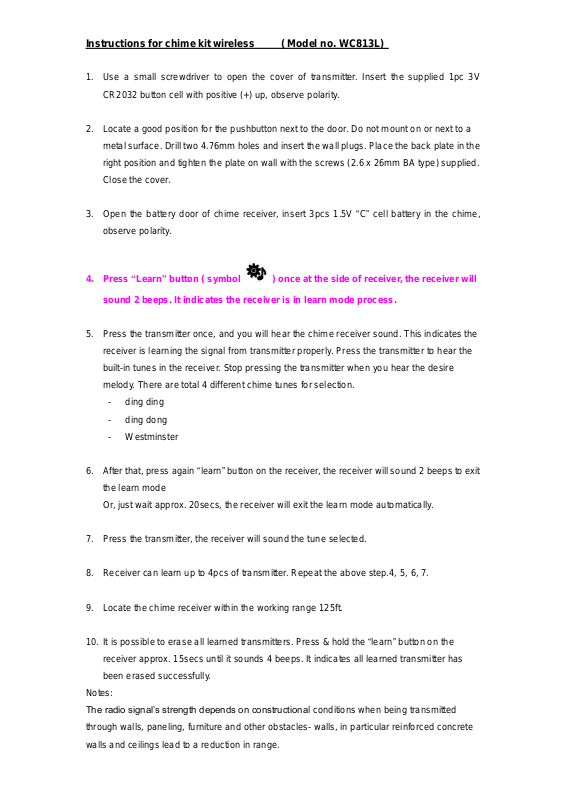

Instructions for chime kit wireless ( Model no. WC813L)

1. Use a small screwdriver to open the cover of transmitter. Insert the supplied 1pc 3V
CR2032 button cell with positive (+) up, observe polarity.

2. Locate a good position for the pushbutton next to the door. Do not mount on or next to a
metal surface. Drill two 4.76mm holes and insert the wall plugs. Place the back plate in the
right position and tighten the plate on wall with the screws (2.6 x 26mm BA type) supplied.
Close the cover.

3. Open the battery door of chime receiver, insert 3pcs 1.5V “C” cell battery in the chime,
observe polarity.

4. Press “Learn” button ( symbol ) once at the side of receiver, the receiver will
sound 2 beeps. It indicates the receiver is in learn mode process.

5. Press the transmitter once, and you will hear the chime receiver sound. This indicates the
receiver is learning the signal from transmitter properly. Press the transmitter to hear the
built-in tunes in the receiver. Stop pressing the transmitter when you hear the desire
melody. There are total 4 different chime tunes for selection.

- ding ding

- ding dong

- Westminster

6. After that, press again “learn” button on the receiver, the receiver will sound 2 beeps to exit
the learn mode
Or, just wait approx. 20secs, the receiver will exit the learn mode automatically.

7. Press the transmitter, the receiver will sound the tune selected.

8. Receiver can learn up to 4pcs of transmitter. Repeat the above step.4, 5, 6, 7.

9. Locate the chime receiver within the working range 125ft.

10. It is possible to erase all learned transmitters. Press & hold the “learn” button on the
receiver approx. 15secs until it sounds 4 beeps. It indicates all learned transmitter has
been erased successfully.

Notes:
The radio signal’s strength depends on constructional conditions when being transmitted
through walls, paneling, furniture and other obstacles- walls, in particular reinforced concrete
walls and ceilings lead to a reduction in range.
