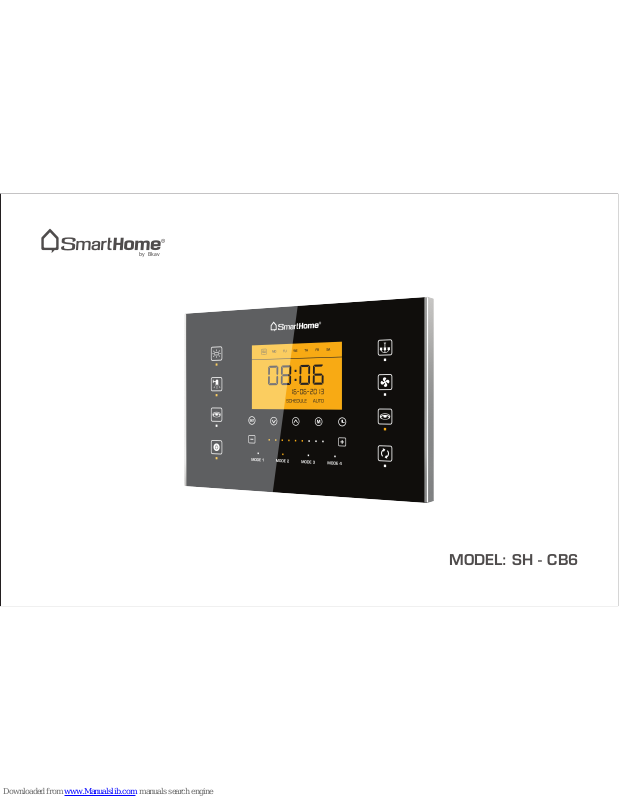

MODEL: SH - CB6
by Bka v
Page 2
www.smarthome.bkav.com
UGCB6/V1.0/0614
893 60439 3UGCB 6
Mfr Code:
Copyright © 2014 Bkav SmartHome Co., Ltd. All rights reserved.
SAFETY
MARK
1128
Page 3
USER GUIDE SMART ROOM
SH - CB6
Bkav SmartHome technology company limited
Page 4
Electric shock may cause injuries or death. Before installing, repairing or cleaning the device, you
must ensure that the device’s power has been disconnected.
This work should be done by technicians or Customer Contact Center to avoid electric related
accidents.
The environmental regulations must be complied when discarding or recycling the device or its
wrapping.
Thank you for choosing Bkav SmartHome’s Smart room product SH - CB6. When choosing Bkav SmartHome’s
product, you will get the best warranty service and installation support from our technicians.
This document gives useful information during installation and usage time. You should read carefully the manual
and keep it in case you need.
The Smart room SH – CB6 is the product of Bkav SmartHome Company and has been registered regarding
designs, utility solutions and quality certification. All violations such as copying designs and product ideas are
subject to the current copyright laws of the Socialist Republic of Vietnam.
Copyright © 2014 Bkav SmartHome Co., Ltd. All rights reserved.
1
Usage notice
Warning
Page 5
Usage notice
Safety instruction
Introduction
General introduction
Product package
Specifications
Device usage
Overview of function
LCD screen
Standby screen
Turn on/off the device
Set forcible turn off time
Set forcible turn on and auto mode
Set forcible turn on time
Turn on/off Relay channels
Turn on/off Triac channels
Preset favorite mode
Change preset favorite mode
Set up schedule
View schedules
Turn on/off schedule based operating mode
1
4
5
5
6
7
8
8
9
10
11
11
12
12
13
13
14
14
15
16
16
2
Table of Contents
Page 6
Set date and time
Set auto turn on time for control channels
Usage of remote control SH - RM6
Turn on/off the device
Select favorite scenario
Wiring diagram
Installation instruction
Mount the power control box into in-wall box
Mount stainless steel mounting frame
Place touch control screen onto stainless steel band
Contact information
17
18
19
19
19
20
21
21
24
25
26
3
Page 7
Warning
Do not use the device at the different voltage from that specified on the device.
Disconnect the device’s power before installing, uninstalling or repairing the device.
Do not leave the device in high-temperature environment.
Do not demount the device if not necessary.
Do not clean the device with corrosive substances.
Comply with the safety instructions and warnings of this manual.
4
Safety instruction
Page 8
General introduction
5
Introduction
Smart Room device SH - CB6 is a control panel supporting the control of 6 power channels with remote control
function.
Designed with capacitive touch technology, anti-scratch Gorilla Glass, aluminum monolithic cover, LCD screen,
the device will make your house modern and luxurious. In addition, the remote control function combined with
human sensor SH – D1 will bring comfort in daily use.
Device’s functions:
Capacitive touch technology.
Remote control.
Supports 6 power channels
Supports 4 favorite scenario modes.
Supports 24 programs scheduling operation for 6 channels.
Supports human sensor so that the device’s operation is completely automatic.
Page 9
Product package
Power control box
In-wall box
Stainless steel
mounting frame
Touch control screen
User’s guide (book)
Signal cable
and screws
Remote control
SH - RM6
(Battery included)
2 wire connectors
6
MODE 1
MODE 2 MODE 3 MODE 4
SET
MODEL: SH - CB6
by Bkav
Page 10
Specifications
Voltage
Dimensions of power control box (L x W x H)
Weight of power control box
220VAC - 50/60Hz
140 x 90 x 55 mm
420 gram
Dimensions of touch control screen (L x W x H)
Weight of touch control screen
180 x 120 x 8,6 mm
290 gram
Operating temperature 60ºC max
Output power rating 4 Relay channels 220VAC 15A max
2 Triac channels 220VAC 5A max
7
Page 11
MODE 1
MODE 2 MODE 3 MODE 4
Relay turn-on/off button
Button to decrease output
power of Triac channels
Button to increase output
power of Triac channels
Buttons to select
favorite modes
Mode switching button
Button for forcible/
auto turn-on
Second triac button
Time setting button
Button for entire,
forcible turn on/off
First triac button
Button to set schedules
Status indicator light
LCD screen
Triac dimming
level indicator
Button to increase/
decrease the setting values
8
Device usage
Overview of function
Page 12
LCD screen
9
Day
Power channel is on
Power channel is off
Date – Month - Year
Time
Sensor based
operation mode
Delete the
available schedule
Schedule based
operation mode
Number of set schedule
Notice: In setting mode, flashing point marks the selected one. Users can change setting values here.
Page 13
Standby screen
10
Day
DD-MM-YYYY
Time
Sensor based
operation mode
Schedule based
operation mode
Page 14
MODE 1
Turn on/off the device
11
Set forcible turn off time
To set time to turn off the device forcibly:
Touch and hold Power button < > in more than 10 seconds.
Touch button < > to set hour/minute.
Touch button < > to adjust the setting values.
Notice: Forcible turn off time is when the device does not operate on human sensing basis. After this period,
human sensing will run to help the device function automatically.
Notice: Sleep mode forcibly turns off some light channels, devices in a certain period of time. In this mode,
user can still adjust the light and device needed.
When indicator light is off, touch Power button < > to turn on the device.
When indicator light is on, touch Power button < > to switch to sleep mode.
When indicator light is on, touch and hold Power button < > in more than
3 seconds to turn off all devices.
Touch Power button < > to turn on/off the device:
Indicator light
Page 15
12
Set forcible turn on and auto mode
Set forcible turn on time
When the device is on standby screen:
Touch and hold button < > in more than 3 seconds
to switch to forcible turn on mode settings.
Touch button < > to set hour/minute.
Touch button < > to change setting values.
When the device is on standby screen, touch button < >
to view whether forcible turn on time has been set or not.
Screen for forcible turn on time setting
Notice: When the forcible hour/minute is < >, then the
auto mode is no longer valid.
Touch button < > to select Forcible turn on or Auto mode:
Indicator light being on means the device is in forcible turn on mode.
On the contrary, indicator light being off means the device is in Auto mode.
Notice: In forcible turn on mode, the device’s operation is independent from human
sensor.
In auto mode, the device operates based on human sensor (SH – D1). In this mode,
the sensing time of SH – D1 must be 10 seconds.
Indicator light
Page 16
Turn on/off relay channels
Turn on/off triac channels
13
Touch one of the buttons < > to turn on/off
the corresponding channels:
The below indicator being lighting means the corresponding channel is On.
The below indicator being not lighting means the corresponding channel is Off.
Touch button < > to turn on/off the corresponding channels:
You touch once, if the corresponding channel is off, then the
indicator light below it will flash and the light line between the
two buttons < > will be on.
Touch button < > to decrease power.
Touch button < > to increase power.
The light line between two buttons < > represents
power frequency. Each light is equivalent to 10% of power.
To turn off one channel, touch the corresponding button twice.
MODE 1
MODE 2 MODE 3 MODE 4
MODE 1
MODE 2 MODE 3 MODE 4
Notice: Each device control channel can be adjusted to control
any power channel of power control box by reconfiguring the
software.
Page 17
Preset favorite mode
Change preset favorite mode
14
To select the favorite preset mode, touch the corresponding
symbols:
Touch button < > to select favorite mode 1.
Touch button < > to select favorite mode 2.
Touch button < > to select favorite mode 3.
Touch button < > to select favorite mode 4.
< > < > < > < >
Adjust light and device based on users’ desire:
Touch and hold one of the following symbols in more than 3 seconds:
The corresponding indicator light flashes 10 times.
Use < > and < > to adjust auto turn-on time of the
corresponding modes.
Touch and hold Mode in more than 3 seconds to save setting mode.
MODE 1
MODE 2 MODE 3 MODE 4
MODE 1
MODE 2 MODE 3 MODE 4
MODE 1
MODE 1
MODE 2
MODE 2
MODE 3
MODE 3
MODE 4
MODE 4
Page 18
Set schedules
15
When the device is on standby screen:
Touch and hold button < > in more than 3 seconds
to switch to settings screen.
Touch button < > to select setting parameters:
1 - to select schedule. Then, select devices,
lights you want to schedule, if the below indicator lights,
the channel is selected.
2 - to select the status ON, OFF
and CLEAR for the selected schedule.
3 - to adjust hour.
4 - to adjust minute.
5 - to select the day, touch button < > to change the status.
Example: < > the day selected, < > the day not selected. Touch button < > to select the next day.
Touch button < > to change setting values.
1
2
3
4
5
Notice: Repeat steps to install desired schedules. When the installation is completed, touch and hold button
< > in 3 seconds to save the schedule. After 20 seconds, if there is no other change, the program will
exit without saving values changed before.
Page 19
16
View the set schedules
Turn on/off schedule based operating mode
When the device is on standby screen:
Touch button < > to view the schedules.
Touch button < > to view all schedules, one by one.
Touch button < > to change the schedule if necessary.
Setting manipulation is similar to the mentioned process on page 15.
When the device is on standby screen:
Touch and hold button < > in more than 3 seconds
to turn on/off schedule based operating mode.
When the device is operating based on schedule,
< > is displayed on LCD screen.
Schedule based
operating mode
Page 20
Date and time setting
17
1 23 4 5
When the device is on standby screen:
Touch and hold button < > in more than 3 seconds
to switch to settings screen.
Touch button < > to select settings parameters:
1 - to adjust hour.
2 - to adjust minute.
3 - to adjust date.
4 - to adjust month.
5 - to adjust year.
Touch button < > to change setting values.
Notice:
Upon completion, touch and hold button < > to save the setting. After 20 seconds, if there is no other
change, the setting program will exit without saving values changed before.
When the device is on standby screen, touch button < > to select 12-hour mode or 24-hour mode.
Page 21
Set auto turn on time for control channels
18
To set auto turn on time for each control channel:
When the device is on standby screen.
Touch and hold in 3 seconds the control channel button for
auto turn on time of which you wish to change.
Touch button < > to set minute/second.
Touch button < > to change setting values.
If the setting values are < > then the set channel will not operate based on sensor.
Time difference between the setting values should be at least 1 minute to avoid the simultaneous turn off
of all channels after the set times end.
Auto turn on time is the period in which the device turns on upon detecting user till its auto turn off.
Notice:
MODE 1
MODE 2 MODE 3 MODE 4
Page 22
Turn on/off the device
Select favorite scenario
19
Usage of remote control SH - RM6
To select the favorite scenario by remote control:
Press <1> to choose the scenario < >.
Press <2> to choose the scenario < >.
Press <3> to choose the scenario < >.
Press <4> to choose the scenario < >.
When the indicator light is off, press Power < > to turn on the device.
When the indicator light is on , press Power < > to switch to sleep mode.
When the indicator light is on , press and hold Power < > in more than 3 seconds
to turn off all devices.
Press Power < > to turn on/off the device:
MODE 1
MODE 2
MODE 3
MODE 4
SET
SET
1
4 2
3
Page 23
L
N
Made in Vietnam
SAFETY
MARK
1128
Neutral wire
Light
Live wire
Input supply
100-240VAC
Model: SH - D1
100-240V
50/60Hz
Smart Light Device
by Bkav
C1 C2 C3
INPUT
100-240
VAC
N
L
C4 C5 C6
SS
OUTPUT
N
C1
5A 5A 15A 15A 15A 15A
C2 C3 C4 C5 C6
20
Wiring diagram
Sensor - L
Neutral wire - N
Neutral wire
Line wire
100-240V 50/60Hz
SH - D1
Page 24
Mount the power control box onto in-wall box
Installation instruction
Step 1: Remove the screw hole
covers (3) out of the power
control box (2).
Step 2: Connect wires to their
connectors (4) in accordance with
the wiring diagram on page 20,
and plug the connectors onto
their corresponding locations on
the power control box (2).
Note: The order of wire
connectors can be found on
the device’s cover.
Necessary: Remove the screw
holes (3) gently and with
suitable tool to avoid scratch-
ing the box.
1
21
Screw hole cover
Wire connector
Power control box
In-wall box
1
2
3
4
Page 25
2
22
Step 3: Insert the power control
box (2) onto the in-wall box (1),
then fasten the 4 M4 screws (5).
Necessary: Power control box
(2) must be tightly mounted on
the in-wall box (1).
Power control box
M4 screw
In-wall box
1
2
5
Page 26
23
3
Step 4: Place the screw hole
covers (3) on their corresponding
holes.
Step 5: Insert connecting cable
(7) to the power control box (2).
Necessary: The screw hole
covers (3) must neatly lay on
their holes, it must not be
loose and wobbly.
Arrange the wires neatly, use
lanyard to tighten and fix the
wires.
Notice: The green part of the
cable facing outwards.
Power control box
Screw hole cover
In-wall box
1
Connecting cable
Green part of connecting cable
7
2
3
Page 27
Mount stainless steel mounting frame
24
M4 screw
Stainless steel
mounting frame
In-wall box
1
5
6
4
Mount the stainless steel mount-
ing frame (6) onto the in-wall box
(1). Neatly place the frame (6) on
the wall before tightening it by the
4 M4 screws (5).
Necessary: The stainless
steel mounting frame (6)
must be neatly and tightly
placed, check for the band’s
balance with Niveau.
Page 28
Place touch control screen onto stainless band
25
Step 1: Put touch control screen
(8) in the direction of stainless
steel mounting frame (6).
Connect the Connecting cable (7)
onto the touch control screen (8).
Step 2: Place touch control
screen (8) as the arrow (a)
directs onto the frame(6).
Step 3: When touch control
screen (8) fits the frame (6), push
in (b) arrow’s direction until a “tak”
sound produced.
5
Touch control screen
Installation direction of touch control screen
Stainless steel
mounting frame
In-wall box
Connecting cable
Power control box
a
MODE 1
MODE 2 MODE 3 MODE 4
b
1
2
6
7
8
Notice: Touch control screen
(8) must firmly and neatly sit
on the wall.
Notice: The green part of the
cable facing outwards.
Page 29
If there is any problem related to the product, please contact our Customer Contact Center:
Customer Contact Center: (+1) 202 386 6779
26
Contact information
Page 30
Beyond the comfort !
Loading...
