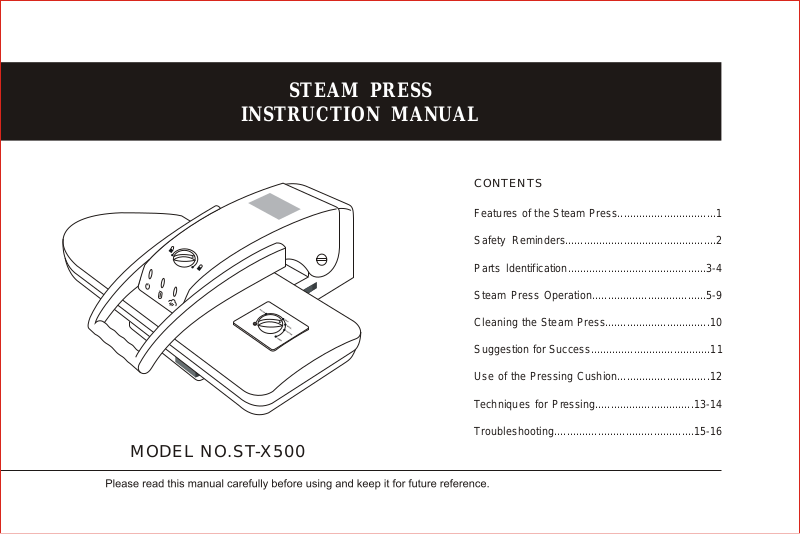

Smartek ST-X500 User Manual

STEAM PRESS

INSTRUCTION MANUAL

MODEL NO.ST-X500

CONTENTS

Features of the Steam Press................................1

Safety Reminders.................................................2

Parts ldentification.............................................3-4

Steam Press Operation.....................................5-9

Cleaning the Steam Press..................................10

Suggestion for Success.......................................11

Use of the Pressing Cushion..............................12

Techniques for Pressing................................13-14

Troubleshooting.............................................15-16

Features of the Steam Press

Your Steam Press provides clean, professional results every time!

The pressing surface is seven times larger than most hand-held irons
Can reduce ironing time up to 50%
Mutiple dry and steam settings; burst setting removes stubborn wrinkles
Variable temperature control
Automatic shut-off safety feature while open or closed with audible alert
Automatic wake-up feature
Power indicator light
Over 100lbs. of even pressure makes for easy-to-use one hand operation
Protects delicate fabrics like silk
Non-stick ironing pad cover
Locking handle makes unit portable
Stores upright
Operate sitting down or standing up

Steam press Instruction Manual

Page1

SAFETY REMINDERS

WARNING - Read all of the instructions and then save them for future reference.

TO PROTECT against the risk of electric shock, DO NOT

immerse the appliance in water.

ALWAYS turn the switch to the OFF position before plugging in or

unplugging the unit.

DO NOT let the cord hang over the edge of counters.
DO NOT allow the cord to touch hot surfaces.
ALWAYS allow the appliance to cool completely for at least thirty

minutes before storing.

ALWAYS put the appliance in a secure place on a table or counter

when using.

DO NOT move the appliance without unplugging it first.
The appliance has very hot surfaces - DO NOT allow unsupervised

children to use the appliance.
ALWAYS disconnect the appliance from the outlet BEFORE

filling with or removing water. Be careful to avoid spilling water
on the appliance when filling.

USE DISTILLED WATER in the appliance. DO NOT use
perfume or products containing alcohol in the appliance.

ALWAYS disconnect the appliance when not in use.

DO NOT use the appliance if the cord gets damaged. Return the

appliance or have the cord repaired by a licensed electrician.

DO NOT operate the appliance if it has been dropped or damaged.

DO NOT disassemble the appliance. Incorrect reassembly can

cause a risk of electric shock. Send it to an authorized service
center for repair.

DO NOT operate another high wattage appliance on the same
circuit.

a

If an EXTENSION CORD is necessary, use a 13 Ampere cord (for

110V/120V) appliances. Cords rated for less amperage may
overheat.

This appliance MUST BE grounded. DO NOT alter the plug or

attempt to defeat this feature.

Be careful. Burns can occur from touching HOT METAL PARTS,

HOT WATER or STEAM.

Page2

Steam press Instruction Manual

IDENTIFYING THE STEAM PRESS PARTS

1. The Pressing Handle raises and lowers the Pressing Plate. By

lowering the Pressing Handle until it reaches the lowest point
possible you automatically obtain maximum pressure.

2. The Locking Knob will lock together the Pressing Plate and Ironing

Board. Use the Locking Knob to carry or Store the Steam Press.

3. The Steam Burst Button on the end of the handle grip produces a

burst of steam when pressed.

4. The Pressing plate is the temperature controlled surface that heats

and presses the fabric.

5. The Ironing Board is the padded surface that holds the fabric during

pressing.

6. The Power Indicator Light is illuminated when the unit is on.

7. The On/Off Switch can be pushed to turn the power on and off.

8. The Ready Light goes off when the Press has reached the selected

temperature.

9. The Steam Ready Light goes on when unit is ready to produce

bursts of steam.

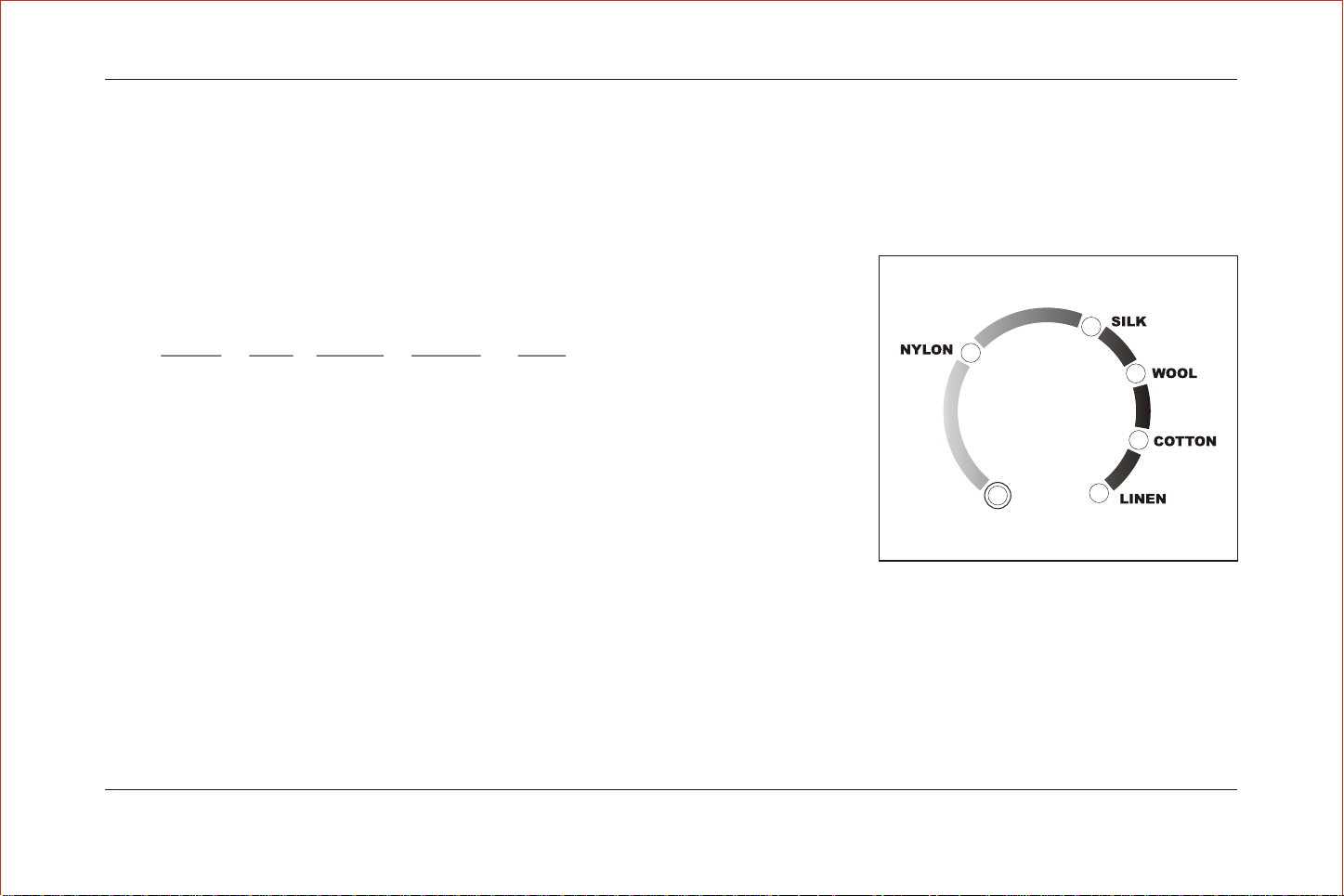

10. The Temperature Control dial is used to set the desired

temperature for each fabric.

11. The Water Tank slides forward and is filled through holes in the

top. The Water Level can be seen through the front of the tank.
Slide the tank forward for a better view.

Steam press Instruction Manual

Page3

12. The Ironing Board Cover is removable and washable for extended use.

a

13.The Pressing Cushion is a fabric covered pad used for pressing gathered or contoured

areas such as sleeves, darts, and yokes.

14. A plastic water Spray Bottle is used for dampening fabric before pressing.

15. A Water Container is used for filling the Water Tank.

16. Power light.

17. Temperature Ready Light.

18. Steam Ready Light.
Automatic features of the Steam Press include Auto Shut-Off and Auto Wake-up. These

multiple function safety features turn off electric power to the heater when the Pressing plate
has been left against the Ironing Board for more than 10 seconds OR if the Pressing plate is left
in the open (up) position without use after approximately 15 minutes. The heating ability of
the unit is restored when the Pressing plate is lowered or raised from its current position.

IMPORTANT NOTE: Auto Shut-Off does not mean power is totally cut off. Power is always

on, the Power Light remains on as well until the Power Switch is OFF.
To turn the power ON again, press the ON/OFF Switch to the OFF
position, then back to the ON position.

The following information is provided for service by a qualified electrician only:
Rated voltage: 110V/120V; 60Hz; 1300W

W ARNING: This appliance must be grounded. Use only the proper type outlet when plugging in the appliance. Do not attempt to override

the ground wire feature.

Page4

Steam press Instruction Manual

STEAM PRESS OPERATION

STEP1 - PREPARATION FOR USE

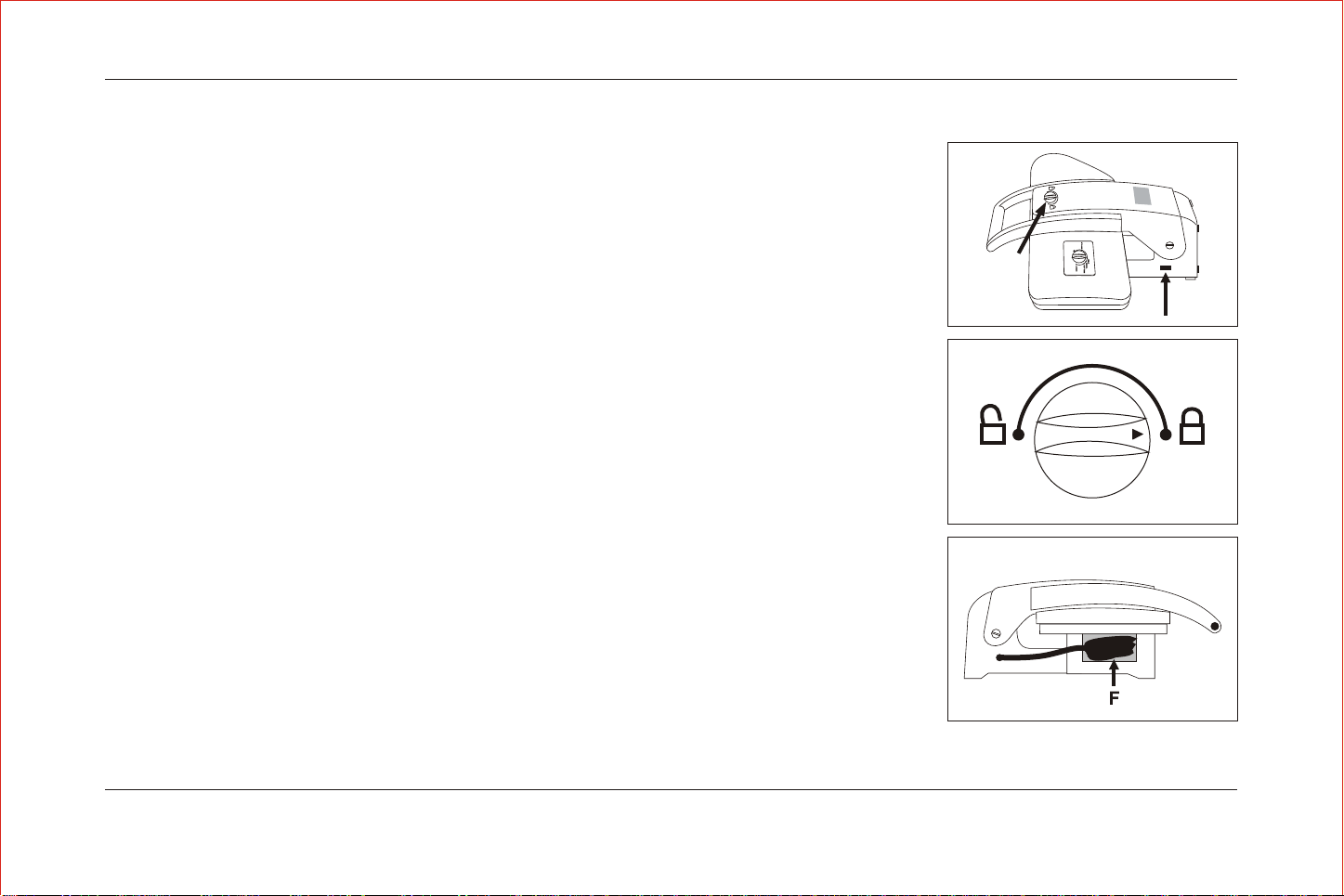

Set the appliance on a sturdy work surface. Unlock the Locking Knob.

STEP 2- FILLING THE WATER TANK

BEFORE PLUGGING IN THE APPLIANCE, fill the water tank;
a. Always make sure the appliance is unplugged before filling the tank.
b. Fill the Water Tank with the Pressing Plate lifted to the raised (up) position. Slide the Water

Tank towards the front of the unit. It will not come completely out so do not force it to do so.

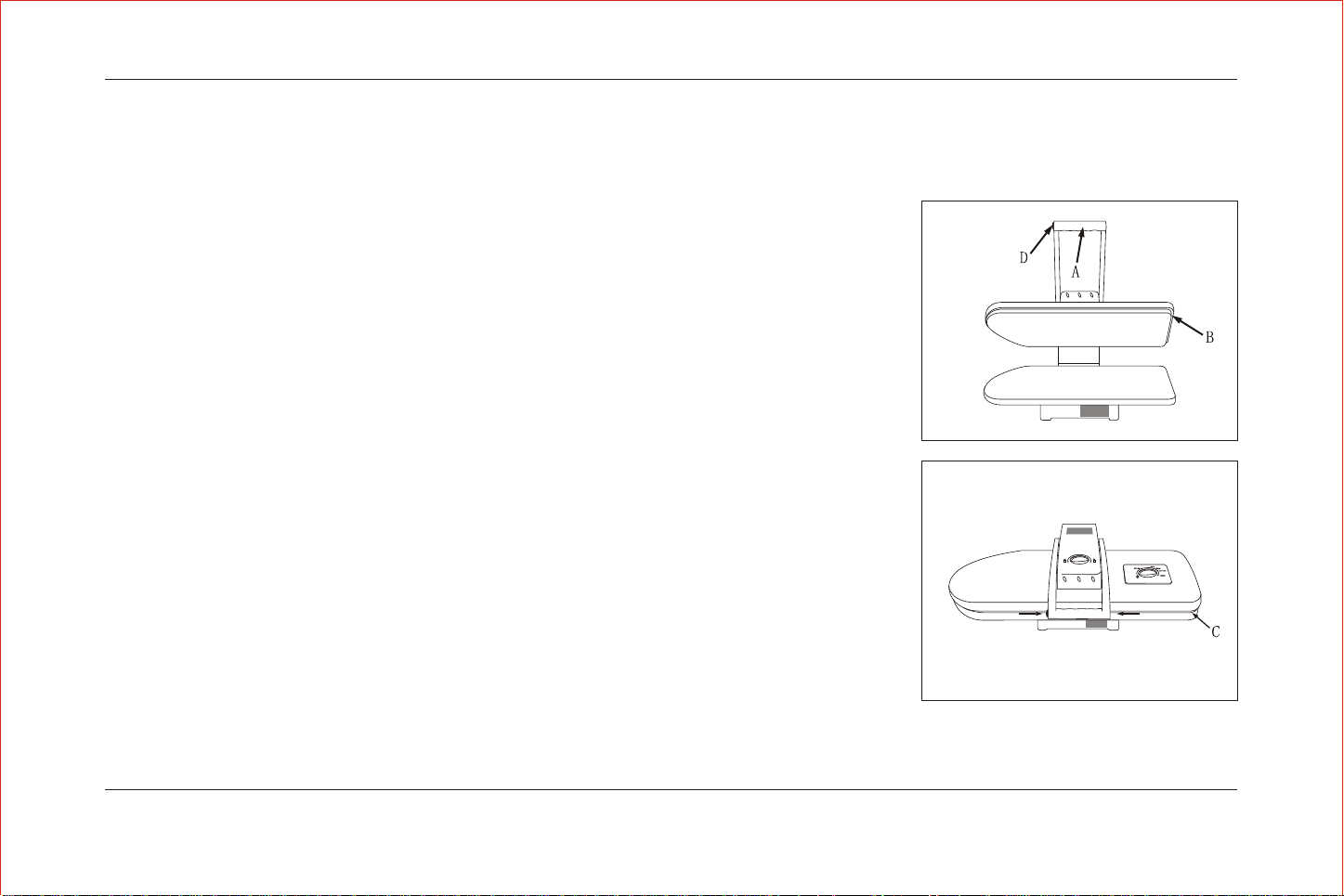

Using the Water Container, slowly pour the water into the Water Tank Fill Holes(C).
c. Be careful to avoid spilling water onto the Steam Press when filling.
d. Slide the Water Tank back into its recessed position.

STEP 3 - TURNING ON THE POWER

a. Always check to make sure the ON/OFF switch is OFF.
b. Make sure the Locking Knob is in the open position allowing free movement of the

Pressing Plate before plugging in the appliance.
c. Lift the Pressing plate to the fully raised (up) position.
d. Plug the appliance into an electric outlet.
e. Turn the ON/OFF switch to the ON position and the yellow Power Indicator light will shine.

The Power Indicator light is the left most light on the indicator row.

Steam press Instruction Manual
