Smartek RX-01 Operating Instructions Manual

Smartek Mini Sewing Machine

Operating Instructions

Model No. RX-01

Read all Instructions Before using this item

♦ The needle is sharp. Use care when

working with the needle to avoid injury.
Keep away from children

♦ When not in use the machine should

always be kept in a locked position.

♦ Operate the machine for 10 seconds,

and then pause for 5 seconds. It can be
used again regularly.

♦ When the machine is not in use it should

always be in a locked position

♦ Note* The spring must be in place before

installing bobbin Thread should flow from
the top right of the bobbin or spool.

♦ Pass thread through the eyelet on the

needle arm

♦ Pass thread over top of tension control.

Do not wrap completely around tension
control

♦ Use the threader to pass the thread

through the needle eye from back to the
front.

♦ If stitching is too tight, turn tension

control slightly to the left.

♦ If stitching is too loose, turn tension

control slightly to the right.

♦ Ensure the machine is in the locked

position

♦ Raise the needle arm to the highest

position by turning the rotary wheel.

♦ *Note: The rotary wheel can be turned in

either direction

♦ Lift up the fastening plate making sure

not to push down on the needle arm( the
arm can still be moved manually even
when the machine is in the
locked position.) Place the
fabric to sew underneath
the fastening plate

♦ Thread two inches of thread through the

needle.

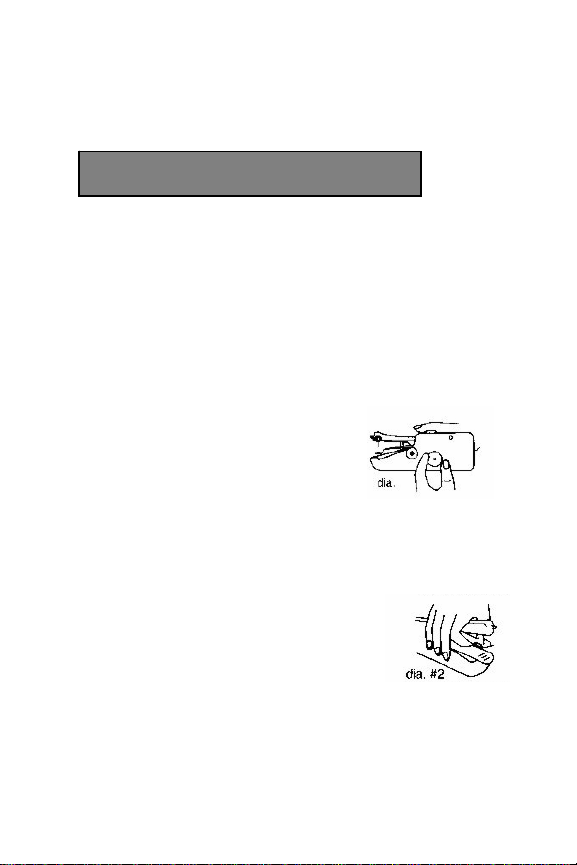

♦ Hold the sewing machine with right hand

and operate power switch with thumb,
other fingers

♦ Unlock the sewing machine. Press the

power switch with your right thumb. The
machine will automatically sew the fabric/
cloth to the left

♦ Use the left hand to hold cloth and

control the direction (do not put pressure
on the machine) when wider stitches are
required, pull cloth to the left a little faster
while you continue sewing. Follow the
centerline on cloth fastening plate to
ensure straight stitching

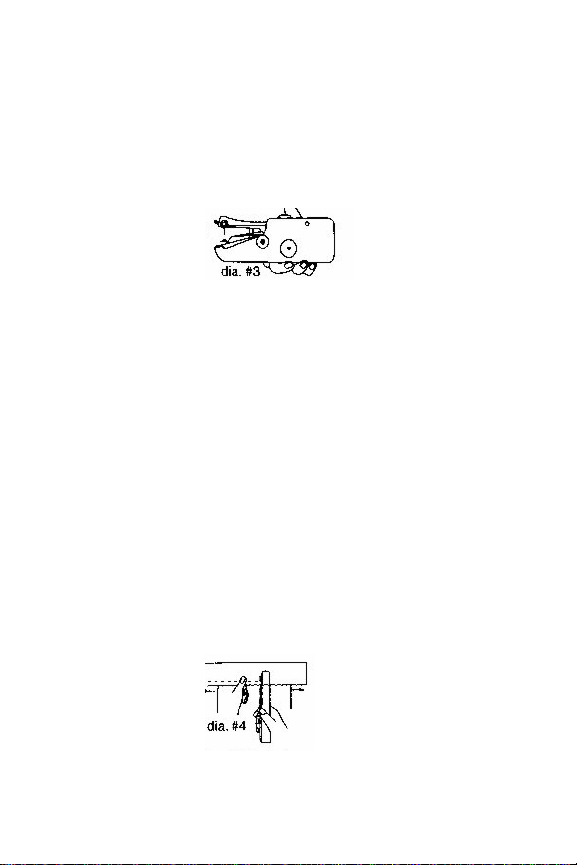

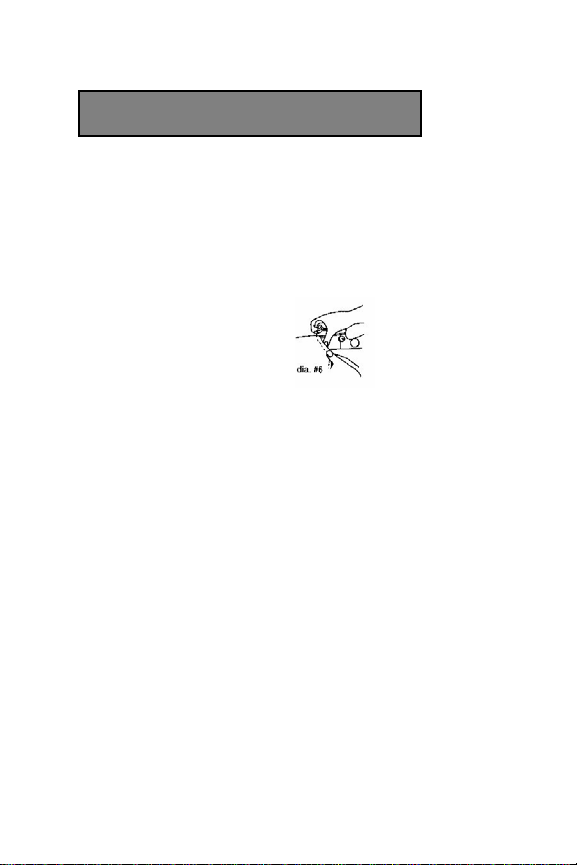

♦ When finish sewing raise the needle arm

to the highest position by turning the
rotary wheel. Use the back of a seam
ripper or scissors to pull the thread out
about three inches then cut it see
diagram

♦ Turn the rotary wheel, lowering the

needle into the cloth. Continue to turn the
rotary wheel until needle arm is again at
its highest position.

♦ Lift up the fastening plate and take off

the cloth to the left, making sure not pull
the thread out the seam doing so can
cause the seam to unravel.

NEEDLE REPLACEMENT

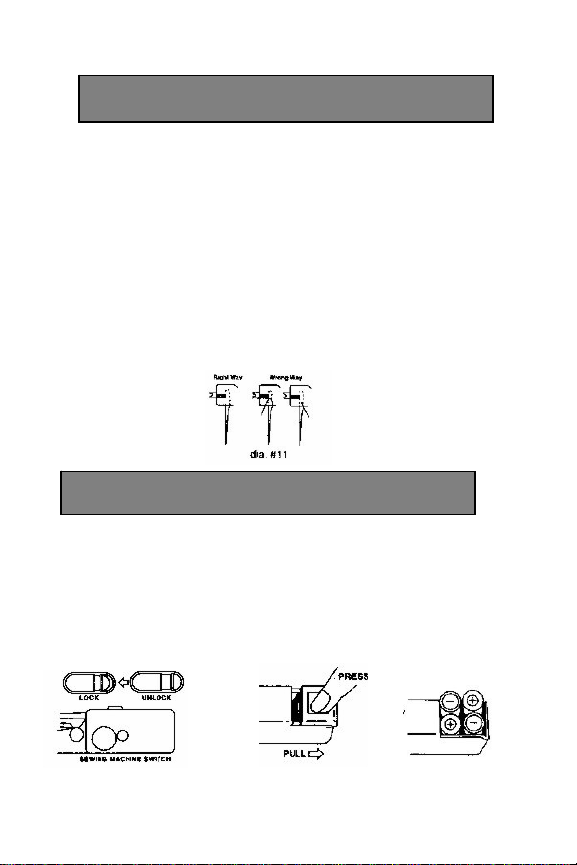

♦ Loosen the set screw with a

screwdriver and take off the old
needle

♦ Always use a # 14 style DHx1

sewing needle.

♦ Needle must be installed with a flat

side of the needle shank facing the
front of min sewing machine

BATTERY REPLACEMENT

♦ Unlock the machine
♦ Pull and press the button
♦ Note make sure machine is in the locked

position prior to replace the batteries.

CO

REGULAR THREAD

To

use a regular Spool of thread

off the

Loosen the bobbin nut and take

1
bobbin.

2 Slide thread spool onto extension spind

Conne3

shaft.

ct the extension spindle on bobbin

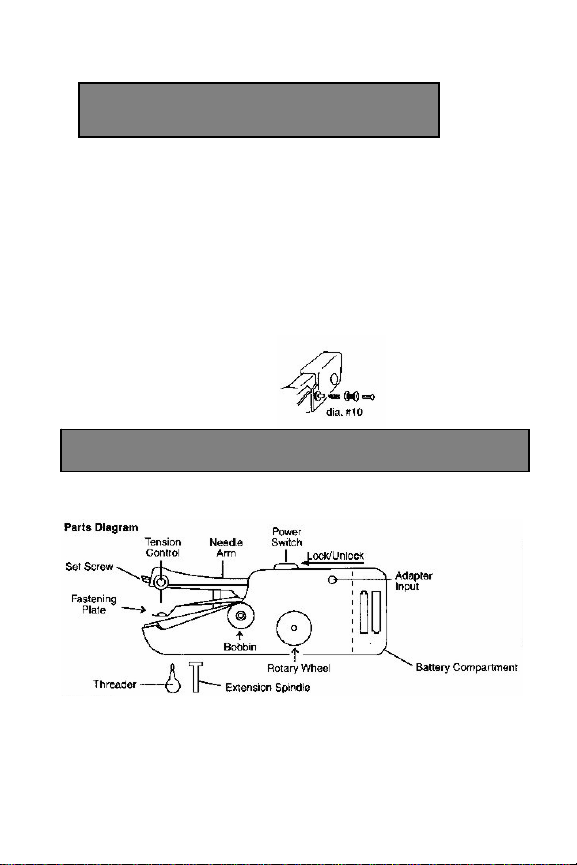

MPONENTS IDENTIFICATION

le.
