USER MANUAL
Longo programmable controller
LPC-2.DO4
Triac Output module
Version 6
SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +386(0) 388 44 00 / e-mail: info@smarteh.si / www.smarteh.si
Longo programmable controller LPC-2.DO4
Written by SMARTEH d.o.o.
Copyright © 2005, SMARTEH d.o.o.
User Manual
Document Version: 6
June, 2019
i
Longo programmable controller LPC-2.DO4
STANDARDS AND PROVISIONS: Standards, recommendations,
regulations and provisions of the country in which the devices will
operate, must be considered while planning and setting up electrical
devices. Work on 100 .. 240 V AC network is allowed for authorized
personnel only.
DANGER WARNINGS: Devices or modules must be protected from
moisture, dirt and damage during transport, storing and operation.
WARRANTY CONDITIONS: For all modules LONGO LPC-2 – if no
modifications are performed upon and are correctly connected by
authorized personnel – in consideration of maximum allowed
connecting power, warranty of 24 months is valid from the date of
sale to the end buyer, but not more than 36 months after delivery
from Smarteh. In case of claims within warranty time, which are based
on material malfunctions the producer offers free replacement. The
method of return of malfunctioned module, together with description,
can be arranged with our authorized representative. Warranty does
not include damage due to transport or because of unconsidered
corresponding regulations of the country, where the module is
installed.
This device must be connected properly by the provided connection
scheme in this manual. Misconnections may result in device damage,
fire or personal injury.

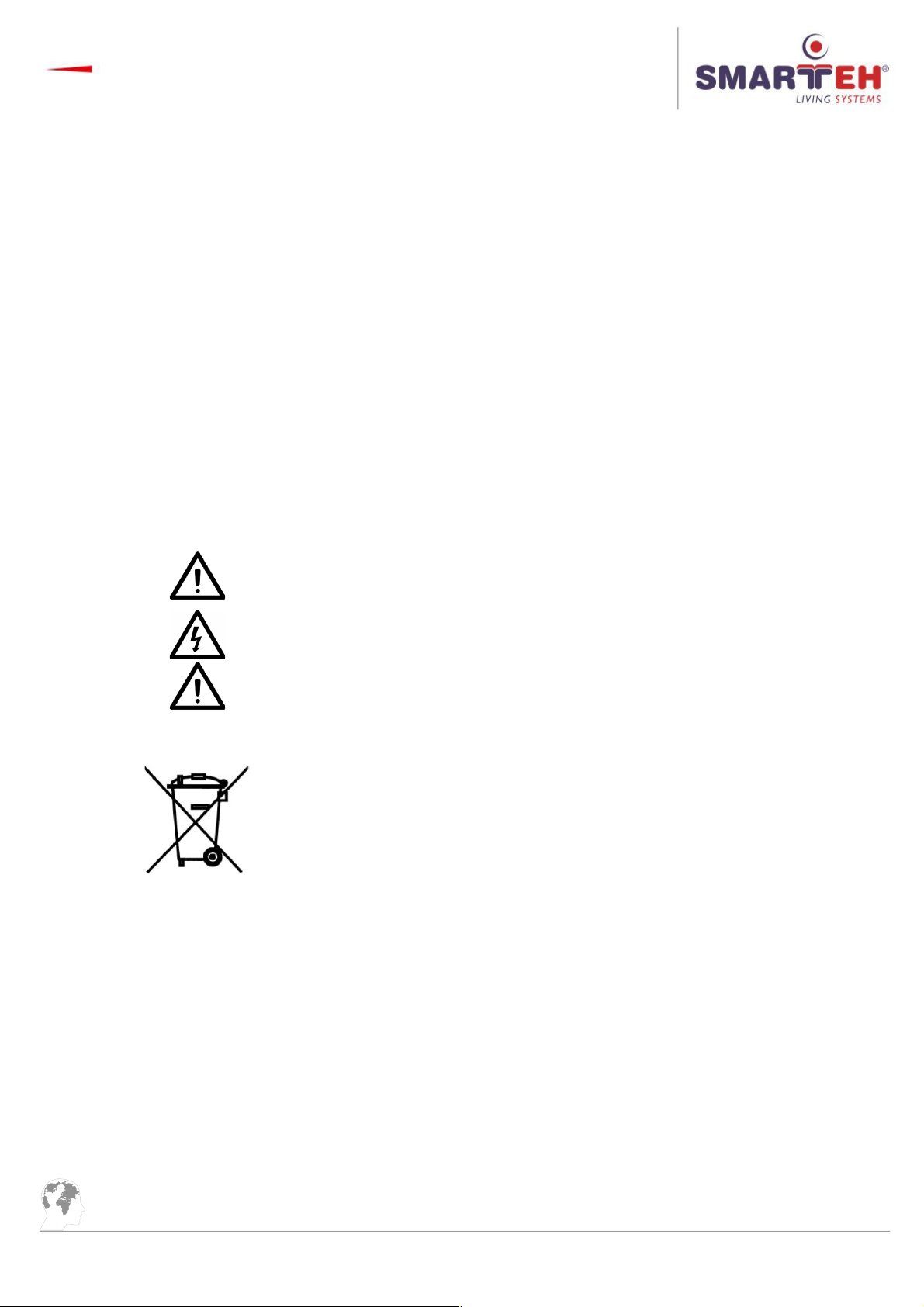

Hazardous voltage in the device can cause electric shock and may
result in personal injury or death.
NEVER SERVICE THIS PRODUCT YOURSELF!
This device must not be installed in the systems critical for life (e.g.
medical devices, aircrafts, etc.).
If the device is used in a manner not specified by the manufacturer,
the degree of protection provided by the equipment may be impaired.
Waste electrical and electronic equipment (WEEE) must be collected
separately!
LONGO LPC-2 complies to the following standards:
• EMC: EN 61000-6-3:2007 + A1:2011, EN 61000-6-1:2007, EN 61000-
3-2:2006 + A1:2009 + A2: 2009, EN 61000-3-3:2013
• LVD: IEC 61010-1:2010 (3
rd
Ed.), IEC 61010-2-201:2013 (1st Ed.)
Smarteh d.o.o. operates a policy of continuous development.
Therefore we reserve the right to make changes and improvements to
any of the products described in this manual without any prior notice.
MANUFACTURER:
SMARTEH d.o.o.
Poljubinj 114
5220 Tolmin
Slovenia
ii
Longo programmable controller LPC-2.DO4
Longo programmable controller LPC-2.DO4
1 DESCRIPTION...................................................................................1
2 FEATURES.......................................................................................2
3 INSTALLATION..................................................................................3
3.1 Connection scheme....................................................................3
3.2 Mounting instructions.................................................................5
3.3 Module labeling........................................................................7
4 TECHNICAL SPECIFICATIONS.................................................................8
5 CHANGES .......................................................................................9
6 NOTES..........................................................................................10
iii
Longo programmable controller LPC-2.DO4
1 DESCRIPTION
LPC-2.DO4 is a snubberless zero crossing triac digital output module. It can be used in a wide range
of operation.
LED indicates triac output contacts' state. If it is on, the module's connection pins are shorted (refer
to the Table 5).
Module is powered from internal BUS.
NOTE: For proper system configuration and data allocation please refer to LPC Composer software
help menu.
1
Longo programmable controller LPC-2.DO4
2 FEATURES
Figure 1: LPC-2.DO4 module.
Table 1: Technical data
Snubberless zero crossing triac output also suitable for use with inductive loads
Long life AC digital output
Small dimensions and standard DIN EN50022-35 rail mounting
2
Longo programmable controller LPC-2.DO4
3 INSTALLATION
3.1 Connection scheme
Figure 2: Connection scheme
Table 2: OUT
1
OUT.1
OUT.2
Triac digital output, 24 .. 230 V AC Make contact triac output (NO)
Table 3: K1
Internal BUS Data & DC power supply Connection to I/O module
Table 4: K2
Internal BUS Data & DC power supply Connection to I/O module
1 Wires connected to the module must have cross sectional area at least 0.75 mm2. Minimum temperature rating of wire
insulation must be 85 °C.
3
K2
LOAD
~
U
K1
LED1
Longo programmable controller LPC-2.DO4
Table 5: LED1
Status Digital output state
On: triac on - conductive
Off: triac off - non conductive
NOTE: Special care must be taken in case of high inductance loads, e.g. Relays or contactors. High
inductance load may cause output fail to close. In that case, use of appropriate snubber is advised.
4
Longo programmable controller LPC-2.DO4
3.2 Mounting instructions
Figure 3: Housing dimensions
Dimensions in milimeters.
EXTERNAL SWITCH OR CIRCUIT-BREAKER AND EXTERNAL OVERCURRENT
PROTECTION: The unit is allowed to be connected to installation with
over current protection that has nominal value of 16 A or less.
RECOMMENDATION ON SWITCH OR CIRCUIT-BREAKER PROTECTION:
There should be two poles main switch in the installation in order to
switch off the unit. The switch should meet the requirements of
standard IEC60947 and have a nominal value at least 6 A. The switch
or circuit-breaker should be within easy reach of the operator. It
should be marked as the disconnecting device for the equipment.
All connections, module attachments and assembling must be done
while module is not connected to the main power supply.
5
36
60
18
90
95
Longo programmable controller LPC-2.DO4
Mounting instructions:
1. Switch OFF main power supply.
2. Mount LPC-2.DO4 module to the provided place inside an electrical panel (DIN EN50022-35
rail mounting).
3. Mount other LPC-2 modules (if required). Mount each module to the DIN rail first, then
attach modules together through K1 and K2 connectors.
4. Connect digital output wires according to the connection scheme in Figure 2.
5. Switch ON main power supply.
Dismount in reverse order. For mounting/dismounting modules to/from DIN rail a free space of at
least one module must be left on the DIN rail.
NOTE: LPC-2 main module should be powered separately from other electrical appliance connected
to LPC-2 system. Signal wires must be installed separately from power and high voltage wires in
accordance with general industry electrical installation standard.

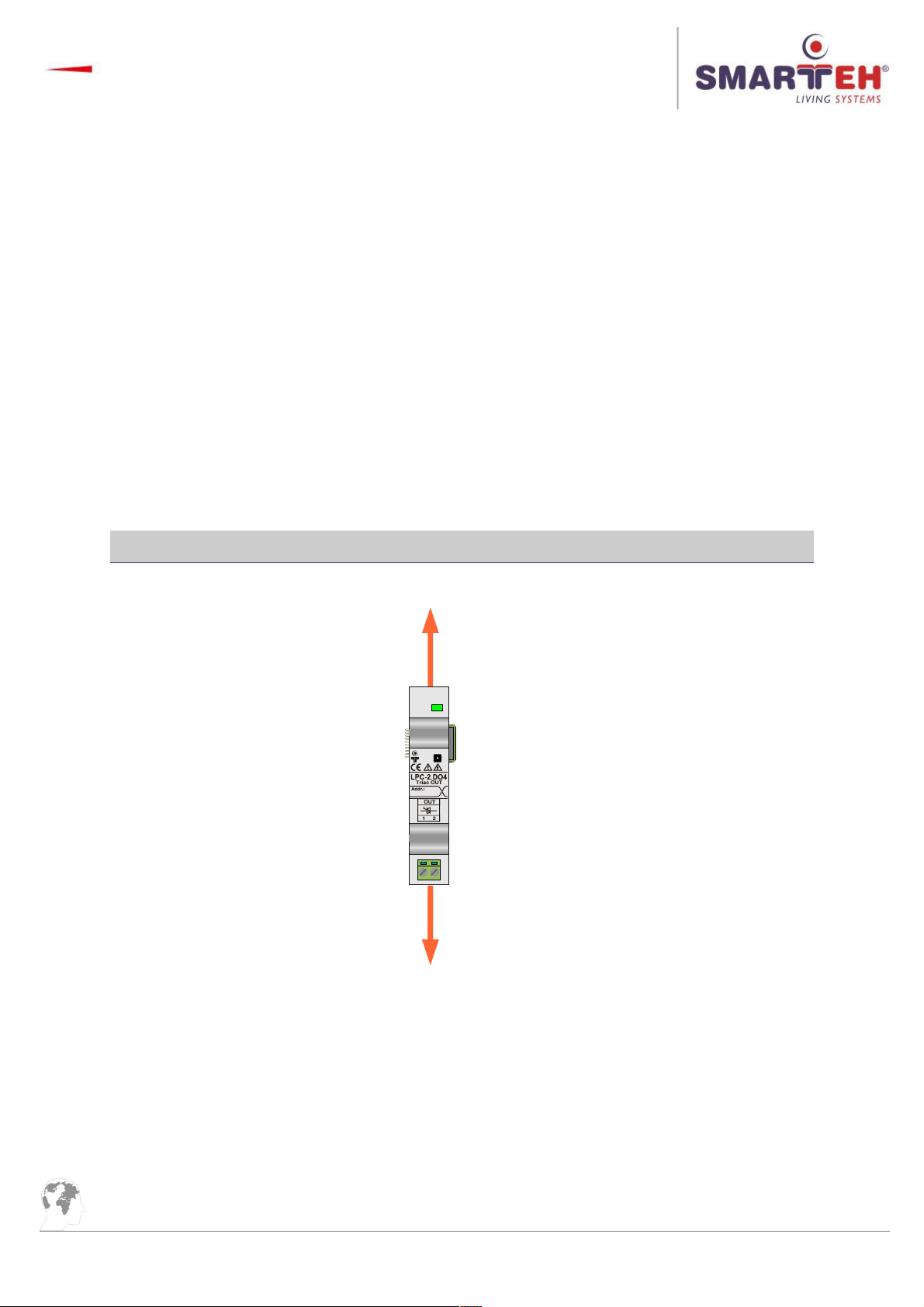

Figure 4: Minimum clearances
The clearances above must be considered before module mounting.
6
60 mm
or more
60 mm
or more
60 mm
or more
60 mm
or more
Longo programmable controller LPC-2.DO4
3.3 Module labeling
Figure 5: Labels on housing
Label 1 (MC3 sample): Label 2 (MC3 sample):
Label 1 description:
1. LPC-2.MC3 is the full product name.
2. P/N:225MC3040001001 is the part number.
• 225 – general code for product family,
• MC3 – short product name,
• 04001 – sequence code,
• 04 – year of code opening,
• 001 – derivation code,
• 001 – version code (reserved for future HW and/or SW firmware upgrades).
3. D/C:16/05 is the date code.
• 16 – week and
• 05 – year of production.
Label 2 description:
1. S/N:MC3-S9-0500000190 is the serial number.
• MC3 – short product name,
• S9 – user code (test procedure, e.g. Smarteh person xxx),
• 0500000190 – year and current stack code,
• 05 – year (last two cyphers),
• 00000190 – current stack number; previous module would have the stack number
00000189 and the next one 00000191.
7
Longo programmable controller LPC-2.DO4
4 TECHNICAL SPECIFICATIONS
Table 6: Technical specifications
Power supply from internal BUS
Power consumption 0.25 W
Rated load voltage 24 .. 230 V AC
Number of digital outputs 1 triac make contacts (NO)
Output current 0.05 .. 1.8 A continuous load
Connection type
screw type connector for stranded wire 0.75 to
2.5 mm
2
Dimensions (L x W x H) 90 x 18 x 60 mm
Weight 50 g
Ambient temperature 0 to 50 °C
Ambient humidity max. 95 %, no condensation
Transport and storage temperature -20 to 60 °C
Pollution degree 2
Overvoltage category II
Electrical equipment Class II (double insulation)
Protection class IP 30
8
Longo programmable controller LPC-2.DO4
5 CHANGES
The following table describes all the changes to the document.
Date V. Description
14.6.2019 6 Additional note added.
1.7.2012 5 CGP General update .
11.5.2010 4 Updated warranty permanence.
30.6.2005 3 The initial version, issued as LPC-2.DO4 module UserManual.
9
Longo programmable controller LPC-2.DO4
6 NOTES
10
