Smartec STC-2800 User Manual

STC-2800 ZOOM Camera

Smartec

( 22x Auto Focus)

www.smartec-security.eu

User Manual

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
product heat..

9. Do not defeat the safety purpose of the polarized or grounding-type
Plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where

exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for
long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.

14. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE
BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE
RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

15. Use Certified/Listed Class 2 power supply transformer only.

thy

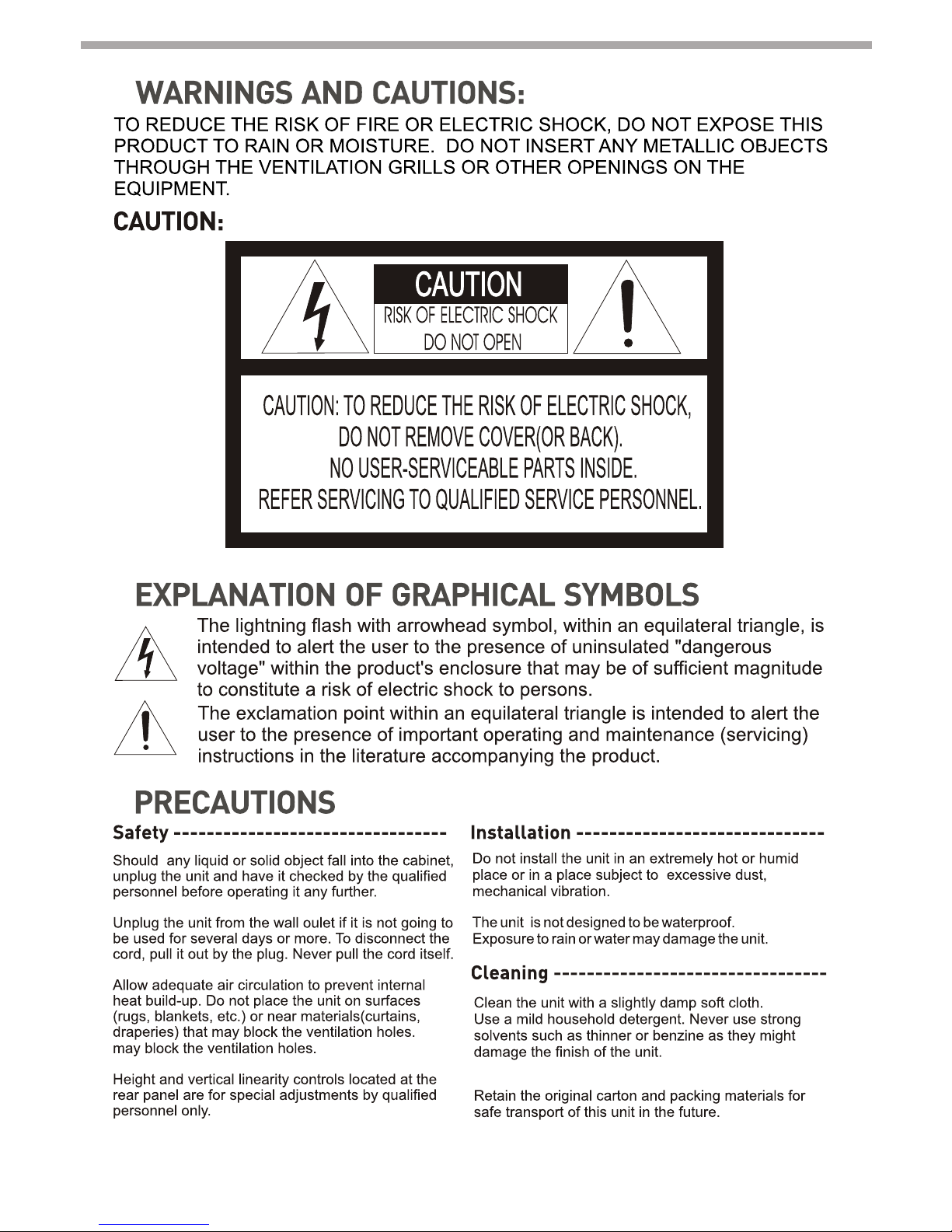

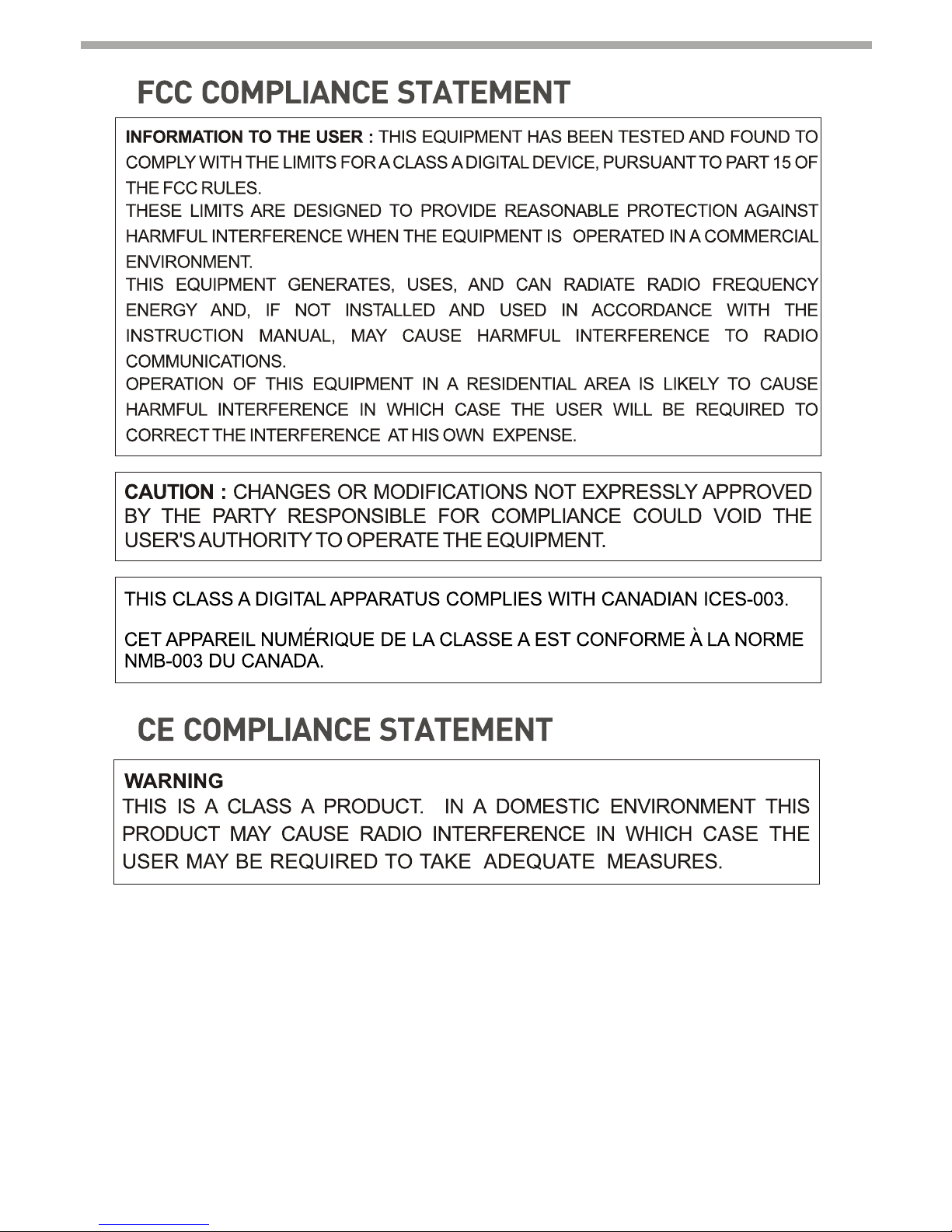

IMPORTANT SAFEGUARDS

TABLE OF CONTENTS

1. INTRODUCTION 1

1.1 THE CAMERA FEATURES 1

2. SYSTEM INSTALLATION 2

2.1 PACKAGE CONTENTS 2

2.2 OPERATION REQUIREMENTS 2

3. PART NAME & FUNCTION 3

4. CONNECTION 5

4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL 5

4.2 EXTERNAL COLOR & B/W CONTROL 6

4.3 RS-485 CONNECTION 6

4.4 EXTERNAL LENS CONTROL 6

4.5 EXTERNAL A/D KEY CONTROL 7

5. CAMERA ADJUSTMENT 8

5.1 OSD MAIN SCREEN 8

5.2 MAIN MENU 9

6. TROUBLESHOOTING AND MAINTENANCE 15

6.1 TROUBLESHOOTING 15

6.2 MAINTENANCE 15

7. SPECIFICATIONS 16

8. DIMENSIONS 17

1.1 THE CAMERA FEATURES :

High performance SONY 1/4" Super HAD CCD

242x zooming capability (Optical : 22x / Digital : 11x)

Ultra Sensitivity Minimum illumination of 0.002 lux @F1.6 (low shutter)

Support camera control available

DC 12V input

(CAUTION :

Function : - Low-SHUT (Digital Slow shutter)

- DIS (Digital Image Stabilize) - WDR (Wide Dynamic Range)

- DNR (Digital Noise Reduction) - AWB (Auto White Balance)

- AE (Auto Exposure) - AGC (Auto Gain Control)

- BLC (Back Light Compensation) - OSD (On Screen Display)

- D-Zoom (Digital Zoom) - NEGA/POSI (Negative / Positive)

- B/W (Black / White) - PIP (Picture In Picture)

- FREEZE (Rear & still picture) - MIRROR (Right, left reverse picture)

Excellent picture quality

Various picture effects

Flexible configuration

Use Certified/Listed Class 2 power supply transformer only.)

RS-485

IMPORTANT : The user of this camera is responsible for
checking and complying with local, state, and federal laws
and statutes concerning the recording and monitoring of
audio signals.

Introduction

1

The AutoFocus Zoom color DSP Camera provides especially for closed circuit
television (CCTV) and security surveillance application.

System Installation

2

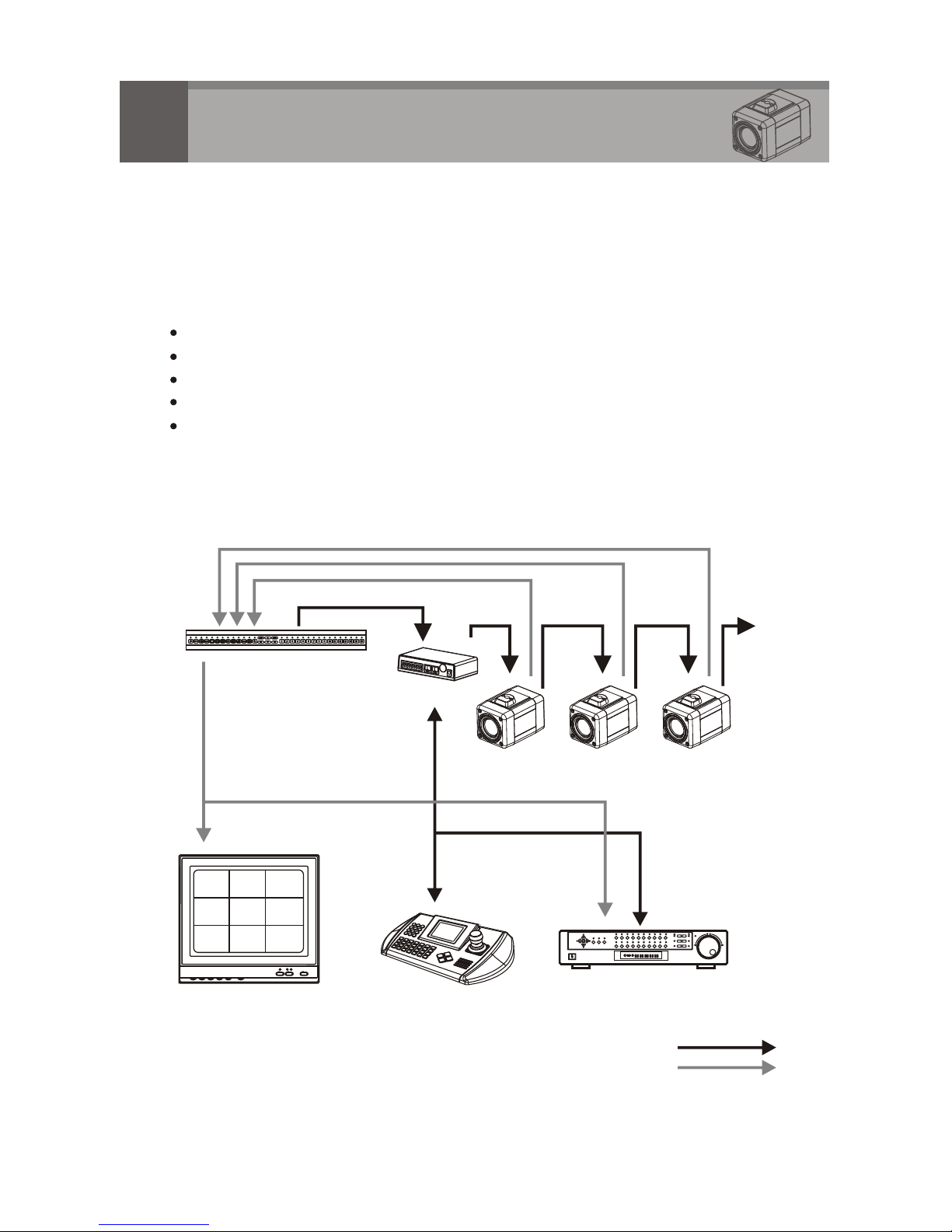

< Typical System Configuration >

Installation of the camera must be performed by qualified service personnel in
accordance with all local national electrical and mechanical codes must perform
installation of the camera.
Perform the following steps to install the camera.

2.1 PACKAGE CONTENTS

Camera - 1EA
Instruction Manual - 1EA
12pin Interface Cable - 1EA
Camera Mounting Bracket (option)
A/D Remote Controller (option)

2.2 OPERATION REQUIREMENTS

J-BOX

CAMERA.1

MULTIPLEXER

MONITOR

CONTROLLER DVR / VCR

RS-485

RS-485

RS-485
VIDEO

CAMERA.2 CAMERA.3 ......

VIDEO

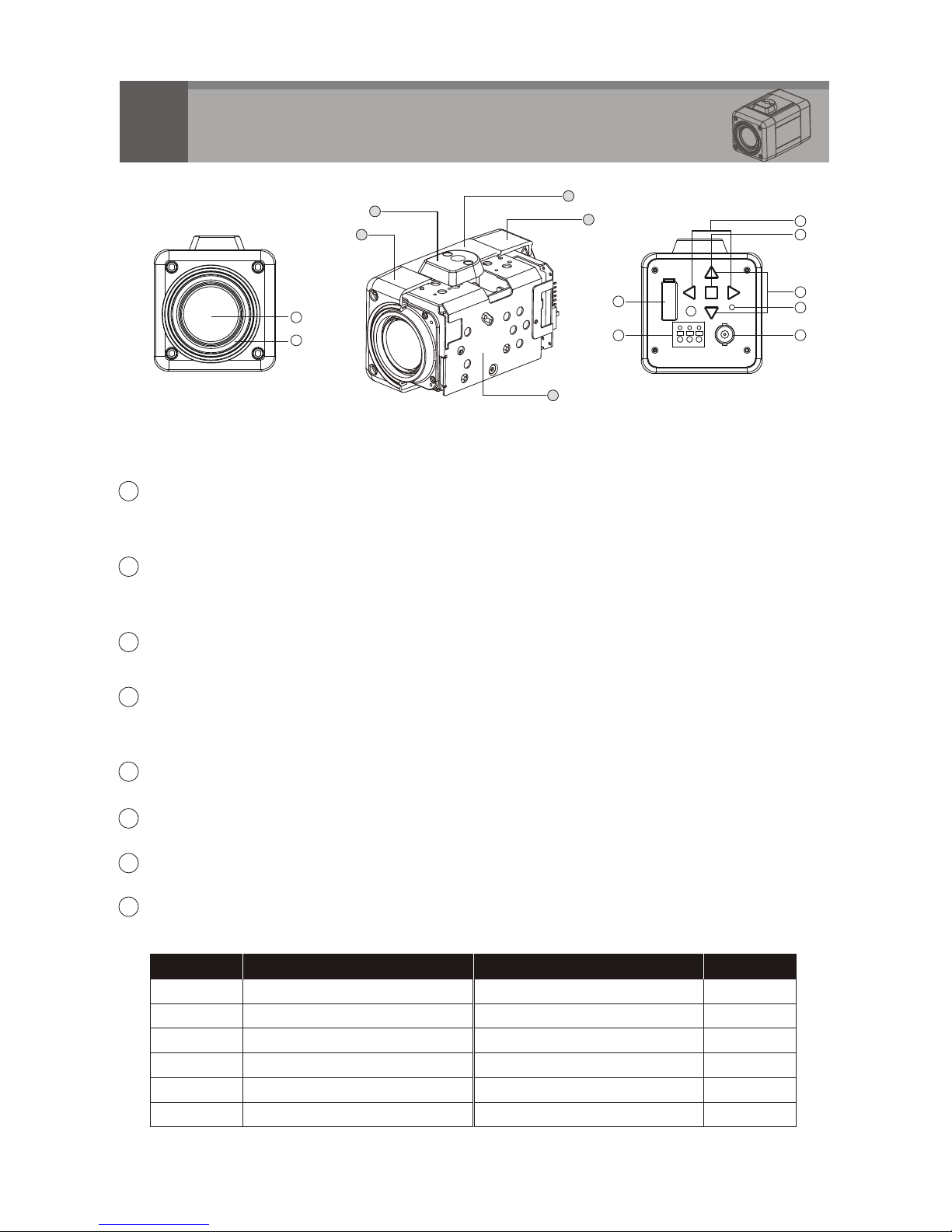

Parts Name & Function

3

Zoom Lens

Filter mount

Integrated lens with 22x optical and 11x digital zoom.

Accepts commonly used filters with 37mm diameter.

1

2

3

7

4

5

6

8

Front Case

Case Body

Rear Case

Camera Module

Mounting Adapter

Is used to mount the camera onto a bracket.

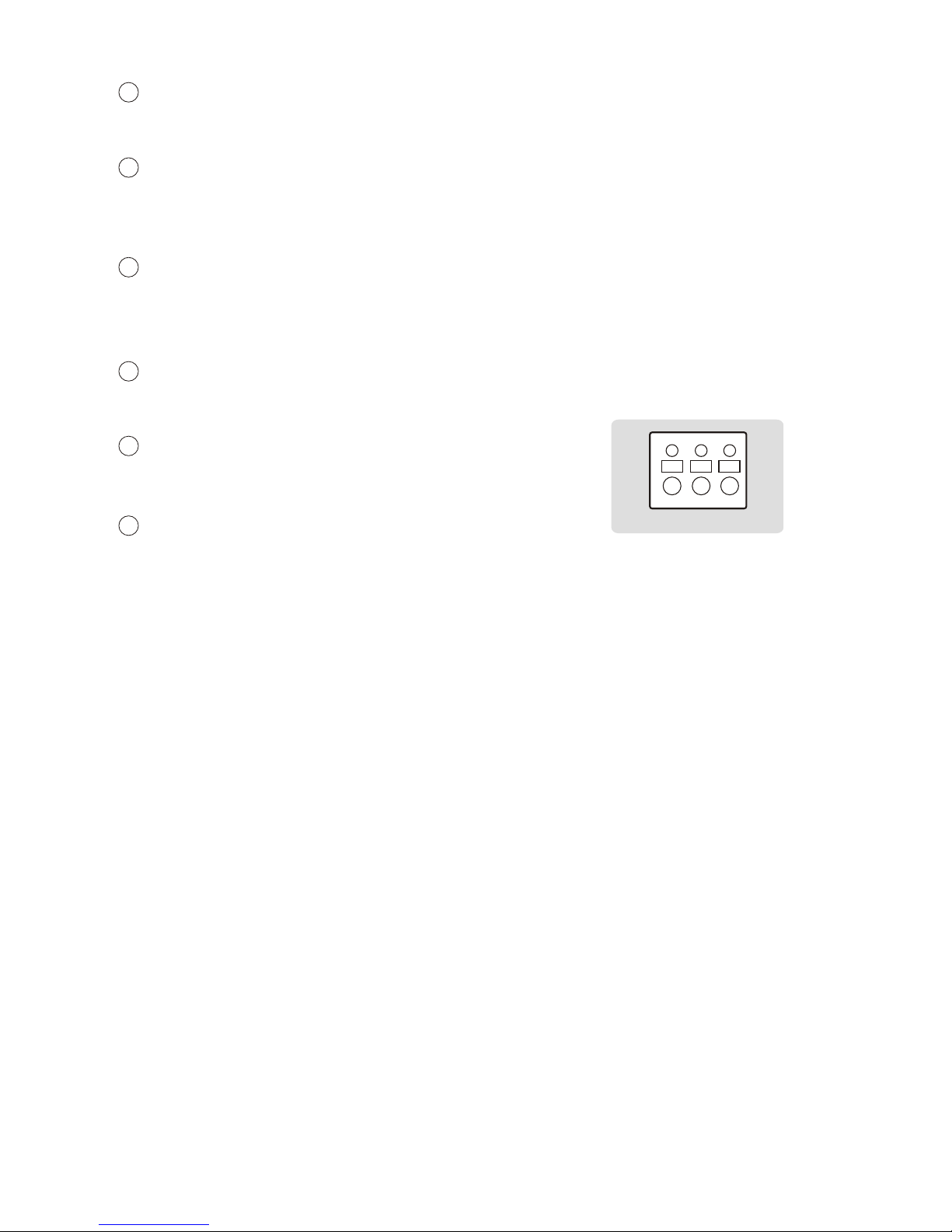

Connector for control interface

12pin connector

PIN

485-

TX

EXT-OUT

EXT-IN

AD1

COM

Description

RS-485(-)

RS-232 TXD IN

External Out

External In

A/D KEY 1

Common

Description

RS-485(+)

RS-232 RXD IN

Ground

A/D KEY 2

Far (-), Near (+)

Tele (-), Wide (+)

PIN

485+

RX

GND

AD2

FOCUS

ZOOM

Front view Rear viewSide view

7

3

4

5

6

4

3

6

5

7

1

2

8

9

14

10

11

12

13

BNC connector

It connects the camera and the monitor or etc.

Power input terminal

Receives DC12V from the power supply.

Power Indicator

Is lit when the power is supplied.

TELE, WIDE Button

Zoom control: Push "WIDE" for wide angel views and "TELE" to zoom in.

MENU Button

Menu functions in the OSD display can be controlled when the OSD menu
is activated.

NEAR, FAR Button

Press the "NEAR" side to focus on near objects and the "FAR" side to focus
on far objects. Focus buttons are activated when AF off mode.

9

10

11

12

13

14

DC12V G EXT

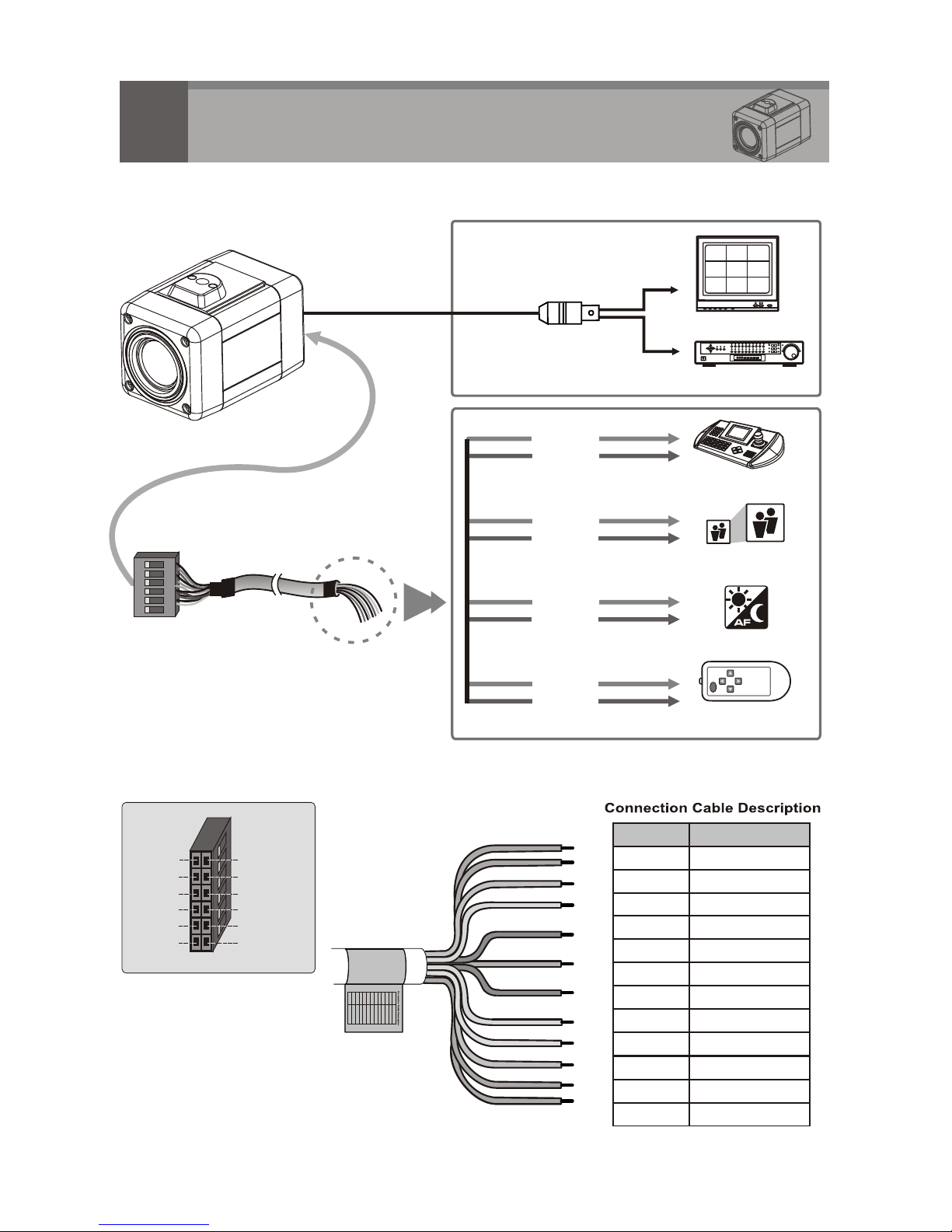

4.1 COLOR LEAD WIRE & COLOR DISPLAY LABEL

COLOR

GREEN

BLUE

YELLOW

VIOLET

ORANGE

PINK

BLACK

SKY-BLUE

BROWN

RED

WHITE

GRAY

DESCRIPTION

ZOOM

COMMON

FOCUS

A/D KEY 1

A/D KEY 2

RS-485(-)

RS-485(+)

RS-232 TXD

RS-232 RXD

GND

EXT-OUT

EXT IN

MONITOR

VIDEO(BNC)

RS-485 CONNECTION

COLOR & B/W CONTROL

A/D KEY CONTROL

DVR / VCR

(PINK)

(BLACK)

(GREEN)

(YELLOW)

(ORANGE)

(RED)

<12pin Cable>

(GRAY)

(WHITE)

LENS CONTROL

TOP

COLOR

GREEN

BLUE

YELLOW

ORANGE

GRAY

PINK

BLACK

SKY-BLUE

BROWN

WHITE

RED

VIOLET

DESCRIPTION

ZOOM

COMMON

FOCUS

ADKEY1

ADKEY2

RS485(-)

RS485(+)

RS-232 TXD

RS-232 RXD

GND

SI

NC

BLK
BRN
RED
ORN
YEL
GRN

PIK
SKY-BLU
WHT
GRY
VOT
BLU

T

O

P

MENU

TELE

NEAR

FAR

WIDE

Connection

4

CAUTION : Do not connect the power cable until all other connections have been
completed. If you complete the whole connection of cameras, then you
have to cut the extra cable.

ZOOM

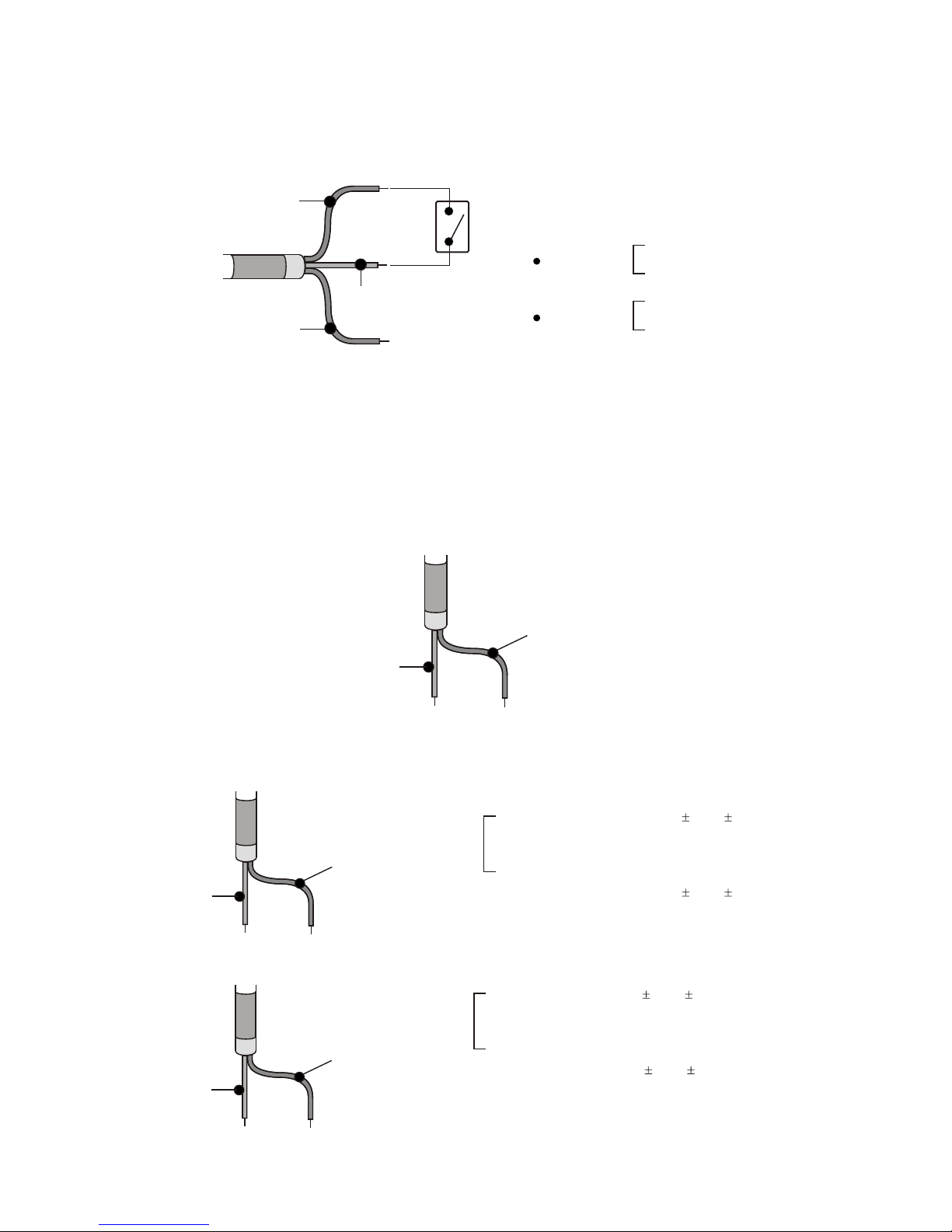

TELE(+) : External DC 3V to 12V (GREEN)

: GND (BLUE)

WIDE(-) : GND (GREEN)

:

External DC 3V to 12V (BLUE)

FOCUS

NEAR(+) : External Power DC 3V to 12V (YELLOW)

: GND (BLUE)

FAR(-) : GND (YELLOW)

:

External Power DC 3V to 12V BNC (BLUE)

FOCUS

ZOOM

4.4 EXTERNAL LENS CONTROL

Connecting to the RS-485 : The Camera can be controlled remotely by
an external device or control system, such as a control keyboard, using
RS-485 half-duplex. Connect Market Rx+, Rx- to Tx+ and Tx- of the
RS-485 control system.

4.3 RS-485 CONNECTION

RS-485

COMMON

(BLUE)

ZOOM
(GREEN)

FOCUS

(YELLOW)

COMMON
(BLUE)

RS-485(-)

(PINK)

RS-485(+)
(BLACK)

Is connect to an external sensor to receive color & B/W detection signals.

COLOR & B/W

4.2 EXTERNAL COLOR & B/W CONTROL

COLOR : OPEN

B/W : CLOSED

External sensor switch ON/OFF

EXT-IN

(GRAY)

GND

(RED)

EXT-IN

*Note: To validate the sensor inputs, select Function menu B/W mode the EXT

COLOR mode: 0V Output

B/W mode: 5V Output

EXT-OUT

EXT-OUT

(WHITE)

4.5 EXTERNAL A/D KEY CONTROL

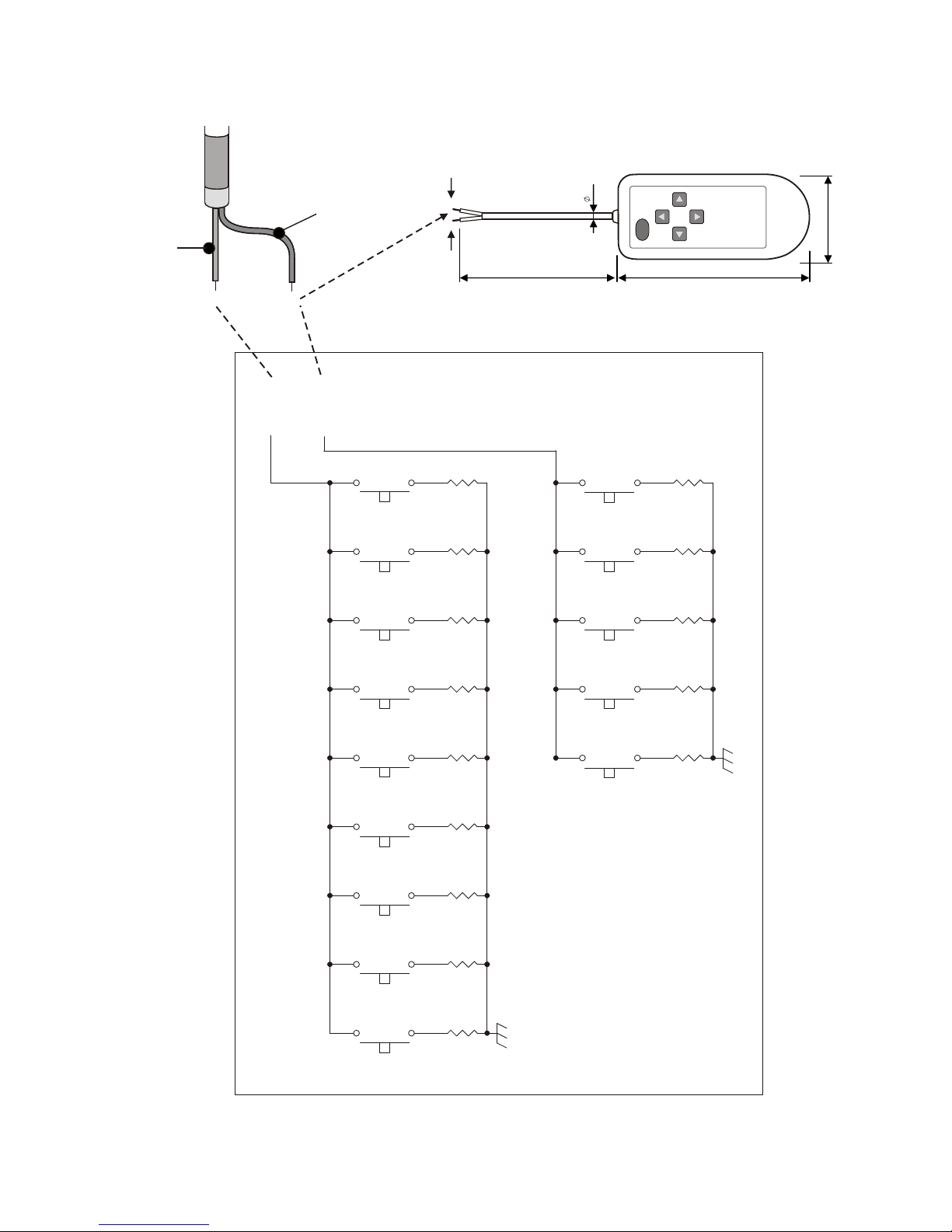

External Controller Circuit Schematic

ADKEY2

ADKEY1

Remote Controller

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

1

1

2

2

R22

150

R11

12K

R20

12K

R12

5.6K

R21

5.6K

Sw10

TELE

R9

33K

SW5

INIT SET

Sw2

BLC

R19

22K

SW7

SHARP+

R5

270K

R7

68K

Sw8

SHARP-

R6

120K

Sw1

FREEZE

Sw11

WIDE

Sw13

FAR

Sw12

NEAR

R18

33K

Sw5

BRT+

Sw9

MENU

R10

22K

Sw3

MIRROR

Sw6

BRT-

Sw4

EFFECT

R8

47K

R13

150

GND

(BLACK)

A/D KEY2

(WHITE)

Remote

Controller

A/D KEY

A/D KEY 1

(VIOLET)

A/D KEY 2

(ORANGE)

1M

3

95mm

42mm

MENU

TELE

NEAR

FAR

WIDE

Camera Adjustment

5

AF 22X
AEAUTO
AWB
MF

NORMAL
F1.6
0DB

CAM 01

84X

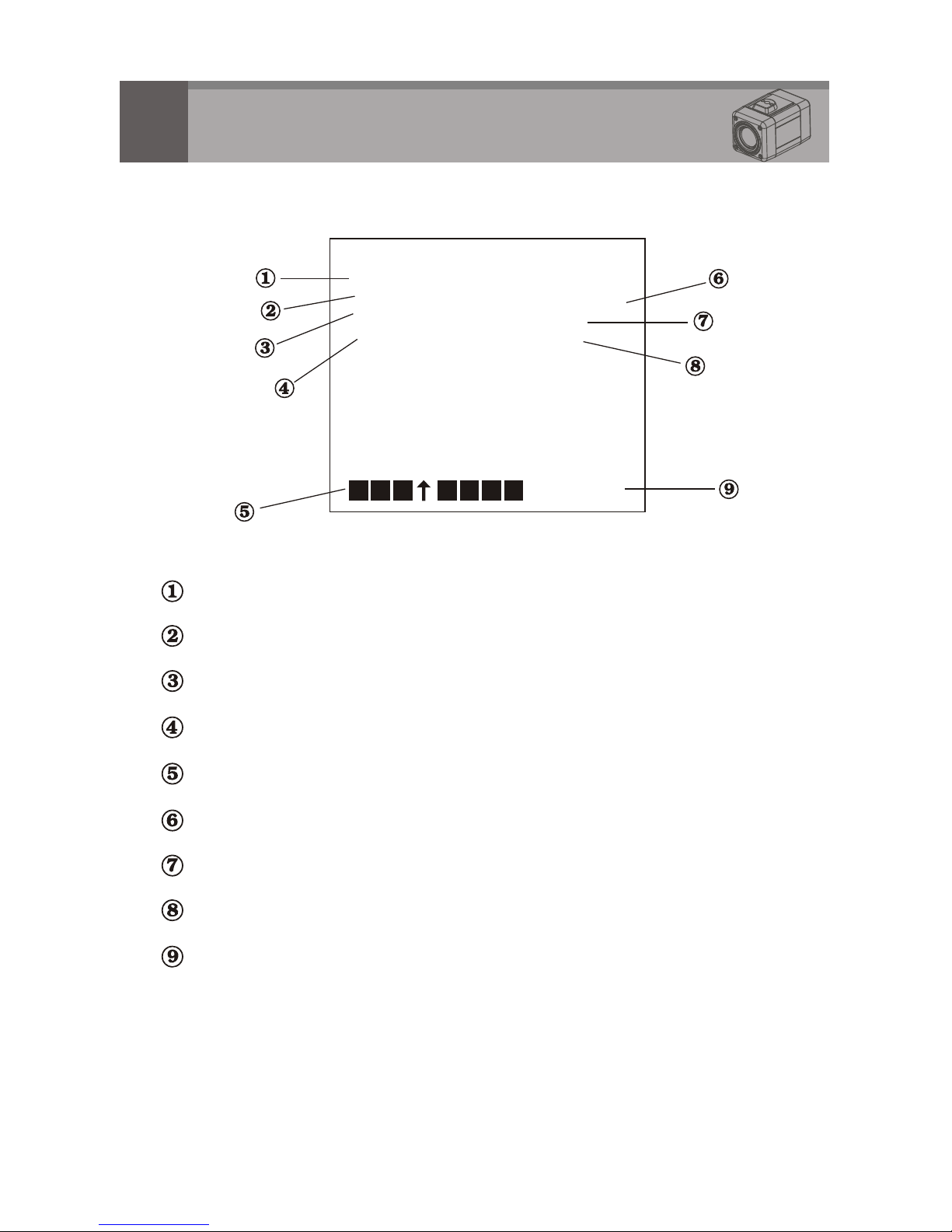

5.1 OSD MAIN SCREEN

Camera title.

Status of the auto exposure.

Status of the auto white balance.

Status of the focus mode.

Status of the zoom position, brightness, or sharpness.

Status of the shutter speed.

Status of the iris.

Status of the AGC. (auto gain control)

Camera ID.

<MAIN MENU>
WB
AE
BLC
TITLE
DISPLAY/ALARM
CAM SET
EFFECT
PRESET
END

1
2
3
4
5
6
7
8

5.2 MAIN MENU

5.2.1 WB (White Balance)

AWB Auto white balance mode.
INDOOR Indoor white balance mode.
OUTDOOR Outdoor white balance mode.
MANUAL Manual mode. You can change R and B Gain manually.

For changing R and B gain, use "NEAR" and "FAR" key.
If you save the change, and push the "MENU" key.

WAWB Wide range auto white balance mode.

<WB>

AWB
INDOOR
OUTDOOR
MANUAL R/B
WAWB

END

5.2.2 AE (Auto Exposure)

AUTO Auto exposure mode. (Iris, Shutter, AGC)
IRIS PRI Iris priority auto exposure mode.
SHUTTER PRI Shutter priority auto exposure mode.
AGC Auto gain control on/off.
MANUAL Manual exposure mode. (Iris, Shutter, and AGC)
LOW-SHUT Display Low-Shutter mode. (Mode can be changed in the

preset menu)

<WE>

AUTO
IRIS PRI
SHUTTER PRI
AGC
MANUAL

END

IRIS

AGC

SHUT

LOWSHUT

5.2.3 BLC (Back Light Compensation)

DEFAULT Default setting. Center weight BLC.
ADJ TOP You can adjust BLC Zone in left and/or top direction.

ADJ BOTTOM You can adjust BLC Zone in right and/or bottom direction.

LEVEL You can adjust BLC level (0 ~ +90)

Default value is 30.

OFF BLC off.

<BLC>

DEFAULT
ADJ TOP
ADJ BOTTOM
LEVEL
OFF

END

CMD

TITLE
<TITLE MENU>

B

C

A

5.2.4 TITLE

A. TITLE

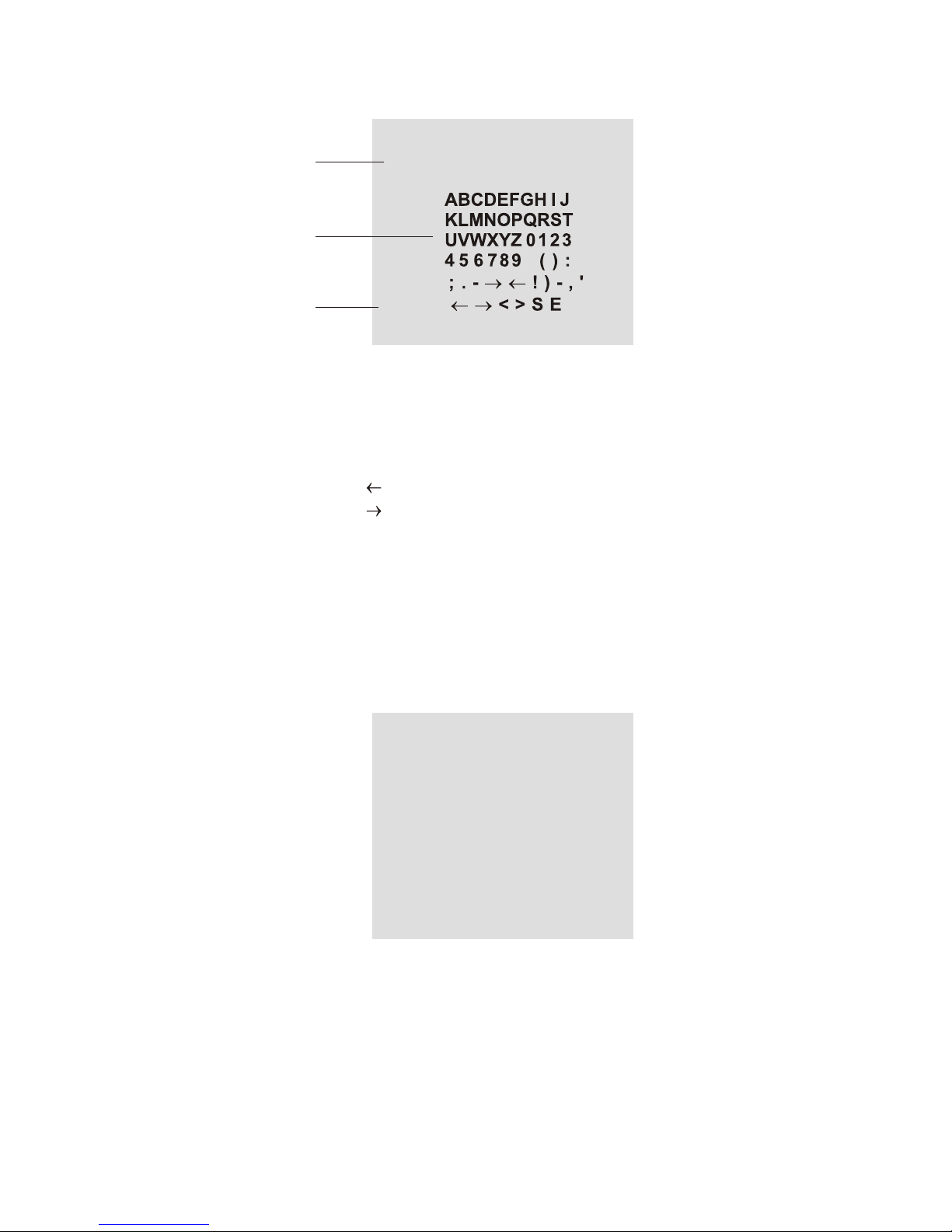

B. Character Table

C. Command Line

: Move to left
: Move to right
< : Erase a left character
> : Erase a right character
S : Save title
E : End

5.2.5 DISPLAY/ALARM

DISP0 Display title and camera ID.

DISP1 Display title, camera ID and zoom lens position.
DISP2 Display all camera status.
DISP Off, On and push on. (Display on when any key is pressed)

ALARM MODE Off, Preset 1~5, B/W (Zoom preset and B/W setup by

external-in)

DWELL TIME 10, 20,....120sec. (Dwell time setup of zoom preset)

<DISPLAY/ALARM>

DISP0
DISP1
DISP2
DISP PUSHON
ALARM MODE
DWELL TIME

END

5.2.6 CAM SET

ID Select the camera ID. (1 ~ 255)

BPS Select serial communication speed.
(2400 / 4800 / 9600 / 19200)
BRIGHTNESS Select brightness level (0 ~ +90)
Default value is 30.
SHARPNESS Select sharpness level (0 ~ 15)
Default value is 8.
DISTANCE Select minimum distance in focus between camera and
object. (0.1 / 1.0 / 1.5 / 2.5 / 6.0 m)
MAX LOWSHUT Select maximum Low-shutter value

(x2, x4, x8, x16, x32, x60)

PROTOCOL Select operating protocol.

COMMAND : Camera controlled by RS-232C command.
FASTRAX : Fastrax protocol.
PELCO-D : Pelco-D protocol.
PELCO-P : Pelco-P protocol.

SAVE PROTOCOL & BPS Save protocol and BPS.

*NOTE 1 : You can choose BPS menu appropriate for keyboard protocol.
*NOTE 2 : If you change BPS or PROTOCOL menu, you have to select
PROTOCOL & BPS menu.

Although you change BPS or PROTOCOL menu, the terms of change

is not applied unless you select save PROTOCOL & BPS menu.

<CAM SET>

ID
BPS
BRIGHTNESS
SHARPNESS
DISTANCE
MAX LOW SHUT
PROTOCOL
SAVE PROTOCOL & BPS

END

5.2.7 EFFECT

D-ZOOM Digital Zoom on/off.

NEGA/POGI Select the Negative or Positive picture.
B/W Select Color & B/W picture or EXT mode.
MIRROR Select horizontal reverse picture.
PIP Picture In picture on/off.
FREEZE Select real and still picture.

DNR Digital noise reduction mode on/off

CAUTION : Freeze mode is automatically off, when zoom and focus
operation.

<EFFECT>

D-ZOOM
NEGA/POSI
B/W
MIRROR
PIP
FREEZE
DNR
END

5.2.8 PRESET

FOCUS Select auto, manual, pushauto mode.

SYNC Select internal or line lock mode.

Sync phase is adjustable in line lock mode.
INIT Camera initialize mode selection
(DEFAULT / PRESET).
LOAD Load default or preset parameters of camera

(DEFAULT / PRESET).
SAVE Save preset camera parameters.
SHOT Select Normal, DIS, WDR, or Low-Shutter mode.
DIS(digital image stabilization)
WDR(wide dynamic range)
Low-Shutter(low shutter speed mode)

ZOOM PRESET Select zoom preset number
SET ZOOM PRESET You can set zoom position of zoom preset

CAUTION : In the WDR or Low-Shutter mode, AF performance and
Image quality can be decrease.

DIS is operated on D-Zoom X 2.

DNR is disabled In freeze, Low-Shutter and WDR mode.
WDR is not effective in freeze status.

<PRESET>

FOCUS
SYNC
INIT
LOAD
SAVE
SHOT
ZOOM PRESET
SET ZOOM PRESET
END

PROBLEM

POSSIBLE SOLUTION

6.1 TROUBLESHOOTING

If problems occur, verify the installation of the camera with the instruction in this
manual and with other operating equipment.

Isolate the problem to the specific piece of equipment in the system and refer to
the equipment manual for further information.

Nothing appears on
the screen

Are the power cord and line connection between
the camera and monitor made properly?

The image on the
screen is dim.

Is the lens dirty?
If so, clean the lens with a soft, clean cloth.

The camera is not
working properly
and the surface of the

camera case is hot.

The contrast on the
screen is too weak.

Is the camera connected to the proper power?

Adjust the contrast feature of the monitor.
Is the camera exposed to strong light?
If so, change the camera position.

6.2 MAINTENANCE

Preventive maintenance allows detection and correction of minor that faults
before they become serious and cause equipment failure.

Every three-month, perform the following maintenance.

A. Inspect all connection cables for deterioration or other damage.

B. Clean components with a clean damp cloth.

C. Verify that all the mounting hardware is secure.

6

Troubleshooting and Maintenance

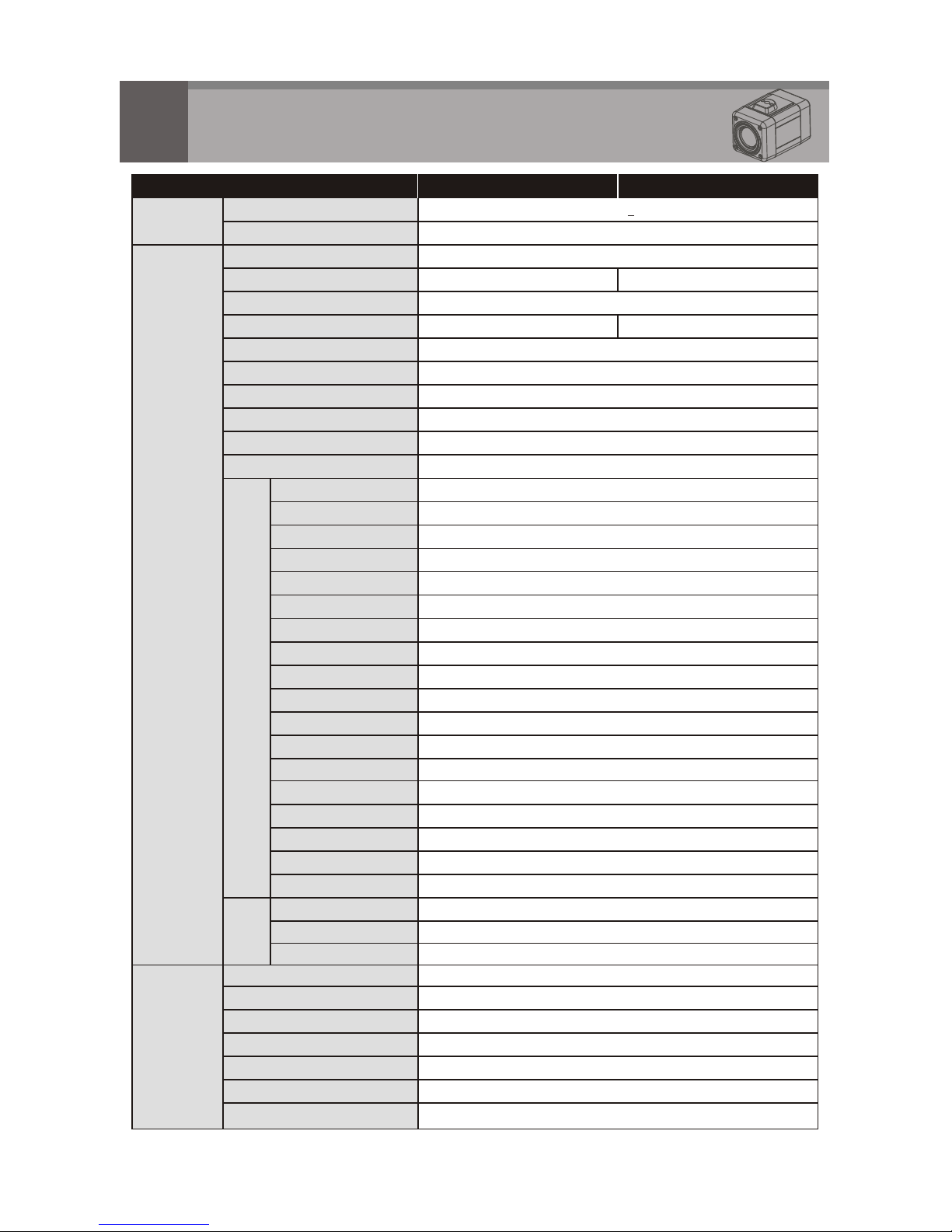

Power Source

Power Consumption

Image Sensor

Total Pixels

Scanning System

Scanning Frequency

Sync. System

Resolution

Min. illumination

Video Output

S/N Ratio

Camera Control

F

U

C

N

T

I

O

N

NTSC

PAL

Focus Mode

White Balance

Auto Exposure

Iris Control

AGC

Shutter Speed

BLC

Title

Display

CAM ID

BPS

Brightness

Sharpness

Distance

Low Shutter

Effect

Preset

SHOT

Zoom Ratio

Focus Length

Aperture Ratio

Power Input

Video Output

Operating Temperature

Operating Humidity

Storage Temperature

External Dimension

Weight

DC 12V 10%

5.5 Watts

1/4" SONY Super HAD CCD

2:1 interlace

Internal / External (Linelock)

480 TV lines(Color), 510 TV lines(B/W)

0.5 lux(Color), 0.1 lux(B/W), 0.002 lux(Low-shutter)

1.0 Vp-p (75 ohm, composite)

52dB (AGC off)

RS232, RS485(Fastraxll, Pelco D, Pelco P), A/D key

Auto / Manual / Push AF

AWB / Indoor / Outdoor / Manual / WAWB

Auto / Iris PRI / Shutter PRI / AGC / Manual

Auto / Manual (F1.6 ~ F32)

On / Off (30dB max.)

Normal ~ 1/10,000

Default / ADJ Top / ADJ Bottom / Level / Off

A ~ Z / 0 ~9

On / Off / Push On (DISP0 / DISP1 / DISP2)

001 ~ 255

2400 / 4800 / 9600 / 19200

0 ~ 90 steps

0 ~ 15 steps

0.1M / 1.0M / 1.5M / 2.5M / 6.0M

x2 ~ x60

D-Zoom, Nega/Posi, B/W, Mirror, PIP, Freeze, DNR

INIT / LOAD / SAVE

Normal / DIS / WDR / Low-shutter

Optical x22, Digital x11 Zoom (Video AF)

f = 3.9 mm ~ 85.8 mm

F1.6 (wide) ~ F3.7 (tele)

3-pin terminal block

BNC connector

o o

-10 C ~ +50 C

0 ~ 96% (non-condencing)

o o

-20 C ~ +60 C

62(W) x 62(H) x 105(D) mm

315 g

L
E

N

S

MODEL

POWER

811(H) x 508(V)

15.734KHz(H), 59.94Hz(V)

795(H) x 596(V)

15.625KHz(H), 50Hz(V)

+

GENERAL

CONNECTOR

&

ETC.

Specifications

7

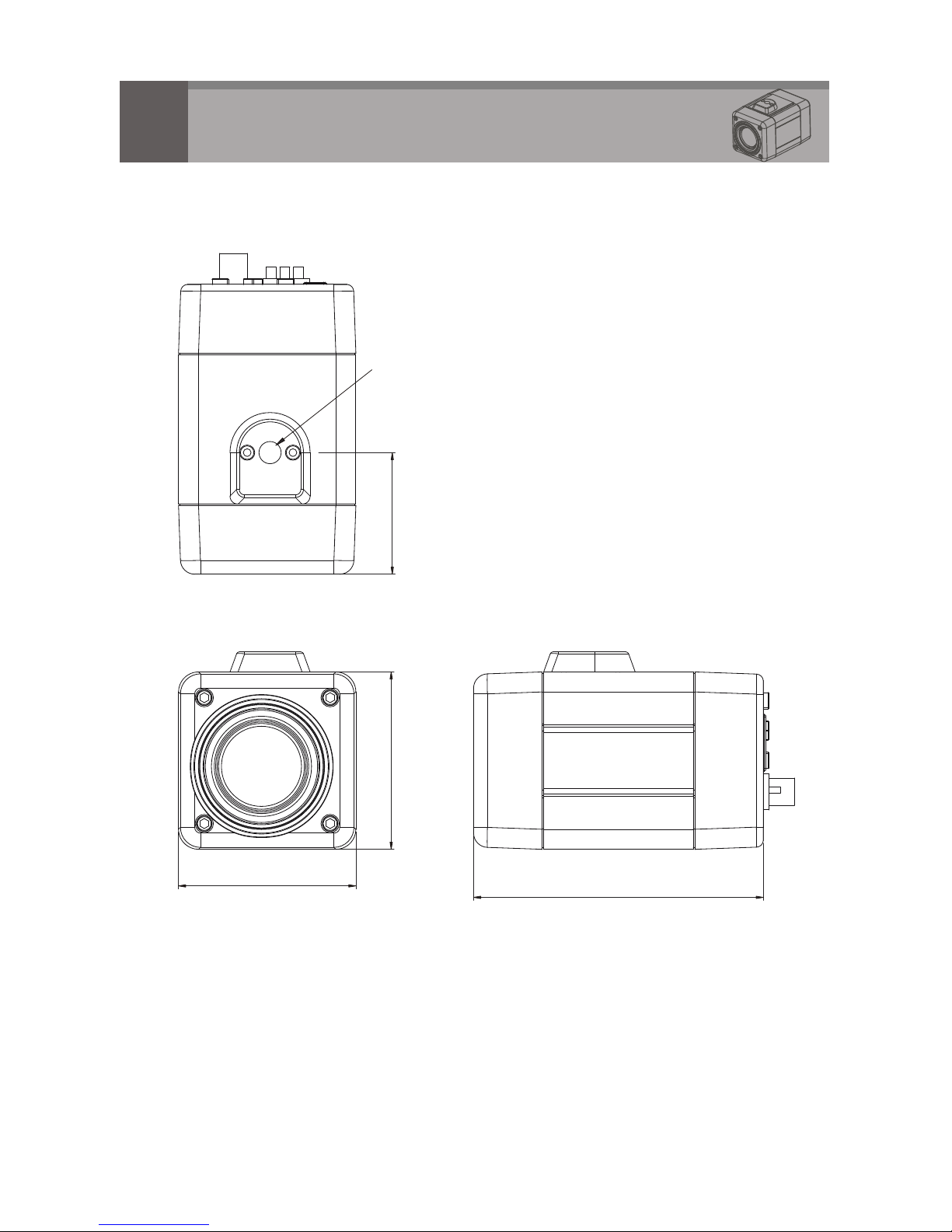

TOP VIEW

FRONT VIEW

RIGHT SIDE VIEW

Unit: mm

Dimensions

8

62.0

62.0

101.3

42.5

1/4 - 20 UNC SCREW HOLE
