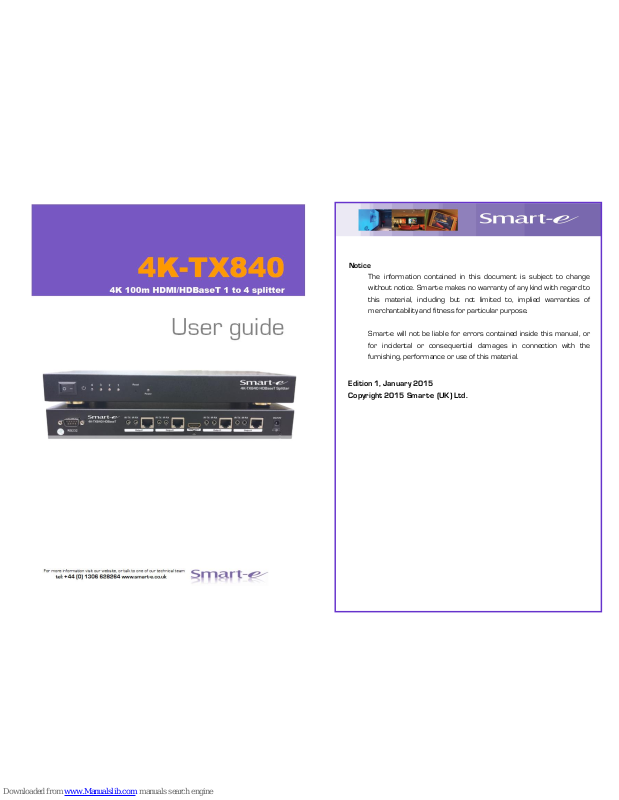

Notice
The information contained in this document is subject to change
without notice. Smart-e makes no warranty of any kind with regard to
this material, including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
Smart-e will not be liable for errors contained inside this manual, or
for incidental or consequential damages in connection with the
furnishing, performance or use of this material.
Edition 1, January 2015
Copyright 2015 Smart-e (UK) Ltd.
Operating Instructions
HDMI Splitter Extender
Connection and oper
ating
1) Connect the HDMI input source into the HDBaseT splitter.
2) Connect HDMI receiver over Cat5e/Cat6 STP cables to both the Cat5e/6 port of
HDBaseT Splitter and Cat5e/6 port of Receiver. The RJ45 connections must follow
EIA-TIA 568b standards.
3) Connect the HDMI output from the Receiver (RX) into the display HDMI input.
4) Connect the IR TX receiving cables into splitter IR TX port on the back panel and fix
the emitter onto the source IR windows.
5) Connect IR-RX cable into IR-RX port on the receiver and fix the IR receiver in direct
line of site with the handheld remote control.
6) Power up all units.
Copy the EDID of the sink which connected the OUTPUT1, it is suggested to put
lowest or the most compatible display specification on output1.
For example:
One SDTV (480p), one HDTV (1080p), in order to make both screens work, you
need to plug SDTV into output 1.

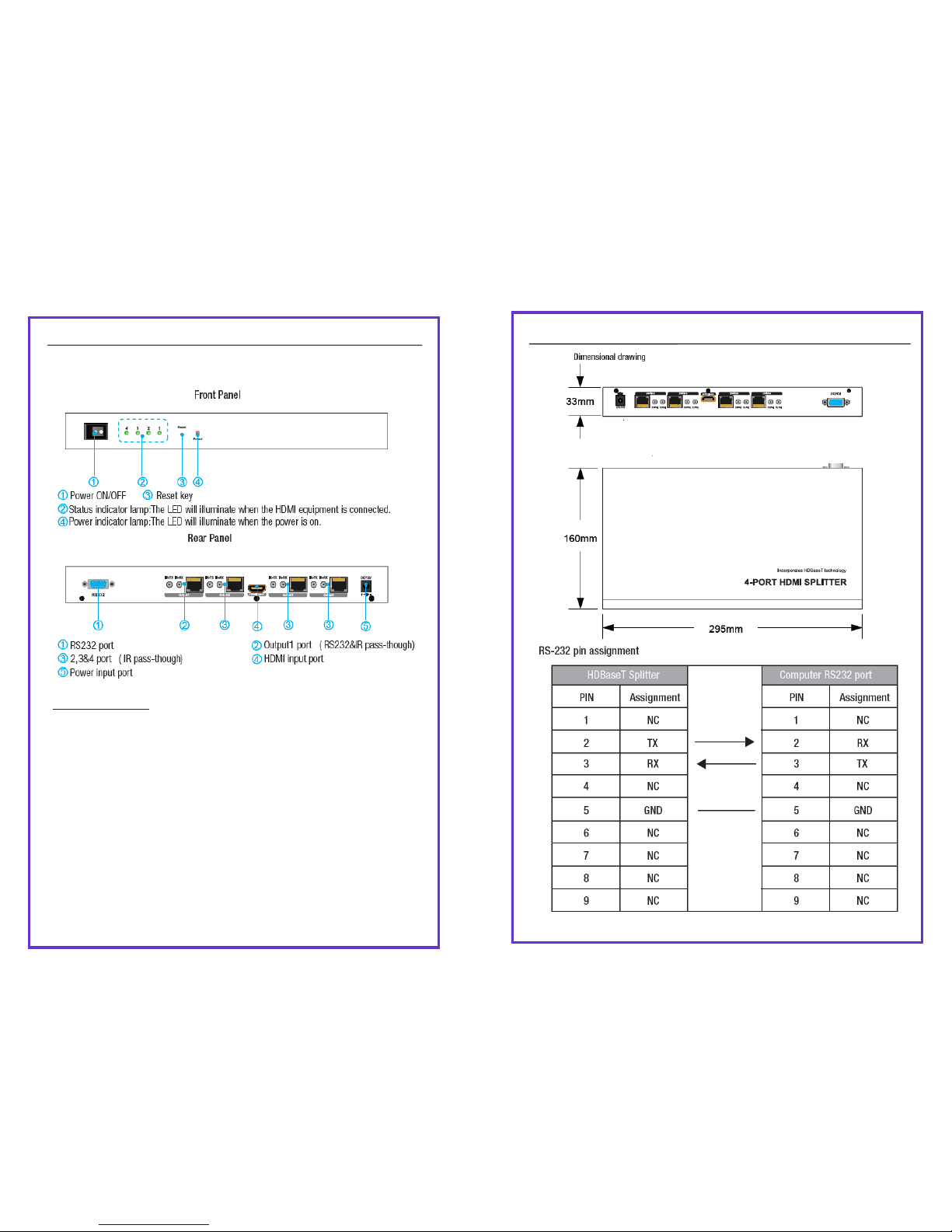

Operating Instructions

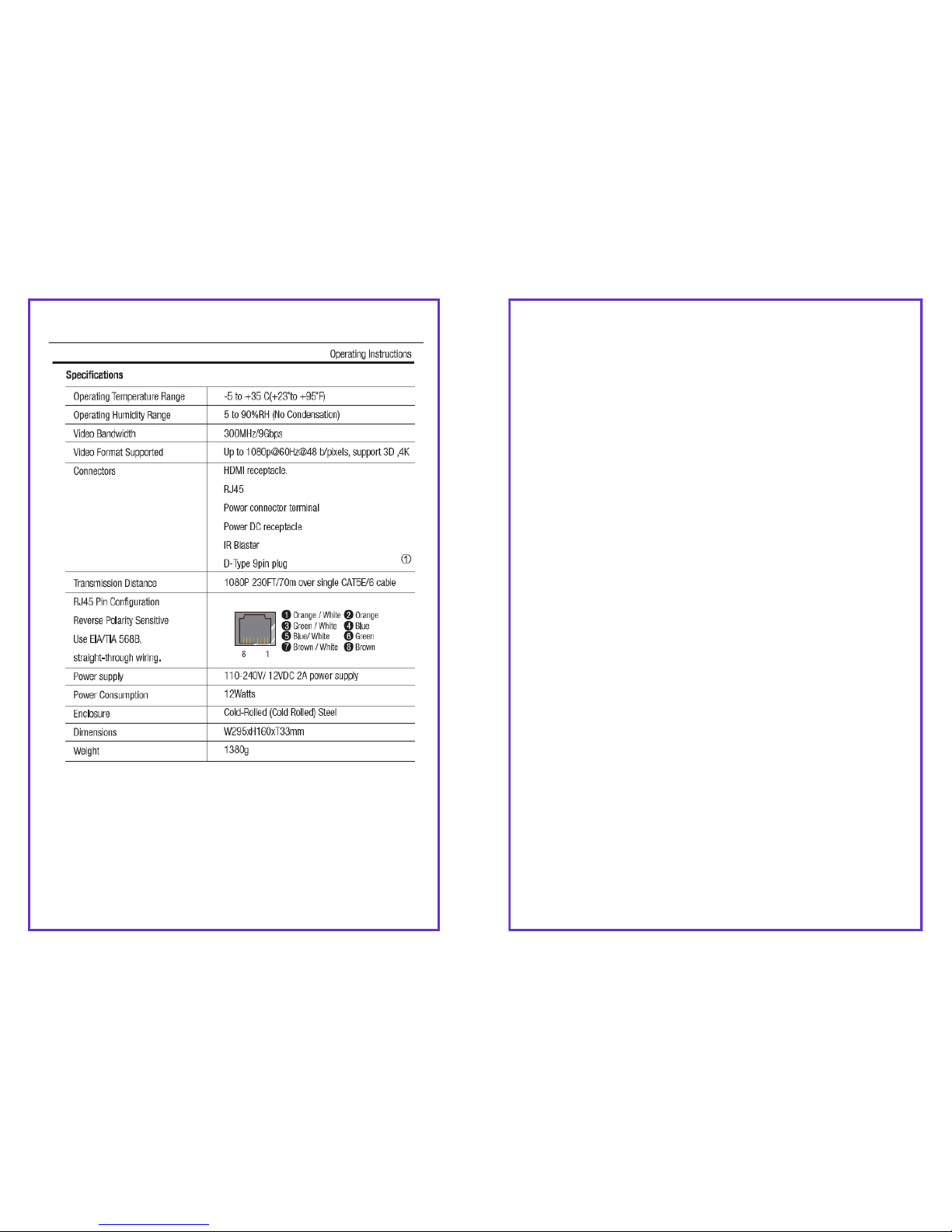

Operating Instructions
PACKING CONTENTS
1) Main Unit. HDBaseT Splitter
2) Power adapter DC 12V
3) IR-TX cables
4) IR-RX cables
5) Mounting ears with screws
6) Operating Instructions
Limited Warranty Statement
A. Extent of limited warranty
1. Smart-e (UK) Ltd warrants to the end-user customers that Smart-e product specified above will be free from
defects in materials and workmanship for the duration of 1 year, which duration begins on the date of
purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
2. Smart-e warranty covers only those defects which arise as a res ult of normal use of the product, and d o not
apply to any:
a. Improper or inadequate maintenance or modifications
b. Operations outside product specifications
c. Mechanical abuse, and exposure to severe conditions
3. If Smart-e receives during applicable warranty p eriod notice of defect, Smart-e will at its discretion replace or
repair defective product .If Smart-e is unable to replace or repair defective product covered by the Smart-e
warranty within reasonable period of time, Smart-e shall ref und the cost of the product.
4. Smart-e shall have no obligation to repair, replace, or refund unit until customer returns defective product to
Smart-e.
5. Any replacement product could be new or like new, provided that it has functionality at least equal to that of
the product being replaced.
6. Smart-e warranty is valid in any country where the covered product is distributed by Smart-e.
B. Limitations of warranty
TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER SMART-E NOT ITS THIRD PARTY SUPPLIERS MAKE ANY
OTHER WARRANTY OR CONDITION OF ANY KIND WHETHER EXPRESSED OR IMPLIED, WITH RESPECT TO THE
SMART-E PRODUCT, AND SPECIFICALLY DISCLAIM IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.
C. Limitations of liability
To the extent allowed by local law the remedies provided in this warranty statement are the customer’s sole and
exclusive remedies
TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OB LIGATIONS SPECIFICALLY SET FORTH IN THIS
WARRANTY STATEMENT, IN NO EVENT WILL SMART-E OR ITS THIRD PARTY SU PPLIERS BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTA L, OR CONSEQUENTIAL DAMAGES WHETHER BASED ON CONTRACT, TO RT OR
ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE PO SSIBILITY OF SUCH DAMAGES.
D. Local law
To the extent that this warranty statement is inconsistent with local law, this warranty statement shall b e
considered modified to be consistent with such law.
