SMART Board™ X800 Series Interactive Whiteboard
User Guide

Product registration

If you register your SMART product, we will notify you of new features and software upgrades.
.
Keep the following information available in case you need to contact SMART Technical Support.
Serial number: ___________________________________________________
Date of purchase: ___________________________________________________
FCC warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursua nt to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter ference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction s, may cause harmful interference to radio communications. Operation of this equipment in a residential area is l ike ly to cause harmful int erfere nce, in which case the user will be required to correct the interference at his own expense.
Trademark notice
SMART Board, DViT, SMART Notebook, SMART Ink, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the US and/or other countries. Microsoft, Windows, Windows Vista and Excel are either registered trademarks or trademarks of Microsof t Corporation in the US and/or other countries. Mac is a registered trademark of Apple, Inc. All other third-party product and company names may be trademarks of their respective owners.
Copyright notice
© 2010–2011 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
Portions of the software provided with this product are copyrighted by Int el Corporation.
Patent No. US5448263; US6141000; US6337681; US6421042; US6563491; US6674424; US6747636; US6760009; US6803906; US6829372; US6919880; US6954197; US7184030; US7236162; US7289113; US7342574; US7379622; US7411575; US7532206; US7619617; US7626577; US7643006; US7692625; CA2058219; CA2386094; EP1297488; EP1739528; JP4033582; JP4052498; JP4057200; ZL0181236.0; DE60124549. Other patents pending. 02/2011.

Important information

Before you install and use your SMART Board™ X800 series interactive whiteboard, read the following warnings carefully. Failure to read the warnings below or to follow the installation instructions included with your SMART product could result in personal injury or product damage.
NOTE
In this document, the term “interactive whiteboard” refers to your interactive whiteboard and its accessories and options.
WARNINGS
Ensure that any cables extending across the floor to your SMART product are properly fastened together and marked to avoid a trip hazard.
To reduce the risk of fire or electric shock, do not expose your SMART product to rain or moisture.
Refer to the safety warnings and precautions published by the projector manufacturer. Do not stare (or allow children to stare) directly into the projector’s beam of light.
Do not touch (or allow children to touch) your projector because it can become extremely hot during normal operation.
Do not stand (or allow children to stand) on a chair to touch the surface of your SMART product. Instead, safely fix the product at the approp ria te heigh t on a wall or use a SMART height-adjustable floor stand.
Do not climb (or allow children to climb) on a wall or stand­supported SMART Board interactive whiteboard.
Two people ar e required to safely mount your interactive whiteboard because it is too heavy for one person to manoeuvre safely. When you and your assistant lift your interactive whiteboard, support its weight at the bottom, avoiding the corner cameras and balance the top with your other hands.
ii | IMPORTANT INFORMATION
To prevent injury or product and property damage, use only the mounting hardware supplied with your SMART Board X800 series interactive whiteboard when you install your prod uct on drywall. The mounting hardware provided with other interactive whiteboards may not be strong enough to support the weight of SMART Board X800 series interactive whiteboards.
Use two wall-mounting brackets to install SMART Board interactive whiteboards with a diagonal width of 87" (221 cm) or more.
For operating safety and to prevent damage to your interactive whiteboard, connect its USB connector, or SMART connection extenders, only to a computer that has a USB compliant interface and that bears the USB logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark and CSA and/or UL mark(s) for CSA/UL 60950.
To prevent injury or product damage as a result of tipping, mount your interactive whiteboard only on a floor stand that is certified for use with SMART Board X800 series interactive whiteboards, such as the SMART FS670 Mobile Floor Stand or SMART HAWM FS-UX Mobile Floor Stand. Do not modify your interactive whiteboard or your floor stand to make them compatible.
Move a floor stand-supported SMAR T Board interactive whiteb oard with care. Sudden stops, excessive force and uneven surfaces may cause the product to overturn.
CAUTIONS
If you need to lean your interactive whiteboard against a wall, make sure that it remains in an upright position, resting on its pen tray brackets, which are designed to sustain your interactive whiteboard’s weight. Do not rest your interactive whiteboard on its side, on the top of its frame or on the corners of the frame where the cameras are located.
Do not add any extra weight or excessive pressure to a wall-mounted interactive whiteboard or its pen tray. SMART designed the brackets to support only the weight of your interactive whiteboard and its accessories during normal use.
There are no user-serviceable parts inside th e pen tray. Only qualified individuals should disassemble the pen tray’s printed circuit boards, using proper electrostatic discharge (ESD) protection.
When transporting your SMART Board interactive whiteboard, repack it with as much of the original packaging as possible. This packaging was designed for optimal shock and vibration protection.
Do not use compressed air to clean the interactive whiteboard’s cameras because the force of the air could damage them.
iii | IMPORTANT INFORMATION
Do not allow cleaner to flow onto the reflective strips at the edges of the interactive whiteboard’s frame or into the pen tray slots.
Do not set up and use your interactive whiteboard in an area with excessive levels of dust, humidity or smoke.
If your SMART Board interactive whiteboard requires replacement parts, make sure that the service technician uses replacement parts specified by SMART Technologies or parts with the same characteristics as the original.

Other precautions

If you own a SMART product other than a SMART Board X800 series interactive whiteboard, refer to the installation manual for your product for relevant warnings and maintenance instructions.
iv | IMPORTANT INFORMATION

Contents

Important information.....................................................................................................i
Other precautions.....................................................................................iii
1 About your SMART Board X800 series interactive whiteboard............................. 1
In this chapter................................................................................................. 1
Features.......................................................................................................... 2
Your SMART Board X800 series interactive whiteboard.......................... 2
Feature highlights..................................................................................... 3
Understanding how your SMART Board interactive whiteboard works .......... 4
Other components.................................................................................... 4

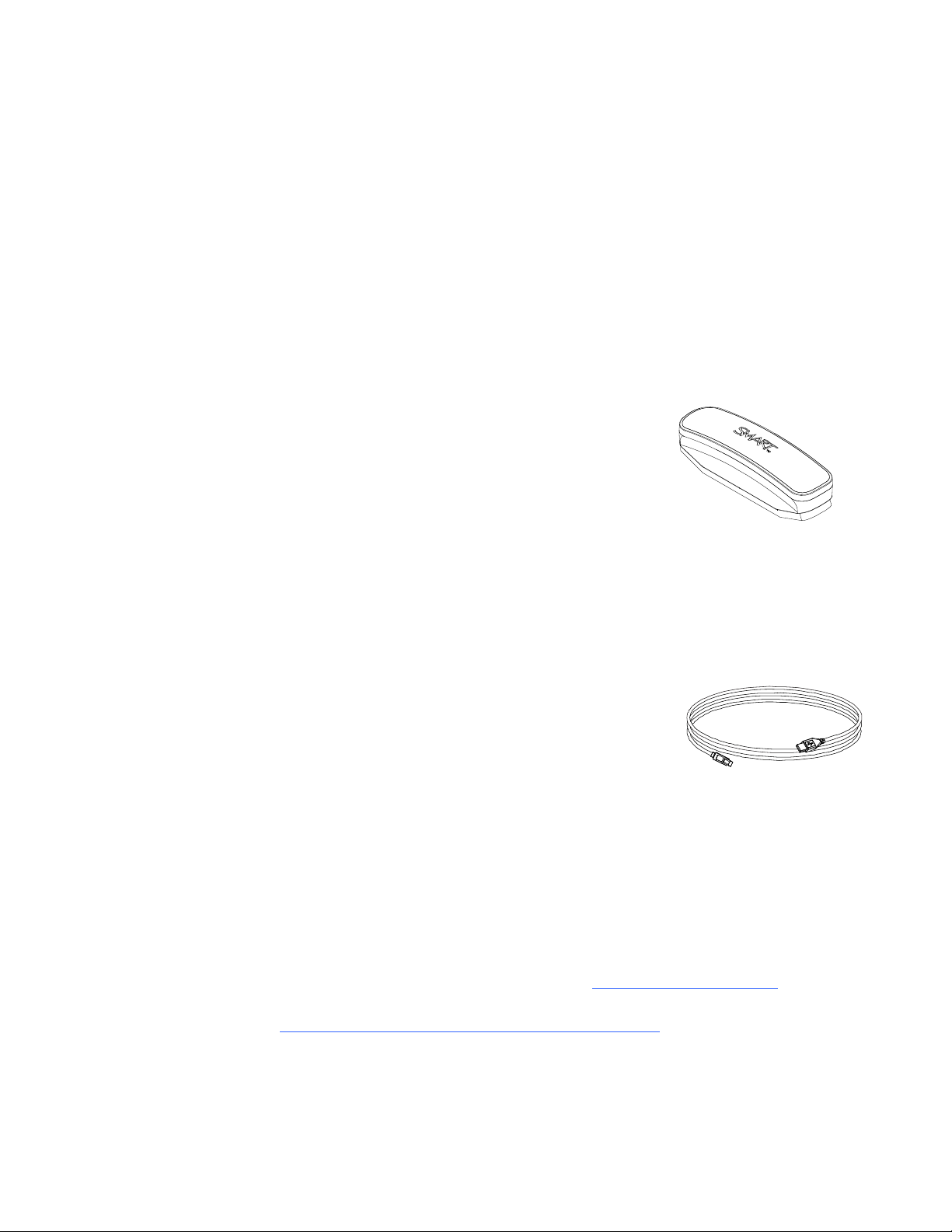

Included parts and accessories........................... ........................................... 5
Pens......................................................................................................... 5
Eraser....................................................................................................... 5
SMART Board interactive whiteboard wall-mounting kit .......................... 5
SMART USB cable................................................................................... 5
Power supply............................................................................................ 5
Optional accessories ................................. ... ... .... ... ... ... .................................. 5
2 Installing and securing your SMART Board interactive whiteboard ...................... 7
In this chapter................................................................................................. 7
Environmental requirements........................................................................... 7
Installing your SMART Board interactive whiteboard ..................................... 8
Installation Tips ........................................................................................ 9
Replacing a SMART Board interactive whiteboard on drywall................. 9
Securing the pen tray and interactive whiteboard............................. ... ... ... ... 10
Securing the pen tray to the pen tray brackets....................................... 10
vi | CONTENTS
3 Connecting your interactive whiteboard to your computer ............... ... .... ... ...... ... 11
In this chapter............................................................................................... 11
Connecting the USB cable............................ ... .... ... ... ... .... ... ... ... ... .... ............ 12
Installing SMART Product Drivers ................................................................ 13
Configuring your computer settings.............................................................. 14
Recommended settings ................... ... ... ... .... ... ... ... .... ... ... ...................... 14
Matching your computer’s resolution to your projector’s resolution....... 14
Calibrating your interactive whiteboard......................................................... 15
Orientating your interactive whiteboard........................ .... ... ... ... ... ................ 16
Connecting a guest laptop............ ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... ... 18
4 Using and maintaining your SMART Board interactive whiteboard . ... .... ...... ... ... 19
In this chapter............................................................................................... 19
Getting started.............................................................................................. 20
Turning the interactive whiteboard on and off........................................ 20
Power panel controls and indicators ...................................................... 20
Using the pen tray......................................................................................... 22
Pen tray buttons............................................ ... ... ... .... ... ......................... 22
Customising your pen tray buttons......................................................... 22
Using Ink Aware............................................................................................ 23
Updating SMART software........................................................................... 23
Writing, selecting and erasing using object awareness................................ 24
Enabling the lockable pen option ........................................................... 24
Using gestures.............................................................................................. 25
Selecting and deselecting an object (clicking)........................................ 25
Displaying menu options (right-clicking or Control-clicking)................... 25
Double-clicking....................................................................................... 26
Dragging an object, scroll bar or window ............................................... 26
Erasing digital ink................................................................................... 26
Best practices for gestures and tools..................................................... 27
vii | CONTENTS
Tips for trouble-free performance.................... .... ... ... ... ................................ 30
Safety tips for teachers .......................................................................... 30
Preventing damage to your interactive whiteboard.......................... ... ... 31
Keeping the writing surface clean................................................................. 31
Cleaning the pen tray’s sensors............................................................. 32
Troubleshooting your SMART Board interactive whiteboard .............................. 33
In this chapter............................................................................................... 33
Adjusting the projected image ...................................................................... 33
Resetting your interactive whiteboard........................................................... 34
Using the Connection Wizard....................................................................... 34
Troubleshooting tips ............................................ ......................................... 35
Troubleshooting using the Ready light ......................................................... 37
Flowchart 1: Getting started................................................................... 38
Flowchart 2: Diagnosing power issues................................................... 39
Flowchart 3: Ready light red................................................................... 40
Flowchart 4: Ready light is flashing green.............................................. 41
Flowchart 5: Ready light is green........................................................... 42
Troubleshooting using SMART Board Diagnostics....................................... 43

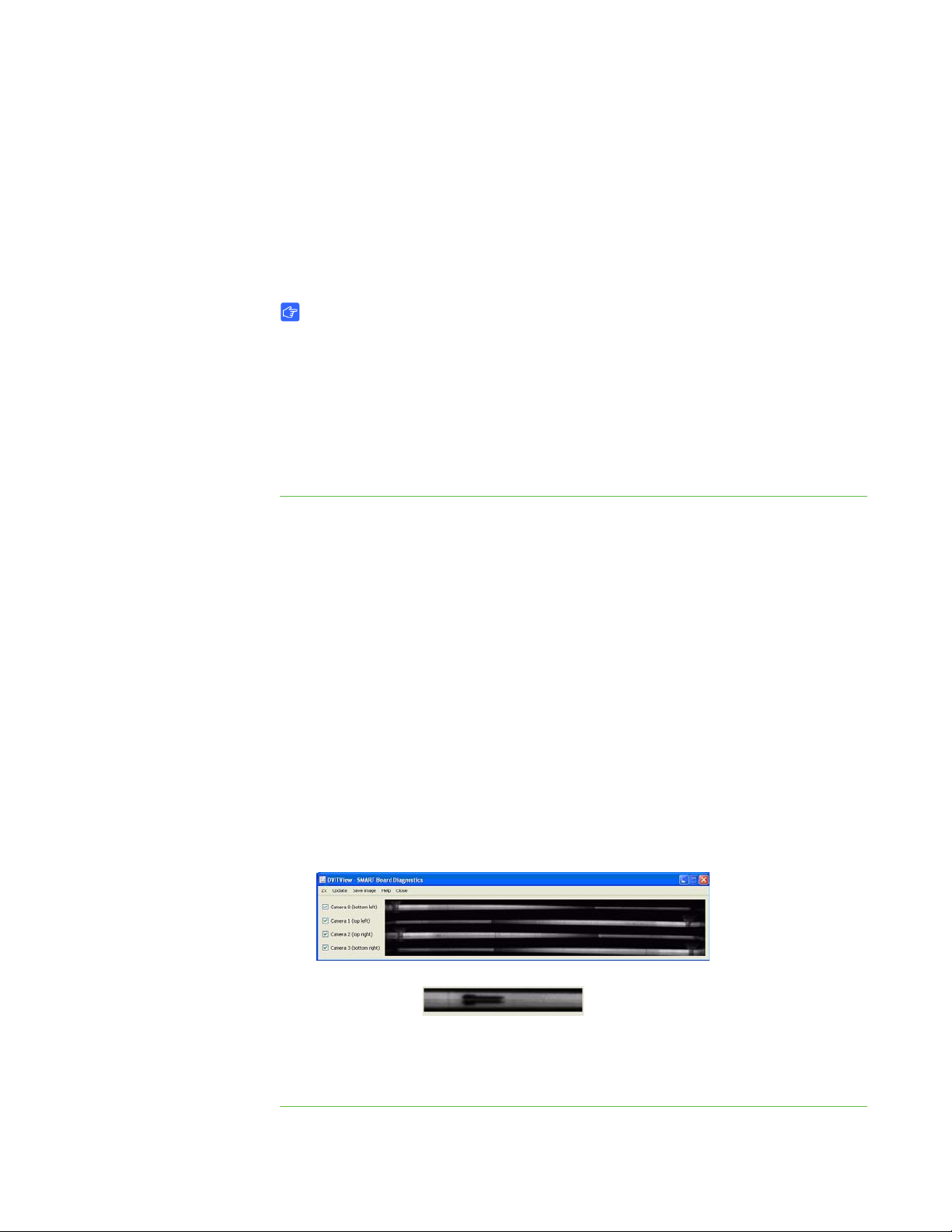

Checking the camera view..................................................................... 43
Checking the interactive whiteboard’s calibration .................................. 44
Finding more information.............................................................................. 44
Contacting SMART Technical Support......................................................... 45
Transporting your interactive whiteboard...................................................... 45

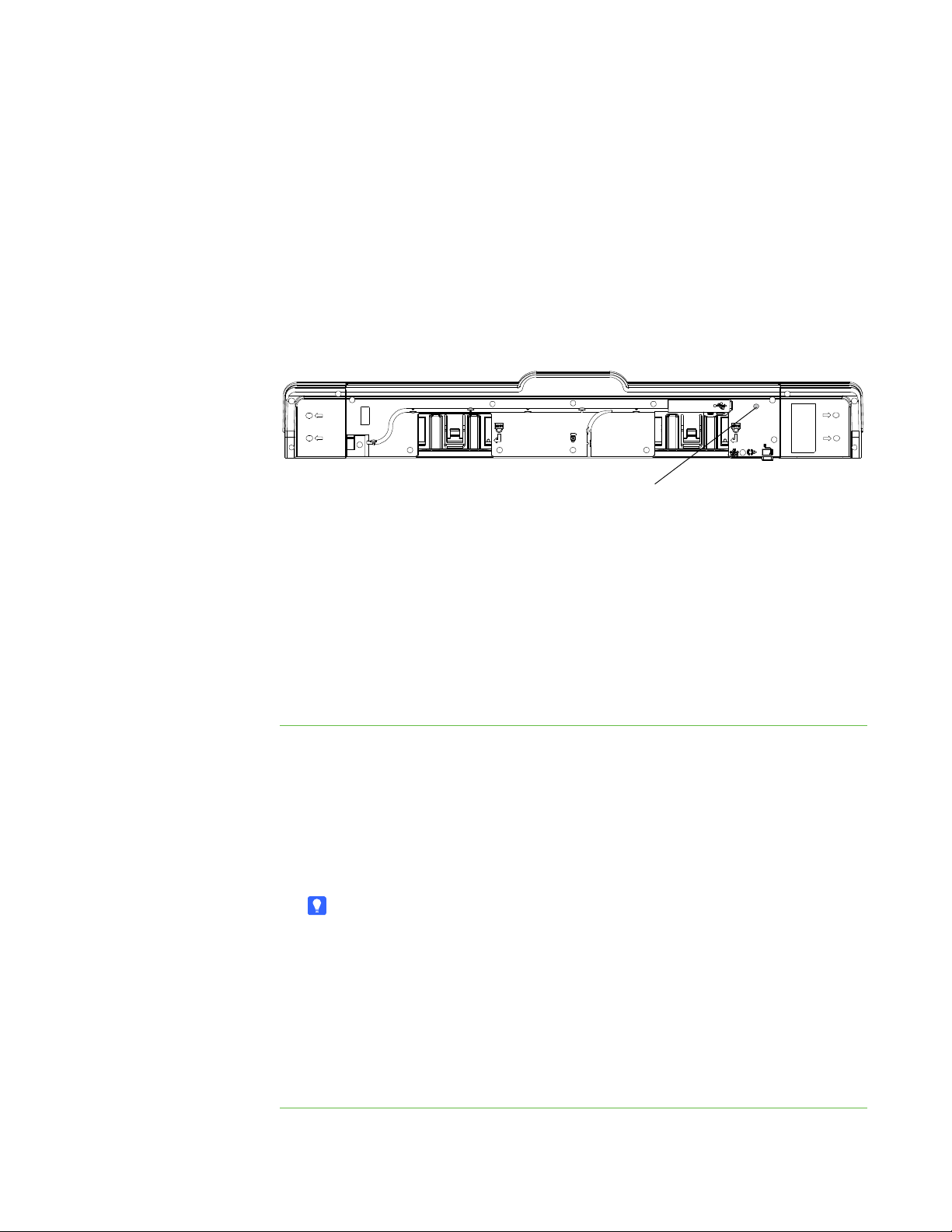

Removing the pen tray.................................................................................. 46
viii | CONTENTS
A Hardware environmental compliance.................................................................. 47
Waste Electrical and Electronic Equipment regulations
(WEEE Directive).......................................................................................... 47
Restriction of Certain Hazardous Substances (RoHS Directive).................. 47
Packaging..................................................................................................... 47
China’s Electronic Information Products regulations........................ ... ... ... ... 48
U.S. Consumer Product Safety Improvement Act ........................................ 48
B Customer support................................................................................................ 49
Online Information and Support.................................................................... 49
Training......................................................................................................... 49
Technical Support......................................................................................... 49
Index ................................................................................................................... 51
Chapter 1

About your SMART Board X800 series interactive whiteboard

Your SMART Board X800 series interactive whiteboard is the most advanced and intuitive touch-sensitive, front-projection interactive whiteboard in the world, featuring SMART’s proprietar y DViT™ (Digital Vision Touch) technology. Its modular and expandable hardware and software architecture enables you to do everything you can do at your computer – open and close applications, conference with others, create new documents or edit existing ones, visit websites, play and manipulate video clips and more – simply by touching the interactive surface. Two users can also draw on the interactive surface at the same time and you can use an array of gestures within applications.
You can also write over any application in digital ink using a pen tray pen or your finger and then save these notes for future reference and distribution.

In this chapter

Refer to these topics to learn more about your SMART Board X800 series interactive whiteboard and for information about product parts and accessories.
Features........................... ... .... ... ... ... .... ............................................. ... .. page 2
Understanding how your SMART Board interactive
whiteboard works................................................................................... page 4
Included parts and accessories........................... ... ... ... .... ... ... ... ... .... ... .. page 5
2 | CHAPTER 1 – ABOUT YOUR SMART BOARD X800 SERIES INTERACTIVE
Pen colour
buttons
Pen tray buttons
and indicators
Cameras
Interactive surface
Pen tray
Cameras
Eraser slot
Pen slot
Pen slot
Pen tray
Power module
Keyboard
button
Right Click
button
WHITEBOARD

Features

Y our SMART Board X800 series inter active whiteboard includes the familiar features of other SMART Board interactive whiteboard series. In addition, it features the ability for two users to draw simultaneously over the entire interactive surface, enabling improved collaboration. The X800 series also features a modular pen tray design that makes it easy to add accessories.
The following models are available:
SBX880 and SBX880-MP – 77" (195.6 cm) diagonal
SBX885 and SBX885-MP – 87" (221 cm) diagonal Refer to the product specification sheets for specific product dimensions.

Your SMART Board X800 series interactive whiteboard

Use the illustration below to familiarise yourself with the components of your interactive whiteboard.
3 | CHAPTER 1 – ABOUT YOUR SMART BOARD X800 SERIES INTERACTIVE
WHITEBOARD

Feature highlights

Software
To use all the features of your interactive whiteboard described in this guide, go to smarttech.com/downloads of SMART software and SMART Product Drivers installed on your computer.
Dual sketch capabilities
Two people can each pick up a pen and draw on the interactive surface at the same time, providing a higher degree of interactivity.
SMART Ink™
The SMART Ink feature smoothes out the appearance of the digital ink, which improves the legibility of your handwriting as you write over applications, websites and videos. The ink becomes an object that you can move and manipulate.
Touch and gestures
You can perform mouse functions with your finger and write and erase digital ink with a pen tray pen or the eraser. The object awareness feature enables you to pick up a pen and then write, select or erase without replacing the pen.
and ensure that you have the latest version
Pen tray
The SMART Board X800 series interactive whiteboard features a modular pen tray with an intuitive new design. As well as two pens and an eraser, pen tray buttons activate the pen’s colour, the on-screen keyboard, right click, Orientation and Help functions.
Durable surface and dry erase
The hard-coated surface is scratch resistant, optimised for projection, comp atible with dry-erase markers and easily cleaned.
Wall-mount bracket
Wall mount brackets enable you to install your SMART Board interactive whiteboard simply and securely.
Cables
Connect your SMART Board interactive whiteboard to your computer with the included, standard USB cable and to a wall outlet with the included power supply.
Security cable lock
Lock your interactive whiteboard with a security cable (not included) to help safeguard it from theft.
4 | CHAPTER 1 – ABOUT YOUR SMART BOARD X800 SERIES INTERACTIVE
WHITEBOARD

Understanding how your SMART Board interactive whiteboard works

Your interactive whiteboard functions as an input device for your computer, just like a mouse, enabling you to work in any app lication on your computer from your interactive whiteboard.
When you touch your interactive whiteboard’ s surface, the four cameras located in the interactive whiteboard’s corners detect the contact’s horizontal and vertical (or x,y) coordinates. Your computer interprets these coordinates and moves the pointer to the corresponding location on the interactive whiteboard’s surface.

Other components

Using your interactive whiteboard requires two additional components: a computer and a digital projector.
These components work together as follows:
Your computer runs an application and sends the image to your projector.
Y our projector casts the image onto your interactive whiteboard.
Your interactive whiteboard acts both as your computer’s monitor and its input devices, that is, its mouse and keyboard, enabling you to control any application by touching the interactive surface.
When you install SMART Product Drivers on your computer, the touch of your finger on the interactive surface becomes a mouse click, enabling you to control your computer from your interactive whiteboard. When you use a pen from the pen tray, the system detects which tool you’re using. SMART Product Drivers then interacts with the computer’s mouse driver to change the pointer to a coloured pen, enabling you to write in digital ink on your desktop or any open application. When you use the eraser, you can erase the digital ink. You can even use your finger on the interactive whiteboard’s surface without returning the pen tray tools – automatic object awareness determines the tool that you’r e us in g on th e inte ra ct ive surf ace . You can also save your notes to a .notebook file, or directly into any Ink Aware application.
5 | CHAPTER 1 – ABOUT YOUR SMART BOARD X800 SERIES INTERACTIVE
WHITEBOARD

Included parts and accessories

Your SMART Board X800 series interactive whiteboard includes the following accessories.

Pens

There are two pens included with your interactive whiteboard. Pick up a pen and press one of the four colour buttons on the pen tra y (black, red, gre en or blue) to change the colour of digital ink that you write with on the interactive whiteboard.

Eraser

The eraser is rectangular like a traditional blackboard eraser.

SMART Board interactive whiteboard wall-mounting kit

The 32" (81.3 cm) wall-mount bracket comes with five screws and toggle bolts, enabling you to mount your interactive whiteboard simply and securely on the wall. Model SBX885 comes with two wall-mounting kits.

SMART USB cable

A 16' 5" (5 m) USB cable enables you to connect your SMART Board X800 series interactive whiteboar d to a USB receptacle on your computer.

Power supply

The SMART Board X800 series interactive whiteboard receives power from a wall outlet through the included countr y-specific power supply and cable.

Optional accessories

You can add a variety of optional accessories to your SMART Board X800 series to best meet your specific needs. You can purchase these items when you order your interactive whiteboard or later from your authorised SMART reseller For more information about accessories, go to the
SMART Board interactive whiteboard accessories page
.
.
6 | CHAPTER 1 – ABOUT YOUR SMART BOARD X800 SERIES INTERACTIVE
WHITEBOARD
Chapter 2

Installing and securing your SMART Board interactive whiteboard

In this chapter

Refer to these topics for information about mounting your SMART Board X800 series interactive whiteboard on a floor stand or on a wall.
Environmental requirements.................................................................. page 7
Installing your SMART Board interactive whiteboard ............................ page 8
Securing the pen tray and interactive whiteboard................................ page 10

Environmental requirements

Before installing your interactive whiteboard, review the following environmental requirements.
Environmental requirements
Operating temperature 41°F to 95°F (5°C to 35°C) Storage temperature -40°F to 120°F (-40°C to 50°C) Humidity 5% to 80% relative humidity, non-condensing Water and fluid
resistance
Parameter
• Intended for indoor use only . Doesn’t meet any sal t-spray or water ingress requirements.
• Don’t pour or spray liquids directly onto the interactive whiteboard or any of its sub-components. These liquids might get into areas where they could damage sensitive electronic components. Refer to page 31 for detailed instructions on cleaning your interactive whiteboard.
8 | CHAPTER 2 – INSTALLING AND SECURING YOUR SMART BOARD
INTERACTIVE WHITEBOARD
Environmental requirements
Dust • Moderate dust. Intended for use in office and classroom
Conducted and radiated emissions
Parameter
environments. Not for industrial use where heavy dust and pollutants can cause malfunctions or impaired operation.
• Designed for pollution degree 1 (P1) as per EN61558-1, which is defined as “No pollution or only dry non­conductive pollution”.
EN55022/CISPR 22, Class A

Installing your SMART Board interactive whiteboard

Follow the procedure outlined in the installation document included in yo ur inte ra ctive whiteboard’s box to install your inter active white boa rd . If yo u purcha sed a floor stand, wall mount or an interactive whiteboard system that includes a projector or other components, refer to the installation documents included with these components.
The optimal mounting height is 77" (196 cm) from the floor to the centre of the installation brackets. However, consider the general height of your user community when you choose a location for wall-mounting your interactive whiteboard. If you mount your interactive whiteboard too low, it might force tall people to bend over uncomfortably. If it’s too high, other people might need to reach up too far. Also remember to leave enough room on either side of the interactive whiteboard so that you can stand beside it.
WARNINGS
Two people are r equired to safely mou nt your interactive whiteb oard be cause it is too heavy for one person to manoeuvre safely. When you and your assistant lift your interactive whiteboard, support its weight at the bottom, avoiding the corner cameras and balance the top with your other hands.
The weight of the interactive whiteboard is approximately 52 lb. (23.7 kg) for the SBX880 model and 61 lb. (27.5 kg) for the SBX885 model. Check your local building codes to ensure that your wall can support this weight and use appropriate mounting hardware for your wall type.
9 | CHAPTER 2 – INSTALLING AND SECURING YOUR SMART BOARD
Power cord receptacle
INTERACTIVE WHITEBOARD
CAUTIONS
If you need to lean your interactive whiteboard against a wall before you mount it, make sure that it remains in an upright position, resting on its pen tray brackets, which are designed to sustain your interactive whiteboa rd’s weight.
Do not rest your interactive whiteboard on its side, on the top of its frame or on the corners where the cameras are located.

Installation Tips

Ensure that the bottom of the pen tray is unobstructed at all times because you will need to access it if the interactive whiteboard requires service.
Install your interactive whiteboard on a flat, plumb wall.
If you’re installing the interactive whiteboard on drywall, use all the toggle bolts supplied. If one of the bracket holes aligns with a wall stud, use appropriate hardware in that hole instead of a toggle bolt.
Ensure that the power cord is connected to the correct receptacle in the pen tray, as shown below.

Replacing a SMART Board interactive whiteboard on drywall

If you’re replacing a SMART Board 500 or 600 series interactive whiteboard with the heavier X800 series on drywall, you must remove the wall-mount bracket and mounting hardware, and then install all the mounting hardware and brackets supplied with your X800 series interactive whiteboard instead.
CAUTION
To help ensure that your interactive whiteboard is mounted correctly, make sure that the colour of the wall-mount hanger on the back of the interactive whiteboard and the wall-mount bracket are the same.
10 | CHAPTER 2 – INSTALLING AND SECU RING YOUR SMART BOARD
Lock slot
Security screw holes
INTERACTIVE WHITEBOARD

Securing the pen tray and interactive whiteboard

Because your SMART Board interactive whiteboard’s pen tray is detachable, you might want to safeguard it – and your interactive whiteboard – by anchoring it with a security cable (not included). Underneath the pen tray, you’ll find a lock slot that accommodates a security cable, such as a Kensington® lock.
IMPORTANT
Securing the pen tray can provide thef t deterre nce for your inte ractive whitebo ard because the screws that secure your interactive whiteboard to the wall are located directly behind the pen tray, and cannot be removed without first detaching the pen tray. In effect, when you secure the pen tray, you also secure your interactive whiteboard if the security cable is tight.
To lock the pen tray
to your interactive
whiteboard
1. Loop your security cable behind the pen tray brackets before you secure them to the wall.
2. Thread the lock end of the cable through the loop end of the cable.
3. Verify that the cable is tight enough that you can’t remove the pen tray while the lock is in place and then install the pen tray.
4. Insert the prong end of the security cable into the lock slot and then complete the pen tray installation by locking it.

Securing the pen tray to the pen tray brackets

Since you can remove the pen tray without tools, you might want to securely attach it to its brackets. To do this, insert two No. 8/M4 screws (not included) into the holes indicated by a lock symbol on the bottom of the pen tray.
Chapter 3

Connecting your interactive whiteboard to your computer

In this chapter

Refer to these topics for information about connecting your SMART Board X800 series interactive whiteboard to your computer.
Connecting the USB cable............................ ... .... ... ... ... .... ... ... ... ... .... ... page 12
Installing SMART Product Drivers ....................................................... page 13
Configuring your computer settings..................................................... page 14
Calibrating your interactive whiteboard................................................ page 15
Orientating your interactive whiteboard........................ .... ... ... ... ... .... ... page 16
Connecting a guest laptop............ ... .... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... page 18
Your interactive whiteboard will be touch sensitive after you install SMART Product Drivers on your connected computer . Perform the brief calibration and user-orient ation procedures (see page 16) to ensure that the interactive whiteboard interprets the location of your touch accurately.
12 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
USB Type-B
receptacle
COMPUTER

Connecting the USB cable

Your SMART Board interactive whiteboard has a USB 2.0 interface that r uns at speeds of up to 12 Mbps. Your interactive whiteboard’s main USB connection is located on the bottom of the pen tray. The connector is a USB Type-B receptacle. The unit works with full-speed USB 2.0- and USB 1.1-compliant interfaces.
WARNING
For operating safety and to prevent damage to your interactive whiteboar d, connect its USB connector, or SMART connection extenders, only to a computer that has a USB compliant interface and that bears the USB logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark and CSA and/or UL marks for CSA/UL 60950.
This location provides access to the USB receptacle without having to remove your interactive whiteboard from the wall.
To connect the USB cable 1. Connect one end of the included USB cable to a USB A receptacle on your
computer.
2. Connect the other end of the USB cable to your interactive whiteboard’s USB receptacle. Tuck the cable into the cable management slot on the bottom of the pen tray to prevent a tripping hazard.
3. Turn on your computer.
4. Install SMART Product Drivers.
13 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
COMPUTER

Installing SMART Product Drivers

After you install SMART Product Drivers on your computer, your SMART Board interactive whiteboard’s surface will respond to the touch of your finger or a pen tray pen. SMART Product Drivers include the tools you need to contro l compu te r applications with your finger or a pen and to write over them in digital ink.
NOTE
If you don’t install SMART Product Drivers, interactive whiteboard tools such as the pens and the eraser don’t work, but you can move the mouse pointer and perform mouse functions by touching the interactive surface.
To install SMART
Product Drivers
1. Download the SMART Product Drivers .exe (Windows) or .dmg (Mac) file to your computer from the disc or link included with your interactive whiteboard, or from
smarttech.com/downloads
NOTE
In most cases, SMART Product Drivers is downloaded automatically when you install SMART Notebook™ or SMART Meeting Pro™ software.
2. If it’s not already on, turn on your projector to see the projected computer image on your interactive whiteboard.
3. Locate the installation programme and follow the on-screen instructions to complete the installation.
SMART Board Tools opens automatically.
4. If SMART Board Tools doesn’t open: – If you have a Windows® computer, select Start > All Programs > SMART
Technologies > SMART Product Drivers > SMART Board Tools.
If you have a Mac computer, open Mac HD and then select Applications >
SMART Product Drivers > SMART Board Tools.app.
The Ready light in your interactive whiteboard’ s pen tray turns from flashing green to solid green and the SMART software icon appears in the Windows notification area or Mac Dock, indicating that your interactive whiteboard is communicating successfully with SMART Product Drivers.
.
You can now pick up a pen from the pen tray and write over your desktop or any projected application as well as use all the other features of your SMART software. For more information on using your SMART software, press the SMART software icon and select Help.
14 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
COMPUTER

Configuring your computer settings

For optimal configuration, use the following settings for the computer connected to your interactive whiteboard.

Recommended settings

Configure your computer’s power management settings to turn off the monitor after one hour of inactivity and to put the hard disks into standby mode after two hours. This extended period prevents the computer from shutting down unexpectedly (for example, during presentations or meetings that have gaps in computer activity).
Your computer will stop sending a video signal to your projector after a period of idle time, which may trigger the projector to go into standby mode. Similarly, you can put your projector in standby mode by following the manufacturer’s instructions included with your projector. To change the settings, see the instructions included with your operating system.

Matching your computer’s resolution to your projector’s resolution

Ensure that the resolution settings for your projector and computer match. If your computer’s resolution doesn’t match the projector’s native resolution, the image won’t appear correctly or will be distorted. See Getting the Best Image Quality on Your SMART Board Interactive Whiteboard (smarttech.com/kb/127199 information.
Determine your projector’s native resolution, indicated in your projecto r’s user’s guide and then set your computer’s resolution to match. You can change your computer’s resolution in Windows Control Panel or in the Mac System Preferences. If you need further help changing your computer’s resolution, see the instructions included with your operating system.
You might also ne ed to ad jus t you r co mp u te r’s refresh rate to obtain the best results. Set the computer to an initial refresh rate of 60 Hz and then adjust this rate up or down until you determine the ideal refresh rate. For more information on changing your computer’s refresh rate, see the instructions included with your operating system.
) for more
15 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
COMPUTER

Calibrating your interactive whiteboard

Digital cameras in the corners of the interactive whiteboard track the position of the pens, eraser and your finger on the interactive surface and then send the information to the SMART software, which interprets this information as mouse clicks, digital ink or ink removal in the appropriate location.
The first time that you connect your SMART Board interactive whiteboard, if you don’t see a pop-up bubble telling you to calibrate the interactive whiteboard, press the Help button on the pen tray to start the calibration process as described below. This process ensures that the cameras accurately track your finger and the pens on the interactive surface.
IMPORTANT
If you have not used your interactive whiteboard before, you must perform a calibration. If the system detects incorrect calibration parameters, a warning bubble may also appear recommending that you perform a calibration.
To calibrate the interactive
whiteboard
1. Click the SMART software icon in the Windows notification area or Mac Dock and then click Control Panel.
2. Select SMART Hardware Settings.
3. If you have more than one SMART product connected, select the appropriate interactive whiteboard.
4. Click Advanced Settings and then click Calibrate. The Calibration window opens. This may take a few moments while your
system sets up.
16 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
5. Use the tip of a pen tray pen to press the red targets as they appear. Move the
6. Continue until you have pressed all the targets.
COMPUTER
tip to the centre of each target until the target turns green and then lift the pen. When you remove the pen, the target moves to the next calibration point.
NOTE
You can recalibrate a target by pressing the left-arrow key on your keyboard or the Keyboard or Right Click buttons on the pen tray.
When you’ve pressed all the targets, a message appears saying that the calibration was successful and then the orientation screen appea rs.

Orientating your interactive whiteboard

After you install SMART Product Drivers on your compu ter and calibrate your interactive whiteboard, an orientation screen appear s. The 4-poin t orientation process ensures that the calibration coordinate s are accurately associated with the relative location of your projected image on the interactive surface. The orientation data is saved in your interactive whiteboard. If you connect a different computer, the orientation data for your interactive whiteboard remains unchanged.
To orientate your
interactive whiteboard
Orient your interactive whiteboard if your projector or interactive whiteboard has moved since you last used it or whenever the mouse pointer isn’t properly aligned with your finger or a pen tray pen when you touch the inter active whiteboard’ s sur face.
1. Press the Orientation button on the pen tray (see page 20). The orientation screen opens.
2. Pick up a pen from the pen tray.
17 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
Poor orientation pointGood orientation point
The pen touches the centre of the target.
COMPUTER
3. Beginning at the upper-left corner of the screen, touch the centre of the target firmly with the tip of the pen. When you remove the pen, the target moves to the next orientation point. Try not to flick the pen when you lift it from the interactive surface and make sure that you lift it from the screen at a 90° angle.
NOTE
Although you can use your finger to orient yo ur inter a ctive w hit eb oar d, a fin e­point tool such as a pen tray pen provides greater precision when touching the targets. The more precisely you touch the targets, the more accurately your finger or pen tray pen appears on the interactive screen.
4. Repeat step 3 until you complete the orientation process. The orientation screen closes.
NOTE
You can re-orient a target by pressing the left arrow key on your keyboard, or the Keyboard or Right Click buttons on the pen tray.
18 | CHAPTER 3 – CONNECTING YOUR INTERACTIVE WHITEBOARD TO YOUR
COMPUTER

Connecting a guest laptop

If you want to connect a guest laptop without installing SMART Product Drivers on it, disconnect the USB cable from your resident computer and then connect it to the laptop. You’ll immediately have touch control of the interactive whiteboard, but won’t be able to use digital ink. You’ll also need to connect a video cable between the laptop and projector.
NOTE
With a laptop connected, the Ready light on your interactive whiteboard blinks until you install SMART Product Drivers. This is normal. See page 21 for more information about Ready light states.
Y ou must also install SMAR T Product Drivers (see page 13) on your laptop if you want to use all the features of the interactive whiteboard.
Chapter 4

Using and maintaining your SMART Board interactive whiteboard

In this chapter

Refer to these topics for information about using and maintaining your SMART Board X800 series interactive whiteboard.
Getting started..................................................................................... page 20
Using the pen tray................................................................................ page 22
Using Ink Aware................................................................................... page 23
Updating SMART software.................................................................. page 23
Writing, selecting and erasing using object awareness....................... page 24
Using gestures..................................................................................... page 25
Tips for trouble-free performance.................... .... ... ... ... .... ... ... ... ... .... ... page 30
Keeping the writing surface clean........................................................ page 31
20 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
Power button
Orientation button
Help button
Ready light
WHITEBOARD

Getting started

Once your SMART Board X800 series interactive whiteboard is installed, the camera system is calibrated and the interactive surface has been orientated, you can begin using the interactive whiteboard to write, erase and move objects, open applications, use Ink Aware programmes and save your notes on your computer.

Turning the interactive whiteboard on and off

To turn on your interactive whiteboard, ensure that you’ve connected the USB cable between the pen tray and your computer and that the power cable is connected to a wall outlet. Then turn on your computer.
If your interactive whiteboard is in standby mode, the Power button on the pen tray is unlit. Press the Power button to wake up your interactive whiteboard. Press the Power button again to return it to standby mode.
When you turn on or reset your interactive whiteboard, the indicator lights on the pen tray cycle twice. When the system is running and SMART Prod uct Drivers is installed, the lights come on only for the ink colour that you select. The pen tray detects the removal of the pens and the eraser using infrared sensors.

Power panel controls and indicators

Located at the pen tray’s left side, the Power panel has Power, Orientation and Help buttons and the interactive whiteboard’s Ready light.
21 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD
Power button
Use the Power button to put your interactive whiteboard into standby mode when not in use and to restore full power to the interactive whiteboard when you need to use it. Ensure that the interactive whiteboard is connected to your computer and to a wall power outlet.
Orientation button
Press this button to start the orientation process. Orientating your interactive whiteboard ensures that the mouse pointer or digital ink appears directly below your finger or pen tray tool when you touch the intera ct ive surf ace . See page 16 for information on performing an orientation procedure.
Help button
Press this button to access on-screen Help options, includ ing links to online Help files, the SMART Connection wizard and contact information for SMART technical support.
Ready light
The Ready light is solid green when the system is operating correctly.
The following table shows the Ready light’s normal states. If the indicator’s behaviour doesn’t match a state listed here, see Troubleshooting tips on page 35.
Ready Light State Meaning
Solid red Your interactive whiteboard is receiving power from the
power cable, but isn’t communicating with a computer.
Flashing green Your interactive whiteboard is receiving power and
is communicating successfully with your computer’s USB HID driver. SMART Product Drivers isn’t installed.
NOTE
In HID mode, interactive whiteboard tools such as the pens and the eraser don’t work, but you c an move the mouse pointer and perform mouse functions by touching the interactive surface. The Right Click button on the pen tray might work, depending on the version of operating system that you’re using. Neither the Keyboard nor the Help button work in HID mode.
Solid green Your interactive whiteboard is receiving power and is
communicating successfully with SMART Product Drivers.
Flashing amber The controller module is in a service mode or the firmware
is being updated.
22 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
Right Click button
Keyboard button
Pen colour buttons
WHITEBOARD

Using the pen tray

In addition to providing a convenient place to hold the pens and the eraser, the pen tray on your SMART Board X800 series interactive whiteboard has several controls, sensors and indicators.

Pen tray buttons

In the centre of the pen tray , there are six buttons. The middle four change the colour of digital ink for the two pen tools.
The buttons on either side of the pen colour buttons default to the on-screen keyboard (left button) and right click (right button) functions.
To customise the
button settings
You can customise the buttons using SMART Tools to provide several other functions, including printing, changing pages, launching applications and capturing the screen.
Pressing the Keyboard and Right Click buttons simultaneously starts the orientation process.

Customising your pen tray buttons

You can use the SMART control panel to customise your SMART hardware settings, including the pen, eraser and button settings.
1. Press the SMART software icon in the Windows notification area or Mac Dock and then select Control Panel.
The SMART control panel opens.
2. Press SMART Hardware Settings, select Pen and button settings from the drop-down list and then select the button that you want to customise.
For more information about customising your settings, open the online Help by pressing the Help button on the pen tray, selecting Help Centre and then selecting
SMART Hardware Settings.
23 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Using Ink Aware

Ink Aware integrates SMART software with applications including Microsoft Word, Excel® or PowerPoint®. When you use an application that is Ink Aware, whatever you write or draw on your interactive whiteboard becomes embedded in the file, rather than an external note created over the file.
To view a list of Ink Aware
programmes
1. Press the SMART software icon in the Windows notification area or Mac Dock and then select Control Panel.
The SMART control panel opens.
2. Press Configure SMART Tools.
3. Press Ink Aware Program Settings. The Aware dialog box appears. You can enable or disable Ink Aware for any of the
programmes in the list.

Updating SMART software

After you have installed your SMART soft ware, you can find more resources and updates at smarttech.com/support SMART Product Update by selecting Help > Check for Updates in the software.
For more information about the SMART software included with your interactive whiteboard, see the software’s Help files.
. You can also check for software updates with
To check for software
updates
1. Start your SMART software programme.
2. Press Help > Check for Updates. If you don’t see the Check for Updates option, contact your network administrator.
3. Press the Update button beside the software you want to update. SMART software updates automatically.
24 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Writing, selecting and erasing using object awareness

Your SMART Board X800 series interactive whiteboard features object awareness, which means you can pick up a pen and write, select or erase without replacing the pen. SMART software interprets your intention when you press the interactive surface, based on both the type of tool that you’re using and the size of the contact area.
If you touch the interactive surface with the pen, SMART software identifies its reflective surface and you write or draw in digital ink on the screen.
If you touch the interactive surface with your finger, you perform a left click.
If you touch the interactive surface with an eraser, your palm or the side of your hand, SMART software identifies a large contact area and you erase digital ink from the screen.

Enabling the lockable pen option

If you want any touch on the interactive whiteboard’s surface to register as a specific tool, such as a pen, eraser or Select tool, regardless of the size of the contact area, press one of the pen tray’s pen colour buttons for at least three seconds to lock it.
NOTE
The selected pen tray light blinks to indicate that you’re using the lockable pen option.
For example, if you select the pen tool, pressing the screen with either a pen tray pen, your finger, the palm of your hand or any other object creates digital ink on the interactive whiteboard. Use the lockable pen option if you r users are more comfort able using a larger object, such as a tennis ball, to write on the interactive whiteboard.
To unlock the pen, press any pen tr ay co lou r bu tt on .
25 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Using gestures

When you use SMART software, you can perform the following gestures on the interactive whiteboard’s surface.
NOTE
Depending on which operating system and which application you’re working in, some gestures may not work or may perform differently than described.

Selecting and deselecting an object (clicking)

Quickly press and release the interactive surface to select or deselect an object or option. This performs a standard mouse click.
NOTE
This gesture starts programmes if your operating system is set to start applications on a single click.
Displaying menu options (right-clicking or Control­clicking)
Press your finger to the screen for a few seconds to perform a right click.
26 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Double-clicking

Quickly press and release the interactive surface twice in the same spot. This performs a standard double-click.
NOTE
This gesture starts programmes if your operating system is set to start applications on a double click.

Dragging an object, scroll bar or window

Press the object, scroll bar or window on the interactive surface. Keep your finger on the object and slowly move it to its new position. When you reach the position that you want, release your finger.

Erasing digital ink

Using your flattened hand, palm or fist, press the interactive surface and move your hand across the area you want to erase.
27 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
90°
90°
Use a scrubbing motion to erase entire areas of digital ink.
WHITEBOARD
NOTE
To erase a large area of ink, move your hand in a circle around the area that you want to erase and then tap the middle of the circle with your hand, palm or fist.

Best practices for gestures and tools

Follow these guidelines when you use gestures and tools with your interactive product.
Hold your fingers perpendicular (90° ) to the interactive surface at the contact point.
28 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD
Keep your thumb and other fingers away from the interactive surface. They can generate unintentional commands.
Keep your other hand, elbows and loose clothing away from the interactive surface. They can generate unintentional commands.
For “click” commands, quickly tap your finger on the interactive surface. Also, make sure that you lift your finger far enough away from the interactive surface between presses so that your finger is out of the interactive whiteboard cameras’ view.
29 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD
For “erase” commands, use your flattened hand, palm or the bottom of your fist.
When using the pen tray’s eraser, use the wide surface for large areas and the smaller, angled surface for smaller areas. Don’t use the edge of the eraser because this could be interpreted incorrectly.
30 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Tips for trouble-free performance

Connect your interactive whiteboard to a USB interface that’s recogn ised by the operating system.
Don’t obstruct the cameras’ view of the interactive whiteboard’s surface or edges. For example, don’t place magnets, stickers or adhesive tape on the interactive surface or rest any objects, including the pens, in the recess at the bottom of the interactive surface because this interferes with the corner cameras’ ability to detect your finger or pen tray tools.

Safety tips for teachers

Tell students not to look directly at the light beam from the projector. Instead, encourage them to keep their backs to the projector when working at the interactive whiteboard. Before students turn to face the class, they should take a step sideways, out of the projector’s beam.
Make sure that you don’t look directly into the projector’s beam. Keep your back to the class when you write over a projected image. Step to the side of your interactive whiteboard before you turn to face the class.
Tell your students not to touch the projector because it can become extremely hot during normal operation.
Don’t use a chair to increase a student’s reach. If your students are unable to reach the top of the interactive whiteboard, you might need to remount a wallmounted unit at a lower position.
31 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Preventing damage to your interactive whiteboard

Although your SMART Board interactive whiteboard’s surface is very durable, take the following precautions to prevent damage to the interactive surface and other components.
Don’t use sharp or pointed objects, such as ballpoint pens or pointers, as writing tools.
Don’t use abrasive erasers or harsh chemicals to clean your product.
Don’t set up and use your interactive whiteboard in an area with high levels of dust, humidity or smoke.
Don’t use compressed air to clean the interactive whiteboard’s cameras because the force of the air could damage them.

Keeping the writing surface clean

With proper care, your SMART Board interactive whiteboard will provide years of trouble-free service. Follow these tips to keep the interactive whiteboard’s surface clean:
Don’t spray cleaner directly onto the interactive whiteboard’s surface. Instead, spray a light amount of cleaner on a cloth and then gently wipe the interactive surface.
Clean your interactive whiteboard at least once every six months.
Don’t allow excess cleaner to flow onto the frame’s reflective surfaces or into the pen tray slots.
The digital cameras located in the corners of the frame are protected from dust and dirt by windows. In extremely dusty environments, spray a household, alcohol-free glass cleaner such as Windex® cleaner, on a cotton swab and rub it gently on the windows. Don’t use compressed air to clean the cameras.
IMPORTANT
Turn your interactive whiteboard off before you clean it so that you do not
scramble the desktop icons or inadvertently activate applications when you wipe the interactive surface.
To view dirt or streaks more easily, set your projector to standby (lamp off)
mode.
32 | CHAPTER 4 – USING AND MAINTAINING YOUR SMART BOARD INTERACTIVE
Infrared sensors
WHITEBOARD

Cleaning the pen tray’s sensors

If the infrared sensors in the sides of the pen tools’ recesses become obstructed by dirt, moisten a cotton swab with a household glass cleaner, such as Windex and then carefully clean the infrared transmitter and receiver.

Troubleshooting your SMART Board interactive whiteboard

In this chapter

Refer to these topics for information about troubleshooting your SMART Board X800 series interactive whiteboard.
Adjusting the projected image ............................................................. page 33
Resetting your interactive whiteboard.................................................. page 34
Troubleshooting tips ............................................ ... ... ... .... ... ... ... ... .... ... page 35
Troubleshooting using SMART Diagnostics ........................................ page 43
Where to find more information ........................................................... page 44
Contacting SMART Technical Support................................................ page 45
Transporting your interactive whiteboard............................................. page 45
Removing the pen tray......................................................................... page 46

Adjusting the projected image

If your projector isn’t installed in a fixed location, you can correct many image problems by shifting your projector or adjusting its zoom lens.
NOTES
Adjust the image size and shape based on your projector’s splash screen,
unless the splash screen image is much smaller than the computer’s projected image. Before you adjust the projected image, set the computer’s resolution and refresh rate (see page 14).
Refer to your projector’s user guide for information on adjusting the
projected image.
34 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Reset button
WHITEBOARD

Resetting your interactive whiteboard

If your interactive whiteboard behaves erra tically or becomes unresponsive, possibly because of an electrostatic discharge, a power interruption or some other event, you might be able to restore normal operation by resetting your interactive whiteboard.
Reset your interactive whiteboard by pressing the Reset button on the bottom of the pen tray. The Reset button is recessed so that it can’t be triggered accidentally. Use a long, narrow object, such as a ball-point pen, to press this button.
To start the SMART
Connection wizard
You can also reset the interactive whiteboard by disconnecting the power cable from the wall and then reconnecting it.

Using the Connection Wizard

You can resolve many troubleshooting issues using the SMART Connection Wizard found in the SMART control panel.
1. Press the Help button on the pen tray. The Help and Support for Your SMART Board Interactive Whiteboard
window opens.
2. Press Connection Wizard. The SMART Connection Wizard opens.
TIP
Y o u can also access the SMAR T Connection Wizard by selecting the SMAR T software icon in the Windows notification area or Mac Dock, selecting Control Panel and then selecting Connection Wizard.
3. Select SMART Board X800 series interactive whiteboard, and then press Next.
4. Select the option that best describes the issue that you’re encountering and follow the on-screen instructions to troublesh oo t yo ur inter a ctive whit eb oa r d.
35 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Troubleshooting tips

Try the troubleshooting tips in this table if the Ready light indicates that your interactive whiteboard is operating normally, but you’re still encountering problems.
Symptom/observation Cause Solution
There is no image projected on your interactive whiteboard or a “No Input” message appears.
The orientation screen doesn’t appear when you press the Orientation button.
Your projector isn’t receiving a video signal.
Your computer is in standby mode.
Your computer is off. Turn on or restart yo ur computer. The orientation
screen is appearing on a different display.
• Check the video cable connections.
• Check that the correct video input is selected on your projector.
• Make sure that your projector is on and that it’s connected to a power source and your computer.
• If you’re using a laptop computer, switch the external video connection on. Refer to your laptop’s user guide for more information.
Move the mouse or touch any key on your keyboard to bring your computer out of standby mode.
Press the Orientation button again or press the SPACEBAR on your keyboard until the Orientation screen appears.
The projected image is blurry, too large or doesn’t completely fill the whiteboard’s interactive surface.
Your projector’s position, zoom and focus settings aren’t adjusted.
Your computer’s video resolution settings don’t match your projector’s native resolution.
Adjust your projector’s position, zoom and focus settings. Refer to your projector’s manual for more information.
Consult your projector’s manual for the correct video resolution and then go to Windows Control Panel or the Mac System Preferences to change the video resolution to match your projector.
36 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD
Symptom/observation Cause Solution
The SMART software icon doesn’t appear in the Windows notification area or Mac Dock.
Touch isn’t accurate. The pointer doesn’t appear directly below your finger. When you write on the interactive surface, your writing appears at a slight distance from the pen.
SMART Board Tools isn’t running.
SMART Product Drivers isn’t installed.
Your interactive whiteboard isn’t oriented properly.
Start SMART Board Tools. For Windows computers, select
Start > All Programs > SMART Technologies > SMART Product Drivers > SMART Board Tools.
For Mac computers, select Finder > Applications > SMART Product Drivers > SMART Board Tools.
Install SMART Product Drivers on your computer.
For details about installing SMART Product Drivers, see page 13.
Orient your interactive whiteboard. To start the orientation, press the
Orientation button on the pen tray (see page 16).
If the Orientation screen doesn’t appear, perform a calibration procedure as described on page 15.
Digital ink doesn’t appear on the interactive whiteboard or appears intermittently.
Nothing happens when you touch the interactive whiteboard, even though the computer and projector are on.
One of the pen colour buttons is flashing.
The interactive whiteboard isn’t calibrated properly.
A camera is obscured.
The interactive whiteboard is off.
You have selected the lockable pen option. See page 24 for information.
Use SMART Board Diagnostics to confirm the issue and then perform a calibration procedure. See page 43 for information.
Remove any object attached to the interactive surface or resting in the bottom bezel behind the pen tray. Use SMART Board Diagnostics to confirm the issue and then clear the affected camera. See page 43 for information.
Press the Power button on the interactive whiteboard’s pen tray to turn it on.
Press any pen tray colour button to exit the lockable pen option.
37 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Symptom/observation Cause Solution
WHITEBOARD
Ink always appears on the screen, even when you touch the interactive surface with a finger or the palm of your hand.
An error message appears when you try to calibrate your interactive whiteboard.
A pen is missing from the pen tray and Touch Recognition has been disabled.
You have selected the lockable pen option. See page 24 for information.
A camera isn’t properly connected or isn’t functioning correctly.
Place all the pen tray tools in their slots and press the Help button on the pen tray. Select Touch Recognition Settings and ensure that the Enable Touch Recognition box is selected.
Press any pen tray colour button to exit the lockable pen option.
Contact SMART Technical Support (page 49).

Troubleshooting using the Ready light

You can troubleshoot your interactive whiteboard using the Ready light, together with other observable symptoms and behaviours. Before you start troubleshooting, see page 20 to locate the Ready light and then familiarise yourself with its states during normal operation.
The following flowchart directs you to the next stage in your troubleshooting proce ss.
Start
Yes
Yes
No
No
Yes
No
No
Yes
Is the Ready
light off?
Go to
Flowchart 2
Go to
Flowchart 3
Go to
Flowchart 4
Go to
Flowchart 5
Contact your
next level of
support
Is the Ready
light red?
Is the Ready
light solid
green?
Is the Ready light flashing
green?
38 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Flowchart 1: Getting started

Your interactive whiteboard isn’t receiving power.
Your interactive whiteboard is receiving power but isn’t communicating correctly with your computer.
A flashing green Ready light might be normal if you want touch-only operation of your interactive whiteboard. If you want to use the SMART Board tools or pen tray pens, go to Flowchart 4.
A solid green Ready light indicates normal operation. To diagnose problems that might occur in other components of your interactive whiteboard, see Flowchart 5.
If the Ready light is flashing or is a steady amber, the firmware might be in the process of updating. Wait until it has finished.
If none of these descriptions apply to the Ready light, contact your next level of support.
Ready light is
off
Yes
Yes
Yes
No
No
No
Yes
Go to
Flowchart 1
Contact your
next level of
support
Is the Ready
light on?
Press the Power
button on the
pen tray
Ensure that the power cable is
securely connected to the the
power connector in the pen tray
and the wall
Is the Ready
light on?
Did the pen
tray lights flash
and is the
Ready light on?
Reset the interactive
whiteboard
Power receptacle
Audio receptacle
39 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Flowchart 2: Diagnosing power issues

If the Ready light is off, the interactive whiteboard is not receiving power.
If the computer is in standby mode, the Power button on the pen tray is off. Press the Power button or touch the interactive surface to wake up the computer.
To reset the interactive whiteboard, use a long, narrow object, such as a ballpoint pen, to press the recessed Reset button briefly (less than three seconds). Alternatively, disconnect the power cable from the wall and then reconnect it.
When you reset the interactive whiteboard, all the pen tray lights will flash in sequence twice, indicating successful communication with the controller. If they flash continuously, contact SMART Technical Support.
Make sure that the power cable is connected to the correct receptacle. The audio and power receptacles are located beside each other on the back of the pen tray.
Ready light is
red
No
No
Yes
Yes
No
No
No
Yes
Yes
Contact your next level of
support
Is the Ready
light red?
Does the
USB cable
exceed 16 feet
(5 m)?
Is the Ready
light red?
Yes
Is the Ready
light red?
Is the Ready
light red?
Check all cable
connections
Reset the interactive
whiteboard
Replace with a
shorter USB
cable
Disconnect and
connect the USB
cable to the computer
Go to
Flowchart 1
40 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Flowchart 3: Ready light red

A red Ready light indicates that your interactive whiteboard is receiving power, but is not communicating successfully with your computer. In most cases, pen tray lights don't turn on and the screen isn't responsive to touch.
The interactive whiteboard is connected to your computer with a USB cable and to the wall outlet with a power cable. You can access these cables by reaching under the pen tray.
If the Ready light changes from green to red while your computer is running, the computer can become unresponsive. Restart your computer.
To reset the interactive whiteboard, use a long, narrow object, such as a ballpoint pen, to press the recessed Reset button briefly (less than three seconds). Alternatively, disconnect the power cable from the wall and then reconnect it.
Ready light
is flashing
green
No
No
Yes
Yes
Yes
Contact your
next level of
support
Is SMART
Product Drivers
installed?
Is the
SMART
Board service
running?
Is the Ready light flashing
green?
Install SMART
Product Drivers
10.7 or later
No
No
Start SMART
Board
Service
Reinstall
SMART Product
Drivers
Go to
Flowchart 1
41 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Flowchart 4: Ready light is flashing green

This is the normal mouse mode state when SMART Product Drivers isn’t installed on your computer. This mode might be desirable for occasional or guest users who don’t require the use of SMART Board Tools or pen tray functions.
Install SMART Product Drivers from the disc or link included with your interactive whiteboard, or download it from smarttech.com/
downloads.
To determine whether th e SMART Board software service is running, open the SMART control panel and check the message that appears at the bottom. Start SMAR T Board software service if it isn’t running.
To start SMART
Board Service
1. Press the SMART software icon in the Windows notification area or Mac Dock and then press Control Panel.
The SMART control panel opens.
2. Select About Software and Product Support > Tools > Diagnostics. The SMART Board Diagnostics window opens.
3. In the Service menu, select Start.
42 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Ready
light is
green
No
No
No
Yes
Yes
Yes
No
Contact your
next level of
support
Are there
obstructions on
the frame’s
reflective tape?
Are the
camera lens
covers dusty?
OK
now?
Yes
No
OK
now?
OK
now?
No
Yes
OK
now?
Reset the interactive
whiteboard
Clean the
camera lens
covers
Calibrate the
cameras
Yes
Remove
obstructions
Go to
Flowchart 1
WHITEBOARD

Flowchart 5: Ready light is green

A solid green light indicates that the interactive whiteboard is wor king correctly. However, if the pen tray tools don’t work as expected, or if the interactive whiteboard isn’t sensitive to touch, use the following flowchart to troubleshoot your interactive whiteboard. Use the SMART Board Diagnostics to further troubleshoot these issues (next page).
If another user has reassigned the pen, eraser or pen tray button functions, the tools might not work as expected. You can return them to normal operation by using the SMART control panel to change SMART hardware settings.
Use a soft cloth to dust the camera lens covers. Don’t use compressed air to clean the cameras or lens covers.
To reset the interactive whiteboard, use a long, narrow object, such as a ballpoint pen, to press the recessed Reset button briefly (less than three seconds). Alternatively, disconnect the power cable from the wall and then reconnect it.
Calibrate the cameras to ensure that they accurately track your finger and the pens. To calibrate the cameras, make sure that your projector’s image fills as much of the interactive surface as possible, and then select View >
SBX800/SBID8070i Bar > Calibrate.
43 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Normal camera views
Image when a pen or other object obscures the camera’s view
WHITEBOARD

Troubleshooting using SMART Board Diagnostics

If you touch the interactive whiteboard’s surface and nothing happens or if there is no digital ink or the ink appears in some locations and not in others, use SMART Board Diagnostics to help identify and resolve these issues.
IMPORTANT
Do not change diagnostic settings unless asked to do so by SMART Technical Support.

Checking the camera view

If nothing happens when you touch the interactive whiteboard’s surface, check to make sure that nothing is obscuring one of the cameras’ views.
To check camera views 1. Press the SMART software icon in the Windows notification area or Mac Dock and
then press Control Panel. The SMART control panel opens.
2. Select About Software and Product Support > Tools > Diagnostics. The SMART Board Diagnostics screen opens.
3. In the View menu, select SBX800/SBID8070i Bar. The SBX800 group box appears in the SMART Board Diagnostics screen.
4. Press View. The camera view screen appears.
5. Click Update to display the four cameras views. This may take a few moments. If one of the camera’s views remains black, the camera is obstructed or can’t
locate the reflective surface on the interactive whiteboard’s inner frame.
6. Check the camera lens and ensure that nothing is obscuring the view and that nothing is affixed to the interactive surface.
44 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
WHITEBOARD

Checking the interactive whiteboard’s calibration

If digital ink appears only in certain areas when you write on the interactive whiteboard or no ink appears, the interactive whiteboard could be incorrectly calibrated. You can test the calibration using SMART Board Diagnostics.
To check the interactive
whiteboard’s calibration
1. Press the SMART software icon in the Windows notification area or Mac Dock and then press Control Panel.
The SMART control panel opens.
2. Select About Software and Product Support > Tools > Diagnostics. The SMART Board Diagnostics screen opens.
3. In the View menu, select SBX800/SBID8070i Bar. The SBX800 group box appears in the SMART Board Diagnostics screen.
4. Press Tracker. The screen becomes white.
5. Move your finger around the interactive surface and watch the four pairs of coloured lines. If the lines don’t converge on a single point, this indicates that the interactive whiteboard needs to be recalibrated.
NOTE
If one or more of the lines doesn’t move or doesn’t appear, this indicates that a camera is obstructed or isn’t working properly.
6. Press the ESC key to close the Tracker screen and then press Calibration.
7. Perform a calibration procedure (see page 15).

Finding more information

The Help Centre contains links to a wide range of information, including procedures, concepts, help with applications, SMART software tool descriptions, troubleshooting hints and more.
Access the Help Centre by pressing the Help button on the pen tray. The Help button also provides access to the orientation screen and SMART contact information. For more information on the pen tray buttons, see page 22. Alternatively, you can access the Help Centre from the SMART software icon in the Windows notification area or Mac Dock.
45 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Serial number locations
Front view Rear view
WHITEBOARD

Contacting SMART Technical Support

SMART Technical Support welcomes your call. Before contacting SMART Technical Support, make note of your SMART Board interactive whitebo ard’ s serial number an d then note it in the inside cover of this manual (if you printed it).
To determine your
interactive whiteboard’s
serial number
You can find the serial number in two places: on the back of your SMART Board interactive whiteboard and on the bottom right-hand edge of your interactive whiteboard’s frame (the side).
The serial number on your SMART Board interactive whiteboard always begins with the letters SBX, followed by the interactive whiteboard’s model number, for example, SBX880-xx-xxxxxx. The serial number can include numbers, letters and hyphens.
NOTE
Make sure that you include all the numbers, letters and hyphens in your serial number when contacting technical support.

Transporting your interactive whiteboard

Save your original SMART Board interactive whiteboard packaging so that it’s available if you need to transport your interactive whiteboard. When required, repack your interactive whiteboard with as much of the original packaging as possible. This packaging was designed with optimal shock and vibration protection.
If you prefer to use your own packaging materials, make sure that you adequately protect your interactive whiteboard. Ship the unit in an upright position to deter shippers from placing heavy objects on it.
46 | CHAPTER 4 – TROUBLESHOOTING YOUR SMART BOARD INTERACTIVE
Plastic clips
WHITEBOARD

Removing the pen tray

It might be necessary to remove the pen tray when you transport or service your interactive whiteboard.
WARNING
There are no user-serviceable parts inside the pen tray. Do not disassemble the pen tray.
NOTE
You don’t need to wear ESD protection when performing the following procedure.
To remove the pen tray 1. Turn off your interactive whiteboard by disconnecting the power cable from the
wall and unplugging the USB cable from your computer.
2. Remove the pens and the eraser from the pen tray.
3. Reach under the pen tray and disconnect the USB cable.
4. If you secured the pen tray to its brackets using two security screws as described on page 10, remove these screws.
5. If you secured the pen tray using a Kensington lock or similar device, unlock and remove the lock.
6. Reach under the pen tray and pull down on the two large plastic clips. Because the ends of these clips project slightly downwards, they’re easy to locate.
7. While applying downward pressure to the clips, gently slide the pen tray toward you until you can access the cables attached to the back of the pen tray.
8. Carefully disconnect all cables before completely removing the pen tray from the two L-shaped metal brackets.
Appendix A

Hardware environmental compliance

SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner.

W aste Electrical and Electronic Equipment regulations (WEEE Directive)

Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment sold within the European Union.
When you dispose of any electrical or electronic equipment, including SMART Technologies products, we strongly encourage you to properly recycle the electronic product when it has reached end of its life. If you require further information, please contact your authorised SMART reseller which recycling agency to contact.
or SMART Technologies for information on

Restriction of Certain Hazardous Substances (RoHS Directive)

This product meets the requirements of the European Union’s Restriction of Certain Hazardous Substances (RoHS) Directive 2002/95/EC.
Consequently, this product also complies with other regulations that have arisen in various geographical areas and that make reference to the European Union’s RoHS directive.

Packaging

Many countries have regulations restricting the use of certain heavy metals in product packaging. The packaging used by SMART Technologies to dispatch products complies with applicable packaging laws.
48 | APPENDIX A – HARDWARE ENVIRONMENTAL COMPLIANCE

China’s Electronic Information Products regulations

China regulates products that are classified as EIP (Electronic Information Products). SMART Technologies products fall under this classification and meet the requir ements for China’s EIP regulations.
U.S. Consumer Product Safety
Improvement Act
The United States has enacted the Consumer Product Safety Improvement Act which limits the lead (Pb) content in products used by children. SMART Technologies is committed to complying with this initiative.
Appendix B

Customer support

Online Information and Support

Visit www.smarttech.com/support to view and download user guides, how-to and troubleshooting articles, software and more.

Training

Visit www.smarttech.com/trainingcenter for training materials and information about our training services.

Technical Support

If you experience difficulty with your SMART product, please contact your local reseller before contacting SMART Technical Support. Your local reseller can resolve most issues without delay.
NOTE
To locate your local reseller, visit www.smarttech.com/where
All SMART products include online, telephone, fax and email support: Online www.smarttech.com/contactsupport
Telephone +1.403.228.5940 or
Toll Free +1.866.518.6791 (US/Canada)
(Monday to Friday, 5 a.m. – 6 p.m. Mountain Time) Fax +1.403.806.1256 Email support@smarttech.com
.
50 | APPENDIX B – CUSTOMER SUPPORT

Index

A
accessories
eraser, 5 pen tray pens, 5 powersupply, 5 USB cable, 5 wall-mounting kit, 5
B
buttons
customising, 22 flashing, 36 Help, 21 Keyboard, 22 orientation, 21 pen tray, 21 power, 21 Right-Click, 22
C
Cables
security, 10
cables
USB, 12 calibration, 15 calibration error, 37 cameras
calibrating, 15 cleaning, 31 components, 2 computer
resolution, 14 connecting a laptop, 18 connecting with USB, 12
D
diagonal, 2 documentation, 49 drivers, 3, 4, 11, 13 dual users, 3 durability, 3
E
environmental requirements, 7 eraser, 5
F
features, 2
G
gestures, 3, 25 guest laptop, 18
H
Help button, 21 HID mode, 21
I
If, 24 Ink Aware, 23
52 | INDE X
installation
cautions, 9
replacing a 500 or 600 series, 9
securing, 10
SMART Product Drivers, 13
wall-mounting, 9 interactivewhiteboard
components, 2
L
laptop, 18 lights, meanings, 21 lock location, 10 Lockable pen option, 24, 36, 37
M
models, 2
R
Ready light button, 21 Ready light states, 21 Ready light,troubleshooting, 37 resolution settings, 14
S
safety tips, 30 security, 10 security screw location, 10 SMART Notebook, 3 SMART Product Drivers, 11, 13
on a laptop, 18 SMART Product Updater, 23 SMART Technical Support, 49 software, 3 software updates, 23 status light, 37 surface, 3
O
object awareness, 24 online support, 49 orientation, 16 orientation button, 21
P
pen tray, 3
buttons, 21, 22 cleaning, 32 customising buttons, 22 lights, 20 power module, 20
removal, 46 pens, 5 power button, 21 power supply, 5 projector
resolution, 14
T
Technical Support, 49 touch, 3 training, 49 Troubleshooting
Flowcharts, 37 troubleshooting articles, 49 two users, 3
U
update software, 23 USB, 12 USB cable, 5 user guides, 49
W
wall-mounting kit, 5 weight, 8
Freephone +1.866.518.6791 (US/Canada) or +1 403 228 5940 www.smarttech.com
Loading...
