Size 85 3/4" W × 49 1/2" H × 5 1/8" D
Active screen area
(maximum interactive,
projected image)
PLEASE THINK BEFORE YOU PRINT

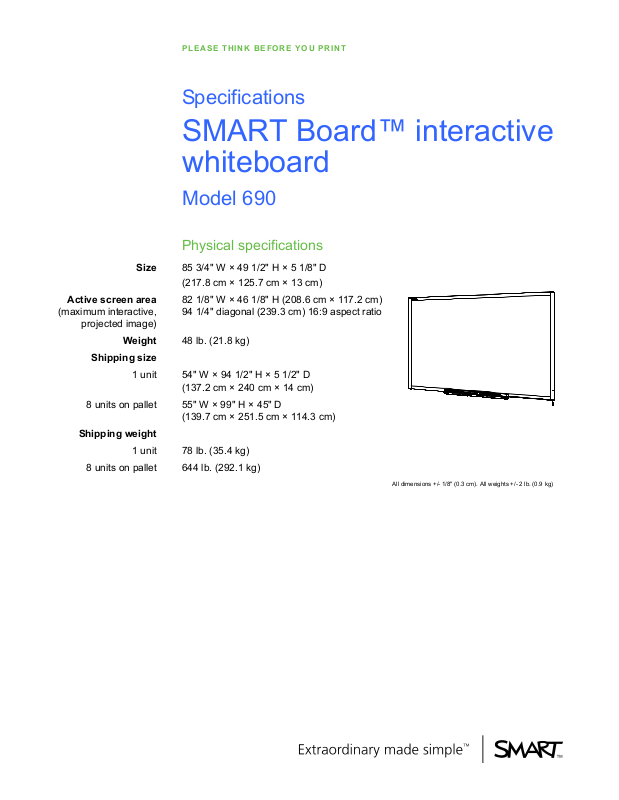

Specifications
SMART Board™ interactive
whiteboard
Model 690
Physical specifications
(217.8 cm × 125.7 cm × 13 cm)
82 1/8" W × 46 1/8" H (208.6 cm × 117.2 cm)
94 1/4" diagonal (239.3 cm) 16:9 aspect ratio
Weight 48 lb. (21.8 kg)
Shipping size
1 unit 54" W × 94 1/2" H × 5 1/2" D
(137.2 cm × 240 cm × 14 cm)
8 units on pallet 55" W × 99" H × 45" D
(139.7 cm × 251.5 cm × 114.3 cm)
Shipping weight
1 unit 78 lb. (35.4 kg)
8 units on pallet 644 lb. (292.1 kg)
All dimensions +/- 1/8" (0.3 cm). All weights +/- 2 lb. (0.9 kg)
2 | SPECIFICATIONS – SMART BOARD INTERACTIVE WHITEBOARD –
MODEL 690
Standard features
Software SMART Notebook™ collaborative learning software included. See the SMART
Notebook release notes for a complete list of system requirements. Software
upgrades are available at smarttech.com/software
Pen tray Optical sensors in the pen tray detect when a pen or eraser is lifted from the tray.
LEDs show the active tool.
Pens and eraser Black, red, green and blue pen tray pens and a rectangular eraser
Resolution Touch resolution is approximately 4000 × 4000.
Screen surface The hard-coated polyester surface is tear proof, optimized for projection, compatible
with dry-erase markers and easily cleaned with whiteboard cleaner.
Digitizing technology Resistive
Frame finish Two-tone gray (approximates Pantone® Charcoal Gray 18-0601 TPX) and Ultrasonic
Chrome (approximates metallic Pantone 877 C)
Wall-mount bracket 2 × 32" (81.3 cm) wide, spaced 2" (5.1 cm) apart, with 10 screws and 10 drywall
anchors
to support the wall-mounted interactive whiteboard
.
Computer connection 16' (5 m) USB 2.0 cable
Power requirements Power is obtained from the computer directly through the USB cable for Windows®,
Mac and Linux® computers. Power consumption is less than 1.5 W (300 mA at 5V).
Certifications and
compliance
Warranty Five-year limited equipment warranty upon registration. See warranty document
CSA (U.S./Canada), CE, CB (TUV), China EIP, EU RoHS, WEEE and VCCI
for details.
NOTE
A digital projector isn’t included with this model of SMART Board™ interactive
whiteboard. To take advantage of all interactive features, you must integrate a
16:9 aspect ratio digital projector.
Storage and operating specifications
Storage -40°F to 120°F (-40°C to 50°C)
Operation 41°F to 95°F (5°C to 35°C) with up to 80% humidity non-condensing
SMART order number
SB690 94 1/4" diagonal (239.3 cm) diagonal SMART Board interactive whiteboard
3 | SPECIFICATIONS – SMART BOARD INTERACTIVE WHITEBOARD –
MODEL 690
Optional accessories
Part number Description
RS232-XX RS-232 to USB conversion module that
allows a serial connection to the interactive
whiteboard as an alternative to USB
WC6D-XX Wireless Bluetooth® connection between
the SMART Board interactive whiteboard
and the computer
SBA-XX USB audio system with two 15 W speakers
that mount to the interactive whiteboard
or wall
SYSON6-XX SystemOn expansion module wakes up the
computer and turns on the projector with
one button press
USB-GW GoWire™ SMART Notebook software
auto-launch USB cable
USB-XT 16' (5 m) USB active extension cable
CAT5-XT USB to Cat 5 cable extender set
RPEN-ER Replacement set of four pen tray pens
(black, red, green and blue) and rectangular
eraser
RPEN Replacement set of four pen tray pens
(black, red, green and blue)
NA UK AU
99
99
999
99
NOTE
Part numbers ending in XX include power supplies for the countries or regions
indicated by a
9 in the columns to the right. When ordering, substitute XX in the
part number with the appropriate country code as follows:
NA = U.S. and Canada
UK = United Kingdom
EU = European Union
AU = Australia
4 | SPECIFICATIONS – SMART BOARD INTERACTIVE WHITEBOARD –
MODEL 690
Physical dimensions
Leave at least 5/8" (1.6 cm)
headroom to wall mount
the interactive whiteboard
Distance from the bottom of the
wall mount bracket to the top of
an installed interactive
whiteboard is 4 1/4" (10.8 cm)
Wall-Mounted
Cut Away View
85 3/4" (217.8 cm)
82 1/8" (208.6 cm)
4
49 1/2" (125.7 cm)
46 1/8" (117.2 cm)
9
2" (5.1 cm)
50 5/8" (128.6 cm)
5 1/8" (13.0 cm)
Wall-Mounted
Side View
Recommended
wall-mounted
installation height
to top of the
)
m
c
3
.
9
3
2
(
”
4
/
1
interactive
whiteboard for
average sized
adults is 81 3/4"
(207.6 cm)
38 1/4" (97.2 cm)
USB Connection
Location
Wall-Mounted
Front View
u
n
f
a
a
c
M
t
u
d
r
e
n
d
a
u
d
n
e
d
n
g
i
s
e
D
e
r
a
n
