SMART Board™ 600i5
Interactive Whiteboard
System
Configuration and User’s Guide
Trademark Notice
SMART Board, SMART Notebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered
trademarks of SMART Technologies ULC in the U.S. and/or other countries. Texas Instruments, Brilliant Color, DLP and DLP
Link are Trademarks of Texas Instruments. HDMI is a trademark or registered trademark of HDMI Licensing LLC. Phillips is a
registered trademark of Phillips Screw Company. Microsoft, Windows and Internet Explorer are either registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. Blu-ray is a trademark of the Blu-ray Disc Association.
Patents
US5448263; US6141000; US6320597; US6326954; US6337681; US6540366; US6741267; US6747636; US7151533;
US7289113; US7499033; US7626577; US7687736; US7757001; CA2058219; and CA2252302. Other patents pending.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Copyright Notice
©2010 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language in any form by any means without the prior written consent of
SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment
on the part of SMART.
12/2010
Important information
Before you install and use your SMART Board™ 600i5 or D600i5 interactive whiteboard system, read
and understand the safety warnings and precautions in this user’s guide and the included warnings
document. These safety warnings and precautions describe the safe and correct operation of your
interactive whiteboard system and its accessories, helping you to prevent injuries and equipment
damage. Ensure that your interactive whiteboard system is always being used correctly.
In this document, “SMART Board 600i5 or D600i5 interactive whiteboard system” refers to your
SMART Board 600 or D600 series interactive whiteboard and its SMART UF75 or UF75w projector,
accessories and optional equipment.
The SMART UF75 or UF75w projector included with your system is designed to work only with
certain SMART Board interactive whiteboard models. Contact your authorized SMART reseller
(smarttech.com/wheretobuy) for more information.
Safety warnings, cautions and important information
W W A R N I N G
l Failure to follow the installation instructions shipped with your SMART product could result in
personal injury and damage to the product.
l To reduce the risk of fire or electric shock, do not expose the SMART product to rain or
moisture.
l Two people are required to mount your SMART product because it may be too heavy for one
person to safely maneuver.
When you lift your interactive whiteboard, you and your assistant should stand on either side
of the screen, supporting its weight at the bottom while balancing the top with your other
hands.
i
I M P O R T A N T I N F O R M A T I O N
l When mounting the projector boom on a framed or hollow wall, attach both the mounting
bracket and the safety tether to a stud to safely support the projector’s weight. If you use only
drywall anchors, the drywall can fail, resulting in product damage and possible personal
injury.
l Do not leave cables on the floor where they can be a tripping hazard. If you must run a cable
over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable
management strip of a contrasting color. Handle cables carefully and avoid excessive
bending.
l If you are using an RS-232 serial expansion module, a wireless Bluetooth® connection
expansion module or a USB audio system, use only the power supply included with that
product. These products do not use the same power supplies. Using the wrong power supply
might create a safety hazard or damage the equipment. If in doubt, refer to the specification
sheet for your product to verify the power supply type.
l Do not climb (or allow children to climb) on a wall- or stand-mounted SMART Board
interactive whiteboard.
Do not climb on, hang from or suspend objects from the projector boom.
Climbing on the interactive whiteboard or projector boom could result in personal
injury or product damage.
l There are no user-serviceable parts inside the pen tray. Only qualified personnel should
disassemble the pen tray’s printed circuit boards, and this procedure must be done with
proper electrostatic discharge (ESD) protection.
l Viewing 3D content from a projector may cause epileptic seizures or strokes. If you or any
member of your family has a history of light-sensitive seizures, consult a doctor before
viewing 3D content.
l Viewing 3D content while you are consuming alcohol, experiencing sleep deprivation or in
poor physical condition may be unsafe.
l Pregnant women and elderly individuals should avoid viewing 3D content.
l Viewing 3D content may cause sickness, including nausea, dizziness, headache, eyestrain,
blurred vision or numbness. If you experience any of these symptoms, stop viewing 3D
content immediately. If these symptoms persist, consult a doctor.
l Parents and teachers should monitor children and students for adverse effects resulting from
viewing 3D content since children and teenagers may be more susceptible than adults to
related health risks.
ii
I M P O R T A N T I N F O R M A T I O N
l To avoid adverse effects resulting from viewing 3D content with your interactive whiteboard
system, observe the following precautions:
o
Do not use 3D glasses for viewing any material other than 3D content.
o
Maintain a minimum distance of 7' (2 m) from your interactive whiteboard system's
screen. Viewing 3D content from too close a distance may result in eyestrain.
o
Avoid viewing 3D content for a prolonged period of time. Take a break of 15 minutes or
longer after every hour of viewing.
o
Face the screen squarely when viewing 3D content. Viewing 3D content from an angle
may cause fatigue or eyestrain.
C C A U T I O N
l Do not operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture can condense on the
lens and crucial internal parts. Allow the system to stabilize to room temperature before
operation to prevent possible damage to the unit.
l Do not place the unit in hot locations, such as near heating equipment. Doing so could cause
a malfunction and shorten the life of the projector.
l Avoid setting up and using the SMART product in an area with excessive levels of dust,
humidity and smoke.
l Do not place your SMART product in direct sunlight or near any appliance that generates a
strong magnetic field.
l If you need to lean the interactive whiteboard against a wall before you mount it, make sure it
remains in an upright position, resting on the pen tray brackets, which can sustain the weight
of the interactive whiteboard.
Do not rest the interactive whiteboard on its side or on the top of the frame.
l You must connect the USB cable that came with your SMART Board interactive whiteboard
to a computer that has a USB compliant interface and that bears the USB logo. In addition,
the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark
and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid
damage to the SMART Board interactive whiteboard.
iii
I M P O R T A N T I N F O R M A T I O N
l Do not block the projector’s ventilation slots and openings.
l Avoid putting the projector into Standby mode during the lamp ignition phase because this
can lead to premature lamp failure. Keep the projector lamp on for a minimum of 15 minutes
before putting it into Standby mode to preserve the lamp life.
l In a high altitude location over 6000' (1800 m), where the air is thin and cooling efficiency is
reduced, use the projector with the fan mode set to High.
l Cycling power to the projector repeatedly can lock or damage your SMART product. After
you put the product into Standby mode, wait at least 15 minutes for cooling before starting
the product again.
l Do not adjust any settings in the service menu other than those listed in the following
procedures. Changing other settings might damage or affect the operation of your projector
and invalidates your warranty.
l If dust or small items prevent pen tray buttons from being pressed or cause constant button
contact, remove the obstructions carefully.
l
Before you clean the SMART UF75 or UF75w projector, press the Power button twice on
the ECP or remote control to put the system into Standby mode, and then allow the lamp to
cool for 30 minutes.
l Do not spray cleaners, solvents or compressed air near any part of the projector because
they can damage or stain the unit. Spraying the system could spread a chemical mist on
some of the projector’s components and lamp, resulting in damage and poor image quality.
l Do not allow liquids or commercial solvents of any kind to flow into the projector.
l When transporting your SMART product, repack it with as much of the original packaging as
possible. This packaging was designed with optimal shock and vibration protection.
l If your SMART product requires replacement parts, make sure the service technician uses
replacement parts specified by SMART Technologies or parts with the same characteristics
as the original.
I I M P OR T A N T
l Use the instructions included with the ECP to install your interactive whiteboard, projector
and ECP. The instructions in your SMART Board interactive whiteboard box do not include
instructions for installing the SMART UF75 or UF75w projector or ECP.
l Make sure an electrical socket is near your SMART product and remains easily accessible
during use.
iv
I M P O R T A N T I N F O R M A T I O N
l Using your SMART product near a TV or radio could cause interference to the images or
sound. If this happens, move the TV or radio away from the projector.
l If you have peripheral devices that do not use a 4-pin mini-DIN connector or an RCA
composite video jack, or if your device has an audio connection that does not use RCA
jacks, you may need to purchase third-party adapters.
l There are no projector menu options on the ECP. Keep your remote control in a safe place
because the ECP is not a substitute for the remote control.
l Do not disconnect cables from the ECP to connect peripherals because you could
disconnect controls for your interactive whiteboard or host computer.
l Put your SMART product into Standby mode before cleaning it.
l Follow these guidelines to clean the projector:
o
Wipe the exterior of the projector with a lint-free cloth.
o
If necessary, use a soft cloth moistened with a mild detergent to clean the projector
housing.
o
Do not use abrasive cleaners, waxes or solvents.
o
Avoid touching the lens. If it is necessary to clean the lens:
o
Use liquids or commercial solvents (such as glass cleaners) to clean the lens,
but do not spray them directly on the system.
o
Use protective gloves and dip a lint-free cloth (such as Purestat PW2004) in an
anti-static solvent (such as Hyperclean EE-6310).
o
Gently wipe the lens from the center to the edge.
l Disconnect the product from its power source when it’s not used for a long period.
v
I M P O R T A N T I N F O R M A T I O N
Environmental requirements
Before installing your SMART Board 600i5 or D600i5 interactive whiteboard system, review the
following environmental requirements.
Environmental
requirement
Operating temperature
Storage temperature
Humidity
Water and fluid
resistance
Dust
Electrostatic discharge
(ESD)
Cables
Conducted and radiated
emissions
Parameter
l
41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)
l
41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1800 m to 3000 m)
l
-40°F to 122°F (-40°C to 50°C)
l
30% to 80% relative humidity, non-condensing
l
Humidity above 80% might cause slight wrinkling in the screen
surface sheet. The wrinkles disappear when the humidity lowers.
l
Intended for indoor use only. Doesn’t meet any salt-spray or water
ingress requirements.
l
Don’t pour or spray liquids directly onto your interactive whiteboard,
the SMART UF75 or UF75w projector or any of its sub-components.
l
Intended for use in office and classroom environments. Not for
industrial use where heavy dust and pollutants can cause
malfunctions or impaired operation. Periodic cleaning is required in
areas with heavier dust. See Cleaning the projector on page 33 for
information on cleaning the SMART UF75 or UF75w projector.
l
Designed for pollution degree 1 (P1) as per EN61558-1, which is
defined as “No pollution or only dry non-conductive pollution”
l
EN61000-4-2 severity level 4 for direct and indirect ESD
l
No malfunction or damage up to 8kV (both polarities) with a 330
ohm, 150 pF probe (air discharge)
l
Unmated connectors meet no malfunction or damage up to 4kV
(both polarities) for direct (contact) discharge
l
All SMART Board 600i5 or D600i5 interactive whiteboard system
cables should be shielded to prevent potential accidents and
degraded video and audio quality.
l
EN55022/CISPR 22, Class A
vi
Contents
Important information i
Safety warnings, cautions and important information i
Environmental requirements vi
About your interactive whiteboard system 1
SMART Board 600i5 or D600i5 interactive whiteboard system features 2
Included accessories 4
Optional accessories 5
Installing your interactive whiteboard system 7
Choosing a location 8
Choosing a height 8

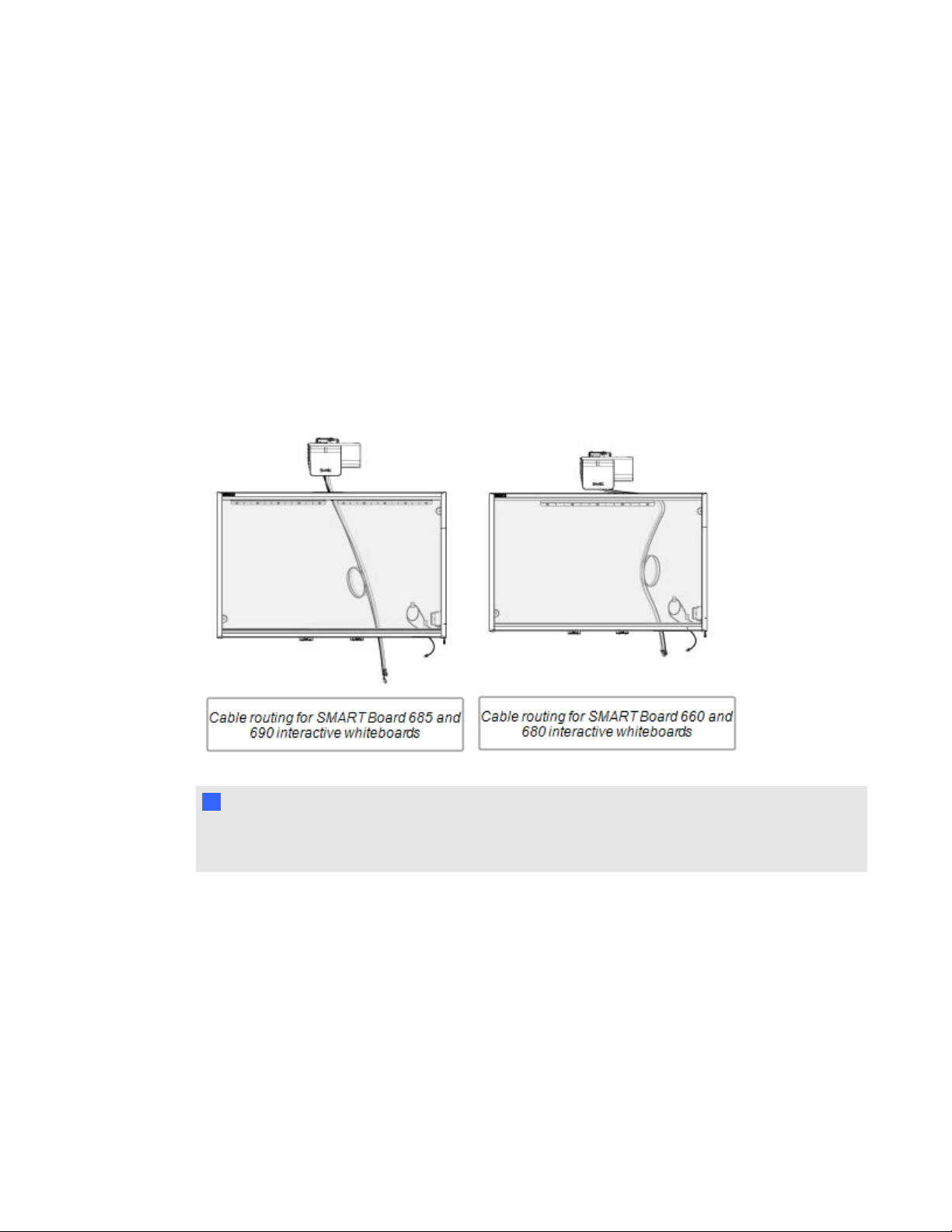

Routing the cables 9
Installing SMART software 10
Securing the interactive whiteboard system 10
Using your interactive whiteboard system 11
Using your projector 11
Using your interactive whiteboard 23
Using the Extended Control Panel (ECP) 23
Integrating other devices 27
Video format compatibility 27
Connecting peripheral sources and outputs 31
Maintaining your interactive whiteboard system 33
Maintaining your interactive whiteboard 33
Cleaning the projector 33
Focusing and adjusting the projector image 34
Replacing the projector lamp 35
Troubleshooting your interactive whiteboard system 41
Correcting image alignment issues 42
Diagnosing issues using the interactive whiteboard system indicators and controls 42
Resolving network communication issues 47
Resolving audio issues 48
Resolving video issues 48
Resolving image issues 49
Accessing the service menu 52
vii
C O N T E N T S
Locating serial numbers 53
Transporting your interactive whiteboard system 54
Remotely managing your interactive whiteboard system 55
Web page management 56
Connecting your room control system to the SMART UF75 or UF75w projector 63
Projector programming commands 65
Simple Network Management Protocol (SNMP) 76
Disabling user USB access 77
Hardware environmental compliance 81
Waste Electrical and Electronic Equipment regulations (WEEE directive) 81
Restriction of Certain Hazardous Substances (RoHS directive) 81
Batteries 81
Packaging 82
China’s Electronic Information Products regulations 82
U.S. Consumer Product Safety Improvement Act 82
Customer support 83
Online information and support 83
Training 83
Technical support 83
Shipping and repair status 83
General inquiries 84
Warranty 84
Registration 84
Index 85
viii
Chapter 1
About your interactive whiteboard system
SMART Board 600i5 or D600i5 interactive whiteboard system features 2
SMART Board 600 or D600 series interactive whiteboard 2
SMART UF75 or UF75w projector 3
Extended Control Panel (ECP) 4
Included accessories 4
Remote control 5
Pens 5
Eraser 5
Optional accessories 5
Your SMART Board 600i5 or D600i5 interactive whiteboard system combines the wall-mounted,
short-throw SMART UF75 or UF75w projector with a SMART Board 600 or D600 series interactive
whiteboard.
This chapter describes the features of your SMART Board 600i5 or D600i5 interactive whiteboard
system and provides information about product parts and accessories.
1
C H A P T E R 1
About your interactive whiteboard system
SMART Board 600i5 or D600i5 interactive whiteboard system features
Your SMART Board 600i5 or D600i5 interactive whiteboard
system uses the short-throw, high-offset SMART UF75 or
UF75w projector. The throw distance of the SMART UF75 or
UF75w projector is half that of previous models, resulting in a
shorter boom and reduced shadows on the projected image.
When the SMART UF75 or UF75w projector displays an image
from your computer on the touch-sensitive interactive
whiteboard, you can do everything that you can do at your
computer—open and close applications, scroll through files,
conference with others, create new documents or edit existing
ones, visit websites, play video clips and more—by touching the
screen. This projector also supports video and audio connections
from a variety of devices, including DVD/Blu-ray™ players,
VCRs, document cameras and digital cameras, and can project media from these sources onto the
interactive screen.
When you use SMART software with your SMART Board 600i5 or D600i5 interactive whiteboard
system, you can write or draw over the projected computer image in digital ink using a pen tray pen or
your finger, and then save these notes to a .notebook file or directly into any Ink Aware application.
SMART Board 600 or D600 series interactive whiteboard
Your SMART Board 600 or D600 series interactive whiteboard includes many features of earlier
SMART Board interactive whiteboards, such as a resistive touch screen and a pen tray.
The SMART Board 600 or D600 series interactive whiteboard performs best with the SMART UF75
or UF75w projector because of its exceptional color performance and input response.
Other features of your interactive whiteboard include:
l
A pen tray that automatically detects when you pick up a pen tray
pen or the eraser
l
Pen tray buttons that activate the on-screen keyboard, right-click,
Orientation and Help functions
l
A durable hard-coated surface that is optimized for projection and
easily cleaned with whiteboard cleaner
l
A security cable lock feature that enables you to lock your
interactive whiteboard to help safeguard it from theft
2
C H A P T E R 1
About your interactive whiteboard system
For more information about your SMART Board interactive whiteboard, see the SMART Board 600
and D600 Series Interactive Whiteboard Installation and User’s Guide (smarttech.com/kb/001414).
SMART Board 600 series interactive whiteboards are now available in two series. The SMART Board
600 series is the standard interactive whiteboard. The SMART Board D600 series offers dual-user
capabilities, which enable two users to touch or write simultaneously on the interactive whiteboard
using SMART Notebook™ collaborative learning software. In dual-user mode, SMART Notebook
switches to full screen-mode and a line divides the screen into two separate workspaces, each with
its own set of tools. The SMART UF75 or UF75w projector is compatible with both standard and dual-
touch SMART Board interactive whiteboards.
SMART Board D600 series interactive whiteboards have a
unique logo on the lower right hand side of the interactive
whiteboard frame to distinguish them from standard SMART Board 600series interactive
whiteboards.
SMART UF75 or UF75w projector
The SMART UF75 or UF75w projector system includes a short-throw
projector for use with SMART Board 600 or D600 series interactive
whiteboards and a sturdy support system suitable for many different
environments.
The features of the projector system include:
l Wall-mounted, high-offset projector engine that uses DLP® technology by Texas
Instruments™, providing Brilliant Color™ performance and Gamma 2.2 correction with SMART
Presentation, Bright Room, Dark Room, sRGB and User modes
l PAL, PAL-N, PAL-M, SECAM, NTSC, NTSC 4.43 video system compatibility
l HDMI™, Composite, S-video, and VESA RGB with additional interface support for Component
YPbPr and Component YCbCr inputs with proper adapters (not included)
l WXGA, QVGA, VGA, SVGA, XGA, SXGA, SXGA+ and UXGA video format compatibility
l Native 1024 × 768 resolution (SMART UF75 projector)
OR
Native 1280 × 800 resolution (SMART UF75w projector)
l Remote management via a serial RS-232 interface
3
C H A P T E R 1
About your interactive whiteboard system
l Alert broadcast feature that enables administrators to send notification messages
to network-connected SMART UF75 or UF75w projector systems for immediate on-screen
display
l DLP Link™ technology that ensures compatibility with the emerging 3D content ecosystem
l Protected cable routing through a cable cover that prevents tampering and clutter
l Secure mounting and installation system that includes:
o
Optional projector padlock ring to prevent removal of the projector from the boom
o
Mounting hardware for solid masonry or framed wall installations, as well as a safety
tether
o
Templates and instructions for positioning the system safely
Extended Control Panel (ECP)
Your projector system’s ECP attaches to the bottom
frame of your interactive whiteboard. The ECP features
controls for power, source selection and volume
adjustment, as well as an integrated USB hub that
enables you to switch seamlessly between two
connected computers.
Connection receptacles for your source inputs include:
l One USB A receptacle on the front of the ECP for USB drives
l Two USB A receptacles behind the interactive whiteboard
l Two RCA jacks on the front of the ECP for dual-channel audio input
l One RCA jack on the front of the ECP for composite video input
l One captive USB B receptacle for your primary computer
l One DB15M receptacle behind the interactive whiteboard for analog video input
l One USB B receptacle behind the interactive whiteboard for connecting a secondary computer
l One RJ11 6-wire jack behind the interactive whiteboard for product control
Included accessories
The following accessories are included with your SMART Board 600i5 or D600i5 interactive
whiteboard system.
4
C H A P T E R 1
About your interactive whiteboard system

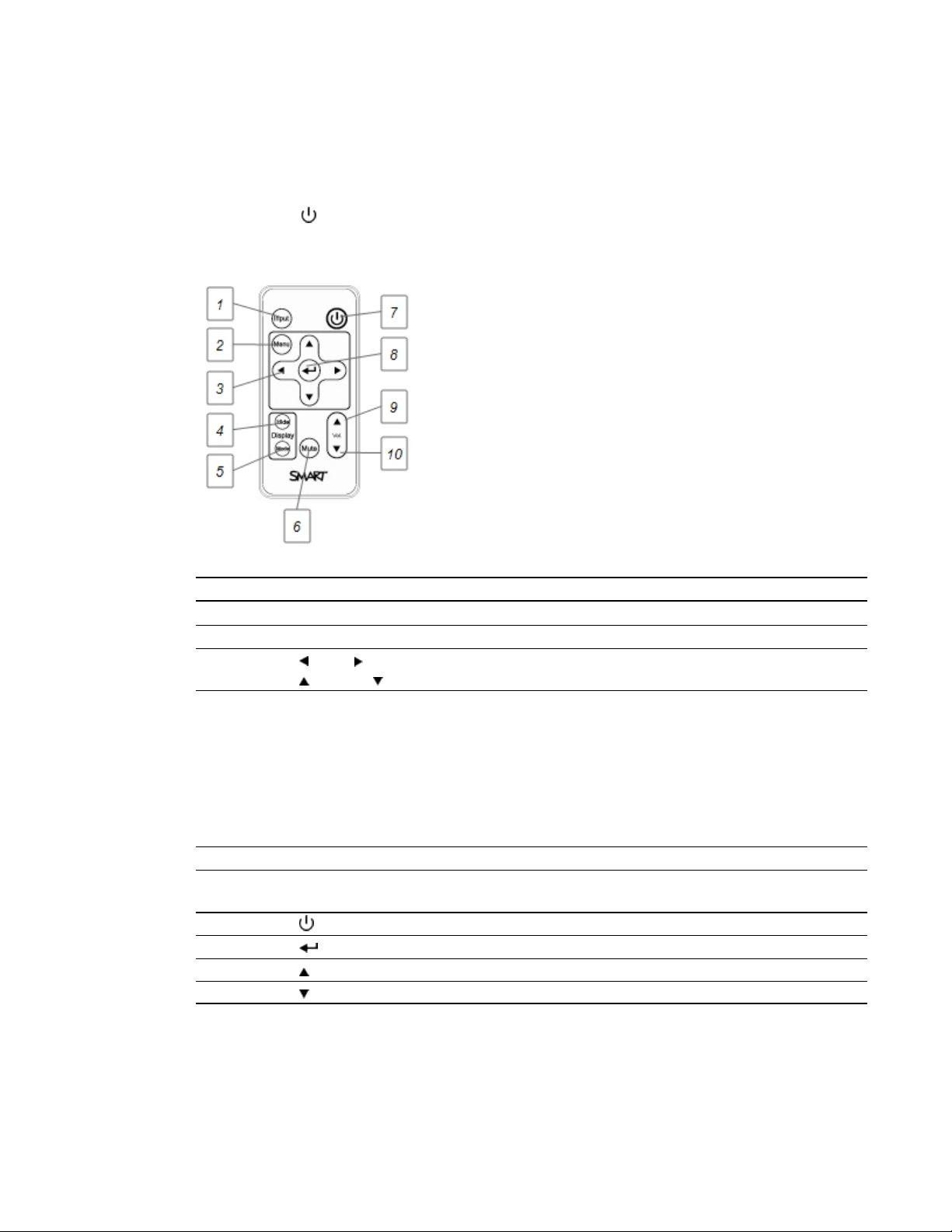

Remote control
The remote control enables you to control the system and set up your SMART UF75 or
UF75w projector. Use the remote control to access menu options, system information
and input selection options.
Pens
The pens have rubberized grip areas and are colored to match four colors of
digital ink: black, red, green and blue.
You can use dry-erase markers to replace the included pens, as long as
they’re a similar shape, don’t scratch or mark your interactive whiteboard
surface and reflect infrared light. If the substitute doesn’t reflect infrared
light, the pen tray sensors might not detect the presence of the pen.
N N O T E
Some of SMART’s older pens aren’t designed to reflect infrared light and the pen tray sensors might
not detect them reliably.
T T I P
Wrap light-colored tape around a substitute pen to improve the reflection of infrared light and help
with tool detection.
Eraser
The eraser resembles a rectangular chalkboard eraser. You can use a
substitute object, as long as it has a similar shape, reflects infrared light and
doesn’t scratch or mark the interactive whiteboard surface.
Optional accessories
You can add a variety of optional accessories to best meet your specific needs. Purchase these
items from your authorized SMART reseller (smarttech.com/wheretobuy) when you order your
interactive whiteboard system or later.
For more information about accessories, go to smarttech.com/accessories.
5
Chapter 2
Installing your interactive whiteboard system
Choosing a location 8
Choosing a height 8
Routing the cables 9
Installing SMART software 10
Securing the interactive whiteboard system 10
Locking the pen tray to your interactive whiteboard 10
Securing the projector to the boom 10
Consult the included SMART Board 600i5 or D600i5 interactive whiteboard system installation
document for instructions on how to install your product and use the mounting template and extended
control panel (ECP).
I I M P OR T A N T
Use the instructions included with the ECP to install your interactive whiteboard, projector and
ECP. The instructions in your SMART Board interactive whiteboard box do not include instructions
for installing the SMART UF75 or UF75w projector or ECP.
This chapter provides additional considerations and details for installing your interactive whiteboard
system.
7
C H A P T E R 2
Installing your interactive whiteboard system
Choosing a location
Choose a location for your SMART Board 600i5 or D600i5 interactive whiteboard system that’s far
from bright light sources, such as windows or strong overhead lighting. Bright light sources can cause
distracting shadows on your interactive whiteboard and can reduce the contrast of the projected
image.
Select a wall with a flat, regular surface and minimum clearance to accommodate your interactive
whiteboard system. Install the projector and your interactive whiteboard on the same flat surface. For
best presentation alignment, mount your interactive whiteboard system in a location central to your
audience’s viewing direction. For mobile or adjustable installation options, contact your authorized
SMART reseller (smarttech.com/wheretobuy).
W W A R N I N G
When mounting the projector boom on a framed or hollow wall, attach both the mounting bracket
and the safety tether to a stud to safely support the projector’s weight. If you use only drywall
anchors, the drywall can fail, resulting in product damage and possible personal injury.
Choosing a height
SMART includes a mounting template with each SMART Board 600i5 or D600i5 interactive
whiteboard system. If you lose this template, contact your authorized SMART reseller
(smarttech.com/wheretobuy). Using this template ensures that you:
l Mount the projector at a safe height for head space clearance, while maintaining enough space
for airflow and installation access above the unit.
l Position the projector at the correct height above your interactive whiteboard to align the
projected image with the touch screen.
Dimensions on the template recommend a distance from the floor suitable for adults of average
height. You should consider the general height of your user community when you choose a position
for your interactive whiteboard.
8
C H A P T E R 2
Installing your interactive whiteboard system
Routing the cables
When connecting cables from a SMART UF75 projector to your interactive whiteboard, make sure
that all cables pass along the top of the interactive whiteboard wall-mounting bracket and then down
the side of the interactive whiteboard.
When connecting cables from a SMART UF75w projector to the interactive whiteboard, make sure
that all cables pass between the two interactive whiteboard wall-mounting brackets. Space your wall-
mounting brackets’ innermost screw holes 4" (10.2 cm) apart to provide full support for the weight of
your interactive whiteboard.
N N O T E
Don’t connect the power cable to a power outlet until you’ve connected all the cables to the
projector and ECP.
9
C H A P T E R 2
Installing your interactive whiteboard system
Installing SMART software
You must install SMARTsoftware on the computer connected to your interactive whiteboard system
to access all of its features.
Download SMARTsoftware from smarttech.com/software. These pages list the minimum hardware
requirements for each software version. If SMART software is already installed on your computer,
take this opportunity to upgrade your software to ensure compatibility.
Securing the interactive whiteboard system
This section explains how to secure the different components of your interactive whiteboard system.
Locking the pen tray to your interactive whiteboard
To learn how to lock the pen tray to your interactive whiteboard, see the SMART Board 600 and D600
Series Interactive Whiteboard Installation and User’s Guide (smarttech.com/kb/001414).
Securing the projector to the boom
To learn how to secure the SMART UF75 or UF75w projector to the boom, see the included SMART
Board 660i5,680i5, 685i5 and 690i5 Interactive Whiteboard System Installation Guide
(smarttech.com/kb/154547).
10
Chapter 3
Using your interactive whiteboard system
Using your projector 11
Using your remote control 11
Installing the remote control battery 11
Using the remote control buttons 13
Adjusting projector settings 14
Focusing the image 20
Adjusting the image 21
SMART UF75 or UF75w projector connection diagram 21
Using your interactive whiteboard 23
Using the Extended Control Panel (ECP) 23
This chapter describes the basic operation of your interactive whiteboard system, and also explains
how to set up your remote control, retrieve system information, access the projector’s image
adjustment options and integrate your interactive whiteboard system with peripheral devices.
Using your projector
This section explains how to use your projector and its included remote control.
Using your remote control
The SMART UF75 or UF75w projector remote control enables you to access on-screen projector
menus and change projector settings.
Installing the remote control battery
Follow this procedure to use the remote control for the first time or to replace the remote control
battery.
11
C H A P T E R 3
Using your interactive whiteboard system
W W A R N I N G
l Reduce the risk associated with a leaking battery in the projector’s remote control by
following these practices:
o
Use only the specified type of coin-cell battery.
o
Orient the battery’s positive (+) and negative (–) terminals according to the markings
on the remote control.
o
Remove the battery when the remote control is unused for an extended period.
o
Do not heat, disassemble, short or recharge the battery, or expose it to fire or high
temperatures.
o
Avoid eye and skin contact with the battery if it has a leak.
l Dispose of the exhausted battery and product components in accordance with applicable
regulations.

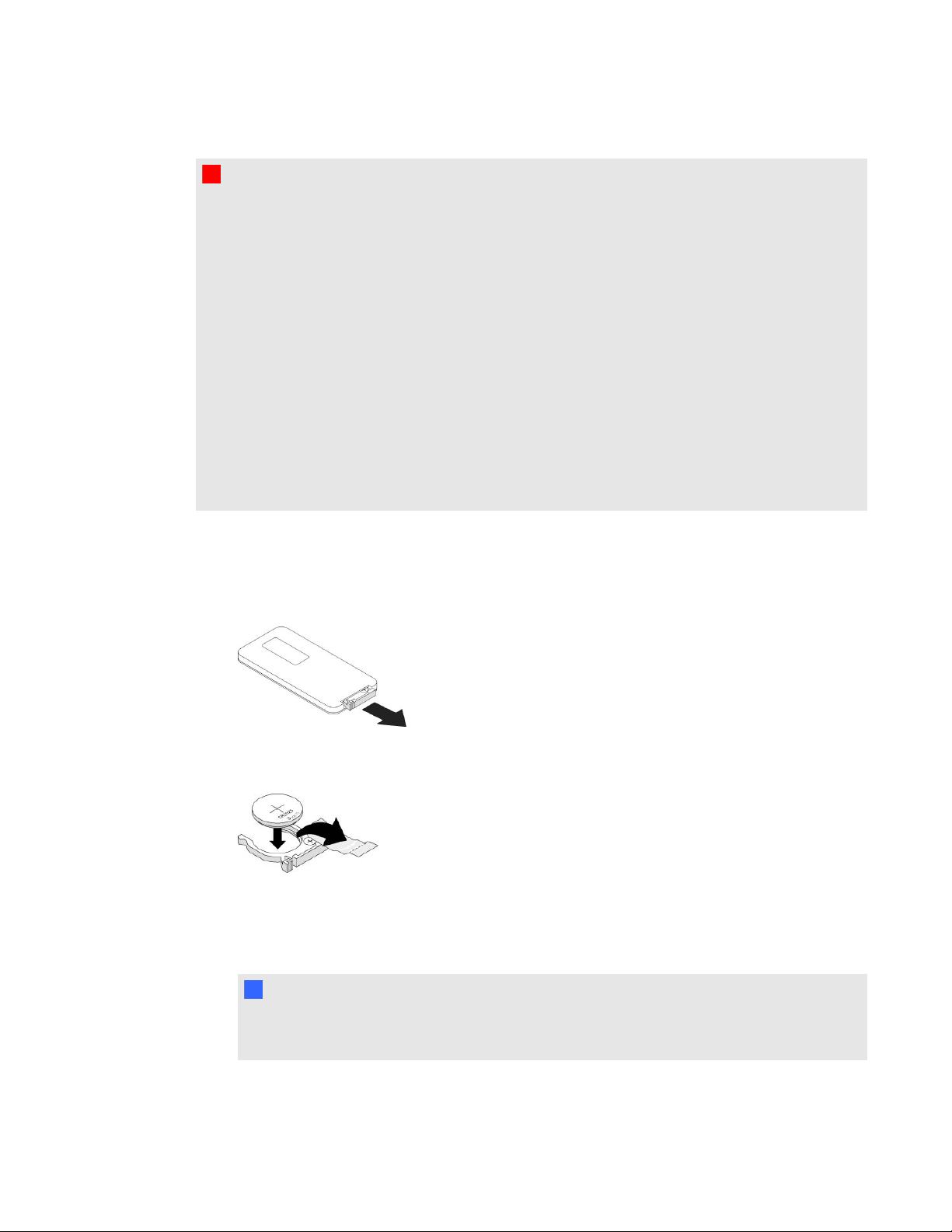

g To access or replace the remote control battery
1. Hold down the side release on the leftside of the battery holder and pull the battery holder
completely out of the remote control.
2. If you’re accessing the remote control battery for the first time, remove the plastic sheet inside
the battery holder, and then place the CR2025 coin cell battery in the battery holder.
OR
If you’re replacing the remote control battery, remove the old battery from the battery holder and
replace it with a CR2025 coin cell battery.
I I M P OR T A N T
Align the positive (+) and negative (–) signs on the battery terminals with the correct signs on
the battery holder.
3. Insert the battery holder into the remote control.
12
C H A P T E R 3
Using your interactive whiteboard system
Using the remote control buttons
The projector remote control enables you to access on-screen menus and change projector settings.
Use the Power button on the remote control or ECP to put the projector into Standby mode or turn
it on. You can also use the Input button on the remote control or ECP to switch sources on the
projector.
Number Function Description
1 Input Select an input source
2 Menu Show the projector menus
3 (Left), (Right),
Change the menu selections and adjustments
(Up) and (Down) arrows
4 Hide Freeze, hide or display the image
l
Press once to freeze the image.
For example, you can display a question on
the screen while you check your e-mail.
l
Press again to hide the image, that is, to
display a black screen.
l
Press again to return to the live image.
5 Mode Select a display mode
6 Mute Control mute settings from your audio output
device (not included)
7
(Power)
Put the projector into Standby mode or turn it on
8 (Enter) Accept the selected mode or option
9 (Volume Up) Increase the volume
10 (Volume Down) Decrease the volume
13
C H A P T E R 3
Using your interactive whiteboard system
Adjusting projector settings
The remote control’s Menu button enables you to access the on-screen display to adjust the projector
settings.
I I M P OR T A N T
There are no projector menu options on the ECP. Keep your remote control in a safe place because
the ECP is not meant to substitute for the remote control.
Setting Use Notes
Image Adjustment menu
Display Mode Indicates the projector’s display output
(SMART Presentation, Bright
Room, Dark Room, sRGB and
User).
Brightness Adjusts projector brightness from 0 to
100.
Contrast Adjusts the difference between the
lightest and darkest parts
of the image from 0 to 100.
Frequency Adjusts the display data frequency of
the projected image from -5 to 5 to
match the frequency of your
computer’s graphics card.
Tracking Synchronizes your projector’s display
timing with your computer’s graphics
card from 0 to 63.
H-position Moves the projected image’s horizontal
position left or right from 0 to 100.
V-position Moves the projected image’s vertical
position up or down from -5 to 5.
The default is SMART Presentation.
The default is 50.
The default is 50.
The default is 0.
This setting applies to VGA inputs
only.
This setting applies to VGA inputs
only.
Don’t adjust this setting unless you’re
advised to by a certified SMART
Support specialist
(smarttech.com/contactsupport).
You can apply this setting only after
you make all boom adjustments.
This setting applies to VGA inputs
only.
Don’t adjust this setting unless you’re
advised to by a certified SMART
Support specialist
(smarttech.com/contactsupport).
You can apply this setting only after
you make all boom adjustments.
This setting applies to VGA inputs
only.
14
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Saturation Adjusts the projected image’s color
saturation from 0 to 100.
Sharpness Adjusts the projected image’s
sharpness from 0 to 31.
Tint Adjusts the image color balance of red
and green from 0 to 100.
White Peaking Adjusts the image color brightness
from 0 to 10 while providing more
vibrant white shades.
This setting applies to S-video and
composite video inputs only.
This setting applies to S-video and
composite video inputs only.
This setting applies to S-video and
composite video inputs only.
A value closer to 0 creates a natural
image and a value closer to 10
enhances brightness.
Degamma Adjusts the color performance of the
display from 0 to 3.
Color Adjusts the Red, Green, Blue, Cyan,
Magenta and Yellow colors on the
projector from 0 to 100 to provide
Each color has a default value of 100.
Adjustments to the color settings
register to the User mode.
custom color and luminance output.
Audio menu
Volume Increases and decreases the
The default is 0.
projector’s volume from -20 to 20.
Mute Mutes the projector’s audio output. If you mute the projector’s audio output
and then increase or decrease the
volume, the volume is restored
automatically. You can prevent this
from happening by disabling the
volume control.
Disable Volume
Control
Disables the projector’s volume control
and the ECP’s volume control knob.
Closed Captioning Turns closed captioning on or off.
Closed Captioning
Language
Sets the closed captioning language to
CC1 or CC2.
Typically, CC1 displays American
English subtitles, while CC2 displays
other regional languages, such as
French or Spanish, depending on
television channel or media setup.
Default menu
3D On/Off Turns the 3D feature on or off. The default is off.
3D Format Displays the current 3D format
(Interleaved or Under-over).
Interleaved breaks down the image
frame for each eye, alternately
displaying a line of visual information
from each frame.
Under-over concurrently displays
horizontally stretched image frames for
each eye, one above the other.
15
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
3D Invert
Left-Right
Selects the 3D Invert setting (L-R or R-
L).
L-R displays visual data for the left eye
first.
R-L displays visual data for the right
eye first.
Auto Signal Detect Enables or disables signal searching of
input connectors.
Select On to have the projector
continuously switch inputs until it finds
an active video source.
Select Off to maintain signal detection
in one input.
Lamp Reminder Turns the lamp replacement reminder
on or off.
This reminder appears 100 hours
before the recommended lamp
replacement.
Lamp Mode Adjusts lamp brightness to Standard
or Economy.
Standard displays a high-quality,
bright image.
Economy increases the lamp life by
decreasing the brightness of the image.
Auto Power Off
(minutes)
Sets the length of the auto power-off
countdown timer between 1 and 240
minutes.
The default is 120 minutes.
The timer begins to count down when
the projector no longer receives a video
signal. The timer finishes when the
projector enters Standby mode.
Select 0 to turn off the timer.
Zoom Adjusts the zoom to the center of the
image in or out from 0 to 30.
The default is 0.
This setting affects image adjustments
done mechanically to the boom.
Projector ID Displays the projector’s unique ID
number (from 0 to 99) within your
organization’s network.
16
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Aspect Ratio Adjusts the image output to Fill
Screen, Match Input or 16:9.
Fill Screen produces an image that
fills the entire screen with stretching
and scaling.
Match Input matches the projector’s
aspect ratio to the input’s aspect ratio.
As a result, black bands might appear
along the top and bottom edges of the
screen horizontally (letterbox format) or
along the left and right edges of the
screen vertically (pillarbox format).
16:9 changes the output to 16:9 by
letterboxing the image, which is
recommended for use with HDTV and
DVD/Blu-ray discs enhanced for widescreen television.
See Video format compatibility on page
27 for appearance descriptions in each
mode.
Startup Screen Selects the type of startup screen
(SMART, Capture User Startup
Screen or Preview Startup Screen).
This screen displays when the
projector lamp is starting and an image
isn’t displayed.
SMART displays the default SMART
logo on a blue background.
Capture User Startup Screen closes
the on-screen display menu and
captures the entire projected
interactive whiteboard image. The
captured image is displayed the next
time that the on-screen display opens.
(The capture can take up to one
minute, depending on the complexity of
the background graphic.)
Preview Startup Screen enables you
to preview the default or captured
startup screen.
Set to Default? Resets projector settings to their
default values.
If you select Yes, all projector settings
reset to their defaults, reversing any
menu changes you made. This action
is irreversible.
Don’t adjust this setting unless you
want to reset all of the applied settings,
or unless you’re advised to by a
certified SMART Support specialist
(smarttech.com/contactsupport).
17
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
USB1 Source Enables touch for the selected video
source (VGA1, VGA2, HDMI or
Disable) by associating the video
source with the room computer USB
receptacle (USB1) on the ECP.
The default is VGA1.
When the user switches to the video
source you select in this setting, the
interactive whiteboard recognizes
touch from the device connected to the
room computer USB receptacle on the
ECP.
Selecting Disable disables the room
computer USB receptacle on the ECP.
USB2 Source Enables touch for the selected video
source (VGA1, VGA2, HDMI or
Disable) by associating the video
source with the laptop USB receptacle
(USB2) on the ECP.
The default is VGA2.
When the user switches to the video
source you select in this setting, the
interactive whiteboard recognizes
touch from the device connected to the
laptop USB receptacle on the ECP.
Selecting Disable disables the laptop
USB receptacle on the ECP.
Network menu
Network and VGA
Out
Activates the VGA out and network
features.
Status Displays the current network status
(Connected, Disconnected or Off).
DHCP Displays the status of the network’s
Dynamic Host Control Protocol
(DHCP) as On or Off.
Password
Reminder
E-mails the network password to the email recipient.
IP Address Displays the projector’s IP address in
values between 0.0.0.0 and
255.255.255.255.
Subnet Mask Displays the projector’s subnet work
mask number in values between
0.0.0.0 and 255.255.255.255.
Gateway Displays the projector’s default
network gateway in values between
0.0.0.0 and 255.255.255.255.
DNS Displays the projector’s primary
domain name number in values
between 0.0.0.0 and 255.255.255.255.
MAC Address Displays the projector’s MAC address
in xx-xx-xx-xx-xx-xx format.
On automatically assigns the DHCP
server’s IP address to the projector.
Off enables an administrator to assign
an IP address manually.
See Web page management on page
56 to set up a destination e-mail
address.
18
C H A P T E R 3
Using your interactive whiteboard system
Setting Use Notes
Group Name Displays the projector’s workgroup
name as set by an administrator
(maximum 12 characters).
Projector Name Displays the projector’s name as set
by an administrator (maximum 12
characters).
Location Displays the projector’s location as set
by an administrator (maximum 16
characters).
Contact Displays the contact name or number
for projector support as set by an
administrator (maximum 16
characters).
Language menu
Language Selects language preference. Projector menu support is available in
English (default), Brazilian Portuguese,
Czech, Danish, Dutch, Finnish,
French, German, Greek, Iberian
Portuguese, Italian, Korean, Japanese,
Norwegian, Polish, Russian, Simplified
Chinese, Spanish, Swedish and
Traditional Chinese.
Information menu
Lamp Hours Displays the current number of lamp
usage hours from 0 to 4000 hours from
when it was last reset.
Input Displays the current input source
(VGA1, VGA2, Composite, S-Video,
HDMI or None).
Resolution Displays the projector’s current display
resolution.
Firmware Version Displays the projector’s firmware
version in x.x.x.x format.
MPU Version Displays the projector
microprocessor’s firmware version in
x.x.x.x format.
Network Version Displays the projector’s network card
firmware version in x.x.x.x format.
Model Number Displays the projector’s model number.
Serial Number Displays the projector’s serial number.
Always reset Lamp Hours after you
replace a lamp because lamp service
reminders are based on the current
hours of use. See Resetting the lamp
timer on page 39 for details on the lamp
hour reset procedure.
19
C H A P T E R 3
Using your interactive whiteboard system
Focusing the image
To focus the projected image, use the focus lever located on the projector lens.
g To focus and adjust the image
Move the focus lever up or down until the image is in focus.
20
C H A P T E R 3
Using your interactive whiteboard system
Adjusting the image
Refer to these notes when adjusting the projected image as described in the included SMART Board
660i5,680i5, 685i5 and 690i5 Interactive Whiteboard System Installation Guide
(smarttech.com/kb/154547).
l Project a computer image set to the proper resolution while adjusting the image. If you don’t
have a computer, use the projector’s default background so that you can see the full projected
image clearly. If possible, use a pure white screen to allow for easier alignment.
l Use the mechanical adjustments described in the installation document to make image
adjustments instead of the projector’s on-screen menu options.
l As you tilt the projector up or lower its mounting boom to raise the image, the entire projected
image increases or decreases in size, especially at the bottom of the projected image.
l When adjusting keystone (tilt), ensure that the top and bottom edges of the image are
horizontal before you position the left and right edges of the image relative to your interactive
whiteboard.
l When you move the projector forward or backward on the boom to make the image larger or
smaller, you might need to tilt or turn the projector slightly to keep the image square. Loosen the
lever slightly to aid in this adjustment.
l To fine-tune the image, you may need to repeat all steps described in the installation document
in smaller increments.
SMART UF75 or UF75w projector connection diagram
You can connect a variety of peripheral devices to your projector, including DVD/Blu-ray players,
VCRs, document cameras, digital cameras and high-definition sources, as well as peripheral device
outputs, such as a secondary projector or a flat-panel display and powered speakers.
N N O T E
You might need to purchase third-party adapters to connect certain peripheral devices.
21
C H A P T E R 3
Using your interactive whiteboard system
No. Connector Connect to:
1 Power Power supply
2 4-pin power mini-DIN 5V/2A output ECP harness cable
3 7-pin mini-DIN ECP harness cable
4 RS-232F (DB9) Room control
5 DB15F RGB video input (VGA 1) Primary computer (not included)
6 DB15F RGB video input (VGA 2) Secondary computer (not included)
7 3.5 mm stereo audio input (×2) Stereo Y cable
8 DB15F RGB video output (VGA Out) Secondary display (not included)
9 3.5 mm stereo audio output Speakers (not included)
10 RCA composite video input
ECP harness cable
(and left and right RCA audio input)
11 4-pin mini-DIN S-video input
Video source (not included)
(and left and right RCA audio input)
12
HDMI input High definition video source (not included)
13 RJ45 Network (for web page management and
SNMP access)
14 USB B Computer (for service access)
22
C H A P T E R 3
Using your interactive whiteboard system
N N O T E S
l To connect your SMART Board 600 or D600 series interactive whiteboard, see the SMART
Board 660i5,680i5, 685i5 and 690i5 Interactive Whiteboard System Installation Guide
(smarttech.com/kb/154547).
l To connect accessories to your SMART Board interactive whiteboard, refer to the
documents included with the accessories and consult the SMART Support website
(smarttech.com/support) for additional information.
Using your interactive whiteboard
Refer to the SMART Board 600 and D600 series Interactive Whiteboard Installation and User’s Guide
(smarttech.com/kb/001414) for more information on using your interactive whiteboard.
When you connect your SMART Board interactive whiteboard system to a computer with SMART
software, you can access the full capabilities of your interactive whiteboard.
For more information on this software, press the Help button on your interactive whiteboard pen tray.
For more resources, go to smarttech.com, click the flag icon to the right of the SMART logo, and then
select your country and language. In the Support section of this website, you’ll find up-to-date,
product-specific information, including setup instructions and specifications. The SMART Learning
Space (learningspace.smarttech.com) also has free learning resources, hands-on lessons and
information on how to get more training.
Using the Extended Control Panel (ECP)
The ECP gives you control of the basic operations of your interactive whiteboard system.
Additionally, you can connect peripheral sources or outputs directly to the ECP, as described in
Connecting peripheral sources and outputs on page 31. Press the Power button on the ECP or
remote control to put the projector system into Standby mode or turn it on. Press the Input button on
the ECP or remote control to switch sources on the projector.
I I M P OR T A N T
l There are no projector menu options on the ECP. Keep your remote control in a safe place
because the ECP is not a substitute for the remote control.
23
C H A P T E R 3
Using your interactive whiteboard system
l Do not disconnect cables from the ECP to connect peripherals because you could
disconnect controls for your interactive whiteboard or host computer.
The following diagram and table describe the components of the ECP:
Number Function
Front
1
Power and status indicator light
2 Input
3 Volume control
4 USB A receptacle (for USB drives)
5 RCA jack composite video input (for peripheral devices such as a DVD/Blu-ray
players)
6 RCA audio jack right input
7 RCA audio jack left input
Left side
8 DB15 socket (ECP harness cable only)
9 USB A receptacle (for any USB peripheral, up to 500mA)
Right side
10 USB B receptacle (for a secondary computer such as a laptop)
N N O T E
This USB receptacle is active only when you select VGA2 as the projector input
source.
11 USB A receptacle (for SMART Board interactive whiteboard only)
24
C H A P T E R 3
Using your interactive whiteboard system
Number Function
12 USB B receptacle (for your primary computer)
N N O T E
This USB receptacle is active only when you select VGA1 as the projector input
source.
Back
13 RJ11 6-conductor receptacle (for SMART Hub SE collaboration platform control)
T T I P
If your computer has an HDMI output, you can connect a USB cable from your computer to either of
the USB B receptacles on the ECP and an HDMI cable from your computer to the HDMI connector
on the projector. Associate the HDMI source with the appropriate USB receptacle (see page 18).
Press the Input button on the ECP to switch to the HDMI input.
25
Chapter 4
Integrating other devices
Video format compatibility 27
Native video format 27
Video format compatibility 28
SMART UF75 projector 28
SMART UF75w projector 29
HD and SD signal format compatibility 29
SMART UF75 projector 30
SMART UF75w projector 30
Video system signal compatibility 30
SMART UF75 projector 31
SMART UF75w projector 31
Connecting peripheral sources and outputs 31
This chapter provides information on integrating your SMART Board 600i5 or D600i5 interactive
whiteboard system with peripheral devices.
Video format compatibility
SMART UF75 or UF75w projectors have a native video format and various video format compatibility
modes. You can change image appearances for certain formats and compatibilities.
Native video format
The following table lists the native VESA RGB video formats for the projector.
Projector Resolution Mode Aspect
ratio
SMART UF75 1024 × 768 XGA 4:3 60 48 63.5
SMART UF75w 1280 × 800 WXGA 16:10 60 48 83.5
27
Refresh rate
(Hz)
Horizontal
frequency
(kHz)
Pixel clock
(MHz)
C H A P T E R 4
Integrating other devices
Video format compatibility
The following tables list the projectors’ compatible VESA RGB video formats by resolution, which
you can adjust by using the aspect ratio commands described in Default menu on page 15.
SMART UF75 projector
Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input”
appearance
720 × 400 720×400_85 1.8:1 85.039 Letterbox
640 × 480 VGA 60 4:3 59.94 Full screen
640 × 480 VGA 72 4:3 72.809 Full screen
640 × 480 VGA 75 4:3 75 Full screen
640 × 480 VGA 85 4:3 85.008 Full screen
800 × 600 SVGA 56 4:3 56.25 Full screen
800 × 600 SVGA 60 4:3 60.317 Full screen
800 × 600 SVGA 72 4:3 72.188 Full screen
800 × 600 SVGA 75 4:3 75 Full screen
800 × 600 SVGA 85 4:3 85.061 Full screen
832 × 624 MAC 16" 4:3 74.55 Full screen
1024 × 768 XGA 60 4:3 60.004 Full screen
1024 × 768 XGA 70 4:3 70.069 Full screen
1024 × 768 XGA 75 4:3 75.029 Full screen
1024 × 768 XGA 85 4:3 84.997 Full screen
1024 × 768 MAC 19" 4:3 74.7 Full screen
1152 × 864 SXGA1 75 4:3 75 Full screen
1280 × 768 SXGA1 75 1.67:1 60 Letterbox
1280 × 800 WXGA 16:10 60 Letterbox
1280 × 800 WXGA 16:10 58.2 Letterbox
1280 × 960 Quad VGA 60 4:3 60 Full screen
1280 × 960 Quad VGA 85 4:3 85.002 Full screen
1280 × 1024 SXGA3 60 5:4 60.02 Letterbox
1280 × 1024 SXGA3 75 5:4 75.025 Letterbox
1280 × 1024 SXGA3 85 5:4 85.024 Letterbox
1400 × 1050 SXGA+ 4:3 59.978 Full screen
1600 × 1200 UXGA 4:3 60 Full screen
28
C H A P T E R 4
Integrating other devices
SMART UF75w projector
Resolution Mode Aspect ratio Refresh rate (Hz) “Match Input”
appearance
720 × 400 720×400_85 9:5 85.039 Letterbox
640 × 480 VGA 60 4:3 59.94 Pillarbox
800 × 600 VGA 72 4:3 72.809 Pillarbox
800 × 600 VGA 75 4:3 75 Pillarbox
800 × 600 VGA 85 4:3 85.008 Pillarbox
800 × 600 SVGA 56 4:3 56.25 Pillarbox
800 × 600 SVGA 60 4:3 60.317 Pillarbox
800 × 600 SVGA 72 4:3 72.188 Pillarbox
800 × 600 SVGA 75 4:3 75 Pillarbox
800 × 600 SVGA 85 4:3 85.061 Pillarbox
832 × 624 MAC 16" 4:3 74.55 Pillarbox
1024 × 768 XGA 60 4:3 60.004 Pillarbox
1024 × 768 XGA 70 4:3 70.069 Pillarbox
1024 × 768 XGA 75 4:3 75.029 Pillarbox
1024 × 768 XGA 85 4:3 84.997 Pillarbox
1024 × 768 MAC 19" 4:3 74.7 Pillarbox
1152 × 864 SXGA 75 4:3 75 Pillarbox
1280 × 768 WXGA 60 1.67:1 60 Letterbox
1280 × 960 Quad VGA 60 4:3 60 Letterbox
1280 × 960 Quad VGA 85 4:3 85.002 Letterbox
1280 × 960 SXGA3 60 5:4 60.02 Pillarbox
1280 × 1024 SXGA3 75 5:4 75.025 Pillarbox
1400 × 1050 SXGA3 85 5:4 85.024 Pillarbox
1600 × 1200 SXGA+ 4:3 59.978 Pillarbox
1600 × 1200 UXGA_60 4:3 60 Pillarbox
HD and SD signal format compatibility
The following tables list the projectors’ high definition and standard definition format signal
compatibility, which you can adjust by using the aspect ratio commands described in Default menu
on page 15.
29
C H A P T E R 4
Integrating other devices
SMART UF75 projector
Signal format Aspect ratio Horizontal
frequency (kHz)
480i (DVD player)
(640 × 480)
567i (DVD player)
(720 × 576)
720p 16:9 44.96 59.94 Letterbox
720p 16:9 35 50 Letterbox
1080i 16:9 33.7 59.94 Letterbox
1080i 16:9 28.1 50 Letterbox
SMART UF75w projector
Signal format Aspect ratio Horizontal
480i (525i) 4:3 15.73 59.94 Full screen
480p (525p) 4:3 31.47 59.94 Full screen
576i (625i) 5:4 15.63 50 Pillarbox
576p (625p) 5:4 31.25 50 Pillarbox
720p (750p) 16:9 45 59.94 Letterbox
720p (750p) 16:9 37.5 50 Letterbox
1080i (1125i) 16:9 33.75 59.94 Letterbox
1080i (1125i) 16:9 28.13 50 Letterbox
1080p (1125p) 16:9 67.5 59.94 Letterbox
1080p (1125p) 16:9 56.25 50 Letterbox
4:3 15.73 59.94 Full screen
5:4 15.63 50 Letterbox
frequency (kHz)
Vertical
frequency (Hz)
Vertical
frequency (Hz)
“Match Input”
appearance
“Match Input”
appearance
Video system signal compatibility
The following tables list the projectors’ video system signal compatibility, particularly for signals
delivered over S-Video and Composite video connectors, which you can adjust by using the aspect
ratio commands described in Default menu on page 15.
N N O T E
The 16:9 command delivers all video modes with black bands along the top and bottom edges of
the screen. The Match Input command might deliver video modes with blank bands along the top
and bottom edges of the screen, depending on the input resolution.
30
C H A P T E R 4
Integrating other devices
SMART UF75 projector
Video mode Aspect ratio Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Color signal
(MHz)
NTSC 4:3 15.73 29.96 3.58
PAL 4:3 15.62 25 4.43
SECAM 4:3 15.62 25 4.25 (fob)
4.06 (for)
SMART UF75w projector
Video mode Aspect ratio Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Color signal
(MHz)
NTSC 4:3 15.73 59.94 3.58
PAL 4:3 15.63 50 4.43
SECAM 4:3 15.63 50 4.25 and 4.41
PAL-M 4:3 15.73 59.94 3.58
PAL-N 4:3 15.63 50 3.58
PAL-60 4:3 15.73 59.94 4.43
NTSC 4.43 4:3 15.73 59.94 4.43
Connecting peripheral sources and outputs
Follow these instructions if you have a peripheral device to connect to your interactive whiteboard
system for a short time, such as a DVD/Blu-ray player or a USB device.
N N O T E S
l Measure the distance between the projector and the peripheral device you want to connect.
Make sure each cable is long enough, has plenty of slack and can be placed safely in your
room without presenting a trip hazard.
l Don’t disconnect any existing cables, because some receptacles are reserved for the ECP
harness cable and your interactive whiteboard.
l Don’t connect SMART Board Audio (SBA-L) USB speakers to the ECP. Connect these
speakers to the projector connection panel using a dual-channel (left and right) RCA plugs-to-
3.5 mm audio connector cable (included with the speakers).
l The composite video connector and associated dual channel audio inputs on the ECP are for
input only. These RCA jacks don’t provide an output signal.
31
C H A P T E R 4
Integrating other devices
g To connect a peripheral source or output to your projector
1. If you have speakers installed, turn the volume dial on the ECP all the way down to prevent
buzzing or a spark.
2. If your peripheral device uses a composite video connection, connect its input cables to the
ECP.
If your peripheral device uses a USB connection, connect its input cables to one of the
available USB receptacles on the ECP.
3. Switch input sources to the peripheral device by pressing the Input button on the ECP or
remote control.
N N O T E
If your USB device does not work, the device may be malfunctioning or incompatible, or the
USB port may be disabled. See Disabling user USB access on page 77.
4. Restore the volume on the ECP’s volume dial.
32
Chapter 5
Maintaining your interactive whiteboard system
Maintaining your interactive whiteboard 33
Cleaning the projector 33
Focusing and adjusting the projector image 34
Replacing the projector lamp 35
Removing and replacing the projector lamp module 35
Resetting the lamp timer 39
This chapter includes methods for properly cleaning and preventing damage to your SMART Board
600i5 or D600i5 interactive whiteboard system.
Maintaining your interactive whiteboard
For information on maintaining your interactive whiteboard, see the SMART Board 600 and D600
Series Interactive Whiteboard Installation and User’s Guide (smarttech.com/kb/001414).
Cleaning the projector
W W A R N I N G
Cleaning a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder,
and consider removing the projector from its wall-mounting bracket to clean it.
C C A U T I O N
l Never touch the mirror with your hands or a brush, and do not scrub the surface of the mirror
with the supplied cleaning cloth. Instead, use the supplied cleaning cloth to clean the mirror
with a light touch, and do not put any cleaning solvents on the cloth or the mirror.
33
C H A P T E R 5
Maintaining your interactive whiteboard system
l
Before you clean the projector, press the Power button twice on the ECP or remote
control to put the system in Standby mode, and then allow the lamp to cool for at least 30
minutes.
l Do not spray cleaners, solvents or compressed air directly on the projector. Do not use spray
cleaners or solvents near any part of the projector because they can damage or stain the unit.
Spraying the system could spread a chemical mist on some of the projector’s components
and lamp, resulting in damage and poor image quality.
l Do not allow liquids or commercial solvents of any kind to flow into the projector base or
head.
I I M P OR T A N T
l When cleaning the interactive whiteboard system:
o
Wipe the exterior of the projector with a lint-free cloth.
o
If necessary, use a soft cloth moistened with a mild detergent to clean the projector
housing.
l Do not use abrasive cleaners, waxes or solvents.
When cleaning the projector’s mirror:
l Use a bellows bulb or air blower bulb (commonly found in audio-visual supply stores) to blow off
dust. Never touch the mirror with your bare hands or a brush.
l If wiping the mirror is unavoidable, wear protective gloves and gather the cleaning cloth into a
ball. Gently run the cleaning cloth across the mirror like you would a feather duster.
When cleaning the projector’s lens:
l Use a bellows bulb or air blower bulb (commonly found in audio-visual supply stores) to blow off
dust. Never touch the lens with your bare hands or a brush.
l If wiping the lens is unavoidable, wear protective gloves and gather the cleaning cloth into a
ball. Gently run the cleaning cloth across the lens from the center to the edge, using the
cleaning cloth like you would a feather duster.
Focusing and adjusting the projector image
For information on focusing and adjusting the projector image, see Focusing the image on page 20
and Adjusting the image on page 21.
34
C H A P T E R 5
Maintaining your interactive whiteboard system
Replacing the projector lamp
This section provides detailed instructions for replacing the projector lamp.
Removing and replacing the projector lamp module
Eventually the lamp module will dim, and a message will appear reminding you to replace the lamp.
Make sure you have a replacement projector lamp before proceeding with the following instructions.
W W A R N I N G
l Replace the lamp when the projector displays its lamp life warning message. If you continue
to use the projector after this message appears, the lamp can shatter or burst, scattering
glass throughout the projector.
l If the lamp shatters or bursts, leave and then ventilate the area.
Next do the following:
o
Do not touch the glass fragments because they can cause injury.
o
Wash your hands thoroughly if you have come into contact with lamp debris.
o
Thoroughly clean the area around the projector, and discard any edible items placed in
that area because they could be contaminated.
o
Call your authorized SMART reseller (smarttech.com/wheretobuy) for instructions. Do
not attempt to replace the lamp.
l Replacing the lamp in a wall-mounted projector can result in a fall or injury. Use caution when
climbing a ladder, and consider removing the projector from the wall-mounting bracket to
replace the lamp.
l Uncovering the lamp while the projector is mounted on the wall-mounting bracket can lead to
product damage or personal injury from falling pieces of glass if the lamp is broken.
35
C H A P T E R 5
Maintaining your interactive whiteboard system
l When replacing the projector lamp:
o
Put the projector into Standby mode and wait 30 minutes for the lamp to cool
completely.
o
Do not remove any screws other than those specified in the lamp replacement
instructions.
o
Wear protective eyewear while changing the lamp. Failure to do so can cause injuries
including loss of eyesight if the lamp shatters or bursts.
o
Use only replacement lamps approved by SMART Technologies. Contact your
authorized SMART reseller (smarttech.com/wheretobuy) for replacement parts.
o
Never replace the lamp assembly with a previously used lamp assembly.
o
Always handle the fragile lamp assembly with care to prevent premature lamp failure or
exposure to mercury. Use gloves when touching the lamp. Do not touch the lamp with
your fingers.
o
Recycle or dispose of the lamp as hazardous waste in accordance with local
regulations.
You need a Phillips® No. 2 screwdriver and a flat screwdriver to complete these procedures.
g To remove the old lamp
1.
Press the Power button twice on the remote control or the ECP to put the projector into
Standby mode.
2. Wait at least 30 minutes for the projector to cool down.
3. Disconnect the power cable from the projector.
36
C H A P T E R 5
Maintaining your interactive whiteboard system
4. Remove the lamp cover from the projector, and then put it in a safe place.
T T I P
If the cover is difficult to remove, insert a flat screwdriver or small coin into the slot on the
bottom of the lamp cover to gently pry the cover open.
5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp
module.
N N O T E
Don’t try to remove these screws. Captive screws can’t be removed, but they must be loose.
6. Use the handle on the bottom of the lamp module to slide out the lamp and remove it from the
projector.
37
C H A P T E R 5
Maintaining your interactive whiteboard system
g To put the new lamp module into the projector
1. Remove the new lamp module from its packaging.
2. Carefully place the lamp module into the projector using the handle on the top of the module.
Hold the lamp module vertically and guide it into its slot. Gently press the power end of the
lamp module against the projector to ensure the power plug makes contact with the projector’s
power receptacle.
N N O T E
You should be able to place the lamp module into the projector easily without applying much
force.
3. Use the Phillips screwdriver to tighten the captive screws.
4. Carefully replace the lamp cover.
5. Connect the power cable to the wall outlet.
6.
Press the Power button once on the remote control or ECP to confirm that the projector is
operating and that the lamp module is correctly installed.
7. Put the old lamp in a secure container, and handle it gently until you recycle it.
g To finish the projector lamp installation
1. Turn on the projector.
2. Adjust the projector image if necessary (see Adjusting the image on page 21).
3. Access the service menu to reset the lamp hour counter (see Resetting the lamp timer on next
page).
4. Activate the projector’s alert e-mails and lamp warnings if they’ve been deactivated (see E-mail
alerts on page 62 and Control panel on page 57).
38
C H A P T E R 5
Maintaining your interactive whiteboard system
Resetting the lamp timer
After you replace the lamp, you need to access the projector service menu and reset the lamp hour
counter. To prevent accidental errors, only a system administrator should perform this procedure.
N N O T E
Always reset the Lamp Hours after you replace the lamp because lamp service reminders are
based on the current hours of use.
g To reset the lamp timer
1. Using the remote control, press the following buttons quickly to access the service menu:
Down, Up, Up, Left, Up.
C C A U T I O N
Do not adjust any settings in the service menu other than those listed in this guide. Changing
other settings can damage or affect the operation of your projector and invalidates your
warranty.
2. Scroll down to the Lamp Hour Reset field, and then press OK.
Both Lamp Hour values (Standard and Economy) are reset to zero.
C C A U T I O N
Do not use the Lamp Hour Reset feature unless you have just replaced the lamp. Resetting
the lamp hour counter on an old lamp can damage your projector due to lamp failure.
N N O T E
You’re unable to reset the Display Hour value because it’s the running total of hours the
projector has been in use.
3. Press the Menu button on the remote control.
The SMART UF75 Settings menu appears.
4.
Select to confirm that Lamp Hours is reset to zero.
39
Chapter 6
Troubleshooting your interactive whiteboard system
Correcting image alignment issues 42
Diagnosing issues using the interactive whiteboard system indicators and controls 42
Interactive whiteboard indicators and controls 42
Projector lights and status 43
ECP lights and status 44
Projector error states 44
Your projector doesn’t respond to commands 44
The “Projector Overheated” message appears 45
The “Fan Failure” message appears 45
The “Color Wheel Failure” message appears 45
The “Lamp Failure” message appears 46
The projector Power light isn’t lit 46
Resolving network communication issues 47
Resolving audio issues 48
Resolving video issues 48
Resolving image issues 49
Loss of signal 49
No projected image 49
Partial, scrolling or incorrectly displayed image 50
The image from your connected laptop computer isn’t projected 51
Unstable or flickering image 51
Your image has a vertical flickering bar 51
Unaligned projected image 52
Accessing the service menu 52
Retrieving your password 53
Resetting the projector 53
Locating serial numbers 53
Transporting your interactive whiteboard system 54
This chapter provides basic troubleshooting information for your interactive whiteboard system.
41
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
For issues not covered in this chapter, contact your authorized SMART reseller
(smarttech.com/wheretobuy) or consult the SMART Support website (smarttech.com/support).
Correcting image alignment issues
Alignment errors occur when the projected image isn’t perpendicular to the screen. Alignment errors
can occur when you mount your interactive whiteboard system on an uneven surface or a wall that
has obstructions, or if you swivel the projector too far from the vertical center of your interactive
whiteboard.
Use the instructions in the included SMART Board 660i5,680i5, 685i5 and 690i5 Interactive
Whiteboard System Installation Guide (smarttech.com/kb/154547) to eliminate most image
alignment issues.
Diagnosing issues using the interactive
whiteboard system indicators and controls
This section documents the indicators and controls of the interactive whiteboard system
components.
Interactive whiteboard indicators and controls
Your SMART Board 600 or D600 series interactive whiteboard includes the following indicators and
controls:
l A Ready light
l Pen tray buttons, indicator lights and sensors
l The controller module’s reset button
For more information about these indicators and controls and to resolve common issues, see the
SMART Board 600 and D600 Series Interactive Whiteboard Installation and User’s Guide
(smarttech.com/kb/001414).
42
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem

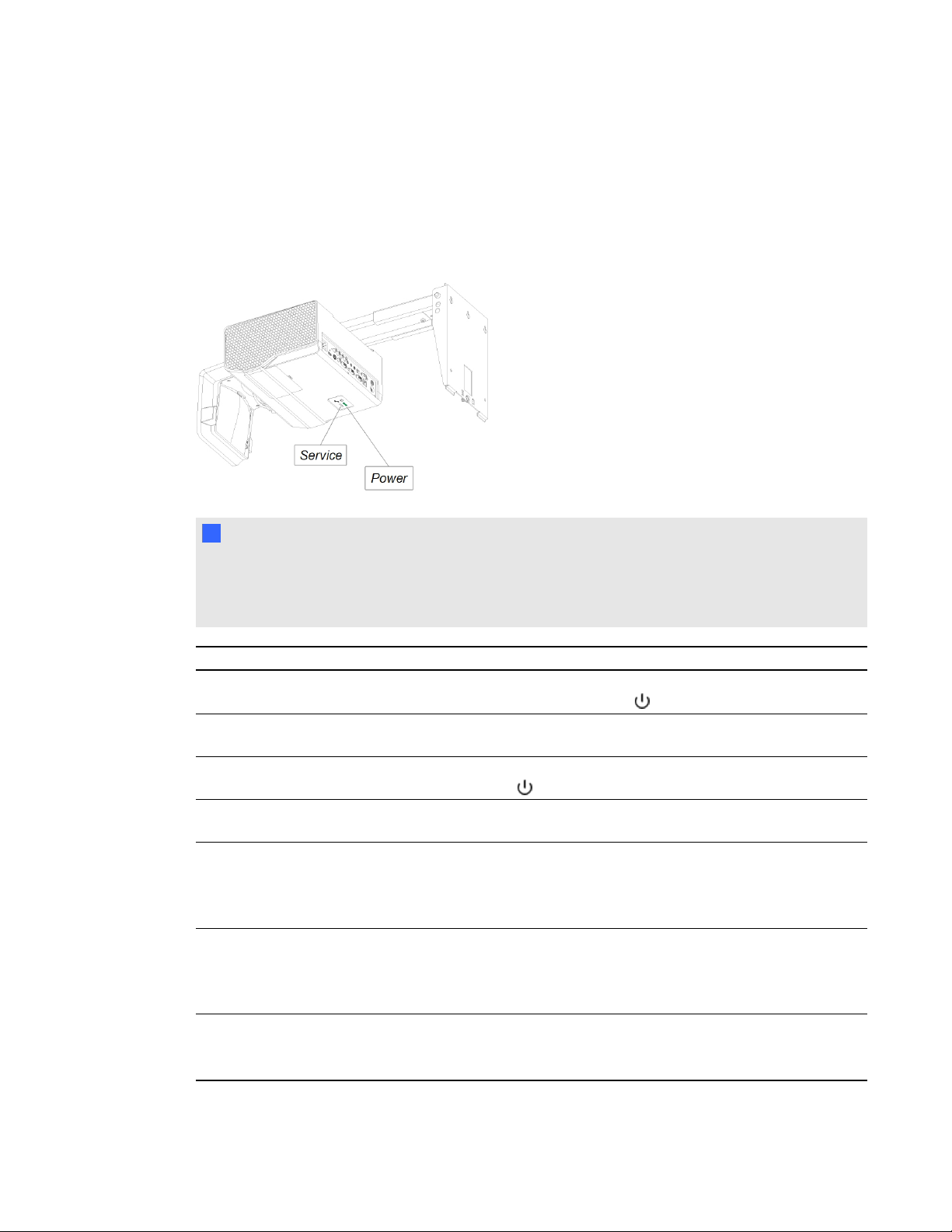

Projector lights and status
Two indicator lights (Power and Service) are located on the bottom of the SMART UF75 or UF75w
projector. Specific light sequences convey information about the state of the projector, including
errors.
I I M P OR T A N T
After you resolve the projector’s issue, disconnect and then connect the projector power cable to
clear the indicator light sequence, and then reset the projector’s status (see Resetting the projector
on page 53).
Power light Service light Message
Solid amber Off The projector is off but still receiving power (Standby
mode). Press the Power button on the ECP to turn it on.
Flashing green Off The projector is in the powering (startup) power state. Wait
for the projector to finish turning on.
Solid green Off The projector is in the operating (on) power state. Press the
Power button on the ECP twice to turn it off.
Flashing amber Off The projector is in the cooling power state. Wait for it to
finish cooling.
Off Flashing red The projector is overheating. It could shut down
automatically.
See The “Projector Overheated” message appears on page
45 to troubleshoot the projector.
Off Solid red The projector has a fan issue. It could shut down
automatically.
See The “Fan Failure” message appears on page 45 to
troubleshoot the projector.
Off Solid red The projector has a color wheel issue.
See The “Color Wheel Failure” message appears on page
45 to troubleshoot the projector.
43
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
Power light Service light Message
Solid amber Flashing red The projector has a lamp issue.
See The “Lamp Failure” message appears on page 46 to
troubleshoot the projector.
Off Off The projector isn’t receiving power.
See The projector Power light isn’t lit on page 46 to
troubleshoot the projector.
ECP lights and status
The ECP’s Power button also functions as a status indicator light.
ECP status light Status
Off The projector isn’t receiving power. Confirm that the projector is on, and that the
power cable is connected. Confirm that your power supply is on and active. At
the projector, check your power cable and the ECP’s 4-pin powered mini-DIN
connection. At the ECP, check the 11-pin connector. If nothing changes after
you check your connectors and power supply, contact your authorized SMART
reseller (smarttech.com/wheretobuy).
Solid amber The projector is receiving power but is in Standby mode.
Flashing green The projector is receiving power and is turning on.
Solid green The projector is on, and the ECP is receiving power and communicating with the
projector.
Flashing amber Your interactive whiteboard system is about to turn off.
Projector error states
System administrators can solve or troubleshoot the following projector error states on their own prior
to contacting SMART Support. Performing an initial troubleshooting on your projector will reduce the
time of a support call.
Your projector doesn’t respond to commands
If your projector doesn’t respond to commands or if it starts to display code after you enter a
command, perform the following procedure.
g To restart an unresponsive projector
1. Put the projector into Standby mode, and then wait 15 minutes for it to cool down.
2. Disconnect the power cable from the power outlet, and then wait at least 60 seconds.
3. Connect the power cable, and then turn on the projector.
44
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
The “Projector Overheated” message appears
If the “Projector Overheated” message appears and the projector enters Standby mode during use,
one of the following issues is occurring:
l The projector is overheating internally because of blocked air vents or an internal temperature
over 131°F (55°C).
l The temperature outside the projector is too high.
g To resolve the “Projector Overheated” error
1. Put the projector into Standby mode, and then wait 15 minutes for it to cool down.
2. If your room is hot, lower the temperature if possible.
3. Ensure that nothing is blocking the projector’s air intake and exhaust.
4. Disconnect the power cable from the power outlet, and then wait at least 60 seconds.
5. Connect the power cable, and then turn on the projector.
6. If the previous steps don’t resolve the issue, disconnect the power cable, and then contact your
authorized SMART reseller (smarttech.com/wheretobuy).
The “Fan Failure” message appears
If the “Fan Failure” message appears and the projector enters Standby mode during use, one or both
of the following issues is occurring:
l The projector is overheating internally.
l One of the fans has failed.
g To resolve the “Fan Failure” error
1. Follow steps 1 to 5 of To resolve the “Projector Overheated” error above.
2. If the lamp doesn’t illuminate, put the projector into Standby mode and wait 15 minutes for it to
cool down.
3. Disconnect the power cable, and then contact your authorized SMART reseller
(smarttech.com/wheretobuy).
The “Color Wheel Failure” message appears
If the “Color Wheel Failure” message appears and the projector enters Standby mode during use, the
projector has a color wheel issue.
45
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
g To resolve the “Color Wheel Failure” error
1. Put the projector into Standby mode, and then wait 15 minutes for it to cool down.
2. Disconnect the power cable from the power outlet, and then wait at least 60 seconds.
3. Connect the power cable, and then turn on the projector.
4. If the previous steps don’t resolve the issue, disconnect the power cable, and then contact your
authorized SMART reseller (smarttech.com/wheretobuy).
The “Lamp Failure” message appears
If the “Lamp Failure” message appears and the lamp turns off during use or doesn’t turn on, one of the
following issues is occurring:
l The lamp is overheating, likely due to blocked air vents.
l The lamp has reached the end of its life.
l The projector has an internal problem.
g To resolve the “Lamp Failure” error
1. Follow steps 1 to 5 of To resolve the “Projector Overheated” error on previous page.
2. If the lamp doesn’t illuminate, put the projector into Standby mode and wait 15 minutes for it to
cool down.
3. Disconnect the power cable.
4. Replace your lamp as described in Removing and replacing the projector lamp module on page
35.
5. If the projector still doesn’t turn on or if it continues to display the lamp error message,
disconnect the power cable, and then contact your authorized SMART reseller
(smarttech.com/wheretobuy).
The projector Power light isn’t lit
If the projector Power light isn’t lit, one of the following issues is occurring:
l There was a power outage or a power surge.
l A circuit breaker or a safety switch was tripped.
l The projector isn’t connected to the power source.
l The projector has an internal problem.
46
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
g To resolve the unlit projector Power light issue
1. Check the power source, and then make sure that all cables are connected.
2. Confirm that the projector is connected to an active power outlet.
3. Make sure the pins on the connectors aren’t broken or bent.
4. Make sure the Hide Display feature on the remote is disabled. See Using the remote control
buttons on page 13.
5. If the previous steps don’t resolve the issue, disconnect the power cable and then contact your
authorized SMART reseller (smarttech.com/wheretobuy).
Resolving network communication issues
If you don’t have network access, perform the following procedure to troubleshoot your system.
g To resolve network communication issues
1. Ensure that your network’s RJ45 cable is properly connected to the modular cable connection
on the projector’s connection panel.
2. Ensure that the LAN warning light on the projector is green. To activate the LAN, use the
“vgaoutnetenable=on” RS-232 command (see Projector programming commands on page 65)
or the “Network and VGA out” projector menu option (see Network menu on page 18). The
network function on the projector doesn’t work until you send one of these commands.
3. Press the Menu button, and then select the Network Settings menu to check the IP address.
See Network menu on page 18 for a description of the IP address field. Enter this IP address
into your browser or SNMP agent.
4. If you still don’t have network access, contact your network administrator. If your administrator
is unable to resolve the issue, contact your authorized SMART reseller
(smarttech.com/wheretobuy).
47
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
Resolving audio issues
The projector doesn’t have integrated speakers, but you can connect an audio system to the audio
output connector in the projector’s connection panel. If no sound is coming from your audio system,
perform the following procedure.
g To resolve audio issues
1. Ensure that the speakers’ or audio system’s cables are properly connected to the audio output
plug on the projector’s connection panel.
2. Press the Mute button on the projector’s remote control, and if Audio Mute is on, turn it off.
3. Check the ECP’s volume knob or use the projector’s remote control to ensure that volume isn’t
at the lowest setting.
4. Ensure that your speaker or audio system is on and that volume is enabled.
5. Check that your source input, such as your computer or video device, isn’t malfunctioning, that
its audio output is on and that its volume isn’t set to the lowest position.
6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller
(smarttech.com/wheretobuy).
Resolving video issues
If your projector has a frozen image, perform the following procedure.
g To resolve a frozen image
1. Ensure that the Hide Display feature is off. Press the Hide button on the projector’s remote
control to hide or show the display.
2. Ensure that your source device, such as your DVD player or computer, isn’t malfunctioning.
3. Put the projector into Standby mode, and then wait 15 minutes for it to cool down.
4. Disconnect the power cable from the power outlet, and then wait at least 60 seconds.
5. Connect the power cable, and then turn on the projector.
6. If the previous steps don’t resolve the issue, contact your authorized SMART reseller
(smarttech.com/wheretobuy).
48
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
Resolving image issues
Computers, peripherals, source inputs and their connection cables might not be correctly set up to
transmit their signals to your SMART Board interactive whiteboard system. Refer to Video format
compatibility on page 27 and the following section to help resolve these issues.
Loss of signal
If a visual source signal is lost or if the signal is
being switched to a different device or input, the
projector doesn’t show a source signal and instead
displays the SMART logo on a blue screen.
g To resolve signal loss issues
1. Wait approximately 45 seconds for the image to synchronize. Some video signals require a
longer synchronization period.
2. If the image doesn’t synchronize, check your cable connections to the projector and the ECP.
3. Ensure that the image signal is compatible with the projector (see Video format compatibility on
page 27).
4. If your projector still doesn’t show a source signal, contact your authorized SMART reseller
(smarttech.com/wheretobuy).
No projected image
If the projector displays no image at all, and the ECP, interactive whiteboard and projector power
lights aren’t on, perform the following procedure.
g To resolve projected image issues
1. Ensure that the power cable is connected to the power outlet.
2. Ensure that your cables are correctly and securely connected as described in the included
SMART Board 660i5,680i5, 685i5, and 690i5 Interactive Whiteboard System Installation Guide
(smarttech.com/kb/154547).
3. Check the power cable and VGA connector pins to make sure they aren’t bent or broken.
49
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
4. Ensure that the projector lamp is installed securely.
5. Confirm that your projector is turned on and that the projector status lights are illuminated. If the
status lights display unusual behavior, see Projector lights and status on page 43 to
troubleshoot your system.
Partial, scrolling or incorrectly displayed image
N N O T E S
l The following procedure applies to Windows® 95, Windows 98, Windows 2000 and
Windows XP operating systems on desktop computers only.
l This procedure may vary depending on your version of Windows operating system and your
system preferences.
g To resolve a partial, scrolling or incorrectly displayed image
1. Select Start > Control Panel.
2. Double-click Display.
The Display Properties window appears.
3. Click Settings.
4. Verify that your display resolution setting is lower than or equal to 1024 × 768 (SMART UF75
projector) or 1280 × 800 (SMART UF75w projector).
5. If the projector still does not display the entire image, perform the following procedure to change
the monitor display.
g To change the monitordisplay
1. Click Advanced Properties.
2. On the Monitor tab, click Change.
3. Click Show all devices, and then select Standard monitor types from the list.
4. In the Models list, select the resolution you need.
5. Verify that the resolution setting of the monitor display is lower than or equal to 1024 × 768
(SMART UF75 projector) or 1280×800 (SMART UF75w projector).
50
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
The image from your connected laptop computer isn’t projected
Laptop computer settings can interfere with projector operations.
Some laptop computers deactivate their screens when you connect a secondary display device.
Refer to your computer’s manual for details on reactivating its display screen.
Unstable or flickering image
If the projector’s image is unstable or flickering, you could have different tracking settings on your
input source.
I I M P OR T A N T
Write down your setting values before adjusting any of the settings in the following procedure.
g To resolve your unstable or flickering image
1. Adjust the Tracking setting in the on-screen display. See Image Adjustment menu on page 14.
2. Change the tracking settings on your computer. Refer to your computer’s manual for more
information.
3. Optionally, reset the projector as described in Resetting the projector on page 53 to adjust the
tracking to its original value.
I I M P OR T A N T
This action resets all values to their defaults.
Your image has a vertical flickering bar
If the projector displays a vertical flickering bar, you could have different frequency settings on your
input source.
I I M P OR T A N T
Write down your setting values before adjusting any of the settings in the following procedure.
g To resolve the vertical flickering bar issue
1. Adjust the Frequency setting in the on-screen display. See Image Adjustment menu on page
14.
51
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
2. Check the display mode of your computer’s graphics card. Make sure it matches one of the
projector’s compatible signal formats (see Video format compatibility on page 27). Refer to your
computer’s manual for more information.
3. Configure the display mode of your computer’s graphics card to make it compatible with the
projector. Refer to your computer’s manual for more information.
4. Optionally, reset the projector as described in Resetting the projector on next page to adjust
your frequency to its original value.
I I M P OR T A N T
This action resets all values to their defaults.
Unaligned projected image
The SMART UF75 or UF75w projector image can slip if the projector is moved often or installed in a
location prone to vibration, such as next to a heavy door. Follow these precautions to help prevent the
image from becoming misaligned:
l Make sure that the installation wall is plumb and square and doesn’t move or vibrate
excessively.
l Make sure that there are no obstructions behind the projector’s wall mount bracket, and that the
bracket is firmly secured to the wall according to the installation instructions.
l Adjust the projected image. See the included SMART Board 660i5,680i5, 685i5 and 690i5
Interactive Whiteboard System Installation Guide (smarttech.com/kb/154547) and Adjusting
the image on page 21.
Accessing the service menu
C C A U T I O N
l To prevent tampering or unintentional changes, only system administrators should access
the service menu. Do not share the service menu access code with casual users of your
interactive whiteboard system.
l Do not adjust any settings in the service menu other than those listed in this guide. Changing
other settings can damage or affect the operation of your projector and invalidates your
warranty.
52
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
Retrieving your password
If you forget the projector’s password, you can retrieve it by accessing the projector service menu
directly from the projector or from the password settings menu on your projector’s web page (see
Password settings on page 62).
g To retrieve your password from the service menu
1. Using the remote control, press the following buttons quickly to access the service menu:
Down, Up, Up, Left, Up.
2. Scroll to the Password Get field, and then press Enter on the remote control.
The password appears on the screen.
3. Record the password.
4. Scroll to the Exit field, and then press Enter on the remote control to exit the projector service
menu.
Resetting the projector
At some point during troubleshooting, you might need to reset all projector settings.
I I M P OR T A N T
This action is irreversible.
g To reset all projector settings
1. Using the remote control, press the following buttons quickly to access the service menu:
Down, Up, Up, Left, Up.
2. Scroll to the Factory Reset field, and then press Enter on the remote control.
3. Scroll to the Exit field, and then press Enter on the remote control to exit the projector service
menu.
Locating serial numbers
Before contacting SMART Support (see Customer support on page 83), make note of your interactive
whiteboard and projector serial numbers.
53
C H A P T E R 6
Troubleshooting your interactive whiteboardsystem
For the location of the SMART Board 600 or D600 series interactive whiteboard serial number, see
the SMART Board 600 and D600 series Interactive Whiteboard Installation and User’s Guide
(smarttech.com/kb/001414).
The SMART UF75 or UF75w projector serial number is located on the top of the projector.
T T I P
You can also access the projector’s serial number through the on-screen menu. For more
information, see Information menu on page 19.
Transporting your interactive whiteboard system
Save your original SMART Board 600i5 or D600i5 interactive whiteboard system packaging so that
it’s available if you need to transport your interactive whiteboard system. When required, repack it
with as much of the original packaging as possible. This packaging was designed to provide optimal
shock and vibration protection. If you no longer have your original packaging, purchase the same
packaging directly from your authorized SMART reseller (smarttech.com/wheretobuy).
If you prefer to use your own packaging materials, make sure you adequately protect your unit. Ship
your interactive whiteboard in an upright position to deter shippers from placing heavy objects on it.
54
Appendix A
Remotely managing your interactive whiteboard system
Web page management 56
Accessing web page management 56
Home 56
Control panel 57
Control panel II 60
3D settings 60
USB Control settings 60
Network settings 61
E-mail alerts 62
Password settings 62
Connecting your room control system to the SMART UF75 or UF75w projector 63
Pin configuration on the projector’s RS-232 connector 63
Serial interface settings 63
Projector programming commands 65
Projector powerstate controls 65
Command inventory 65
Value-based command methods 65
Absolute values and adjustment values 65
Video source specification values 66
Powerstate controls 67
Source selection controls 67
General source controls 68
Additional VGA source controls 69
Additional composite video source controls 70
Audio output controls 70
Network controls 71
System controls 72
Simple Network Management Protocol (SNMP) 76
This appendix includes detailed instructions on how to set up your computer or room control system
to remotely manage your SMART Board 600i5 or D600i5 interactive whiteboard system settings
through an RS-232 serial interface.
55
A P P E N D I X A
Remotely managing your interactive whiteboard system
Web page management
You can access advanced setup features via the projector’s web page. This web page enables you to
manage the projector from a remote location using any computer connected to your intranet.
N N O T E
To access the web page, your browser must support JavaScript™. Most commonly used browsers
like Internet Explorer® and Firefox® support JavaScript.
Accessing web page management
Before you can access the web page, you must connect the network cable to your projector (see the
SMART UF75 or UF75w projector connection diagram on page 21). When you first connect your
projector to a network, an IP address appears on the on-screen display.
N N O T E
You can also view the IP address by accessing the projector’s Network Settings menu page (see
Network settings on page 61).
g To use the management web page
1. Start your Internet browser.
2. Type the IP address in the address line field, and then press ENTER.
The SMART UF75 Projector Settings (or SMART UF75w Projector Settings) window appears.
3. Select the menu options in the left pane to access the settings on each page.
4. Select settings or type them with your computer’s keyboard, and then press the Submit or
other action button next to each setting you change.
Home
The Home menu page displays basic projector information and enables you to select the on-screen
display language.
Submenu setting Description
Language Displays language options
Projector Information Displays current projector information
56
A P P E N D I X A
Remotely managing your interactive whiteboard system
Control panel
This menu enables you to manage the projector audio and video status, alerts and appearances using
an Internet browser.
Submenu setting Description
Power Turns the projector on or puts it into Standby mode.
Select the Power ON or Power OFF button.
Restore All Projector
Defaults
Volume Adjusts the projector’s volume from -20 to 20.
Mute Turns the mute settings on or off. Select On to mute the projector’s
Volume Control Enables volume control on the ECP. Select On to enable volume
Closed Captioning Turns the closed captioning feature on or off.
Language Sets the closed captioning language to CC1 or CC2.
Display Mode Adjusts the display output to SMART Presentation, Bright Room,
Returns projector settings to default values or refreshes the current
settings. Select Submit or Refresh.
I I M P OR T A N T
The Submit option is irreversible and resets all values.
sound and Off to turn off mute.
adjustment and select Off to disable volume adjustment if you prefer
to use your audio system or speaker (not included) controls.
Typically, CC1 displays American English subtitles, while CC2
displays other regional languages, such as French or Spanish,
depending on television channel or media setup.
Dark Room, sRGB and User modes so you can project images from
various sources with consistent color performance:
l
SMART Presentation is recommended for color fidelity.
l
BrightRoom and DarkRoom are recommended for locations
with those conditions.
l
sRGB provides standardized accurate color.
l
User enables you to apply your own settings.
Brightness Adjusts projector brightness from 0 to 100.
Contrast Adjusts the difference between the lightest and darkest parts
of the image from 0 to 100.
Frequency Adjusts the display data frequency of the projected image from
-5 to 5 to match the frequency of your computer’s graphics card.
Tracking Synchronizes your projector’s display timing with your computer’s
graphics card from 0 to 63.
Sharpness Adjusts the projected image’s sharpness from 0 to 31.
White Peaking Adjusts the image color brightness from 0 to 10 while providing more
vibrant white shades. A value closer to 0 creates a natural image and
a value closer to 10 enhances brightness.
57
A P P E N D I X A
Remotely managing your interactive whiteboard system
Submenu setting Description
Degamma Adjusts the color performance of the display from 0 to 3.
Color Adjusts the Red, Green, Blue, Cyan, Magenta and Yellow colors on
the projector from 0 to 100 to provide custom color and luminance
output. Each color has a default value of 100. Adjustments to the
color settings register to the User mode.
Auto Signal Detect Enables or disables signal searching of input connectors.
l
Select On to have the projector continuously switch inputs until
it finds an active video source.
l
Select Off to maintain signal detection in one input.
Lamp Reminder Select On to show or Off to hide the lamp replacement reminder when
it appears. This reminder appears 100 hours before the recommended
lamp replacement.
Lamp Mode Adjusts lamp brightness to Standard or Economy. Standard
displays a high-quality, bright image. Economy increases the lamp
life by decreasing the brightness of the image.
Auto Power Off Sets the length of the auto power off countdown timer between 1 and
240 minutes. The timer begins to count down when the projector no
longer receives a video signal. The timer finishes when the projector
enters Standby mode. Select 0 to turn off the timer.
Zoom Adjusts the zoom to the center of the image in or out from
0 to 30.
H-position (RGB input) Moves the projected image’s horizontal position left or right from 0 to
100.
V-position (RGB input) Moves the projected image’s vertical position up or down from -5 to 5.
Aspect Ratio Adjusts the image output to Fill Screen, Match Input or 16:9.
l
Fill Screen produces an image that fills the entire screen by
stretching and scaling.
l
Match Input matches the projector’s aspect ratio to the input’s
aspect ratio. As a result, black bands might appear along the
top and bottom edges of the screen horizontally (letterbox
format) or along the left and right edges of the screen vertically
(pillarbox format).
l
16:9 changes the output to 16:10 by letterboxing the image,
which is recommended for use with HDTV and DVDs
enhanced for wide-screen television.
N N O T E
See Video format compatibility on page 27 for appearance
descriptions in each mode.
Startup Screen Sets the type of startup screen to SMART or User. The SMART
screen is the default SMART logo on a blue background. The User
screen uses the saved picture from the Capture User Startup Screen
function.
58
A P P E N D I X A
Remotely managing your interactive whiteboard system
Submenu setting Description
Video Mute Turns the video mute setting on or off. Select On to hide the display
and Off to show it again.
High Speed Fan Adjusts the speed of the projector’s fan. Select High or Normal.
N N O T E
Use the High setting when the projector’s temperature is high or the
altitude is above 6000' (1829 m).
Projector Mode Adjusts the projection mode to Front, Ceiling, Rear or Rear Ceiling.
I I M P OR T A N T
SMART recommends that you never change this setting from the
Ceiling projection mode.
Source Adjusts the input source to VGA1, VGA2, Composite, S-Video or
HDMI.
VGA1 Assigns an alternative name to your VGA1 input, which appears when
you select the VGA1 input.
VGA2 Assigns an alternative name to your VGA2 input, which appears when
you select the VGA2 input.
S-Video Assigns an alternative name to your S-video input, which appears
when you select the S-video input.
Composite Assigns an alternative name to your composite video input, which
appears when you select the composite video input.
HDMI Assigns an alternative name to your HDMI input, which appears when
you select the HDMI input.
Emergency Alert Turns the on-screen alert broadcast message on or off. When
enabled, this message displays over the current projected image.
Alarm Message Displays an on-screen emergency notification message (maximum
60 characters).
59
A P P E N D I X A
Remotely managing your interactive whiteboard system
Control panel II
3D settings
This menu allows you to enable or disable 3D image display and set its format.
Submenu setting Description
3D On/Off Turns the 3D feature on or off.
3D Invert Selects the 3D Invert setting (L-R or R-L).
l
L-R displays visual data for the left eye first.
l
R-L displays visual data for the right eye first.
3D Format Selects the 3D format (Interleaved or Under-over).
l
Interleaved breaks down the image frame for each eye,
alternately displaying a line of visual information from each
frame.
l
Under-over concurrently displays horizontally stretched image
frames for each eye, one above the other.
USB Control settings
This menu allows you to set the video source for the two USB receptacles on the ECP.
Submenu setting Description
USB1 Source Enables touch for the selected video source (VGA1, VGA2, HDMI or
Disable) by associating the video source with the room computer
USB receptacle (USB1) on the ECP.
USB2 Source Enables touch for the selected video source (VGA1, VGA2, HDMI or
Disable) by associating the video source with the laptop USB
receptacle (USB2) on the ECP.
60
A P P E N D I X A
Remotely managing your interactive whiteboard system
Network settings
This menu allows you to enable or disable Dynamic Host Control Protocol (DHCP) and set the
network-related addresses and names.
Submenu setting Description
DHCP Turns the network’s DHCP on or off.
l
On automatically assigns the DHCP server’s IP address to the
projector.
l
Off enables you to assign an IP address manually.
IP Address Displays the projector’s IP address in values between 0.0.0.0 and
255.255.255.255.
Subnet Mask Displays the projector’s subnet work mask number in values between
0.0.0.0 and 255.255.255.255.
Gateway Displays the projector’s default network gateway in values between
0.0.0.0 and 255.255.255.255.
DNS Displays the projector’s primary domain name number in values
between 0.0.0.0 and 255.255.255.255.
Group Name Displays the projector’s workgroup name (maximum 12 characters).
Projector Name Displays the projector’s name (maximum 12 characters).
Location Displays the projector’s location (maximum 16 characters).
Contact Displays the contact name or number for projector support (maximum
16 characters).
SNMP Turns the SNMP’s MIB function on or off.
Read-Only Community This option sends a password with each SNMP get request that
enables access to thedevice.
N N O T E
The default for Read-Only Community is public.
Read/Write Community This option sends a password with each SNMP set request that
enables access to the device.
N N O T E
The default for Read/Write Community is private.
Trap Destination Address Displays the projector’s trap destination address in values between
0.0.0.0 and 255.255.255.255. The trap destination address is the IP
address of the computer assigned to handle unsolicited data
generated by projector trap events, such as power down, power up or
other issues.
61
A P P E N D I X A
Remotely managing your interactive whiteboard system
E-mail alerts
This menu enables you to enter your preferred address for receiving e-mail alerts and adjust related
settings.
Submenu setting Description
E-mail Alert Select Enable to turn on or Disable to turn off the E-mail Alert
function.
To Defines the e-mail address of the e-mail alert recipient.
CC Defines the e-mail address of the e-mail alert “copyto” recipient.
From Defines the e-mail address of the user who sends the e-mail alert.
Subject Displays the e-mail alert subject.
Outgoing SMTP server Defines the Simple Mail Transfer Protocol (SMTP) server.
Username Defines the SMTP server user name.
Password Defines the SMTP server password.
Alert Condition Sends e-mail alerts whenever Lamp Warning, Low Lamp Life,
Temperature Warning and Fan Lock conditions occur. Select the
settings you want, and then press Submit.
N N O T E
The projector sends an alert e-mail (SMART Alert) to your e-mail
address. Press E-mail Alert Test to confirm your e-mail address
by sending a test e-mail (SMART Alert-Test Mail).
Password settings
This menu provides a security function that allows an administrator to manage projector use and
enable the Administrator Password function.
Submenu setting Description
Password Access Web Management for the first time by pressing the Enable
button and entering a password. When the password function is
enabled, the administrator password is required to access Web
Management. Select Disable to turn the projector on without a
password.
N N O T E S
l The first time you use the password settings, the default password value is four numbers, for
example, 1234.
l The maximum allowable password length is four numbers or letters.
l If you forget the projector password, refer to Accessing the service menu on page 52.
62
A P P E N D I X A
Remotely managing your interactive whiteboard system
Connecting your room control system to the SMART UF75 or UF75w projector
By connecting a computer or room control system to the RS-232 serial interface of the SMART UF75
or UF75w projector, you can select video inputs, start up or shut down your interactive whiteboard
system and request information such as projector lamp use, current settings and network addresses.
Pin configuration on the projector’s RS-232 connector
The following table provides the pin configuration on the SMART UF75 or UF75w projector. This pin
configuration follows a three-wire connection so that a straight-through male-to-female RS-232 serial
cable connects to the projector’s serial interface in the following arrangement:
Pin Number Projector’s Female RS-232 Connector
2 Transmit
3 Receive
5 Signal Ground
Serial interface settings
The serial interface of the SMART UF75 or UF75w projector acts as a Data Communications
Equipment (DCE) device and its settings can’t be configured. You must configure your computer’s
serial communication program (such as Microsoft® HyperTerminal) or your room control system’s
serial communication settings with the following values:
Setting Value
Data Rate 19.2 kbps
Data Bits 8
Parity None
Stop Bits 1
Flow Control None
63
A P P E N D I X A
Remotely managing your interactive whiteboard system
N N O T E S
l Asynchronous mode is disabled by default in the projector.
l All commands should be in ASCII format. Terminate all commands with a carriage return.
l All responses from the projector are terminated with a command prompt. Wait until you
receive the command prompt indicating that the system is ready for another command before
proceeding.
l The room control feature of the projector is always on.
g To configure your computer’s serial interface
1. Turn on your computer, and then start your serial communications program or terminal
emulation program.
2. Connect your computer to the serial connection cable you previously connected to the
projector.
3. Configure your serial interface settings using the values in the table in the previous section, and
then press ENTER.
An “invalid cmd= ? for help” message appears, and the > character appears as a command
prompt on the following line.
N N O T E
If no message or an error message appears, your serial interface configuration isn’t correct.
Repeat step 3.
4. Type commands to configure your settings.
N N O T E S
o
To see a list of available commands, type ? and then press ENTER.
o
If you’re using a terminal emulation program, turn on your program’s local echo setting
to see characters as you type them.
64
A P P E N D I X A
Remotely managing your interactive whiteboard system
Projector programming commands
This section documents the projector programming commands.
Projector powerstate controls
SMART UF75 or UF75w projectors respond to commands only at certain power levels and times.
There are five projector power states:
l Powering (startup)
l On (operating)
l Cooling
l Confirm off
l Idle (Standby mode)
Command inventory
SMART UF75 or UF75w projectors respond to the commands in the tables on the following pages. To
see a list of valid commands in the projector’s current power state, type ? and press ENTER.
N N O T E S
l Send a command only after the projector sends a command prompt.
l Commands aren’t case sensitive. Type commands exactly as they appear in the left column
of the tables, with the proper value or setting in the center column.
l Check your entries carefully before entering your commands.
l Press ENTER after typing each command.
l After the projector executes a command, it generates a response.
l To avoid buffer overrun, don’t send another command until you receive the next command
prompt.
Value-based command methods
Absolute values and adjustment values
You can use the command’s target range to set an absolute value for a command or cause an
adjustment to be made to the current value. To create an adjustment command, add a plus (+) or
minus (-) symbol instead of the equal symbol (=) before the value change you want to enter.
65
A P P E N D I X A
Remotely managing your interactive whiteboard system
All absolute values you enter must be within the command target range, and all adjustment values
must equal a number within the command target range.
See the following example for adjusting projector brightness:
>get brightness
brightness=55
>set brightness=65
brightness=65
>set brightness+5
brightness=70
>set brightness-15
brightness=55
Video source specification values
You can use the source input field described in Source selection controls on next page in a command
to set an absolute value or adjustment value to a source other than the active source. You can do this
while the selected source is inactive, but the source device must be connected, or you receive an
invalid command response.
See the following examples, where both an HDMI connector and a VGA1 input are connected:
>set input hdmi
input=hdmi
>set brightness vga1=65
brightness vga1=65
>set brightness vga1-7
brightness vga1=58
66
A P P E N D I X A
Remotely managing your interactive whiteboard system
Powerstate controls
These commands place the projector in and out of Standby mode and request the projector’s current
powerstate. The projector’s powerstate determines whether certain commands are available at that
time. These settings are available even when the projector is in Standby mode.
Command Response
on powerstate=[field]
off powerstate=[field]
off now powerstate=[field]
get powerstate powerstate=[field]
The following table describes the powerstate commands:
Command Description
on Turns on the projector.
off Starts the shutdown process. A dialog box appears with the
message, “Press Power Button to Turn off Projector.” You must send
a second Off command within 10 seconds to put the projector into
Standby mode.
off now Shuts down the projector immediately. You can’t delay or cancel this
command.
get powerstate Indicates the projector’s current powerstate.
The following table describes the powerstate fields:
Field Description
Powering The projector is turning on.
On The projector is on.
Cooling The projector is cooling.
Confirm off Confirm off is a non-selectable powerstate that is returned during
stage one of the two-button off sequence.
Idle The projector is off but still receiving power (Standby mode).
Source selection controls
These commands switch input sources. The source type determines which commands can be
accepted.
Command Response Available when in Standby
mode
get input input=[field] Yes
set input [field] input=[field] No
67
A P P E N D I X A
Remotely managing your interactive whiteboard system
The following table describes the source selection commands:
Command Description
get input Returns the projector’s current input.
set input [field] Returns the input to one of the selectable fields.
The following table describes the source selection response fields:
Field Description
VGA1 Switches source to the VGA 1 input connector.
VGA2 Switches source to the VGA 2 input connector.
Composite Switches source to the Composite video connector. If you installed
your interactive whiteboard system according to the instructions, this
is the relay from the ECP.
S-Video Switches source to the S-Video input connector.
HDMI Switches source to the HDMI input port.
None A non-selectable value that appears when you enter a “get input”
command while the projector is in Standby mode.
General source controls
The following source controls apply to all input sources. HDMI connector source controls are
completely described in this section. These controls are unavailable when the projector is in Standby
mode. You can specify custom color values for all inputs.
These commands inform you of the current source settings.
Command Response
get displaymode displaymode=[current display mode setting]
get brightness brightness=[current brightness setting]
get contrast contrast=[current contrast setting]
get whitepeaking whitepeaking=[current whitepeaking setting]
get degamma degamma=[current degamma setting]
get red red=[current red color setting]
get green green=[current green color setting]
get blue blue=[current blue color setting]
get cyan cyan=[current cyan color setting]
get magenta magenta=[current magenta color setting]
get yellow yellow=[current yellow color setting]
get videofreeze videofreeze=[current video freeze setting]
68
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands control the appearance of your source. These settings are unavailable when the
projector is in Standby mode or when the source is disconnected. See Value-based command
methods on page 65 for setting absolute and adjustment commands.
Command Command target range Response
set displaymode [target] =SMART Presentation
=Bright Classroom
=Dark Classroom
=sRGB
=User
set brightness [value] =0 to =100 brightness=[value]
set contrast [value] =0 to =100 contrast=[value]
set whitepeaking [value] =0 to =10 whitepeaking=[value]
set degamma [value] =0 to =3 degamma=[value]
set red [value] =0 to =100 red=[value]
set green [value] =0 to =100 green=[value]
set blue [value] =0 to =100 blue=[value]
set cyan [value] =0 to =100 cyan=[value]
set magenta [value] =0 to =100 magenta=[value]
set yellow [value] =0 to =100 yellow=[value]
set videofreeze [target] =on
=off
displaymode=[target]
videofreeze=[target]
Additional VGA source controls
Your VGA source supports all the general source controls described in General source controls on
previous page, as well as the commands listed in this section. These settings are unavailable when
the projector is in Standby mode or when the VGA sources are disconnected.
N N O T E
Some of these commands are invalid with HDMI input and composite video sources, and will return
the response “invalidcmd=[command]”.
These commands inform you of the current VGA source settings.
Command Response
get frequency frequency=[current frequency setting]
get tracking tracking=[current tracking setting]
get saturation saturation=[current saturation setting]
get tint tint=[current tint setting]
get sharpness sharpness=[current sharpness setting]
69
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands control the appearance of your VGA source. These settings are unavailable when
the projector is in Standby mode or when the VGA source is disconnected. See Value-based
command methods on page 65 for setting absolute and adjustment commands.
Command Command target range Response
set frequency [value] =-5 to =5 frequency=[value]
set tracking [value] =0 to =31 tracking=[value]
set saturation [value] =0 to =100 saturation=[value]
set tint [value] =0 to =100 tint=[value]
set sharpness [value] =0 to =31 sharpness=[value]
Additional composite video source controls
Your composite video source supports all the general source controls described on the previous page
as well as the commands listed in this section. These settings are unavailable when the projector is in
Standby mode or when the composite video source is disconnected.
N N O T E
Some of these commands are invalid with HDMI input and VGA video sources, and will return the
response “invalidcmd=[command]”.
These commands inform you of the current composite video source settings.
Command Response
get saturation saturation=[current saturation setting]
get tint tint=[current tint setting]
get sharpness sharpness=[current sharpness setting]
These commands control the appearance of your composite video source. See Value-based
command methods on page 65 for setting absolute and adjustment commands.
Command Command target range Response
set saturation [value] =0 to =100 saturation=[value]
set tint [value] =0 to =100 tint=[value]
set sharpness [value] =0 to =31 sharpness=[value]
Audio output controls
These commands control your projector’s audio output to your audio system (not included). Audio
output controls aren’t defined by the video source. These settings are unavailable when the projector
is in Standby mode.
70
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands inform you of the current audio output settings.
Command Response
get volume volume=[current volume setting]
get mute mute=[current mute setting]
get volumecontrol volumecontrol=[current volume control setting]
get cc cc=[current closed captioning language setting]
These commands control your audio output settings. See Value-based command methods on page
65 for setting absolute and adjustment commands.
Command Command target range Response
set volume [value] =-20 to =20 volume=[value]
set mute [target] =on
=off
set volumecontrol [target] =on
=off
set cc [target] =cc1
=cc2
=off
mute=[target]
volumecontrol=[target]
cc=[target]
N N O T E
Typically, cc1 displays American English subtitles, while cc2 displays other regional languages,
such as French or Spanish, depending on television channel or media setup.
Network controls
These commands control your projector’s network status and settings. These settings are available
even when the projector is in Standby mode. You must locally set the network and VGA out
commands to on, which is located in the OSD for the network abilities to work.
These commands inform you of the current network settings.
Command Response
get netstatus netstatus=connected
netstatus=disconnected
netstatus=disabled
get dhcp dhcp=[current DHCP status]
get ipaddr ipaddr=[current IP address]
get subnetmask subnetmask=[current subnet work mask number]
get gateway gateway=[current network gateway]
get primarydns primarydns=[current primary domain name number]
get macaddr macaddr=[current MAC address]
71
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands control your network settings.
Command Command target range Response
set dhcp [target] =on
dhcp=[current]
=off
set ipaddr [target] =0.0.0.0 to =255.255.255.255 ipaddr=[current]
set subnetmask [target] =0.0.0.0 to =255.255.255.255 subnetmask=[current]
set gateway [target] =0.0.0.0 to =255.255.255.255 gateway=[current]
set primarydns [target] =0.0.0.0 to =255.255.255.255 primarydns=[current]
System controls
These commands enable you to switch system settings and access system information.
These commands inform you of the current system settings. These commands are unavailable when
the projector is in Standby mode.
Command Response
get autosignal autosignal=[current auto signal detection setting]
get lampreminder lampreminder=[current lamp reminder setting]
get highbrightness highbrightness=[current lamp brightness setting]
get autopoweroff autopoweroff=[current auto power off setting]
get zoom zoom=[current zoom setting]
get projectorid projectorid=[current projector ID number]
get hposition hposition=[current horizontal position setting]
get vposition vposition=[current vertical position setting]
get aspectratio aspectratio=[current projector aspect ratio]
get projectionmode projectionmode=[current projection mode]
get startupscreen startupscreen=[current startup screen setting]
get resolution resolution=[current input resolution]
get language language=[current language setting]
get groupname groupname=[current projector group name]
get projectorname projectorname=[current projector name]
get locationinfo locationinfo=[current projector location]
get contactinfo contactinfo=[current support contact information]
get modelnum modelnum=[current model number]
get videomute videomute=[current video mute setting]
get 3denable 3denable=[current 3D feature setting]
get 3dinvert 3dinvert=[current 3D invert setting]
get 3dformat 3dformat=[current 3D format]
get emergencyalertmsg emergencyalertmsg=[current emergency alert message]
get emergencyalert emergencyalert=[current emergency alert setting]
72
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands inform you of the current system settings. These commands are available even
when the projector is in Standby mode.
Command Response
get lamphrs lamphrs=[current lamp hours of operation]
get syshrs syshrs=[current projector hours of operation]
get fwverddp fwverddp=[current projector firmware version]
get fwvernet fwvernet=[current network firmware version]
get fwvermpu fwvermpu=[current processor firmware version]
get fwverecp fwverecp=[current ECP firmware version]
get vgaoutnetenable vgaoutnetenable=[current]
73
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands control the current system settings. These commands are unavailable when the
projector is in Standby mode. See Value-based command methods on page 65 for setting absolute
and adjustment commands.
Command Command target range Response
set autosignal [target] =on
autosignal=[target]
=off
set lampreminder [target] =on
lampreminder=[target]
=off
set highbrightness [target] =on
highbrightness=[target]
=off
set autopoweroff [value] =0 to =240 autopoweroff=[value]
set zoom [value] =0 to =30 zoom=[value]
set projectorid [value] =0 to =99 projectorid=[value]
set hposition [value] =0 to =100 hposition=[value]
set vposition [value] =-5 to =5 vposition=[value]
set aspectratio [target] =fill
aspectratio=[target]
=match
=16:9
set projectionmode [target] =front
projectionmode=[target]
=ceiling
=rear
=rear ceiling
set startupscreen [target] =smart
startupscreen=[target]
=usercapture
=preview
74
A P P E N D I X A
Remotely managing your interactive whiteboard system
Command Command target range Response
set language [target] =Brazilian Portuguese
language=[target]
=Czech
=Danish
=Dutch
=English
=Finnish
=French
=German
=Greek
=Iberian Portuguese
=Italian
=Korean
=Japanese
=Norwegian
=Polish
=Russian
=Simplified Chinese
=Spanish
=Swedish
=Traditional Chinese
set groupname [description] Enter a descriptor no more
groupname=[description]
than 12 characters long.
set projectorname [description] Enter a descriptor no more
projectorname=[description]
than 12 characters long.
set locationinfo [description] Enter a descriptor no more
locationinfo=[description]
than 16 characters long.
set contactinfo [description] Enter a descriptor no more
contactinfo=[description]
than 16 characters long.
set videomute [target] =on
videomute=[target]
=off
set 3denable [target] =on
3denable=[target]
=off
set 3dinvert [target] =leftright
3dinvert=[target]
=rightleft
set 3dformat [target] =interleaved
3dformat=[target]
=overunder
set emergencyalertmsg
[description]
set emergencyalert [target] =on
Enter a descriptor no more
than 60 characters long.
emergencyalertmsg=[description]
emergencyalert=[target]
=off
75
A P P E N D I X A
Remotely managing your interactive whiteboard system
These commands control the current system settings. These commands are available even when the
projector is in Standby mode.
Command Command target range Response
set restoredefaults [none] restoredefaults=done
set lamphrs [target] =0 lamphrs=0
set vgaoutnetenable [target] =on
=off
vgaoutnetenable=[target]
N N O T E
The VGA Out and Network settings features are off by default. Select On to activate these
features.
Simple Network Management Protocol (SNMP)
SMART UF75 or UF75w projectors support a list of SNMP commands as described in the
management information base (MIB) file.
The SNMP agent supports SNMP version 1. Upload the MIB file to your SNMP management system
application, and then use it as described in your application’s user guide.
76
Appendix B
Disabling user USB access
In some situations, you may need to disable the ECP’s front USB port. Disabling the USB port
prevents users from using or saving documents to USB drives using the ECP’s front USB receptacle.
The other USB receptacles won’t be deactivated since they’re required for your interactive whiteboard
and computer connections to function.
Follow these instructions to remove and cut the case on the ECP, and then remove the USB jumper
switch to disable the ECP’s USB Port.
C C A U T I O N
Always use an anti-static wrist wrap when working on the ECP.
I I M P OR T A N T
Do not perform this operation if you are unfamiliar with using jumper switches.
77
A P P E N D I X B
Disabling user USBaccess
You require a Phillips No. 2 screwdriver, a pair of wire cutters and a pair of needle-nose pliers to
perform the following procedure.

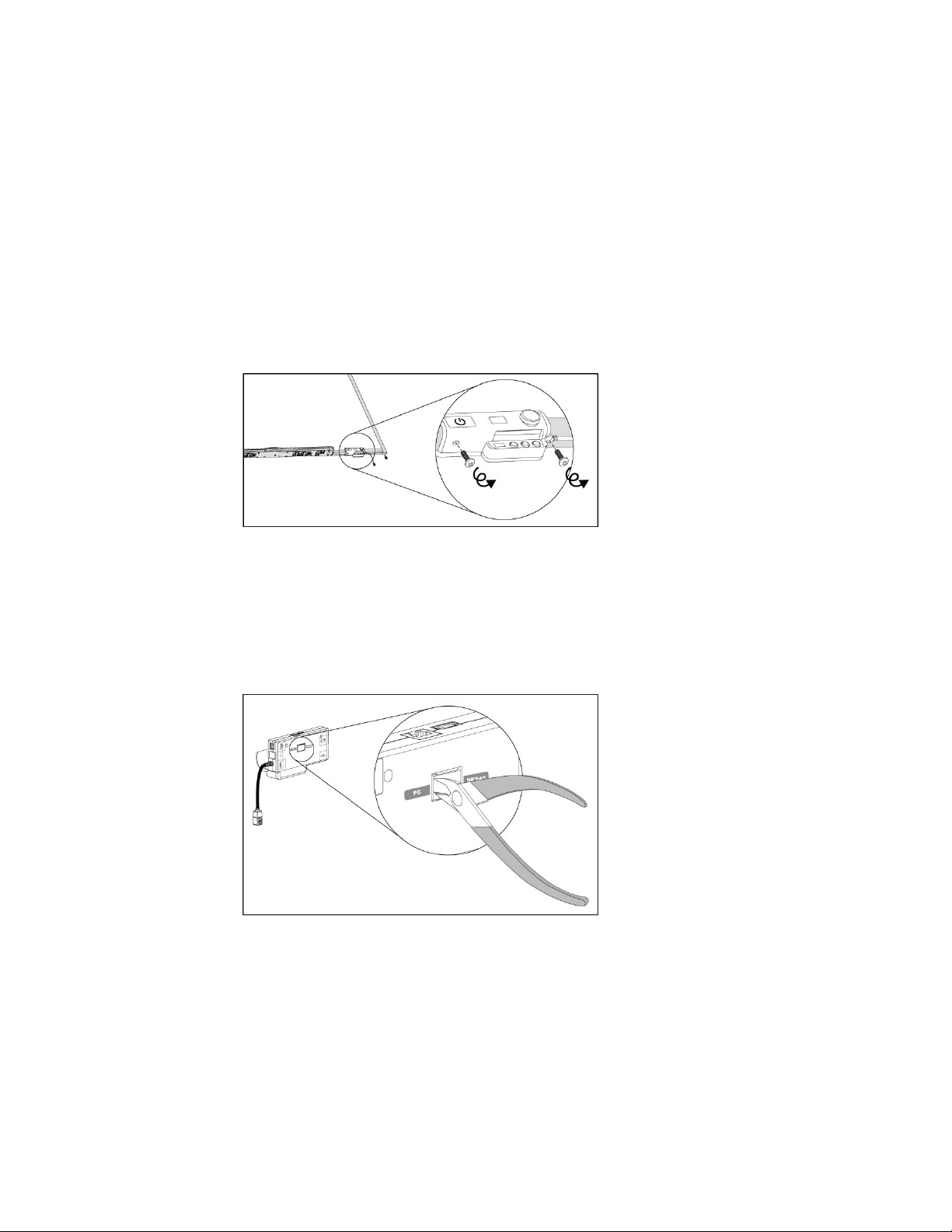

g To remove and cut the case on the ECP
1. Put the projector into Standby mode, and then wait 15 minutes for it to cool down.
2. Disconnect the projector’s power cable from the power outlet.
3. While holding the ECP to prevent it from falling, use a Phillips screwdriver to remove the two
screws from the bottom of the ECP. Place the screws in a safe place.
4. Remove all cables connected to the ECP.
5. Locate the jumper cover between the “PC” and “SE240” labels on the side of the ECP that
faces the wall.
6. Using a pair of wire cutters, cut through the two tabs on the jumper cover and remove it from
the ECP. Keep the jumper cover in a safe place.
78
A P P E N D I X B
Disabling user USBaccess
g To remove the USB jumper switch
1. Locate the USB jumper behind the jumper cover port.
2. Using needle-nose pliers, pull the jumper from the two connection posts, and then place it on a
single post.
I I M P OR T A N T
Do not discard the jumper. Discarding the jumper makes the USB deactivation difficult to
reverse.
3. Insert the USB jumper cover into the USB A port on the front of the ECP.
4. Connect all cables to the ECP. See the Using the Extended Control Panel (ECP) on page 23
for more information.
5. Secure the ECP to your interactive whiteboard with the two screws you removed previously.
6. Connect the projector’s power cable to the power outlet.
79
Appendix C
Hardware environmental compliance
SMART Technologies supports global efforts to ensure that electronic equipment is manufactured,
sold and disposed of in a safe and environmentally friendly manner.
Waste Electrical and Electronic Equipment regulations (WEEE directive)
Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment
sold within the European Union.
When you dispose of any electrical or electronic equipment, including SMART Technologies
products, we strongly encourage you to properly recycle the electronic product when it has reached
end of its life. If you require further information, please contact your reseller or SMART Technologies
for information on which recycling agency to contact.
Restriction of Certain Hazardous Substances (RoHS directive)
This product meets the requirements of the European Union’s Restriction of Certain Hazardous
Substances (RoHS) directive 2002/95/EC.
Consequently, this product also complies with other regulations that have arisen in various
geographical areas, and that reference the European Union’s RoHS directive.
Batteries
Batteries are regulated in many countries. Check with your reseller to find out how to recycle used
batteries.
There are special regulations that must be met when shipping a product that has a lithium ion battery
packaged with the product or shipping a lithium ion battery. When returning a SMART Technologies
81
A P P E N D I X C
Hardware environmental compliance
product which contains a lithium ion battery or returning a lithium ion battery, call SMART
Technologies RMA for information on these special shipping regulations:
l 1.866.518.6791, Option 4 (U.S./Canada)
l 1.403.228.5940 (all other countries)
Packaging
Many countries have regulations restricting the use of certain heavy metals in product packaging. The
packaging used by SMART Technologies to ship products complies with applicable packaging laws.
China’s Electronic Information Products regulations
China regulates products that are classified as EIP (Electronic Information Products). SMART
Technologies products fall under this classification and meet the requirements for China’s EIP
regulations.
U.S. Consumer Product Safety Improvement Act
The United States has enacted the Consumer Product Safety Improvement Act which limits the lead
(Pb) content in products used by children. SMART Technologies is committed to complying with this
initiative.
82
Appendix D
Customer support
Online information and support
Visit www.smarttech.com/support to view and download user’s guides, how-to and troubleshooting
articles, software and more.
Training
Visit www.smarttech.com/trainingcenter for training materials and information about our training
services.
Technical support
If you experience difficulty with your SMART product, please contact your local reseller before
contacting SMART Support. Your local reseller can resolve most issues without delay.
N N O T E
To locate your local reseller, visit www.smarttech.com/wheretobuy.
All SMART products include online, telephone, fax and e-mail support:
Online www.smarttech.com/contactsupport
Telephone +1.403.228.5940 or
Toll Free 1.866.518.6791 (U.S./Canada)
(Monday to Friday, 5 a.m. – 6 p.m. Mountain Time)
Fax +1.403.806.1256
E-mail support@smarttech.com
Shipping and repair status
Contact SMART’s Return of Merchandise Authorization (RMA) group, Option 4, +1.866.518.6791, for
shipping damage, missing part and repair status issues.
83
A P P E N D I X D
Customer support
General inquiries
Address SMART Technologies
3636 Research Road NW
Calgary, AB T2L 1Y1
CANADA
Switchboard +1.403.228.5940 or
Toll Free 1.866.518.6791 (U.S./Canada)
Fax +1.403.228.2500
E-mail info@smarttech.com
Warranty
Product warranty is governed by the terms and conditions of SMART’s “Limited Equipment Warranty”
that shipped with the SMART product at the time of purchase.
Registration
To help us serve you, register online at www.smarttech.com/registration.
84
Index
3
3.5 mm audio connectors 22
3D support 60
A
accessories
included 4
optional 5
alarms 59
aspect ratios 27-30, 58
audio
connections for 22
controlling volume of 24, 57, 71
muting 13, 71
resolving issues with 48
B
batteries 11, 81
Blu-ray 31
C
cameras 31
cautions iii
Chinese regulations 82
closed captioning 57, 71
color wheel 45
composite video connections 30, 59, 68, 70
connection diagrams
ECP 24
projector 21
consumer product safety 82
contact information 84
contact person 61
D
DHCP 61, 71
display modes 57
DNS 61, 71
document cameras 31
documentation 83
dual-user capabilities 3
dust vi
DVDs 31
E
e-mail alerts 62
ECP
about 4
disabling USB communications for 77
lights and status of 44
using 23
EIP regulations 82
electrostatic discharge vi
emergency alerts 59
emissions vi
environmental requirements vi
eraser 5
European Union regulations 81
F
fans 45, 59
flickering 51
focus 20
G
general inquiries 84
85
I N D E X
H
HD signal compatibility 29
HDMI connections 22, 59, 68
head space clearance 8
height 8
Help button 23
humidity vi
I
adjusting 21
correcting alignment issues with 42
focusing 20
resolving issues with 49
important information iv
indicator lights 42
input selection 24, 59, 67
inquiries 84
installation
choosing a height 8
choosing a location 8
securing 10
interactive whiteboard
about 2
indicators and controls of 42
maintaining 33
using 23
IP address 61, 71
L
lamp module
cleaning 33
replacing 35
resolving issues with 46
languages 57
laptop computers
connecting 31
troubleshooting issues with 51
LEDs See indicator lights
letterboxing 28-29
light sources 8
Limited Equipment Warranty 84
lithium ion batteries 81
location 8, 61
M
MAC address 71
MAC support 28
mounting template 8
mute control 13, 71
N
native video formats 27
network communication 22, 47, 61, 71
O
online support 83
options 5
original packaging 54
P
packaging 82
passwords 53, 62
pen tray
about 2
locking to the interactive whiteboard 10
pens 5
peripheral sources 31
pillarboxing 28-29
power 22, 24, 57, 65, 67
projector
about 3
adjusting settings for 14
adjusting the image of 21
cleaning 33
connection diagram for 21
displaying the name of 61
focusing the image of 20
installing 7
lights and status of 43
86
I N D E X
locating the serial number on 53
remotely managing 55
replacing the lamp of 35
routing cables from 9
securing to the boom 10
troubleshooting 44
using your remote control with 11
video format compatibility for 27
Q
quad VGA support 28
R
RCA jacks 22, 24
refresh rates 27-28
registration 84
remote control
about 5
installing the battery 11
using the buttons 13
RJ45 connector 22
RoHS directive 81
room control 55
RS-232 serial interface 22, 63
S
S-video connections 22, 30, 59, 68
SD signal compatibility 29
serial interface See RS-232 serial
interface
serial number 53
signal loss 49
SMART Board interactive
whiteboard
SMART Support 83
SMART UF75 or UF75w
projector
SMTP 62
SNMP 76
sound See audio
startup screen 58
See interactive
whiteboard
See
projector
subnet mask 61, 71
SVGA support 28
SXGA support 28
T
Technical Support 83
temperatures, operating and storage vi
training 83
transportation 54
trap destination address 61
troubleshooting 41
troubleshooting articles 83
U
U.S. regulations 82
UF75 or UF75w projector See projector
USB drives 24, 77
USB receptacles 22, 24, 60
user’s guides 83
UXGA support 28
V
VGA connections 22, 59, 68-69
VGA support 28
video
connections for 22
format compatibility for 27
resolving issues with 48
volume control 24, 71
W
warnings i
warranty 84
water and fluid resistance vi
web page management 56
WEEE directive 81
whiteboard See interactive whiteboard
87
I N D E X
X
XGA support 28
Z
zoom 58
88
Toll Free 1.866.518.6791 (U.S./Canada)
or +1.403.228.5940
www.smarttech.com
Loading...
