SMARTBoard® 800i6

Interactive whiteboard systems

Configuration and user’s guide

FCC warning

This equipment has been testedand found tocomply with the limits for a Class A digital device, pursuant to Part 15 of the U S Federal Comm unications Commission Rules. These limits are designedto provide reasonable protection against harm ful interference when theequipment is operated i n a commercial environment. This equipment generates, uses andcan radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause har mful interferenceto radio communications. Operation of this equipment in a residential area is l ikely tocause harmful interference in which case the user will be requir ed to correct the interferenceat his own expense.

Trade-mark notice

SMARTBoard, SMARTGoWir e, SMARTMeetingPro, DViT, smarttech, the SMART logo and all SMART taglines are trade-marks or registered trade-marks of SMARTTechnologiesULC in the US and/or other countries. TexasInstruments, Bri lliantColor, DLP, and DLPLink are trademarks of TexasInstruments. M icrosoft, Windows and InternetExplorer are either registered trade-marks or tr ade-marks of Microsoft Corporation in the US and/or other countries. Blu-r ay is atrade-mark of Blu-ray Disc Association. All other third-party product andcompany names may betrade-marks of their respective owners.

© 2013 SMARTTechnologiesULC. All r ights reserved. No part of this publi cationm ay be r eproduced, transmi tted, transcribed, stored in a retrieval system or translated into any l anguage in any form by any means without the prior writtenconsent of SMARTTechnologiesULC. Inform ationi n this manual is subject to change without notice and does not represent a commitment on the part of SMART.

This product and/or usethereof covered by one or more of thefollowing U S patents; sm arttech.com/patents.

09/2013

Important information

Before you install and use your SMART Board® 480i6 interactive whiteboard system, read and

understand the safety warnings and precautions in this user’s guide and the included warnings

document. These safety warnings and precautions describe the safe and correct operation of

your interactive whiteboard system and its accessories, helping you to prevent injuries and

equipment damage. Ensure that your interactive whiteboard system is always being used

correctly.

In this document, “interactive whiteboard system” refers to the following:

l SMARTBoard 800 series interactive whiteboard

l SMARTUF70 or SMARTUF70w projector

l Accessories and optional equipment

The projector included with your system is designed to work only with certain SMARTBoard

interactive whiteboard models. Contact your authorised SMART reseller (smarttech.com/where)

for more information.

Safety warnings, cautions and important information

Installation

W A R N I N G

l Failure to follow the installation instructions included with your SMART product could

result in personal injury and damage to the product.

l To reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

l Two people are required to mount your SMART product because it may be too heavy for

one person to safely manoeuvre.

When you lift your interactive whiteboard, you and your assistant should stand on either

side of the screen, supporting its weight at the bottom whilst balancing the top with your

other hands.

I M P O R T A N T I N F O R M A T I O N

l When mounting the projector boom on a framed or hollow wall, attach the mounting

bracket to a stud to safely support the projector’s weight. If you use only drywall anchors,

the drywall can fail, resulting in possible personal injury, and damage to the product which

may not be covered by your warranty.

l Do not leave cables on the floor where they can be a tripping hazard. If you must run a

cable over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable

management strip of a contrasting colour. Handle cables carefully and avoid excessive

bending.

C A U T I O N

l Do not operate this unit immediately after moving it from a cold location to a warm

location. When the unit is exposed to such a change in temperature, moisture can

condense on the lens and crucial internal parts. Allow the system to stabilise to room

temperature before operation to prevent possible damage to the unit.

l Do not place the unit in hot locations, such as near heating equipment. Doing so could

cause a malfunction and shorten the life of the projector.

l Avoid setting up and using the SMART product in an area with excessive levels of dust,

humidity and smoke.

l Do not place your SMART product in direct sunlight or near any appliance that generates a

strong magnetic field.

l If you need to lean the interactive whiteboard against a wall before you mount it, make

sure that it remains in an upright position, resting on the pen tray brackets, which can

sustain the weight of the interactive whiteboard.

Do not rest the interactive whiteboard on its side or on the top of the frame.

l You must connect the USB cable that came with your SMARTBoard interactive

whiteboard to a computer that has a USB compliant interface and that bears the USB

logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950

and bear the CE mark and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating

safety and to avoid damage to the SMARTBoard interactive whiteboard.

I M P O R T A N T

l Use the SMARTBoard 800i6-SMP interactive whiteboard system installation guide

(smarttech.com/kb/157703) and theSMARTBoard 800i6-SMP interactive whiteboard

system quick installation guide (smarttech.com/kb/170TBA) to install your interactive

whiteboard system.

I M P O R T A N T I N F O R M A T I O N

l The SMARTBoard 880i6 and 885i6 interactive whiteboard system textless installation

guide is also available online (smarttech.com/kb/170499).

l Make sure an electrical socket is near your SMART product and remains easily

accessible during use.

l Using your SMART product near a TV or radio could cause interference to the images or

sound. If this happens, move the TV or radio away from the projector.

Operation

W A R N I N G

l If you are using an external audio system, use only the power supply included with that

product. Using the wrong power supply might create a safety hazard or damage the

equipment. If in doubt, refer to the specification sheet for your product to verify the power

supply type.

l Do not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard

interactive whiteboard.

Do not climb on, hang from or suspend objects from the projector boom.

Climbing on the interactive whiteboard or projector boom could result in personal

injury or product damage.

l To prevent injury or product and property damage, use only the mounting hardware

supplied with your SMARTBoard 800 series interactive whiteboard when you install your

product on drywall. The mounting hardware provided with other interactive whiteboards

may not be strong enough to support the weight of SMARTBoard 800 series interactive

whiteboards.

C A U T I O N

l Do not block the projector’s ventilation slots and openings.

l If dust or small items prevent pen tray buttons from being pressed or cause constant

button contact, remove the obstructions carefully.

I M P O R T A N T

l Keep your remote control in a safe place because there is no other way to access menu

options.

l Do not disconnect cables from the ECP to connect peripheral devices because you could

disconnect controls for your interactive whiteboard.

l Disconnect the product from its power source when it’s not used for a long period.

iii

I M P O R T A N T I N F O R M A T I O N

Other precautions

If you own a SMARTproduct other than a SMARTBoard 880i6 and 885i6 series interactive

whiteboard system, refer to the installation manual for your product for relevant warnings and

maintenance instructions.

Environmental requirements

Before you install your SMART Board 480 interactive whiteboard system, review the following

environmental requirements.

Environmental requirement

Operating temperature

Storage temperature

Humidity

Water and fluid resistance

Dust

Electrostatic discharge (ESD)

Parameter

5°C to 35°C (41°F to 95°F) from 0m to 1800m (0' to 6000')

5°C to 30°C (41°F to 86°F) from 1800m to 3000m (6000' to 9800')

Intended for indoor use only. Doesn’t meet any salt-spray or water

ingress requirements.

Don’t pour or spray liquids directly onto your interactive

whiteboard, the projector or any of its sub-components.

Intended for use in office and classroom environments. Not for

industrial use where heavy dust and pollutants can cause malfunctions or impaired operation. Periodic cleaning is required in areas with heavier dust. See Cleaning the projector on page 35 for information on cleaning the projector.

EN61000-4-2 severity level 4 for direct and indirect ESD

No malfunction or damage up to 8kV (both polarities) with a

330ohm, 150 pF probe (air discharge)

Unmated connectors meet no malfunction or damage up to 4kV

(both polarities) for direct (contact) discharge

Cables

Conducted and radiated emissions

All SMART Board 480i6 interactive whiteboard system cables

should be shielded to prevent potential accidents and degraded video and audio quality.

EN55022/CISPR 22, Class A

Important information i

Safety warnings, cautions and important information i

Installation i

Operation iii

Other precautions iv

Environmental requirements iv

Chapter 1: About your interactive whiteboard system 1

SMART Board 480i6 interactive whiteboard system features 2

SMARTBoard 800 series interactive whiteboard 2

SMARTUF70 or SMARTUF70w projector 3

Extended Control Panel (ECP) 4

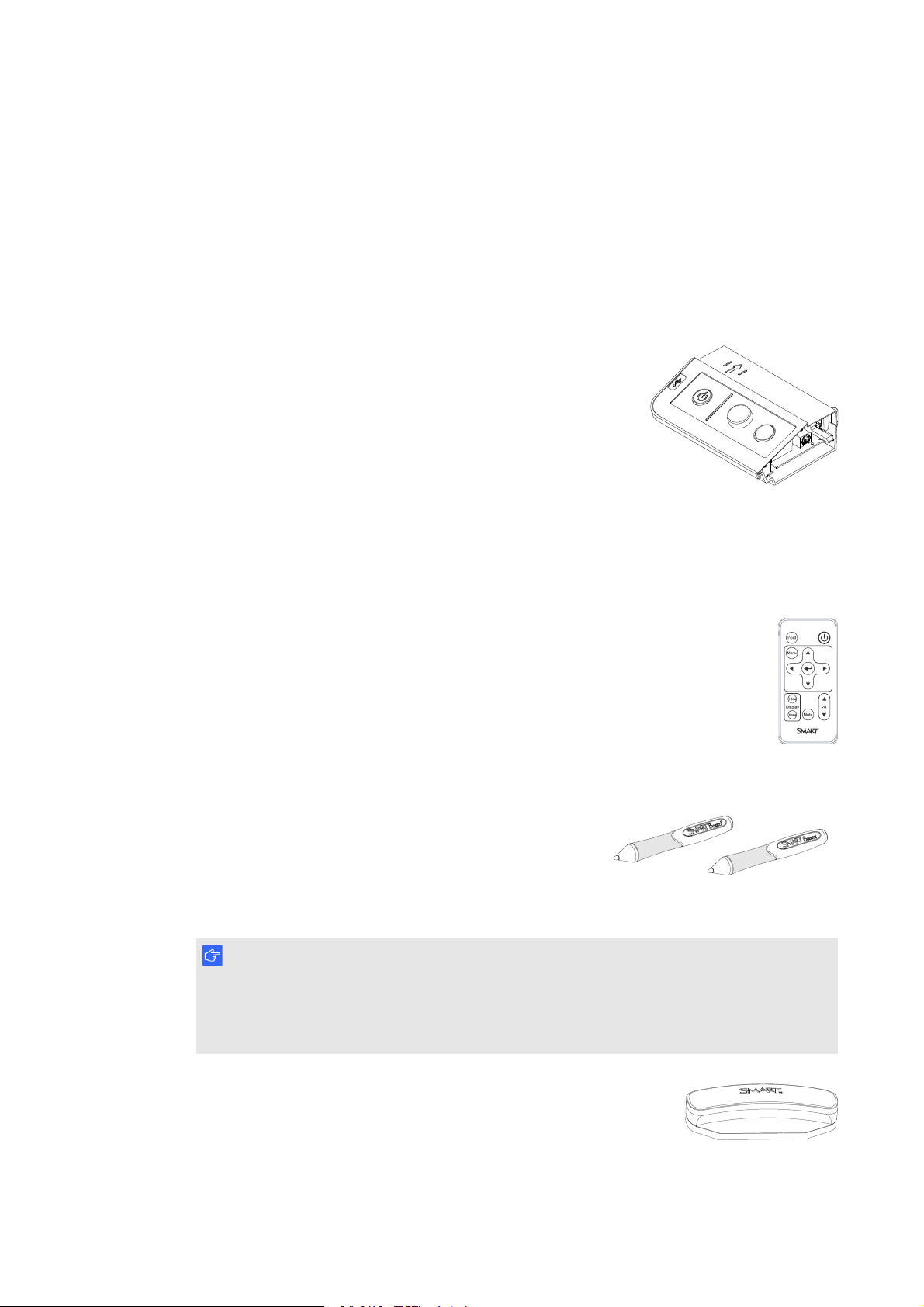

Included accessories 4

Remote control 4

Pens 4

Eraser 4

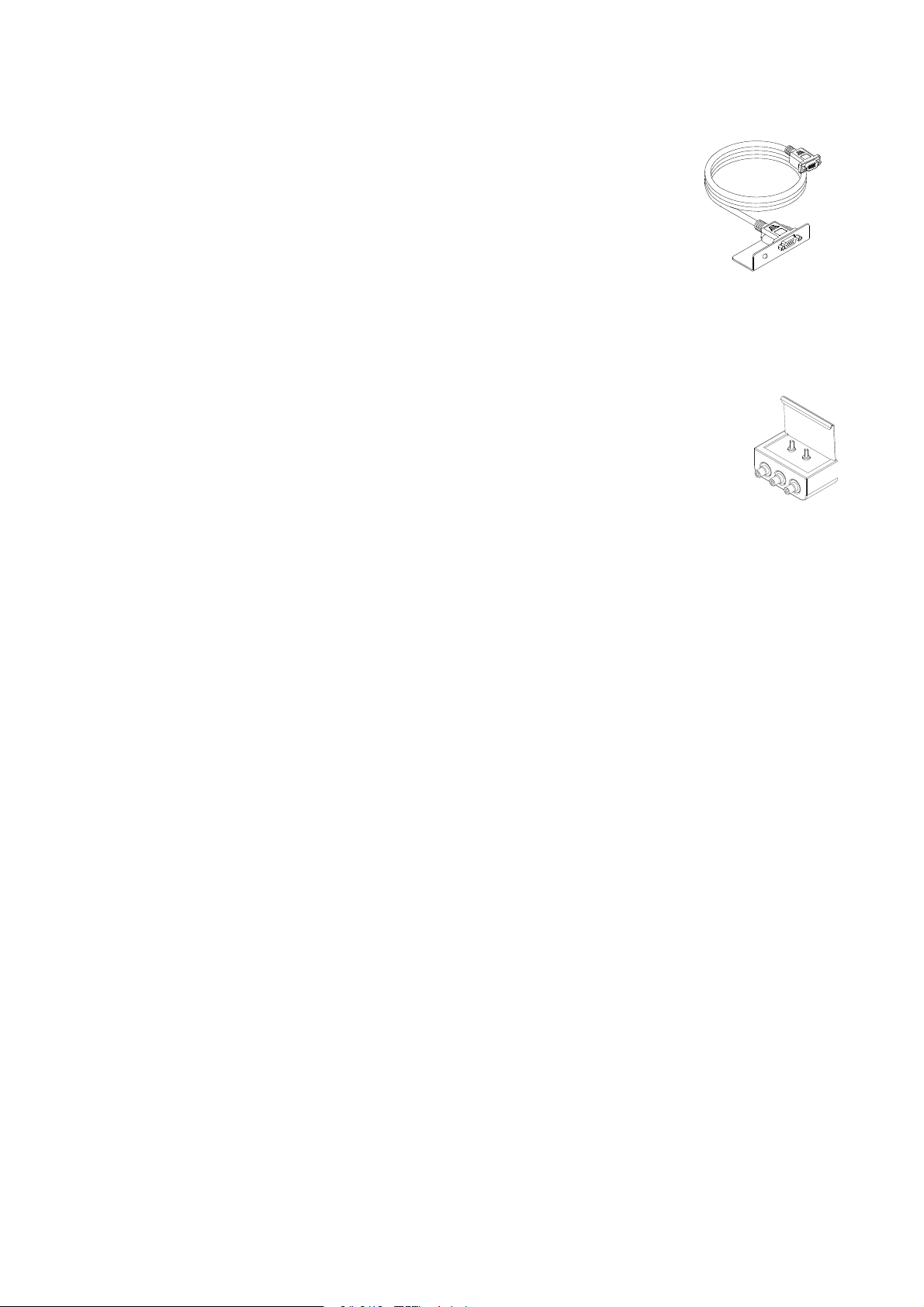

VGA connection kit 5

SMART Board 480i6 interactive whiteboard system accessories 5

RCA connector pod 5

Chapter 2: Installing your interactive whiteboard system 7

Choosing a location 7 Choosing a height 8 Securing your interactive whiteboard system 9

Locking the pen tray to your interactive whiteboard 9

Securing the projector to the boom 9

Routing the cables 9 Installing SMART software 10

C O N T E N T S

Chapter 3: Using your interactive whiteboard system 11

Using your projector 11

Using your remote control 11

Replacing the remote control battery 12

Using the remote control buttons 13

Adjusting projector settings 14

Focusing the image 20

Adjusting the image 21

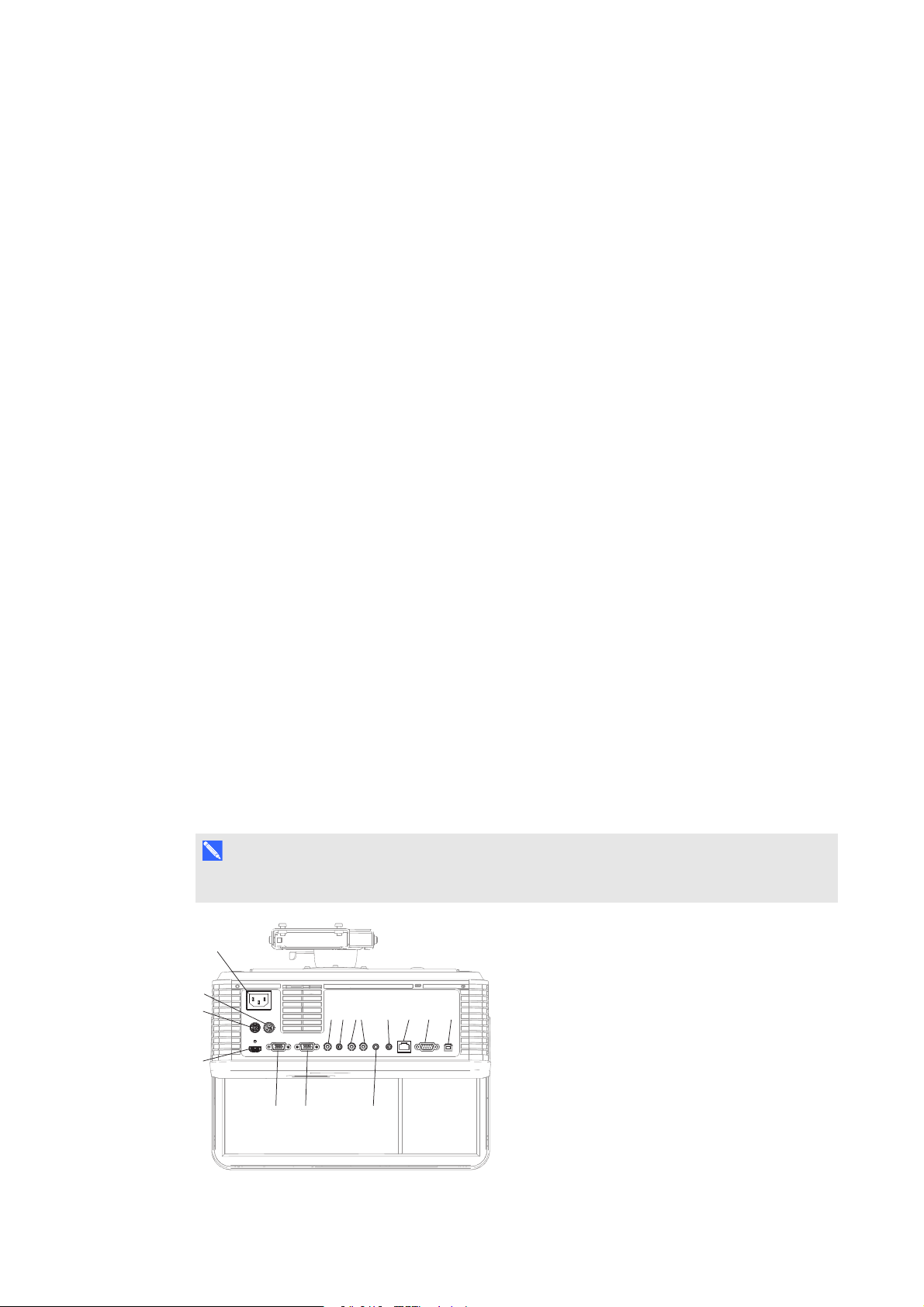

Projector connection diagram 21

Using your interactive whiteboard 23 Using the Extended Control Panel (ECP) 23 Using the RCA connector pod 25

Appendix 4: Integrating other devices 27

Video format compatibility 27

Native video format 27

Video format compatibility 28

SMARTUF70 projector 28

SMARTUF70w projector 29

HD and SD signal format compatibility 31

SMARTUF70 projector 31

SMARTUF70w projector 31

Video system signal compatibility 32

SMARTUF70 projector 32

SMARTUF70w projector 32

Connecting peripheral sources and outputs 33

Chapter 5: Maintaining your interactive whiteboard system 35

Maintaining your interactive whiteboard 35 Cleaning the projector 35 Focusing and adjusting the projector image 36

C O N T E N T S

Replacing the projector lamp 37

Removing and replacing the projector lamp module 37

Resetting the lamp hours 40

Chapter 6: Troubleshooting your interactive whiteboard system 43

Before you start 44

Locating status lights 44

Locating serial numbers 45

Determining your interactive whiteboard system’s status 46 Resolving interactive whiteboard issues 47

Resolving operation issues 47

Resolving connection issues 48

Resolving controller module issues 48

Resolving projector issues 49

Resolving projector errors 49

Resolving image issues 49

Loss of signal 49

Partial, scrolling or incorrectly displayed image 50

Unstable or flickering image 50

Frozen image 51

Your image doesn’t fit the interactive whiteboard 51

The image from your connected laptop computer isn’t projected 51

Unaligned projected image 51

Resolving audio issues 52

Resolving network communication issues 53

Resolving ECP issues 53 Accessing the service menu 53

Retrieving your password 54

Resetting the projector 54

Transporting your interactive whiteboard system 54

vii

C O N T E N T S

Appendix A: Remotely managing your system through a network interface 55

Webpage management 55

Accessing webpage management 56

Home 56

Control panel 56

Control panel II 59

USB Control settings 59

Network settings 60

Email alerts 61

Password settings 62

Simple Network Management Protocol (SNMP) 62

Appendix B: Remotely managing your system through an RS-232 serial interface 63

Connecting your room control system to the ECP 64

Serial interface settings 64

Projector programming commands 65

Projector power state controls 65

Command\response definitions 65

Field definitions 66

Source Application Selection 66

Command\response definitions 66

Field definitions 67

Video Control 68

Command\response definitions 68

Field definitions 69

Audio Control 73

Command/response definitions 73

Field definitions 74

viii

C O N T E N T S

Command/response definitions 76

Field definitions 76

Command/response definitions 78

Field definitions 80

Command/response definitions 85

Field Definitions 85

Command/response definitions 88

Field definitions 88

Command/response definitions 90

Appendix C: Remote control code definitions 93

Appendix D: Hardware environmental compliance 95

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery

Directives) 95 Batteries 95

Perchlorate material 95

Mercury 95 More information 95

Index 97

Chapter 1

whiteboard system

SMART Board 480i6 interactive whiteboard system features 2

SMARTBoard 800 series interactive whiteboard 2 SMARTUF70 or SMARTUF70w projector 3 Extended Control Panel (ECP) 4

Included accessories 4

Remote control 4 Pens 4 Eraser 4 VGA connection kit 5 SMART Board 480i6 interactive whiteboard system accessories 5

RCA connector pod 5

Your SMART Board 480i6 interactive whiteboard system combines the following components:

l SMARTBoard 800 series interactive whiteboard

l Wall-mounted, short-throw SMARTUF70 or SMARTUF70w projector

l Accessories and optional equipment

This chapter describes the features of your interactive whiteboard and provides information about

product parts and accessories.

C H A P T E R 1

About your interactivewhiteboard system

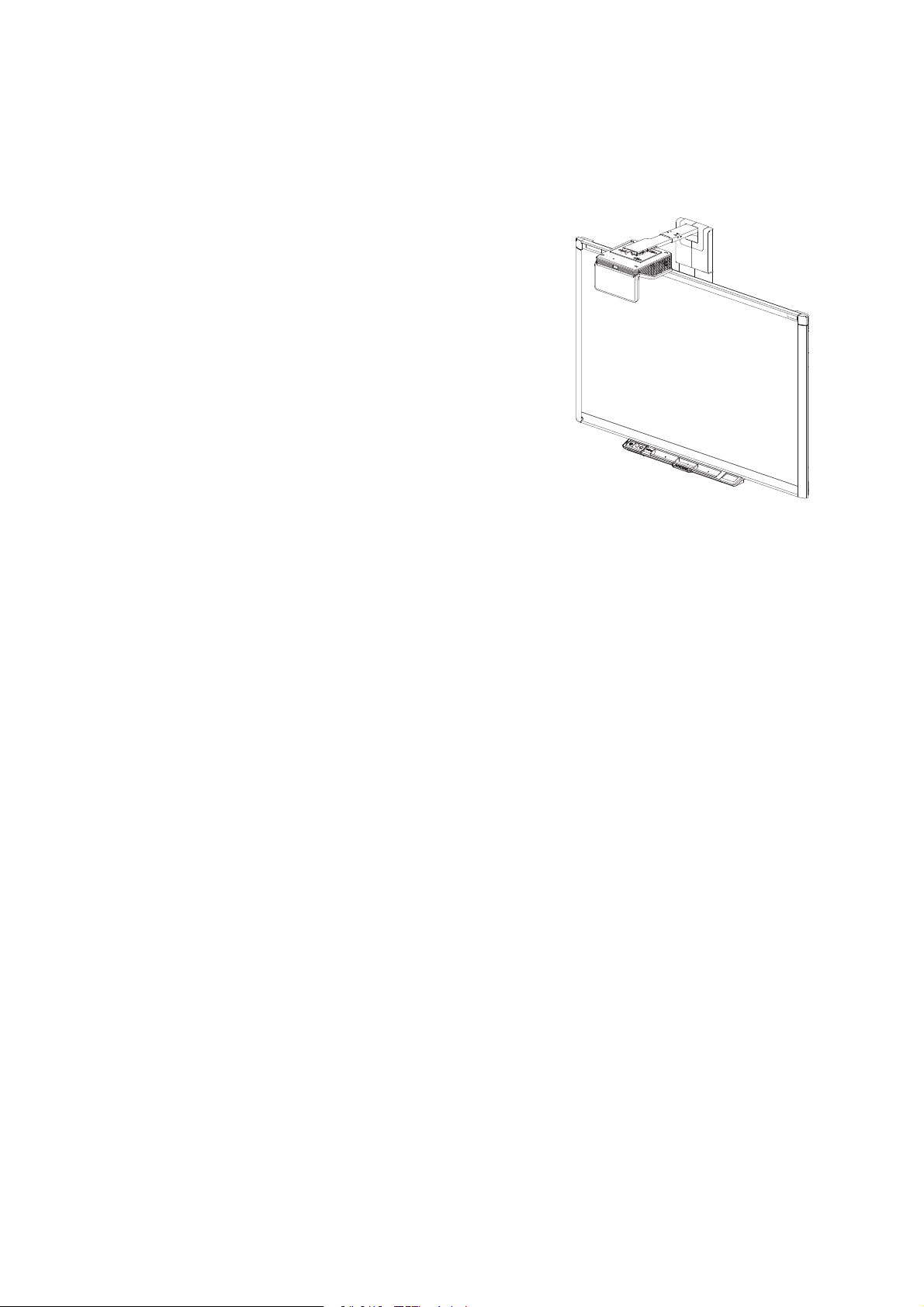

SMART Board 480i6 interactive whiteboard system features

Your SMART Board 480i6 interactive whiteboard

system uses the short-throw, high-offset

SMARTUF70 or SMARTUF70w projector. The

throw distance of the SMARTUF70 or

SMARTUF70w projectors is half that of the

SMARTUF65 projector, resulting in a shorter

boom and reduced shadows on the projected

image.

When the projector displays an image from your

computer on the touch-sensitive interactive

whiteboard, you can do everything that you can do

at your computer—open and close applications,

scroll through files, conference with others, create

new documents or edit existing ones, visit websites, play video clips and more—by touching the

screen. Two users can also draw on the interactive surface at the same time and you can use an

array of gestures within applications.

This projector also supports video and audio connections from a variety of devices, including

DVD/Blu-ray™ players, VCRs, document cameras and digital cameras, and can project media

from these sources onto the interactive screen.

When you use SMART software with your SMART Board 480i6 interactive whiteboard system,

you can write or draw over the projected computer image in digital ink using a pen tray pen or your

finger, and then save these notes to a .notebook file or directly into any Ink Aware application.

SMARTBoard 800 series interactive whiteboard

Your SMARTBoard 800 series interactive whiteboard, featuring SMART’s proprietary DViT®

(DigitalVisionTouch) technology, is the most intuitive touch-sensitive front projection interactive

whiteboard in the world.

The SMARTBoard 800 series interactive whiteboard performs best with the SMART UF 70 or

SMART UF 70w projector because of its exceptional colour performance and input response.

C H A P T E R 1

About your interactivewhiteboard system

Other features of your interactive whiteboard

include:

l A modular pen tray that automatically detects

when you pick up a pen tray pen or the eraser

l Pen tray buttons that activate the pens’

colours and the on-screen keyboard, right-

click, Orientation and Help functions

l A durable hard-coated surface that is

optimised for projection and easily cleaned

l A security cable lock feature that enables you to lock your interactive whiteboard to help

safeguard it from theft

For more information about your SMARTBoard interactive whiteboard, see the SMARTBoard

800 series interactive whiteboard user’s guide (smarttech.com/kb/144817).

SMARTUF70 or SMARTUF70w projector

The SMARTUF70 or SMARTUF70w projector system includes a

short-throw projector for use with SMARTBoard interactive

whiteboards and a sturdy support system suitable for many

different environments.

Other features of your projector system include:

l A wall-mounted, high-offset projector engine that uses DLP® technology by

TexasInstruments™, providing BrilliantColor™ performance and Gamma 2.2 correction

with SMART Presentation, Bright Room, Dark Room, sRGB and User modes

l PAL, PAL-N, PAL-M, SECAM, NTSC, and NTSC 4.43 video system compatibility

l HDMI, Composite,and VESA® RGB video inputs (not included).

l WXGA, QVGA, VGA, SVGA, XGA, SXGA, SXGA+ and UXGA video format compatibility

l Native 1024 × 768 resolution (SMARTUF70 projector)

Native 1280 ×800 resolution (SMARTUF70w projector in 16:10 aspect ratio mode)

l Remote management via a serial RS-232 interface, webpage or SNMP

l An alert broadcast feature that enables administrators to send notification messages to

network-connected projector systems for immediate on-screen display

l Protected cable routing through a cable cover that limits tampering and clutter

C H A P T E R 1

About your interactivewhiteboard system

l A secure mounting and installation system that includes the following:

An optional projector padlock ring to prevent removal of the projector from the boom

Accessory mounting hardware for solid masonry or framed wall installations kit part

number 1007416

Templates and instructions for positioning the system safely

Projector information

Extended Control Panel (ECP)

Your projector system ECP attaches to the interactive

whiteboard pen tray. The ECP features controls for power,

source selection and volume adjustment, as well as a USB A

port for USB drives.

Included accessories

The following accessories are included with your interactive whiteboard system.

Remote control

The remote control enables you to control the system and set up your projector. Use

the remote control to access menu options, system information and input selection

options.

Pens

There are two pens included with your interactive

whiteboard. Pick up a pen and press one of the four colour

buttons on the pen tray (black, red, green or blue) to select

the colour of digital ink that you write on the interactive

whiteboard.

I M P O R T A N T

Do not substitute the pens with other items, such as dry-wipe markers, if Touch Recognition is

enabled. (Touch Recognition enables you to pick up a pen tray pen and then write, select or

erase without replacing the pen.)

Eraser

The eraser resembles a rectangular blackboard eraser. You can use a

substitute object, as long as it has a similar shape, reflects infrared

light and doesn’t scratch or mark the interactive whiteboard surface.

C H A P T E R 1

About your interactivewhiteboard system

VGA connection kit

The VGA connection kit allows you to connect a laptop to your interactive

whiteboard system using a VGA cable. The end of the VGA connection kit

can be attached to either side of the interactive whiteboard or to a wall in a

convenient location.

SMART Board 480i6 interactive whiteboard system accessories

The following accessory is included with SMART Board 480i6 interactive whiteboard systems.

RCA connector pod

The RCA connector pod includes two RCA jacks for dual-channel audio input

and one for composite video input. You can use the RCA connector pod to

connect DVD/Blu-ray players and similar devices (see Using the RCA

connector pod on page 25).

You can add a variety of accessories to your interactive whiteboard to best meet

your specific needs. Purchase these items from your authorised SMART reseller.

For more information on accessories, go to smarttech.com/accessories.

Chapter 2

whiteboard system

Choosing a location 7 Choosing a height 8 Securing your interactive whiteboard system 9

Locking the pen tray to your interactive whiteboard 9

Securing the projector to the boom 9 Routing the cables 9 Installing SMART software 10

Consult the SMART Board 480i6 interactive whiteboard system installation document included

with your product for instructions on how to install and secure your system.

I M P O R T A N T

Use the SMARTBoard 800i6-SMP interactive whiteboard system installation guide

(smarttech.com/kb/157703) and theSMARTBoard 800i6-SMP interactive whiteboard system

quick installation guide (smarttech.com/kb/170TBA) to install your interactive whiteboard

system.

This chapter provides additional considerations and details for installing your interactive

whiteboard system.

Choosing a location

Choose a location for your interactive whiteboard system that’s far from bright light sources, such

as windows and strong overhead lighting. Bright light sources can cause distracting shadows on

your interactive whiteboard and can reduce the contrast of the projected image.

Select a wall with a flat, regular surface and sufficient clearance to accommodate your interactive

whiteboard system. Install the projector and your interactive whiteboard on the same flat surface.

For best presentation alignment, mount your interactive whiteboard system in a location that’s

central to your audience’s viewing direction.

For mobile or adjustable installation options, contact your authorised SMART reseller.

C H A P T E R 2

Installing your interactive whiteboard system

W A R N I N G

l Refer to your interactive whiteboard system’s specifications (available at

smarttech.com/support) for its weight. Check your local building regulations to ensure that

your wall can support this weight and use appropriate mounting hardware for your wall

type.

l If you are installing the interactive whiteboard system on drywall, use all the toggle bolts

included. If one of the bracket holes aligns with a wall stud, use appropriate hardware in

that hole instead of a toggle bolt.

C A U T I O N

If you’re replacing a SMARTBoard 500 or 600 series interactive whiteboard with the

SMARTBoard 800 series interactive whiteboard on drywall, you must remove the wall-mount

bracket and mounting hardware and then install all the mounting hardware and brackets

supplied with your SMARTBoard 800 series interactive whiteboard instead.

To help ensure that your interactive whiteboard is mounted correctly, make sure that the colours

of the wall-mount hanger on the back of the interactive whiteboard and the wall-mount bracket are

the same.

Choosing a height

SMART includes a mounting template with each interactive whiteboard system. If you lose this

template, contact your authorised SMART reseller. Using this template ensures that you can do

the following:

l Mount the projector at a safe height for head space clearance, whilst maintaining enough

space for airflow and installation access above the unit.

l Position the projector at the correct height above your interactive whiteboard to align the

projected image with the touch screen.

Dimensions on the template recommend a distance from the floor suitable for adults of average

height. You should consider the general height of your user community when you choose a

location for your interactive whiteboard.

C H A P T E R 2

Installing your interactive whiteboard system

Securing your interactive whiteboard system

This section explains how to secure the different components of your interactive whiteboard

system.

Locking the pen tray to your interactive whiteboard

To learn how to lock the pen tray to your interactive whiteboard, see the SMARTBoard 800

series interactive whiteboard user’s guide (smarttech.com/kb/144817).

Securing the projector to the boom

To learn how to secure the SMARTUF70 or SMARTUF70w projector to the boom, see the

SMARTBoard 880i6 and 885i6 interactive whiteboard system installation guide included

(smarttech.com/kb/170499)

Routing the cables

When connecting cables from your SMARTUF70 projector to your interactive whiteboard

system, make sure that all cables pass along the top of the interactive whiteboard wall-mounting

bracket and then down the side of the interactive whiteboard.

When connecting cables from a SMARTUF70w projector to the interactive whiteboard, make

sure that all cables pass between the two interactive whiteboard wall-mounting brackets. Space

your wall-mounting brackets 10.2cm (4") apart to provide full support for the weight of your

interactive whiteboard.

Cable routing for SMARTBoard 880

interactivewhiteboards

I M P O R T A N T

Do not connect the power cable to a power socket until you have connected all the cables to

the projector and ECP.

Cable routing for SMARTBoard 885

interactivewhiteboards

C H A P T E R 2

Installing your interactive whiteboard system

Installing SMART software

You must install SMARTsoftware, such as SMARTMeetingPro™ software or

SMARTNotebook™ collaborative learning software on the computer connected to your

interactive whiteboard system to access all of its features.

Download SMARTsoftware from smarttech.com/software. These webpages list the minimum

hardware requirements for each software version. If SMART software is already installed on your

computer, take this opportunity to upgrade your software to ensure compatibility.

Chapter 3

whiteboard system

Using your projector 11

Using your remote control 11

Replacing the remote control battery 12 Using the remote control buttons 13

Adjusting projector settings 14 Focusing the image 20 Adjusting the image 21 Projector connection diagram 21

Using your interactive whiteboard 23 Using the Extended Control Panel (ECP) 23 Using the RCA connector pod 25

This chapter describes the basic operation of your interactive whiteboard system and explains

how to set up your remote control, retrieve system information, access the projector’s image

adjustment options and integrate your interactive whiteboard system with peripheral devices.

Using your projector

This section explains how to use your projector and its included remote control.

Using your remote control

The projector remote control enables you to access on-screen projector menus and change

projector settings.

C H A P T E R 3

Using your interactive whiteboard system

Replacing the remote control battery

Follow this procedure to replace the remote control battery.

W A R N I N G

l Reduce the risk associated with a leaking battery in the projector’s remote control by

following these practices:

Use only the specified CR2025 coin-cell battery.

Remove the battery when the remote control is unused for an extended period.

Do not heat, disassemble, short or recharge the battery, or expose it to fire or high

temperatures.

Avoid eye and skin contact with the battery if it has a leak.

l Dispose of the exhausted battery and product components in accordance with applicable

regulations.

To replace the remote control battery

1. Hold down the side release on the leftside of the battery holder and pull the battery holder

completely out of the remote control.

2. Remove the old battery from the battery holder and replace it with a CR2025 coin-cell

battery.

I M P O R T A N T

Align the battery’s positive (+) and negative (–) terminals with the correct signs on the

battery holder.

3. Insert the battery holder into the remote control.

C H A P T E R 3

Using your interactive whiteboard system

Using the remote control buttons

The projector remote control enables you to access on-screen menus and change projector

settings. Use the Power button on the remote control or ECP to put the projector into Standby mode or to turn it on. You can also use the Input button on the remote control or ECP to switch

sources on the projector.

Number Function Description

1 Input Select a video and audio input source on the

projector and the associated USB input source on the ECP.

2 Menu Show or hide the projector menus.

3 (Left), (Right),

Change the menu selections and adjustments.

(Up) and (Down) arrows

4 Hide Freeze, hide or display the image:

Press once to freeze the image.

For example, you can display a question on

the screen whilst you check your email.

Press again to hide the image, that is, to

display a black screen.

Press again to return to the live image.

5 Mode Select a display mode.

6 Mute Mute audio amplification.

(Power)

Turn on the projector or put it into Standby mode.

8 (Enter) Accept the selected mode or option.

9 (Volume Up) Increase audio amplification volume.

10 (Volume Down) Decrease audio amplification volume.

C H A P T E R 3

Using your interactive whiteboard system

N O T E

The Mute,Volume Up andVolume Down buttons work only if there is an audio source

connected to the projector for the currently selected video input source.

Adjusting projector settings

The remote control’s Menu button enables you to access the on-screen display to adjust the

projector settings.

I M P O R T A N T

Keep your remote control in a safe place because there is no other way to access menu

options.

Setting Use Notes

Image Adjustment menu

Display Mode Indicates the projector’s

display output (SMARTPresentation,

BrightRoom, DarkRoom, sRGB and User).

Brightness Adjusts projector brightness

from 0 to 100.

Contrast Adjusts the difference

between the lightest and darkest parts

of the image from 0 to 100.

Frequency Adjusts the display data

frequency of the projected image from -5 to 5 to match the frequency of your computer’s graphics card.

Tracking Synchronises your

projector’s display timing with your computer’s graphics card from 0 to 63.

H-Position Moves the horizontal

position of the source video left or right from 0 to 100 (relative to the projected image).

The default is SMARTPresentation.

The default is 50.

The default is 0.

This setting applies to VGA inputs only.

Don’t adjust this setting unless you’re advised to by SMARTSupport.

Apply this setting only after you make all boom adjustments.

This setting applies to VGA inputs only and is useful in situations where the source video is cut off.

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

V-Position Moves the vertical position

of the source video up or down from -5 to 5 (relative to the projected image).

White Peaking Adjusts the image colour

brightness from 0 to 10 whilst providing more vibrant white shades.

Degamma Adjusts the colour

performance of the display from 1 to 3.

Colour Adjusts the Red, Green,

Blue, Cyan, Magenta and Yellow colours on the projector from 0 to 100 to provide custom colour and luminance output.

Don’t adjust this setting unless you’re advised to by SMARTSupport.

Apply this setting only after you make all boom adjustments.

This setting applies to VGA inputs only and is useful in situations where the source video is cut off.

A value closer to 0 creates a natural image and a value closer to 10 enhances brightness. The default is 10.

The default is 2.

Each colour has a default value of 100.

Adjustments to the colour settings register under the User mode.

Audio menu

Volume

Mute Mutes the projector’s audio

output.

Disable Volume Control

Disables the projector’s volume control and the ECP’s volume control knob.

Line out

Enables/disables the line out.

Microphone Enables/disables the

microphone

Speaker Enables/disables the

speaker

The default is off.

If you mute the projector’s audio output and then increase or decrease the volume, the volume is restored automatically. You can prevent this from happening by disabling the volume control.

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

Projector Functions menu

Auto Signal Detect

Enables or disables signal searching of input connectors.

Lamp Reminder Turns the lamp replacement

reminder on or off.

Lamp Mode Adjusts lamp brightness to

Standard orEconomy.

Auto Power Off (minutes)

Sets the length of the auto power-off countdown timer between 1 and 240 minutes.

Zoom Adjusts the zoom to the

centre of the image in or out from 0 to 30.

The default is off.

Select On to have the projector continuously switch inputs until it finds an active video source.

Select Off to maintain signal detection in one input.

This reminder appears 100 hours before the recommended lamp replacement.

Standard displays a high-quality, bright image.

Economy increases the lamp life by decreasing the brightness of the image.

The default is 120 minutes.

The timer begins to count down when the projector no longer receives a video signal. The timer finishes when the projector enters Standby mode.

Select 0 to turn off the timer.

The default is 0.

Zooming in cuts off the outer edges of the source video.

Keystone Adjustment to the size of the

top and bottom edge

USB 1 source Enables touch for the

selected video source VGA

out, USB 2 will be disabled

by associating the video

source with the room

computer USB port (USB1)

on the ECP.

USB 2 source Enables touch for the

selected video source

HDMI, USB 1 will be

disabled by associating the

video source with the guest

computer USB port (USB2)

on the ECP.

Ensure that the top and bottom edges of the

image are horizontal before you position the

left and right edges of the image relative to

your interactive whiteboard.

The default is VGA out. When the user switches to the video source the interactive whiteboard recognises touch from the device connected to the room computer USB port on the ECP. Selecting Disabled disables the room computer USB port on the ECP.

The default is HDMI. When the user switches to the video source the interactive whiteboard recognises touch from the device connected to the guest computer USB port on the ECP. Selecting Disabled disables the room computer USB port on the ECP.

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

Projector ID Displays the projector’s

unique ID number (from 0 to

99) within your organisation’s network.

Aspect Ratio Adjusts the image output to

FillScreen,MatchInput or16:9.

Startup Screen Selects the type of startup

screen (SMART, Capture

User Startup Screen, Preview Startup Screen),

or Image Alignment Screen.

You can refer to or change this number when using the network remote management feature (see Remotely managing your system through a network interface on page 55).

The default is FillScreen.

FillScreen produces an image that fills the entire screen by stretching and scaling the source video to match the projector’s native resolution and aspect ratio.

MatchInput displays the source video in its native resolution and aspect ratio. As a result, unused space could appear along the top and bottom edges of the screen (letterbox format) or along the left and right edges of the screen (pillarbox format).

See Video format compatibility on page 27 for descriptions of each mode.

This screen displays when the projector lamp is starting and a video source signal isn’t displayed.

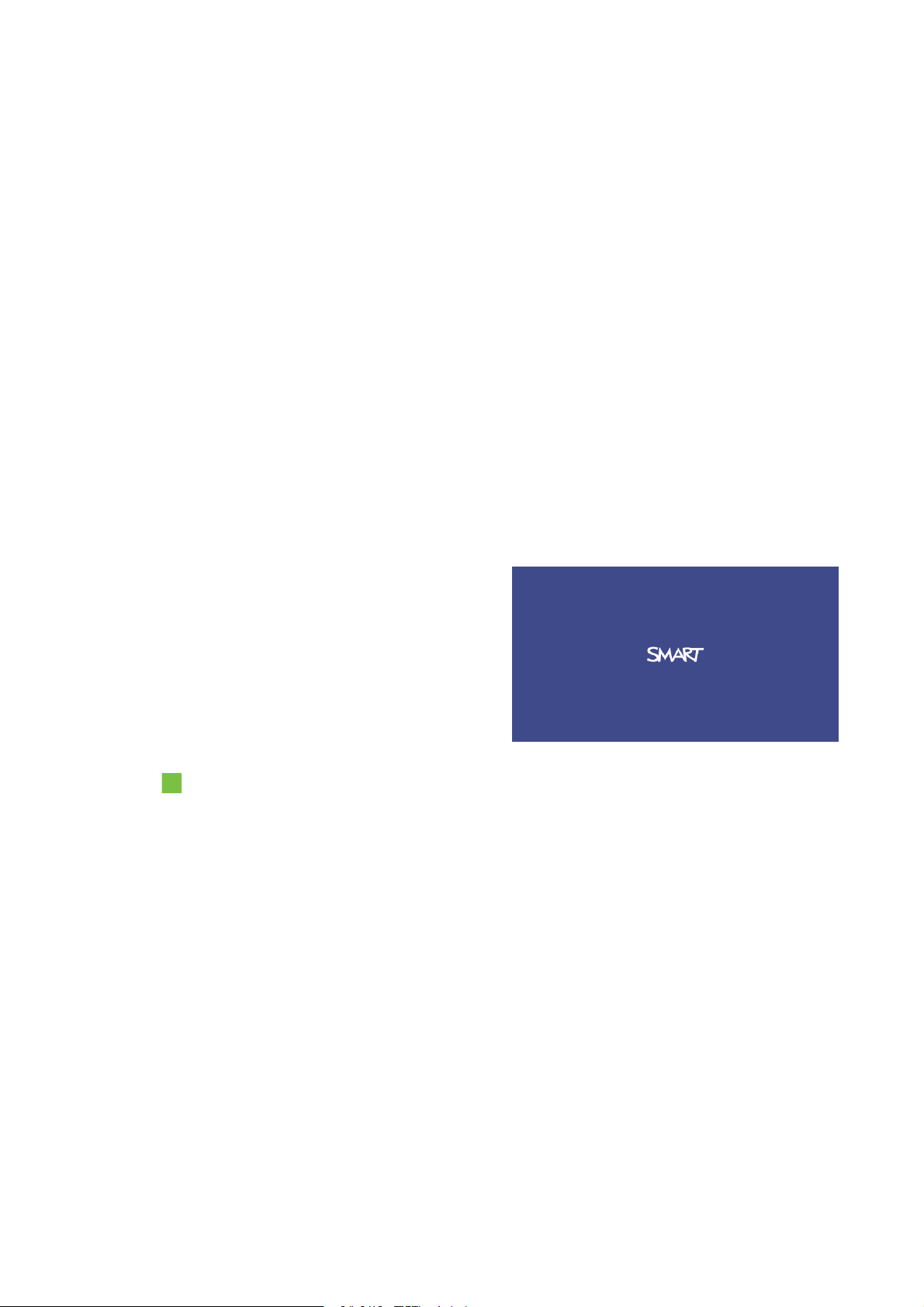

SMART displays the default SMART logo on a blue background.

Capture User Startup Screen closes the onscreen display menu and captures the entire projected image. The captured image is displayed the next time the on-screen display opens. (The capture can take up to one minute, depending on the complexity of the background graphic.)

Preview Startup Screen enables you to preview the default or captured startup screen.

Image Alignment Screen enables you to adjust the projected image size, shape and location.


Alignment

Screen

Enables you to adjust the

projected image size, shape

and location.

Network menu

Network and VGAOut

Activates the projector’s RJ45 connector and network features.

Status Displays the current network

status (Connected, Disconnected or Off).

The image alignment screen appears the first

time you start your projector. However, you

can access it from the startup screen menu

any time. Press MENUorENTER to close it.

The default is off.

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

DHCP Displays the status of the

network’s Dynamic Host Configuration Protocol (DHCP) as On or Off.

Password Reminder

Emails the network password to the predefined email recipient.

IP Address Displays the projector’s

current IP address in values between 0.0.0.0 and

255.255.255.255.

Subnet Mask Displays the projector’s

subnet mask number in values between 0.0.0.0 and

255.255.255.255.

The default is on.

On enables a DHCP server on the network to automatically assign an IP address to the projector.

Off enables an administrator to assign an IP address manually.

See Webpage management on page 55 to set up a destination email address.

To change the projector’s IP address, use the RS-232 connector (see Command/response definitions on page 76) or use a DHCP server to assign a dynamic IP address and then set a static IP address using the network remote management feature (seeRemotely managing your system through a network interface on page 55).

Gateway Displays the projector’s

default network gateway in values between 0.0.0.0 and

255.255.255.255.

DNS Displays the projector’s

primary domain name server (DNS) IP address in values between 0.0.0.0 and

255.255.255.255.

MAC Address Displays the projector’s

MAC address in xx-xx-xxxx-xx-xx format.

Group Name Displays the projector’s

workgroup name as set by an administrator (maximum 12 characters).

Projector Name Displays the projector’s

name as set by an administrator (maximum 12 characters).

You can set the projector’s workgroup name using the remote management features (see

Remotely managing your system through a network interface on page 55 andRemotely managing your system through an RS-232 serial interface on page 63).

You can set the projector’s name using the remote management features (see Remotely

managing your system through a network interface on page 55 andRemotely managing your system through an RS-232 serial interface on page 63).

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

Location Displays the projector’s

location as set by an administrator (maximum 16 characters).

Contact Displays the contact name

or number for projector support as set by an administrator (maximum 16 characters).

Language menu

Language Selects language

preference.

You can set the projector’s location using the remote management features (see Remotely

managing your system through a network interface on page 55 andRemotely managing your system through an RS-232 serial interface on page 63).

You can set the contact name or number using the remote management features (see

Remotely managing your system through a network interface on page 55 andRemotely managing your system through an RS-232 serial interface on page 63).

Projector menu support is available in English (default), Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish and Swedish.

Information menu

Lamp Hours Displays the current number

of lamp usage hours from 0 to 4000 hours from when it was last reset.

Input Displays the currently

displayed video input source (VGA-1,VGA-2,HDMI orNone).

Resolution Displays the projector’s

most recently detected video source signal resolution and refresh rate.

Firmware Version

Displays the projector’s digital display processor (DDP) firmware version in x.x.x.x format.

MPU Version Displays the projector

microprocessor unit (MPU) firmware version in x.x.x.x format.

Always reset the lamp hours after you replace a lamp, because lamp service reminders are based on the current hours of use. See Resetting the lamp hours on page 40 for details on the lamp hours reset procedure.

If there is no current video input source signal, this setting displays the last known source signal image resolution and refresh rate.

C H A P T E R 3

Using your interactive whiteboard system

Setting Use Notes

Network Version

Displays the projector’s network communications processor firmware version in x.x.x.x format.

If you haven’t enabled the Network and VGA Out setting, this setting is unable to display the projector’s network communications processor firmware version and displays

0.0.0.0 instead.

Model Number Displays the projector’s

model number.

Serial Number Displays the projector’s

serial number.

Focusing the image

Use the focus lever located on the projector lens to focus the projected image.

To focus the image

Rotate the focus ring clockwise or anti-clockwise until the image is in focus.

C H A P T E R 3

5 6 10

728 9 11 12 13 14

Using your interactive whiteboard system

Adjusting the image

Refer to these notes when adjusting the projected image as described in the SMARTBoard 880i6

and 885i6 interactive whiteboard system installation guide included (smarttech.com/kb/170499).

l Whilst adjusting the projected image size, shape and location, use the projector’s default

background so that you can see the full projected image clearly. Don’t use other images,

which might be cropped or scaled by the projector and could result in a misleading projected

image size, shape and location.

l Use the mechanical adjustments described in the installation document to make all physical

image adjustments. Don’t use the projector’s on-screen menu options during the projector

alignment process.

l Be aware that as you tilt the projector up or lower its mounting boom to raise the image, the

entire projected image increases or decreases in size, especially at the bottom of the

projected image.

l When adjusting keystone (tilt), ensure that the top and bottom edges of the image are

horizontal before you position the left and right edges of the image relative to your interactive

whiteboard.

l When you move the projector forward or backward on the boom to make the image larger or

smaller, you might need to tilt or turn the projector slightly to keep the image square. Loosen

the lever slightly to aid in this adjustment.

l To fine-tune the image, you might need to repeat all steps described in the installation

document in smaller increments.

Projector connection diagram

You can connect a variety of peripheral devices to your projector, including DVD/Blu-ray players,

VCRs, document cameras, digital cameras and high-definition sources, as well as peripheral

device outputs, such as a secondary projector or a flat-panel display and powered speakers.

N O T E

You might need to purchase third-party adapters to connect certain peripheral devices.

C H A P T E R 3

Using your interactive whiteboard system

No. Connector Connect to:

1 Power Mains power supply

2 7-pin mini-DIN ECP cable harness

3 4-pin power mini-DIN 5V/2A output ECP cable harness

4 HDMI input High-definition video and audio source

(not included)

5 DB15F RGB video input (VGA 1) Primary computer (not included)

6 DB15F RGB video output (VGA Out) Secondary display (not included)

7 RCA Composite video input through RCA connector pod

8 3.5 mm phone jack audio input (×2) Audio sources associated with primary

and secondary computers

9 Left and right RCA audio input

through RCA connector pod

10 3.5mm phone jack audio output Speakers (not included)

11 3.5 mm phone jack microphone Microphone (not included)

12 RJ45 Network (for webpage management and

SNMP access)

13 DB9 RS-232F ECP cable harness

14 USB B Computer (for service access only)

N O T E S

l To connect your interactive whiteboard, see the SMARTBoard 880i6 and 885i6 interactive

whiteboard system installation guide included (smarttech.com/kb/170499).

l To connect accessories to your interactive whiteboard, refer to the documents included

with the accessories and consult the SMARTSupport website (smarttech.com/support)

for additional information.

C H A P T E R 3

Using your interactive whiteboard system

Using your interactive whiteboard

For information about how to use your interactive whiteboard, refer to the SMARTBoard 800

series interactive whiteboard user's guide (smarttech.com/kb/144817).

When you connect your SMARTBoard interactive whiteboard to a computer with SMART

software, you can access the full capabilities of your interactive whiteboard.

For more information on this software, press the Help button on your interactive whiteboard pen

tray.

For additional resources, go to smarttech.com, click the flag icon to the right of the SMART logo

and then select your country and language. In the Support section of this website, you’ll find up-

to-date, product-specific information, including setup instructions and specifications.

The SMARTtraining website (smarttech.com/training) includes an extensive library of training

resources that you can refer to when first learning to set up or use your interactive whiteboard

system.

Using the Extended Control Panel (ECP)

The ECP gives you control of the basic operations of your interactive whiteboard system. Press

the Power button on the ECP or remote control to put the projector system into Standby mode or turn it on. Press the Input button on the ECP or remote control to switch sources on the

projector.

I M P O R T A N T

l Keep your remote control in a safe place because there is no other way to access menu

options.

l Do not disconnect cables from the ECP to connect peripheral devices because you could

disconnect controls for your interactive whiteboard.

N O T E S

l For more details on the status of your interactive whiteboard system, go to Determining

your interactive whiteboard system’s status on page 46.

l Low Power mode reduces your interactive whiteboard system’s power consumption when

it is in Standby mode.To set the projector system to enter Low Power mode automatically

whenever it enters Standby mode, hold down the Power andInput buttons at the same

time for five seconds. After five seconds, the Power button blinks amber for two seconds to indicate that Low Power mode is enabled.

C H A P T E R 3

Using your interactive whiteboard system

The following diagram and table describe the components of the ECP.

Number Function

Left side

1 USB A port (for USB drives)

N O T E

USB drives that you connect to this port are only accessible to the room computer (the computer connected to the USB1 port).

Front

Power button and status indicator light

3 Volume control

4 Input selection

Back

5 Two mini USB B ports (connect to room computer and laptop)

6 11-pin connector (connects to ECP cable harness)

7 4-pin connector (for optional room control)

N O T E

Use an 800 series control cable (Part No. SBX8-CTRL) to convert the 4-pin connector to a

DB9F RS-232 connector for use with a third-party room control system. You can purchase an

SBX8 series control cable from your local SMART reseller.

T I P

If your computer has an HDMI output, you can connect a USB cable from your computer to

either of the USB B ports on the ECP and an HDMI cable from your computer to the HDMI

connector on the projector. Associate the HDMI source with the appropriate USB port (see

Adjusting projector settings on page 14). Press the Input button on the ECP to switch to the

HDMI input.

C H A P T E R 3

Using your interactive whiteboard system

Using the RCA connector pod

The RCA connector pod enables you to connect DVD/Blu-ray players and similar devices.

The following diagram and table describe the components of the RCA connector pod.

Number Function

1 RCA composite video input jack (for peripheral devices such as a DVD/Blu-ray

player)

2 RCA audio jack (right input)

3 RCA audio jack (left input)

Chapter 4

Video format compatibility 27

Native video format 27 Video format compatibility 28

SMARTUF70 projector 28

SMARTUF70w projector 29 HD and SD signal format compatibility 31

SMARTUF70 projector 31

SMARTUF70w projector 31 Video system signal compatibility 32

SMARTUF70 projector 32

SMARTUF70w projector 32

Connecting peripheral sources and outputs 33

This appendix provides information on integrating your SMART Board 480i6 interactive

whiteboard system with peripheral devices.

Video format compatibility

Your projector has a native video format and various video format compatibility modes. You can

change image appearances for certain formats and compatibilities.

Native video format

The following table lists the native VESA RGB video formats for the projector.

Projector Resolution Mode Aspect

ratio

SMARTUF70 1024 × 768 XGA 4:3 60 48 63.5

SMARTUF70w (16:10 aspect ratio mode)

SMARTUF70w (16:9 aspect ratio mode)

1280 × 800 WXGA 16:10 60 48 83.5

1280 × 720 WXGA 16:9 60 48 83.5

Refresh rate (Hz)

Horizontal frequency (kHz)

Pixel clock (MHz)

C H A P T E R 4

Integrating other devices

Video format compatibility

The following tables list the projectors’ compatible VESA RGB video formats by resolution,

which the projector adjusts automatically when you use the aspect ratio commands described in

Adjusting projector settings on page 14.

SMARTUF70 projector

Resolution Mode Aspect ratio Refresh rate

(Hz)

Match Input appearance

720 × 400 720×400_85 1.8:1 85.039 Letterbox

640 × 480 VGA 60 4:3 59.94 Full screen

640 × 480 VGA 72 4:3 72.809 Full screen

640 × 480 VGA 75 4:3 75 Full screen

640 × 480 VGA 85 4:3 85.008 Full screen

800 × 600 SVGA 56 4:3 56.25 Full screen

800 × 600 SVGA 60 4:3 60.317 Full screen

800 × 600 SVGA 72 4:3 72.188 Full screen

800 × 600 SVGA 75 4:3 75 Full screen

800 × 600 SVGA 85 4:3 85.061 Full screen

832 × 624 MAC 16" 4:3 74.55 Full screen

1024 × 768 XGA 60 4:3 60.004 Full screen

1024 × 768 XGA 70 4:3 70.069 Full screen

1024 × 768 XGA 75 4:3 75.029 Full screen

1024 × 768 XGA 85 4:3 84.997 Full screen

1024 × 768 MAC 19" 4:3 74.7 Full screen

1152 × 864 SXGA1 75 4:3 75 Full screen

1280 x 720 HD 720 16:9 60 Letterbox

1280 × 768 SXGA1 75 1.67:1 60 Letterbox

1280 × 800 WXGA 16:10 60 Letterbox

1280 × 960 Quad VGA 60 4:3 60 Full screen

1280 × 960 Quad VGA 85 4:3 85.002 Full screen

1280 × 1024 SXGA3 60 5:4 60.02 Letterbox

1280 × 1024 SXGA3 75 5:4 75.025 Letterbox

1280 × 1024 SXGA3 85 5:4 85.024 Letterbox

1360 x 765 1.04M9 16:9 59.799 Letterbox

C H A P T E R 4

Integrating other devices

Resolution Mode Aspect ratio Refresh rate

(Hz)

Match Input appearance

1600 x 900 1.44M9 16:9 59.946 Letterbox

1600 × 1200 UXGA 4:3 60 Full screen

1680 x 1050 1680x1050 50 16:10 49.974 Letterbox

1680 x 1050 1680x1050 50 16:10 59.954 Letterbox

1920 x 1080 HD 1080 16:9 60 Letterbox

SMARTUF70w projector

Resolution Mode Aspect

ratio

Refresh rate (Hz)

Match Input appearance

(16:10 aspect ratio mode)

Match Input appearance

(16:9 aspect ratio mode)

720 × 400 720×400_85 9:5 85.039 Letterbox Letterbox

640 × 480 VGA 60 4:3 59.94 Pillarbox Pillarbox

800 × 600 VGA 72 4:3 72.809 Pillarbox Pillarbox

800 × 600 VGA 75 4:3 75 Pillarbox Pillarbox

800 × 600 VGA 85 4:3 85.008 Pillarbox Pillarbox

800 × 600 SVGA 56 4:3 56.25 Pillarbox Pillarbox

800 × 600 SVGA 60 4:3 60.317 Pillarbox Pillarbox

800 × 600 SVGA 72 4:3 72.188 Pillarbox Pillarbox

800 × 600 SVGA 75 4:3 75 Pillarbox Pillarbox

800 × 600 SVGA 85 4:3 85.061 Pillarbox Pillarbox

832 × 624 MAC 16" 4:3 74.55 Pillarbox Pillarbox

1024 × 768 XGA 60 4:3 60.004 Pillarbox Pillarbox

1024 × 768 XGA 70 4:3 70.069 Pillarbox Pillarbox

1024 × 768 XGA 75 4:3 75.029 Pillarbox Pillarbox

1024 × 768 XGA 85 4:3 84.997 Pillarbox Pillarbox

1024 × 768 MAC 19" 4:3 74.7 Pillarbox Pillarbox

1152 × 864 SXGA 75 4:3 75 Pillarbox Pillarbox

1280 × 768 WXGA 60 1.67:1 60 Letterbox Pillarbox

1280 × 960 Quad VGA 60 4:3 60 Pillarbox Pillarbox

1280 × 960 Quad VGA 85 4:3 85.002 Pillarbox Pillarbox

1280 × 960 SXGA3 60 5:4 60.02 Pillarbox Pillarbox

C H A P T E R 4

Integrating other devices

Resolution Mode Aspect

ratio

Refresh rate (Hz)

Match Input appearance

(16:10 aspect ratio mode)

Match Input appearance

(16:9 aspect ratio mode)

1280 × 1024 SXGA3 75 5:4 75.025 Pillarbox Pillarbox

1600 × 1200 SXGA+ 4:3 59.978 Pillarbox Pillarbox

1600 × 1200 UXGA_60 4:3 60 Pillarbox Pillarbox

C H A P T E R 4

Integrating other devices

HD and SD signal format compatibility

The following tables list the projectors’ high definition (HD)and standard definition (SD) format

signal compatibility, which the projector adjusts automatically when you use the aspect ratio

commands described in Adjusting projector settings on page 14.

SMARTUF70 projector

Signal format Aspect ratio Horizontal

frequency (kHz)

480i (DVD player)

4:3 15.73 59.94 Full screen

Vertical frequency (Hz)

Match Input appearance

(640 × 480)

567i (DVD player)

5:4 15.63 50 Letterbox

(720 × 576)

720p 16:9 44.96 59.94 Letterbox

720p 16:9 35 50 Letterbox

1080i 16:9 33.7 59.94 Letterbox

1080i 16:9 28.1 50 Letterbox

SMARTUF70w projector

Signal format Aspect

ratio

Horizontal frequency (kHz)

Vertical frequency (Hz)

Match Input appearance

(16:10 aspect ratio mode)

Match Input appearance

(16:9 aspect ratio mode)

480i (525i) 4:3 15.73 59.94 Pillarbox Pillarbox

480p (525p) 4:3 31.47 59.94 Pillarbox Pillarbox

576i (625i) 5:4 15.63 50 Pillarbox Pillarbox

576p (625p) 5:4 31.25 50 Pillarbox Pillarbox

720p (750p) 16:9 45 59.94 Letterbox Full screen

720p (750p) 16:9 37.5 50 Letterbox Full screen

1080i (1125i) 16:9 33.75 59.94 Letterbox Full screen

1080i (1125i) 16:9 28.13 50 Letterbox Full screen

1080p (1125p) 16:9 67.5 59.94 Letterbox Full screen

1080p (1125p) 16:9 56.25 50 Letterbox Full screen

N O T E

Your projector is HD Ready. Its native resolution supports a pixel-perfect display of 720p

source content. However, because the projector compresses 1080p source content to fit its

native resolution, it doesn’t support a pixel-perfect display of 1080p source content.

C H A P T E R 4

Integrating other devices

Video system signal compatibility

The following tables list the projectors’ video system signal compatibility, particularly for signals

delivered over S-Video and Composite video connectors, which the projector adjusts

automatically when you use the aspect ratio commands described in Adjusting projector settings

on page 14.

N O T E

The 16:9 command delivers all video modes with black bands along the top and bottom edges

of the screen. The Match Input command might deliver video modes with black bands along

the top and bottom edges of the screen, depending on the input resolution.

SMARTUF70 projector

Video mode Aspect ratio Horizontal

frequency (kHz)

Vertical frequency (Hz)

Colour signal (MHz)

NTSC 4:3 15.73 29.96 3.58

PAL 4:3 15.62 25 4.43

SECAM 4:3 15.62 25 4.25 (fob)

4.06 (for)

SMARTUF70w projector

Video mode Aspect ratio Horizontal

frequency (kHz)

Vertical frequency (Hz)

Colour signal (MHz)

NTSC 4:3 15.73 59.94 3.58

PAL 4:3 15.63 50 4.43

SECAM 4:3 15.63 50 4.25 and 4.41

PAL-M 4:3 15.73 59.94 3.58

PAL-N 4:3 15.63 50 3.58

PAL-60 4:3 15.73 59.94 4.43

NTSC 4.43 4:3 15.73 59.94 4.43

C H A P T E R 4

Integrating other devices

Connecting peripheral sources and outputs

Follow these instructions if you have a peripheral device to connect to your interactive whiteboard

system.

N O T E S

l Measure the distance between the projector and the peripheral device that you want to

connect. Make sure that each cable has enough slack to be placed safely in your room

without presenting a trip hazard.

l Do not disconnect cables from the ECP to connect peripheral devices because you could

disconnect controls for your interactive whiteboard.

l Do not connect SBA-L projection audio system speakers to the RCA connector pod.

Connect these speakers to the projector connection panel using a dual-channel (left and

right) RCA plug-to-3.5mm phone connector (included with the speakers).

l The composite video connector and associated dual channel audio inputs on the projector

and optional RCA connector pod are for input only. These RCAjacks don’t provide an

output signal.

To connect a laptop to a SMART Board 480i6 interactive whiteboard system

1. Connect a USB cable from the laptop computer to the ECP.

2. Connect a VGA cable from the laptop computer to the VGA connection kit.

Connect an HDMI cable from the laptop computer to the projector.

T I P

Alternatively you can use a DVI-D-to-HDMIcable.

To connect a DVD/Blu-ray player or similar device

1. If you have speakers installed, turn the volume dial on the ECP all the way down to prevent

buzzing or popping.

2. Press the Input button on the ECP or remote control to switch input sources to the

peripheral device.

3. Restore the volume on the ECP’s volume dial.

N O T E

HDMI inputs are High Definition Content Protection (HDCP) compliant.

Chapter 5

whiteboard system

Maintaining your interactive whiteboard 35 Cleaning the projector 35 Focusing and adjusting the projector image 36 Replacing the projector lamp 37

Removing and replacing the projector lamp module 37 Resetting the lamp hours 40

This chapter includes methods for properly cleaning and preventing damage to your SMART

Board 480i6 interactive whiteboard system.

Maintaining your interactive whiteboard

For information on maintaining your interactive whiteboard, see the SMARTBoard 800 series

interactive whiteboard user’s guide (smarttech.com/kb/144817).

Cleaning the projector

W A R N I N G

Cleaning a wall-mounted projector can result in a fall or injury. Use caution when climbing a

ladder and consider removing the projector from its wall-mounting bracket to clean it.

C A U T I O N

l Never touch the mirror with your hands or a brush, and do not scrub the surface of the

mirror with the supplied cleaning cloth. Instead, use the supplied cleaning cloth to clean

the mirror with a light touch, and do not put any cleaning solvents on the cloth or the mirror.

Do not apply pressure to the projector lens or mirror.

Before you clean the projector, press the Power button twice on the ECP or remote control to put the system in Standby mode and then allow the lamp to cool for at least 30

minutes.

C H A P T E R 5

Maintaining your interactive whiteboard system

l Do not spray cleaners, solvents or compressed air directly on the projector. Do not use

spray cleaners or solvents near any part of the projector because they can damage or

stain the unit. Spraying the system could spread a chemical mist on some of the

projector’s components and lamp, resulting in damage and poor image quality.

l Do not allow liquids or commercial solvents of any kind to flow into the projector base or

head.

I M P O R T A N T

l When cleaning the interactive whiteboard system:

Wipe the exterior of the projector with a lint-free cloth.

If necessary, use a soft cloth moistened with a mild detergent to clean the projector

housing.

l Do not use abrasive cleaners, waxes or solvents.

When cleaning the projector’s mirror:

l Use a bellows bulb or air blower bulb (commonly found in audio-visual supply stores) to blow

off dust. Never touch the mirror with your bare hands or a brush.

l If wiping the mirror is unavoidable, wear protective gloves and gather the cleaning cloth into

a ball. Gently run the cleaning cloth across the mirror as you would a feather duster. Don’t

apply any pressure to the lens or mirror.

When cleaning the projector’s lens:

l Use a bellows bulb or air blower bulb (commonly found in audio-visual supply stores) to blow

off dust. Never touch the lens with your bare hands or a brush.

l If wiping the lens is unavoidable, wear protective gloves and gather the cleaning cloth into a

ball. Gently run the cleaning cloth across the lens from the centre to the edge, using the

cleaning cloth as you would a feather duster. Don’t apply any pressure to the lens or mirror.

Focusing and adjusting the projector image

For information on focusing and adjusting the projector image, see Focusing the image on page

20 andAdjusting the image on page 21.

C H A P T E R 5

Maintaining your interactive whiteboard system

Replacing the projector lamp

This section provides instructions for replacing the projector lamp module.

Removing and replacing the projector lamp module

Eventually the lamp will dim and a message will appear reminding you to replace it. Make sure

that you have a replacement lamp module before proceeding with the following instructions.

W A R N I N G

l See smarttech.com/compliance for the projector’s MSDS documents.

l Replace the lamp module when the projector displays its lamp life warning message. If

you continue to use the projector after this message appears, the lamp can shatter or

burst, scattering glass throughout the projector.

l If the lamp shatters or bursts, leave and then ventilate the area.

Next do the following:

Avoid touching the glass fragments because they can cause injury.

Wash your hands thoroughly if you have come into contact with lamp debris.

Thoroughly clean the area around the projector, and discard any edible items placed

in that area because they could be contaminated.

Call your authorised SMART reseller for instructions. Do not attempt to replace the

lamp.

l Replacing the lamp module in a wall-mounted projector can result in a fall or injury. Use

caution when climbing a ladder, and consider removing the projector from the wall-

mounting bracket to replace the lamp module.

l Uncovering the lamp whilst the projector is mounted on the wall-mounting bracket can

lead to product damage or personal injury from falling pieces of glass if the lamp is broken.

C H A P T E R 5

Lamp Door

Maintaining your interactive whiteboard system

l When replacing the projector lamp module:

Put the projector into Standby mode and wait 30 minutes for the lamp to cool

completely.

Do not remove any screws other than those specified in the lamp replacement

instructions.

Wear protective eyewear whilst changing the lamp module. Failure to do so can

cause injuries including loss of eyesight if the lamp shatters or bursts.

Use only replacement lamp modules approved by SMARTTechnologies. Contact

your authorised SMART reseller for replacement parts.

Never replace the lamp module with a previously used lamp module.

Always handle the fragile lamp assembly with care to prevent premature lamp failure

or exposure to mercury. Use gloves when touching the lamp module. Do not touch

the lamp with your fingers.

Recycle or dispose of the lamp module as hazardous waste in accordance with local

regulations.

You need a Phillips No. 2 screwdriver and a flat screwdriver to complete these procedures.

To remove the old lamp module

Press the Power button twice on the remote control or the ECP to put the projector into Standby mode.

2. Wait at least 30 minutes for the projector to cool down.

3. Disconnect the power cable from the projector.

4. Use a Phillips screwdriver to loosen the two captive screws.

C H A P T E R 5

Maintaining your interactive whiteboard system

5. Use a Phillips screwdriver to loosen the two captive screws from the bottom of the lamp

module and gently remove lamp module.

N O T E

Don’t try to remove these screws. Captive screws can’t be removed, only loosened.

To put the new lamp module into the projector

1. Remove the new lamp module from its packaging.

2. Carefully place the lamp module into the projector and gently press the power end of the

lamp module against the projector to ensure that the power plug makes contact with the

projector’s power port.

N O T E

You should be able to place the lamp module into the projector easily without applying

much force.

3. Use the Phillips screwdriver to secure the captive screws.

I M P O R T A N T

Do not over-tighten the screws.

4. Replace the lamp cover.

5. Connect the power cable to the wall socket.

C H A P T E R 5

Maintaining your interactive whiteboard system

Press the Power button once on the remote control or ECP to confirm that the projector is operating and that the lamp module is correctly installed.

7. Put the old lamp module in a secure container and handle it gently until you recycle it.

To finish the projector lamp module installation

1. Turn on the projector.

2. Adjust the projector image if necessary (see Adjusting the image on page 21).

3. Access the service menu to reset the lamp hours (see Resetting the lamp hours below).

4. Activate the projector’s alert emails and lamp warnings if they’ve been deactivated (see

Email alerts on page 61 andControl panel on page 56).

Resetting the lamp hours

Once you have replaced the lamp module, you need to access the projector service menu and

reset the lamp hours. To prevent accidental errors, only a system administrator should perform

this procedure.

N O T E

Always reset the lamp hours after you replace the lamp, because lamp service reminders are

based on the current hours of use.

To reset the lamp hours

1. Using the remote control, press the following buttons quickly to access the service menu:

Down,Up,Up,Left,Up.

C A U T I O N

Do not adjust any settings in the service menu other than those listed in this guide.

Changing other settings can damage or affect the operation of your projector and may

invalidate your warranty.

2. Scroll down to Lamp Hour Reset and then press OK.

Both Lamp Hour values (Standard and Economy) reset to zero.

C A U T I O N

Do not reset the lamp hours unless you have just replaced the lamp module. Resetting the

lamp hours on an old lamp can damage your projector as a result of lamp failure.

N O T E

You’re unable to reset the Display Hour value because it’s the running total of hours the

projector has been in use.

C H A P T E R 5

Maintaining your interactive whiteboard system

3. Press the Menu button on the remote control.

The SMART UF 70 Settings menu appears.

Select to confirm that Lamp Hour is reset to zero.

Chapter 6

interactive whiteboard system

Before you start 44

Locating status lights 44 Locating serial numbers 45

Determining your interactive whiteboard system’s status 46 Resolving interactive whiteboard issues 47

Resolving operation issues 47 Resolving connection issues 48 Resolving controller module issues 48

Resolving projector issues 49

Resolving projector errors 49 Resolving image issues 49

Loss of signal 49

Partial, scrolling or incorrectly displayed image 50

Unstable or flickering image 50

Frozen image 51

Your image doesn’t fit the interactive whiteboard 51

The image from your connected laptop computer isn’t projected 51

Unaligned projected image 51 Resolving audio issues 52 Resolving network communication issues 53

Resolving ECP issues 53 Accessing the service menu 53

Retrieving your password 54 Resetting the projector 54

Transporting your interactive whiteboard system 54

C H A P T E R 6

Troubleshooting your interactive whiteboard system

This chapter provides basic troubleshooting information for your interactive whiteboard system.

For issues not covered in this chapter, consult the SMARTSupport website

(smarttech.com/support) or contact your authorised SMART reseller (smarttech.com/where).

Before you start

Before you troubleshoot your interactive whiteboard system or contact SMARTSupport or your

authorised SMART reseller for assistance, you need to do the following:

l Locate your interactive whiteboard system’s status lights

l Locate your interactive whiteboard system’s serial numbers

Locating status lights

Your interactive whiteboard system consists of several components, which have their own

status lights:

l Your interactive whiteboard’s Ready light is located on the pen tray.

Your projector’s Power and Service lights are located on the bottom of the projector.

The ECP’s Power button (seeUsing the Extended Control Panel (ECP) on page 23) also functions as a status light.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

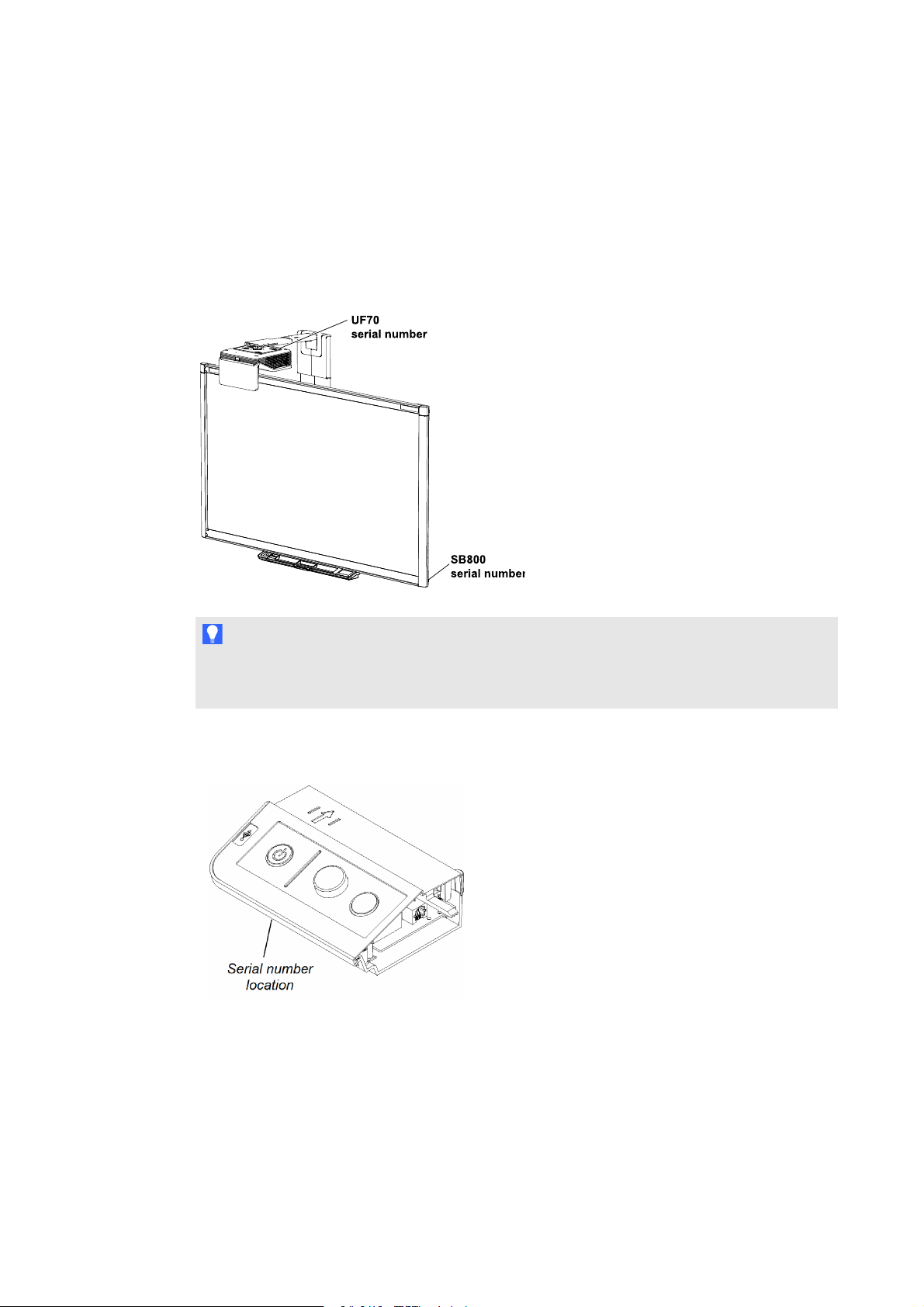

Locating serial numbers

The SMARTBoard 800 series interactive whiteboard serial number is located on the lower-right

edge of your interactive whiteboard’s frame. For more information, see the SMARTBoard 800

series interactive whiteboard user’s guide (smarttech.com/kb/144817).

The SMARTUF70 or SMARTUF70w projector serial number is located on the top of the

projector.

T I P

You can also access the projector’s serial number through the on-screen menu. For more

information, see Adjusting projector settings on page 14.

The ECP has its own serial number, which is different from the interactive whiteboard serial

number. The ECP serial number is located on the bottom of the ECP.

For the locations of serial numbers on other components and accessories, see

smarttech.com/support.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Determining your interactive whiteboard system’s status

Use the following table to determine the status of your interactive whiteboard system:

Projected

Projector Power li ght

Normal operating statuses

Solid green Off Solidgreen Solid green Correct Full control The system is operating normally.

Flashing green

Solid amber Off Solid amber Off None None The system is in Standby mode.

Flashing amber

Solid green Off Solidgreen Solid amber N/A None The interactive whiteboard’s

Solid green Off Solidgreen Flashing

Error statuses

Solid green Off Solidgreen Solid green Incorrect Full control There’s an issue with t he projected

Solid green Off Solidgreen Solid green Correct None There’s anissue with the

Solid green Off Solidgreen Flashing

Solid green Off Solidgreen Off

Solid green Off Off Off

Projector Service lig ht

Off Flashing

ECP light Interactive

green

amber

whiteboard Ready li ght

Off None N one The syst em is starting up.

Off None N one The syst em is entering Standby

amber

green

Solid red


N/A N/A The interactive whiteboard’s

Correct Touch only SMARTProductDrivers isn’t

N/A None There’s an issue with the

N/A N/A The ECP isn’t receiving power.

Touch and pen control

Status and r elated troub leshoo ting

If image or sound iss ues occur, see the remaining sections of this chapter for troubleshooting information.

mode.

controller module is s tarting up.

If this process takes longer than 10 seconds, see Resolving controller module issues on page 48.

controller module is ready to receive a firmware update oris applying a firmware update.

If the Ready light flashes amber but no firmware update appears on t he screen, see Resolving controller module issues on page 48.

image.

See Resolving image issues on page 49.

interactive whiteboard.

See Resolving operation issues on next page.

installed or running correctly on the connected computer.

connections between the interactive whiteboard and t he other c omponents of the syst em.

See Resolving connection issues on page 48.

See Resolving ECP issues on page

53.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Projected

Projector Power li ght

Solid amber Flashing red N/A N/A None N/A There’s anissue with the projector

Off Flashing red

Off Solid red N/A N/A N one N/A There’s an issue with the

Off Off Off Off None None The project or power cable isn’t

Projector Service lig ht

ECP light Interactive

N/A

whiteboard Ready li ght

Off None N one The projector’s operating


Touch and pen control

Status and r elated troub leshoo ting

lamp.

See Resolving projector errors on page 49.

temperature has been exceeded.

See Resolving projector errors on page 49.

projector’s fan or colour wheel.

See Resolving projector errors on page 49.

properly connected.

There’s anissue with the mains power supply (for example, the circuit breaker is off).

Resolving interactive whiteboard issues

This section includes information on resolving issues with your interactive whiteboard.

For information not covered in this section, see the SMARTBoard 800 series interactive

whiteboard user’s guide (smarttech.com/kb/144817).

Resolving operation issues

l Confirm that the camera system cable is connected to the back of the pen tray.

l Perform the calibration procedure documented in the SMARTBoard 800 series interactive

whiteboard user’s guide (smarttech.com/kb/144817).

l If necessary, complete additional troubleshooting with the guidance of SMARTSupport

using SMARTBoard Diagnostics.

To resolve operation issues, complete the following tasks:

l Confirm that the camera system cable is connected to the back of the pen tray.

l Perform the calibration procedure documented in the SMARTBoard 800 series interactive

whiteboard user’s guide (smarttech.com/kb/144817).

l Reset the interactive whiteboard system. If necessary, complete additional troubleshooting

with the guidance of SMARTSupport using SMARTBoard Diagnostics.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Resolving connection issues

To resolve connection issues, complete the following tasks:

l Confirm that the ECP cable harness’s 4-pin power mini-DIN connector is properly

connected to the DC 5V 2A connector on the projector.

l Confirm that the ECP cable harness’s DB9M RS-232 connector is properly connected to the

Control connector on the projector.

l Confirm that the USB cable, which is located on the underside of the pen tray, is properly

connected from the interactive whiteboard to the ECP.

l Confirm that the USB cable is properly connected from a fully functional USB port on the

computer to the correct USB port on the ECP.

l Confirm that the projector’s on-screen menu option for the USB source is set to associate

the USB port on the ECP with the correct video source on the projector.

l If necessary, complete additional troubleshooting on any devices between the USB

connection from the computer to the interactive whiteboard system, including any USB hubs

and extension cables.

N O T E S

If you’re using the CAT 5 USB extender, see Troubleshooting tips for the CAT 5 USB

extender for SMARTBoard 800 series interactive whiteboards

(smarttech.com/kb/147499).

Computers connected to the ECP override computers connected to the CAT 5 USB

extender. If you connect two computers to the ECP, any computer connected to the

CAT 5 USB extender doesn’t have a data connection to the interactive whiteboard.

l Confirm that the USB cable is properly connected from a fully functional USB port on the

computer to the interactive whiteboard.

Resolving controller module issues

If the controller module takes longer than 10 seconds to start up, disconnect the interactive

whiteboard’s power cable, wait 10 seconds and then reconnect it.

If the issue persists, update the firmware as documented in the SMARTBoard 800 series

interactive whiteboard user’s guide (smarttech.com/kb/144817).

If the Ready light indicates that a firmware update is in progress but no update is actually taking

place, disconnect the interactive whiteboard’s power cable, wait 10 seconds and then reconnect

it.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Resolving projector issues

Resolving projector errors

Resolving image issues

To resolve common image issues, complete the following tasks:

l Ensure the computer or other video source is on and set to display a resolution and refresh

rate supported by the projector (see Video format compatibility on page 27).

l Ensure that the video source is properly connected to the projector.

l Press the Input Select button on the remote control or ECP to switch to the correct video

source.

If these tasks don’t resolve the issue, refer to the following sections for additional troubleshooting

information.

Loss of signal

If a video source signal is not detected, out

of range of the projector’s support video

modes or the signal is being switched to a

different device or input, the projector

doesn’t show a source signal and instead

displays the SMART logo on a blue screen.

To resolve signal loss issues

1. Wait approximately 45 seconds for the image to synchronise. Some video signals require a

longer synchronisation period, cycling back through inputs to the one that you want also

helps image synchronisation.

2. If the image doesn’t synchronise, check the cable connections to the projector and the ECP.

3. Ensure that the image signal is compatible with the projector (see Video format compatibility

on page 27).

4. If there are any extension cables, switch boxes, connection wall plates or other devices in

the video connection from the computer to the projector, temporarily remove them to ensure

that they are not causing the video signal loss.

5. If your projector still doesn’t show a source signal, contact your authorised SMART reseller.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Partial, scrolling or incorrectly displayed image

N O T E

This procedure may vary depending on your version of Windows operating system or

MacOSX operating system software and your system preferences. The following procedures

apply to Windows 7 operating systems and MacOSX10.8 operating system software.

To resolve a partial, scrolling or incorrectly displayed image on your Windows computer

1. Select Start > Control Panel.

2. Click Displayand then selectAdjust resolution.

3. Verify that your display resolution setting is 1024 × 768 (SMARTUF70 projector), 1280 ×

800 (SMARTUF70w projector in 16:10 aspect ratio mode) or 1280 × 720 (SMARTUF70w

projector in 16:9 aspect ratio mode).

4. Click Advanced settingsand then click theMonitor tab.

5. Verify that the screen refresh rate is 60 Hz.

To resolve a partial, scrolling or incorrectly displayed image on your Mac computer

1. Select Apple Menu > System Preferences.

The System Preferences dialogue box appears.

2. Click Displays.

3. Verify that your display resolution setting is 1280 × 800 (WXGA).

4. Verify that the screen refresh rate is 60 Hz.

Unstable or flickering image

If the projector’s image is unstable or flickering, you could have different frequency or tracking

settings on your input source than on your projector.

I M P O R T A N T

Write down your setting values before adjusting any of the settings in the following procedure.

To resolve your unstable or flickering image

1. Check the display mode of your computer’s graphics card. Make sure that it matches one of

the projector’s compatible signal formats (see Video format compatibility on page 27). Refer

to your computer’s manual for more information.

2. Configure the display mode of your computer’s graphics card to make it compatible with the

projector. Refer to your computer’s manual for more information.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

3. Adjust the frequency, tracking, H-position and V-position settings in the on-screen menu.

See Adjusting projector settings on page 14.

4. Optionally, reset the projector as described in Resetting the projector on page 54 to adjust

the frequency and tracking to their original values.

I M P O R T A N T

This action resets all values to their defaults.

Frozen image

If your projector has a frozen image, perform the following procedure.

To resolve a frozen image

1. Ensure that the Hide Display feature is off.

2. Press the Hide button on the projector’s remote control to hide or show the display.

3. Ensure that your source device, such as your DVD player or computer, isn’t malfunctioning.

4. Put the projector into Standby mode and then wait 30 minutes for it to cool down.

5. Disconnect the power cable from the power socket and then wait at least 60 seconds.

6. Connect the power cable and then turn on the projector.

7. If the previous steps don’t resolve the issue, contact your authorised SMARTreseller.

Your image doesn’t fit the interactive whiteboard

If you’re using a SMARTUF70w projector with a wide screen interactive whiteboard, verify that

you’re using the correct aspect ratio mode for the interactive whiteboard:

Interactive whiteboard Aspect ratio mode

SMARTBoard 885 interactive whiteboard 16:10

You can set the aspect ratio mode using the Native DLP Resolution setting in the Projector

Functions menu (see Adjusting projector settings on page 14).

The image from your connected laptop computer isn’t projected

Laptop computer settings can interfere with projector operations.

Some laptop computers deactivate their screens when you connect a secondary display device.

Refer to your computer’s manual for details on reactivating the computer's display screen.

Unaligned projected image

Alignment errors occur when the projected image isn’t perpendicular to the screen. Alignment

errors can occur when you mount your interactive whiteboard system on an uneven surface or a

wall that has obstructions, or if you swivel the projector too far from the vertical centre of your

interactive whiteboard.

Adjust the projected image. See the included SMARTBoard 800i6 interactive whiteboard system

C H A P T E R 6

Troubleshooting your interactive whiteboard system

installation guide (smarttech.com/kb/170TBA) andAdjusting the image on page 21.

The projector image can slip if the projector is moved often or installed in a location prone to

vibration, such as next to a heavy door. Follow these precautions to help prevent the image from

becoming misaligned:

l Make sure that the installation wall is plumb and square and doesn’t move or vibrate

excessively.

l Make sure that there are no obstructions behind the projector’s wall-mounting bracket and

that the bracket is firmly secured to the wall according to the installation instructions.

l Adjust the projected image. See the included SMARTBoard 800i6 interactive whiteboard

system installation guide (smarttech.com/kb/170TBA) and Adjusting the image on page 21.

Resolving audio issues

The projector does have integrated speakers, you can connect an external audio system to the

audio output connector in the projector’s connection panel such as the SMARTSBA-L projection

audio system (smarttech.com\kb\142552)

If no sound is coming from your external audio system, perform the following procedure.

N O T E

You might need to configure your computer to pass audio through HDMI if it isn’t configured

automatically.

To resolve audio issues

1. Ensure that the speakers’ or audio system’s cables are properly connected to the audio

output plug on the projector’s connection panel.

2. Press the Mute button on the projector’s remote control and if Audio Mute is on, turn it off.

3. Check the ECP’s volume knob or use the projector’s remote control to ensure that the

volume isn’t at the lowest setting.

4. Ensure that your speaker or audio system is on and that the volume is turned up.

5. Check that your source input, such as your computer or video device, isn’t malfunctioning.

Ensure that its audio output is on and that the volume isn’t set to the lowest position.

N O T E

You must display the source input’s video to play its audio through the connected

speakers or audio system.

6. If the previous steps don’t resolve the issue, contact your authorised SMART reseller.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Resolving network communication issues

If you don’t have network access, perform the following procedure to troubleshoot your system.

To resolve network communication issues

1. Ensure that your network cable is properly connected to the RJ45 connection on the

projector’s connection panel. There are two RJ45 ports one is for the network and one is for

projector 2, ensure that you have the network cable plugged into the correct one.

2. Ensure that the LAN warning light on the projector is green. To activate the projector’s

network features, use the “vgaoutnetenable=on” RS-232 command (see Projector

programming commands on page 65) or enable theNetwork and VGA Out setting

(seeAdjusting projector settings on page 14). The network features on the projector don’t

work until you complete one of these tasks.

3. Press the Menu button and then select theNetwork Settings menu to check the IP

address. See Adjusting projector settings on page 14 for a description of the IP address

field. Enter this IP address into your browser or SNMP agent.

4. If you still don’t have network access, contact your network administrator. If your

administrator is unable to resolve the issue, contact your authorised SMART reseller.

Resolving ECP issues

If the ECP isn’t receiving power, complete the following tasks:

l Confirm that the ECP cable harness’s 11-pin connector is properly connected to the ECP.

l Confirm that the ECP cable harness’s 7-pin min-DIN connector is properly connected to the

ECP connector on the projector.

Accessing the service menu

C A U T I O N

l To prevent tampering or unintentional changes, only system administrators should access

the service menu. Do not share the service menu access code with casual users of your

interactive whiteboard system.

l Do not adjust any settings in the service menu other than those listed in this guide.

Changing other settings can damage or affect the operation of your projector and may

invalidate your warranty.

C H A P T E R 6

Troubleshooting your interactive whiteboard system

Retrieving your password

If you forget the projector’s password, you can retrieve it by accessing the projector service menu

directly from the projector or from the password settings menu on your projector’s webpage (see

Password settings on page 62).

To retrieve your password from the service menu

1. Using the remote control, press the following buttons quickly to access the service menu:

Down,Up,Up,Left,Up.

2. Scroll to Password Get and then press Enter on the remote control.

The password appears on the screen.

3. Write down the password.

4. Scroll to Exit and then press Enter on the remote control to exit the projector service menu.

Resetting the projector

At some point during troubleshooting, you might need to reset all projector settings.

I M P O R T A N T

This action is irreversible.

To reset all projector settings

1. Using the remote control, press the following buttons quickly to access the service menu:

Down,Up,Up,Left,Up.

2. Scroll to Factory Resetand then pressEnter on the remote control.

3. Scroll to Exitand then pressEnter on the remote control to exit the projector service menu.

Transporting your interactive whiteboard system

Save your original SMARTBoard interactive whiteboard packaging so that it’s available if you

need to transport your interactive whiteboard system. When required, repack it with all of the

original packaging. This packaging was designed to provide optimal shock and vibration

protection. If you no longer have your original packaging, purchase the same packaging directly

from your authorised SMART reseller.

If you prefer to use your own packaging materials, make sure that you adequately protect your

unit. Make sure that the projector lens and mirror are protected against any physical contact or

pressure which may damage the projector’s optics. Send your interactive whiteboard in an upright

position to deter carriers from placing heavy objects on it.

Appendix A

system through a network interface

Webpage management 55

Accessing webpage management 56 Home 56 Control panel 56 Control panel II 59

USB Control settings 59 Network settings 60 Email alerts 61 Password settings 62

Simple Network Management Protocol (SNMP) 62

This chapter includes detailed instructions on how to remotely manage your SMART Board 480i6

interactive whiteboard system settings through a network interface.

Webpage management

You can access advanced setup features via the projector’s webpage. This webpage enables

you to manage the projector from a remote location using any computer connected to your

intranet.

N O T E

To access the webpage, your browser must support JavaScript. Most commonly used

browsers like InternetExplorer® and Firefox® support JavaScript.

A P P E N D I X A

Remotely managing your system through a network interface

Accessing webpage management

Before you can access the webpage, connect your projector to the network and then enable the

projector’s network functions using the projector’s menu. An IP address appears on the on-

screen display.

To use the management webpage

1. Start your Internet browser.

2. Type the IP address in the address line field and then press ENTER.

The SMART UF 70 Projector Settings window appears.

3. Select the menu options in the left pane to access the settings on each page.

4. Modify settings using your computer’s mouse and keyboard and then click Submit or

another action button next to each setting you change.

Home

The Home menu page displays basic projector information and enables you to select the on-

screen display language.

N O T E

You can view basic projector information but you’re unable to change it (with the exception of

the on-screen display language) from the Home menu page.

Submenu setting Description

Language Displays language options

Projector Information Displays current projector information

Control panel

This menu enables you to manage the projector audio and video status, alerts and appearances

using an Internet browser.

Submenu setting Description

Power Turns the projector on or puts it into Standby mode.

Select the Power ON or Power OFF button.

Restore All Projector Defaults

Volume Adjusts the projector’s volume from -20 to 20.

Returns projector settings to default values or refreshes the current settings. Select Submit or Refresh.

I M P O R T A N T

The Submit option is irreversible and resets all values.

A P P E N D I X A

Remotely managing your system through a network interface

Submenu setting Description

Mute Turns the mute settings on or off. Select On to mute the

projector’s sound and Off to turn off mute.

Volume Control Enables volume control on the on-screen display. Select On to

enable projector volume adjustment and select Off to disable projector volume adjustment.

Closed Captioning Turns the closed captioning feature on or off.

Language Sets the closed captioning language to CC1 or CC2.

Typically, CC1 displays US English subtitles, whilst CC2 displays other regional languages, such as French or Spanish, depending on television channel or media setup.

Display Mode Adjusts the display output to SMART Presentation, Bright

Room, Dark Room, sRGB and User modes so that you can project images from various sources with consistent colour performance:

SMART Presentation is recommended for colour fidelity.

BrightRoom and DarkRoom are recommended for

locations with those conditions.

sRGB provides standardised accurate colour.

User enables you to apply your own settings.

Brightness Adjusts projector brightness from 0 to 100.

Contrast Adjusts the difference between the lightest and darkest parts

of the image from 0 to 100.

Frequency Adjusts the display data frequency of the projected image from

-5 to 5 to match the frequency of your computer’s graphics card.

Tracking Synchronises your projector’s display timing with your computer’s

graphics card from 0 to 31.

Sharpness Adjusts the projected image’s sharpness from 0 to 31.

White Peaking Adjusts the image colour brightness from 0 to 10 whilst providing

more vibrant white shades. A value closer to 0 creates a natural image and a value closer to 10 enhances brightness.

Degamma Adjusts the colour performance of the display from 0 to 3.

Colour Adjusts the Red, Green, Blue, Cyan, Magenta and Yellow colours

on the projector from 0 to 100 to provide custom colour and luminance output. Each colour has a default value of 100. Adjustments to the colour settings register to the User mode.

Auto Signal Detect Enables or disables signal searching of input connectors.

Select On to have the projector continuously switch inputs

until it finds an active video source.

Select Off to maintain signal detection in one input.

Lamp Reminder Select On to show or Off to hide the lamp replacement reminder

when it appears. This reminder appears 100 hours before the recommended lamp replacement.

A P P E N D I X A

Remotely managing your system through a network interface

Submenu setting Description

Lamp Mode Adjusts lamp brightness to Standard or Economy. Standard

displays a high-quality, bright image. Economy increases the lamp life by decreasing the brightness of the image.

Auto Power Off Sets the length of the auto power off countdown timer between 1

and 240 minutes. The timer begins to count down when the projector no longer receives a video signal. The timer finishes when the projector enters Standby mode. Select 0 to turn off the timer.

Zoom Adjusts the zoom to the centre of the image in or out from

0 to 30.

H-position (RGB input) Moves the horizontal position of the source video left or right from

0 to 100 (relative to the projected image).

N O T E

This is useful in situations where the source video is cut off.

V-position (RGB input) Moves the vertical position of the source video up or down from -5

to 5 (relative to the projected image).

N O T E

This is useful in situations where the source video is cut off.

Aspect Ratio Adjusts the image output to Fill Screen, Match Input or 16:9.

Fill Screen produces an image that fills the entire screen by

stretching and scaling.

Match Input matches the projector’s aspect ratio to the

input’s aspect ratio. As a result, black bands might appear along the top and bottom edges of the screen horizontally (letterbox format) or along the left and right edges of the screen vertically (pillarbox format).

16:9 changes the output to 16:9 by letterboxing the image,

which is recommended for use with HDTV and DVDs enhanced for wide-screen television.

N O T E

See Video format compatibility on page 27 for appearance descriptions in each mode.

Startup Screen Sets the type of startup screen to SMART or User. The SMART

screen is the default SMART logo on a blue background. The User screen uses the saved picture from the Capture User Startup Screen function.

Video Mute Turns the video mute setting on or off. Select On to hide the

display and Off to show it again.

A P P E N D I X A

Remotely managing your system through a network interface

Submenu setting Description

High Speed Fan Adjusts the speed of the projector’s fan. Select High orNormal.

N O T E

Use the High setting when the projector’s temperature is high or the altitude is above 1800m (6000').

Projector Mode Adjusts the projection mode to Front, Ceiling, Rear or Rear

Ceiling.

I M P O R T A N T

SMART recommends that you never change this setting from the Ceiling projection mode.

Source Adjusts the input source to VGA-1, VGA-2, Composite, S-Video

or HDMI.

VGA1 Assigns an alternative name to your VGA 1 input, which appears

when you select the VGA 1 input.

VGA2 Assigns an alternative name to your VGA 2 input, which appears

when you select the VGA 2 input.

Composite Assigns an alternative name to your Composite video input, which

appears when you select the Composite video input.

HDMI Assigns an alternative name to your HDMI input, which appears

when you select the HDMI input.

Emergency Alert Turns the on-screen alert broadcast message on or off. When

enabled, this message displays over the current projected image.

Alarm Message / Alert

Message

Displays an on-screen emergency notification message (maximum 60 characters).

Control panel II

USB Control settings

This menu allows you to associate a video source with a USB port on the ECP.

Submenu setting Description

USB1 Source Enables touch for the selected video source (VGA,HDMI1,HDMI2

orDisabled) by associating the video source with the room computer USB port (USB1) on the ECP.

USB2 Source Enables touch for the selected video source (VGA,HDMI1,HDMI2

orDisabled) by associating the video source with the laptop USB port (USB2) on the ECP.

A P P E N D I X A

Remotely managing your system through a network interface

Network settings

This menu allows you to use or not use Dynamic Host Control Protocol (DHCP) and to set the

network-related addresses and names when DHCP is not used.

Submenu setting Description

DHCP Determines whether the projector’s IPaddress and other network

settings are dynamically assigned by a DHCPserver or manually set.

On allows the network’s DHCP server to assign a dynamic

IP address to the projector.

Off allows you to manually set the projector’s IP address and

other network settings.

IP Address Displays or allows you to set the projector’s IP address in values

between 0.0.0.0 and 255.255.255.255.

Subnet Mask Displays or allows you to set the projector’s subnet mask number

in values between 0.0.0.0 and 255.255.255.255.

Gateway Displays or allows you to set the projector’s default network

gateway in values between 0.0.0.0 and 255.255.255.255.

DNS Displays or allows you to set the projector’s IP address for your

network’s primary domain name server in values between 0.0.0.0 and 255.255.255.255.

Group Name Displays or allows you to set the projector’s workgroup name

(maximum 12 characters).

Projector Name Displays or allows you to set the projector’s name (maximum 12

characters).

Location Displays or allows you to set the projector’s location (maximum 16

characters).

Contact Displays or allows you to set the contact name or number for

projector support (maximum 16 characters).

SNMP Turns the Simple Network Management Protocol (SNMP) agent

on or off.

Read-Only Community Sets a password that is required for each SNMP get request to

thedevice.

N O T E

The default for Read-Only Community is public.

Read/Write Community Sets a password that is required for each SNMP set request to the

device.

N O T E

The default for Read/Write Community is private.

A P P E N D I X A

Remotely managing your system through a network interface

Submenu setting Description

Trap Destination Address Displays or allows you to set the IP address of the network’s

SNMP TRAP manager in values between 0.0.0.0 and

255.255.255.255. The trap destination address is the IP address of the computer assigned to handle unsolicited data generated by SNMP TRAP events generated by the projector, such as power state changes, projector failure modes, a lamp needing to be replaced or other issues.

Email alerts

This menu enables you to enter your preferred address for receiving email alerts and adjust

related settings.

Submenu setting Description

Email Alert Selects Enable to turn on or Disable to turn off the Email Alert

function.

To Displays or allows you to set the email address of the email alert

recipient.

CC Displays or allows you to set the email address of the email alert

“copyto” recipient.

From Displays or allows you to set the email address of the user who

sends the email alert.

Subject Displays or allows you to set the email alert subject.

Outgoing SMTP server Displays or allows you to set the Simple Mail Transfer Protocol

(SMTP) server that you use on your network.

Username Displays or allows you to set the SMTP server user name.

Password Displays or allows you to set the SMTP server password.

Alert Condition Sends email alerts whenever Lamp Warning,Low Lamp Life,

Temperature Warning and Fan Lock conditions occur. Select the settings that you want and then click Submit.

N O T E

The projector sends an alert email (SMART Alert) to your email address. Click Email Alert Test to confirm that your email address and SMTP server settings are correct by sending a test email (SMART Alert-Test Mail).

If the settings are not correct, the email alert messages aren’t sent or received successfully and no warning or notification messages are available to advise of this state.

A P P E N D I X A

Remotely managing your system through a network interface

Password settings

This menu provides a security function that allows an administrator to manage projector use and

enable the Administrator Password function.

Submenu setting Description

Password When the password function is enabled, the administrator

password is required to access Web Management. Select Disable to allow remote web management of the projector without requiring a password.

N O T E S

l The first time you enable the password settings, the default password value is four

numbers, for example, 1234.

l The maximum allowable password length is four numbers or letters.

l If you forget the projector password, refer to Accessing the service menu on page 53 to

set the projector setting to factory defaults.

Simple Network Management Protocol (SNMP)

Your projector supports a list of SNMP commands as described in the management information

base (MIB) file. You can download this file by browsing to smarttech.com/software and clicking

the MIB files link in theHardware section for the SMART UF 70 projector.

The SNMP agent in your projector supports SNMP version 1 or 2. Upload the MIB file to your

SNMP management system application and then use it as described in your application’s user

guide.

Appendix B

system through an RS-232 serial interface

Connecting your room control system to the ECP 64

Serial interface settings 64

Projector programming commands 65

Projector power state controls 65

Command\response definitions 65

Field definitions 66 Source Application Selection 66

Command\response definitions 66

Field definitions 67 Video Control 68

Command\response definitions 68

Field definitions 69 Audio Control 73

Command/response definitions 73

Field definitions 74 Command/response definitions 76 Field definitions 76 Command/response definitions 78 Field definitions 80 Command/response definitions 85 Field Definitions 85 Command/response definitions 88 Field definitions 88 Command/response definitions 90

This appendix includes detailed instructions on how to set up your computer or room control

system to remotely manage your SMART Board 480i6 interactive whiteboard system settings

through an RS-232 serial interface.

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Connecting your room control system to the ECP

By connecting a computer or room control system to the 4-pin connector on the ECP, you can

select video inputs, start up or shut down your interactive whiteboard system and request

information such as projector lamp use, current settings and network addresses.

N O T E

On projectors with the RS-232 connector labelled Control 9v (rather thanControl), pin 1

functions as a +9V DC power source only for use with older model ECPs such as the ones

supplied with SMARTUF55 projectors.

Serial interface settings

The serial interface of the projector acts as a Data Communications Equipment (DCE) device

and its settings can’t be configured. You must configure your computer’s serial communication

program (such as Microsoft® HyperTerminal) or your room control system’s serial

communication settings with the following values:

Setting Value

Data Rate 19.2 kbps

Data Bits 8

Parity None

Stop Bits 1

Flow Control None

N O T E S

l Asynchronous mode is disabled by default in the projector.

l All commands should be in ASCII format. Terminate all commands with a carriage return.

l All responses from the projector are terminated with a command prompt. Wait until you

receive the command prompt indicating that the system is ready for another command

before you proceed.

l The room control feature of the projector is always on.

To configure your computer’s serial interface

1. Turn on your computer and then start your serial communications program or terminal

emulation program.

2. Connect your computer to the serial connection cable you previously connected to the ECP.

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

3. Configure your serial interface settings using the values from the table in the previous

section and then press ENTER.

An “invalid cmd= ? for help” message appears, and the > character appears as a command

prompt on the following line.

N O T E

If no message or an error message appears, your serial interface configuration isn’t

correct. Repeat step 3.

4. Type commands to configure your settings.

N O T E S

To see a list of commands available in the current operating mode, type ? and then

press ENTER.

If you’re using a terminal emulation program, turn on your program’s local echo

setting to see characters as you type them.

Projector programming commands

This section documents the projector programming commands and responses.

Projector power state controls

Device on/off and related controls.

Command\response definitions

Command Response Responds when powered off

on powerstate=[power state] yes

off [off option] powerstate=[power state] yes

get powerstate powerstate=[power state] yes

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field definitions

Field Possible values Description

off option l now

powerstate l powering

l on l cooling l confirm off l idle

This is an optional field and can simply be skipped. When specified, it forces the device to shut down – a user cannot cancel the process. If ‘now’ is not specified, the ‘off’ command should cause a dialogue to be displayed on the projector with a countdown. A second `off` must be sent before the countdown has expired to actually turn the unit off. If the countdown expires without an additional ‘off’ command, the projector does not turn off.

N O T E

This should be considered another projector state and when the countdown is completed an asynchronous response should indicate that the projector has returned to the ‘on’ state.

When powered down, this command should be accepted but will not do anything except return the power state.

The device’s current power state. Different

devices have different potential power states.

These power states should match the power

states found in the UF70 and UF70w projector.

Source Application Selection

Switches amongst different input sources and embedded applications, if any. Also controls the

USB switch for these given sources.

Command\response definitions

Command Response Responds when powered off

set input [target] input=[current] no

get input input=[current] yes

get videoinputs

set usb1source [target] usb1source=[current] yes

get usb1source usb1source=[current] yes

set usb2source [target] usb2source=[current] yes

videoinputs=[current

videoinputs]

yes

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Command Response Responds when powered off

get usb2source usb2source=[current] yes

Field definitions

Field Possible values Description

current input l VGA1

Composite

HDMI1

None

target input l = VGA1

l = Composite l = HDMI1 l = None l = Next

current videoinputs l VGA1,

Composite,

HDMI1

current usb1source l VGA1

l HDMI1 l Disabled

The input source to switch to. None is a nonselectable input and is returned in response to a get input command when the projector is turned off.

Target input to set the input to. If the input is

next, the projector will move to the next item

from the possible values list and return a

response equivalent to if the user had

specified that input directly.

Returns a comma separated list of the

available inputs on the projector. The strings

returned in this command must match the

strings used for the input selection from OSD.

VGA1 and HDMI1 are local at projector. VGA2

and HDMI2 are at UCP. The maximum could

be 10 inputs in the current list. (max 14

reserved).

Current value that the USB1 switch will be

enabled for.

target usb1source l = VGA1

l = HDMI1 l = Disabled

current usb2source l VGA1

l HDMI1 l Disabled

target usb2source l = VGA1

l = HDMI1 l = Disabled

Example:

Value to set the usb1 switch enabled source

to. Note that this should not be the same as

the usb2source. If it is, USB1 will be used and

USB2 is ignored.

Current value that the USB2 switch will be

enabled for.

Value to set the usb2 switch enabled source

to. Note that this can not be the same as the

usb1source. If it is, USB1 will be used and

USB2 is ignored.

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

> set input=vga1 input = vga1 > set input=next input = composite > get videoinputs videoinputs = vga1, composite, hdmi1 > get usb1source usb1source = vga1 > get usb2source usb2source = hdmi1 > set usb2source = hdmi1 usb2source = hdmi1 >

Video Control

Video output related controls. The range of values used for these commands should match the

range displayed visually on the OSD. The firmware must handle videofreeze and videomute

states correctly. A change should be made to ensure that videofreeze and videomute are

mutually exclusive.

Command\response definitions

Command Response Responds when powered off

set displaymode [target] displaymode =[current] no

get displaymode displaymode =[current] no

set brightness [target] brightness=[current] no

get brightness brightness=[current] no

set contrast [target] contrast=[current] no

get contrast contrast=[current] no

set frequency [target] frequency =[current] no

get frequency frequency =[current] no

set tracking [target] tracking =[current] no

get tracking tracking =[current] no

set saturation [target] saturation =[current] no

get saturation saturation =[current] no

set tint [target] tint =[current] no

get tint tint =[current] no

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

set sharpness [target] sharpness =[current] no

get sharpness sharpness =[current] no

set hposition [target] hposition =[current] no

get hposition hposition =[current] no

set vposition [target] vposition =[current] no

get vposition vposition =[current] no

set whitepeaking [target] whitepeaking =[current] no

get whitepeaking whitepeaking =[current] no

set degamma [target] degamma=[current] no

get degamma degamma=[current] no

set red [target] red=[current] no

get red red=[current] no

set green [target] green=[current] no

get green green=[current] no

set blue [target] blue=[current] no

get blue blue=[current] no

set cyan [target] cyan =[current] no

get cyan cyan =[current] no

set magenta [target] magenta =[current] no

get magenta magenta =[current] no

set yellow [target] yellow =[current] no

get yellow yellow =[current] no

set videofreeze [target] videofreeze =[current] no

get videofreeze videofreeze =[current] no

set displayhide displayhide = [target] no

get displayhide displayhide = [target] no

Field definitions

Field Possible values Description

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

target displaymode l = SMART

The ranges must match the OSD ranges

Presentation

l = Bright room l = Dark room l = sRGB l = User

current displaymode l SMART

The ranges must match the OSD ranges

Presentation

l Bright room l Dark room l sRGB l User

target brightness l + val

l – val l = 0 ~ 100

Specifying + or – will cause brightness to be

incremented or decremented from it’s current

value. Specifying a numerical value within the

possible range causes brightness to be set

directly to that value.

current brightness l = 0 ~ 100 The device’s current brightness.

target contrast l + val

l – val l = 0 ~ 100

Specifying + or – will cause contrast to be

incremented or decremented from its current

value. Specifying a numerical value within the

possible range causes contrast to be set

directly to that value.

current contrast l = 0 ~ 100 The device’s current contrast.

target frequency l + val

l – val l = -5 ~ +5

The ranges must match the OSD ranges

current frequency l = -5 ~ +5 The ranges must match the OSD ranges

target tracking l + val

l – val l = 0 ~ 31

The ranges must match the OSD ranges

current tracking l = 0 ~ 31 The ranges must match the OSD ranges

target saturation l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current saturation l = 0 ~ 100 The ranges must match the OSD ranges

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

target tint l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current tint l = 0 ~ 100 The ranges must match the OSD ranges

target sharpness l + val

l – val l = 0 ~ 31

The ranges must match the OSD ranges

current sharpness l = 0 ~ 31 The ranges must match the OSD ranges

target hposition l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current hposition l = 0 ~ 100 The ranges must match the OSD ranges

target vposition l + val

l – val l = -5 ~ +5

The ranges must match the OSD ranges.

Values depend upon the source?

current vposition l = -5 ~ +5 The ranges must match the OSD ranges

target whitepeaking l + val

l – val l = 0 ~ 10

The ranges must match the OSD ranges

current whitepeaking l = 0 ~ 10 The ranges must match the OSD ranges

target degamma l + val

l – val l = 0 ~ 3

The ranges must match the OSD ranges

current degamma l = 0 ~ 3 The ranges must match the OSD ranges

target red l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current red l = 0 ~ 100 The ranges must match the OSD ranges

target green l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current green l = 0 ~ 100 The ranges must match the OSD ranges

target blue l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current blue l = 0 ~ 100 The ranges must match the OSD ranges

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

target cyan l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current cyan l = 0 ~ 100 The ranges must match the OSD ranges

target magenta l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current magenta l = 0 ~ 100 The ranges must match the OSD ranges

target yellow l + val

l – val l = 0 ~ 100

The ranges must match the OSD ranges

current yellow l = 0 ~ 100 The ranges must match the OSD ranges

target videofreeze l = on

l = off

current videofreeze l = on

l = off

Video Freeze on/off

current displayhide l normal

l frozen l muted

target displayhide l normal

l frozen l muted l next

Matches the 3 states of the hide button on the

IR remote controller

Allows for setting of the mode directly or to

move from one state to the next sequentially.

The above commands can be used to set the property to an absolute value or cause a relative

adjustment to be made to the current value. Examples of using this are below:

>get brightness brightness=55 >set brightness = 65 brightness=65 >set brightness +5 brightness=70 >set brightness-15 brightness=55 >

All video commands should also have an optional source specification.

>set brightness = 65

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

brightness=65 This sets the brightness of the specified source. >set brightness vga1 = 65 brightness vga1 = 65

This sets the brightness of the vga1 regardless of whether the projector is on this source or not.

The operational parameters are ‘vga1’, ‘composite’, ‘hdmi1’.

Audio Control

Audio output related controls. The range of values used for these commands should match the

range displayed visually on the OSD.

Command/response definitions

Command Response Powered off

set volume [target] volume=[current] no

get volume volume=[current] no

set mute [target] mute=[current] no

get mute mute=[current] no

set volumecontrol

[target]

get volumecontrol volumecontrol=

volumecontrol=

[current]

set cc [target] cc=[current] no

get cc cc=[current] no

set sysoutputsw

[target]

get sysoutputsw sysoutputsw =

sysoutputsw =

[current]

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field definitions

Field Possible values Description

target volume l + val

l – val l = -20 to 20

Specifying + or – will cause volume to be incremented or decremented from its current value. Specifying a numerical value within the possible range causes volume to be set directly to that value. When the volume is modified from the RS232, the OSD volume slider should also appear on the screen identical to the slider that appears when using the other control. Note that -20 should map to 0 and 20 should map to 40.

current volume l -20 to 20 The device’s current volume. Note that -20

should map to 0 and 20 should map to 40.

target mute l = on

l = off

current mute l = on

l = off

current volumecontrol l = on

l = off

target volumecontrol l = on

l = off

Specifies whether mute is enabled or disabled.

Current state of the mute

Current state of the volume control

Specifies whether volume control is enabled or

disabled.

target cc l = cc1

l = cc2 l = off

current cc l = cc1

l = cc2 l = off

target sysoutputsw l = line+spkr

l = line l = spkr l = none

current sysoutputsw l = line+spkr

l = line l = spkr l = none

Closed captioning states

Specifies whether the system output switch is

line out only, speaker only, both, or none.

Current state of system output switch.

The above commands can be used to set the property to an absolute value or cause a relative

adjustment to be made to the current value. Examples of using this are below:

>get volume

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

volume=0 >set volume=-10 volume=-10 >set volume +5 volume=-5 >set volume -15 volume=-20

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Network information

Various network information.

Command/response definitions

Command Response Powered off

get netstatus netstatus =[current] yes

set network network=[current] yes

get network network=[current] yes

set dhcp [target] dhcp =[current] yes

get dhcp dhcp =[current] yes

set ipaddr [target] ipaddr =[current] yes

get ipaddr ipaddr =[current] yes

set subnetmask

[target]

get subnetmask subnetmask =

set gateway [target] gateway =[current] yes

get gateway gateway =[current] yes

set primarydns

[target]

get primarydns primarydns =[current] yes

get macaddr macaddr =[MAC

subnetmask =

[current]

primarydns =[current] yes

address]

yes

Field definitions

Field Possible Values Description

current netstatus l connected

l disconnected

current network l on

l off

Current state of the network interface

Current status of the network module and VGA

output

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

target network l on

l off

current dhcp l = on

l = off

target dhcp l on

l off

Enable/Disable network module and VGA

output

Enable/Disable for DHCP Networking

current ipaddr l [?].[?].[?].[?] Current IP address (static or dhcp assigned)

target ipaddr l [?].[?].[?].[?] Set to static IP Address

current subnetmask l [?].[?].[?].[?] Current Subnet Mask

target subnetmask l = [?].[?].[?].[?] Current Subnet Mask

current gateway l [?].[?].[?].[?] Current gateway

target gateway l = [?].[?].[?].[?] Current gateway

current primarydns l [?].[?].[?].[?] Current primary dns

target primarydns l = [?].[?].[?].[?] Current primary dns

MAC address l [?]-[?]-[?]-[?]-[?]-

The device’s MAC address.

[?]

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

System Information

Various system information.

Command/response definitions

Command Response Powered off

set autosignal [target] autosignal =[current] no

get autosignal autosignal =[current] no

set lampreminder

[target]

get lampreminder lampreminder =

set highbrightness

[target]

get highbrightness highbrightness =

set autopoweroff

[target]

get autopoweroff set

zoom [target]

set zoom [target] zoom=[current] no

get zoom zoom=[current] no

set projectorid [target] projectorid =[current] no

lampreminder =

[current]

highbrightness =

[current]

autopoweroff =

[current]

autopoweroff =

[current]

get projectorid projectorid =[current] no

set aspectratio

[target]

get aspectratio aspectratio=[current] no

set projectionmode

[target]

get projectionmode projectionmode =

set startupscreen

[target]

aspectratio=[current] no

projectionmode =

[current]

startupscreen =

[current]

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Command Response Powered off

get startupscreen startupscreen =

[current]

set restoredefaults restoredefaults=

yes

[current]

get lamphrs lamphrs=[current] yes

set lamphrs [target] lamphrs=0 yes

get syshrs syshrs=[current] yes

get resolution resolution=[current] no

get nativeaspectratio nativeaspect=[native] no

get fwverddp fwverddp =[current] yes

get fwvernet fwvernet =[current] yes

get fwvermpu fwvermpu =[current] yes

get serialnum serialnum =[current] yes

get fwverecp fwverecp =[current] yes

set language [target] language=[current] no

get language language=[current] no

set groupname

groupname =[current] no

[target]

get groupname groupname =[current] no

set projectorname

[target]

get projectorname projectorname =

projectorname =

[current]

set locationinfo

locationinfo=[current] no

[target]

get locationinfo locationinfo=[current] no

set contactinfo

contactinfo =[current] no

[target]

get contactinfo contactinfo =[current] no

get modelnum modelnum=UF70, or

UF70w

Return the actual model of the projector

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Command Response Powered off

set videomute [target] videomute=[current] no

get videomute videomute=[current] no

set vgaoutnetenable

[target]

vgaoutnetenable =

[current]

get vgaoutnetenable vgaoutnetenable =

[current]

set

emergencyalertmsg

emergencyalertmsg =

[current]

[target]

get

emergencyalertmsg

set emergencyalert

[target]

emergencyalertmsg =

[current]

emergencyalert=

[current]

get emergencyalert emergencyalert=

[current]

get signaldetected signaldetected=

[current]

yes

The response varies depending on the power mode.

Field definitions

Field Possible Values Description

target autosignal l = on

l = off

current autosignal l on

l off

target lampreminder l = on

l = off

current lampreminder l on

l off

target highbrightness l = on

l = off

current highbrightness l on

l off

The ranges must match the OSD ranges

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

target autopoweroff l + val

l – val l = 0 ~ 240

current autopoweroff l + val

l – val l = 0 ~ 240

target zoom l + val

l – val l = 0 ~ 30

The ranges must match the OSD ranges

current zoom l = 0 ~ 30 The ranges must match the OSD ranges

target projectorid l + val

l – val l = 0 ~ 999

The ranges must match the OSD ranges

current projectorid l = 0 ~ 999 The ranges must match the OSD ranges

target aspectratio l = fill

l = match l = 16:9

The ranges must match the OSD ranges.

Fill:

No matter what the input, the image is stretched, scaled etc to produce an image that matches the DMD device. So 16:9 in = 4:3 out for the XGA projector and 16:9 in = 16:10 out for the WXGA

current aspectratio l Fill

l match l 16:9

target projectionmode l = front

l = ceiling l = rear l = rear ceiling

Match:

The signal is scaled such that the input aspect ration is what is displayed. So 4:3 in = 4:3 out. 16:10 in = 16:10 in. 4:5 in = 4:5 out.

16:9

The signal is scaled and stretched to produce a 16:9 image.

The ranges must match the OSD ranges

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

current

projectionmode

target startupscreen l = smart

current startupscreen l = smart

l = front l = ceiling l = rear l = rear ceiling

l = usercapture l = preview

The ranges must match the OSD ranges

current reset l done Sent once the reset has been performed.

current lamphrs l 0 ~ 5000 Current lamp hour usage

target lamphrs l 0 Clear the current lamp hour usage. Zero is the

only valid value to be written.

current resolution l 800x600

l 1024x768 l … l no signal

Current resolution of the input. Current

resolution of the input. If no signal is detected,

‘resolution=no signal’ should be returned

native aspect ratio l 4:3 for UF70,

16:10 for UF70w

Native aspect ratio (kind of hardware settings).

DLP resolution of the projector. Return the

actual native aspect ratio of the projector.

current fwverddp l [?].[?].[?].[?] Current firmware version. Eg 2.0.0.0

current fwvernet l [?].[?].[?].[?] Network Processor Version

current fwvermpu l [?].[?].[?].[?] MPU Version

current prjserialnum l [?????????????] Projector Serial Number

current fwverecp l [?].[?].[?].[?] ECP Version

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

current language l Arabic

l Czech l German l Danish l Greek Letters l English l Spanish l Finnish l French l Norwegian

(Norsk)

l Italian l Japanese l Simplified

Chinese

l Traditional

Chinese

l Korean l Dutch l Polish l Swedish l Portuguese

(Portugal)

l Russian l Hindi l Portuguese

(Brazil)

Must match the OSD setting

target language l = above Must match the OSD setting

target groupname l = User String

current groupname l User String

target projectorname l = User String

current projectorname l User String

target locationinfo l = User String

current locationinfo l User String

target contactinfo l = User String

current contactinfo l User String

current modelnum l User String Must match the OSD screen

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

current videomute l on

l off

target videomute l = on

l = off

current

vgaoutnetenable

target

vgaoutnetenable

current

l on l off

l = on l = off

l User String Emergency Alert Message

emergencyalertmsg

target

l = User String Emergency Alert Message

emergencyalertmsg

current

emergencyalert

target

emergencyalertmsg

l on l off

l = on l = off

The ranges must match the OSD ranges

Current status of the VGA Out Enable and

Network Enable

Value to set the VGA Out and Network Enable

to.

To display the alert message, set this value to

on. To clear it, set it to off.

If the message is being displayed, return on.

current signaldetected l true

l false

If a signal is currently detected, then this

command returns true. Otherwise false is

returned.

Command List l .... A listing of commands follows the response.

This list does NOT include service information

commands.

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Service Information

These are commands used in servicing and manufacturing of the unit. They should be hidden

from the user during normal operation.

Command/response definitions

Command Response Powered off

get displayhour displayhour =[current] no

set testpattern [target] testpattern =[current] no

set colorwheelidx

[target]

get colorwheelidx colorwheelidx =

get failurelog failurelog =[current] yes

get error# Error#=[current] yes

set factoryreset

[target]

set highspeedfan

[target]

get highspeedfan highspeedfan =

set statereporting

[target]

get statereporting statereporting =

colorwheelidx =

[current]

factoryreset =[current] yes

highspeedfan =

[current]

statereporting =

[current]

yes

get poweroverride poweroverride=

[current]

set poweroverride

[target]

poweroverride=

[current]

Field Definitions

Field Possible Values Description

current displayhour l 0 ~ 20000 Current Display hours.

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

target testpattern l = ? Set the test pattern to pattern number X (1~4).

If only one test pattern, call it test pattern 1.

current testpattern l 1: Grid

l 2: RED l 3: Green l 4: Blue l 5: Grey l 6: Black

Current test pattern being displayed. Just

return the test pattern number is OK. The built-

in test pattern may be changed.

target colorwheelidx l = ??? The ranges must match the OSD ranges

current colorwheelidx l ??? The ranges must match the OSD ranges

current failurelog l normal

l overtemp l fanlock l fanDMD l fanblower l fansystem l lamperror l colorwheelbreak l lampignite l lampoverheat l lampdriver l lampoverhours

Current error state that the projector is in. The

modes are projector dependent.

Current error# Provide the details of

the specific error. ‘#’ is

the number recorded

in the log. It ranges

from 1 to 5. 1

indicates the most

recent error and 5

indicates the oldest

error.

target factoryreset l = true

l = false

current factoryreset l = true

l = false

target highspeedfan l = high

l = normal

The details include the failure reason, system

hours, lamp hours, sensor temperature and

lamp voltage. For example: error1=fansystem,

syshrs:1000, lamphrs=1000, temp=60,

volt=120. error2=lampoverheat, syshrs:3000,

lamphrs=2900, temp=150,volt=120.

If set to true, perform a factor reset. Otherwise

do nothing.

Set to true only if a factor reset is about to

occur.

The ranges must match the OSD ranges

A P P E N D I X B

Remotely managing your system through an RS-232 serialinterface

Field Possible Values Description

current highspeedfan l high

l normal

current statereporting l on

l off

target statereporting l = on

l = off

current poweroverride l on

l off

The ranges must match the OSD ranges

Current state reporting value

State reporting value desired.

Power override forces the projector to remain in the ON state when the command is received. This command is NOT persistent and does not get stored to non-volatile memory (cleared on power cycle).

When this mode is enabled, the power button on the remote and the ECP must not turn off the projector.

This command must also be added to the service menu so the user can disable it via the OSD.

target poweroverride l = on

l = off

Value to set the power override to.

SMART Board 800i6 Configuration And User's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important information

Safety warnings, cautions and important information

Installation

Operation

Other precautions

Environmental requirements

Contents

SMART Board 480i6 interactive whiteboard system features

Extended Control Panel (ECP)

Included accessories

Remote control

Pens

SMART Board 480i6 interactive whiteboard system accessories

RCA connector pod

Choosing a location

Choosing a height

Securing your interactive whiteboard system

Locking the pen tray to your interactive whiteboard

Securing the projector to the boom

Routing the cables

Installing SMART software

Using your projector

Using your remote control

Replacing the remote control battery

Using the remote control buttons

Adjusting projector settings

Focusing the image

Adjusting the image

Projector connection diagram

Using your interactive whiteboard

Using the Extended Control Panel (ECP)

Using the RCA connector pod

Video format compatibility

Native video format

Video format compatibility

HD and SD signal format compatibility

Video system signal compatibility

Connecting peripheral sources and outputs

Maintaining your interactive whiteboard

Cleaning the projector

Focusing and adjusting the projector image

Replacing the projector lamp

Removing and replacing the projector lamp module

Resetting the lamp hours

Before you start

Locating status lights

Locating serial numbers

Determining your interactive whiteboard system’s status

Resolving interactive whiteboard issues

Resolving operation issues

Resolving connection issues

Resolving controller module issues

Resolving projector issues

Resolving projector errors

Resolving image issues

Loss of signal

Partial, scrolling or incorrectly displayed image

Unstable or flickering image

Frozen image

Your image doesn’t fit the interactive whiteboard

The image from your connected laptop computer isn’t projected

Unaligned projected image

Resolving audio issues

Resolving network communication issues

Resolving ECP issues

Accessing the service menu

Retrieving your password

Resetting the projector

Transporting your interactive whiteboard system

Webpage management

Accessing webpage management

Home

Control panel

Control panel II

USB Control settings

Network settings
