SMART Board 2000i Installation Manual

Installation

Guide

Interactive Whiteboard

Registration Benefits

In the past, we’ve made new features such as handwriting recognition, USB support and SMART Recorder available as free software upgrades. Register your SMART Board 2000i interactive whiteboard to be notified of free upgrades like these.

Keep the following information available in case you need to contact Technical Support:

Serial Number

Date of Purchase

Rear Projection

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Trademark Notice

SMART Board, DViT, X-Port, Notebook and the SMART logo are trademarks of SMART Technologies Inc. Windows is either a registered trademark or a trademark of Microsoft Corporation in the U.S. and/or other countries. All other thirdparty product and company names may be trademarks of their respective owners.

© 1992–2003 SMART Technologies Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

Portions of this software are copyrighted by Intel Corporation. Portions of this software are copyrighted by ParaGraph, a business unit of Vadem.

U.S. Patent Nos. 5,448,263; 6,141,000; 6,326,954 and 6,337,681. Canadian Patent No. 2,058,219. Other U.S., Canadian and foreign patents pending.

Printed in Canada 08/2003

Important Information

Please read this manual carefully before setting up and using the Rear Projection SMART Board 2000i interactive whiteboard. With proper care, your 2000i should provide years of trouble-free service.

WARNING

The projector inside the unit is a high brightness light source. Do not look directly into the beam of light. Prevent children from staring directly into the beam of light.

Le projecteur qui se trouve à l’intérieur de l’armoire est une source de lumière à luminosité élevée. Ne fixez pas et ne regardez pas dans la direction du faisceau lumineux. Empêchez les enfants de regarder dans la direction du faisceau lumineux.

El proyector que se encuentra en el interior de la cabina es una fuente de luz de alta luminosidad. No mire fija ni directamente al haz de luz. Evite que los niños fijen la vista en el haz de luz.

Der Projektor im Schrank stellt eine Lichtquelle mit hoher Intensität dar. Blicken Sie nicht direkt in den Lichtstrahl. Verhindern Sie, dass Kinder direkt in den Lichtstrahl blicken.

キャビネット内のプロジェクターは、高輝度光源です。ビーム光線を覗き込んだり、直接見たりしないでください。お子様がビーム光源を覗き込まないように注意してください。

Lock the casters and extend the anti-tip feet before you use the unit. Otherwise, the 2000i could tip over.

Bloquez les roulettes et étendez les pieds avant d’utiliser l’appareil. Autrement, le 2000i risque de basculer et de tomber.

Bloquee las ruedas y extienda los pies ajustables antes de utilizar la unidad. De no hacerlo, la pantalla 2000i podría volcarse.

Sichern Sie die Rollenbremsen und fahren Sie die Sicherheitsstützen aus, bevor Sie das Gerät verwenden. Andernfalls könnte das 2000i umkippen

WARNING

ユニットをご使用になる前に、キャスターをロックして、脚を伸ばしてください。それ以外の場合は、2000i がひっくり返る可能性があります。

Make sure an AC socket outlet is near the 2000i and remains easily accessible during use.

Assurez-vous qu’une prise secteur se trouve à proximité du 2000i et demeure facilement accessible durant l’utilisation.

Asegúrese de que hay una toma de corriente alterna cerca del 2000i y que es fácilmente accesible para su uso.

Stellen Sie sicher, dass sich in der Nähe des 2000i eine Steckdose befindet und sie während der Verwendung auch leicht zugänglich bleibt.

2000i

の近くに電源用のコンセントがあり、使用中に手が簡単に届くことを確認してください。

Important Information

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

Pour réduire le risque d'incendie ou de choc électrique, évitez d'exposer ce produit à la pluie ou à l'humidité.

Para reducir el riesgo de incendio o de descarga, no exponga este producto a la lluvia o la humedad.

Um das Risiko eines Feuers oder eines Stromschlags zu reduzieren, darf das Produkt weder Regen noch Nässe ausgesetzt werden.

火事や感電の恐れがありますので、この製品は雨にさらしたり湿気のあるところに置かないでください。

WARNING for

European

Customers

AVERTISSEMENT

pour les clients

européens

ADVERTENCIAS Para los clientes

europeos

The 2000i should only be used with European TN and TT power distribution systems.

The 2000i is not suitable for older, IT-type power distribution systems found in some European countries. “This system (IT-type) is widely used isolated from earth, in some installations in France, with impedance to earth, at 230/400V, and in Norway, with voltage limiter, neutral not distributed, at 230V line-to-line.” (IEC 60950:1999)

Contact qualified personnel if you're uncertain of the type of power system available where you're installing your 2000i.

Le 2000i doit être utilisé uniquement avec les systèmes de distribution d’alimentation européens TN et TT.

Le 2000i ne convient pas aux systèmes de distribution d’alimentation plus anciens de type IP utilisés dans certains pays européens. « Ce système (type IT) est largement utilisé isolé de la terre, dans certaines installations en France, avec une impédance à la terre, à 230/400V, et en Norvège, avec limiteur de tension, neutre non distribué, à 230V ligne à ligne. (IEC 60950:1999)

Si vous avez des doutes sur le type de système d’alimentation disponible lors de l’installation de votre 2000i, contactez un personnel qualifié.

La 2000i sólo se podrá utilizar con los sistemas eléctricos TN y TT europeos.

Este modelo no está disponible para antiguos sistemas eléctricos de tipo IT que aún se utilizan en algunos países europeos. “Este sistema (IT) tiene una utilización muy extendida como núcleo aislado de tierra; en algunas instalaciones en Francia, con impedancia de tierra, a 230/400 V; y en Noruega, con limitador de tensión, a 230 V entre conductores.” (CEI 60950:1999)

Si no está seguro del tipo de sistema eléctrico que posee, póngase en contacto con personal cualificado a la hora de instalar su modelo 2000i.

Important Information

WARNUNG für

europäische

Kunden

Das 2000i darf nur mit europäischen TN- und TT-Netzverteilern verwendet werden.

Das 2000i eignet sich nicht für ältere Netzverteiler vom Typ IT, die in manchen europäischen Ländern zu finden sind. „Dieses System (ITTyp) wird, von der Erdung isoliert, in einigen Installationen in Frankreich mit Impedanz zu Erde bei 230/400 V und in Norwegen mit Spannungsbegrenzer, neutral, nicht verteilt, bei 230 V Leitung zu Leitung verwendet.“ (IEC 60950:1999)

Wenden Sie sich an qualifiziertes Personal, wenn Sie sich nicht sicher sind, welches Stromsystem dort zur Verfügung steht, wo Sie Ihr 2000i installieren.

ヨーロッパのお客様への警告

2000i はヨーロッパの TN および TT 配電システムでのみ、使用する必要があります。

2000i はヨーロッパの一部の国で使用されている旧式の IT タイプの配電システムには適していません。「このシステム (IT タイプ) は、地面から離した状態で広く使用されていますが、一部フランスでは 230/400V でインピーダンスを通して接地され、ノルウェイでは、電圧制限器により中性非分散型で 230V のライン間電圧で使用されています」

(IEC 60950:1999)

2000i

をインストールする際に使用可能な電源システムのタイプに関して不明な点がある場合は、担当者までお問い合わせください。

Other Warnings and Safety Precautions

For operating safety and to avoid damage to the unit, follow these instructions.

1. Move the unit with care. Quick stops, excessive force and uneven surfaces can overturn the unit.

2. When you transport the 2000i, only ship it in an upright position and never lay the interactive whiteboard face down.

3. If you transport the 2000i over a distance, we strongly urge you to completely repackage it using the original packaging. This packaging was designed with optimal shock and vibration protection. If the original packaging is no longer available, pack all components with as much padding as reasonably possible to ensure that they are not exposed to excessive vibration or shock.

4. Clean the interactive whiteboard surface on a regular basis. Otherwise, dust may build up on the surface, adversely affecting the operation of the 2000i.

5. Do not touch the rear surface of the screen or apply isopropyl alcohol, water or acetone. If any of these fluids come into contact with this surface, the diffusion coating will be damaged, resulting in a permanent deterioration in display quality.

6. If you inadvertently smudge the rear surface of the screen, wipe it carefully with a soft cloth and alcohol-free glass cleaner. Do not spray the glass cleaner directly on the back of the screen; spray it lightly on the cloth, and then gently dab the rear surface until the marks are removed.

Important Information

iii

7. The 2000i uses digital cameras that are located inside the screen frame. Do not allow excess glass cleaner to flow into the crack between the frame and the writing surface, because the cleaner could damage these cameras.

8. Avoid setting up and using the 2000i in an area with excessive levels of dust, humidity or cigarette smoke.

9. Avoid exposing the 2000i to extreme heat or cold. The operating temperature range is from 41°F to 85°F (5 storage range is from -4°F to 95°F (-20

C to 29°C) with up to 80% humidity (non-condensing). The shipping and

C to 35°C) with up to 80% humidity (non-condensing).

10. Unplug the unit during electrical storms or if you won't use it for an extended period of time.

11. This product has a three-wire grounding-type plug, which will only fit into an AC grounding-type power outlet. Make sure an AC socket outlet is near the 2000i and remains easily accessible during use. If you are unable to insert the plug into the outlet, have your electrician replace the obsolete outlet. Do not circumvent the safety features of the grounding-type plug.

12. Handle the power cord carefully and avoid excessive bending. Route the power cord so it’s unlikely to be walked on or pinched by items placed upon or against it. Do not modify the power cord.

13. If you require replacement parts, ensure the service technician uses replacement parts that are specified by SMART Technologies Inc., or parts with the same characteristics as the original.

Important Information

Contents

Important Information........................................................................ i

Other Warnings and Safety Precautions .......................................................iii

About the 2000i ................................................................................. 1

Features .........................................................................................................1

Getting to Know Your 2000i ........................................................................... 2

Pen Tray Features .........................................................................................3

Control Panel .................................................................................................4

Installing Your 2000i ......................................................................... 5

Setting Up the 2000i.......................................................................................5

Installing Your Computer ...............................................................................7

Powering up the 2000i ...................................................................................8

Adjusting the Power Settings ......................................................................... 9

Adjusting the Projected Image ..................................................................... 10

Installing the Videoconferencing/Laptop Shelf.............................................17

Keeping the Projector On............................................................................. 19

Matching Computer Resolution to Projector Resolution..............................20

Installing the SMART Board Software .........................................................21

Configuring and Orienting the Interactive Whiteboard................................. 21

Calibrating the Cameras (DViT Technology)............................................... 22

Connecting a Guest Laptop .........................................................................23

Connecting a VCR or DVD Player ...............................................................26

Connecting an External Sound System .......................................................27

Connecting an External Monitor or Projector...............................................28

Basic Operations ............................................................................ 29

Starting Up the 2000i ...................................................................................29

Startup Scenarios.........................................................................................30

Shutting Down the 2000i..............................................................................31

Adjusting the Height of the Interactive Whiteboard......................................31

Adjusting the Volume ...................................................................................33

Adjusting the Projector Settings...................................................................33

Changing the Display Source ......................................................................34

Using the SMART Board Interactive Whiteboard ........................................35

Enabling/Disabling Multipointer Mode (DViT Technology) ..........................36

Maintenance .................................................................................... 37

Cleaning the Interactive Whiteboard and other Components...................... 37

Cleaning the Projector .................................................................................37

Replacing the Projector Lamp and Filter .....................................................38

Customer Support .......................................................................... 40

Contacting SMART Technical Support ........................................................ 40

General Inquiries.......................................................................................... 40

Warranty....................................................................................................... 40

Registration Card .........................................................................................40

Appendix A: Projector Settings..................................................... 41

Index ................................................................................................ 43

Contents

List of Figures

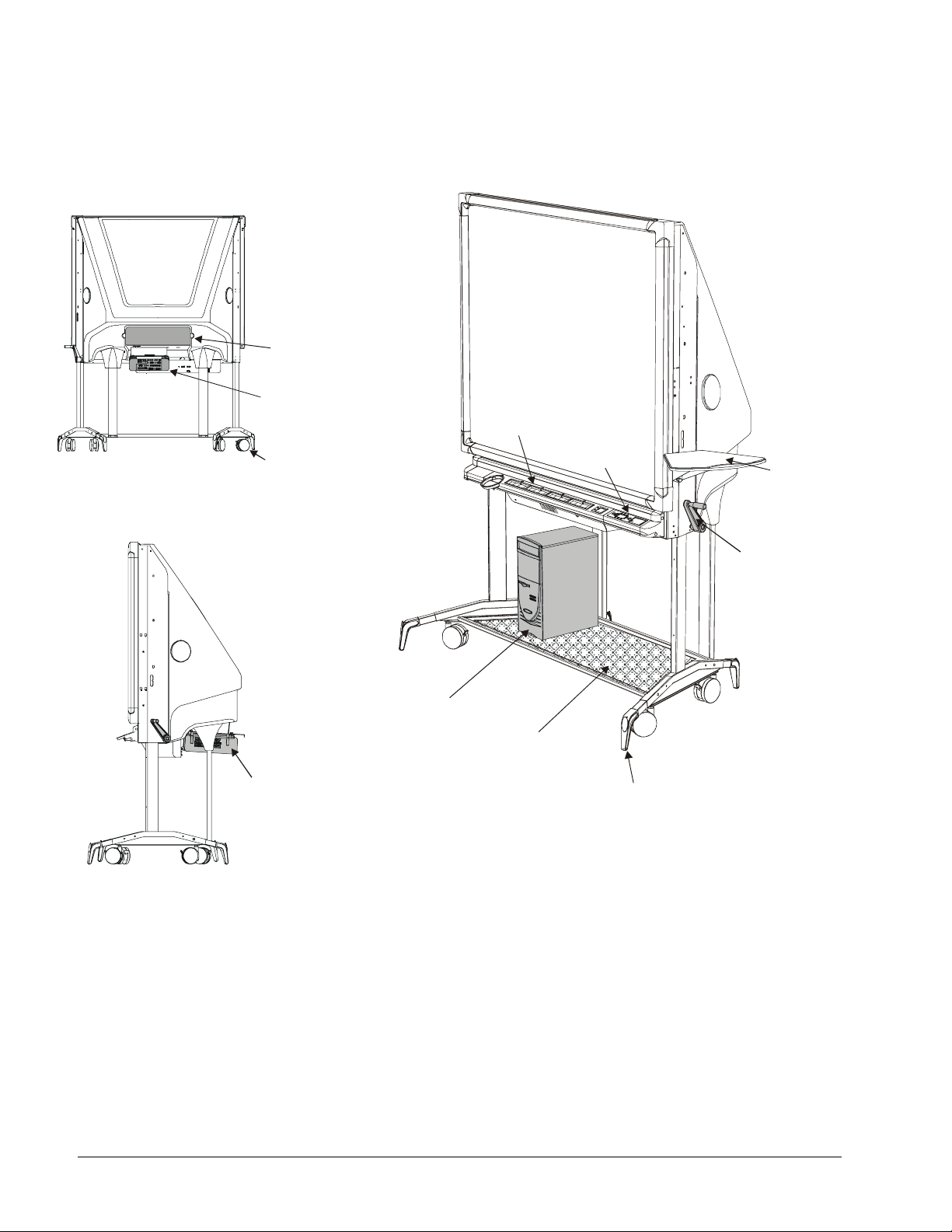

Figure 1: Major Components of the 2000i .................................................................. 2

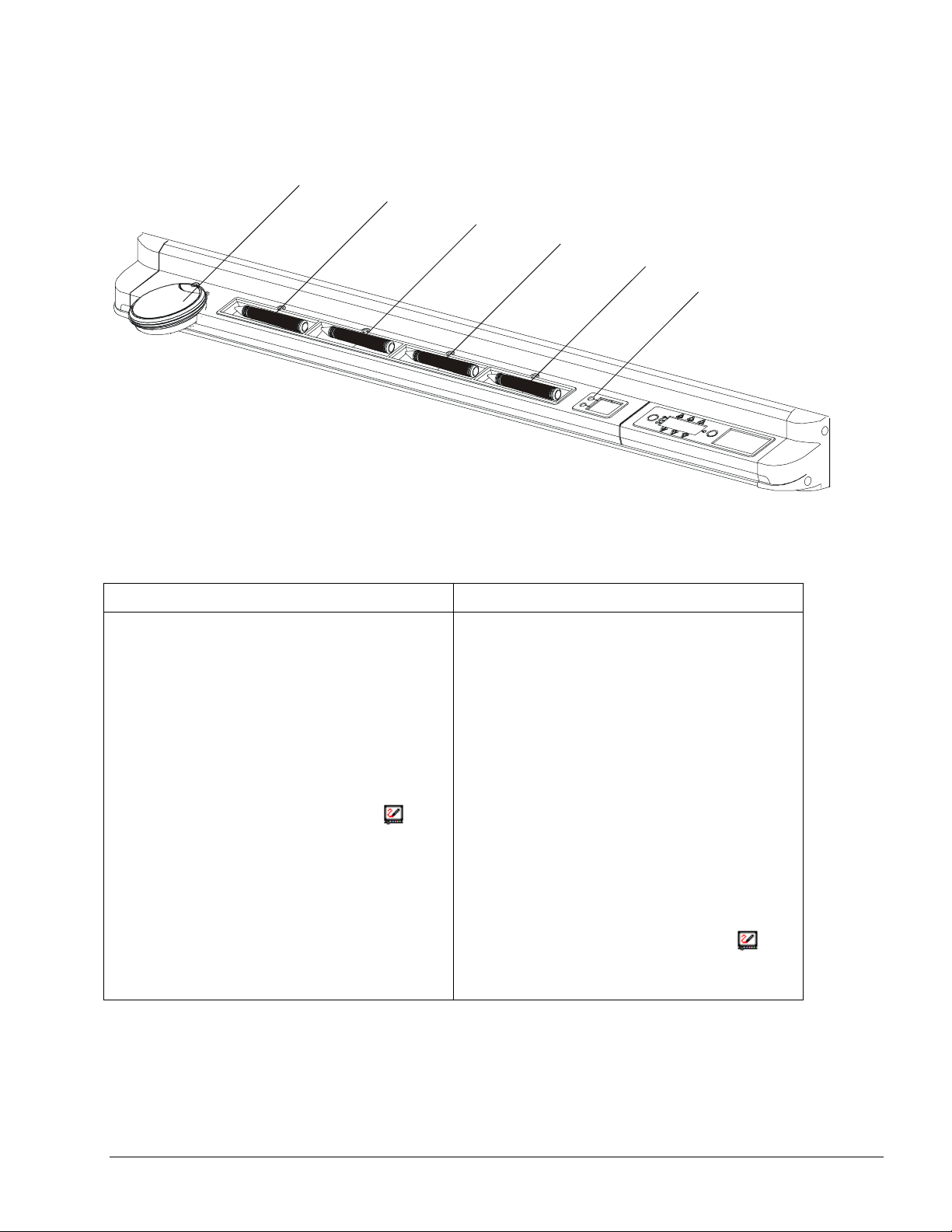

Figure 2: The Pen Tray............................................................................................... 3

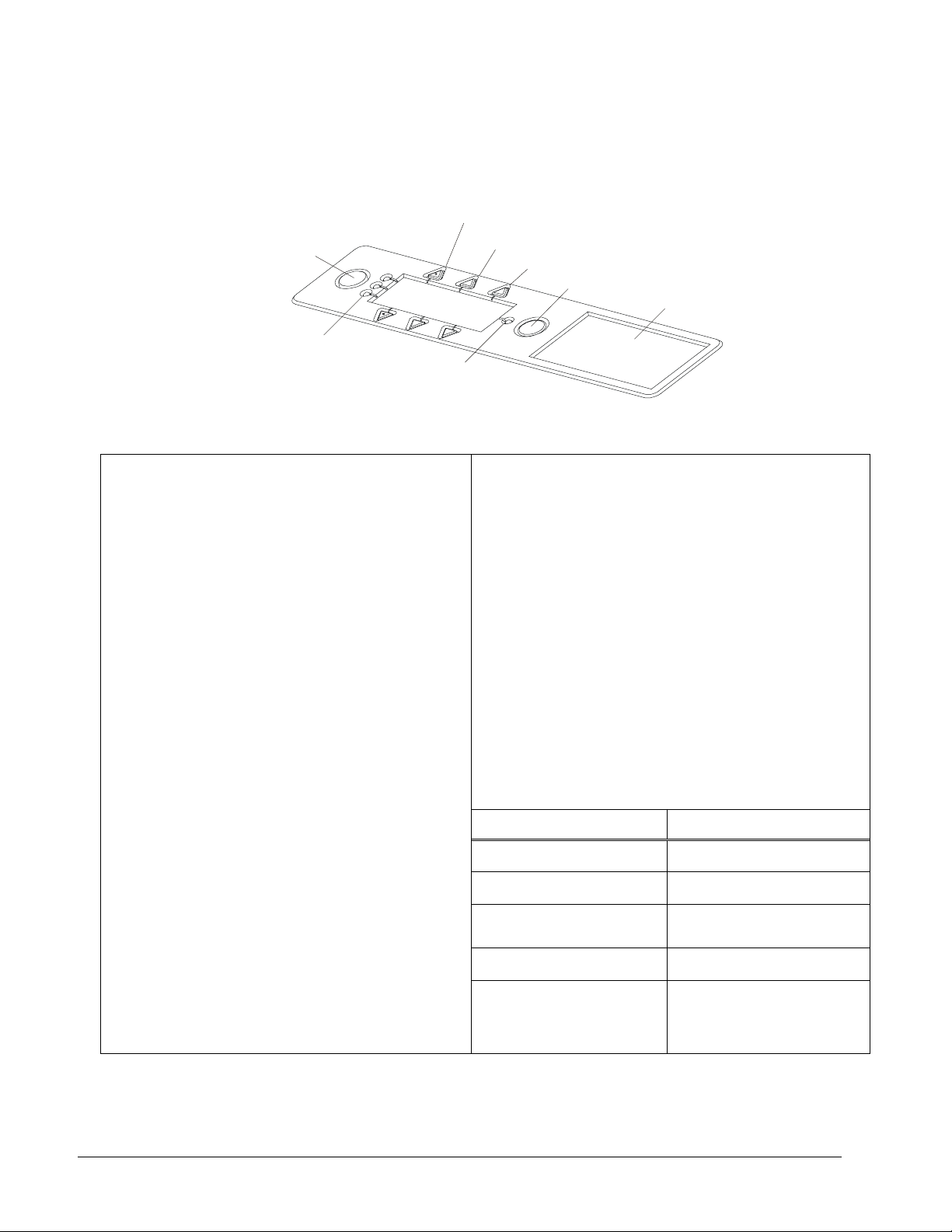

Figure 3: The Control Panel ....................................................................................... 4

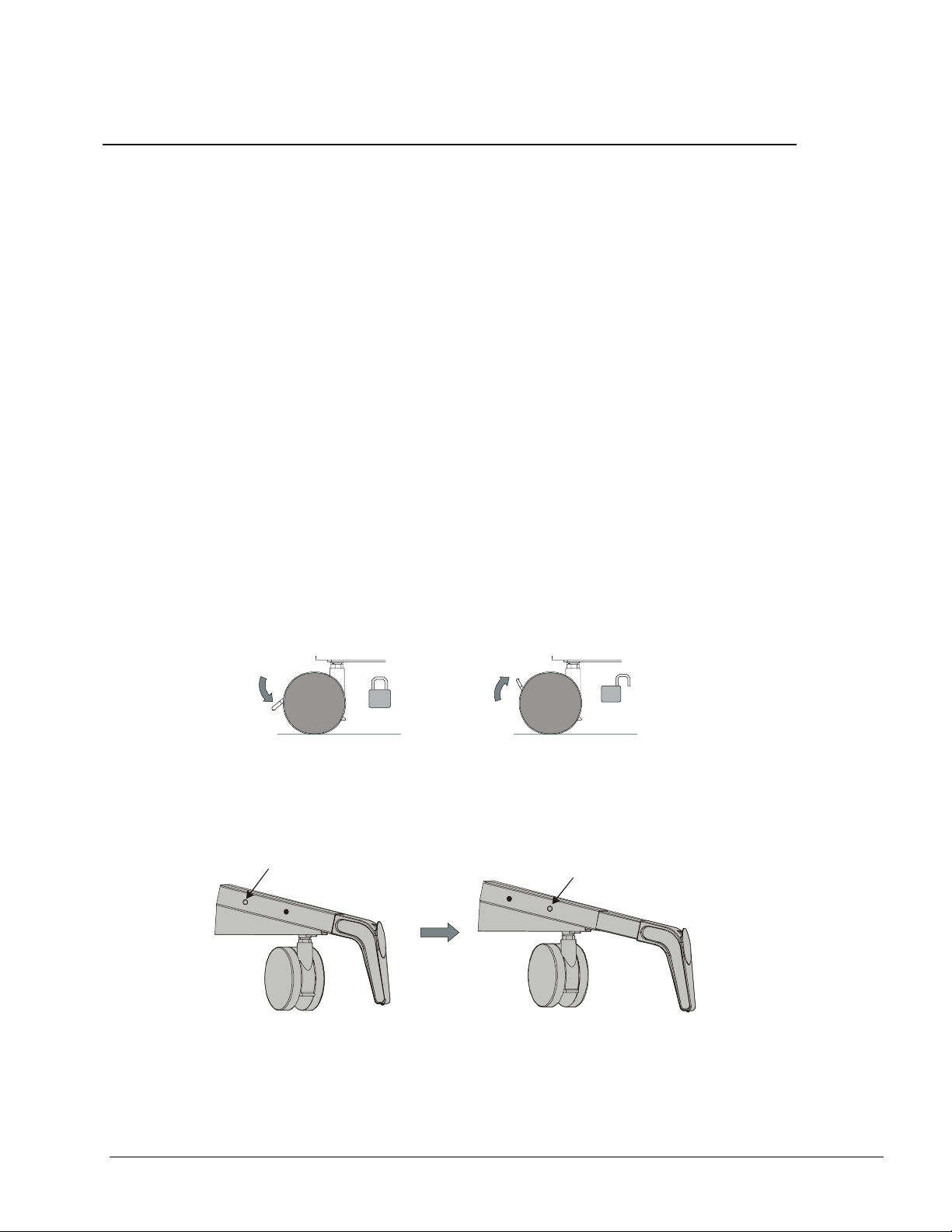

Figure 4: A Locked and Unlocked Caster................................................................... 5

Figure 5: Extending an Anti-Tip Foot.......................................................................... 5

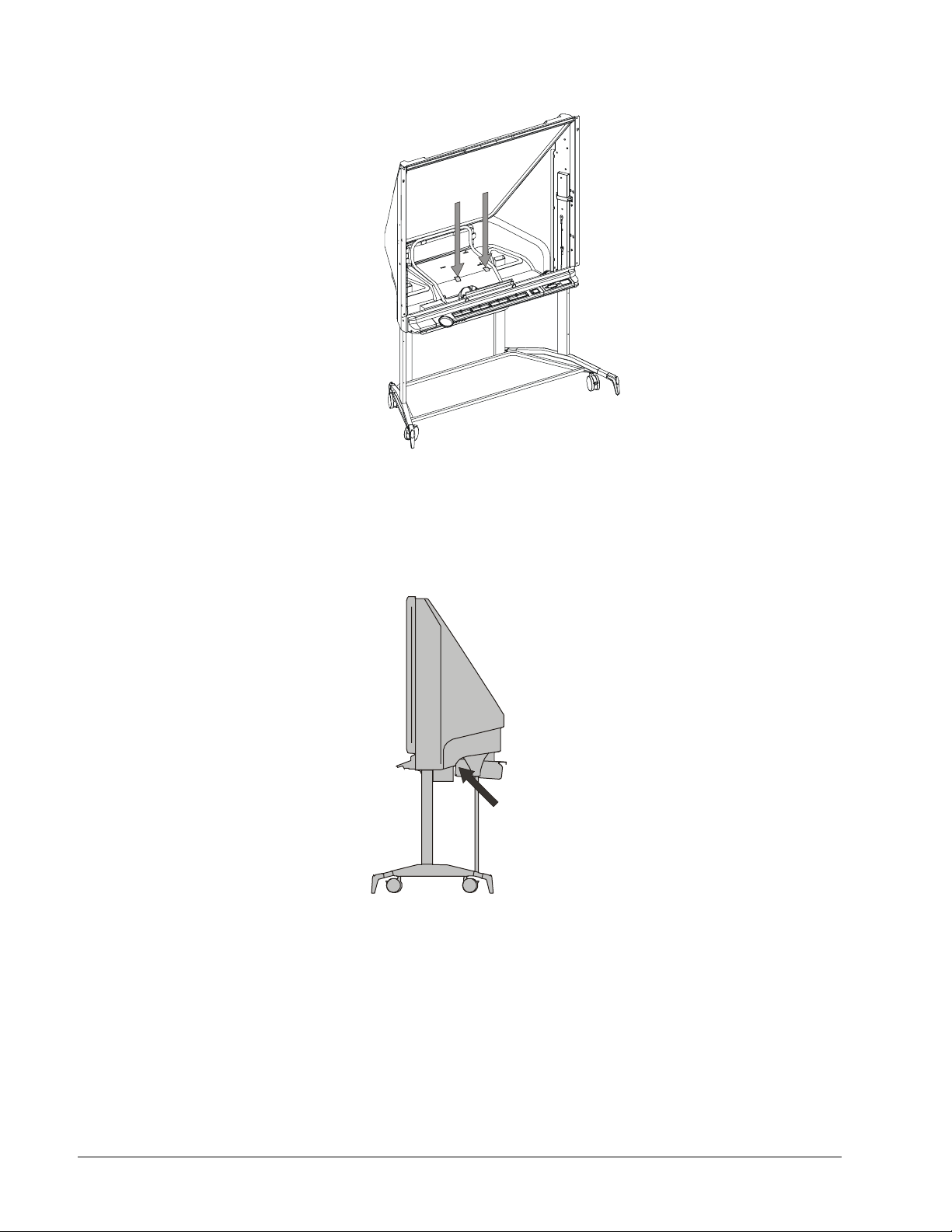

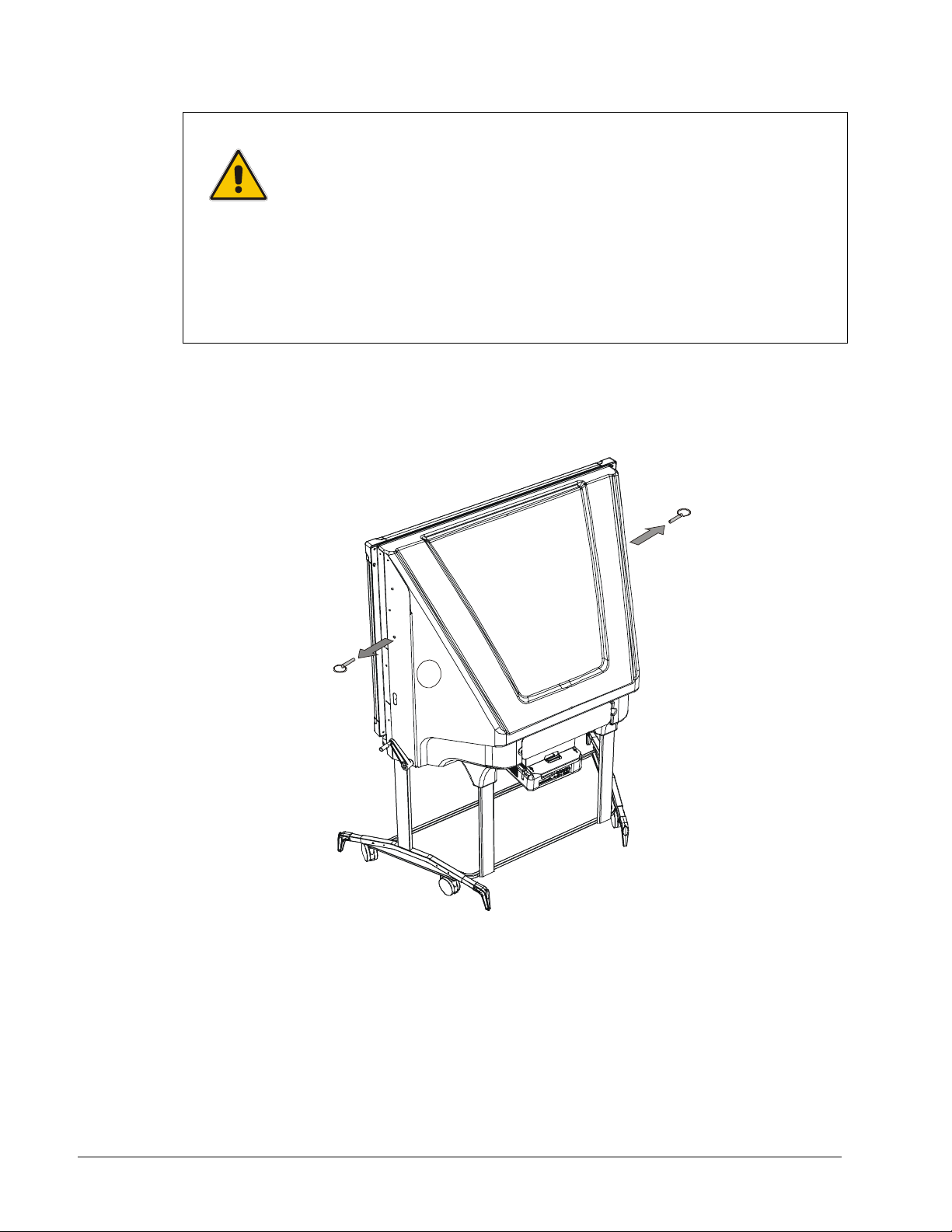

Figure 6: Removing the Locking Pins......................................................................... 6

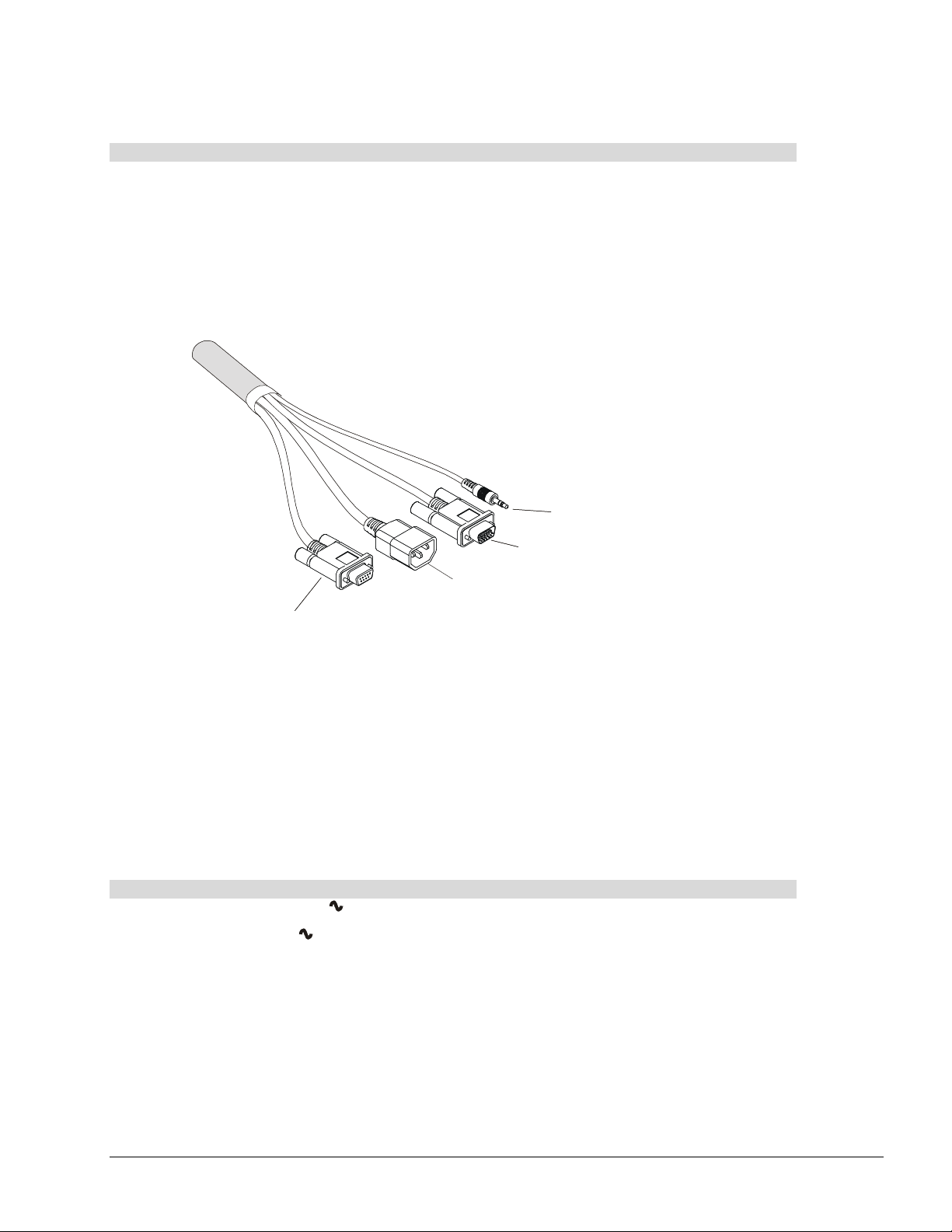

Figure 7: Computer and Power Cables ...................................................................... 7

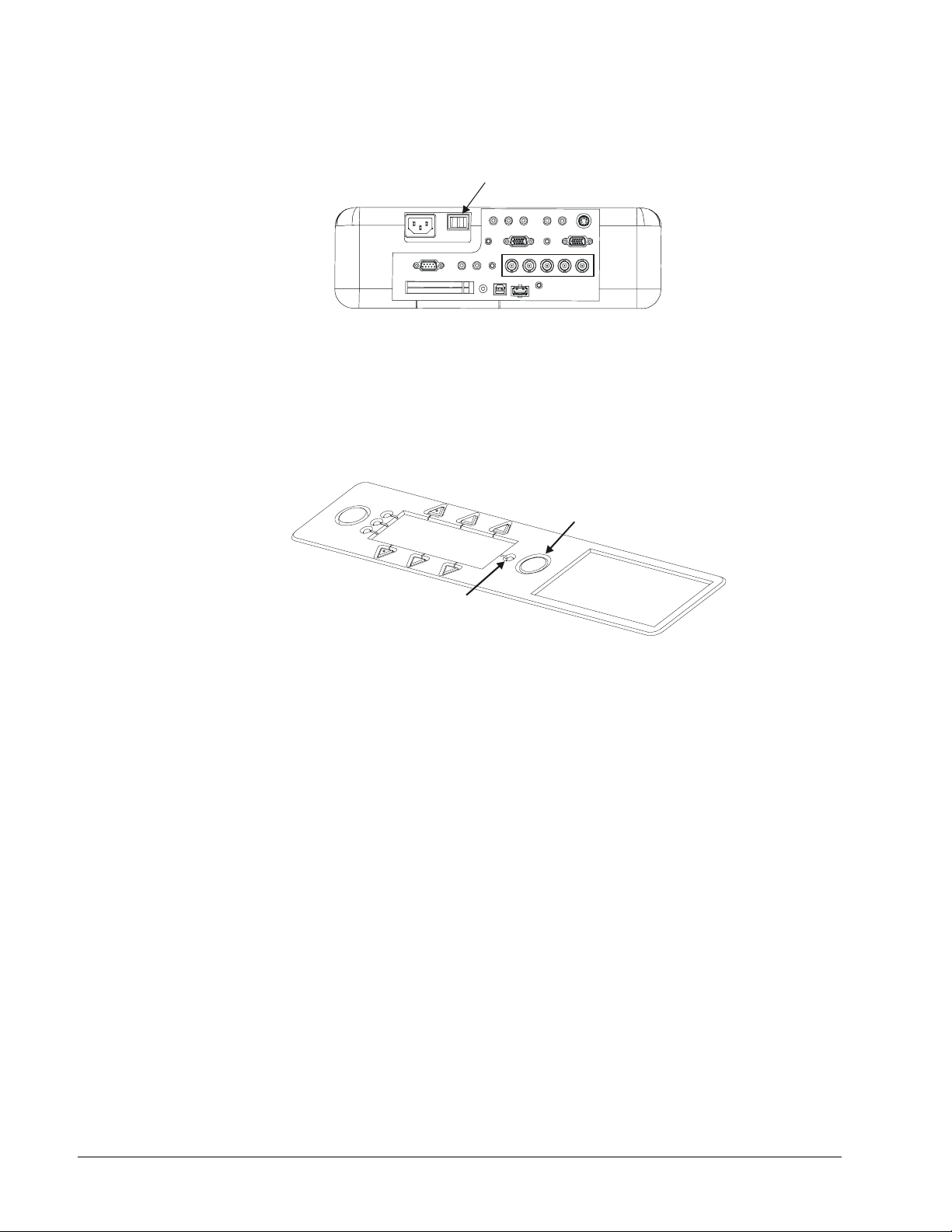

Figure 8: Main Power Switch on Projector ................................................................. 8

Figure 9: Projector Standby Button and LED Indicator .............................................. 8

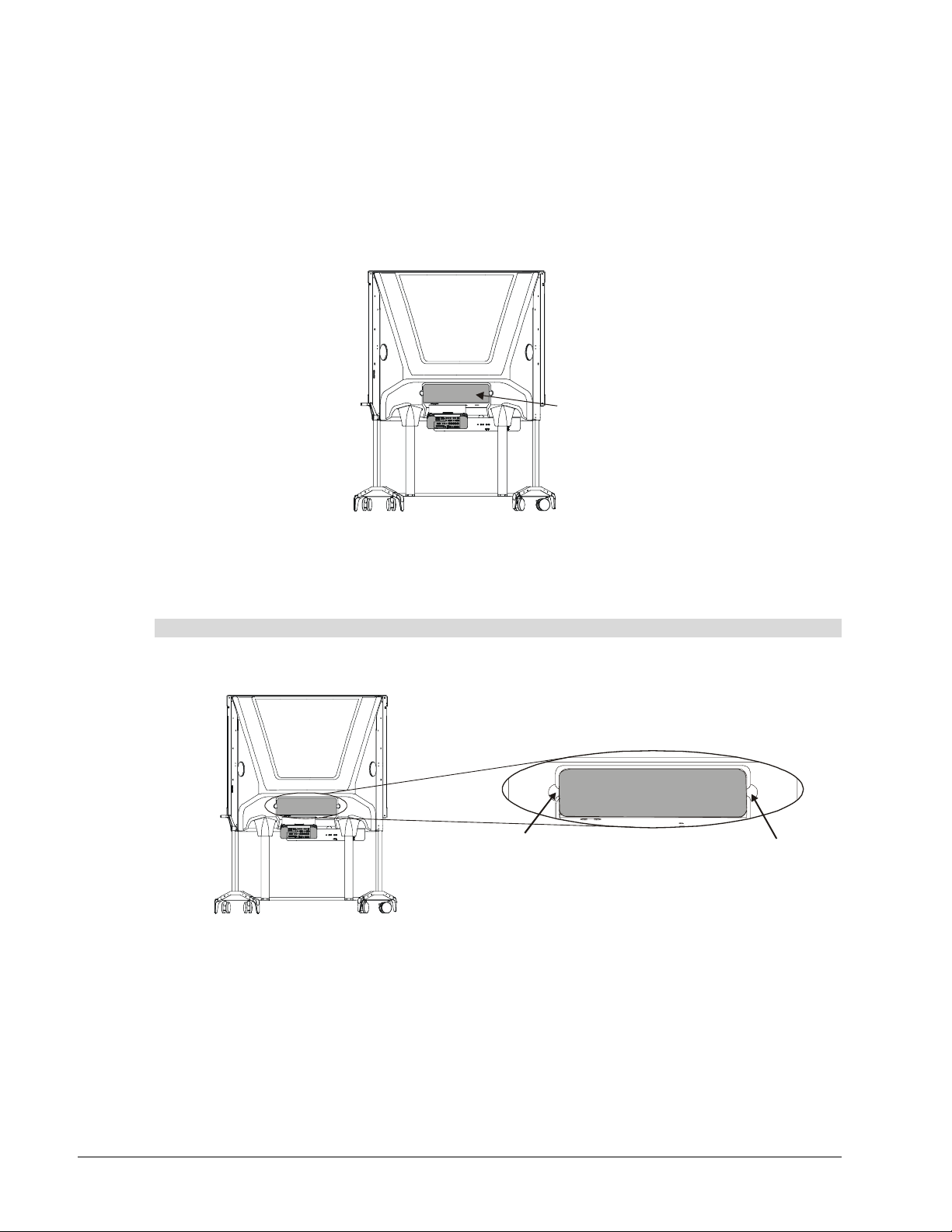

Figure 10: Location of the View Port Cover.............................................................. 10

Figure 11: Removing the View Port.......................................................................... 10

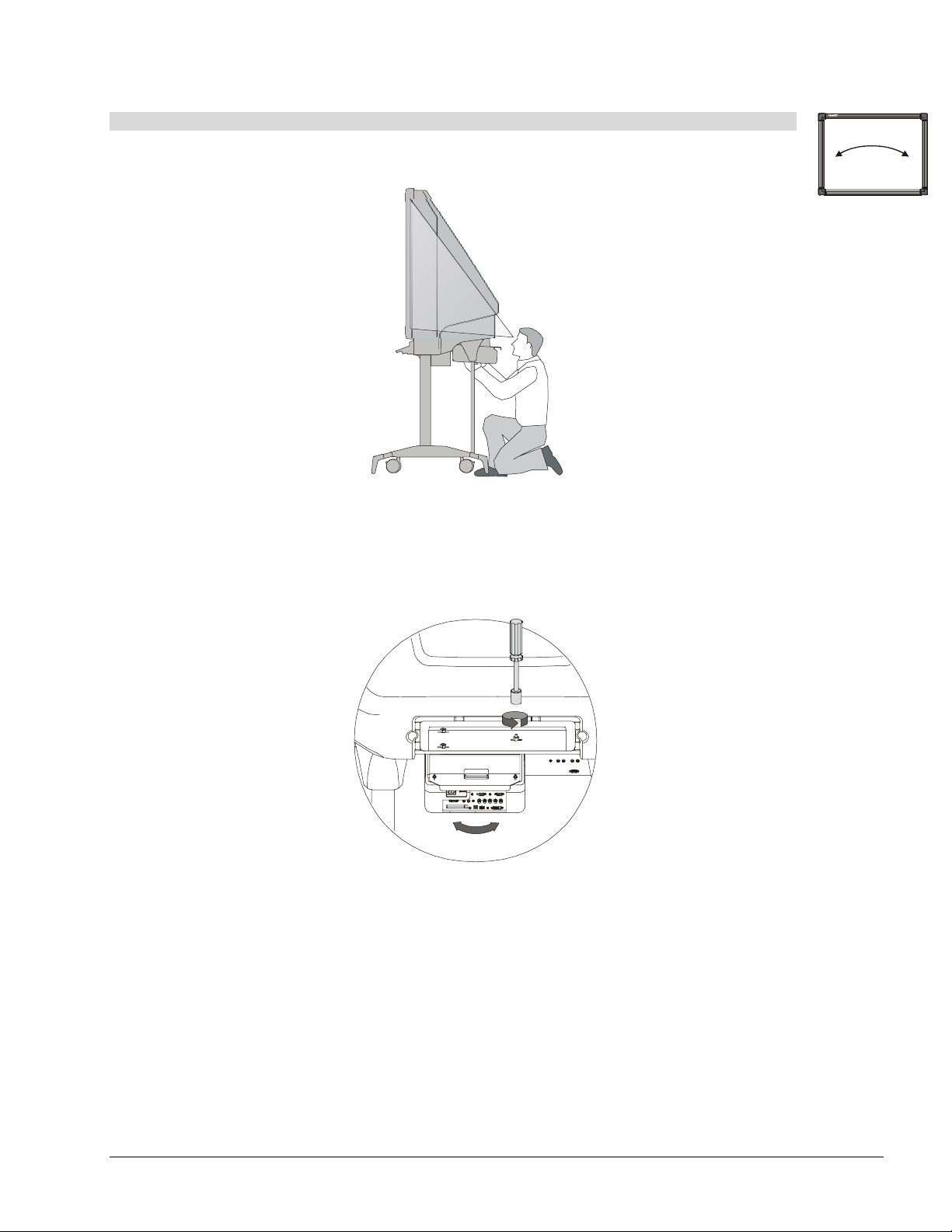

Figure 12: Position for Adjusting Image Roll ............................................................ 12

Figure 13: Using the Nut Driver to Adjust Roll.......................................................... 12

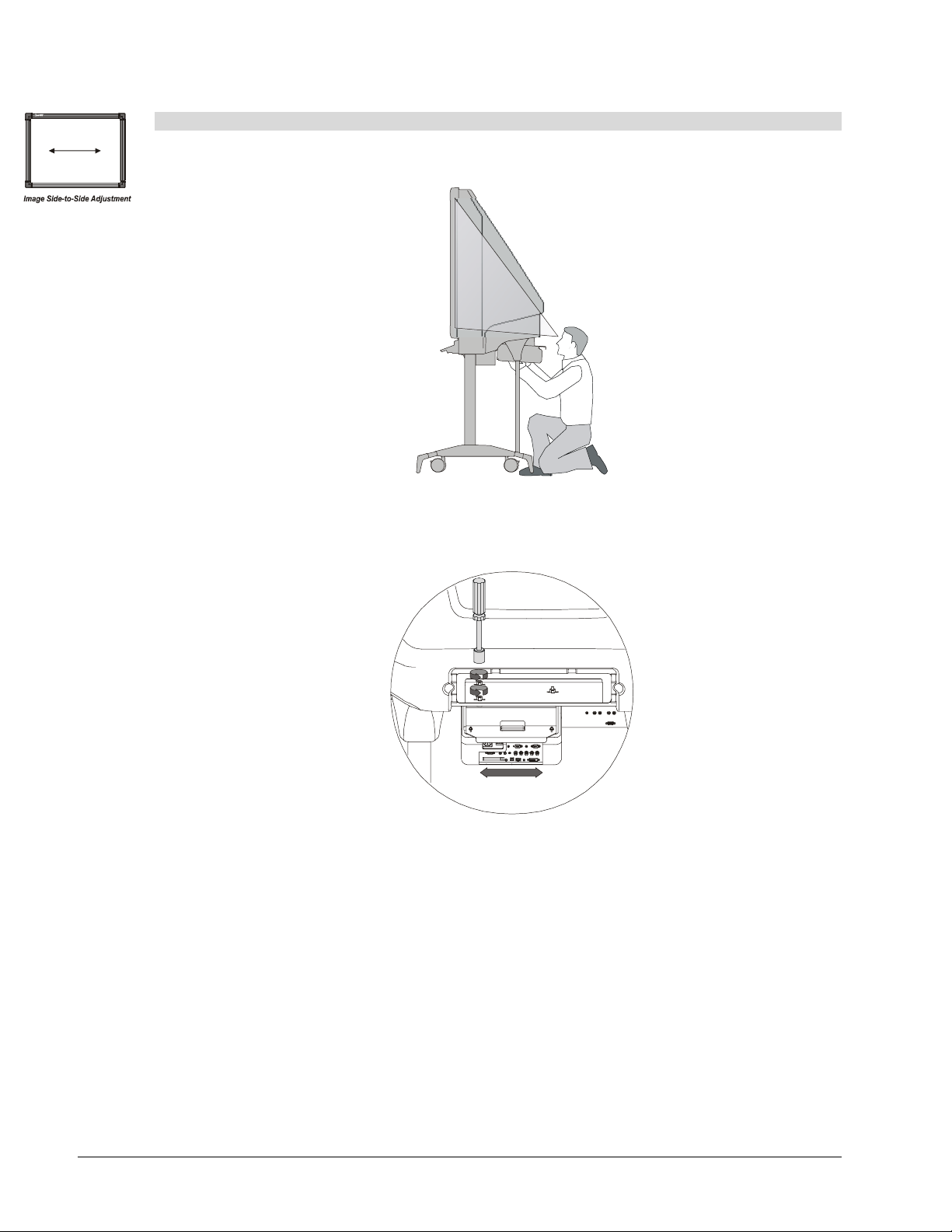

Figure 14: Position for Adjusting the Image Laterally............................................... 13

Figure 15: Using the Nut Driver to Adjust the Image Laterally ................................. 13

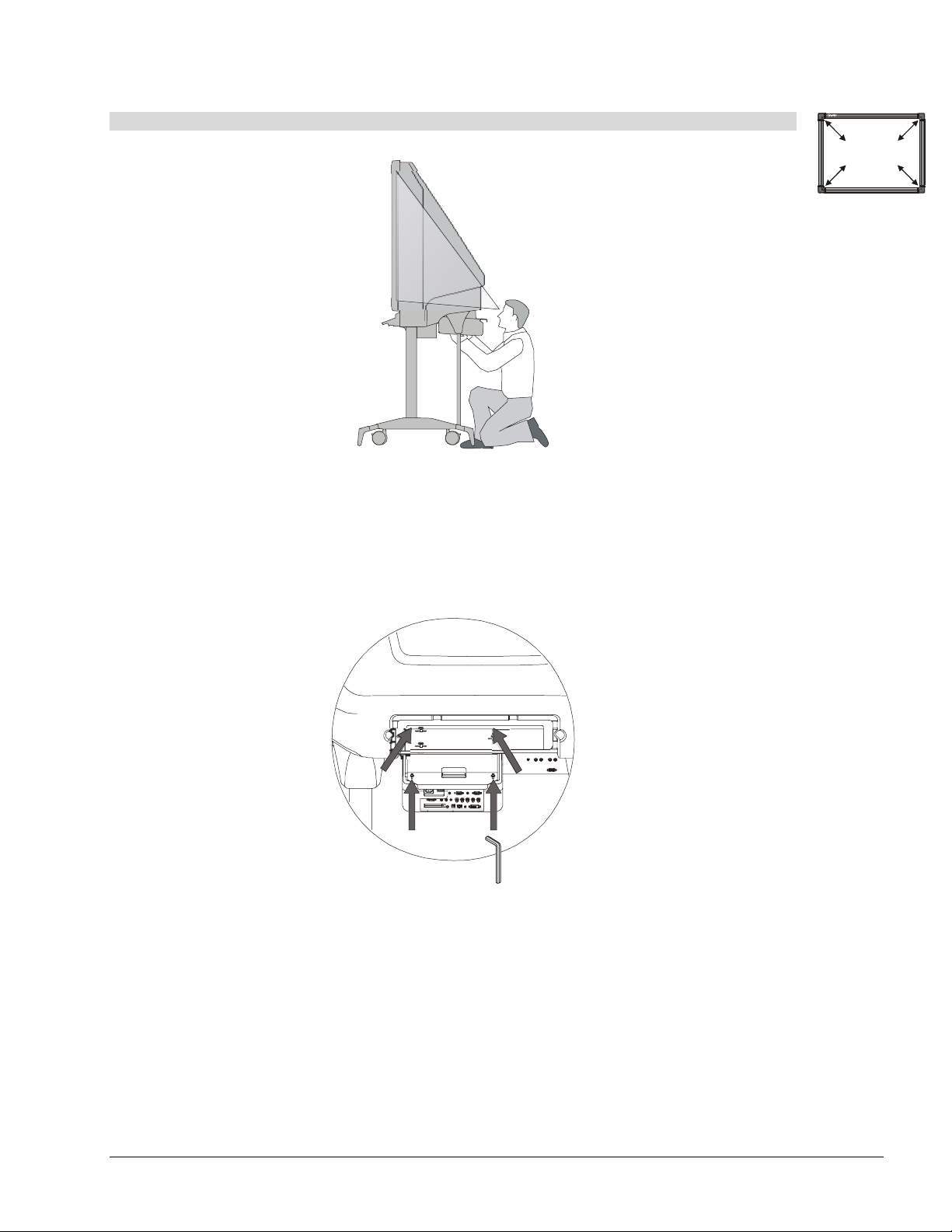

Figure 16: Position for Changing the Image Size..................................................... 14

Figure 17: Loosening the Four Hex Screws to Change Image Size ........................ 15

Figure 18: Location of Two Access Holes at the Front of the Projector ................... 15

Figure 19: Side View................................................................................................. 16

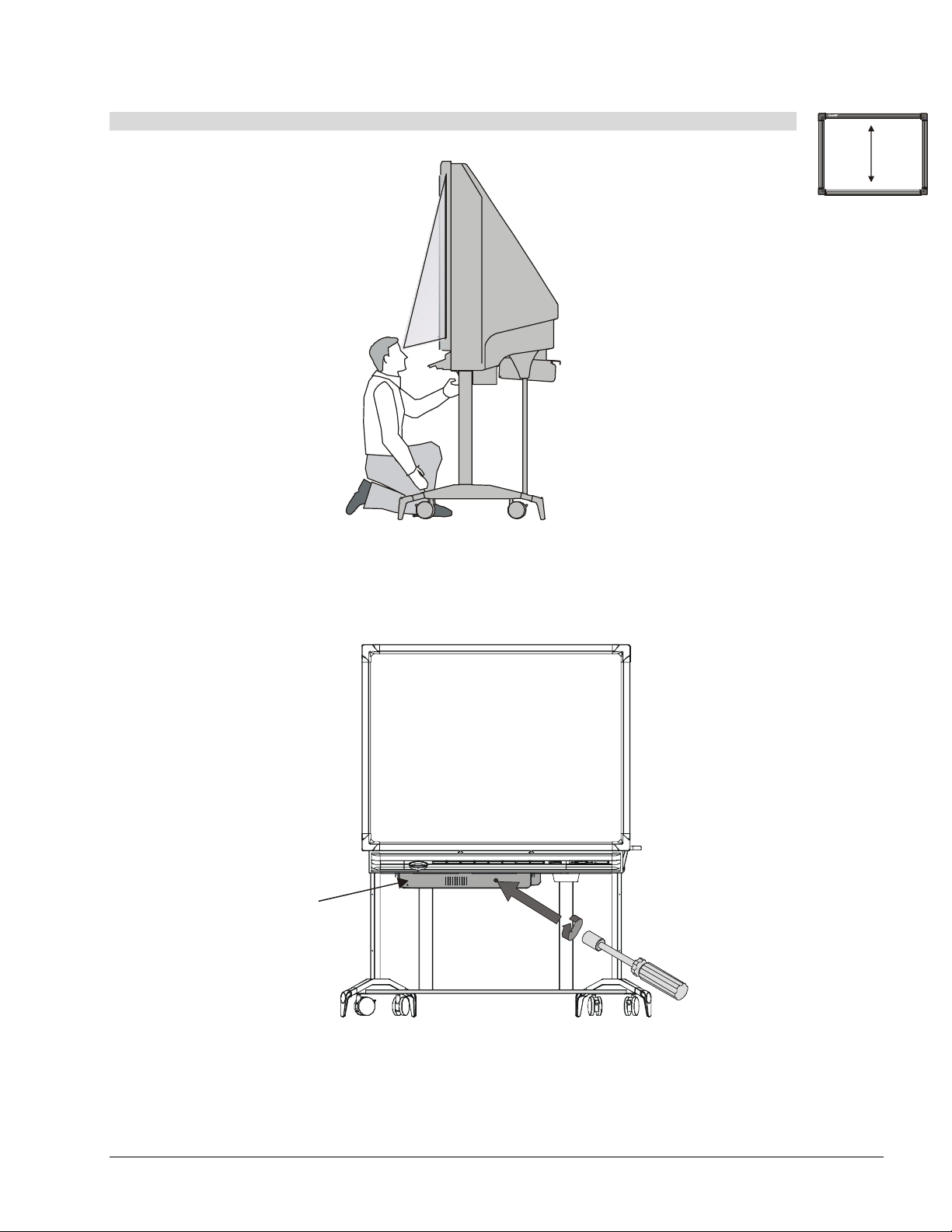

Figure 20: Position for Moving the Image Up or Down ............................................ 16

Figure 21: Loosening the Bolt to Move the Image Up or Down ............................... 17

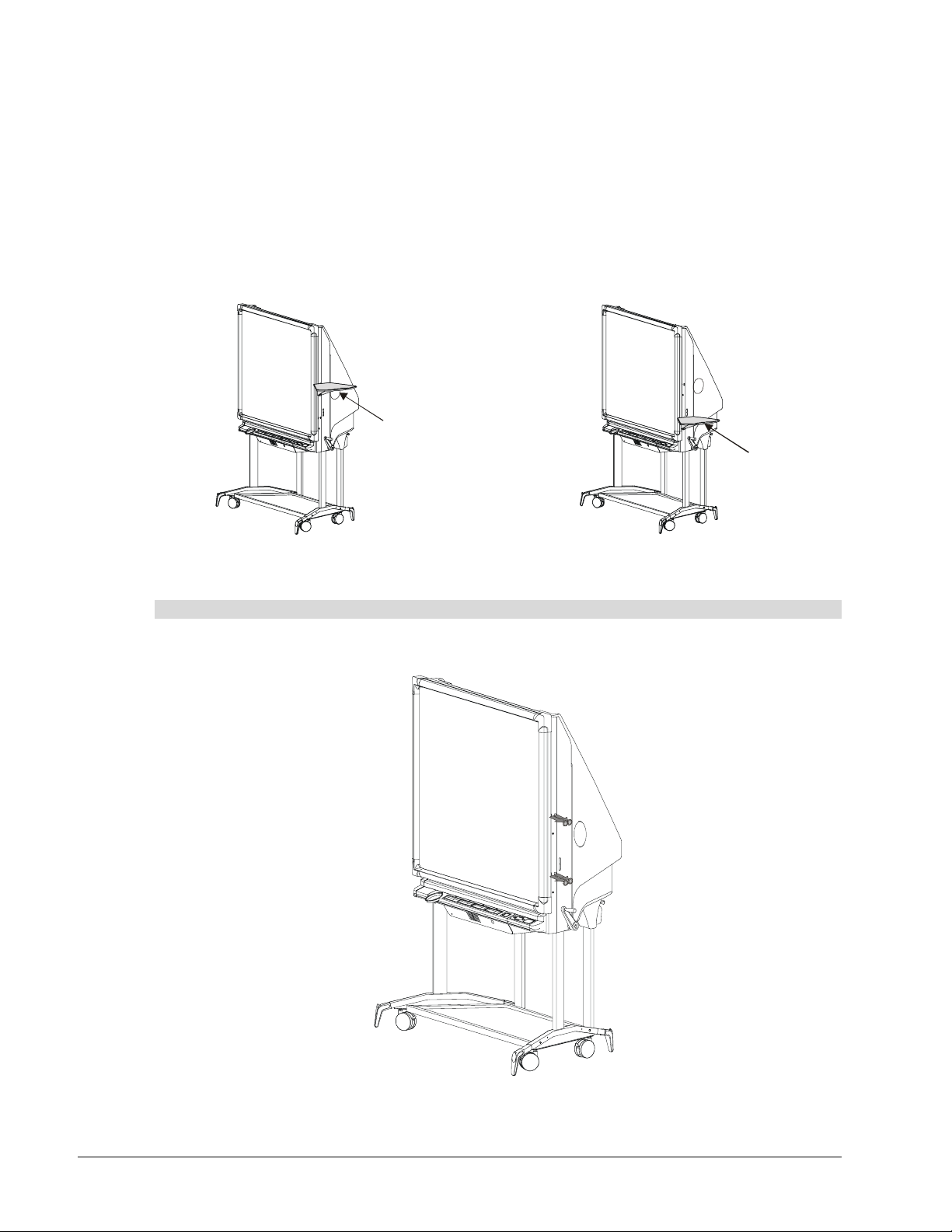

Figure 22: Shelf Height Option ................................................................................. 18

Figure 23: Removing the Hole Covers ..................................................................... 18

Figure 24: Attaching the Shelf .................................................................................. 19

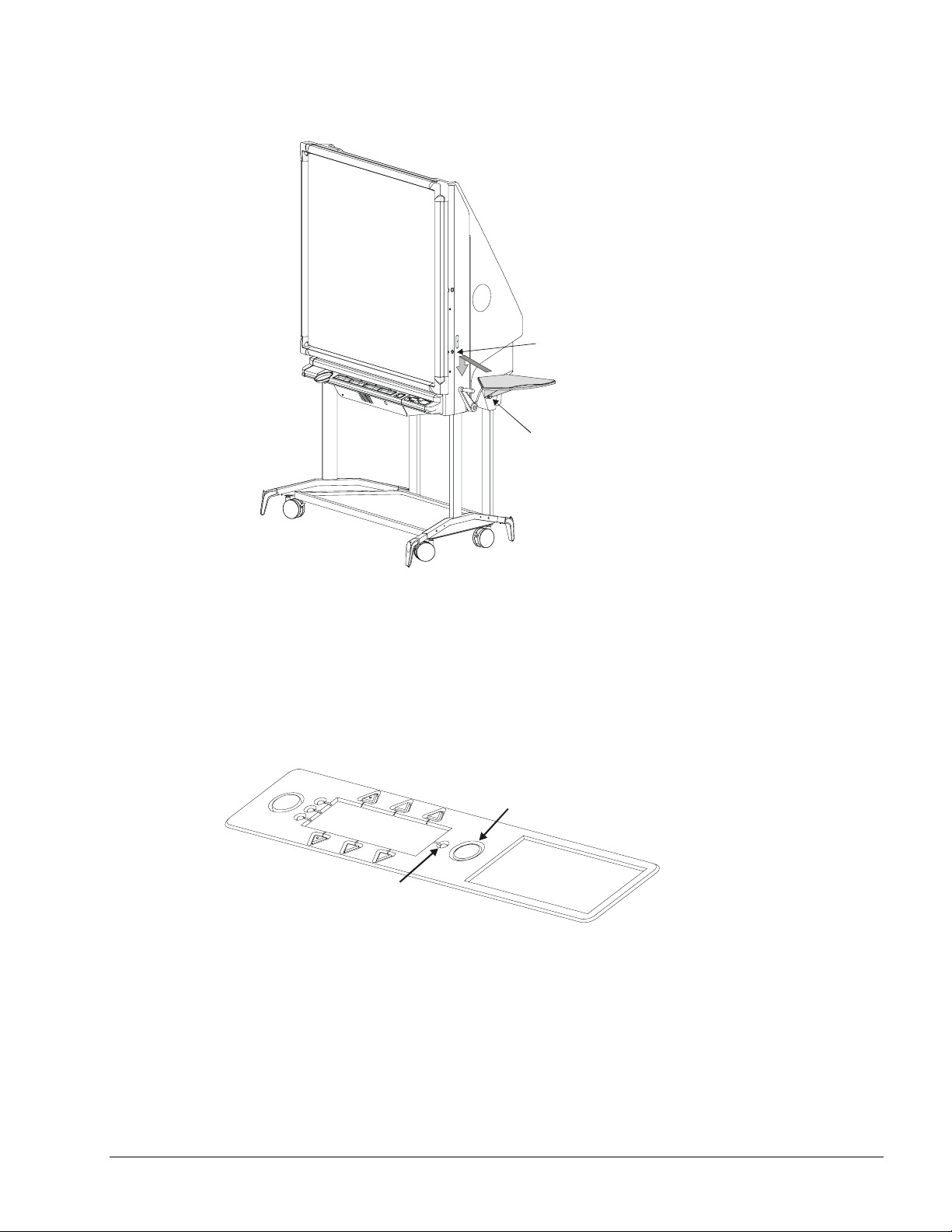

Figure 25: Location of LEDs and Standby Button on the Control Panel .................. 19

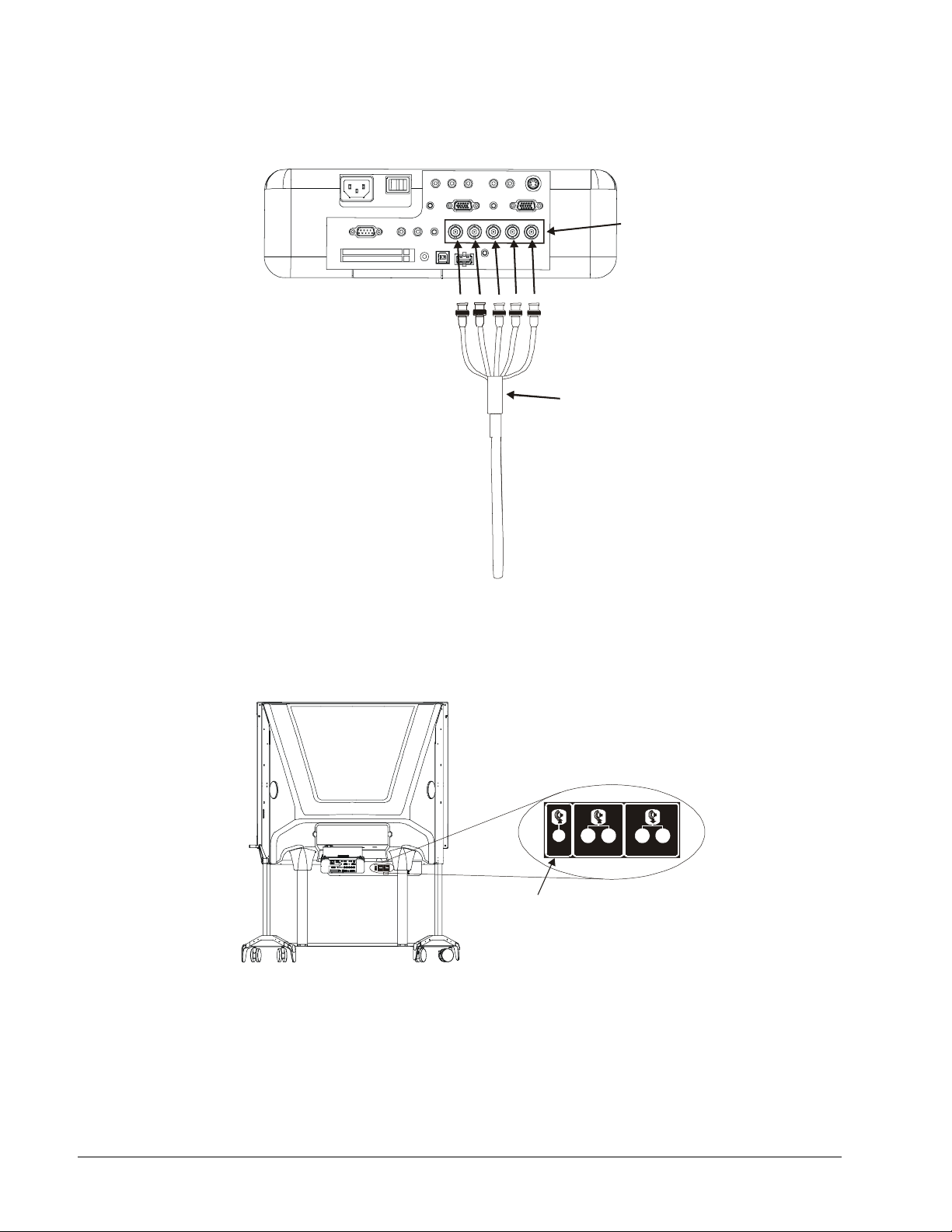

Figure 26: Connecting the BNC x 5 Cable to the Projector...................................... 24

Figure 27: Connecting the Laptop Audio Cable to the 2000i ................................... 25

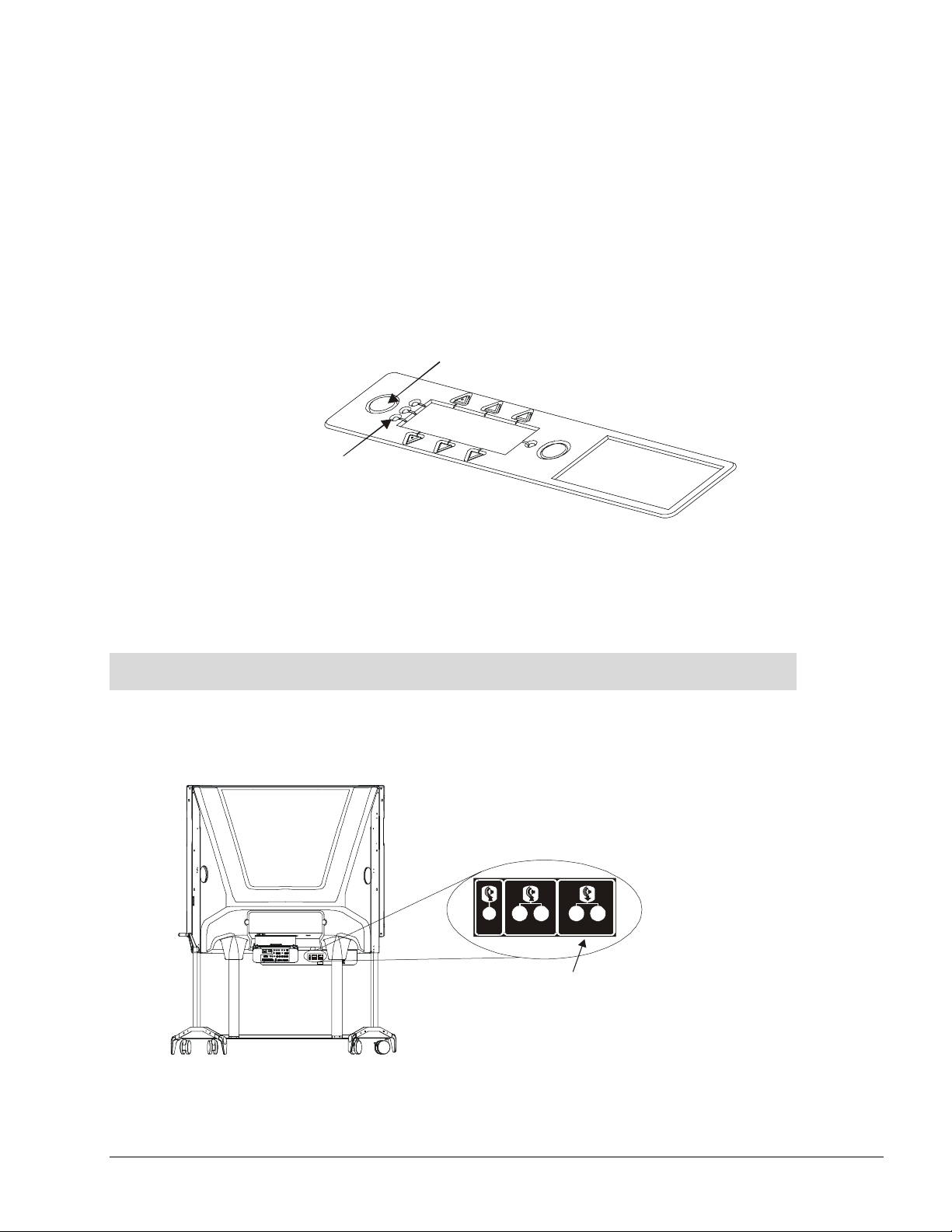

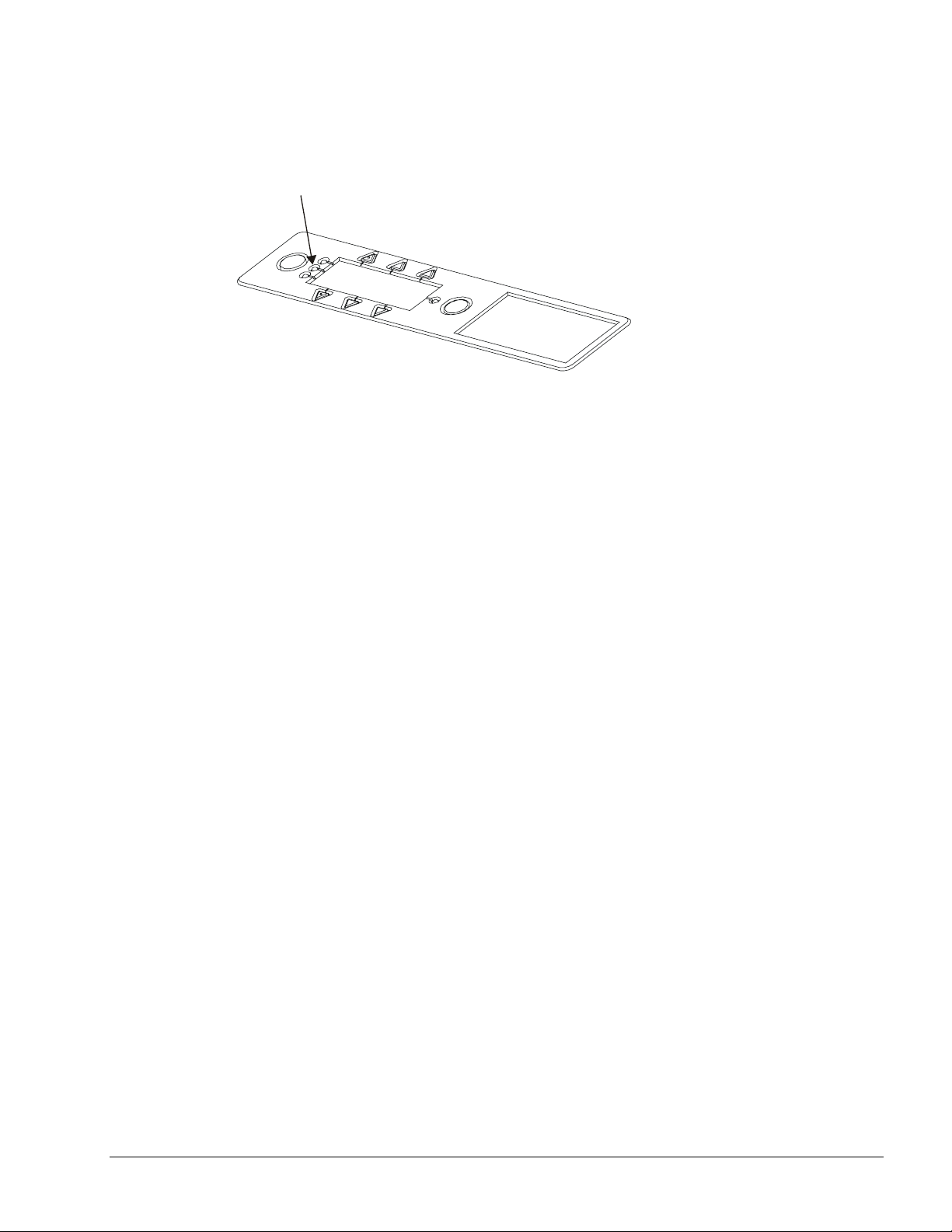

Figure 28: Source Two LED ..................................................................................... 25

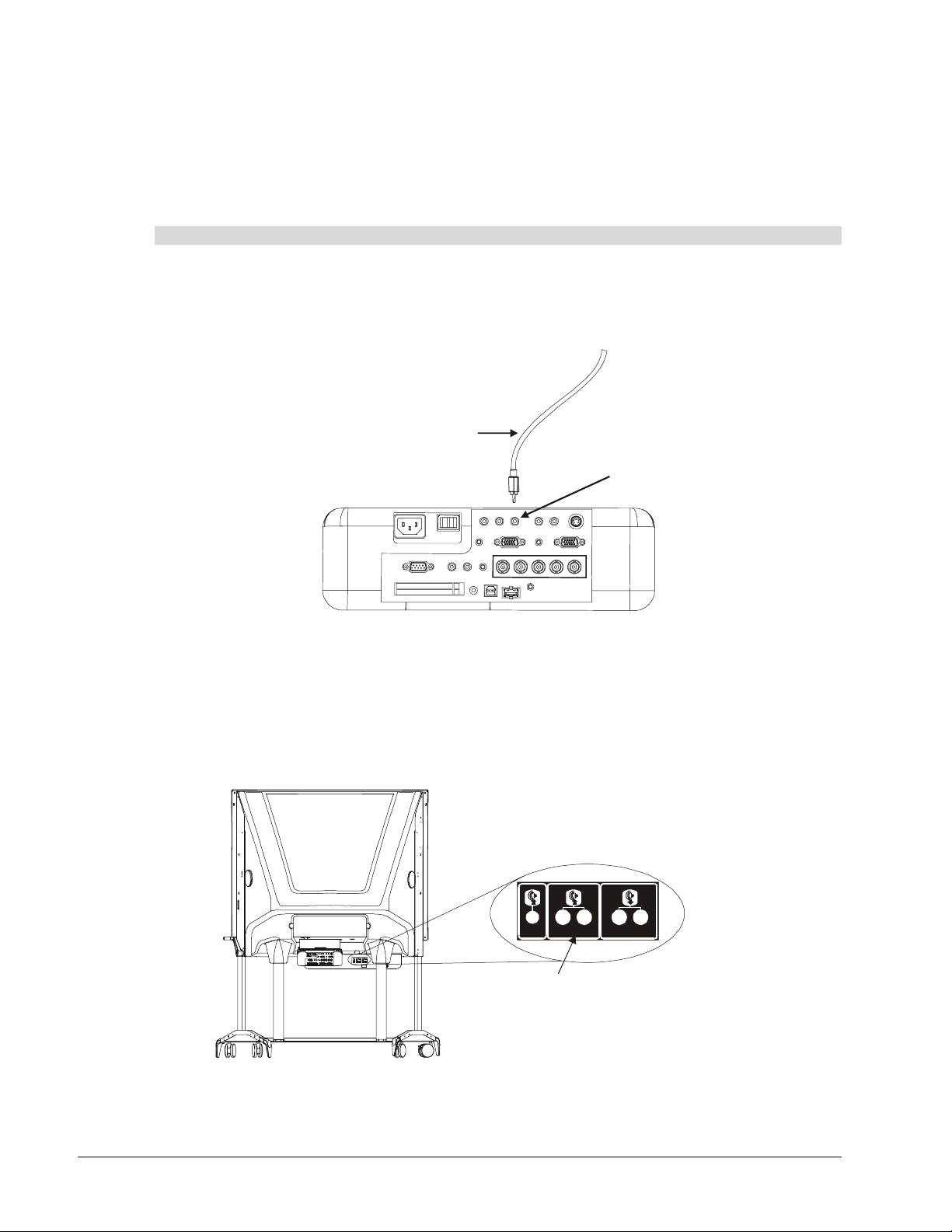

Figure 29: Connecting the Video Cable to the VCR/DVD Player............................. 26

Figure 30: Connecting the Audio Cable to the 2000i ............................................... 27

Figure 31: Source 3 LED and Display Source Button .............................................. 27

Figure 32: Connecting Audio Cables from an External Sound System ................... 28

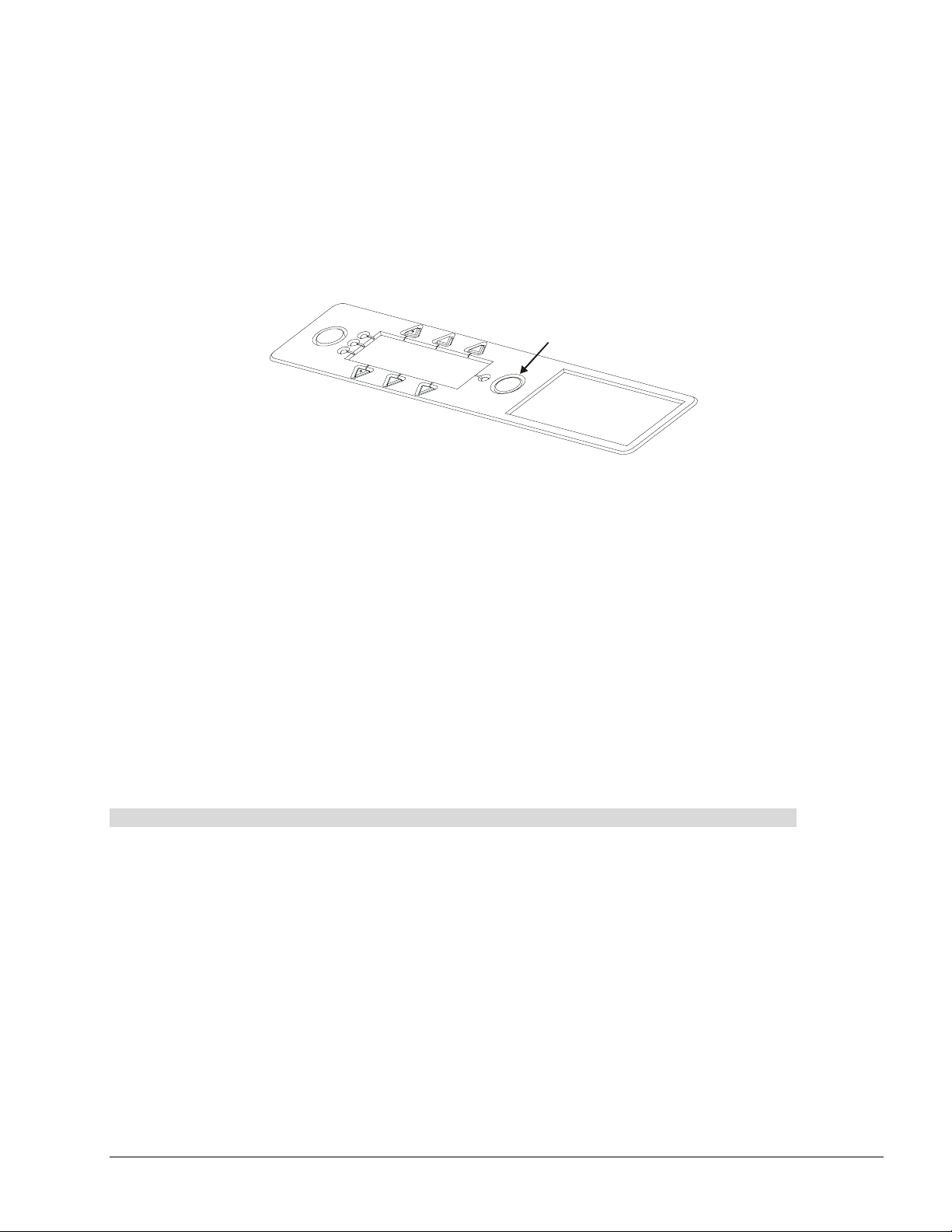

Figure 33: Projector Standby Button ........................................................................ 31

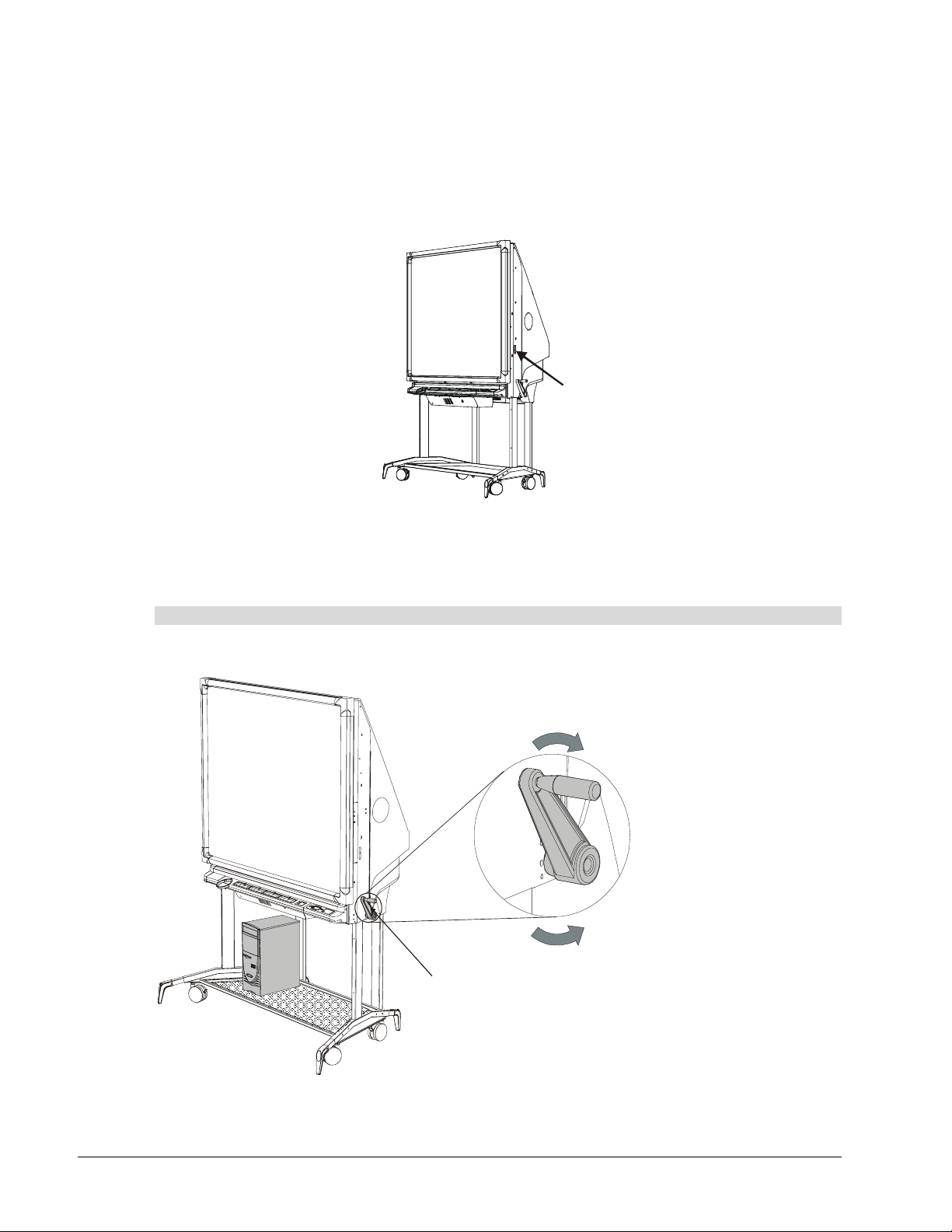

Figure 34: Location of the Height Finder on the 2000i ............................................. 32

Figure 35: Adjusting Unit Height............................................................................... 33

Figure 36: Changing the Display Source.................................................................. 34

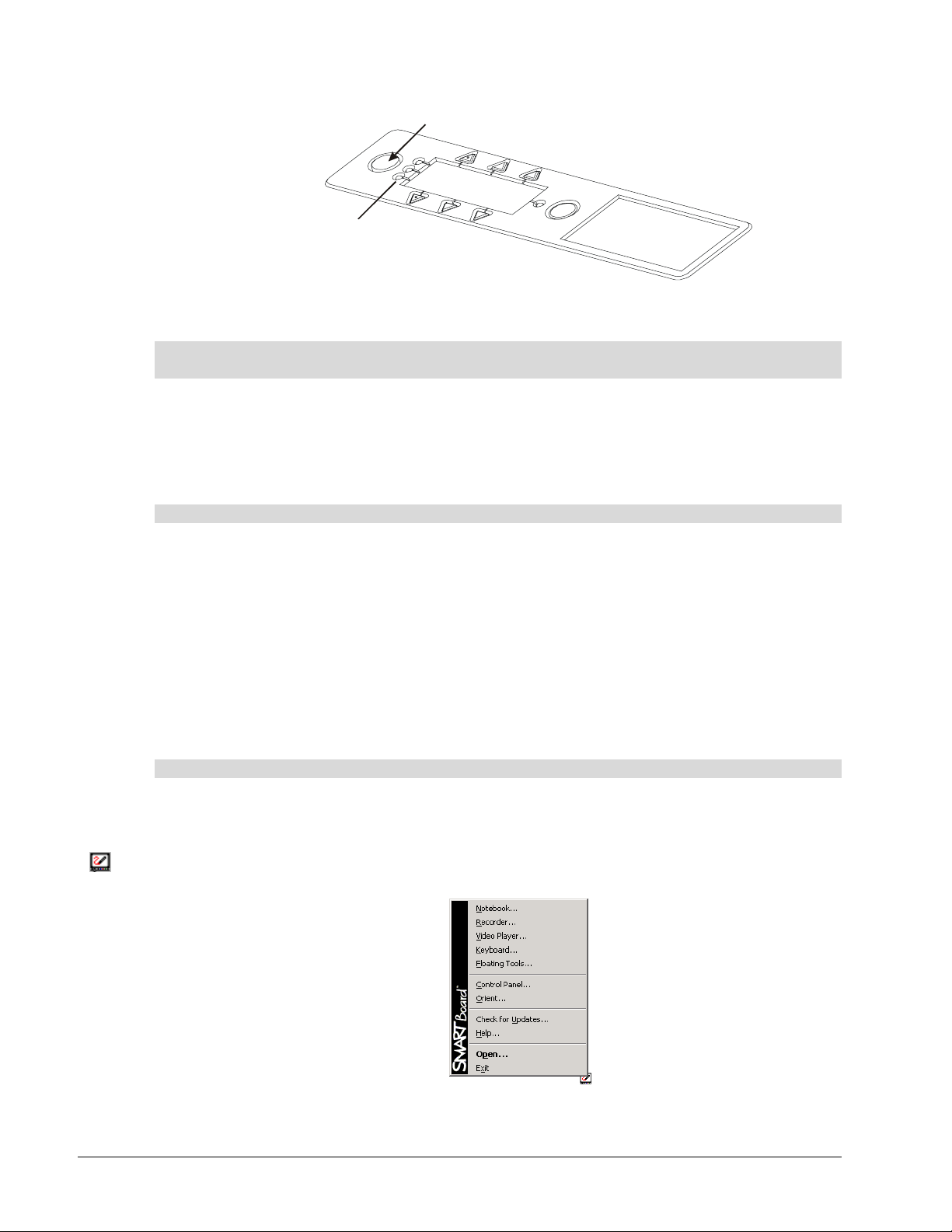

Figure 37: SMART Board Tools ............................................................................... 35

Contents

About the 2000i

The Rear Projection SMART Board 2000i interactive whiteboard is a height adjustable, rear projection system with an integrated LCD projector and a 67" (170.2 cm) diagonal interactive SMART Super Screen.

To enable rear projection capability, a mirror system redirects the projected image from your computer, VCR, DVD player or guest laptop onto the back of the interactive whiteboard screen, eliminating the distracting shadows that sometimes occurs with a front projection system. You can then perform any normal computer operation, such as opening or closing an application, scrolling through a file, or opening your browser, just by touching the screen. If you’ve purchased the XPort™ 20 option, you can switch between three different projector input sources with the press of a Control Panel button.

With SMART’s recently developed Digital Vision Touch (DViT™) technology, the 2000i uses digital cameras to track objects on the interactive whiteboard. Each camera is calibrated to recognize the position of a pen tray tool or your finger on the screen surface and to send this information to the computer, which translates it as mouse clicks or electronic ink.

Features

• A touch sensitive, rear-projection interactive whiteboard that enables you to do everything you can do at a computer workstation − open files, conference with others, create new documents or edit existing ones, visit Internet sites, play video clips, etc. − simply by touching the screen. You can also write over any live application in electronic ink using a pen tray stylus or your finger, and then save these annotations to a Notebook file for future reference and distribution.

• An integrated 1600 ANSI lumen, SVGA (800 x 600) projector with short-throw lens

• An audio system and a pen tray (including four styluses and an eraser)

• A Control Panel next to the pen tray with easily accessible projector, and volume controls,

as well as a Display Source button (for changing the input source for the projector)

• A videoconferencing/laptop shelf

• A height adjustment handle that raises and lowers the screen from 69" (175.3 cm) to 83"

(210.8 cm)

• Audio jacks at the rear of the unit let you connect audio output from a laptop, a VCR or DVD player, or a room audio system

• Minimal floor space requirements. The 2000i fits easily through any standard doorway for true room-to-room mobility.

2000i Installation Guide 1

Getting to Know Your 2000i

Removable View Port

Projector

SMART Pen Tray

Lockable Casters (x 4)

Your Computer

Projector

Figure 1: Major Components of the 2000i

Control Panel

Shelf at Laptop Height

Height Adjustment Handle

Storage Tray

Extendable Anti-Tip Feet (x 4)

2000i Installation Guide

Pen Tray Features

Eraser

Black Stylus

Blue Stylus

Red Stylus

Green Stylus

Pen Tray Buttons

Figure 2: The Pen Tray

Using a Pen Tray Stylus Using the Pen Tray Buttons

To write over the computer image with electronic ink, just pick up a stylus from the pen tray and write on the screen.

You can use SMART Board software to change any or all of these styluses to highlighters, assign one of 16 colors to them, or alter their width. You can also change the size of the area erased by the pen tray eraser.

To reconfigure the styluses or eraser, click the SMART Board icon in the system tray (

), select Control Panel, and click the Pen Tray tab.

NOTE: The provided styluses have black tips because the digital cameras can more readily detect dark objects. If you need to use a different stylus, choose one with a dark tip.

Press the top pen tray button to make the SMART Keyboard appear for on-screen typing and handwriting recognition. Press the bottom button to make the next contact with the interactive whiteboard a right-mouse click.

You can reconfigure these buttons to perform any of the following functions:

• print the current page

• move to the previous or next Notebook

page

• clear all annotations from the current Notebook page

• produce a floating mouse

To reconfigure the pen tray buttons, click the SMART Board icon in the system tray (

select Control Panel, and click the Pen Tray tab.

2000i Installation Guide 3

Control Panel

With the Control Panel, you can adjust the visual display and the internal sound system, as well as switch display sources.

Volume

Display Source

LED Indicators of Current Display Source

LED Indicator of Lamp Status

Figure 3: The Control Panel

Brightness

Contrast

Projector Standby

Quick Start Instructions

1 Display Source Button

Press this button to select the display source for the projector. Each press selects the next source in a three-source sequence: the host computer (source 1), a connected guest laptop (source 2) and a VCR or DVD player (source 3). The LED indicators on the right indicate the current display source. When you select a display source, the next LED in the sequence flashes briefly while the source changes and then remains steadily illuminated when the source is active. When you switch from source 1 to source 2, and then pause for at least 60 seconds, you'll automatically return to source 1 when you next press the Display Source button.

NOTE: You can switch from Source 1 to Source 2 only if the X-Port 20 switch option is installed. Without this option, you switch from source 1 (computer) directly to source 3 (VCR/DVD player) when you press the Display Source button.

2,3,4 Volume, Brightness and Contrast

Press the arrow buttons to adjust the volume, brightness and contrast for the current input source. If you have the X-Port 20 switch option installed, the 2000i retains your settings for each source.

The default level of brightness and contrast is 50%, and the default level of sound is 0. To restore the defaults for any setting, press the up and down buttons simultaneously.

5 Projector Standby Button

Press this green button to power on the projector lamp. When you're finished, press it to put the projector into reversible standby mode for five minutes. In reversible standby, the screen appears black, but the projector lamp remains on, allowing you to quickly restore the display by pressing any button on the Control Panel. After five minutes, the lamp powers down. After an additional 60 seconds, full standby mode is reached.

If you prefer, you can skip the five-minute reversible period: Press and hold the Projector Standby button for a few seconds until the "Please Wait a Moment" message appears at the bottom of the screen. Release the button and the lamp starts powering down, reaching full standby mode in 60 seconds.

Use the following table to determine the status of the projector lamp.

LED Behavior Projector Lamp Status

Blinking Lamp is powering up

Remains steady green Lamp is on

Blinking very fast Lamp is in reversible

standby mode

Blinking slowly Lamp is powering down

Blinking very slowly Lamp is off and in full

standby mode

2000I Installation Guide

Installing Your 2000i

This section of the manual describes how to:

• set up the 2000i (page 5)

• install and connect the host computer (page 7)

• adjust the projected image (page 10)

• connect the videoconferencing/laptop shelf (page 17)

• install SMART Board software (page 21)

• connect a guest laptop (page 23)

• connect a VCR or DVD player (page 26)

• connect an external sound system (page 27)

• connect an external projector or monitor (page 28)

Setting Up the 2000i

1. Remove the unit from its shipping carton (follow the Unpacking Instructions).

2. Unpack the remaining contents of the shipping carton and wheel the unit to a location that’s within reach of a power source.

NOTE: Leave enough space around the unit to comfortably perform the following assembly and connection procedures.

3. Lock the casters by pressing down on the caster-lock tab; unlock the casters by pressing up on this tab, as shown in the figure below.

Figure 4: A Locked and Unlocked Caster

4. Extend all four of the anti-tip feet. You’ll see two holes on the outer side of each leg. Depress the locking ball on the inner hole, and then pull the leg out until the locking ball engages in the outer hole.

Locking Ball in the inner hole

Figure 5: Extending an Anti-Tip Foot

Locking Ball in the outer hole

2000i Installation Guide 5

WARNING

Lock the casters and extend the anti-tip feet before you use the unit. Otherwise, the 2000i could tip over.

Bloquez les roulettes et étendez les pieds avant d’utiliser l’appareil. Autrement, le 2000i risque de basculer et de tomber.

Bloquee las ruedas y extienda los pies ajustables antes de utilizar la unidad. De no hacerlo, la pantalla 2000i podría volcarse.

Sichern Sie die Rollenbremsen und fahren Sie die Sicherheitsstützen aus, bevor Sie das Gerät verwenden. Andernfalls könnte das 2000i umkippen.

ユニットをご使用になる前に、キャスターをロックして、脚を伸ばしてください。それ以外の場合は、2000i がひっくり返る可能性があります。

5. Remove the bag that surrounds the projector.

6. Remove the locking pins from either side of the 2000i.

Figure 6: Removing the Locking Pins

2000I Installation Guide

Installing Your Computer

To connect your computer

1. Slide the computer into place on the bottom storage shelf, above the computer straps, and then secure the straps around the computer.

NOTE: The straps allow you to roll the unit from room to room without removing the computer. However, these straps will not secure the computer in place during unit shipment. If you ship the unit, remove the computer first.

2. Locate the bundle of labeled cables (to the right of the projector) hanging down towards the storage tray.

Computer 1 Audio

Computer 1 Video (Male)

2000i AC (Male) (Connect to female country-specific AC cable)

Computer 1 Serial (Female)

Figure 7: Computer and Power Cables

3. Connect the Computer 1 Video Out cable to the Monitor Video connector.

4. Connect the Computer 1 Audio cable to the Audio Line OUT connector.

5. Connect the Computer 1 Serial cable to an available COM port.

NOTE: To connect a computer that has no available serial port, connect the SMART USB adapter (order number USB-ADP) between the Computer 1 Serial cable and the USB port on the computer.

6. Connect the Mouse and Keyboard cables (not supplied) to the PS/2 mouse port and the PS/2 keyboard port on the computer.

To connect power:

1. Connect the Computer AC to an available power outlet or power bar (not supplied).

2. Connect the 2000i AC connect this AC cord to an available power outlet or power bar (not supplied).

cord to the country-specific AC cord in the accessory box. Then

2000i Installation Guide 7

Powering up the 2000i

1. If the projector is not switched on, toggle the main power switch on.

Main Power Switch

Figure 8: Main Power Switch on Projector

2. At the front of the 2000i, press the power button on the computer.

3. Turn on the projector lamp by pressing the Projector Standby button on the Control Panel (to the right of the pen tray). The LED indicator beside this button should blink fairly quickly for 90 seconds, and then it should remain steadily illuminated when the projector lamp has powered up.

Projector Standby Button

LED Indicator of Lamp Status

Figure 9: Projector Standby Button and LED Indicator

Press the Lamp On/Off button on the projector remote control (or on top of the projector) to turn on the projector lamp.

After a 30-second lamp warm-up period, the screen displays an image.

You should now adjust the computer power settings and image alignment, install the SMART Board software CD, configure the COM port, and perform a brief orientation procedure. To do this, follow the procedures described in the pages that follow.

NOTE: You should leave the computer and projector main power switch on at all times (so the projector is either in use, with the lamp illuminated, or in standby mode). However, you can set the computer to save power during periods of inactivity. The following section describes how to do this.

2000I Installation Guide

Adjusting the Power Settings

For greater ease of use, you should keep the computer on all the time. However, to help preserve the computer's hard drive(s), and the life of the projector lamp, you should also set the monitor and hard drive(s) to turn off automatically after a specified period of inactivity. You can do this by configuring the Windows operating system Power Management Feature. If you do keep the computer on all the time, reboot the computer occasionally to reload the operating system.

NOTE: You may prefer to shut the computer down at the end of the day. In this case, power up the computer every day.

On shipment, the projector is configured to shut down five minutes after no new input signal is received, so if the monitor shuts off after a period of inactivity, so will the projector lamp. However, if anyone changes the projector settings, the projector settings we've configured for you may be inadvertently toggled off. If this happens, follow the procedure on page 41 to restore the optimal settings.

If both the computer and projector are configured properly, a five-minute projector shutdown period follows the designated period of computer inactivity. During the shutdown period, the interactive whiteboard screen turns blue. If you change your mind and want to use the system again, you can restore the computer display by simply touching the screen. At the end of the shutdown period, the projector lamp shuts down completely and the screen turns black.

You should avoid using a screen saver, regardless of whether you power the computer down daily or not. The benefit of a screen saver – to avoid image burn-in, either on monitors or plasma displays – has no bearing on a projected system.

NOTE: You can't adjust the power settings on Windows NT 4.0 systems, so the computer must be left on with full power, or shut down at the end of the day and started up again.

To adjust the computer's default power settings

1. Click the Start button on the Windows taskbar, point to Settings and select Control Panel.

2. Double-click Display and click the Screen Saver tab.

3. Under Energy saving features of monitor, click the Settings button.

The Power Management Properties dialog box appears.

4. Select After 1 hour from the Turn off monitor list.

NOTE: This is a recommended setting. You can select any duration you want.

5. In the Turn off hard disks list, select the period of inactivity that must elapse before hard disk shutdown.

NOTE: For the above step, we recommend that you select After 2 hours. This extended time period ensures that guest laptop presenters − or participants in lengthy meetings characterized by large gaps in activity − do not experience an unexpected hard disk shutdown.

6. Click the Apply button and then click OK.

When the system reaches the period of inactivity specified in step 4, the computer stops sending an RGB signal. If no other source is active, the projector goes into a five-minute shutdown mode, during which time the screen turns blue. After five minutes, the projector shuts down completely and the screen turns black.

NOTE: To immediately restore the input signal from the computer during this five-minute projector shutdown period, touch the screen (or press a keyboard key). This function is especially handy when you're a passive participant in a lengthy data conference.

2000i Installation Guide 9

Adjusting the Projected Image

You may need to adjust the projector to achieve a focused image that fits on the screen. Complete the four adjustment procedures that follow only as required. For the first three, (roll, side-to-side and image-size adjustment), you must watch the image on the back of the screen while making adjustments. You’ll also need to remove the view port cover (attached with hook-and-loop fastener strips) at the rear of the unit to access the adjustment hardware.

View Port Cover

Figure 10: Location of the View Port Cover

For the final procedure (adjusting the image up or down), adjust the image while watching it from the front of the unit.

To remove the view port cover

1. Grasp the view port cover in the middle of each short edge, and pull it away from the unit.

Lift from here

Figure 11: Removing the View Port

You can now access the top of the projector to perform the following image-adjustment procedures.

Lift from here

2000I Installation Guide

To adjust image roll

1. Crouch behind the projector and look at the projected image through the view port.

Figure 12: Position for Adjusting Image Roll

2. While carefully observing the bottom edge of the image at the right side, use the supplied 7/16" nut driver to loosen or tighten the nut that’s located on the right side of the projector plate (see the following figure).

Roll Adjustment

Figure 13: Using the Nut Driver to Adjust Roll

2000i Installation Guide 11

To adjust the image laterally

1. Crouch behind the projector and look at the projected image through the view port.

Figure 14: Position for Adjusting the Image Laterally

2. Using the supplied 7/16" nut driver, loosen the two nuts located on the left side of the projector plate.

Figure 15: Using the Nut Driver to Adjust the Image Laterally

3. Slide the projector plate to the right or left, and then tighten the two nuts.

2000I Installation Guide

To change the image size

1. Crouch behind the projector and look at the projected image through the view port.

Figure 16: Position for Changing the Image Size

2. Loosen the four hex screws that secure the projector to the projector plate using the 3 mm. hex key provided in the accessory kit.

NOTE: These screws are located on top of the projector plate, two at the front of the projector and two at the back.

Image Size Adjustment

Figure 17: Loosening the Four Hex Screws to Change Image Size

To access the two screws at the front of the projector, you must reach through the view port, extend your arm to the front of the projector, and maneuver the 3 mm. hex key through the two access holes in the projector cover.

The following figure shows the location of these two access holes from the front of the 2000i.

2000i Installation Guide 13

Screen Removed for Clarity

Figure 18: Location of Two Access Holes at the Front of the Projector

As you maneuver the 3 mm. hex key through the access holes, watch it from the side to see when it’s engaged with the hex screw.

Look here to see when the hex key engages with the screw

Figure 19: Side View

3. Slide the projector backward or forward to alter the image size.

4. When the image is a good size, tighten all four hex screws that you previously loosened.

2000I Installation Guide

To move the image up or down

1. Move to the front of the unit and crouch down, facing the screen.

Figure 20: Position for Moving the Image Up or Down

Move Image Up or Down

2. Look underneath the pen tray and locate the Electronics Tray. Locate a large access hole covered with a plastic cap on the right side of the Electronics Tray.

Electronics Tray

Figure 21: Loosening the Bolt to Move the Image Up or Down

3. Remove the plastic cap that covers the access hole.

2000i Installation Guide 15

4. Use the supplied 7/16" nut driver to loosen and tighten the bolt inside the access hole. This action adjusts the height of the small mirror that reflects the projector’s beam of light to the large rear mirror. Watch the vertical position of the image slide on the front of the screen as you loosen and tighten the bolt, and adjust accordingly.

Installing the Videoconferencing/Laptop Shelf

The videoconferencing/laptop shelf can be positioned just above the height-adjustment handle (for laptop use), or higher up on the frame (for use with a videoconferencing camera). You can also install the shelf on either side of the unit.

Videoconferencing Height

Figure 22: Shelf Height Option

Laptop Height

To install the videoconferencing/laptop shelf

1. Remove the plastic hole covers at the location where you want to mount the shelf.

Figure 23: Removing the Hole Covers

2000I Installation Guide

2. Hook the shelf to the keyholes, and then push the shelf firmly down.

Keyholes

Captive Thumbscrew

Figure 24: Attaching the Shelf

3. Push the captive thumbscrew at the bottom of the shelf into the thumbscrew hole and tighten.

Keeping the Projector On

You should keep the projector on at all times. To preserve the life of the projector lamp, use the Projector Standby button on the Control Panel to power the projector lamp on and off while leaving the projector on.

Projector Standby Button

LED Indicator of Lamp Status

Figure 25: Location of LEDs and Standby Button on the Control Panel

When you finish using the 2000i, or at the end of the day, press the Projector Standby button on the Control Panel to put the projector into reversible standby mode. The screen turns black and the LED indicator blinks very quickly. You now have five minutes to change your mind and instantly restore the system by pressing any button on the Control Panel. After five minutes, the lamp powers down. After an additional 90 seconds, the system reaches full standby mode: the projector lamp turns off, while the projector itself remains on.

2000i Installation Guide 17

If you prefer, you can skip the five-minute reversible period: Press and hold the Projector Standby button for a few seconds until you see "Please Wait a Moment" appear on the bottom of the screen. Release the button and the lamp powers down, reaching full standby mode in 90 seconds.

While the projector is in standby mode, the LED indicator blinks very slowly. When you next want to use the system, just press the Projector Standby button again. The LED indicator then blinks slowly as the projector lamp warms up, and then turns to steady green when the projector lamp is ready for use. Use the following table to determine the status of the projector lamp.

Lamp Status LED Behavior Projector Lamp Status

Blinking Lamp is powering up Remains steady green Lamp is on Blinking very quickly Lamp is in reversible standby mode Blinking slowly Lamp is powering down Blinking very slowly Lamp is off and the projector is in full

standby mode

NOTE: You should unplug the 2000i if the computer and projector will not be used for an extended period.

Matching Computer Resolution to Projector Resolution

It's very important that computer and projector resolutions match. If they don't, the on-screen image may not properly fill the screen. Since the projector resolution is 800 x 600 (SGA) (or 1024 x 768 for the optional NEC 1060 projector), you must ensure the computer resolution is also set to 800 x 600 (or 1024 x 768 for the optional NEC 1060 projector).

NOTE: If the computer resolution is set to anything other than this optimal resolution, you may not see the entire image, or the image may be too small to fill the screen, even with further adjustments.

To set your computer resolution to match the projector resolution (Windows operating system)

NOTE: You may need to perform the following procedure using your computer monitor, as

resolution differences can impair the visibility of the image on the interactive whiteboard screen.

1. Click the Start button and then select Settings > Control Panel.

The Control Panel window appears.

2. Double-click Display.

The Display Properties dialog box appears.

3. Click the Settings tab.

4. Move the slider to 800 x 600 (or 1024 x 768 if you have the optional NEC 1060 projector).

5. Click the Apply button and then click OK.

6. Restart your computer, if required.

To set your Macintosh computer resolution to match the projector resolution

1. Click the Apple menu.

2. Click Control Panels.

3. Select Monitors.

2000I Installation Guide

The Monitors dialog box appears.

4. Click the Options button. In the Select a monitor setting box, select 800 x 600 (or 1024 x

768), and then click OK.

Installing the SMART Board Software

The installation process should start automatically after you insert the SMART Board software CD into your CD-ROM drive. Otherwise, install the software as follows.

To install SMART Board software for Windows operating systems

1. Insert the SMART Board software CD into your CD-ROM drive.

The SMART Board software setup program should start automatically. If it doesn't, select Start > Run and enter x:\autorun.exe (where x: is your CD-ROM drive). Follow the on-screen instructions to install SMART Board software.

At the end of the installation, you can choose to put a shortcut to SMART Board software in your Startup Folder. We recommend that you do so. Then the SMART Board tools will always be open, and your interactive whiteboard will be fully functional whenever you start up your system.

2. Click Yes to insert a shortcut to SMART Board software in the Startup folder, or click No to prevent SMART Board software from starting whenever you start up your system.

To install SMART Board software for Macintosh computers

1. Insert the SMART Board software CD into your CD-ROM drive.

2. Double-click the SMART Installer icon.

The SMART Installer window appears.

3. Click the Continue button and then follow the instructions on your screen.

Configuring and Orienting the Interactive Whiteboard

After you install SMART Board software, you must configure and orient the interactive whiteboard.

You may need to specify whether the serial or USB port on the host computer connects to the interactive whiteboard. If you're running SMART Board driver version 6.0 (or later), the COM port configuration process is entirely automatic, unless:

• the Windows operating system you're running does not perform plug and play (e.g.,

Windows NT 4.0 or ME)

• the Windows operating system fails to announce that it has Found New Hardware

Then you must manually configure the COM port. After you do this, you should orient the interactive whiteboard to ensure accurate tracking of your finger or a pen tray tool. If the projected image becomes misaligned, you must perform the orientation procedure again.

To select a COM port for the interactive whiteboard

1. Select Start > Programs > SMART Board Software > SMART Board Tools.

2. Click the SMART Board icon in the system tray and select Control Panel.

The SMART Board Control Panel appears.

3. On the Boards tab, click the Connect button.

The Select COM Port dialog box appears.

2000i Installation Guide 19

4. If you know the COM port to which the SMART Board interactive whiteboard is connected, you can type it or select it from the COM port list. Then click the Select button.

If you're unsure of the correct COM port, click the Detect SMART Hardware button to initiate hardware detection. SMART board software searchers your COM ports for the presence of an attached interactive whiteboard.

The interactive whiteboard is now touch sensitive. You can write over any projected application with a pen tray stylus.

To orient the interactive whiteboard

Click the SMART Board icon and select Orient, and then follow the on-screen instructions. You can also access this feature by clicking the Orient button on the Boards tab of the SMART Board Control Panel.

To change the orientation precision

1. Click the SMART Board icon and select Control Panel.

The SMART Board Control Panel dialog box appears.

2. On the Boards tab, click the Advanced button.

For Mac OS X computers, the Edit Advanced Settings dialog box appears.

For Mac OS 9.x computers or earlier, the Pick the Orientation Precision dialog box appears after you click the Orient button. Proceed to step 4.

For Windows operating systems, select Board Settings from the shortcut menu that appears.

The Edit Advanced Board Settings dialog box appears.

4. Click the Pick the Orientation Precision tab.

5. Select the Orientation level you prefer.

6. Click the Apply button, and then OK (or Next for Mac OS 9.x computers or earlier).

7. Click the Orient button.

8. Follow the on-screen instructions. Press on each cross that appears with your finger or stylus at a 90° angle to the screen.

IMPORTANT: Keep your finger straight as it approaches the screen. Press it firmly on each cross, and keep it straight as you pull it away from the screen.

9. Test the orientation by dragging your finger across the screen. The cursor should track your finger very closely and appear directly beneath the center of your fingertip.

Calibrating the Cameras (DViT Technology)

With DViT technology, the cameras located in the corners of the interactive whiteboard frame detect contact with the screen. For the screen to function properly, the cameras must be precisely calibrated so that the computer can provide an accurate and appropriate response to screen contact.

You should re-calibrate the cameras (and orient the screen) if areas of your screen control have inaccurate, erratic or absent touch control, or if the electronic ink that appears when you write on the screen is jagged, broken or doesn't appear at all.

To calibrate the cameras and orient the screen, access the Advanced settings of the SMART Board Control Panel on a computer running the Windows 98, 2000, ME, XP or Windows NT operating system, as described in the following procedure.

2000I Installation Guide

To re-calibrate the cameras

1. Press the SMART Board icon in the system tray, and select Control Panel.

The SMART Board Control Panel opens.

2. In the Boards tab, press the Advanced button.

The Edit Advanced Board Settings dialog box opens.

3. Press the DViT Settings tab.

4. Press the Calibrate button.

The four-point calibration screen appears.

5. Press the center of each target and hold until you hear a beep.

After you press the final target, a message appears, followed immediately by the orientation screen.

6. Complete the orientation procedure.

NOTE: You will not hear a beep after pressing each target on the orientation screen.

7. Press OK.

The 2000i is now ready for use. Use your finger to open and control programs. Use a stylus from the pen tray to write in virtual, electronic ink. Capture or print the annotations that you want to save with the touch of a toolbar button. Display the contents of a guest's laptop computer or show a video presentation from a connected VCR or DVD player.

Connecting a Guest Laptop

If you don’t have the X-Port 20 switch option, you’ll need the following cables to connect a guest laptop to the 2000i:

• An HD15-to-BNC video cable for the laptop video

• a 3.5 mm (both ends) audio cable for the laptop audio

NOTE: Without the X-Port 20 switch option, you cannot control the laptop display by touching the screen, nor will you be able to switch between the host computer and a guest laptop

Controlling a Guest Laptop by Touching the Screen

You can control a connected laptop presentation by touching the screen only if you:

• purchase and install the X-Port 20 switch option for the 2000i

• install SMART Board software on the laptop

The X-Port 20 unit is an RS-232 serial switch that provides a serial connection from the laptop, enabling the laptop user to both write over top of the displayed laptop image with a pen tray stylus and control the contents of the laptop by touching the screen. In addition, it allows you to switch between the laptop, the resident computer and a VCR/DVD player using the Control Panel at the front of the 2000i.

Complete instructions for installing the X-Port 20 switch and connecting a guest laptop are in the X- Port 20 Switch Option Installation Guide that comes with the option kit.

To connect a guest laptop (without the X-Port 20)

1. Power down the projector.

2. Connect the HB15 end of HD15-to-BNC video cable to the Video port on the laptop.

2000i Installation Guide 21

3. Connect the BNC x 5 end of the video cable to the RGB 2 IN connectors on the projector.

RGB 2 Connectors

Red Green Blue H

BNC x 5 cable

Figure 26: Connecting the BNC x 5 Cable to the Projector

4. Connect a 3.5 mm audio cable from the audio connector on the laptop to the Computer 2 Audio Input jack on the rear of the 2000i.

Figure 27: Connecting the Laptop Audio Cable to the 2000I

5. Power up the projector.

Computer 2

Auxiliary

Audio

Audio In

Out

2000I Installation Guide

Computer 2

Auxiliary

Audio

Audio In

Audio

Out

Connect laptop audio cable here

6. Go to the front of the unit, and, with the projector remote control, press the RGB button (in the second row of buttons from the top) to switch sources to RGB2. Check the message in the top right corner of the screen to find out when you’ve reached RGB2.

Source 2 (Guest Laptop) LED

Figure 28: Source Two LED

7. Turn the laptop on.

The desktop display from laptop appears on the screen, and the Source Two LED (guest laptop) lights up on the Control Panel.

If the initialization screen does not appear on the interactive whiteboard…

Try activating the external video port on your laptop computer. Some laptops can't display their internal screens and activate the external video port or external monitor at the same time. You may need to deactivate the internal video port on your laptop or put the internal and external video ports into simultaneous display mode, so that the laptop displays on both the laptop monitor and the interactive whiteboard at the same time.

With newer laptops, you can synchronize the internal and external video ports at the software level, as follows:

1. From the Start menu, select Settings > Control Panel > Display.

2. Select the Refresh (or Monitor Refresh) tab.

3. Click the CRT/Panel option to activate simultaneous monitor and external video port

display.

This may not be possible with older laptop models, so you may have to switch back and forth between the internal and external video port. If you aren't sure which commands or keyboard combinations are required to do this, check the user’s manual for your laptop.

You can now display the output of your laptop or external computer.

If the image on the screen is too large or too small…

The projector and external computer resolution may not match. To adjust your computer resolution to match the projector resolution, click the Start button, and select Settings > Control Panel > Display. Click the Settings tab, and move the sliding bar to match the computer’s resolution to the projector's resolution.

2000i Installation Guide 23

Connecting a VCR or DVD Player

You’ll need the following cables to connect a VCR or DVD player to the 2000i:

• an RCA composite video cable or an S-video cable

• standard red and white RCA audio cables

To connect a VCR/DVD player to the 2000i

1. Power down the projector.

2. Connect the yellow RCA video connector on an RCA composite video cable (not provided) to the Video Output jack on the VCR/DVD player. This jack may be labeled “To Monitor.”

3. Plug the other end of the cable into the Video IN connector on the projector.

Composite Video Cable from VCR or DVD Player

Video IN

Figure 29: Connecting the Video Cable from the VCR/DVD Player to the Projector

NOTE: If you're using an S-video cable, connect it to the S-video Out connector on the VCR/DVD player, and then plug the other end directly into the S-video IN on the projector.

4. Connect standard red and white RCA audio cables (not provided) from the RCA Audio outputs on the VCR/DVD player to the two Auxiliary Audio IN jacks on the rear of the 2000i. Keep your right and left channel connections correct for stereo sound.

Computer 2

Auxiliary

Audio

Audio In

Computer 2

Auxiliary

Audio

Audio In

Out

Connect cables

Audio

Out

red and white RCA audio

here

Figure 30: Connecting the Audio Cable to the 2000i

2000I Installation Guide

NOTE: You can't connect the audio cable from both a VCR and a DVD player using the RCA jacks because the Connection Panel can only accommodate one external audio source that uses RCA connectors at a time.

5. Connect the power cable to an available outlet or power bar (not supplied).

6. Turn on the projector.

7. Turn on the VCR/DVD player and press the Play button.

8. Press the Display Source button until you see the Source 3 LED illuminated.

Your video will automatically display on the screen.

Display Source Button

Source 3 (VCR/DVD Player) LED

Figure 31: Source 3 LED and Display Source Button

9. Press the Display Source button twice to toggle between the video output from the VCR/DVD player that you just installed back to the resident computer.

Connecting an External Sound System

To deliver preamplified (or low level) sound to an external room sound system

Connect standard red and white RCA audio cables (not provided) from the RCA Audio inputs on the external sound system to the two Audio OUT jacks on the rear of the 2000i. Keep your right and left channel connections correct for stereo sound.

Computer 2

Auxiliary

Audio

Audio In

Computer 2

Auxiliary

Audio

Audio In

Out

Audio

Out

Connect red and white RCA audio cables from external sound system here

Figure 32: Connecting Audio Cables from an External Sound System

2000i Installation Guide 25

Connecting an External Monitor or Projector

To direct the RGB output from the host computer or guest laptop to an external projector or monitor

Connect an HD DB15 video cable (not provided) from the external projector or monitor to the RGB OUT port on the back of the projector. This connection is for RGB output only.

2000I Installation Guide

Basic Operations

This section shows you how to:

• Start up and shut down the 2000i (page 29)

• Adjust the height of the interactive whiteboard (page 31)

• Adjust the volume (page 33)

• Adjust projector settings (page 33)

• Change the projector display source (page 34)

• Use the interactive whiteboard (page 35)

Starting Up the 2000i

The projector in your 2000i should always remain on; only the power to the projector lamp is switched on and off at the Control Panel. For greater ease of operation, you should also keep the computer on all the time. With the projector and computer always on, starting up the 2000i requires only that you restore power to the projector lamp (by pressing the Projector Standby button on the Control Panel) and then enter your user name and password at the logon screen.

NOTE: To preserve the computer's hard drive(s) and the projector lamp, you may want to put the computer hard drive and monitor into standby mode. Refer to page 9 for instructions.

To start up the 2000i

1. If the screen is black, press the Projector Standby button on the Control Panel to power up the projector lamp. The LED indicator beside that button should blink moderately fast for approximately 30 seconds, and then remain illuminated when the lamp is fully powered up.

2. If you see a logon screen, use the connected keyboard to enter your logon ID and password, and then press the OK button.

If the screen turns from black to blue (with a SMART logo) – and no logon screen appears – you may need to power up the computer or restore it from a standby setting. Open the front door and turn the computer on, or press the reset button (if required).

3. To connect a guest laptop, refer to page 23.

The table on the next page summarizes the possible startup scenarios and what you should do in each situation.

2000i Installation Guide 27

Startup Scenarios

If your 2000i is situated in a multi-user room, you may sometimes find the unit in a non-operational state. The following table describes what you may need to do to restore the 2000i to a fully operational state.

What You See What You Should Do

• Screen is black

• Standby LED is blinking very

slowly

• SMART "No Source Signal" screen

• Standby LED is steadily illuminated

The projector is in standby mode (with lamp off).

1. Press the Projector Standby button on the Control Panel. The LED indicator flashes moderately fast, and, after approximately 30 seconds, either a blue SMART "No Source Signal" screen appears or the screen is restored to its pre-standby state.

If the SMART "No Source Signal" screen appears:

1. Touch the screen, press the Display Source button or press a key on the connected keyboard. If the previous user logged off, the logon screen appears. Otherwise, the screen returns to its pre-standby state.

2. Log on as usual (using the connected keyboard).

The projector lamp is powered up, but the computer is either off or in standby mode, or you’ve selected an inactive display source.

1. Press a key on the connected keyboard to activate the computer. The logon screen appears.

Press the Display Source button to change to an active source.

If the SMART "No Source Signal" screen remains:

1. Turn the computer on (or press the computer reset button). The logon screen appears.

2. Log on as usual (using the connected keyboard).

• Screen is black

• LED indicator is blinking

rapidly

• Screen is black

• LED is blinking rapidly

• None of the Display Source

LEDs are illuminated

• Logon Screen

• LED indicator is blinking very

slowly

• Projector Standby button has been pressed

• All the LED indicators on the Control Panel are blinking

No action is necessary. The projector lamp is in the process of powering up. The logon screen appears after approximately 30 seconds.

The projector lamp is in reversible standby mode. Press any button on the Control Panel to instantly restore the image, or allow standby to continue for five minutes until the LED indicator starts blinking slowly. After an additional 90 seconds, the projector lamp will reach full standby mode. At this point, follow the first set of instructions in this table to restore the 2000i to an operational state.

The projector lamp is still on, so you can log on as usual (using the connected keyboard).

Problems with the projector are interfering with the normal projector lamp warm-up. Examine the projector status LED indicator, and then consult the troubleshooting section of the NEC MT1065/MT1060/MT860 User's Manual.

The system can’t detect a projector. Check the NEC MT1065/MT1060/MT860 User's Manual to make sure the projector is connected properly.

2000I Installation Guide

Shutting Down the 2000i

Shutting down the 2000i is a simple, two-step procedure:

1. Log off.

Logging off enhances system security. It also gives users a consistent initial interface – the system logon screen – when they power up the projector lamp.

2. Press the Projector Standby button to put the projector into reversible standby mode for five minutes.

Projector Standby Button

Figure 33: Projector Standby Button

While the screen appears black, the projector lamp remains on so you can immediately restore the image if necessary by pressing any button on the Control Panel. After five minutes, the lamp powers down. The projector reaches full standby in 90 seconds.

Skip the five-minute reversible period: Press and hold the Projector Standby button for a few seconds until a "Please Wait a Moment" appears on the bottom of the screen. Release the button and the lamp powers down. The projector reaches full standby mode in 90 seconds.

Standby mode preserves the life of the projector lamp and conserves power. See Turning the Projector Lamp On and Off (on the next page) for more details.

Perform this procedure at the end of a meeting or presentation and at the end of the day. If you prefer, you can also shut down the computer. However, we recommend logging off rather than shutting down the computer.

To power down the projector (if unused for an extended period)

1. Press the Projector Standby button on the Control Panel.

The LED indicator next to the Projector Standby button blinks rapidly for five minutes (reversible standby) and slowly for approximately 90 seconds while the lamp powers down. When the lamp is off, the LED indicator blinks very slowly.

2. Disconnect the unit power cable from the power outlet.

Adjusting the Height of the Interactive Whiteboard

It’s easy to raise or lower the interactive whiteboard to accommodate users of different heights, even while the system is operation, so anyone can comfortably touch or write on the screen. The 2000i has a height adjustment range of 14" (35.5 cm), and you can adjust the height of the unit while it’s operating.

2000i Installation Guide 29

Turn the handle to adjust the top of the screen from a lower limit of 69" (175.3 cm) from the floor to a maximum height of 83" (210.8 cm) from the floor. When you reach the top and bottom limits of the adjustment range you can’t turn the handle any further.

To gauge the height of the unit as you turn the height adjustment handle, or to adjust it to a particular height, watch the height finder located on the side of the unit, just above the handle. The height finder is also useful if you want to adjust the unit to a particular height.

Height Finder

Figure 34: Location of the Height Finder on the 2000I

NOTE: If the computer on the storage tray is unusually high, be careful not to lower the interactive whiteboard on top of it.

To raise the screen

Turn the height adjustment handle away from you (clockwise motion) to raise the screen. The maximum height is 83" (210.8 cm).

Turn clockwise to raise the screen

Turn counter-clockwise to lower the screen

Height Adjustment Handle

Figure 35: Adjusting Unit Height

2000I Installation Guide

To lower the screen

Turn the height adjustment handle toward you (counter-clockwise motion) to lower the screen. The minimum height is 69" (175.3 cm) from the floor. Be careful not to lower the unit on top of your computer.

Adjusting the Volume

Volume adjustments are made for the active display source, and are made independently of other sources. When you switch to another input source, the settings you made for the first input source are retained when you switch back.

The default volume level is zero (no sound).

To adjust the volume

1. Press and hold the Volume button (on the Control Panel) to increase the volume of sound from the current source.

2. Press and hold the Volume sound from the current source.

button (on the Control Panel) to decrease the volume of

To restore default volume level (no sound)

Press and hold both Volume buttons simultaneously.

Adjusting the Projector Settings

You can make separate brightness and contrast adjustments for each source, and the system will retain these settings when you switch to another input source. For example, if you increase the brightness of the display from the VCR, the brightness of the computer display is unaffected.

The default levels of brightness and contrast are set at 50%.

To adjust the image brightness

1. Press and hold the Brightness button (on the Control Panel) to brighten the screen image.

2. Press and hold the Brightness

button (on the Control Panel) to darken the screen image.

To adjust image contrast

1. Press and hold the Contrast button (on the Control Panel) to increase image contrast.

2. Press and hold the Contrast

button (on the Control Panel) to decrease image contrast.

To restore default levels of brightness or contrast

Press and hold both Contrast buttons or both Brightness buttons simultaneously.

To fine-tune the projected image

When you make the initial connections, you may need to fine-tune the image. Press the Auto Adjust button on the projector remote control to automatically optimize the image in RGB mode.

This will eliminate vertical banding, flickering, video noise, dot interference and cross talk.

Changing the Display Source

Press the Display Source button to change the video input source for the internal projector: choose from the host computer, a connected guest laptop or external computer (X-Port 20 option only), or a VCR or DVD player.

2000i Installation Guide 31

Display Source Button

LED Indicators of the Current Display Source

Figure 36: Changing the Display Source

To switch from the host computer to a guest computer (X-Port 20 Option Only)

Press the Display Source button once. If, while using the guest laptop, you need to access programs or network resources available from the host computer, press the Display Source button again. When you switch from source 1 to source 2, and then pause for at least 60 seconds, you'll automatically return to source 1 when you next press the Display Source button. To switch from source 1 to source 3, press the Display Source button once, wait just ten seconds (until the source 2 LED stops flashing), and then press it again.

To switch from the host computer to a VCR or DVD player

Press the Display Source button once. Do not linger at source 2 for longer than 60 seconds.

NOTE for S-Video Use: You can't use the Display Source button to switch to a VCR or DVD

player connected by an S-video cable. You can only activate an S-video source with the projector remote control. However, as soon as you activate the S-video source, the display LED for source 3 (VCR/DVD player) will light up in the Control Panel.

Using the SMART Board Interactive Whiteboard

Once SMART Board software is installed on the host computer, and the interactive whiteboard is configured and oriented, you're ready to use the 2000i. To get the most from your interactive whiteboard, you should have both the SMART Board tools and Notebook software open and running.

SMART Board Tools

The SMART Board tools provide all the functionality beyond basic touch control and pen tray button use. Specifically, the SMART Board tools provide you with annotation and tool-configuration capabilities. It's important to note that the SMART Board tools must be running to use the pen tray styluses and eraser. In other words, if you want to write on your interactive whiteboard with a pen tray stylus, make sure the SMART Board icon appears in the system tray (Windows operating system) or menu bar (Macintosh computer).

Figure 37: SMART Board Tools

2000I Installation Guide

Notebook Software

Notebook software provides many object-creation tools that allow you to create a variety of annotations within Notebook files. Notebook software commands also enable you to import graphics, text, clip art and entire files from any other application into your Notebook file. But Notebook software is much more than just an electronic flip chart for displaying presentations or capturing notes in a brainstorming session. It also serves as a receptacle for anything you write on the interactive whiteboard over any application.

If you want to capture annotations you make with a pen tray stylus over other programs, select Screen Capture from the View menu and then minimize the Notebook window. A three-button Screen Capture toolbar will float on top of all your applications. You can now capture your annotation with a press of a button. Macintosh computer users can access the same annotationcapture capability from the SMART Board Tools menu. The captured image is automatically placed on a new page of the current Notebook file.

To open SMART Board tools and Notebook software

1. Select Start > Programs > SMART Board Software > SMART Board Tools.

The SMART Board icon will appear in the system tray.

2. Click the SMART Board icon and select Notebook.

If you plan on writing into Notebook software, leave the Notebook window open and maximized. If you want an even larger area for writing or brainstorming, select Slide Show from the View menu. If you want to capture annotations you make with a pen tray stylus over other programs, minimize the Notebook window after selecting Screen Capture from the View menu

To summarize, the SMART Board tools and Notebook software:

• collaborate on electronic documents in front of a group

• write or draw over any application with a pen tray stylus, and then capture an image of

your notes into Notebook software

• create and edit a wide variety of annotation objects with either the pen tray pens or

Notebook software commands

• convert your handwriting to typed text with an easy-to-use handwriting recognition feature

• save, print or e-mail a complete record of everything written, drawn or typed into SMART

Notebook software

Enabling/Disabling Multipointer Mode (DViT Technology)

When Multipointer mode is enabled, two people can write on the interactive screen simultaneously. After the first person picks up a stylus, the other person can use their finger to write in the same color.

To enable/disable Multipointer Mode

1. Press the SMART Board icon in the system tray and select Control Panel.

The SMART Board Control Panel opens.

2. In the Boards tab, press the Advanced button.

The Edit Advanced Board Settings dialog box opens.

3. Press the DViT Settings tab.

4. Select the Enable Multipointer Mode check box.

2000i Installation Guide 33

Maintenance

Cleaning the Interactive Whiteboard and other Components

Clean the interactive whiteboard surface on a regular basis. Otherwise, dust may build up on the surface, adversely affecting the operation of the 2000i.

Do not spray the glass cleaner directly onto the screen surface. Instead, spray it lightly on the cloth and then gently wipe. The 2000i uses digital cameras that are located inside the frame. If you allow excess glass cleaner to flow into the crack between the frame and the writing surface, the fluid could damage the cameras.

Before you clean the interactive whiteboard, log off the computer. If you touch the screen when the computer is in any other state (e.g., with a program open or at the desktop), you may activate program components or scramble desktop icons. After you log off, put the projector into standby mode so you can easily see dirt and streaks.

Remove marks made with a permanent marker by completely covering them with the ink from a dry-erase marker (not a low-odor marker). Then wipe with a soft cloth. Dry-erase ink contains solvents that work to remove permanent ink. If any trace of the original permanent ink remains, spray the area with standard glass or whiteboard cleaner and wipe clean.

After writing on the screen surface, you may notice marks that appear to be scratches in the screen material. These are actually plastic from the stylus that has been deposited on the surface when the stylus has been pressed very hard. These marks are easily removed by applying gentle pressure with your thumbnail back and forth across the mark. Afterwards, it's advisable to clean the area with whiteboard cleaner as described above.

The back of the interactive whiteboard screen is well protected from handling by its location on the inside of the unit. However, if it must be dusted, or if a mark has been made on its surface, dab it gently with a soft cloth sprayed with standard, alcohol-free glass cleaner. Do not apply the cleaner directly to the surface.

Periodically dust the mirrors and unit components using a soft cloth. To clean the mirrors, use a standard, alcohol-free glass cleaner.

IMPORTANT: Do not, under any circumstances, apply isopropyl alcohol, water or acetone to the rear surface of the interactive whiteboard screen. Any of these fluids could damage the diffusion coating, resulting in a permanent deterioration in display quality.

Cleaning the Projector

Before you clean the projector, make sure it's unplugged.

NOTE: Don't unplug the power cable while the hourglass icon or the message "Please Wait a Moment" appears on the screen, or while the POWER or STATUS indicators are alternately flashing.

Periodically clean the projector casing with a damp cloth. If it is heavily soiled you can use a mild detergent, but don't use strong detergent or a solvent, such as alcohol or thinner. Use a blower or lens paper to clean the lens, being careful not to scratch or mar the lens.

2000I Installation Guide

Cleaning: Filter and Clearing the Filter-Cleaning Message

Clean the air-filter sponge with a vacuum after every 100 hours of operation (more often in dusty conditions) as described on page E-54 of the NEC MT1065/MT1060/860 User's Manual.

A "Please Clean Filter" message from the projector will appear on the bottom of the screen after every 100 hours of operation. However, after cleaning the filter this message will not automatically disappear. You must use the projector remote control to clear the filter usage meter, as follows:

1. Press the Menu button on the projector remote control.

2. Select Advanced Menu > Projector Options > Menu > Setup. Click the Page 4 tab and then click the Clear Filter Usage Meter button.

The meter will be returned to zero. You won't receive another "Please Clean Filter" message for another 100 hours.

Replacing the Projector Lamp and Filter

Replace the lamp when you see this message "The lamp has reached the end of its usable life. Please replace the lamp." To do this, order a replacement standard lamp or extended life lamp from your NEC or SMART dealer.

NOTE: Your projector is shipped with a NEC MT60LPS extended life lamp.

In general, you should replace your projector lamp after 4000 hours (extended life lamp) or 2000 hours (standard lamp/normal mode). The projector will turn off automatically and go into standby mode after 2100 hours (standard lamp/normal mode) or 4100 hours (extended life lamp).

To find out how many hours of lamp use remain, go to the projector menu and select Help > Information > Page 4 tab. Replacing the used lamp with a new lamp automatically clears the lamp usage hours. When you replace the projector lamp, you should also replace the projector filter. You'll automatically receive this filter with the replacement lamp.

Only replace the projector lamp with the NEC MT60LP standard lamp or the NEC MT60LPS extended life lamp available from NEC or SMART. Do not use any other lamps. You'll find instructions for replacing the lamp on page E-53 in the NEC MT1065/1060/860 User's Manual.

WARNING

After you turn off the projector, allow at least one minute to elapse before you unplug it. Do not touch or replace the projector lamp (which will be very hot) for at least an hour.

Après avoir éteint le projecteur, attendez au moins une minute avant de le débrancher. Attendez au moins une heure avant de toucher ou de remplacer la lampe du projecteur (qui sera très chaude).

Stecken Sie den Projektor für mindestens eine Minute nach dem Abschalten nicht aus. Berühren oder ersetzen Sie die Projektorlampe (die sehr heiß sein wird) nicht vor Ablauf einer Stunde.

プロジェクターの電源を切った後、最低でも 1 分間はプロジェクターのプラグを抜かないでください。プロジェクターのラ

ンプは非常に熱くなりますので、最低でも 1 時間は触ったり交換したりしないでください。

2000i Installation Guide 35

CAUTION

Never touch the back of the screen or brush against it with your head while you're examining internal unit components. If you do smudge this surface,

lightly spray alcohol-free glass cleaner onto a soft cloth and lightly dab the affected area to remove the marks. Never apply isopropyl alcohol, water or acetone, as these fluids will damage the diffusion coating and permanently reduce the display quality.

WARNING

To avoid an electric shock, do not remove any screws except the two lampcase screws.

Pour éviter tout risque de choc électrique, ne retirez aucune vis, à l’exception des deux vis d’accès aux lampes.

Para evitar descargas eléctricas, no quite ningún tornillo excepto los de las dos lámparas.

Um einen elektrischen Schlag zu vermeiden, dürfen Sie mit Ausnahme der beiden Lampengehäuseschrauben keine Schrauben entfernen.

感電の恐れがありますので、ランプケースの 2 つのねじ以外に、ねじは取り外さないようにしてください。

2000I Installation Guide

Customer Support

SMART's Technical Support team welcomes your call. However, you may want to contact your local reseller first if you experience problems with any SMART product. SMART's resellers can readily provide you with quick advice, so you can start enjoying the benefits of your Rear Projection SMART Board interactive whiteboard without delay.

Contacting SMART Technical Support

You may contact SMART Technical Support at:

Telephone: toll-free at 1.866.518.6791 (Canada /U.S.) or +1.403.228.5940 (all other countries)

(Available 7 a.m. − 6 p.m. Mountain time from Monday to Friday)

Fax: +1.403.245.0366

E-mail: support@smarttech.com

Web site: www.smarttech.com

Please tell us when you purchased your 2000i, its serial number, the dealer's name, your computer's operating system, your version of SMART Board driver, and the name of the application software causing the problem, if applicable.

General Inquiries

Main Switchboard: toll-free at 1.888.42.SMART (Canada/U.S.) or +1.403.245.0333 (all other

countries)

Fax: +1.403.228.2500

E-mail: info@smarttech.com

Our Address: SMART Technologies Inc.

Suite 600, 1177 − 11th Avenue SW Calgary, AB CANADA T2R 1K9

Warranty

All Rear Projection SMART Board 2000i interactive whiteboards are covered by a one-year limited equipment warranty. The integrated projector in the unit is covered by a two-year limited equipment warranty. If you need to return defective merchandise, call SMART Technical Support to receive the appropriate Return of Merchandise Authorization, as well as shipping instructions so that your 2000i or internal projector can be sent to an authorized service center.

Warranty Shipping Charges

Shipping charges incurred from warranty service are paid as follows: The customer is responsible for shipping the system to the service center. SMART pays return shipping via ground service on any product returned for service within the warranty period. Any charges associated with a customer-requested rush order are billed to the customer. Following the warranty period, the customer is responsible for shipping the product to and from the service center. Read the warranty shipped with your 2000i for details.

Registration Card

A Registration Card is shipped with every 2000i. To facilitate user support and to receive news and updates, fill in and mail the card to SMART Technologies Inc. Alternatively, you can register online at the end of the SMART Board software installation process.

2000i Installation Guide 37

Appendix A: Projector Settings

We've configured your projector settings for optimal performance within the 2000i unit. However, these settings may be accidentally altered. If this occurs, and the 2000i-optimized settings are lost, follow the procedure below to restore them.

Note that the optimized settings are slightly different for NEC860 and NEC1060 projectors. The settings for the NEC MT1060 projector are provided for those customers who have purchased this projector as an option.

To set or restore 2000i-optimized settings for the NEC MT860 projector

1. Press the Menu button on either the projector remote control or the projector controls on top of the projector.

2. Select Projector Options > Menu.

3. Make sure the appropriate language is selected in the Language text box of the Menu screen.

4. Select Projector Options > Setup.

5. Click the Page 1 tab and select:

• Orientation > Ceiling Rear to orient the projected image for desktop (as opposed to

ceiling) rear projection

• Background > Logo to select the SMART logo to serve as the standby screen

6. Click the Page 4 tab and select:

• Auto Adjust to automatically determine the best resolution for the current RGB input

signal, compensating for resolution differences among input devices (such as guest laptops)

• Power Management to automatically shut down the projector when no RGB input signal is

received from the computer (or any other source). This helps conserve the life of your projector lamp.

• Idle Mode to allow the RGB OUT connector to output RGB signal during Idle mode

• De-select Built-in Speaker to mute the projector's speakers

7. Click the Page 6 tab and select Default Source Select > Select > RGB1 to make RGB1 the default display source each time the projector starts up.

8. Select Projector Options > Lamp Setting > Lamp Mode > Normal to set the projector lamp to optimal brightness for the 2000i.

9. Select Projector Options > Screen Type > 4:3 to enable a standard aspect ratio.

10. Click OK to save these settings.

To set or restore 2000i-optimized settings for the NEC MT1060 projector

1. Press the Menu button on either the projector remote control or the projector controls on top of the projector.

2. Select Projector Options > Menu.

3. Make sure the appropriate language is selected in the Language text box of the Menu screen.

4. Select Projector Options > Setup.

5. Click the Page 1 tab and select:

2000I Installation Guide

Orientation > Ceiling Rear to orient the projected image for desktop (as opposed to ceiling) rear projection

Background > Logo to select the SMART logo to serve as the standby screen

6. Click the Page 4 tab and select:

Auto Adjust to automatically determine the best resolution for the current RGB input signal, compensating for resolution differences among input devices (such as guest laptops)

Power Management to automatically shut down the projector when no RGB input signal is received from the computer (or any other source). This helps conserve the life of your projector lamp.

Idle Mode to allow the RGB OUT connector to output RGB signal during Idle mode

7. De-select Built-in Speaker to mute the projector's speakers

8. Click the Page 6 tab and select:

Default Source Select > Select > RGB1 to make RGB1 the default display source each time the projector starts up

9. Select Projector Options > Lamp Setting > Lamp Mode > Normal to set the projector lamp to optimal brightness for the 2000i.

10. Select Projector Options > Auto Functions.

11. De-select Focus because the custom lens of the projector only permits manual focus adjustment.

12. Select Projector Options > Screen > 4:3 to enable a standard aspect ratio.

13. Click OK to save these settings.

2000i Installation Guide 39

Index

Adjusting

Computer Power Settings, 9 Height of the Interactive Whiteboard, 29 Projected Image, 10 Projector Settings, 31 Volume, 31

Basic Operations, 27

Adjusting Projector Settings, 31 Adjusting the Volume, 31 Changing the Display Source, 31 Shutting Down the 2000i, 29 Starting Up the 2000i, 27 Using the SMART Board, 32

Casters, Locking and unlocking, 5 Changing the Display Source, 31 Cleaning

Cabinet Components and Mirrors, 35

Projector, 35 Clearing the Filter-Cleaning Message, 36 Computer Power Settings, 9 Configuring and Orienting the SMART Board, 19 Connecting

External Monitor or Projector, 26

External Sound System, 25

Guest Laptop, 21

Power to the Unit, 7

VCR or DVD Player, 24 Control Panel Features, 4 Customer Support, 38

Default Source Select, 39, 40 Display Source Button, 4 DViT technology, 1

Guest Laptop, 21

Guest Laptop Connection, 21

Height Finder, 30 Height-adjustment handle, 1 Host Computer, 7

Connecting a, 7

Image Adjustment

Adjusting Roll, 11 Adjusting the Image Laterally, 12 Changing Image Size, 13 Moving Image Vertically, 15

Installation, 5

External Monitor or Projector, 26 External Sound System, 25 Guest Laptop, 21 Host Computer, 7 Installing the Software, 19

VCR or DVD, 24 Installing and Connecting the Host Computer, 7 Installing the Videoconferencing/Laptop Shelf, 16 Introduction, 1

Laptop Internal Video Port, 23 Locking Pins, 6

Macintosh Computer

Installing SMART Board Software, 19 Maintenance, 35 Matching Computer Resolution to Projector Resolution,

Notebook Software, 1, 33

External Monitor or Projector

Connecting a, 26

External Sound System, 25

Connecting a, 25

Features, 1

2000I Installation Guide

Pen Tray

Features, 3 Power Management, 39, 40 Powering up the 2000i, 8 Projector

Adjusting the Image, 10

Cleaning, 35

Lamp Mode, 37

Replacing lamp, 36

Resolution, 18

Settings, 39 Projector Bulb On/Off (Standby Mode), 4 Projector Settings, 9, 39

Startup Scenarios, 28 S-video, 24 Switching from the Host Computer to a Guest Laptop, 32 Switching from the Host Computer to a VCR or DVD

Player, 32

Tip Feet, Extending, 5

User Registration Card, 38 Using the SMART Board, 32

Replacing the Projector Lamp and Filter, 36

Selecting a COM Port for the SMART Board, 19 Setting Up the 2000i, 5 Shutting Down the 2000i, 29 SMART Board

Cleaning, 35

Configuring, 19

Orienting, 19 SMART Board Software, 19 SMART Board Tools, 32 Starting Up the 2000i, 27

VCR or DVD

Connecting a, 24

View-port Cover

Removing, 10

Volume, 4

Warnings and Safety Precautions, iii Warranty, 38

Warranty Shipping Charges, 38

X-Port 20 Switch Option, 21, 32

2000i Installation Guide 41

Suite 600, 1177 – 11th Avenue SW Calgary, AB CANADA T2R 1K9 Main Switchboard: 1.888.42.SMART (Canada/U.S.) or +1.403.245.0333 (all other countries) Support Tel: 1.866.518.6791 (Canada/U.S.) or +1.403.228.5940 (all other countries) Support Fax: +1.403.245.0366 support@smarttech.com www.smarttech.com

99-00473-00 REV A0

SMART Board 2000i Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
