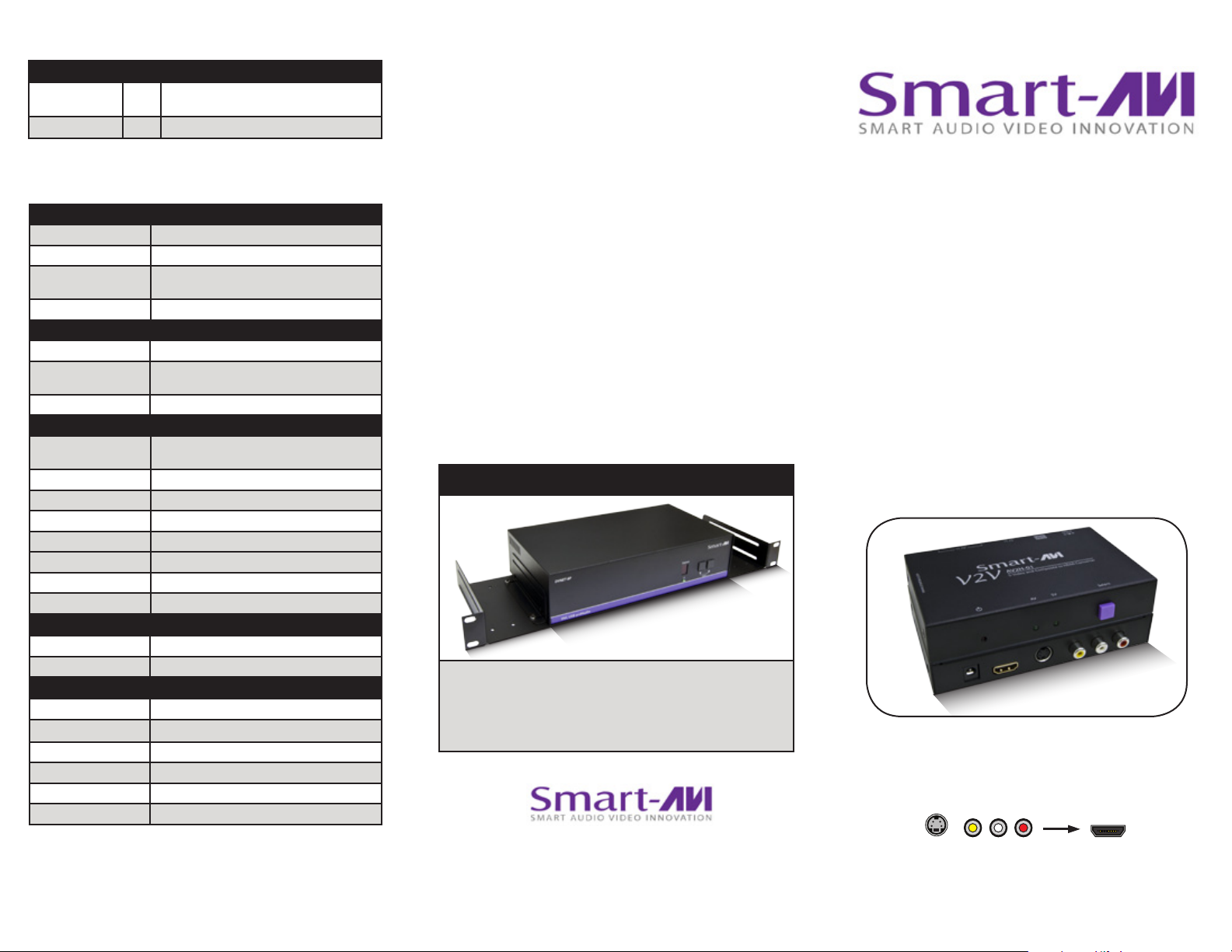

What’s in the Box?
PART NO. QTY DESCRIPTION
V2V-AV2H-01 1 SVideo, Composite Video and Audio to HDMI
Converter
PS5VDC2A 1 5 Volt 2 Amp Power Supply
Technical Specications
COMPOSITE VIDEO
Input Format NTSC/PAL/SECAM
Output Formats NTSC/PAL/SECAM
Resolution 800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface (3) RCA Female
S-VIDEO
Input Format NTSC/PAL/SECAM
Resolution 800 x 600, 1024 x 768,
up to 1280 x 1024@60Hz
Input Interface (1) S-Video Female
HDMI VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space
supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Output Interface (1) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
AUDIO
Signal Type Stereo Unbalanced
Ouput Interface Left/Right RCA (Female)
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 5.25 in W x 3.5 in H x 1 in D
Weight 0.71 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
© Copyright 2012 SmartAVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19” server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
V2V FAMILY
Installation
Manual
V2V-AV2H-01
S-Video and Composite to HDMI
Converter
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
www.smartavi.com
Introduction
The V2V-AV2H-01 Converts S-Video or Composite Video
and Stereo Audio to HDMI.
Features
• One S-Video Signal Input
• One AV Signal Input
• R/L Audio Sgnal Input
• One HDMI Signal Output
• HDMI Signal 720p/60HZ Output
• Adaptive PAL / NTSC standard
• LED Indicators
• Easy to install within minutes

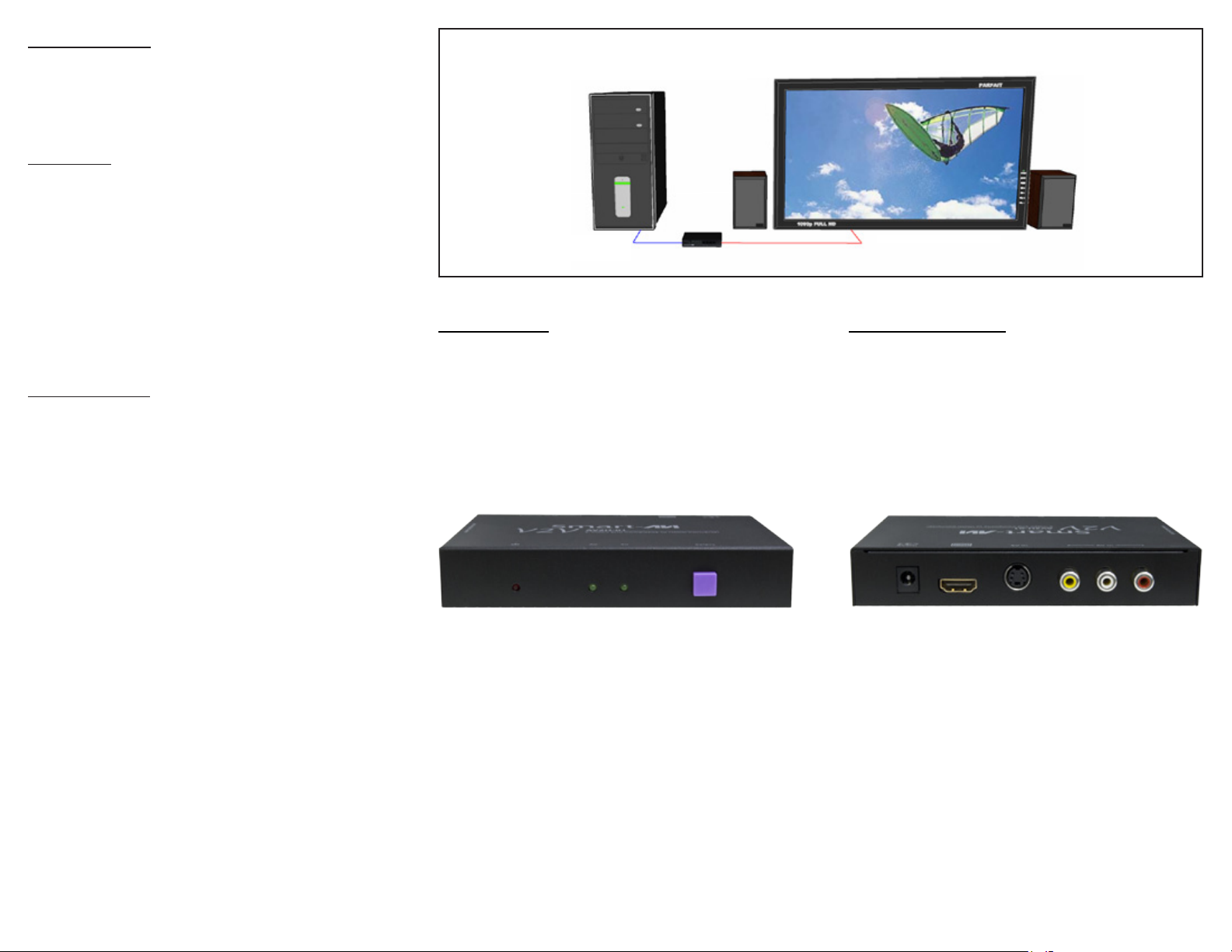

Product - Installation Diagram
VIDEO SOURCE
Installation
V2V-AV2H-01
HDMI DISPLAY AND SPEAKERSS-VIDEO/COMPOSITE
Button Function
Applications
• Home Theater
• PC Networking
• Conference Center Systems
• Point of Sale
• Camera Surveillance
• Video Phone
• Control Room Systems
• Recording Studios
1. Connect a composite or S-Video input device.
2. Connect an HDMI display to the HDMI output on
the V2V-AV2H-01.
3. Connect the power cord to the V2V-AV2H-01.
4. Power on the input device and the display.
V2V-C2V-01 Front V2V-C2V-01 Rear
Use the front panel button to switch between
Composite and S-Video, indicated by the LEDs.
