Smart Avi UDX-2P User Manual

What’s in the Box?

PART NO. QTY DESCRIPTION

UDX-2PS 1 2 DVI-D and USB 2.0 over CAT6 STP Extender.

Includes: [UDX-2P-TX, UDX-2P-RX and 2 x (PS­5VD4A)]

Power Supply 1 PS5VDC4A

User Manual 1

© Copyright 2012 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.

Technical Specications

VIDEO

Format DVI-D Single Line

Maximum Pixel Clock 165 MHz

Input Interface (TX) (2) DVI-D 29-pin female

Output Interface (RX) (2) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p(TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 2.0 480 Mbit/s (60 MB/s)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power External 100-240 VAC/5VDC4A @20W

Dimensions 10.5 in W x 1.75 in H x 3.375 in D (3 in RX)

Weight 4 lb

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.

For more information, visit www.smartavi.com.

UDX-2P-TX Front

UDX-2P-TX Rear

UDX-2P-RX Front

UDX-2P-RX Rear

Installation

Manual

UDX-2P

Dual DVI-D and USB 2.0 Extender

over Twisted Pair with Super Reclocking

Dual DVI-D and USB 2.0 Extender up

to 250 feet over Twisted Pair Cable

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St. North Hollywood, CA 91605

Tel: [phone] Fax: [phone]

http://www.SmartAVI.com

www.smartavi.com

Introduction

The UDX-2P is the perfect solution for extending dual
DVI-D displays and USB 2.0 devices to a remote location.
It extends DVI-D and USB 2.0 signals to a remote location
up to 250 feet away. The UDX-2P features pixel accurate
signal reclocking which regenerates the input signal into a
perfectly sharp and clear output signal. It is fully plug and
play with dynamic DDC learning.

Features

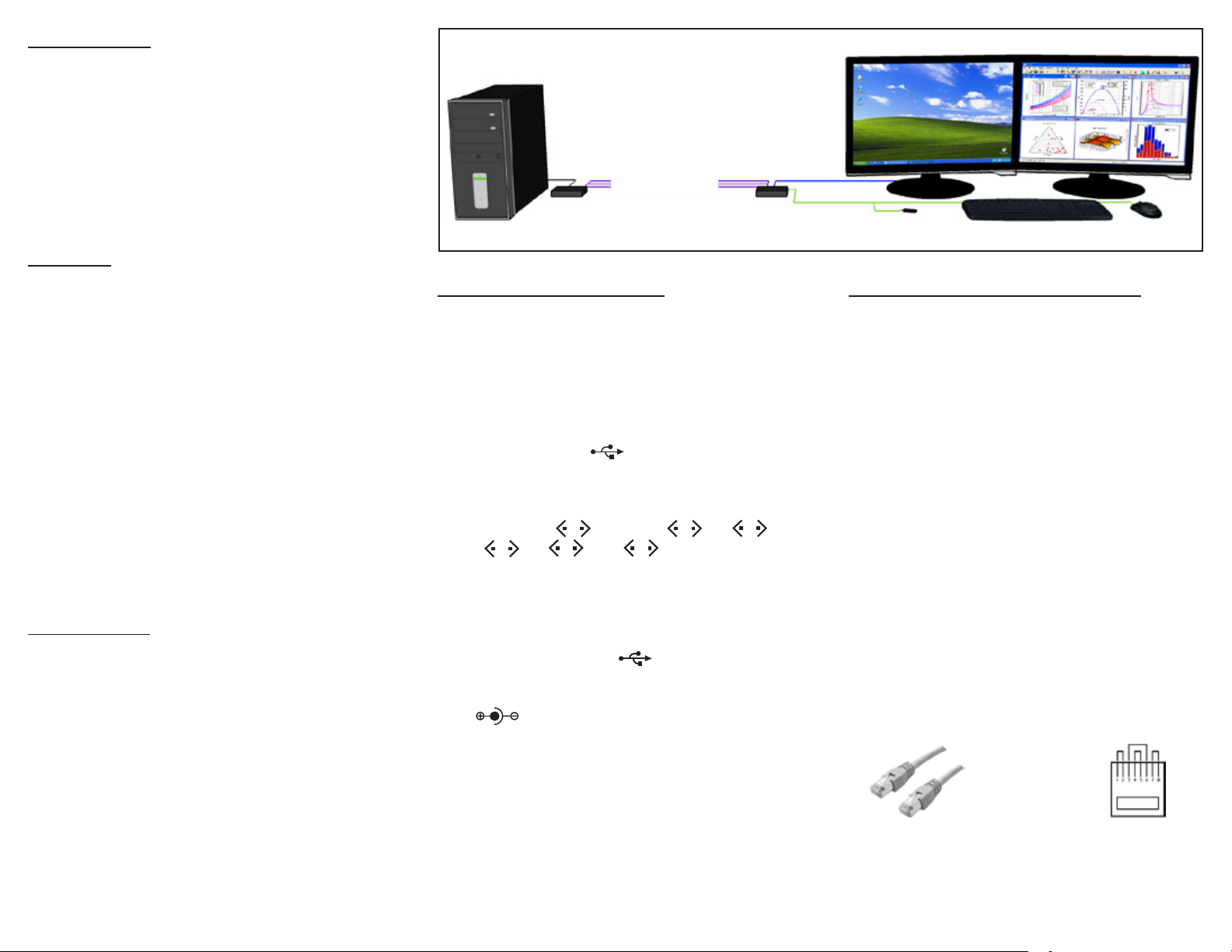

Product - Installation Diagram

DVI-D MONITORS

up to 250 ft over STP

UDX-2P-TX

COMPUTER

UDX-2P-RX

USB 2.0 FLASH

DRIVE

USB 2.0 KEYBOARD USB 2.0 MOUSE

• DDC from internal table for Mac/PC

• Dedicated switch to learn any DDC

• Supports High Resolution 1920x1200 60Hz

WUXGA

• Supports Mac, PC, and Linux DVI

• Uses universal DVI Single Link connectors

• Zero pixel loss with TMDS signal correction

• Supports all USB 2.0 and 1.0 Devices

Transparently
(Disk Drives, Flash Drives, Printers, Cameras,
Scanners, etc.)

• Supports 4-port USB 2.0 in remote location

• Full reclocking for the receiver regenerates

digital signal producing top signal quality

• Extends up to 250ft (275ft with high quality
CAT6 STP)

Applications

• Medical Applications

• Industrial Work Areas

• Home Theater Integration

• Digital Signage Deployment

• Information Kiosks/Displays

• Film/Recording Studios

Connecting the UDX-2P

1. Power o all devices.

2. Connect two DVI-D sources (computer) to the

DVI-D ports of the UDX-2P-TX
labeled DVI-D IN 1 and DVI-D IN 2 .

3. Connect a USB source to the USB port of the the
UDX-2P-TX labeled

4. Connect the UDX-2P-TX to the the UDX-2P-RX with
three STP (Sheilded Twisted Pair) cables using the
ports labeled from TX to RX, TX
to RX, TX to RX.

2

1 1

3 3

5. Connect the DVI displays to the port on the rear of
the UDX-2P-RX labeled DVI-D IN 1 and DVI-D IN 2.

6. Connect up to 4 USB 2.0 devices to the ports on
the UDX-2P-RX labeled

7. Connect the power supply to the ports labeled
on the UDX-2P-TX and UDX-2P-RX.

8. Power on the computer, displays and USB 2.0
devices.

2

Learning the EDID of a Display

1. Power o all devices.

2. Power on the UDX-2P Transmitter and the display

to be learned.

3. Connect a DVI-D display to the DVI-D port of the
UDX-2P transmitter labeled DVI-D IN .

4. Press the LEARN button

5. The light will blink quickly if the learning was

successful. If the learning is unsuccessful the light
will not illuminate.

The following is the wiring standard for terminating UTP/STP
cable using RJ-45-STP connector:

Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8

Connectors: RJ-45-STP
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
