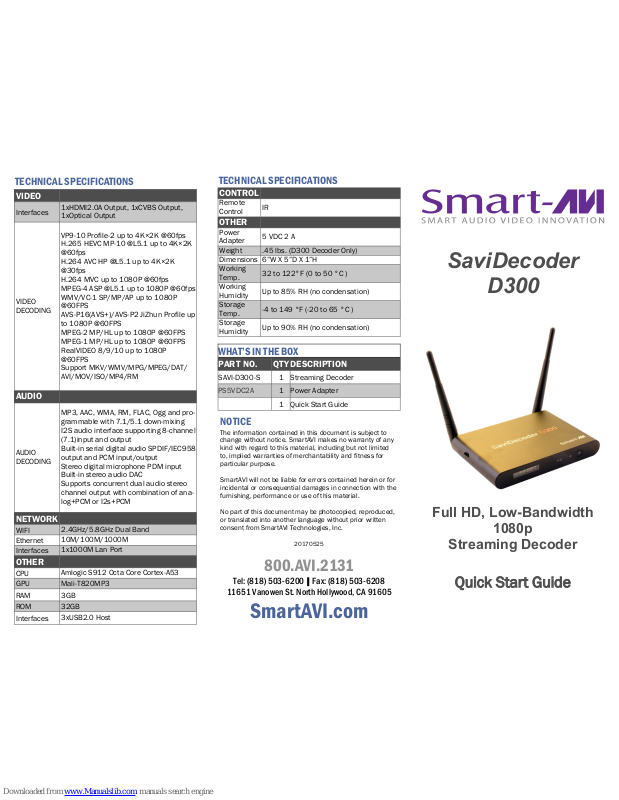

SMART-AVI SaviDecoder D300 Quick Start Manual
SaviDecoder
D300
Quick Start Guide
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
NOTICE
The information contained in this document is subject to
change without notice. SmartAVI makes no warranty of any
kind with regard to this material, including but not limited
to, implied warranties of merchantability and fitness for
particular purpose.
SmartAVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced,
or translated into another language without prior written
consent from SmartAVI Technologies, Inc.
20170525
Full HD, Low-Bandwidth
1080p
Streaming Decoder
WHAT’S IN THE BOX
PART NO. QTY DESCRIPTION
SAVI-D300-S 1 Streaming Decoder
PS5VDC2A 1 Power Adapter
1 Quick Start Guide
TECHNICAL SPECIFICATIONS
VIDEO
Interfaces
1xHDMI2.0A Output, 1xCVBS Output,
1xOptical Output
VIDEO
DECODING
VP9-10 Profile-2 up to 4K×2K @60fps
H.265 HEVC MP-10 @L5.1 up to 4K×2K
@60fps
H.264 AVC HP @L5.1 up to 4K×2K
@30fps
H.264 MVC up to 1080P @60fps
MPEG-4 ASP @L5.1 up to 1080P @60fps
WMV/VC-1 SP/MP/AP up to 1080P
@60FPS
AVS-P16(AVS+)/AVS-P2 JiZhun Profile up
to 1080P @60FPS
MPEG-2 MP/HL up to 1080P @60FPS
MPEG-1 MP/HL up to 1080P @60FPS
RealVIDEO 8/9/10 up to 1080P
@60FPS
Support MKV/WMV/MPG/MPEG/DAT/
AVI/MOV/ISO/MP4/RM
AUDIO
AUDIO
DECODING
MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
I2S audio interface supporting 8-channel
(7.1)input and output
Built-in serial digital audio SPDIF/IEC958
output and PCM input/output
Stereo digital microphone PDM input
Built-in stereo audio DAC
Supports concurrent dual audio stereo
channel output with combination of analog+PCM or I2s+PCM
NETWORK
WIFI
2.4GHz/5.8GHz Dual Band
Ethernet
10M/100M/1000M
Interfaces
1x1000M Lan Port
OTHER
CPU
Amlogic S912 Octa Core Cortex-A53
GPU Mali-T820MP3
RAM 3GB
ROM 32GB
Interfaces
3xUSB2.0 Host
TECHNICAL SPECIFICATIONS
CONTROL
Remote
Control
IR
OTHER
Power
Adapter
5 VDC 2 A
Weight .45 lbs. (D300 Decoder Only)
Dimensions 6”W X 5”D X 1”H
Working
Temp.
32 to 122°F (0 to 50 °C )
Working
Humidity
Up to 85% RH (no condensation)
Storage
Temp.
-4 to 149 °F (-20 to 65 °C )
Storage
Humidity
Up to 90% RH (no condensation)
INTRODUCTION
The D300 is a decoding unit that allows
users to access high quality streams directly
from the internet without a PC or classic
computer-based connection. Users can
connect HDMI and composite AV output
devices to the decoder, as well as USB 2.0
transparent peripherals like keyboards and
mice, then easily access streams directly
from the D300 via any stream’s IP address.
HARDWARE INSTALLATION
1. You should have the IP address of your encoder before you start. See the SaviStreamer E300 manual for how to
do this.
2. Connect the RJ45 connector on the D300 decoder to your network with a CAT 5e/6 cable or connect via WIFI.
3. Connect the HDMI connector on the D300 decoder to a display.
4. Optionally connect a USB keyboard & mouse to the D300.
5. Power the D300 decoder with the provided power adapter.
6. Power on the display connected to the D300.
7. Press the power button on the front and wait a few seconds for the D300 to initialize.
8. When you see the Player status screen on the On Screen Display (OSD), use the supplied IR remote control or a
USB keyboard & USB mouse to select Configure in the upper right corner of the screen. (See Figure 1)
9. Once Configure is selected, select Source. Enter the address for your streaming source formatted like the example shown in Figure 2. and select OK.
10. Start the E300 encoder and the video stream. See the SaviStreamer E300 manual for how to do this.
FRONT VIEW
REAR VIEW
Figure 1
Figure 2
