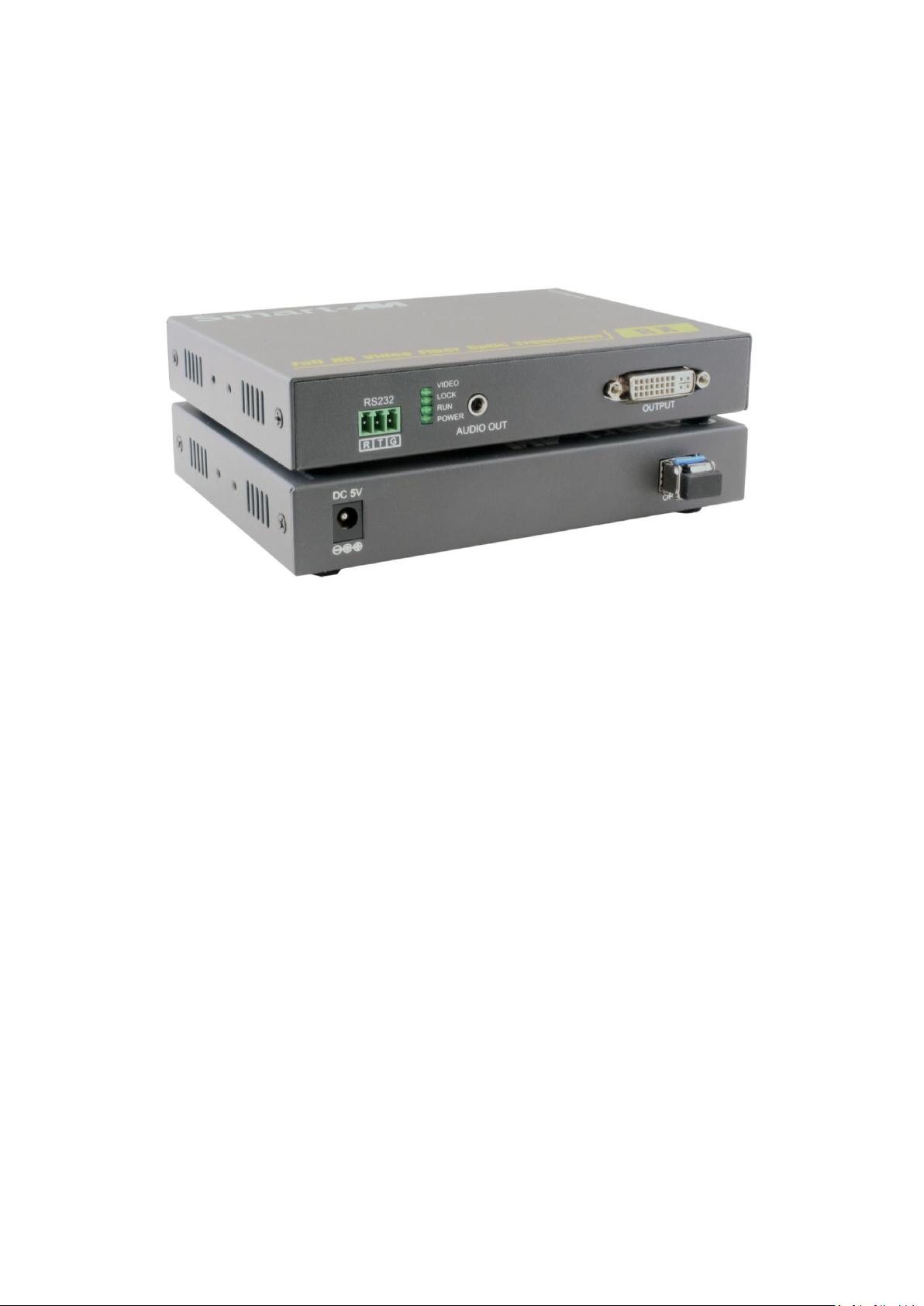

SmartAVI
FDX-Mini
HD DVI-D, RS232 Fiber Optic Extender
User Manual v1.0
1. Description
The FDX-Mini fiber optic extender boosts DVI signals over long distances with
a single fiber cable. With high definition resolutions up to 1080p, RS232 signal
control and external audio transmission function, the FDX-Mini is perfect for
wide range of applications where security and efficiency are essential.
2. Features
Transmit DVI signals 10km with one fiber optic cable;
Resolutions up to 1080p (1920x1080@60Hz);
Stereo audio support;
RS232 control;
DVI 1.0 and HDCP 1.2 standard compliant;
Highly compatible, Automatic learning;
Auto-enhanced and optimizes picture;
Secure design;
Plug and play ready;
3. Specifications
Parameter
Description
Video
Standards
DVI 1.0; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
1920*1080@60Hz 1920*1080@50Hz
1920*1080@30Hz 1920*1080@25Hz
1920*1080@24Hz
1080I@60Hz 1080I@50Hz
1280*720@60Hz 1280*720@50Hz
Connector
DVI-D
Impedance
100Ω
Audio
Interface
3.5mm earphone seat
Signal type
Stereo
RS232
Interface
Industrial terminal
Signal direction
Unidirectional
Baud rate
Self-adaptive, Max：115200bps
Data bits
8
Optical
fiber
Interface
LC connector
Fiber type
Single-mode single fiber
Wavelength
Single-mode 1310nm
Interface bandwidth
2.97Gbps
Transmission distance
standard 10km
Other
Power supply
The power adapter: DC 5V-12V
Power dissipation
MAX 6W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
136*130*30mm
The warranty
1 year free warranty

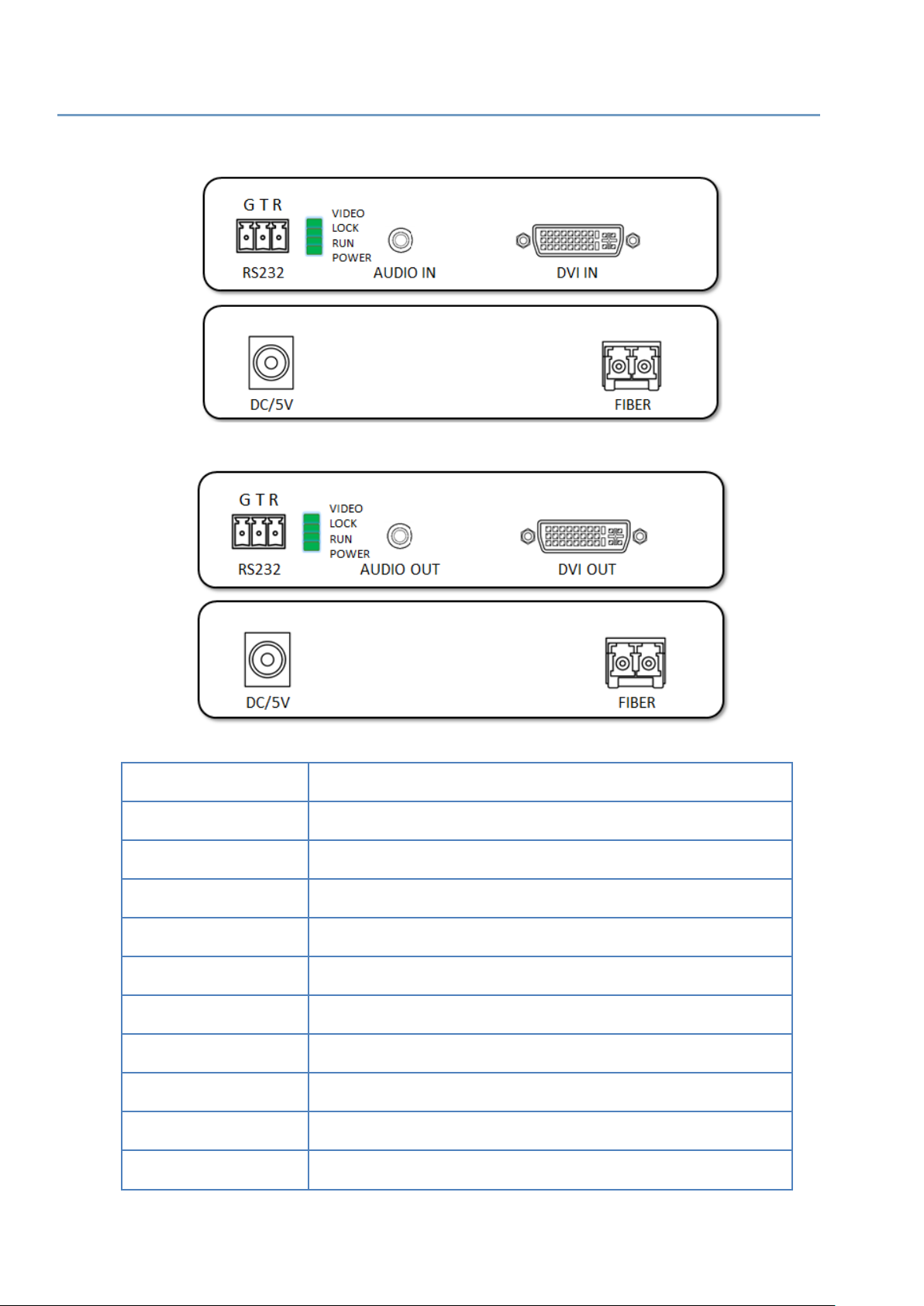

4. Panel
Port name
Description
DVI IN/OUT
DVI signal input/output
Audio IN/OUT
Stereo audio signal input/output
RS232
Serial port( G: Ground, T: transmit, R: receive )
DC/5V
Power adapter socket
FIBER
SFP module---LC connector
LED indicator
Description
VIDEO
Video signal connection indicator
LOCK
Video signal lock indicator
RUN
System status indicator
POWER
System power indicator
Transmitter:
Receiver:
5. Package list
(1) FDX-Mini-TX transmitter
(1) FDX-Mini-RX receiver
(2) DC/5V Power Supply
(1) User manual
6. Installation
1. Connect DC/5V power supplies to the transmitter and the receiver
2. Connect an DVI cable to the FDX-Mini-TX DVI input port and output port of
the video source
3. Connect a DVI cable to FDX-Mini-RX output port and input port of video
display
4. Connect a fiber cable between the TX optical port and the RX optical port

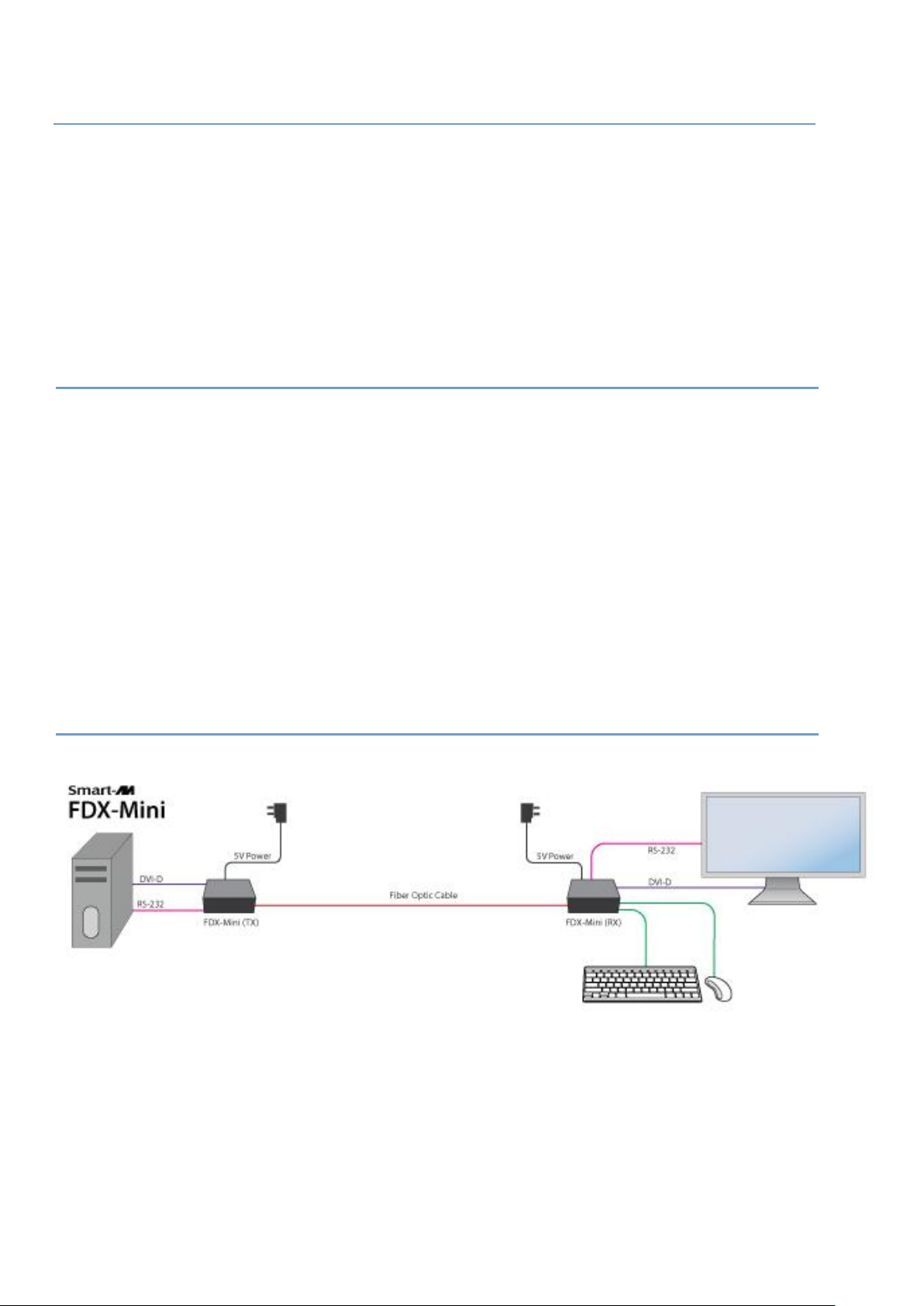

7. Diagram
