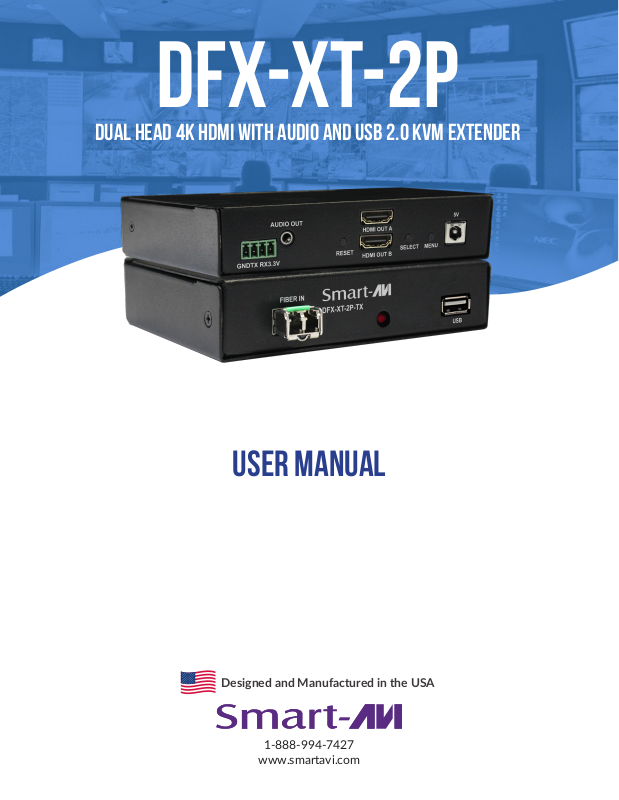

Smart-AVI DFX-XT-2P Users Guide

DFX-XT-2P

Dual head 4K HDMI with audio and usb 2.0 kvm extender

USER MANUAL

Designed and Manufactured in the USA

1-888-994-7427

www.smartavi.com

OVERVIEW

TECHNICAL SPECIFICATIONS_________________________________________________________________

WHAT’S IN THE BOX?_________________________________________________________________________

FRONT AND BACK____________________________________________________________________________

INSTALLATION_______________________________________________________________________________

TROUBLESHOOTING_________________________________________________________________________

TECHNICAL SUPPORT________________________________________________________________________

LIMITED WARRANTY STATEMENT____________________________________________________________

3

4

4

5

6

6

7

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 2

technical specifications

VIDEO

Format HDMI2.0

Resoluon: high denion 3840 x 2160

Video Resoluon

Video Bandwidth Single-link 340 MHz (10.2 Gbps)

Input Interface (2) HDMI 19-pin (female)

Output Interface (2) HDMI 19-pin (female)

Max Output Distance Up to 20 

Equalizaon Automac

Input TMDS Signal 1.2 Volts [peak-to-peak]

Input DDC Signal 5 Volts [peak-to-peak, TTL]

Data Rate 1.65 Gbps per color

AUDIO

HDMI format Stereo

Input Interface (1) 3.5mm L/R jacket (female)

Output Interface (1) 3.5mm L/R jacket (female)

USB

Input Interface (TX) (1) USB Type B

Output Interface (RX)

Keyboard and mouse Keyboard and mouse emulaon

Color Depth: 24-bit color depth
Latency: less than 1 ms

(2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent

SYSTEM

Interface & Type Single-Mode Fiber

Cable Requirements Dual Fiber

Maximum Length

Single mode: 10 km (6.2 miles)
Mul mode: 500 m (1640 feet)

OTHER

Power 100-240 VAC/ 5VDC @ 3A/15W

Dimensions 7.8” W x 1.15” H x 3.65” D

Weight 1 lb (.5 lbs per unit)

Approvals UL, CE, ROHS Compliant

Operang Temperature +32 to +104°F (0 to +40°C)

Operang Humidity 20% to 80% (non condensing)

Storage Temperature -4 to 140°F (-20 to +60°C)

Storage Humidity Up to 95% (No Condensaon)

Compliance EMC FCC (Class A), CE (Class A), ICES-003

Environmental Compliance RoHS2 (CE)

Support Warranty 1-year

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 3

What’s in the box?

Product Name Q-ty Descripon

DFX-XT-2P-TX 1 Dual Head 4K HDMI with Audio and USB 2.0 KVM Transmier

DFX-XT-2P-RX 1 Dual Head 4K HDMI with Audio and USB 2.0 KVM Receiver

5VDC3A 2 5V DC, 3A power adapter with center-pin posive polarity.

User manual 1

Front and back

DFX-XT-2P-TX (Front)

DFX-XT-2P-RX (Front)

DFX-XT-2P-TX (Back)

DFX-XT-2P-RX (Back)

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 4

installation

Refer to the following steps and diagram to set up your KVM extender installaon.

DFX-XT-2P-TX

DFX-XT-2P-RX

HDMI IN

HDMI OUT

USB IN

USB 2.0 OUT

USB K/M OUT

AUDIO IN

AUDIO OUT

FIBER

1. Ensure that power is turned o or disconnected from the units and the computers.

2. Use an ber opc cable to connect between the RS232 ports of the DFX-XT-2P-TX and

the DFX-XT-2P-RX.

3. Use a HDMI cable to connect the HDMI output port from each computer to the corresponding
HDMI Input port of the DFX-XT-2P-TX.

4. Use a USB cable (Type-A to Type-A) to connect a USB port on each computer to the respecve
USB port of the DFX-XT-2P-TX.

5. Oponally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the
computers to the Audio Input port of the DFX-XT-2P-TX.

6. Connect a monitor to the HDMI Out console port of the DFX-XT-2P-RX using a HDMI cable.

7. Connect a USB keyboard and mouse and the USB devices in the four USB ports of

the DFX-XT-2P-RX.

8. Oponally connect stereo speakers to the Audio Out port of the DFX-XT-2P-RX.

9. Finally, power on the KVM by connecng a 5VDC power supply to the power connector, and then

turn on all the computers.

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 5

Troubleshooting

No Power

• Make sure that the power adapter is securely connected to the power connector of the unit.

• Check the output voltage of the power supply and make sure that the voltage value is around

5VDC.

• Replace the power supply.

No Video

• Check if all the video cables are connected properly.

• Connect the computer directly to the monitor to verify that your monitor and computer are

funconing properly.

• Restart the computers.

Keyboard is not working

• Check if the keyboard is properly connected to the unit.

• Check if the USB cables connecng the unit and the computers are properly connected.

• Try connecng the USB on the computer to a dierent port.

• Make sure that the keyboard works when directly connected to the computer.

• Replace the keyboard.

Mouse is not working

• Check if the mouse is properly connected to the unit.

• Try connecng the USB on the computer to a dierent port.

• Make sure that the mouse works when directly connected to the computer.

• Replace the mouse.

No Audio

• Check if all the audio cables are connected properly.

• Connect the speakers directly to the computer to verify that the speakers and the computer

audio are funconing properly.

• Check the audio sengs of the computer and verify that the audio output is through the

speakers.

Technical support

For product inquiries, warranty quesons, or technical quesons, please contact [e-mail].

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 6

Limited warranty statement

A. Extent of limited warranty

SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specied above will
be free from defects in materials and workmanship for the duraon of 1 year, which duraon begins
on the date of purchase by the customer. Customer is responsible for maintaining proof of date of
purchase.

SmartAVI limited warranty covers only those defects which arise as a result of normal use of the
product, and do not apply to any:

a. Improper or inadequate maintenance or modicaons
b. Operaons outside product specicaons
c. Mechanical abuse and exposure to severe condions

If SmartAVI receives, during applicable warranty period, a noce of defect, SmartAVI will at its
discreon replace or repair defecve product. If SmartAVI is unable to replace or repair defecve
product covered by the SmartAVI warranty within reasonable period of me, SmartAVI shall refund the
cost of the product.

SmartAVI shall have no obligaon to repair, replace or refund unit unl customer returns defecve

product to SmartAVI.

Any replacement product could be new or like new, provided that it has funconality at least equal to
that of the product being replaced.

SmartAVI limited warranty is valid in any country where the covered product is distributed by

SmartAVI.

B. Limitaons of warranty

To the extant allowed by local law, neither SmartAVI nor its third party suppliers make any other
warranty or condion of any kind whether expressed or implied with respect to the SmartAVI product,
and specically disclaim implied warranes or condions of merchantability, sasfactory quality, and
tness for a parcular purpose.

C. Limitaons of liability

To the extent allowed by local law the remedies provided in this warranty statement are the customers
sole and exclusive remedies.

To the extant allowed by local law, except for the obligaons specically set forth in this warranty
statement, in no event will SmartAVI or its third party suppliers be liable for direct, indirect, special,
incidental, or consequenal damages whether based on contract, tort or any other legal theory and
whether advised of the possibility of such damages.

D. Local law

To the extent that this warranty statement is inconsistent with local law, this warranty statement shall
be considered modied to be consistent with such law.

Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender 7

NOTICE

The informaon contained in this document is subject to change without noce. SmartAVI makes
no warranty of any kind with regard to this material, including but not limited to, implied warranes
of merchantability and tness for parcular purpose. SmartAVI will not be liable for errors contained
herein or for incidental or consequenal damages in connecon with the furnishing, performance or
use of this material. No part of this document may be photocopied, reproduced, or translated into
another language without prior wrien consent from SmartAVI, Inc.

20180109
