Video Intercom
User Manual C10SAVK2
2
Hands Free Video Monitor (C10SAVM-2)
Outdoor Station (C10SAVEP-2)
System Overview
The SmartAccess® Video Intercom Kit (C10SAVK2) includes one outdoor
station, one hands free video monitor and a power supply. Additional units
can be purchased using the codes shown below.
Door Monitoring
(Comes with PSU)
3
System Configuration
Notes:
The system should be wired using standard 4 core alarm cable.
(CAT5 is not recommended)
The system supports two door stations.
A DC14.5V transformer is required for every hands free video monitor on the system.
The system supports a maximum of 4 hands free video monitors.
The maximum distance from the door station to the last monitor is 70 meters.
Wire in series as above.
4
Outdoor Station
Mounting Instructions
1. Remove the door station from its rain shield by removing the screw at the base of
the unit.
2. Mark and drill 2 holes to mount the rain shield.
4. Attach the door station to its rain shield and secure using the screw at the base of
the unit.
5. Use silicon to seal any areas where water ingress could damage the door station.
5

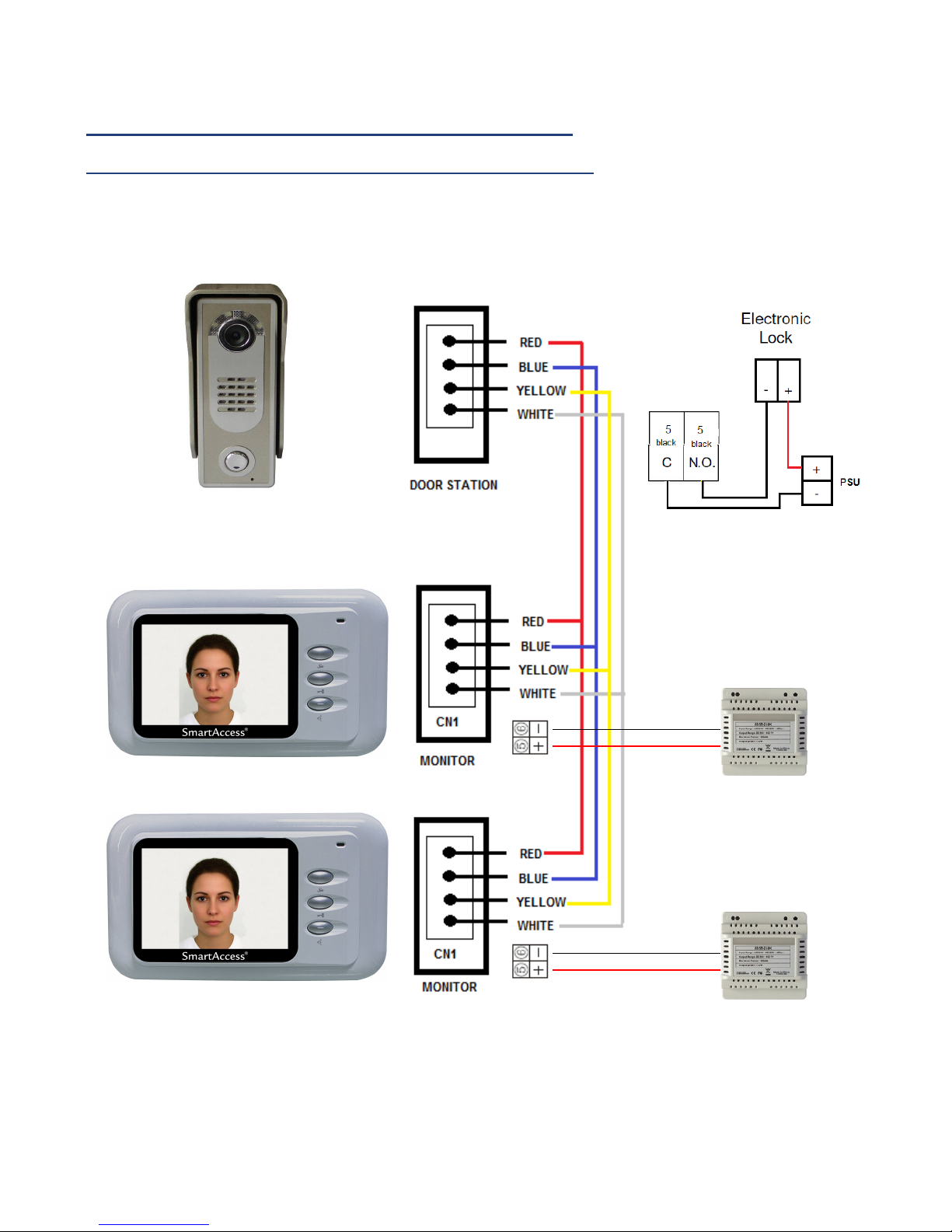

Sample Wiring Diagram
One Entrance Panel - Two Monitors
DC14.5V
Transformer
Lock Wiring
DC14.5V
Transformer
FRONT DOOR
6
Lock Wiring
DC14.5V
Transformer
Lock Wiring
Sample Wiring Diagram
Two Entrance Panels - One Monitors
FRONT DOOR
BACK DOOR
7
Operating Instructions
1. Call: Visitor presses call button.
2. All video stations ring and display the live
camera image.
3. Answer: To speak to the visitor, press this
button.
5. Door Release: Press this button to release
the door.
6. Monitoring: When the system is in standby,
press this button to view Door 1.
Press again to view Door 2 (if connected)
Pressing this button will toggle between
Door 1, Door 2 and Monitor Standby.
Note: Audio is not activated.
8
Specifications
Outdoor Station
Camera:
Lens:
Dimensions:
Back Light:
Power Supply:
Operating Temperature:
Weather Resistance:
Door Release
Colour 1/3” CCD
3.6mm
135 x 58.5 x 40mm
4 LEDs
Power from Monitor
-20°C to 70°C
IP45
Dry Contact
N/O going N/C
Duration 3 seconds
Hands Free Video Monitor
Monitor:
Resolution:
Dimensions:
Power Supply:
Power Consumption:
Operating Temperature:
4” TFT LCD Colour
960 x 234
190 x 113 x 43
14.5V DC (PSU included)
Standby 70mA
Online 700mA
0°C to 70°C
The SmartAccess® Video Intercom Kit (C10SAVK4-2) includes one outdoor
station, one hands free video monitor and a power supply.
