SMART SBX3100 User Manual

USER GUIDE

Model: SBX3100

www.kcicommunications.com

VER 1.2.0
4

th

Edition

 Thank you for purchasing the Smart Black Box Drive Recorder.

 Please ensure that you read and understand this USER GUIDE

before connecting and installing this Recorder.

 Please store the USER GUIDE in an easily accessible location.

Caution

Damages due to production malfunction, loss of data, or other damages occurring while
using this product shall not be the responsibility of the manufacturer. Although the
product is a device used for recording videos, the product may not save all videos in the
case of a malfunction. In the case of an accident, the sensor may not recognize the
shock when the impact is light and as a result it may not begin recording automatically .

SAFETY ADVICE

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVIC IN G TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

Caution

Install the product where it does not block driv er’s visibi lity
and where there is no airbag installed. This could cause an

accident or might injure the passengers in case of accident.

Please make sure you follow the safety advice/instructions given in the user guide.

3

Caution

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTI ONS.

Battery for RTC (R eal Time Clock) inside

Caution

When the impact is light like very light, such as a minor bump in the road,
the G-sensor may not recognize the impact and as a result it may not begin

recording automatically. Test and set your own G-sensor level for your vehicle.

GPS Reception

1. Activate the product in an area without large buildings
to improve GPS reception.

2. The temperature range for optimum operation of the GP
S receiver in your car is -10 ~ 50°C.

3. When using the product for the first time or after a long
period (more than three days), it may take a little longer
to recognize your current location.

It may take between five and thirty minutes to get GPS reception.

GPS reception may be impaired under the following circumstances.

1) If there is an object at the end of the GPS antenna

2) If your vehicle has metallic elements on the windshields

3) If equipment generating electromagnetic waves that interfere with the GPS
signal is installed in the vehicle e.g.: Other GPS devices such as a certain
type of wireless activated alarms, MP3 and CD players and camera alarms
using GPS.

4) If you are using a receiver connected by cable, electric interference can be
avoided by simply changing the location of the receiver (antenna).

5) On heavily overcast or cloudy days, if the vehicle is in a covered location
such as under a bridge or raised roadway, in a tunnel, an underground
roadway or parking area, inside a building or surrounded by high-rise
buildings.

6) If GPS signal reception is poor, it may take longer to locate your current
position when the vehicle is moving than when it is stationary.

4

The commercial purpose GPS has the average rage error of more
than 15 meters and the range error could be more than 100 meters
due to environmental conditions like buildings, roadside trees etc.

CONTENTS

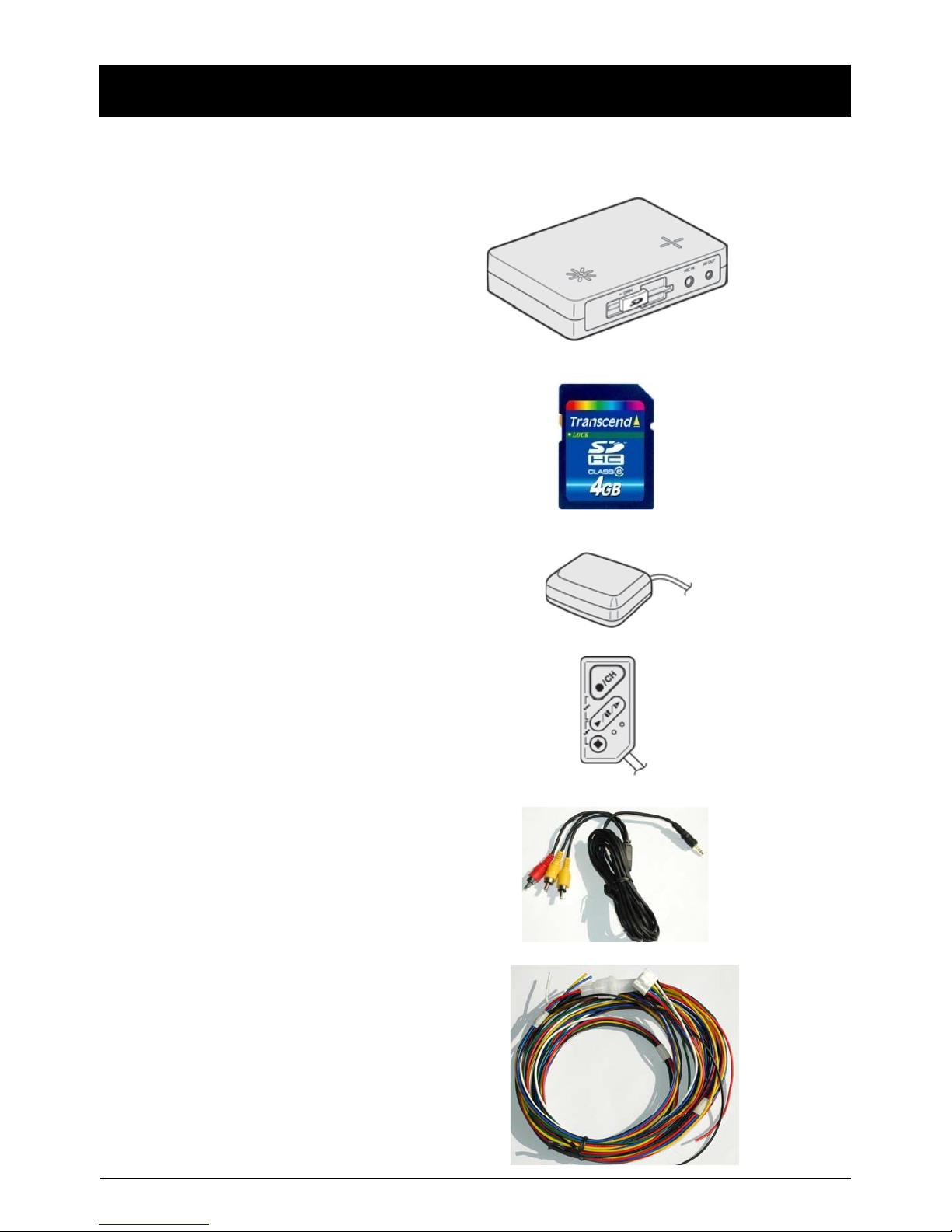

1. SBX-3100 unit

2. 4GB SD memory card

(The PC Viewer software is

provided on the SD card.)

5

You should have a set of the following items for each SBX-3100 order.

3. GPS Antenna module

4. Remote Controller

5. Audio/Video output cable

6. Power Cable

6

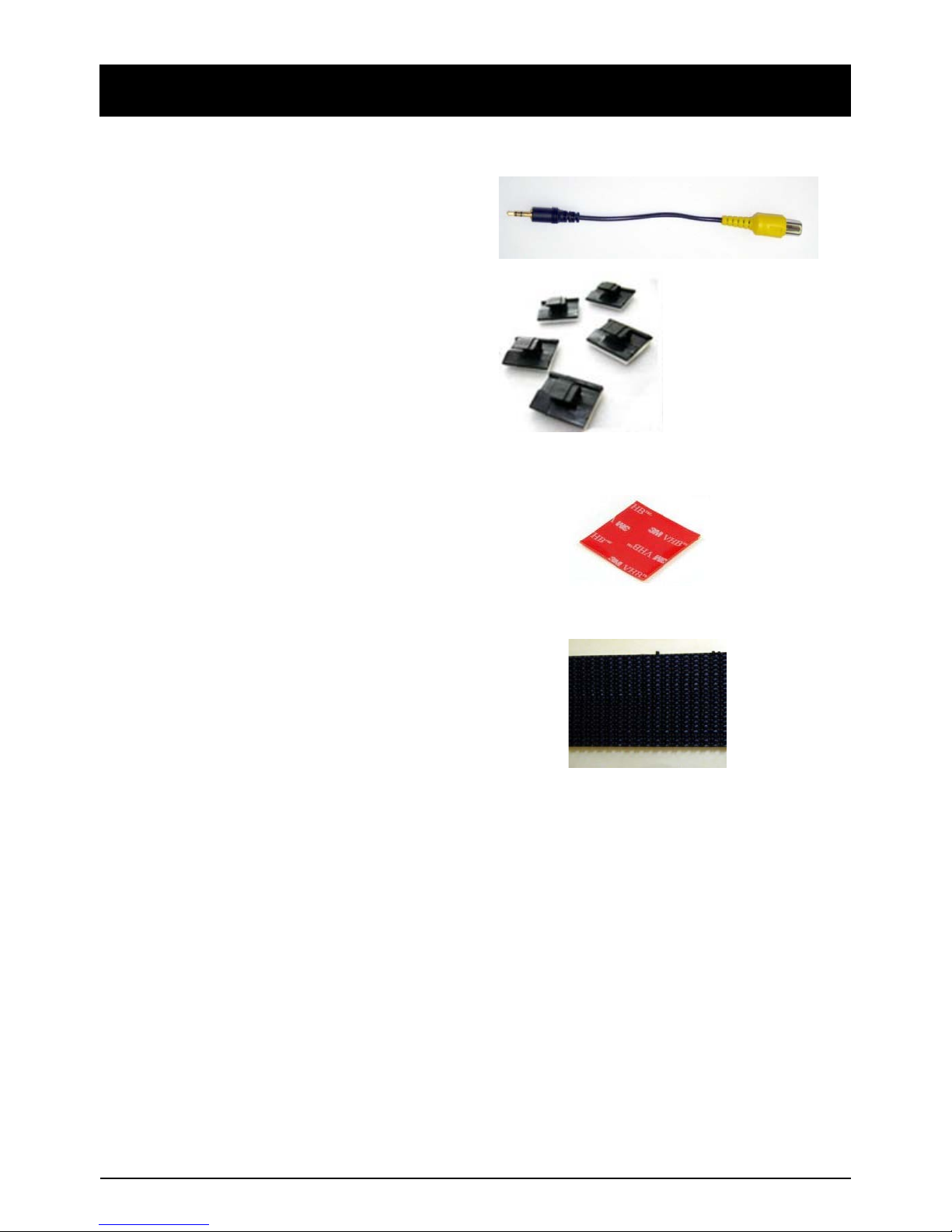

CONTENTS

8. Wire Splice clip (5pcs)

9. Sticker (double sided tape 1pc)

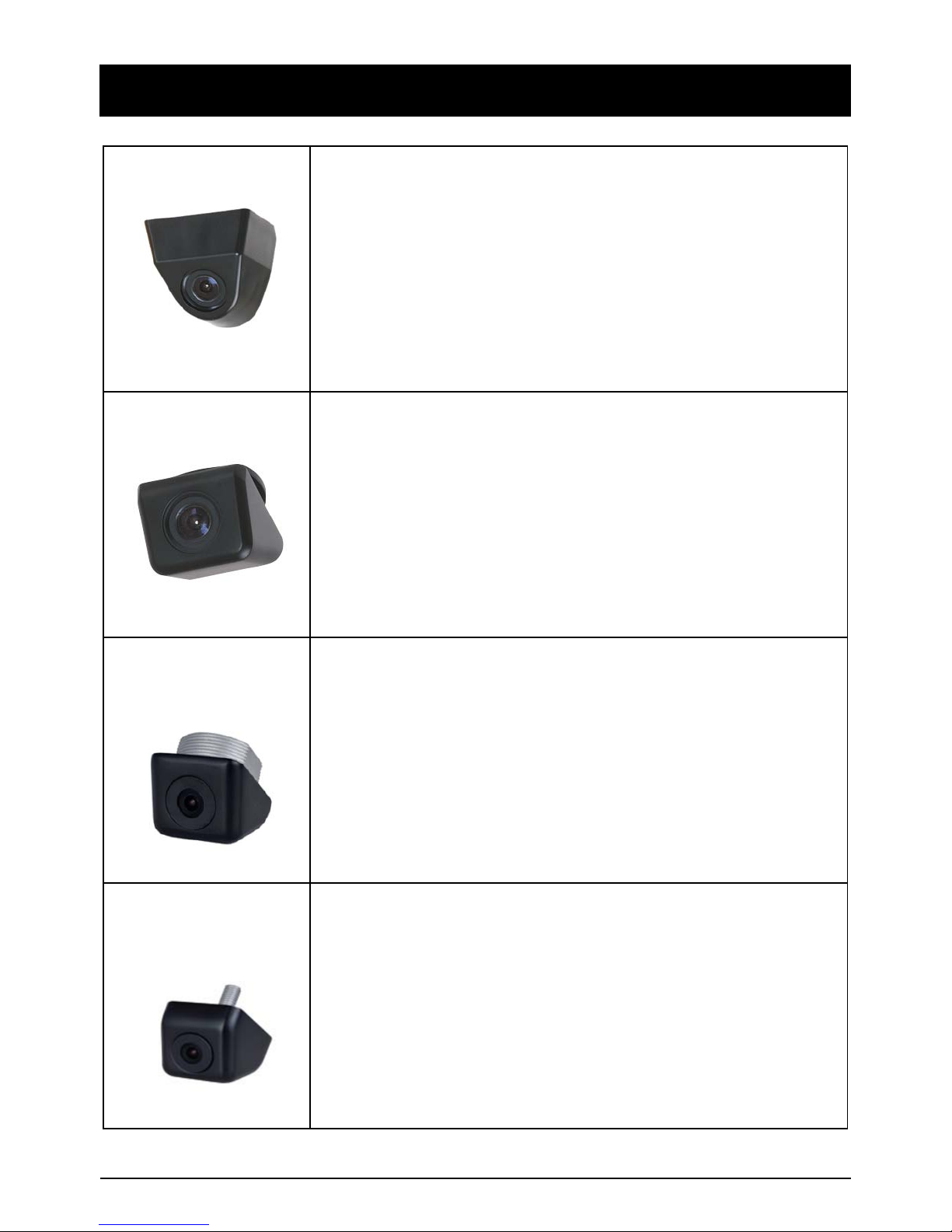

7. Camera input cable

10. V elcro Sticker (1pc)

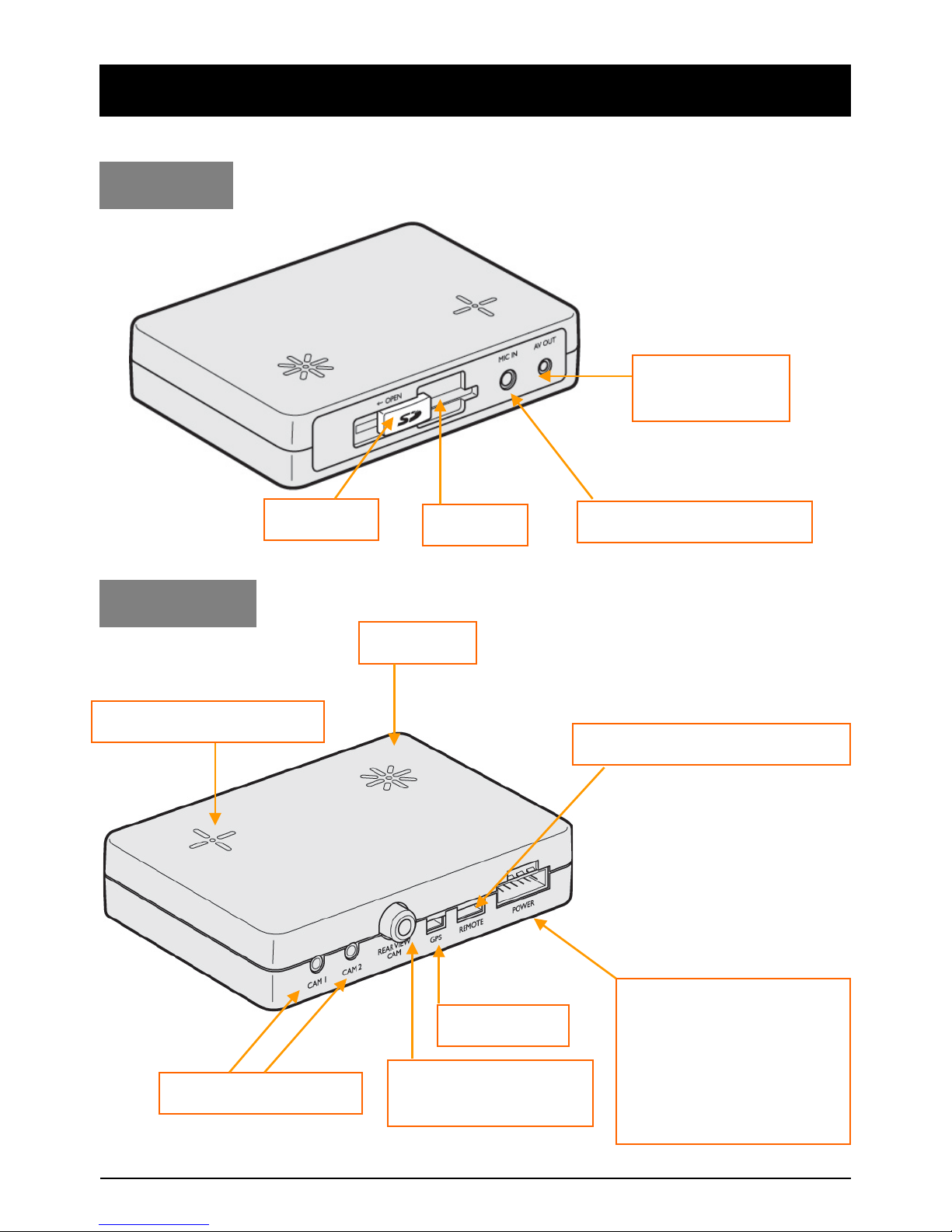

INTRODUCTION

FRONT

REAR

7

SD Slot

SD Door

Audio/Video
Output

External MIC input

BUZZER

Internal Microphone

Camera 1, 2 Input

Remote Control Input

GPS Input

Power Input
&
Alarm (Car Signal)
Input
(Turn left, Turn righ t,
Brake, Speed pulse)

Rear View
Camera Input

INTRODUCTION

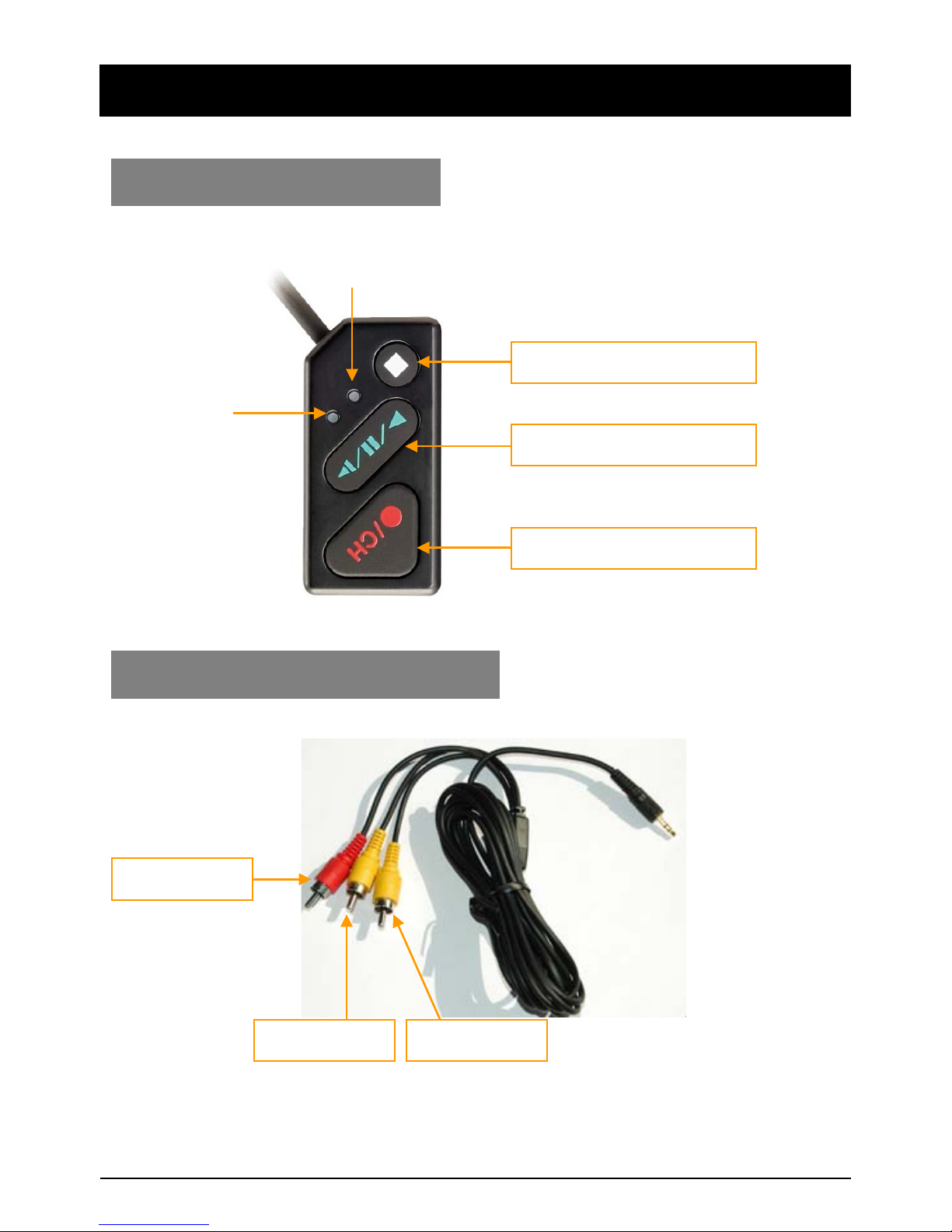

REMOTE CONTROLLER

8

Record LED

BLUE LED

Overwrite LED

RED LED

SHUTTER BUTTON

PLAY BUTTON

PANIC BUTTON

Audio Video Output Cable

Video out 1 Video out 2

Audio out 1

[Note] The same screen will be shown through the Video out 1 & 2.

9

INTRODUCTION

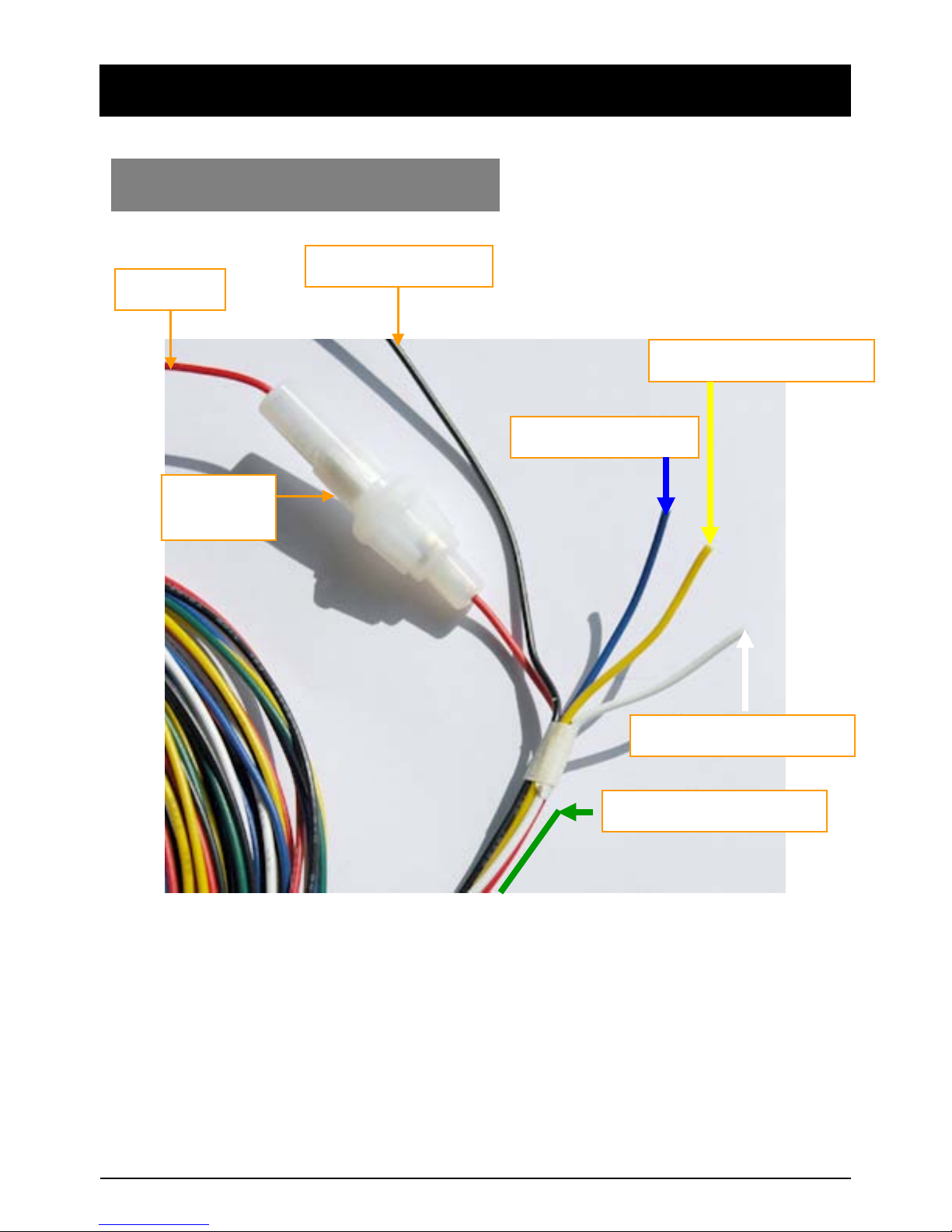

Power & Car Signal Input

FUSE
250V 3A

Red(+)

Black (Ground)

BLUE (Alarm1)

Yellow (Alarm3)

White (Speed pulse)

Green (Alarm2)

FUNCTION (MAIN UNIT)

Automatic start

Make sure that peripherals include cameras are properly connected.
Turn on the vehicle power, SBX-3100 will be automatically started. (Use the
power cable provided.)

Event record

The Event recording will be started automatically by Alarm1 to 3 or by the G­sensor level.

The Panic recording can be started by pressing the [PANIC] button.

10

Notice : The unit will not start recording immediately after the power is

turned on. It takes around 1 minute for the built-in power backup system

to charge. Thereafter, the internal flash memory will be ready to record.

Normal record (Continuous record)

The Normal(continuous) recording will be automatically started after power on.
SBX-3100 will not make a separate event file during the continuous recording.
It will mark the Event area as ‘Alarm1~3’, G-senor or [PANIC] button in the
continuous recording file, which can be easily searched for during playback.

Live screen on Monitor

SBX-3100 will display the live screen on the monitor.
The camera channel can be changed using the information OSD.
(Refer to page 13)

Playback in the car

Recorded files can be played back in the car.

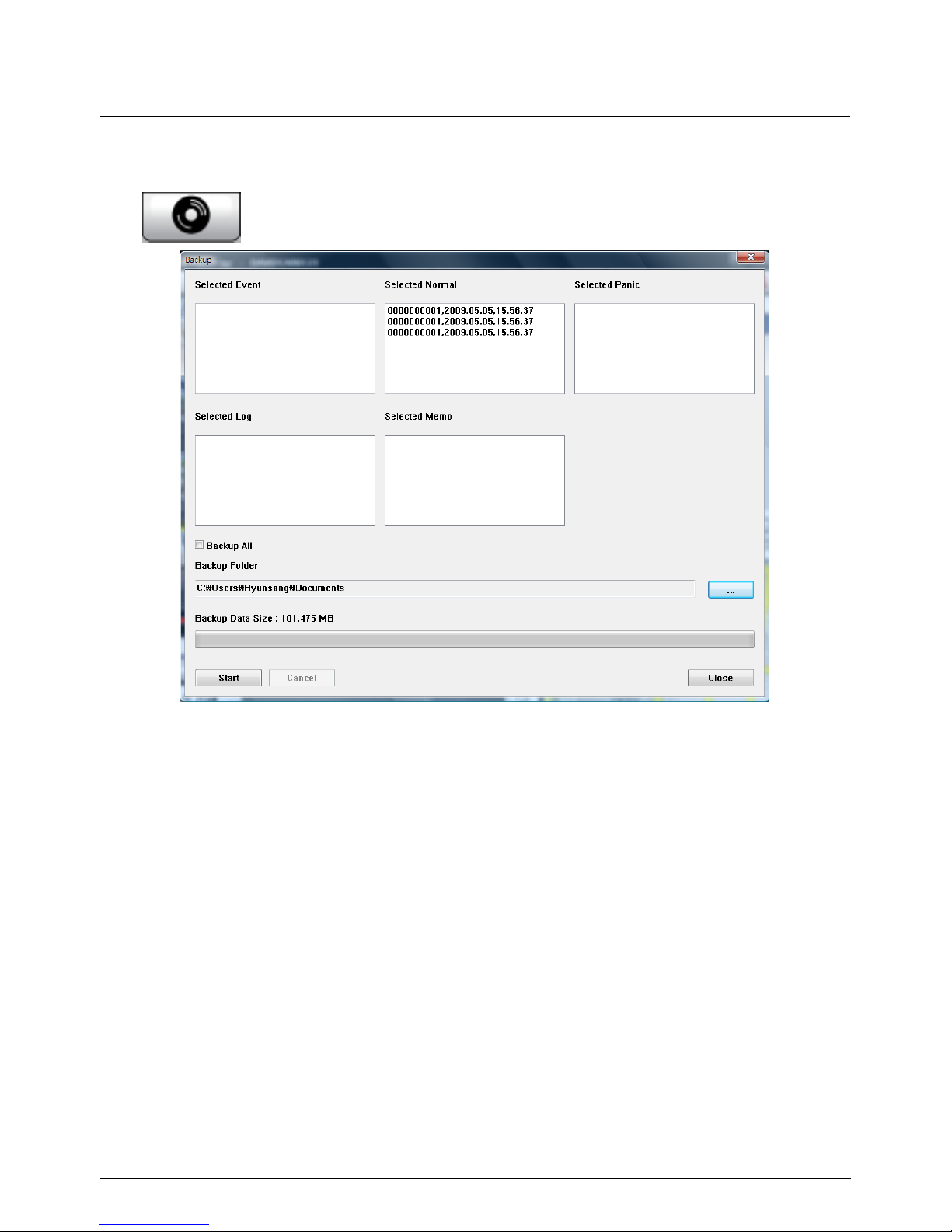

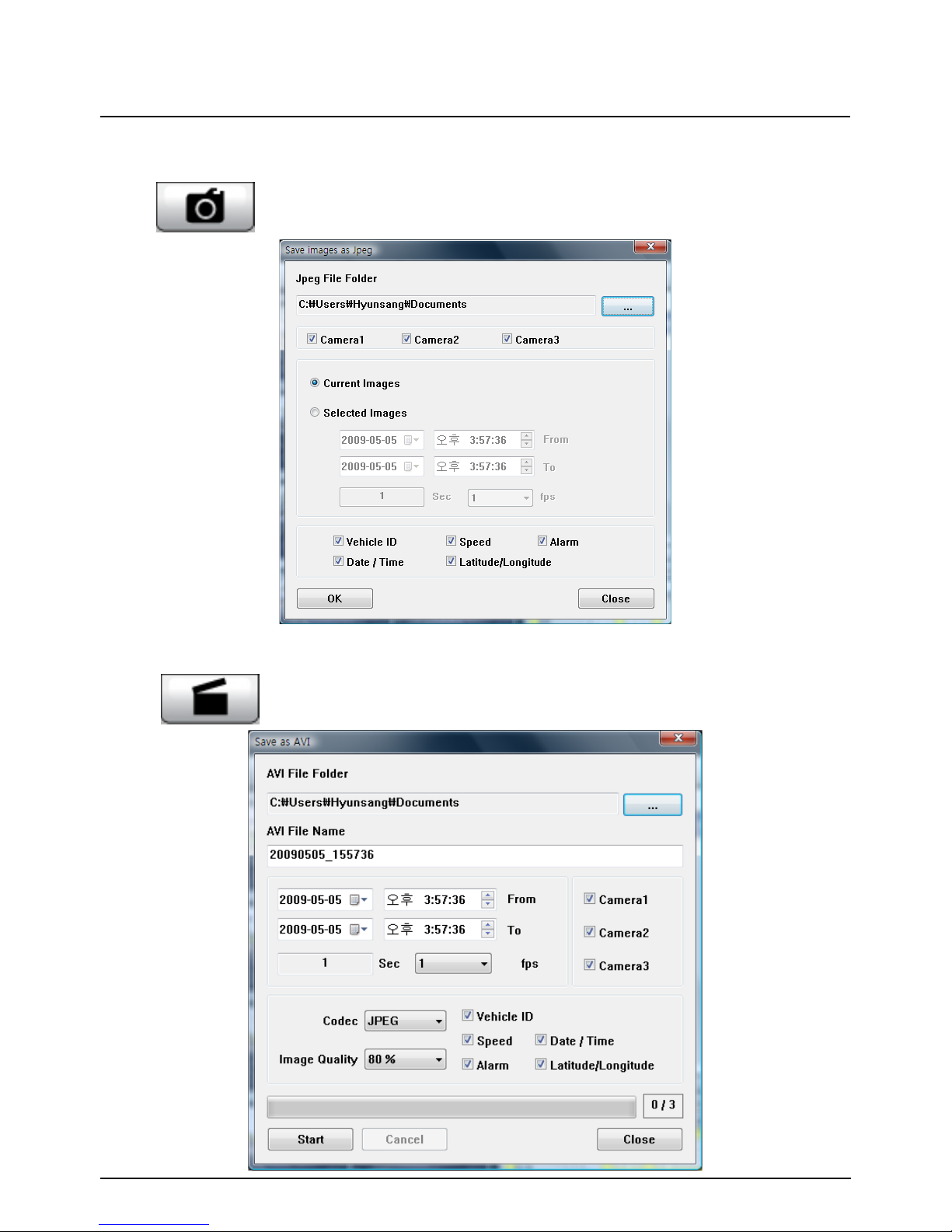

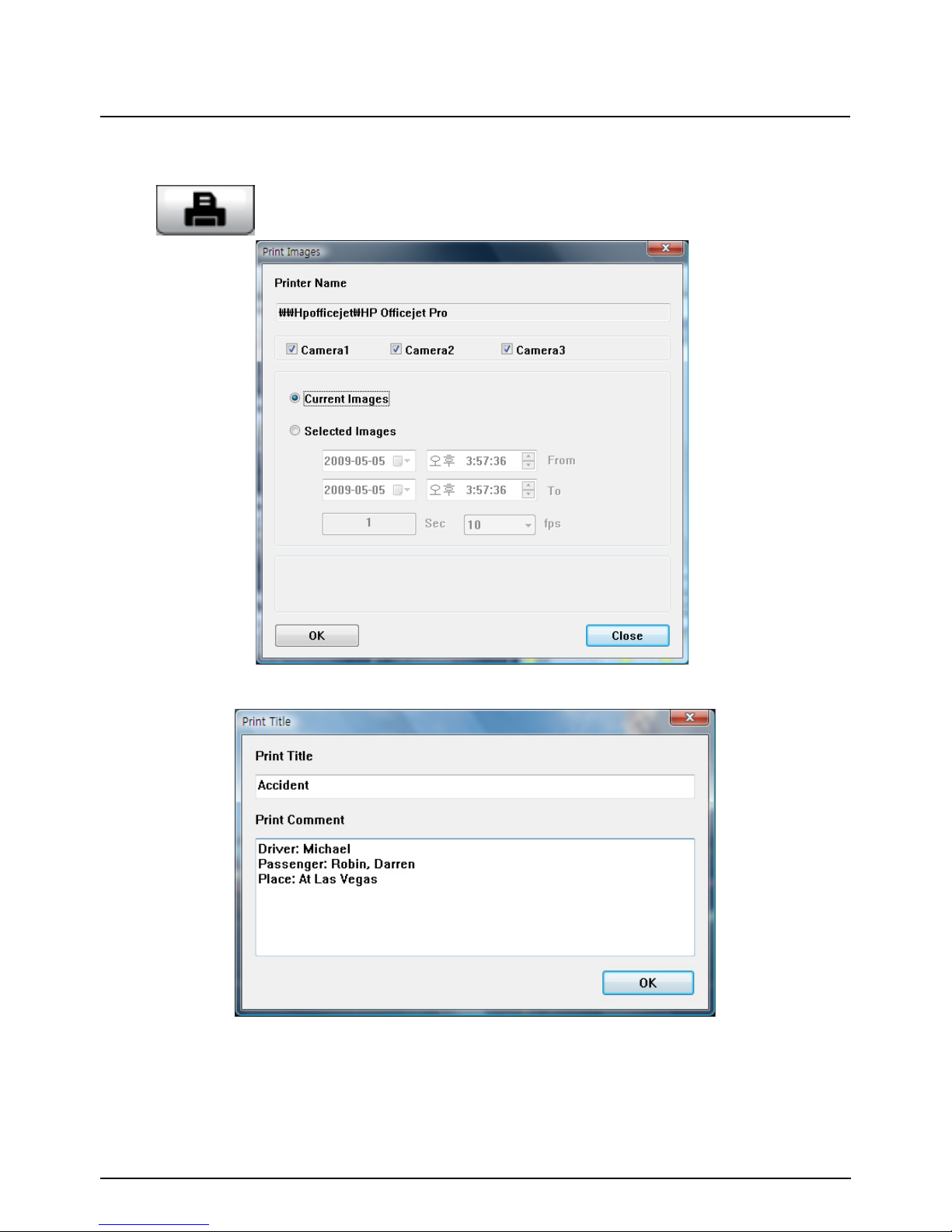

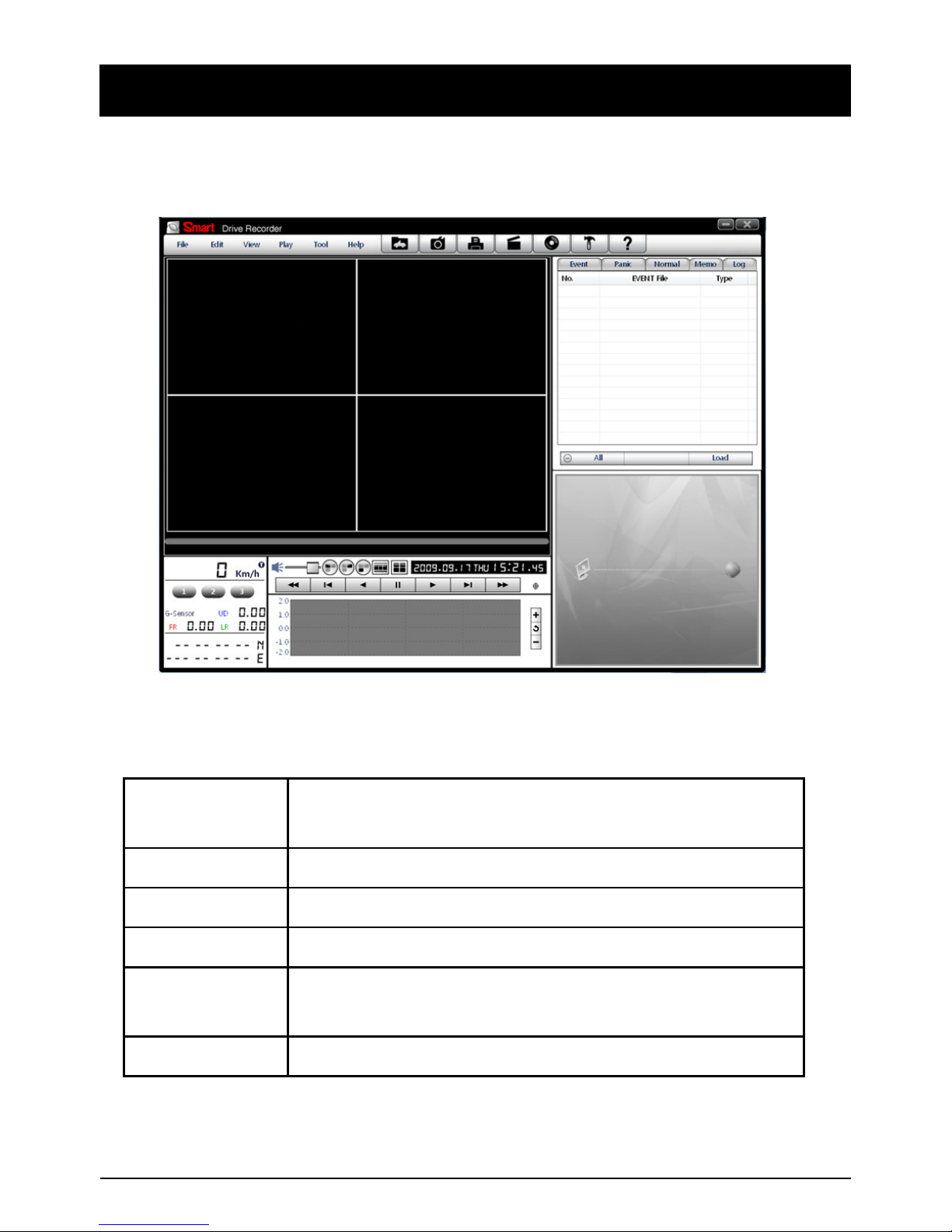

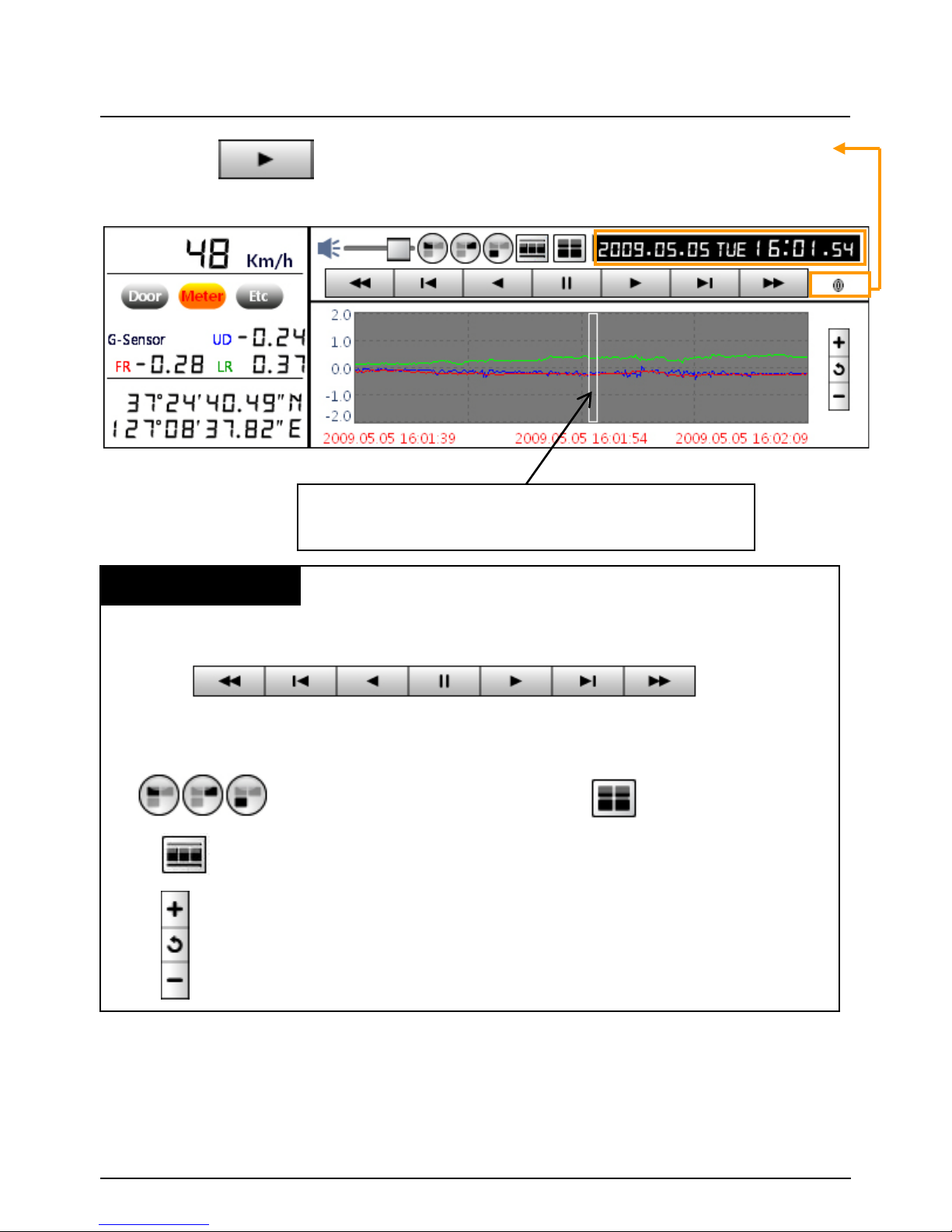

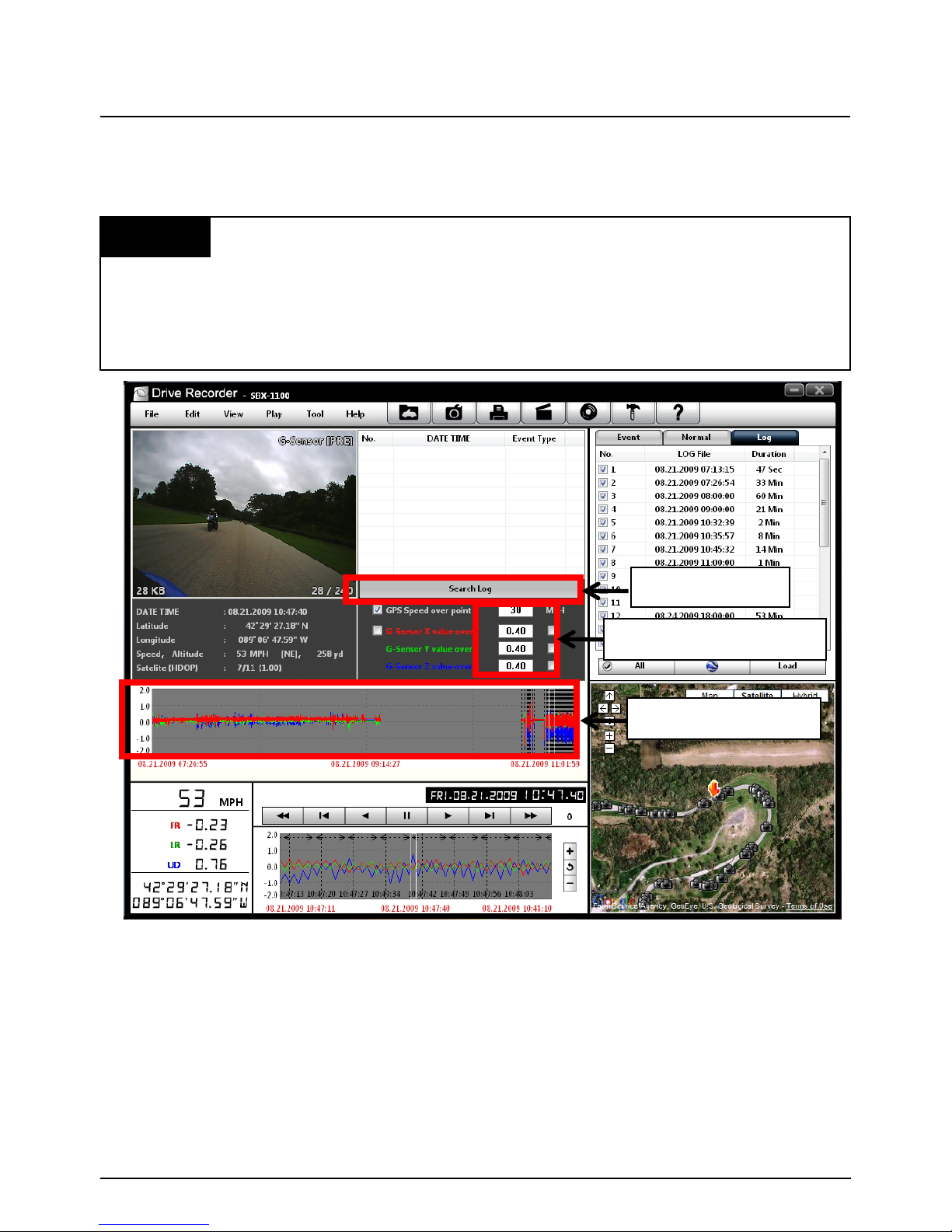

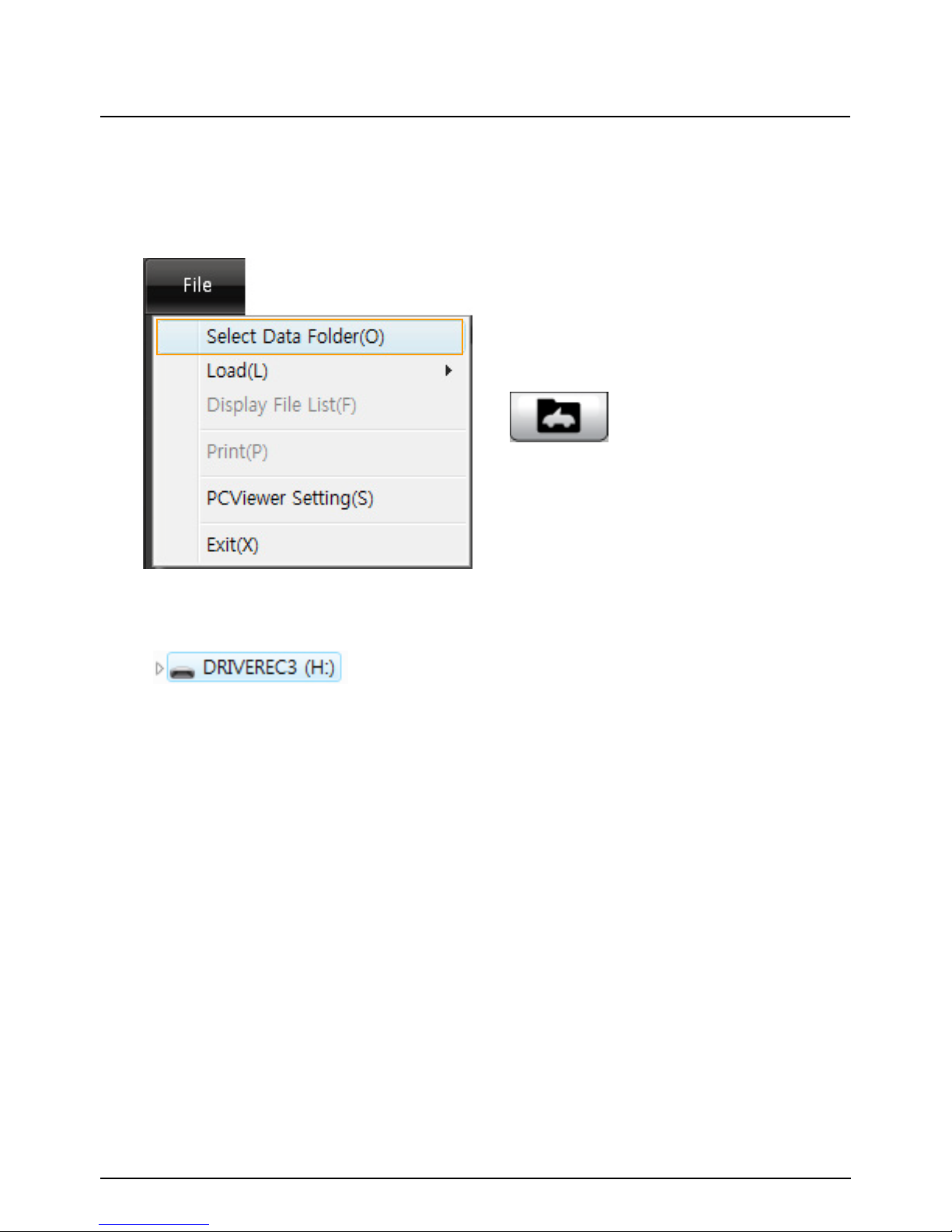

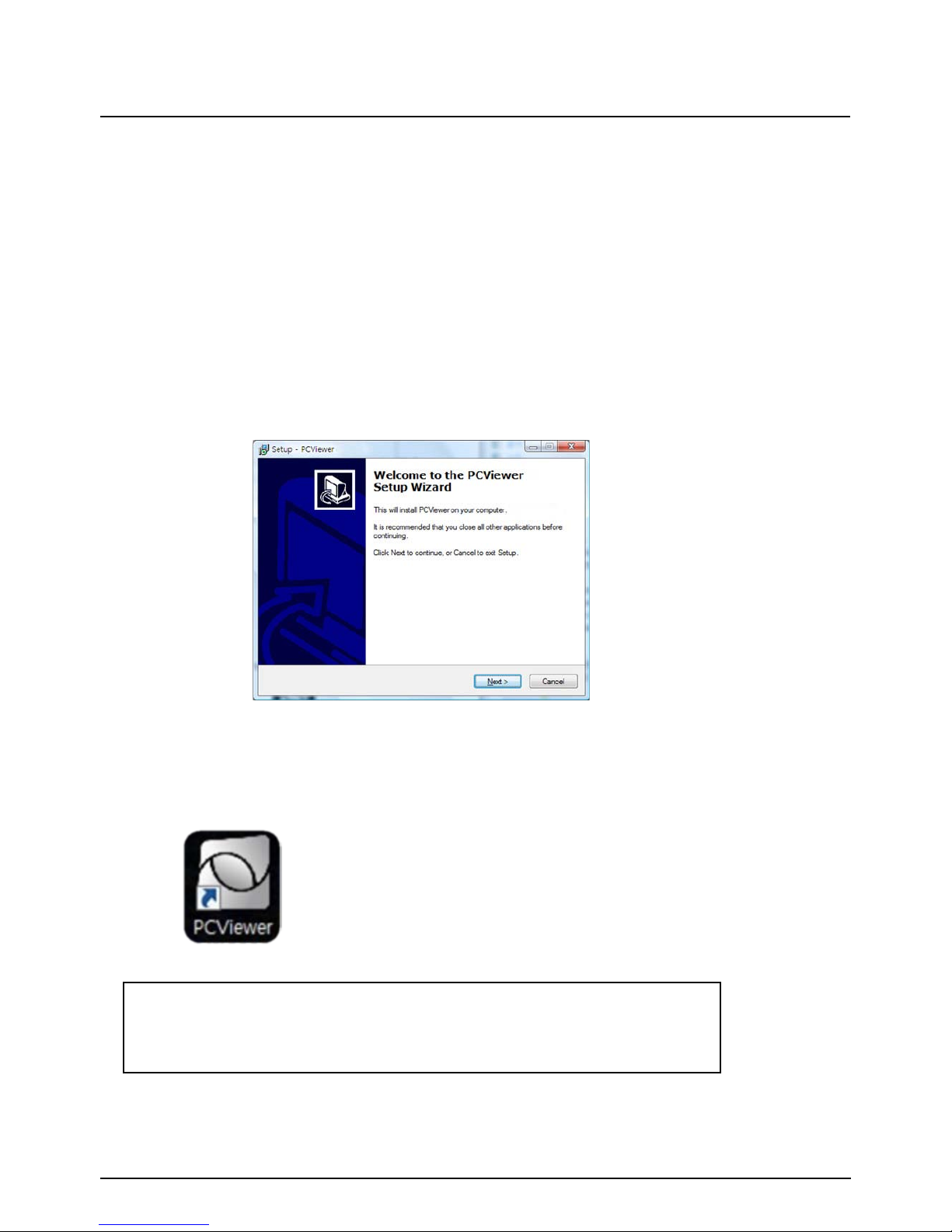

PC Viewer Software

The software is pre-loaded on the SD card [pcsw] folder.

Dual record (Event & Normal record)

If you set different record modes per camera, like camera1 set as Event record
and camera2 set as Normal record, then camera1(Event record) will work
according to the record setting for example 10frames per second recording.
However camera2(Normal record)will record 1frame per second, if there is no
event. If there is an Event, both cameras will record according to the record
setting for example 10 frames per second recording.

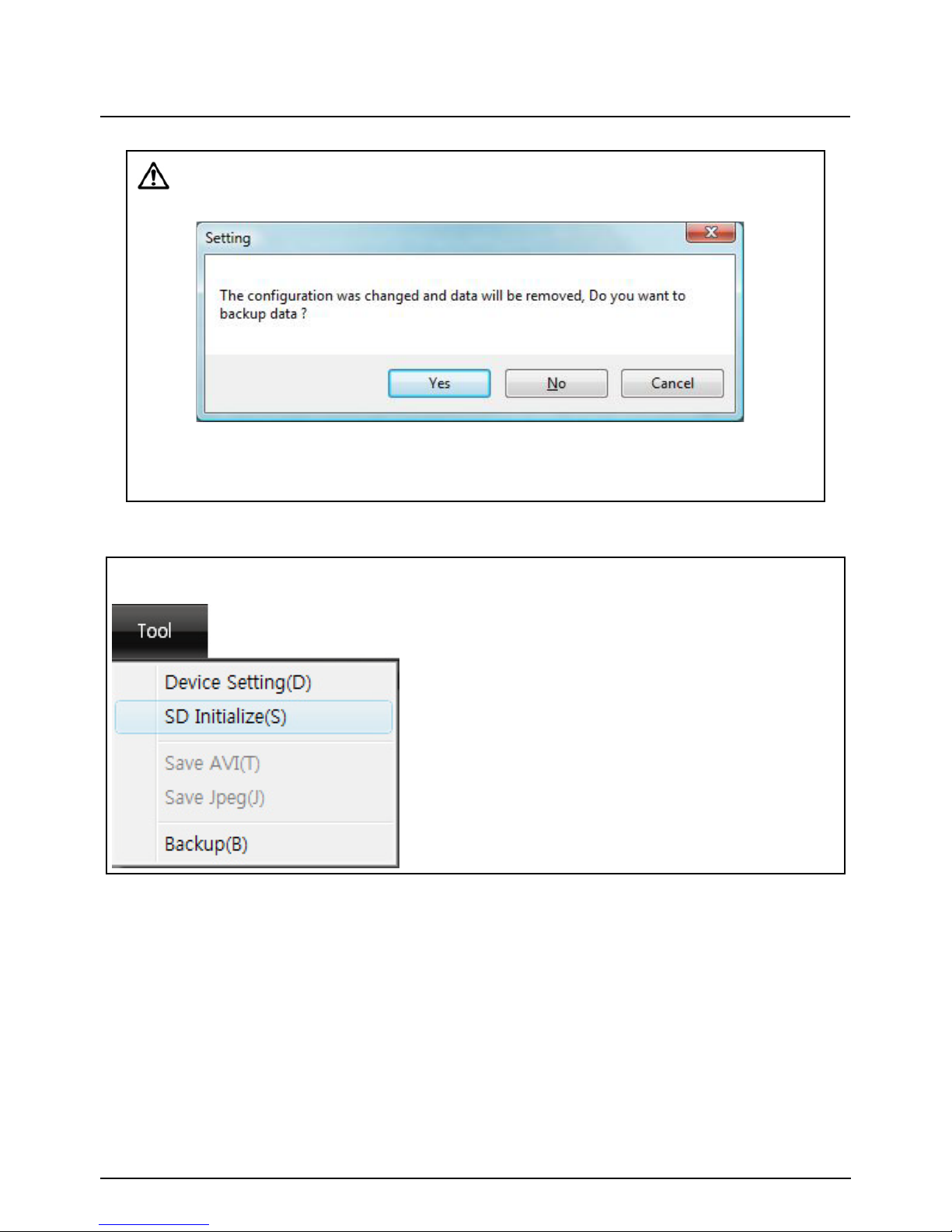

SD Memory Card Format

Remove the power first. Press and hold the [PLAYBACK] & [PANIC] button.
Then connect the power.
Press and hold the [PLAYBACK] & [PANIC] more than 2seconds after
booting. Then SD card initialization will start.
Once complete, all video & log files will be deleted and the configurations
will default to the factory settings.

Built-in power backup (Super Capacitor)

When power to the unit is interrupted, SBX-3100 creates the last file using
the internal Super Capacitor.

BLUE LED (RECORD)

The blue LED shows the power is on.
The blue LED blink during event recording.

RED LED (Overwriting)

The red LED will be turned on when start overwriting.

Buzzer

FUNCTION (MAIN UNIT)

11

“Beep” sound will occur when event/panic recording starts (this can be turned off
In the setting menu on the PC viewer, if required).
This also signals any system error.

VIDEO LOSS (warning)

“Beep” sound will occur continuously when video loss.
Check the camera and camera connection and turn off and on the unit to solve it.
And make sure the number of cameras that you connect before turn on the unit.
The number of cameras can be set in the settings menu on the PC viewer.

Notice : PC Viewer software is pre-loaded on the SD card. Please ensure

you have installed the software to your PC before you format the card.

OPERATION

1. Make sure that the power cable is properly connected and turn on the car
power.

2. Blue LED & Red LED will turn on and slowly blinking simultaneously and
then Blue LED will remain on. Blue LED light means SBX-3100 is now
ready for the event recording and is started the Normal recording
(Continuous recording).

3. The normal recording (Continuous recording) will be automatically started,
if it set with your PC.

4. The event recording will automatically begin when triggered by Alarm1 to
3 or by the G-sensor and will begin with one short “Beep” sound.

5. The panic recording can be started by pressing the [PANIC] button.

Removing the SD memory card

Turn off the power and then check the BLUE LED light. Once the BLUE LED
light is off, take out the SD memory card.

12

Inserting the SD memory card

System Error Buzzer

A “Beep” “Beep” sound will occur and the BLUE & RED LED light will blink
simultaneously when there is a sys tem error or SD card is not inserted.
[Check the SD memory card when this occurs. To solve the problem, initialize
the SD card or replace the SD card]

Turn off the power and then check the BLUE LED light. Once the BLUE LED
light is off, insert the SD memory card.

OPERATION

13

Press [PLAY] button then the INFORMATION OSD (the summery of setting)
will show up on the monitor as below,

To change the live display channel, press [PANIC] button.
The INFORMATION OSD will be turned off automatically after 30 seconds.
To turn off the live view, press [PLAY] button or [SHUTTER] button.

INFORMATION OSD

LIVE VIEW

Turn on the SBX-3100 and press [PLAY] button to turn on the
INFORMATION OSD (the summary of setting) . To change the live display
channel, press [PANIC] button to select the camera. And then press [PLAY]
or [SHUTTER] button to escape.

CAM1 CAM2 CAM3

Activated

Record Mode

System : NTSC

Quality : Super
Overwrite : ON

G-Sensor Level : X:3, Y:3, Z:3

G-Sensor Calibration :

Firmware Version : SBX-3100 1.2.0

Current Time : 07:50:07 11 APR 2010

Continue Continue Event

Resolution : 720X480

FPS : 10

Audio : ON

√ √

√

√

OPERATION

G-Sensor Calibration

14

G-Sensor Calibration is needed after installing the SBX-3100.
It detects the installed direction of the SBX-3100 for it to accurately record
the journey direction.
Press and hold [PANIC] & [SHUTTER] button together and then power on.
G-Sensor Calibration screen will be displayed.

Retry

This G-Sensor calibration is only needed the first time the SBX-3100 is used.

Press and hold panic and shutter button
simultaneously more than 2 sec for calibration
Press any single button to escape

Park vehicle on a flat surface with
at least 5 meters of space directly ahead
and press panic button once

Move vehicle directly forward 5 meters and stop

G-Sensor Calibration is finished successfully

Press any button or wait 30 seconds to reboot

G-Sensor Calibration is failed
Park vehicle on a flat surface with
At least 5 meters of space directly ahead
And press panic button once again

OPERATION

PANIC RECORD BY PANIC BUTTON

15

The panic recording by [PANIC] button will start by pressing the [PANIC] button
with one short “Beep” sound. Blue LED will be blinking during the panic
recording.

SBX-3100 doesn’t make a separate panic file during the continuous recording.
It will mark the panic area by [PANIC] button in the continuous recording file
which can be easily searched for during playback.

SNAPSHOT RECORD BY SHUTTER BUTTON

Press [SHUTTER] button.
The SBX-3100 will take a snapshot of 1 image with 5 seconds of audio (one
short “Beep” will sound from the SBX unit)

OPERATION

PLAYBACK

16

Press and hold [PLAY] button for more than 2seconds.

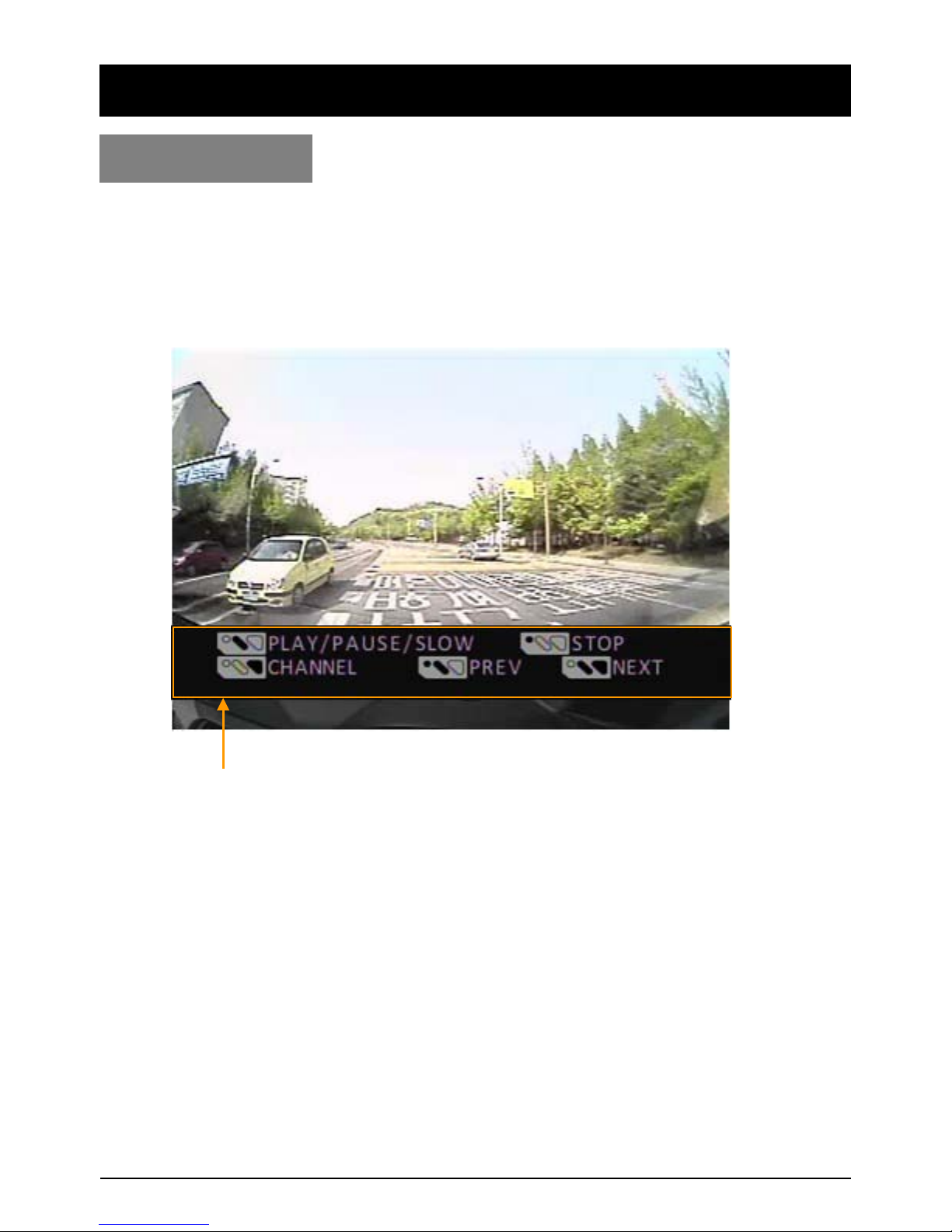

The latest recorded file will playback on the screen.

[WARNING] Recording cannot be done during playback.

Explanation of PLAYBACK control button

Channel change: Press [PANIC] button.
Move to the previous file: Press and hold [SHUTTER] & [PLAY] button.
Move to the next file: Press and hold [PANIC] & [PLAY] button.
PLAY/PAUSE: Press [PLAY] button.
SLOW PLA Y: Press [PLAY] button more than 1seconds.

Return to record mo d e: Press and hold [SHUTTER] button more than 2seconds.

SOFTWARE USE R G UIDE

SBX-3100 PC Viewer Guide

17

[PC SYSTEM REQUIREMEN T]

If the PC does not meet the minimum system requirement, the PC
Viewer may not function properly.

OS Windows 2000, Windows XP

Windows Vista, Windows 7
CPU Pentium4 2.6GHz or higher
RAM 512MB or higher
Interface SD Memory Card Reader
HDD

Free space

Install 20MB or higher

Backup 2GB or higher
Display 1,024 x 768 pixel/High Color(16bit) or higher

Recommended PC specifications for PC Viewer software

INSTALLING PROCEDURES

1. Connect the SD card into your PC (if your computer does not have SD card
slot use the USB SD card reader) and open the “My Computer”

2. Right-click the “DRIVEREC3” drive and select [Open]

3. Double click [SETUP.EXE] in the [pcsw] folder.

4. Select the language and then follow the dialog box.

5. The “PCViewer” icon will be displayed on your desktop.

NOTE: To Un-install the “PC Viewer Driver Recorder 3ch”

Open the “Control Panel”
Select [remove program] and remove [PC Viewer SBX-3100]

18

PC Viewer software is in the provided SD card.

Connect SD memory card to PC

1. Connect SD memory card directly into your PC’s SD card slot or into a USB
SD card reader.

2. Run “PC Viewer Drive Recorder 3ch”

19

3. Select [File] and then click “Select Data Folder” or Click [OPEN] button

[OPEN] button

4. Select SD memory card folder at the folder select window.

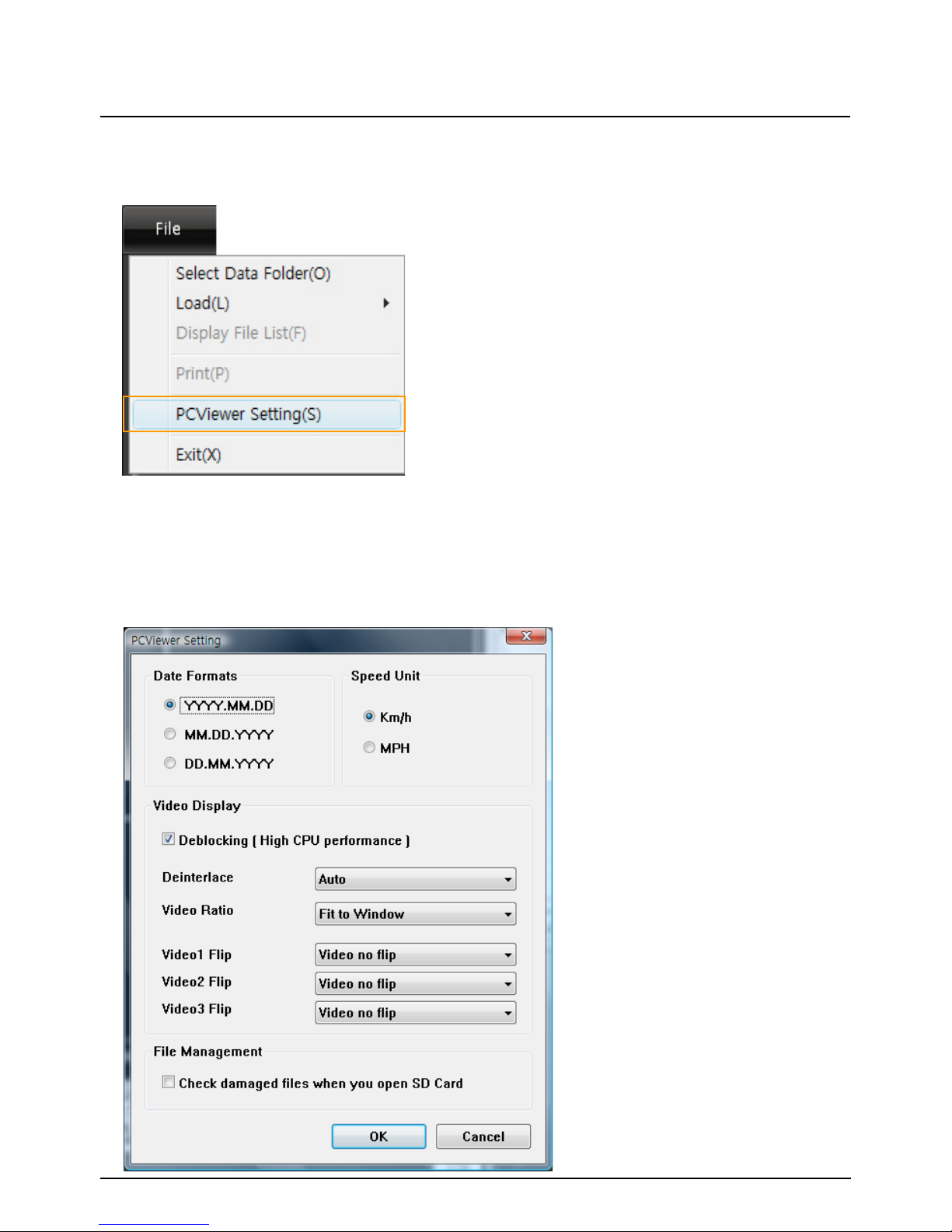

PC VIEWER SETTING

20

The ‘date’ formats and ‘speed’ unit will be set automatically according to the PC
Windows setting. However it can be changed with this PC viewer setting menu.

To see the better quality playback pictures on your PC, check [Deblocking] box.

To set PC Viewer select [File] and then click” PC Viewer Setting”
This setting is for the PC Viewer software itself.
To set the recorder, refer to page 27.

FILE LOADING

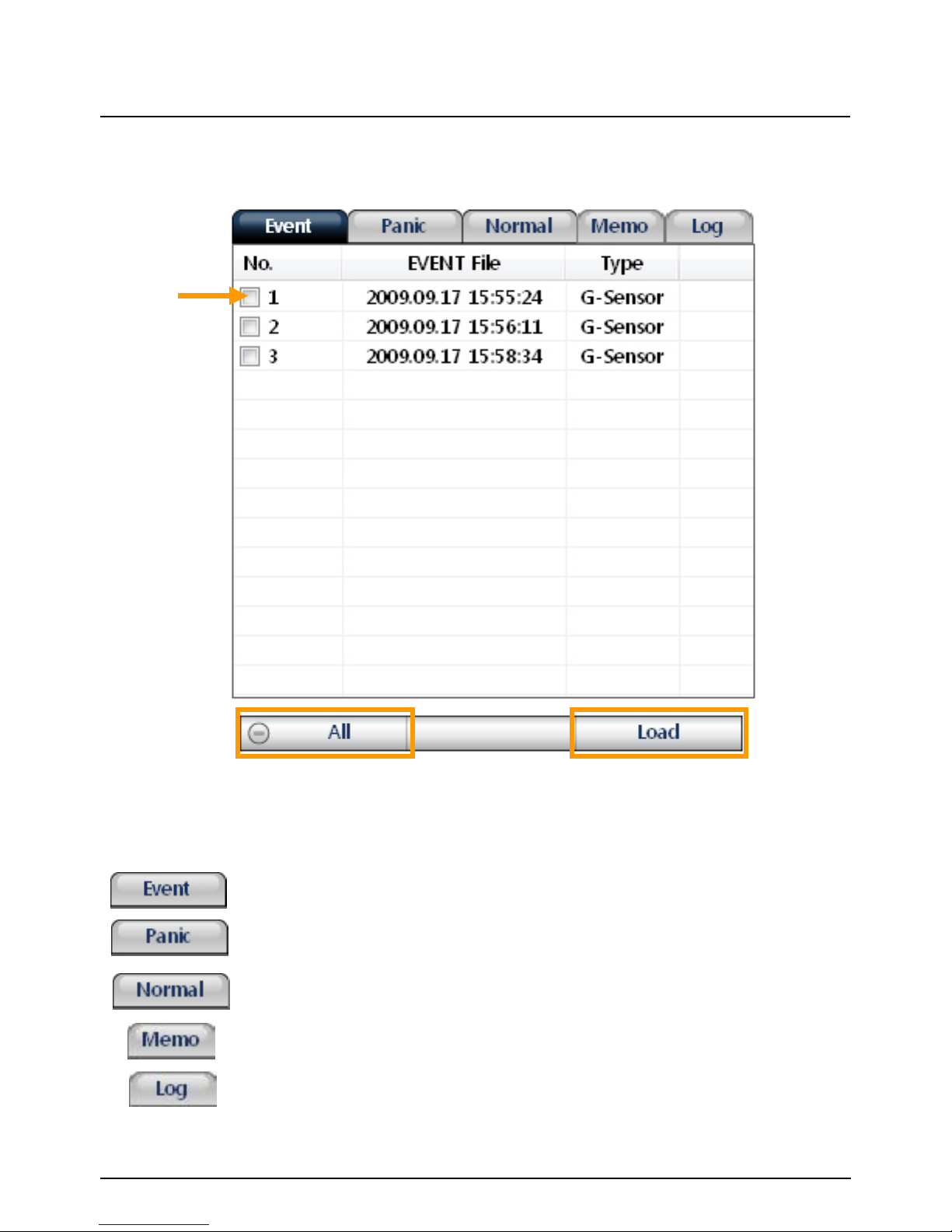

Check the file from the list using mouse or click [All] button.
And then click [Load] button.

21

Check
the file

[Load] Button

[All] Button

The Event file list recorded by a triggered G-sensor or Alarm1~3.
The Panic file list recorded by pressing the [PANIC] button.
The Continuous record file list.
The Snapshot file saved by pressing the [SHUTTER] button.
The Log file list.

All recordings and snapshot files will appear the file area under the tab:

Event data search button is
enabled when playing back Normal
recorded files.

Display frame/Total frames

[NOR]: Normal Recording
[G-Sensor]: Event Recording

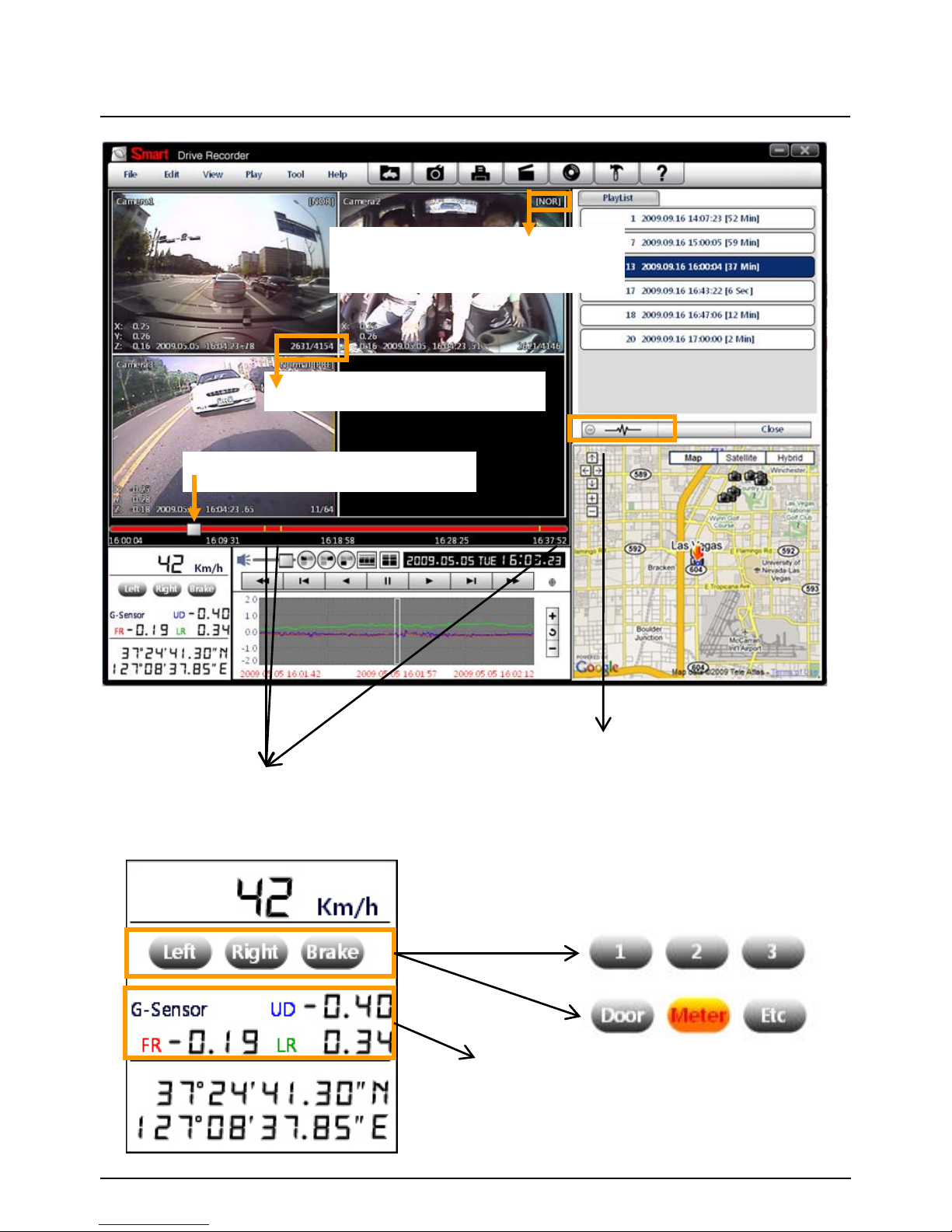

PLAYBACK SCREEN

Playback position indicator

The Yellow mark indicates there is an
Event triggered by the G-sensor, Alarm1~3
or the [PANIC] button.

22

The ‘icon name’ can be changed in the
setting menu.

Eg:

G-Sensor Data
UD: Up/Down direction
FR: Front/Rear direction
LR: Left/Right direction

GPS location information(the north latitude, the east longitude)

Date & Time

Playback speed

CH1 CH2CH3

Volume

Drag & Move the white line to move the
playback po siti on.

Sing View (CH1, CH2, CH3) Quad View

Playback buttons

Pause Next


Previous


X0.5, 1
Play

X2, 4, 8, 16
Fast Forward

X0.5, 1
Reverse

X2, 4, 8, 16
Fast Reverse

4x4 Multi View (Thumb-nail function)

Zoom In G-sensor graph

Zoom Out G-sensor graph

Reset Zoom

6. Click [PLAY] button for playback.

PLAYBACK

23

PLAYBACK

24

NOTE: PC Keyboard hot buttons

Function PC keyboard hot buttons

1024x768 mode Enter

Return to the previous mode: Enter

Full screen mode Alt + Enter

Return to the previous mode: Enter

Playback speed control Ctrl + F

0.5 => 1

Reverse playback speed control Ctrl + B

0.5 => 1

Pause / Play Space

Previous Image → direction button.

Next Image ← direction button

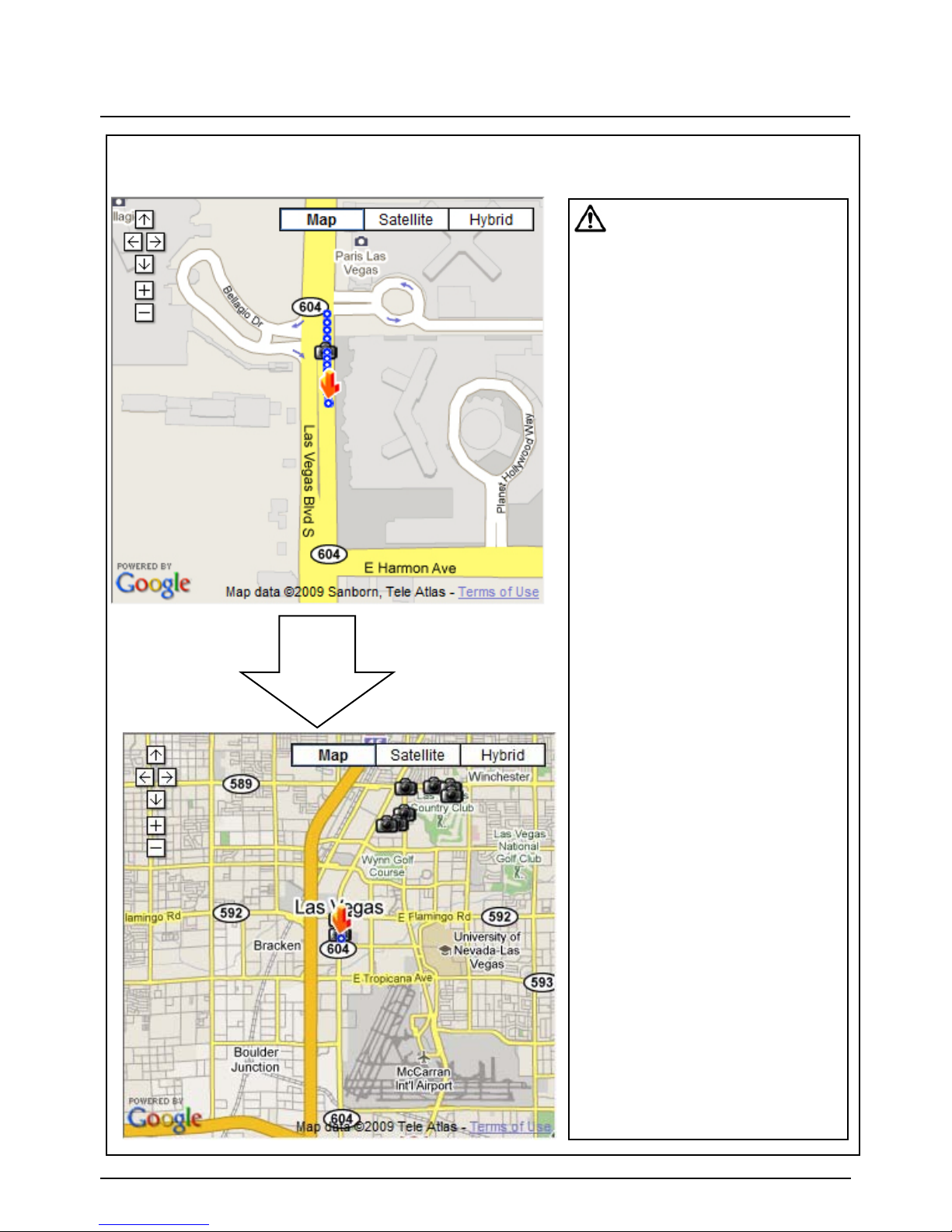

The route taken will be displayed on the Google map at lower right
corner of the software.

Google map (Event Recording File)

25

Zoom Out

To see the route
& position on the
Google map, th e GPS
data should be
recorded with video.

To see the map,
the PC should be
connected to
the Internet.

The playback position

will be shown on the

map with an arrow.
The blue markings show
the route taken.

Double click the blue
mark to change the
video playback position
to that point.

The camera icon
indicates that there is
a recorded file.

The total camera icons
shown will be less
than 100, even if
there are
more than 100 events.

When the unit is set to

Normal recor ding

mode,
there is no
route & camera icon
on the map.

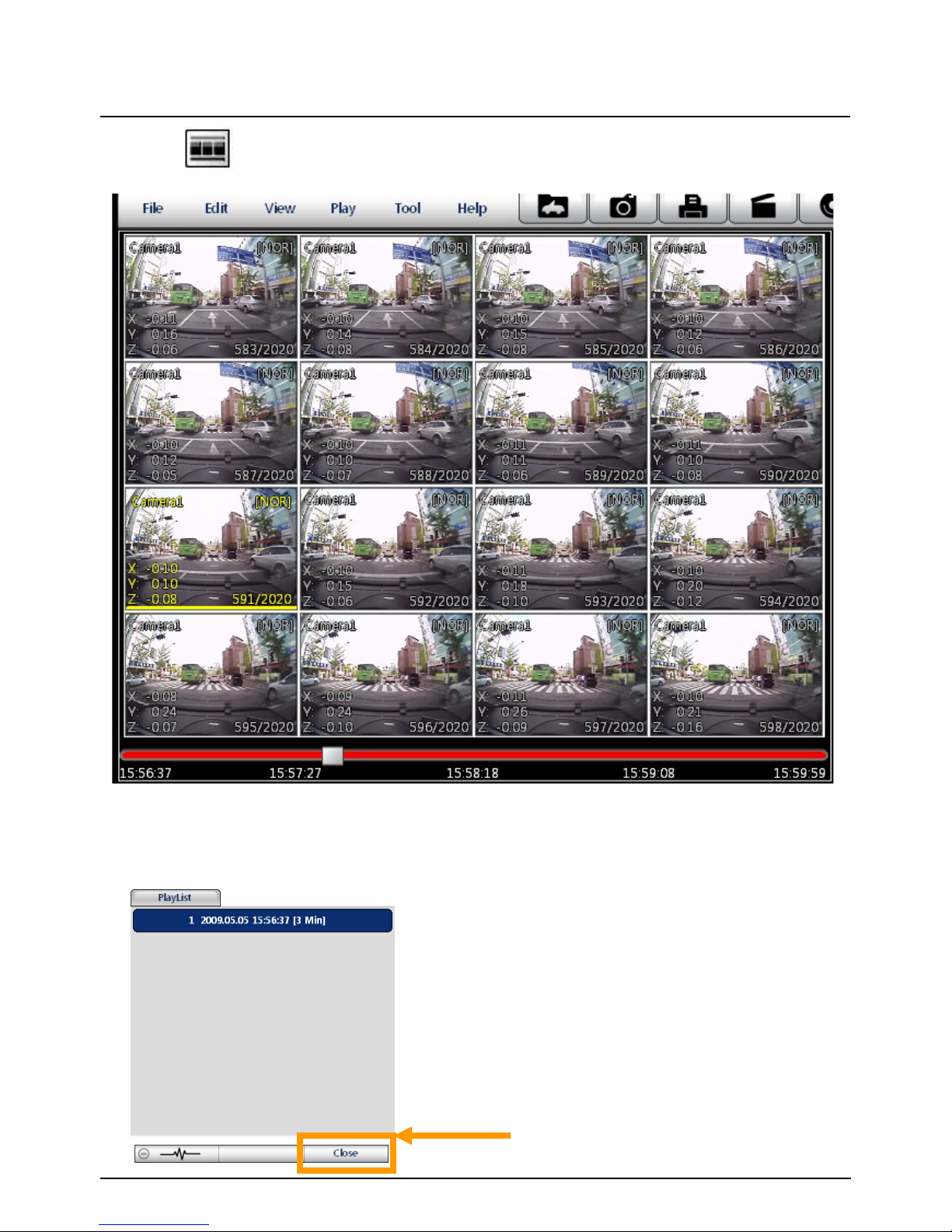

7. Click button for 4x4 multi view (Thumb-nail function)

Click the thumb-nail image to change the playback position.
Click right button of mouse to go back to single/Quad image playback mode.

8. Click [Close] button to quit the event playback.

Click [Close] to finish
the event playback.
Then the [Playlist]
window will be changed
to the initial status.

Thumb-nail Function

26

Save JPG file & AVI file

Pause the playback and click ‘Save Image’ icon to make a JPG file.

Pause the playback and Click ‘Save AVI’ icon to make a AVI file.

‘Save Image’ icon

‘Save AVI’ icon

27

Print image

Print image icon

11. Pause the playback and click ‘Print Image’ icon.

Input [Print Title] & [Print Comment] using Keyboard.

Total Print Comment window allows up to 7 lines total.

28

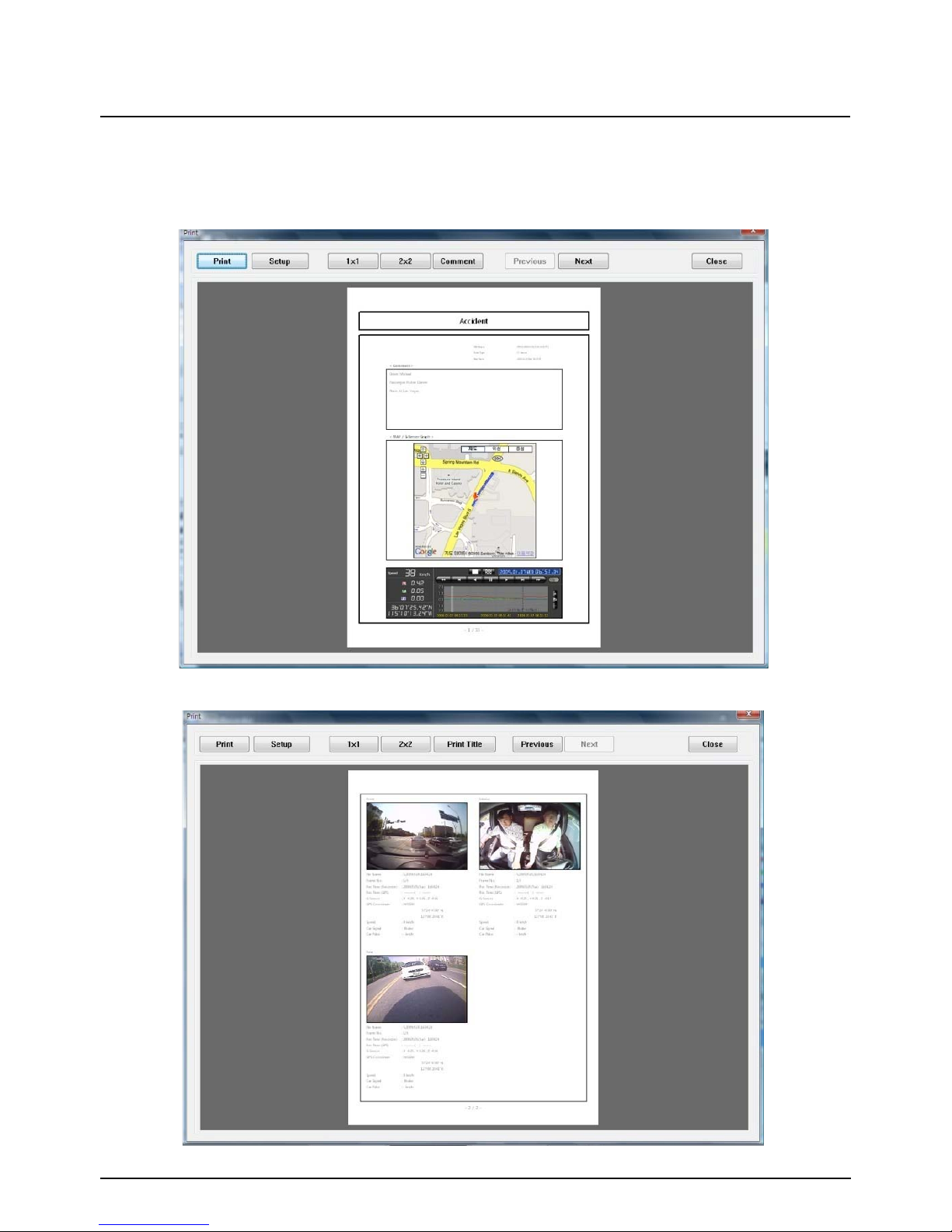

Printable Event Reports

12. Click [Print] button in the print preview windows for printing.
[Print Title] & [Print Comment] & G-sensor graph & map will be printed on the
first page.

Click [ 2x2 ] and then click [Print] to print 4 images in one page.

29

To print CH1~3 together select 1frame only.

Backup

13. Click [Backup] icon to backup the files to the PC.

[Backup] icon

Check & Load [Event], [Normal], [Panic] [Log] & [Memo] data first, before
clicking the [Backup] icon. The selected files will appear in the lists in the
Backup windows.
OR
Check [Backup All] and press [Start] button to backup all files.

30

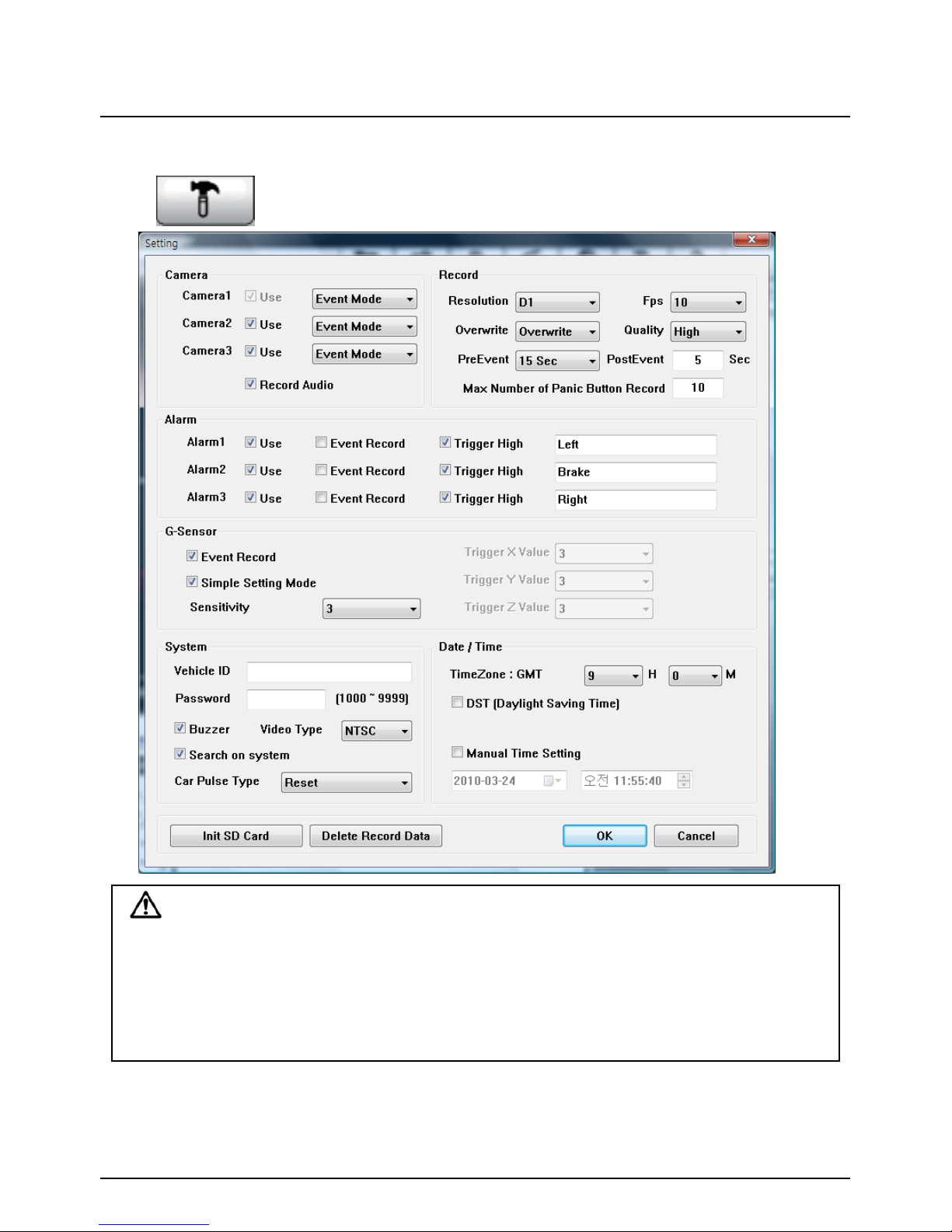

Drive Recorder Settings

14. Click [Setting Drive Recorder] icon for setup.

[Setting Drive Recorder] icon

Caution

31

Initialize SD card : All data will be deleted and set the configuration of
Drive Recorder will default to the factory settings.

Record Mode Change: All normal recording data or all event recording

data in SD card will be automatically deleted to make a free space at SD.

Backup SD card data first, before clicking initialize SD card button OR
before changing the Record Mode from Normal Mode to Event Mode or
vice versa. All normal recording data or all event recording data in SD card
will be automatically deleted to make a free space on the SD card. Once
done, the old data cannot be recovered.

Record Mode Normal Mode: Continuous recording will automatically

start after booting the SBX-3100.
Event Mode: Recording by G-sensor, Alarm1~3 or

[PANIC] button.

Drive Recorder Settings

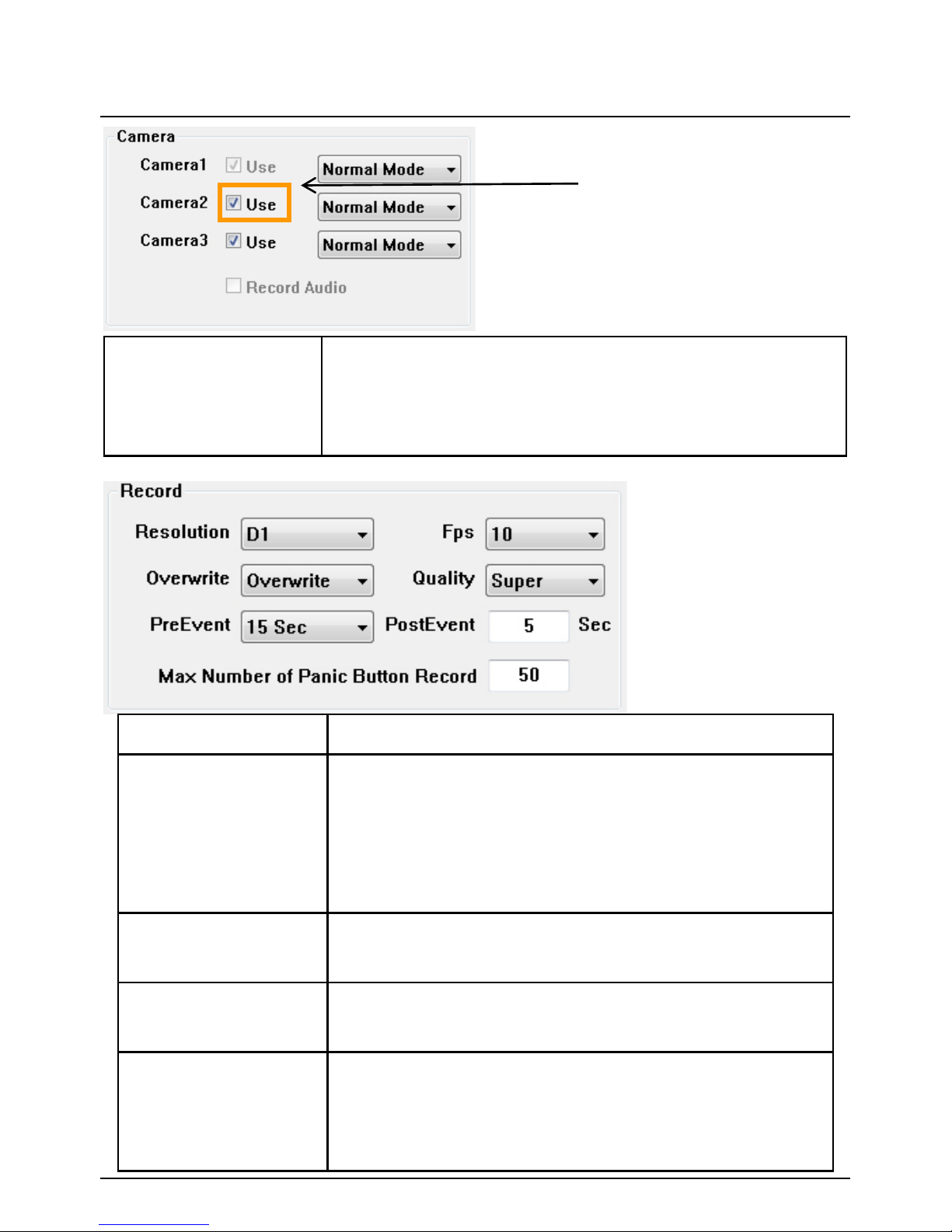

If you want to use CH2 or
CH3, check this box.

32

Resolution D1(720x480), Half-D1(720x240)
Frame Rate 1 Camera supports 1~30 fps

2 Cameras supports 1~15 fps @ D1

2 Cameras supports 1~30 fps @ Half-D1

3 Cameras supports 1~10 fps @ D1

2 Cameras supports 1~15 fps @ Half-D1

Quality High (Large file size, but good picture quality)

Low (Small file size, but low picture quality)

Pre Event
Post Event

Pre-record/Post-record time can be set here.
Post-record time should be 5~300sec

Overwrite Overwrite (The image data is overwrites the oldest

files when the SD memory is full.)
One time (The recording stops automatically when

the SD memory is full.)

Max Number of
Panic button
Record should
be 5~500.

Drive Recorder Settings cont’d

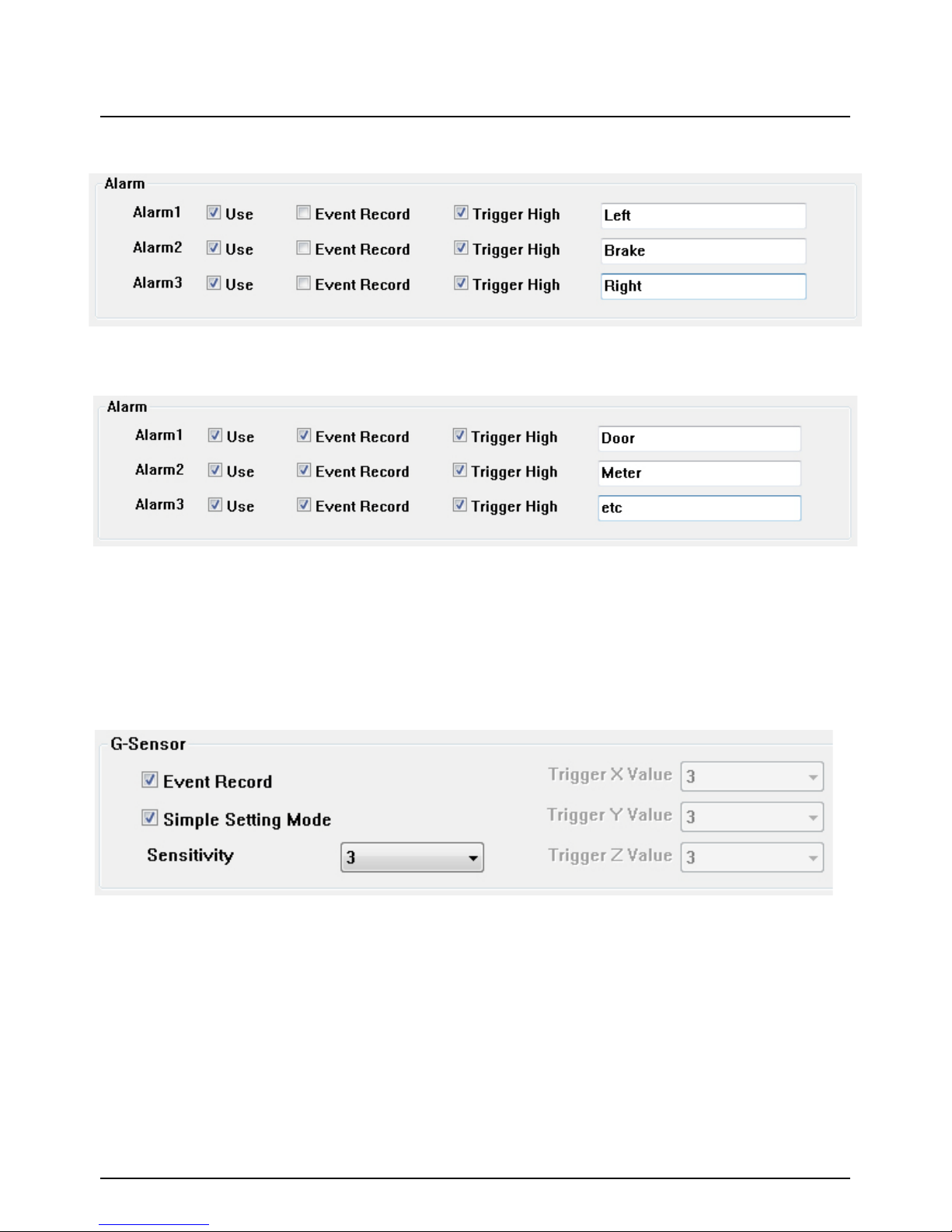

To record the car signal with video, set the Alarm configuration as below,

To use the Alarm as an Event trigger, (i.e.: so Event recording will start when a
door is open or Meter is on) set the Alarm configuration as below,

G-Sensor setting

If G-sensor sensitivity value is too high like 1, it becomes too sensitive, so it will
detect even a light impact or light turn. If G-sensor sensitivity value is too dull, so it
might no detect a notable incident.
So, sensitivity should be set in consideration of a vehicle’s suspension, condition
and also the road condition.

If you don’t want to record an Event triggered by G-sensor, un-check Event
Record box.

33

Drive Recorder Settings cont’d

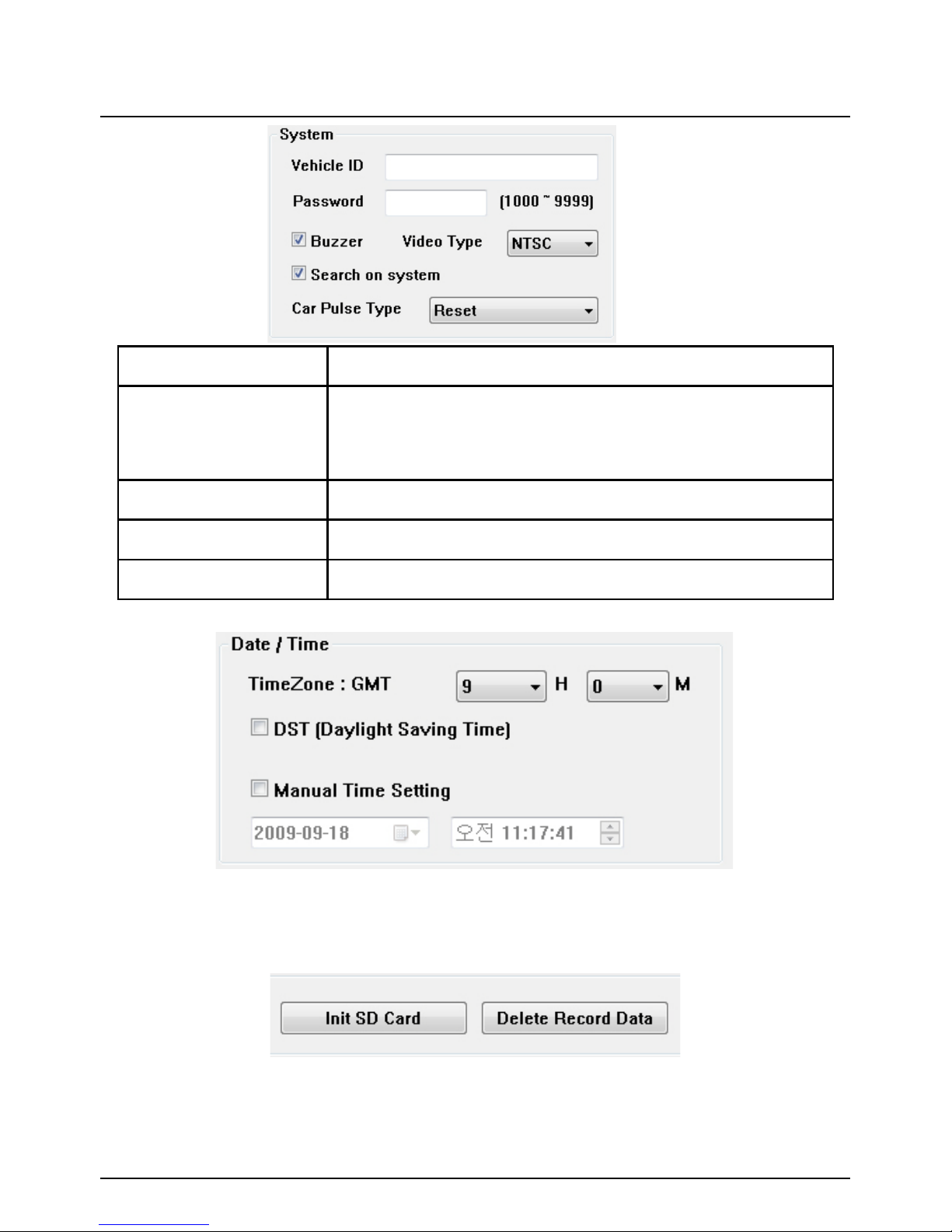

To record the exact time, this time zone setting is important.
Once you set the time zone, automatically synchronize time using GPS

time. However Manual time setting is also available.

34

Initialize SD card : All date will be deleted and set the configuration of Drive
Recorder will default to the factory settings.

Delete Record Data : All date will be deleted.

Vehicle ID Type in your Vehicle ID
Password Enter 4 numbers from 1000 to 9999 as a password

[Search on system] function (Playback on a car) will

not work after set the password.
Buzzer “Beep” sound ON/OFF when Event recording starts
Video Type This should be set by Camera Video type.
Search on system To use the playback function on the recorder.

35

NEW SD Memory card initializing should be done using Tool m enu.

STEP1. Insert new SD memory card into

the PC.
STEP2. Run “PC Viewer SBX-3100”
STEP3. Select [Tool] and then click

[SD Initialize]
We recommend the [SD initialize] at least

once per month to prevent the SBX-3100
from any software errors.

Drive Recorder Settings cont’d

Caution

Once the record setting was changed, all recorded
data in SD card will be removed automatically.

Select Backup [YES] or [NO] befor e lost the all
recorded data.

LOG FILE PLAYBACK

16. Select [LOG] tab windows and then check the log from the log list using
mouse or click [Check All] button. Then click [Load] button.

GPS speed, G sensor X value, G sensor Y value, G sensor Z value data
can be used to narrow a search for journey information. The small check
box at right side of each value should be ticked before the data for search is
inputted. If any recorded video data matches the search query, a list will
show up with [Switch] or [G Sensor] indicators to show how the recording
was triggered.

Log data

Log data will be recorded during driving even if there are no
events. The total log data size can not exceed 48MB. The unit overwrites the
oldest data when 48MB is reached. Using this log data, we can use the data
sorting function to help find specific data (for example, to find all the times
when the vehicle was travelling at more than 80mph(or 80km).

Search button

Input sorting data

G-sensor graph

G sensor X value: Front/Back movement (like a harsh brake or quick start)
G sensor Y value: Left/Right movement (like a harsh turn)
G sensor Z value: Up/Down movement (like a bump or depression)

37

38

GPS LOG TO KML CONVER TER (for Google Earth)

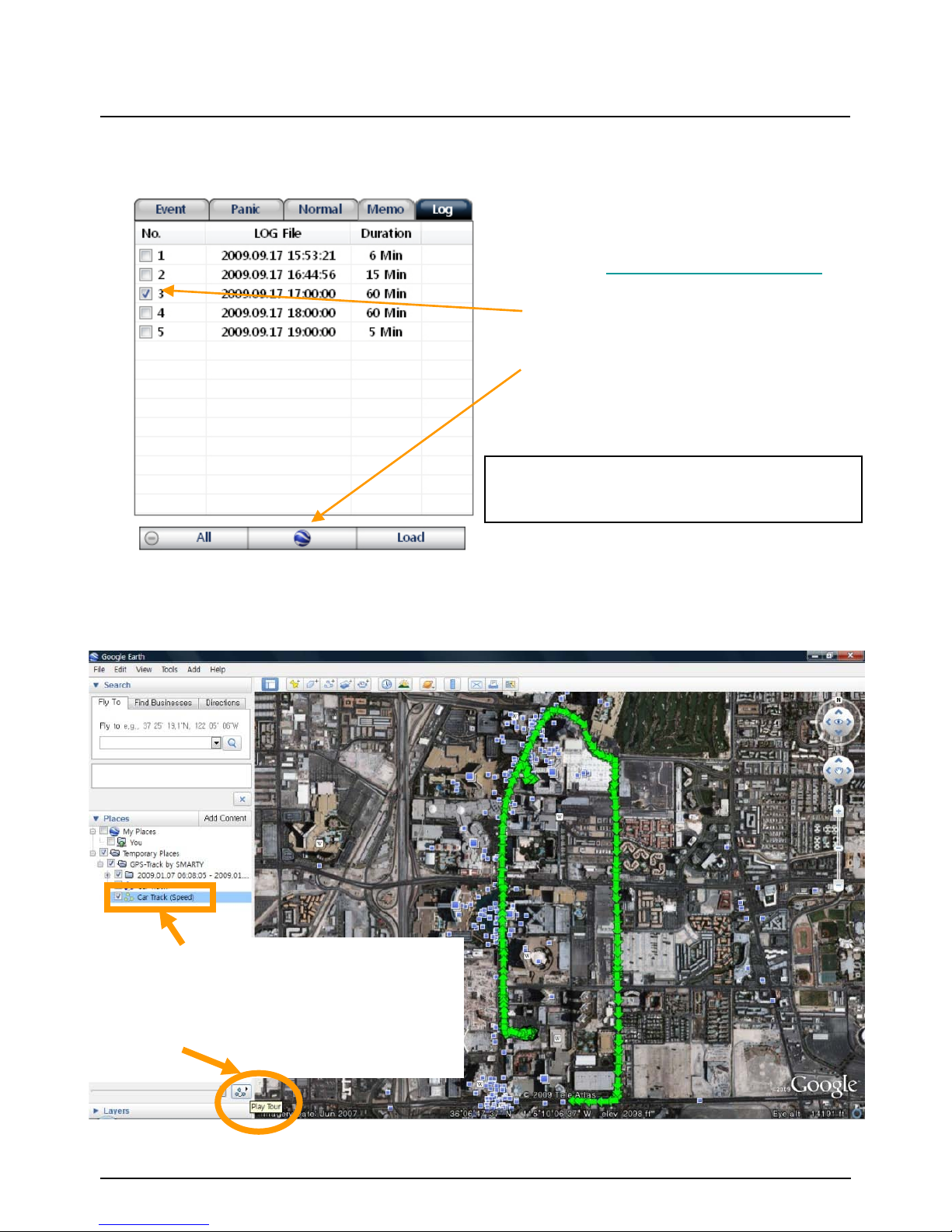

To see the whole route on Google Earth, select the log file and click Google
Earth button. (BX1000 Plus only)

STEP1. Install the Google Earth

on your PC.
(http://earth.google.com/

)
STEP2. Check the log file
STEP3. Click Google Earth at Tool

menu

We recommend to use Google Earth
Version 5.0 or above.

Tip: Click [Car Track] and then
Click [Play Tour] button to play
the recorded journey in Google
Earth.

39

Recording / Storage Time Table (NTSC)

Note: This is a guideline only. Actual results may very depending on a variety of
factors (Video signal, image, etc.)

40

Recording / Storage Time Table (PAL)

Note: This is a guideline only. Actual results may very depending on a variety of
factors (Video signal, image, etc.)

Condition Buzzer No. Buzzer O n Buzze r O f f

Event 1 1 sec -

SHUTTER(Snap shot) 1 200 msec -

Press button and then

changed mode

1 200 msec -

SD card fail

continuously

Stop by pressing

[PANIC] button

500 msec 500 msec

SD card full at [One time]

record mode

continuously 2 sec 2 sec

* Buzzer specification

Status

Blue

LED

Red
LED

Power on ON ON

Booting ON/OFF ON/OFF

Before
Overwriting

Pre Event recording
Continuous recording

ON OFF

Event recording

ON/OFF

Quickly

OFF

Event recording during continuous
recording mode. (5seconds)

ON/OFF

Quickly

OFF

SHUTTER recording

ON/OFF

Quickly

OFF

During
Overwriting

Pre Event recording
Continuous recording

ON ON

Event recording

ON/OFF

Quickly

ON

Event recording during continuous
recording mode. (5seconds)

ON/OFF

Quickly

ON

SHUTTER recording

ON/OFF

Quickly

ON

One Time record mode (When SD card full) OFF

ON/OFF

Slowly

During Playback

OSD menu

ON/OFF ON/OFF

SD Card fail

ON/OFF

Slowly

ON/OFF

Slowly

* LED specification

Buzzer / LED specification

41

SPECIFICATIONS

42

Model: SBX-3100

Video In

CH1- 5V camera in, CH2- 5V camera in,
CH3- camera in

Audio In 1CH (Internal / External Microphone)
AV Out 1 Video out, 1 Audio out

Continuous record
Event record

NTSC: 720x480 (30fps) 720x240 (60fps)
PAL: 720x576 (25fps) 720x288 (50fps)

Recording time 2hours ~ 356hours (14days 20hours)
Shutter record Still Image + Audio (5 sec)
Main memory 4GB SDHC (support 32GB SDHC)
GPS External GPS Module
G Sensor Internal 3-axis G-Sensor
RTC Internal battery
Car Signal Brake, Left Turn, Right Turn, Speed Pulse
Alarm Input 3 (Door, Meter, etc.)

Compression

MPEG4 (Continuous recording)
MJPEG (Event recording)

Remote controller

PANIC button, PLAYBACK button,
SHUTTER button

LED 2 (Red/Blue)
Analysis Software PC Viewer (support Google Earth)
Super Capacitor Enable recording last file and shut down
Power consumption 7.8W (when recording 3cameras)
Size/Weight 70mm X 99 mm X 21mm, 100g

Technical Support & W arranty

TECHNICAL SUPPORT

For Technical Support, please email: [email protected]

or go

to:

http://kcicommunications.com/support/tech_support.html

LIMITED WARRANTY

This product is supplied with 1 year warranty. The Warranty excludes products
That have been misused, (including accidental damage) and damage caused by
normal wear and tear. In the unlikely event that you encounter a problem with
this product, it should be returned to the place of purchase.

For full warranty information please visit:

http://www.thecarblackbox.com/Documents/Smart_Black_Box_Policy.pdf

43

DTR-100

DC 5V, CMOS camera for SBX-3100
1/4" CMOS Digital Sensor 310K pixels
Angle of View: 170° [horizontal(131°) vertical (96 °)]
Effective Pixel: 648 (H) x 488 (V) (NTSC/PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 1 lux
Operating Temperature: -20°C ~ 60°C
Input Voltage: 5V, Power consumption: 0.5W
30mm x 35mm x25mm, 50g, Wire : L=5000±10mm

STR-100

DC 5V, CCD camera for SBX-3100
1/3" Sony Super HAD CCDⅡ
Angle of View: 90°
Effective Pixel: 510(H) X 492(V) (NTSC), 500(H) X 582(V) (PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 0.1 lux
Operating Temperature: -20°C ~ 60°C
Input Voltage: 5V, Power consumption: Max 200mA
43mm x 38mm x 35mm, 70g, Wire : L=5000±10mm

STR-100IR

DC 5V, CCD camera for SBX-3100
1/3" Sony Super HAD CCDⅡ
Angle of View: 145°
Effective Pixel: 510(H) X 492(V) (NTSC), 500(H) X 582(V) (PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: IR LED On 0 lux
Operating Temperature: -20°C ~ 60°C
Input Voltage: 5V, Power consumption: Max . 320mA(LED ON)
43mm x 38mm x 35mm, 70g, Wire : L=5000±10mm

MIC-100

External Microphone for SBX-3100
Directivity : Uni-directional
Sensitivity : -36±5dB(finished product)

At 3V, 2.2Kohm, 0dB=1V/Pa 1KHz
Impedance : 2.2K Ohm@ 1KHz
Max. Operating voltage : 10V Stand Operating voltage : 3V
Frequency : 100~10,000Hz Current Consumption : 0.5mA Max.
Operating Temperature: -40°C ~ 85°C
Dimension : Φ9.7 x 5.0mm
Plug: Φ3.5mm, mono straight shape, Wire : L=2600±10mm

SH-100

Steel Housing for SBX-3100
Dimension : 155.00 x 130.00 x 24.00 mm, 330g

Optional Item

44

Optional Item for Camera No. 3 (Rear View Camera)

44

NRV-001P

CCD Rear View Camera, Waterproof (IP 67)
1/4" Sony Super HAD CCD
Angle of View: 154°
Effective Pixel: (H)510ⅹ(V)492 (NTSC) (H)500ⅹ(V)582 (PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 0.5 lux
Operating Temperature: -20°C ~ 60°C
Input Voltage: DC 12V (DC 8~16V)
Power consumption: 110mA
Φ18.6 x 22.4 mm
Include 8m ex tension cable

NRV-001M

CCD Rear View Camera, Waterproof (IP 67)
1/4" Sony Super HAD CCD
Angle of View: 154°
Effective Pixel: 510(H) X 492(V) (NTSC), 500(H) X 582(V) (PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 0.5 lux
Operating Temperature: -20°C ~ 60°C
Input Voltage: DC 12V (DC 8~16V)
Power consumption: 110mA

25.12 x 29.14 x 27.01 mm
Include 8m ex tension cable

STR-132A

CMOS Rear View Camera, Waterproof (IP 67)
1/4" Hi Resolution CMOS
Angle of View: 163°
Effective Pixel: (H)648ⅹ(V)488 (NTSC / PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 0.05 lux
Operating Temperature: -20°C ~ 70°C
Input Voltage: DC 7~48V
Power consumption: Max. 45mA

29.00 x 33.10 x32.80 mm, 80g
Include 8m ex tension cable

STR-132B

CMOS Rear View Camera, Waterproof (IP 67)
1/4" Hi Resolution CMOS
Angle of View: 163°
Effective Pixel: (H)648ⅹ(V)488 (NTSC / PAL)
Video out: 1.0 Vp-p (Composite)
Min. Illumination: 0.05 lux
Operating Temperature: -20°C ~ 70°C
Input Voltage: DC 7~48V
Power consumption: Max. 45mA

29.00 x 33.10 x32.80 mm, 80g
Include 8m ex tension cable

Optional Item (Safe Power Cable)

45

① Recorder Power IN

② Fuse box (+)

③ Ground

Fuse: 250V 1A

Model name: DPWR-201
The safe power supply cable will allow you to hard wire the
Drive Recorder series to the fuse box of your vehicle.

Connect (+) to the fuse box.
It should be connected to an battery circuit.

The ground cable should be connected to car chassis.

The safe power supply cable will automatically cut
off the battery power when battery voltage
dropped below 12V or 24V.

6cm(W)

2.7cm(D)

1.5cm(H)

Optional Item- 2.4GHz Wireless Audio System

45

The SBX-3100 allows you to integrate external audio onto the recorded video.
Using KCI's own 2.4 GHz Audio Transmitter Sys tem the officer can record au
dio far from the confines of his vehicle. Simply attach the body pack transmitte
r to your belt or shoulder strap and you are ready to record. The transmitter ca
n even trigger an alarm on the SBX software to initiate recording and indicate
when the mic was on. The audio receiver mounts vehicle and also acts the tra
nsmitter's charger. A Li-ion battery provides 12 hour talk time & 20 days stdby.

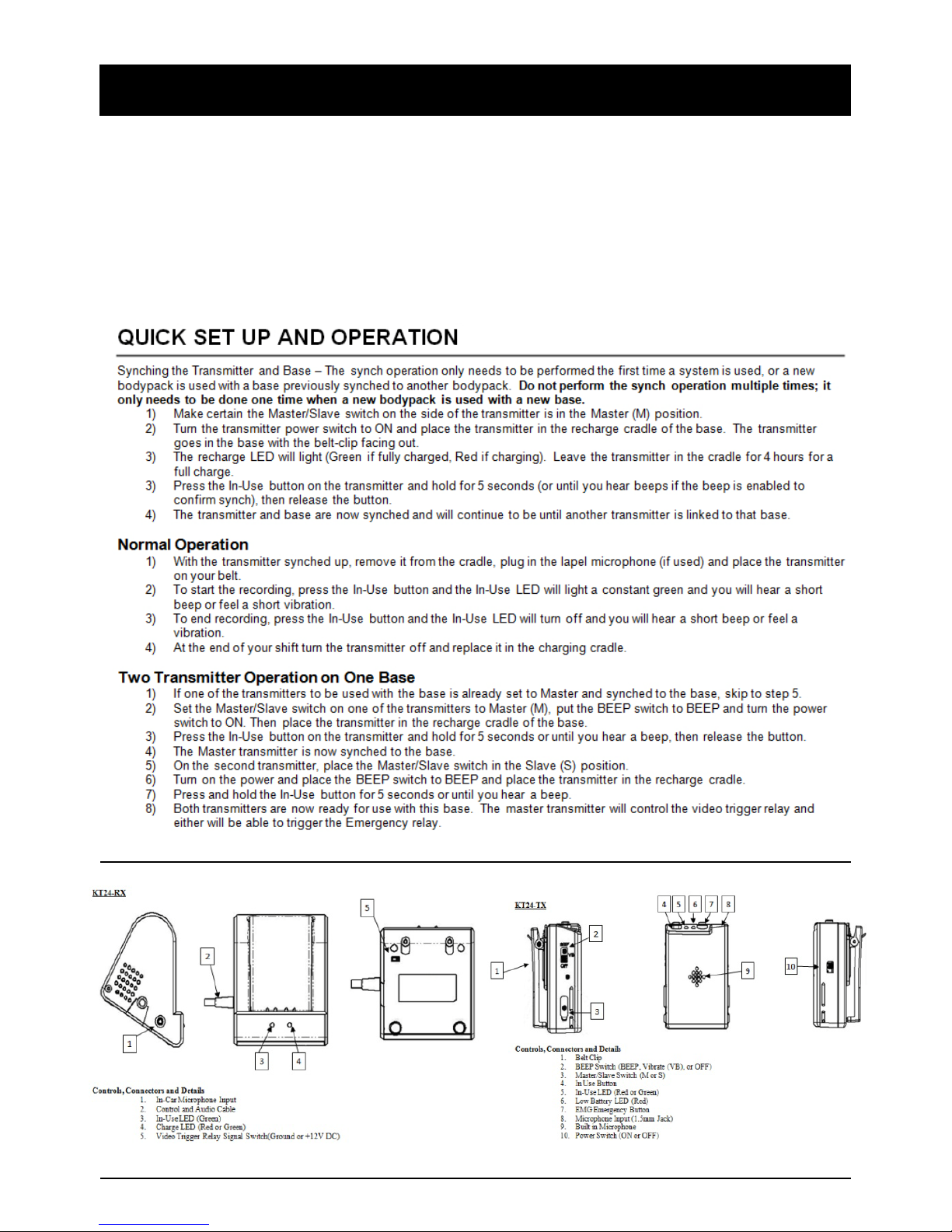

Optional Item- 2.4GHz Wireless Audio System

45

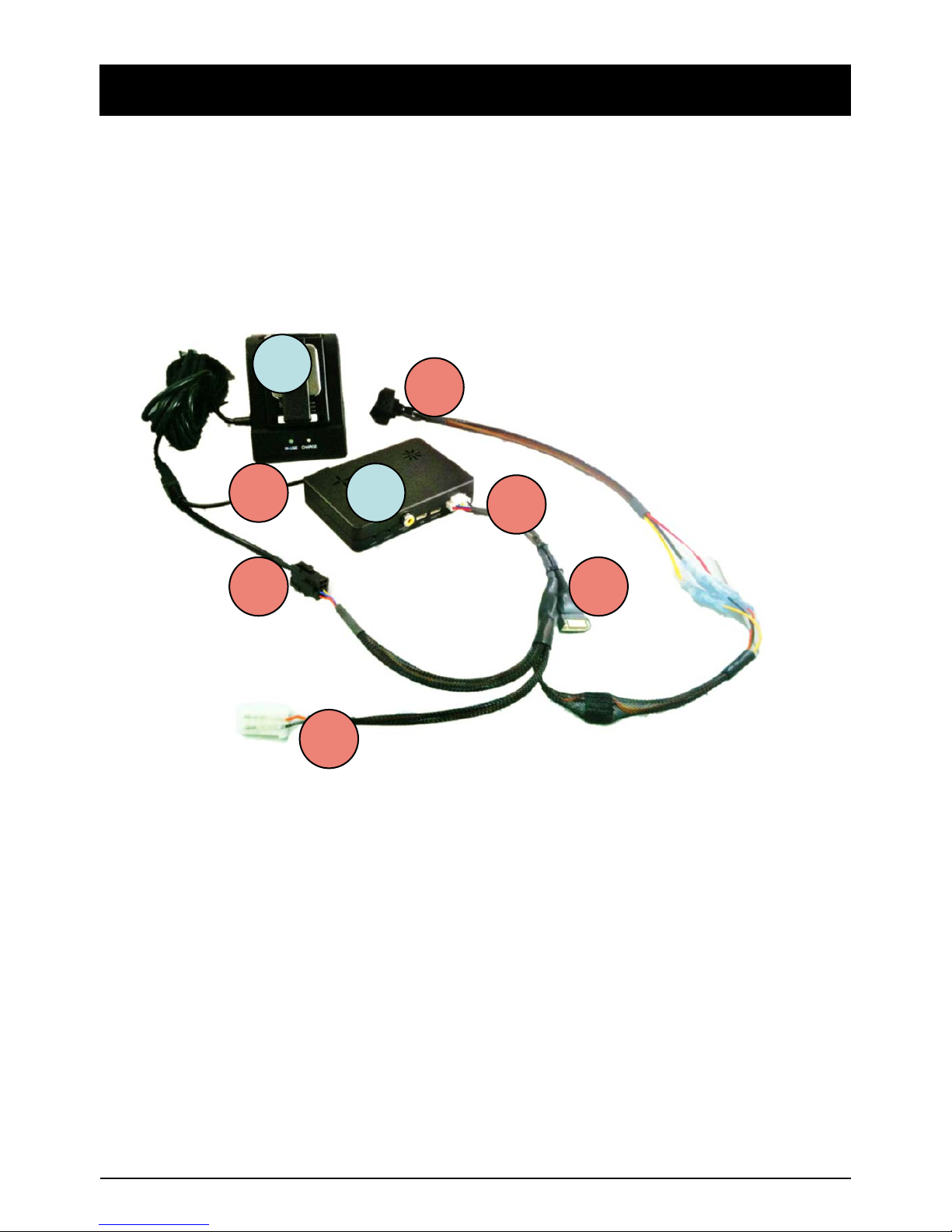

The KT24 2.4 GHz wireless audio system comes with a custom cable accesso
ry for integration with the SBX-3100 system. Please refer to below image for
setup.

1- Power cable to SBX unit
2- Connection to T rigger cable
3- 12V power cable to SBX monitor (optional)
4- On/off switch for internal car mic
5- Power cable from SBX unit to KT24 Receiver
6- Internal Mic cable

3

1

2

4

5

A

B

A- KT 24 transmitter and receiver system
B- SBX3100 Unit

6

MADE IN KOREA

KCI Communications, Inc

1050 Ensell Road, Suite 100
Lake Zurich, IL 60047

www.thecarblackbox.com
www.kcicommunications.com
[email protected]
[email protected]
