Service Parts
Diagrams
For Model:
SBM680
SBM685
Service Parts Diagrams Revision History
Revision 1 - October, 2013
• New document
Revision 2 - January, 2014
• Add FRU-CAM-SBM680-A, FRU-CAM-SBM680-B, FRU-CAM-SBM685-A, FRU-CAM-SBM685-B and
FRU-DSP-SBM600
• Change 52-00745-20 to 1009826
Revision 3 - February, 2017
• Change 1013652 to 1028021
• Add 1022762 and 1023214
Revision 4 - March, 2021
• Change 1028021 to 1034627
Standard Warranty Terms
Base Product: Your interactive whiteboard has a two-year limited equipment warranty.
First Customer Ship: October, 2013
SMART Technologies
3636 Research Road NW
Calgary, AB T2L 1Y1
CANADA
Support +1.403.228.5940 or Toll Free 1.866.518.6791 (Canada/U.S.)
Support Fax +1.403.806.1256
www.smarttech.com/contactserviceparts www.smarttech.com
© 2021 SMART Technologies ULC. All rights reserved. SMART Board, smartte ch and the SM ART logo are trademark s or re giste red trademarks of SMART
Technologies ULC in the U.S. and/or other countries. All other third-party product and company names are for identification purposes only and may be
trademarks of their respective owners. Contents are subject to change without notice. 03/2021.
Service Parts Diagrams for the SBM680 and SBM685
Identifying Your Product Using the Serial Number ................................................................... 1
Ordering Parts .............................................................................................................................. 1
SBM680 Parts ................................................................................................................................ 2
SBM685 Parts ................................................................................................................................ 3
Optional Board Mounting Hardware Kit (Part No. 1020342) ..................................................... 4
Service Parts Diagrams for the SBM680 and SBM685 i
ii Service Parts Diagrams for the SBM680 and SBM685
Identifying Your Product Using the Serial Number
Serial Number Location
C002FW11A0103
Unique Serial Number
To make sure that you have the correct service parts diagrams, you must verify the serial number of your SBM680 or
SBM685 interactive whiteboard. The serial number will be located on the side of the right hand bezel as shown below. An
example of the serial number format is shown below.
Ordering Parts
Customers
To order any of the parts in these service parts diagrams, contact your local reseller.
To find a reseller near you, visit www.smarttech.com/where.
Dealers and Distributors
For specific technical and pricing enquiries in regards to these diagrams please contact our service parts department.
Pricing is also available on-line via the SOURCE website (source.smarttech.com).
Web Form: www.smarttech.com/contactserviceparts
Phone: 1.888.42.SMART
International: +1.403.245.0333
Service Parts Diagrams for the SBM680 and SBM685 1
SBM680 Parts
11
3
4
5
6
7
10
1
1
2
2
9
8
Box 2
Box 1
11
Item
1 FRU-CAM-SBM680-A 2 FRU, camera, SBM680, position 0 and 2
2 FRU-CAM-SBM680-B 2 FRU, camera, SBM680, position 1 and 3
3 93-00828-20 1 Cable, USB, A-B, 16' (5.0 m), SBX8
4 93-00592-20 1 Cable, power, North America, 6'6" (2.0 m)
4 93-00543-20 1 Cable, power, United Kingdom, 6'6" (2.0 m)
4 93-00576-20 1 Cable, power, Autstralia, 6'6" (2.0 m)
4 93-00542-20 1 Cable, power, Europe, 6'6" (2.0 m)
4 93-00806-20 1 Cable, power, China, 6'6" (2.0 m)
4 1023214 1 Cable, power, Japan, 6'6" (2.0 m)
5 1009826 1 Bracket, wall mount, blue, SBX8/SBM6
6 RPEN-SBM6 1 Replacement Pens for SMART Board SBM600 Series - Set of Two
7 1020535 1 Assembly, SBM6 pen ledge / tray mounting hardware
8 FRU-DSP-SBM600 1 FRU, digital signal processor (controller), SBM600
9 FRU-PT-SBM600 1 FRU, Pen Tray, SBM600
10 1034627 1 Power supply, 5V DC, 2A, universal switching
11 1022762 1 Kit, back corner spacer, SBM6 (set of four)
Part No. Qty Description
2 Service Parts Diagrams for the SBM680 and SBM685
SBM685 Parts
11
3
4
5
6
7
10
1
1
2
2
9
8
Box 2
Box 1
11
Item
1 FRU-CAM-SBM685-A 2 FRU, camera, SBM685, position 0 and 2
2 FRU-CAM-SBM685-B 2 FRU, camera, SBM685, position 1 and 3
3 93-00828-20 1 Cable, USB, A-B, 16' (5.0 m), SBX8
4 93-00592-20 1 Cable, power, North America, 6'6" (2.0 m)
4 93-00543-20 1 Cable, power, United Kingdom, 6'6" (2.0 m)
4 93-00576-20 1 Cable, power, Autstralia, 6'6" (2.0 m)
4 93-00542-20 1 Cable, power, Europe, 6'6" (2.0 m)
4 93-00806-20 1 Cable, power, China, 6'6" (2.0 m)
4 1023214 1 Cable, power, Japan, 6'6" (2.0 m)
5 1009826 2 Bracket, wall mount, blue, SBX8/SBM6
6 RPEN-SBM6 1 Replacement Pens for SMART Board SBM600 Series - Set of Two
7 1020535 1 Assembly, SBM6 pen ledge / tray mounting hardware
8 FRU-DSP-SBM600 1 FRU, digital signal processor (controller), SBM600
9 FRU-PT-SBM600 1 FRU, Pen Tray, SBM600
10 1034627 1 Power supply, 5V DC, 2A, universal switching
11 1022762 1 Kit, back corner spacer, SBM6 (set of four)
Part No. Qty Description
Service Parts Diagrams for the SBM680 and SBM685 3

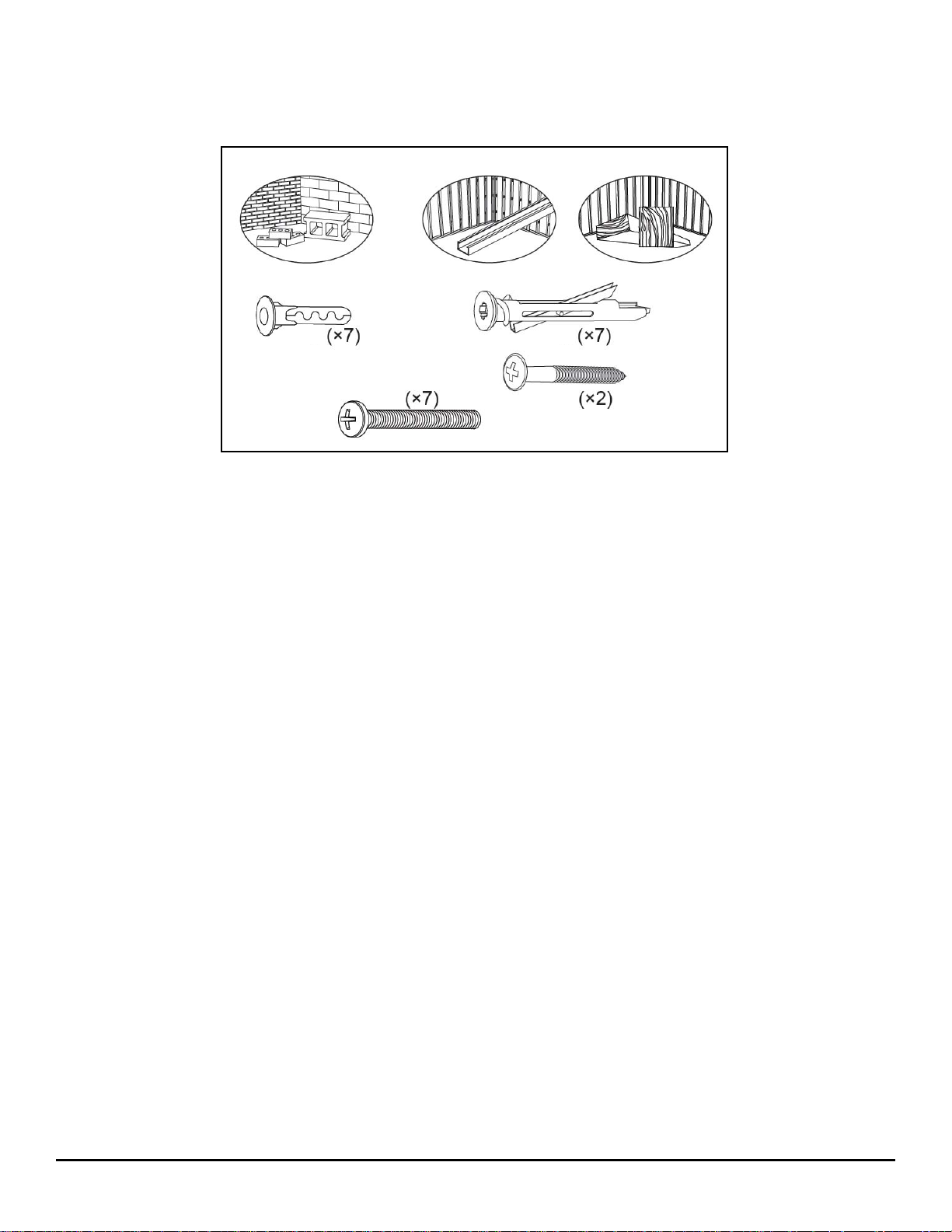

Optional Board Mounting Hardware Kit (Part No. 1020342)
NOTE: SBM685 requires two kits.
4 Service Parts Diagrams for the SBM680 and SBM685
