Service Parts
Diagrams
For Model:
SBID-7275
Service Parts Diagrams Revision History
Revision 1 - June, 2017
• New document
Standard Warranty Terms
Base product: Three-year limited equipment warranty
First Customer Ship: June, 2017
SMART Technologies
3636 – Research Road NW
Calgary, AB T2L 1Y1
CANADA
Support +1.403.228.5940 or Toll Free 1.866.518.6791 (Canada/U.S.)
Support Fax +1.403.806.1256
www.smarttech.com/contactserviceparts www.smarttech.com
© 2017 SMART Technologies ULC. All rights reserved. SMART Board, smartte ch and the SM ART logo are trademark s or re giste red trademarks of SMART
Technologies ULC in the U.S. and/or other countries. All other third-party product and company names are for identification purposes only and may be
trademarks of their respective owners. Contents are subject to change without notice. 06/2017.
Service Parts Diagrams for the SBID-7275
Identifying Your Product Using the Serial Number ................................................................... 1
Ordering Parts .............................................................................................................................. 1
SBID-7275 Parts ............................................................................................................................ 3
Service Parts Diagrams for the SBID-7275 i
ii Service Parts Diagrams for the SBID-7275

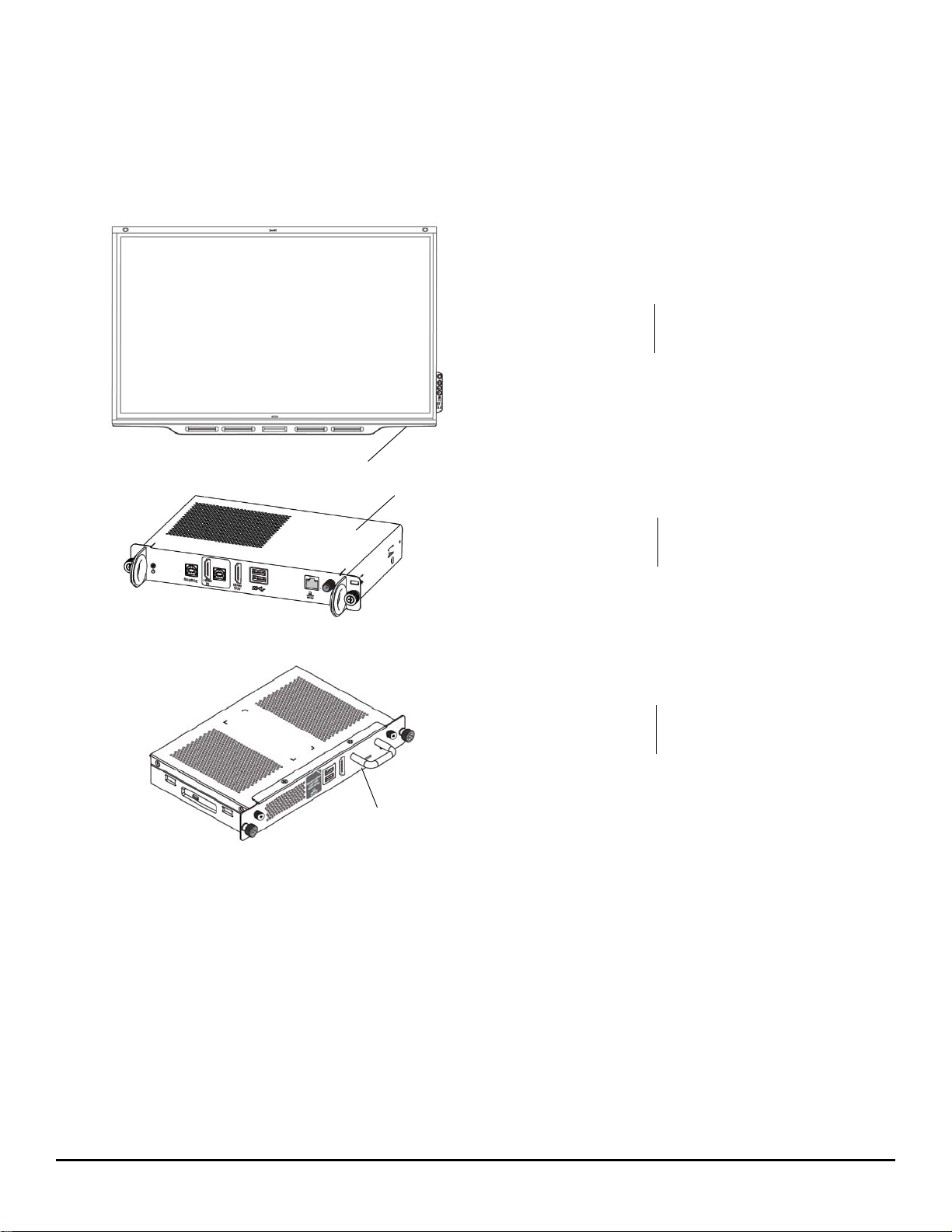

Identifying Your Product Using the Serial Number
Unique Serial Number
K012JW24W0003
Serial Number Location
Unique Serial Number
Q022JW02B0545
Serial Number Location
Unique Serial Number
F102JW27B00111
Serial Number Location
OR
To make sure that you have the correct service parts diagrams, you must verify the serial number of your SBID-7275. The
serial number of the flat panel display will be located on the right underside of the bottom bezel. The serial number of the
AM30/AM40 will be located on either the top or bottom of the appliance. An example of the serial number format is shown
below.
Ordering Parts
Customers
To order any of the parts in these service parts diagrams, contact your local reseller.
To find a reseller near you, visit
Dealers and Distributors
For specific technical and pricin
Pricing is also available on-line via the SOURCE website (source.smarttech.com).
Web Form: www.smarttech.com/contactserviceparts
Phone: 1.888.42.SMART
International: +1.403.245.0333
www.smarttech.com\where.
g enquiries in regards to these diagrams please contact our service parts department.
Service Parts Diagrams for the SBID-7275 1
2
6
3
4
5
1
SBID-7275 Parts
Item
1 1029766 1 Assembly, active stylus, 4-pack (red, black, blue, green)
2 1028732 1 Assembly, eraser
3 UGK-AM40-EDU 1 Appliance for Education for SMART Board
4 1029824 2 Antenna
5 1028289 1 Cable, USB, A-B, 16' (5.0 m)
6 1022063 1 Cable, power, North America, 8' (2.4 m)
6 93-055 1 Cable, power, United Kingdom, 8' (2.4 m)
6 93-056 1 Cable, power, Autstralia, 8' (2.4 m)
6 93-054 1 Cable, power, Europe, 8' (2.4 m)
6 93-00708-20 1 Cable, power, China, 8' (2.4 m)
6 93-00654-20 1 Cable, power, Japan, 8' (2.4 m)
6 93-063 1 Cable, power, South Africa, 8' (2.4 m)
6 1018969 1 Cable, power, Singapore, 14' 9" (4.5 m)
6 1018970 1 Cable, power, India, 14' 9" (4.5 m)
6 1018971 1 Cable, power, Saudi Arabia, 14' 9" (4.5 m)
6 1018972 1 Cable, power, Brazil
6 1025597 1 Cable, power, Argentina, 14' 9" (4.5 m)
6 1025603 1 Cable, power, Chile and Italy, 14' 9" (4.5 m)
6 1030859 1 Cable, power, Korea, 8' (2.4 m)
Not shown 1029567 1 Kit, packaging, SBID-7275
Part No. Qty Description
NOTE: Includ
NOTE: This is to replace AM30’s that have a part number of C1028544 or AM40’s
that have a part number of 1029788.
6000/7000 Series interactive flat panels
es AM40 and 2 pieces of item 4.
, 14' 9" (4.5 m)
2 Service Parts Diagrams for the SBID-7275
