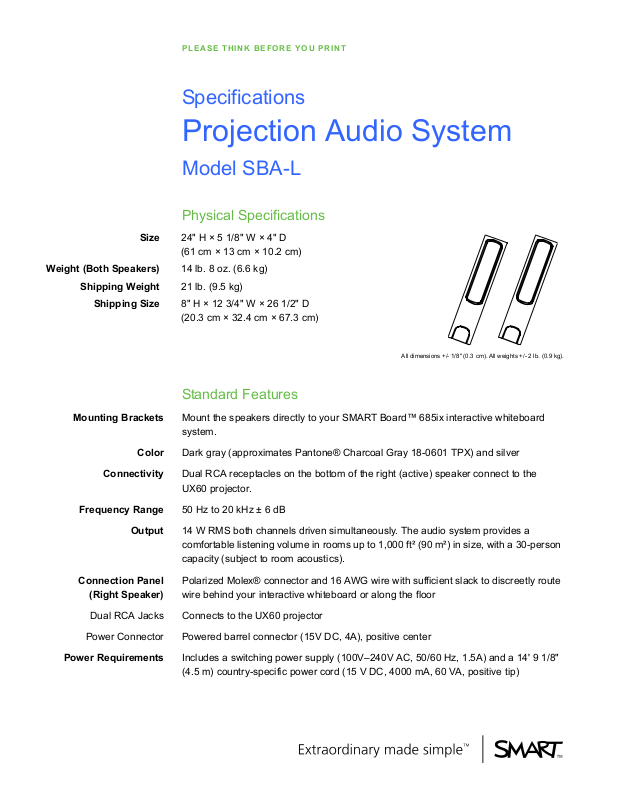

Specifications
Projection Audio System
Model SBA-L
Physical Specifications
Size 24" H × 5 1/8" W × 4" D
(61 cm × 13 cm × 10.2 cm)
Weight (Both Speakers) 14 lb. 8 oz. (6.6 kg)
Shipping Weight 21 lb. (9.5 kg)
Shipping Size 8" H × 12 3/4" W × 26 1/2" D
(20.3 cm × 32.4 cm × 67.3 cm)
All dimensions +/- 1/8" (0.3 cm). All weights +/- 2 lb. (0.9 kg).
Standard Features
Mounting Brackets Mount the speakers directly to your SMART Board™ 685ix interactive whiteboard
system.
Color Dark gray (approximates Pantone® Charcoal Gray 18-0601 TPX) and silver
Connectivity Dual RCA receptacles on the bottom of the right (active) speaker connect to the
UX60 projector.
Frequency Range 50 Hz to 20 kHz ± 6 dB
Output 14 W RMS both channels driven simultaneously. The audio system provides a
comfortable listening volume in rooms up to 1,000 ft² (90 m²) in size, with a 30-person
capacity (subject to room acoustics).
Connection Panel
(Right Speaker)
Dual RCA Jacks Connects to the UX60 projector
Power Connector Powered barrel connector (15V DC, 4A), positive center
Polarized Molex® connector and 16 AWG wire with sufficient slack to discreetly route
wire behind your interactive whiteboard or along the floor
Power Requirements Includes a switching power supply (100V–240V AC, 50/60 Hz, 1.5A) and a 14' 9 1/8"
(4.5 m) country-specific power cord (15 V DC, 4000 mA, 60 VA, positive tip)
Page 2
2 | SPECIFICATIONS – PROJECTION AUDIO SYSTEM – MODEL SBA-L
Environmental
China EIP, EU RoHS, EU WEEE, Packaging and US CPSIA
Compliance
Regulatory Certifications CE and CSA/UL
Warranty One-year limited equipment warranty
Operating Specifications
41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing
CAUTION
If the speakers are very cold, allow them to warm to room temperature
before operation.
SMART Order Numbers
SBA-L Projection Audio System for the SMART Board 685ix interactive whiteboard system
Physical Dimensions
5 1/8" (13 cm)
4" (10.2 cm)
Dual RCA Jacks
(to External Audio)
Molex Connector
(to Left Speaker)
24" (61 cm)
Front View
www.smarttech.com/support www.smarttech.com/contactsupport
Support +1.403.228.5940 or Toll Free 1.866.518.6791 (U.S./Canada)
©2009 SMART Technologies ULC. All rights reserved. SMART Board, the SMART logo and smarttech are trademarks or registered trademarks of SMART Technologies ULC in the U.S.
and/or other countries. All third-party product and company names may be trademarks of their respective owners. Other patents pending. Contents are subject to change without notice. 12/2009.
Right Side View
Power Connector
Bottom View
