>> Operator's Manual

smart fortwo

www.smart.com smart - A Daimler brand

smart fortwo Operator's Manual

Page 2

Symbols

In this Operator's Manual you will find the following symbols:

WARNING

Warning notes make you aware of dangers which could pose a threat to your health or life, or to the health and life of others.

Environmental note

Environmental notes provide you with information on environmentally aware actions or disposal.

Notes on material damage alert you to dangers that could lead to damage to your vehicle.

Practical tips or furtherinformation that could be helpful to you.

(Y page)

Dis‐ play

This symbol indicates an instruction that must be followed.

Several of these symbols in succession indicate an instruction with several steps.

This symbol tells you where you can find more information about a topic.

This symbol indicates a warning or an instruction that is continued on the next page.

This text indicates a message on the multifunction display.

Publication details

Internet

Further information about smart vehicles and about Daimler AG can be found on the following websites:

http://www.smart.com http://www.daimler.com

Editorial office

Daimler AG: not to be reprinted, translated or otherwise reproduced, in whole or in part, without written permission from Daimler AG.

Vehicle manufacturer

Daimler AG Mercedesstraße 137 70327 Stuttgart Germany

As at 10.04.2015

Page 3

Let the fun begin!

We urge you to read it carefully and familiarize yourself with the vehicle before driving. For your own safety and a longer vehicle life, follow the instructions and warning notices in this manual. Ignoring them could result in damage to the vehicle or personal injury to you or others.

This Operator's Manual provides information on the most important functions of your vehicle.

The equipment or product designation of your vehicle may vary depending on:

Model

Order

Country specification

Availability

The illustrations in this manual show a lefthand-drive vehicle. On right-hand-drive vehicles, the layout of components and controls differs accordingly.

smart is constantly updating its vehicles to the state of the art.

smart therefore reserves the right to introduce changes in the following areas:

Design

Equipment

Technical features

The equipment in your vehicle may therefore differ from that shown in the descriptions and illustrations.

The following are integral components of the vehicle:

Operator's Manual

Maintenance Booklet

Equipment-dependent supplements

Keep printed copies of the documents in the vehicle at all times. If you sell the vehicle, always pass the documents on to the new owner.

The technical documentation team at Daimler AG wishes you safe and pleasant motoring.

4535841703

É4535841703SËÍ

Page 4

Contents

Index ............................................ 3

Introduction ................................. 16

At a glance ................................... 22

Safety .......................................... 29

Opening and closing ....................... 51

Seats, steering wheel and mirrors ...... 61

Lights and windshield wipers ........... 67

Climate control ............................. 79

Driving and parking ....................... 86

On-board computer and displays ...... 109

Stowage and features ..................... 142

Maintenance and care .................... 149

Breakdown assistance .................... 161

Wheels and tires ........................... 177

Technical data ............................. 204

Page 5

Index

1, 2, 3 ...

12 V socket

see Sockets

ABS (Anti-lock Braking System)

Display message ....................... 121

Function/notes .......................... 47

Important safety notes ................47

Warning lamp .......................... 134

Activating/deactivating cooling

with air dehumidification ............... 81

Additives (engine oil) ................... 209

Air bags

Deployment .............................. 40

Front air bag (driver, front

passenger) ............................... 35

Important safety notes ................ 34

Introduction ............................ 34

Knee bag .................................. 35

Occupant Classification System

(OCS) ...................................... 36

PASSENGER AIR BAG indicator

lamps ...................................... 30

Window curtain air bag ............... 36

Air pressure

see Tire pressure

Air vents

Important safety notes ................ 84

Setting ................................... 84

Setting the center air vents ......... 85

Setting the side air vents ........... 85

Air-conditioning system

see Climate control

Airbag

Thorax/pelvisbag ...................... 35

Warning lamp .......................... 132

Alarm

Anti-theft alarm system .............. 46

Switching off ............................ 47

Switching the function on/off ...... 46

Ambient lighting

Setting the brightness ............... 116

Switching on/off ...................... 116

Animals

see Pets in the vehicle

Anti-lock Braking System

see ABS (Anti-lock Braking System)

Anti-skid chains

see Snow chains

Anti-theft alarm system

Function .................................. 46

Switching off the alarm .............. 47

Switching on/off ....................... 46

Ashtray ....................................... 147

Assistance system

see Driving systems

Authorized workshop

see Qualified specialist workshop

Automatic car wash (care) ............... 155

Automatic headlamp mode ................ 67

Automatic transmission

Accelerator pedal position ......... 93

Changing gear .......................... 93

Display message (color display) .. 128

Drive program .......................... 94

Drive program display ................ 92

Driving tips ............................. 93

Emergency running mode .............97

Gearshift paddles ...................... 96

Kickdown .................................94

Malfunction (on-board computer

with color display) ................... 128

Manual shifting ............

Manually releasing the selector

lever lock ................................ 97

Overview .................................92

Problem (malfunction) ..

Program selector button .............. 94

Pulling away ............................. 88

Selector lever .......................... 92

Starting the engine ...................88

Transmission position display ..... 92

Transmission positions .............. 93

Automatic transmission emergency

mode ............................................ 97

............ 94

..............97

Backup lamp

Changing bulbs .........................73

Battery (SmartKey)

Important safety notes ................52

Replacing ................................ 52

Page 6

Index

Battery (vehicle)

Charging ................................ 166

Display message ......................124

Important safety notes ............... 164

Jump starting .......................... 168

Warning and indicator lamps ...... 137

Belt

see Seat belts

Blower

see Climate control

Brake fluid

Display message ......................120

Notes .....................................210

Brake force distribution

see EBD (electronic brake force distribution)

Brake lamps

Changing bulbs .........................73

Display message ....................... 128

Brake lights

Display message (color display) .. 128

Brakes

ABS ......................................... 47

Brake fluid (notes) ...................210

EBD ........................................50

Important safety notes ............... 103

Maintenance ............................ 104

Parking brake ..........................101

Riding tips .............................103

Warning lamp .......................... 132

Breakdown

see Flat tire see Towing away/tow-starting

Bulbs

see Replacing bulbs

Calling up a malfunction

see Display messages

Car

see Vehicle

Car key

see SmartKey

Car wash

see Care

Care

Car wash .................................155

Carpets .................................. 160

Display .................................. 158

Exhaust pipe ........................... 158

Exterior lights ........................ 158

Gear or selector lever ............... 159

General notes ..........................154

Interior ................................. 158

Matte finish ............................ 156

Paint ..................................... 156

Panoramic roof ........................ 157

Plastic trim ............................ 158

Power washer ........................... 155

Roof lining ............................. 160

Seat belt ................................ 159

Seat cover ...............................159

Sensors .................................. 158

Steering wheel ......................... 159

Washing by hand ....................... 155

Wheels ................................... 157

Windows ................................. 157

Wiper blades ........................... 157

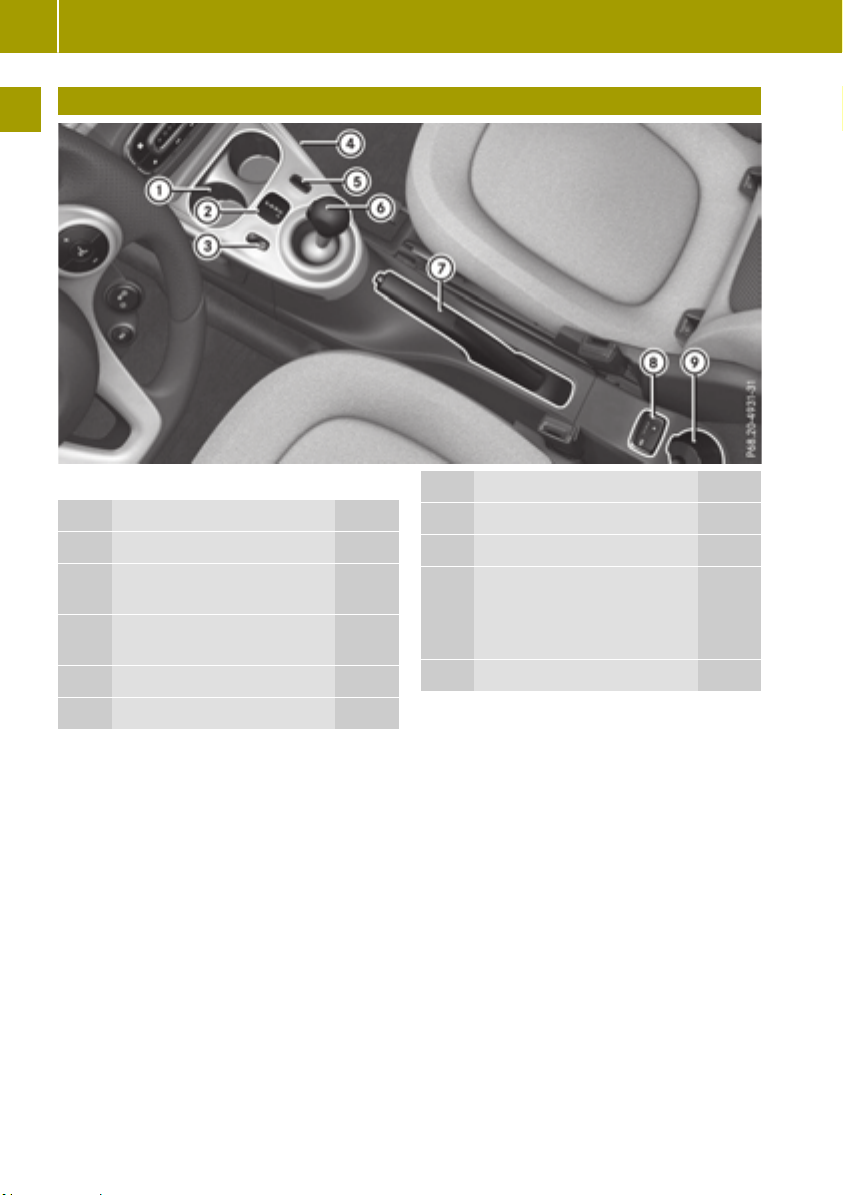

Center console .............................. 26

Central locking

Locking/unlocking (SmartKey) ......51

Changing bulbs

Brake lamps .............................. 73

Front fog lamp .......................... 72

High-beam headlamps ................. 72

Low-beam headlamps .................. 72

Rear fog lamp ........................... 73

Reversing lamps ........................ 73

Tail lamps ............................... 73

Turn signals (front) ................... 72

Turn signals (rear) .................... 73

Child seat

Forward-facing restraint sys-

tem .........................................45

On the front-passenger seat .........45

Rearward-facing restraint sys-

tem ......................................... 45

Top Tether ............................... 44

Children

Restraint systems ...................... 43

Special seat belt retractor .......... 43

Cleaning

see Care

Climate control

Automatic climate control ........... 80

Page 7

Index

Controlling automatically ........... 81

Cooling with air dehumidifica-

tion ........................................ 81

Defrosting the windows ............... 82

Defrosting the windshield ........... 82

General notes ........................... 79

Notes on using the automatic

climate control ......................... 80

Overview of systems ................... 79

Problem with the rear window

defroster ................................. 84

Refrigerant ............................. 211

Setting the air distribution ........ 81

Setting the air vents .................. 84

Setting the airflow .................... 82

Setting the temperature .............. 81

Switching air-recirculation

mode on/off .............................. 84

Switching on/off ....................... 80

Switching the rear window

defroster on/off ........................ 82

Cockpit

Overview ................................. 22

Constant headlamp mode

see Daytime running lamps

Consumption statistics (on-board

computer) .................................... 112

Controlling speed

see Cruise control

Coolant

Battery cooling system .............. 153

Checking the level .................... 153

Drive system cooling system ....... 153

General notes .......................... 210

Important safety notes ............... 153

Setting the temperature unit ...... 116

Temperature display ................. 113

Topping up ............................. 153

Warning lamp .......................... 138

Coolant (engine)

Display message ....................... 125

Cooling

see Climate control

Cover (front)

see Service cover

Crosswind Assist ............................ 50

Cruise control

Activating .............................. 106

Buttons .................................. 106

Calling up the speed last stored .. 106

Canceling cruise control ........... 107

Deactivating ........................... 107

Display message (color display) .. 126

Driving systems ....................... 105

Function/notes ........................ 105

General notes .......................... 105

Important safety notes ............... 105

Increasing/decreasing the

speed ..................................... 106

Storing and maintaining cur-

rent speed .............................. 106

Cup holder

Center console ......................... 146

Center console in the rear com-

partment ................................ 146

Important safety notes ............... 146

Cup holder

see Cup holder

Customer Assistance Center (CAC) ...... 20

Customer Relations Department ......... 20

Dashboard

Additional instruments ............. 110

Dashboard

see Cockpit

Dashboard clock ............................ 110

Data

see Technical data

Daytime running lamps

Function/notes .......................... 67

Dealership

see Qualified specialist workshop

Declarations of conformity .............. 19

Diagnostics connection ................... 19

Digital speedometer

Display .................................. 109

Setting the display ................... 115

Display

Color ..................................... 111

Menu (on-board computer with a

color display) .......................... 115

Display (cleaning instructions) ....... 158

Page 8

Index

Display message

Calling up (message memory) .......113

Color display .......................... 118

Language setting ......................117

Service display ....................... 153

Display messages

Calling up (on-board computer) ... 113

Driving systems ....................... 126

Engine ................................... 124

General notes (on-board com-

puter with a color display) .........118

Hiding ................................... 118

Lights .................................... 128

Safety systems .........................119

SmartKey ................................ 130

Tires .....................................126

Vehicle ..................................128

Distance recorder .........................112

Distance warning function

Function/notes .........................48

Warning lamp (red) ................... 136

Warning lamp (yellow) ............... 135

Door

Warning lamp ........................... 141

Doors

Automatic locking (switch) .......... 55

Central locking/unlocking

(SmartKey) ................................ 51

Control panel ........................... 28

Display message ....................... 128

Emergency locking ..................... 55

Emergency unlocking .................. 55

Important safety notes ................ 54

Opening (from inside) ................ 54

Drinking and driving ..................... 102

Drive program

Automatic transmission .............. 94

Display ................................... 92

Driver's door

see Doors

Driver's seat

see Seats

Driving abroad

smart service .......................... 154

Driving on flooded roads ................ 104

Driving safety systems

ABS (Anti-lock Braking System) .... 47

Distance warning function .......... 48

EBD (electronic brake force

distribution) ........................... 50

ESP

(Electronic Stability Pro-

gram) ...................................... 49

ETS (Electronic Traction Sys-

tem) ........................................ 49

Important safety information ....... 47

Overview ................................. 47

Driving system

Parking aid ............................. 107

Driving systems

Cruise control ......................... 105

Display message ....................... 126

Driving tips

Automatic transmission .............. 93

Brakes ................................... 103

Break-in period ........................ 86

Downhill gradient .................... 103

Drinking and driving ................ 102

Driving in winter ..................... 105

Driving on flooded roads ........... 104

Driving on wet roads ................. 104

Exhaust check .......................... 103

Fuel ...................................... 102

General .................................. 102

Hydroplaning .......................... 104

Icy road surfaces ..................... 105

Limited braking efficiency on

salted roads ............................ 104

Snow chains ............................. 179

Subjecting brakes to a load ........ 103

Wet road surface ...................... 103

EBD (electronic brake force distribution)

Display message ...................... 120

Function/notes ......................... 50

EBD (Electronic Brake-force Distribution)

Indicator lamp ........................ 133

Electronic Brake-force Distribution

see EBD (electronic brake force distribution)

Electronic Traction System

see ETS (Electronic Traction System)

Page 9

Index

Emergency release

Driver's door ............................55

Vehicle ................................... 55

Emergency Tensioning Devices

Activation ............................... 40

Emissions control

Service and warranty informa-

tion ........................................ 17

Engine

Check Engine warning lamp ........136

Display message ...................... 124

Engine number ......................... 206

Irregular running ...................... 90

Jump-starting ......................... 168

Starting problems ..................... 90

Starting the engine with the

SmartKey ................................. 88

Switching off ........................... 101

Tow-starting (vehicle) .............. 172

Engine compartment cover .............. 149

Engine electronics

Problem (malfunction) ................ 90

Engine oil

Adding ................................... 150

Additives ............................... 209

Checking the oil level ............... 150

Display message ...................... 124

Filling capacity ...................... 209

Notes about oil grades .............. 209

Notes on oil level/consumption ... 149

Viscosity ............................... 210

Warning lamp .......................... 138

Engine oil additives

see Additives (engine oil)

ESP

(Electronic Stability Program)

Characteristics ........................49

Crosswind Assist ....................... 50

Display message ....................... 121

ETS .........................................49

Function/notes ......................... 49

General notes ........................... 49

Important safety information ....... 49

Warning and indicator lamps ...... 134

ETS (Electronic Traction System) ...... 49

Exhaust check .............................. 103

Exhaust pipe (cleaning instruc-

tions) ......................................... 158

Exterior lighting

Cleaning ................................ 158

Setting options ......................... 67

Exterior mirrors

Adjusting (electrically) ............. 66

Adjusting (manually) .................. 66

Out of position (troubleshoot-

ing) ........................................ 66

Filler cap

see Refueling

Filling capacities (Technical data) .. 207 Flat tire

Preparing the vehicle ............... 161

TIREFIT kit ............................. 161

Floormats .................................... 148

Fog lamps

Switching on/off ....................... 68

Frequencies

Mobile phone .......................... 204

Two-way radio ......................... 204

Front cover

see Service cover

Front fog lamps

Changing bulbs ......................... 72

Switching on/off ....................... 68

Front-passenger seat

Folding down ............................ 63

Frontal area cover

see Service cover

Fuel

Additives ............................... 208

Consumption information .......... 209

Displaying the current con-

sumption ................................ 112

Driving tips ........................... 102

Fuel gauge .............................. 110

Grade (gasoline) ...................... 208

Important safety notes .............. 207

Problem (malfunction) ............... 100

Refueling ................................ 97

Tank content/reserve fuel .......... 207

Fuel filler flap

Opening .................................. 98

Fuel tank

Capacity ................................ 207

Page 10

Index

Problem (malfunction) ............... 100

Fuses

Allocation .............................. 175

Before changing ....................... 173

Dashboard fuse box ...................173

Fuse box in the front area .......... 173

Important safety notes ............... 173

Fuses

see Fuses

Gasoline ..................................... 208

Gear or selector lever (cleaning

guidelines) .................................159

Genuine parts ................................ 16

Glove box ....................................143

Handbrake

see Parking brake

Hands-free system

see Mobile phone

Hazard warning lamps ......................69

Headlamps

Fogging up ............................... 69

see Automatic headlamp mode

Heating

see Climate control

High beam flasher .......................... 69

High-beam headlamps

Changing bulbs ......................... 72

Switching on/off ....................... 69

Hill start assist ............................ 88

Hydroplaning ............................... 104

Ignition key

see SmartKey

Ignition lock

see Key positions

Immobilizer ................................. 46

Indicator lamps

see Warning and indicator lamps

Instrument cluster

Overview ................................. 23

Warning and indicator lamps ....... 24

Instrument cluster lighting

Adjusting ............................... 115

Notes ..................................... 109

Instrument lighting

see Instrument cluster lighting

Interior lighting ........................... 69

Automatic control ...................... 70

Overview ................................. 69

Reading lamp ............................ 69

Replacing bulbs ........................ 74

Setting the ambient lighting ...... 116

Setting the brightness of the ambient lighting (on-board

computer) ............................... 116

Intermittent wiping ........................ 75

Jack

Using ..................................... 197

Jump start (engine)

see Jump starting (engine)

Jump starting (engine) ................... 168

Key

Display message ....................... 130

Kickdown

Driving tips ............................. 94

Manual gearshifting .................. 96

Knee bag ...................................... 35

Lamps

see Warning and indicator lamps

Language (on-board computer) ......... 117

License plate lighting

Replacing ................................ 74

Light sensor (display message) ........ 130

Lighting

Setting the ambient lighting ...... 116

Lights

Automatic headlamp mode ............ 67

Display message ....................... 128

Fog lamps ................................ 68

Hazard warning lamps ................. 69

High beam flasher ..................... 69

Page 11

Index

High-beam headlamps ................. 69

Light switch ............................. 67

Low-beam headlamps .................. 68

Parking lamps ........................... 68

Rear fog lamp ........................... 68

Setting the brightness of the ambient lighting (on-board

computer) ............................... 116

Turn signals ............................. 68

see Interior lighting see Replacing bulbs

Loading guidelines ....................... 142

Locking

see Central locking

Locking (doors)

Automatic ................................ 55

Emergency locking ..................... 55

From inside (central locking

button) .................................... 54

Locking centrally

see Central locking

Loudspeaker

see Subwoofer

Low-beam headlamps

Changing bulbs ......................... 72

Switching on/off ....................... 68

Lubricant additives

see Additives (engine oil)

M+S tires (winter tires) ................. 179

Malfunction message

see Display messages

Manual transmission

Engaging reverse gear ................ 91

Gear lever ................................ 91

Malfunction (on-board computer

with a color display) ................. 130

Pulling away ............................. 88

Shift recommendation ................. 91

Shifting to neutral .................... 91

Starting the engine ................... 88

Manually releasing the selector lever lock (automatic transmis-

sion) ........................................... 97

Matte finish (cleaning instruc-

tions) ......................................... 156

Message memory (color display) ....... 113

Message memory (on-board com-

puter) ......................................... 113

Messages

see Display messages

Mirrors

see Exterior mirrors see Rear-view mirror

Mobile phone

Frequencies ............................ 204

Installation ............................ 204

Transmission output (maximum) .. 204

Model series

see Vehicle identification plate

Mounting wheels

Lowering the vehicle ................ 200

Mounting a new wheel ................ 199

Preparing the vehicle ............... 197

Raising the vehicle .................. 197

Removing a wheel ..................... 199

Securing the vehicle against

rolling away ............................ 197

Multi-functional seat

see Seats

Multifunction steering wheel

Overview ................................. 25

Notes on breaking-in a new vehicle ... 86

Occupant Classification System (OCS)

Conditions ............................... 36

Faults ..................................... 40

Operation ................................ 37

System self-test ........................ 39

Occupant safety

Children in the vehicle .............. 42

Important safety notes ................ 29

Introduction to the restraint

system ..................................... 29

Occupant Classification System

(OCS) ...................................... 36

PASSENGER AIR BAG indicator

lamps ...................................... 30

Pets in the vehicle .................... 46

Page 12

Index

Restraint system warning lamp ..... 30

Seat belt .................................. 31

OCS

Conditions ............................... 36

Faults ..................................... 40

Operation ................................ 37

System self-test ........................ 39

Odometer ..................................... 112

Oil

see Engine oil

On-board computer

Displaying a service message ..... 154

Important safety notes ............... 109

Menu overview .......................... 111

Message memory ....................... 113

Messages menu ......................... 113

Operating (color display) ........... 111

Operation ............................... 111

Selecting the language .............. 117

Service menu ........................... 113

Settings menu .......................... 114

Submenu display ....................... 115

On-board diagnostic interface

see Diagnostics connection

Operating safety

Declaration of conformity ........... 19

Important safety notes ................ 18

Operating system

see On-board computer

Operator's Manual

Vehicle equipment ..................... 17

Outside temperature display

Notes ..................................... 109

Setting the units ...................... 116

Overhead control panel .................... 27

Overrevving range ......................... 110

Paint code number ........................ 205

Paintwork (cleaning instructions) .... 156

Panic alarm .................................. 29

Panoramic roof

Cleaning ................................ 157

Operating the roller sunblind ...... 60

Park brake

see Parking brake

Parking ...................................... 100

Important safety notes ............... 100

Parking brake .......................... 101

Switching off the engine ............ 101

Parking brake

Display message ....................... 119

Notes/function ......................... 101

Warning lamp .......................... 132

Parking lamps

Switching on and off .................. 68

PASSENGER AIR BAG

Indicator lamps ........................ 30

Pets in the vehicle ......................... 46

Plastic trim (cleaning instruc-

tions) ......................................... 158

Power washers .............................. 155

Power windows

see Side windows

Program selector button .................. 94

Protection against theft

Anti-theft alarm system .............. 46

Immobilizer ............................. 46

Protection of the environment

General notes ............................ 16

Pulling away

Automatic transmission .............. 88

General notes ........................... 88

Manual transmission .................. 88

QR code

Rescue card .............................. 20

Qualified specialist workshop ......... 20

Radio-wave reception/transmission in the vehicle

Declaration of conformity ........... 19

Rain and light sensor (display mes-

sage) .......................................... 130

Reading lamp ................................ 69

Rear fog lamp

Changing bulbs ......................... 73

Switching on/off ....................... 68

Rear lamps

Changing bulbs ......................... 73

Page 13

Index

Rear parking aid

Activating/deactivating ............ 108

Function/notes ........................ 107

Rear window defroster

Problem (malfunction) ................ 84

Switching on/off ....................... 82

Rear window wiper

Replacing the wiper blade ........... 76

Switching on/off ....................... 75

Rear-view mirror

Anti-glare (manual) ................... 66

Recycling

see Protection of the environment

Refrigerant (air-conditioning system)

Important safety notes ............... 211

Refueling

Fuel gauge .............................. 110

Important safety notes ................ 97

Refueling process ..................... 98

see Fuel

Replacing bulbs

Important safety notes ................ 70

Interior lighting ...................... 74

Overview of bulb types ................ 70

Removing/replacing the cover

(front wheel arch) ...................... 72

Side turn signal lamps ............... 73

Rescue card .................................. 20

Reserve (fuel tank)

see Fuel

Reserve fuel

Display message ....................... 125

see Fuel

Restraint system

Display message ....................... 119

Introduction ............................ 29

Warning lamp .......................... 132

Warning lamp (function) .............. 30

Reverse gear

Engaging (manual transmission) ... 91

Reversing feature

Side windows ............................ 58

Roadside Assistance (breakdown) ....... 17

Roller sunblind for the panorama roof

Operating ................................ 60

Roof

see Panoramic roof

Roof lining and carpets (cleaning

guidelines) ................................. 160

Safety

Child restraint systems .............. 43

Children in the vehicle .............. 42

see Operating safety

Safety system

see Driving safety systems

Seat

Folding the front-passenger

seat down ................................. 63

Seat belts

Cleaning ................................ 159

Correct usage ........................... 32

Fastening ................................ 33

Important safety guidelines ........ 31

Introduction ............................. 31

Releasing ................................ 33

Warning lamp ........................... 131

Warning lamp (function) .............. 33

Seats

Adjusting (manually) .................. 62

Cleaning the cover ................... 159

Correct driver's seat position ...... 61

Important safety notes ................ 61

Seat heating problem ................. 65

Switching seat heating on/off ...... 64

Sensors (cleaning instructions) ....... 158

Service Center

see Qualified specialist workshop

Service cover ............................... 151

Service display

Calling up (on-board computer

with a color display) ................. 113

Displaying a service message ..... 154

Hiding a service message .......... 154

Notes ..................................... 153

Resetting ............................... 154

Service message ....................... 153

Special service requirements ..... 154

Service products

Brake fluid ............................. 210

Coolant (engine) ...................... 210

Page 14

Index

Engine oil .............................. 209

Fuel ...................................... 207

Important safety notes .............. 207

Refrigerant (air-conditioning

system) ................................... 211

Washer fluid ............................ 211

Setting a speed

see Cruise control

Setting the air distribution ............. 81

Setting the airflow ......................... 82

Shifting to neutral (manual trans-

mission) ....................................... 91

Side turn signal lamps

Replacing bulbs ........................ 73

Side windows

Cleaning ................................ 157

Important safety information ....... 57

Opening/closing ....................... 58

Problem (malfunction) ................ 60

Resetting ................................ 59

smart center

see Qualified specialist workshop

SmartKey

Changing the battery .................. 52

Door central locking/unlocking .... 51

Important safety notes ................ 51

Loss ........................................ 53

Positions (ignition lock) ............ 87

Problem (malfunction) ................ 53

Starting the engine ................... 88

SmartKey positions (ignition lock) .... 87

Snow chains ................................. 179

Sockets

Center console ......................... 147

General notes .......................... 147

Speakers

see Subwoofer

Special seat belt retractor .............. 43

Specialist workshop ....................... 20

Speedometer

Digital .................................. 109

In the Instrument cluster ........... 109

SRS (Supplemental Restraint System)

see Restraint system

Starting (engine) ........................... 87

Starting the engine

see Starting (engine)

Steering

Display message (color display) .. 128

Warning lamps ......................... 141

Steering wheel

Adjusting (manually) .................. 65

Button overview ........................ 25

Cleaning ................................ 159

Important safety notes ................ 65

Paddle shifters ......................... 96

Stowage areas .............................. 142

Stowage compartment

Door stowage compartment .......... 143

Stowage compartment in the tail-

gate ........................................... 143

Stowage compartments

Center console ......................... 143

Cup holders ............................. 146

Glove box ............................... 143

Important safety information ...... 142

Stowage space

Stowage compartment in the

tailgate ................................. 143

Submenu

Ambient lighting ..................... 116

Subwoofer

Fitting/removing ..................... 145

Summer tires

In winter ................................ 179

Sun visor ..................................... 147

Switching air-recirculation

on/off .......................................... 84

mode

Tachometer .................................. 110

Tailgate

Important safety notes ................ 56

Opening dimensions ................. 212

Opening/closing ....................... 57

Warning lamp ........................... 141

Tank

see Fuel tank

Tank content

Fuel gauge .............................. 110

Technical data

Capacities ............................. 207

Page 15

Index

Information ............................ 204

Tires/wheels ........................... 200

Vehicle data ........................... 212

Temperature

Coolant .................................. 113

Outside temperature ................. 109

Setting (climate control) ............ 81

Setting the display units ...........116

Thorax/pelvisbag ........................... 35

Time

Setting ................................... 114

Setting (dashboard clock) ........... 110

Setting the time format (onboard computer with a color

display) ................................. 114

Tire pressure

Checking manually .................... 183

Display message ....................... 126

Important safety notes ............... 183

Maximum ................................ 182

Not reached (TIREFIT) ................163

Notes .....................................181

Reached (TIREFIT) .................... 163

Recommended .......................... 180

Tire pressure monitor

Function/notes ........................ 183

General notes .......................... 183

Important safety notes ............... 183

Restarting (on-board computer

with color display) ...................185

Warning lamp .......................... 139

Warning message ......................184

TIREFIT kit ..................................161

Tires

Aspect ratio (definition) ...........195

Average weight of the vehicle

occupants (definition) .............. 194

Bar (definition) ....................... 194

Changing a wheel ..................... 196

Characteristics ....................... 194

Checking ................................ 178

Curb weight (definition) ........... 195

Definition of terms .................. 194

Direction of rotation ................ 197

Display message ....................... 126

Distribution of the vehicle

occupants (definition) .............. 196

DOT (Department of Transporta-

tion) (definition) ..................... 194

DOT, Tire

ber (TIN) ................................ 193

GAWR (Gross Axle Weight Rating)

(definition) ............................ 195

General notes .......................... 200

GVW (Gross Vehicle Weight)

(definition) ............................ 195

GVWR (Gross Vehicle Weight Rat-

ing) (definition) ...................... 195

Important safety notes ............... 177

Increased vehicle weight due to optional equipment (defini-

tion) ...................................... 194

Kilopascal (kPa) (definition) ...... 195

Labeling (overview) .................. 191

Load bearing index (definition) .. 196

Load index .............................. 193

Load index (definition) .............195

M+S tires (winter tires) ............. 179

Maximum load on a tire (defini-

tion) ...................................... 195

Maximum loaded vehicle weight

(definition) ............................ 195

Maximum permissible tire

pressure (definition) ................ 195

Maximum tire load .................... 193

Maximum tire load (definition) ... 195 Optional equipment weight

(definition) ............................ 196

PSI (pounds per square inch)

(definition) ............................ 195

Replacing ............................... 196

Service life ............................ 178

Sidewall (definition) ................ 196

Snow chains ............................. 179

Speed rating (definition) .......... 195

Storing .................................. 197

Structure and characteristics

(definition) ............................ 194

Summer tires in winter .............. 179

Temperature ............................ 190

TIN (Tire Identification Num-

ber) (definition) ...................... 196

Tire bead (definition) .............. 196

Tire pressure (definition) ......... 195

Tire pressures (recommended) .... 194

Identification Num-

Page 16

Index

Tire size (data) ....................... 200

Tire size designation, loadbearing capacity, speed rating ... 191

Tire tread ...............................178

Tire tread (definition) .............. 196

Total load limit (definition) ...... 196

Traction .................................190

Traction (definition) ................ 196

Tread wear .............................. 190

Uniform Tire Quality Grading

Standards ............................... 189

Uniform Tire Quality Grading

Standards (definition) .............. 194

Wear indicator (definition) ....... 196

Wheel and tire combination ....... 202

Wheel rim (definition) .............. 195

see Flat tire

Tool

see Vehicle tool kit

Top Tether .................................... 44

Total distance recorder

Setting the display unit .............116

Tow-starting

Emergency engine starting ......... 172

Important safety notes ............... 170

Towing away

Important safety guidelines .......170

Installing the towing eye ........... 171

Removing the towing eye ............ 171

With both axles on the ground ...... 171

With the rear axle raised ........... 171

Transmission

see Automatic transmission see Manual transmission

Transmission position display .........92

Transporting the vehicle ................ 172

Trip computer (on-board computer) ... 112 Trip meter

Setting the display unit .............116

Setting the display units ........... 116

Trip odometer

Calling up .............................. 112

Trunk

Fitting the cover ..................... 144

Installing/removing the cover ....145

see Tailgate

Trunk (front)

see Service cover

Turn signals

Changing bulbs (front) ................ 72

Changing bulbs (rear) ................. 73

Switching on/off ....................... 68

Turn signals

see Turn signals

Two-way radio

Frequencies ............................ 204

Installation ............................ 204

Transmission output (maximum) .. 204

Type identification plate

see Vehicle identification plate

Unlocking

Emergency unlocking .................. 55

From inside the vehicle (central

unlocking button) ...................... 54

Vehicle

Correct use .............................. 20

Data acquisition ....................... 20

Electronics malfunction (dis-

play message) .......................... 130

Electronics malfunction (warn-

ing lamp) ................................ 141

Equipment ................................ 17

Loading .................................. 185

Locking (in an emergency) ........... 55

Locking (SmartKey) .................... 51

Lowering ................................ 200

Maintenance ............................. 17

Parking for a long period .......... 102

Pulling away ............................. 88

Raising .................................. 197

Reporting problems ................... 20

Securing from rolling away ........ 197

Tow-starting ........................... 170

Towing away ............................ 170

Transporting ........................... 172

Unlocking (in an emergency) ........ 55

Unlocking (SmartKey) ................. 51

Vehicle data ........................... 212

Vehicle battery

see Battery (vehicle)

Vehicle data ................................ 212

Page 17

Index

Vehicle dimensions ....................... 212

Vehicle emergency locking .............. 55

Vehicle identification number

see VIN

Vehicle identification plate .......... 205

Vehicle key

see SmartKey

Vehicle tool kit ............................ 161

Ventilation

see Climate control

VIN ............................................ 205

Warning and indicator lamps

ABS ....................................... 134

Airbag ................................... 132

Battery ................................... 137

Brakes ................................... 132

Check Engine ........................... 136

Coolant .................................. 138

Distance warning function (red) .. 136 Distance warning function (yel-

low) ....................................... 135

Door ...................................... 141

EBD ....................................... 133

Electronics .............................141

...................................... 134

ESP

Oil pressure ............................ 138

Overview ................................. 24

Parking brake .......................... 132

PASSENGER AIR BAG .................... 30

Restraint system ......................132

Seat belt ................................. 131

Steering ................................. 141

Tire pressure monitor ............... 139

Warranty ....................................... 17

Wheel and tire combination

see Tires

Wheel bolt tightening torque .......... 200

Wheels

Changing a wheel ..................... 196

Checking ................................ 178

Cleaning ................................ 157

General notes .......................... 200

Important safety notes ............... 177

Interchanging/changing ............ 196

Mounting a new wheel ................ 199

Mounting a wheel ...................... 197

Removing a wheel ..................... 199

Snow chains ............................. 179

Storing .................................. 197

Tightening torque .................... 200

Wheel size/tire size ................. 200

Window curtain air bag

Operation ................................ 36

Windows

see Side windows

Windscreen

see Windshield

Windshield

Defrosting ............................... 82

Windshield washer fluid

see Windshield washer system

Windshield washer system

Adding washer fluid .................. 153

Important safety notes ............... 211

Windshield wipers

Intermittent wiping ................... 75

Problem (malfunction) ................ 78

Rear window wiper ..................... 75

Replacing the wiper blades ......... 75

Switching on/off ....................... 74

Winter driving

Slippery road surfaces .............. 105

Snow chains ............................. 179

Winter operation

General notes .......................... 179

Winter tires

M+S tires ................................ 179

Wiper blades

Cleaning ................................ 157

Important safety notes ................ 75

Replacing (rear window) ............. 76

Replacing (windshield) ............... 76

Workshop

see Qualified specialist workshop

Page 18

>> Introduction.

Protection of the environment

General notes

Environmental note

Daimler's declared policy is one of comprehensive environmental protection.

The objectives are for the natural resources that form the basis of our existence on this planet to be used sparingly and in a manner that takes the requirements of both nature and humanity into account.

You too can help to protect the environment by operating your vehicle in an environmentally responsible manner.

Fuel consumption and the rate of engine, transmission, brake and tire wear are affected by these factors:

operating conditions of your vehicle

your personal driving style

You can influence both factors. You should bear the following in mind:

Operating conditions:

avoid short trips as these increase fuel consumption.

always make sure that the tire pressures are correct.

do not carry any unnecessary weight.

a regularly serviced vehicle will contribute to environmental protection. You should therefore adhere to the service intervals.

Always have service work carried out at a qualified specialist workshop.

Personal driving style:

do not depress the accelerator pedal when starting the engine.

do not warm up the engine when the vehicle is stationary.

drive carefully and maintain a safe distance from the vehicle in front.

avoid frequent, sudden acceleration and braking.

change gear in good time and use each gear only up to Ô of its maximum engine speed.

switch off the engine in stationary traffic.

keep an eye on the vehicle's fuel consumption.

Environmental concerns and recommendations

Wherever the operating instructions require you to dispose of materials, first try to regenerate or re-use them. Observe the relevant environmental rules and regulations when disposing of materials. In this way you will help to protect the environment.

Genuine smart parts

Environmental note

Daimler AG also supplies reconditioned major assemblies and parts which are of the same quality as new parts. They are covered by the same Limited Warranty entitlements as new parts.

Air bags and Emergency Tensioning Devi-

ces, as well as control units and sensors for these restraint systems, may be installed in the following areas of your vehicle:

doors

door pillars

door sills

seats

cockpit

instrument cluster

center console

Do not install accessories such as audio systems in these areas. Do not carry out repairs or welding. You could impair the operating efficiency of the restraint systems.

Have aftermarket accessories installed at a qualified specialist workshop.

You could jeopardize the operating safety of your vehicle if you use parts, tires and wheels

Page 19

>> Introduction.

as well as accessories relevant to safety which have not been approved by smart. This could lead to malfunctions in safety-relevant systems, e.g. the brake system. Use only genuine smart parts or parts of equal quality. Only use tires, wheels and accessories that have been specifically approved for your vehicle.

Genuine smart parts are subject to strict quality control. Each part has been specially developed, manufactured or selected for smart vehicles and fine-tuned for them. Therefore, only genuine smart parts should be used.

More than 300,000 different genuine smart parts are available for smart models.

All smart centers maintain a supply of genuine smart parts for necessary service and repair work. In addition, strategically located parts delivery centers provide quick and reliable parts service.

Always specify the vehicle identification number (VIN) (

Y page 205) when ordering gen-

uine smart parts.

Operator's Manual

Vehicle equipment

This Operator's Manual describes all models and all standard and optional equipment of your vehicle available at the time of going to print. Country-specific differences are possible. Bear in mind that your vehicle may not feature all functions described here. This also applies to safety-relevant systems and functions. The equipment in your vehicle may therefore differ from that shown in the descriptions and illustrations.

The original purchase agreement lists all systems installed in your vehicle.

Should you have any questions concerning equipment and operation, please consult a smart center.

The Operator's Manual and Maintenance Booklet are important documents and should be kept in the vehicle.

Service and vehicle operation

Warranty

The smart USA Warranty booklet (USA only) or the Warranty booklet (Canada only) contains detailed information about the warranties covering your smart, including:

smart USA Limited Warranty (USA only

New Vehicle Limited Warranty (Canada only)

Emission System Warranty

Emission Performance Warranty

warranty against perforation through corrosion

California, Connecticut, Maine, Massachusetts, New York, Pennsylvania, Rhode Island and Vermont Emission Control System Warranty

smartmove Assistance (Canada only)

State warranty enforcement laws (Lemon Laws)

Maintenance

The Service and Warranty Booklet describes all the necessary maintenance work which should be done at regular intervals.

Always bring the Service and Warranty Information Booklet with you when bringing the vehicle to an authorized smart center. The service advisor will record every service for you in the Service and Warranty Booklet.

Roadside Assistance

The smartmove Assistance (Canada) and smart 1 service (USA) Program provides factory trained technical help in the event of a breakdown. Calls to the toll-free Roadside Assistance number

1-800-762-7887 (in USA) 1-877-627-8004 (in Canada)

will be answered by smart Customer Assistance Representatives 24 hours a day, 365 days a year. In accordance with standard program guidelines, Roadside Assistance provides vehicle service up to a reasonable distance from the next paved road. We will make every effort to assist in a breakdown situation; however, the accessibility of your vehicle

Page 20

>> Introduction.

will be determined by our authorized smart center technical help or the tow service provider on a case-by-case basis. Additional charges may be applicable for a breakdown location determined not to be a reasonably accessible roadside location as determined by our authorized technician and tow service provider.

For additional information refer to the smart Roadside Assistance Program brochure (USA) or the Warranty Booklet (Canada) in your vehicle literature portfolio.

Change of address or change of ownership

In the USA: If you change your address, be sure to send in the “Information Change Card” found in the Warranty Information Booklet.

In Canada: If you change your address, be sure to send in the “Change of Address Notice” found in the Warranty Booklet, or simply call the Customer Service at 1-800-387-0100.

Maintaining your current address information with smart will enable us to contact you should important new information about the vehicle, such as recalls, become available.

If you sell your smart, please leave all literature with the vehicle to make it available to the next operator.

In the USA: If you bought this vehicle used, be sure to send in the “Information Change Card” found in the Warranty Information Booklet.

In Canada: If you bought this vehicle used, be sure to send in the “Notice of Pre‑Owned Vehicle Purchase” found in the Warranty Booklet, or call the Customer Service at 1-800-387-0100.

Operating your vehicle outside the USA or Canada

When you are abroad with your vehicle, observe the following points:

Service facilities or replacement parts may not be readily available.

Unleaded gasoline for vehicles with catalytic converters may not be available; the

use of leaded fuels will damage the catalysts.

Gasoline may have a considerably lower octane rating, and improper fuel can cause engine damage.

Operating safety

Important safety notes

WARNING

If you do not have the prescribed service/ maintenance work or any required repairs carried out, this can result in malfunctions or system failures. There is a risk of an accident.

Always have the prescribed service/maintenance work as well as any required repairs carried out at a qualified specialist workshop.

WARNING

Flammable material such as leaves, grass or twigs may ignite if they come into contact with hot parts of the exhaust system. There is a risk of fire.

When driving off road or on unpaved roads, check the vehicle's underside regularly. In particular, remove parts of plants or other flammable materials which have become trapped. In the case of damage, contact a qualified specialist workshop.

WARNING

Modifications to electronic components, their software as well as wiring can impair their function and/or the function of other networked components. In particular, systems relevant to safety could also be affected. As a result, these may no longer function as intended and/or jeopardize the operating safety of the vehicle. There is an increased risk of an accident and injury.

Never tamper with the wiring as well as electronic components or their software. You should have all work to electrical and

Page 21

>> Introduction.

electronic equipment carried out at a qualified specialist workshop.

If you make any changes to the vehicle electronics, the general operating permit is rendered invalid.

There is a risk of damage to the vehicle if:

the vehicle becomes stuck, e.g. on a high curb or an unpaved road

you drive too fast over an obstacle, e.g. a curb or a hole in the road

a heavy object strikes the undercarriage or parts of the chassis

In situations like this, the body, the undercarriage, chassis parts, wheels or tires could be damaged without the damage being visible. Components damaged in this way can unexpectedly fail or, in the case of an accident, no longer withstand the strain they are designed to.

If the underbody paneling is damaged, combustible materials such as leaves, grass or twigs can gather between the underbody and the underbody paneling. If these materials come in contact with hot parts of the exhaust system, they can catch fire.

In such situations, have the vehicle checked and repaired immediately at a qualified specialist workshop. If on continuing your journey you notice that driving safety is impaired, pull over and stop the vehicle immediately, paying attention to road and traffic conditions. In such cases, consult a qualified specialist workshop.

Declarations of conformity

Vehicle components which receive and/or transmit radio waves

USA: "The wireless devices of this vehicle

comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) These devices may not cause harmful interference, and 2) These devices must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment."

Canada: "The wireless devices of this vehicle comply with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) These devices may not cause interference, and (2) These devices must accept any interference, including interference that may cause undesired operation of the device."

Diagnostics connection

The diagnostics connection is only intended for the connection of diagnostic equipment at a qualified specialist workshop.

WARNING

If you connect equipment to the diagnostics connection in the vehicle, it may affect the operation of the vehicle systems. As a result, the operating safety of the vehicle could be affected. There is a risk of an accident.

Do not connect any equipment to a diagnostics connection in the vehicle.

WARNING

Objects in the driver's footwell can restrict the pedal travel or obstruct a depressed pedal. The operating and road safety of the vehicle is jeopardized. There is a risk of an accident.

Make sure that all objects in the vehicle are stowed correctly, and that they cannot enter the driver's footwell. Install the floormats securely and as specified in order to ensure sufficient clearance for the pedals. Do not use loose floormats and do not place floormats on top of one another.

If the engine is switched off and equipment on the diagnostics connection is used, the starter battery may discharge.

Connecting equipment to the diagnostics connection can lead to emissions monitoring information being reset, for example. This may lead to the vehicle failing to meet the

Page 22

>> Introduction.

requirements of the next emissions test during the main inspection.

Qualified specialist workshop

A smart center is a qualified specialist workshop. It has the necessary specialist knowledge, tools and qualifications to correctly carry out the work required on your vehicle. This is especially the case for work relevant to safety.

Observe the notes in the Maintenance Booklet.

Always have the following work carried out at a smart center:

work relevant to safety

service and maintenance work

repair work

alterations, installation work and modifications

work on electronic components

Correct use

If you remove any warning stickers, you or others could fail to recognize certain dangers. Leave warning stickers in position.

Observe the following information when driving your vehicle:

the safety notes in this manual

the Technical Data section in this manual

traffic rules and regulations

laws and safety standards pertaining to motor vehicles

Problems with your vehicle

If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized smart center to have the problem diagnosed and corrected if required. Do not drive the vehicle if you believe it may not be safely operated. If the matter is not handled to your satisfaction, please discuss the problem with the smart center management, or if necessary contact us at one of the following addresses:

In the USA

Mercedes-Benz USA, LLC One Mercedes Drive Montvale, NJ 07645

In Canada

Customer Relations Department 98 Vanderhoof Avenue Mercedes-Benz Canada, Inc. Toronto, Ontario M4G 4C9

QR codes for rescue card

The QR codes are secured in the fuel filler flap and on the opposite side on the B-pillar. In the event of an accident, rescue services can use the QR code to quickly find the appropriate rescue card for your vehicle. The current rescue card contains the most important information about your vehicle in a compact form, e.g. the routing of the electric cables.

You can find more information under http:// portal.aftersales.i.daimler.com/public/ content/asportal/en/communication/ informationen_fuer/QRCode.html.

Data stored in the vehicle

Data recording

This vehicle is capable of recording diagnostic information relating to vehicle operation, malfunctions, and user settings. This may include information about the performance or status of various systems, including but not limited to, engine, throttle, steering or brake systems, that is stored and can be read out with suitable devices, particularly when the vehicle is serviced. The data obtained is used to properly diagnose and service your vehicle or to further optimize and develop vehicle functions.

Event data recorders

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record data that will assist in understanding how a vehicle’s systems performed in certain crash or near crash-like situations, such as during air bag deployment or when hitting a road obstacle. The EDR is designed to record

Page 23

>> Introduction.

data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

how various systems in your vehicle are operating

whether or not the driver and passenger seat belts are fastened

how far (if at all) the driver is depressing the accelerator and/or brake pedal and

how fast the vehicle is traveling

This data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data is recorded by your vehicle only if a nontrivial crash situation occurs. No data is recorded by the EDR under normal driving conditions. No personal data (e.g., name, gender, age, and accident location) are recorded. However, other parties, such as law enforcement, can combine the EDR data with the type of personal identification data routinely acquired during a crash investigation. EDR data may be used in civil and criminal matters as a tool in accident reconstruction, accident claims, and vehicle safety.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties that have the special equipment, such as law enforcement, can read the information by accessing the vehicle or the EDR.

EDR data may be used in civil and criminal matters as a tool in accident reconstruction, accident claims, and vehicle safety. Since the Crash Data Retrieval CDR tool that is used to extract data from the EDR is commercially available, Mercedes-Benz USA, LLC ("MBUSA") expressly disclaims any and all liability arising from the extraction of this information by unauthorized Mercedes-Benz personnel.

MBUSA will not share EDR data with others without the consent of the vehicle owners or, if the vehicle is leased, without the consent of the lessee. Exceptions to this representation include responses to subpoenas by law enforcement; by federal, state or local government; in connection with or arising out of litigation involving MBUSA or its subsidi

ries and affiliates; or, as required by law.

Warning: the EDR is a component of the Restraint System Module. Tampering with, altering, modifying or removing the EDR component may result in a malfunction of the Restraint System Module and other systems.

State laws or regulations regarding EDRs that conflict with federal regulation are preempted. This means that in the event of such conflict, the federal regulation governs. As of February 2013, 13 states have enacted laws related to EDRs.

Information on copyright

General information

You can find information on license for free and open-source software used in your vehicle and its electronic components on the following website:

http://www.mercedes-benz.com/opensource

Page 24

Dashboard

>> At a glance.

Dashboard

Function Page

Dashboard instruments 110

;

Instrument cluster 23

Horn

Windshield wipers combination switch

Switches the automatic locking feature on/off

Switches the hazard warning lamps on/off

Overhead control panel 27

smart Audio-System/smart Media-System (see the separate operating instructions)

Function Page

Climate control system control panel

Ignition lock 87

Adjusts the steering wheel 65

Control panel for: Turning the forward colli-

sion warning on/off Turning the parking aid on/

off

Lights combination switch 67

Shift paddles 96

107

Page 25

Instrument cluster

Displays

Instrument cluster

>> At a glance.

Function Page

Speedometer 109

;

Color display 111

Function Page

Warning and indicator lamps

Page 26

Instrument cluster

Warning and indicator lamps

>> At a glance.

Function Page

USA: ò ABS Canada: ! ABS

;

÷ ESP

í Battery

h Tire pressure monitor

5 Oil pressure

D Power steering

; Check Engine

? Coolant temperature

! Turn signal, right

# Turn signal, left

USA: $ Brakes Canada: J Brakes

134 134

134

137

139

138

141

136

138

132 132

Function Page

R Rear fog lamp

N Fog lamps

K High-beam headlamps

L Low-beam headlamps

6Restraint system

T Parking lamps

· Distance warning

ü Seat belts

\ Doors or the tailgate

Vehicle electronics 141

136

131

141

Page 27

Multifunction steering wheel

>> At a glance.

Function Page

Color display in instrument cluster

;

smart Audio-System or smart Media-System display (see the separate operating instructions)

WXChanges the volume of the smart Audio-System or smart Media-System (see the separate operating instructions)

? Switches voice-operated control of the smart Audio-System on/off and accepts/ends a call (see the separate operating instructions)

Cruise control button 105 ® Increases or stores

the current speed

− Decreases current speed RES Selects a stored speed

Voice-operated control as well as control of the telephone and volume using the steering wheel buttons in the control panel on the right = only function with the smart Media-System. If you use a smart AudioSystem or an audio device from another

111

Function Page

Cruise control button 105 ° Calls up the last speed

stored

Cruise control button 105 ±Interrupts cruise con-

trol

Cruise control button V u ^ Activates or

deactivates cruise control

9:Scrolls through a menu or list

Confirming your selection 111 Changes to the "Reset val-

ues" function in certain menus

Hiding display messages 118

manufacturer, the functions may be restricted or not available at all.

105

111

Page 28

Center console

>> At a glance.

Vehicles with automatic transmission

;

Function Page

Cup holder 146

Transmission position display

Sets the driving program (program selector button)

Drawer 143

Coin holder

Function Page

Selector lever 92

Parking brake 101

AUX/USB port and SD memory card (only with smart Media-System)

Socket 147

Cup holder 146

Page 29

Overhead control panel

>> At a glance.

Function Page

Switches the left-hand reading lamp on/off

;

Depending on the position of the switch:

Interior lighting switched on

Automatic interior lighting control on

Interior lighting switched off

Function Page

;

Switches the right-hand reading lamp on/off

PASSENGER AIRBAG OFF/ON indicator lamps

Rear-view mirror 66

Page 30

Door control panel

>> At a glance.

Function Page

Opens the door 54

;

Adjusts the exterior mirrors electrically

Function Page

W Opens/closes the side windows

Page 31

Occupant safety

Useful information

This Operator's Manual describes all models and all standard and optional equipment of your vehicle available at the time of publication of the Operator's Manual. Country-specific differences are possible. Bear in mind that your vehicle may not feature all functions described here. This also applies to safety-relevant systems and functions.

Read the information on qualified specialist workshops: (

Y page 20).

Panic alarm

To activate: press ! button : for about

two seconds. An alarm sounds and the exterior lighting flashes.

To deactivate: press ! button : again.

The components of the restraint system work in conjunction with each other. They can only offer the intended level of protection if all vehicle occupants:

are correctly wearing their seat belts.

Y page 32)

(

adjust their seat properly (Y page 61).

The driver is also responsible for ensuring that the steering wheel has been correctly positioned. Observe the information relating to the correct driver's seat position

Y page 61).

( Always ensure the air bag can inflate prop-

erly if deployed (

Y page 34).

An air bag supplements a correctly fastened seat belt. As an additional safety device, the air bag increases the level of protection for vehicle occupants in the event of an accident. For example, if the protection already provided by a correctly fastened seat belt will suffice, the air bags are not deployed. Furthermore, only the air bags that would increase the degree of protection afforded to the vehicle occupants in the event of an accident are deployed. Seat belts and air bags generally do not protect against objects penetrating the vehicle from the outside.

Information on restraint system operation can be found under "Triggering of Emergency Tensioning Devices and air bags"

Y page 40).

( See “Children in the vehicle” for information

on children traveling with you as well as vehicle restraint systems (

Y page 42).

>> Safety.

Occupant safety

Introduction to the restraint system

The restraint system can reduce the risk of vehicle occupants coming into contact with parts of the vehicle's interior in the event of an accident. Furthermore, the restraint system may also reduce the forces exerted on the vehicle occupants when an accident occurs.

The restraint system includes:

Seat belt system

Air bags

Important safety notes

WARNING

Modifications to the restraint system may cause it to no longer work as intended. The restraint system may then not perform its intended protective function and may fail in an accident or trigger unexpectedly, for example. This poses an increased risk of injury or even fatal injury.

Never modify parts of the restraint system. Never tamper with the wiring, the electronic components or their software.

If it is necessary to modify an air bag system to accommodate a person with disabil-

Page 32

Occupant safety

ities, contact a smart center for specific details. USA only: contact our Customer Assistance Center on 1-800‑762-7887 for details.

Restraint system warning lamp

The functions of the restraint system are checked after the ignition is switched on and

>> Safety.

at regular intervals while the engine is running. Therefore, malfunctions can be detected in good time.

The 6 restraint system warning lamp in the instrument cluster lights up when the ignition is switched on. It goes out no later than a few seconds after the vehicle is started. The components of the restraint system are in operational readiness.

A malfunction has occurred if the 6 restraint system warning lamp:

does not light up after the ignition is switched on

does not go out after a few seconds with the engine running

lights up again while the engine is running

WARNING

If restraint system is malfunctioning, restraint system components may be triggered unintentionally or might not be triggered at all in the event of an accident with a high rate of vehicle deceleration. This can affect the Emergency Tensioning Device or air bag, for example. This poses an increased risk of injury or even fatal injury.

Have the restraint system checked and repaired in a qualified specialist workshop as soon as possible.

PASSENGER AIR BAG indicator lamps

PASSENGER AIR BAG OFF indicator lamp : and PASSENGER AIR BAG ON indicator lamp ; are part of the Occupant Classification System (OCS).

The indicator lamps display the status of the front-passenger front air bag.

PASSENGER AIR BAG ON lights up: the frontpassenger front air bag is enabled. If, in the event of an accident, all deployment criteria are met, the front-passenger front air bag is deployed.

PASSENGER AIR BAG OFF lights up: the front-passenger front air bag is deactivated. It will then not be deployed in the event of an accident.

Depending on the person in the frontpassenger seat, the front-passenger front air bag must either be deactivated or enabled; see the following points. You must make sure of this both before and during a journey.

Children in a child restraint system:

whether the front-passenger front air bag is enabled or deactivated depends on the installed child restraint system, and the age and size of the child. Therefore, be sure to observe the notes on the "Occupant Classification System (OCS)" ( and on "Children in the vehicle"

Y page 42). There you will also find

( instructions on rearward and forwardfacing child restraint systems on the front-passenger seat.

All other persons: depending on the classification of the person in the frontpassenger seat, the front-passenger front air bag is enabled or deactivated

Y page 36). Be sure to observe the notes

( on "Seat belts“ (

Y page 31) and "Air bags"

Y page 36)

Page 33

Occupant safety

(Y page 34). There you can also find information on the correct seat position.

Seat belts

Introduction

Seat belts are the most effective means of restricting the movement of vehicle occupants in the event of an accident or the vehicle rolling over. This reduces the risk of vehicle occupants coming into contact with parts of the vehicle interior or being ejected from the vehicle. Furthermore, the seat belt helps to keep the vehicle occupant in the best position in relation to the air bag.

The seat belt system comprises:

Seat belts

Emergency Tensioning Devices and seat belt force limiters

If the seat belt is pulled by the seat belt guide quickly or with a jerky movement, the belt retractor locks. The belt strap cannot be extracted any further.

The Emergency Tensioning Device tightens the seat belt in an accident, pulling the belt close against the body. However it does not pull the vehicle occupant back in the direction of the backrest.

The Emergency Tensioning Device does not correct an incorrect seat position or the routing of an incorrectly fastened seat belt.

When triggered, a seat belt force limiter helps to reduce the force exerted by the seat belt on the vehicle occupant.

The seat belt force limiters are synchronized with the front air bags which absorb part of the deceleration force. This can reduce the force exerted on the vehicle occupants during an accident.

If the front-passenger seat is unoccupied, do not insert the belt tongue into the buckle of the front-passenger seat. This may otherwise lead to the triggering of the Emergency Tensioning Device in the event of an accident, which will then need to be replaced.

Important safety notes

The use of seat belts and child restraint systems is required by law in:

all 50 states

the U.S. territories

the District of Columbia

all Canadian provinces

Even where this is not required by law, all vehicle occupants should correctly fasten their seat belts before starting the journey.

WARNING

If the seat belt is incorrectly fastened, it cannot protect as intended. Furthermore, an incorrectly fastened seat belt can cause additional injury, for example, in an accident, during braking or when abruptly changing direction. This poses an increased risk of injury or even fatal injury.

Make sure that all vehicle occupants are seated properly with a correctly fastened seat belt.

WARNING

The seat belt does not offer the intended level of protection if you have not moved the backrest to an almost vertical position. When braking or in the event of an accident, you could slide underneath the seat belt and sustain abdomen or neck injuries, for example. This poses an increased risk of injury or even fatal injury.

Adjust the seat properly before beginning your journey. Always ensure that the backrest is in an almost vertical position and that the shoulder section of your seat belt is routed across the center of your shoulder.

WARNING

Persons under 5 ft (1.50 m) in height cannot fasten the seat belt correctly without an additional suitable restraint system. If the seat belt is incorrectly fastened, it cannot protect as intended. Furthermore, an incorrectly fastened seat belt can cause

>> Safety.

Page 34

Occupant safety

additional injury, for example, in an accident, during braking or an abrupt change of direction. This poses an increased risk of injury or even fatal injury.

For this reason, always secure persons under 5 ft (1.50 m) in height in suitable restraint systems.

If a child younger than twelve years old and under 5 ft (1.50 m) in height is traveling in the

>> Safety.

vehicle:

always secure the child in a child restraint system suitable for this smart vehicle. The child restraint system must be appropriate to the age, weight and size of the child

always observe the instructions and safety notes on "Children in the vehicle"

Y page 42) in addition to the child

( restraint system manufacturer's installation and operating instructions

be sure to observe the instructions and safety notes on the "Occupant classification system (OCS)" (

WARNING

Y page 36)

The seat belts may not perform their intended protective function if:

they are damaged, modified, extremely dirty, bleach or dyed

the seat belt buckle is damaged or extremely dirty

the Emergency Tensioning Devices, belt anchorages or inertia reels have been modified

Seat belts may sustain non-visible damage in an accident, e.g. due to glass splinters. Modified or damaged seat belts may tear or fail, e.g. in an accident. Modified Emergency Tensioning Devices could accidentally trigger or fail to deploy when necessary. This poses an increased risk of injury or even fatal injury.

Never modify the seat belts, Emergency Tensioning Devices, belt anchorages or inertia reels. Make sure that the seat belts are undamaged, not worn out and clean. Following an accident, have the seat belts

checked immediately at a qualified specialist workshop.

Only use seat belts that have been approved for your vehicle by smart.

Proper use of the seat belts

Pay attention to the safety notes about the seat belt (

All vehicle occupants must fasten the seat belt correctly before setting off. Make sure that all occupants are wearing their seat belts correctly for the entire journey.

When fastening the seat belt, make sure that:

The seat belt tongue is inserted into the belt buckle that belongs to the seat.

The seat belt is tightened across your body. Avoid wearing bulky clothing, e.g. a winter

coat.

The seat belt is not twisted. Only then can the forces produced in the

event of an accident be evenly distributed across the belt.

The shoulder section of the belt must always be routed across the center of the shoulder.

The shoulder section of the belt should not come into contact with your neck and must not be routed under the arm.

The lap belt must be taut and as low as possible over your lap.

The lap belt must always pass across your hip joints and never across your stomach or abdomen. Pregnant women must take particular care. If necessary, the lap belt can be pushed down across the hip joints and pulled tight using the shoulder section.

The seat belt is not routed over sharp, pointed or fragile objects.

If these items are on or in your clothing, e.g. eyeglasses, pens, keys, etc., stow these items in a more suitable location.

Only one person should use each seat belt at any one time.

On no account should babies or children travel sitting on the lap of another vehicle occupant. During an accident, they could be crushed between the occupant and seat belt.

Objects are not secured with a seat belt if the seat belt is being used by one of the vehicle’s occupants.

Y page 31).

Page 35

Occupant safety

Also make sure that there are no objects, e.g. cushions, between the occupant and the seat.

Seat belts are solely intended for the protection and restraint of the vehicle occupants. To secure objects, luggage or loads, always observe the "Loading guidelines"

Y page 142).

(

Fastening seat belts

Observe the safety notes on the seat belt

Y page 31) and the notes on correct use of seat

(

Y page 32).

belts ( For easy fastening, the seat belt passes

through a belt loop on the side of the seat.

Basic illustration

Adjust the seat (Y page 61). The seat backrest must be in an almost vertical position.

Pull the seat belt smoothly from belt outlet = and engage belt tongue ; into belt buckle :.

If necessary, pull upwards on the shoulder section of the seat belt to tighten the belt across your body.

In order to attach the child restraint system securely in the vehicle, the seat belt on the front-passenger seat is equipped with a special seat belt retractor. Further information on the "Special seat belt retractor"

Y page 43).

(

Releasing seat belts

Make sure that the seat belt is fully rolled up. Otherwise, the seat belt or belt tongue will be trapped in the door or in the seat mechanism. This could damage the door, the door trim panel and the seat belt. Damaged seat belts can no longer fulfill their protective function and must be replaced. Visit a qualified specialist workshop.

Press the release button in the belt buckle, hold the belt tongue firmly and guide the belt back.

Belt warning for the driver and front passenger

The 7 seat belt warning lamp in the instrument cluster is a reminder that all vehicle occupants must wear their seat belts. It may light up continuously or flash. In addition, there may be a warning tone.

Regardless of whether the driver's seat belt has already been fastened, the 7 seat belt warning lamp lights up for six seconds each time the engine is started. If the driver's or front-passenger seat belt has not been fastened, the 7 seat belt warning lamp starts to light up continuously after these six seconds. As soon as the driver and front passenger fasten their seat belts, the 7 seat belt warning lamp goes out.

If the driver's seat belt is not fastened after the engine is started, an additional warning tone will sound. The warning tone switches off after six seconds or once the driver's seat belt is fastened.

If the vehicle speed exceeds 12 mph (20 km/h) and the driver's or front-passenger seat belt is not fastened, a warning tone sounds again. The warning tone sounds with increasing intensity for a maximum of 120 seconds or until the driver or front passenger have fastened their seat belts.

If the driver or front passenger unfasten their seat belts during the journey, the seat belt warning is activated again.

>> Safety.

Page 36

Occupant safety

Air bags

Introduction

The air bag installation point is identified by the label AIR BAG.

An air bag supplements a correctly fastened seat belt. However, it is not intended as a substitute for the seat belt. Air bags provide additional protection in the event of an accident.

>> Safety.

Not all air bags are deployed in an accident. The various air bag systems work independently of each other (

Y page 40).

There is, however, no system available today that can completely rule out injury or death.

It is also not possible to rule out a risk of injury caused by an air bag due to the high speed at which the air bag must be deployed.

Important safety notes

WARNING

If you do not sit in the correct seat position, the air bag cannot protect as intended and could even cause additional injury when deployed. This poses an increased risk of injury or even fatal injury.

To avoid hazardous situations, always make sure that all of the vehicle's occupants:

have fastened their seat belts correctly, including pregnant women

are sitting correctly and maintain the greatest possible distance to the air bags

follow the following instructions

Always make sure that there are no objects between the air bag and the vehicle's occupants.

Adjust the seats properly before beginning your journey. Always make sure that the seat is in an almost upright position.

Move the driver's and front-passenger seats as far back as possible. The driver's seat position must allow the vehicle to be driven safely.

Only hold the steering wheel on the outside. This allows the air bag to be fully deployed.

Always lean against the backrest while driving. Do not lean forwards or lean against the door or side window. You may otherwise be in the deployment area of the air bags.

Always keep your feet in the footwell in front of the seat. Do not put your feet on the dashboard, for example. Your feet may otherwise be in the deployment area of the air bag.

For this reason, always secure persons less than 5 ft (1.50 m) tall in suitable restraint systems. Up to this height, the seat belt cannot be worn correctly.

If a child is traveling in your vehicle, also observe the following notes:

Always secure children under twelve years of age and less than 5 ft (1.50 m) tall in suitable child restraint systems.

Only secure a child in a rearward-facing child restraint system on the frontpassenger seat when the front-passenger front air bag is deactivated. If the PASSENGER AIR BAG OFF indicator lamp is permanently lit, the front-passenger front air bag is deactivated (

Always observe the instructions and safety

Y page 30).

notes on the "Occupant Classification System (OCS)" ( the vehicle" (

Y page 36) and on "Children in

Y page 42) in addition to the

child restraint system manufacturer's installation and operating instructions.

Objects in the vehicle interior may

prevent

an air bag from functioning correctly. Before

starting your journey and to avoid risks resulting from the speed of the air bag as it deploys, make sure that:

there are no people, animals or objects between the vehicle occupants and an air bag.

there are no objects between the seat, door and B-pillar.

no hard objects, e.g. coat hangers, hang on the grab handles or coat hooks.

no accessories, such as cup holders, are attached to the vehicle within the deployment area of an air bag, e.g. to doors or side windows.

no heavy, sharp-edged or fragile objects are in the pockets of your clothing. Store such objects in a suitable place.

Page 37

Occupant safety

WARNING

If you modify the air bag cover or affix objects such as stickers to it, the air bag can no longer function correctly. There is an increased risk of injury.

Never modify an air bag cover or affix objects to it.

WARNING

Sensors to control the air bags are located in the doors. Modifications or work not performed correctly to the doors or door paneling, as well as damaged doors, can lead to the function of the sensors being impaired. The air bags might therefore not function properly anymore. Consequently, the air bags cannot protect vehicle occupants as they are designed to do. There is an increased risk of injury.

Never modify the doors or parts of the doors. Always have work on the doors or door paneling carried out at a qualified specialist workshop.

Front air bags

the status of the front-passenger air bag

Y page 30).

( The front-passenger front air bag will only

deploy if:

the system, based on the OCS weight sensor readings, detects that the front-passenger seat is occupied ( PASSENGER AIR BAG ON indicator lamp is

Y page 37)

lit (

the restraint system control unit predicts a high accident severity

Y page 36). The

Knee bags

Driver's knee bag : deploys under the steering column and front-passenger knee bag ; under the glove box. The driver's and frontpassenger knee bags are triggered together with the front air bags.

The driver's and front-passenger knee bags offer additional thigh, knee and lower leg protection for the occupants in the front seats.

>> Safety.

Driver's air bag : deploys in front of the steering wheel. Front-passenger front air bag ; deploys in front of and above the glove box.

When deployed, the front air bags offer additional head and thorax protection for the occupants in the driver's and frontpassenger seats.

The PASSENGER AIR BAG OFF and PASSENGER AIR BAG ON indicator lamps inform you about

Thorax/pelvis air bags

WARNING

Unsuitable seat covers could restrict or even prevent the deployment of the air bags integrated into the seats. Consequently, the air bags cannot protect vehicle occupants as they are designed to do. In addition, the operation of the occupant classification system (OCS) could be adversely affected. This poses an increased risk of injury or even fatal injury.

You should only use seat covers that have been approved for the corresponding seats by smart.

Page 38

Occupant safety

>> Safety.

Thorax/pelvis air bags : deploy next to the outer bolster of the seat backrest.

When deployed, the thorax/pelvis air bags offer additional thorax and pelvis protection.

In the event of a side impact, the thorax/ pelvis air bag is deployed on the side on which the impact occurs.

The thorax/pelvis air bag on the frontpassenger side deploys under the following conditions:

the OCS system detects that the frontpassenger seat is occupied or

the belt tongue is engaged in the belt buckle of the front-passenger seat

If the belt tongue is engaged in the belt buckle, the thorax/pelvis air bag on the front-passenger side deploys if an appropriate accident situation occurs. In this case, deployment is independent of whether the front-passenger seat is occupied or not.

Window curtain air bags

Window curtain air bags : are integrated into the side of the roof frame above the doors.

When deployed, the window curtain air bag enhances the level of protection for the head. However, it does not protect the chest or arms.

In the event of a side impact, the window curtain air bag is deployed on the side on which the impact occurs.

If the system determines that they can offer additional protection to that provided by the seat belt, a window curtain air bag may be deployed in other accident situations

Y page 40).

(

Occupant Classification System (OCS)

Introduction

The Occupant Classification System (OCS) categorizes the person in the frontpassenger seat. Depending on that result, the front-passenger front air bag and frontpassenger knee bag are either enabled or deactivated.

The system does not deactivate:

the thorax/pelvis air bag

the window curtain air bag

the Emergency Tensioning Devices

Prerequisites

To be classified correctly, the front passenger must sit:

with the seat belt fastened correctly

in an almost upright position with their back against the seat backrest

with their feet resting on the floor, if possible

If the front passenger does not observe these conditions, OCS may produce a false classification, e.g. because the front passenger:

transfers their weight by supporting themselves on a vehicle armrest

sits in such a way that their weight is raised from the seat cushion

If you install a child restraint system on the front-passenger seat, be sure to observe the correct positioning of the child restraint system. Never place objects under or behind the child restraint system, e.g. cushions. The entire base of the child restraint system must always rest on the seat cushion of the frontpassenger seat. The backrest of the forward-

Page 39

Occupant safety

facing child restraint system must lie as flat as possible against the backrest of the frontpassenger seat.

The child restraint system must not touch the roof. Adjust the backrest angle accordingly.

Only then can OCS be guaranteed to function correctly. Always observe the child restraint system manufacturer's installation instructions.

How the occupant classification system (OCS) operates

PASSENGER AIR BAG OFF indicator lamp

;

PASSENGER AIR BAG ON indicator lamp

The indicator lamps indicate whether the front-passenger front air bag is activated or deactivated.

Turn the key to position 1 or 2 in the ignition lock. The system carries out a self-diagnosis test.

The PASSENGER AIR BAG OFF and PASSENGER AIR BAG ON indicator lamps must light up simultaneously for about six seconds.

The indicator lamps then display the status of the front-passenger front air bag:

PASSENGER AIRBAG ON lights up: the frontpassenger front airbag is enabled. If, in the case of an accident, all deployment criteria are met, the front-passenger front air bag is deployed.

PASSENGER AIRBAG OFF lights up: the frontpassenger front airbag is disabled. It will then not be deployed in the event of an accident.

Always observe the PASSENGER AIR BAG ON and PASSENGER AIR BAG OFF indicator lamps when the front-passenger seat is occupied. Make sure that the status of the front-passenger

front air bag is correct before and during a journey.

WARNING

If the PASSENGER AIR BAG OFF indicator lamp is lit, the front-passenger front air bag is disabled. It will not be deployed in the event of an accident and cannot perform its intended protective function. A person in the front-passenger seat could then, for example, come into contact with the vehicle's interior, especially if the person is sitting too close to the dashboard. This poses an increased risk of injury or even fatal injury.

When the front-passenger seat is occupied, always ensure that:

the classification of the person in the front-passenger seat is correct and the front-passenger front air bag is enabled or disabled in accordance with the person in the front-passenger seat

the front-passenger seat has been moved back as far back as possible.

the person is seated correctly.

Make sure, both before and during the journey, that the status of the front-passenger front air bag is correct.

WARNING

If you secure a child in a rearward-facing child restraint system on the frontpassenger seat and the PASSENGER AIR BAG ON indicator lamp is lit up, the frontpassenger front air bag may deploy in an accident. The child could be struck by the air bag. This poses an increased risk of injury or even fatal injury.

Make sure that the front-passenger front air bag has been disabled. The PASSENGER AIR BAG OFF indicator lamp must be lit.

If the PASSENGER AIR BAG OFF indicator lamp remains off and/or the PASSENGER AIR BAG ON indicator lamp is lit, do not fit a rearwardfacing child restraint system to the frontpassenger seat. For more information, see

>> Safety.

Page 40

Occupant safety

"Problems with the Occupant Classification System (OCS)" (

WARNING

Y page 40).

If you secure a child in a forward-facing child restraint system on the frontpassenger seat and you position the frontpassenger seat too close to the dashboard, in the event of an accident, the child could:

come into contact with the vehicle's

>> Safety.

interior if the PASSENGER AIR BAG OFF indicator lamp is lit, for example

be struck by the air bag if the PASSENGER AIR BAG ON is lit up

This poses an increased risk of injury or even fatal injury.

Move the front-passenger seat as far back as possible. Always make sure that the shoulder belt strap is correctly routed from the vehicle belt guide to the shoulder belt guide on the child restraint system. The shoulder belt strap must be routed forwards and downwards from the belt guide. Always observe the child restraint system manufacturer's installation instructions.

If OCS detects that:

the front-passenger seat is not occupied, the PASSENGER AIR BAG OFF indicator lamp lights up continuously after the system's self-diagnosis test. This indicates that the front-passenger front air bag is deactivated.

the front-passenger seat is occupied by a child aged up to twelve months in a standard child restraint system, the PASSENGER AIR BAG OFF indicator lamp lights up continuously after the system's self-diagnosis test. This indicates that the frontpassenger front air bag is deactivated.

In the case of a twelve-month-old child in a standard child restraint system, the PASSENGER AIR BAG ON indicator lamp may light up continuously after the system's self-diagnosis test. This indicates that the front-passenger front air bag is activated. Categorization is dependent on the type of child restraint system and the stature of the child, for example. Make sure that the prerequisites for correct catego-

ion have been met. If the PASSENGER

rizat AIR BAG ON indicator lamp remains lit, do not install a child restraint system on the front-passenger seat.

the front-passenger seat is occupied by a person of smaller stature (e.g. a teenager or a small adult), either the PASSENGER AIR BAG ON or PASSENGER AIR BAG OFF indicator lamp lights up continuously after the system's self-diagnosis test depending on the categorization.

If the PASSENGER AIR BAG ON indicator lamp is lit, position the frontpassenger seat as far back as possible.

If the PASSENGER AIR BAG OFF indicator lamp lights up, a person of smaller stature should not sit on the front-passenger seat.

the front-passenger seat is occupied by an adult or a person of an appropriate size, the PASSENGER AIR BAG ON indicator lamp lights up continuously after the system's self-diagnosis test. This indicates that the front-passenger front air bag is activated.

If children are traveling in the vehicle, be sure to observe the notes on "Children in the vehicle" (

Y page 42).

If the OCS is malfunctioning, both the red 6 restraint system warning lamp in the instrument cluster and the PASSENGER AIR BAG OFF indicator lamp light up simultaneously. In this case, the front-passenger air bag is deactivated and does not deploy during an accident. Have the system checked by qualified technicians as soon as possible. Consult a smart center. Only have the frontpassenger seat repaired at a smart center.

If the front-passenger seat, the seat cover or the seat cushion are damaged, have the necessary repair work carried out at a smart center.

For safety reasons, smart recommends that you only use seat accessories which have been approved by smart.

If the driver's air bag deploys

, this does not mean that the front-passenger front air bag will also deploy. The Occupant Classification System (OCS) categorizes the occupant on the front-passenger seat. Depending on the result, the front-passenger air bag is activated or deactivated.

Page 41

Occupant safety

System self-test

DANGER

If both the PASSENGER AIR BAG OFF and PASSENGER AIR BAG ON indicator lamps do not light up during the system self-test, the system is malfunctioning. The frontpassenger front air bag might be triggered unintentionally or might not be triggered at all in the event of an accident with high deceleration. This poses an increased risk of injury or even fatal injury.

In this case the front-passenger seat may not be used. Do not install a child restraint system on the front-passenger seat. Have the Occupant Classification System (OCS) checked and repaired immediately at a qualified specialist workshop.

DANGER

If the PASSENGER AIR BAG OFF indicator lamp remains lit after the system self-test, the front-passenger front air bag is disabled. It will not be deployed in the event of an accident. In this case, the frontpassenger front air bag cannot perform its intended protective function, e.g. when a person is seated in the front-passenger seat.

That person could, for example, come into contact with the vehicle's interior, especially if the person is sitting too close to the dashboard. This poses an increased risk of injury or even fatal injury.

When the front-passenger seat is occupied, always ensure that:

the classification of the person in the front-passenger seat is correct and the front-passenger front air bag is enabled or disabled in accordance with the person in the front-passenger seat

the person is seated properly with a correctly fastened seatbelt

the front-passenger seat has been moved back as far back as possible

If the PASSENGER AIR BAG OFF indicator lamp remains lit when it should not, the front-passenger seat may not be used. Do not install a child restraint system on the front-passenger seat. Have the Occupant Classification System (OCS) checked and repaired immediately at a qualified specialist workshop.

WARNING

Objects between the seat surface and the child restraint system could affect OCS operation. This could result in the frontpassenger air bag not functioning as intended during an accident. This poses an increased risk of injury or even fatal injury.

Do not place any objects between the seat surface and the child restraint system. The entire base of the child restraint system must always rest on the seat cushion of the front-passenger seat. The backrest of the forward-facing child restraint system must, as far as possible, be resting on the backrest of the front-passenger seat. Always comply with the child restraint system manufacturer's installation instructions.

After the system self-test, the PASSENGER AIR BAG OFF or PASSENGER AIR BAG ON indicator lamp displays the status of the frontpassenger front air bag (

For more information about the OCS, see "Problems with the Occupant Classification System" (

Y page 40).

Y page 37).

>> Safety.

Page 42

Occupant safety

Problems with the occupant classification system (OCS)

Be sure to observe the notes on "System self-test" (Y page 39).

Problem Possible causes/consequences and M Solutions

The PASSENGER AIR BAG OFF indicator lamp lights up and remains lit, even though the front-passenger seat is occupied by an adult or

>> Safety.

a person of a stature corresponding to that of an adult.

The PASSENGER AIR BAG OFF indicator lamp does not light up and/or does not stay on.

The front-passenger seat is:

unoccupied

occupied with the weight of a child up to twelve months old in a child restraint system

The classification of the person on the front-passenger seat is incorrect.

Make sure the conditions for a correct classification of the person on the front-passenger seat are met (

If the PASSENGER AIR BAG OFF indicator lamp remains lit, the front-passenger seat may not be used.

Have the OCS checked at a smart center as soon as possible.

OCS is malfunctioning.

Make sure there is nothing between the seat cushion and the child seat.

Make sure that the entire base of the child restraint system rests on the seat cushion of the front-passenger seat. The backrest of the forward-facing child restraint system must lie as flat as possible against the backrest of the front-passenger seat. If necessary, adjust the position of the front-passenger seat.

When installing the child restraint system, make sure that the seat belt is tight. Do not pull the seat belt tight using the frontpassenger seat adjustment. This could result in the seat belt and the child restraint system being pulled too tightly.

Check for correct installation of the child restraint system.

Make sure that no objects are applying additional weight onto the seat.

If the PASSENGER AIR BAG OFF indicator lamp remains off and/or the PASSENGER AIR BAG ON indicator lamp lights up, do not install a child restraint system on the front-passenger seat.

Have the OCS checked at a smart center as soon as possible.

Y page 36).

Deployment of belt tensioners and air bags

Important safety notes

WARNING

The air bag parts are hot after an air bag has been deployed. There is a risk of injury.

Do not touch the air bag parts. Have a deployed air bag replaced at a qualified specialist workshop as soon as possible.

WARNING

A deployed air bag no longer offers any protection and cannot provide the intended protection in an accident. There is an increased risk of injury.

Have the vehicle towed to a qualified specialist workshop in order to have a deployed air bag replaced.

For your own safety and that of your front passenger, it is important that you have deployed air bags replaced and faulty air bags repaired. This will help to make sure the air bags continue to perform their protective function for the vehicle occupants in the event of a crash.

Page 43

Occupant safety

WARNING

Pyrotechnic Emergency Tensioning Devices that have been deployed are no longer operational and are unable to perform their intended protective function. This poses an increased risk of injury or even fatal injury.

Therefore, have pyrotechnic Emergency Tensioning Devices which have been triggered immediately replaced at a qualified specialist workshop.

If Emergency Tensioning Devices are triggered or air bags are deployed, you will hear a bang, and a small amount of powder may also be released. The 6 restraint system warning lamp lights up.

Only in rare cases will the bang affect your hearing. The powder that is released generally does not constitute a health hazard, but it may cause short-term breathing difficulties in people with asthma or other respiratory problems. Provided it is safe to do so, you should leave the vehicle immediately or open the window in order to prevent breathing difficulties.

Air bags and pyrotechnic Emergency Tensioning Devices (ETDs) contain perchlorate material, which may require special handling and regard for the environment. National guidelines must be observed during disposal. In California, see www.dtsc.ca.gov/

HazardousWaste/Perchlorate/index.cfm.

Method of operation

During the first stage of a collision, the restraint system control unit evaluates important physical data relating to vehicle deceleration or acceleration, such as:

duration

direction

intensity

Based on the evaluation of this data, the restraint system control unit triggers the Emergency Tensioning Devices during a frontal or rear collision.

An Emergency Tensioning Device can only be triggered, if:

the ignition is switched on

the components of the restraint system are operational. You can find further information under: "Restraint system warning

Y page 30)

lamp" (

the belt tongue has engaged in the belt buckle of the respective seat

If the restraint system control unit detects a more severe accident, further components of the restraint system are activated independently of each other in certain frontal collision situations:

Front air bags as well as driver's and frontpassenger knee bags

Window curtain air bag, if the system determines that deployment can offer additional protection to that provided by the seat belt

The front-passenger front air bag is activated or deactivated depending on the person on the front-passenger seat. The frontpassenger front air bag can only deploy in an accident if the PASSENGER AIR BAG ON indicator lamp is lit. Observe the information on the PASSENGER AIR BAG indicator lamps

Y page 30).

( Your vehicle has two-stage front air bags.

During the first deployment stage, the front air bag is filled with propellant gas to reduce the risk of injuries. The front air bag is fully deployed with the maximum amount of propellant gas if a second deployment threshold is reached within a few milliseconds.

The activation threshold of the Emergency Tensioning Devices and the air bag are determined by evaluating the rate of vehicle deceleration or acceleration which occurs at various points in the vehicle. This process is pre-emptive in nature. Deployment should take place in good time at the start of the collision.

The rate of vehicle deceleration or acceleration and the direction of the force are essentially determined by:

the distribution of forces during the collision

the collision angle

>> Safety.

Page 44

Children in the vehicle

the deformation characteristics of the vehicle

the characteristics of the object with which the vehicle has collided

Factors which can only be seen and measured after a collision has occurred do not play a decisive role in the deployment of an air bag. Nor do they provide an indication of air bag deployment.

The vehicle can be deformed considerably, without an air bag being deployed. This is the

>> Safety.

case if only parts which are relatively easily deformed are affected and the rate of deceleration is not high. Conversely, air bags may be deployed even though the vehicle suffers only minor deformation. This is the case if, for example, very rigid vehicle parts such as longitudinal body members are hit, and sufficient deceleration occurs as a result.

If the control unit of the restraint system detects a side impact or a vehicle rollover, the relevant components of the restraint system are activated separately depending on the anticipated type of accident.

Thorax/pelvis air bag on the side of impact, independently of the Emergency Tensioning Device and the use of the seat belt

The thorax/pelvis air bag on the frontpassenger side deploys under the following conditions:

the OCS system detects that the frontpassenger seat is occupied or

the belt tongue is engaged in the belt buckle of the front-passenger seat

Window curtain air bag on the side of impact, independently of the use of the seat belt and independently of whether the front-passenger seat is occupied

Window curtain air bags on the driver's and front-passenger side in certain situations when the vehicle rolls over, if the system determines that deployment can offer additional protection to that provided by the seat belt

Emergency Tensioning Devices, if the system determines that deployment can offer additional protection in this situation

Not all air bags are deployed in an accident. The different air bag systems work independently of each other.

How the air bag system works is determined by the severity of the accident detected, especially the vehicle deceleration or acceleration and the apparent type of accident:

Frontal collision

Side impact

Rollover

Children in the vehicle

Important safety notes

If a child younger than 12 years and under 5 ft (1.50 m) in height is traveling in the vehicle:

always secure the child in a child restraint system suitable for Mercedes-Benz vehicles. The child restraint system must be appropriate to the age, weight and size of the child

be sure to observe the instructions and safety notes in this section in addition to the child restraint system manufacturer's installation instructions

be sure to observe the instructions and safety notes in "Occupant classification system (OCS)" (

WARNING

If you leave children unsupervised in the vehicle, they could set it in motion by, for example:

release the parking brake.

shift the automatic transmission out of park position P or shift manual transmission into neutral.

start the engine.

In addition, they may operate vehicle equipment and become trapped. There is a risk of an accident and injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children unsupervised in the vehicle.

WARNING

If persons, particularly children are subjected to prolonged exposure to extreme

Y page 36)

Page 45

Children in the vehicle

heat or cold, there is a risk of injury, possibly even fatal. Never leave children unattended in the vehicle.

WARNING

If the child restraint system is subjected to direct sunlight, parts may get very hot. Children may burn themselves on these parts, particularly on the metal parts of the child restraint system. There is a risk of injury.

If you leave the vehicle, taking the child with you, always ensure that the child restraint system is not exposed to direct sunlight. Protect it with a blanket, for example. If the child restraint system has been exposed to direct sunlight, let it cool down before securing the child in it. Never leave children unattended in the vehicle.

Always ensure that all vehicle occupants have their seat belts fastened correctly and are sitting properly. Particular attention must be paid to children.

Read and follow the safety notes on the seat belt (

Y page 31) and the notes on correct use of

the seat belts (

Y page 32).

A booster seat may be necessary to achieve proper seat belt positioning for children over 41 lbs (18 kg) until they reach a height where a lap/shoulder belt fits properly without a booster seat.

Special seat belt retractor

WARNING

If the seat belt is released while driving, the child restraint system will no longer be secured properly. The special seat belt retractor is disabled and the inertia real draws in a portion of the seat belt. The seat belt cannot be immediately refastened. There is an increased risk of injury, possibly even fatal.

Stop the vehicle immediately, paying attention to road and traffic conditions. Reactivate the special seat belt retractor

and secure the child restraint system properly.

The seat belt on the front-passenger side is equipped with a special seat belt retractor. When activated, the special seat belt retractor ensures that the seat belt will not slacken once the child restraint system has been secured.

Installing a child restraint system:

Always comply with the child restraint system manufacturer's installation instructions.

Pull the seat belt smoothly from the belt loop.

Engage the seat belt tongue in the belt buckle.

Activating the special seat belt retractor:

Pull the seat belt out fully and let the seat belt retractor retract it again. While the seat belt is retracting, you should hear a ratcheting sound. The special seat belt retractor is activated.

Press the child restraint system down so that the seat belt fits tightly and does not slacken.

Removing a child restraint system and deactivating the special seat belt retractor:

Always comply with the child restraint system manufacturer's installation instructions.

Press the seat belt buckle release button, hold the belt tongue firmly and guide it back towards the belt outlet. The special seat belt retractor is deactivated.

Child restraint system

The use of seat belts and child restraint systems is required by law in:

all 50 states

the U.S. territories

the District of Columbia

all Canadian provinces

You can obtain further information about the correct child restraint system from any authorized Mercedes-Benz Center.

>> Safety.

Page 46

Children in the vehicle

WARNING

If the child restraint system is installed incorrectly on a suitable seat, it cannot protect as intended. The child cannot then be restrained in the event of an accident, heavy braking or sudden changes of direction. There is an increased risk of injury, possibly even fatal.

Make sure that you observe the child

>> Safety.

restraint system manufacturer's installation instructions and the notes on use. Please ensure, that the base of the child restraint system is always resting completely on the seat cushion. Never place objects, e.g. cushions, under or behind the child restraint system. Only use child restraint systems with the original cover designed for them. Only replace damaged covers with genuine covers.

WARNING

If the child restraint system is installed incorrectly or is not secured, it can come loose in the event of an accident, heavy braking or a sudden change in direction. The child restraint system could be thrown about, striking vehicle occupants. There is an increased risk of injury, possibly even fatal.

Always install child restraint systems properly, even if they are not being used. Make sure that you observe the child restraint system manufacturer's installation instructions.

You will find further information on stowing objects, luggage or loads under "Loading guidelines" (

WARNING

Child restraint systems or their securing systems which have been damaged or subjected to a load in an accident can no longer protect as intended. The child cannot then be restrained in the event of an accident, heavy braking or sudden changes of direc-

Y page 142).

tion. There is an increased risk of injury, possibly even fatal.

Replace child restraint systems which have been damaged or subjected to a load in an accident as soon as possible. Have the securing systems on the child restraint system checked at a qualified specialist workshop, before you install a child restraint system again.

Securing systems for child restraint systems include:

the seat belt system

the Top Tether anchorages

If you install a child restraint system on the front-passenger seat, make sure that the backrest is securely engaged

Y page 63).

(

If a child is carried on the frontpassenger seat, be sure to observe the information on "Child restraint systems on the front-passenger seat" ( There you will also find information on disabling the front-passenger front airbag.

All child restraint systems must meet the following standards:

U.S. Federal Motor Vehicle Safety Standards 213 and 225

Canadian Motor Vehicle Safety Standards 213 and 210.2

Confirmation that the child restraint system corresponds to the standards can be found on an instruction label on the child restraint system. This confirmation can also be found in the installation instructions that are included with the child restraint system.

Observe the warning labels in the vehicle interior and on the child restraint system.

Y page 45).

Top Tether

Introduction

Top Tether provides an additional connection between the child restraint system and the vehicle. This helps reduce the risk of injury even further. If the child restraint

Page 47

Children in the vehicle

system is fitted with a Top Tether belt, this should always be used.

Top Tether anchorages

Loop

;

Top Tether anchorage

Child restraint system on the frontpassenger seat

General notes

If you secure a child in a child restraint system on the front-passenger seat, be sure to observe the instructions and safety notes on the "Occupant Classification System (OCS)"

Y page 36).

( You can thus avoid the risks that could arise

as a result of:

an incorrectly categorized person in the front-passenger seat

the unsuitable positioning of the child restraint system, e.g. too close to the dashboard

Rearward-facing child restraint system

If it is absolutely necessary to fit a rearward-facing child restraint system to the front-passenger seat, always make sure that the front-passenger front airbag is disabled. Only if the PASSENGER AIR BAG OFF indicator lamp is permanently lit is the front-passenger front airbag disabled.

Always observe the child restraint system manufacturer's installation and operating instructions.

>> Safety.

;

Top Tether anchorage

Top Tether hook

Top Tether belt

Top Tether anchorage ; is fitted to the luggage compartment floor.

Route Top Tether belt ? back over the head restraint, keeping it as central as possible, into the luggage compartment through loop :.

Hook Top Tether hook = of Top Tether belt = into Top Tether anchorage ;.

Lift up the carpet a little if necessary. Make sure that:

Top Tether hook = is hooked into Top Tether anchorage ; as shown.

Top Tether belt ? is not twisted.

Tension Top Tether belt ?. Always comply with the child restraint system manufacturer's installation instructions when doing so.

Forward-facing child restraint system

If you secure a child in a forward-facing child restraint system on the frontpassenger seat, always move the frontpassenger seat as far back as possible. Always make sure that the shoulder belt strap is correctly routed from the front-passenger seat belt guide to the shoulder belt guide on the child restraint system. The shoulder belt strap must be routed forwards and downwards from the front-passenger seat belt guide. If necessary, adjust the front-passenger seat accordingly.

Always observe the child restraint system manufacturer's installation and operating instructions.

Page 48

Protection against theft

Pets in the vehicle

WARNING

If you leave animals unattended or unsecured in the vehicle, they could press buttons or switches, for example.

As a result, they could:

activate vehicle equipment and become trapped, for example

>> Safety.

activate or deactivate systems, thereby endangering other road users

Unsecured animals could also be flung around the vehicle in the event of an accident or sudden steering or braking, thereby injuring vehicle occupants. There is a risk of an accident and injury.

Never leave animals unattended in the vehicle. Always secure animals properly during the journey, e.g. use a suitable animal transport box.

Protection against theft

Immobilizer

The immobilizer prevents your vehicle from being started without the correct Smart Key.

To activate: remove the Smart Key from the ignition lock.

To deactivate: switch on the ignition.

When leaving the vehicle, always take the Smart Key with you and lock the vehicle. The engine can be started by anyone with a valid Smart Key that is left inside the vehicle.

The immobilizer is always deactivated

when you start the engine. In the event that the engine cannot be star-

ted when the starter battery is fully charged, the immobilizer may be faulty. Contact an authorized Mercedes-Benz Center or call 1-800-367-6372 (in USA) or 1-800-387-0100 (in Canada).

Anti-theft alarm system

Switching on

Make sure that:

the side windows are closed.

no objects, such as mascots, are hanging from the rear-view mirror or grab handles.

This will prevent false alarms.

Make sure that:

the doors are closed.

the tailgate is closed

the service cover is closed.

Press the & button on the key. The alarm system is primed after approximately 30 seconds.

If the service cover is open or is not properly closed, the vehicle will be locked. The anti-theft alarm system is primed. To remind you that the service cover is not secured, a warning tone sounds for 30 seconds. Ensure that the service cover is properly closed. Only then is the anti-theft alarm system correctly primed and the service cover properly secured.

Switching off

Press the % button on the key.

Unlock the vehicle by using the key in the emergency lock. and

Switch on the ignition.

Examples for triggering the alarm

A visual and audible alarm is triggered if the alarm system is armed and you open:

the vehicle by using the key in the emergency lock

a door

the tailgate

the service cover

Page 49

Driving safety systems

Switching off the alarm

To switch off the alarm: press the % button on the key. The alarm is switched off.

Switch on the ignition. The alarm is switched off.

The alarm is not switched off, even if you close the open door that triggered it, for example.

Driving safety systems

Overview of driving safety systems

In this section, you will find information about the following driving safety systems:

ABS (Anti-lock Braking System)

Y page 47)

(

Distance warning function (Y page 48)

esp®(Electronic Stability Program)

Y page 49)

(

EBD (Electronic Brake force Distribution)

Y page 50)

(

Important safety notes

If you fail to adapt your driving style or become distracted, the driving safety systems can neither reduce the risk of accident nor override the laws of physics. Driving safety systems are merely aids designed to assist driving. You are responsible for the distance to the vehicle in front, for vehicle speed and for braking in good time. Always adapt your driving style to suit the prevailing road, weather and traffic conditions and maintain a safe distance from the vehicle in front. Drive carefully.

The driving safety systems described only work as effectively as possible when there is adequate contact between the tires and the road surface. Please pay special attention to the notes on tires, recommended minimum tire tread depths, etc. (

In wintry driving conditions, always use winter tires (M+S tires) and if necessary, snow chains. Only in this way will the driving safety systems described in this section work as effectively as possible.

Y page 177).

For safety reasons, smart recommends that you only use snow chains that have been specially approved for your vehicle by smart, or finelink snow chains that are of a corresponding standard of quality. For more information, please contact a qualified specialist workshop.

ABS (Anti-lock Braking System)

General information

ABS regulates brake pressure in such a way that the wheels do not lock when you brake. This allows you to continue steering the vehicle when braking.

The ! (Canada only) or ò (USA only) abs warning lamp in the instrument cluster lights up when the ignition is switched on. It goes out when the engine is running.

Important safety notes

Observe the "Important safety notes" sec-

tion for driving safety systems (

When ABS is malfunctioning, other systems, including driving safety systems, will also become inoperative. Observe the information on the ABS warning lamp (

Y page 132) and

display messages which may be shown in the instrument cluster (

WARNING

Y page 121).

If ABS is faulty, the wheels could lock when braking. The steerability and braking characteristics may be severely impaired. Additionally, further driving safety systems are deactivated. There is an increased danger of skidding and accidents.

Drive on carefully. Have ABS checked immediately at a qualified specialist workshop.

abs works from a speed of about 4 mph (6 km/h), regardless of road-surface conditions. ABS works on slippery surfaces, even if you only brake gently.

Y page 47).

>> Safety.

Page 50

Driving safety systems

Braking

If ABS intervenes: continue to depress the brake pedal vigorously until the braking situation is over.

To make a full brake application: depress the brake pedal with full force.

If abs intervenes when braking, you will feel a pulsing in the brake pedal.

The pulsating brake pedal can be an indication of hazardous road conditions, and func-

>> Safety.

tions as a reminder to take extra care while driving.

Forward collision warning

General information

The distance warning function can help you to minimize the risk of a collision with a vehicle ahead or reduce the effects of such an accident. If the distance warning function detects that there is a risk of a collision, you will be warned visually and acoustically.

Starting the engine also switches on the distance warning function.

Important safety notes

WARNING

The distance warning function does not react:

to people or animals

to oncoming vehicles

to crossing traffic

when cornering

Thus, the distance warning function cannot provide a warning in all critical situations. There is a risk of an accident.

Always pay careful attention to the traffic situation and be ready to brake.

In such cases, the distance warning function may:

give an unnecessary warning

not give a warning

There is a risk of an accident.

Always pay careful attention to the traffic situation and do not rely solely on the distance warning function.

Observe the "Important safety notes" section for driving safety systems (

Y page 47).

In particular, the detection of obstacles can be impaired if:

there is dirt on the sensors or anything else covering the sensors.

snow or heavy rain

interference by other radar sources

the possibility of strong radar reflections, for example in parking garages

a narrow vehicle traveling in front, e.g. a motorbike

a vehicle traveling in front on a different line

new vehicles or after a service on the distance warning system

Please observe the information in the section on running-in the vehicle

Y page 86).

(

Following damage to the front end of the vehicle, have the configuration and operation of the radar sensor checked at a qualified specialist workshop. This also applies to collisions at low speeds where there is no visible damage to the front of the vehicle.

Function

WARNING

The distance warning function cannot always clearly identify objects and complex traffic situations.

Page 51

To switch off: press button ;. Indicator lamp : lights up.

To switch on: press button ;. Indicator lamp : goes out.

Starting at a speed of around 4 mph (7 km/h), the distance warning function warns you if you rapidly approach a vehicle in front. An intermittent warning tone will then sound and the · distance warning lamp will light up in the instrument cluster.

Brake immediately in order to increase the distance from the vehicle in front.

Take evasive action, provided it is safe to do so.

Due to the nature of the system, particularly complicated but non-critical driving conditions may also cause the system to display a warning.

With the help of the radar sensor system, the distance warning function can detect obstacles that are in the path of your vehicle for an extended period of time.

Up to a speed of around 45 mph (70 km/h), the distance warning function can also react to stationary obstacles, such as stopped or parked vehicles.

ESP®(Electronic Stability Program)

General notes

Observe the "Important safety notes" sec-

Y page 47).

tion (

esp

monitors driving stability and traction, i.e. power transmission between the tires and the road surface.

detects that the vehicle is deviating

If esp from the direction desired by the driver, one or more wheels are braked to stabilize the vehicle. The engine output is also modified to keep the vehicle on the desired course within physical limits. esp driver when pulling away on wet or slippery roads. esp

can also stabilize the vehicle

during braking.

assists the

Driving safety systems

ETS (Electronic Traction System)

Observe the "Important safety notes" sec-

Y page 47).

tion (

ETS traction control is part of esp ETS brakes the drive wheels individually if

they spin. This enables you to pull away and accelerate on slippery surfaces, for example if the road surface is slippery on one side. In addition, more drive torque is transferred to the wheel with traction.

Important safety notes

WARNING

If ESP

is malfunctioning, ESP®is unable to stabilize the vehicle. Additionally, further driving safety systems are deactivated. This increases the risk of skidding and an accident.

Drive on carefully. Have ESP qualified specialist workshop.

If you test the parking brake using a brake dynamometer, switch the ignition off. Application of the brakes by ESP erwise destroy the brake system.

When towing the vehicle with the rear axle raised, observe the notes on esp (Y page 171).

If the ÷ esp manently, esp

warning lamp lights up per-

or hill start assist are

unavailable due to a malfunction. Observe the information on warning lamps

Y page 134) and display messages which may

( be shown in the instrument cluster

Y page 121).

(

Only use wheels with the recommended tire sizes. Only then will esp properly.

Characteristics of ESP

General information

If the ÷ esp®warning lamp goes out before the journey begins, esp

is automatically

active.

intervenes, the ÷ esp®warning

If esp lamp flashes in the instrument cluster.

checked at a

may oth-

function

>> Safety.

Page 52

Driving safety systems

If esp®intervenes:

Only depress the accelerator pedal as far as necessary when pulling away.

Adapt your driving style to suit the prevailing road and weather conditions.

Crosswind Assist

General information

Strong crosswinds can cause your vehicle to

>> Safety.

deviate from a straight course. The crosswind driving assistance function integrated into

significantly reduces these effects.

esp

intervenes automatically according to the direction and intensity of the crosswinds affecting your vehicle.

intervenes with stabilizing braking to

esp assist you in keeping the vehicle in the lane.

crosswind assist is active at vehicle speeds above 45 mph (70 km/h)when driving straight ahead or cornering gently.

Important safety notes

crosswind assist does not work if esp®is disabled because of a malfunction.

EBD (electronic brake force distribution)

Observe information regarding indicator and warning lamps ( display messages (

Y page 134) as well as

Y page 120).

General information

EBD monitors and controls the brake pressure on the rear wheels to improve driving stability while braking.

Important safety notes

Observe the "Important safety notes" sec-

Y page 47).

tion (

WARNING

If EBD is malfunctioning, the rear wheels can lock, e.g. under full braking. This increases the risk of skidding and an accident.

You should therefore adapt your driving style to the different handling characteristics. Have the brake system checked at a qualified specialist workshop.

Page 53

SmartKey

Useful information

Read the information on qualified specialist workshops: (

Y page 20).

SmartKey

Important safety notes

WARNING

If children are left unsupervised in the vehicle, they could:

open the doors, thus endangering other people or road users.

get out and disrupt traffic.

operate the vehicle's equipment.

Additionally, children could set the vehicle in motion if, for example, they:

release the parking brake.

shift the automatic transmission out of park position P or shift manual transmission into neutral.

start the engine.

There is a risk of an accident and injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children or animals unattended in the vehicle. Always keep the SmartKey out of reach of children.

WARNING

If you attach heavy or large objects to the SmartKey, the SmartKey could be unintentionally turned in the ignition lock. This could cause the engine to be switched off. There is a risk of an accident.

Do not attach any heavy or large objects to the SmartKey. Remove any bulky key rings before inserting the SmartKey into the ignition lock.

Keep the SmartKey away from strong magnetic fields. Otherwise, the remote control function could be affected.

Strong magnetic fields can occur in the vicinity of powerful electrical installations.

Do not keep the SmartKey:

with electronic devices, e.g. a mobile phone or another SmartKey

with metallic objects, e.g. coins or metal foil

inside metallic objects, e.g. a metal case

SmartKey functions

% Unlocks the driver's door/vehicle

;

& Locks the vehicle

The % button must be pressed a second time within 20 seconds to unlock the frontpassenger's door. This function can be activated or deactivated in the smart Media-System (see the separate operating instructions).

If you do not open the vehicle within approximately 2 minutes of unlocking:

Opens the tailgate

To unlock the driver's door: press the % button.

the vehicle is locked again. protection against theft is reactivated

>> Opening and closing.

Page 54

SmartKey

To unlock and open the tailgate: press and hold the button

To lock centrally: press the & button.

on the key.

The SmartKey centrally locks/unlocks:

the doors

the tailgate

the fuel filler flap

When unlocking, the turn signals flash once. When locking, they flash twice.

Locking is confirmed by an audible signal.

SmartKey battery

Important safety notes

WARNING

Batteries contain toxic and corrosive substances. If batteries are swallowed, it can

>> Opening and closing.

result in severe health problems. There is a risk of fatal injury.

Keep batteries out of the reach of children. If a battery is swallowed, seek medical attention immediately.

The SmartKey batteries contain perchlorate material, which may require special handling and regard for the environment. National guidelines must be observed during disposal. In California, see www.dtsc.ca.gov/ HazardousWaste/Perchlorate/index.cfm.

smart recommends that you have the batteries changed at a qualified specialist workshop.

Insert a suitable tool, such as a coin, into the opening of the key. Turn the tool until cover : of the battery tray opens. When doing so, do not hold cover : shut.

Remove battery tray cover :.

Remove battery ;.

Insert the new battery with the positive terminal facing upwards. Use a lint-free cloth to do so.

Make sure that the surface of the battery is free of lint, grease and other contaminants.

Insert battery tray cover : into the housing and press to close.

Check the function of all SmartKey buttons on the vehicle.

Replacing the battery

You require a CR 2032 3V cell battery.

Page 55

Problems with the SmartKey

Problem Possible causes/consequences and M Solutions

You cannot lock or unlock the vehicle using the SmartKey.

The SmartKey battery is discharged or nearly discharged.

Try again to lock/unlock the vehicle using the remote control function of the SmartKey. Do this by pressing the % or & button in the immediate vicinity of the vehicle.

If this does not work:

Change the key battery if necessary (Y page 52).

Unlock the vehicle with the key in the emergency lock

Y page 55) or lock the vehicle with the emergency locking

(

Y page 55).

(

There is interference from a powerful source of radio waves.

Try again to lock/unlock the vehicle using the remote control function of the SmartKey. Do this by pressing the % or & button in the immediate vicinity of the vehicle.

The SmartKey is faulty.

Unlock the vehicle with the key in the emergency lock

Y page 55) or lock the vehicle with the emergency locking

(

Y page 55).

(

Have the SmartKey checked at a qualified specialist workshop.

SmartKey

>> Opening and closing.

You have lost a SmartKey.

The engine cannot be started using the SmartKey.

Have the SmartKey deactivated at a qualified specialist workshop.

Report the loss immediately to the vehicle insurers.

If necessary, have the locks changed as well.

the on-board voltage is too low.

Switch off non-essential consumers, e.g. seat heating or interior lighting, and try to start the engine again.

If this does not work:

Check the starter battery and charge it if necessary

Y page 164).

(

Jump-start the vehicle (Y page 168).

Consult a qualified specialist workshop.

The steering lock is mechanically blocked.

Remove the SmartKey and reinsert it into the ignition lock. When you turn the key, turn the steering wheel in both directions.

Page 56

Doors

Important safety notes

WARNING

If children are left unsupervised in the vehicle, they could:

open the doors, thus endangering other people or road users.

get out and disrupt traffic.

operate the vehicle's equipment.

Additionally, children could set the vehicle in motion if, for example, they:

release the parking brake.

shift the automatic transmission out of park position P or shift manual transmission into neutral.

start the engine.

>> Opening and closing.

There is a risk of an accident and injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children or animals unattended in the vehicle. Always keep the SmartKey out of reach of children.

You can open a door from inside the vehicle even if it has been locked.

Pull door handle :. The door unlocks and opens.

If the vehicle has previously been locked with the key, opening a door from the inside will trigger the anti-theft alarm system. Switch off the alarm (

Y page 47).

Centrally locking or unlocking the vehicle from the inside

You can centrally lock or unlock the vehicle from the inside. This can be useful if you wish to lock the vehicle before pulling away, for example.

Preferably stow luggage or loads in the luggage compartment. Observe the loading guidelines (

Y page 142).

Unlocking and opening doors from the inside

Pull door handle :. The door opens.

To lock: when the vehicle is unlocked, press button :. The vehicle locks when all the doors and the tailgate are closed. Indicator lamp ; lights up.

To lock the vehicle from the inside when exiting the vehicle: remove the SmartKey

from the ignition lock.

Open the driver's door. The front-passenger door and the tailgate

must be closed.

Press the locking button (Y page 54).

Close the driver's door within 5 seconds. Do not leave the key in the vehicle. You

could otherwise lock yourself out. The doors, tailgate and fuel filler flap are locked. The anti-theft alarm system is primed.

Page 57

Make sure that the doors and the tailgate are locked.

To unlock: when the vehicle is locked, press button :. The vehicle is unlocked. Indicator lamp ; goes out.

You can open a door from inside the vehicle even if it has been locked.

If the vehicle has previously been locked with the key, opening a door from the inside will trigger the anti-theft alarm system. Switch off the alarm (

Y page 47).

If a locked door is opened from the inside, the previous unlocking is taken into account, if:

it was locked using the locking button for the central locking, or

it was locked automatically

The vehicle will be fully unlocked if it had previously been fully unlocked. If only the driver's door had been previously unlocked, then only the door which has been opened form the inside is unlocked.

You cannot unlock the vehicle centrally from the inside if the vehicle has been locked with the SmartKey.

Doors

You could therefore lock yourself out if:

the vehicle is being pushed.

the vehicle is being towed.

the vehicle is on a roller dynamometer.

You can also switch the automatic locking function on or off in the smart Media-System; see the separate operating instructions.

Unlocking the driver's door (emergency lock)

If you can no longer unlock the vehicle using the remote control key, use the emergency lock.

If you use the key in the emergency lock to unlock and open the driver's door, the antitheft alarm system will be triggered. Switch off the alarm (

Carefully remove the cover from the emergency lock.

Insert the key into the emergency lock of the driver's door as far as it will go.

Y page 47).

>> Opening and closing.

Automatic locking feature

To deactivate: with the ignition switched on, press and hold button : for about five seconds until a tone sounds.

To activate with the ignition switched on, press and hold button : for about five seconds until a tone sounds.

The vehicle is locked automatically when the ignition is switched on and the wheels are turning.

Turn the key anti-clockwise as far as it will go to position 1. The door is unlocked.

Turn the key back and remove it.

Replace the cover on the emergency lock and press until it engages.

Locking the driver's door (emergency locking)

If you can no longer lock the vehicle using the remote control key, use the locking button on the instrument cluster (

Y page 54).

Page 58

Cargo compartment

Remove the SmartKey from the ignition lock.

Open the driver's door.

Close the front-passenger door and the tailgate.

Press the locking button (Y page 54).

Close the driver's door within 5 seconds. Do not leave the key in the vehicle. You

could otherwise lock yourself out. The doors, tailgate and fuel filler flap are locked. The anti-theft alarm system is primed.

Make sure that the doors and the tailgate are locked.

If this does not work, use the emergency locking.

Open the driver's door.

Close the front-passenger door and the tailgate.

Press the locking button (Y page 54).

>> Opening and closing.

Check whether the front-passenger door is locked. If necessary, carry out the following steps on both doors.

Cargo compartment

Important safety notes

WARNING

Combustion engines emit poisonous exhaust gases such as carbon monoxide. If the tailgate is open when the engine is running, particularly if the vehicle is moving, exhaust fumes could enter the passenger compartment. There is a risk of poisoning.

Turn off the engine before opening the tailgate. Never drive with the tailgate open.

WARNING

If objects, luggage or loads are not secured or not secured sufficiently, they could slip, tip over or be flung around and thereby hit vehicle occupants. There is a risk of injury, particularly in the event of sudden braking or a sudden change in direction.

Always store objects so that they cannot be flung around. Secure objects, luggage or loads against slipping or tipping before the journey.

Insert the tip of the key into slit :.

Turn the key anti-clockwise as far as it will go to position 2.

On the passenger door, the direction of rotation is reversed.

Close the driver's door.

Check that the doors are locked.

If you lock the vehicle using the emergency locking, the tailgate and fuel filler flap are not locked. The anti-theft alarm system is not primed.

Do not exceed the lower tailgate maximum load of 220 lbs (100 kg). It may otherwise become damaged.

The tailgates swings backwards, upwards and downwards when opened. Therefore, make sure that there is sufficient space above, behind and under the tailgates.

The opening dimensions of the tailgate can be found in the "Vehicle data" section

Y page 212).

(

Preferably stow luggage or loads in the luggage compartment. Observe the loading guidelines (

Y page 142).

Do not leave the SmartKey in the cargo compartment. You could otherwise lock yourself out.

Page 59

Side windows

Opening or closing

Opening the upper tailgate

If the vehicle is locked, first press the % button on the key.

Press button :. The upper tailgate opens slightly.

Press and hold the button on the key. The upper tailgate opens slightly.

Press the button on the left under the steering wheel. The upper tailgate opens slightly.

Swing the upper tailgate up.

Opening the lower tailgate

Closing the tailgate

Swing the lower tailgate upwards until it engages audibly.

Pull the upper tailgate down and push closed.

If necessary, lock the vehicle with the & button on the key.

Side windows

Important safety notes

WARNING

While closing the side windows, body parts in the closing area could become trapped. There is a risk of injury.

When closing make sure that no parts of the body are in the closing area. If somebody becomes trapped, release the switch or press the switch to open the side window again.

>> Opening and closing.

Pull release catch : upwards. Swing the lower tailgate down.

WARNING

If children operate the side windows they could become trapped, particularly if they are left unsupervised. There is a risk of injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children unsupervised in the vehicle.

Page 60

Side windows

Side window reversing feature

In vehicles with the convenience feature, the side windows are equipped with an automatic reversing feature. If a solid object blocks or restricts a side window from traveling upwards during the automatic closing process, the side window opens again automatically. During the manual closing process, the side window only opens again automatically after the corresponding switch is released. The automatic reversing feature is only an aid and is no substitute for your attention when closing a side window.

WARNING

The reversing feature does not react:

to soft, light and thin objects, e.g. small fingers

while resetting

This means that the reversing feature can-

>> Opening and closing.

not prevent someone being trapped in these situations. There is a risk of injury.

Make sure that no body parts are in close proximity during the closing procedure. If someone becomes trapped, press the switch to open the side window again.

WARNING

If you close a side window again immediately after it has been blocked or reset, the side window closes with increased or maximum force. The reversing feature is then not active. Parts of the body could be trapped in the closing area in the process. This poses an increased risk of injury or even fatal injury.

Make sure that no parts of the body are in the closing area. To stop the closing process, release the switch or push the switch again to reopen the side window.

Opening or closing the side windows

The switches for both side windows are located on the driver's door. There is also a switch for the front-passenger side window on the front-passenger door.

The switch on the driver’s door takes precedence.

Left

;

Right

Turn the key to position 1 or 2 in the ignition lock.

To open manually: press and hold the corresponding button.

To open fully: press the button beyond the point of resistance and release it. Automatic closing is started.

To close manually: pull the corresponding button and hold it.

Vehicles with convenience control: To close fully: pull the button beyond the

point of resistance and release it. Automatic closing is started.

To interrupt automatic opening/closing:

press/pull the corresponding switch again.

If you press the switch beyond the point of resistance while opening, automatic operation is started. In vehicles with convenience control, you can also start automatic operation when closing. To do so, pull the switch beyond the point of resistance.

You can stop automatic operation by operating the switch again.

You can continue to operate the side windows after turning the key to position 0 in the ignition lock or removing the key. This function remains active for 3 minutes or until you open a door.

Page 61

Resetting the side windows

You must reset each side window if:

the side window opens again slightly after being closed fully.

the side window can no longer be fully opened or closed.

Close all the doors.

Turn the SmartKey to position 2 in the ignition lock.

Pull the corresponding switch on the door control panel until the side window is completely closed (

Hold the switch for an additional second.

If the side window opens again slightly:

Immediately pull the corresponding switch on the door control panel until the side window is completely closed (

Hold the switch for an additional second.

If the respective side window remains closed after the button is released, then it has been set correctly. If this is not the case, repeat the steps above again.

Y page 58).

Side windows

>> Opening and closing.

Page 62

Operating the roller sunblind for the panoramic roof

Problems with the side windows

WARNING

Make sure that no parts of the body are in the closing area. To stop the closing process, release the switch or push the switch again to reopen the side window.

Problem Possible causes/consequences and M Solutions

A side window cannot be closed because it is blocked by objects, e.g. leaves in the window guide.

A side window cannot be closed and you cannot see the cause.

>> Opening and closing.

Remove the objects.

Close the side window.

If a side window is obstructed during closing and reopens again slightly:

Immediately after the window blocks, pull the corresponding switch again until the side window has closed. The side window is closed with increased force.

If a side window is obstructed again during closing and reopens again slightly:

Immediately after the window blocks, pull the corresponding switch again until the side window has closed. The side window is closed without the anti-entrapment feature.

Operating the roller sunblind for the panoramic roof

The roller sunblind shields the vehicle interior from sunlight.

To open: press the roller sunblind up by the outer edge of recess : and slide it backwards.

To close: pull the roller sunblind forward by the outer edge of recess : until it is fully closed.

Page 63

Useful information

Read the information on qualified specialist workshops: (

Y page 20).

Correcting the driver's seat position

WARNING

You could lose control of your vehicle if you do the following while driving:

adjust the driver's seat, steering wheel or mirrors

fasten the seat belt

There is a risk of an accident.

Adjust the driver's seat, steering wheel or mirrors and fasten your seat belt before starting the engine.

Seats

Make sure that seat = is adjusted properly.

Adjusting the seats ( When adjusting the seat, make sure that:

you are as far away from the driver's air bag as possible.

you are sitting in a normal upright position.

you can fasten the seat belt properly.

you have moved the backrest to an almost vertical position.

you can depress the pedals properly.

Observe the safety guidelines on steering wheel adjustment (

Make sure that steering wheel : is adjusted properly.

Adjusting the steering wheel ( When adjusting the steering wheel, make

sure that:

you can hold the steering wheel with your arms slightly bent.

you can move your legs freely.

you can see all the displays in the instrument cluster clearly.

Observe the safety guidelines for seat belts

Y page 31).

(

Check whether you have fastened seat belt ; properly (

The seat belt should:

fit snugly across your body

be routed across the middle of your shoulder

be routed in your pelvic area across the hip joints

Before starting off, adjust the rear-view mirror and the exterior mirrors

Y page 66) in such a way that you have a

( good view of road and traffic conditions.

Y page 62)

Y page 65).

Y page 65)

Y page 33).

>> Seats, steering wheel and mirrors.

Example

Observe the safety guidelines on seat adjust-

Y page 61).

ment (

Seats

Important safety notes

WARNING

Children could become trapped if they adjust the seats, particularly when unattended. There is a risk of injury.

Page 64

Seats

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children unsupervised in the vehicle.

WARNING

If the driver's seat is not engaged, it could move unexpectedly while the vehicle is in motion. This could cause you to lose control of the vehicle. There is a risk of an accident.

Always make sure that the driver's seat is engaged before starting the vehicle.

WARNING

You could lose control of your vehicle if you do the following while driving:

adjust the driver's seat, steering wheel or mirrors

fasten the seat belt

There is a risk of an accident.

Adjust the driver's seat, steering wheel or mirrors and fasten your seat belt before starting the engine.

WARNING

When you adjust a seat, you or other vehicle

>> Seats, steering wheel and mirrors.

occupants could become trapped, e.g. on the seat guide rail. There is a risk of injury.

Make sure when adjusting a seat that no one has any body parts in the sweep of the seat.

is routed across the center of your shoulder.

Observe the safety notes on "Airbags"

Y page 34) and "Children in the vehicle"

(

Y page 42).

(

To avoid damage to the seats and the seat heating, observe the following information:

keep liquids from spilling on the seats. If liquid is spilled on the seats, dry them as soon as possible.

if the seat covers are damp or wet, do not switch on the seat heating. The seat heating should also not be used to dry the seats.

clean the seat covers as recommended; see the "Interior care" section.

do not transport heavy loads on the seats. Do not place sharp objects on the seat cushions, e.g. knives, nails or tools. The seats should only be occupied by passengers, if possible.

when the seat heating is in operation, do not cover the seats with insulating materials, e.g. blankets, coats, bags, seat covers, child seats or booster seats.

Make sure that there are no objects in the footwell under or behind the seats when moving the seats back. There is a risk that the seats and/or the objects could be damaged.

Adjusting the seats

WARNING

Adjust the seat properly before beginning your journey. Always ensure that the backrest is in an almost vertical position and that the shoulder section of your seat belt

Illustration of variant 1

Page 65

Seats

Illustration of variant 2

Seat fore-and-aft adjustment

Remove the seat belt from the belt loop by opening the press stud.

Lift handle = and slide the seat forwards or rearwards.

Release lever = again. Make sure that you hear the seat engage in position.

Backrest angle

Variant 1

Relieve the pressure on the backrest.

Turn handwheel : forwards or backwards.

Variant 2

Relieve the pressure on the backrest.

Pull release lever :. The backrest is released.

Move the backrest forwards or backwards.

Let go of release lever : again.

Seat height

Only variant 2: pull handle ; up or push it

down repeatedly until the seat has reached the desired height.

Folding down the front-passenger seat

You can increase the size of the luggage compartment by folding the front-passenger seat backrest forwards.

Observe the loading guidelines (

Y page 142)

and the notes in the "Child restraint system on the front-passenger seat" section

Y page 45).

(

Folding down

Illustration of variant 1

Illustration of variant 2

Variant 1:

Slide the right-hand front seat to its rearmost position.

Turn handwheel : forward until the desired seat backrest position is achieved

Variant 2:

Slide the right-hand front seat to its rearmost position.

Hold onto the backrest at the head restraint with one hand.

Pull release lever :. The backrest is released.

Fold the seat forwards.

>> Seats, steering wheel and mirrors.

Only driver's seat, depending on equipment.

Page 66

Seats

Folding back

WARNING

If the seat backrest is not engaged, it may fold forwards, e.g. during braking or in the event of an accident.

As a result, a backrest which is not engaged would press you into the seat belt. The seat belt can no longer offer the intended level of protection and can even cause injuries.

The backrest cannot restrain objects or loads in the trunk.

There is an increased risk of injury.

Before every journey, make sure that the backrest is engaged as described.

Variant 1:

Turn handwheel : back until the desired seat backrest position is achieved

Variant 2:

Pull release lever :. The backrest is released.

Fold the backrest backwards.

Ensure that the seat backrest is engaged again.

Turn the SmartKey to position 2 in the ignition lock (

To switch on: press button ;.

Y page 87).

Indicator lamp : in the button lights up.

To switch off: press button ;. Indicator lamp : in the button goes out.

If the battery voltage is too low, the seat heating may switch off.

The seat heating switches off automatically after about 10 minutes.

>> Seats, steering wheel and mirrors.

Switching the seat heating on/off

Activating/deactivating

WARNING

Repeatedly switching on the seat heating can cause the seat cushion and backrest pads to become very hot. The health of persons with limited temperature sensitivity or a limited ability to react to excessively high temperatures may be affected or they may even suffer burn-like injuries. There is a risk of injury.

Therefore, do not switch the seat heating on repeatedly.

Page 67

Problems with the seat heating

Problem Possible causes/consequences and M Solutions

The seat heating has switched off prematurely or cannot be switched on.

The on-board voltage is too low because too many electrical consumers are switched on.

Switch off electrical consumers that you do not need, such as the rear window defroster or interior lighting. Once the battery is sufficiently charged, the seat heating will switch back on automatically.

Steering wheel

Important safety notes

WARNING

You could lose control of your vehicle if you do the following while driving:

adjust the driver's seat, steering wheel or mirrors

fasten the seat belt

There is a risk of an accident.

Adjust the driver's seat, steering wheel or mirrors and fasten your seat belt before starting the engine.

WARNING

Children could injure themselves if they adjust the steering wheel. There is a risk of injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children unsupervised in the vehicle.

Adjusting the steering wheel

Before starting off, make sure the steering wheel is locked. Never unlock the steering wheel while the vehicle is in motion.

Release lever

;

To adjust the steering wheel height

Push release lever : down completely. The steering column is unlocked.

Set desired steering wheel height ;.

Push release lever : up completely. The steering column is locked.

Check if the steering column is locked. To do so, try and push the steering wheel up or down.

>> Seats, steering wheel and mirrors.

WARNING

If the steering wheel is unlocked while the vehicle is in motion, it could change position unexpectedly. This could cause you to lose control of the vehicle. There is a risk of an accident.

Page 68

Mirrors

Rear-view mirror

Anti-glare mode: pivot anti-glare switch : forwards or back.

Exterior mirrors

Important safety notes

WARNING

You could lose control of your vehicle if you do the following while driving:

adjust the driver's seat, steering wheel or mirrors

fasten the seat belt

>> Seats, steering wheel and mirrors.

There is a risk of an accident.

Adjust the driver's seat, steering wheel or mirrors and fasten your seat belt before starting the engine.

WARNING

The exterior mirrors reduce the size of the image. Visible objects are actually closer than they appear. This means that you could misjudge the distance from road users traveling behind, e.g. when changing lane. There is a risk of an accident.

For this reason, always make sure of the actual distance from the road users traveling behind by glancing over your shoulder.

Adjusting the exterior mirrors manually

To adjust the mirror: move lever : to the right or left, up or down.

Adjusting the exterior mirrors electrically

Turn the SmartKey to position 1 or 2 in the ignition (

To select an exterior mirror: turn control

= to position 1 for the left exterior mirror or to position 2 for the right exterior mirror.

To adjust the mirror: move control = to the right or left, up or down.

The exterior mirrors can be heated by switching on the rear window heating (

Y page 87).

Y page 82).

Exterior mirror pushed out of position

If an exterior mirror has been pushed forwards or backwards out of position, push the exterior mirror into the correct position manually.

Page 69

Useful information

Read the information on qualified specialist workshops: (

Y page 20).

Exterior lighting

General notes

For reasons of safety, smart recommends that you drive with the lights switched on even during the daytime. In some countries, operation of the headlamps varies due to legal requirements and self-imposed obligations.

Exterior lighting settings

Operation

: ; 3$ 4 T

5 K 6 Ã

7 L

Combination switch control Marking Lights off standing lamp, parking lamp,

license plate lighting High-beam headlamps Automatic headlamp mode, control-

led by the light sensor Low-beam headlamps

Exterior lighting

D E Ì N Í R

If you hear a warning tone when you leave the vehicle, the lights may still be switched on.

When in the Ãposition the exterior lighting switches off automatically if you:

Automatic headlamp mode

Ã is the favored light switch setting. The light setting is automatically selected according to the brightness of the ambient light (exception: poor visibility due to weather conditions such as fog, snow or spray):

When the light switch is set to Ã, the low-beam headlamps may not be switched on automatically if there is fog, snow or other causes of poor visibility due to the weather

Marking Combination switch middle ring Front fog lamps Rear fog lamp

Turn combination switch control : until Ã or $ is at marking ;.

switch off the engine open the driver's door lock the vehicle do not switch on the high-beam headlamps

With the engine running: depending on the ambient light conditions, the daytime driving lights or the parking and low-beam headlamps are switched on or off automatically

To switch onautomatic headlamp mode: turn combination switch control : until Ã is at marking ;.

WARNING

>> Lights and windshield wipers.

Page 70

Exterior lighting

conditions such as spray. There is a risk of an accident.

In such situations, turn the light switch to L.

The automatic headlamp feature is only an aid. The driver is responsible for the vehicle's lighting at all times.

Low-beam headlamps

To switch on: turn combination switch control : until L is at marking ;. The L indicator lamp in the instrument cluster lights up.

Parking lamps

To switch on: turn combination switch control : until T is at marking ;.

Canada only: the standing lamps are only switched on when the engine is switched off. When the engine is running, the low-beam headlamps are switched on.

Front fog lamps

Only vehicles with front foglamps have the "Foglamps" function.

To switch on: make sure that the standing lamps or low-beam headlamps are switched

>> Lights and windshield wipers.

on.

Turn combination switch middle ring E until marking D is at N. The N indicator lamp in the instrument cluster lights up.

After releasing, the middle ring returns automatically back to the neutral position.

To switch off: turn combination switch middle ring E until marking D is at N. The N indicator lamp in the instrument cluster goes out.

After releasing, the middle ring returns automatically back to the neutral position.

If you switch off the engine (only in the

Ã position) or turn off the lights, the foglamps are also switched off.

Rear fog lamp

To switch on: make sure that the fog lamps or low-beam headlamps are switched on.

Turn combination switch middle ring E until marking D is at R. The R indicator lamp in the instrument cluster lights up.

After releasing, the middle ring returns automatically back to the neutral position.

To switch off: turn combination switch middle ring E until marking D is at R. The R indicator lamp in the instrument cluster goes out.

After releasing, the middle ring returns automatically back to the neutral position.

If you switch off the engine (only in the

Ã position) or turn off the lights, the rear foglamps are also switched off.

Switching on the turn signals

Start the engine.

To indicate briefly: press the combination switch briefly to the pressure point in the direction of arrow : (right turn signal) or ; (left turn signal). The corresponding turn signal flashes three times.

To indicate: press the combination switch beyond the pressure point in the direction of arrow : (right turn signal) or ; (left turn signal).

Page 71

Interior lighting

Switching on the high-beam headlamps and headlamp flasher

High-beam headlamps

To switch on: start the engine.

Turn the combination switch control until K or Ã (if available) is at the mark- ing.

Press the combination switch beyond the pressure point in the direction of arrow :. The K indicator lamp in the instrument cluster lights up.

To deactivate: move combination switch : back to its normal position. The K indicator lamp in the instrument cluster goes out.

The hazard warning lamps automatically switch on if:

an air bag is deployed

the vehicle decelerates rapidly from a speed of above 45 mph (70 km/h) and comes to a standstill

To switch on the hazard warning lamps:

press button :. All turn signals flash. If you now switch on a turn signal using the combination switch, only the turn signal lamp on the corresponding side of the vehicle will flash.

To switch off the hazard warning lamps:

press button :.

The hazard warning lamps switch off automatically if the vehicle reaches a speed of above 6 mph (10 km/h) again after a full brake application.

The hazard warning lamps still operate if

the ignition is switched off.

Headlamps fogged up on the inside

Certain climatic and physical conditions may cause moisture to form in the headlamp. This moisture does not affect the functionality of the headlamp.

High-beam flasher

To switch on: pull the combination switch in the direction of arrow ;.

Hazard warning lamps

Interior lighting

Overview

Interior lighting

;

Switches the left-hand reading lamp on/off

Depending on the position of the switch: Interior lighting switched on Automatic interior lighting control on

>> Lights and windshield wipers.

Page 72

Replacing bulbs

Interior lighting switched off

Switches the right-hand reading lamp on/ off

The interior lighting is switched on when a door is open: if the corresponding door is closed correctly the interior lighting goes out.

Interior lighting control

If the doors are unlocked with the remote control, the interval timer for the interior lighting is triggered. The interval timer restarts when a door is opened.

The front interior lighting and the luggage compartment light go out gradually.

The interior lighting interval timer is switched off:

if a door remains open, the interior lighting switches off after 15 minutes without dimming

if all doors (with additional locking mechanism) are closed, the interior lighting switches off after 15 seconds

if all doors (without locking mechanism) are closed, the interior lighting switches off after 3 to 4 minutes

as soon as the engine is started and for as long as the engine is running

>> Lights and windshield wipers.

Replacing bulbs

Important safety notes

WARNING

Bulbs, lamps and connectors can get very hot when operating. If you change a bulb, you could burn yourself on these components. There is a risk of injury.

Allow these components to cool down before changing a bulb.

you drop it

you scratch it

Only operate bulbs in enclosed lamps designed for that purpose. Only fit spare bulbs of the same type and the specified voltage.

Marks on the glass tube reduce the service life of the bulbs. Do not touch the glass tube with your bare hands. If necessary, clean the glass tube when cold with alcohol or spirit and rub it off with a lint-free cloth.

Protect bulbs from moisture during operation. Do not allow bulbs to come into contact with liquids.

Replace only the bulbs listed (

Y page 70).

If you require assistance replacing bulbs, consult a qualified specialist workshop.

If the new bulb still does not light up, consult a qualified specialist workshop.

The daytime driving lights and part of the rear light clusters of your vehicle are equipped with LED light bulbs. Do not replace these bulbs yourself. Contact a qualified specialist workshop which has the necessary specialist knowledge and tools to carry out the work required.

Headlamps and lamps are an important aspect of vehicle safety. You must therefore make sure that these function correctly at all times. Have the headlamp setting checked regularly.

Overview: changing bulbs/bulb types

You can replace the following bulbs. The bulb type can be found in the legend.

Do not use a bulb that has been dropped or if its glass tube has been scratched.

The bulb may explode if:

you touch it

it is hot

Low-beam/high-beam headlamps: HB2

;

Turn signal lamp: PY 21 W

Foglamps: H16

Page 73

Tail lamp

Tail lamp/brake lamp/side marker lamp:

P 21 5 W

;

Rear fog lamp: P 21 W

Backup lamp: W 16 W

Turn signal lamp: PY 21 W

Replacing bulbs

Side turn signal lamps: WY 5 W

Interior lighting: W 5 W

Tail lamps (vehicles with partial LEDs)

Turn signal lamp: PY 21 W

;

Backup lamp: W 16 W

License plate lighting: W 5 W

Changing the front bulbs

Important safety notes

WARNING

The radiator fan may continue to run after the engine has been switched off or start without warning. There is a risk of injury.

If you need to operate in the front area:

switch off the ignition

take off jewelry and watches

never reach into the fan rotation area

keep clothing and hair, for example, away from the fan.

>> Lights and windshield wipers.

Page 74

Replacing bulbs

Turn signal

To remove the cover in the front wheel arch: switch off the lighting system.

Turn the front wheels inwards.

Press spring clip : down.

Slide cover ; back and remove it.

Low-beam/high-beam headlamps

Switch off the lights.

Open the service cover (Y page 151).

Remove cover :.

Pull out the connector.

Simultaneously press retainer ; forward and to the right and then remove the lamp.

Insert the new bulb and engage it in place.

Insert the connector.

Position cover : and press into place.

Front fog lamps

>> Lights and windshield wipers.

Turn bulb holder : anti-clockwise and remove.

Take the bulb out of bulb holder :.

Insert the new bulb into bulb holder :.

Insert bulb holder : and turn it clockwise until it engages.

To fit the cover in the front wheel arch:

insert cover ; again and lock in place.

Due to their location, have the bulbs in the front fog lamps changed at a qualified specialist workshop.

Switch off the lights.

Remove the two screws : at the bottom of the front wheel arch using a suitable tool.

Bend back the cover using your hand.

Turn the bulb holder anti-clockwise and remove it.

Take the bulb out of the bulb holder.

Insert the new bulb into the bulb holder.

Insert the bulb holder and turn it clockwise until it engages.

Page 75

Replacing bulbs

Bend the cover back into position.

Tighten the two screws : again.

Side turn signal lamps

Insert a flat tool into recess : and lever side turn signal lamp ; forwards and out.

Remove the bulb holder from side turn signal lamp ; by turning it a quarter turn anti-clockwise.

Pull the bulb out of the bulb holder.

Insert the new bulb into the bulb holder.

Insert the bulb holder into side turn signal lamp ; and turn it a quarter turn clockwise.

Insert side turn signal lamp ;.

Changing the rear bulbs

Tail lamp

Switch off the lights.

To remove: open the upper and lower tail-

Y page 57).

gate (

Remove two screws : on the tail lamp using a suitable slotted screwdriver.

Carefully take out the lamp.

To release the connector: insert a suitable slotted screwdriver under the plastic hanger, lift a small plastic piece upwards and remove the connector.

Bulb holder

Tail lamp/brake lamp/side marker lamps (only vehicles without partial LEDs)

;

Turn signal

Backup lamp

Rear foglamp (vehicles without partial LEDs)

Unclip four bulb holder tabs A and carefully remove the bulb holder.

Pull out the corresponding bulb.

Insert the new bulb.

Re-install bulb holder. Four bulb holder tabs A must audibly engage.

Insert the connector.

Insert the lamp again.

Tighten the two screws : on the tail lamp again.

>> Lights and windshield wipers.

Page 76

Windshield wipers

License plate lamp

To remove: releasecatch : of the lamp lens using a suitable tool.

Remove the lamp lens.

Take bulb : out of the bulb holder.

Insert the new bulb into the bulb holder.

>> Lights and windshield wipers.

Re-insert the lamp lens into the license plate lamp.

Replacing the interior lighting

Remove lamp lens : with a flat tool, e.g. a screwdriver.

Take the bulb to be replaced out of the bulb holder.

Insert the new bulb into the bulb holder.

Insert lamp lens :.

Windshield wipers

Switching the windshield wipers on/off

Do not operate the windshield wipers when the windshield is dry, as this could damage the wiper blades. Moreover, dust that has collected on the windshield can scratch the glass if wiping takes place when the windshield is dry.

If it is necessary to switch on the windshield wipers in dry weather conditions, always use washer fluid when operating the windshield wipers.

Make sure that the front windshield wipers are free of ice. The wiper motor could otherwise overheat.

If the windshield wipers leave smears on the windshield after the vehicle has been washed in an automatic car wash, wax or other residues may be the reason for this. Clean the windshield using washer fluid after washing the vehicle in an automatic car wash.

Vehicles with a rain sensor: if the windshield becomes dirty in dry weather conditions, the windshield wipers may be activated inadvertently. This could then damage the windshield wiper blades or scratch the windshield.

For this reason, you should always switch off the windshield wipers in dry weather.

Page 77

Combination switch

Control for wiping frequency and sensitivity of the rain sensor

0 Windshield wipers off

Ã Automatic wipe (rain sensor)

1 Continuous wipe, slow

2 Continuous wipe, fast

î Wipes with washer fluid

To switch on: turn the key to position 1 or 2 in the ignition lock (

Y page 87).

position or 1.

Start the engine (Y page 87).

Press the combination switch down or up to the corresponding position.

To wipe with washer fluid î: pull the combination switch towards the steering wheel.

To switch off: press the combination switch to position 0.

Position 2 changes to position 1 when the engine is stopped.

In position 1 or in the © position, the windshield wipers stop automatically when the engine is stopped and the driver's door is opened.

Vehicles witha rainsensor: in position Ã the windshield wipers stop automatically when the engine is stopped.

The windshield will no longer be wiped properly if the wiper blades are worn. This could prevent you from observing the traffic conditions.

Windshield wipers

Intermittent wipe

Vehicles with a rain sensor: the appropriate

wiping frequency is automatically set according to the intensity of the rain. With intermittent wiping you can also adjust the sensitivity of the rain sensor using control :. When the sensitivity is set to high, the windshield wiper wipes more frequently.

To switch on: start the engine (Y page 87).

Press the combination switch to the Ã position. The windshield wipers sweep once.

Switching the rear window wiperon/off

Combination switch

Control

$ Rear window wiper off

è Rear window wiper on

ô Wiping with washer fluid

Turn the key to position 2 in the ignition lock or start the engine (

Turn control : on the combination switch to the corresponding position.

Replacing the wiper blades

Important safety notes

WARNING

If the windshield wipers begin to move while you are changing the wiper blades, you could be trapped by the wiper arm. There is a risk of injury.

Y page 87).

>> Lights and windshield wipers.

Page 78

Windshield wipers

Always switch off the windshield wipers and ignition before changing the wiper blades.

To avoid damaging the wiper blades, make sure that you touch only the wiper arm of the wiper.

Never open the service cover/tailgate if a windshield wiper arm has been folded away from the windshield/rear window.

Never fold a windshield wiper arm without a wiper blade back onto the windshield/ rear window.

Hold the windshield wiper arm firmly when you change the wiper blade. If you release the wiper arm without a wiper blade and it falls onto the windshield/rear window, the windshield/rear window may be damaged by the force of the impact.

smart recommends that you have the wiper blades changed at a qualified specialist workshop.

Changing the windshield wiper blades

Removing the wiper blades

Turn the key to position 1 or 2 in the ignition lock (

Press the combination switch to the 5 position ( The wiper arms move slowly upwards.

>> Lights and windshield wipers.

When the wiper arms are vertical in rela-

Y page 87).

Y page 74).

tion to the service cover, turn the key to position 0 and remove it from the ignition lock.

Fold the wiper arm away from the windshield.

Press the two release clips ; on mounting ? in the direction of arrow = and pull away from the wiper arm.

Slide wiper blade : in the direction of arrow A until the wiper blade securing hook is revealed.

Remove wiper blade :.

Installing the wiper blades

Slide new wiper blade : in the direction of arrow ? onto mounting = of wiper arm ;. Wiper blade : engages.

Make sure that wiper blade : is seated correctly.

Fold wiper arm ; back onto the windshield.

Replacing the rear window wiper blade

Removing a wiper blade

Remove the SmartKey from the ignition lock.

Fold wiper arm : away from the rear window until it engages.

Page 79

Pull wiper blade ; in the direction of the arrow until it is released from the retainer on the wiper arm.

Remove wiper blade ;.

Installing a wiper blade

Push new wiper blade ; onto wiper arm : until you feel it engage.

Turn wiper blade ; parallel to wiper arm :.

Make sure that wiper blade ; is seated correctly.

Fold wiper arm : back onto the rear window.

Windshield wipers

>> Lights and windshield wipers.

Page 80

Windshield wipers

Problems with the windshield wipers

Problem Possible causes/consequences and M Solutions

The windshield wipers do not stop or continue wiping with the same speed regardless of a change in position.

The combination switch or rain sensor is malfunctioning.

Stop the vehicle, paying attention to traffic conditions as you do so and switch off the engine.

For safety reasons, you should remove the key from the ignition lock and open the driver's door.

Turn the key to position 1 in the ignition lock. Then try to start the engine again.

Have the windshield wipers checked at a qualified specialist workshop.

The windshield wipers are jammed.

The windshield wiper has stopped in the middle of the windshield.

The windshield wipers fail completely.

>> Lights and windshield wipers.

Leaves or snow, for example, may be obstructing the windshield wiper movement. The wiper motor has been deactivated.

Stop the vehicle, paying attention to traffic conditions as you do so and switch off the engine.

For safety reasons, you should remove the Smart Key from the ignition lock.

Remove the cause of the obstruction.

Switch the windshield wipers on again after 30 seconds.

The windshield wiper drive has stopped for safety reasons.

Have the windshield wipers checked at a qualified specialist workshop.

The windshield wiper drive is malfunctioning.

Select another wiper speed on the combination switch.

Have the windshield wipers checked at a qualified specialist workshop.

Page 81

Overview of climate control systems

Useful information

Read the information on qualified specialist workshops: (

Y page 20).

Overview of climate control systems

General notes

Observe the settings recommended on the following pages. The windows could otherwise fog up.

To prevent the windows from fogging up:

switch off climate control only briefly

switch on air-recirculation mode only briefly

switch on the cooling with air dehumidification function

switch on the defrost windshield function briefly, if required

Automatic climate control regulates the temperature and the humidity of the vehicle interior. It also filters undesirable substances out of the air.

Automatic climate control is only available when the engine is running. Optimum operation is only achieved with the side windows closed.

When the weather is warm, ventilate the vehicle for a brief period. This will speed up the cooling process, and the desired vehicle interior temperature will be reached more quickly.

The integrated filter filters out most particles of dust and pollen. It also reduces odors. A clogged filter reduces the amount of air supplied to the vehicle interior. For this reason, you should always observe the interval for replacing the filter, which is specified in the Maintenance Booklet. As it depends on environmental

conditions, e.g. heavy air pollution, the interval may be shorter than stated in the Maintenance Booklet.

>> Climate control.

Page 82

Operating the climate control systems

Automatic climate control panel

Increases the airflow (Y page 82)

;

Defrosts the windshield (Y page 82)

Switches the air-recirculation mode on/off (Y page 84)

Switches the rear window heating on/off (Y page 82) Switches the exterior mirror heating on/off (for vehicles with heated exterior mirrors

only)

Sets the air distribution (Y page 81)

Sets climate control to automatic (Y page 81)

Switches the climate control on/off (Y page 80)

Switches cooling with air dehumidification on/off (Y page 81)

Reduces the airflow (Y page 82)

Sets the temperature (Y page 81)

>> Climate control.

Optimum use of automatic climate control

Automatic climate control

Below, you can find a number of notes and recommendations to help you use climate control optimally.

Activate climate control primarily using the Ã button.

Set the temperature to 72 ‡ (22 †).

Only use the "Windshield demisting" function briefly until the windshield is clear again.

Only use air-recirculation mode briefly, e.g. if there are unpleasant outside odors or when in a tunnel. The windows could otherwise fog up, since no fresh air is drawn into the vehicle in air-recirculation mode.

Operating the climate control systems

Switching the climate control on/off

General notes

When the climate control is switched off, the air supply and air circulation are also switched off. The windows could mist up. Therefore, only switch off climate control briefly.

Switching the sound on/off

Turn the SmartKey to position 1 or 2 in the ignition lock or start the engine

Y page 87).

(

To switch on: press the Ã button. The indicator lamp under the Ã button lights up.

Press the ó button.

Press the ¬ button.

Page 83

Operating the climate control systems

To switch off: press the ^ button. The indicator lamp under the ^ button lights up.

Press the ô button repeatedly until all the indicator lamps go out.

Switching cooling with air dehumidification on/off

General notes

If you deactivate the "Cooling with air-dehumidification" function, the air inside the vehicle will not be cooled. The air inside the vehicle will also not be dehumidified. The windows can fog up more quickly. Therefore, deactivate the cooling with air-dehumidification function only briefly.

The "Cooling with air dehumidification" function is only available when the engine is running. The air inside the vehicle is cooled and dehumidified according to the temperature selected.

The "Cooling with air dehumidification" function does not function when the outside temperature is low.

Condensation may drip from the underside of the vehicle when it is in cooling mode. This is normal and not a sign that there is a malfunction.

Switching on/off

Start the engine (Y page 87).

To activate: press the ó and ¿ but- tons. The indicator lamp in the ¿ button lights up.

To deactivate: press the ¿ button. The indicator lamp in the ¿ button goes out.

Setting climate control to automatic

General notes

In automatic mode, the set temperature is maintained automatically at a constant level. The system automatically regulates the air-

flow and the air distribution according to the temperature.

Automatic control

Turn the ignition key to position 1 or 2 or start the engine (

To activate: press the Ã button.

Y page 87).

The indicator lamp in the Ã button lights up.

To switch to manual mode: press the ó or ô button.

Press the Á, P or O button.

Press the ¬ button. The indicator lamp in the Ã button goes out.

If you manually change one of the func-

tions, the indicator lamp in the Ã button goes out. All further functions will still be automatically controlled.

Setting the temperature

Start the engine (Y page 87).

To increase or reduce: push temperature slide F to the right or left (

Y page 80).

Push slide F all the way to the right or left

Y page 80).

(

Only change the temperature setting in small increments. Start at 72 ‡ (22 †).

Setting the air distribution

Air distribution settings

Directs air through the defroster vents

Directs the airflow to the center and side air vents

Directs air through the footwell air vents

You can also activate several air distribution settings simultaneously. To do this, press multiple air distribution buttons. The air is then directed through various vents.

>> Climate control.

Page 84

Operating the climate control systems

Recommendation for air distribution in winter: set to Á and O.

Recommendation for air distribution in summer: set to P .

Setting the air distribution

Start the engine (Y page 87).

Press one or more of the Á, P and O buttons.

The indicator lamp next to the selected button lights up.

Setting the airflow

Start the engine (Y page 87).

To increase: press the ó button. Each time the ó button is pressed, one of the indicator lamps next to the airflow buttons lights up.

To reduce: press the ô button. Each time the ô button is pressed, one of the indicator lamps next to the airflow buttons goes out.

>> Climate control.

Defrosting the windshield

General notes

You can use this function to defrost the windshield or to clear a fogged up windshield or front side windows on the inside.

You should only select the "Windshield defrosting" function until the windshield is clear again.

Switching on/off

Turn the ignition key to position 1 or 2 or start the engine (

To activate: press the ¬ button. The indicator lamp above the ¬ button lights up. The Ã automatic mode is deactivated.

The ¬ "Defrosting the windshield" function switches automatic climate control to the following functions:

cooling with air dehumidification on

high airflow

Y page 87).

air distribution to the windshield and front side windows

air-recirculation mode off

To deactivate: press the ¬ button.

Press the Ã button.

Press the À button.

Press the Á, P or O button. The indicator lamp above the ¬ button goes out.

Demisting the windows

Windows fogged up on the inside

Activate the ¿ "Cooling with air dehumidification" function.

Activate automatic mode Ã.

If the windows continue to fog up, activate the "Windshield defrosting" function ¬.

You should only select this setting until

the windshield is clear again.

Windows fogged up on the outside

Activate the windshield wipers.

Set the air distribution to ¬.

You should only select this setting until

the windshield is clear again.

Rear window defroster

General notes

The rear window defroster has a high current draw. You should therefore switch it off as soon as the rear window is clear.

The rear window defroster can only be switched on or off while the engine is running.

The rear window defroster switches off automatically after approximately 10 minutes.

Vehicles with heated exterior mirrors: the exterior mirrors will also be heated when you switch on the rear window defroster. The mir-

Page 85

Operating the climate control systems

ror heating is switched off together with the rear window defroster.

Switching on/off

Start the engine (Y page 87).

To activate: press the ¤ button. The indicator lamp above the ¤ button lights up.

To deactivate: press the ¤ button. The indicator lamp above the ¤ button goes out.

>> Climate control.

Page 86

Setting the air vents

Problems with the rear window defroster

Problem Possible causes/consequences and M Solutions

The rear window defroster has deactivated prematurely or cannot be activated.

The battery has not been sufficiently charged.

Switch off any consumers that are not required, e.g. reading lamps, interior lighting or the seat heating. When the battery is sufficiently charged, the rear window defroster can be activated again.

Switching the air-recirculation mode on/off

General notes

You can deactivate the flow of fresh air temporarily if unpleasant odors are entering the vehicle from outside or if you are driving through a tunnel. The air already inside the vehicle will then be recirculated.

If you switch on air-recirculation mode, the windows can fog up more quickly, in particular at low temperatures. Only use air-recirculation mode briefly to prevent the windows from fogging up.

>> Climate control.

Switching on/off

Start the engine (Y page 87).

To activate: press the À button. The indicator lamp above the À button lights up.

To deactivate: press the À button.

Press the ¬ button.

Press the Ã button. The indicator lamp above the À button goes out.

Make sure that all vehicle occupants always maintain a sufficient distance to the air outlets. If necessary, redirect the airflow to another area of the vehicle interior.

WARNING

If you spray cleaning products or disinfectant into the ventilation system of the vehicle, this could ignite. There is a risk of fire.

Never spray these or any other substances into the ventilation system. Always have work on the ventilation system carried out at a qualified specialist workshop.

In order to ensure the direct flow of fresh air through the air vents into the vehicle interior, please observe the following notes:

keep the air inlet between the service cover and the windshield free of blockages, such as ice, snow or leaves.

never cover the air vents or air intake grilles in the vehicle interior.

For optimum climate control in the vehi-

cle, open the air vents fully.

Setting the air vents

Important safety notes

WARNING

Very hot or very cold air can flow from the air vents. This could result in burns or frostbite in the immediate vicinity of the air vents. There is a risk of injury.

Page 87

Setting the center air vents

To adjustthe air direction: hold center air vent : or ; in the middle and turn and/or tilt it in the desired direction up, down, to the left or to the right.

To close the center airvent: hold center air vent : or ; in the middle and tilt inwards until the vent openings can no longer be seen.

Setting the air vents

To adjust the air direction: hold side air vent ; in the middle and turn and/or tilt in the desired direction up, down, to the left or to the right.

To close the side air vent: hold side air vent ; in the middle and tilt inwards until the vent openings can no longer be seen.

To open the side air vent: hold side air vent ; in the middle and tilt outwards until the vent openings can be seen.

Demister vent : cannot be adjusted.

To open the center air vent: hold center air vent : or ; in the middle and tilt outwards until the vent openings can be seen.

Setting the side air vents

>> Climate control.

Page 88

Driving

Useful information

Read the information on qualified specialist workshops: (

>> Driving and parking.

Notes on breaking-in a new vehicle

Y page 20).

Important safety notes

In certain driving and driving safety systems, the sensors adjust automatically while a certain distance is being driven after the vehicle has been delivered or after repairs. Full system effectiveness is not reached until the end of this teach-in procedure.

New and replaced brake pads and discs only reach their optimum braking effect after several hundred kilometers of driving. Compensate for this by applying greater force to the brake pedal.

The first 1000 miles (1500 km)

The more you look after the engine when it is new, the more satisfied you will be with its performance in the future.

You should therefore drive at varying vehicle and engine speeds for the first 1000 miles (1500 km).

Avoid heavy loads, e.g. driving at full throttle, during this period.

Change gear in good time, before the tachometer needle is Ô of the way to the red area of the tachometer.

Do not manually shift to a lower gear to brake the vehicle.

Vehicles with automatic transmission: if possible, do not depress the accelerator

pedal beyond the pressure point (kickdown).

Vehicles with automatic transmission: ideally, for the first 1000 miles(1500 km), drive in program E (Comfort).

After 1000 miles (1500 km), you can increase the engine speed gradually and bring the vehicle to full speed.

You should also observe these notes on running-in if the engine or parts of the drive train on your vehicle have been replaced.

Observe the maximum permissible speed.

Driving

Important safety notes

WARNING

Objects in the driver's footwell can restrict the pedal travel or obstruct a depressed pedal. The operating and road safety of the vehicle is jeopardized. There is a risk of an accident.

WARNING

Unsuitable footwear can hinder correct usage of the pedals, e.g.:

shoes with thick soles

shoes with high heels

slippers

There is a risk of an accident.

Wear suitable footwear to ensure correct usage of the pedals.

WARNING

If you switch off the ignition while driving, safety-relevant functions are only available with limitations, or not at all. This could affect, for example, the power

Page 89

steering and the brake boosting effect. You will require considerably more effort to steer and brake. There is a risk of an accident.

Do not switch off the ignition while driving.

Driving

Ignition (power supply for all consumers) and drive position

Starting the engine

The steering is locked when you remove the SmartKey from the ignition lock.

WARNING

If the parking brake has not been fully released when driving, the parking brake can:

overheat and cause a fire

lose its hold function.

There is a risk of fire and an accident. Release the parking brake fully before driving off.

Do not warm up the engine with the vehicle stationary. Drive off immediately. Avoid high engine speeds and driving at full throttle until the engine has reached its operating temperature.

Only shift the automatic transmission to the desired drive position when the vehicle is stationary.

Where possible, avoid spinning the drive wheels when pulling away on slippery roads. You could otherwise damage the drive train.

SmartKey positions

Starting the engine

Important safety notes

WARNING

If children are left unsupervised in the vehicle, they could:

open the doors, thus endangering other people or road users.

get out and disrupt traffic.

operate the vehicle's equipment.

Additionally, children could set the vehicle in motion if, for example, they:

release the parking brake.

shift the automatic transmission out of park position P or shift manual transmission into neutral.

start the engine.

There is a risk of an accident and injury.

When leaving the vehicle, always take the SmartKey with you and lock the vehicle. Never leave children or animals unattended in the vehicle. Always keep the SmartKey out of reach of children.

>> Driving and parking.

To remove the SmartKey

Power supply for some consumers, such as

the windshield wipers

WARNING

Combustion engines emit poisonous exhaust gases such as carbon monoxide. Inhaling these exhaust gases leads to poisoning. There is a risk of fatal injury. Therefore never leave the engine running in enclosed spaces without sufficient ventilation.

WARNING

Flammable materials introduced through environmental influence or by animals can ignite if in contact with the exhaust system

Page 90

Driving

or parts of the engine that heat up. There is a risk of fire.

Carry out regular checks to make sure that there are no flammable foreign materials in the engine compartment or in the exhaust system.

Do not depress the accelerator when

starting the engine.

During a cold start, the engine runs at higher speeds to enable the catalytic converter to reach its operating temperature. The sound of the engine may change during this time.

>> Driving and parking.

Manual transmission

Depress the brake pedal and keep it depressed.

Depress the clutch pedal fully.

Shift to neutral.

Automatic transmission

Shift the transmission to position P

Y page 92).

( The transmission position display in the multifunction display shows P

Y page 92).

(

You can start the engine in transmission positions P and N.

In order to start the engine in transmission position N you must depress the brake pedal and keep it depressed.

Starting procedure

Turn the key to position 3 in the ignition

Y page 87) and release it as soon as the

lock ( engine is running.

Pulling away

General notes

WARNING

Vehicles with automatic transmission:

If the engine speed is above the idling speed and you engage transmission posi-

tion D or R, the vehicle could pull away suddenly. There is a risk of an accident.

When engaging transmission position D or R, always firmly depress the brake pedal and do not simultaneously accelerate.

Vehicles with manual transmission:

change gear in good time and avoid spinning the wheels. You could otherwise damage the vehicle.

Release the parking brake before driving off. The parking brake can otherwise overheat, malfunction and wear out quickly.

Accelerate gently when pulling away. The vehicle locks centrally once you have

pulled away. You can open the doors from the inside at any

time. You can also deactivate the automatic locking

feature (

Y page 55).

Vehicles with automatic transmission: you can only shift the transmission from position P to the desired transmission position if:

the ignition is switched on

you depress the brake pedal and keep it depressed and

you press release button on the selector

Y page 92).

lever (

Only then is the shift lock released.

Vehicles with automatic transmission:

transmission shifts take place at higher engine speeds after a cold start. This helps the catalytic converter to reach its operating temperature more quickly.

Hill start assist

Hill start assist helps you when pulling away forwards or in reverse on an uphill gradient. It holds the vehicle for a short time after you have removed your foot from the brake pedal. This gives you enough time to move your foot from the brake pedal to the accelerator pedal and to depress it before the vehicle begins to roll.

WARNING

After a short time, hill start assist will no longer brake your vehicle and it could roll

Page 91

away. There is a risk of an accident and injury.

Therefore, quickly move your foot from the brake pedal to the accelerator pedal. Never leave the vehicle when it is held by hill start assist.

Hill start assist is not active if:

you pull away on level ground

you pull away in a forward gear on a downhill slope

on vehicles with automatic transmission, the transmission is in position N.

the parking brake is applied.

ESP®is malfunctioning

Driving

>> Driving and parking.

Page 92

Driving

Problems with the engine

Problem Possible causes/consequences and M Solutions

The engine does not start. The starter motor can be heard.

There is a malfunction in the engine electronics.

There is a malfunction in the fuel supply.

Switch off the engine before attempting to start the engine

Y page 101).

again (

Try to start the engine again (Y page 87). Avoid excessively long and frequent attempts to start the engine as these will drain the battery.

If the engine does not start after several attempts:

Consult a qualified specialist workshop.

The engine does not start. You cannot hear

>> Driving and parking.

the starter motor.

The engine is not running smoothly and is misfiring.

The coolant temperature exceeds 230 ‡ (110 †). The red coolant temperature warning lamp comes on while the engine is running. A warning tone also sounds. The Stop

Switch Off Engine

message appears.

The on-board voltage is too low because the battery is too weak or discharged.

Jump-start the vehicle (Y page 168).

If the engine does not start despite attempts to jump-start it:

Consult a qualified specialist workshop.

The starter motor was exposed to a thermal load that was too high.

Allow the starter motor to cool down for approximately two minutes.

Try to start the engine again.

If the engine still does not start:

Consult a qualified specialist workshop.

There is a malfunction in the engine electronics or in a mechanical component of the engine management system.

Only depress the accelerator pedal slightly. Otherwise, non-combusted fuel may get into the catalytic converter and damage it.

Have the cause rectified immediately at a qualified specialist workshop.

The coolant level is too low. The coolant is too hot and the engine is no longer being cooled sufficiently.

Stop as soon as possible and allow the engine and the coolant to cool down.

Check the coolant level (Y page 153). Observe the warning notes as you do so and add coolant if necessary.

Page 93

Manual transmission

Gear lever

Only engage gear when the clutch pedal is

depressed.

When shifting into 5th gear, you should always push the gear lever all the way to the right. You could otherwise shift unintentionally into 3rd gear and damage the transmission.

If you shift down at too high a speed (transmission braking), this can cause the engine to overrev, leading to engine damage.

Never hold the vehicle stopped on a hill by using the clutch pedal. There is otherwise a risk of damaging the clutch.

On long and steep downhill gradients, especially if the vehicle is laden, you must shift into gear 1, 2 or 3 in good time. By doing so, you will make use of the braking effect of the engine. This relieves the load on the brake system and prevents the brakes from overheating and wearing too quickly.

Shifting to neutral

Depress the clutch pedal fully.

Move the gearshift lever to position :.

Engaging reverse gear

Only shift into reverse gear R when the vehicle is stationary. Otherwise, you could damage the transmission.

All vehicles except for smart 66 kw Turbo

Shift to neutral (Y page 91).

Press the gear lever to the right and then pull it back.

>> Driving and parking.

1 - 5 k

Forward gears Reverse gear

smart 66 kw Turbo

Shift to neutral (Y page 91).

Pull collar : upwards.

Press the gear lever to the right and then pull it back.

Shift recommendation

The gearshift recommendations assist you in adopting an economical driving style.

Page 94

Automatic transmission

Shift one gear up or down according to gearshift recommendation : when shown in the multifunction display of the instrument cluster.

>> Driving and parking.

Further information on the transmission dis-

Y page 111).

play (

Automatic transmission

Important safety notes

WARNING

If the engine speed is above the idling speed and you engage transmission position D or R, the vehicle could pull away suddenly. There is a risk of an accident.

When engaging transmission position D or R, always firmly depress the brake pedal and do not simultaneously accelerate.

WARNING

The automatic transmission switches to neutral position N when you switch off the engine. The vehicle may roll away. There is a risk of an accident.

After switching off the engine, always switch to parking position P. Prevent the parked vehicle from rolling away by applying the parking brake.

Selector lever

Park position with parking lock

Reverse gear

Neutral

Drive

To shift transmission position: press release button : and shift the gear lever to the desired transmission position.

When you shift the transmission from positions N or P to position R, the ignition must also be switched on.

When you shift the transmission from

positions D or R to position N, you do not need to press release button :.

Transmission position and drive program display

The current transmission position and drive program appear in the multifunction display.

Transmission position display

;

Drive program display

Page 95

Automatic transmission

Transmission positions

Park position

This prevents the vehicle from rolling away when stopped.

Only shift the transmission into position P (

Y page 92) when the

vehicle is stationary. The parking lock should not be used as a brake when parking. Always apply the parking brake in addition to the parking lock in order to secure the vehicle.

The key can only be removed if the transmission is in position P. If the SmartKey is removed from the ignition lock, the selector lever is locked.

In the event of a malfunction of the vehicle's electronics, the transmission may lock. Information on manually disconnecting the selector lever lock (

Y page 97).

Have the vehicle electronics checked immediately at a qualified specialist workshop.

Reverse gear

Only shift the transmission into position R when the vehicle is stationary.

Neutral

Do not shift the transmission to N while driving. Otherwise, the automatic transmission could be damaged.

No power is transmitted from the engine to the drive wheels.

Releasing the parking brake and brake pedal will allow you to move the vehicle freely, e.g. to push it or tow it away.

is deactivated or faulty:

If esp shift the transmission to position N if the vehicle is in danger of skidding, e.g. on icy roads.

Rolling in neutral N can dam-

age the drive train.

Drive

The automatic transmission changes gear automatically. All forward gears are available.

Driving tips

Changing gear

The automatic transmission shifts to the individual gears automatically when it is in transmission position D. This automatic gearshifting behavior is determined by:

the selected drive program:

the position of the accelerator pedal

the road speed

>> Driving and parking.

Accelerator pedal position

Your style of driving influences how the automatic transmission shifts gear:

little throttle: early upshifts

more throttle: late upshifts

Page 96

Automatic transmission

Kickdown

If you want maximum acceleration, use kickdown:

Depress the accelerator pedal beyond the pressure point. The automatic transmission shifts to a lower gear depending on the engine speed.

Ease off the accelerator pedal once the desired speed is reached. The automatic transmission shifts back up.

Rocking the vehicle free

Shifting the transmission repeatedly between gears D and R may help to free the

>> Driving and parking.

vehicle if it has become stuck in slush or snow.

Shift the selector lever alternately between positions D and R.

The vehicle's engine management system limits the speed to a maximum of 5 mph (9 km/h) when shifting back and forth.

Program selector button

The program selector button allows you to choose between drive programs with different driving characteristics.

The automatic transmission switches to drive program E (Comfort) every time the engine is started.

E (Comfort) Comfortable, economical

driving

S (Dynamic) Dynamic, agile driving

More information on drive programs

Y page 94).

(

Drive programs

Drive program E (Comfort)

Drive program E (Comfort) is characterized by the following:

comfort-oriented engine settings

optimal fuel consumption resulting from the automatic transmission shifting up sooner

the automatic transmission shifting up sooner. This results in the vehicle being driven at lower engine speeds and the wheels being less likely to spin

Drive program S (Dynamic)

Drive program S (Dynamic) is characterized by the following:

the automatic transmission shifting up later

the fuel consumption possibly being higher as a result of the later automatic transmission shift points

Press program selector button : to change the drive program. The letter of the selected drive program appears in the multifunction display.

Manual gearshifting

General notes

You can shift the gears manually using either the selector lever or the shift paddles. The transmission must be in position D.

If it is permissible, the automatic transmission shifts to the next highest or next lowest gear.

To use manual gearshifting, you have two possibilities:

long-term setting

short-term setting (vehicles with Sports package)

Page 97

Automatic transmission

If you activate the manual gearshift setting, the currently selected gear is shown in the multifunction display instead of D.

Long-term setting

To activate: shift the selector lever to D.

Push the selector lever to the left.

The short-term setting remains active for a certain length of time. Under certain conditions this minimum time is increased, e.g. in the case of lateral acceleration, during an overrun phase or while driving on steep terrain.

To deactivate: pull and hold shift paddle ;.

Change the transmission position with the selector lever.

Change the drive program with the program selector button.

Shifting with the selector lever

>> Driving and parking.

To deactivate: push the selector lever to the right.

Short-term setting (vehicles with Sports package)

To activate: shift the selector lever to D.

Pull shift paddle : or ;.

To shift up: push the selector lever in the

q direction. The automatic transmission shifts up to the next gear.

To prevent engine damage the automatic transmission shifts up automatically:

if the maximum engine speed on the currently engaged gear is reached and

you continue to accelerate.

To shift down: pull the selector lever in the

± direction. The automatic transmission shifts down to the next gear.

Downshifting occurs automatically while coasting.

If the engine exceeds the maximum engine speed when shifting down, the automatic transmission protects against engine damage by not shifting down.

Page 98

Automatic transmission

Shifting with shift paddles (vehicles with Sports package)

To shift up: pull shift paddle ;.

>> Driving and parking.

The automatic transmission shifts up to the next gear.

To prevent engine damage the automatic transmission shifts up automatically:

if the maximum engine speed on the currently engaged gear is reached and

you continue to accelerate.

To shift down: pull shift paddle :. The automatic transmission shifts down to the next gear.

Downshifting occurs automatically while coasting.

If the engine exceeds the maximum engine speed when shifting down, the automatic transmission protects against engine damage by not shifting down.

in the multifunction display of the instrument cluster.

Further information on the transmission dis-

Y page 111).

play (

Kickdown

If you want maximum acceleration, you can also change the kickdown to be manually switched on:

Depress the accelerator pedal beyond the pressure point. The automatic transmission shifts to a lower gear depending on the engine speed.

Shift back up once the desired speed is reached.

If you apply full throttle, the automatic transmission shifts up to the next gear when the maximum engine speed is reached. This prevents the engine from overrevving.

Shift recommendation

The gearshift recommendations assist you in adopting an economical driving style.

Shift one gear up or down according to gearshift recommendation : when shown

Page 99

Problems with the transmission

Problem Possible causes/consequences and M Solutions

The transmission has problems shifting gear.

The transmission is losing oil.

Have the transmission checked at a qualified specialist workshop immediately.

Refueling

The acceleration ability is deteriorating.

The transmission no longer shifts into all of the gears.

Reverse gear can no longer be engaged.

The transmission is in emergency mode.

Stop the vehicle.

Shift the transmission to position P.

Switch off the engine.

Wait at least ten seconds before restarting the engine.

Shift the transmission to position D.

Have the transmission checked at a qualified specialist workshop immediately.

Manually releasing the selector lever lock

You can manually release the selector level lock in the event of an electrical malfunction. This is the case, for example, when you want to release the parking brake while towing away the vehicle and then apply it again.

Do not use any sharp-edged objects to prise out the cover from the center console. Otherwise, the cover or the center console could be damaged.

Pull yellow release = behind the trim up and simultaneously press release button ? on the selector lever.

Shift the selector lever to N or P.

>> Driving and parking.

Apply the parking brake.

Prise out cover : at lower edge ; with a flat, blunt object (e.g. a screwdriver wrapped in cloth).

Pull cover : in the direction of the arrow.

Refueling

Important safety notes

WARNING

Fuel is highly flammable. If you handle fuel incorrectly, there is a risk of fire and explosion.

You must avoid fire, open flames, creating sparks and smoking. Switch off the engine and, if applicable, the auxiliary heating before refueling.

Page 100

Refueling

WARNING

Fuel is poisonous and hazardous to health. There is a risk of injury.

You must make sure that fuel does not come into contact with your skin, eyes or clothing and that it is not swallowed. Do not inhale fuel vapors. Keep fuel away from children.

If you or others come into contact with fuel, observe the following:

Wash away fuel from skin immediately using soap and water.

If fuel comes into contact with your eyes,

>> Driving and parking.

immediately rinse them thoroughly with clean water. Seek medical assistance without delay.

If fuel is swallowed, seek medical assistance without delay. Do not induce vomiting.

Immediately change out of clothing which has come into contact with fuel.

Take care not to spill any fuel on painted surfaces. You could otherwise damage the paintwork.

Use a filter when refueling from a fuel can. Otherwise, the fuel lines and/or injection system could be blocked by particles from the fuel can.

If you overfill the fuel tank, fuel could spray out when the fuel pump nozzle is removed.

For further information on fuel and fuel qual-

Y page 207).

ity (

Refueling

General information

The fuel filler flap is unlocked or locked automatically when you lock or unlock the vehicle with the key.

The position of the fuel filler cap is displayed 8 in the instrument cluster. The arrow next to the filling pump indicates the side of the vehicle.

WARNING

Electrostatic buildup can create sparks and ignite fuel vapors. There is a risk of fire and explosion.

Always touch the vehicle body before opening the fuel filler flap or touching the fuel pump nozzle. Any existing electrostatic buildup is thereby discharged.

Do not get into the vehicle again during the refueling process. Otherwise, electrostatic charge could build up again.

Do not use diesel to refuel vehicles with a gasoline engine. Do not switch on the ignition if you accidentally refuel with the wrong fuel. Otherwise, the fuel will enter the fuel system. Even small amounts of the wrong fuel could result in damage to the fuel system and the engine. Notify a qualified specialist workshop and have the fuel tank and fuel lines drained completely.

Overfilling the fuel tank could damage the fuel system.

Opening the fuel filler flap

;

Attaches the fuel filler cap

Fuel type instruction label

Switch the engine off.

Remove the SmartKey from the ignition lock.

Open the fuel filler flap in the direction of arrow :.

Turn the fuel filler cap counterclockwise and remove it.

Hang the fuel filler cap on the hook on the inside of the fuel filler flap.
