Page 1
MX56
Page 2
T able of contents T able of contents
Safety 3
5.4 System Upgrade
22
General Introduction
Glossary
4 5.5 System Information
22
6 6. Playback
22
Front Panel / Rear Panel 8
6.1 Program information
22
Remote Control Unit
9
6.2 TV/Radio List
22
S.T.B Connection
12
6.3 Favorite List
23
1.Main Menu
15
6.4 EPG
24
2. Prefrence
15
2.1 Language 15
2.2 OSD Setting
15
6.5 Volume Controrl
25
6.6 INFO
25
7. Game
25
2.3 Parent LocK
16 Menu Map
26
3. Edit
16
Software Update
28
3.1. Channel Manager
16
1.Requested Devices
28
3.2 Add Favorites
3.3 Favorites Manager
17 2.Operation 28
17
3.Update by Receiver
29
4. Scan
4.1 Auto Search
18
18
Trouble Shooting 30
Specification 31
4.2 Manual Searching 18
4.3 Timer Setting
19
5. Config 21
5.1 Clear Date 21
5.2 TV Setting 21
5.3 Set Time 21
Page 3
This STB has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAIN SUPPLY
:AC 100/240V, 50/60Hz, 30W.
OVERLOADING
:Do not overload a wall outlet, extension cord or adapter as this may result
in fire or electric shock.
LIQUIDS
:This STB shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the STB.
CLEANING
:Disconnect the STB from the main supply before cleaning. Do not use any
kind of solvents to clean the STB, only use a soft-dry cloth.
VENTILATION
:The slots on top of the STB must be left uncovered to allow proper airflow to
the unit.
Do not stand the STB on soft furnishings or carpets.
Do not expose the STB to direct sunlight or do not place it near a heater.
Do not stack electronic equipments on top of the STB.
ATTACHMENTS
:Do not use any unrecommended attachments as these may cause
hazard or damage the STB.
CONNECTION TO THE TERRESTRIAL ANTENNA
:Disconnect the STB from the main supply before connecting or
disconnecting the cable from the terrestrial antenna.
FAILURE TO DO SO CAN DAMAGE THEANTENNA.
CONNECTION TO THE TV
:Disconnect the STB from the main supply before connecting or
disconnecting the cable from TV.
FAILURE TO DO SO CAN DAMAGE THETV.
EARTHING
:The antenna cable MUST BE EARTHED to the system earth for the
Terrestrial antenna.
LOCATION
:Place the STB indoor in order not to expose to lightening , rain or
Sunlight.
INTRODUCTION
This manual will help you learn basic functions such as installation, selecting
channels and many other functions of the STB. All functions can be operated by
the remote control. You can easily install it by selecting Installation
function and upgrade its
software through communication cable.
The remote control is designed for easy access to all the functions at once and for
comfortable grab for your hand. It is programmed to control all functions and to easily
watch TV and Radio programs via the STB.
WARNING
Any problems caused by the use of unofficial software. The use of software
versions other than dealers or distributors official software will void the manufacturer
’s warranty. It is advised that only the formal software released from dealers or
distributors should be used.
Page 4

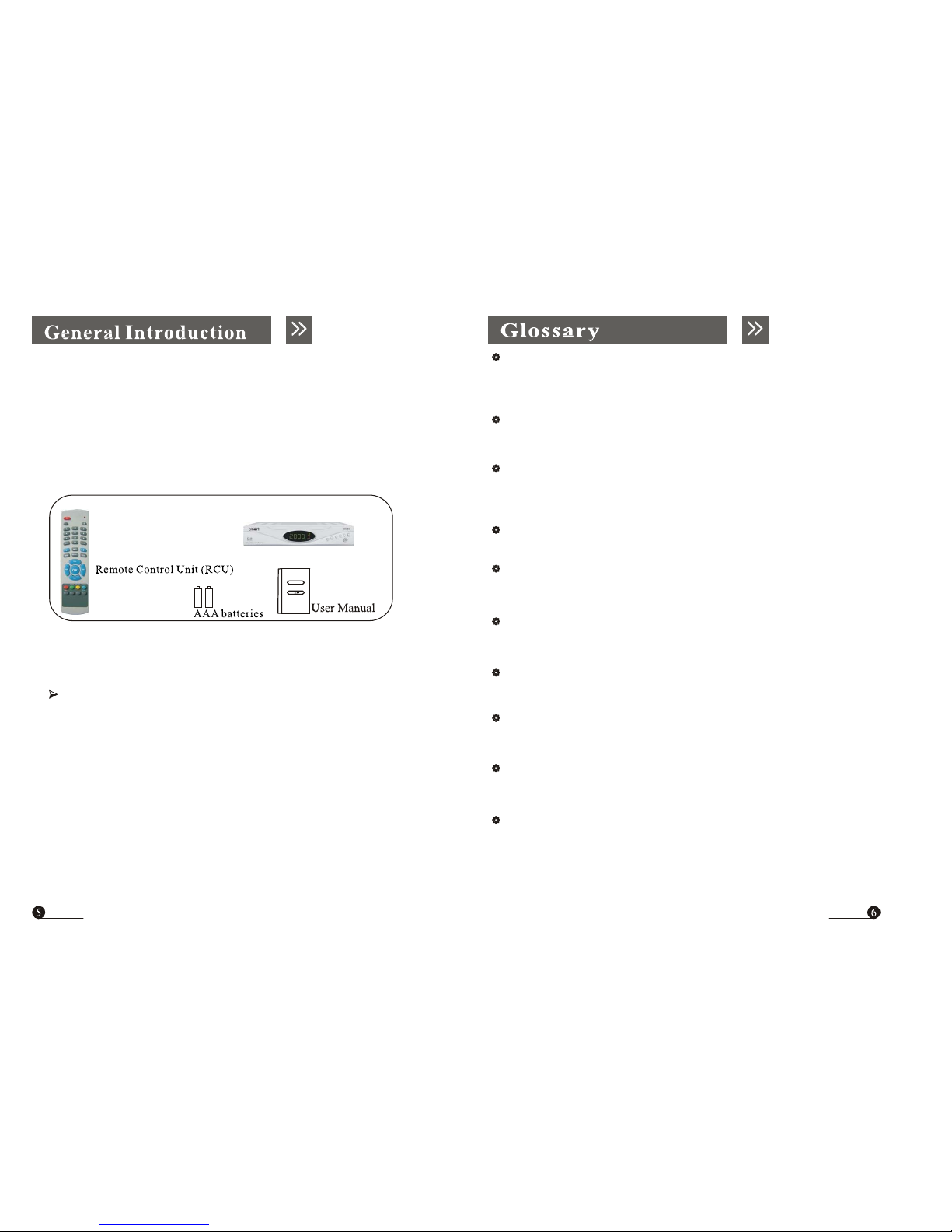

UNPACKING
Unpack the unit and check to make sure that all of the following
items are included in the packaging.
1 x Remote Control Unit (RCU)
1 x User Manual
2 x AAA batteries
1 x Digital ReceiverTerrestrial
1 x A/V Cable
22KHz switch
A tone that can be sent via the LNB coax. This tone can control the LNB or
switches on the coax cable. Do not do not interfere with the DC or 22kHz tone that
the receiver sends to the dish..
Antenna
A device that collects and radiates electromagnetic waves.
Includes a satellite dish and a broadband antenna.
CVBS
Composite Video Baseband Signal. Standard single-wire video, mixing luma and
chroma signals together.
Scart Cable
Digital Terrestrial Receiver
Forward Error Correction (FEC)
A system of error control for data transmission.
Frequency
The number of cycles or events per one second, which is expressed in the unit of
Hertz(Hz)
Intermediate Frequency (IF)
A frequency to which a carrier frequency is shifted as an intermediate step in
transmission or reception.
We hope you enjoy using your Digital Terrestrial Receiver!ccr
Low Noise Block (LNB) Downconverter
A low noise microwave amplifier and converter which downconverts a range of
frequencies to IF range.
NTSC
National Televison Standards Committee,A video standard established by the
United States (RCA/NBC) and adopted by numerous other countries
PAL
Phase Alternate Line. A video standard used in Europe and other parts of the world
for composite color encoding.
Packet Identifier (PID)
A set of numbers that identifies transport stream packets containing data from a
single data stream.
Page 5
Polarization
Satellite waves are polarized. They can be linear or circular. Linear polarity is
Vertical or Horizontal, circular polarity is Righ-hand and Left-hand circular polarity.
Quaternary Phase Shift Keying (QPSK)
Phase-shift keying in which four different phase angles are used.
RF
A frequency that is useful for radio transmission, usually between10kHz and
300,000Mhz
RGB
Video information in the form of Red, Green, and Blue tristimulus values. The
combination of three values representing the intensity of each of the three colors
can represent the entire range of visible light.
STB
Set Top Box, another common name of Digital Satellite Receiver, because it
usually be put on top of TV in household. This word is used now worldwide.
Symbol Rate
The amount of data transmitted every second.
Transponder (TP)
Equipment in a satellite which receives a single uplink channel from a satellite
Earth station, amplifies it, converts the frequency and changes the polarization,
then rebroadcasts it back to Earth.
Transport Stream
The bit stream formed prior to transmission of signals by combining the video,
audio and data streams of one service. It consists of fixed length packets of 188
bytes of data.
USALS
Universal Satellite Automatically Location System, a system established by STAB
www.usals.info

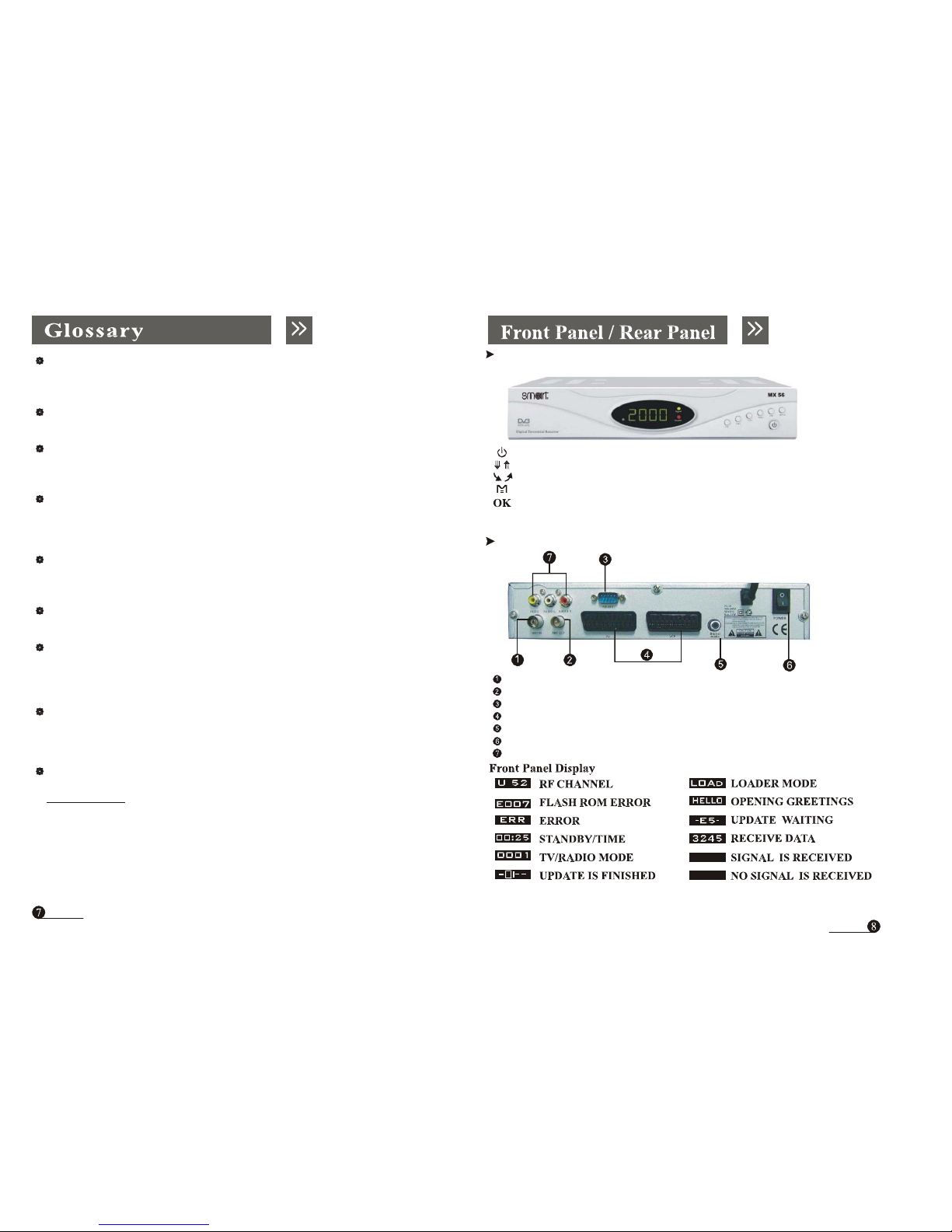

Front Panel
: Press to switch between Operation and Standby modes.
: Changes channels or items from top to bottom on the menus.
: Increase or Decrease the volume of sound.
: Press to display MENU.
: Press to proceed confirmation.
Dimension:260mm x 195mm x 48mm (W x D x H )
Rear Panel
ANT IN: Connect to TerrestrialAntenna
ANT OUT: Use it when connecting to another STB.
RS-232: Use it when connecting to your PC.
TV/VCR SCART:For the video/audio input of the TV and VCR.
DIGITALAUDIO: SPDIF audio format output system.
POWER: Power on/off switch.
A/V RCA: To connect theAudio/Vedio RCA output to TV
Page 6

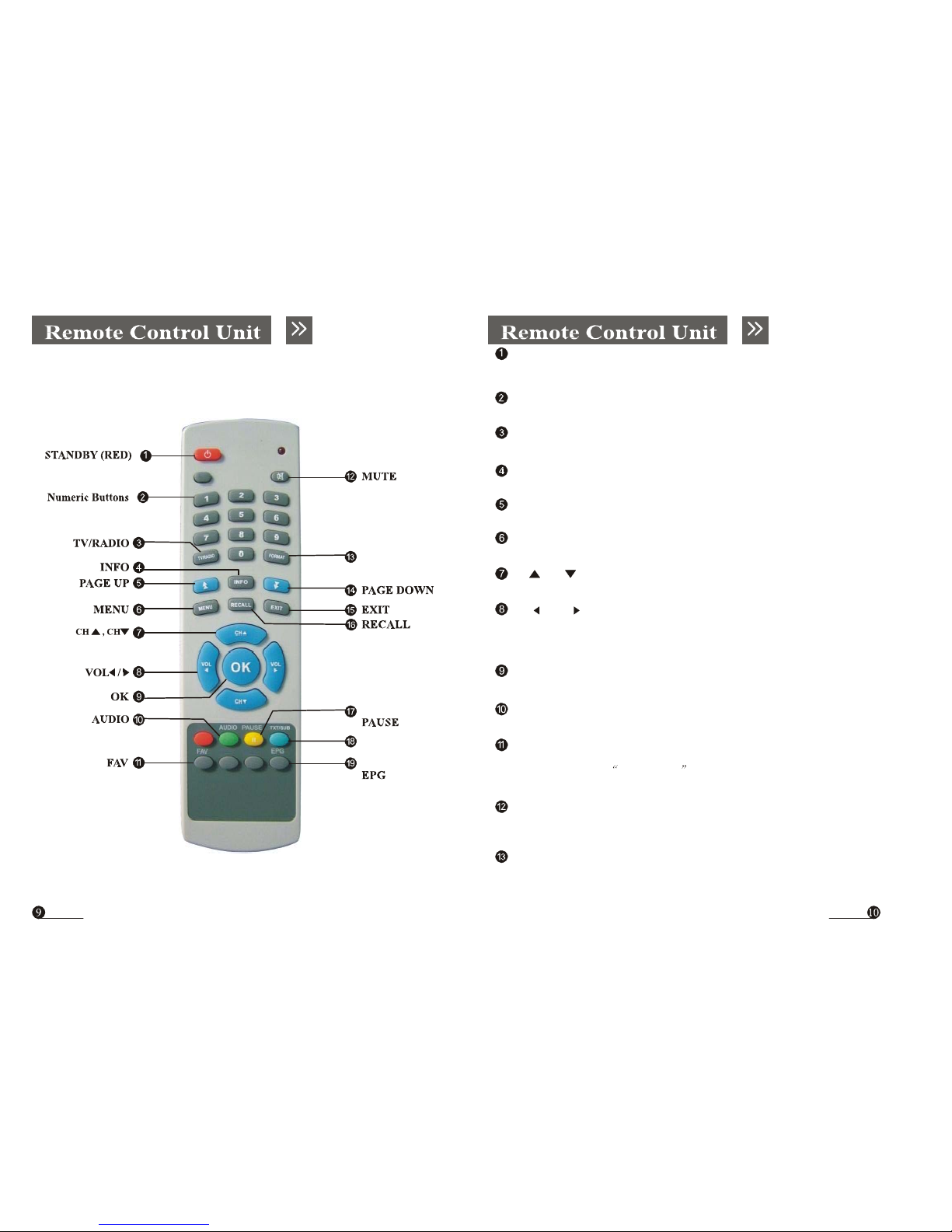

STANDBY (RED)
Switches between Operation and Standby modes.
Numeric Buttons
Changes channels or selects the menu options.
TV/RADIO
Switches between TV and Radio modes.
INFO
Displays the program information box on the screen.
PAGE UP
Press to jump one page up or change EPG program list up
FORMAT
MENU
Moves to main menu during TV viewing.
CH ,CH
Changes channels or items from top to bottom on the menu.
VOL ,
VOL
Turns up/down volume.
Changes the page of channel list.
OK
Displays the channel list and selects the item on the menu.
AUDIO
Changes audio mode to left right and stereo.
TXT/SUB
FAV
Selects favorite channel list or current channel list in the view mode In
Edit Channel mode’s Add favorite menu it changes the
right window’s channel list.
MUTE
Turns sound on or off.
FORMAT
To adjust TV
setting.
Page 7
PAGE DOWN
Press to jump one page down or change EPG program list down
IEXIT
Press to exit the current menu.
RECALL
Press to jump to previous Channel.
PAUSE
Pauses to freeze the screen.
TXT
Displays TXT information broadcasting from DVB-T TV provider.
EPG
Electronic Program Guide button displays the TV/Radio program guide
broadcasting by DVB-T TV provider
Various equipment and TV/VCR can be connected to STB.
This manual will explain common ways to connect to the equipment.
If you experience any problem, please contact your sales agency.

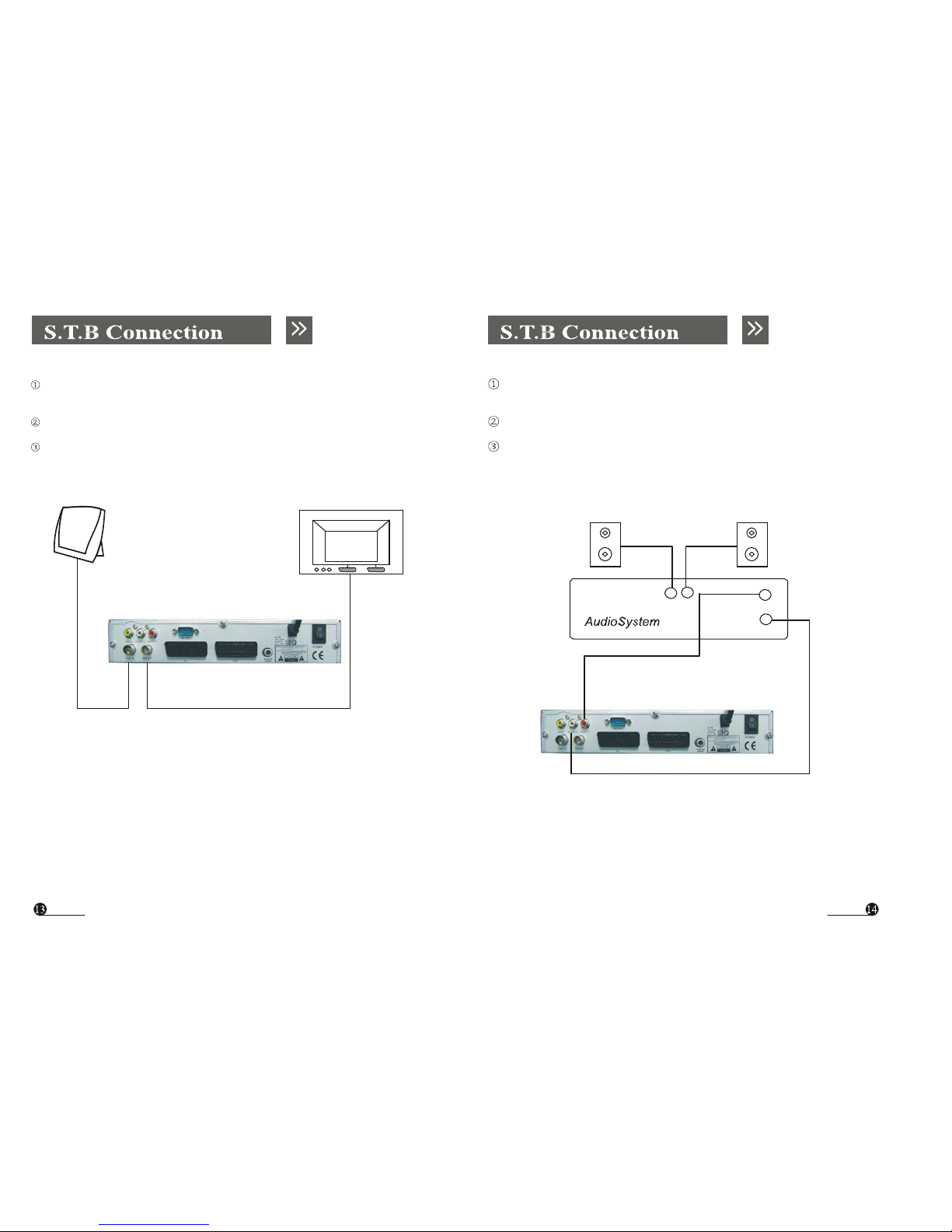

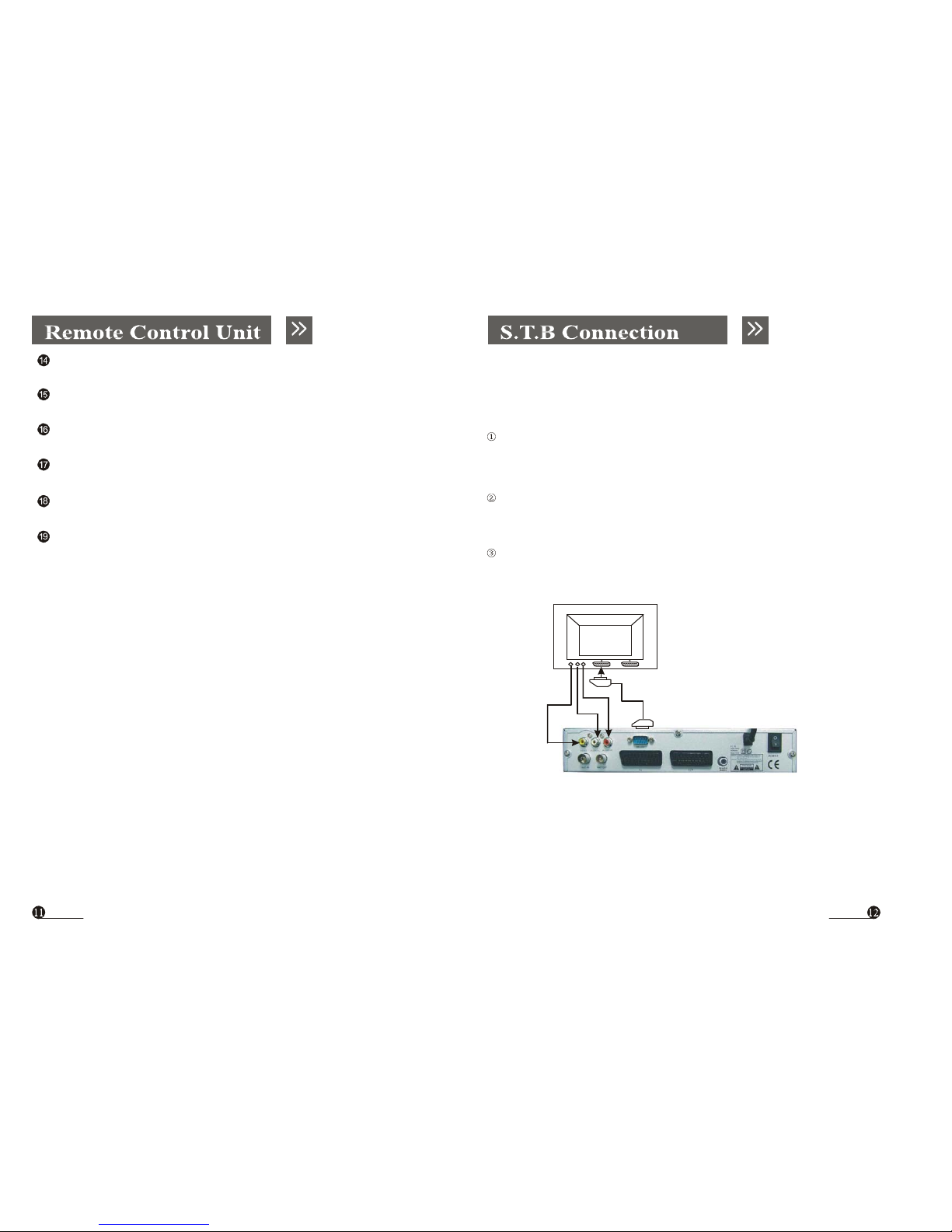

1. How to connect the STB to a TV set
Connect one end of the SCART cable to the TVSCART socket on the back of
the
STB and the other end to the SCART input socket on your TV.
Connect A/V RCAcable to A/V output on the STB, and the other end to A/V
input socket on your TV
Connect the antenna cable to the ANTENNAIN input connector of STB.
TV
STB
Page 8
2. How to connect to Terrestrial Antenna
Connect the ANT IN socket on STB to a Terrestrial Antenna, for the local
television broadcasting signal.
Connect the TO TV socket to input socket on TVusing the coaxial cable.
Adjust the Installation menu of STB to get the DVB-T TVprogram.
3. How to connect the Audio system
Connect the AUDIO R, L socket of the STB to theAudio System like HI-FI,
Amplifier, etc..
Audio System must capable of stereo audio ability
If Digital Audio or S/PDIF Optical output are available on STB, you can get
better stereo experience
Antenna TV
Stereo L Stereo R
STB
STB
Page 9

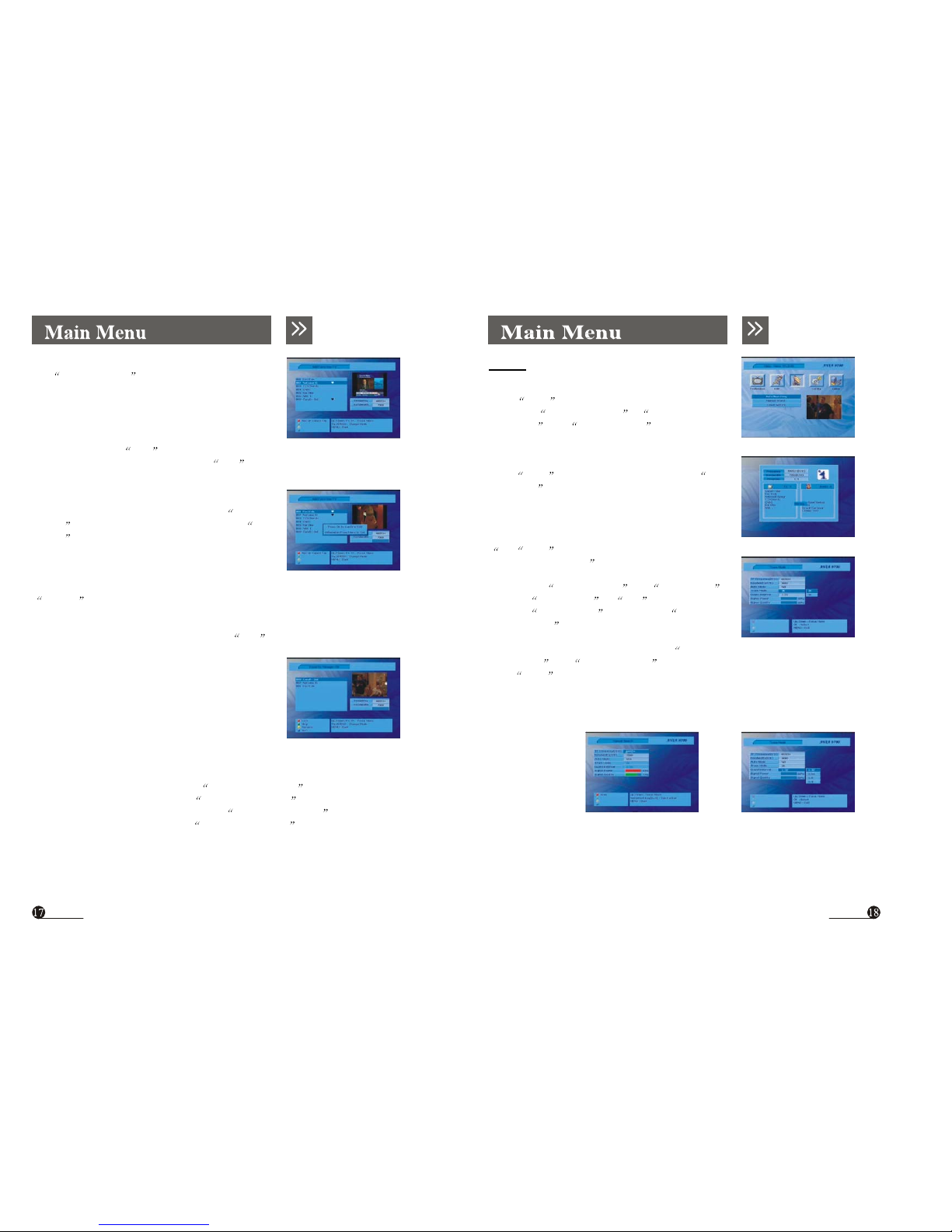

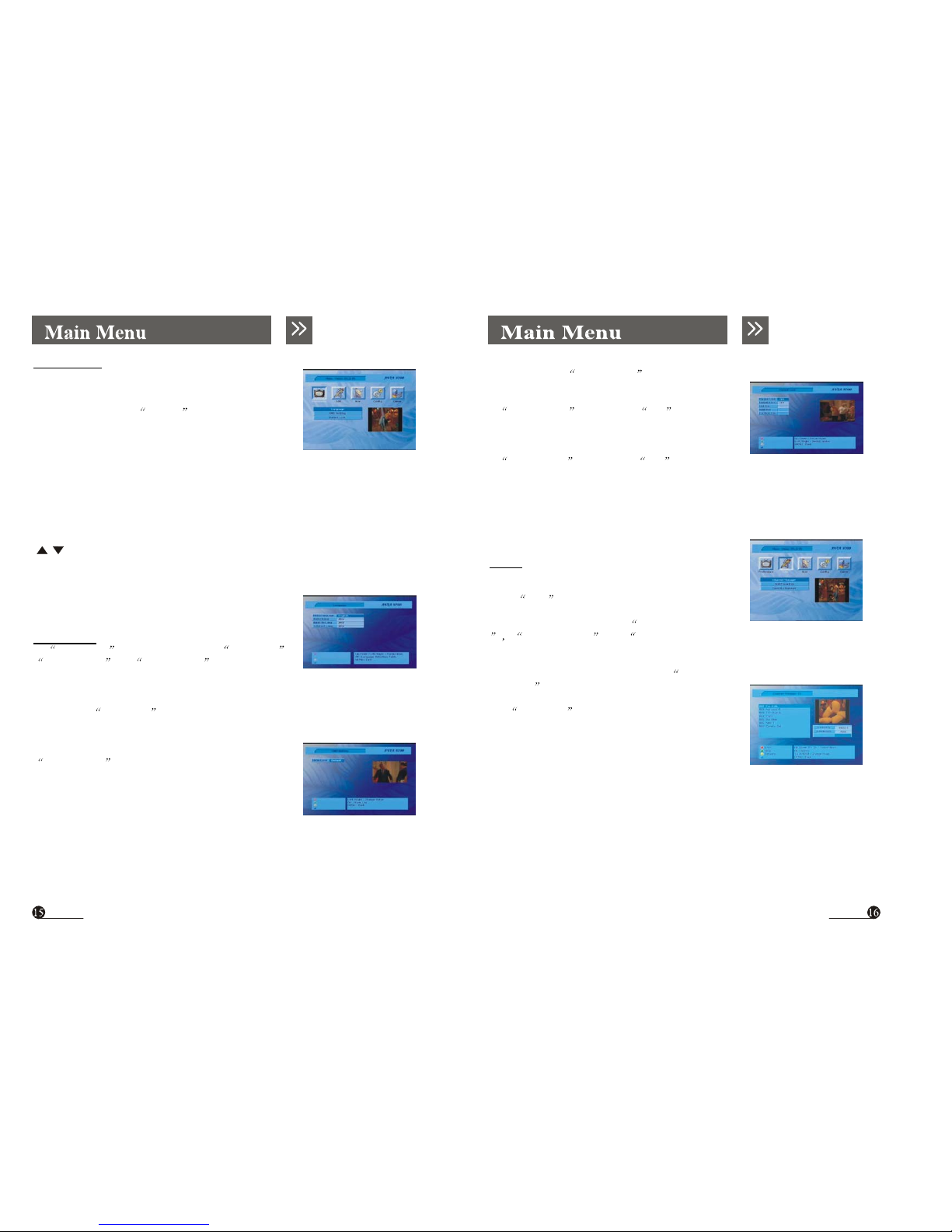

1. Main Menu
The STB contains a facilitated user interface, this function
is to make user easy to call all device functions. Operation
Steps: Press MENU ,you can see this main
menu.
When no menu is appeared on the screen, you press the
[MENU] key that will display the main menu. The focus
is stopped in the first item until the user select it.
Fig1.1
2.3 Parent Lock
When you select Parent Lock menu (Fig 2.3),
you can set lock function or modify your Pin code.
If Parent Lock item is set to ON ,you must
input the correct Pin code when you change to a locked
channel.
If Install Lock item is set to ON ,you must
input the correct Pin code when you want to enter the main menu.
Fig2.3
When menu is appeared on the screen, you press the [MENU] key that will return to
the up-level menu.
[OK] key: When you press the key that will go to current sub-level menu item.
The default Pin code is 8866.
[ ] Key: The focus will move up or down.
[EXIT] key: Close all menu.
2. Preference
In Preference menu user can select Language ,
OSD Setting and Parent Lock settings.
2.1 Language
User can use Language menu(Fig 2.1) to set the language type
2.2 OSD Setting
OSD Setting menu(Fig 2.2) let user select the color
of menu.
Fig2.1
3. Edit
Use the main menu, you can press left or right key to
select Edit icon (see Fig 3.1).
From this menu, we can select Channel Manger
Add Favorites and Favorite Manger items.
3.1 Channel Manager
You can edit channel information in the Channel
Manager Menu (Fig 3.2).
Use TV/Radio key to view TV or radio channel list.
With the help of menu, you can set the channel status.
Fig3.1
Fig3.2
Fig2.2
Page 10

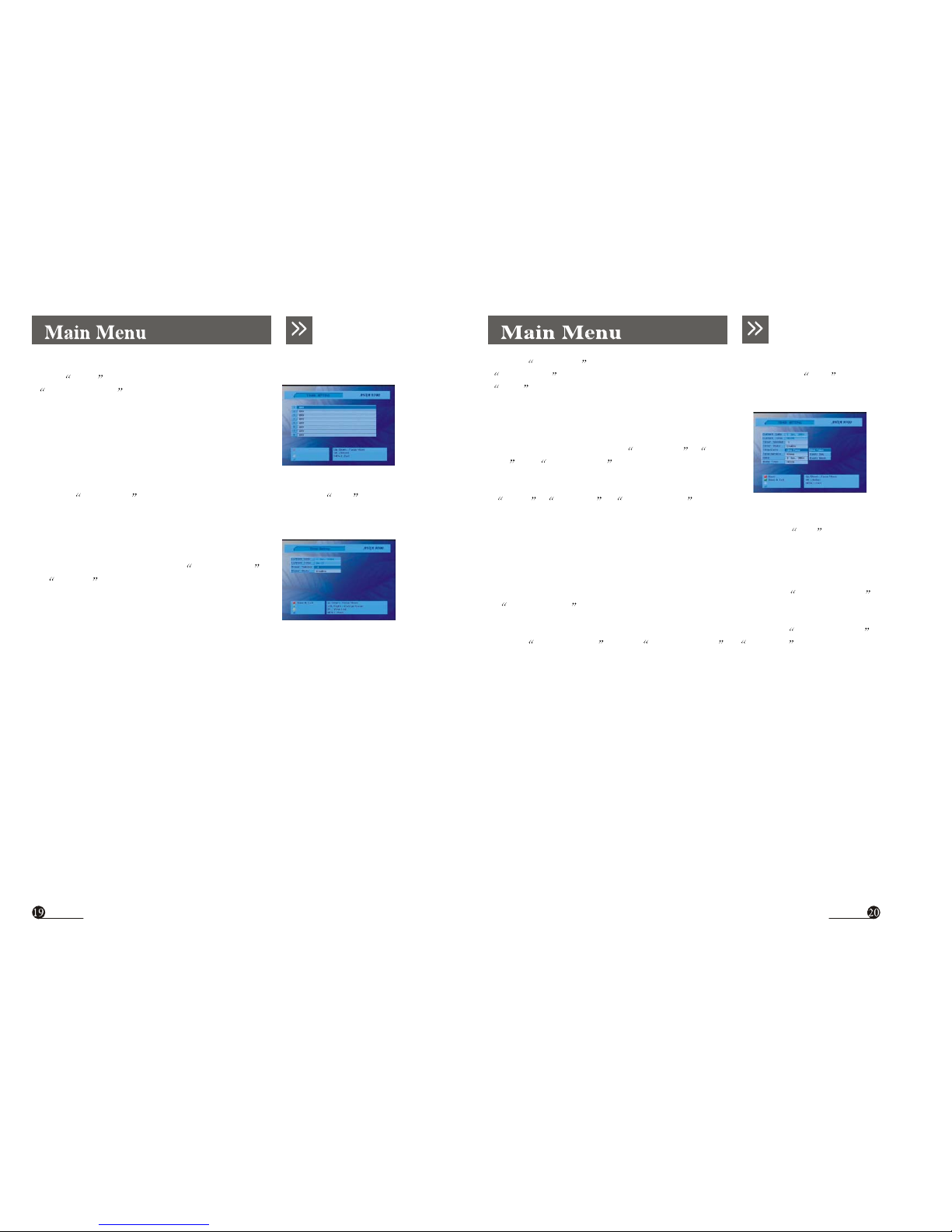

3.2. Add Favorites
Use Add Favorites ,you can designate the
channels of the current TV/Radio list as favorite
channels.
Move cursor to the required channel with Up/Down
key, and then press Red key on the remote
controller to set channel as favorites. If Red key
is pressed again the selected channel is un-selected
from your favorite list.
To select Radio channel in the TV list, use TV
/Radio key on the remote controller, and use TV
/Radio key to select TV channel in the Radio
channel list.
When you want exit from this menu, please press
Fig3.3
Fig3.4
4. Scan
Use the main menu, you can press left or right
key to select Scan icon. (Fig 4.1)
From this menu, we can select Auto Searching,
Manual Searching and Timer
Setting items.
4.1 Auto Search
From Scan menu (Fig 4.1), you can select Auto
Searching menu (Fig 4.2).User can select this
menu to search the whole programs of the default
frequency range.
4.2 Manual Searching
From Scan menu (Fig 4.1), you can select
Manual Searching menu (Fig 4.3).
Set the TP Frequercy and Bandwidth .
Fig4.1
Fig4.2
MENU key, you can see a dialogue (Fig 3.4), this dialogue let you confirm your
operation.
You can see the favorite list if you press the Fav key while you are watching TV
(or listening Radio channel) in normal state.
Set Auto Mode to NO .
Set Trans Mode (Fig 4.4) and Guard
Interval (Fig 4.5)parameter.
If there is some signal displayed in Signal
Power and Signal Quality items. press
Fig4.3
RED key to search program. If you can not see any signal, please check
the parameter setting
3.3 Favorite Manager
The function is basically the same as the
channel manager menu
Fig3.5
Lock: Same as the Lock function in Channel Manager
menu. Skip: Same as the skip function in Channel Manager
menu. Rename: Same as the rename function in Channel
Manager menu. Sort: Same as the Sort
function in Channel Manager menu
Fig4.4 Fig4.5
Page 11
4.3 Timer Setting
From Scan menu (Fig 4.1), you can select
Timer Setting menu (Fig 4.8). This menu
can set 8 timers to make the receiver perform the
designated actions.
Fig4.8
Use the Up/Down button to select item, and change the parameters Use
Left/Right button. If you have completed the timer settings, use Red or
Blue button to save timer setting.
Timer Number: You can select up to 8 timers.
Timer Cycle: You can set the cycle of the action
designated in the timer mode. One Time , Every
Day and Every Week
Timer Service: You can set the timer service mode
Use the Up/Down button to select the timer. If you press OK to select a
timer, You can see the current setting state of this timer (Fig 4.9).
( Sleep , Wakeup , VCR Record ). Fig4.10
Date: You can set the starting date of the timer action if you press OK , calendar
action.
If you use this timer, please set Timer State
to Enable status. You can see a extended
menu (Fig 4.10).
Fig4.9
Start Time: You can set the starting time of the timer action.
Ending Time: You can set the ending time of recording when the Timer Service
is VCR Record .
Channel: You can select the program channel to record when the Timer Service
is set to VCR Record .When Timer Service is Wakeup , this channel
is viewed by receiver
Page 12
5. Config
Use the main menu, you can press left or right key to
select Config icon (see Fig 5.1). From this menu, we
can select Clear Data , TV Setting , Set
Time , System Update and System
Information items.

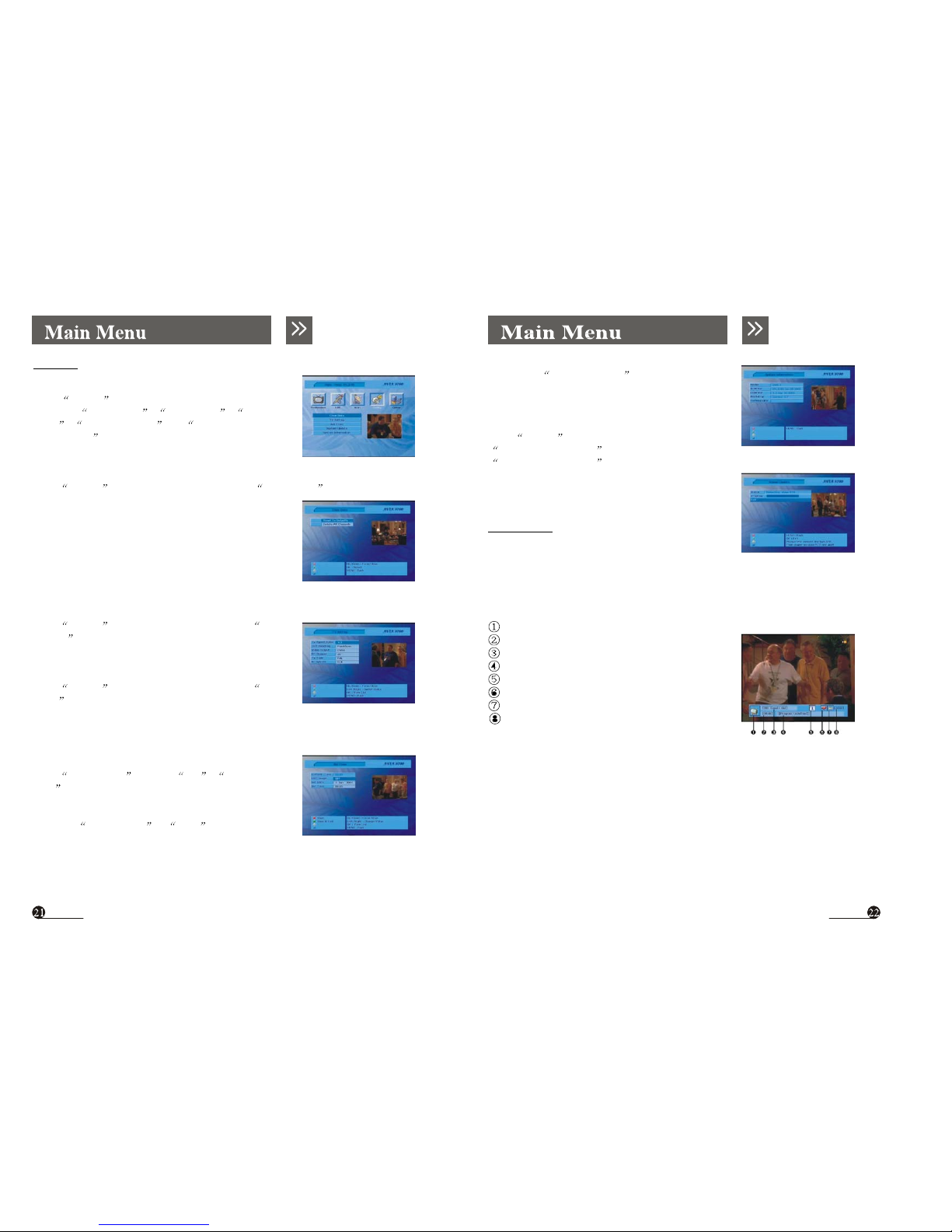

5.1 Clear Data
Fig5.1
5.4 System Upgrade
You can do System Update via other STB.
5.5 System Information
From Config menu (Fig 5.1), you can select
System Information menu (Fig 5.6).
System Information menu shows the system
information including the Firmware version and
Fig5.5
From Config menu (Fig 6.1), you can select Clear Data menu (Fig 5.2)
model name.
-Delete All Programs : Delete only the saved channel
data ,other setting values are not deleted.
-Reset To Default : Delete all the data currently saved,
and reset the system to the default status.
Fig5.2
6. Playback
In play status, various menus can be displayed on the
screen with remote control action. You can change the
current status and mode with various Keys.
6.1 Program information
Fig5.6
5.2 TV Setting
From Config menu (Fig 5.1), you can select TV
Setting menu (Fig 5.3) to set video and RF output.
5.3 Set Time
From Config menu (Fig 5.1), you can select Set
Time menu (Fig 5.4) to set your STB's time. This
function is useful for EPG and some timer functions.
Fig5.3
The bottom banner shows the information of the current channel. (see Fig 6.1)
Channel type icon, TV or radio
Current time
Channel number and the name of channel
Event name
Teletext icon
Favorite icon
Audio track status, left, right or stereo
Lock status
If a broadcaster provides GMT, you can set the time using GMT or set your own time
by yourself.
If the GMT usage is set to On , Current
time is automatically set and you can only set the time
-MUTE : Mutes the current channel audio.
-POWER : Turns the receiver power on/off.
Fig6.1
zone.
If you set GMT Usage to OFF , button on the
item then calendar window is displayed. You can select
the date from calendar.
Fig5.4
-SOUND : Sets the current channel audio to stereo/left-mono/right-mono.
-LANG : Shows the list of the audio language available in the current
Page 13
channel.(The selected audio language information is saved and applied when you
watch the channel.)
-TV/RADIO : Changes the current mode.
-Numeric Key(0-9) : You can change channel by input
the channel number directly.
-Up/Down : Move to the previous/next channel.
Fig6.1
6.3 Favorite List
If you press FAV on the remote controller at No
menu state, the screen is displayed as follows (Fig 6.3).
You can preview the channel and move the channel with
the UP/DOWN button.
Fig6.3
-MENU : You can enter the Main Menu.
-OK : You can select an item in the SAT,SUBTITLE or LANG list. Program list is
displayed according to TV/Radio Mode.
-EXIT : The button makes a banner or other lists including SAT,SUBTITLE and
LANG disappeared.
-PAUSE: Shows the video/audio output of receiver, To clear pause press PAUSE
button again.
-INFO : If you press the INFO button once, a banner is displayed on the upper part of
6.4 EPG
EPG shows the event information of the current
channel by time zone.
EPG is divided into Weekly mode, Daily mode, and
Extend mode, and provides timer based recording and
automatic power that have EPG information.
Fig6.4
the screen, and if you press the button again before the upper banner is disappeared,
the banner will show the details of the currents channel.
-FAV : The Favorite List is displayed.
If you press EPG key, the Weekly mode is displayed as the default mode.
-EPG : The EPG menu of the current TP is displayed.
6.2 TV/Radio List
If you press TV/RADIO/OK key on the remote
controller, at No menu state, the screen is displayed as
follows (Fig 6.2).
Fig6.2
Move the cursor to an event in the required time zone,
and press RED key. Then the timer is set to the
designated time. See 4.7 Timer Setting for detail
Fig6.5
You can preview the channel and move the channel with the UP/DOWN button
Page 14
6.5 Volume Control
Adjust volume: Press Left/right key on the remote controller at No menu state.
Mute: Press Mute key on the remote controller at No menu state
Fig6.6
6.6 INFO
If you press the INFO button once, a banner is displayed on the upper part of the
screen, and if you press the button again before the upper banner is disappeared, the
banner will show the details of the currents channel

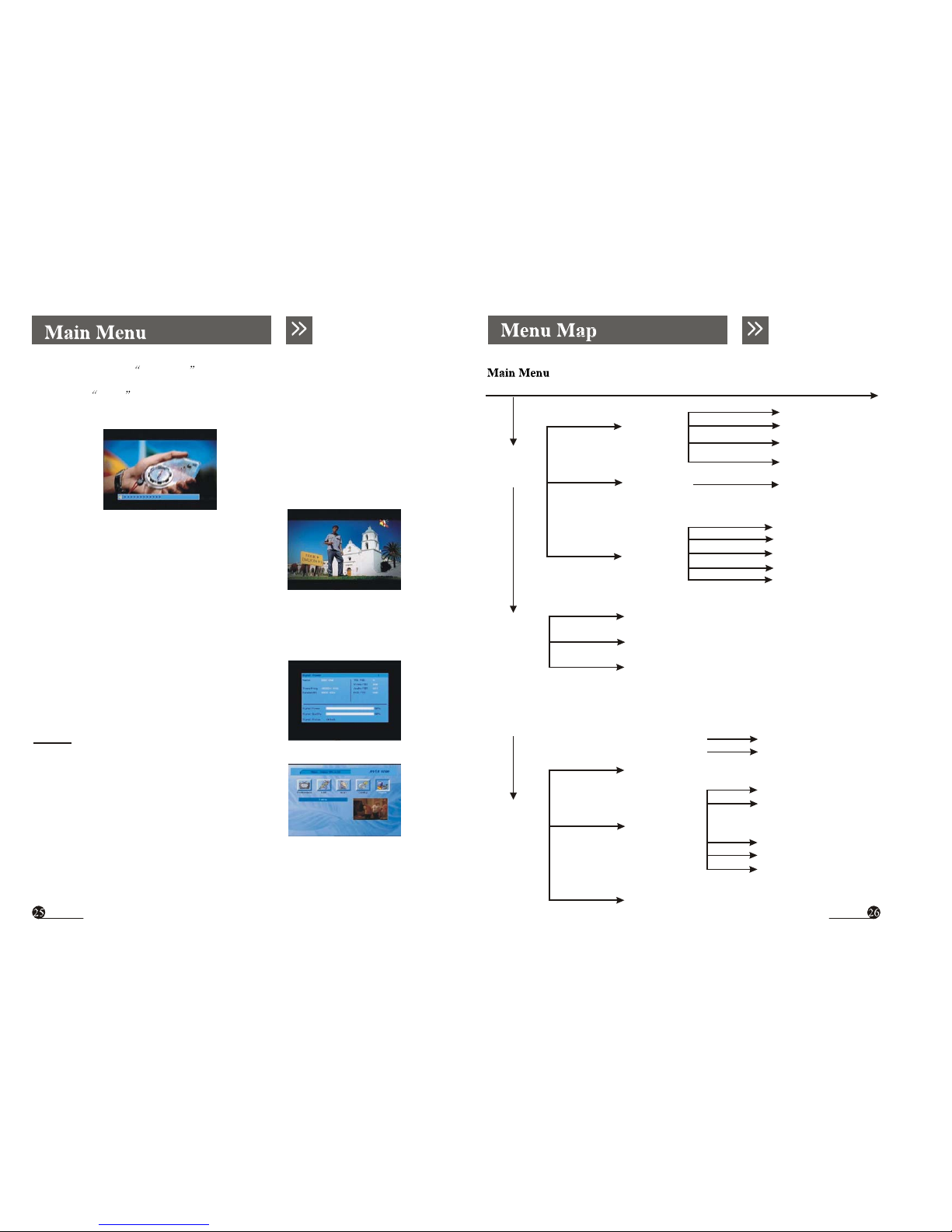

Preference
Language
OSD Setting
Parent Lock
Channel Manager
Menu Language
Audio Language
Subtitle Language
Teletext Language
Menu Color
Parent Lock
Install Lock
Old Pin
New Pin
Confirm Pin
7.Game
The Classic game of all time , Teris is one of most
highly playable game.
Fig6.7
Fig7.1
Edit
Scan
Add Favorites
Favorite Manager
Auto Searching
Manual Search
Time Setting
TP Frequency(Khz)
Band width (Khz)
Auto Mode
Trans Mode
Guard Internal
Signal Power
Signal Quality
Page 15
1..Requested Devices
Clear Date
TVSetting
Reset To Defanlts
Delete All Channels
Tv Aspect Ratio
16:9 Handling
Video Output
TV Type
1) Computer: offer new software and procedure for the digital terrestrial receiver.
2) Digital terrestrial receiver : The receiver which is going to be upgraded. (
short as receiver )
3) Upgrading cable for PC to Unit : Across RS-232 cable
2.Operation
1) Turn off STB
2) A .Open update tool Serial App 2.6.exe
B. Choose the Include Software in
Software column.
C. Choose the name & way of update file .
( see picture A)
Cofig
Set Time
System Update
System Information
Current Time
GMT Usage
Set Date
Set Time
Status
Progress
Exit
3 ) Turn on STB . You can see an window on the left
A
show as below :( see picture B)
At the same time you can see the progress in the below.
Bootstrap Version 108HY for AVA 9700
Copyright ( C) 1999-2003 LSI Logic Corporation
Creation date : Jun.21, 2004 11:35:01
Stepping : AviV 9700 B
B
SYS Clock : 121.5 MHz
TYPE : ??? [ SDR, 1X32 Mbits]
SCF : 0 x 8201135 D [ INIT] 0 X 82C 1135D
SCC: 0 x 010078A0 [ INIT ] 0 x 010078 A0
DLL: 0 x 00000368
Set Antenna
Antenna 5V
Game
Tetris
Time out : Update ? Auto
C
4). Update finished . ( see picture C )
If you want to update again, please click the Restart button , then repeat the
process from one to three.
5). Update LOGO
The process is the same . A. Choose the Include Logo in I Frame Logo.
B. choose the name &way of update file .
Page 16

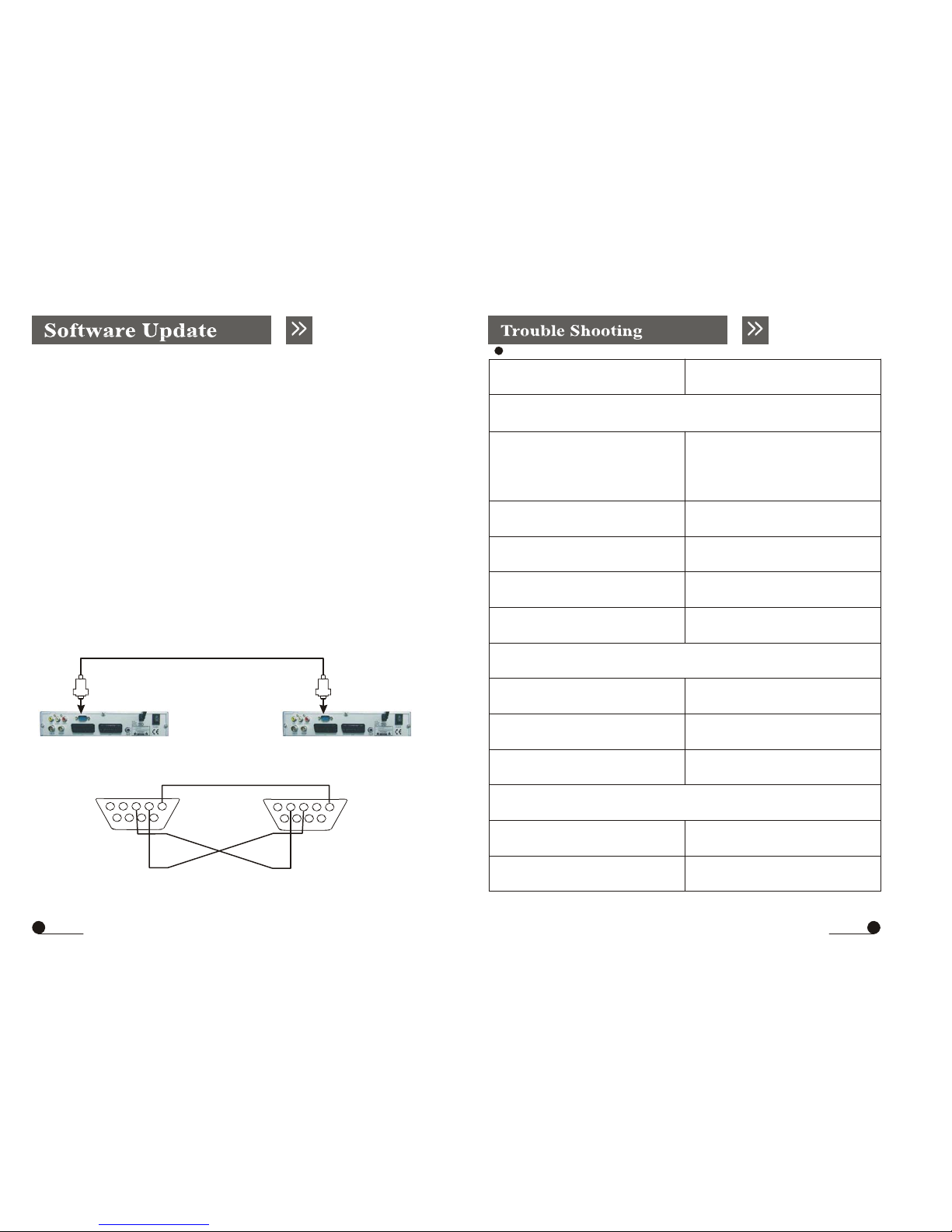

3. Update by Receiver
1.Set-to-set Software update with TV
1) Please connect Master receiver and Slave receiver with RS232 cable. Please
note that both master receiver and slave receiver must be turned off before the
connection with RS232 cable.
Trouble shooting
Possible Causes
Solution
No picture but on screen menus appear!
2) Power on Master receiver and enter into Config menu to display
system update, then turn on the slave receiver, after that the software will be
transferred from master receiver to slave receiver after detect. And after finished,
the slave receiver will re-boot itself, and be operation mode.
2. Set-to-set Software update without TV
1) Please connect Master receiver and Slave receiver with RS232 cable .
Please note that both master receiver and slave receiver must be turned off
before the connection with RS232 cable..
2) Please turn on the master receiver by clicking the power switch on the back
cover of the receiver.
3) Software updating begins, and wait till Slave Receiver re-boot itself and be
Terrestrial Antenna
system is
incorrectly installed.
Faulty Antenna
Incorrect TP data
High levels of signal loss through
cables
Check all connections and leads,
Replace Antenna
Re-input TP data
Use a signal booster or
replace cables
operation mode.
Faulty connection Repair connection
Remote control not working!
Batteries exhausted Check batteries
Incorrect function selected Press correct function key
Master Slave
RS-232 cable configuration
Remote control not pointed at
device
Make sure your remote control
is pointing on your device
123
45
678
9
2.RXD (Receive Data)
3.TXD (Transmit Data)
5.Ground
123
45
678
9
No stereo sound!
Incorrect cable connecting receiver
and TV
Check SCART cable
Incorrect volume value Check volume value
29 30
Page 17
Specification
1. VIDEO
Decoding Bit
rate Output
Aspect ratio
Active pixel
Output connector
2. AUDIO
Decoding
Mode
Bit rate
3. DEMODULATOR
Demodulation
Symbol rate
Outer code
Inner code
Energy dispersion
4. INPUT SIGNAL
Frequency
Bandwidth
Input level
Channel band width
Input socket
Output socket
5. RF MODULATOR
Input
Output
Band
TV Standard
Output Channel
6. MISCELLANEOUS
Supply voltage
Power consumption
Low consumption(Standby)
Operation temperature
Storage temperature
MPEG2 & MPEG1 compatible
Max 15Mbps
NTSC/PAL
4:3 / 16:9
720 x480@30fps; 720 x576@25fgs
RCA TV Scart VCR Scart S-Video
MPEG2 & MPEG l layer I & II
Mono Dual Stereo Joint stereo
Max 384kbps
COFDM
2K or 8K
Rs(204 188 8)
All DVB-T mode
DVB-T recommendation
51MHz~858MHz
6 / 7 / 8Mhz
32dBV
36MHz
IEC 169-24 FemaleX1
IEC 169-24 5V DC 75mA Max
IEC 169-24 MaleX1
IEC 169-24 FemaleX1
UHF
PALBG/I/DK NTSC M
21~69(PAL) 14~83(NTSC)
100~240VAC 50/60Hz
10watts max
<3watts
+5 to +40
-20 to +70
31 32
Loading...
