SMART MX 05 L Owner's Manual

Preface

Smart MX 05 L DE 1

MX 05 L

Digital Satellite Receiver

V

ersion 31.07.2009

Owner's Manual

Preface

2 DE Smart MX 05 L

Preface

Dear Customer,
Thank you for purchasing this digital satellite receiver Smart MX 05 L.
Before operating this receiver, please read the manual of the Smart MX 05 L.

carefully.
This manual helps you with the

• designated,

• safe and

• advantageous

use of the digital satellite receiver Smart MX 05 L.

Everyone who

• installs,

• connects,

• operates,

• cleans or

• disposes of this receiver

must have familiarised himself with the complete contents of this manual.

Please keep this manual always at hand near the receiver.

We hope you enjoy using your Smart MX 05 L.

Your smart electronic GmbH

Preface

Smart MX 05 L DE 3

Contents

Preface ............................................................................................................. 2

Contents........................................................................................................... 3

Safety Instructions.......................................................................................... 4

Designated Use ............................................................................................... 5

Scope of Delivery ............................................................................................ 5

SAVE ENERGY ................................................................................................ 5

Overview of the Units ..................................................................................... 6

Connection..................................................................................................... 10

Start-up of the Receiver................................................................................ 12

Settings .......................................................................................................... 13

Editing Channels........................................................................................... 15

Installation ..................................................................................................... 16

System Settings ............................................................................................ 17

Tools............................................................................................................... 19

Games ............................................................................................................ 20

Recording....................................................................................................... 21

Operation ....................................................................................................... 22

Update ............................................................................................................ 26

Cleaning ......................................................................................................... 27

Shutdown and Storage of the Receiver...................................................... 27

Troubleshooting............................................................................................ 28

Disposal ......................................................................................................... 29

Specifications................................................................................................ 30

Warranty......................................................................................................... 31

Manufacturer.................................................................................................. 32

Declaration of Conformity ............................................................................ 32

Safety Instructions

4 DE Smart MX 05 L

Safety Instructions

Caution!

Before operating the receiver, please read the safety
instructions carefully.

Please observe all warning and notes on the unit and in this
manual.

Moisture

• Make sure that receiver and mains plug do not come into contact with any
moisture whatsoever.

Electric Hazards

• Connect the receiver to 175 - 250 V ~, 50/60 Hz only.

• During an electric storm or operational faults, pull the plug.

Mechanical Hazards

• Do not bend or squeeze the cable.

• Repairs on plug, cable or receiver may only be performed by qualified

skilled personnel..

• Do not place any heavy objects on the receiver.

Correct installation site

• Place the receiver on a solid flat surface.

• Protect receiver from moisture, heat, dust, dirt, etc.

• Ensure sufficient ventilation (do not cover the ventilation slots)

Proper handling of batteries

• Batteries must be kept away from children.

• Leaking batteries may cause damage to the environment and the remote

control.

Ö Batteries must be disposed of in accordance with current legal regulations

(see chapter Disposal, page°29).

Designated Use

Smart MX 05 L DE 5

Designated Use

The digital satellite receiver Smart MX 05 Lis intended for the reception of
digital satellite programs in the private sector. It is designed exclusively for this
purpose and may be used only for such purpose.

Any other purposes are not considered the designated use.
We will not be held liable for damage caused by such use contrary to the

designated use.

Scope of Delivery

• Satellite Receiver Smart MX 05 L,

• Remote control

• 2 batteries (AAA) for the remote control,

• one owner's manual.

If you have any questions:
Ö please contact the manufacturer (see chapter Manufacturer, page°32)

SAVE ENERGY

The receiver Smart MX 05 L is equipped with special energy-saving electric
and electronic components. Moreover, a well thought-out energy management
will help you save energy.

the SAVE-ENERGY Standby mode will lower the power consumption to
considerably less than 1 Watt!

Overview of the Units

6 DE Smart MX 05 L

Overview of the Units

Receiver

Figure 1: Operating elements and connections

No. Designation Function

1 STANDBY Standby/Normal mode selector switch

VOL- To reduce the volume / in the menu to the left
VOL+ To increase the volume / in the menu to the right
OK To show channel list / To confirm menu item
CH- Channel Down / in the menu down

2

CH+ Channel Up / in the menu up
3 EXIT To exit menu or menu item
4 MENU To display menu or exit menu
5 Display and LEDs red = Standby; green = Normal mode
6 USB USB connection behind flap

Overview of the Units

Smart MX 05 L DE 7

No. Explanation

7 LNB OUT – loop through for additional receivers
8 LNB IN – Antenna connection
9 Scart connection of TV set

10 Scart connection of video/DVD player
11 RS-232 connection (for updates)
12 VIDEO – connection to TV set (Composite)
13 0/12V - Control voltage
14 Audio stereo connection
15 Digital Audio Output SPDIF
16 Mains switch

Remote Control

Inserting batteries

Figure 2: Inserting the batteries into the remote control

Replacing the batteries

Ö Replace batteries when the range of the remote control is decreasing or

when the receiver no longer reacts to all commands.

• Required batteries 2 size AAA

• When not used for prolonged periods of time, batteries may

leak. Remove batteries from the remote control if it is not
used for long periods of time (> 1.5 years).

• When replacing batteries, always replace all batteries.

Overview of the Units

8 DE Smart MX 05 L

Keys of the remote control handset

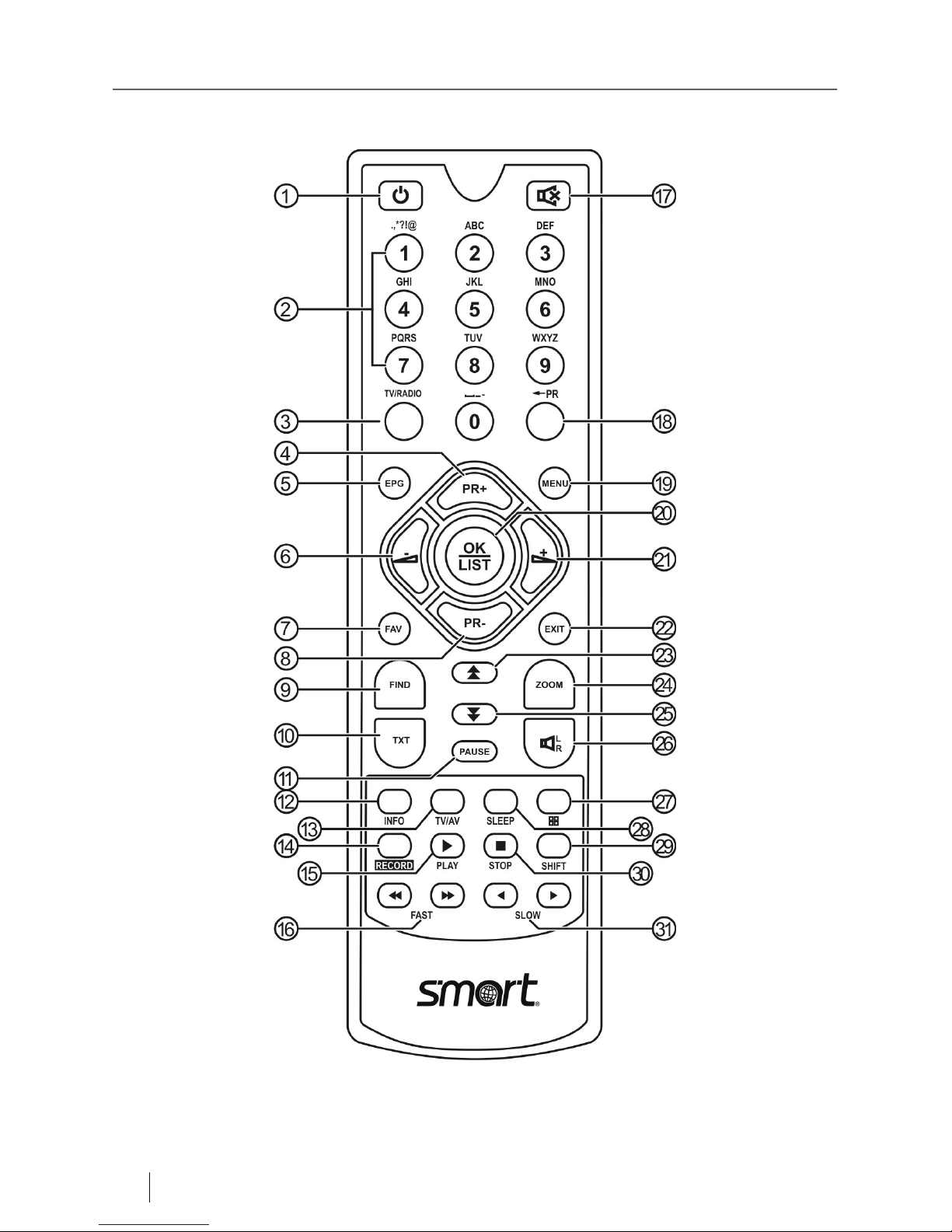

Figure 3: Remote control

Overview of the Units

Smart MX 05 L DE 9

No. Description

1 To switch between operating and standby modes.
2 Direct channel selection or input of alphanumeric characters
3 To switch between TV and radio modes.
4 Channel + or cursor up
5 To start/finish Electronic Programme Guide
6 Volume - or menu option left
7 To load favourite channel list
8 Channel - or cursor down

9 Channel search function
10 Video text
11 Still image
12 To show information on the current programme
13 To switch between TV and AV modes.
14 Recording
15 To play
16 Fast Forward and Backward
17 Mute switch
18 To switch to the previously selected channel
19 Main menu
20 To show channel list or confirm menu item
21 Volume + or menu option to the right
22 To exit menu or menu item
23 To scroll page up in menu
24 To enlarge image detail
25 To scroll page down in menu
26 To change Audio mode
27 To show several programmes on screen (multi-picture)
28 To set switch-off timer
29 Timeshift
30 Stop
31 Slow Fast Forward or Backward

Connection

10 DE Smart MX 05 L

Connection

Caution!

Connect the receiver first to the cable network and then to all
other units, before plugging the mains plug into the socket.

Figure 4: Connection diagram

Connection

Smart MX 05 L DE 11

1. Connecting the cable of the satellite installation

Ö Connect cable of the satellite installation to LNB IN.

The satellite signal that is active at the "LNB IN" connection is
looped through the receiver and can be tapped an the "LNB
OUT" connection, to connect, if desired, additional receivers.

2. Connecting the TV set

Is there a scart socket at the TV

set?

Is there a composite socket at the

TV set?

Ö Connect the TV set to the

receiver with a Scart cable.

Ö Connect TV set to the receiver

with a suitable cinch cable
(shown in dotted lines in the
circuit diagram).

3a. Connecting the stereo system

Once the receiver has been connected to the TV set with a
Scart cable, the audio signal can be tapped at the receiver
using AUDIO-L and AUDIO-R cinch sockets.

3b. Connecting the home cinema system

If your home cinema system can process digital audio data SPDIF:
Ö Connect the home cinema system to the receiver with a suitable cinch

cable.

4. Connecting the power supply

Once all units have been properly connected to the receiver:
Ö Plug mains plug into socket.

Start-up of the Receiver

12 DE Smart MX 05 L

Start-up of the Receiver

Switching on

Ö Switch on all connected units.
Ö Switch on the receiver on the mains switch at the rear panel.

The receiver is now in Standby mode.

Ö Swich on the receiver on the Power key of the unit or on the remote

control.

First start-up

During the first start-up or after a factory reset, the following menus appear
automatically.

1. Language

Here you can select the menu language of the OSD (On Screen Display).

2. RAPS

RAPS (Receiver Automatic Programming System) will
automatically programme for you the channel list and maintain
it automatically in the latest version.

If you need further information on RAPS, please contact your
specialist dealer, the manufacturer or visit www.raps.tv

3. Selecting a satellite

Ö Select which satellites you want to receive with your satellite system.

4. RAPS list and regional channels

Depending on the Länder setting, RAPS will save the correct
channel list and your regular regional station on the 3rd
channel.

4. Erotic contents

Ö Select whether or not you want to receive erotic channels.

Settings

Smart MX 05 L DE 13

Settings

A menu or OSD is an operator panel displayed on screen
(OnScreenDisplay)

Settings can be made both on the receiver keys (Fig. 5, left)
and on the remote control (Fig. 5, right).

Figure 5: Menu Navigation

Display/Exit menu

Ö Press MENU key.
The menu is displayed.

Ö Press EXIT key.
One level back in the menu
To return to the Normal mode, you may have to press the key several times.

Navigation in the menu

Ö Press PR+ in the menu, to go one menu item up
Ö Press PR- in the menu, to go one menu item down
Ö Press VOL+ in the menu, to increase the selected value
Ö Press VOL- in the menu, to decrease the selected value
Ö Press OK/LIST in the menu, to select a menu item or to confirm a set

value.

Menu items that are active are highlighted in colour.
The different menus explain the functions of each key once

again at the bottom margin of the screen.

Settings

14 DE Smart MX 05 L

Menu Structure

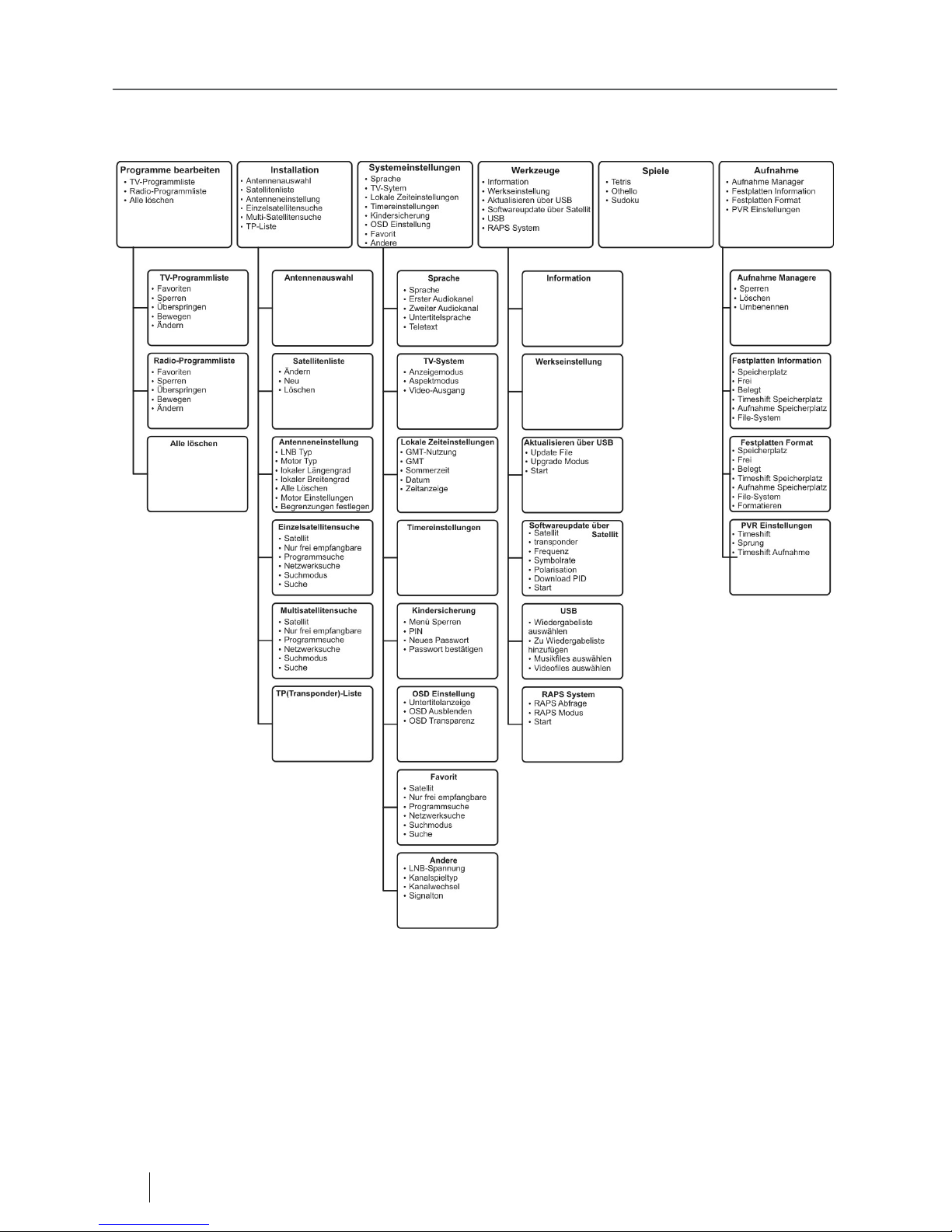

Figure 6: Menu Structure

Editing Channels

Smart MX 05 L DE 15

Editing Channels

TV Channel List / Radio Channel List

Here the current channel list can be edited. The following editing options are
available:

FAV To add a channel to a favourite channel group

Ö Mark channel
Ö Press "FAV" key
Ö Assigning a channel to a favourite channel group
Ö Press OK to confirm

Lock Protects a channel by a password

Ö Press red "FIND" key
Ö Mark channel
Ö Press OK to confirm and enter password

Skipping Skips a channel during zapping

Ö Mark channel
Ö Press green "ZOOM" key
Ö Press OK to confirm lock

Move Moves a channel to a different channel number.

Ö Press yellow "TXT" key.
Ö Mark channel
Ö Moves channel to the desired channel number.
Ö Press OK to confirm

Change Ö Press blue "AUDIO" key

• The red "FIND" key can now be used to resort the
channel list.

• The green "ZOOM" key can be used to rename the
channel.

• The blue "AUDIO" key can be used to delete the
channel.

Delete All

All channels are deleted

Installation

16 DE Smart MX 05 L

Installation

Antenna Selection

If several antennae are connected to your receiver, you can select the
antenna whose signal you want the receiver to receive.

Satellite List

Here you can set which satellites you are receiving.

Antenna Settings

In the Antenna Settings menu, you can make extensive settings with regard to
the received satellites, transponders, frequencies, motorised control,
polarisation, etc.

Caution!

If you're doubt, have an expert make the settings in this
menu.

For normal use, it is usually not required to make any settings
here.

Single Satellite Search / Multi-Satellite Search / TP List

Once you have activated RAPS, it is usually not necessary to
make any settings in these menus.

In the "Single Satellite Search" menu, you can search individual satellites for
receivable channels.

In the "Multi-Satellite Search" menu, you can search all received satellites for
receivable channels.

In the "TP List" menu, you can search individual transponders selectively for
channels.

System Settings

Smart MX 05 L DE 17

System Settings

Language

Language

Here you can select the menu language of the OSD (On Screen Display).

Audio chanel

Here you can select the language of the two audio channels.

Some stations broadcast in different languages. When the
language that you have set is broadcast, your TV set will
broadcast automatically in this language.

Language of the subtitles

Here you can select the language of the subtitles

Teletext

Here you can select the language of the teletext

TV System

Display Mode

Here you can select the video signal type.
The available options are PAL, NTSC, SECAM and PAL/NTSC.
PAL is the TV standard in Europe

Aspect Ratio

Here you can select in which length-to-width ratio the TV picture is to be
transmitted to the TV set.

Video Output

Here you can select which video output is to be used.

Local Time Settings

In this menu, you can select whether the time and date are to be transmitted
and set automatically (GMT = on) or whether you want to set time and date
yourself. (GMT = off).

System Settings

18 DE Smart MX 05 L

Timer Settings

In this menu, you can add, edit or delete timer events.

Timer events are times programmed by you, at which your TV
set will jump to a preset channel or record a programme and
save it to your data carrier.

Date and time are entered on the numeric keys of your remote
control.

You can also select a programme in your electronic
programme guide ("EPG" key on your remote control) and
directly add the timer.

Parental Lock

As-delivered the password is set to 0000.

Menu Lock

Here you can set whether access to the Settings menus is to be protected by
a password.

PIN

Here you can set whether certain channels (see TV Channel List) are to be
protected by a password.

New password

Here you can assign a new password.

OSD Settings

Display Subtitles

Here you can activate of deactivate the display of subtitles.

Hide OSD

Here you can set the time in seconds (1 - 10) during which the info menu
remains on screen when changing channels.

Tools

Smart MX 05 L DE 19

OSD Transparency

Here you can select how transparent you want the OSD to be.

Favourites

Here you can rename your favourite channel groups.

Others

LNB Voltage

Here you can select whether the reception head (LNB) is to be supplied with
power.

Channel Display Type

Here you can set whether all channels, only free-to-air channels or only
encoded channels are to be displayed.

Switching channels

When switching between different channels, it often happens
that a short pause occurs until the receiver shows the picture of
the selected channel.

Here you can set whether you want the picture to be frozen for a short instant
or prefer a black screen during this time.

Acoustic Signal

Here you can set whether you want your TV set to play an acoustic signal
while you're in the "Antenna Settings" menu.

The acoustic signal sequence accelerates when the signal is better and slows
down when the signal is poorer.

Tools

Information

This menu displays the version of your loaded software.
No settings are possible here.

Factory setting

In this menu, all receiver settings can be reset to the factory settings.

Games

20 DE Smart MX 05 L

Update via USB

In this menu, you can start the software update via USB

Software update via satellite

In this menu, you can start the software update via satellite.

USB

The USB menu can only be opened when a USB storage
medium has been connected.

To navigate through files and menus on the USB data carrier, use the arrow
keys and the OK key on the remote control (left) or on the receiver (right).

Figure 7: USB Navigation

Open Playlist

Add Selected File to Playlist

Show All Music Files

Show All Video Files

Games

This menu contains a few games:
For game selection and operation, see chapter Navigation in the menu, page

13).

Recording

Smart MX 05 L DE 21

Recording

Recording Manager

In this menu, all video recordings made by you are listed.

Play Video

Ö Mark Video
Ö Press OK to confirm
Ö Video is being played

Stop Video

Ö Press "Stop" on the remote control
Ö Video will stop, and the current programme will be shown on your TV set.

Edit Video

The following editing options are available:

Lock Ö The video is locked by a password

Delete Ö The video is deleted

Rename Ö The video is renamed

Hard Disk Information

This menu shows how much storage capacity is still available on your storage
medium. No settings are possible here.

Hard Disk Format

This menu allows you to directly format your storage medium.

Caution!

After formatting, ALL data on your storage medium will have
been deleted.

If you're doubt, have an expert make the settings in this
menu.

Operation

22 DE Smart MX 05 L

PVR Settings

Timeshift

To be able to watch TV with a shift in time, activate the Timeshift function.

Timeshift Recording

To store the programme seen with timeshift automatically on your data carrier,
activate this function.

Operation

Watching TV time-shifted (Timeshift)

If you connected a compatible data carrier to your receiver via USB (e.g. a
hard disk), you will be able to stop the currently broadcast programme and
continue it later on at exactly this position.

Ö In the "PVR Settings" menu, activate the "Timeshift" function.
Ö Press the "SHIFT" key on the remote control on your remote control during

operation

A Timeshift information field appears at the bottom margin of the screen.
The current programme is now being recorded on your data carrier.

Figure 8: Timeshift information field

Operation

Smart MX 05 L DE 23

Press the "PAUSE" key on your remote control, to stop the programme and
continue it later on at the same position.

The time display on the right and the blue "progress bar" show for how long
the programme has already been recorded.

The time display on the left and the small green vertical bar (on the progress
bar) show which position is being shown on your TV set.

You can now also go forward or backward in the recorded programmes, the
way you're used to from your DVD player or video player.

To hide the Timeshift information field, press the "EXIT" key and to display it
again, press the "SHIFT" key.

Recording a TV programme time-shifted (Timeshift)

To record a TV programme you are watching time-shifted or have been
watching time-shifted since you pressed the "SHIFT" key, press the
"RECORD" key. To stop recording, press the "STOP" key.

Recording a TV programme

Ö Press the "RECORD" key.
The "RECORD" information field opens.

Ö Close the information field by pressing the "EXIT" key.
Ö Stop recording by pressing the "STOP" key.

Recall

Press the key, to show an overview of the channels watched last.

Electronic Programme Guide

Ö To open the Electronic Programme Guide, press the EPG key.
The Electronic Programme Guide offers you the same information as your

printed TV channel guide (sequence of future programmes, more detailed
infos).

You can add programmes selected in the EPG directly to your
event timer by pressing the blue key.

(Electronic Programme Guide = EPG)

Operation

24 DE Smart MX 05 L

Channel List

Ö Press the OK key, to display the channel list.

The

and keys allow you to scroll through the channel

list page by page.
You can also display the TV channels arranged by different

types (e.g. news) and then select a channel.

Favourite Channels List

Ö Press the FAV key, to display a list of your favourite channels.
If you did not enter any favourite channels, no Favourite Channels List will be

shown. Instead the message "No FAV Channels" appears.

How to find channels

Ö Press the red FIND key, to display the menu for channel search.
Ö Enter the first letters of the channel to be found on the virtual keypad,

select the "OK" field and confirm by pressing the "OK" key.

All channels starting with the sequence of letters entered by you will be
shown.

Zoom function

Ö Press green ZOOM key, to enlarge individual image details.
A controllable magnifying glass appears on screen.

Ö Press the OK key to enlarge the selected image area.
Ö To leave the ZOOM menu, press "EXIT".

Video text

Ö To display/exit the video text, press the TXT key.

Pause

Ö To freeze the image of the programme currently shown, press the PAUSE

key.

Ö To cancel the Pause function, press the PAUSE key again.

Operation

Smart MX 05 L DE 25

Audio function

Ö Press the blue AUDIO key, to go to the Audio menu.
Here you can set the type of transmission of the audio signal.

• Stereo: the stereo signal is transmitted unchanged.

• Left: only the left audio channel is transmitted

• Right: only the right audio channel is transmitted

• Mixed: left and right stereo signals are mixed (Mono)

Timer

Ö Open the "System Settings" menu.
Ö Open the "Timer Settings submenu.

In this menu, you can add, edit or delete timer events.

Timer events are times programmed by you, at which your TV
set will jump to a preset channel or record a programme and
save it to your data carrier.

Date and time are entered on the numeric keys of your remote
control.

You can also select a programme in your electronic
programme guide ("EPG" key on your remote control) and
directly add the timer.

Subtitles

Ö Press the SUB key, to activate subtitles.

Sleep Timer

Ö Press the SLEEP key, to set a switch-off time.
Ö Press VOL+ key repeatedly until the desired length of time or until up to

three dots appear, to set the length of time using the numeric keypad.

Update

26 DE Smart MX 05 L

Programme Information

Ö Press the INFO key, to display additional information on the programme.
Ö Press the INFO key again, to display more detailed information on the

programme.

If a station does not broadcast additional information on the
programme, the text box remains empty.

Update

Via USB

Ö Search the appropriate software on the internet site www.smart-

electronic.de, store it on your USB data carrier and extract it (rar file).

Ö In the "Tools" menu, select "Upgrade via USB".
Ö Select the appropriate file.
Ö Start upgrade.

Via PC RS232

Ö Search the appropriate software on the internet site www.smart-

electronic.de, store it on your computer and extract it (rar file).

Ö Connect computer to receiver via a null modem cable (RS-232).
Ö Switch on receiver.
Ö Run the software on your computer.
Ö All other operating steps are shown on your computer monitor.

After the update has been completed successfully, the display "end" appears
on the receiver display.

Cleaning

Smart MX 05 L DE 27

Box-to-Box

Ö Switch on master receiver.
Ö Connect the two receivers to one another via a null modem cable (RS-

232).

Ö Switch on slave receiver.
Ö The OSD of the master receiver shows the display "Update RS-232".

After the update has been completed successfully, the display "end" appears
on the receiver display.

Cleaning

Risk of electric shock!

Liquids must be prevented from entering the unit.
Never clean the receiver with a moist cloth.
Pull the mains plug from the mains socket before cleaning.

Caution!

Do not use any solvent-containing cleaners such as benzin or
thinner.

Ö Clean the housing of the receiver with a dry cloth.

Shutdown and Storage of the Receiver

Ö Disconnect the receiver and the connected units from the power supply.
Ö Pull all connected cables.
Ö Remove the batteries from the remote control.
Ö Place the receiver, cables and remote control in the original packaging.
Ö Store the receiver and all accessories at a dry and dust-free location.
Ö Protect the receiver from frost.

Troubleshooting

28 DE Smart MX 05 L

Troubleshooting

Symptom Possible cause Remedy

Display is not
lit.

The power cable has not
been connected.

The main switch has not
been switched on.

Connect the power cable to the
mains socket.

Switch on the mains switch.

No sound or
picture, LED at
the receiver is
lit.

Receiver is in Standby
mode.

To switch on the receiver, press
the POWER key.

No sound or
picture.

No signal or only a weak
signal.

Check the cable connections to
the receiver and from the
receiver to the connected units
and fasten them, if necessary.

The TV set
has no picture.

The system is not
connected properly..

The TV set is not in the
AV mode.

Check the connection of the
Scart or composite cable and
fasten it, if necessary

Switch the TV set to the
appropriate AV input.

Picture only
black and
white and/or
not properly
synchronised.

The video format of your
receiver is not set
properly.

Adjust the TV standard of your
receiver to that of the TV set.

The remote
control is not
working.

The batteries are used
up.

The remote control is
aligned incorrectly.

Replace the batteries with new
ones.

Direct the remote control at the
front panel of the receiver.

If a malfunction cannot be eliminated by the above measures, please contact
your specialised dealer.

Disposal

Smart MX 05 L DE 29

Disposal

Caution!

Never throw receiver and batteries in the normal domestic
waste.

Inquire at your city or local government about proper and
environmentally suitable disposal methods for the unit. Take
used-up batteries to a collection point.

The WEEE symbol on the product or its packaging indicates
that this product is an electric or electronic unit. Do not dispose
of this unit with the domestic waste, but take it your local
communal collection point (recycling centre).

Your contribution to the disposal of this product will help
protect the environment and the health of your fellow citizens.
Recycling of materials helps reduce the consumption of raw
materials.

Help preserve the environment we are living in!

Specifications

30 DE Smart MX 05 L

Specifications

LNB and Tuner Input

F socket IEC 169-24

Input frequency range 950 MHz ~ 2150 MHz

Input level range -65 dBm to -25 dBm

LNB power supply 13/18 V, max. 400 mA

LNB control signal 22 kHz, 0/12 V

DiSEqC control Versions 1.0, 1.1, 1.2, 1.3

Demodulator

Front-end module QPSK

Input data rate 2 MS/s to 45 MS/s

SCPC- and MCPC-capble

System resources

Processor 216 MHz

SDRAM 16 MBytes

FLASH 2 MBytes

Video decoder

Video resolution (video format) 720 x 576 (PAL), 720 x 480 (NTSC)

TV screen format 4:3, 16:9

Remote Control

Range up to 7 m

Batteries 2 size AAA

Power supply unit

Power consumption max. 30 W

Standby power consumption max. 1 W

Power supply 175 - 250 V ~, 50/60 Hz

Warranty

Smart MX 05 L DE 31

Connectors

Data interface 9-pin, D-Sub

Data carrier interface USB 2.0

Digital Tuner Input (LNB IN) IEC 169-24

Loop-Through digit. Tuner (LNB-OUT) IEC 169-24

TV SCART Scart socket (EURO AV)

VCR SCART Scart socket (EURO AV)

Analog video output 1 cinch socket (RCA)

Analog audio output 2 cinch sockets (RCA)

Digital audio output (SPDIF) 1 cinch socket (RCA)

0/12V output 1 cinch socket (RCA)

Temperature

Operating temperature 0° C to +40° C

Storage temperature -40° C to +65° C

Dimensions and weight

Width 260 mm

Height 45 mm

Depth 145 mm

Weight approx. 1,5 kg

Warranty

The warranty for the digital satellite receiver Smart MX 05 L of the smart
electronic GmbH complies with the legal regulations at the time of purchase.

Manufacturer

32 DE Smart MX 05 L

Manufacturer

smart electronic GmbH
Industriestraße 29
78112 St. Georgen
Germany

Service Hotline: [phone] / 93 52 11 (0.14 €/min. from German landline)
Fax: [phone]
e-mail: [e-mail]
Internet: www.smart-electronic.de

Declaration of Conformity

The smart electronic GmbH, Industriestraße 29, 78112 St. Georgen, Germany
hereby declares that this product complies with the following directives and
standards:

• Low Voltage Directive 2006/95/EC

• EN 60065:2002+A1:2006

• Electromagnetic Compatibility Directive 2004/108/EC

• EN 55 013:2001+A1:2003+A2:2006

• EN 55 020:2007

• EN 61 000-3-2:2006

• EN 61 000-3-3:1995+A1:2001+A2:2005

• Type: Digital Satellite Receiver

smart electronic GmbH
