SMART MX 04 User Manual

V

ersion: 09.01.2008

User Manual

Digital Satellite Receiver

MX 04

Details see page 46

Preface

2 EN Smart MX 04

Preface

Dear Customer,
thank you for buying the Smart MX 04 Free-To-Air Digital Satellite Receiver.
Please read this user manual carefully before using this device.
This operating manual will help you in the

• appropriate,

• safe and

• favorable

usage of the digital satellite receiver, in short, the receiver. We assume that
the user of the receiver has overall knowledge regarding the handling of audio
and video equipment.

Each person who

• installs,

• connects,

• operates,

• cleans or

• disposes of

this receiver must be familiar with the entire content of this operating manual.
Always keep this operating manual in the proximity of the receiver.

Please keep this instruction manual for consulting near by the receiver.

WELA electronic Handels GmbH

Use Raps!

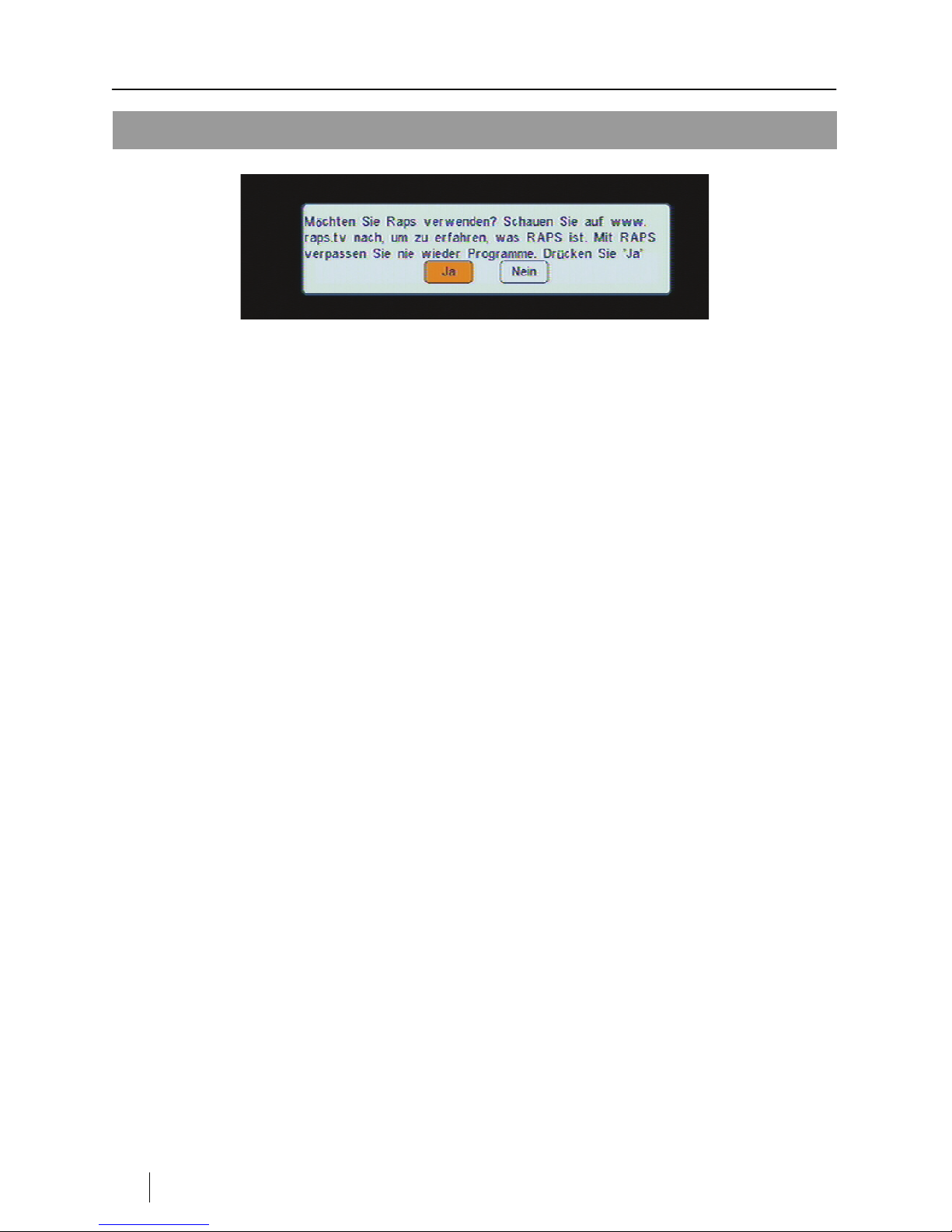

After switching on the receiver for the first time or after default
reset you will be asked if you would like to use RAPS. Select
yes by pressing OK on the remote control.

For mo

re information see chapter RAPS on page 46.

Contents

Smart MX 04 EN 3

Contents

Preface ............................................................................................................. 2

Contents........................................................................................................... 3

Safety Instructions.......................................................................................... 6

Electrical Connection ........................................................................................ 6

Correct Battery Handling................................................................................... 7

Appropriate Usage .......................................................................................... 7

Scope Of Supply ............................................................................................. 8

Description....................................................................................................... 8

Control Elements / Functions ........................................................................ 9

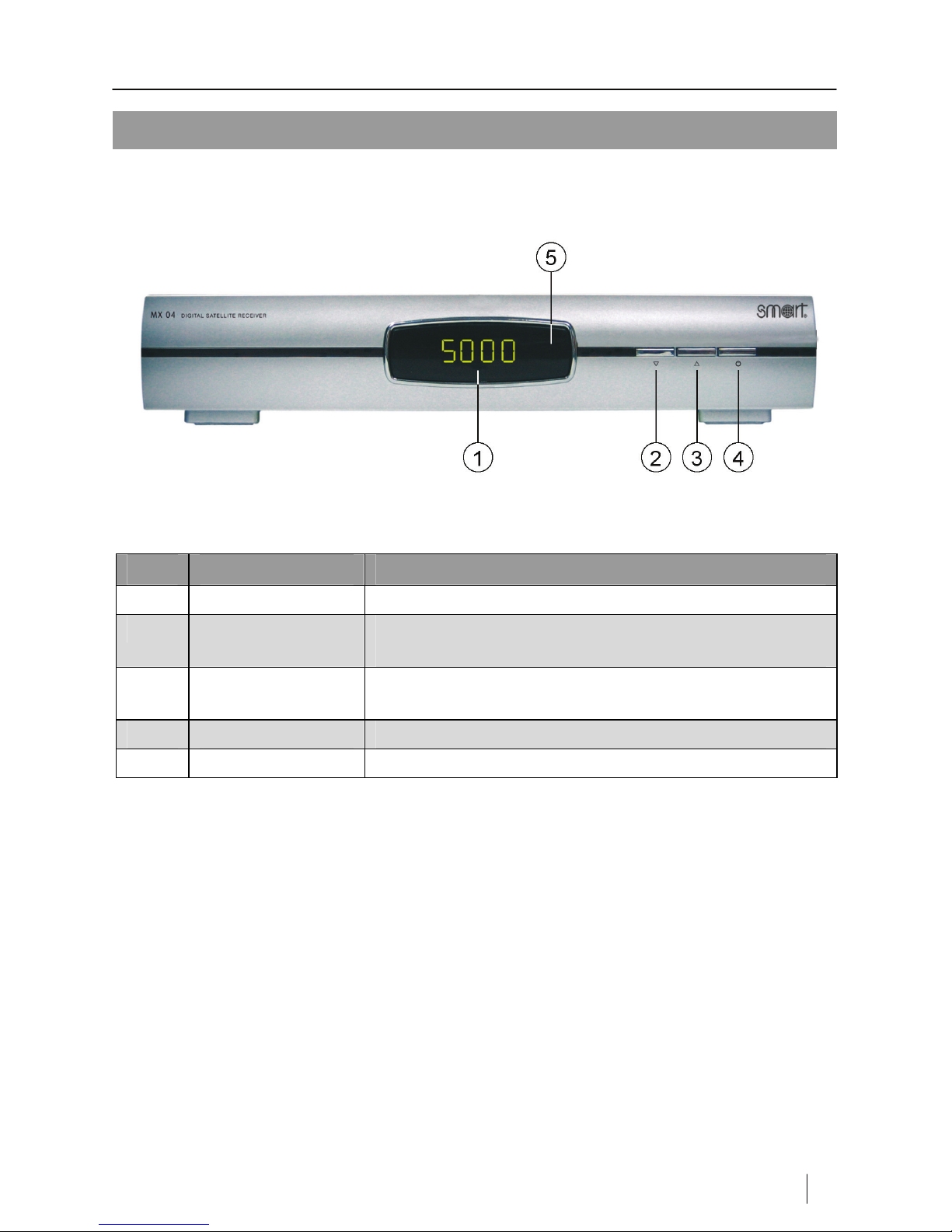

Front Side.......................................................................................................... 9

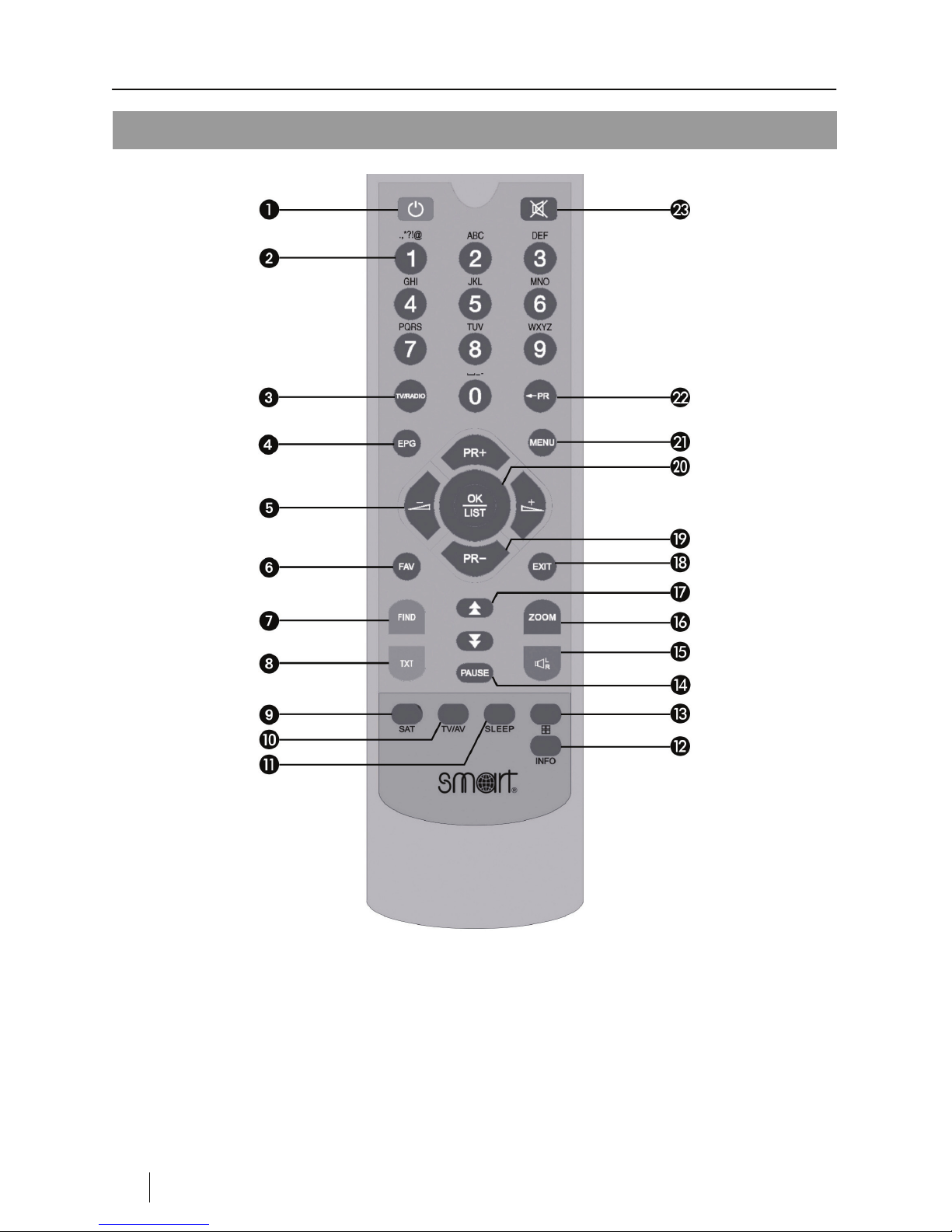

Remote Control ............................................................................................. 10

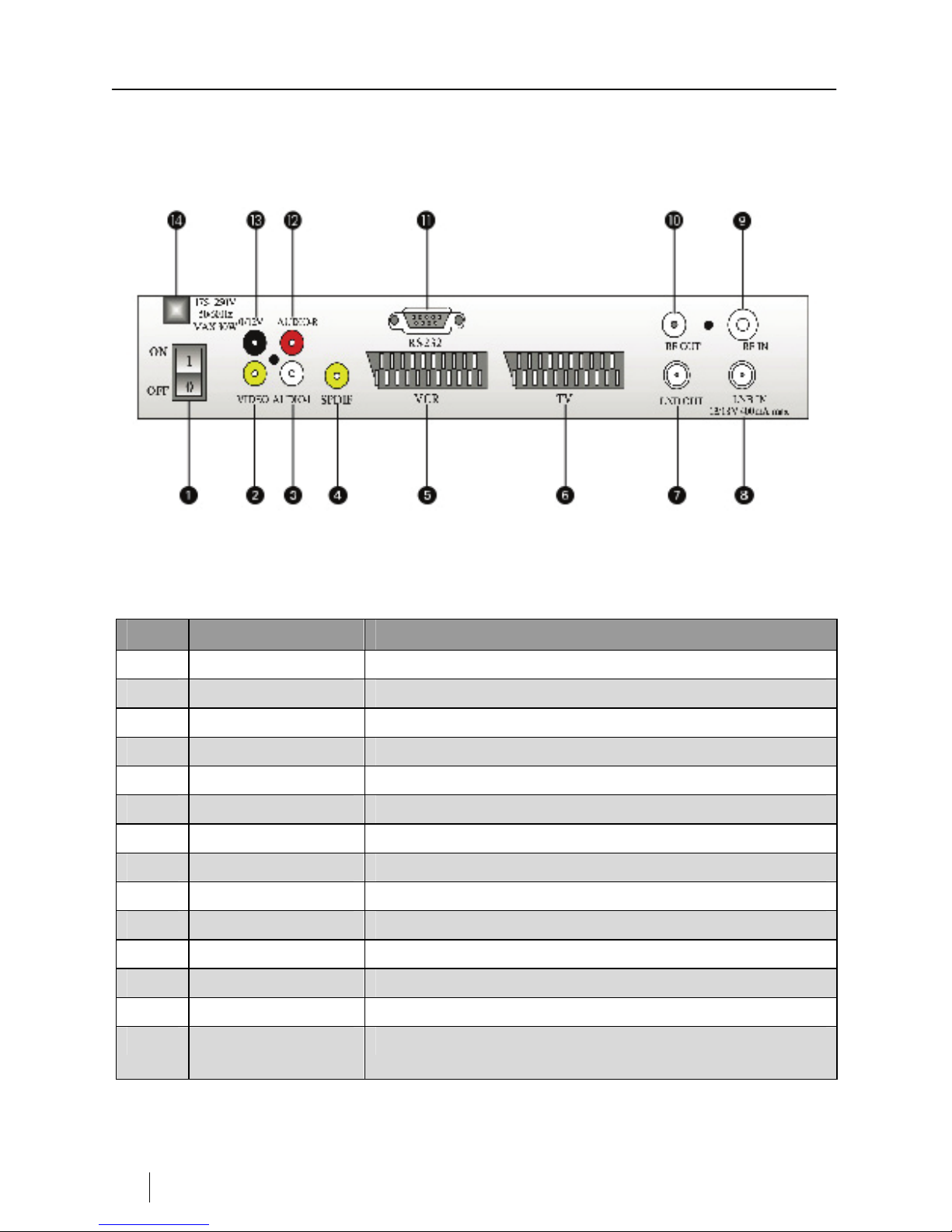

Rear Side With Modulator (optional)............................................................... 12

Inserting Of Batteries ...................................................................................... 13

Replacing Of Batteries .................................................................................... 13

Safety Instructions........................................................................................... 13

Connecting The Receiver ............................................................................. 14

Connecting The Satellite Antenna .................................................................. 14

Connecting The TV-Set................................................................................... 15

Connecting A Dolby-Digital Device ................................................................. 15

Operation......................................................................................................... 15

Start Operating The Receiver....................................................................... 16

Switching On The Receiver............................................................................. 16

Operating At The Front Panel ...................................................................... 17

Navigation In The Menus.............................................................................. 18

Insert Code..................................................................................................... 18

Edit Channel .................................................................................................. 19

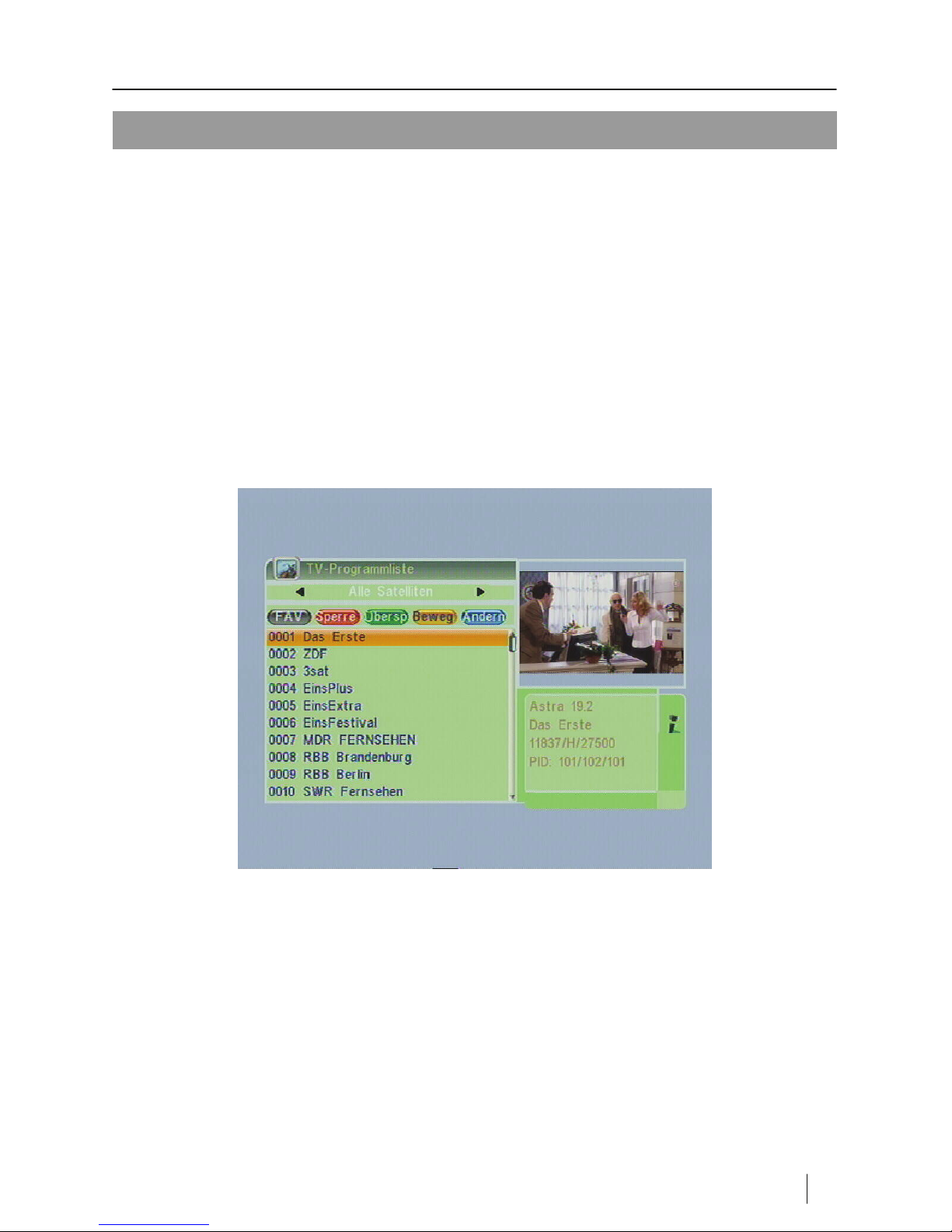

TV Channel List............................................................................................... 19

Radio Channel List.......................................................................................... 21

Delete All ......................................................................................................... 21

Contents

4 EN Smart MX 04

Installation ..................................................................................................... 22

Antenna Connection........................................................................................ 22

Satellite List..................................................................................................... 22

Antenna Setup ................................................................................................ 22

Single Satellite Search .................................................................................... 26

Multi Satellite Search ...................................................................................... 27

TP List ............................................................................................................. 28

System Setup................................................................................................. 29

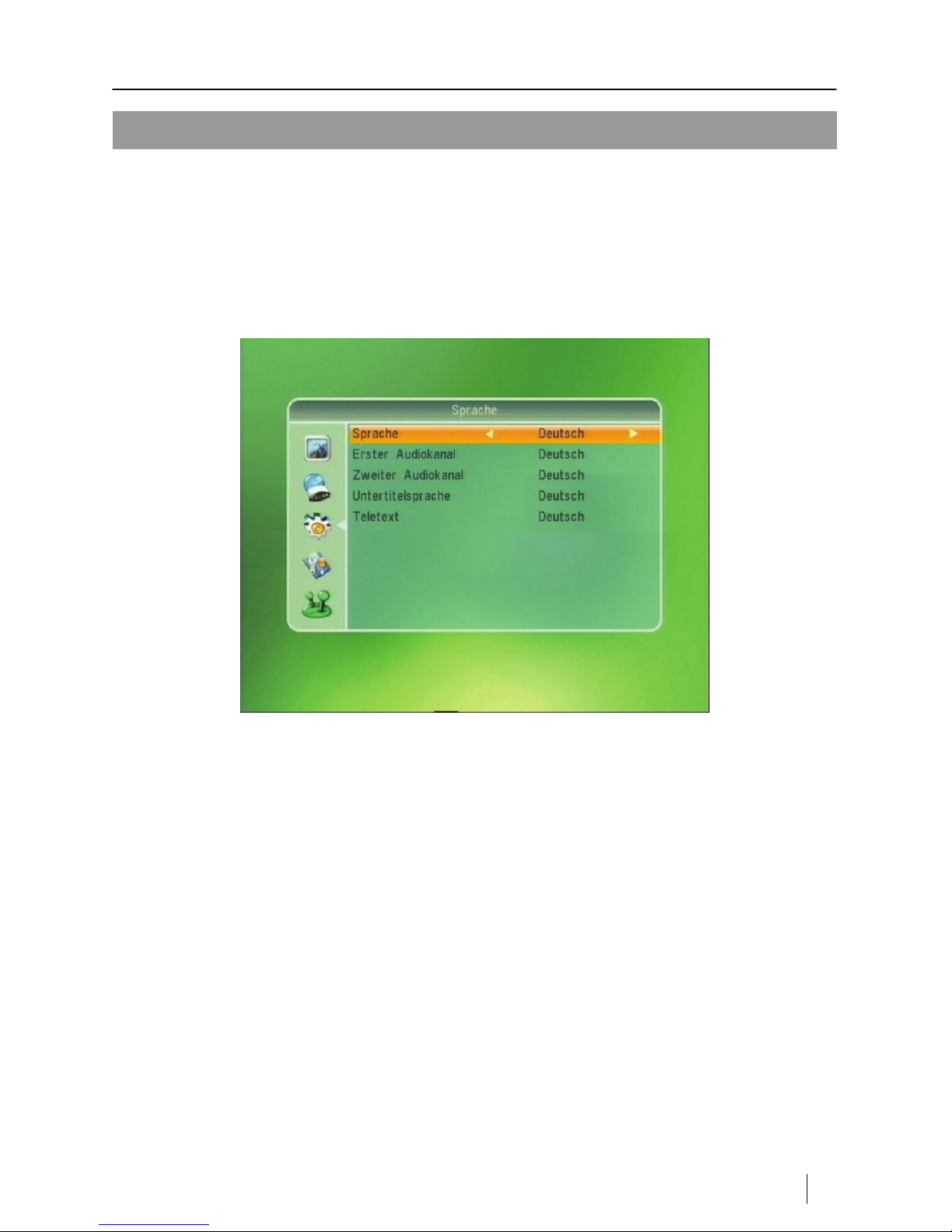

Language ........................................................................................................ 29

TV System....................................................................................................... 31

Local Time Setting .......................................................................................... 34

Timer Setting................................................................................................... 35

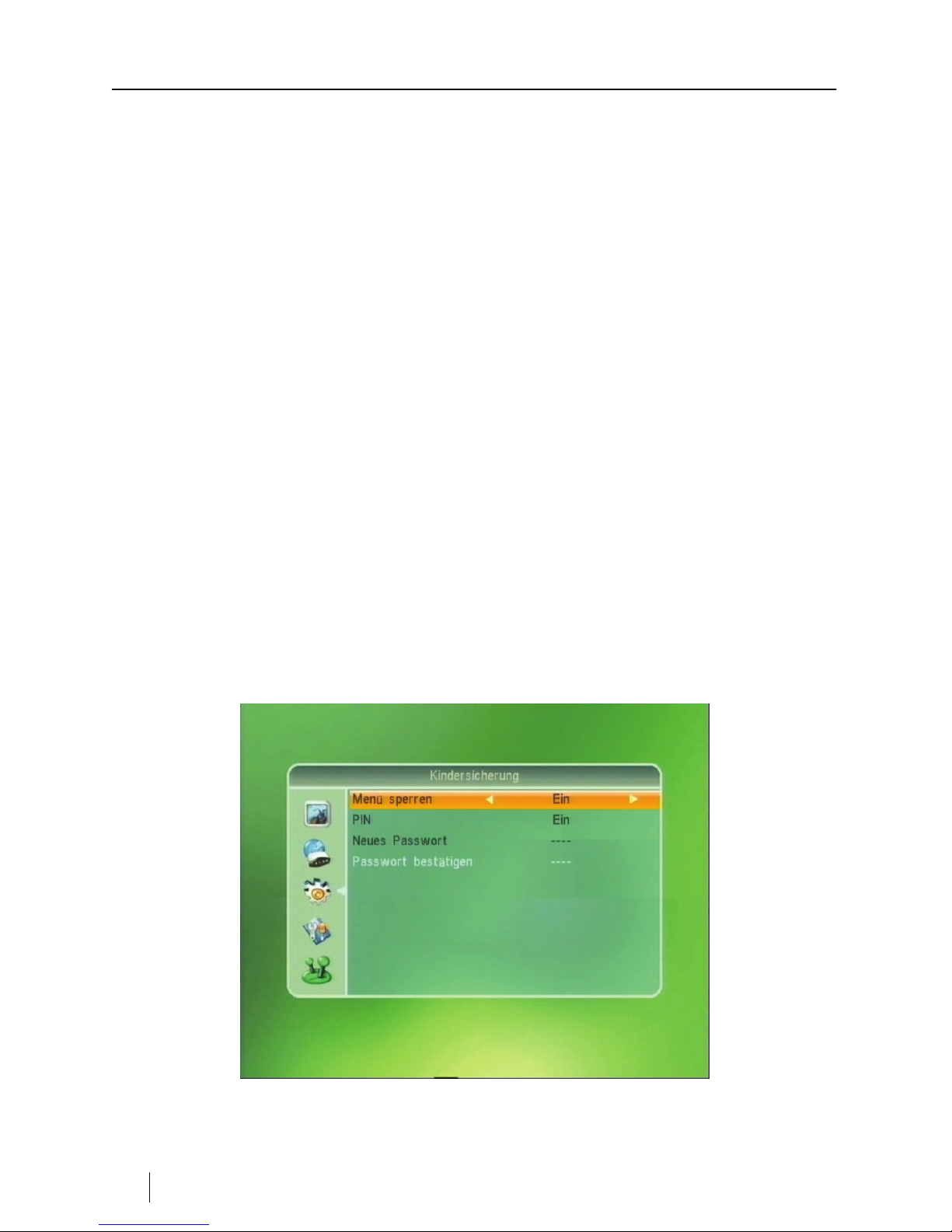

Parental Lock .................................................................................................. 38

OSD Setting .................................................................................................... 40

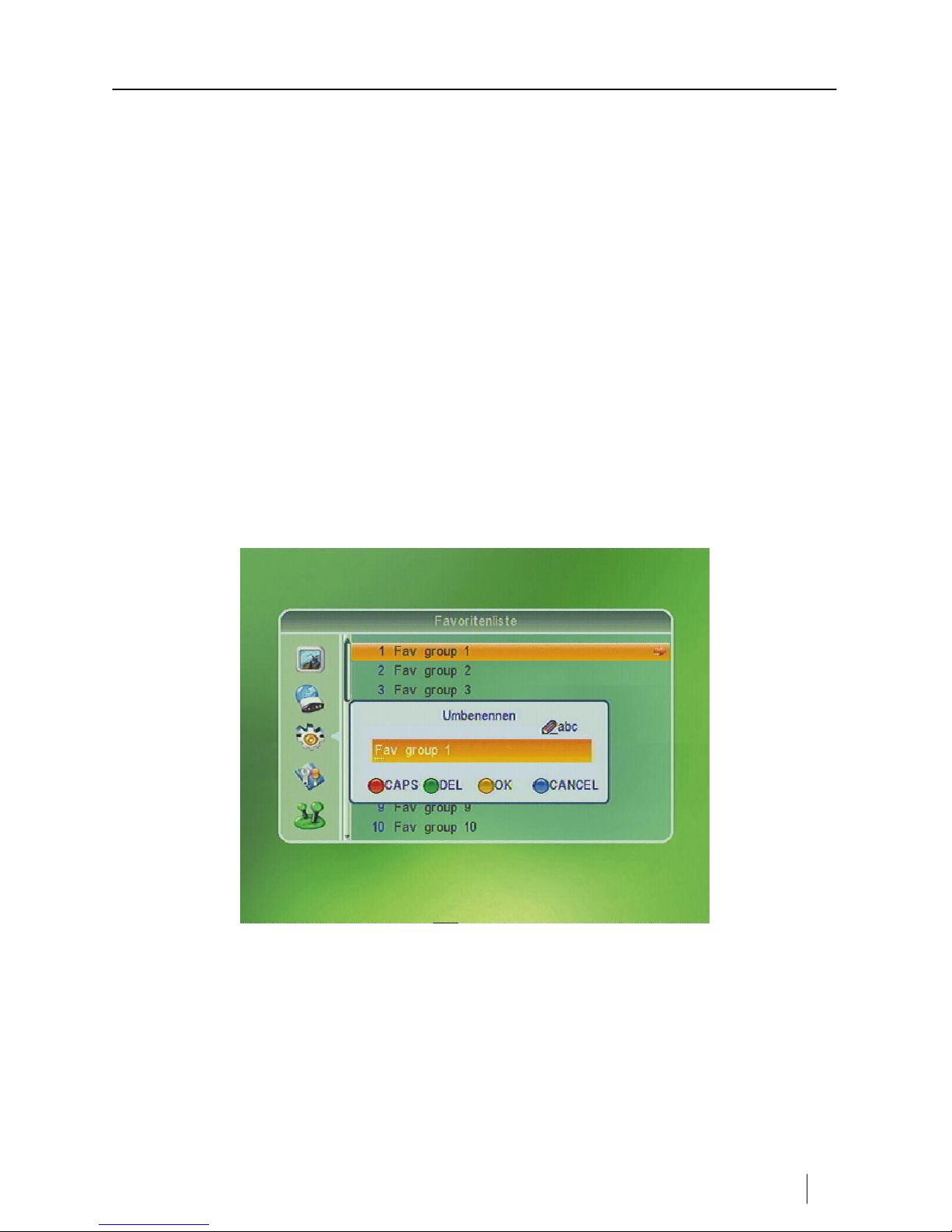

Favorite ........................................................................................................... 41

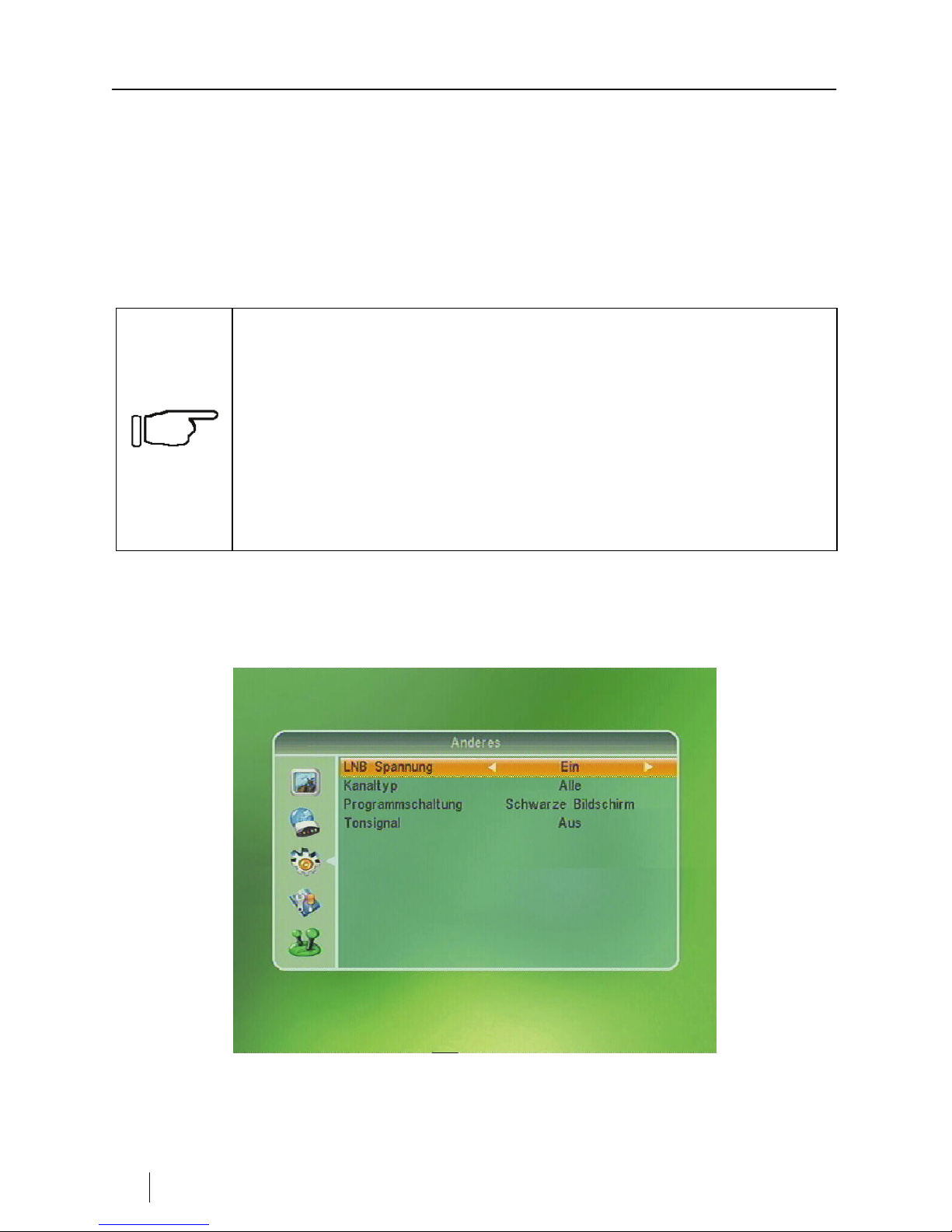

Other ............................................................................................................... 42

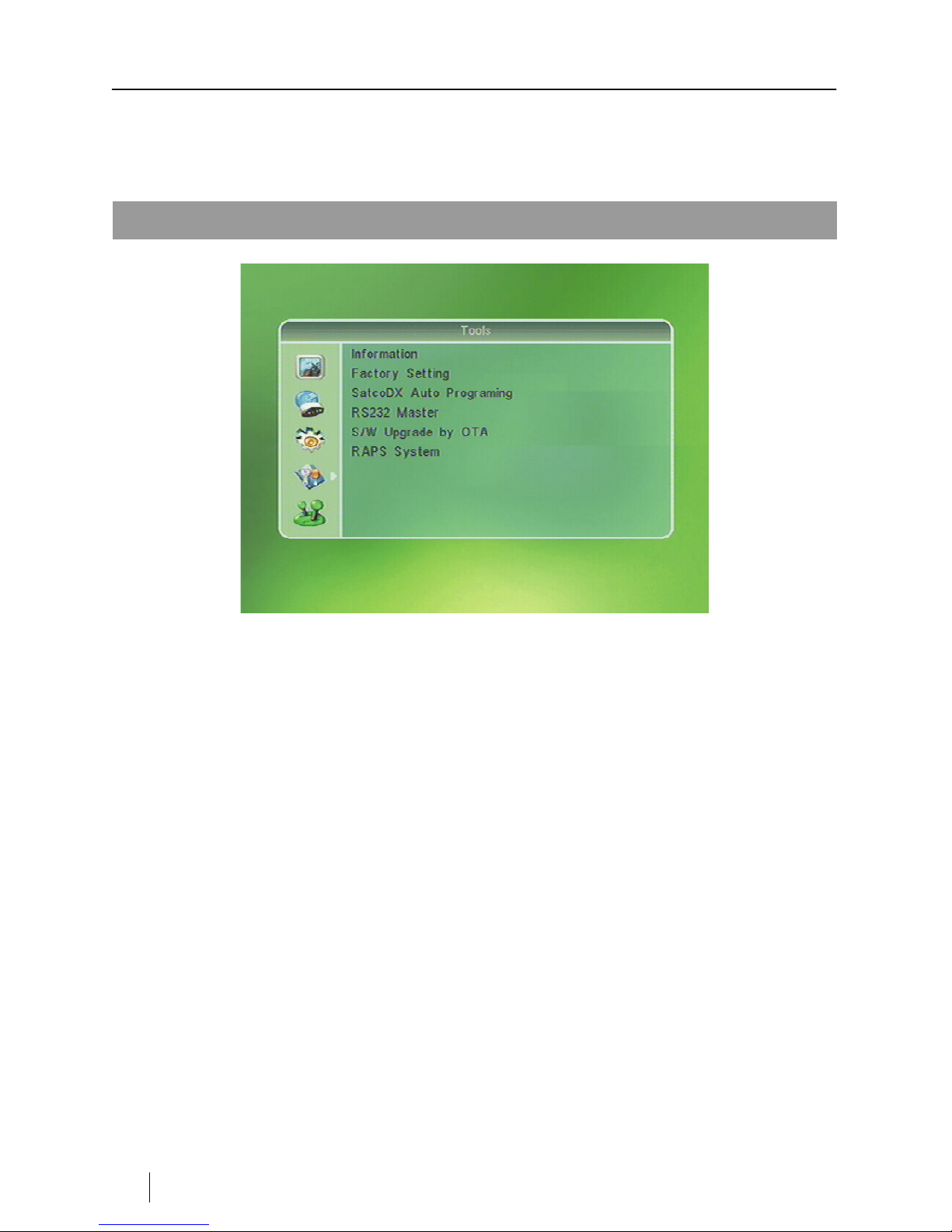

Tools............................................................................................................... 44

Information ...................................................................................................... 44

Factory Setting ................................................................................................ 45

SatcoDX Auto Programming ........................................................................... 45

SW Upgrade by OTA ...................................................................................... 45

RAPS .............................................................................................................. 46

What is RAPS? ............................................................................................... 46

Install or update RAPS automatically.............................................................. 47

Adjust Local TV Channel................................................................................. 49

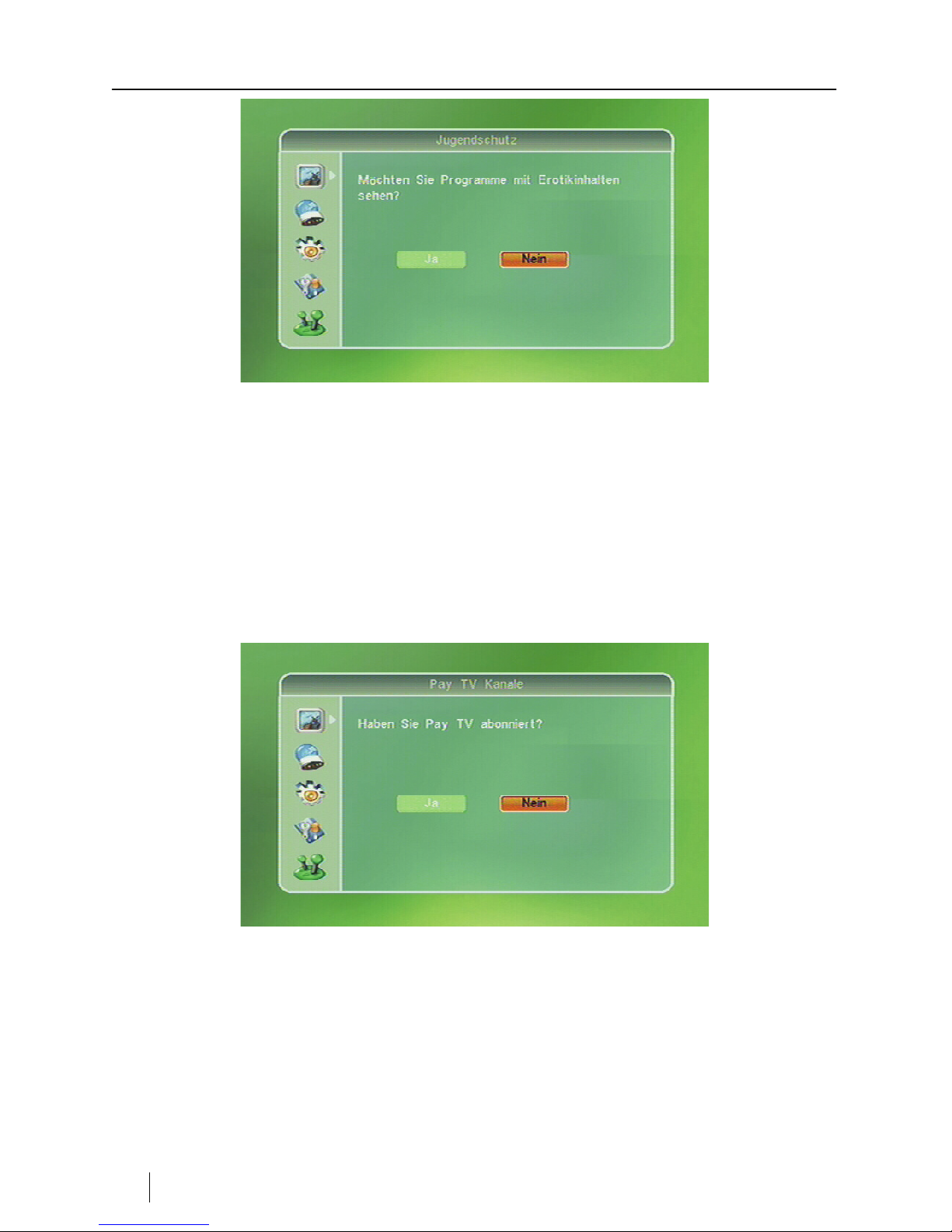

Allow Erotic Channels ..................................................................................... 49

Show Pay-TV Channels .................................................................................. 50

Hiding Channel lists ........................................................................................ 51

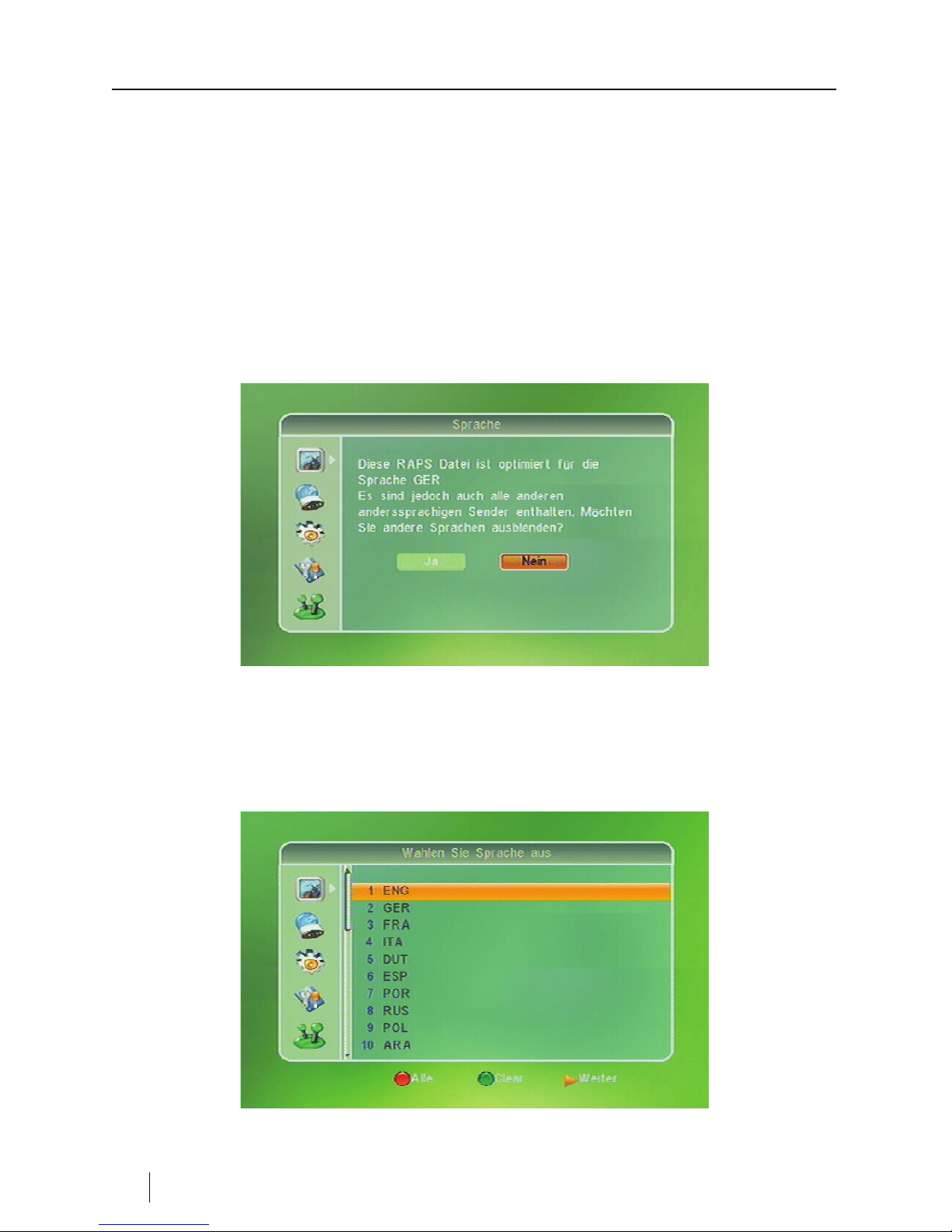

Hide Some Languages.................................................................................... 52

Activate And Deactivate The Automatical Checking Of The RAPS List ......... 53

Manual Updating Of The RAPS List ............................................................... 54

Change RAPS Settings Belated...................................................................... 54

Contents

Smart MX 04 EN 5

Games ............................................................................................................ 56

Tetris ............................................................................................................... 56

Othello ............................................................................................................. 56

Operation With The Remote Control........................................................... 58

Switch The Receiver On And Off .................................................................... 58

Change The Volume ....................................................................................... 58

Change The Channel ...................................................................................... 58

Teletext............................................................................................................ 58

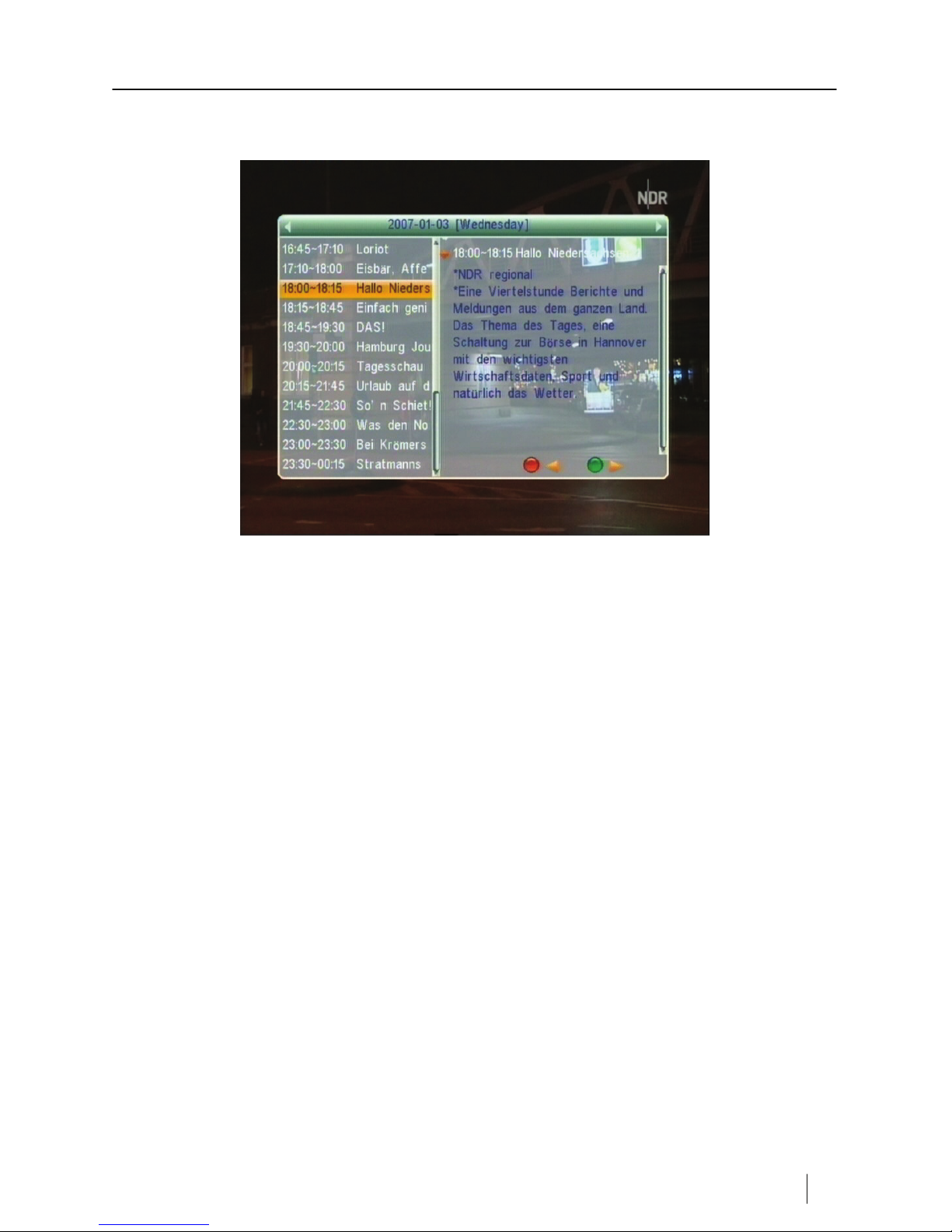

Electronic Program Guide ............................................................................... 59

Favorite List..................................................................................................... 59

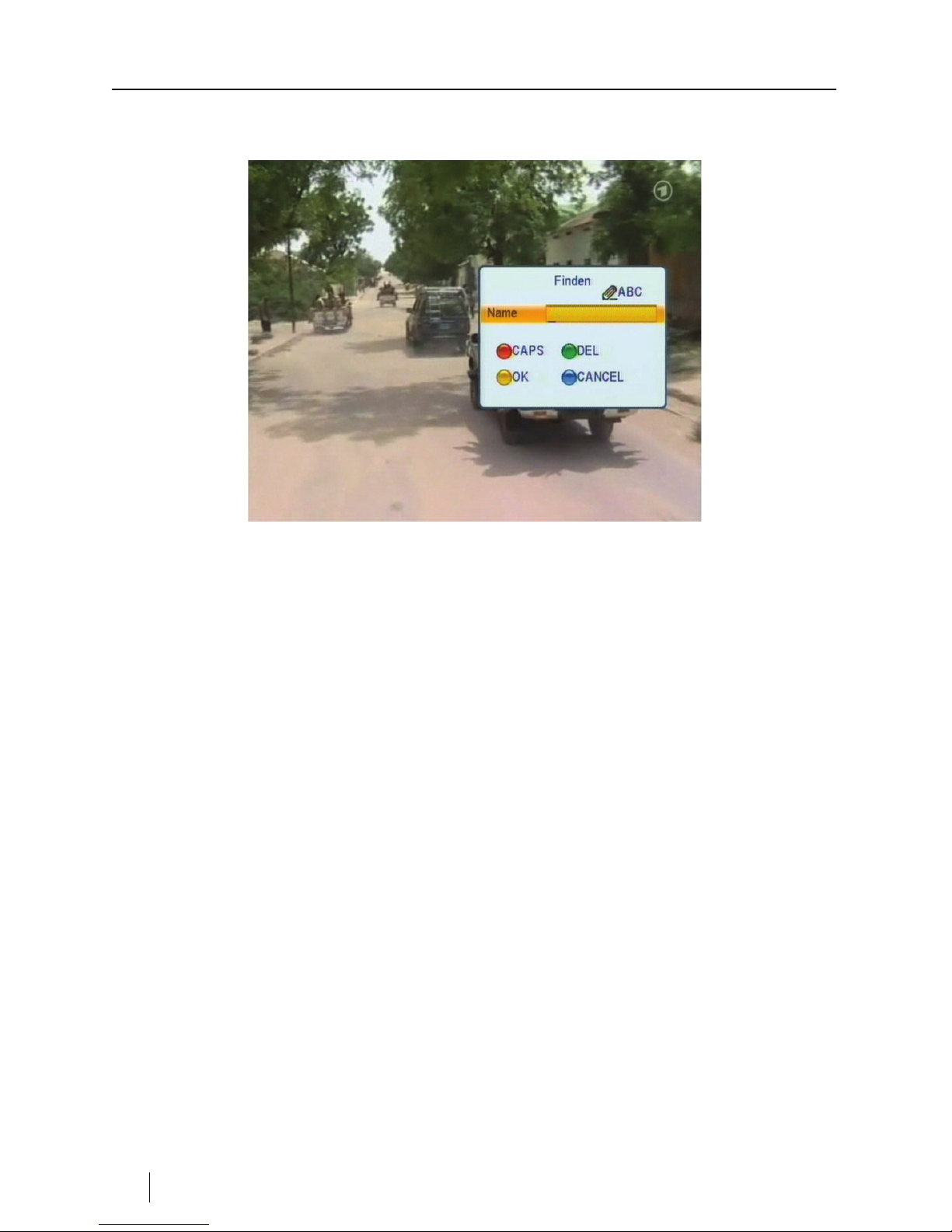

Find A Channel ............................................................................................... 60

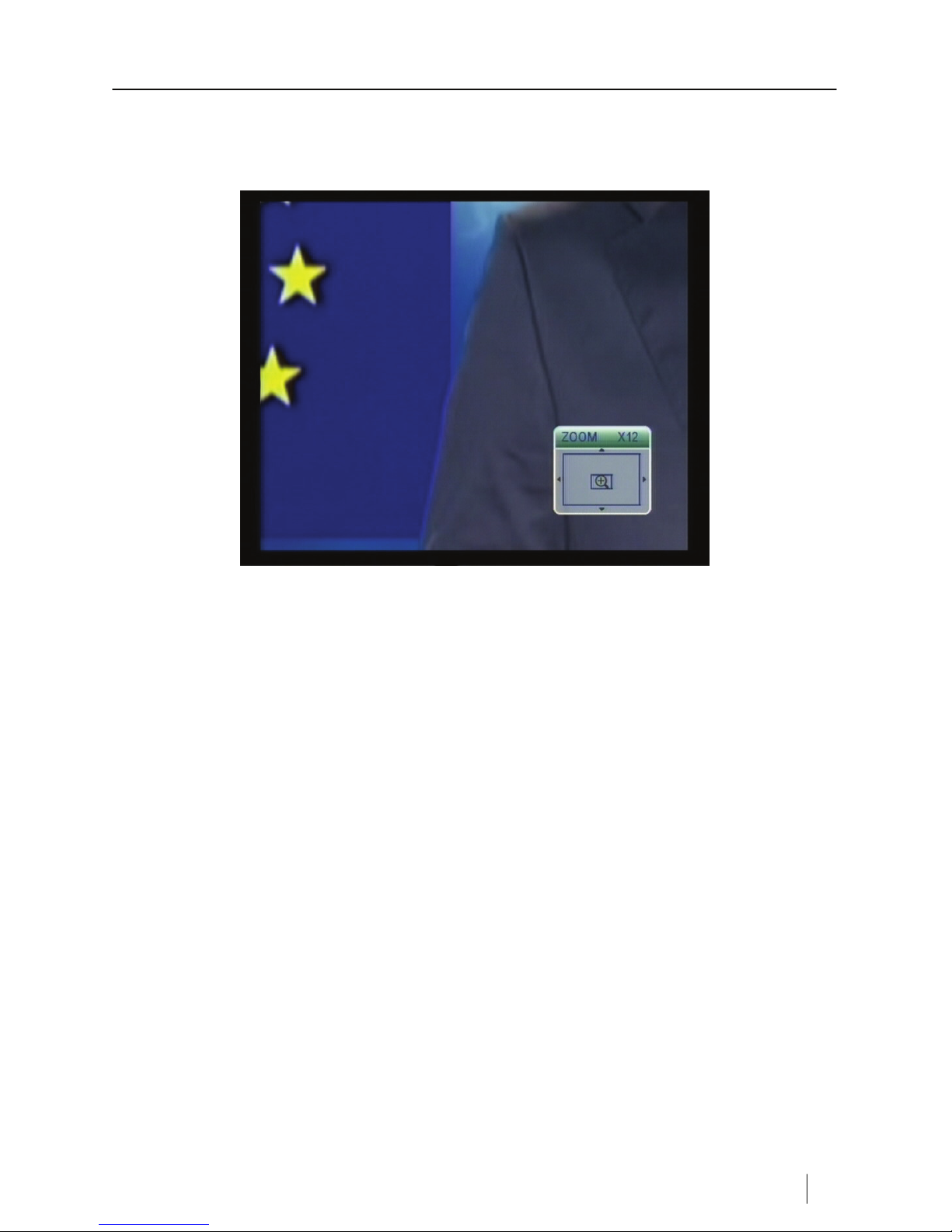

Zoom Function ................................................................................................ 61

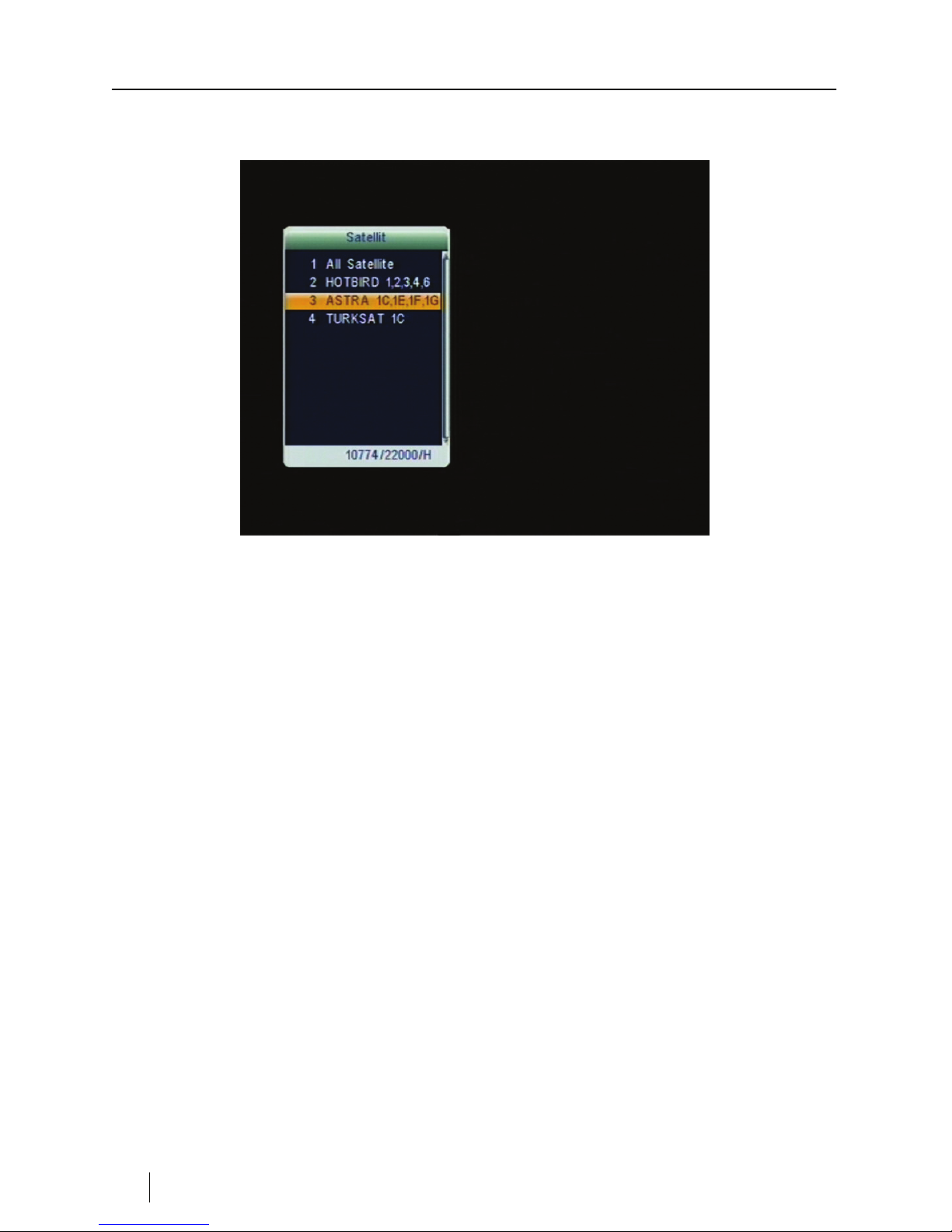

Satellite Overview ........................................................................................... 62

TV Switch ........................................................................................................ 62

Sleep Timer..................................................................................................... 62

Program Information ....................................................................................... 63

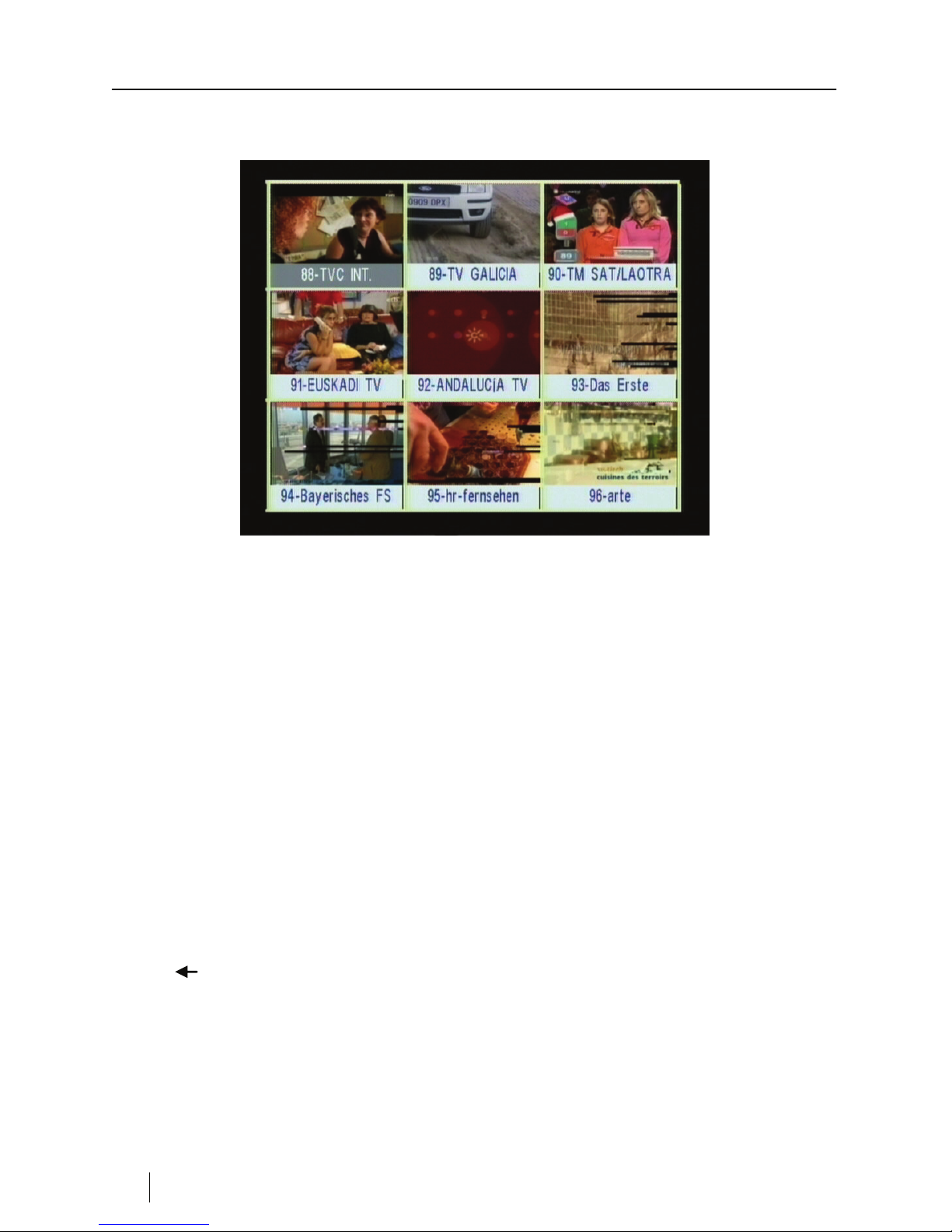

Mosaic ............................................................................................................. 64

Pause Function ............................................................................................... 64

Switching Channels......................................................................................... 64

Audio Settings ................................................................................................. 65

Muting.............................................................................................................. 65

Storing Of Product ........................................................................................ 66

Cleaning ......................................................................................................... 66

Troubleshooting............................................................................................ 67

Disposal ......................................................................................................... 68

Technical Specifications .............................................................................. 69

Supplier .......................................................................................................... 71

Warranty......................................................................................................... 71

Declaration of Conformity ............................................................................ 71

Safety Instructions

6 EN Smart MX 04

Safety Instructions

Attention!

Please read the safety instructions carefully before operating
the receiver.

Please follow all warnings and instructions on the equipment
and in the operating manual.

Electrical Connection

• Do not expose the receiver to rain as well as any kind of humidity to avoid
risk of fire and electric shock.

• Connect the receiver only to a professionally installed mains socket of
175–240 V, 50–60 Hz.

• Never open the casing. Otherwise there is a risk of electric shock.

• Ensure that the power source (socket) is easily accessible.

• Pull out the mains plug from the socket if the equipment is not in use for a

longer period of time. Always pull out only at the mains plug.

• If foreign substances or fluids access the receiver, immediately pull out the
mains plug from the socket. Ask a qualified person to check the equipment
before operating it once again. Otherwise there is a risk of electric shock.

• The total power consumption by the antenna connection of the receiver
"LNB IN“ must not exceed 400 mA.

•

Do not bend or crimp the mains cable.

• Never touch the mains cable with humid hands. Otherwise there is a risk
of electric shock.

• If the mains cable is damaged, the receiver must be repaired by an expert
before reusing it. Otherwise there is a risk of electric shock.

• Never allow children to operate the receiver or to play with the antenna
unit unless supervised.

• Always ask qualified personnel to carry out maintenance jobs. Otherwise
you are putting yourself and others at risk.

• Disconnect the receiver from the power source in case of operational
disruptions.

• Never cover ventilation slits. Ensure adequate ventilation.

Appropriate Usage

Smart MX 04 EN 7

• Do not expose the apparatus to dripping or splashing. Do not place water­filled objects like vases on or atop of the receiver. Otherwise, there is a
risk of electric shock.

• Place the receiver on a stable and smooth base.

• Avoid proximity to heat sources, like e. g. heaters, naked flames, like e. g.

candles, devices with strong magnetic fields, like e. g. loudspeakers.

• Avoid direct sunlight and places with an extremely high amount of dust or
high humidity.

• Do not place any heavy objects on the receiver.

• Humidity may settle in the receiver if is brought from cold into hot

surroundings. In this case, please wait for about two or three hours before
operating the equipment.

• Never cover ventilation slits. Ensure adequate ventilation by maintaining a
safety distance of 5 cm to other objects.

• Arrange the mains and antenna cable in such a manner that no one steps
or trips over them.

• Use the apparatus only in moderate climates (not in tropical climates).

Correct Battery Handling

• Batteries may contain toxic agents. Ensure that batteries are not within the
reach of children. Children may eat and swallow batteries.

• Leaking batteries may cause damages at the remote control. Batteries
may contain toxic agents that are hazardous to the environment.
Therefore, dispose of the batteries immediately according to the prevailing
statutory regulations. Never throw the batteries in normal household
waste.

Appropriate Usage

The digital satellite receiver receives digital channels in a covered area. It is
exclusively meant for this purpose and should only be used for the same. This
also includes paying attention to all information in this operating manual
especially that of safety instructions.

Any other usage is considered to be improper and may lead to material
damages and even personal injuries.

The manufacturer does not bear any liability for damages caused due to
improper usage.

Scope Of Supply

8 EN Smart MX 04

Scope Of Supply

Please check the scope of supply after purchase. If any part is missing, please
contact your dealer.

• The Satellite Receiver Smart MX 04,

• Remote Control,

• 2 pieces of batteries (type AAA) for the remote control,

• Instru

ction Manual.

Description

With the Smart MX 04 Free-To-Air Digital Satellite Receiver you can receive
Free-To-Air channels. There are hundreds of free digital TV and Radio
channels which can be received.

The digital satellite receiver Smart MX 04 has a mains connection of
175 - 250 V AC, 50/60 Hz.

The most common di

gital broadcasting stations of the mostly used satellites
are pre-programmed. You can receive the digital channels broadcasted
through these satellites as soon as you have connected the receiver to a
satellite antenna and oriented it to one of these satellites.

All functions of the Receiver can be operated with the remote control. All
receiver settings can be done easily using the user interface (menu) on the
TV-monitor. The user interface supports multiple languages.

Control Elements / Functions

Smart MX 04 EN 9

Control Elements / Functions

Front Side

Figure 1: Control Elements at the front side

No. Symbol Description

1 Display Channel display
2 PR ▼

Button to switch the channels downwards step by
step

3 PR ▲

Button to switch the channels upwards step by

step
4 On/Off switch Switch between power and standby
5 Standby LED Indicator of standby

Remote Control

10 EN Smart MX 04

Remote Control

Remote Control

Smart MX 04 EN 11

No. Button Description

1 Standby Switches between operation and standby mode.
2

Numeric
buttons (0~9)

For direct choice of channels or for numeric or

alphanumeric figures.
3 TV/Radio Switches between TV and radio mode.

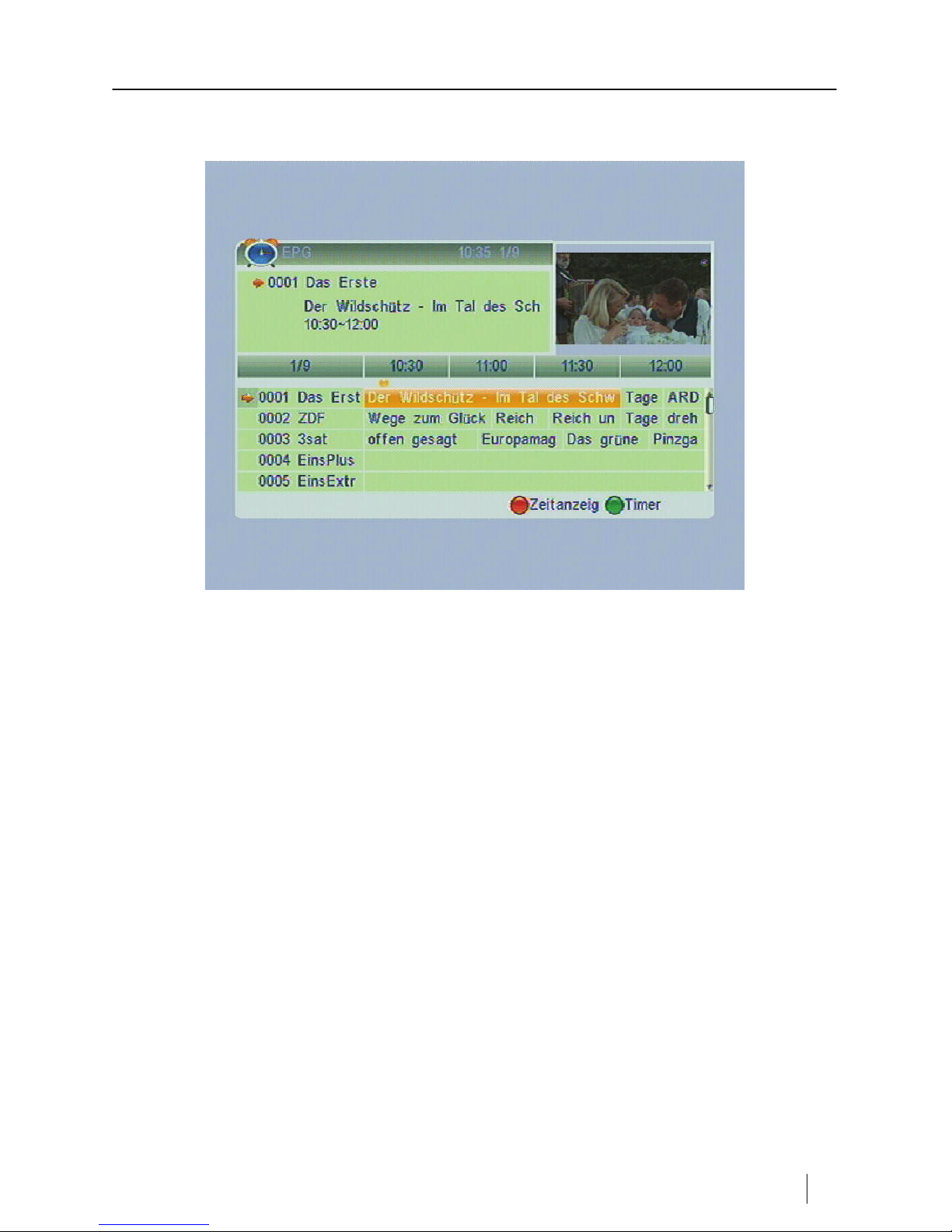

4 EPG

Shows detail information for individual channels.

Press again for going back to previous mode.
5 VOL (+/-)

Turns up/down volume or changes the page of

channel list.
6 FAV Shows current favorite channel list.
7 Find Find a channel.
8 TXT

Displays teletext information, if the broadcaster

supports it.
9 SAT Shows the programmed satellites.

10 TV/AV Switches on and off the TV scart output.
11 SLEEP Sleep Timer.
12 INFO Displays the program information on the screen.
13 Mosaic Displays several channels on the screen.
14 Pause Pauses to freeze the screen.
15 Audio Changes between different audio modes.
16 ZOOM Magnification of display details.
17 Up Switches between the satellites.
17 Down Switches between the satellites.
18 EXIT Back to former status.
19 PR (+/-)

Changes channels or moves the cursor upwards

and downwards in the menu.

20 OK

Displays the channel list and selects the item on

the menu.

21 MENU Moves to main menu during TV viewing.
22 Change to the previous selected channel.
23 Mute Turns sound on or off.

PR

Remote Control

12 EN Smart MX 04

Rear Side With Modulator (optional)

Figure 2: rear side of receiver

No. Symbol Description

1 POWER On / Off switch for main supply
2 VIDEO Video output (Composite)
3 AUDIO-L Audio output left
4 SPDIF Digital output
5 VCR SCART output for Video
6 TV SCART output for TV
7 LNB OUT Satellite signal loop through out
8 LNB IN Digital satellite signal input
9 RF-IN Antenna input

10 RF-OUT Antenna output
11 RS232 Serial Low-Speed-Interface
12 AUDIO-R Audio output right
13 0/12V 0/12 Volt-output
14

175 - 250 V AC,
50/60 Hz

mains connection

Remote Control

Smart MX 04 EN 13

Inserting Of Batteries

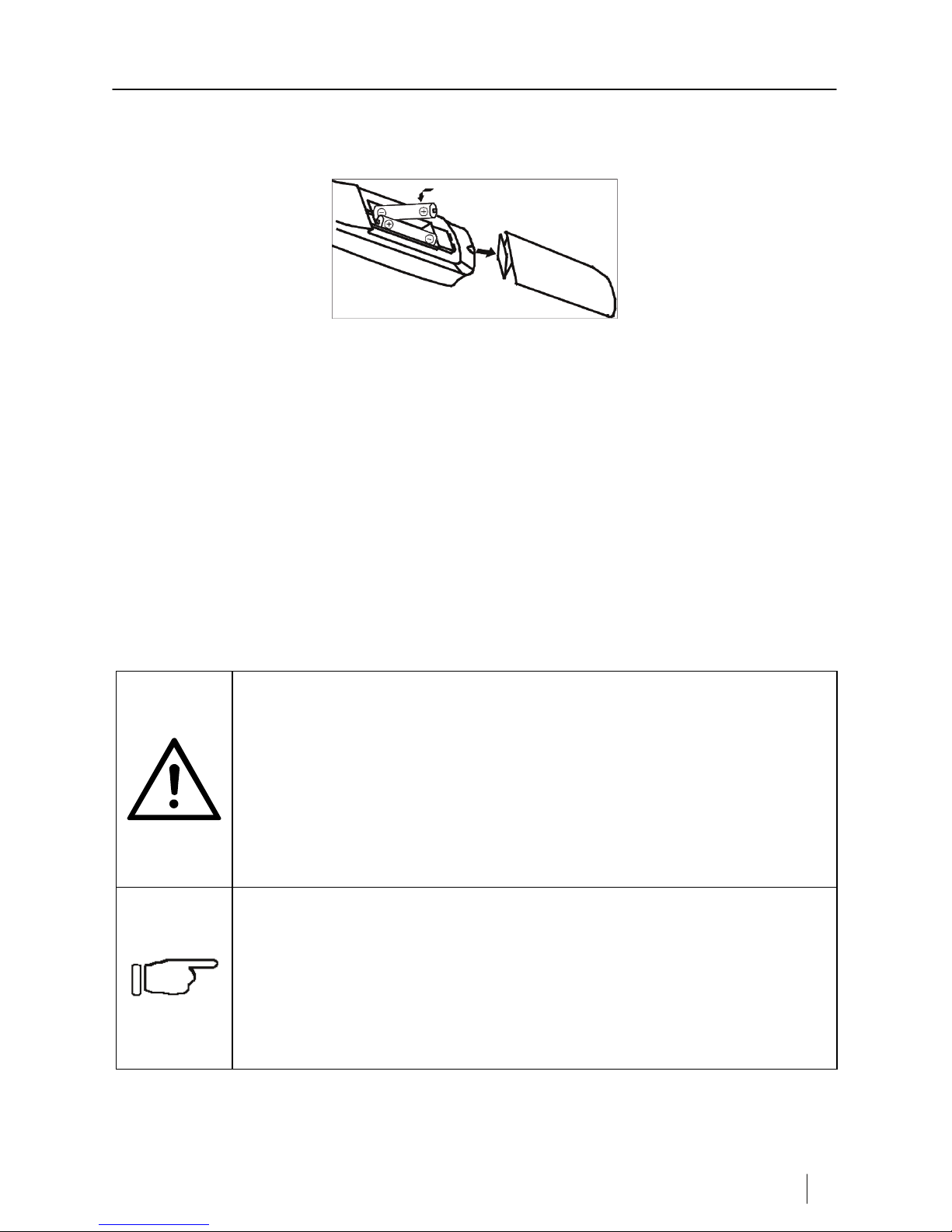

Figure 3: Inserting of batteries into the remote control

Open the battery compartment on back side of remote control. Insert two
batteries type AAA according to polarities mentioned on the battery
compartment. Push the cover of the battery com

partment carefully till the

cover is locked.

Replacing Of Batteries

Replace discharging batteries on time. Always replace both batteries
simultaneously and use batteries of the same type.

Safety Instructions

Attention!

Do not recharge or destruct normal batteries. Do not throw
them into fire.

Batteries may contain toxic agents that are hazardous to
health and environment. Therefore, dispose of the batteries
immediately according to the prevailing statutory regulations.
Never throw the batteries in normal household waste.

Note!

Always insert the batteries according to their polarities.
Batteries which are getting discharged may damage the

remote control. If you do not use the receiver for a longer
period of time, remove the batteries from the remote control.

Connecting The Receiver

14 EN Smart MX 04

Connecting The Receiver

Attention!

Check that connections of all equipment and the antenna are
proper before connecting the receiver to the mains.

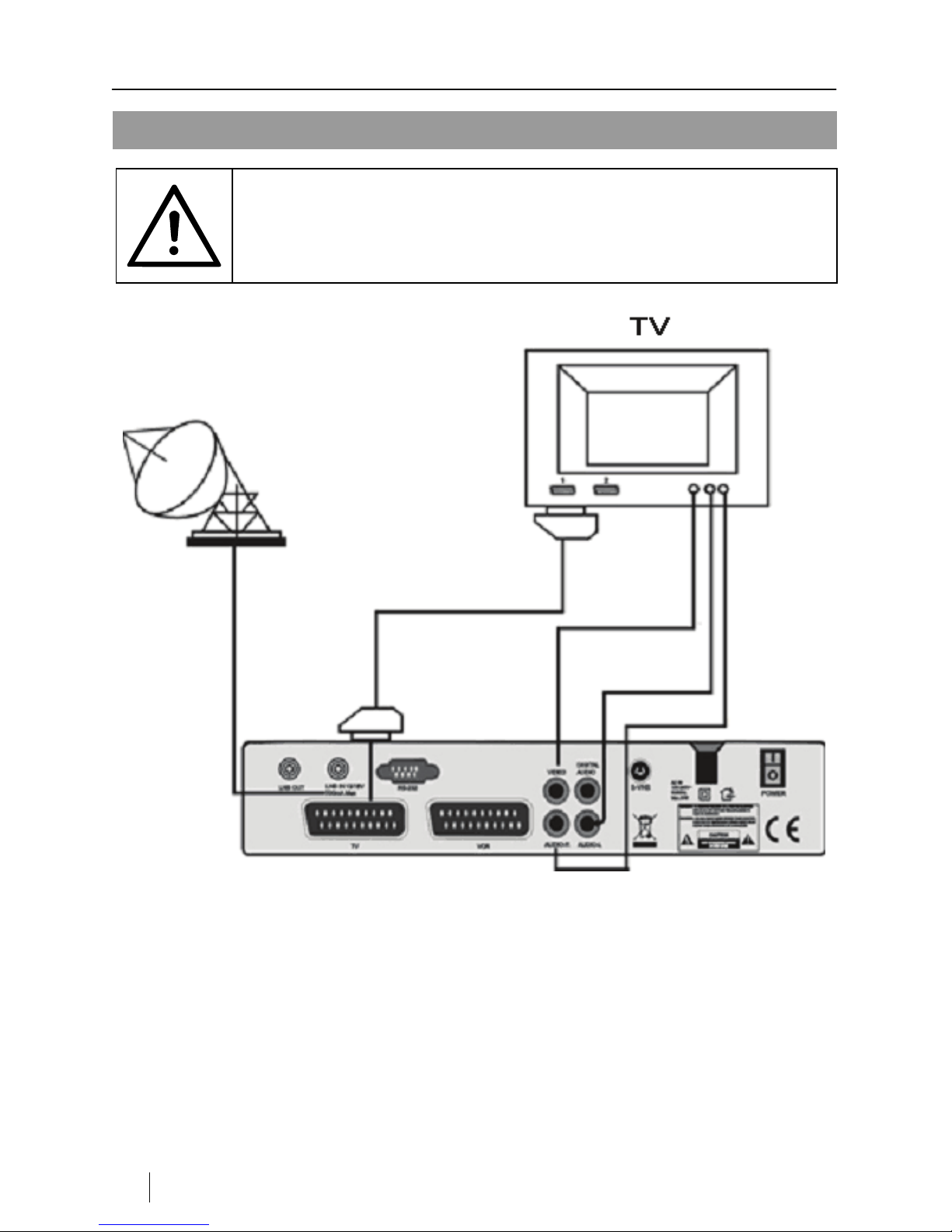

Figure 4: connection scheme

Connecting The Satellite Antenna

Connect the cable of the satellite antenna with the receiver. Screw the
F-connector of the cable to the LNB IN socket of the receiver.

Connecting The Receiver

Smart MX 04 EN 15

Connecting The TV-Set

Connect your TV-Set with the Scart output for TV. Alternatively you can also
use the connectors AUDIO-L, AUDIO-R and VIDEO.

If the receiver has a modulator, you can connect the RF-OUT of the receiver
with the

antenna input of the TV-Set. If you want to receive programs as well
via the house antenna, you must connect the RF-IN socket of the receiver with
the antenn

a socket in your house.

When all antenna cables are connected, you can select a free channel on your
TV-Set and start the channel search. Please look for details in the user
manual of your TV-Set.

The output channel of the modulator is pre-set to channel 38.

Connecting A Dolby-Digital Device

If you want to connect a Dolby-Digital device, you can connect it with a coaxial
cable to the digital output (SPDIF) of the receiver. For connecting to the Dolby­Digital device please read its user manual.

Operation

After connecting all devices, you can plug in the mains supplies of all
connected devices and switch them on.

Start Operating The Receiver

16 EN Smart MX 04

Start Operating The Receiver

Switching On The Receiver

After connecting the receiver (see page 14), you can switch it on with the
switch at the rear side.

You can see "Strt" for start on the display of the receiver. On the TV screen
you find a selection of available languages.

Figure 5: Selection of language after first startup

Select your language with the PR (+/-) buttons and confirm with OK.

Operating At The Front Panel

Smart MX 04 EN 17

Operating At The Front Panel

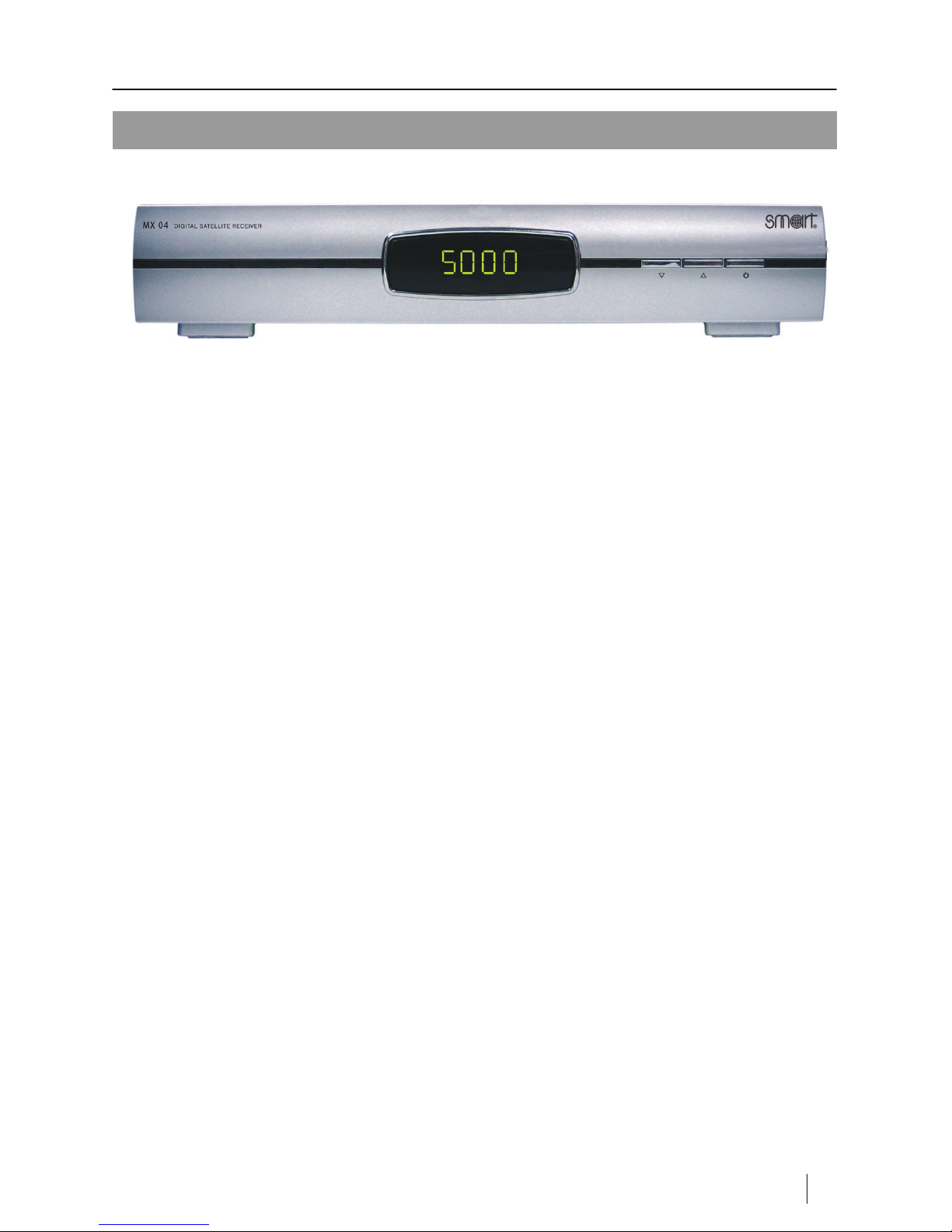

Figure 6: Front side of the receiver

At the rear side of the receiver is the main supply switch. Here you should
switch the device off if it will not be used for longer time. Here you also have to
switch the device on afterwards.

With the On/Off switch at the front side you can switch your receiver to the
stand

by mode. If the receiver is in the standby mode, press the On/Off switch

to s

witch the receiver on.
On the display you can see the actual channel number.
For selecting the channels upwards press PR ▲, for

selecting the channels

downwards press PR ▼.

Navigation In The Menus

18 EN Smart MX 04

Navigation In The Menus

Note!

A menu is a text field, which will be displayed on the screen.
Selectable options are marked with color. Not marked options
cannot be changed or selected. Most options in the menus are
explained on the bottom of the screen.

With the PR (+/-) and VOL (+/-) buttons you can navigate through the menu.
After marking the selected option you can confirm your selection with the

OK button.
W

ith pressing the EXIT button you can leave the menu and come to the

p

revious mode.

Insert Code

To protect some settings against unauthorized access and changes, they are
only accessible after inserting a code. When selecting one of these menus,
you will be asked to enter the code.

Note!

The default code is 0000.

You can change the code at any time (see chapter Channel Lock on page 39).

Edit Channel

Smart MX 04 EN 19

Edit Channel

Ö Press MENU on the remote control.
Ö Select the menu point Edit Channel.
Ö

To confirm press OK.

Ö

Insert your code.

TV Channel List

Select the menu point Edit Channel in the main menu.

Ö Select TV Channel List.
Ö To confirm press OK.
Ö

To leave the menu, press EXIT.

Figure 7: TV Channel List

Ö Select the satellite which channel list should be shown with VOL (+/-).
Ö

Select the channel which you want to edit with PR (+/-).

FAV

Ö Press FAV to add the marked channel to the favorite s list.
Ö Press the OK button.
Ö Selec

t with PR (+/-) the favorite list for the selected channel. Confirm with

the OK button.

Edit Channel

20 EN Smart MX 04

Locking

Ö Press Find to lock channels.
Ö Select the channel, which should be locked, with the PR (+/-) buttons.
Ö Press

the OK button to lock the selected channel.

Skip

Ö Press ZOOM to skip channels in the channel list.
Ö Select the channel which should be skipped with PR (+/-).
Ö

To confirm press OK.

Move

Ö Press TXT to move channel to another place in the list.
Ö Select the channel which should be moved.
Ö Press the OK button.
Ö

Move the selected channel with PR (+/-) to the new position.

Ö Press

the OK button to store the channel at the new position.

Change

Sort

Ö Press Audio to change the channel list. Then press Find to get an

overview

about the sorting mode. Select a sorting mode with PR (+/-) and

confirm with the OK button.

Change

Ö Press

Audio to change the channel list.

Ö Press

ZOOM to change the channel name.

Ö

To confirm press OK.

Ö

Insert the new name with the Numeric buttons (0~9). Just like on mobile
phon

es, every numeric button has also some alphanumeric functions. With
pressing several times on the same button you can select the letters with
are printed on top of the Numeric buttons (0~9) of the remote control.

Ö Press

the VOL (+/-) buttons to move to the left or right in the input field. To

add a l

etter, press first the VOL-+ button. Then press the numeric button

for the desired letter.

Edit Channel

Smart MX 04 EN 21

Note!

Press Find to switch between small and capital letters. You
can see on the letters ABC on top of the input panel which
spelling is active.

Press ZOOM for deleting a figure or letter.
Press

TXT to finish the input and show the entered channel.

Press

Audio or EXIT to exit the dialog box.

Ö For leaving the menu, press EXIT once or repeatedly.

Delete

Ö Press

Audio to change the channel list.

Ö Press

Audio again to delete a channel.

Ö Selec

t with PR (+/-) the channel which you want to delete.

Ö

To confirm press OK.

Radio Channel List

To select the radio channel list, go to the menu Edit Channel, see page 19.

Ö Select the menu point Radio channel list.
Ö To confirm press OK.
Ö

All further functions are the same as for the TV channel list. Please look
under Edit Channel, p

age 19 .

Ö For leaving the menu, press EXIT once or repeatedly.

Delete All

To delete all radio channels, go to the menu Edit Channel, see page 19.

Ö Select the point Delete All.
Ö To confirm press OK.
Ö Selec

t Yes if you really want to delete all channels.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Installation

22 EN Smart MX 04

Installation

Ö Press MENU.
Ö Select the menu point Installation.
Ö

To confirm press OK.

Ö

Insert the code (see page 18).

Antenna Connection

To select the kind of antenna, go to the menu Installation.

Ö Select the menu point Antenna Connection.
Ö To confirm press OK.
Ö Selec

t Fixed Antenna if you receive your satellite channels with a fixed

satellite antenna.

Ö Select Motor Antenna if your satellite antenna is a slewable one.
Ö For leaving the menu, press EXIT once or repeatedly.

Satellite List

For selecting the satellite list, go to the menu Installation.

Ö Select the menu point Satellite list.
Ö To confirm press OK.
Ö

Select from the list the satellites which you can receive.

Ö To confirm press OK. Behind the satellite name appears a

checkmark.

Ö For leaving the menu, press EXIT once or repeatedly.

Antenna Setup

LNB Type

To change the LNB type, go to the menu Installation.

Ö Select the menu point Antenna Setup.
Ö To confirm press OK.
Ö

Select the menu point LNB Type.

Ö To confirm press OK.
Ö

Select the LNB type.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Installation

Smart MX 04 EN 23

Motor Type

To change the activation of your satellite antenna, go to the menu Installation
on page 22.

Ö

Select the menu point Antenna Setup.

Ö To confirm press OK.
Ö

Select the menu point Motor Type.

Ö Select the kind of activation.
You can select between following settings:

• USALS

• DiSEqC 1.2

• For leaving the menu, press EXIT once or repeatedly.

Local Longitude

To change the local longitude, go to the menu Installation on page 22. This
menu point is only active when antenna setting is set on USALS (see chapter
Motor Type, page 23).

Ö

Select the menu point Antenna Setup.

Ö To confirm press OK.
Ö

Select the menu point Local Longitude.

Ö Select the direction (east / west) with VOL (+/-).
Ö

To confirm press OK.

Ö

Insert the longitude with the Numeric buttons (0~9).

Ö

For leaving the menu, press EXIT once or repeatedly.

Local Latitude

To change the local latitude, go to the menu Installation on page 22. This
menu point is only active when antenna setting is set on USALS (see chapter
Motor Type, page 23).

Ö

Select the menu point Antenna Setup.

Ö To confirm press OK.
Ö

Select the menu point Local Latitude.

Ö Select the direction (north / south) with VOL (+/-).
Ö

To confirm press OK.

Ö

Insert the latitude with the Numeric buttons (0~9).

Ö

For leaving the menu, press EXIT once or repeatedly.

Installation

24 EN Smart MX 04

Delete All

To delete the saved satellite positions, go to the menu Installation on
page 22. This menu point is only active when antenna setup is set on
DiSEqC 1.2 (see

chapter Motor Type, page 23).

Ö

Select the menu point Antenna Setup.

Ö To confirm press OK.
Ö

Select the menu point Delete all.

Ö To confirm press OK.
Ö

If you really want to delete all settings, select Yes and confirm with the
OK button.

Ö

If you do not want to delete the settings, select No press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

Motor Setting

To change the motor settings, go to the menu Installation on page 22.

Ö Select the menu point Antenna Setup.
Ö To confirm press OK.
Ö

Select the menu point Motor Setting.

Ö To confirm press OK.
At the bottom

of the menu you can see two progress bars for signal strength

and signal quality.

Satellite

Ö

Select the menu point Satellite.

Ö To confirm press OK.
Ö

Select the satellite which position you want to setup.

Ö To confirm press OK.

Transponder

Ö

Select the menu point Transponder.

Ö To confirm press OK.
Ö

Select a transponder.

Ö To confirm press OK.

Pos.No. & Save

Ö

Select the menu point Pos.No. & Save.

Ö Select a position number.

Installation

Smart MX 04 EN 25

Go To X

Ö Select the menu point go to X.
Ö To confirm press OK.
Ö

Select a position.

Ö To confirm press OK.

Save

Ö

Select the menu point Save.

Ö Change the setting of the satellite antenna with the VOL (+/-) buttons
Ö

Safe your changes with the OK button.

Ö

If you want to safe the new settings, then select Yes and confirm with the
OK button.

Ö Ot

herwise select No and confirm with the OK button.

Recalculation

Ö

Select the menu point Recalculation.

Ö To confirm press OK.
Ö

If you want to have all satellite positions recalculated, then select Yes and
confirm with the OK button.

Ö Ot

herwise select No and confirm with the OK button.

Limit Setup

To setup or change the limits for the slewable satellite antenna, go to the
menu Installation o

n page 22.

Ö Select the menu point Antenna Setup.
Ö To confirm press OK.
Ö

Select the menu point Limit Setup.

Ö To confirm press OK.

Limit Setup

Ö

Select the menu point Limit Setup.

Ö Select the limit of the position.
You can select following points:

• Disable Limit

• West Limit

• East Limit

Installation

26 EN Smart MX 04

Limit Setup

Ö Select the menu point Limit Setup.
Ö Change the limit with the VOL (+/-) buttons.

Go To Reference

Ö

Select the menu point Go to reference.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Single Satellite Search

To search channels on a satellite, go to the menu Installation on page 22.

Ö Select the menu point Single Satellite Search.
Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

Satellite

Ö Select in menu Single Satellite Search the menu point Satellite.
Ö To confirm press OK.
Ö

Select a Satellite from the list.

Ö To confirm press OK.

Scan Channel

Ö Select the menu point Scan Channel in menu Single Satellite Search.
Ö If you only want to search for TV channels, then select TV Channels.
Ö If you want to search for radio channels, then select Radio.
Ö If you want to search for TV and radio channels, then select TV + Radio.

Installation

Smart MX 04 EN 27

Network Search

Ö Select the menu point Network Search in menu Single Satellite Search

on page 26. This menu point is only active when you have selected

Preset Sc

an.

Ö If you want to search with network search, then select Yes.
Ö Otherwise select No.

Scan Mode

Ö Select the menu point Scan Mode in menu Single Satellite Search on

page 26.

Ö

Select the search mode Preset Scan or Blind Search.

Search

Ö Select the menu point Search in menu Single Satellite Search on

page 26.

Ö Press

OK to start the search run.

Multi Satellite Search

To search channels on several satellites, go to the menu Installation on
page 22.

Ö

Select the menu point Multi Satellite Search.

Ö Confirm

with OK. At the bottom of the menu you can see the satellites on

whi

ch the channels will be searched.

Ö For leaving the menu, press EXIT once or repeatedly.

Satellite

Ö Select the menu point Satellite in menu Multi Satellite Search.
Ö To confirm press OK.
Ö

Select a satellite from the list.

Ö To confirm press OK.

Scan Channel

Ö Select the menu point Scan Channel in menu Multi Satellite Search on

page 27.

Ö

If you only want to search for TV channels, then select TV Channels.

Ö If you want to search for radio channels, then select Radio.
Ö If you want to search for TV and radio channels, then select TV + Radio.

Installation

28 EN Smart MX 04

Network Search

Ö Select the menu point Network Search in menu Multi Satellite Search

on page 27. This menu point is only active when you have selected

Preset Sc

an.

Ö If you want to search with network search, then select Yes.
Ö Otherwise select No.

Scan Mode

Ö Select the menu point Scan Mode in menu Multi Satellite Search on

page 27.

Ö

Select the search mode Preset Scan or Blind Search.

Search

Ö Select the menu point Search in menu Multi Satellite Search on page 27
Ö Press OK to start the search run.

TP List

To select the transponder list, go to the menu Installation on page 22.

Ö Select the menu point TP List.
Ö To confirm press OK.
Ö

To edit the TP List, press Find.

Ö

To add a transponder, press ZOOM.

Ö

To delete a transponder, press TXT.

Ö

To search a transponder, press Audio.

Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

Smart MX 04 EN 29

System Setup

Ö Press MENU.
Ö Select the menu point System Setup.
Ö

To confirm press OK.

Language

Figure 8: menu for language settings

Language

The menu language is set when the receiver was stared for the first time (see
chapter Start Operating The Receiver,

page 16).
To change the menu language, go to the menu System Setup.
Ö

Select the menu point Language.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the desired language.

Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

30 EN Smart MX 04

First Audio

To change the first audio language, go to the menu System Setup on
page 29.

Ö

Select the menu point Language.

Ö To confirm press OK.
Ö

Select the menu point First Audio.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the desired language.

Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

Second Audio

To change the second audio language, go to the menu System Setup on
page 29.

Ö

Select the menu point Language.

Ö To confirm press OK.
Ö

Select the menu point Second Audio.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the desired language.

Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

Subtitle Language

To change the language of the subtitle, go to the menu System Setup on
page 29.

Ö

Select the menu point Language.

Ö To confirm press OK.
Ö

Select the menu point Subtitle Language.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the desired language.

Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

Smart MX 04 EN 31

Teletext

To change the language of the teletext, go to the menu System Setup on
page 29.

Ö

Select the menu point Language.

Ö To confirm press OK.
Ö

Select the menu point Teletext.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the desired Ianguage.

Ö

To confirm press OK.

Ö

For leaving the menu, press EXIT once or repeatedly.

TV System

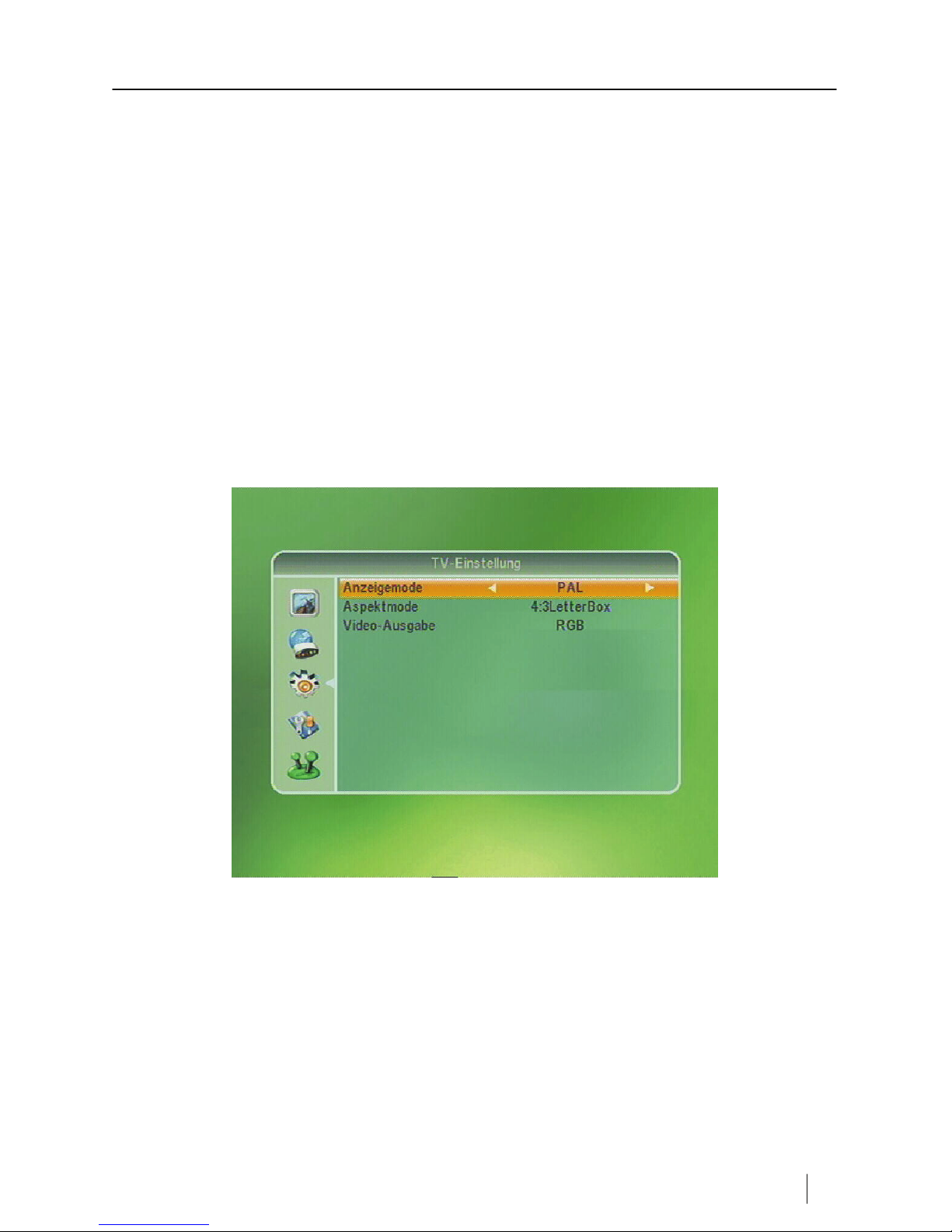

Figure 9: menu for TV System

Display Mode

To change the color TV norm, go to the menu System Setup on page 29.

Ö Select the menu point TV-System.
Ö To confirm press OK.
Ö

Select the menu point Display Mode.

Ö To confirm press OK.

System Setup

32 EN Smart MX 04

Ö Select the adequate color TV norm for your system with the VOL (+/-)

buttons.

To be available are following norms

• PAL

• PAL-M

• PAL-N

• NTSC

• Auto

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Aspect Mode

To change the screen format, go to the menu System Setup - see on
page 29.

Ö

Select the menu point TV-System.

Ö To confirm press OK.
Ö

Select the menu point Aspect Mode.

Ö To confirm press OK.
Ö Selec

t with VOL (+/-) the adequate screen format for

your TV-Set.

To be available are:

• 4:3 PanScan

• 4:3 Letter Box

• 16:9

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Video Output

To change the format of the video signal, go to the menu System Setup – see
on page 29.

Ö

Select the menu point TV-System.

Ö To confirm press OK.
Ö

Select the menu point Video Output.
Ö Select the video output format with VOL (+/-).
To be availab

le are:

• RGB

• CVBS

System Setup

Smart MX 04 EN 33

Ö To confirm press OK.
Ö For leaving the menu, press EXIT once or repeatedly.

RF System (only for Receivers with Modulator)

To change the color TV norm of the modulator, go to the menu System Setup
– see on page 29.

Ö

Select the menu point TV System.

Ö To confirm press OK.
Ö

Select the menu point RF System.

Ö To confirm press OK.
Ö

Select the norm for the modulator with VOL (+/-).
To be availab

le are:

• PAL-BG

• PAL-I

• PAL-DK

• NTSC

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

RF Channel (only for Receivers with Modulator)

To change the output channel of the modulator, go to the menu System
Setup – see on page 29.

Select the me

nu point TV-System.

Ö To confirm press OK.
Ö

Select the menu point RF Channel.

Ö To confirm press OK.
Ö

Select the output channel for the modulator. Default setting is the

RF channel 38.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

34 EN Smart MX 04

Local Time Setting

GMT Usage

To change the time setting, go to the menu System Setup – see on page 29.

Ö Select the menu point Local Time Settings.
Ö To confirm press OK.
Ö

Select the menu point GMT Usage.

Ö Select On if the time setting should be automatically.
Ö Select Off if you want to set or change the time manually.
Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

GMT Offset

To choose the time zone, go to the menu System Setup – see on page 29.

Ö Select the menu point Local Time Settings.
Ö To confirm press OK.
Ö

Select the menu point GMT Offset.

Ö To confirm press OK.
Ö

Select the time zone for your location.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Summertime

To select the summertime, go to the menu System Setup – see on page 29.

Ö Select the menu point Local Time Settings.
Ö To confirm press OK.
Ö

Select the menu point Summertime.

Ö Select On when time is just summertime.
Ö Select Off in wintertime.
Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Date

To set the date, go to the menu System Setup – see on page 29.

Ö Select the menu point Local Time Settings.
Ö To confirm press OK.

System Setup

Smart MX 04 EN 35

Ö Select the menu point Date.
Ö Insert the date with the Numeric buttons (0~9).
Ö

For leaving the menu, press EXIT once or repeatedly.

Time

To set the time, go to the menu System Setup – see on page 29.

Ö Select the menu point Local Time Settings.
Ö To confirm press OK.
Ö

Select the menu point Time.

Ö Insert the time with the Numeric buttons (0~9).
Ö

For leaving the menu, press EXIT once or repeatedly.

Timer Setting

To change the timer settings, go to the menu System Setup – see on
page 29.

Ö

Select the menu point Timer setting.

Ö To confirm press OK.
Ö

Select the timer which you want to program or which you want to change.
Ö To confirm press OK.

Timer Mode

To set the timer repetition, go to the menu System Setup – see on page 29.

Ö Select the menu point Timer Settings.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Timer Mode.
Ö Select the frequency of repetition.
To be available are following settings:

• off

• once

• daily

• weekly

• monthly

• yearly

Ö Go to Save to safe your settings and press the OK button.

System Setup

36 EN Smart MX 04

Ö Go to Cancel for not saving the settings and press the OK button.
Ö For leaving the menu, press EXIT once or repeatedly.

Timer Service

To select the service for the timer, go to the menu System Setup – see on
page 29.

Ö

Select the menu point Timer Setting.

Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Timer Service.
Ö Select the service.
To be available are:

• Channel

• Message

Ö Go to Save to safe your settings and press the OK button.
Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

Wakeup Channel

You can only choose a channel if the setting in menu point Timer Service,
(see page 36) is set on ch

annel.

Ö Go to the menu System Setup –

see on page 29.

Ö Select the menu point Timer Setting.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Wakeup Channel.

Ö To confirm press OK.
Ö

Select the channel.

Ö To confirm press OK.
Ö Go

to Save to safe your settings and press the OK button.

Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

Smart MX 04 EN 37

Wakeup Message

You can only chose the message if the setting in the menu point Timer
Service (see page 36) is no

tice.

To chose a message, go to the menu System Setup – see o

n page 29.

Ö Select the menu point Timer Setting.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Wakeup Message.

Ö To confirm press OK.
Ö

Select the kind of notice.
To be available are:

• Birthday

• Anniversary

• General

Ö Go to Save to safe your settings and press the OK button.
Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

Wakeup Date

To select the wakeup date, go to the menu System Setup – see on page 29.

Ö Select the menu point Timer Setting.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Wakeup Date.

Ö Insert the date.
Ö Go to Save to safe your settings and press the OK button.
Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

On Time

To select the start-up time, go to the menu System Setup – see on page 29.

Ö Select the menu point Timer Setting.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

System Setup

38 EN Smart MX 04

Ö To confirm press OK.
Ö Select the menu point On Time.
Ö Insert the time.
Ö Go to Save to safe your settings and press the OK button.
Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

Duration

To select the duration, go to the menu System Setup – see on page 29.

Ö Select the menu point Timer Settings.
Ö To confirm press OK.
Ö

Select the timer which you want to change or program.

Ö To confirm press OK.
Ö

Select the menu point Duration.

Ö Insert the duration.
Ö Go to Save to safe your settings and press the OK button.
Ö Go

to Cancel for not saving the settings and press the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

Parental Lock

Figure 10: menu for setting the parental lock

System Setup

Smart MX 04 EN 39

To change the setting of Parental Lock, go to the menu System Setup – see
on page 29.

Ö

Select the menu point Parental Lock.

Ö To confirm press OK.
Ö

Insert the code (see page 18).
Ö

For leaving the menu, press EXIT once or repeatedly.

Menu Lock

Ö Select the menu point Menu Lock in the menu Parental Lock.
Ö Select On if you want to lock some menus.
Ö Select Off if all settings shall be free accessible. Only exception: the menu

Parental Lock can only be opened after inserting the code.

Ö For leaving the menu, press EXIT once or repeatedly.

Channel Lock

Ö Select the menu point Channel Lock in the menu Parental Lock.
Ö Select On if you want to lock some channels.
Ö Select Off if all settings shall be free accessible. Only exception: the menu

Parental Lock can only be opened after inserting the code.

Ö For leaving the menu, press EXIT once or repeatedly.

New Password

Ö Select the menu point New Password in the menu Parental Lock.
Ö Insert a new code with the Numeric buttons (0~9).
Ö

Repeat the new code under confirm password.
Ö You will see the message Change password successfully! Confirm the

new code with the OK button.
Ö

For leaving the menu, press EXIT once or repeatedly.

Note!

When the new code is inserted and confirmed, there is no
possibility to revoke or cancel the code change.

System Setup

40 EN Smart MX 04

OSD Setting

Figure 11: menu for OSD Setting

To change the settings of the OSD, go to the menu System Setup – see on
page 29.

Ö

Select the menu point OSD Setting.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Subtitle Display

Ö Select the menu point Subtitle Display in the menu OSD Setting.
Ö Select on to show the subtitles.
Ö Select off to hide the subtitles.
Ö For leaving the menu, press EXIT once or repeatedly.

OSD Timeout

Ö Select the menu point OSD Timeout in the menu OSD Setting.
Ö To confirm press OK.
Ö

Select the time how long the menu shall be displayed. The minimum is

1 second and the maximum is 10 seconds.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

System Setup

Smart MX 04 EN 41

OSD Transparency

Ö Select the menu point OSD Transparency in the menu OSD Setting.
Ö To confirm press OK.
Ö

Select the value for die transparency.
To be available are following grades:

• Off

• 10%

• 20%

• 30%

• 40%

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Favorite

Figure 12: change name of favorite list

To change the names of the favorite lists, go to the menu System Setup –
see o

n page 29.

Ö

Select the menu point Favorites.

Ö To confirm press OK.
Ö

Select the favorite list supposed to be changed.

System Setup

42 EN Smart MX 04

Ö To confirm press OK.
Ö Insert the new name with the Numeric buttons (0~9). Just like on mobile

phon

es, every numeric button has also some alphanumeric functions. With
pressing several times on the same button you can select the letters with
are printed on top of the Numeric buttons (0~9) of the remote control.

Ö Press

the VOL (+/-) buttons to move to the left or right in the input field. To

add a l

etter, press first the VOL-+ button. Then press the numeric button

for the desired letter.

Note!

Press Find to switch between small and capital letters. You
can see on the letters ABC on top of the input panel which
spelling is active.

Press ZOOM for deleting a figure or letter.
Press

TXT to finish the input and show the entered channel.

Press

Audio or EXIT to exit the dialog box.

Ö For leaving the menu, press EXIT once or repeatedly.

Other

Figure 13: menu for other

System Setup

Smart MX 04 EN 43

LNB Power

To switch the LNB voltage on or off, go to the menu System Setup – see on
page 29.

Ö

Select the menu point Other.

Ö To confirm press OK.
Ö

Select the menu point LNB voltage.

Ö Select On if there should be any voltage at the LNB IN socket.
Ö Selec

t Off if there should be no voltage at the LNB IN socket.

Channel Play Type

To change the channel type, go to the menu System Setup – see on page 29.

Ö Select the menu point Other.
Ö To confirm press OK.
Ö

Select the menu point Channel Play Type.

Ö Select Free if you only want to watch free-to-air channels.
Ö Select All if you want to watch all channels.
Ö For leaving the menu, press EXIT once or repeatedly.

Channel Change

To select the kind of change of channels, go to the menu System Setup – see
on page 29.

Ö

Select the menu point Other.

Ö To confirm press OK.
Ö

Select the menu point channel change.

Ö Select Black Screen if you want to see a black screen when switching

from one channel to another.

Ö Select Freeze if you want to see the latest picture before switching to

another channel.

Ö For leaving the menu, press EXIT once or repeatedly.

Beeper

The receiver can show the signal strength of the actual channel with a sound
signal. The stronger the signal, the higher will be the sound. This is very
helpful when adjusting the satellite antenna. The better the antenna is
adjusted to the satellite, the higher is the sound. To switch this sound signal
on or off, go to the menu System Setup – see on p

age 29.

Ö Select the menu point Other.
Ö To confirm press OK.

Tools

44 EN Smart MX 04

Ö Select the menu point Beeper.
Ö Select On to switch the sound signal on.
Ö Select Off to switch the sound signal off.

Tools

Figure 14: menu for tools

Ö Press MENU.
Ö

Select the menu point Tools.

Ö

To confirm press OK.

Ö

Insert the code (see chapter Insert Code, page 18).

Information

To get information about hardware and software of the Smart MX 04 go to the
menu Tools.

Ö

Select the menu point Information.

Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Tools

Smart MX 04 EN 45

Factory Setting

To reset the receiver to default setting, go to the menu accessories.

Ö Select the menu point Factory Setting.
Ö To confirm press OK.
Ö Selec

t Yes if you really want to reset the receiver to default setting.

Ö Select No if you want to keep the settings of the receiver.
Ö For leaving the menu, press EXIT once or repeatedly.

SatcoDX Auto Programming

To start the SatcoDX Auto Programming, go to the menu Tools.

Ö Select the menu point SatcoDX Auto-Programming.
Ö To confirm press OK.
Ö

Start the programming with the OK button.

Ö

For leaving the menu, press EXIT once or repeatedly.

SW Upgrade by OTA

To upgrade the software of the receiver over satellite, go to the menu Tools.

Ö Select the menu point SW Upgrade by OTA.
Ö To confirm press OK.
Ö

Select the parameter Satellite, Transponder, Frequency, Symbol Rate,
Polarisation and Download PID with the PR (+/-) and VOL (+/-) buttons.

Ö

Select the menu point Start.

Ö Start the Update with the OK button.
Ö

For leaving the menu, press EXIT once or repeatedly.

RAPS

46 EN Smart MX 04

RAPS

Figure 15: Decision for RAPS

What is RAPS?

The receiver is preset for the receipt of Astra 19,2°, Eutelsat Hot Bird 13° east
and Türksat 42° with the common receiving installations. You only have to
connect, switch on and watch TV. But this receiver is able to do more. It has
the automatical programming system RAPS, which we recommend to use so
that you always receive the updated channels.

Today you can receive more than 1,200 TV and radio channels via the most
important satellite system Astra 19,2° and Eutelsat Hot Bird 13° east and
Turksat 42°.

Modern satellite receivers have stored all important channels at delivery
status. But what is later? Nearly every week there are new interesting
channels. To store these new channels in the existing set top box is not so
easy for most of the users. And furthermore the new channels will usually be
added on the last place so that the viewer has to reprogram his list time­consuming.

RAPS gives the viewer and the listener an easy possibility to be always up-to­date. RAPS relieves you of the task of programming. And this without any
additional costs. You can configure certain standard settings like country or
preferred regional channels, you can also hide foreign languages or certain
channels like erotic channels.

Whenever you switch on the receiver, RAPS searches automatically for new
channels. This lasts only a few seconds. If there are new channels, these will
be added automatically to the channel list and will be shown on the screen as
new channels. If channels will be shut down irrecoverably, they will be deleted
automatically. The new channels will be sorted into logical blocks, this is why
also some areas can remain free. For this procedure it is necessary to
overwrite the general channel list. All changes which you have made by hand
meanwhile will be deleted then.

But for all that it is no problem if you want to program channels by yourself.
You can store an own channel list as favourite list, and favourite lists will not

RAPS

Smart MX 04 EN 47

be changed by the new RAPS list. Furthermore you can deactivate RAPS at
any time with default reset.

RAPS gives you plenty of rope here.

Install or update RAPS automatically

Note!

Scanning for new RAPS lists will only be made in TV mode.
Switch to TV mode to search manually for a new RAPS list or
make later configuration changes of your RAPS system.

The RAPS list will only be transmitted when you receive
Astra 19,2°.

When you use RAPS only the channel list will be updated.
Favourite lists established by you will remain unaffected.

Ö To activate RAPS on your receiver, reset it to default or select RAPS

under MENU -> SOFTWARE VERSION.

Ö After default reset you have to select the menu language.
In the following menu you can choose if you want to use RAPS or not.

Ö If you want to use RAPS, select the option yes with the PR (+/-) buttons.
Ö Press

OK.

The receiver will now search for the updated RAPS list.

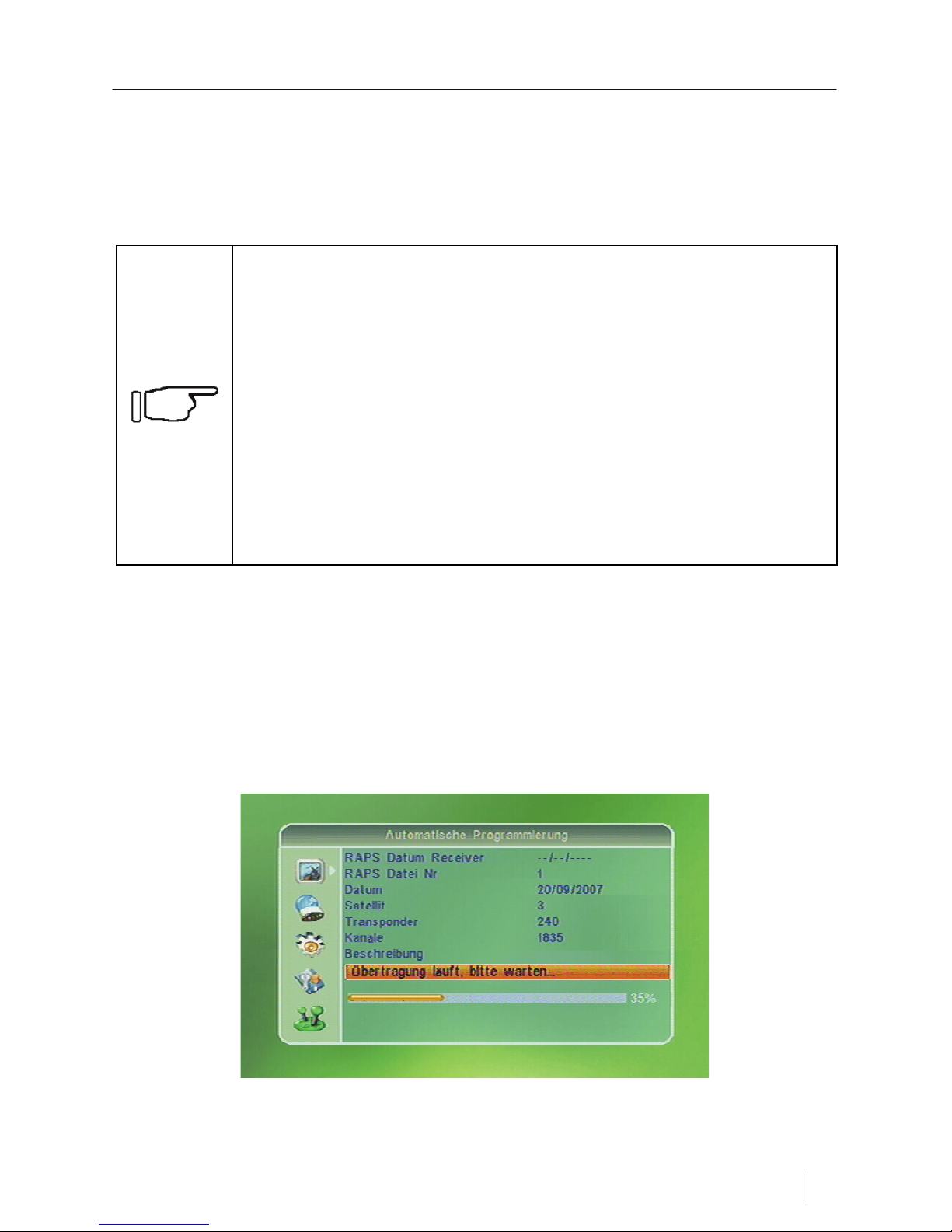

Figure 16: Automatic programming

RAPS

48 EN Smart MX 04

You can see the progress of update at the status bar.

Figure 17: Selection of receivable satellites

Afterwards you can see a selection of receivable satellites.
Ö Select the satellite which you would like to receive with the

PR (+/-) buttons.

Ö

Confirm your selection with OK.

The field behi

nd the selected satellite will be checked now.

Ö Repeat these steps for all desired satellites.
Ö Finally press Vol-+ to come to the next step.

Figure 18: Selection of RAPS list

The list on the screen shows the available RAPS data.
Ö To select the ideal list, press the PR (+/-) buttons.

RAPS

Smart MX 04 EN 49

Ö Confirm your selection with OK.

Adjust Local TV Channel

In the following menu you must select the local TV channel.

Figure 19: Selection of local channel

You can see the available local TV channels in a list.

Ö Select the requested TV channel with the PR (+/-) buttons.
Ö

Confirm your selection with the OK.

Note!

Depending on the receiver and the input on the following
pages, it can happen that some of the following menu points
will not be shown. In any case you have to follow all settings
through. Only then RAPS is completely configured.

Allow Erotic Channels

Ö As next you can select if you want to watch channels with erotic contents.
Ö Select yes or no with the VOL (+/-) buttons.

RAPS

50 EN Smart MX 04

Figure 20: Protection of minors

Ö Confirm your selection with the OK.

Show Pay-TV Channels

If you have subscribed –TV channels, select yes with the VOL (+/-) buttons
and confirm your selection with OK. If you select no, t

he Pay-TV channels will

not be inserted in the channel list.

Figure 21: Pay-TV channels

If you have selected yes, you can see the following menu page with different
encrypting systems.

RAPS

Smart MX 04 EN 51

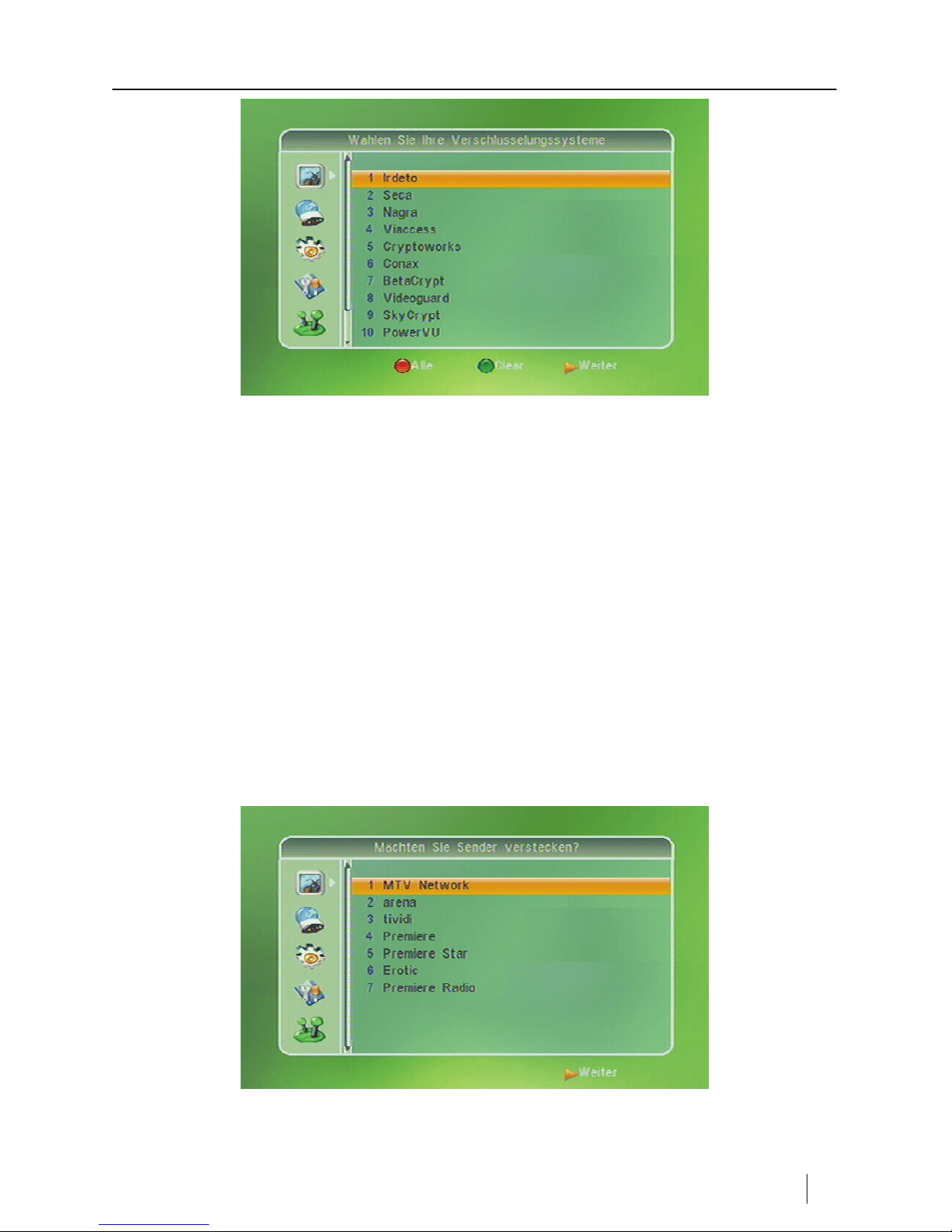

Figure 22: Selection of encryption system

Ö Press the PR (+/-) buttons to mark the system which i

s used by your Pay­TV provider. You will find corresponding information on your CI module or
your card. In case of doubt you can select all.

Ö Confirm your selection with OK.
Behind the selected encrypting system

will now be a check.

Ö To select all encrypting systems, press Find.
Ö

To delete all checks from the list, press ZOOM.

Ö

At last press the VOL-+-Button to get to the next step.

Hiding Channel lists

You can hide the channel lists of not subscribed Pay-TV providers.

Figure 23: hide channel lists

RAPS

52 EN Smart MX 04

Ö Press the PR (+/-) buttons to mark a list.
Ö Confirm your selection with OK.

Behind the selected

channel list will now be a check.

Ö Repeat these steps for all channel lists which should be hidden.
Ö At last press the VOL-+-Button to get to the next step.

Hide Some Languages

To arrange your channel list clearly, you can hide the languages which are not
desired.

Figure 24: Hiding of languages

Ö Select yes with the VOL (+/-) buttons, if you want to hide some languages.

Confirm

your selection with OK.

Figure 25: Selection of languages

RAPS

Smart MX 04 EN 53

You can now see a list of languages of the screen and you can select each
language separately.

Ö Press the PR (+/-) buttons to mark a language.
Ö

Confirm your selection with OK.

The field behi

nd the selected language will be checked now.

Ö Repeat these steps for all languages with shall be hidden.
Ö At last press the VOL-+-Taste to get to the next step.
Ö To select all languages, press Find.
Ö

To delete all checks from the list, press ZOOM.

Ö

At last press the VOL-+-Button.

All Settings will now be saved.

Activate And Deactivate The Automatical Checking Of
The RAPS List

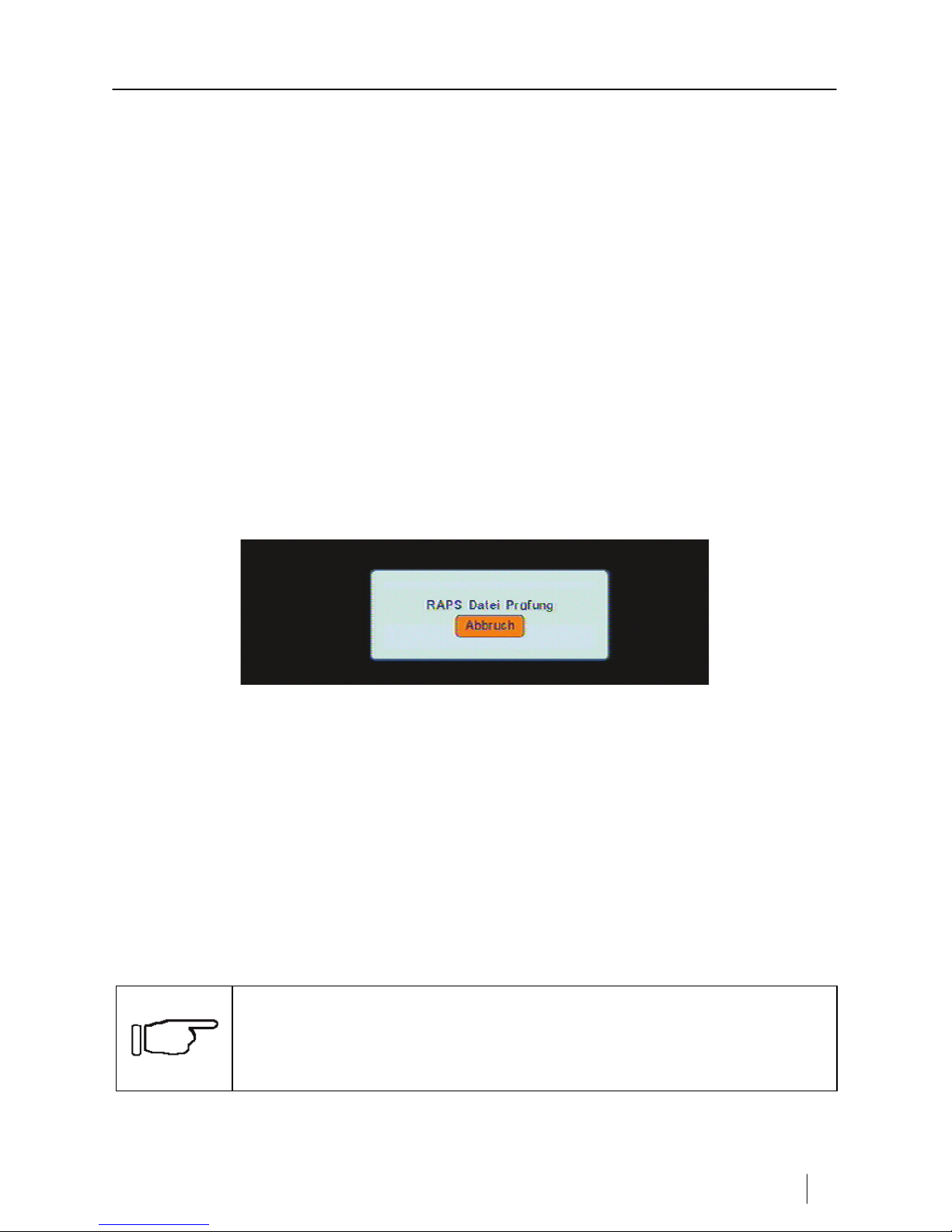

Figure 26: RAPS Data checking

RAPS will check after each switching-on if there is an updated RAPS list with
modified channel data. This will last about 15 seconds.

Press EXIT to stop the checking.
If you do not

want to use the automatical update function, act as follows:

Ö Press MENU.
Ö Select

the menu accessories with the PR (+/-) buttons. Confirm your

sele

ction with OK.

Ö

If necessary, insert the code.

Note!

The default code is "0000“.

Ö Select the menu RAPS System with the PR (+/-) buttons.
Ö Confirm your selection with OK.

RAPS

54 EN Smart MX 04

Ö Select the menu point RAPS Scanning with the PR (+/-) buttons.
Ö Activate the option off with the VOL (+/-) buttons.
Ö

Leave the menu by pressing EXIT several times.

I

f you selected off, the flash „checking RAPS data“ will not be visible any more

and the receiver will go directly to the last channel list.

Manual Updating Of The RAPS List

If you have switched off the automatic updating of the RAPS list, you can
search manually for an update.

Ö Press MENU.
Ö

Select the menu accessories with the PR (+/-) buttons.

Ö

Confirm your selection with OK.

Ö

If necessary, insert the code.

Note!

The default code is "0000“.

Ö Select the menu RAPS System with the PR (+/-) buttons.
Ö Confirm your selection with OK.
Ö

Select the menu point RAPS Mode with the PR (+/-) buttons.

Ö

Activate the option Update with the VOL (+/-) buttons.

Ö

Select the menu point Start with the PR (+/-) buttons.

Ö

Confirm your selection with OK.

The current settings for

RAPS will now be shown and the receiver is checking
for an updated RAPS list. If the data for RAPS Date Receiver (list on your
receiver) and Date (current list) are different, the RAPS list has been changed.
In this case the update starts automatically.

If there is no change in the RAPS list, the receiver reports no change. .
Ö Press OK and confirm by pressing again OK to get back to programming

mode.

Change RAPS Settings Belated

If you want to change the RAPS settings (for example hidden languages), act
as follows:

Ö Press MENU.
Ö

Select the menu accessories with the PR (+/-) buttons.

RAPS

Smart MX 04 EN 55

Ö Confirm your selection with OK.
Ö If necessary, insert the code.

Note!

The default code is "0000“.

Ö Select the menu RAPS System with the PR (+/-) buttons.
Ö Confirm your selection with OK.
Ö

Select the menu point RAPS mode with the PR (+/-) buttons.

Ö

Activate the option configure with the VOL (+/-) buttons.

Ö

Select the menu point start with the PR (+/-) buttons.

Ö

Confirm your selection with OK.

You can

see the menu fort he RAPS update on the screen.

Ö Make the RAPS settings like mentioned in chapter Install or update on

page 47.

Games

56 EN Smart MX 04

Games

Ö Press MENU.
Ö Select the menu point Game.
Ö To confirm press OK.

Tetris

You must assemble the falling bricks to a wall without gaps.

Start

Starting the game.

Ö Select the menu point Start.
Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Setup

Setup of Level

Ö Select the menu point Setup.
Ö Select the level by pressing OK.

Cancel

Leave the menu.

Ö Select the menu point Cancel to leave the menu.
Ö To confirm press OK.

Othello

You must win as many tokens of your own color as possible. Set one of your
tokens at the rim and all tokens of the other color, which are between this
token and another of your own color, in vertical, horizontal or diagonal line, will
be changed to your own color.

Games

Smart MX 04 EN 57

Start

Starting the game.

Ö Select the menu point Start.
Ö To confirm press OK.
Ö

For leaving the menu, press EXIT once or repeatedly.

Setup

Setup of Level

Ö Select the menu point Setup.
Ö Select the level by pressing OK.

Cancel

Leave the menu.

Ö Select the menu point Cancel to leave the menu.
Ö To confirm press OK.

Operation With The Remote Control

58 EN Smart MX 04

Operation With The Remote Control

Switch The Receiver On And Off

Press the Standby button to switch the receiver on and off.

Change The Volume

Change the volume with the VOL (+/-) buttons.

Change The Channel

Press Numeric buttons (0~9) for the channel number. To change the channel
in ascending or descending order you can also press the PR (+/-) buttons.

Teletext

For teletext press the TXT button.
The teletext shows news and information about the program.
To exit the teletext, press EXIT.

Operation With The Remote Control

Smart MX 04 EN 59

Electronic Program Guide

Figure 27: Electronic Program Guide (EPG)

For the electronic program guide press the EPG button.
Here you

can get information of the just running and following programs (if

supported by the broadcaster).
Press EXIT to leave the EPG.

Favorite List

While watching TV or listening to the radio you can press the FAV button and
retrieve a list with your favorite TV or radio channels.

If you did not select any favorite channels, no list will appear. Instead you will
see the notice No FAV Channels.

Operation With The Remote Control

60 EN Smart MX 04

Find A Channel

Figure 28: Find a channel

Every satellite is broadcasting hundreds of digital channels. To avoid that you
must search the whole channel memory for a certain channel, you can insert
the name of the channel with the keys and search for it.

Press Find to get the input field for the name. Insert the channel name with
the Numeric buttons (0~9). Just like on mobile phones, every numeric button
has al

so some alphanumeric functions. With pressing several times on the
same button you can select the letters with are printed on top of the Numeric
buttons

(0~9) of the remote control.

After inserting the first letter, you can see on the left side a list with channels
which begins with this letter. Press the PR (+/-) buttons and you can scroll
throug

h the channels and select the required channel. With inserting more
letters, you can narrow down the result further.

Press the VOL (+/-) buttons to move to the left or right. To add another letter,
first pre

ss the VOL-+ button. Then insert the next letter.
Press Find to switch between small and capital letters.
Press

ZOOM to delete a digit or letter.

Press

TXT to finish the input and show the selected channel.

Press

Audio or EXIT to leave the menu.

Operation With The Remote Control

Smart MX 04 EN 61

Zoom Function

While watching TV press ZOOM to call the zoom menu.

Figure 29: ZOOM-menu

You can move the section with the PR (+/-) and the VOL (+/-) buttons. Press
ZOOM again and you change the size of the sect

ion. To leave the ZOOM

menu press EXIT.

Operation With The Remote Control

62 EN Smart MX 04

Satellite Overview

Figure 30: Overview over the programmed satellites

Press SAT to get an overview over the programmed satellites.

TV Switch

Press TV/AV to switch between satellite receipt via the MX 04 and antenna
receipt via TV-Set.

Sleep Timer

Press SLEEP to call the sleep timer. With repeating pressing of the SLEEP
button you can change the time (OFF, 10 30, 60 90, 120).

Operation With The Remote Control

Smart MX 04 EN 63

Program Information

Figure 31: Detailed Program Information

Digital television gives the opportunity to broadcast additional information for
the program. Not every channel offers this service. In this case the text field is
empty.

Press INFO to get information about the run

ning program. Press INFO again
and you get more detailed information about the current program. If the
information is very detailed, you can scroll forward with the ZOOM button and
back with the Find button.

Operation With The Remote Control

64 EN Smart MX 04

Mosaic

Figure 32: Mosaic

Press Mosaic button to get an overview about the cu

rrent and the next eight

channels.

Pause Function

Press Pause button to freeze the picture of the current program.
Press Pause button again to go back to normal.

Switching Channels

Press the Numeric buttons (0~9) to insert the number of channel.
You can go to the next or previous channel with the PR (+/-) buttons.
Press

Up or Down button to switch between the channel lists of the several

program

med satellites.

Press

PR button to recall the last selected channel.

Operation With The Remote Control

Smart MX 04 EN 65

Audio Settings

While watching TV press the Audio button.
Select the audio mode with the VOL (+/-) buttons.
Dep

endant on the selected channel you can chose between following mode:

• Mono sound track

• Left

• Right

• Stereo

• AC3

After selecting the desired mode, leave the menu with EXIT.

Muting

For Muting press the Mute button. On the screen you will see a symbol with
crossed-out loudspeaker.

Press Mute again to hear the sound. The symbol disappears.

Storing Of Product

66 EN Smart MX 04

Storing Of Product

Ö Pull all plugs out of the sockets.
Ö Screw the LNB cable from the receiver.
Ö Take the batteries out of the remote control if you do not use the receiver

for a longer period.

Ö Pack the receiver, the cables and the remote control into the original

carton.

Ö Save the receiver and all accessories at a dry and dust-free location.
Ö Protect the receiver from frost.

Cleaning

Danger of Electric Shock!

No liquids must run into the receiver. Never clean it with a wet
cloth. Always pull the plug out of the socket before cleaning.

Attention!

Never use solvent-containing agents like benzene or similar.
These agents can damage the surface of the housing.

Pull the plug out of the socket before cleaning the receiver. Clean the housing
of the receiver only with a dry cloth.

Troubleshooting

Smart MX 04 EN 67

Troubleshooting

Fault Phenomenon Probable reasons and solution

The power cable is not plugged in.
Put the plug of the power cable into the mains

socket.

The display shows
nothing.

The power switch is off. Switch power on at the
backside of the device.

No volume or picture,
the LED is on.

The receiver is on standby.
Press the power button. The receiver will switch on

and the program is on the screen.

No volume or picture. The antenna is not adjusted to the satellite.

Adjust the antenna correctly.

No or only faint signal.

Please check the cable between LNB and receiver
and between receiver and connected devices.

Adjust the antenna.

No picture on TV
screen.

The system is connected incorrectly.
Check connection of SCART cable.

TV-Set is not in AV
mode.

Switch the TV set on AV input.

Bd picture,
block defect.

The antenna is not adjusted to the satellite.

Adjust the antenna.
TheLNB is defective. Replace the LNB.
The remote control

does not work.

The batteries are empty.

Replace them with new ones.
The remote control

does not always work.

Focus the remote control to the front side of the

receiver and assure that nothing else is between

the remote control and the receiver.

If you cannot find out what is wrong with your device, please contact your local
dealer.

Disposal

68 EN Smart MX 04

Disposal

Attention!

Never throw the receiver and the batteries in normal
household waste. They may contain toxic agents that are
hazardous to health and environment. Therefore, dispose of
the device and the batteries immediately according to the
prevailing statutory regulations. Never throw the batteries in
normal household waste.

EU directive for disposal of used devices in private household

Figure 33: WEEE-Symbol

Used devices contain valuable materials that should be recycled. Electronic
equipment is not household waste - in accordance with directive 2002/96/EC
OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 27th January
2003 on used electrical and electronic equipment, it must be disposed of
properly. At the end of its service life, take this unit for disposal at a relevant
official collection point.

Technical Specifications

Smart MX 04 EN 69

Technical Specifications

LNB / Tuner-Input

F-type connector IEC 169-24

Frequency Range 950 MHz ~ 2150 MHz

Input Level -65 dBm to -25 dBm

LNB Power Supply 13/18 V, max. 400 mA

LNB Control Signal 22 kHz, 0/12 V

DiSEqC Control Version 1.2

Demodulator

Front

-End-Module QPSK

Input Data Rates 2 MS/s to 45 MS/s

SCPC- and MCPC-compatible

System Resources

Processo

r 32 bit, 60 MHz

SDRAM 8 MByte

FLASH 2 MByte

Video-Decoder

Video Re

solution (Video format) 720 x 576 (PAL), 720 x 480 (NTSC)

Aspect Ratio 4:3, 16:9

Modulator (optional)

Cha

nnel 21 - 69

Remote Control

Batteries

2x type AAA

Range max. 7 m

Technical Specifications

70 EN Smart MX 04

Power Supply

Power Consumption max. 15 W

Supply Voltage 175 - 250 V AC, 50/60 Hz

Connectors Rear Panel

Data Interfa

ce 9-pole, D-Sub

Digital Tuner Input (LNB-IN) IEC 169-24

Loop-Through digit. Tuner (LNB-OUT) IEC 169-24

TV SCART RGB, CVBS, Audio

VCR SCART CVBS, Audio

Analogue Video Output 1 x RCA Cinch coaxial

Analogue Audio Output 2 x RCA Cinch coaxial

Digital Audio Output (SPDIF) 1 x RCA Cinch coaxial

0/12V-Output 1 x RCA Cinch coaxial

Temperature

Operating Te

mperature 0° C to +40° C

Storage Temperature -40° C to +65° C

Dimensions

Width

260 mm

Height 50 mm

Depth 165 mm

Weight ca. 1 kg

Supplier

Smart MX 04 EN 71

Supplier

WELA electronic Handels GmbH
Industriestraße 29
78112 St. Georgen
Germany
Service Hotline: [phone] / 93 52 11 (0,14 €/min. from German landline)
Fax: [phone]
E-Mail: [e-mail]
Internet: www.smart-electronic.de/

Warranty

The warranty for the digital satellite receiver MX 04 of the WELA electronic
Handels GmbH is in conformity with the prevailing statutory regulations at the
time of purchasing the product. The WELA electronic Handels GmbH reserves
the right to change the specification at any time without prior notice.

Declaration of Conformity

The WELA electronic Handels GmbH, Industriestraße 29, 78112 St. Georgen,
Germany hereby declares conformity with the following guidelines and
s

tandards for this product:

• Guideline for low voltage, 2006/95/EG

• EN 60 335-1

• EN 60 335-2-15

• Guideline for electromagnetic compatibility, 2004/108/EG

• EN 55 013:2001

• EN 55 020

• EN 61 000-3-2:2000

• EN 61 000-3-3:1995+A1:2001

• EN 61 938

Equipment type /model: Free-To-Air Digital Satellite Receiver

WELA electronic Handels GmbH
