Index ............................................ 2
smart entry line radio ...................... 3
4515849482
É4515849482DËÍ
Contents
1
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 1
Page 4
A
Autostore ..................................... 10
AUX mode ...................................... 13
Activating ............................... 13
B
Balance ......................................... 7
Basic functions ............................... 5
Bass .............................................. 7
C
Channel presets .............................. 9
Correct use .................................... 3
D
Display ......................................... 5
Switching on/off ......................... 8
F
Factory settings .............................. 8
M
Manual frequency entry (radio) ........... 9
Metadata
Displaying ............................... 12
MP3
Selecting a folder ..................... 12
Mute ............................................. 6
N
Normal track sequence ..................... 11
O
Operating safety ............................. 3
Overview of controls ........................ 4
P
Playlist
Selecting ................................. 12
R
Radio mode
Switching on .............................. 8
Random track sequence
Within a storage medium ............. 11
Reception problems ......................... 3
Reset ............................................ 8
S
Selecting active partition ............... 11
Setting a station (radio)
Via manual frequency entry ........... 9
Sound settings ................................ 6
Station
Selecting .................................. 9
Storing ..................................... 9
Station names
Displaying ................................ 6
Station search ................................ 9
Switching on/off ............................. 6
System settings ............................... 7
Reset ........................................ 8
T
Track sequence
Normal ..................................... 11
Random .................................... 11
Treble ........................................... 7
U
USB mode ...................................... 10
Activating ............................... 10
V
Volume .......................................... 6
Volume level
Setting .................................... 13
W
Waveband
Switching (radio) ....................... 9
2
Index
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 2
Page 5
Operating safety
G
Warning
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions
first before operating system controls
whilst driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
G
Risk of accident
Always select a volume at which you can
still hear sounds from outside the vehicle
(e.g. horns, rescue vehicles, police
vehicles etc.). You could otherwise cause an
accident.
G
Warning
Change or modification not expressly
approved by the party responsible for
compliance could void the user's authority
to operate this equipment.
G
Warning
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the FCC
radio frequency (RF) Exposure Guidelines
in Supplement C to OET65.
This equipment has very low levels of RF
energy that is deemed to comply without
maximum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least
8 inches (20 cm) and more between the
radiator and a person's body (excluding
extremities: hands, wrists, feet and legs.)
Correct use
Always observe the following when using
the audio equipment:
R
the safety notes in this manual
R
national road traffic regulations
G
Risk of accident
If work on electronic equipment or systems
(e.g. the radio) and its software is carried
out incorrectly, this equipment could stop
functioning. The electronic systems are
linked together by interfaces. Work on
electronic systems may also cause systems
that were not worked on to malfunction.
These malfunctions could affect the
operating safety of your vehicle and
therefore also have a considerable effect
on your safety.
Therefore, only have work on and changes to
electronic components carried out at a
qualified specialist workshop which has
the necessary specialist knowledge and
tools to carry out the work required.
Daimler recommends that you visit a
smart Center for this purpose.
!
Electronic devices that you bring into
the vehicle yourself can cause
significant problems with the radio
reception.
>> smart entry line radio.
3
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 3
Z
Page 6
At a glance

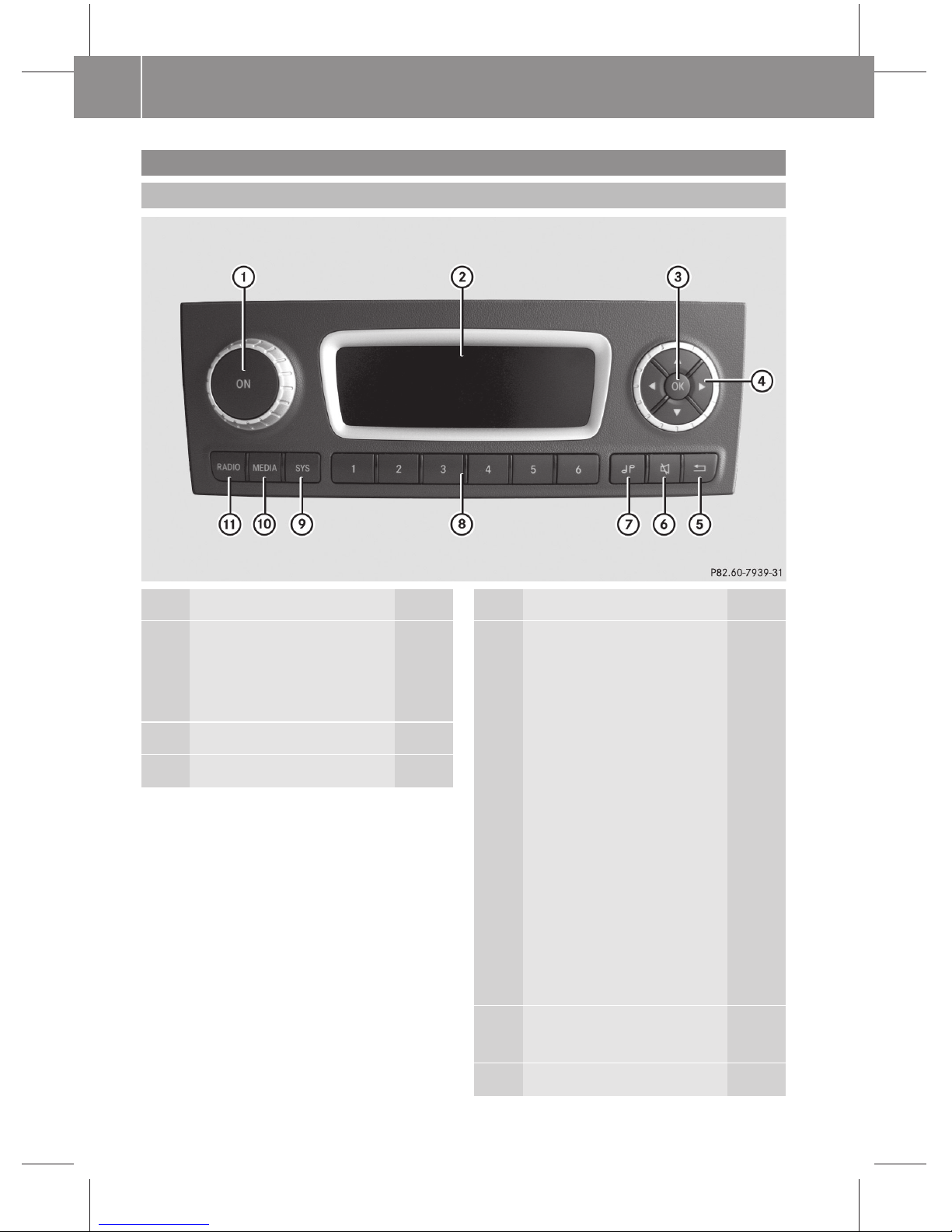

Overview of controls
Function Page
:
q control knob
Press: switches the radio
on/off 6
Turn: adjusts the volume 6
;
Display 5
=
9 button
7
Function Page
?
; arrow button
Radio mode:
press the button to
manually search for a
station forwards 9
MP3 mode:
skip forwards, fastforward 12
= arrow button
Radio mode:
press the button to
manually search for a
station backwards 9
MP3 mode:
skip backwards, rewind 12
9/: arrow buttons
Navigating within menus 7
A
% button (back button)
Exits a menu
B
x button (mute)
6
4
>> smart entry line radio.
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 4
Page 7
Function Page
C
u button (sound
button)
6
D
Station presets
9
Function Page
E
i button
Calls up the system menu 7
F
Õ button
Activates USB/AUX mode 10
G
$ button
Switches on radio mode 8
Display
The display shows all the information
concerning settings, stations, current
track time etc.
Depending on the audio source, this
information may differ. Details can be
found in the individual sections.
Example: radio operation
:
Station name
;
Mute
=
FM waveband and station frequency
?
Radio mode is activated. Depending on
the waveband and preset group
selected, FM 1, FM 2 or AM is displayed.
A
Info menu
B
Presets menu
C
Radio menu
D
Preset position of the selected station
i
If no station name is available, the
frequency is shown in the center of the
display.

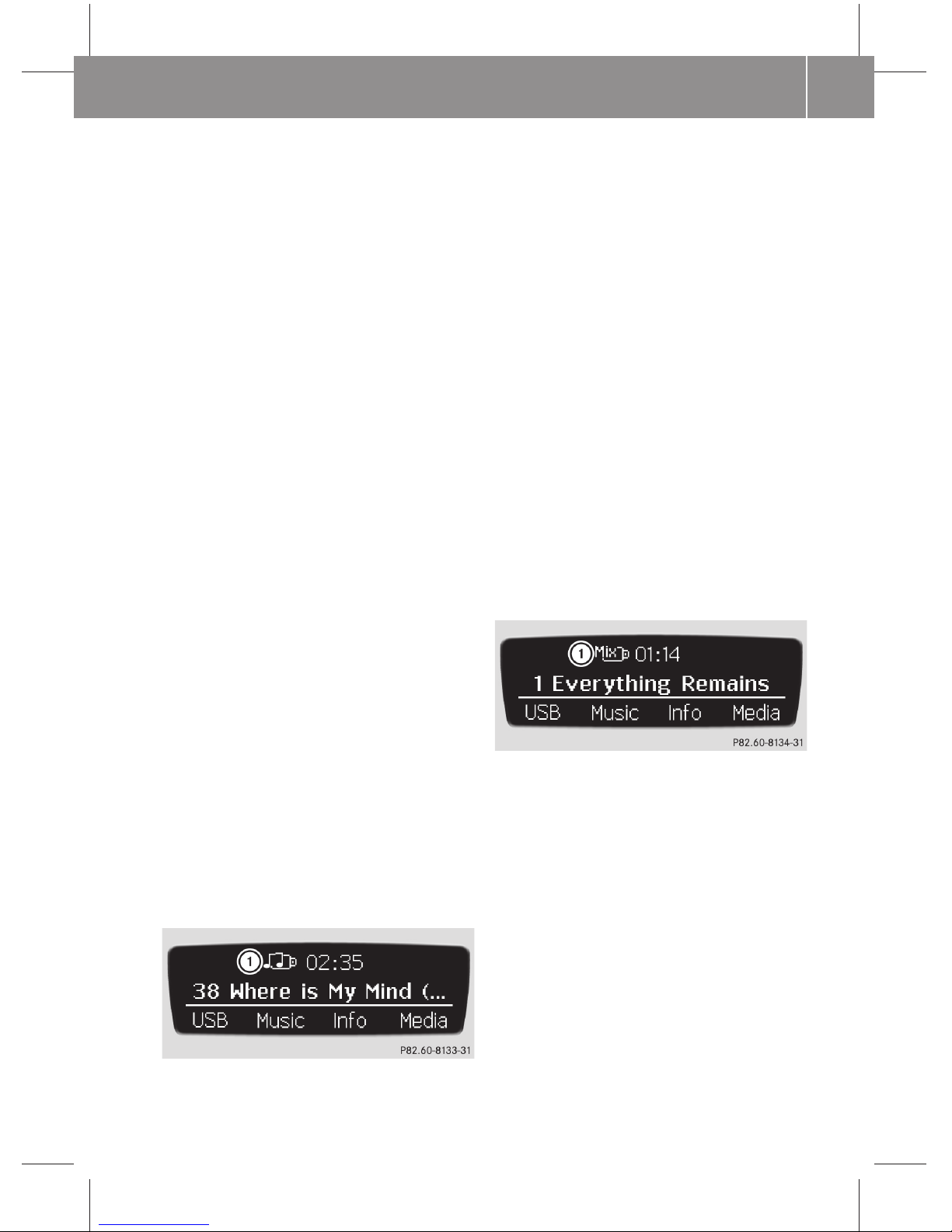

Example: USB mode
:
USB: random track sequence within a
storage medium
;
Track time
=
Track name
?
Media menu
A
Info menu
B
Music menu
C
USB menu
D
Track number
i
The track number refers to the folder in
which the MP3 file is saved.
Basic functions
This section provides information about
the basic functions of the smart entry line
radio. Further information about the
functions can be found in the respective
sections (Y page 8) and (Y page 10).
G
Risk of accident
Familiarize yourself with the most
important steps before starting your
journey. Never try out new functions whilst
driving. This will distract you from the
>> smart entry line radio.
5
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 5
Z
Page 8
traffic conditions and you could cause an
accident.
Always operate the radio in such a way that
you maintain control of your vehicle in all
traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
i
You can find an overview of the smart
entry line radio's functions in the
Overview of controls section (Y page 4).
Switching on the smart entry line radio
If the radio was on when the key was turned
back in the ignition lock:
X
Turn the key to "ACC" or "ON".
or
X
Press the q button.
The radio calls up the last active
function.
i
When the radio is switched on without
the ignition, the radio switches off
again automatically after 30 minutes.
Switching off the smart entry line radio
X
Turn the key to "LOCK" in the ignition
lock.
or
X
Press the q button.
Displaying station names
The station names can be shown in radio
mode:
X
Press the $ button.
X
Press the : arrow button repeatedly
until Station Info is highlighted.
X
Press 9 to confirm.
The O symbol indicates the activated
option.
X
To deactivate the option, press the 9
button again.
The ª symbol indicates the deactivated
option.
X
Press the back button to exit the menu.
Volume settings
The set volume applies to both radio mode
and USB/AUX mode.
Adjusting the volume
X
To raise the volume: turn the control
knob clockwise.
X
To lower the volume: turn the control
knob anti-clockwise.
Mute
When in radio mode, the mute function
mutes the radio.
If a traffic announcement is broadcast
while the radio is muted, the announcement
will still be audible.
To mute the traffic announcement, the
x button must be pressed again.
Pressing and holding switches the TA
(traffic announcement) function on or off.
Switching on mute
X
Press the x button.
The currently active operating mode is
muted.
x appears in the display.
Switching off mute
X
Press x again.
The mute function is deactivated. The
corresponding symbol on the display
goes out.
Sound settings
The sound settings can be set separately for
the radio and USB modes. In AUX mode, the
same sound settings are used as in USB
mode, but you can make additional settings
6
>> smart entry line radio.
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 6
Page 9
on the external device. The sound settings
are automatically stored every time you
change them. The bass and treble settings
allow you to adjust the intensity of the
sound according to the type of music being
played. The balance settings allow you to
adjust the stereo sound to the left or right
within the vehicle. In the default setting,
the balance is set to the center of the
vehicle.
Adjusting the bass
X
Press the u number key.
X
Press the : button repeatedly until
Bass is selected.
X
To set the desired value: press the =
or ; button to decrease or increase
the value.
X
To confirm the value and exit the menu:
press the 9 or % or u button.

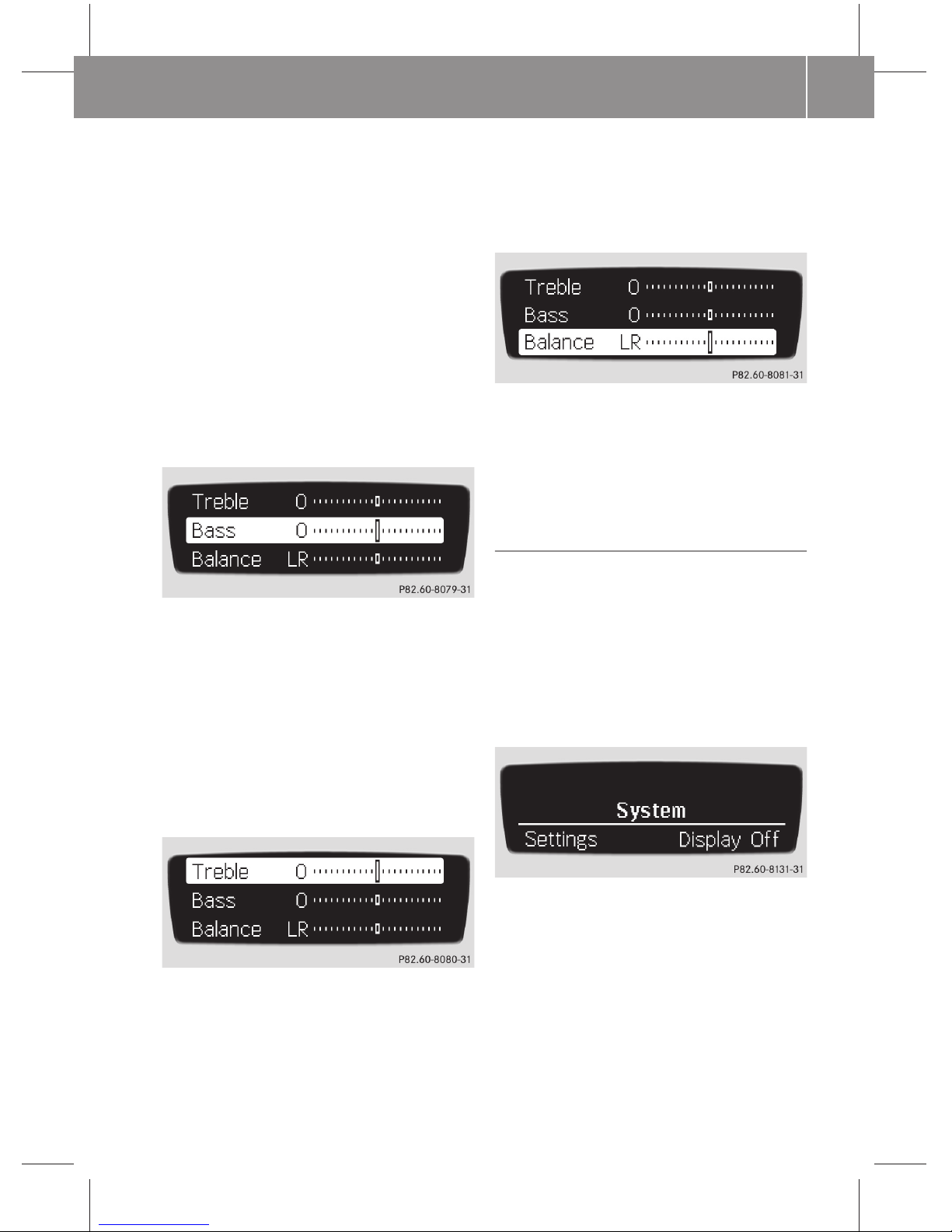

Adjusting the treble
X
Press the u number key.
X
Press the : button repeatedly until
Treble is selected.
X
To set the desired value: press the =
or ; button to decrease or increase
the value.
X
To confirm the value and exit the menu:
press the 9 or % or u button.
Adjusting the balance
X
Press the u number key.
X
Press the : button repeatedly until
Balance is selected.
X
To set the desired value: press the =
or ; button to decrease or increase
the value.
X
To confirm the value and exit the menu:
press the 9 or % or u button.
System settings
General information
You can alter the system settings in the
system menu.
Brightness
Setting the display brightness:
X
Press the i button.
The system menu appears.
System menu
X
Press the : or = button to select
Settings and press 9 to confirm.
The top menu item Brightness is
selected by default.
>> smart entry line radio.
7
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 7
Z
Page 10
Brightness menu item selected
X
Press 9 to confirm.
Adjusting the brightness
X
Press the = or ; button to darken
or brighten the display.
X
Press 9 or % to confirm and exit the
menu.
i
The display brightness can be set
differently for day and night operation.
When the lights are switched off, the day
operation settings are used and when the
lights are switched on, the night
operation settings are used. In night
operation, the brightness can be reduced
using the dimmer switch on the
instrument cluster (see vehicle
Operator's Manual).
Restoring the factory settings
X
Press the i button.
The system menu appears.
X
Press the : or = button to select
Settings and press 9 to confirm.
Press the : button to select System
Reset.
X
Press 9 to confirm.
The following prompt appears: Are you
sure you want to reset? Yes No
The default selection is No.
X
If you do not want to restore the factory
settings, press 9.
X
Press % to exit the menu.
X
Press = and 9 to restore the factory
settings.
X
The following message appears: The
system has been reset and will be
restarted
Switching the display on/off
Switching off the display:
X
Press the i button.
The system menu appears.
X
Press the : or ; button to select
Display Off.
The display switches off.
Switching on the display:
X
Press the 9 button.
The display switches on again.
i
The display can also be switched on by
pressing any button except the mute
button and the station presets.
Audio
Radio mode
Notes
You can find information on the operating
system and the basic operation of the smart
entry line radio in the Overview of controls
(Y page 4) and Basic functions (Y page 5)
sections.
Switching on the radio
X
Press the q button.
The radio activates the last active
function.
If the last active function was radio
mode, the radio menu will appear. You
will hear the last station selected.
8
>> smart entry line radio.
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 8
Page 11
X
From another function: press the $
button.
The radio switches to radio mode. You
will hear the last station selected.
Switching wavebands
The following wavebands are available:
R
FM
R
AM
X
To select a waveband: press the :
or ; button to select a waveband and
press 9 to confirm.
The currently selected waveband is
indicated by a dot.
X
Press the =, ; or % button to
exit the menu.
Selecting a station
General information
Stations may be selected in the following
ways:
R
using the station search (Y page 9)
R
by entering the frequency manually
(Y page 9)
R
using the station presets (Y page 9)
Selecting stations using the station search
function
X
Set the desired waveband (Y page 9).
X
Press the ; button.
The station search starts and searches
forwards.
R
The search stops at the next station
that can be received.
R
If the end of the waveband is reached,
the search continues at the beginning
of the waveband.
R
If no station is found, the search stops
at the point where the search was
started.
Manual frequency entry
Manual frequency entry is available in all
wavebands.
X
Set the desired waveband (Y page 9).
X
Press the $ button.
X
Press the 9 or : button to select
Enter Frequency and press 9 to
confirm.

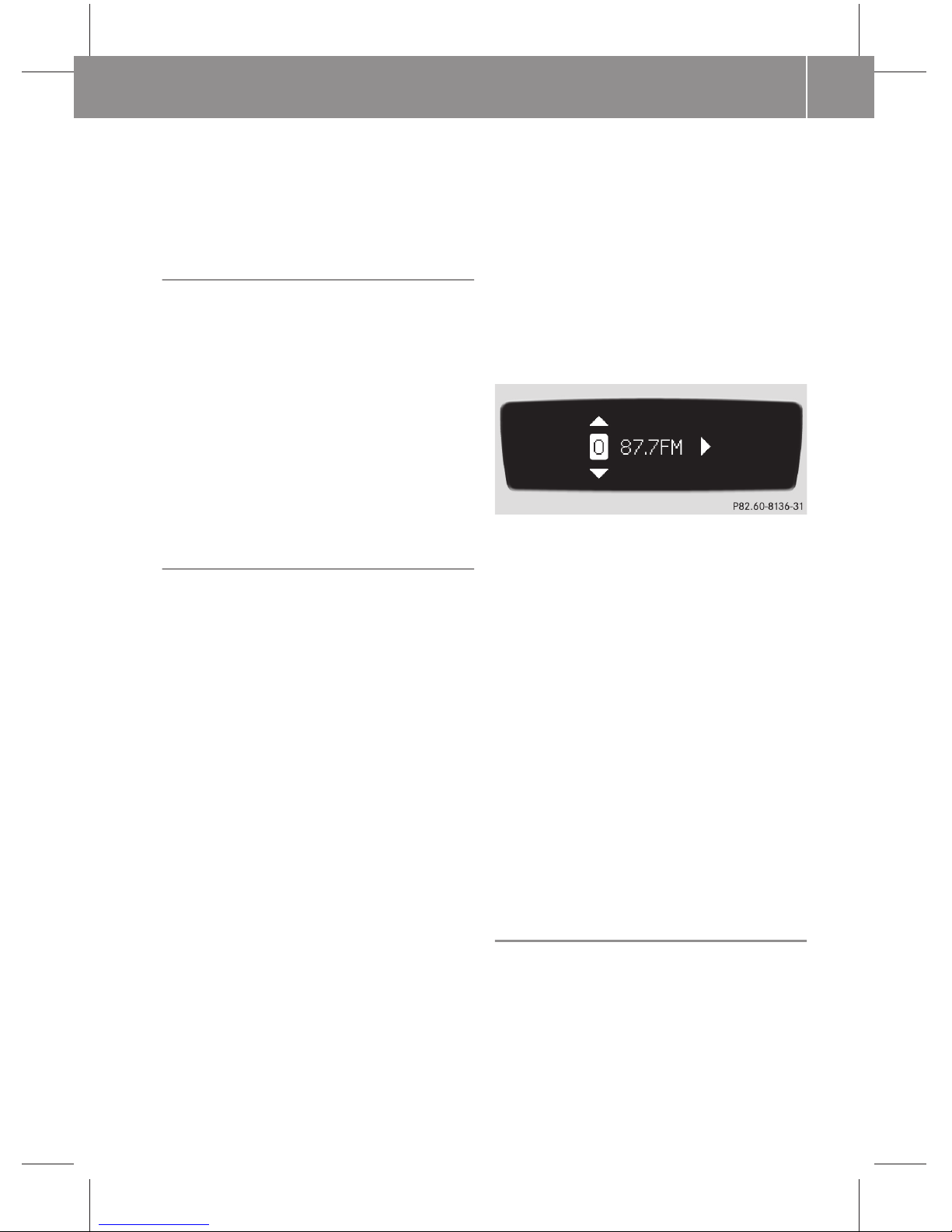

The display for manually entering the
frequency appears.
Manual frequency entry
X
Press the 9 or : button to set a
higher or lower value for the first digit.
X
To set the values of the following digits:
press the ; button to select the digit.
X
Press the 9 or : button to set a
higher or lower value for the selected
digit.
X
Press the % button to exit the menu.
Selecting stations via the station presets
X
Select the desired preset group (FM 1,
FM 2 and AM).
X
Press one of the station presets 4 –
3.
The radio selects the station stored
under the selected preset.
Storing stations
General information
Each preset group (FM1, FM2, and AM)
provides six presets.
>> smart entry line radio.
9
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 9
Z
Page 12
The following options allow you to store a
station:
R
manually, using the station presets (all
preset groups)
R
automatically, using the Autostore
function
Storing stations using the station presets
X
Desired preset groups FM 1, FM 2 and
AM.
X
Selecting a station
X
Press and hold the desired station
preset, e.g. ?, until you hear a tone.
The currently set station is stored under
preset ? in the preset group selected.
Storing stations using the Autostore
function
i
The Autostore function automatically
assigns receivable stations to the
presets in the preset groups FM1, FM 2, ...
in an order corresponding to the quality
of reception. Any stations stored
manually in these presets will be lost.
X
Select the desired preset group.
X
Press the : button to select Presets
and press 9 to confirm.

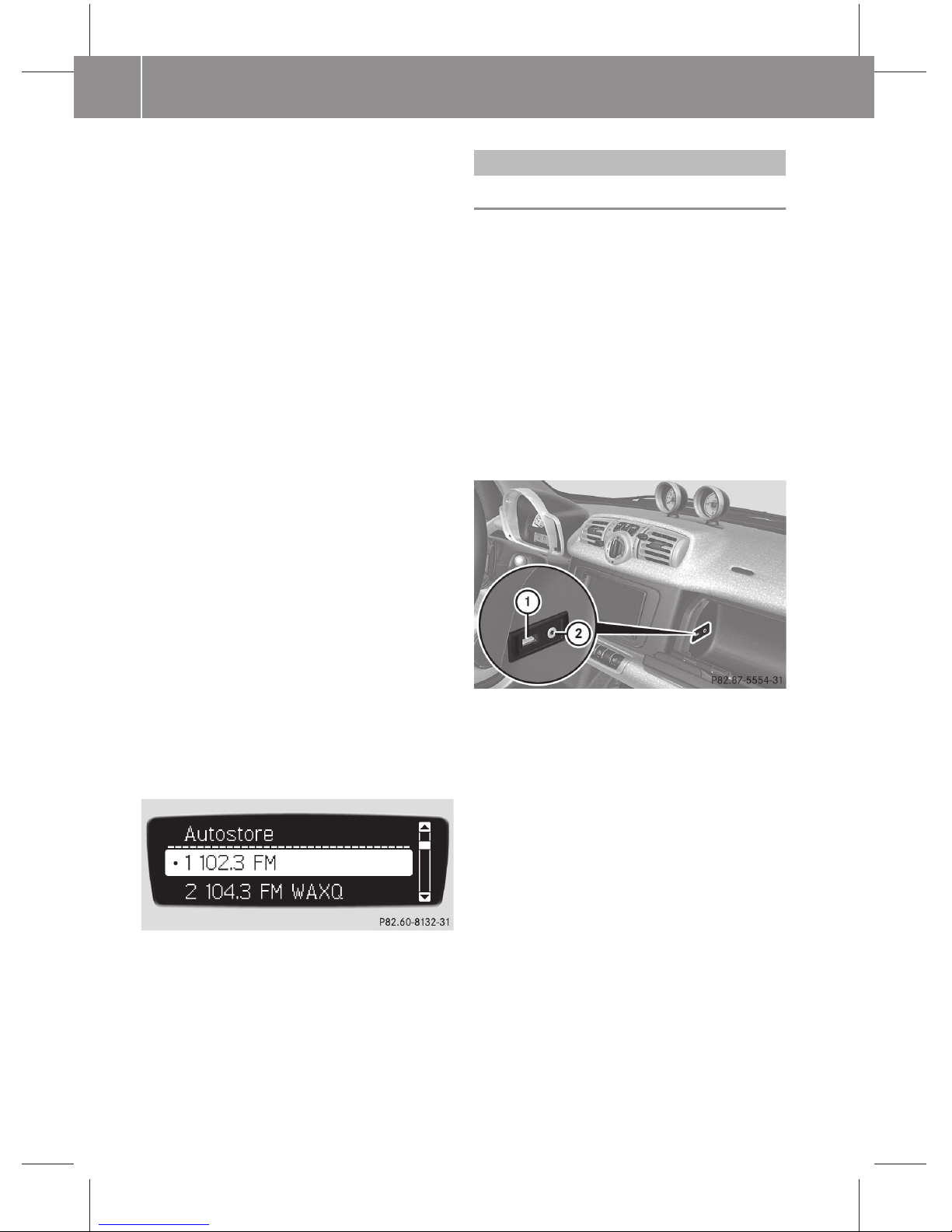

The display shows the assignment of the
six presets as well as the Autostore
menu item.
X
Press the 9 or : button to select
Autostore and press 9 to confirm.
The six stations with the best reception
are saved to the six available memory
positions.
USB/AUX mode
USB mode
Connecting a device
You can use the USB port to connect an
external audio source to your smart entry
line radio. More information is available
from any qualified specialist workshop,
e.g. a smart Center or a smart service
center.
A USB socket is installed on the left-hand
side of the stowage compartment on the
front-passenger's side and can be used to
connect an external audio device (e.g. MP3
player) or a USB storage medium.
:

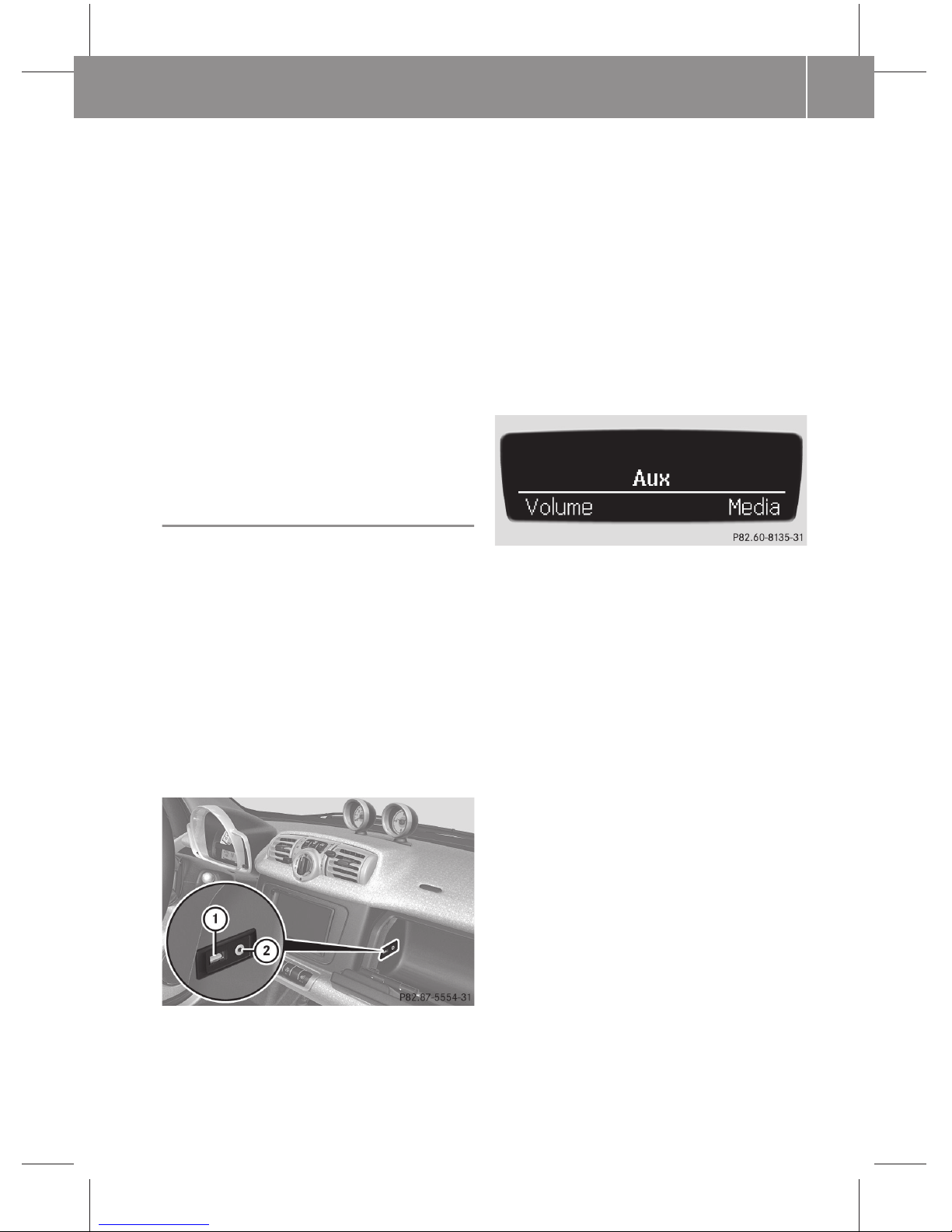

USB port
;
AUX port
i
Media is only recognized in the FAT32
file system and not in the NTFS file
system.
Activating the USB socket
X
Press the Õ button.
X
Press the : button to select Media and
press 9 to confirm.
X
If necessary, press the 9 button to
select USB and press 9 to confirm.
The main menu appears. The USB menu
item is shown at the bottom left of the
display.
i
If you insert a USB medium during radio
mode, the USB medium is activated
automatically and the first track on the
medium is played.
10
>> smart entry line radio.
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 10
Page 13
USB menu
The following settings can be made in the
USB menu:
R
selecting active partition
R
normal track sequence
R
random track sequence
R
random folder sequence
R
displaying metadata
Selecting active partition
The Select Active Partition menu item
makes it possible to display the partitions
of the device that is connected to the USB
port and to select the active partition.
X
Press the : or = button to select
USB and press 9 to confirm.
X
Press the : or 9 button to select
Select Active Partition and press
9 to confirm.
The available partitions are displayed.
X
Press the : or 9 button to select
the desired partition and press 9 to
confirm.
Normal Track Sequence
X
Press the : or = button to select
USB and press 9 to confirm.
X
Press the : or 9 button to select
Normal Track Sequence and press 9 to
confirm.
The activated option is indicated by a
dot.
X
Press % to exit the menu.
Symbol for normal track sequence :
appears in the display.

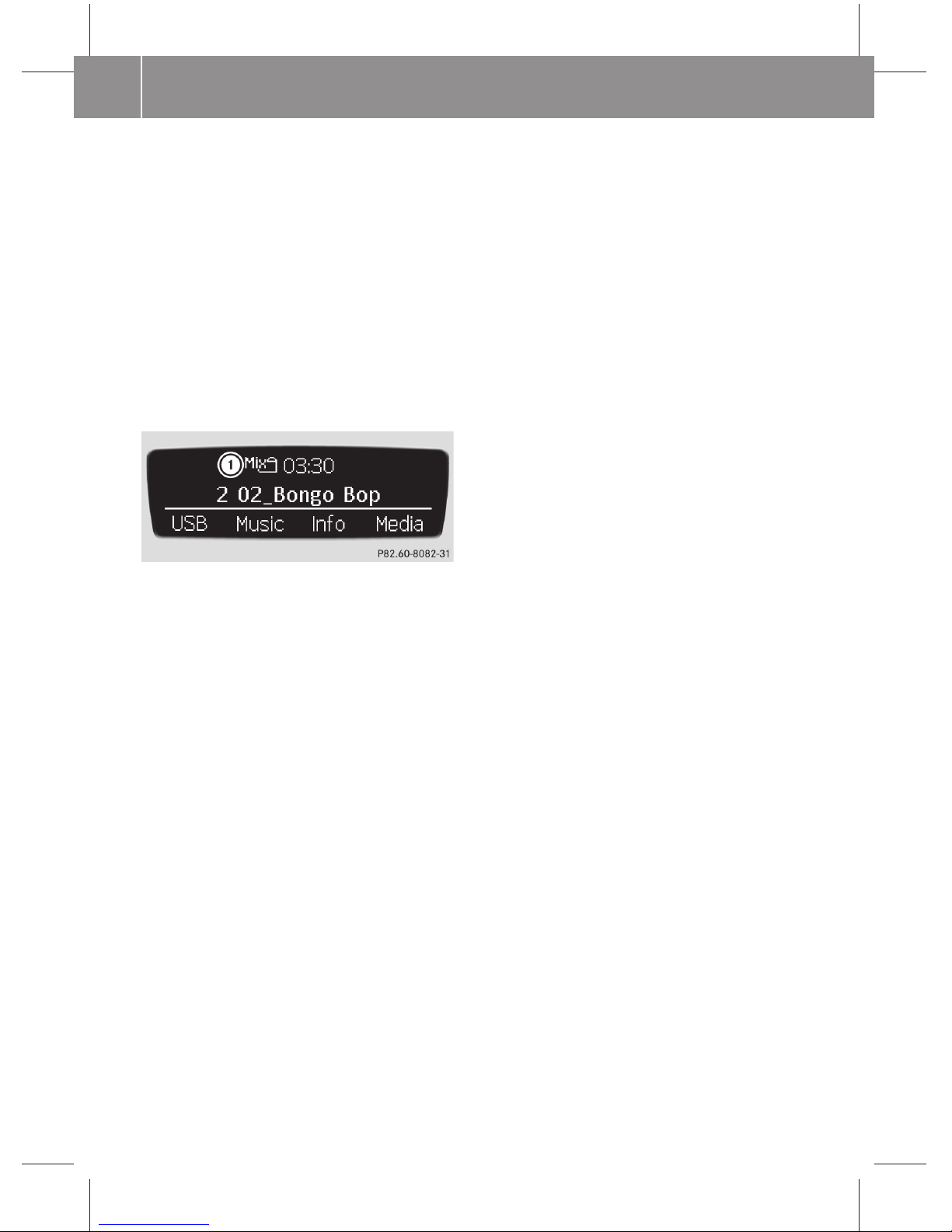

Example: USB mode
:
Normal Track Sequence
i
By pressing the ; or = button,
you can play the next track or the
previous track.
i
By pressing and holding the ; or
= button, you can fast-forward or
rewind.
Random track sequence within a storage
medium
Proceed as follows to select random track
sequence from different folders:
X
Press the : or = button to select
USB and press 9 to confirm.
X
Press the : or 9 button to select
Random Tracks and press 9 to confirm.
The activated option is indicated by a
dot.
X
Press % to exit the menu.
Symbol for random track sequence within
a storage medium : appears in the
display.
Example: USB mode
:
Random track sequence within a storage
medium
i
By pressing the ; or = button,
you can play the next track or the
previous track.
i
By pressing and holding the ; or
= button, you can fast-forward or
rewind.
>> smart entry line radio.
11
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 11
Z
Page 14
Random track sequence within a folder
Proceed as follows to select random track
sequence within a folder:
X
Press the : or = button to select
USB and press 9 to confirm.
X
Press the : or 9 button to select
Random Folder and press 9 to confirm.
The activated option is indicated by a
dot.
X
Press % to exit the menu.
Symbol for random folder sequence :
appears in the display.
Example: USB mode
:
Random track sequence within a folder
i
By pressing the ; or = button,
you can play the next track or the
previous track.
i
By pressing and holding the ; or
= button, you can fast-forward or
rewind.
Displaying metadata
By activating this option, you can display
the track stored in the ID3 tag on the main
screen. When the option is deactivated, the
file name is displayed.
X
Press the : or = button to select
USB and press 9 to confirm.
X
Press the : or 9 button to select
Display Metadata and press 9 to
confirm.
O indicates the activated option.
X
Press 9 to deactivate the option again.
ª indicates the deactivated option.
X
Press % to exit the menu.
Music menu
In the Music menu, you can select folders,
playlists and tracks.
X
Press the : or ; button to select
Music and press 9 to confirm.
The name of the data carrier or the
current folder is shown. If there are
playlists on the data carrier, a track can
be selected using either the Folder or
Playlists options. If there are no
playlists on the data carrier, track
selection takes place automatically
using the folder structure.
Selecting a folder
X
Press the : button to select Folder
and press 9 to confirm.
The available folders are displayed if
they contain playable files.
X
Press the : button to select the
desired folder and press 9 to confirm.
X
Press the : button to select the
desired track and press 9 to confirm.
The menu is exited and the track is
played.
i
Pressing the ; button exits the
menu.
Pressing the = button skips up a
hierarchy level.
Selecting a playlist
X
Press the : button to select
Playlists and press 9 to confirm.
The available playlists are displayed.
X
Press the : button to select the
desired playlist and press 9 to confirm.
X
Press the : button to select the
desired track and press 9 to confirm.
The menu is exited and the track is
played.
i
By pressing the ; or = button,
you can play the next track or the
previous track.
12
>> smart entry line radio.
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 12
Page 15
i
By pressing and holding the ; or
= button, you can fast-forward or
rewind.
Info menu
The Info menu contains information about
the artist, album and track.
X
Press the : or ; button to select
Info and press 9 to confirm.
The information that can be called up is
shown.
Media menu
In the Media menu, you can select between
USB and AUX mediums, (Y page 10) and
(Y page 13).
AUX mode
General information
You can connect an external audio source
(audio AUX) to the smart entry line radio.
More information is available from any
qualified specialist workshop, e.g. a smart
Center or a smart service center.
You will find a permanently installed 3.5mm stereo-audio jack on the left of the
stowage compartment on the frontpassenger side to which you can connect
external audio equipment (e.g. an MP3
player).
:
USB port
;
AUX port
For information on the operation of the
external audio source, see the operating
instructions of the external equipment.
Activating AUX mode
X
Press the Õ button.
X
Press the : or ; button to select
Media and press 9 to confirm.
X
Press the : button to select Aux and
press 9 to confirm.
The Aux menu appears and the selected
medium is played.
AUX menu
Setting the volume level
The volume of AUX sources may be quieter
than the radio playback volume. There are
therefore two volume level settings:
Standard and Boost.
X
Press the : button to select Volume
and press 9 to confirm.
The options Standard and Boost are
available.
X
Select the desired option by pressing
the : or 9 button and press 9 to
confirm.
The menu is exited.
Media menu
In the Media menu, you can select between
USB and AUX mediums.
X
Press the : or ; button to select
Media and press 9 to confirm.
X
Press the : or 9 button to select
the desired option and press 9 to
confirm.
The menu is exited.
>> smart entry line radio.
13
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 13
Z
Page 16
14
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 14
Page 17
15
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 15
Page 18
16
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 16
Page 19
Publication details
Internet
Further information about smart vehicles
and about Daimler AG can be found on the
following websites:
http://www.smart.com
http://www.daimler.com
Editorial office
You are welcome to forward any queries or
suggestions you may have regarding this
manual to the technical documentation
team at the following address:
Daimler AG, HPC: R822
D-70546 Stuttgart, Germany
Not to be reprinted, translated or
otherwise reproduced, in whole or in part,
without the written permission of Daimler
AG.
As at 11.02.2010
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 17
Page 20
É4515849482DËÍ
4515849482
Order no. 6522 6815 13
Part no. 451 584 94 82
Edition ÄJ 2010/Ma
www.smart.com smart - A Daimler brand
ZA smart entry line Radio USA ÄJ 2010/Ma; 1; 2, en-US
sabbaeu Version: 3.0.3.6
2010-05-25T11:40:36+02:00 - Seite 18
Loading...
