SMART E70 Setup And Maintenance Manual

SMARTBoard® E70

SETUP AND MAINTENANCE GUIDE

FOR MODEL SPNL-4070

Product registration

If you register your SMART product, we’ll notify you of new features and software upgrades.

Register online at smarttech.com/registration.

Keep the following information available in case you need to contact SMARTSupport.

Serial number:

Date of purchase:

Licenses

The terms H DMI and HDMI Hig h-Definition Multimed ia Interface, and the H DMI lo go are trademarks o r regis tered trade marks of HD MI Lice nsing LLC in the United
States and o ther countries

FCC warning

This equipment has been tested and found to comply with the li mits for a Class A dig ital de vice, pursuant to P art 15 of the FCC Rules. Thes e l imits are de signed to
pro vide re asonable pro tection against harmful inter ference when the equipment is ope rated in a commercial enviro nment. This eq uipment gener ates, uses and
can radiate radio freq uency ene rgy and, if not installe d and used in accord ance with the manufacturer’ s i nstructions, may cause harmful interfer ence to radi o
communications. Op eration of this e quipment in a res idential area is likely to cause harmful interfer ence in which case the user will be re quired to corre ct the
interfere nce at his own e xpense .

Trademark no tice

SMARTBoard , S MARTNo teboo k, s marttech, the SMART logo and all SMART tagli nes ar e trade marks or regis tered trade marks of SMARTT echnolog iesU LC in
the U. S. and/or other co untries . Windo ws is e ither a reg istere d trade mark or a trademark o f Micros oft Corp oration in the U. S. and/or other countrie s. All other
third-party p rod uct and company names may b e trademarks o f their resp ective owner s.

Copyrigh t n otice

© 20 13–2016S MARTTe chnologie sULC. All ri ghts re ser ved. No part o f this publication may b e repr oduced , transmitted, transcrib ed, store d in a re trieval system
or translated i nto any language in any for m by any means without the p rio r wr itten conse nt of S MARTTe chnologie sULC. Information in this manual is subject to
change without notice and d oes not r epr ese nt a commitment on the part of SMART.

This prod uct and/or use there of co vere d by o ne o r mor e of the fo llowing U.S. patents.

www.smarttech.com/patents

10/2016

smar ttech.com/kb/170534

Important information

WARNING

l Failure to follow the installation instructions shipped with theSMART product could result in

personal injury and product damage which may not be covered by the warranty.

l Do not open or disassemble the SMART product. You risk electrical shock from the high

voltage inside the casing. Opening the casing also voids the warranty.

l Do not stand (or allow children to stand) on a chair to touch the surface of the SMART

product. Rather, mount the product at the appropriate height.

l To reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

l If the SMART product requires replacement parts, make sure the service technician uses

replacement parts specified by SMARTTechnologies or parts with the same characteristics

as the original.

l Ensure that any cables that cross the floor to the SMART product are properly bundled and

marked to avoid a trip hazard.

l Useonly extension cords and outlets that can fully accommodate this product’s polarized

plug.

l Use the power cable provided with this product. If a power cable is not supplied with this

product, please contact your supplier. Use only power cables that match the AC voltage of

the power outlet and that comply with your country’s safety standards.

l If the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass

fragments with care when disposing of them.

l Use only VESA®-approved mounting hardware.

l Do not insert objects inside the cabinet ventilation holes, because they could touch

dangerous voltage points and cause electric shock, fire or product damage which may not

be covered by the warranty.

l Do not place any heavy objects on the power cable. Damage to the cable could cause

shock, fire or product damage which may not be covered by the warranty.

i smar ttech.com/kb/170534

IMPORTANT INFORMATION

l Disconnect all the interactive flat panel's power cables from the wall outlet and seek

assistance from qualified service personnel if any of the following occurs:

o

The power cable or plug is damaged

o

Liquid is spilled into the interactive flat panel

o

Objects fall into the interactive flat panel

o

The interactive flat panel is dropped

o

Structural damage, such as cracking, occurs

o

The interactive flat panel behaves unexpectedly when you follow operating

instructions

ii smar ttech.com/kb/170534

Contents

Important information i

Chapter 1: About your interactive flat panel 1

Feature highlights 1

Included accessories 2

Chapter 2: Mounting your interactive flat panel 3

Choosing a mounting location 4

Choosing a mounting height 4

Cable management 4

Connecting your interactive flat panel 5

Configuring your computer’s screen resolution 6

Chapter 3: Using your interactive flat panel 9

Using the remote control 9

Using the control panel 12

On-screen display menu 13

Multi Media mode 14

Cleaning the interactive flat panel 16

Chapter 4: Troubleshooting your interactive flat panel 19

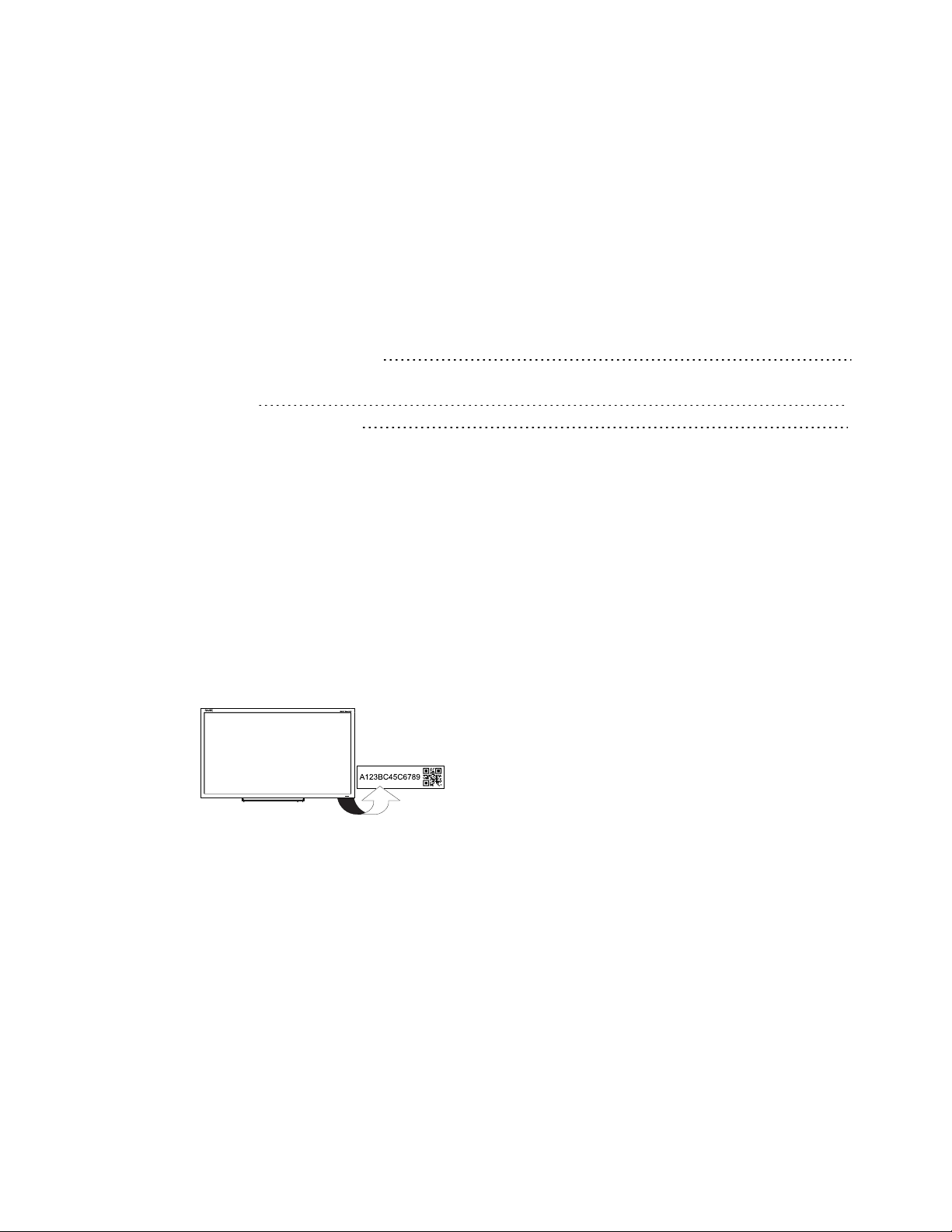

Locating the serial number 19

Resolving common touch control and resolution issues with Windows and Mac operating

systems 20

Resolving image issues 22

Appendix A: Configuring and calibrating your SMARTBoard E70 interactive flat panel with

Windows 23

Configuring your touch and display settings for the SMARTBoard E70 23

Appendix B: Calibrating your interactive flat panel with MacOSX 31

Calibrating your SMARTBoard E70 31

Appendix C: Hardware environmental compliance 33

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and

BatteryDirectives) 33

Batteries 33

More information 33

Index 35

iii smar ttech.com/kb/170534

Chapter 1

Feature highlights 1

Included accessories 2

Pen and pen tray 2

Remote control 2

Included cables 2

This chapter describes the features of your SMARTBoard® E70 interactive flat panel and provides

information about product parts and accessories.

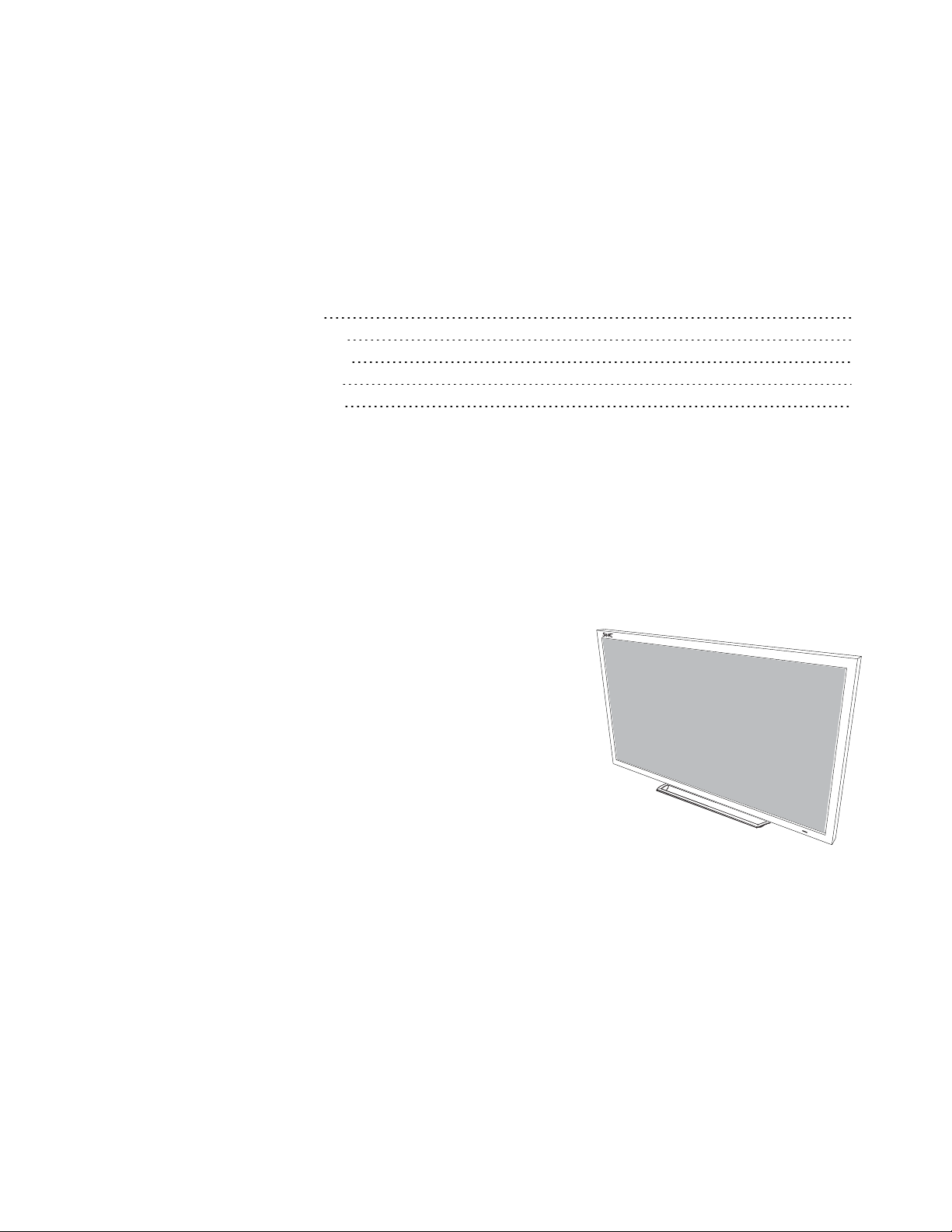

Feature highlights

Designed specifically for classrooms, the

SMARTBoard E70 interactive flat panel combines a

premium touch experience with the power of

SMARTNotebook® collaborative learning software

on a 70" display.

The high-definition, shadow-free 70" (177.8 cm) LED

display features low friction coated glass that

enables fingers to glide smoothly over the surface,

facilitating a natural touch experience. The interactive

flat panel also virtually eliminates glare and provides

an optimal view from any angle in the classroom,

delivering an unparalleled viewing and writing

experience to offer the best value for classrooms.

The multitouch interactive flat panel features freestyle multi-user interaction anywhere on the

display with Windows®7 or Windows8 operating systems, enabling students to collaborate

without limitations.

1 smar ttech.com/kb/170534

CHAPTER 1

ABOUT YOUR INTERACTIVE FLAT PANEL

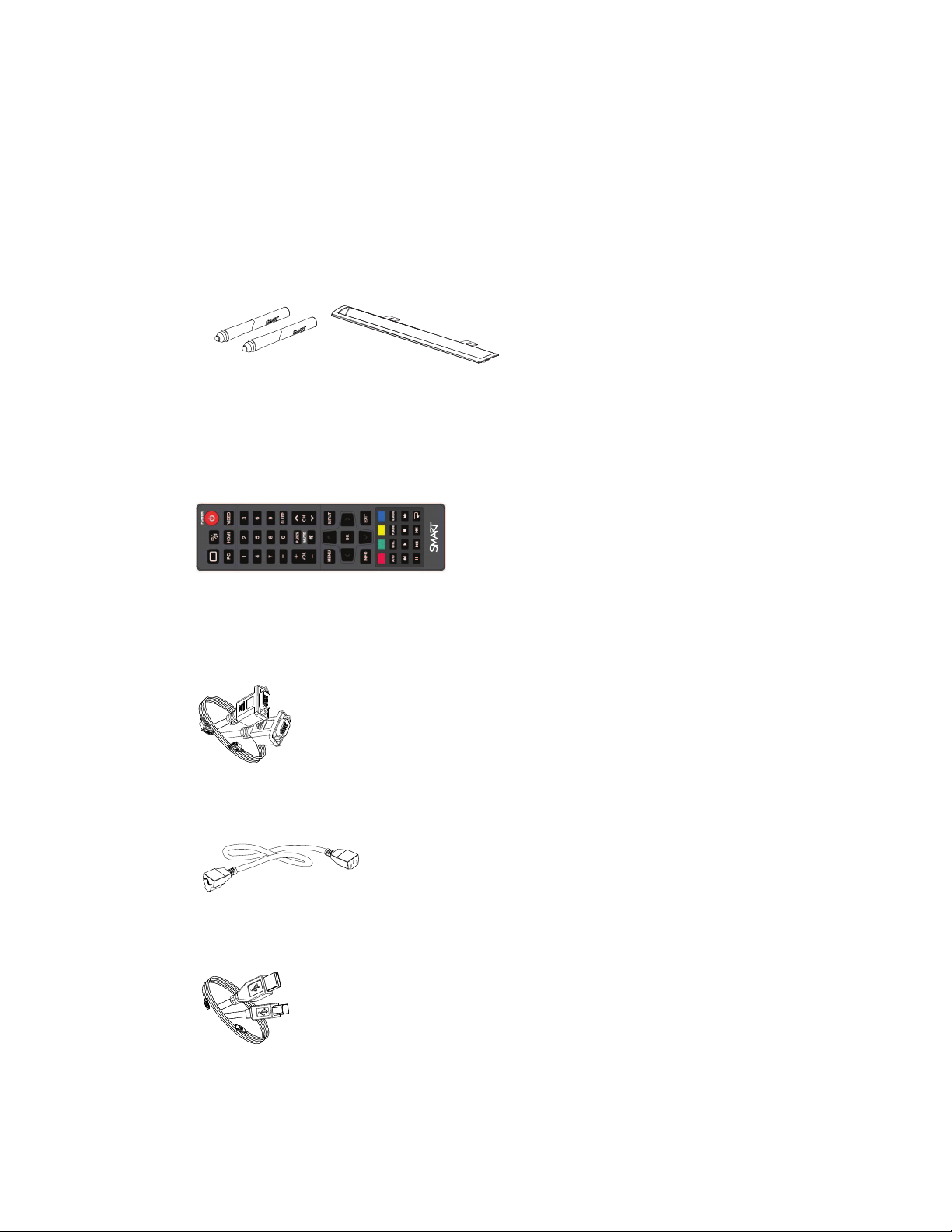

Included accessories

The following accessories are included with your interactive flat panel:

Pen and pen tray

Two pens are included with your interactive flat panel.

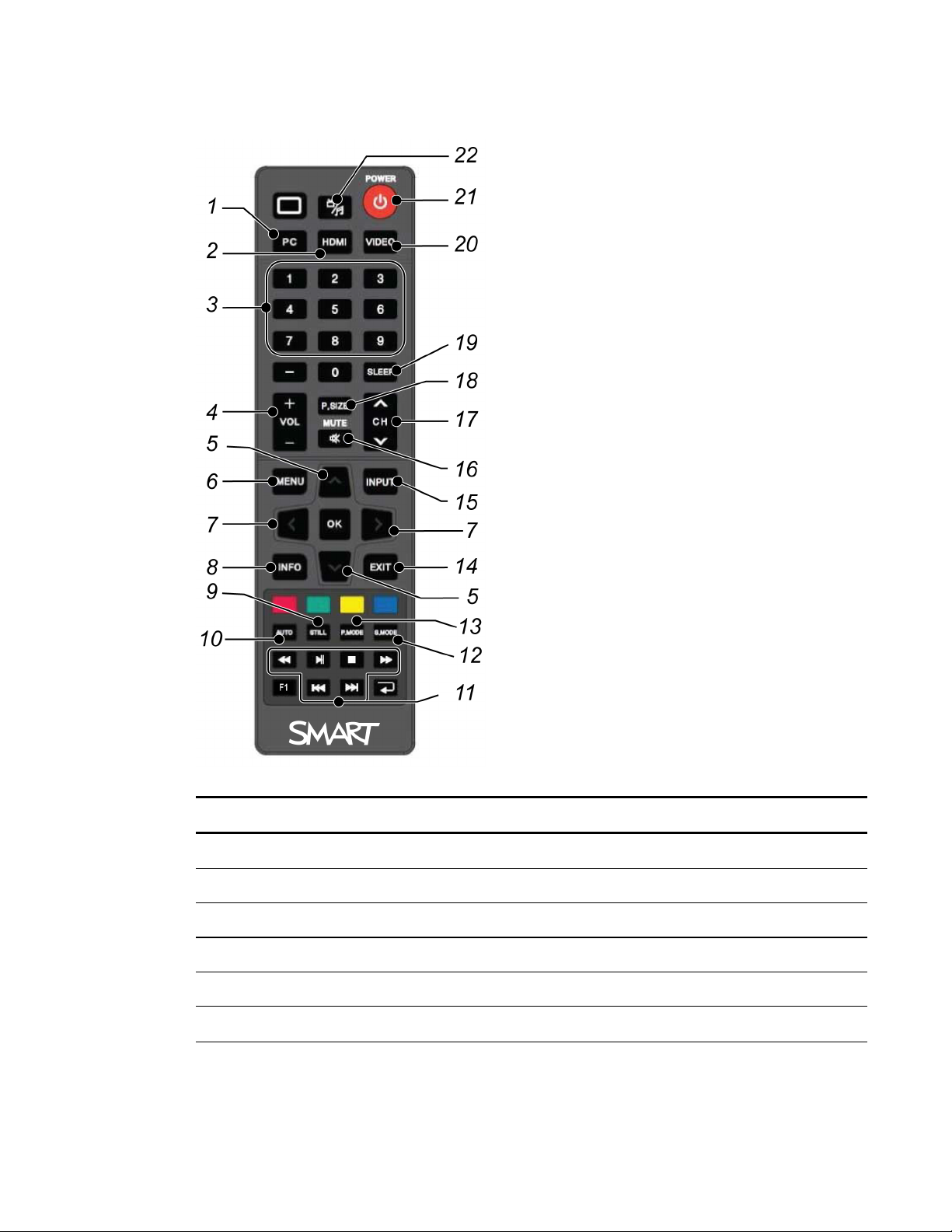

Remote control

The remote control enables you to access the on-screen menus and to change the display and

input settings.

Included cables

VGA - RGB video input

Power cable - AU/NZ, NA, UK and EU

USB cable - touch interface

2 smar ttech.com/kb/170534

Chapter 2

Choosing a mounting location 4

Choosing a mounting height 4

Cable management 4

Connecting your interactive flat panel 5

Configuring your computer’s screen resolution 6

Recommended computer screen resolution 6

Windows 7 and Windows 8 operating systems 7

MacOSX operating system software 8

WARNING

The weight of the interactive flat panel is 169.8 lb. (77 kg), refer to your local building code to

ensure the wall and the mount being used can support this installation. Use appropriating

hardware in accordance to building code and always use 3 or more people to lift and install E70

interactive flat panel.

Model Weight (lb.) Weight (kg)

SPNL-4055 116 lb 13 oz 53 kg

SPNL-4065 153 lb 69.4 kg

l

Model Mounting plate

SPNL-4055 600 mm × 400 mm

SPNL-4065 600 mm × 400 mm

l

Model Screw length Fasten force

SPNL-

4055

SPNL-

4065

l

3 smarttech.com/kb/170534

25 mm where the total wall mount bracket and washer

thickness is less than 7 mm.

30 mm where the total wall mount bracket and washer

thickness is less than 7 mm.

97.36–177.01 in-lb.

(11–20 N·m)

97.36–177.01 in-lb.

(11–20 N·m)

CHAPTER 2

MOUNTING YOUR INTERACTIVE FLAT PANEL

Choosing a mounting location

Consider the following when you select a location for the interactive flat panel:

l The wall must be strong enough to support the interactive flat panel and the mounting

equipment. The interactive flat panel weighs 169.8 lb. (77 kg).

l Select a wall with a flat, regular surface and sufficient clearance to accommodate your

interactive flat panel. Mount the interactive flat panel in a location that’s central to your

audience’s viewing direction.

l Choose a location for the interactive flat panel that’s far from bright light sources, such as

windows and strong overhead lighting. IR lighting can cause issues with the performance of

the cameras and can lead to unintentional or missed touches.

For mobile or adjustable installation options, contact your authorized SMART reseller

(smarttech.com/where).

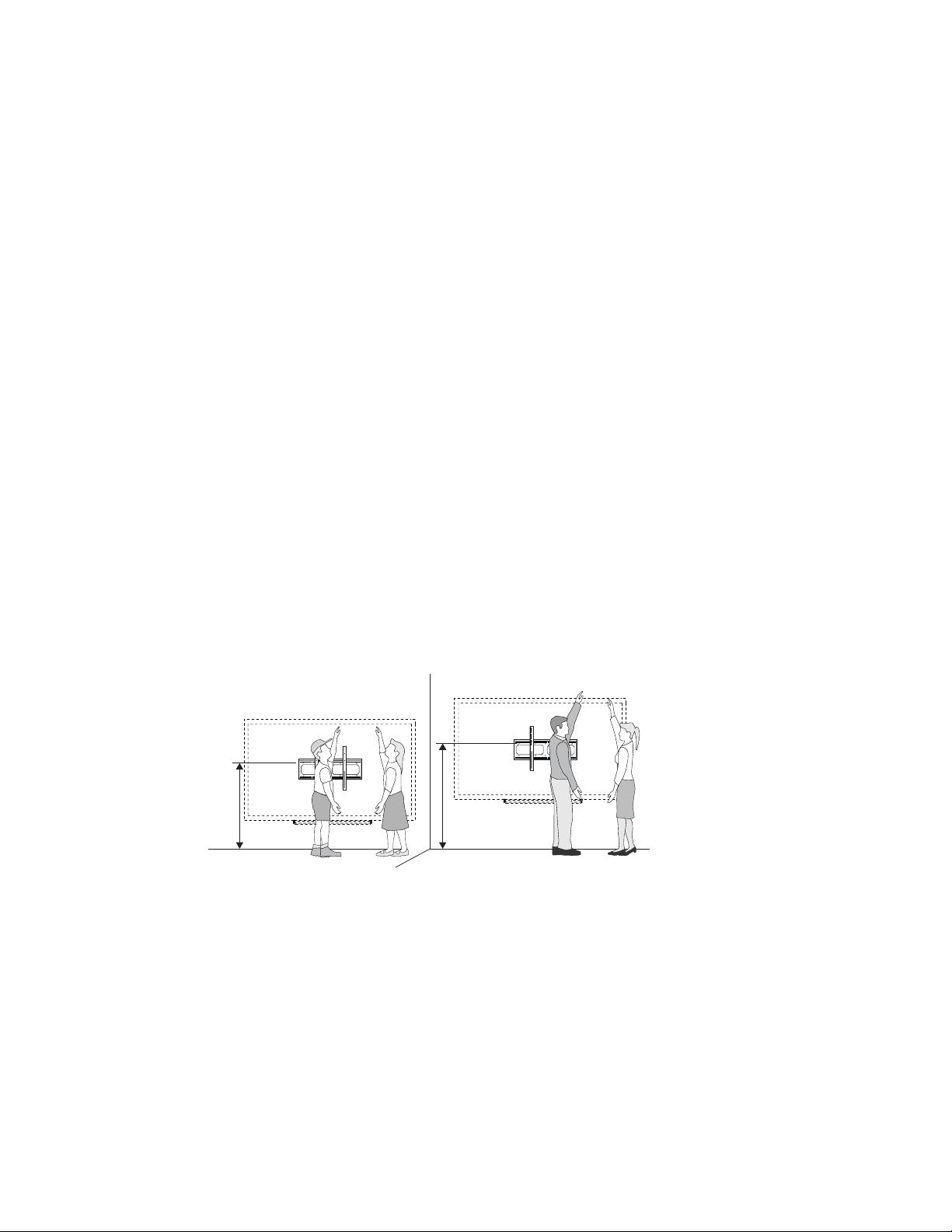

Choosing a mounting height

Consider the general height of the user community when you choose the height for the interactive

flat panel.

The flat panel height is based on the midpoint between the reach of the students and the teacher.

Cable management

When you connect cables to the interactive flat panel from a computer and other peripheral

devices, ensure that the cables aren’t a trip hazard. Use channels and raceways to safely secure

and hide cables. Contact your authorized SMART reseller for these accessories.

4 smarttech.com/kb/170534

CHAPTER 2

MOUNTING YOUR INTERACTIVE FLAT PANEL

IMPORTANT

Do not connect the power cable to a power outlet until you have connected all cables to the

interactive flat panel.

Connecting your interactive flat panel

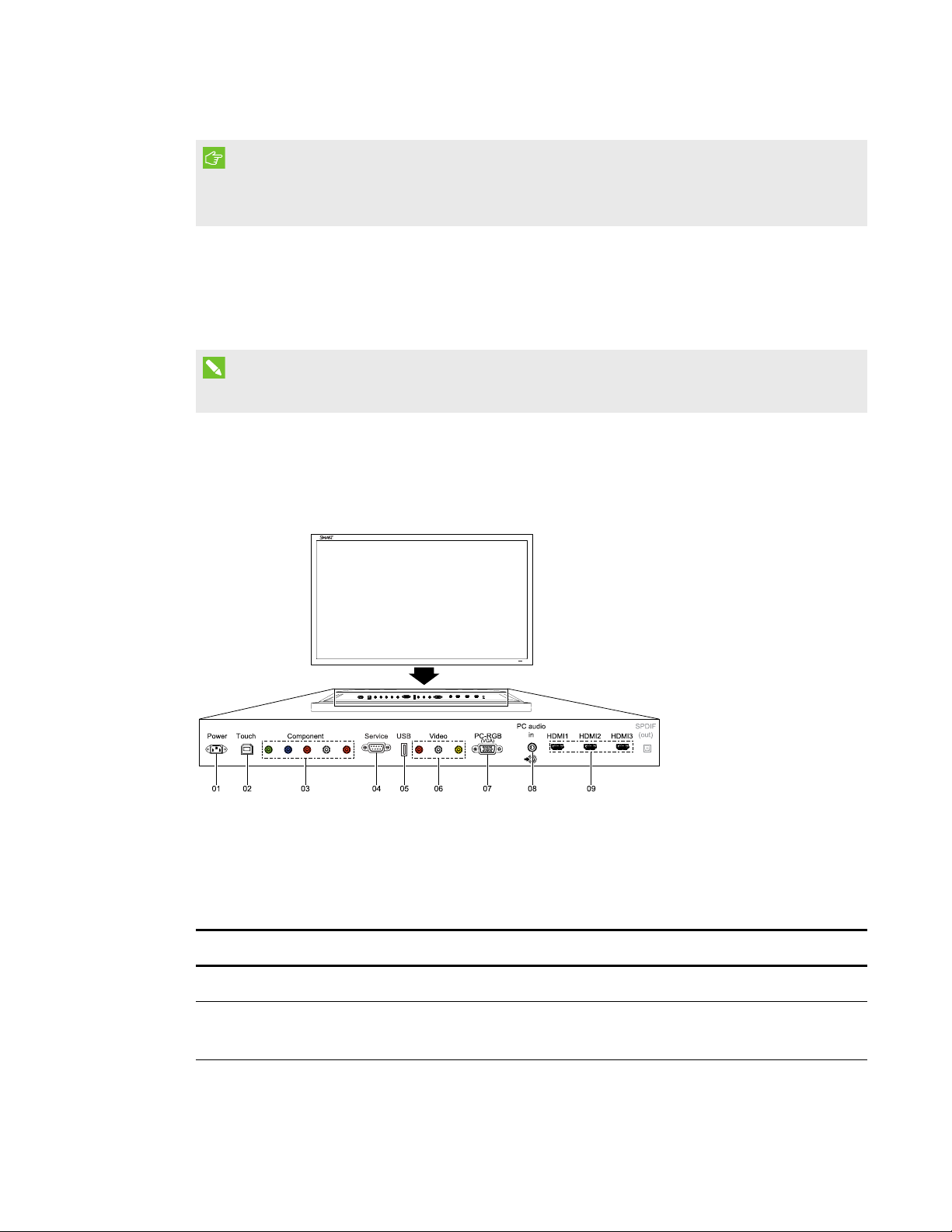

The connector panel is at the bottom of the interactive flat panel.

NOTE

The power, PC-RGB (VGA) and USB cable are included with your interactive flat panel.

No. Connector Details

1 AC power AC power pass-through

2 USB B receptacle Computer to interactive flat

panel touch interface

5 smar ttech.com/kb/170534

CHAPTER 2

MOUNTING YOUR INTERACTIVE FLAT PANEL

No. Connector Details

3 Video in Component video receptacle

4

5 USBA Media port (see Multi media

6 Video in Composite video receptacle

7 Video in

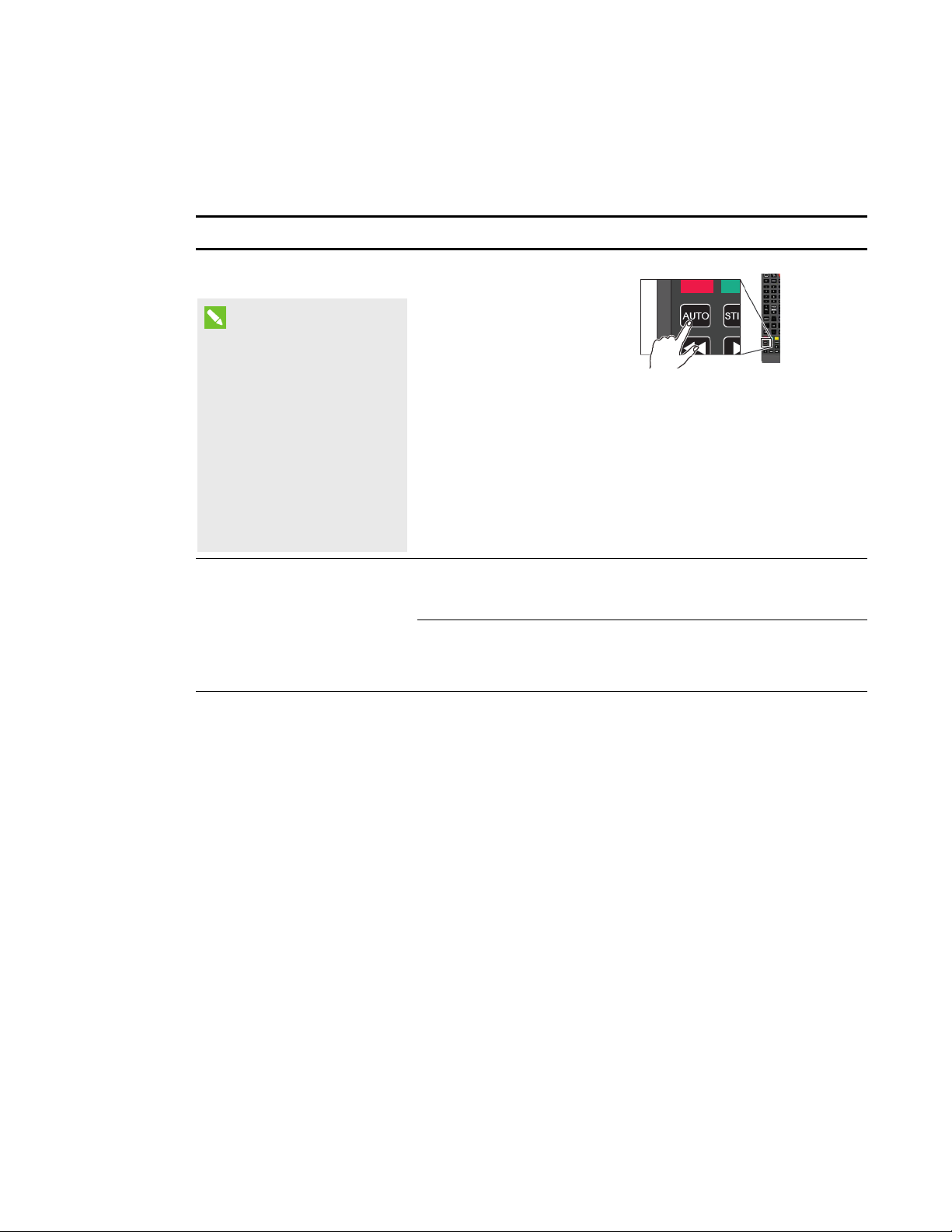

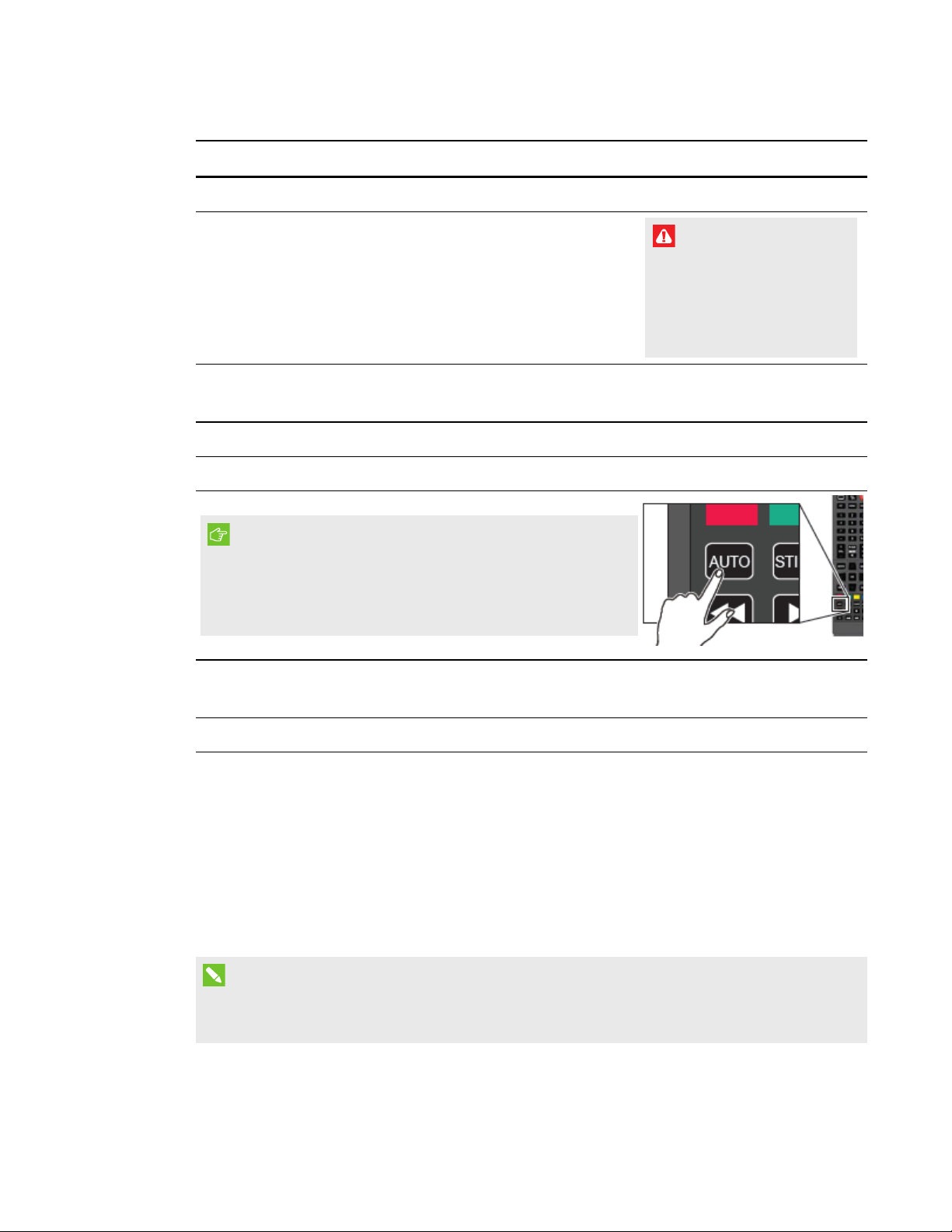

IMPORTANT

If you see flickering or the display is not sized correctly
pressing the Auto button will help with the adjustment
process. Ensure that you check and change E70 display to
recommended resolution for best performance.

8 Audio in Stereo 3.5 mm connector (from

Service port

WARNING

Do not use this connector.
This service connector for
the interactive flat panel
must be used only by a
qualified technician.

mode)

PC-RGB (VGA)

computer)

9 Video in HDMI®

Configuring your computer’s screen resolution

When you connect a computer to the interactive flat panel, you may have to adjust the computer’s

screen resolution to achieve the best image quality and touch performance.

Recommended computer screen resolution

NOTE

SMARTrecommends using 1920 × 1080 or 1280 × 720 screen resolutions for best image quality

and touch performance.

6 smar ttech.com/kb/170534

CHAPTER 2

MOUNTING YOUR INTERACTIVE FLAT PANEL

The table below lists the recommended computer screen resolutions for your interactive flat

panel:

1920 × 1080 * 1280 × 768

1600 × 1200 1280 × 720 *

1280 × 1024 1024 × 768

1360 × 768 800 × 600

1280 × 960 640 × 480

The resolutions marked with an asterisk (*) are recommended for best image quality and touch

performance.

Windows 7 and Windows 8 operating systems

To configure your computer’s screen resolution

NOTE

This procedure varies depending on your version of the Windows operating system and your

system preferences.

1. Right-click the desktop and then select Screen Resolution.

2. Click Display > SMARTE70.

From the Display drop-down menu, select your interactive flat panel.

3. From the Resolution drop-down menu, select a screen resolution. See Recommended

computer screen resolution on the previous page for more information.

4. Click OK.

The computer applies the new screen resolution. See Configuring and calibrating your

SMART Board E70 interactive flat panel with Windows for setup and extended display

settings.

7 sm arttech.com/kb/170534

CHAPTER 2

MOUNTING YOUR INTERACTIVE FLAT PANEL

MacOSX operating system software

To configure your Mac computer’s screen resolution

Select the Apple ( ) menu > System Preferences.

1.

The System Preferences dialog box appears.

2. Click Displays.

3. Select a screen resolution from the list. Refer to Recommended computer screen resolution

on page6 for more information.

The computer applies the new screen resolution. See Calibrating your SMARTBoard E70

interactive flat panel with Mac OS X for setup and extended display settings.

8 smar ttech.com/kb/170534

Chapter 3

Using the remote control 9

Using the control panel 12

On-screen display menu 13

Picture settings 13

Audio settings 13

Setup settings 14

Time settings 14

Multi Media mode 14

Compatible file formats 15

Video 15

Audio 15

Images 15

Cleaning the interactive flat panel 16

Preventing condensation 16

This chapter describes the basic operation and setup of your interactive flat panel.

Using the remote control

Use the remote control to access on-screen menus and to change the interactive flat panel’s

settings.

9 smar ttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

No. Button Details

1 PC Selects the VGA input

2 HDMI Select the HDMI input

3 [Number buttons] Press buttons on the number pad to change channels

4 VOL +/- Increase or decrease the audio output level

5 [Up and down buttons]

Select a menu option in the on-screen display menu

6 MENU Display the on-screen display menu

10 smar ttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

No. Button Details

7 [Left and right buttons] l Select an option in the on-screen display menu

l Use the right button to increase a value

l Use the left button to decrease a value

8 INFO Display the current video source

9 STILL Turn still picture mode on or off

10 AUTO

Automatically adjusts the VGA video input

IMPORTANT

This automatically adjusts the image to match the
settings the display adapter is sending. In most cases,
this will solve touch issues. You can adjust the display
settings of the interactive flat panel if needed.

11 [Media buttons] For use in Multi Media mode

12 S.MODE Switch between stereo and mono sound

13 P.MODE Switch between color modes

14 EXIT Close the on-screen display menu

15 INPUT Switch video inputs

16 MUTE Mute the sound

17 CH +/- Change channels

18 P.SIZE Select the video aspect ratio

19 SLEEP Set the sleep timer

20 VIDEO Select the RCA input

21 Power Turns the interactive flat panel on or off

22 Multi Media button Display the Multi Media mode

11 smar ttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

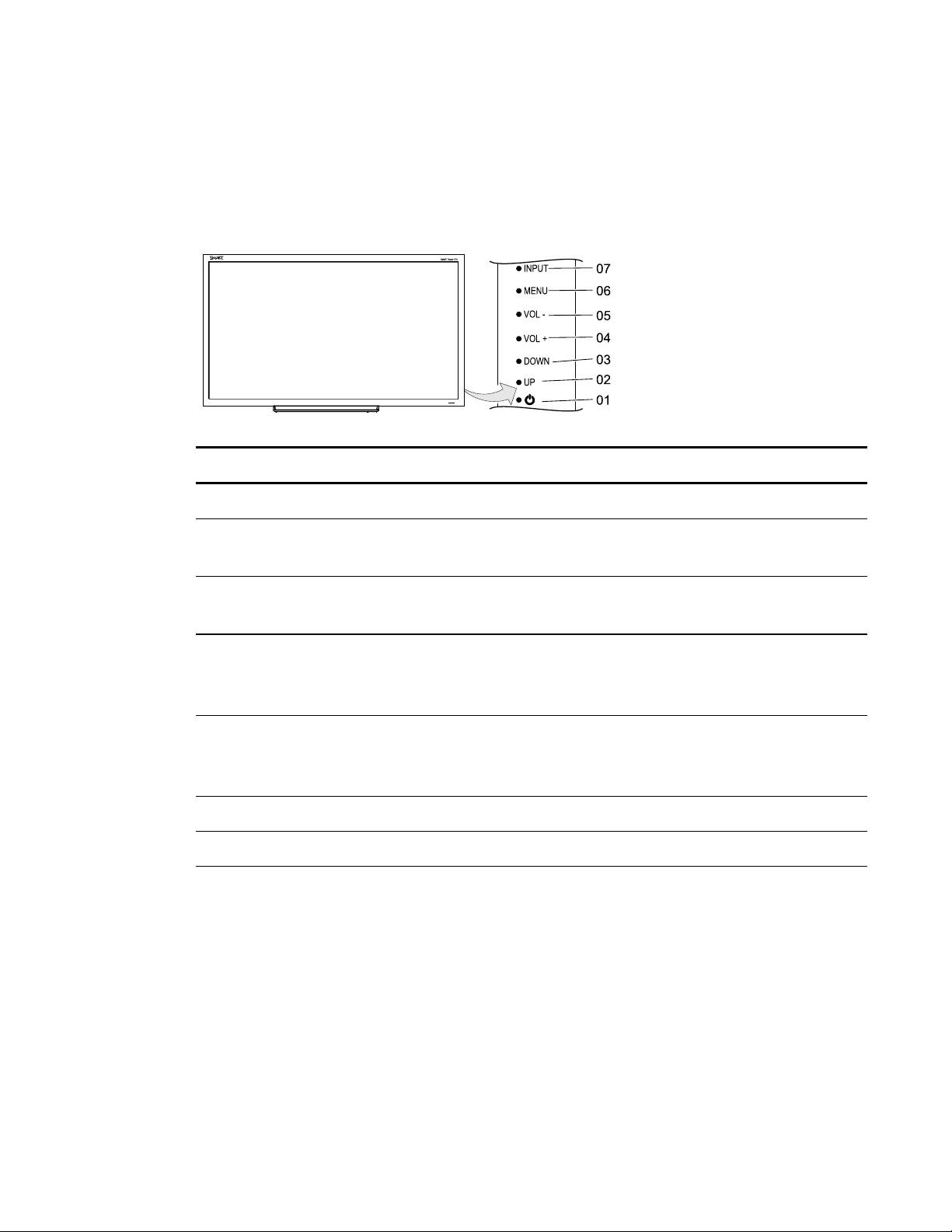

Using the control panel

Use the control panel on your interactive flat panel to access the on-screen display menu and

adjust settings.

No. Button Details

1 Power Turn the interactive flat panel on or turn off

2 UP Move the highlighted area up to select items in the on-

screen display menu

3 DOWN Move the highlighted area down to select items in the

on-screen display menu

4 VOL+ Move the highlighted area left to select items in the on-

screen display menu, increase the audio output level or

increase a value

5 VOL- Move the highlighted area right to select items in the on-

screen display menu, decrease the audio output level or

decrease a value

6 MENU Display the on-screen display menu

7 INPUT Select a video input for the interactive flat panel

12 smarttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

On-screen display menu

You can access the on-screen display (OSD) menu by pressing MENU on the side panel of your

interactive flat panel or on the remote control. To exit the OSD menu, press MENU on the

interactive flat panel's side panel, or press EXITon the remote control.

Picture settings

Option Value Function


Mode

Brightness 0-100 Sets the overall brightness of the image and background

Contrast 0-100 Sets the brightness of the image in relation to the background

Tint 0-100 Sets the tint of the screen

Color 0-100 Sets the image color intensity

Color Temp

Custom

Standard

Mild

Vivid

Normal

Warm

Cold

Sets the picture mode

Sets the color temperature

Audio settings

Option Value Function

Surround [N/A] Turns the surround sound on or off

Sound Mode

Music

Standard

User

News

Movie

Sets the audio mode

Auto

Volume

13 smarttech.com/kb/170534

[N/A] Turns the automatic volume adjustment on or off

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

Setup settings

Option Value Function

Menu

Language

Menu Trans. [N/A] Sets the on-screen display menu’s transparency

Screen

Mode

Reset [N/A] Resets all Setup options

Software

Update

[Languages] Sets the on-screen display menu’s language

16:9

4:3

Zoom1

Zoom2

[N/A]

Sets the image size

NOTE

Software updates should be performed only by a system
administrator. Please contact your authorized SMARTreseller if
you require further assistance.

Time settings

Option Value Function

Time mode

Automatic

Manual

Sets the time mode

Time

Sleep Time

On Timer

On Time

Volume 0-100 Sets the volume when the interactive flat panel turns on

Off Timer

Off Time

[N/A]

[N/A]

[N/A]

[N/A]

[N/A]

[N/A]

Sets the time manually

Sets the sleep timer

Turns on the On Time function

Sets a time when the interactive flat panel turns on

Turns on the Off Time function

Sets a time when the interactive flat panel turns off

Multi Media mode

You can play video files, view images and listen to music stored on a USB drive. Use the remote

control to pause, fast-forward and rewind videos.

14 smarttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

Compatible file formats

The interactive flat panel can play the following file types.

Video

Category Code

MPEG1 MPEG1

MPEG2 MPEG2

MPEG4 AVC

MPEG-4 Visual

DivX5

DivX4

DivX3

XviD

MS-MEG4 V3

WMV3

MJPEG M-JPEG

Audio

l AC-3

l AAC

l MP3

l PCM

Images

l JPEG

l BMP

l PNG

l GIF

l TIFF

To access content on a USB drive

1. Turn on the interactive flat panel.

On the remote control, press the Multi Media button.

2.

15 smarttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

3. Connect a USB drive to the USB A receptacle on the bottom connector panel. See

Connecting your interactive flat panel on page5.

4. Using the remote control, select a file.

5. Press the Play button on the remote control to play or view the file.

Cleaning the interactive flat panel

Follow these instructions to clean the interactive flat panel without damaging its anti-glare coating

or other product components.

CAUTION

l Do not use permanent or dry-erase markers on the screen. If dry-erase markers are used on

the screen, remove the ink as soon as possible with a lint-free, non-abrasive cloth.

l Do not rub the screen with a dense or rough material.

l Do not apply pressure to the screen.

l Do not use cleaning solution or glass cleaner on the interactive flat panel screen, because

they can deteriorate or discolor the screen.

To clean the screen

1. Press the power button to turn off the display.

2. Wipe the screen with a lint-free, non-abrasive cloth.

Preventing condensation

The interactive flat panel screen contains layers of glass that can collect condensation, especially

in the following conditions:

l Temperature extremes with high humidity

l Rapid changes in humidity, which can occur when you operate the product near water (such as

a pool, kettle or air conditioner ventilator)

l Direct exposure to sunlight

l Cold air output from an air conditioner towards the bottom of the interactive flat panel.

16 smarttech.com/kb/170534

CHAPTER 3

USING YOUR INTERACTIVE FLAT PANEL

To evaporate condensation from the interactive flat panel

1. Remove the humidity source from the interactive flat panel, if possible.

2. Turn off the interactive flat panel.

3. Remove any moisture from the interactive flat panel with a smooth, dry cloth.

4. Leave the interactive flat panel turned off for 48 hours.

17 smar ttech.com/kb/170534

Chapter 4

panel

Locating the serial number 19

Resolving common touch control and resolution issues with Windows and Mac operating

systems 20

Resolving image issues 22

This chapter provides information necessary for solveing simple issues that occur with your

interactive flat panel. If issues persist, or aren’t covered in this chapter, contact SMARTSupport

(smarttech.com/support) or your authorized SMARTreseller (smarttech.com/where).

Locating the serial number

If you contact SMARTSupport, you might be asked to provide the interactive flat panel’s serial

number. The serial number is located under the front right bezel.

19 smarttech.com/kb/170534

CHAPTER 4

TROUBLESHOOTING YOUR INTERACTIVE FL AT PANEL

Resolving common touch control and resolution
issues with Windows and Mac operating systems

Problem Cause Solution

Resolution and/or touch
inaccuracies

NOTE

The recommended
resolutions for the
SMARTE70 interactive flat
panel are:

l 1920 × 1080 and

l 1280 × 720

See Recommended

computer screen resolution

in this guide for more
information and settings.

The interactive flat panel
doesn’t turn on.

The display's resolution is not
set to the recommended
setting.

The interactive flat panel isn’t
connected to a power source.

The interactive flat panel is in
Sleep mode.

Press the Auto

button on

the remote control. This adjusts
the image to match the settings
the display adapter is sending.
In most cases this will help or
solve touch issues. You can
manually adjust display settings
if needed. See Configuring

your computer’s screen
resolution.

Connect your interactive flat
panel to a power outlet.

Press the Power button on the
menu control panel or on the
remote control.

20 smar ttech.com/kb/170534

CHAPTER 4

TROUBLESHOOTING YOUR INTERACTIVE FL AT PANEL

Problem Cause Solution

Touch isn't working as
expected.

The USB cable between the
computer and the interactive
flat panel could be loose.

The interactive flat panel may
need to be turned off and then
turned on.

Bright lights are interfering with
the interactive flat panel.

Your interactive flat panel isn't
calibrated properly.

Pen and touch setting may not
be selected.

Check all cable connections.

Turn the interactive flat panel
off and then turn it on.

Close blinds or shades or dim
all halogen lights and LEDs.

Your interactive flat panel may
need to be re-calibrated.

IMPORTANT

The interactive flat panels are
pre-calibrated and oriented
at the factory. Calibration
should be performed only by
an administrator.

1. For Windows operating
systems, open Control Panel >
Pen and Touch.

2. Select the Touch tab.

3. Ensure that the following
options are selected:Use your
finger as an input device and

Enable multi-touch gestures
and inking.

4. Click Apply and/or OK.

21 smarttech.com/kb/170534

The required drivers for
Windows operating system
were not installed.

Ensure that Windows
automatically installed the
required device drivers. The
interactive flat panel and AFO
TCM10X-700 HID should be
listed under Windows Devices
and Printers.

CHAPTER 4

TROUBLESHOOTING YOUR INTERACTIVE FL AT PANEL

Resolving image issues

Problem Causes Solution

When the video source is
HDMI, the image and audio are
low quality.

The image is poor quality
and/or doesn’t fit on the
screen.

The cable between the HDMI
source and the interactive flat
panel could be loose.

The HDMI cable could be too
long.

The computer's screen
resolution is incorrect.

Check all cable connections.

Ensure that the length of HDMI
cable doesn’t exceed 23' (7 m).

See Configuring your

computer’s screen resolution

on page6 to select the correct
screen resolution.

22 smarttech.com/kb/170534

Appendix A

SMARTBoard E70 interactive flat
panel with Windows

If your SMARTBoard E70 interactive flat panel has an inaccurate touch or the touch is not working,

you may need to configure or calibrate it. Follow the instructions below to configure and calibrate

your SMARTBoard E70 interactive flat panel.

IMPORTANT

The SMARTBoard E70 interactive flat panel is factory calibrated. We recommend that you

resolve touch inaccuracy through configuration prior to calibration.

Configuring your touch and display settings for
the SMARTBoard E70

If touch is inaccurate:

l See the list below for supported resolutions for your SMART Board E70 interactive flat panel:

1920 × 1080 * 1280 × 768

1600 × 1200 1280 × 720 *

1280 × 1024 1024 × 768

1360 × 768 800 × 600

1280 × 960 640 × 480

The resolutions marked with an asterisk (*) are recommended.

NOTE

There should be no black bar bars on the top bottom or on either side of the image, the

image should completely fill the screen.

23 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

l If you have multiple displays for example and laptop connected to your E70, ensure that they

are set up correctly (See Setting up multiple displays).

l Check your graphics card configuration (see Graphics card configuration).

l Check your panel settings (see Panel settings).

l Calibrate or clear previously set calibration data (see ).

If there is no touch

l Ensure that the USB cable is properly connected.

l Try power cycling the SMARTBoard E70.

l Ensure that Windows automatically installed the required device drivers the SMART E70 and

AFO TCM10X-700 HID should be listed under Windows Devices and Printers.

l If you have multiple displays, ensure the pen and touch are settings are correct (see Setting

up multiple displays).

Graphics card configuration

If you’re using an unsupported graphics card configuration, you may experience a display problem

or issues with touch accuracy. For example, you may experience issues if your graphics card

scaling option is set to something other than full-screen.

IMPORTANT

When using an ATI video card they must go into the ATI Catalyst Control panel, go to the Flat

Panel menu, select Pixel Format and change it to RGB 4:4:4 timing.

Panel settings

Ensure that you set the SMARTBoard E70’s Screen Mode to either 16:9 or Full and that you select

the correct input source.

Ensure that you set Screen Mode to 16:9 or Full, and that you select the correct input source.

To select input

On the remote or on the side panel press Input. Use the arrows to select the correct input

source.

24 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

To set Screen Mode

1. Press Menu on the remote or on the side panel.

The on-screen display menu appears.

2. Press the up and down buttons and select Setup.

3. Press the right button on the remote control or VOL- to select Screen Mode.

Select 16:9 if not already selected.

Setting up multiple displays

When you use your SMARTBoard E70 in a multiple display environment (that is, your computer has

an additional monitor or a built-in display), you must ensure that your display settings are

configured properly for your operating system.

Windows XP operating system

Ensure that:

l Your computer’s display is mirrored

OR

l The E70 is the primary display

Windows 7 or 8 operating system

To set up the SMARTBoard E70 as your touch screen:

NOTES

l Ensure the resolution has been set to recommend settings prior to calibration.

l Steps to calibration, first Setup then Calibrate (only calibrate if required).

a. Setup tells the system what device is a touch device and enables touch, test touch

device after Setup if touch is accurate the calibration step may not be required.

b. Calibration fine tunes touch points.

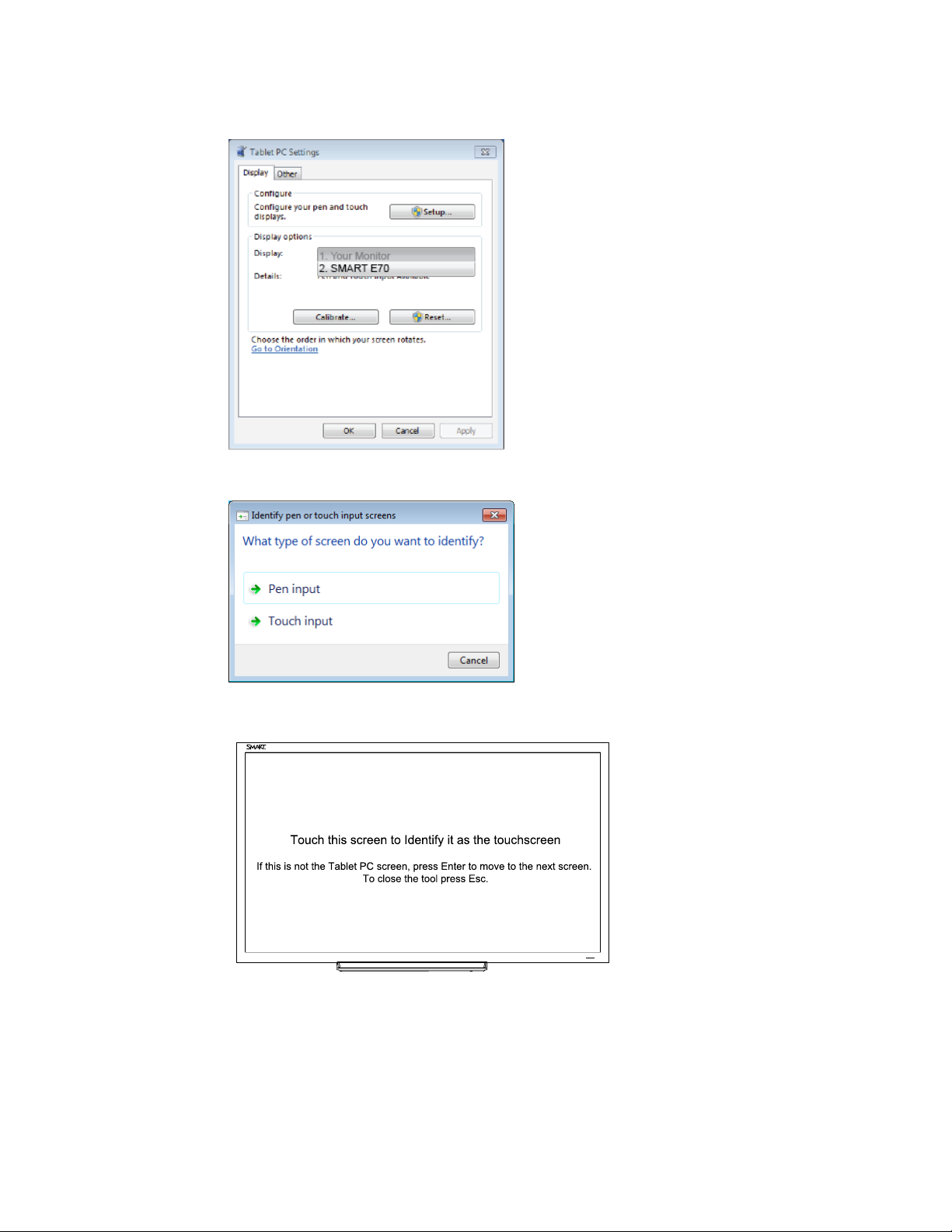

1. Open Control Panel > Tablet PC Settings. Ensure that the Display tab is visible. Ensure that

the Display tab is visible. Select SMARTE70 from the Display drop down menu.

25 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

2. Click Setup Windows displays the following page; select Touch input.

3. Windows displays the following page on your first display:

4. If necessary, press Enter until the page is displayed on your touch screen.

5. Tap your touchscreen two or three times until the text changes.

26 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

6. Press enter to skip through any remaining screens until the window closes.

NOTE

Do not touch any further touch screens as the correct association between the selected

monitor and touch screen will be lost.

7. Click OK.

IMPORTANT

If you have difficulty with the above procedure, set up your E70 as the primary monitor (or

main display) and try again. You can switch your main display back to its original setting after

you have successfully identified the E70 as your touch screen.

Calibrating your E70 with Windows 7 or 8

Calibration ensures that your E70 recognizes the position of your pen. In Windows 7, when you

calibrate for the first time, the screen uses 16 different reference points. This initial calibration

applies to all users of the E70. If you calibrate again, only 4 points are used, and apply only to your

user account. http://windows.microsoft.com/en-ca/windows7/getting-more-out-of-your-tablet-pc

Under normal conditions, the SMARTBoard E70 should not require calibration. However,

calibration may be required if touch is inaccurate.

NOTE

Calibration should be done only by an administrator.

To calibrate your SMARTBoard E70:

1. Launch Control Panel -> Tablet and PC Settings. Ensure that the Display tab is visible. Select

E70 from the display drop down menu.

27 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

NOTE

If you have multiple monitors ensure that you have identified the SMART E70 interactive flat

panel as your touch screen with Windows 7 and Windows 8 operation systems, see

previous step "Setting up multiple displays"

2. Click Calibrate.

3. Then tap each cross as they appear.

NOTE

Each cross hair may take several attempts, so please be patient with this process.

4. Follow the instructions on screen.

28 smarttech.com/kb/170534

APPENDIX A

CONFIGURING AND CALIBRATING YOUR SMARTBOARD E70 INTERACTIVE FLAT PANEL WITH WIND OWS

5. When finished, click OK on the Tablet and PC settings page to commit your changes.

NOTE

If you make a mistake like tapping somewhere else other than the cross hair you will have to

repeat the procedure.

The process is complete.

TIP

To clear your calibration data; for example, if you accidentally performed the procedure,

click “Reset”.

29 smarttech.com/kb/170534

Appendix B

panel with MacOSX

You need to calibrate the SMARTBoard E70 interactive flat panel after you install the software or if

you change the display resolution.

Calibrating your SMARTBoard E70

Before you calibrate your SMART E70 interactive flat panel, ensure that you have installed the

required drivers. See smarttech.com/E70Software for product drivers and software.

To calibrate your SMARTBoard E70

1. Select the Orientation from system tray or SMARTSettings

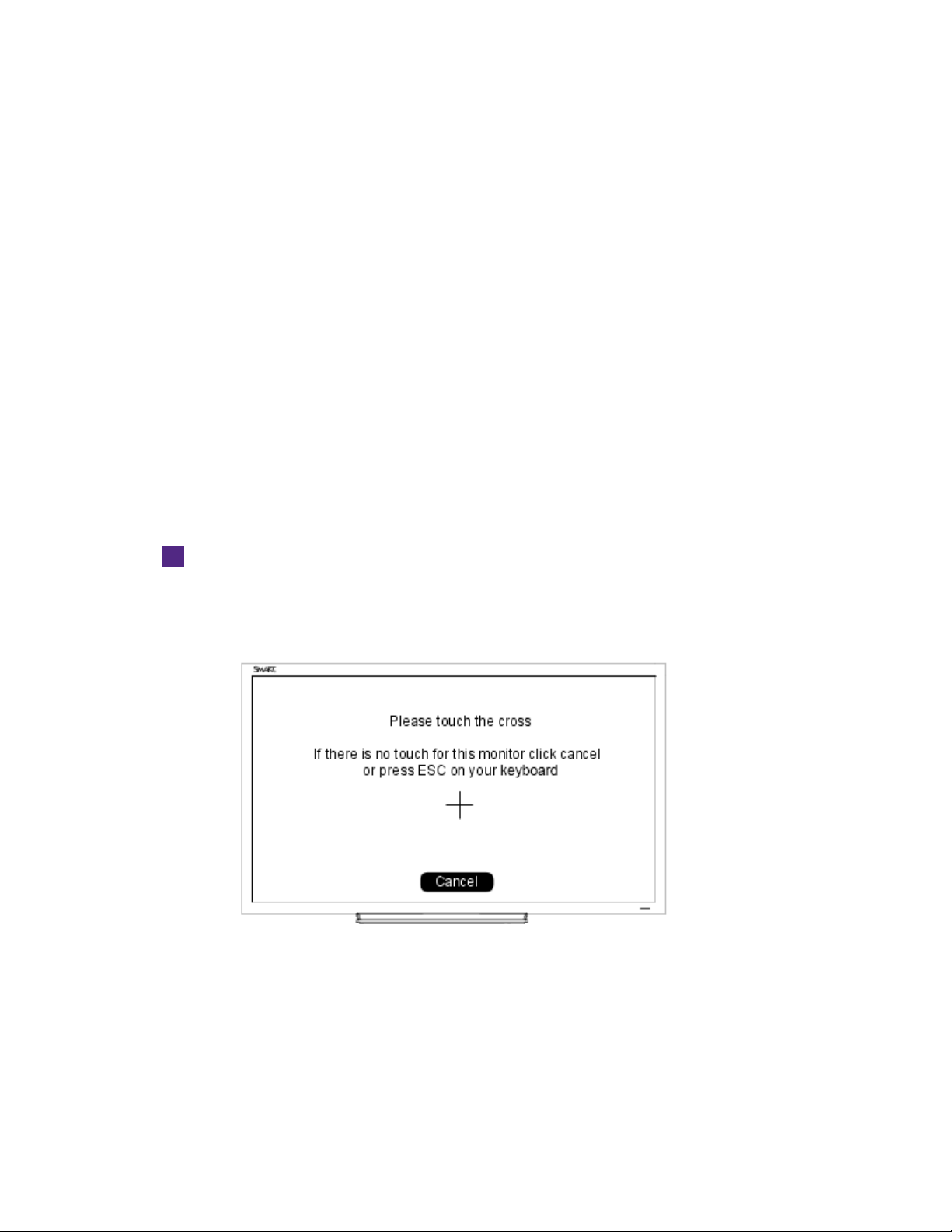

The following screen is displayed on your first monitor.

2.

If you have multiple monitors, press Esc on your keyboard until the page is visible on your E70

touch interface.

31 smarttech.com/kb/170534

APPENDIX B

CALIBRATING YOUR INTERACTIVE FLAT P ANEL WITH MACOSX

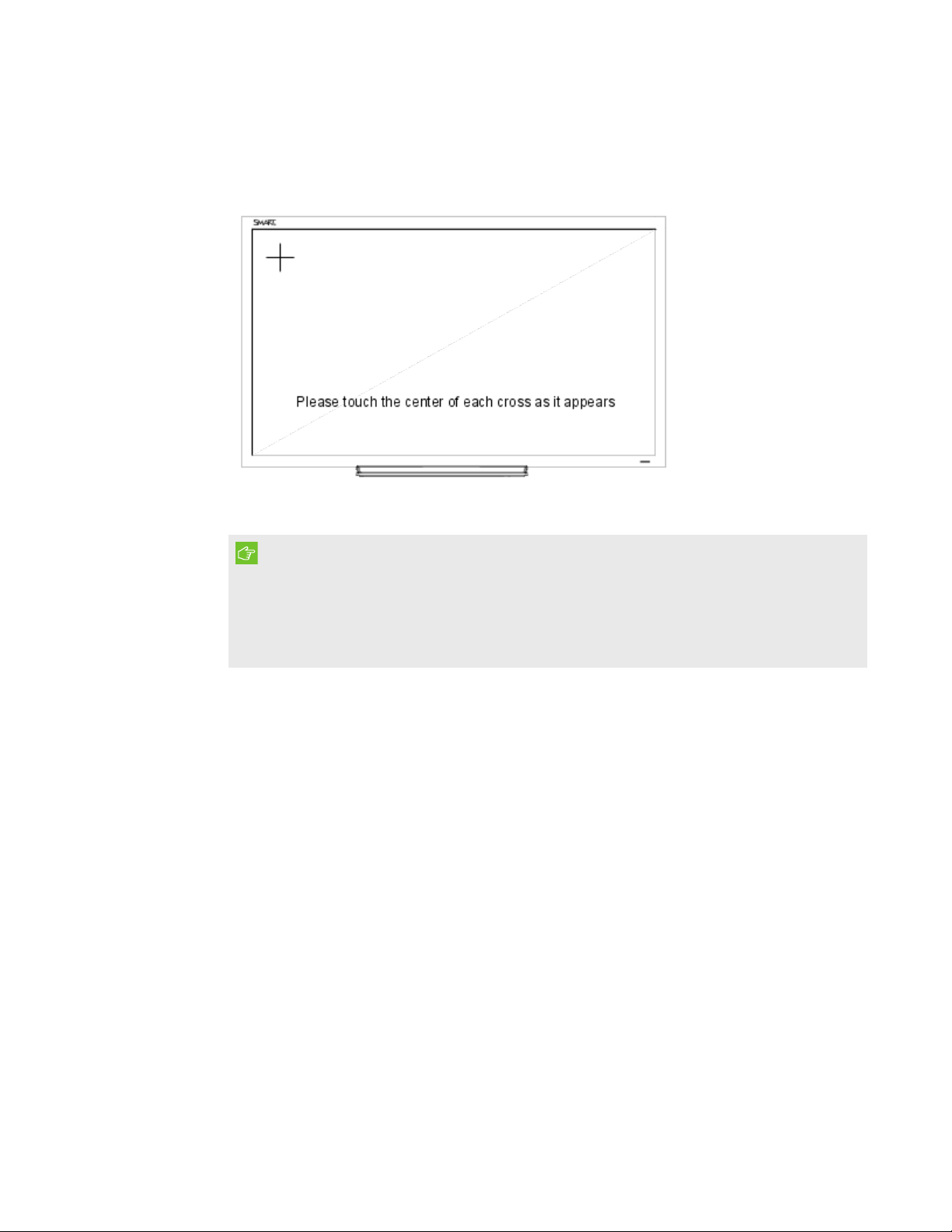

3. Tap the cross. After a few seconds the following screen appears. In some cases, you may

have to tap twice.

4. Tap each cross as they appear once.

IMPORTANT

If there are multiple monitors, the orient screen will automatically move to the next monitor.

If this other monitor is NOT an E70 touch screen press ESC or click Cancel with the mouse. If

you accidentally touch the board while the screen is on this monitor, then you will have to

repeat the above procedure.

32 smarttech.com/kb/170534

Appendix C

compliance

SMARTTechnologies supports global efforts to ensure that electronic equipment is manufactured,

sold and disposed of in a safe and environmentally friendly manner.

Waste Electrical and Electronic Equipment and
Battery regulations (WEEE and BatteryDirectives)

Electrical and electronic equipment and batteries contain substances that can be harmful to

the environment and to human health. The crossed-out wheeled bin symbol indicates that

products should be disposed of in the appropriate recycling stream and not as regular

waste.

Batteries

Remote contains 2 AAA batteries. Recycle or dispose of batteries properly.

More information

See smarttech.com/compliance for more information.

33 smarttech.com/kb/170534

Index

A

accessories

included 2

Audio settings 13

B

batteries 33

F

file formats

compatible 15

I

Included cables 2

installation

choosing a location 4

P

pen 2

Picture settings 13

projector

installing 3

R

Recommended computer screen

resolution 6

remote control 2

S

serial number

locating 19

Setup settings 14

T

L

light sources 4

location 4

M

Menu control panel 12

Multi Media mode 14

O

on-screen display menu 13

35 smarttech.com/kb/170534

Time settings 14

tray 2

W

WEEE and Battery Directives 33

SMARTTECHNOLOGIES

smar ttech.com/support

smar ttech.com/contactsupport

smar ttech.com/kb/170534
